Engine Control Module

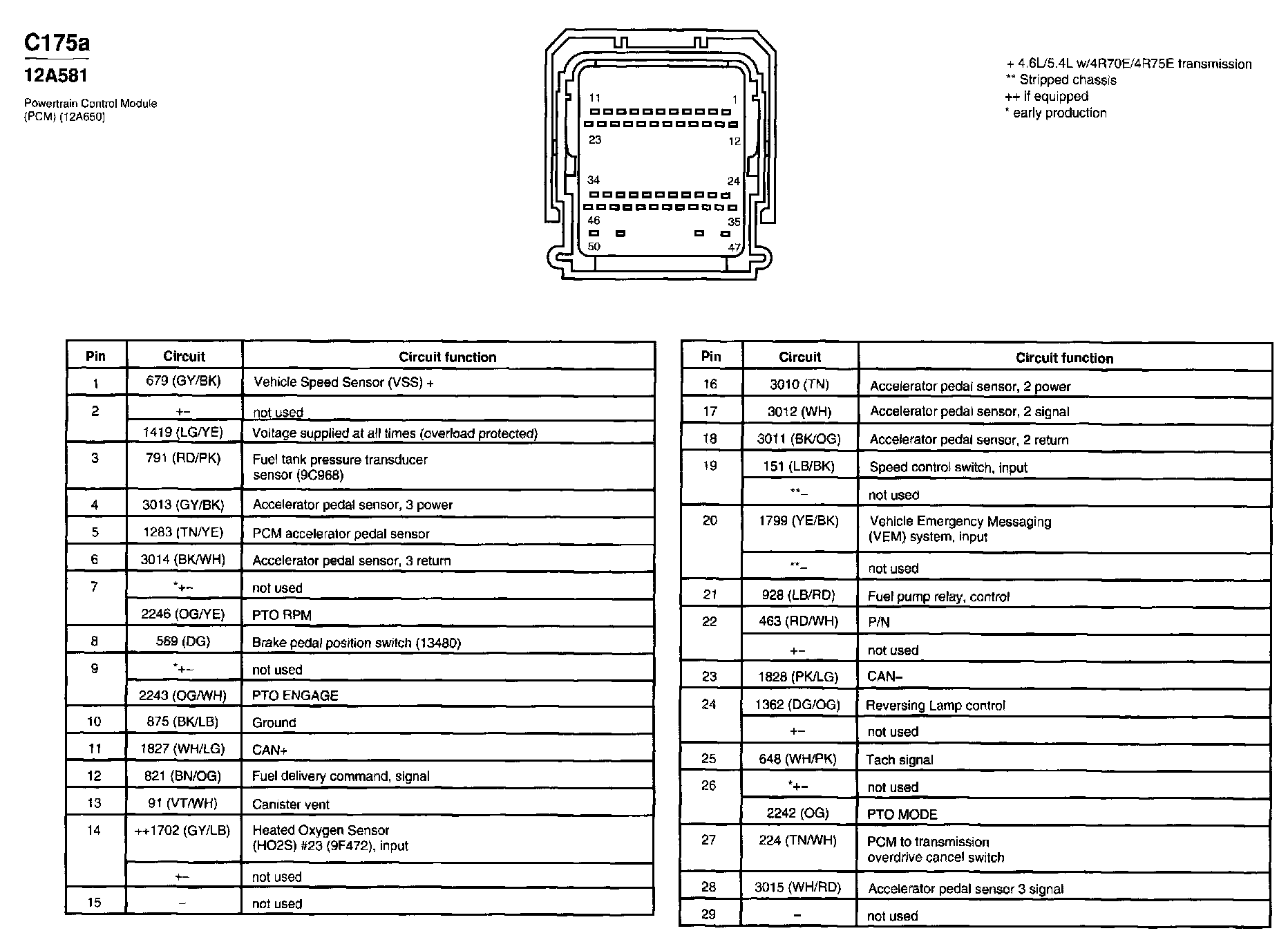

C175a (Part 1):

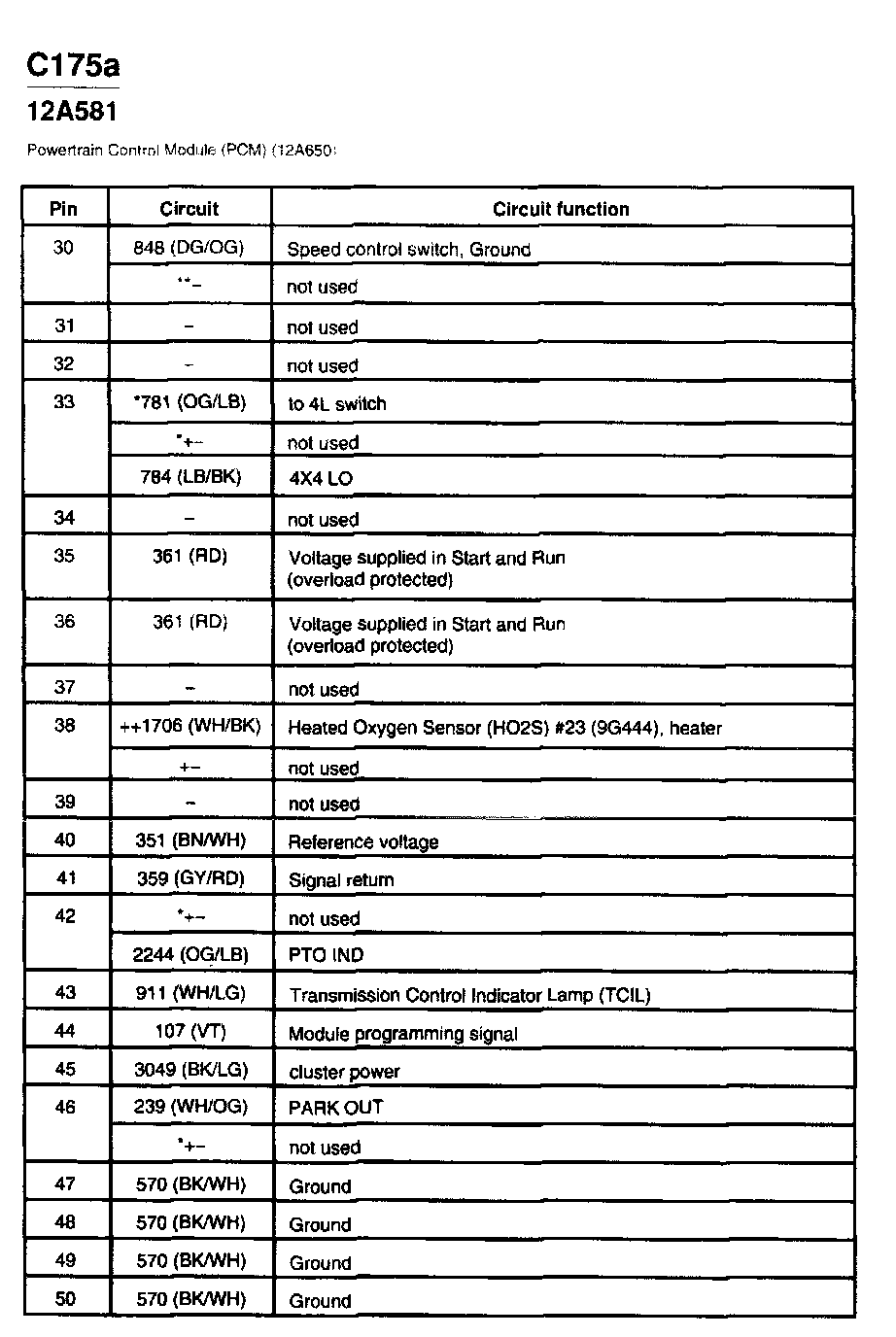

C175a (Part 2):

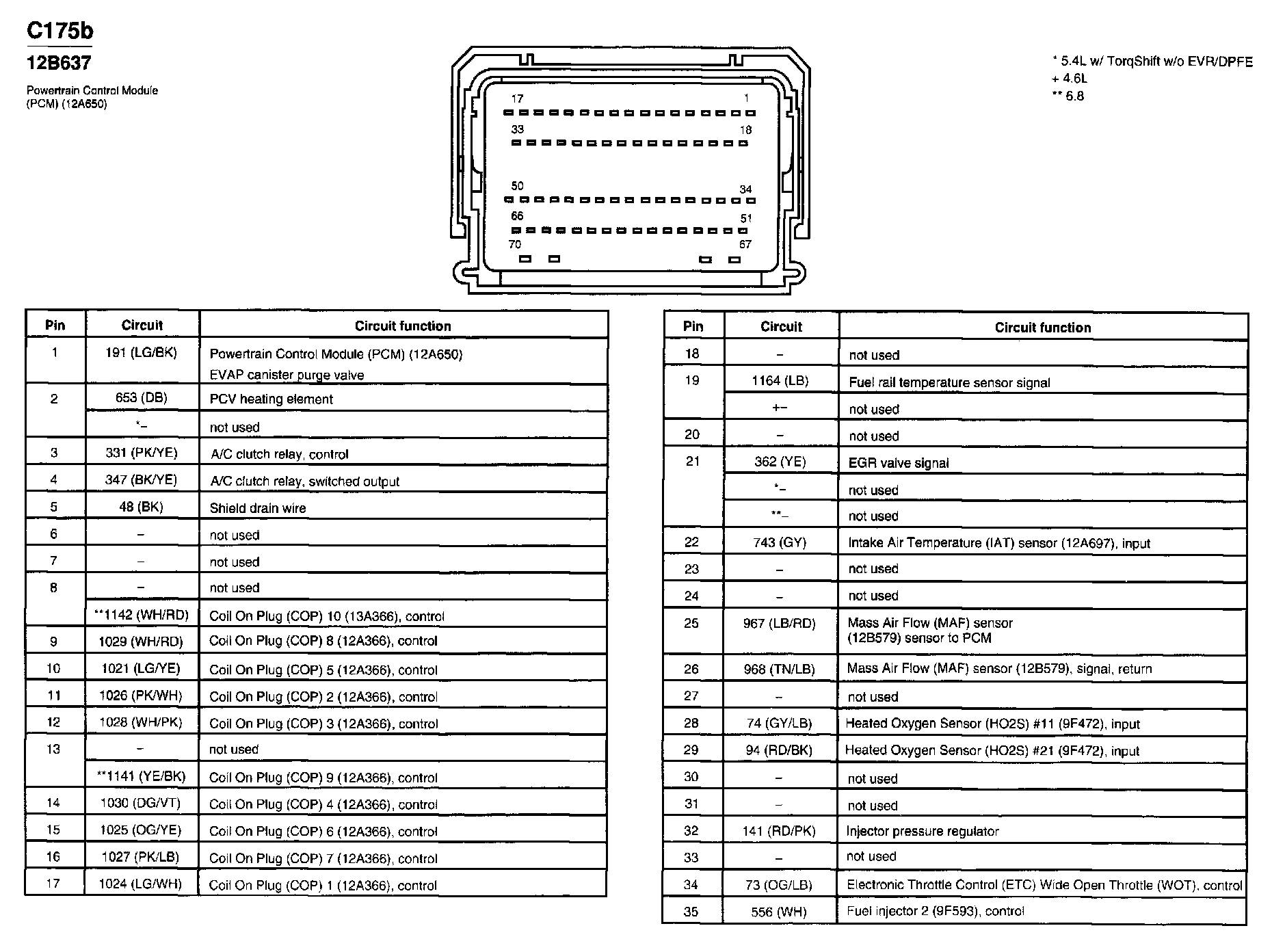

C175b (Part 1):

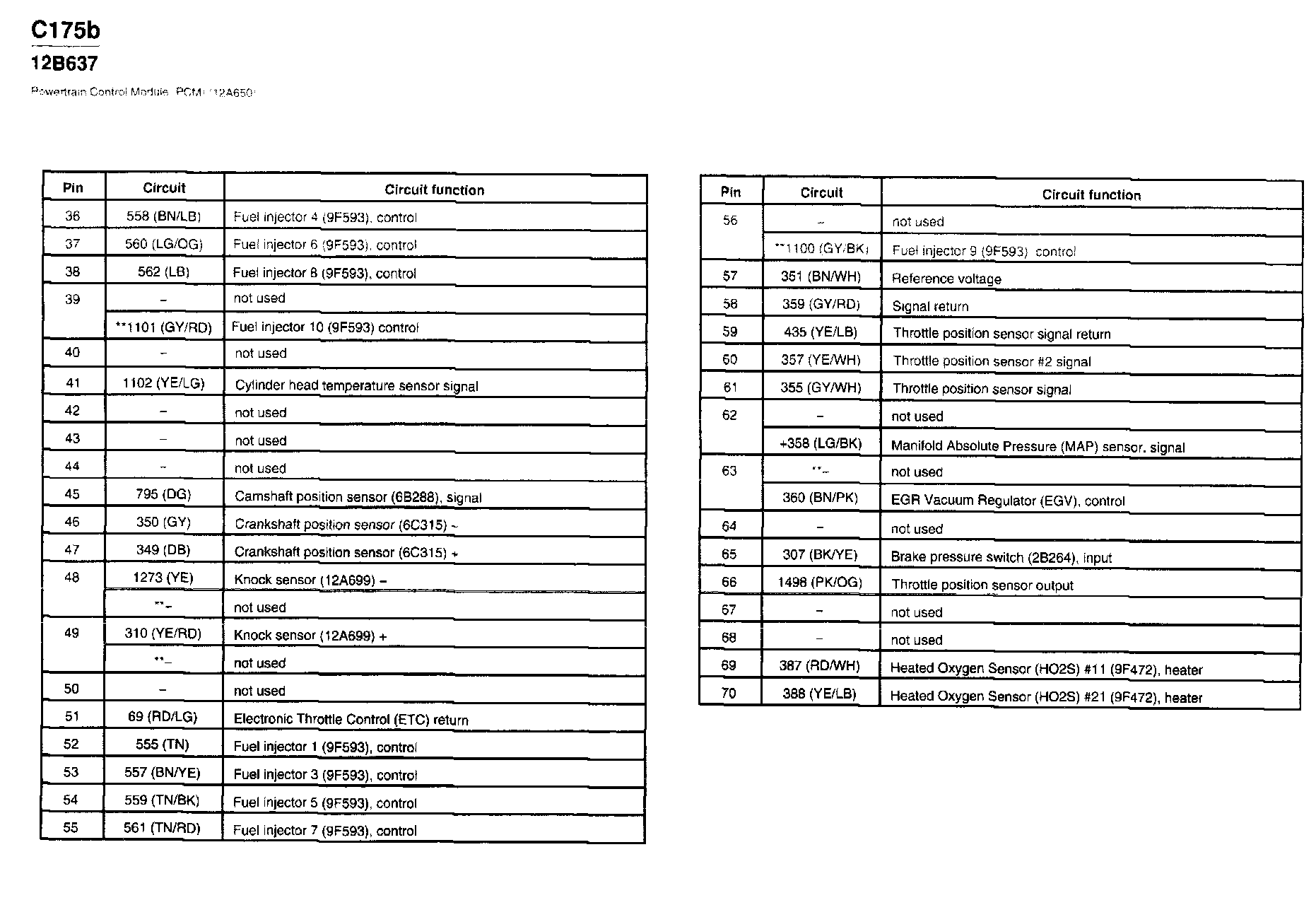

C175b (Part 2):

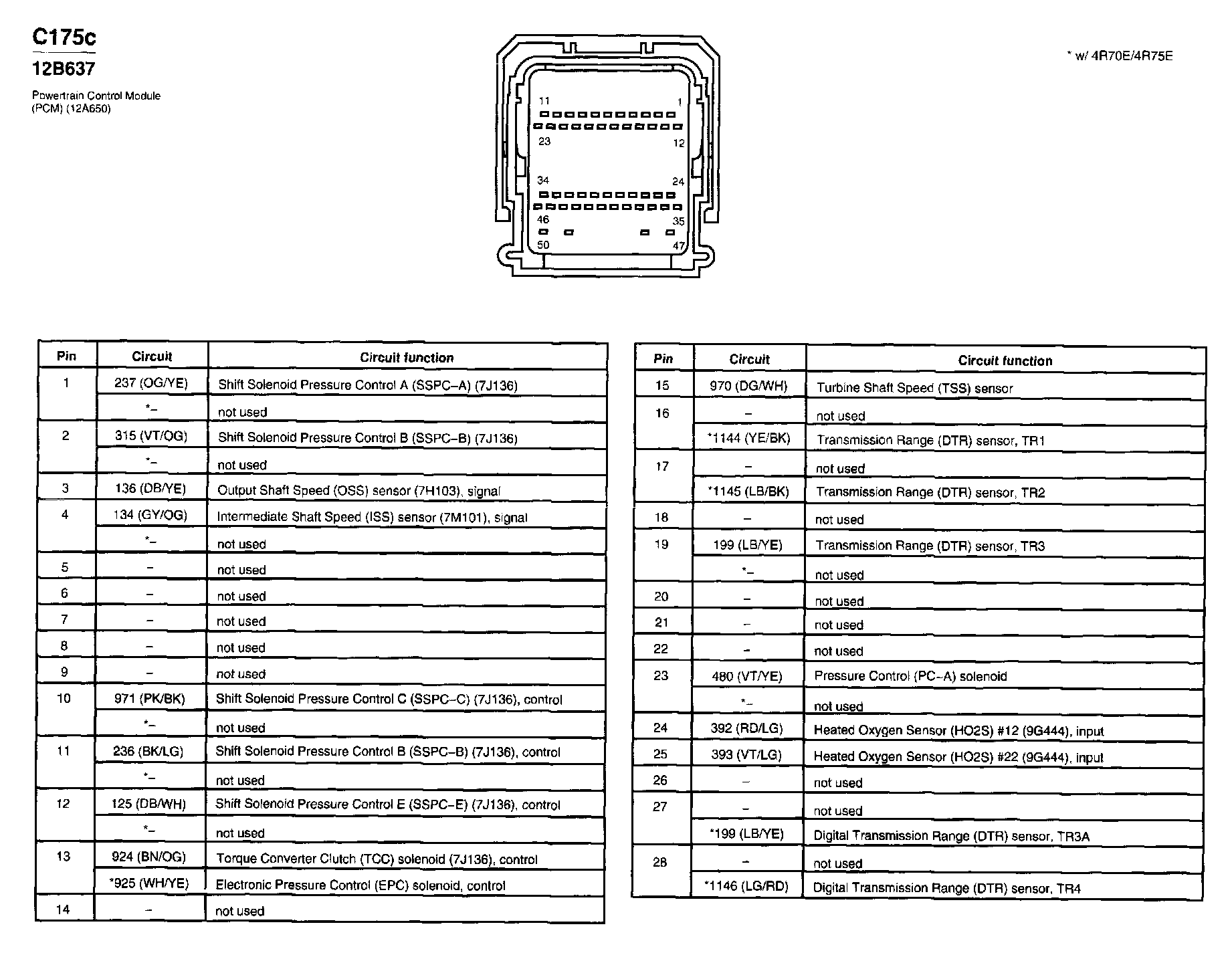

C175c (Part 1):



C175c (Part 2):

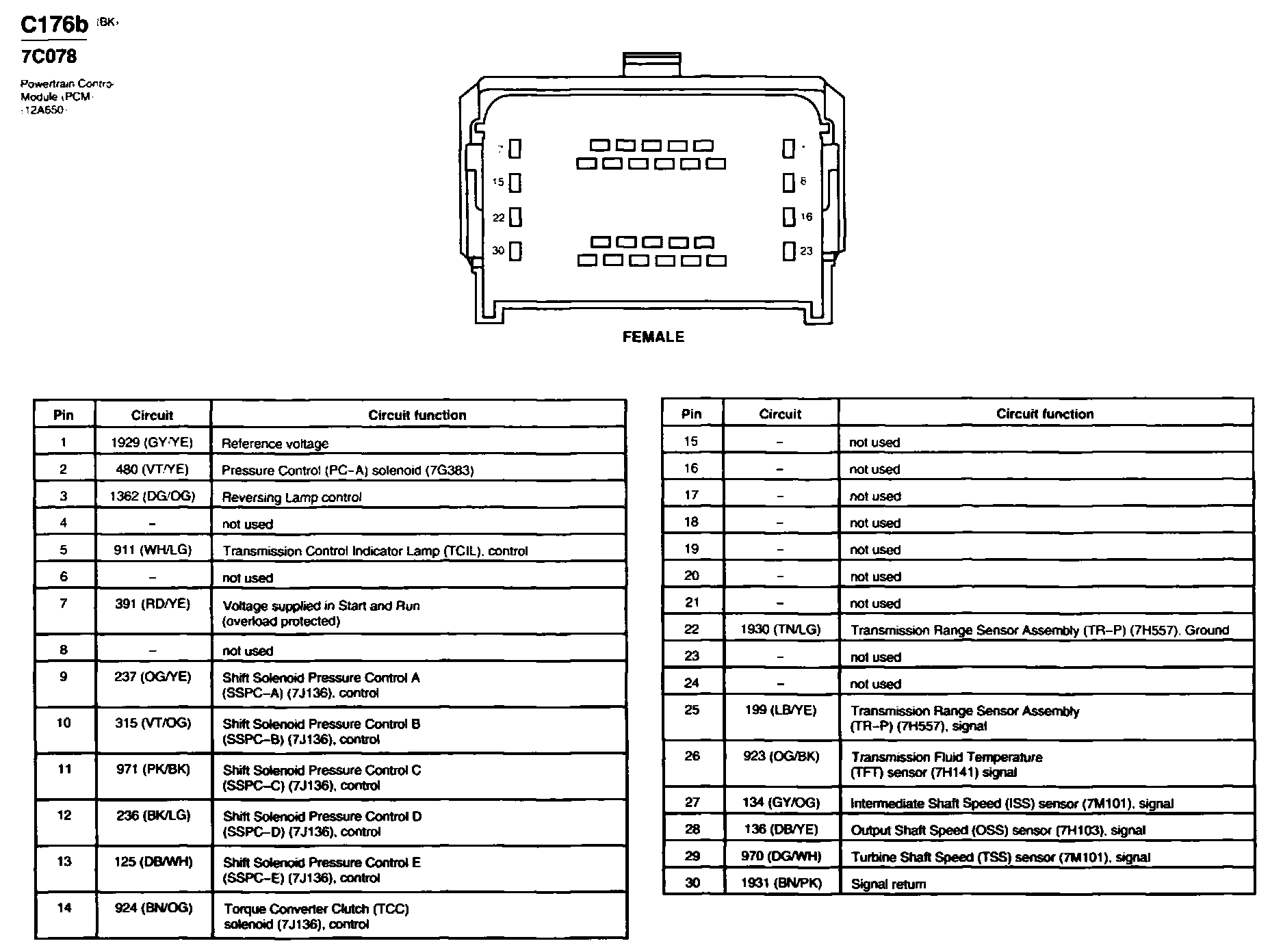

C176b:

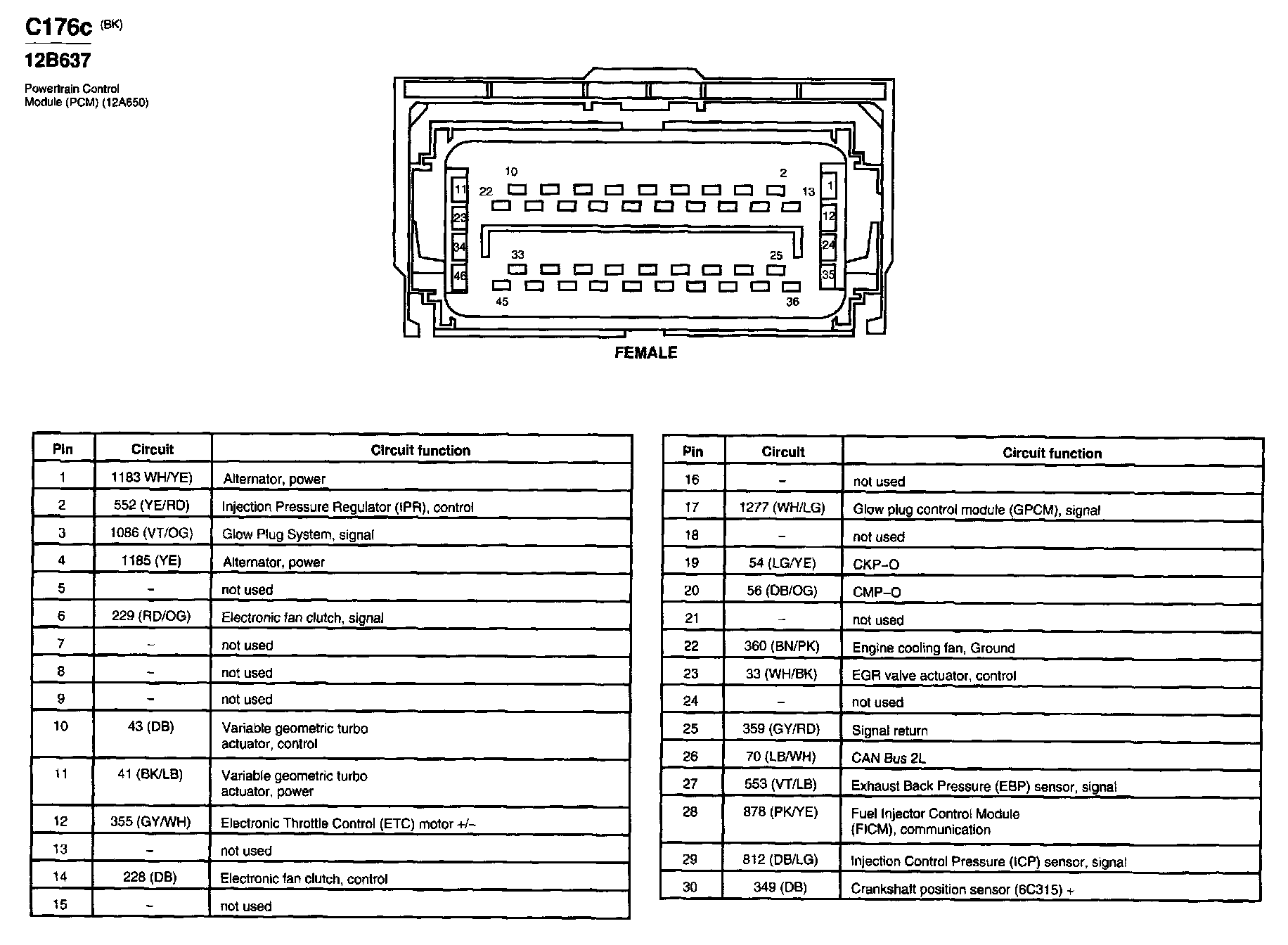

C176c (Part 1):

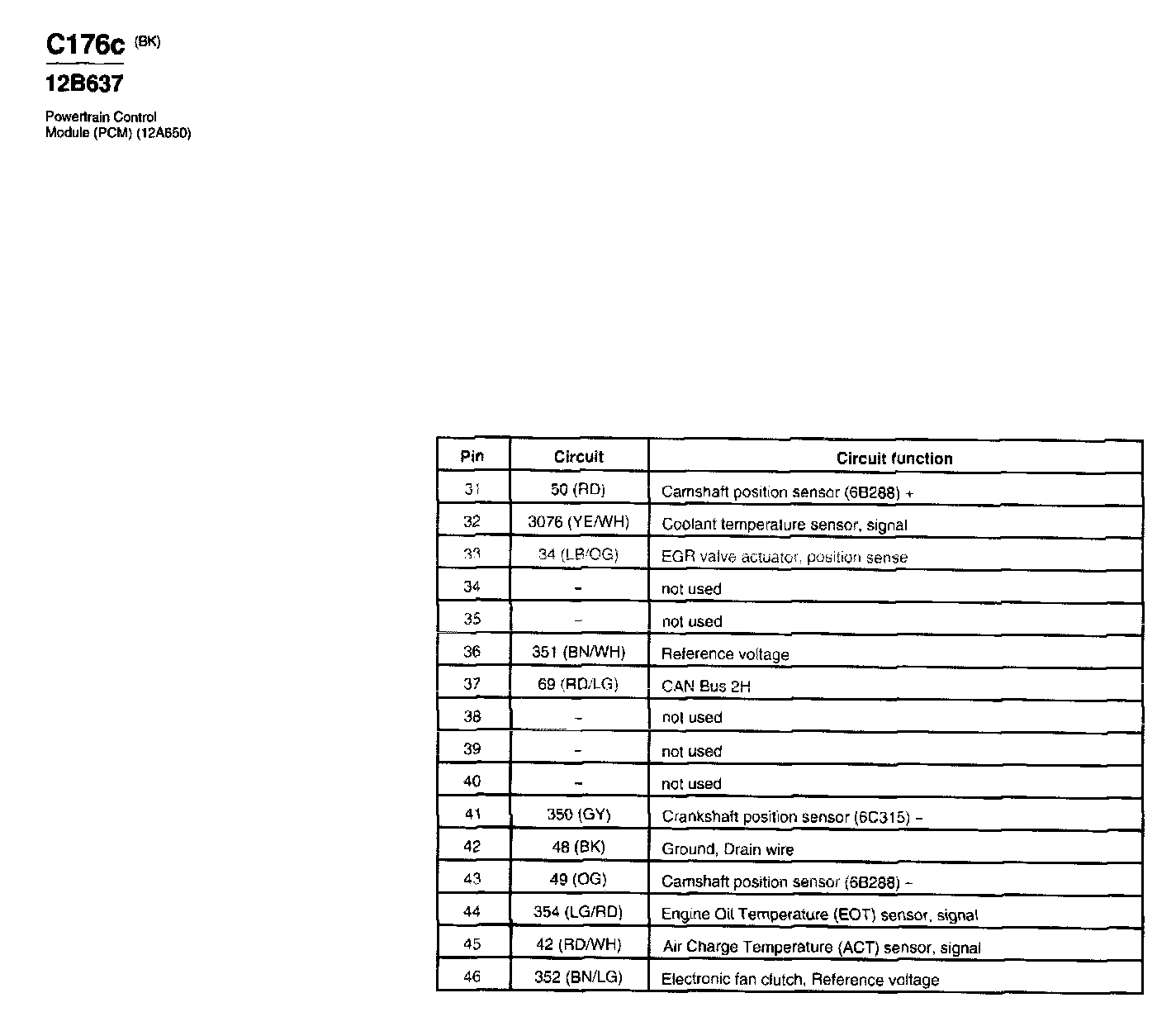

C176c (Part 2):
