Disc Brake System
Disc Brake System
- Exploded View

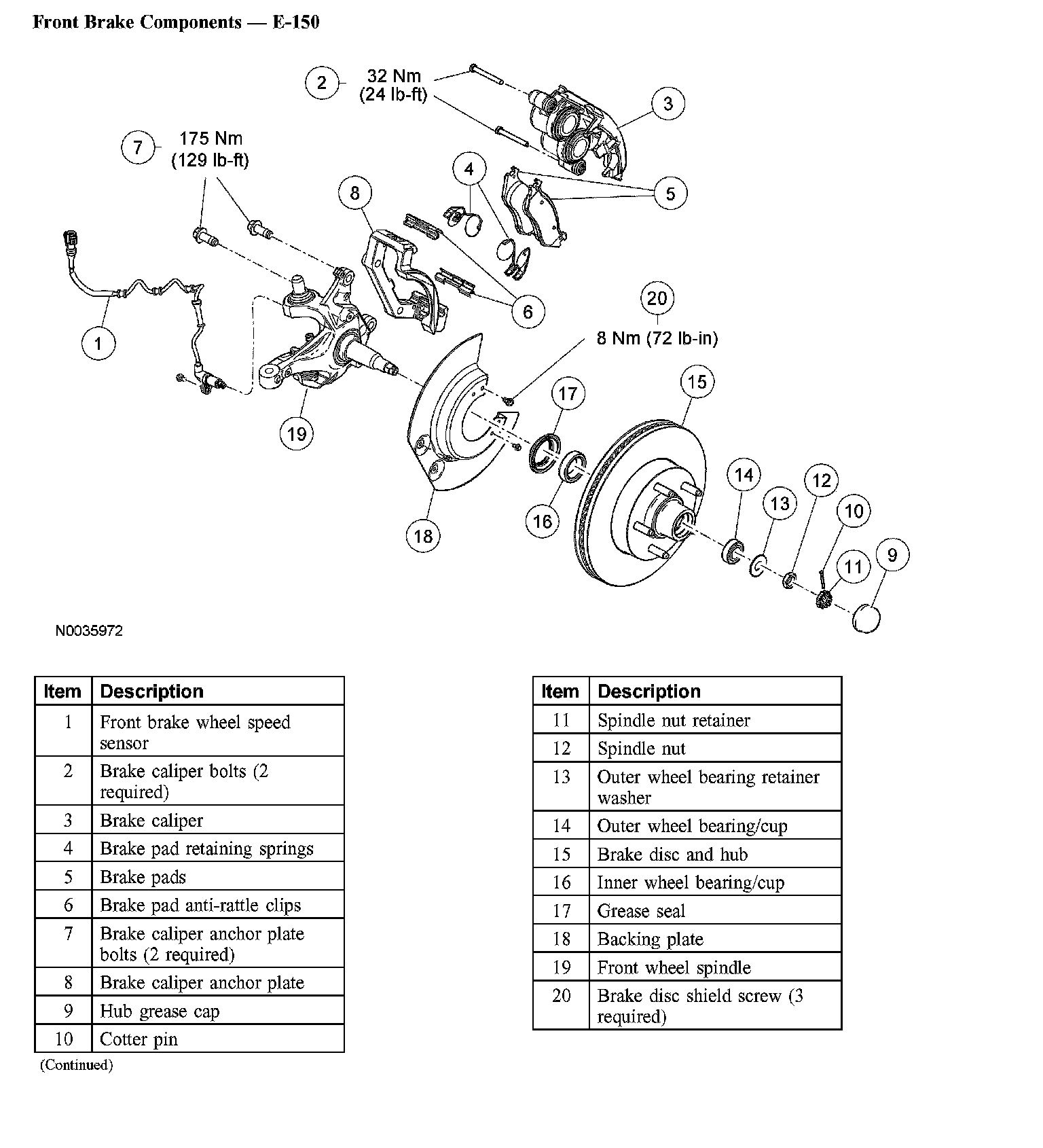

Front Brake Components - E-150:

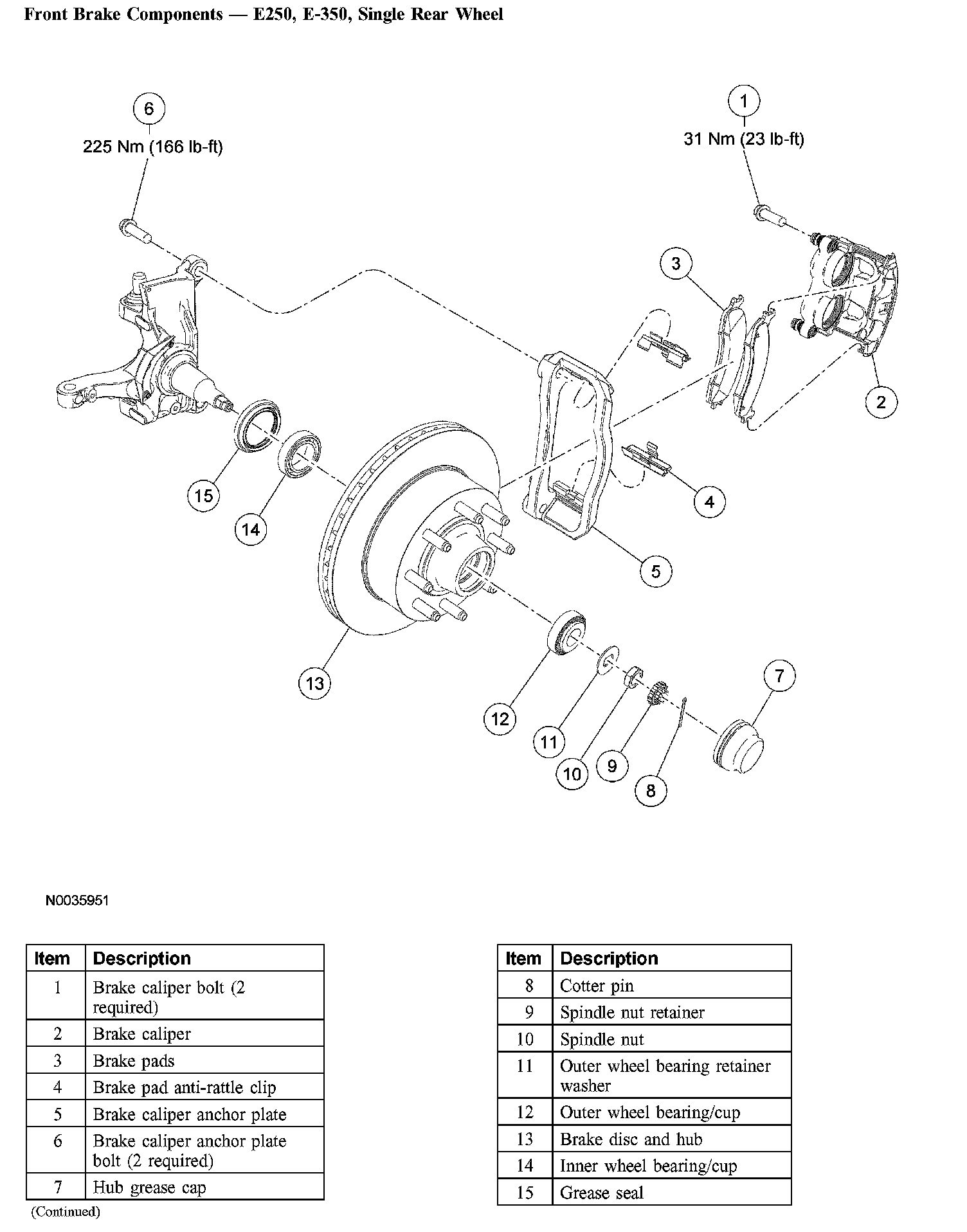

Front Brake Components - E250, E-350, Single Rear Wheel:

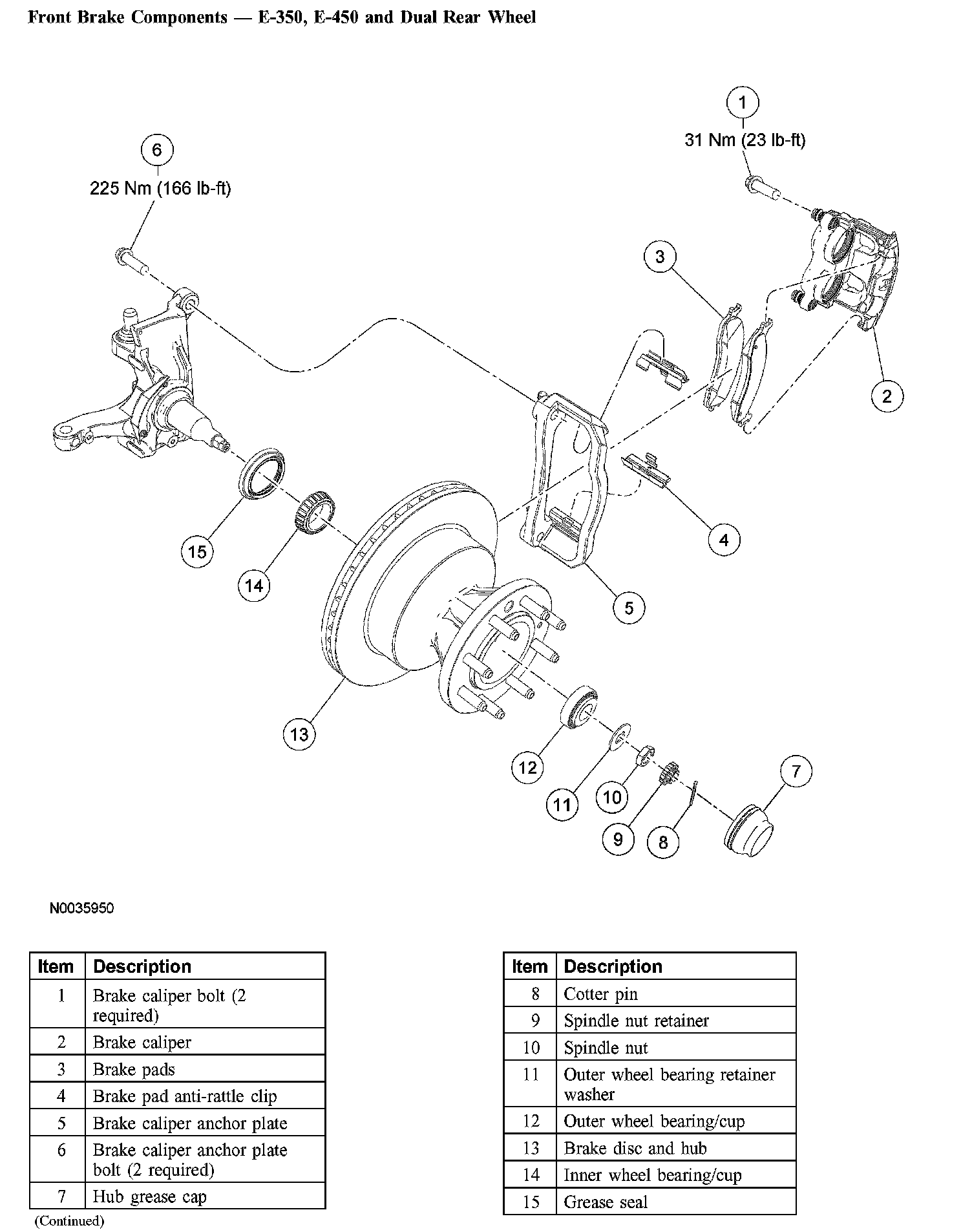

Front Brake Components - E-350, E-450 and Dual Rear Wheel:
