Test H: Fuel Control

PINPOINT TEST H: FUEL CONTROL

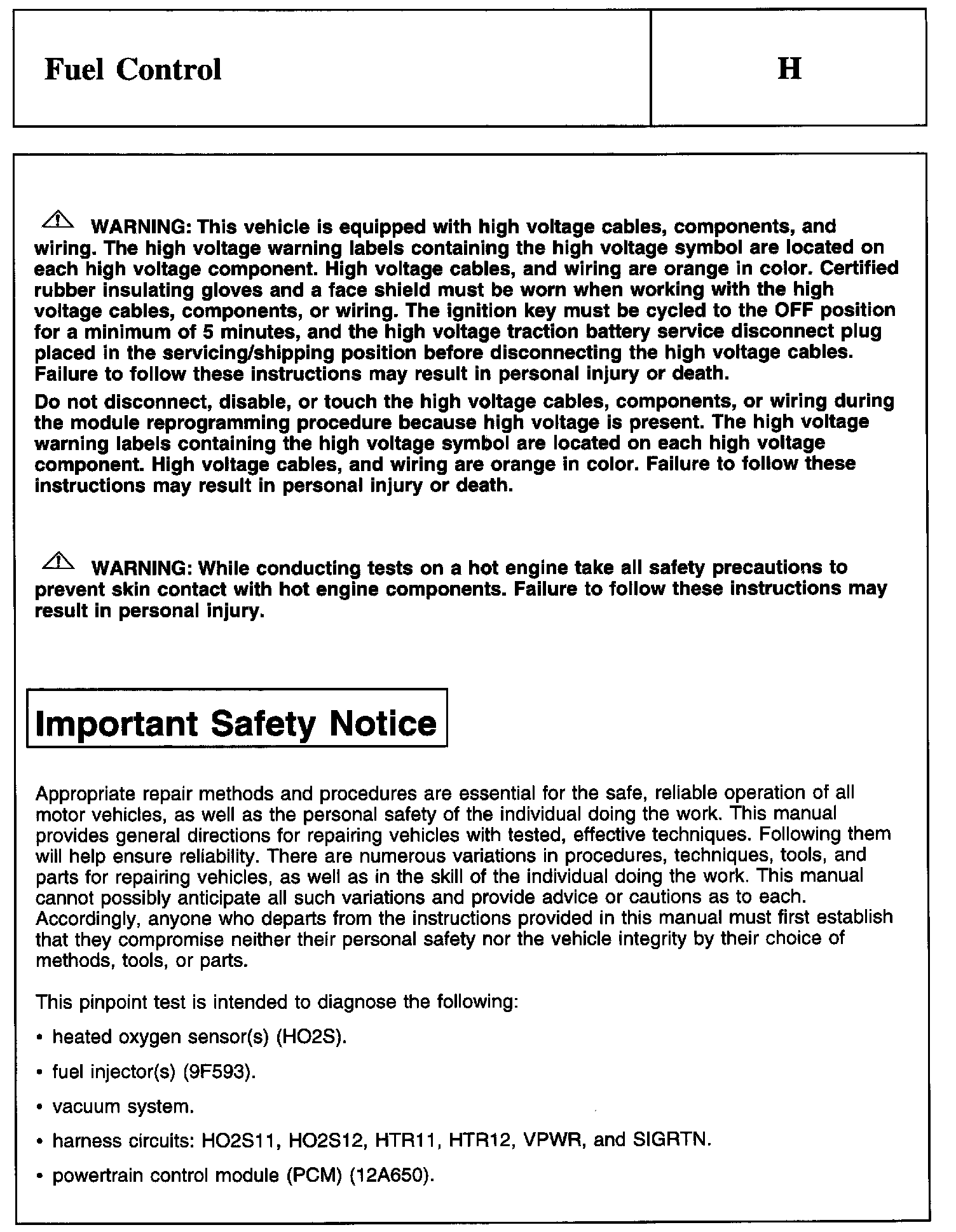

Warning And Important Safety Notice:

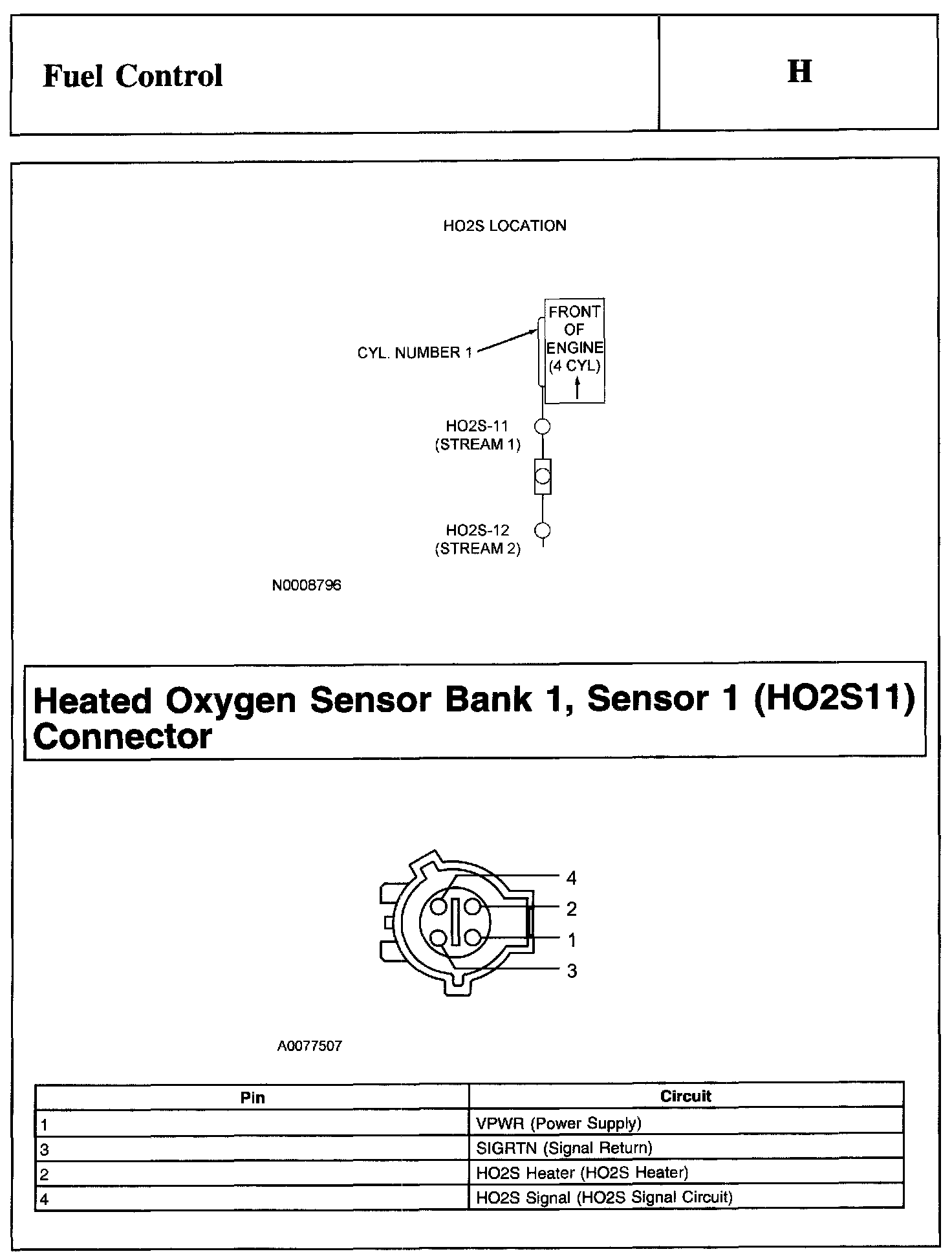

Schematic And Heated Oxygen Sensor Bank 1, Sensor 1 (HO2S11) Connector:

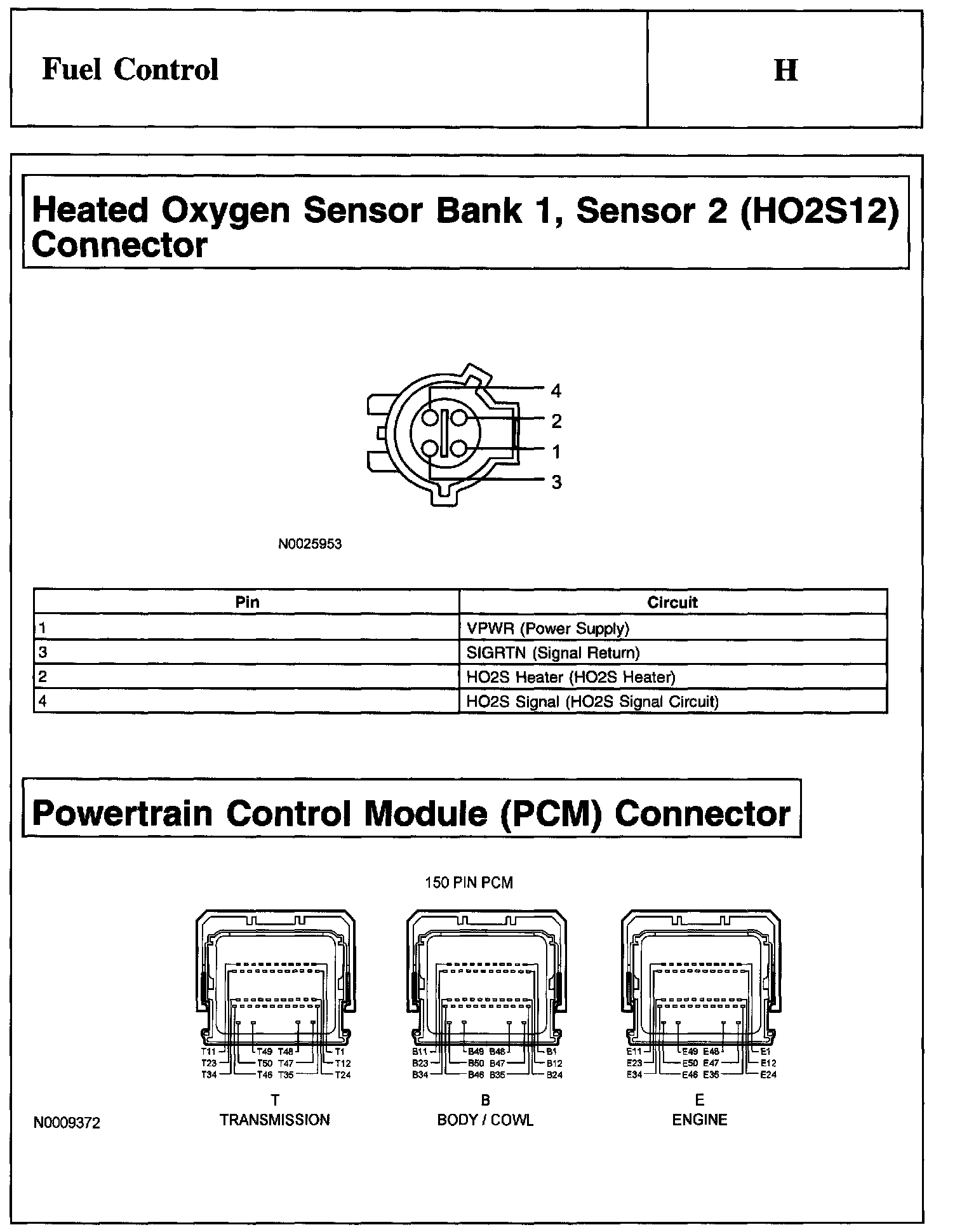

Heated Oxygen Sensor Bank 1, Sensor 2 (HO2S12) Connector And Powertrain Control Module (PCM) Connector:

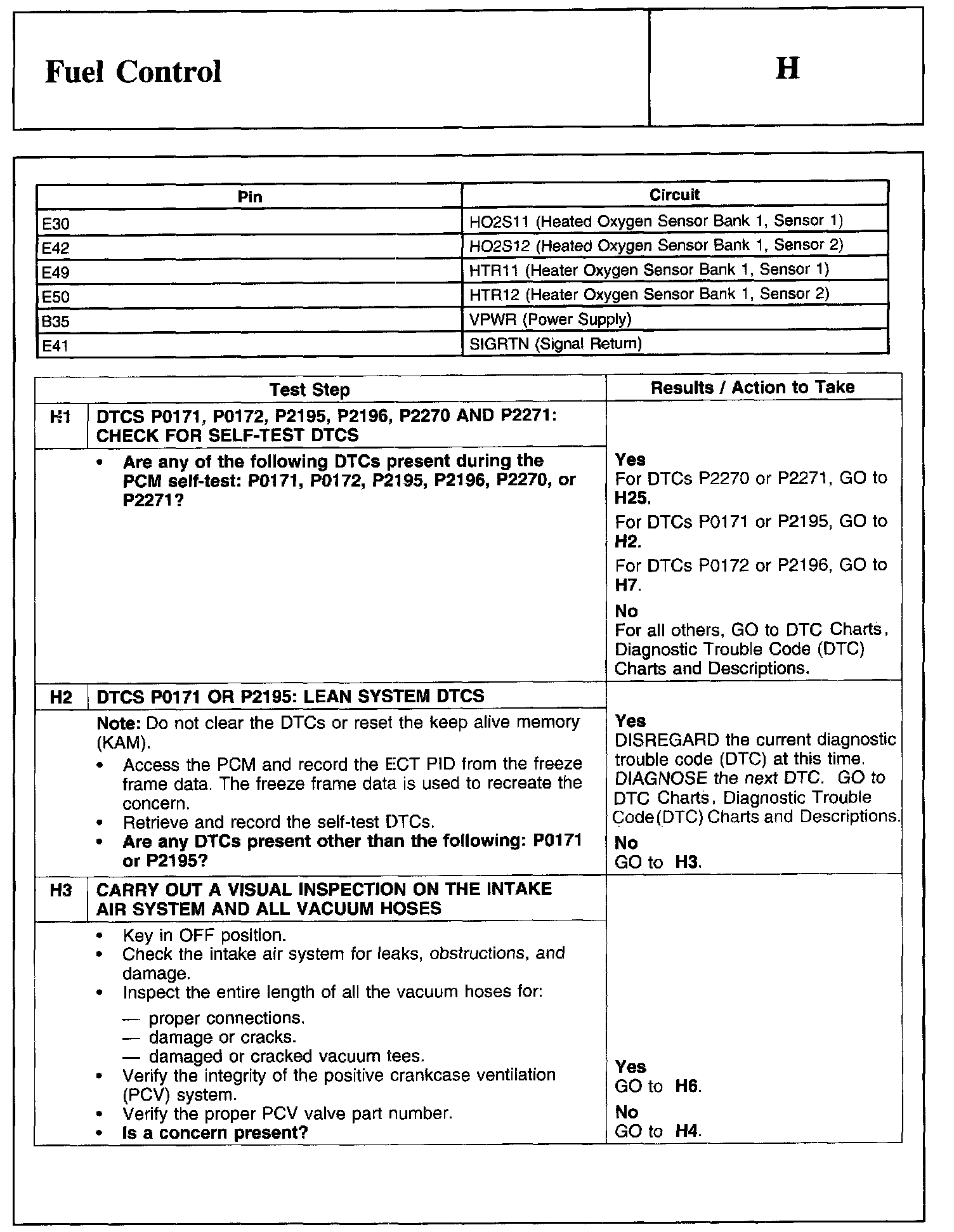

Powertrain Control Module (PCM) Connector And H1-H3:

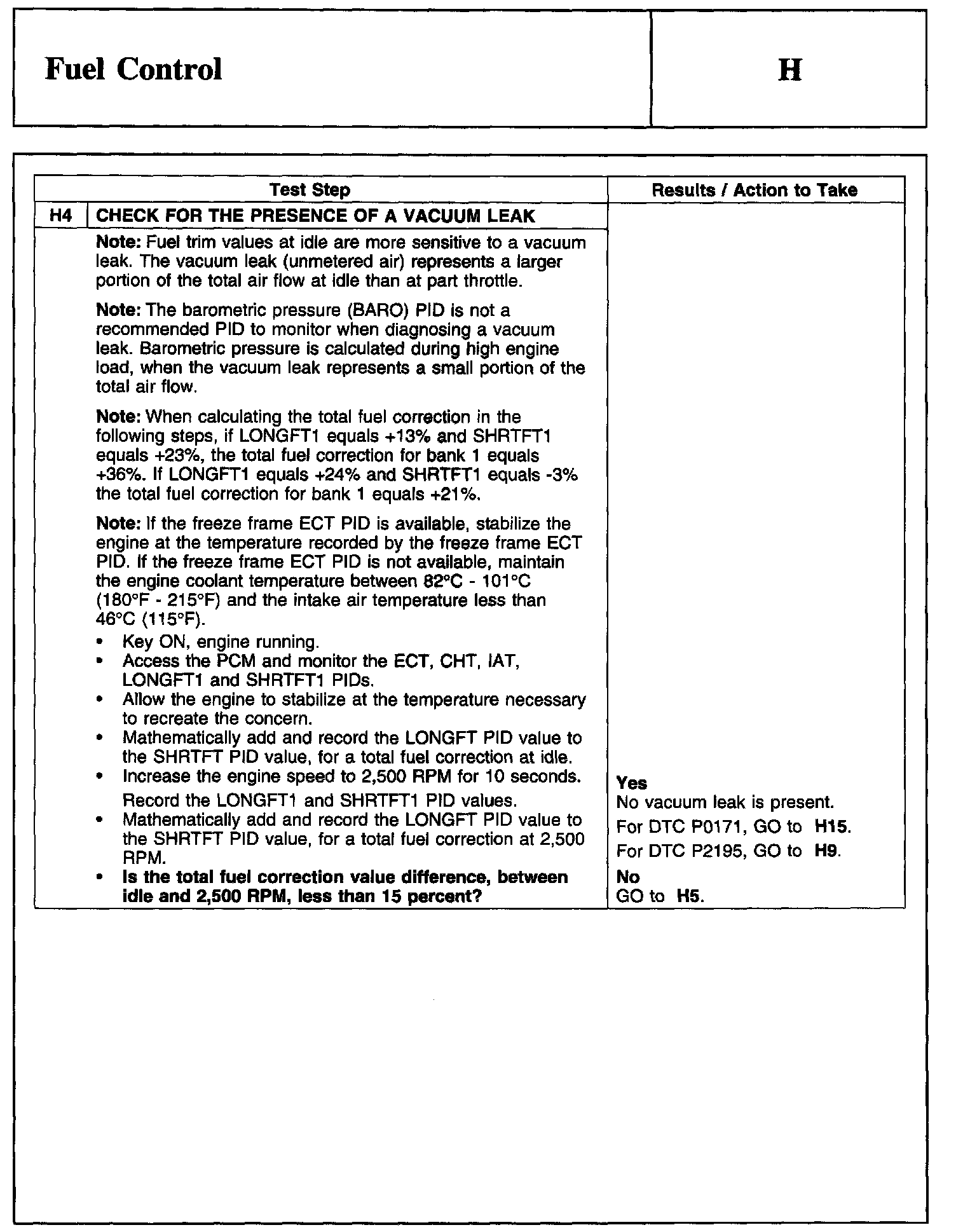

H4:

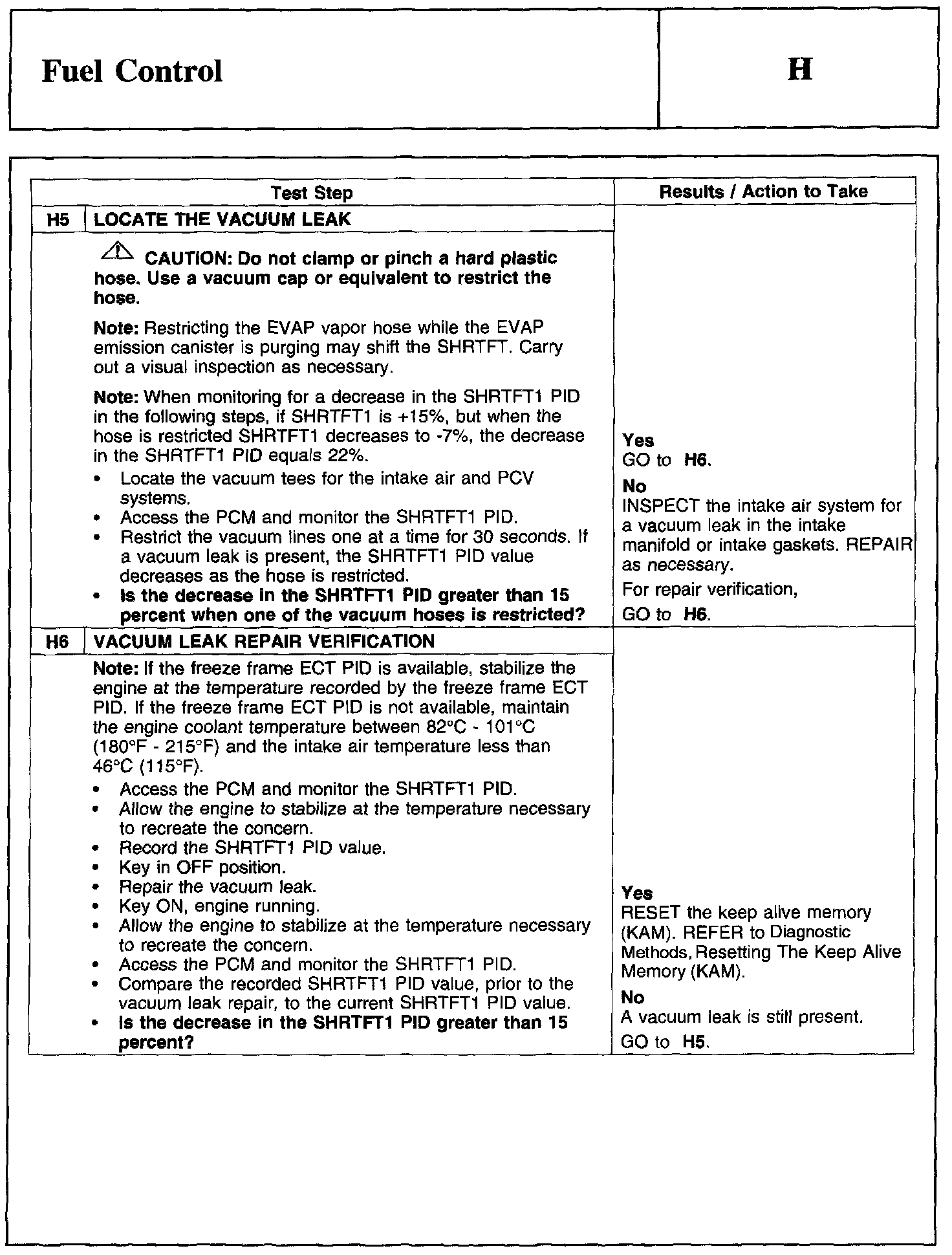

H5-H6:

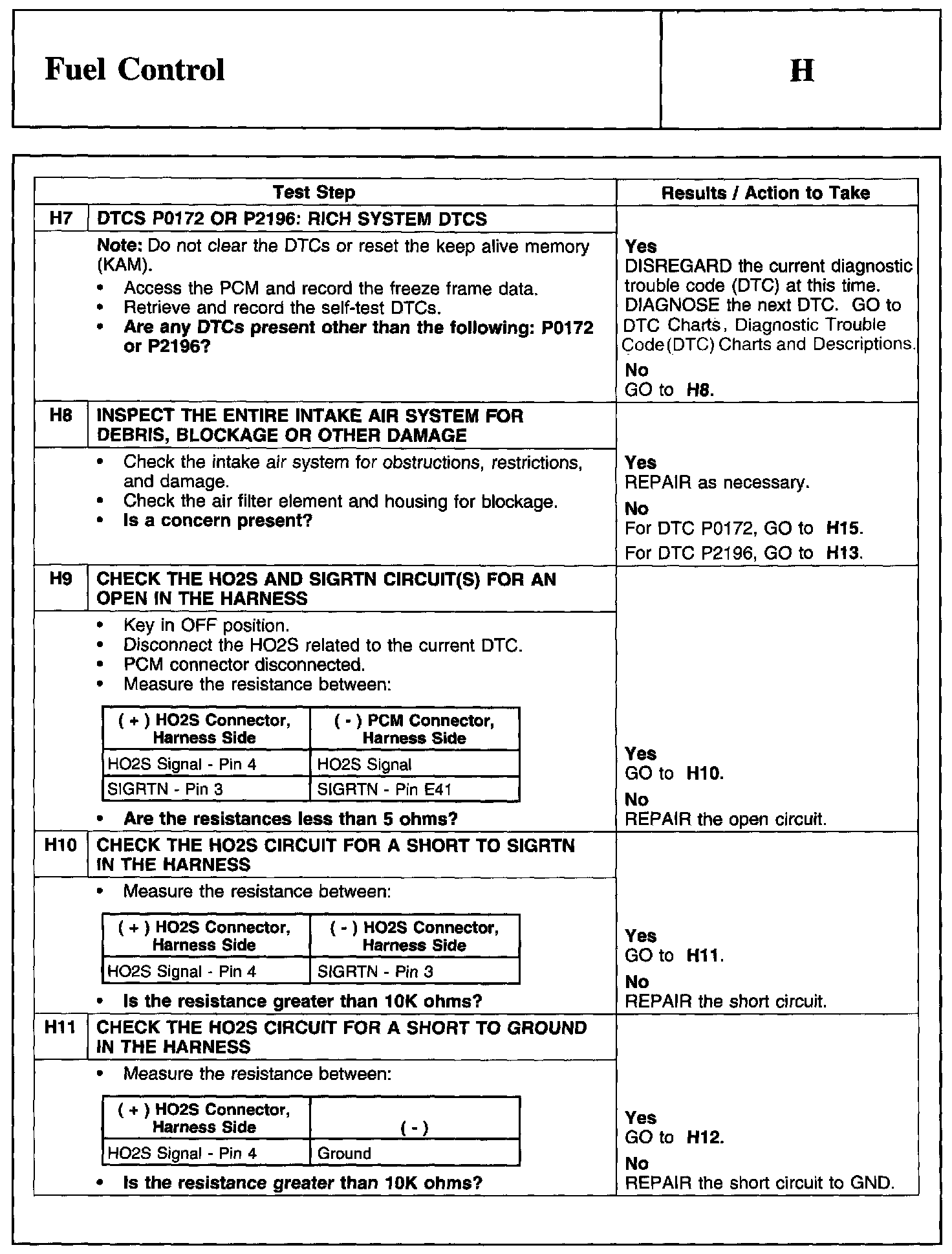

H7-H11:

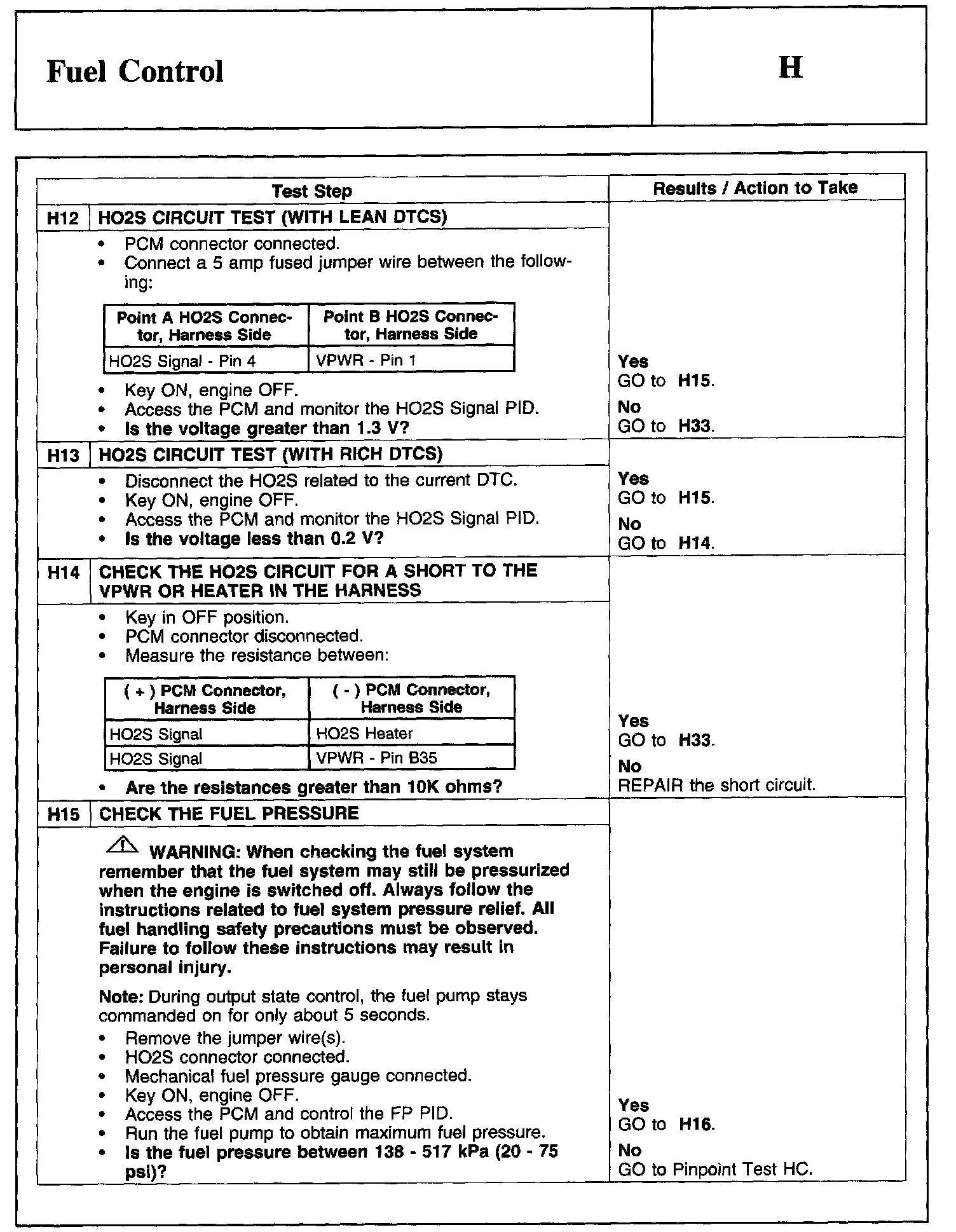

H12-H15:

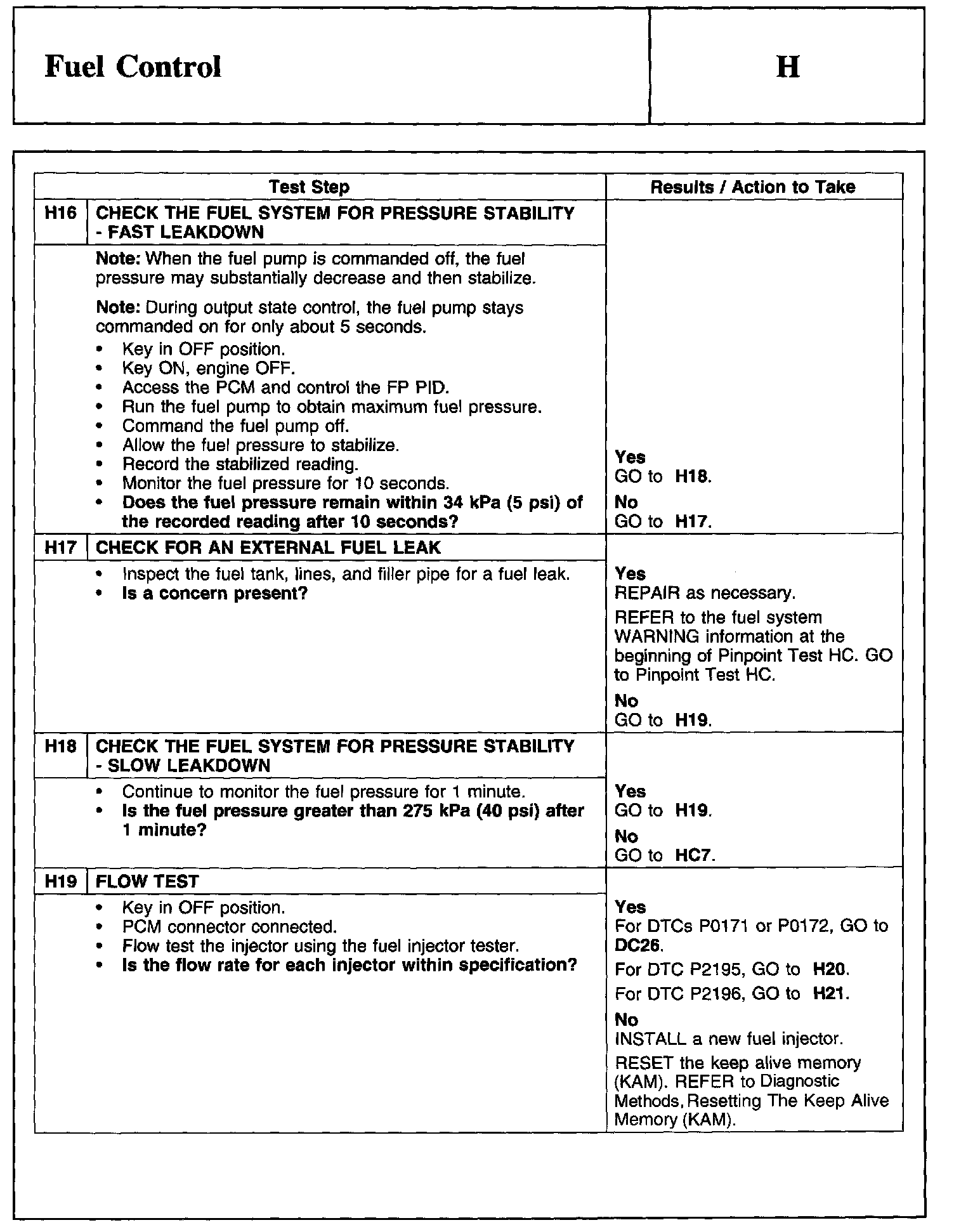

H16-H19:

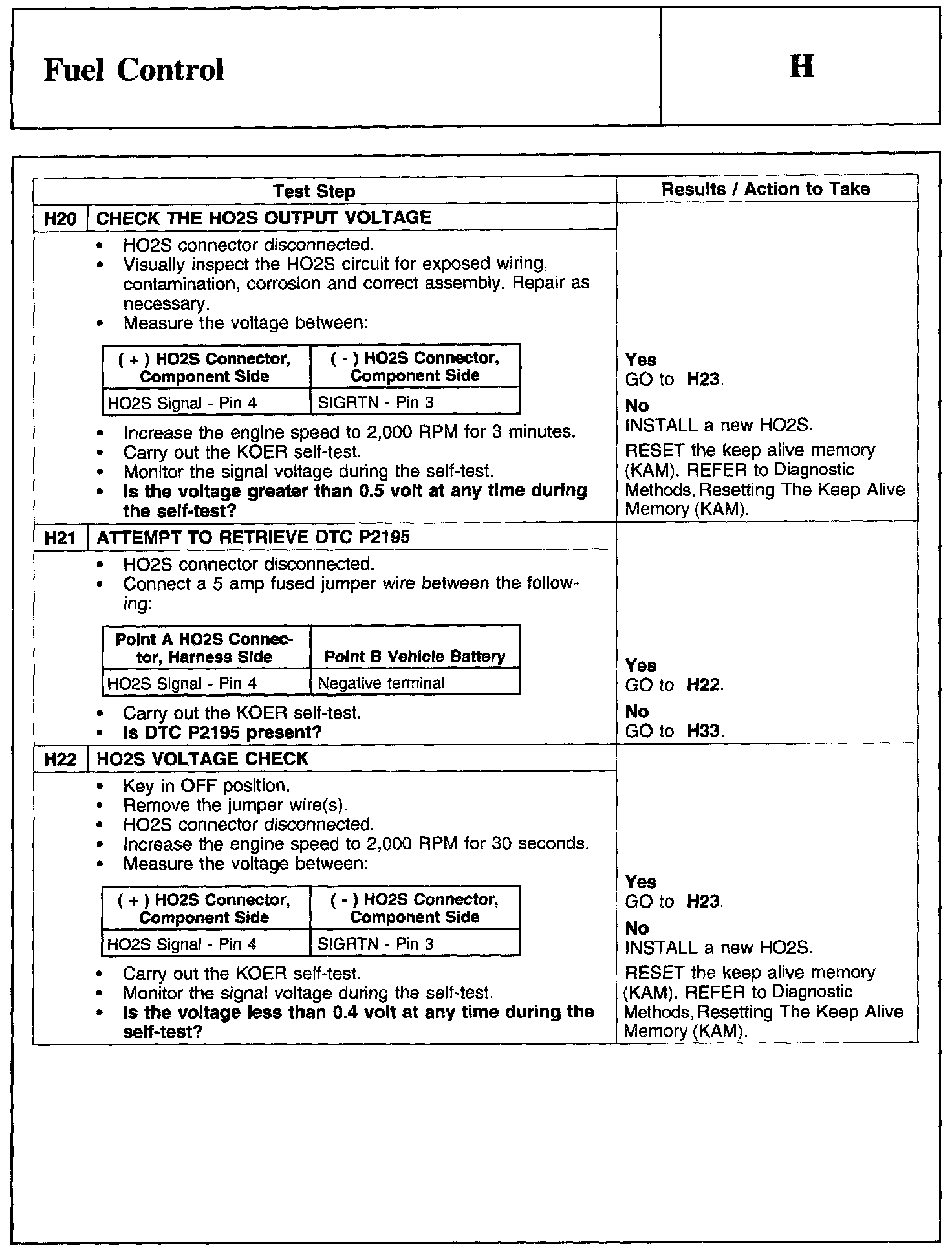

H20-H22:

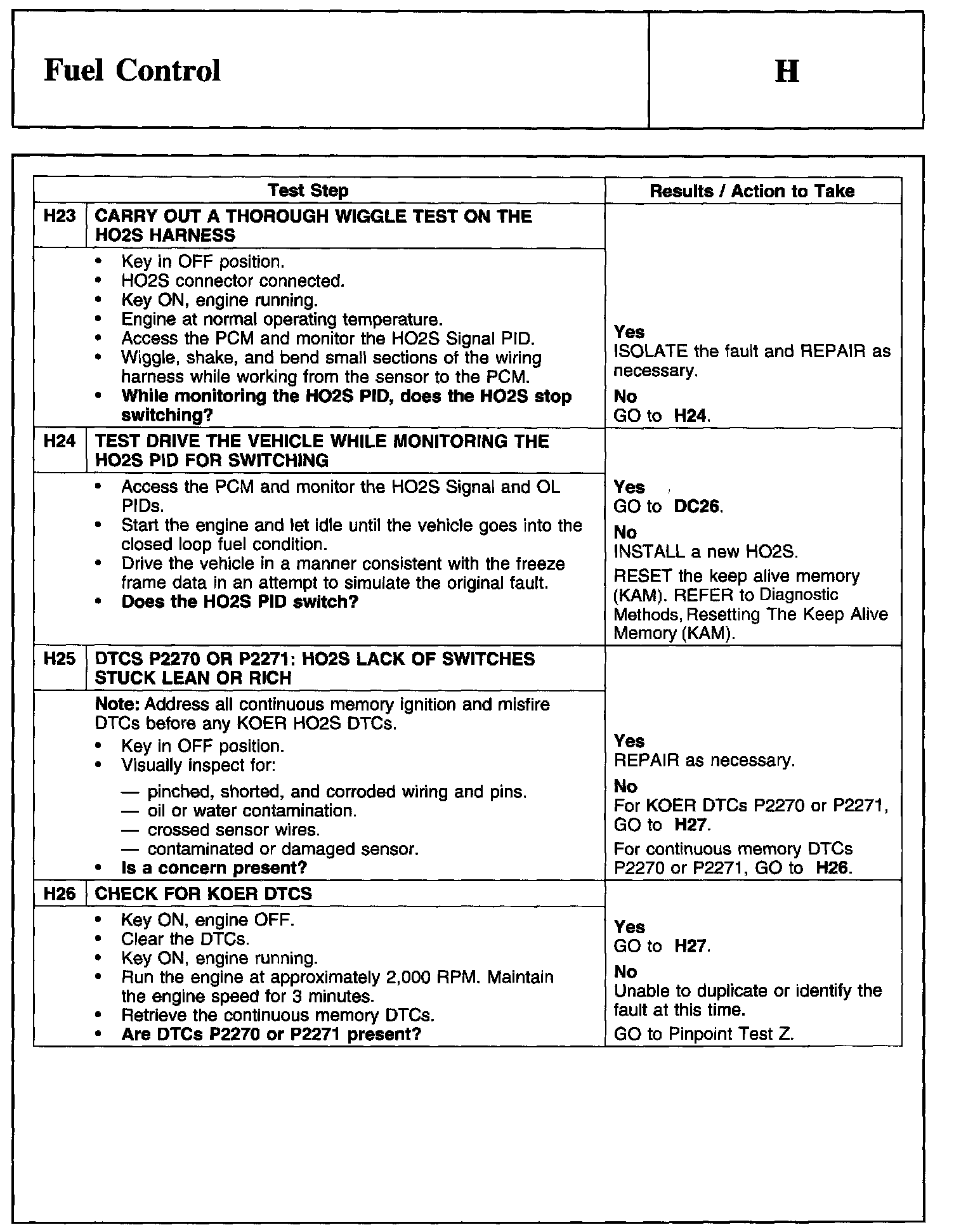

H23-H26:

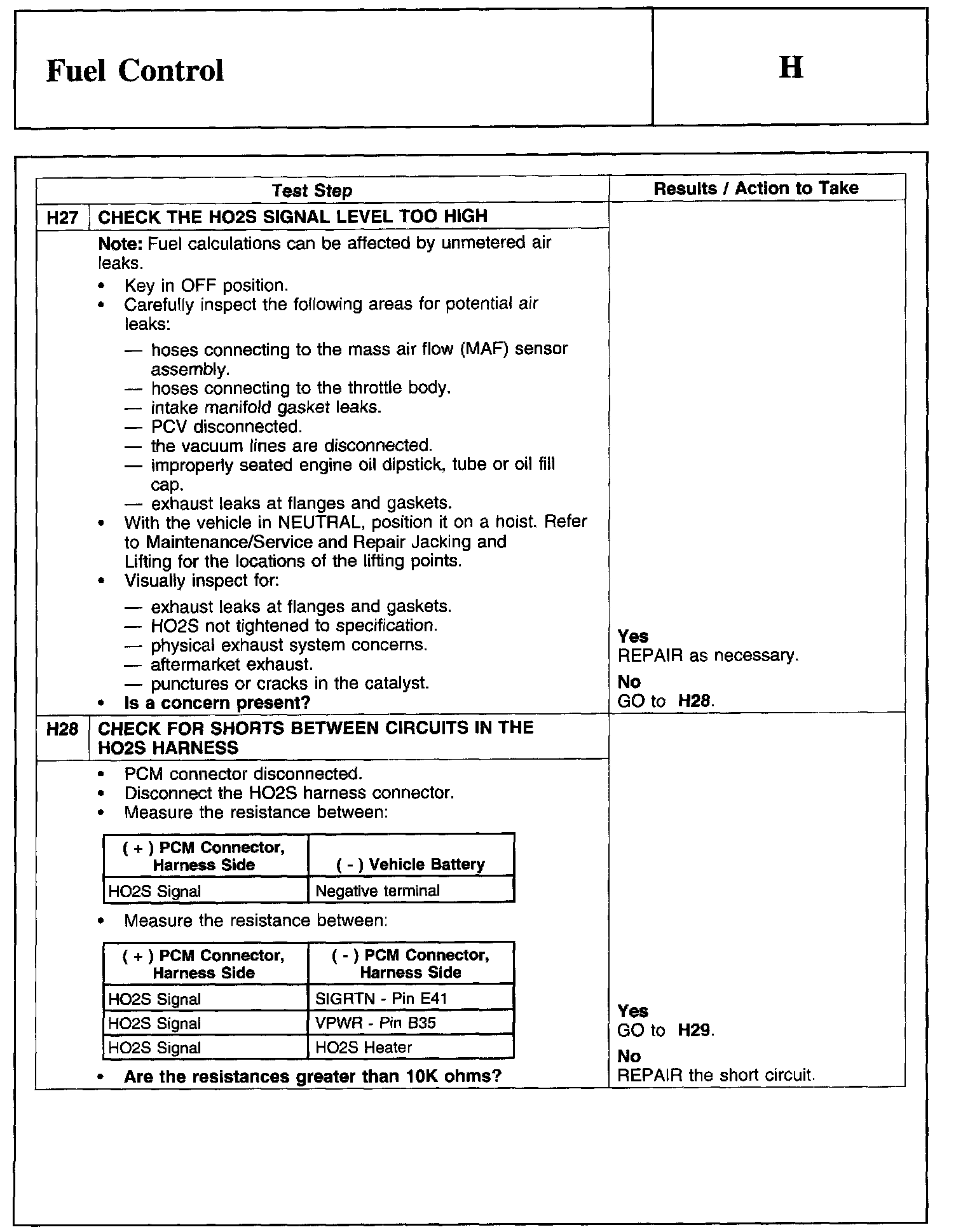

H27-H28:

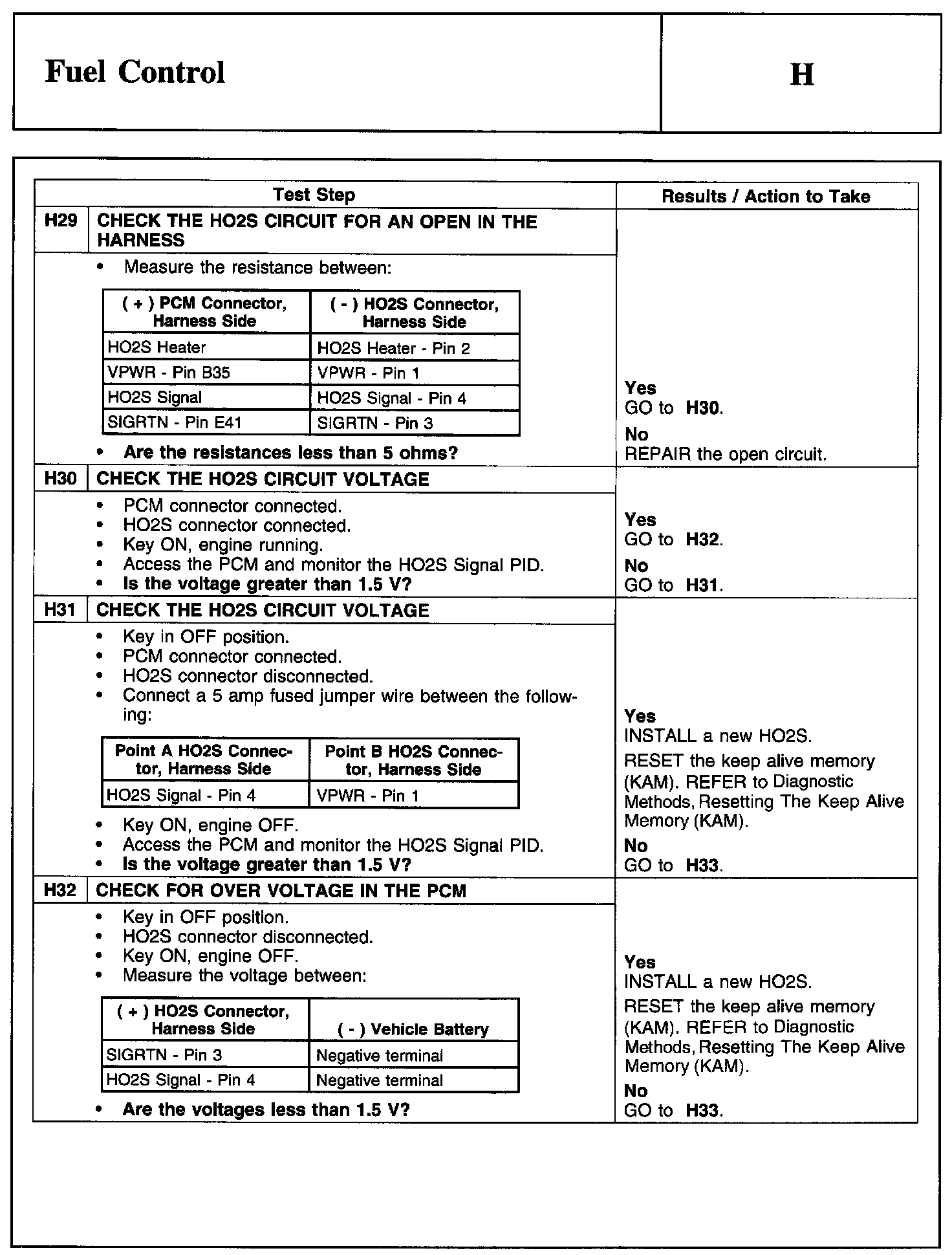

H29-H32:

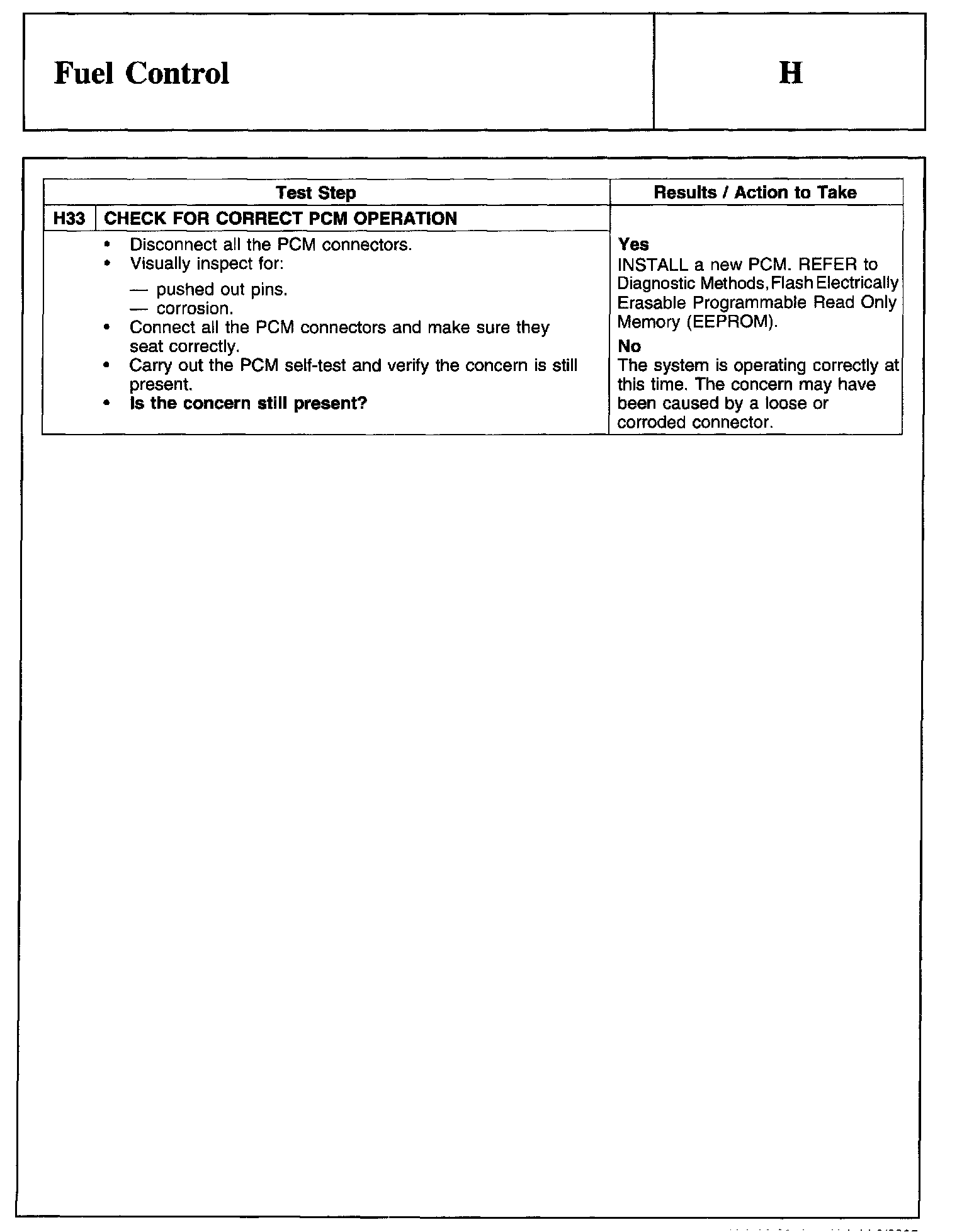

H33:
