Ignition Lock: Service and Repair

IGNITION LOCK CYLINDER







Removal and Installation
1. Disconnect the battery.
2. Turn the ignition key to the ON position.

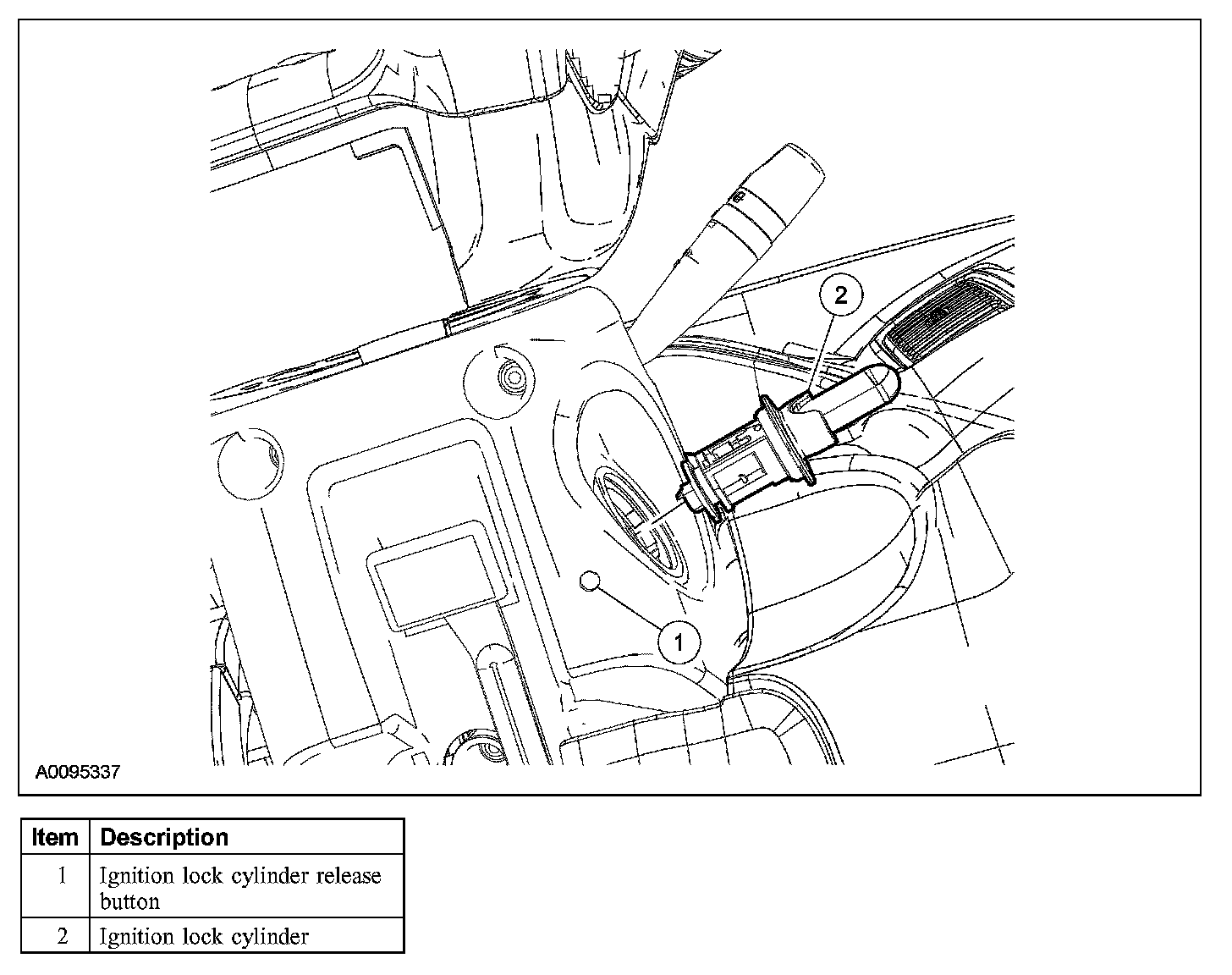

3. Using a small tool, press the ignition lock cylinder release button and pull the ignition lock cylinder out.
4. To install, reverse the removal procedure.
