Intelligent Torque Control Coupling (ITCC) Module Connector End View (C3253)

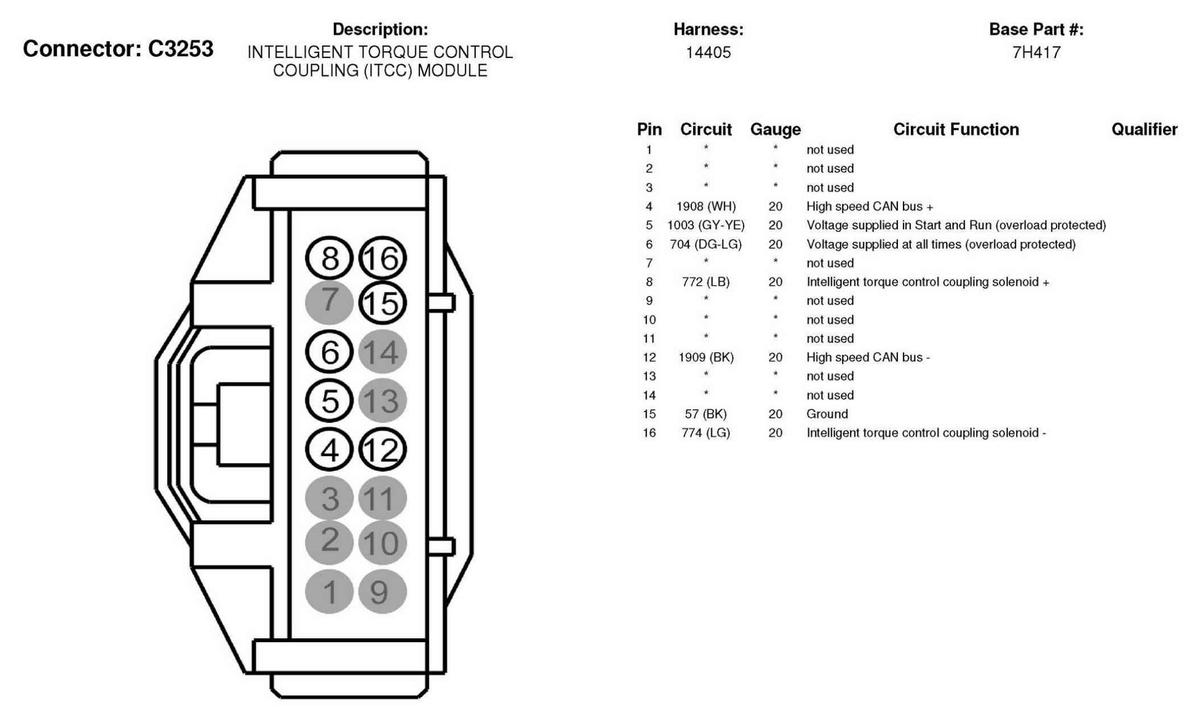

Fig 1: Intelligent Torque Control Coupling (ITCC) Module Connector End View (C3253)
G04596022Courtesy of FORD MOTOR CO.
