Pinpoint Test Kn: Variable Speed Electric Cooling Fan: Introduction: Notes

WARNING: CROWN VICTORIA POLICE INTERCEPTOR VEHICLES EQUIPPED WITH FIRE SUPPRESSION SYSTEM, REFER TO FIRE SUPPRESSION SYSTEM FOR IMPORTANT SAFETY WARNINGS . FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

This pinpoint test is intended to diagnose the following:

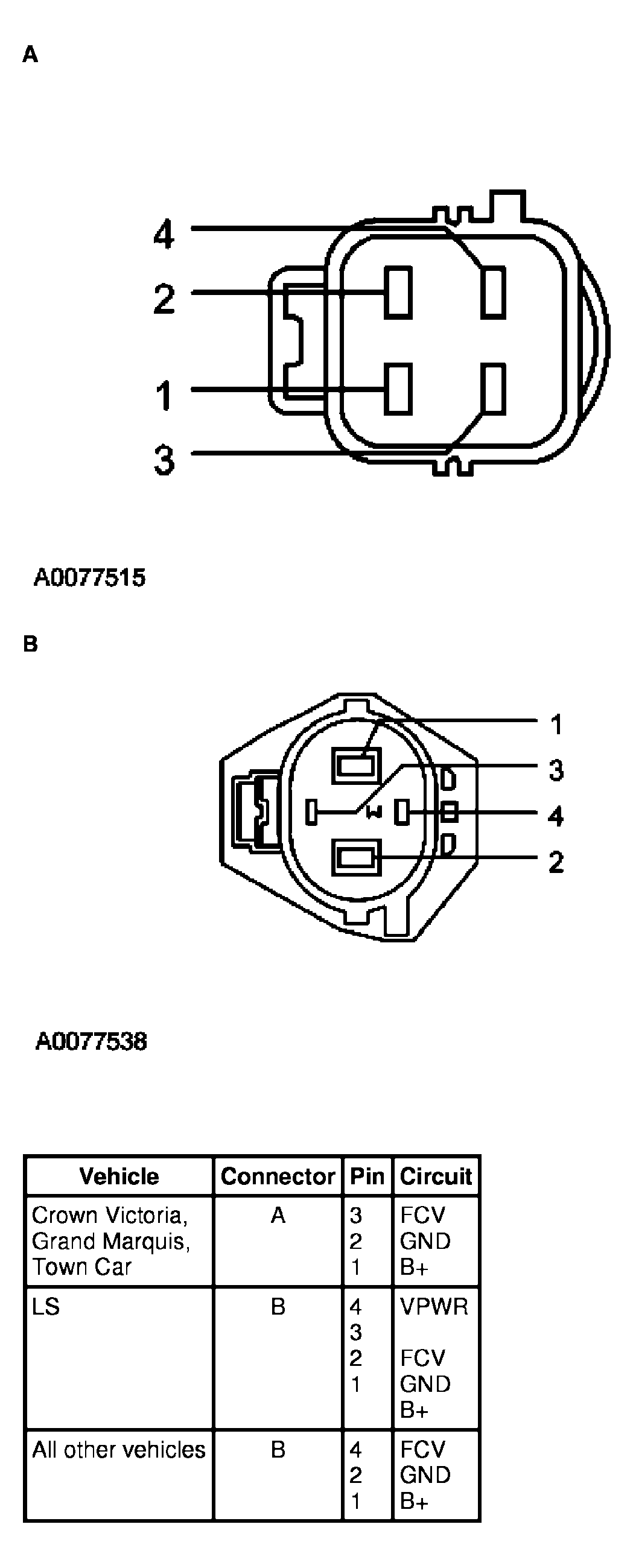

Fig 1: Cooling Fan (CF) Motor Connector
G04587267Courtesy of FORD MOTOR CO.
