Pinpoint Test E: Temperature Control Is Inoperative

  1. E1 CHECK THE HEATER TEMPERATURE CABLE SYSTEM
    • Key in ON position.
    • Allow the engine to reach a normal operating temperature.
    • Set the function selector switch to the MAX A/C position. Adjust the temperature control switch to full COOL (left) and check for cool air discharge.
    • Adjust the temperature control switch to full WARM (right) and check for warm air discharge.
    • Vary the temperature control switch from full WARM to full COOL.
    • Did the air temperature change?

    Yes:  The system is fully functional.

    No:  GO to  E2.

  2. E2 CHECK FOR A DISCONNECTED TEMPERATURE BLEND DOOR ACTUATOR CONTROL
    • Inspect the temperature blend door actuator control cable installation on the heater core housing. Verify that it is in mid-position, fully seated on the shaft and correctly located on the housing. Refer to CLIMATE CONTROL .

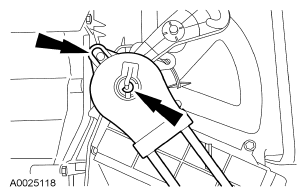

      Fig 1: Checking For Disconnected Temperature Blend Door Actuator Control
      G04621416Courtesy of FORD MOTOR CO.
    • Is the temperature blend door actuator control cable fully seated on the shaft, in the mid-position and correctly located on the housing?

    Yes:  GO to  E3.

    No:  CONNECT the temperature blend door actuator control cable correctly. REFER to REMOVAL AND INSTALLATION . TEST the system for normal operation.

  3. E3 CHECK THE TEMPERATURE BLEND DOOR ACTUATOR CONTROL CABLE OPERATION
    • Rotate the temperature control switch from full WARM to full COOL while observing the heater temperature cable.
    • Is there corresponding movement from full warm to full cold between the temperature control switch and the heater temperature cable at the heater core housing?

    Yes:  INSTALL a new heater core housing due to a damaged air temperature blend door. REFER to REMOVAL AND INSTALLATION . TEST the system for normal operation.

    No:  GO to  E4.

  4. E4 CHECK THE TEMPERATURE CONTROL OPERATION
    • Inspect the temperature blend door actuator control cable installation on the temperature control switch.

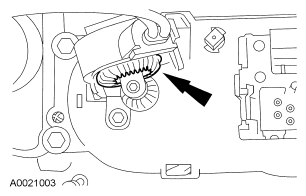

      Fig 2: Checking Temperature Control Operation
      G04621417Courtesy of FORD MOTOR CO.
    • Is the temperature blend door actuator control cable connected?

    Yes:  GO to  E5.

    No:  CONNECT the temperature blend door actuator control cable. REFER to REMOVAL AND INSTALLATION . TEST the system for normal operation.

  5. E5 CHECK THE TEMPERATURE CONTROL SWITCH
    • Rotate the temperature control switch from full WARM to full COOL while observing the heater temperature cable.
    • Is there corresponding movement from full warm to full cold between the temperature control switch and the heater temperature cable at the temperature control switch?

    Yes:  INSTALL a new heater temperature cable. REFER to CLIMATE CONTROL . TEST the system for normal operation.

    No:  INSTALL a new temperature control switch. REFER to REMOVAL AND INSTALLATION . TEST the system for normal operation.
