Function Selector Switch Assembly Connector End View (C294C)

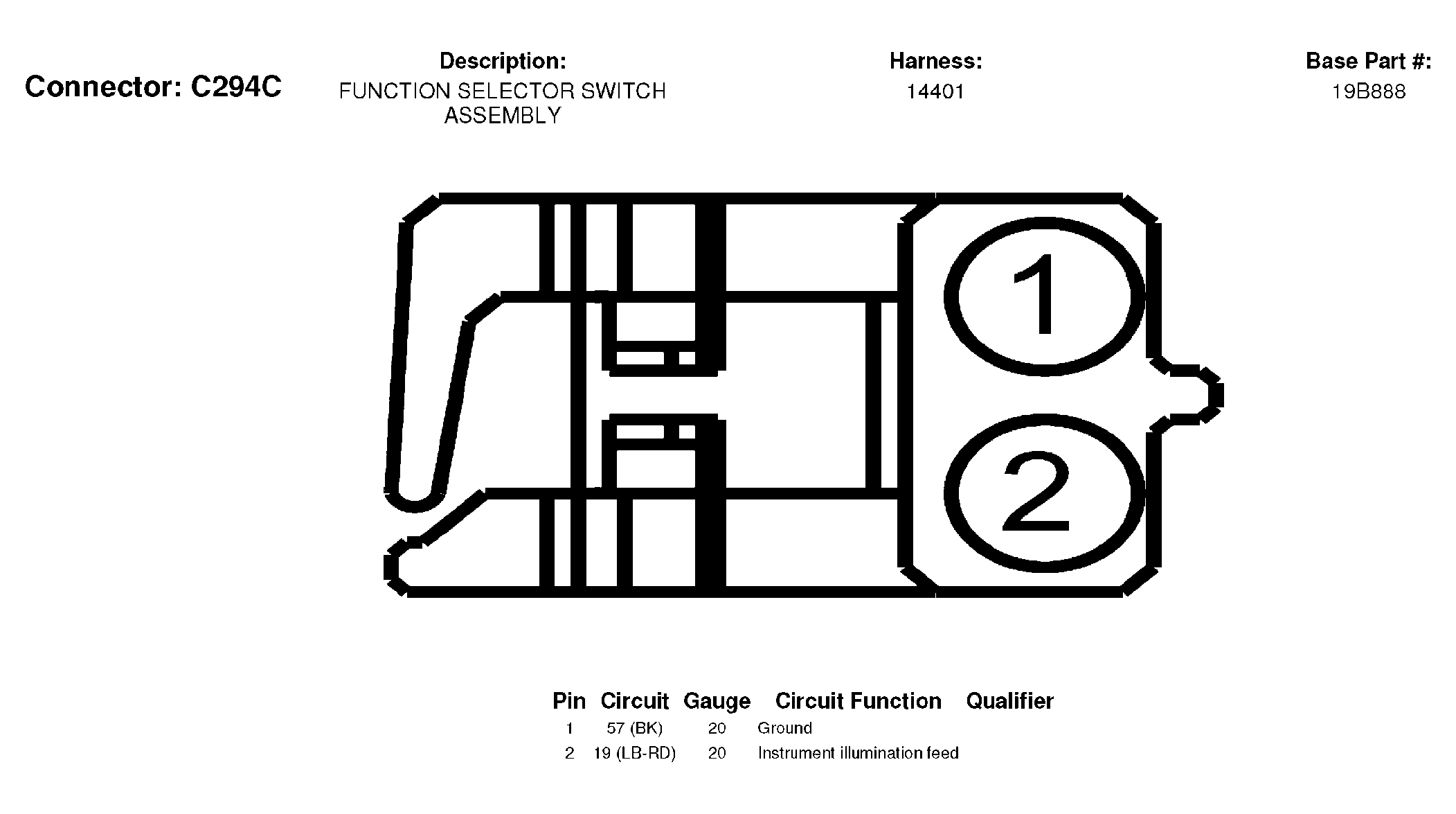

Fig 1: Function Selector Switch Assembly Connector End View (C294C)
Courtesy of FORD MOTOR CO.
