Restraints Control Module (RCM) Connector End View (C2041B)

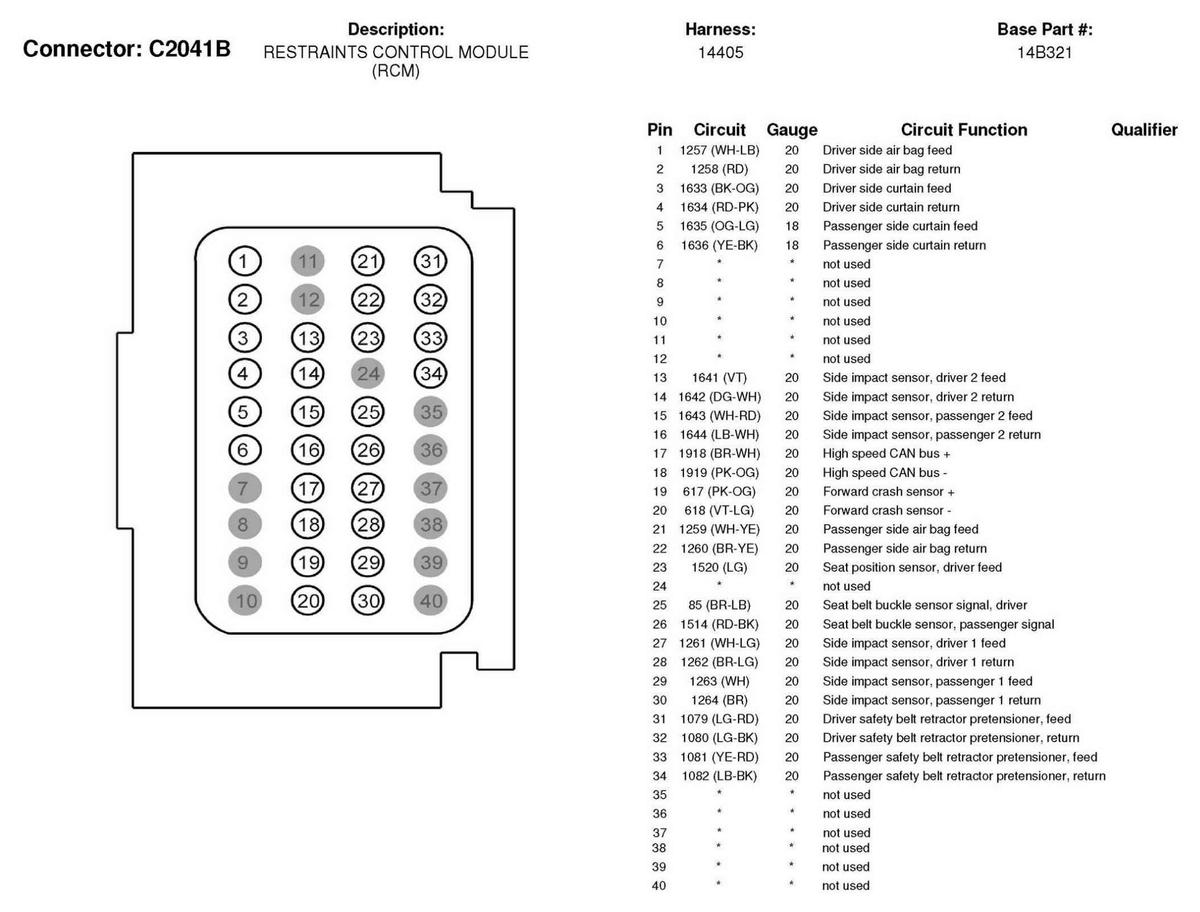

Fig 1: Restraints Control Module (RCM) Connector End View (C2041B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
