Escape Base, 2.3 Z, 4WD, Automatic
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission - Cd4E
>>
Diagnosis And Testing
>>
Transaxle Connector Layouts
>>
Powertrain Control Module (PCM) Connector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Powertrain Control Module (PCM) Connector

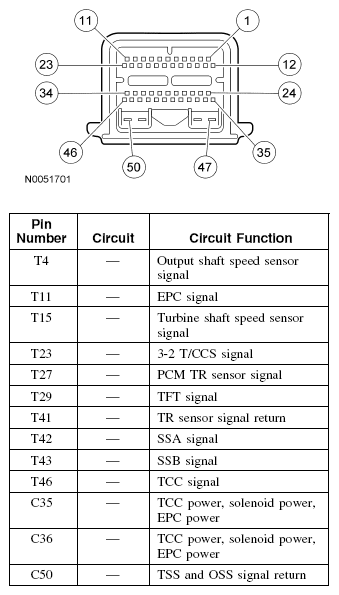

Fig 1: Identifying Powertrain Control Module (PCM) Connector
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
