Pump Assembly: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Alignment Pins, Transmission Main Control Body 307-127 (T94P-77000-P)
Courtesy of FORD MOTOR CO.	Depth Micrometer 303-D026 (D80P-4201-A)
Courtesy of FORD MOTOR CO.	Shim Selection Gauge 307-300 (T94P-77000-Q)

MATERIAL

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

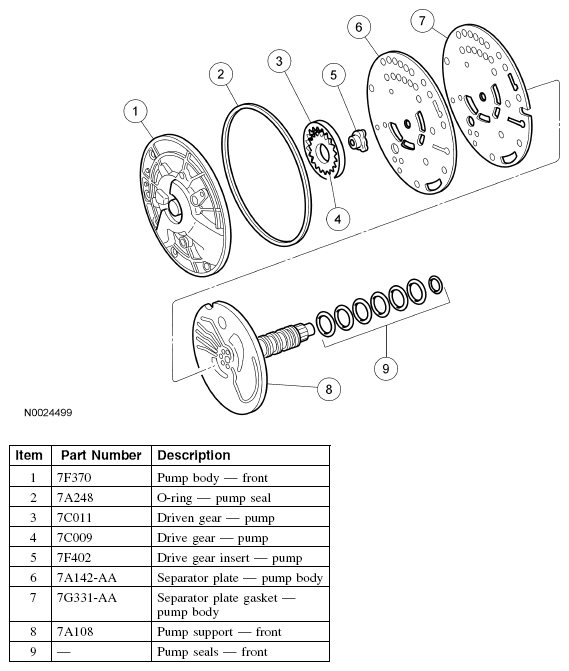

Fig 1: Exploded View Of Pump Assembly Components

Courtesy of FORD MOTOR CO.
