Powertrain Control Module (PCM): Notes

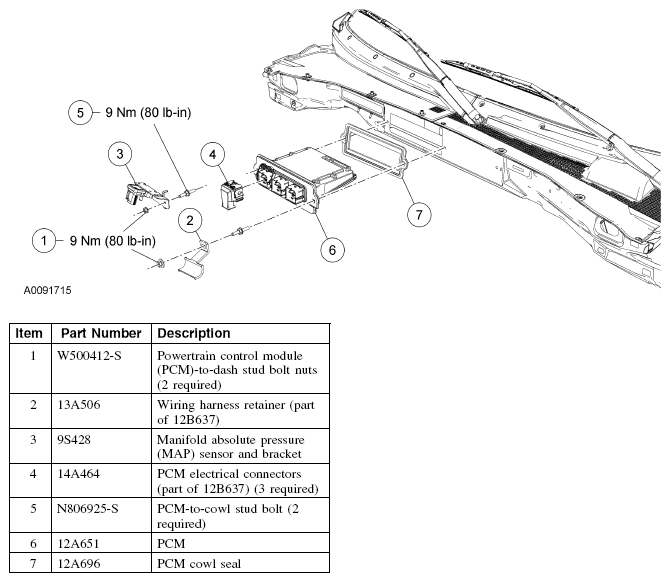

Fig 1: Powertrain Control Module (PCM) Replacement Components With Torque Specifications
G04619719Courtesy of FORD MOTOR CO.
