Steering Linkage - Exploded View

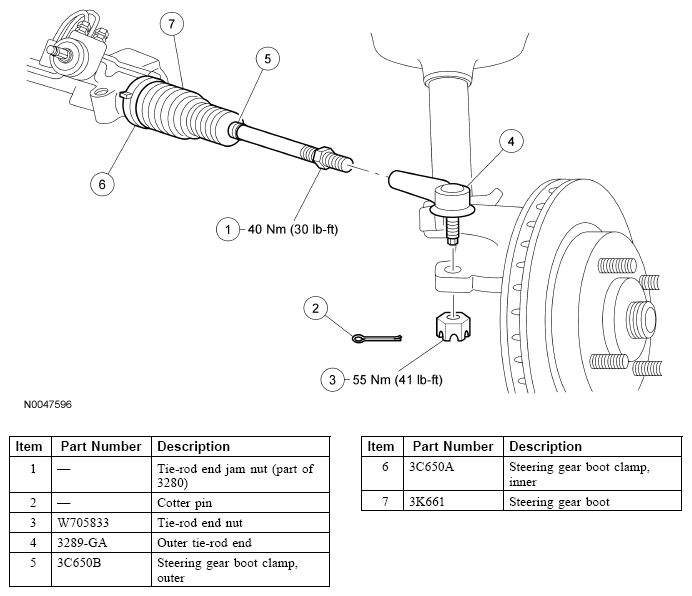

Fig 1: Exploded View Of Steering Linkage Components
G04617808Courtesy of FORD MOTOR CO.
  1. For additional information, refer to SUSPENSION SYSTEM-GENERAL INFORMATION .
