Navigation Module: Service and Repair

NAVIGATION MODULE

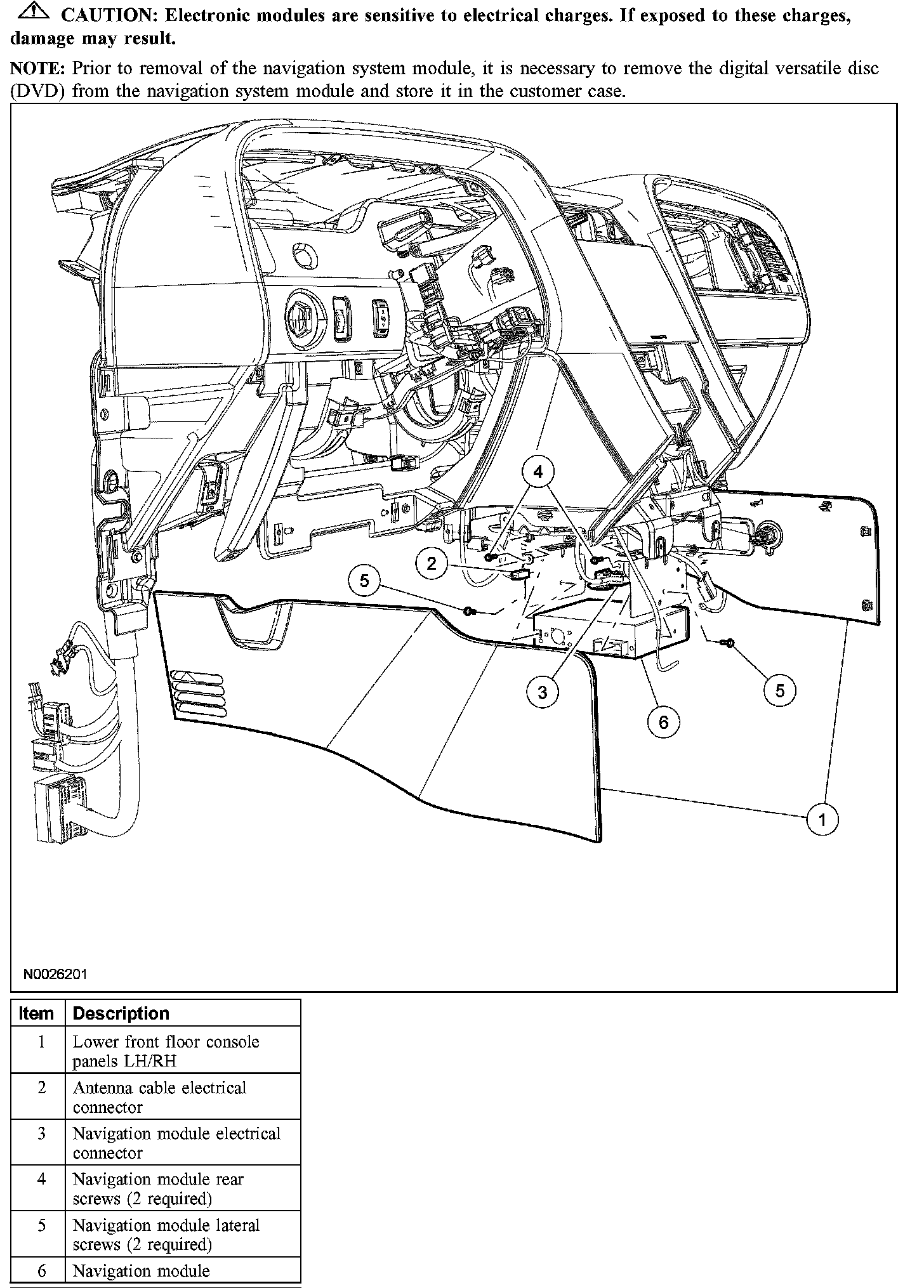

Removal and Installation
1. Disconnect the battery.
2. Remove the lower LH and RH front floor console panels.
3. Disconnect the electrical connectors.
4. Remove the navigation module.
1 Remove the 2 navigation module rear screws.
2 Remove the 2 navigation module lateral screws.

5. To install, reverse the removal procedure.
