Audio/Navigation Control Unit

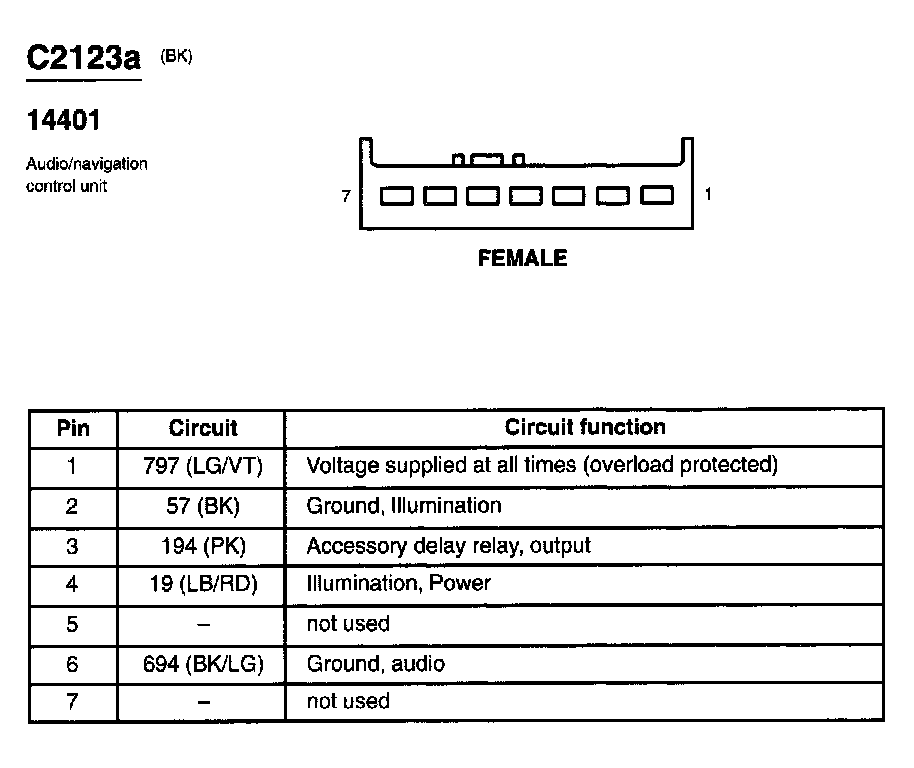

C2123a:

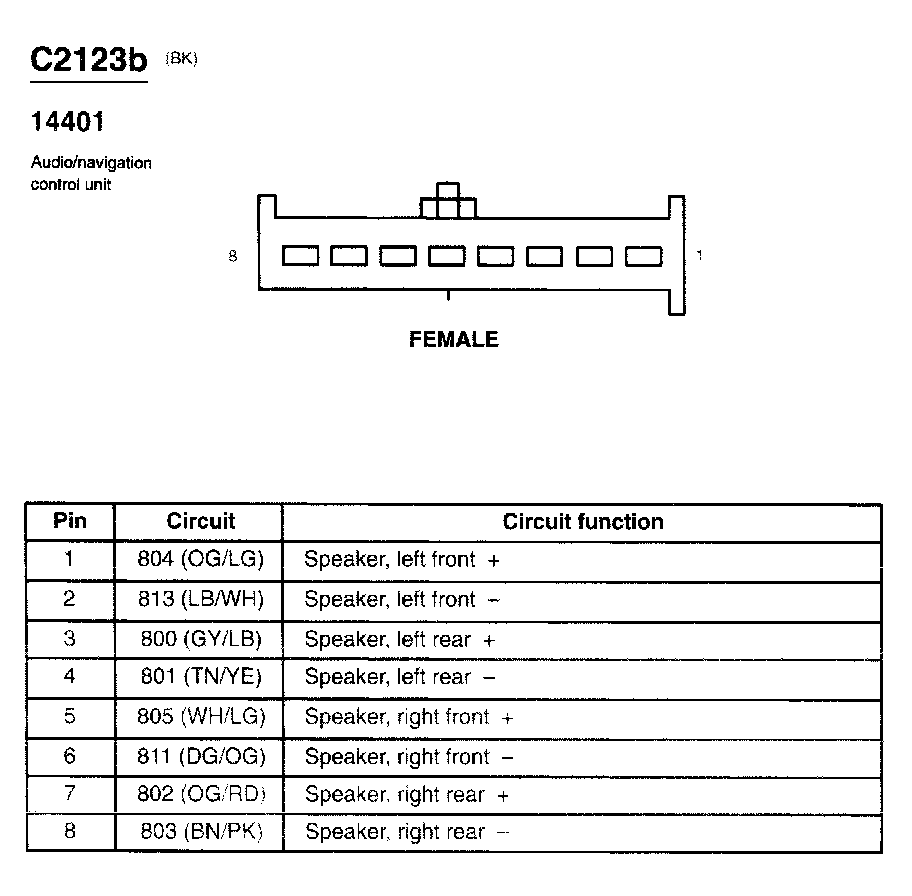

C2123b:

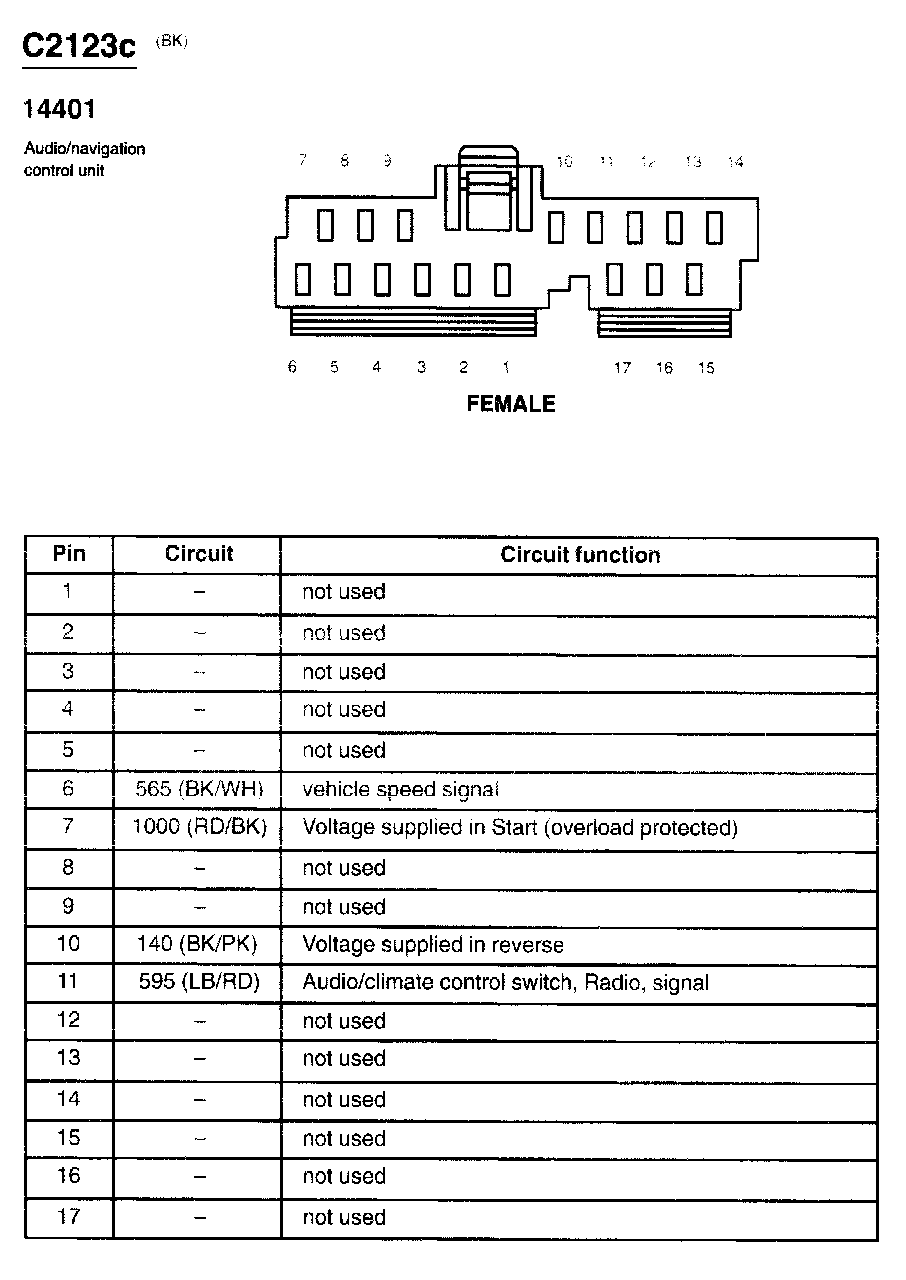

C2123c:

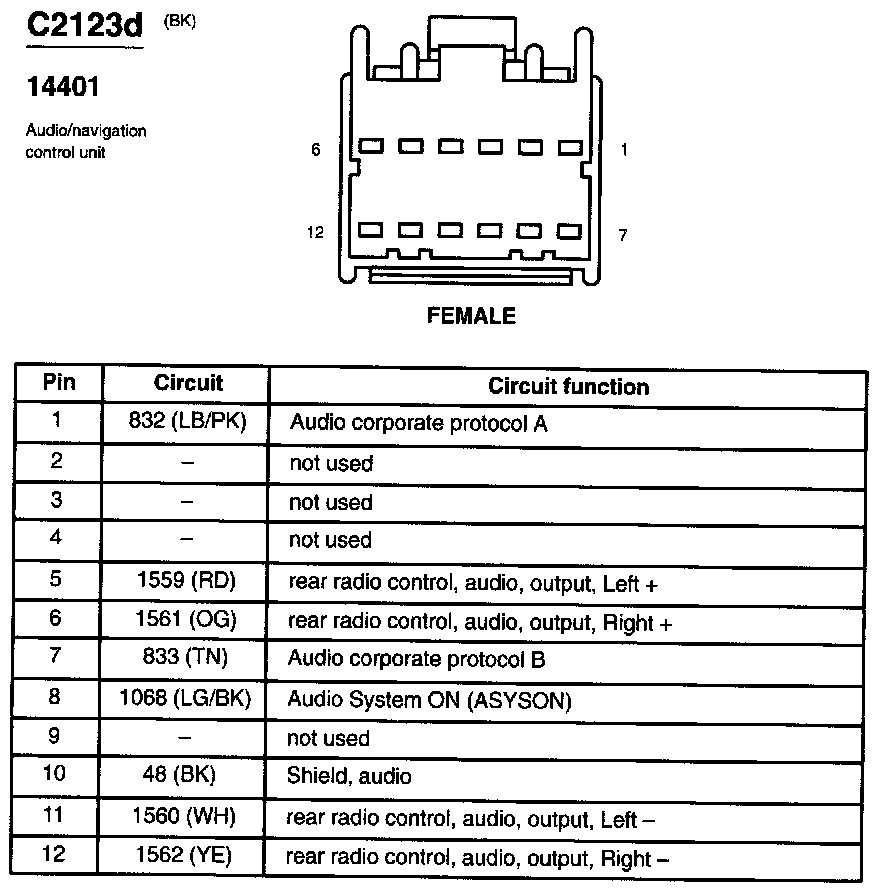

C2123d:

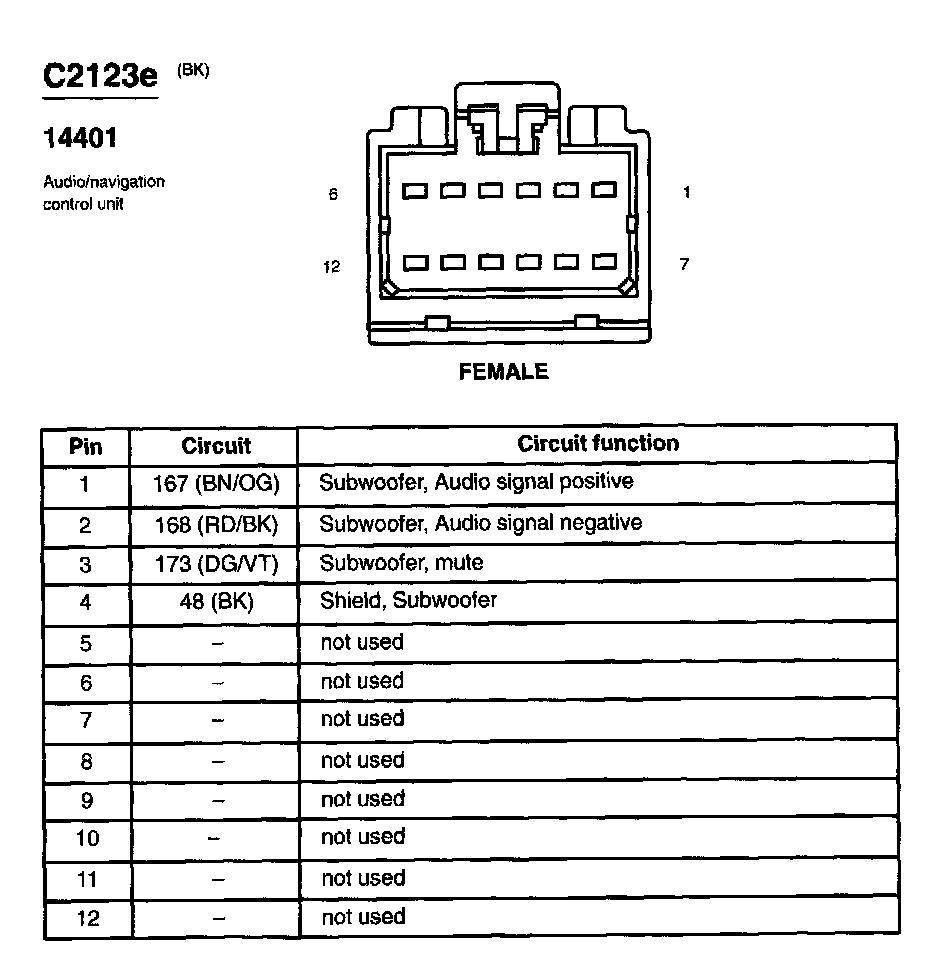

C2123e:

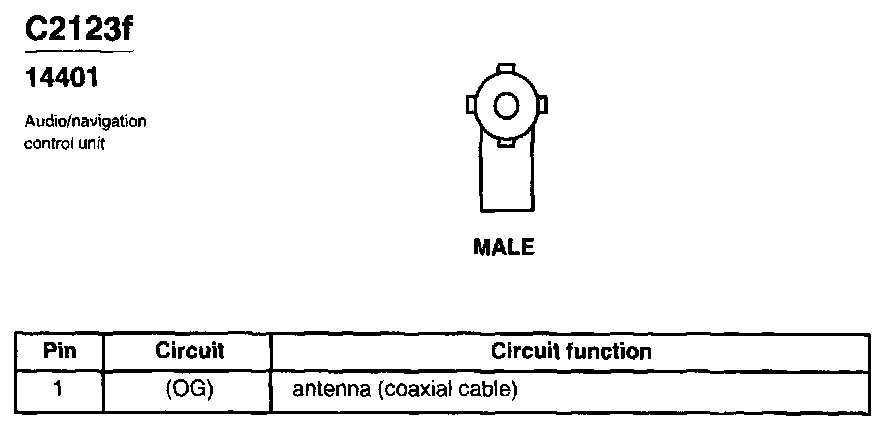

C2123f:

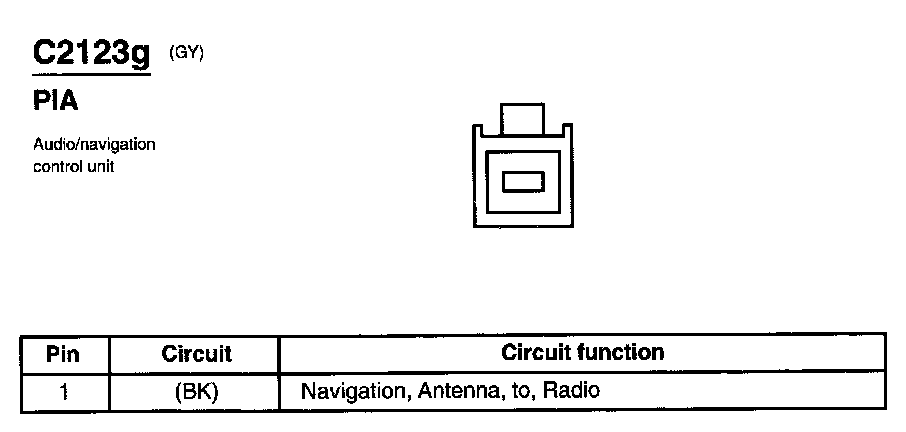

C2123g:

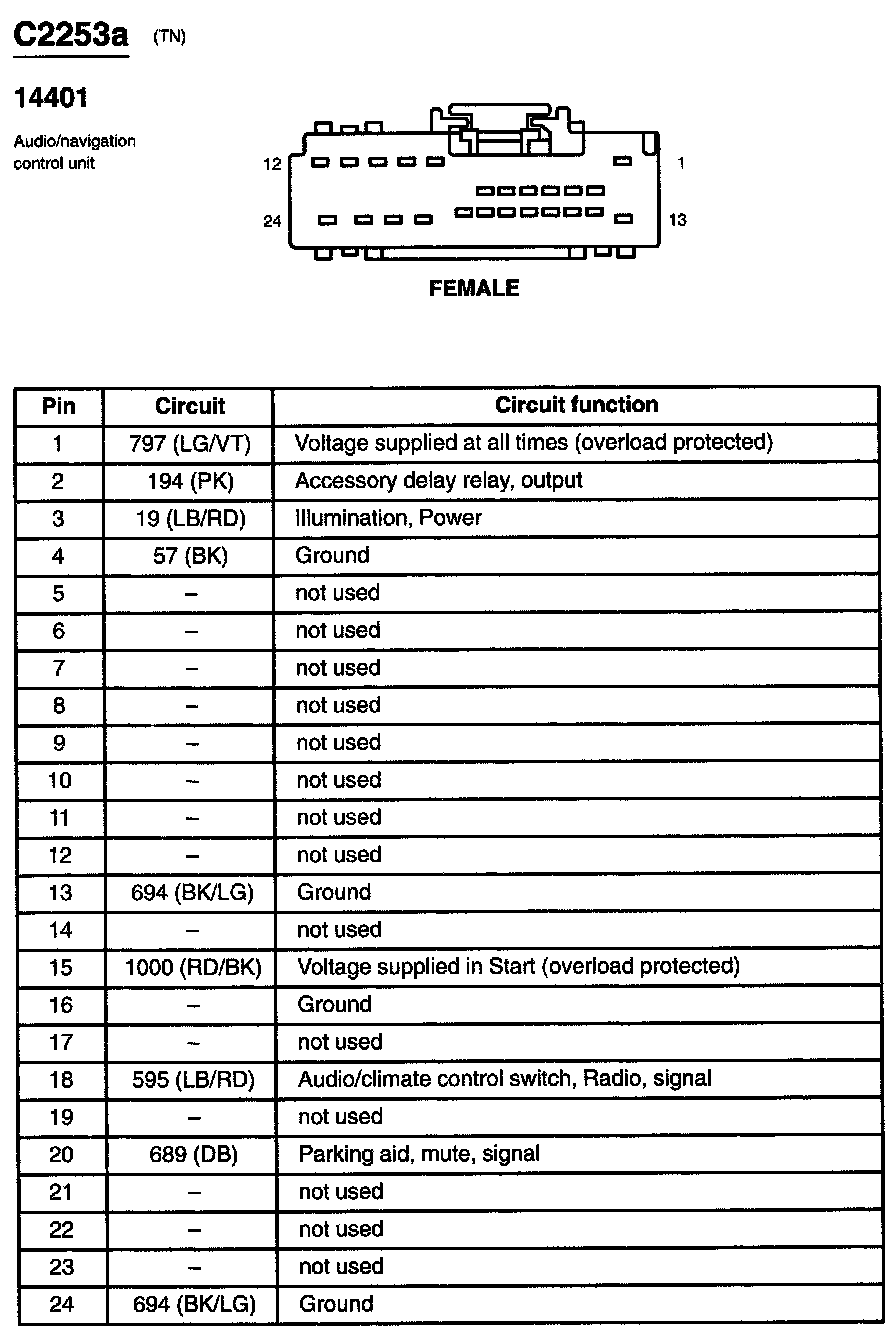

C2253a:

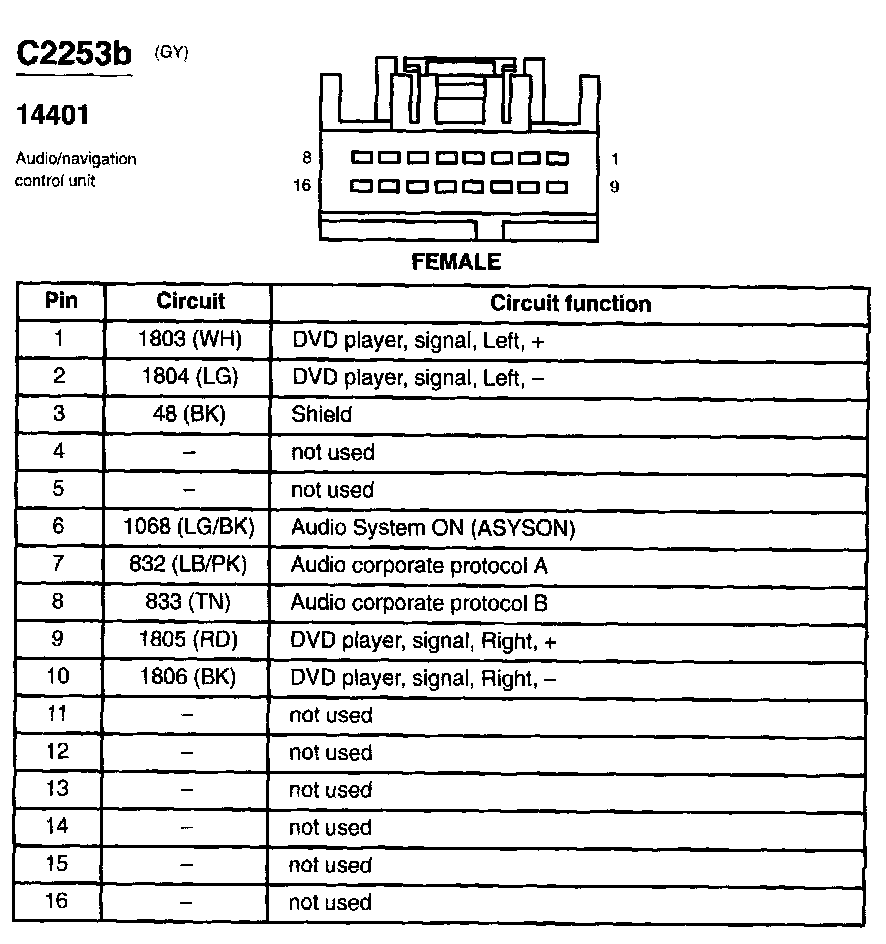

C2253b:

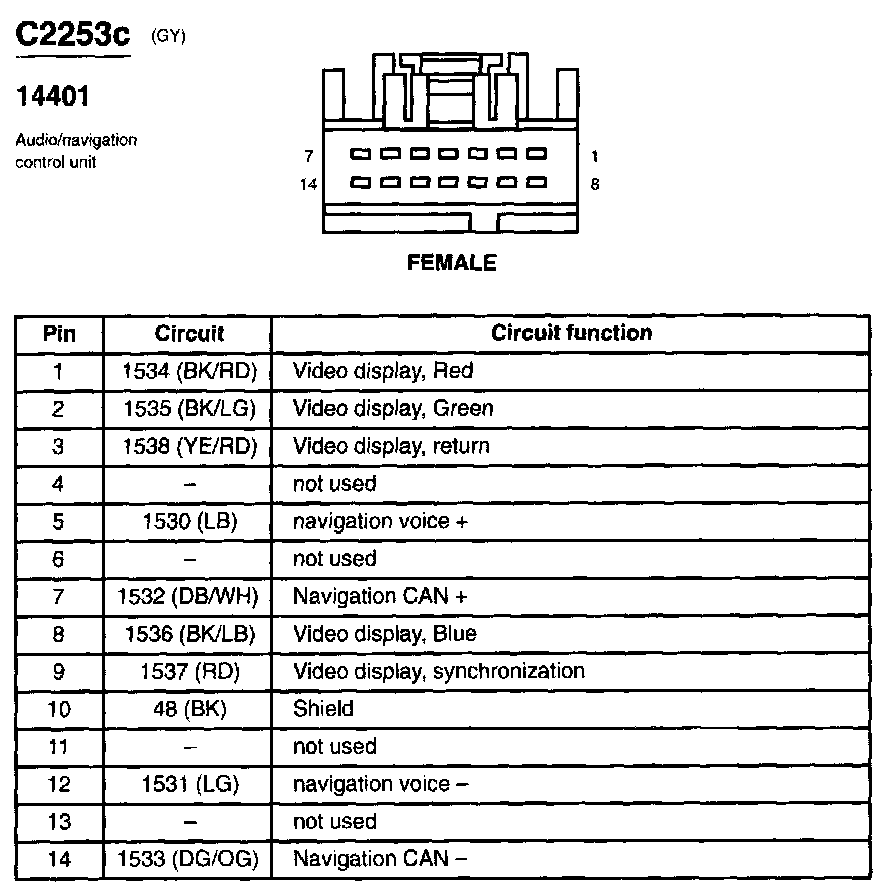

C2253c:

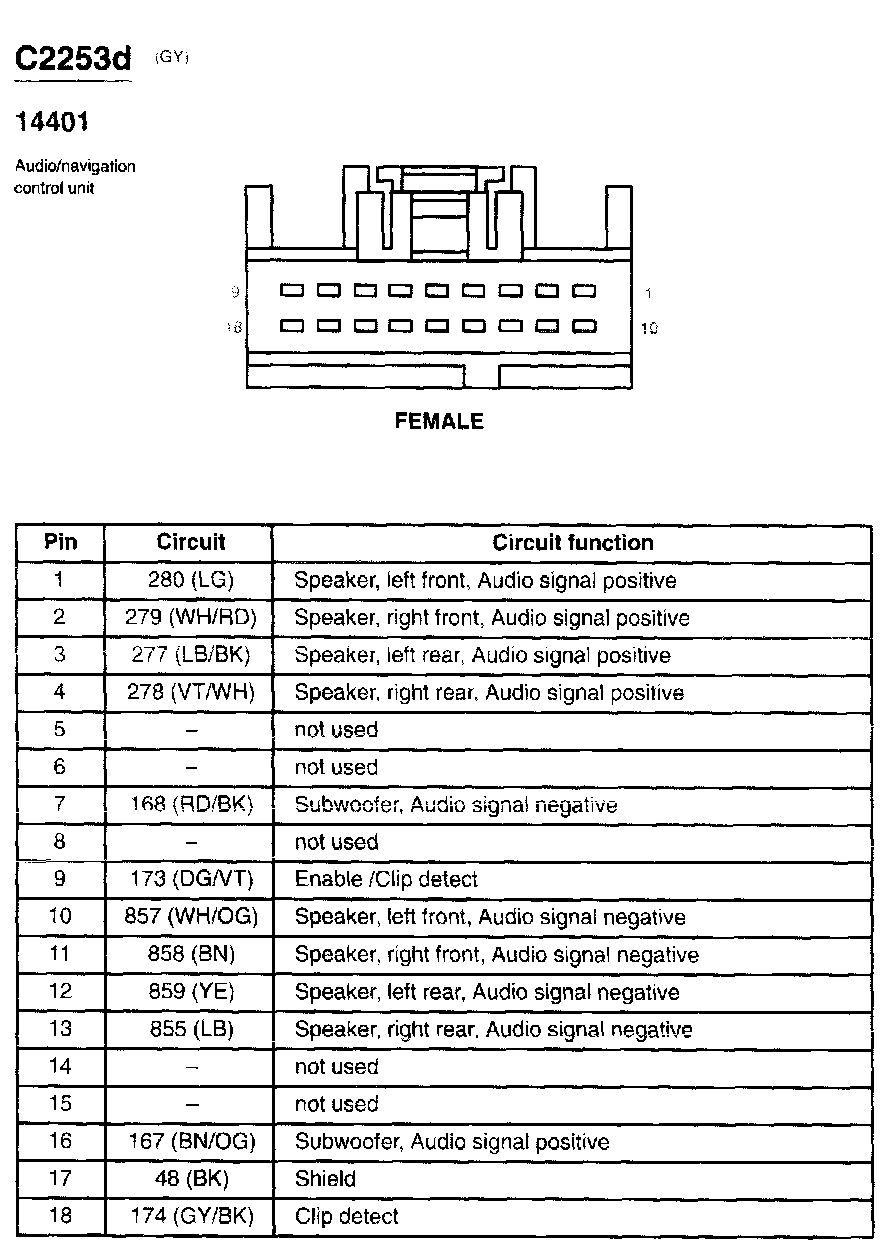

C2253d:

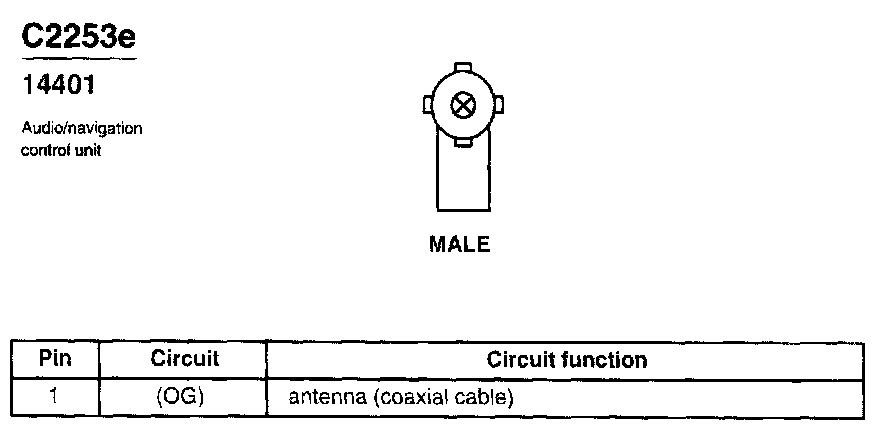

C2253e:
