Oil Temperature Sensor For ECM: Service and Repair

OIL TEMPERATURE SENSOR







Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Drain the engine oil.

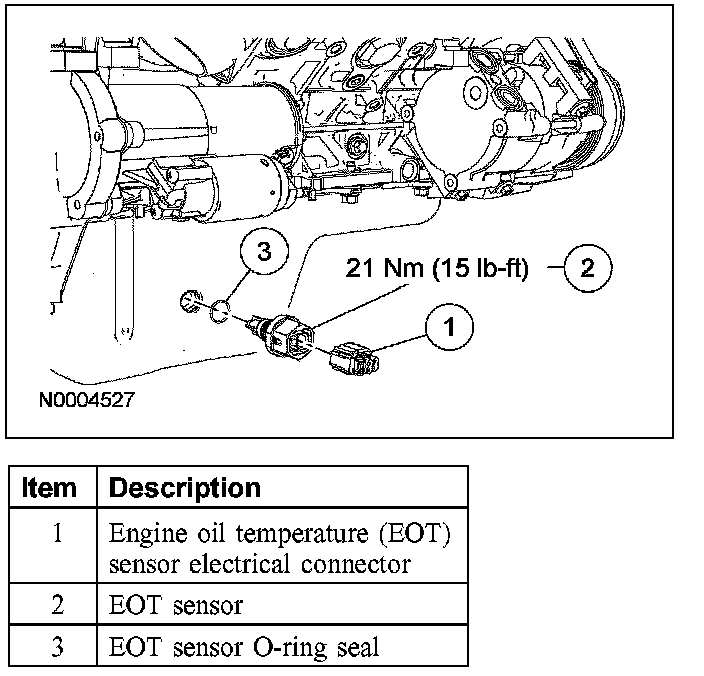

4. Disconnect the engine oil temperature (EOT) sensor electrical connector.
5. Remove the EOT sensor. Discard the O-ring seal.
- To install, tighten to 21 Nm (15 lb-ft).
- Install a new O-ring seal. Lubricate the new O-ring seal with clean engine oil prior to installation.

6. To install, reverse the removal procedure.
