Fuel Pump Module: Notes

SPECIAL TOOL(S)

G04629103
 Wrench, Fuel Tank Sender Unit
310-123

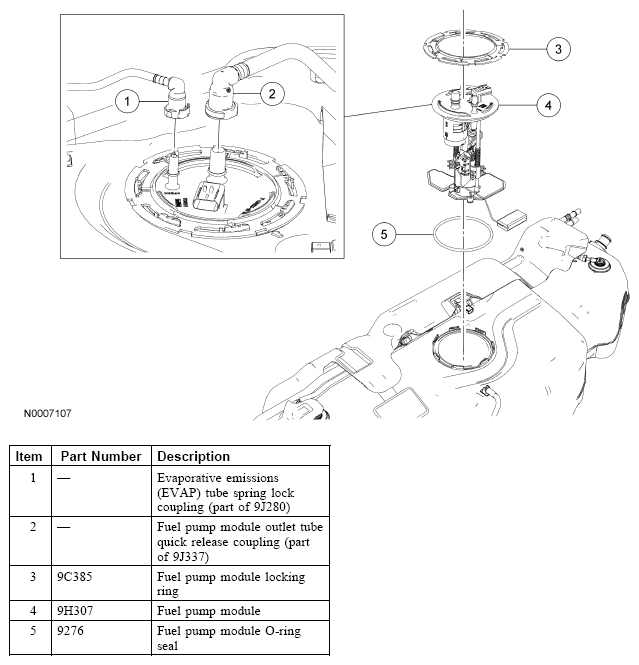

Fig 1: Identifying Fuel Pump Module Components
G04629104Courtesy of FORD MOTOR CO.
