Pinpoint Test A: The Anti-Lock Brake System (Abs) Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2005 Lincoln Navigator and 2005 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
  1. A1 CHECK THE ABS MODULE C135
    • Key in OFF position.
    • Disconnect: ABS Module C135.
    • Inspect the ABS module C135 for damage.
    • Is the ABS module C135 OK?
    • Yes  : GO to A2.
    • No  : REPAIR the ABS module C135. CARRY OUT the data link diagnostics test.
  2. A2 CHECK CIRCUITS 1814 (WH/LB) AND 1815 (PK/LB) BETWEEN THE ABS MODULE C135 AND THE DATA LINK CONNECTOR (DLC) C251 FOR AN OPEN
    • Measure the resistance between the ABS module C135 pin 11, circuit 1814 (WH/LB), harness side and the DLC C251 pin 6, circuit 1814 (WH/LB), harness side.

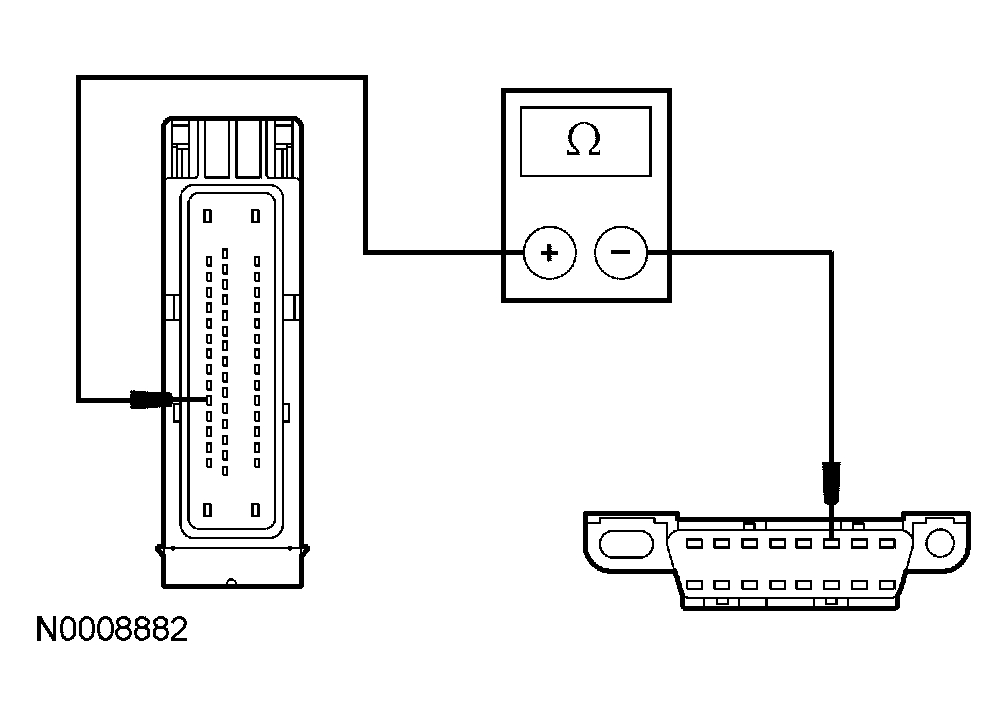

      Fig 1: Measuring Resistance Between ABS Module C135 Pin 11, Circuit 1814 (WH/LB) And DLC C251 Pin 6, Circuit 1814 (WH/LB)
      G03931134Courtesy of FORD MOTOR CO.
    • Measure the resistance between the ABS module C135 pin 15, circuit 1815 (PK/LB), harness side and the DLC C251 pin 14, circuit 1815 (PK/LB), harness side and ground.

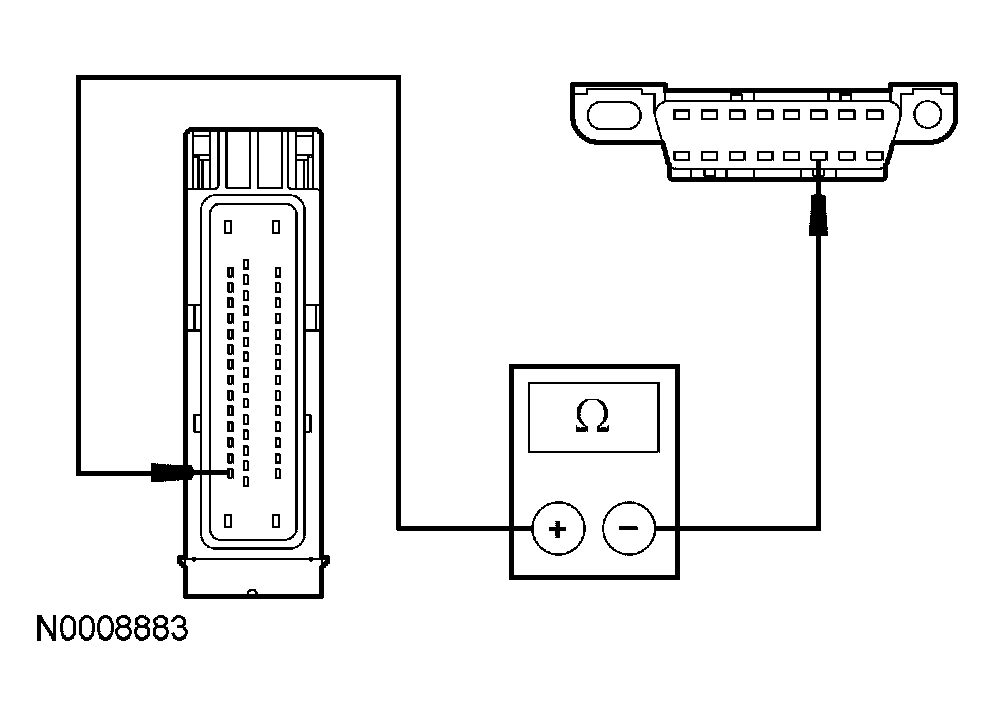

      Fig 2: Measuring Resistance Between ABS Module C135 Pin 15, Circuit 1815 (PK/LB) And DLC C251 Pin 14, Circuit 1815 (PK/LB) And Ground
      G03931135Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    • Yes  : GO to A3.
    • No  : REPAIR the circuit in question. CARRY OUT the data link diagnostics test.
  3. A3 CHECK FOR CORRECT ABS MODULE OPERATION
    • Disconnect all the ABS module connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all the ABS module connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
    • Yes  : INSTALL a new ABS module. REFER to ANTI-LOCK CONTROL . CLEAR the diagnostic trouble codes (DTCs). REPEAT the self-test. CARRY OUT the data link diagnostics test.
    • No  : The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test. CARRY OUT the data link diagnostics test.
