Selector Lever Button: Removal

  1. Place a small screwdriver in the slot at the bottom of the ring and slide the button assembly out and remove it from the knob.

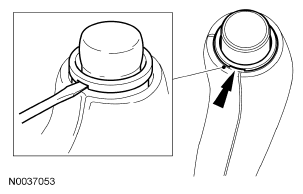

    Fig 1: Locating Selector Lever Ring Slot
    G04628939Courtesy of FORD MOTOR CO.
