Inspection and Verification

INSPECTION AND VERIFICATION

1. Verify the customer concern.
2. Visually inspect for obvious signs of electrical damage.

VISUAL INSPECTION CHART

Electrical
- Wiring harness
- Connectors

Configurable Modules
The vehicle contains the following modules that are configurable:
- driver seat module (DSM)
- audio unit or audio navigation unit
- digital versatile disk (DVD) player
- smart junction box (SJB)
- instrument cluster
- restraint control module (RCM)
- powertrain control module (PCM)
- anti-lock brake system (ABS) module
- electronic automatic temperature control (EATC) module
- parking aid module
- satellite radio receiver

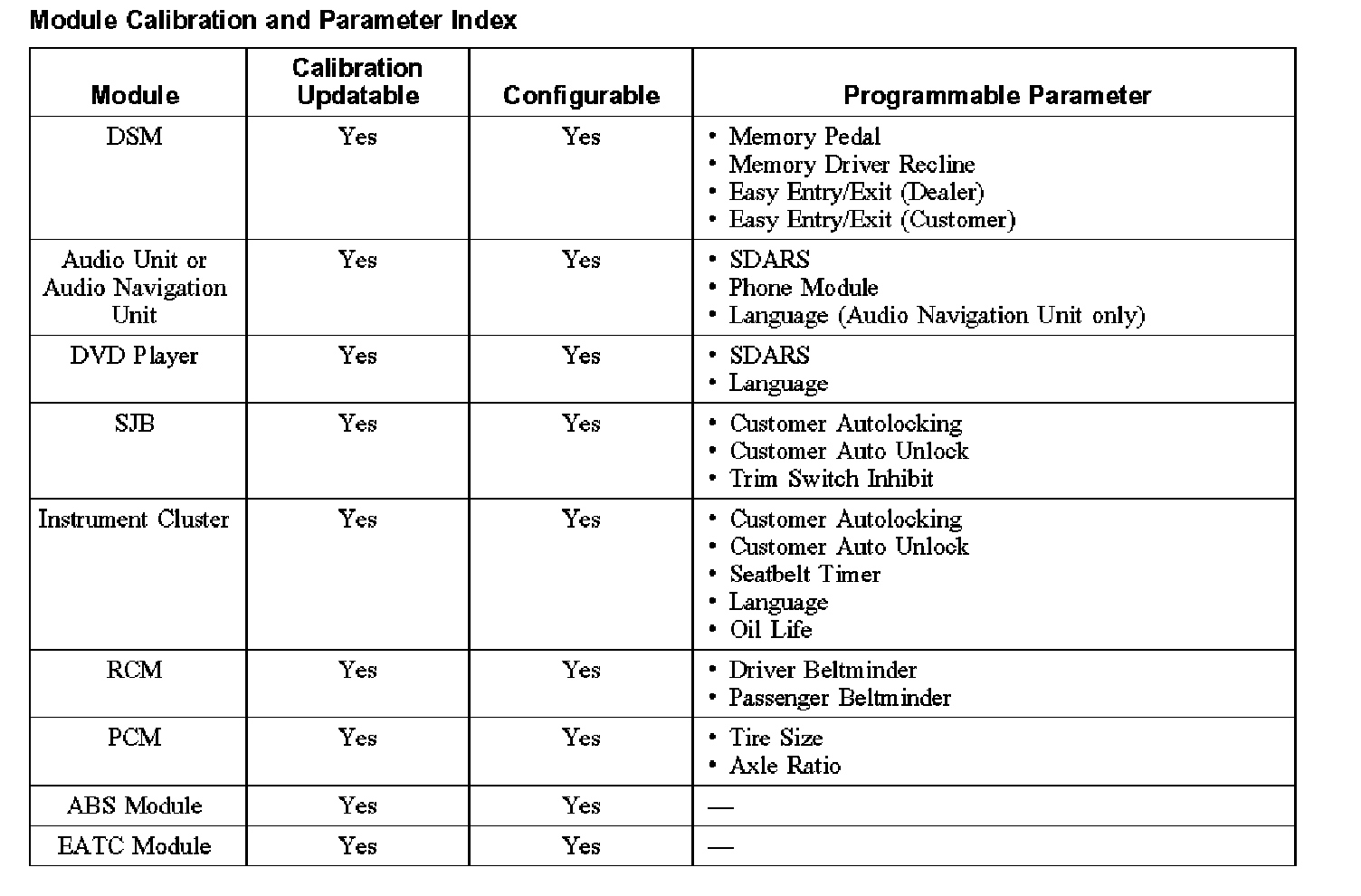

Module Calibration And Parameter Index (Part 1):

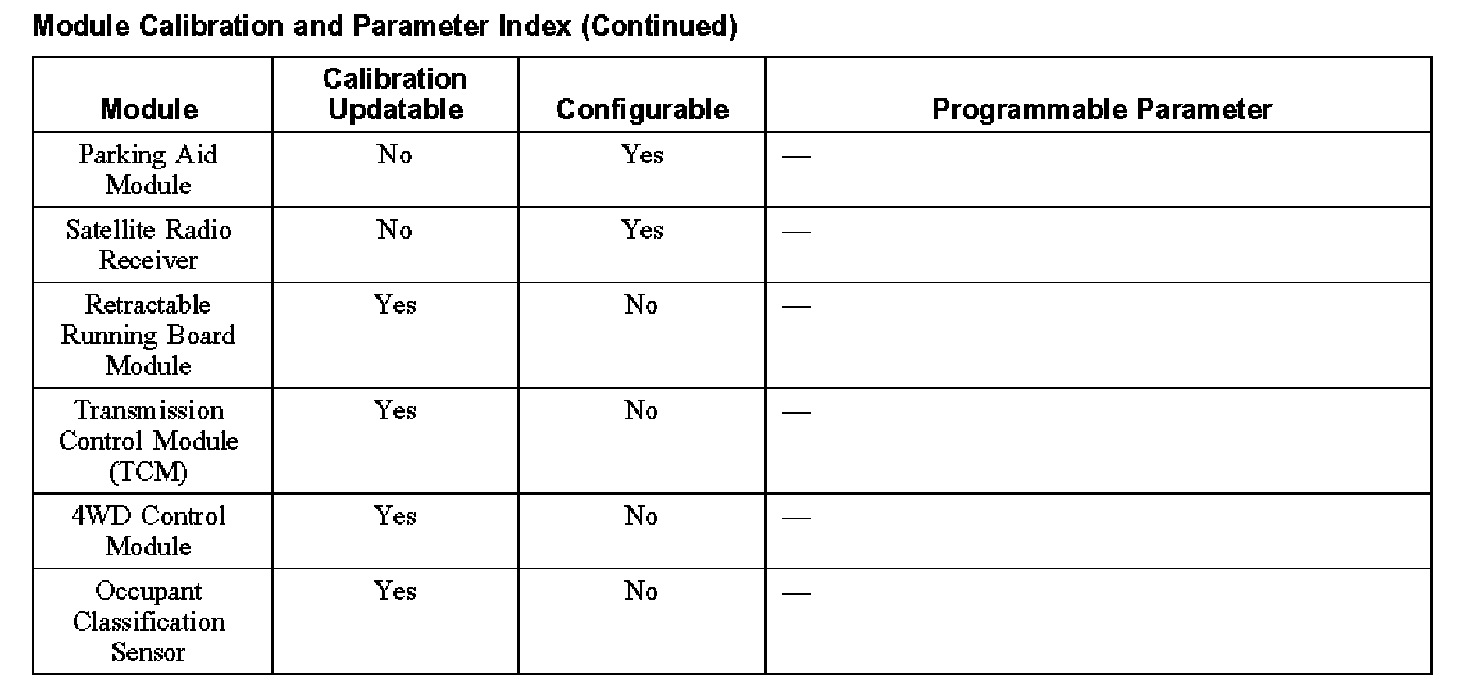

Module Calibration And Parameter Index (Part 2):

Module Calibration and Parameter Index
