Timing Components

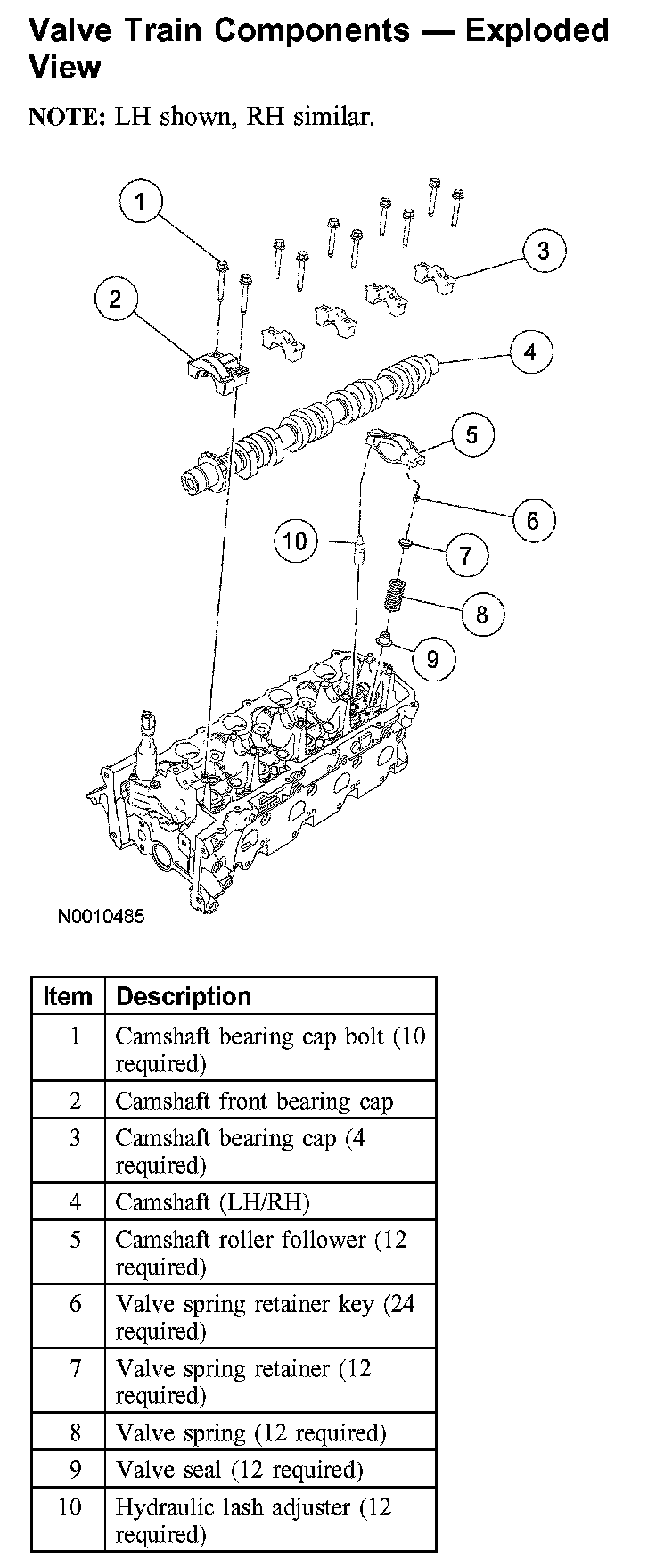

Valve Train Components - Exploded View

Valve Train Components - Exploded View:





NOTE: LH shown, RH similar.
