Main light switch (11654): Terminals

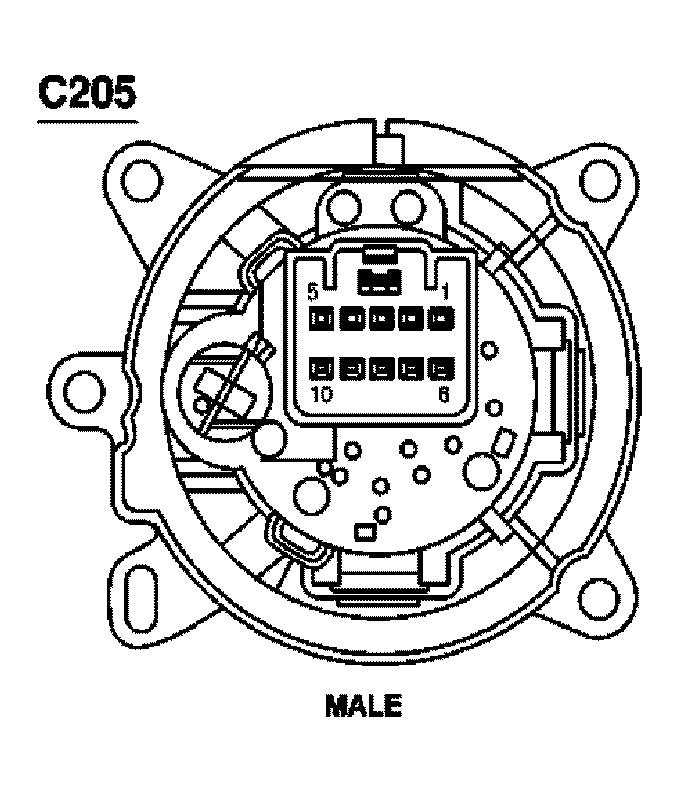

Fig 1: Identifying Connector Terminals C205
G04596510Courtesy of FORD MOTOR CO.
