Exhaust System - Exploded View

4.0L

NOTE: Vehicle body removed for clarity.

NOTE: Premier exhaust shown, standard exhaust similar.

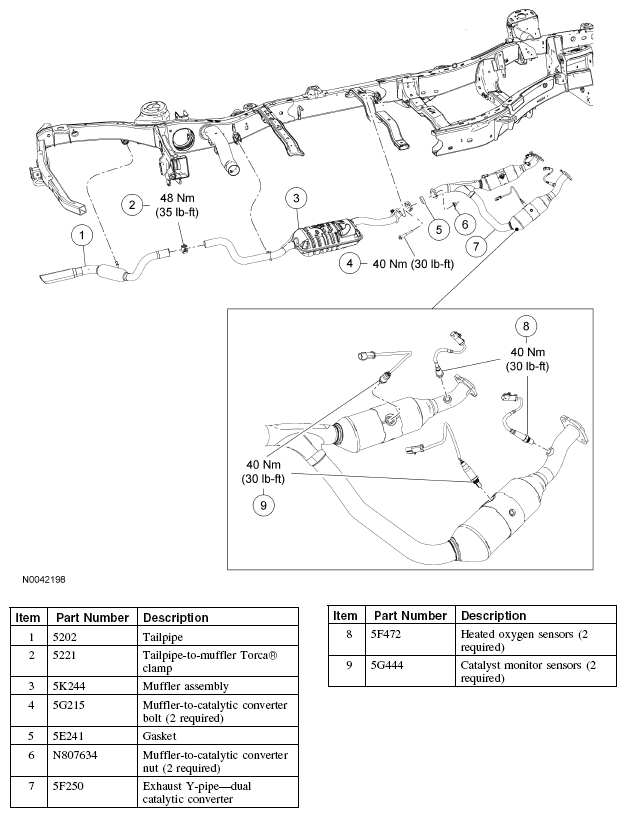

Fig 1: Exploded View Of Exhaust System 4.0L With Torque Specifications

Courtesy of FORD MOTOR CO.

4.6L

NOTE: Vehicle body removed for clarity.

NOTE: Premier exhaust shown, standard exhaust similar.

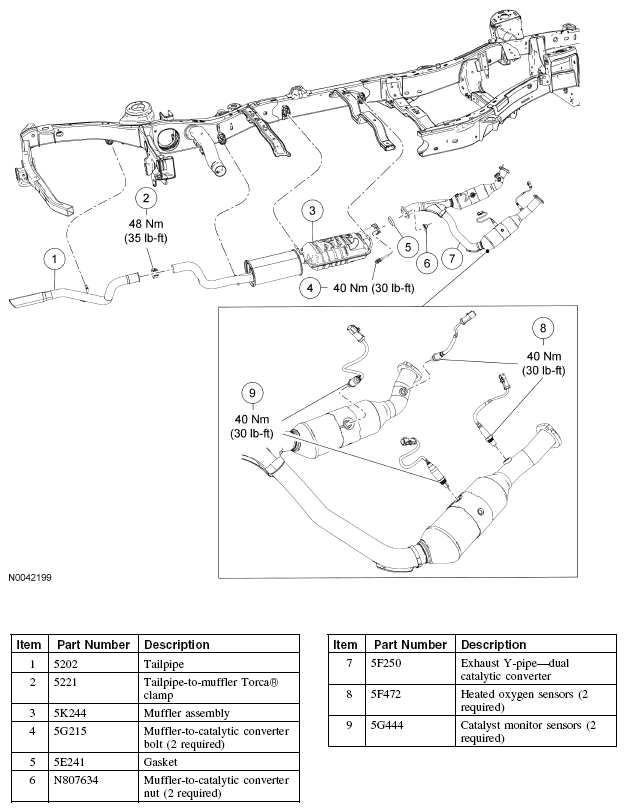

Fig 2: Exploded View Of Exhaust System 4.6L With Torque Specifications

Courtesy of FORD MOTOR CO.
