Steering Column: Notes

NOTE: Steering wheel is removed for clarity.

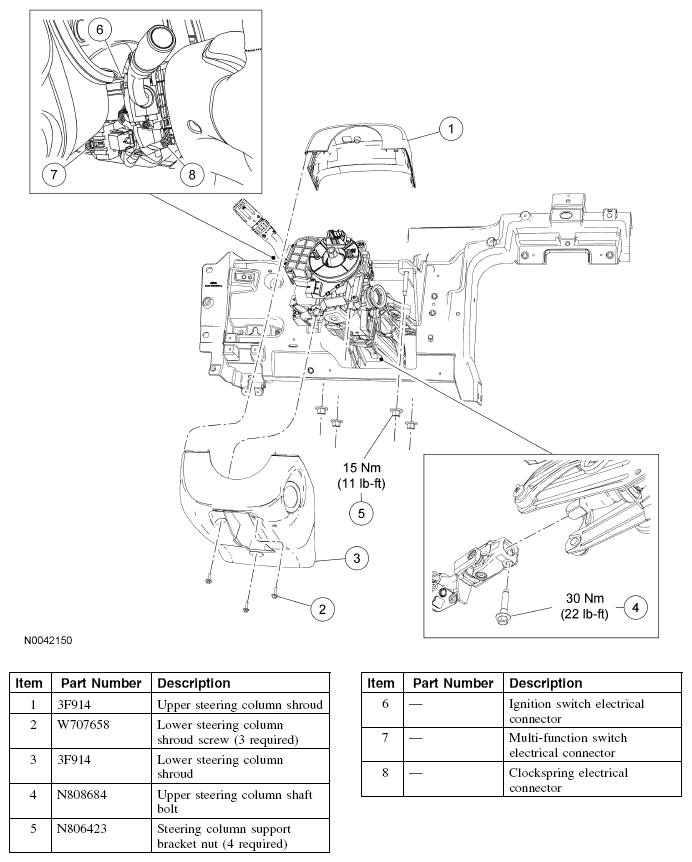

Fig 1: Steering Column With Torque Specifications
G04637832Courtesy of FORD MOTOR CO.
