5R55S

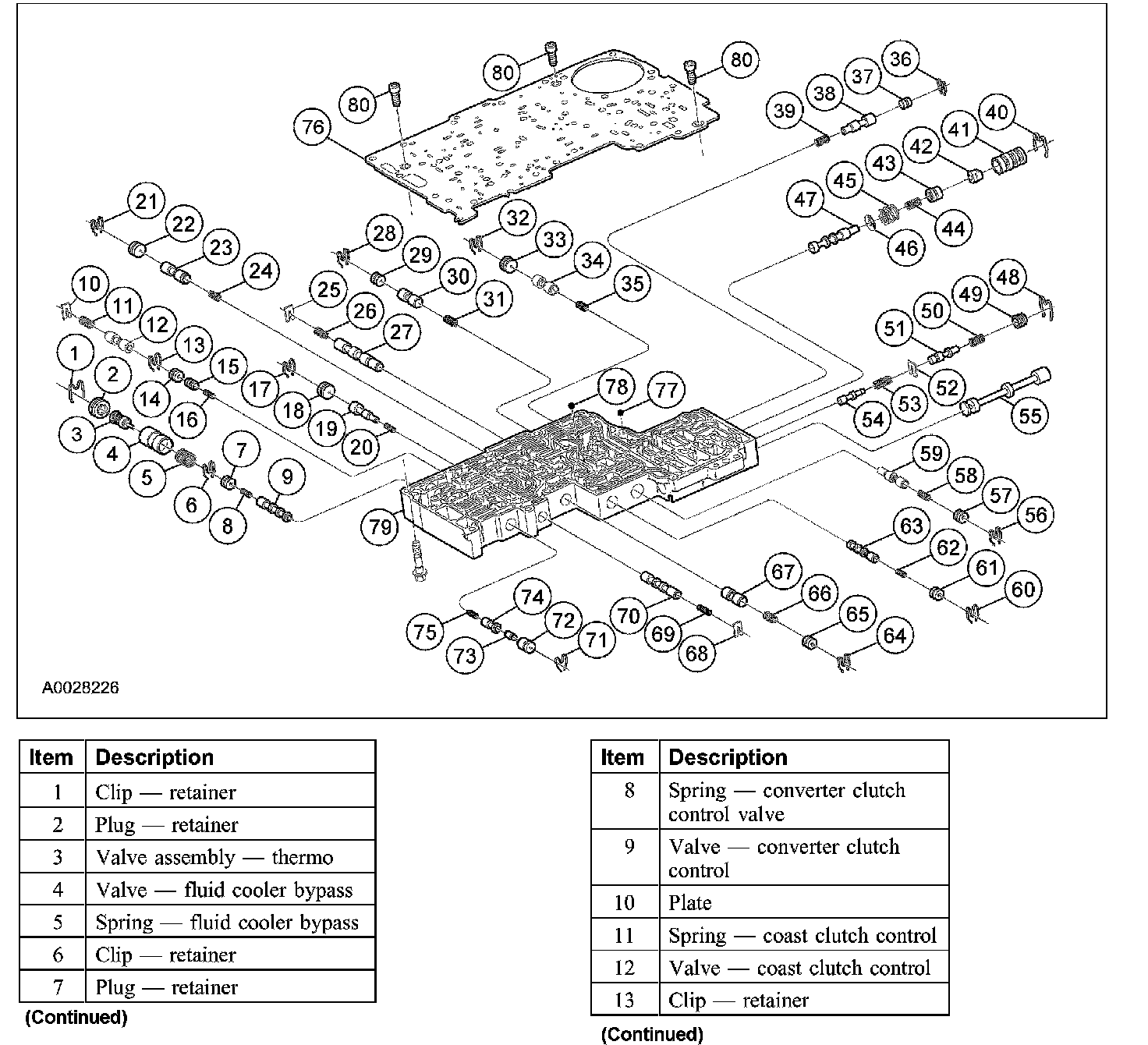

Main Control Valve Body (part 1):

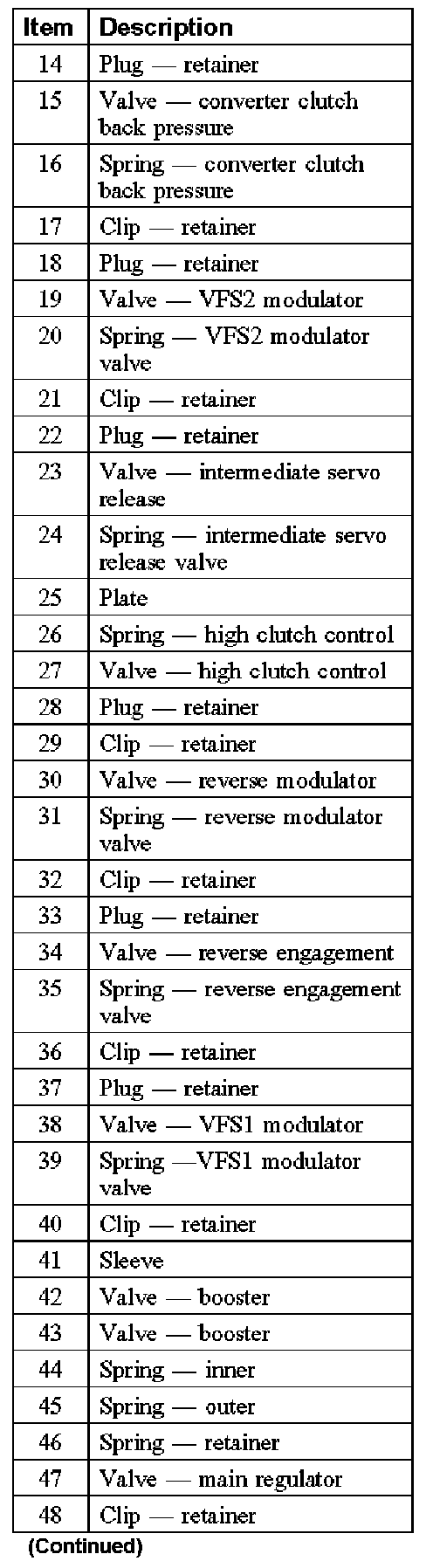

Main Control Valve Body (part 2):

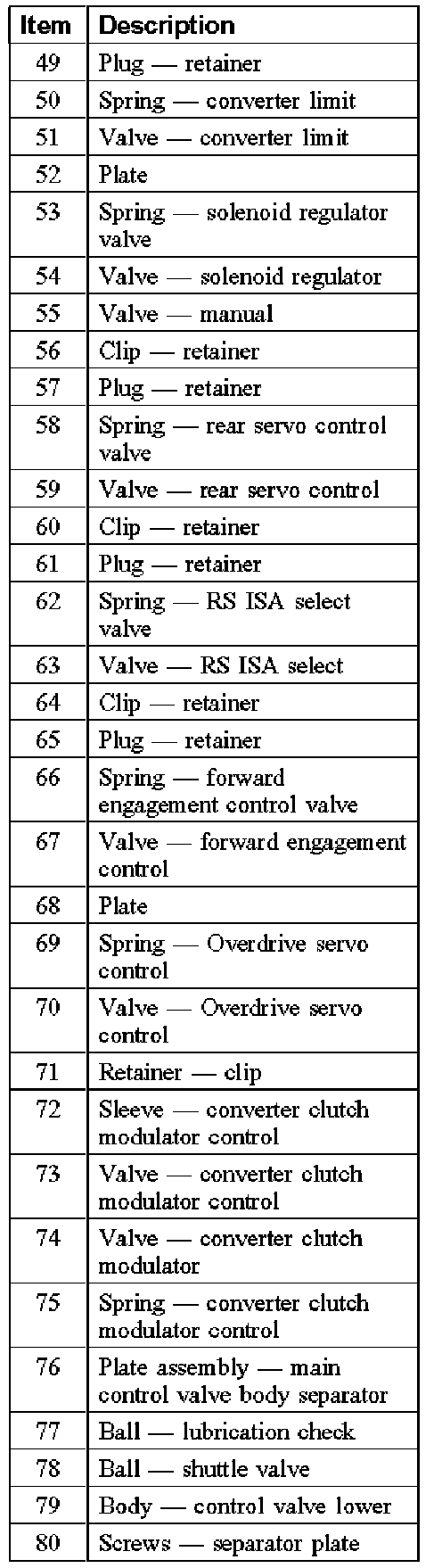

Main Control Valve Body (part 3):
