Tests KA: Fuel Pump (FP) Relay

PINPOINT TEST KA: FUEL PUMP (FP) RELAY

This pinpoint test is intended to diagnose the following:

^ fuel pump relay (9345)
^ inertia fuel shutoff (IFS) switch (9341)
^ harness circuits: B+ VPWR FP GND FPM and FP PWR
^ powertrain control module ( PCM) (12A650)

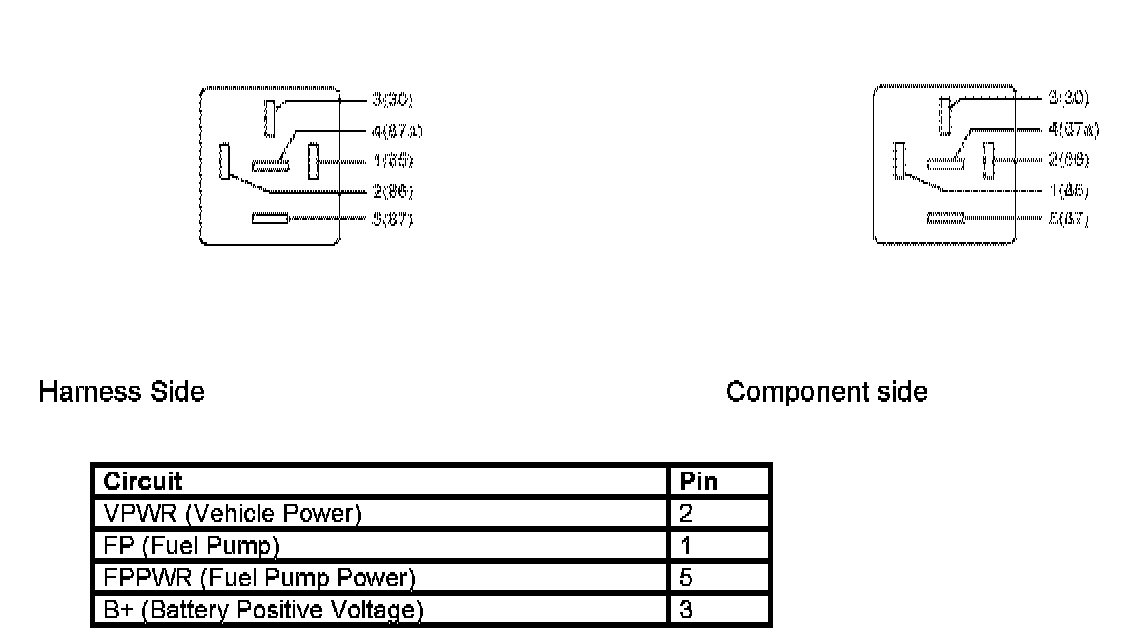

FP Relay Connector

Reference:

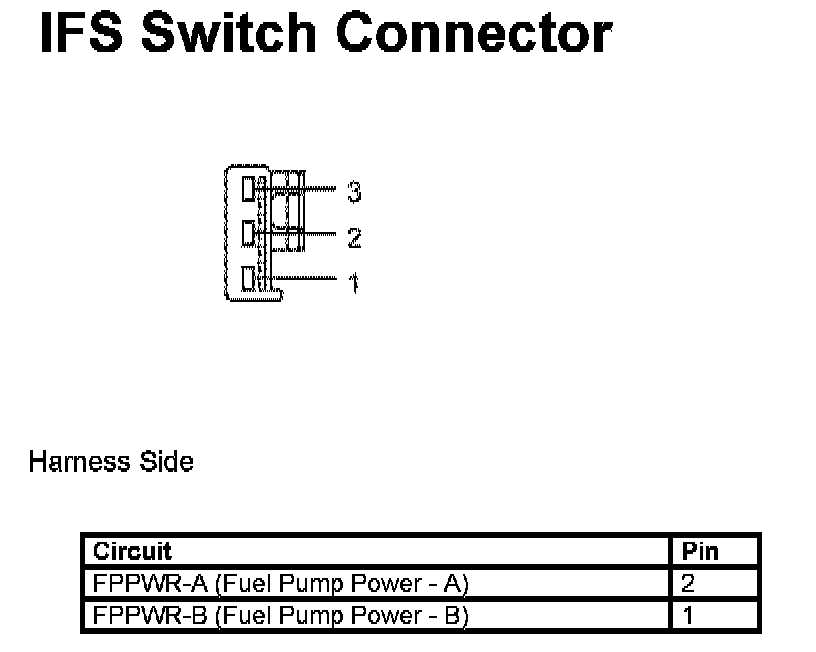

Reference:

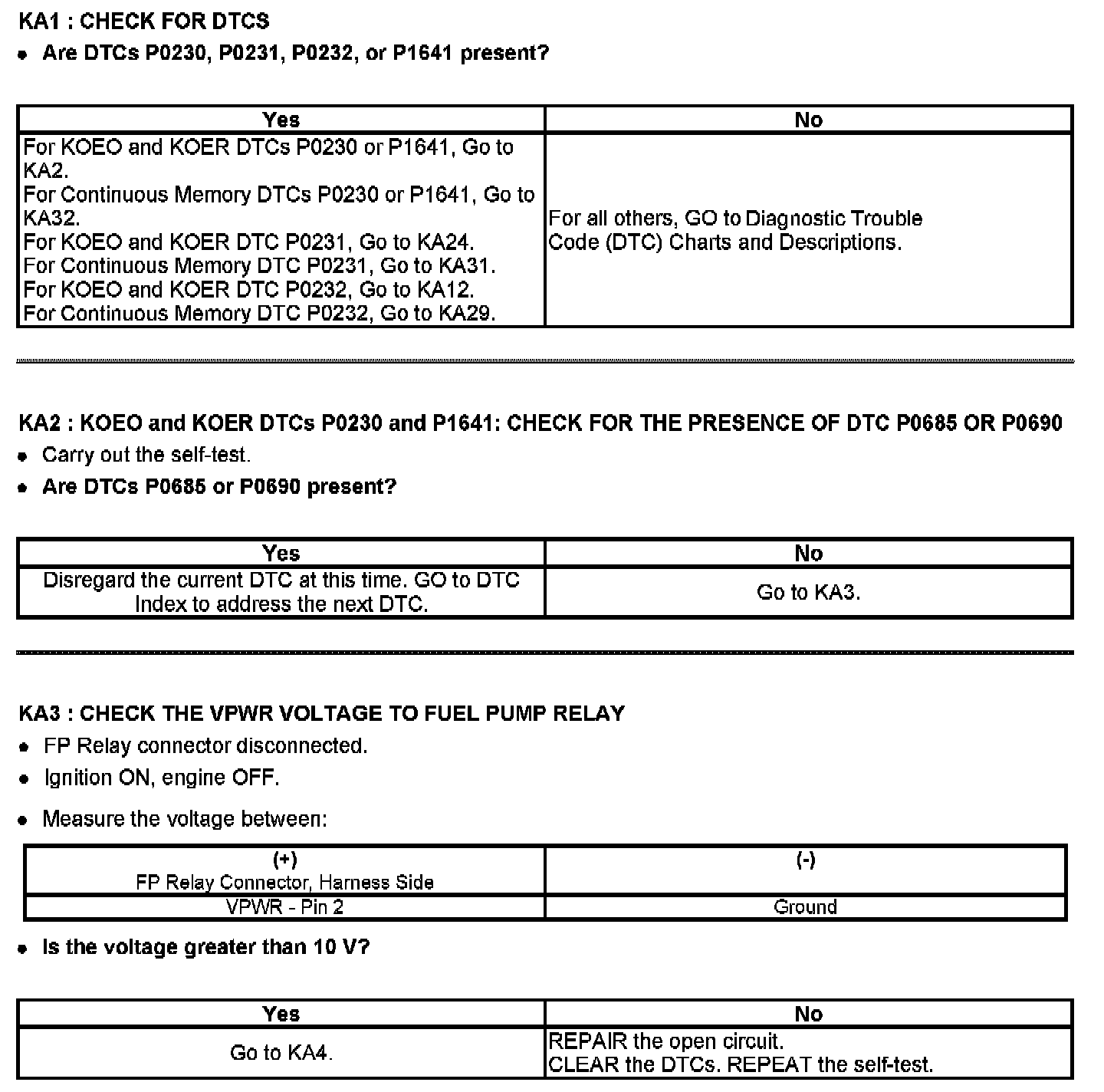

KA1 - KA3:

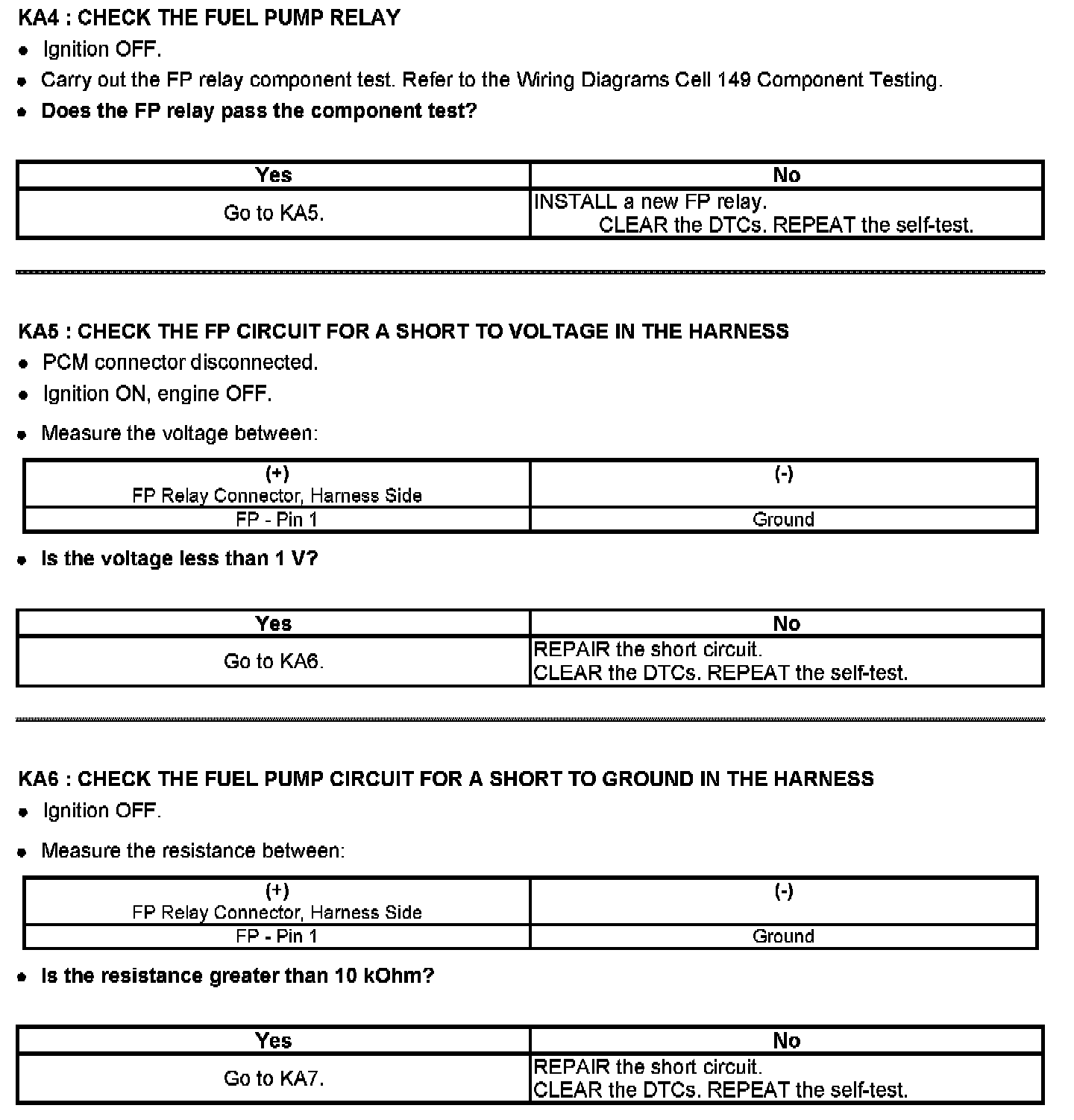

KA4 - KA6:

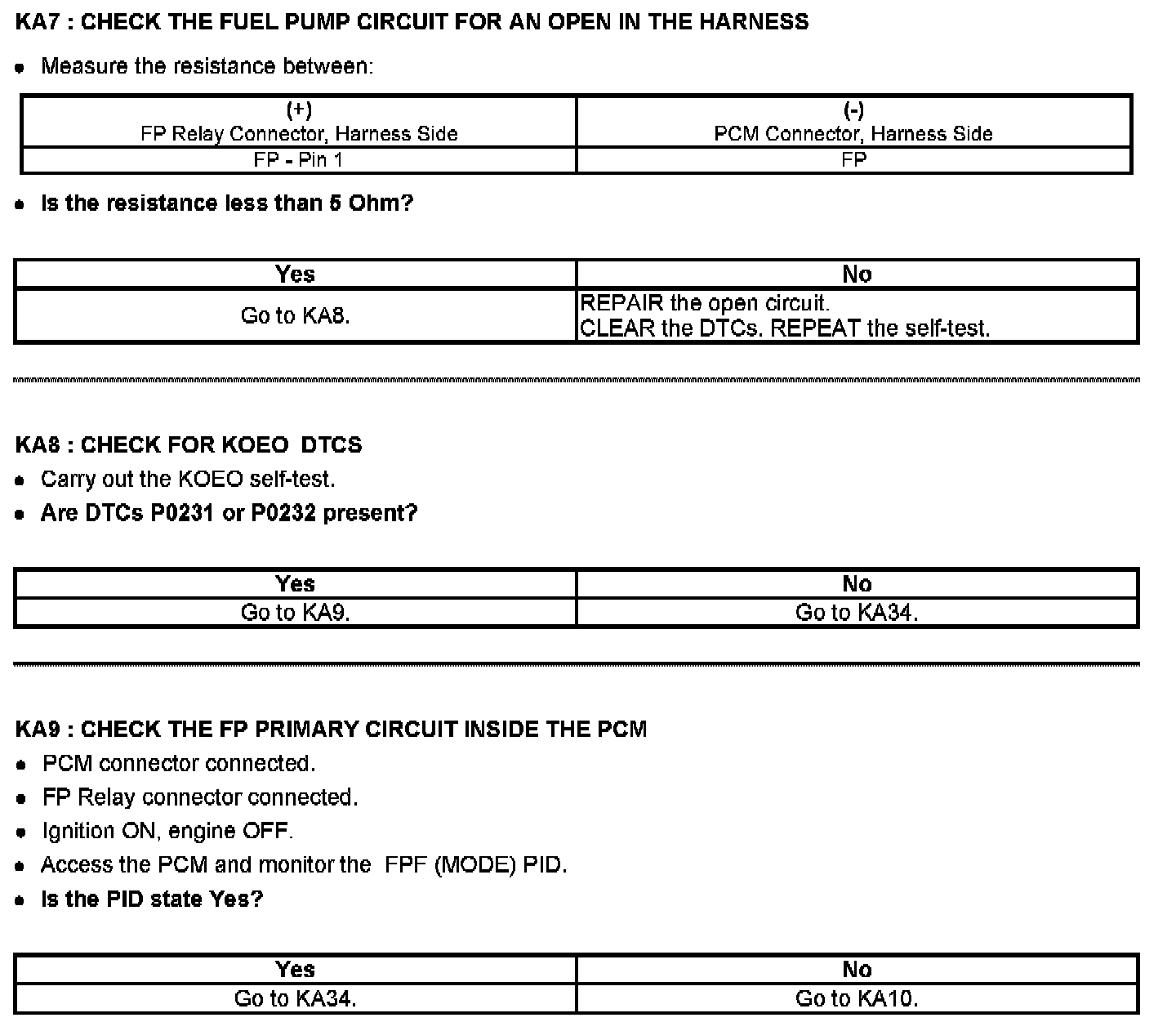

KA7 - KA9:

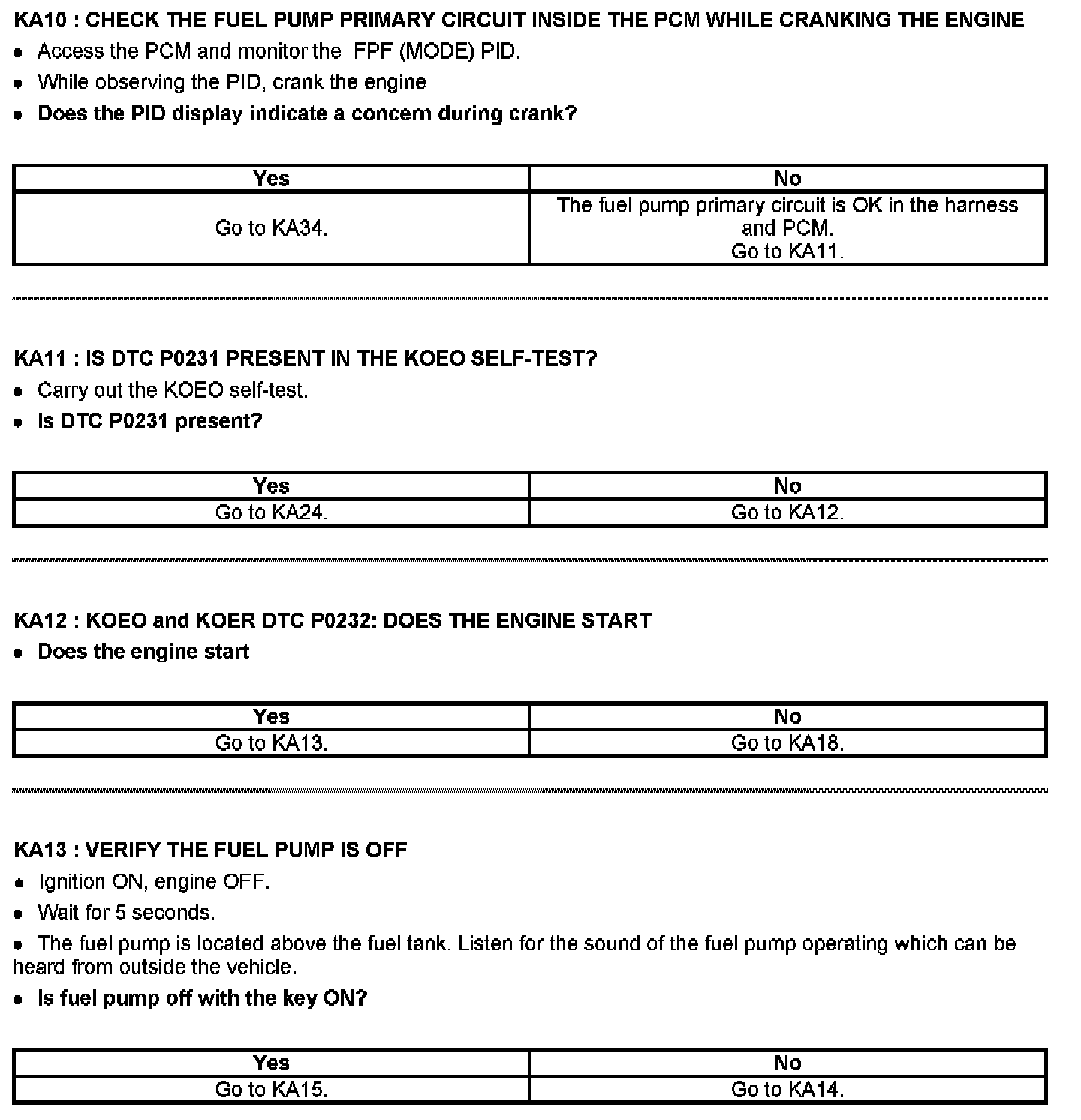

KA10 - KA13:

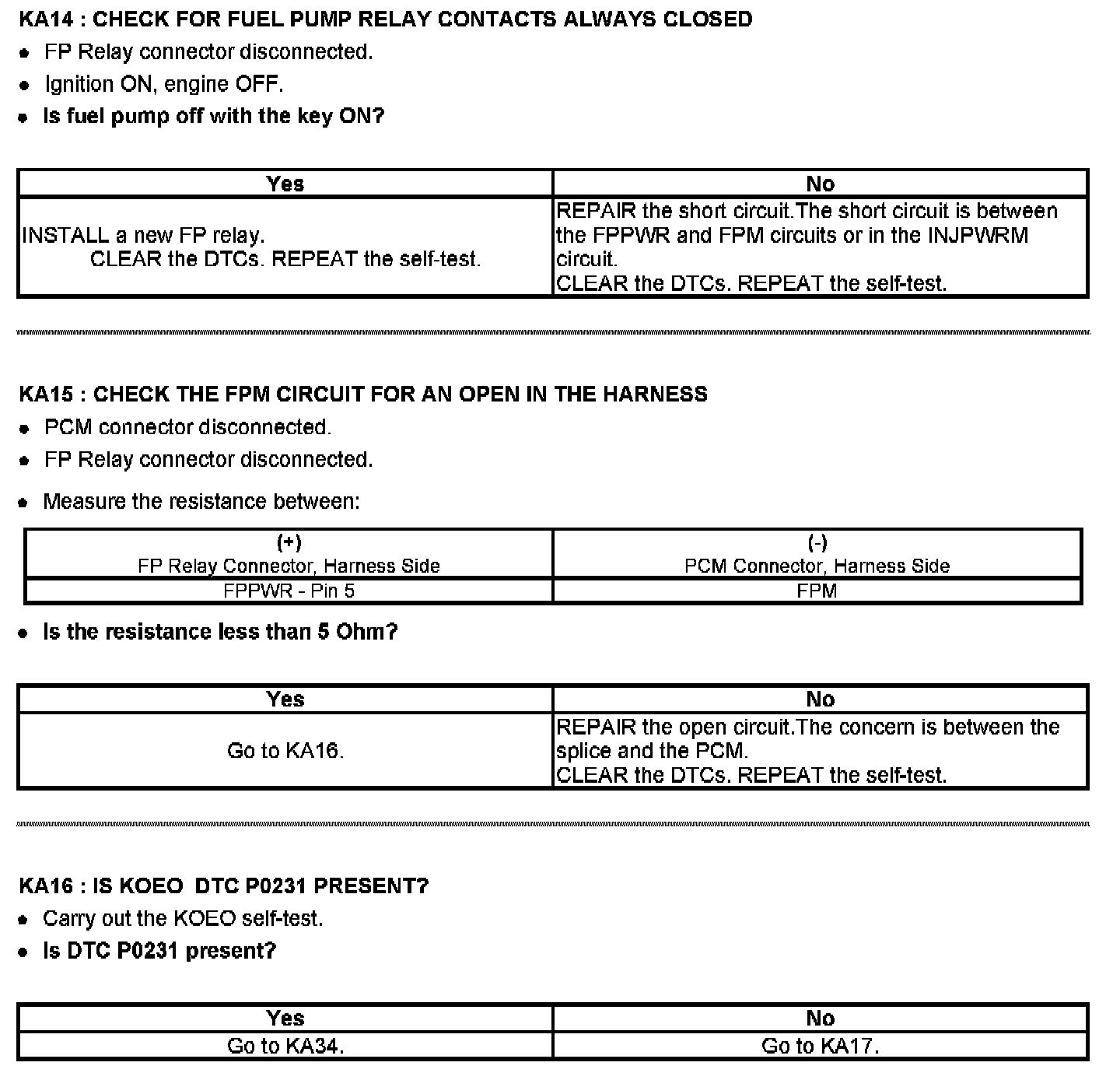

KA14 - KA16:

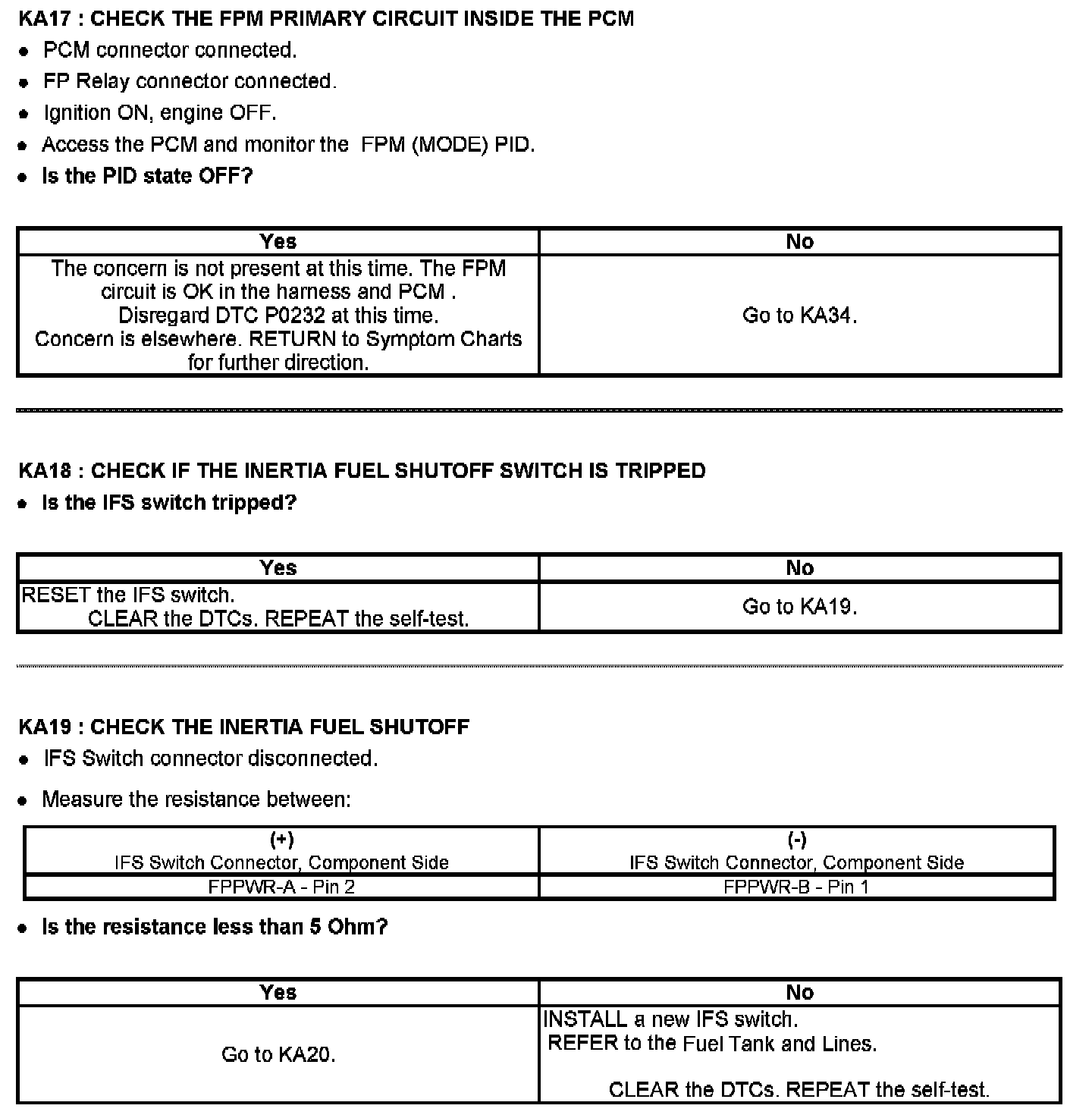

KA17 - KA19:

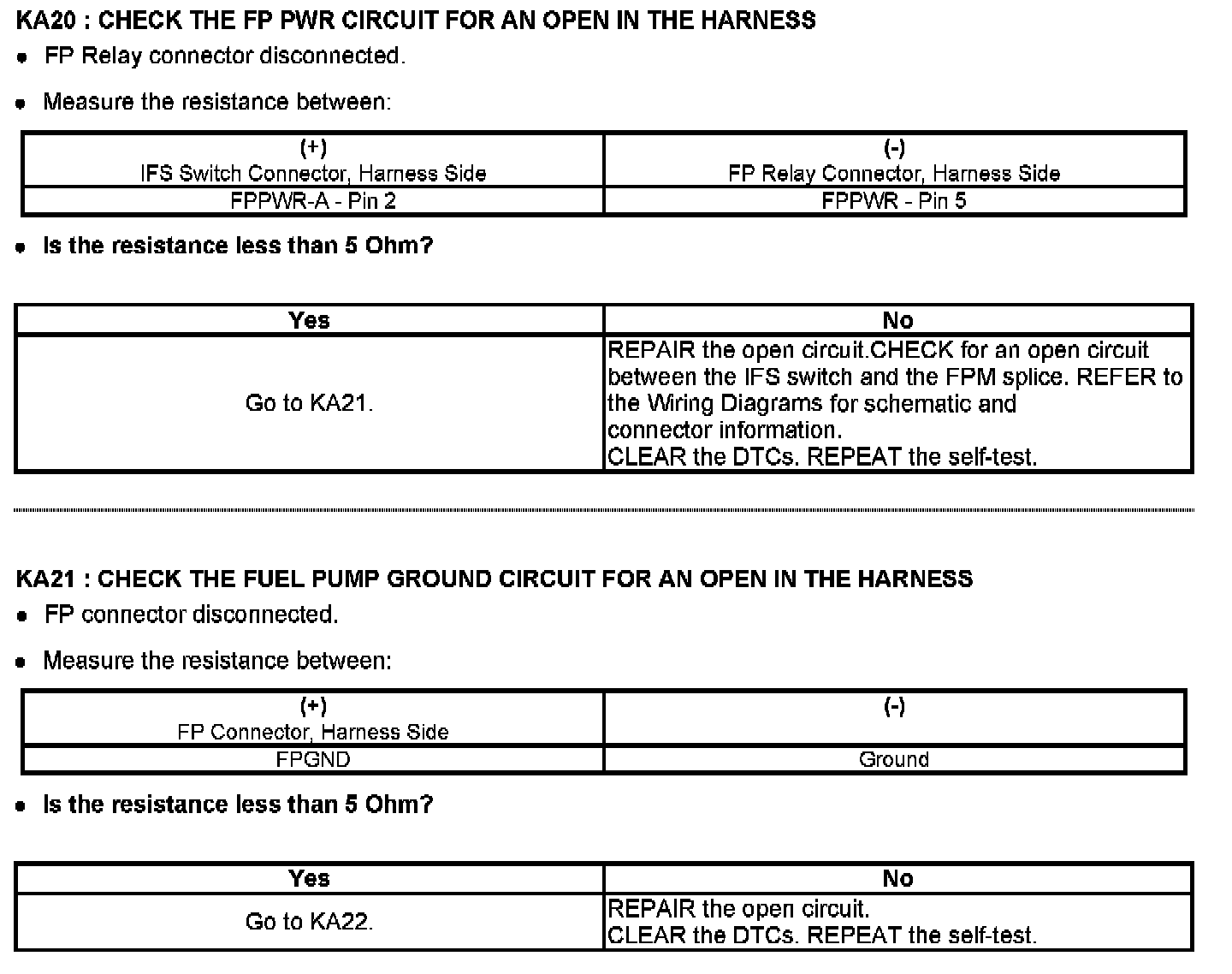

KA20 - KA21:

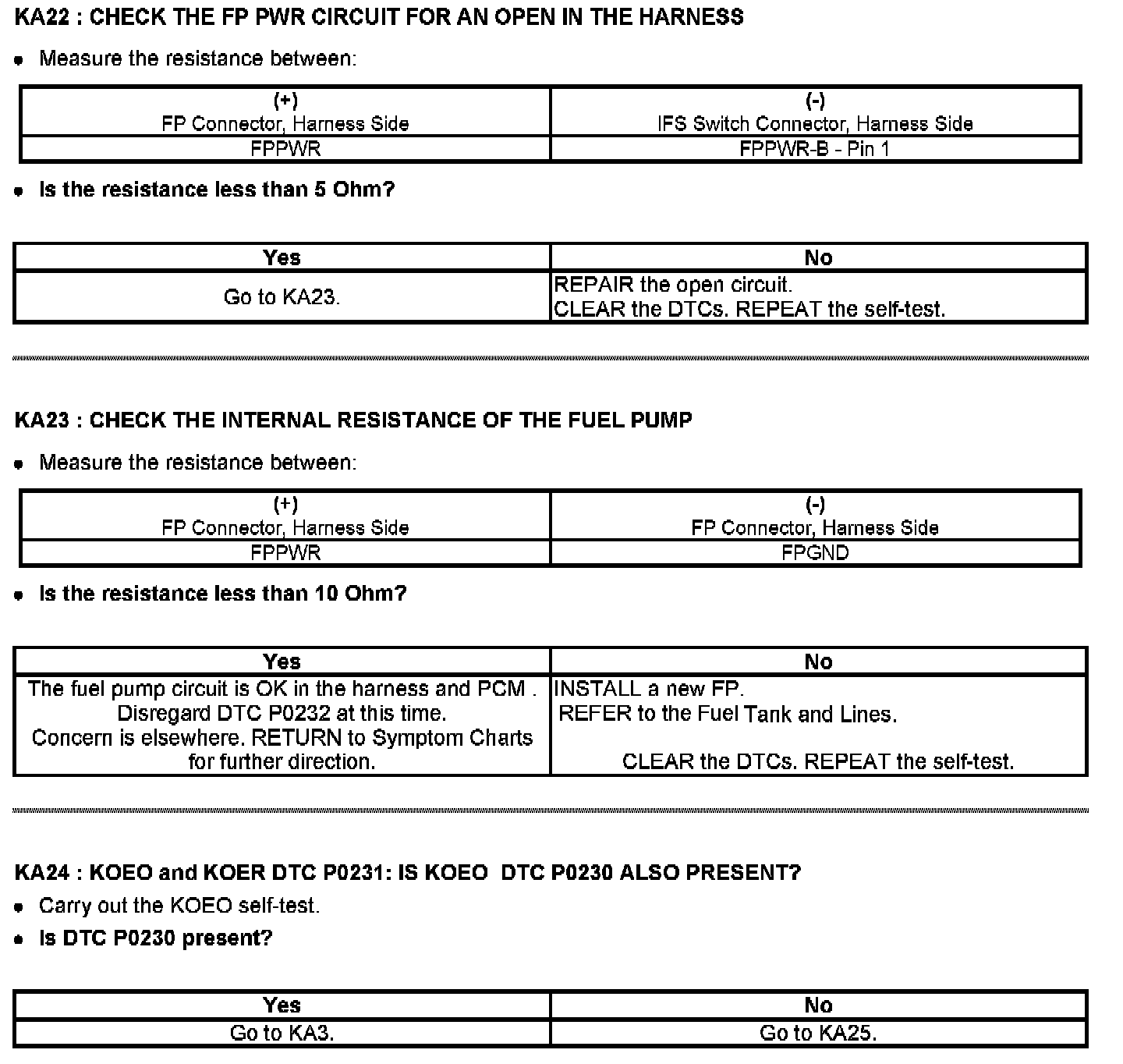

KA22 - KA24:

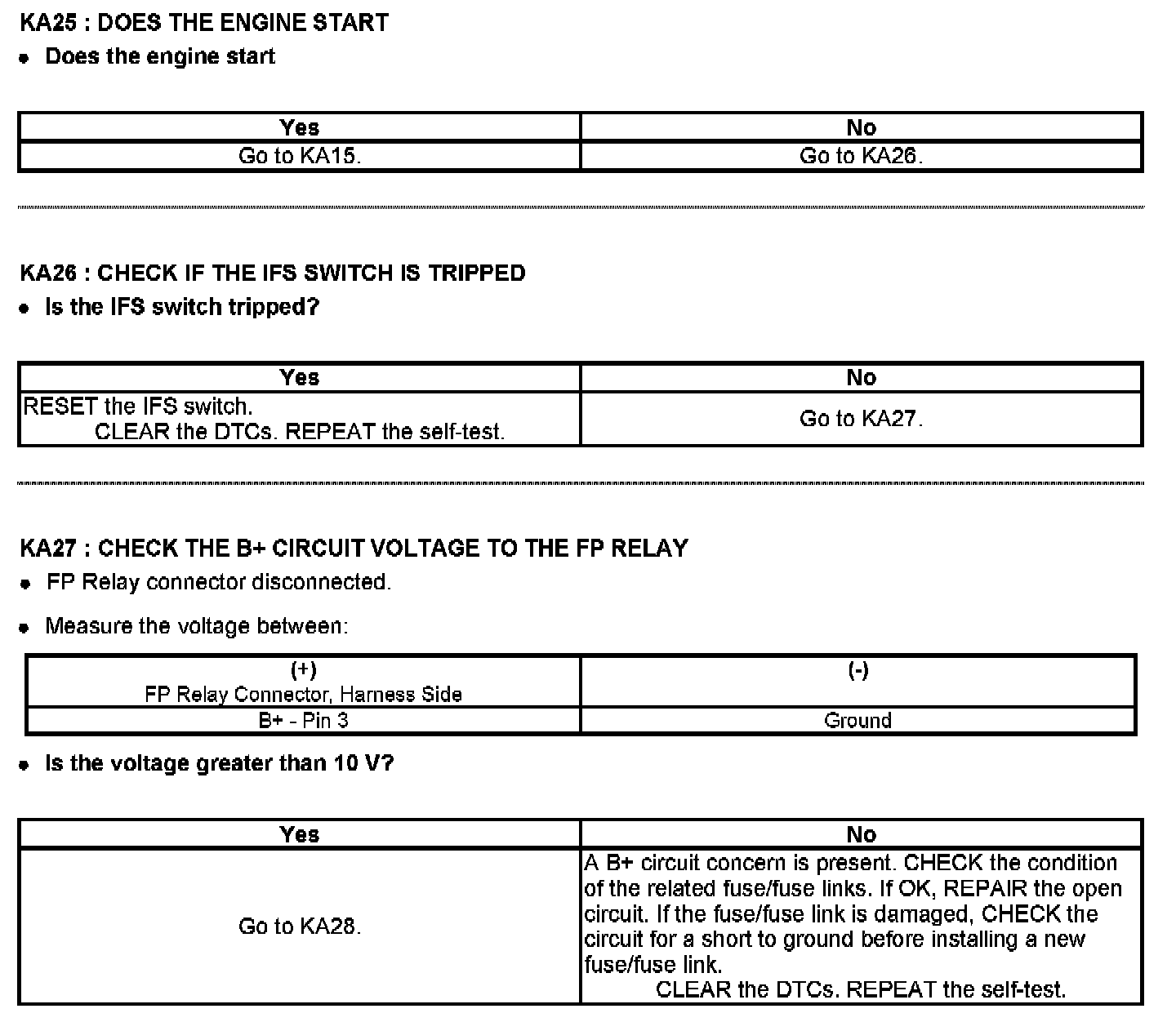

KA25 - KA27:

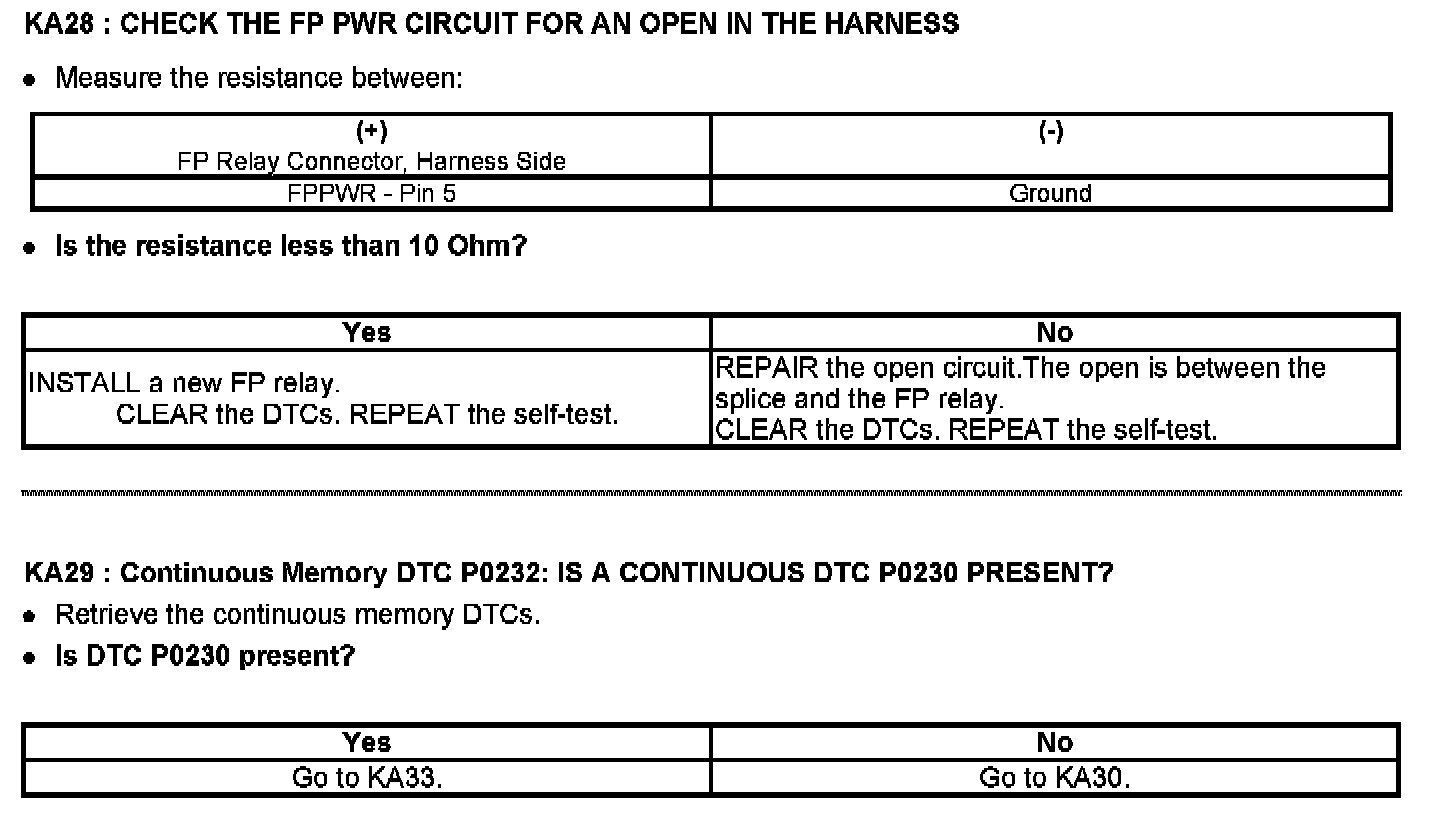

KA28 - KA29:

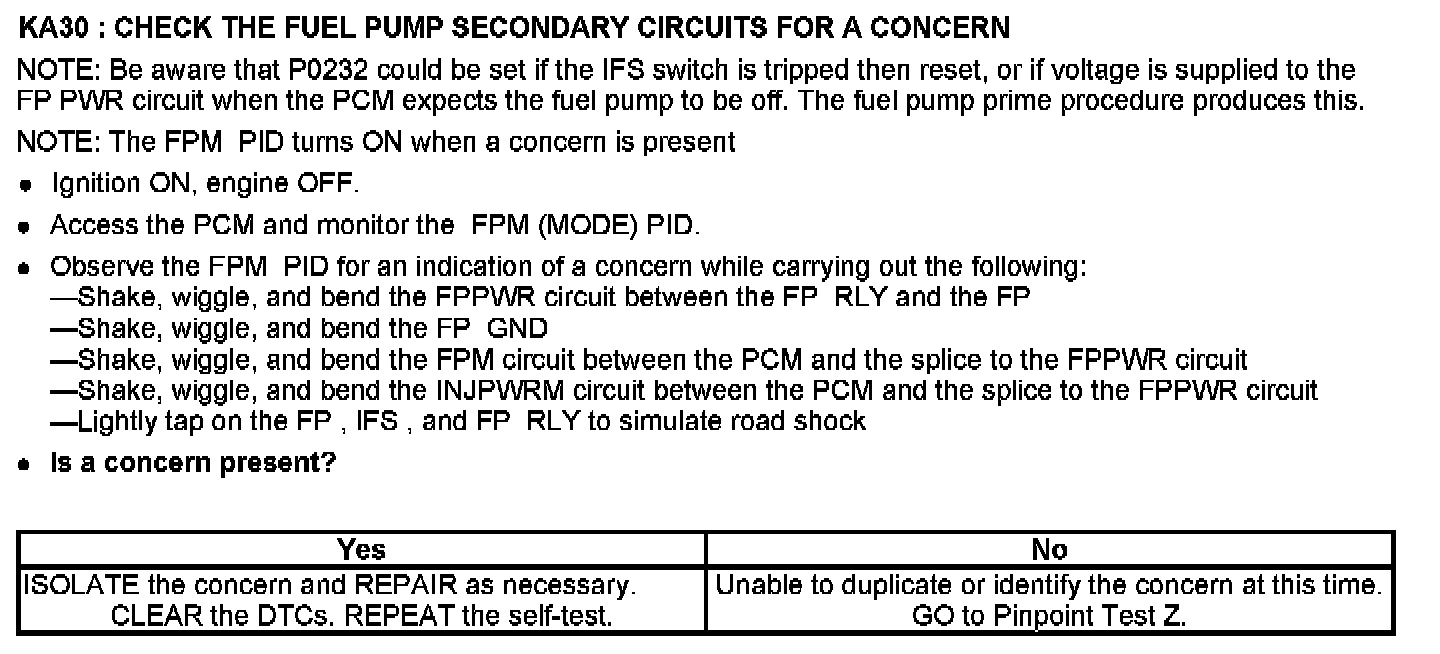

KA30:

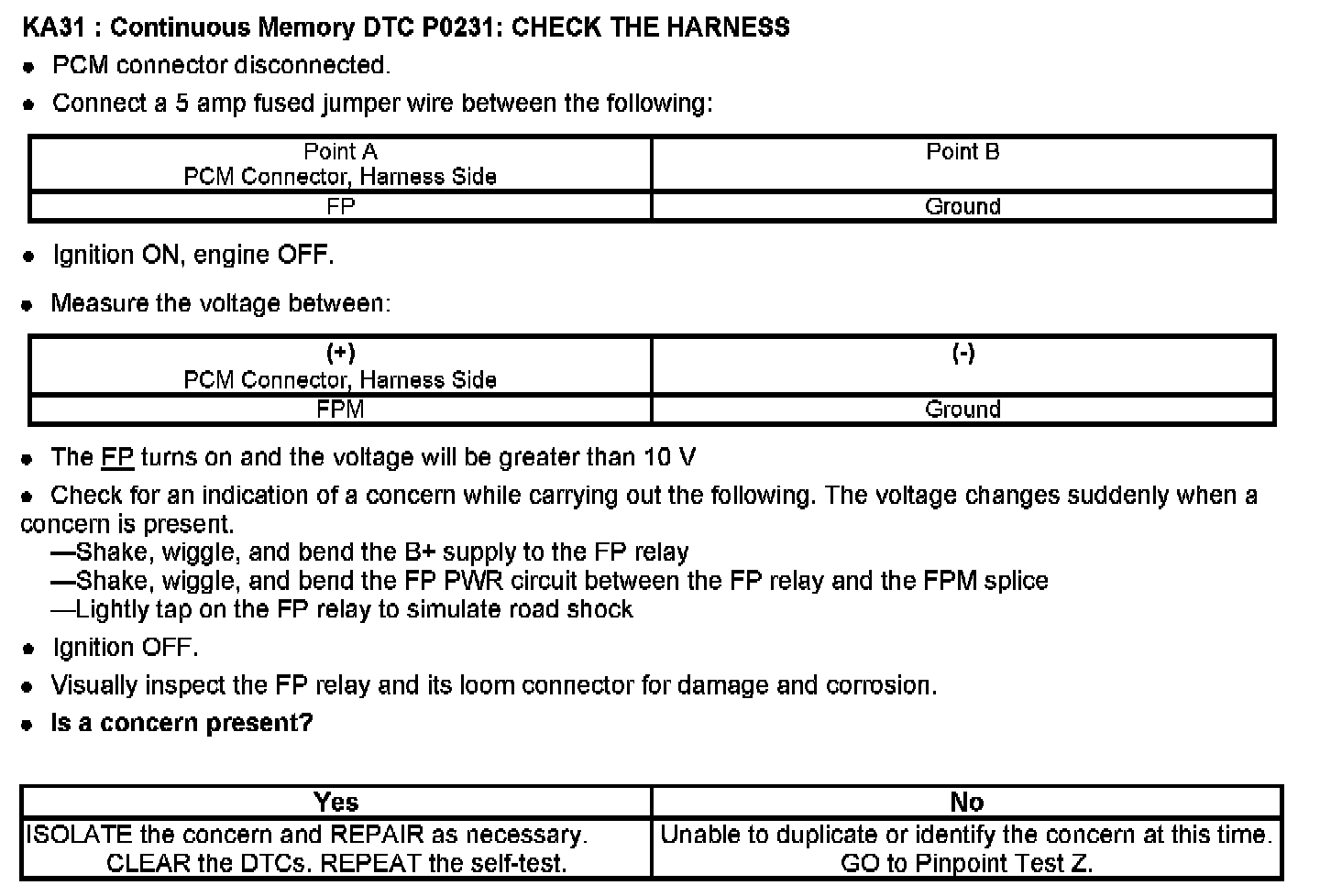

KA31:

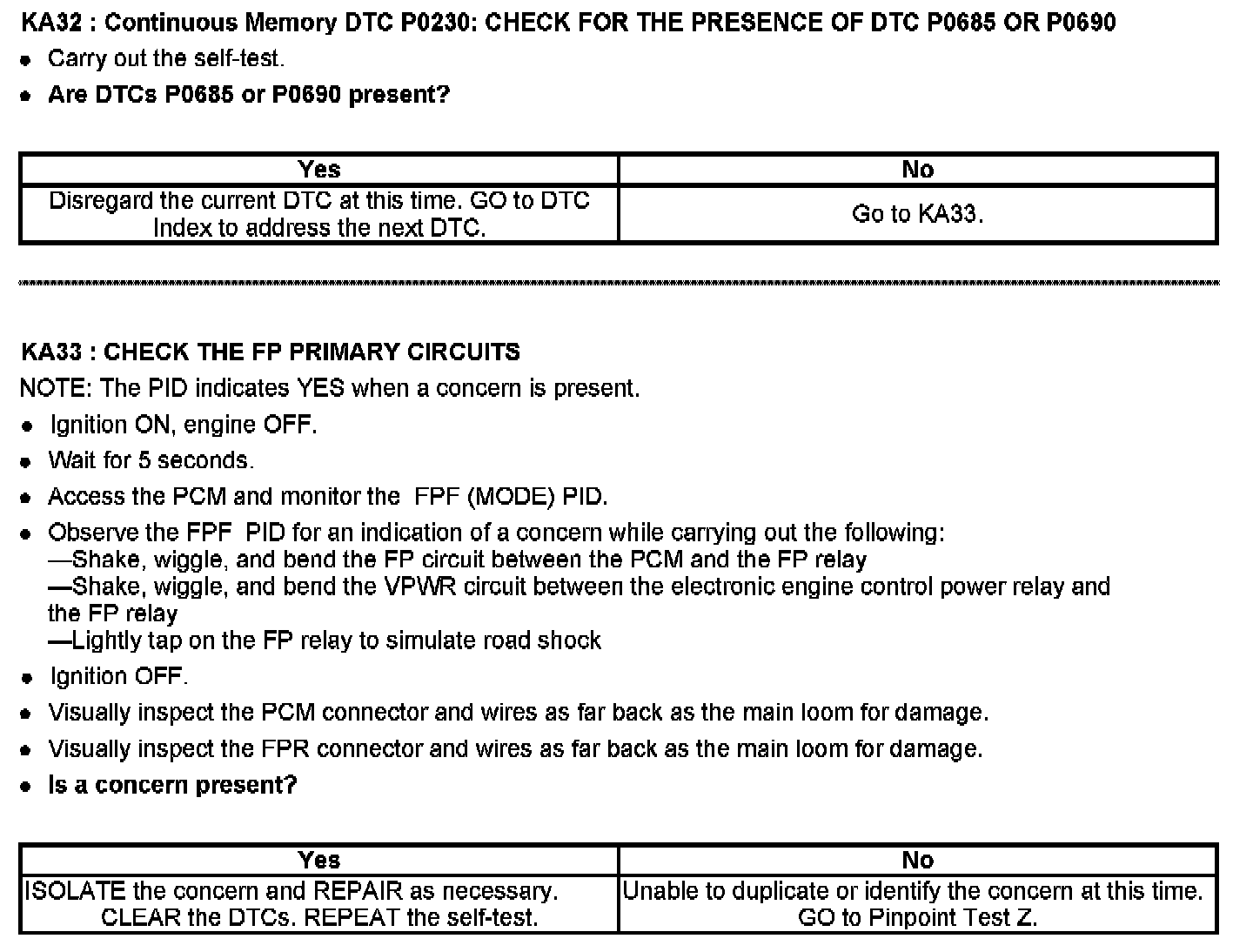

KA32 - KA33:

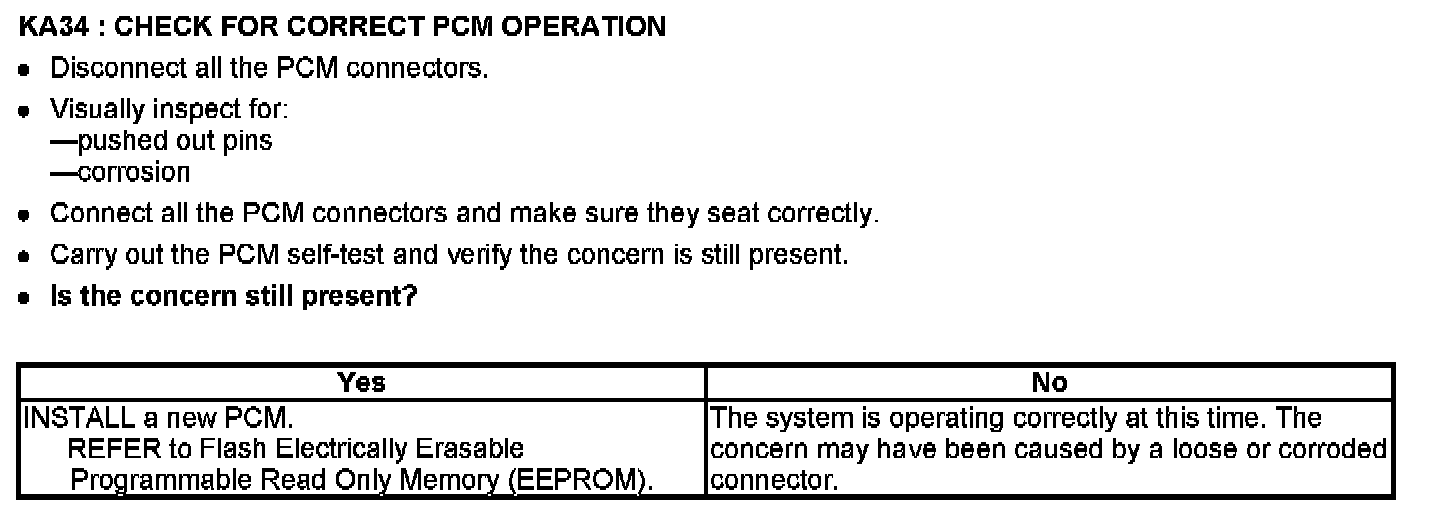

KA34:
