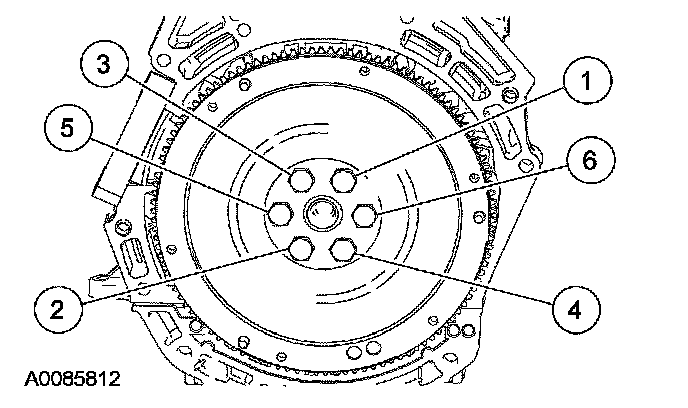

Flywheel
Flywheel Bolts
First Pass
50 Nm (37 ft. lbs.)
Second Pass
80 Nm (50 ft. lbs.)
Final Pass
112 Nm (83 ft. lbs.)
