Restraints Control Module (RCM): Notes

SPECIAL TOOL(S)

G04655086Courtesy of FORD MOTOR CO.
 Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

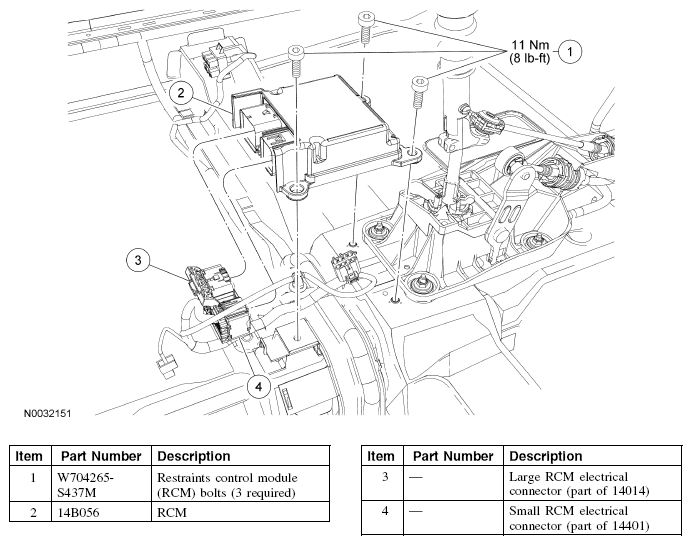

Fig 1: Restraints Control Module (RCM) Remove\Install Replacement Components With Torque Specifications
G04655087Courtesy of FORD MOTOR CO.
