Seat - Exploded View, Front

NOTE: Driver seat shown, passenger seat similar.

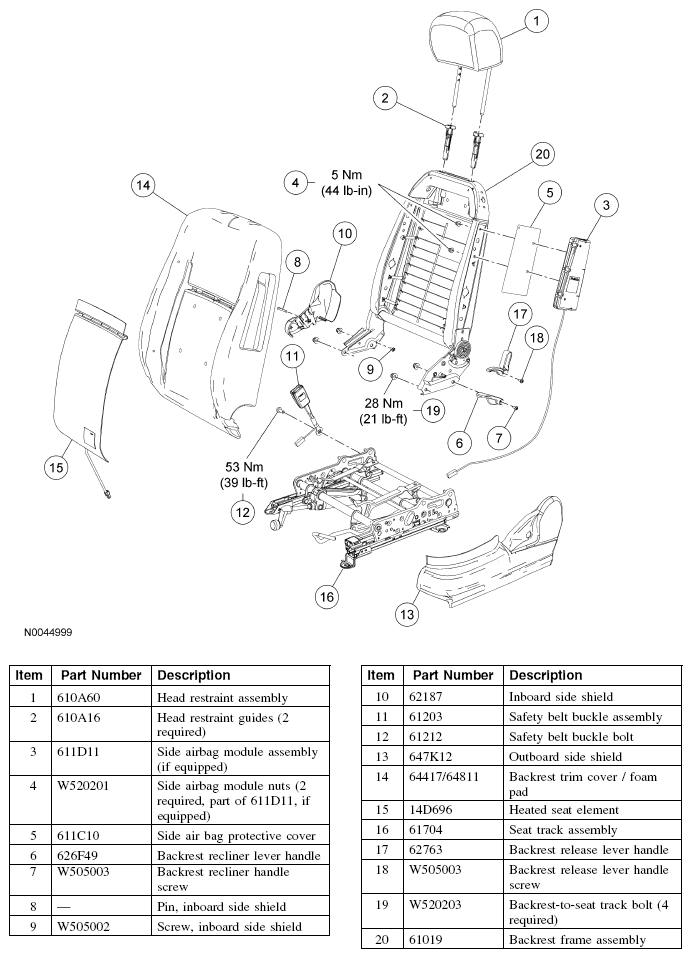

Fig 1: Exploded View Of Seat Backrest - Front With Torque Specification
G04654350Courtesy of FORD MOTOR CO.

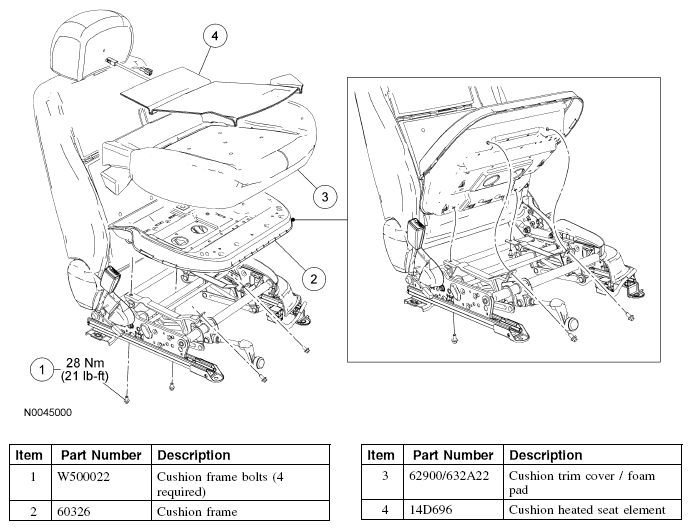

Fig 2: Exploded View Of Seat Cushion - Front, Driver With Torque Specification
G04654351Courtesy of FORD MOTOR CO.

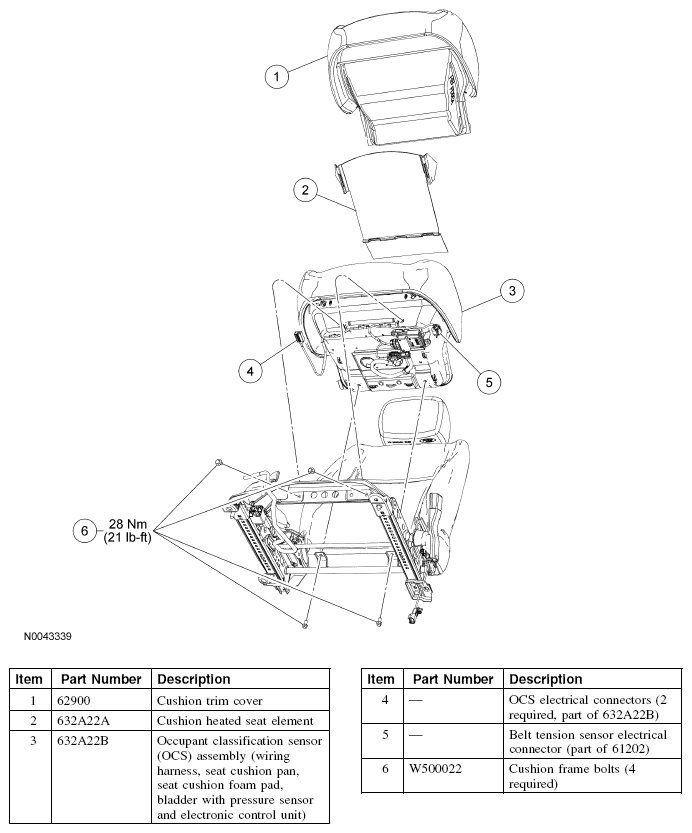

Fig 3: Exploded View Of Seat Cushion - Front, Passenger With Torque Specification
G04654352Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
