Connector Views

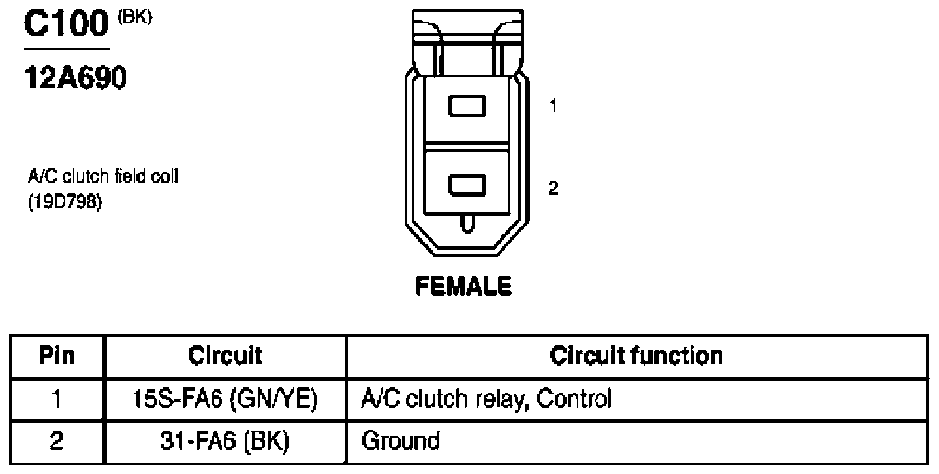

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07846715

Courtesy of FORD MOTOR CO.

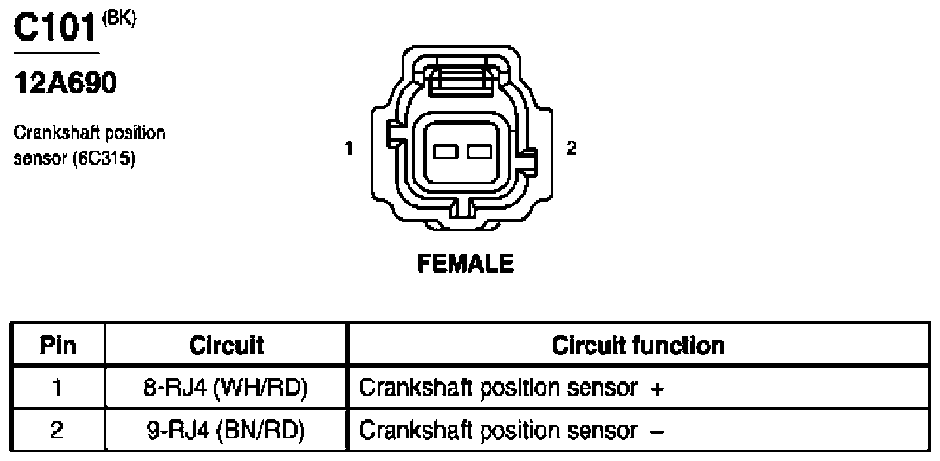

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07846716

Courtesy of FORD MOTOR CO.

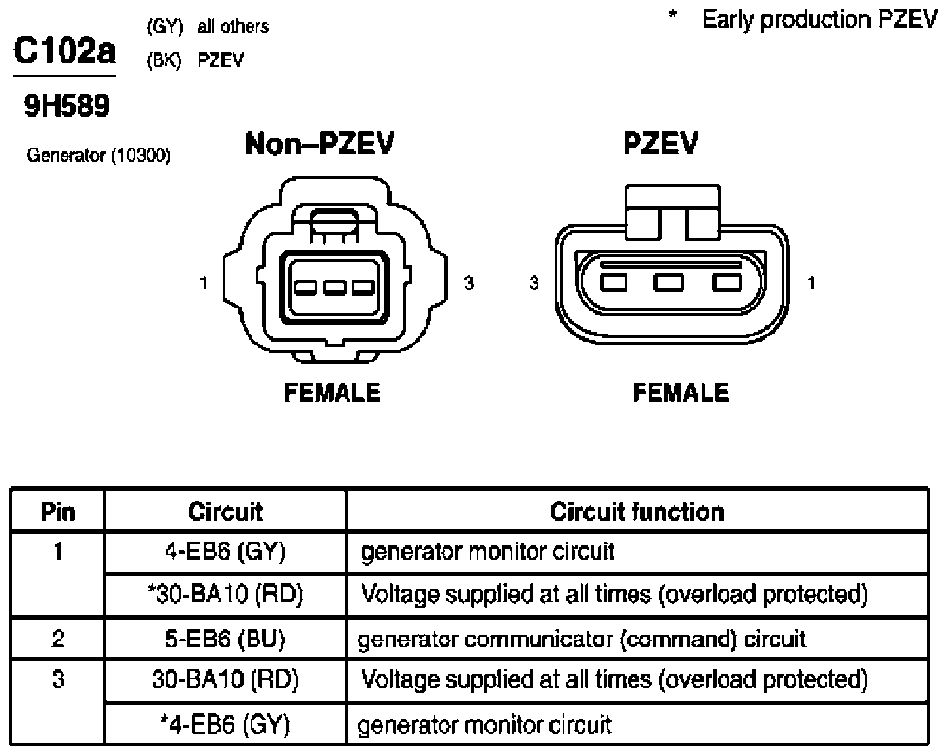

Fig 3: Generator Connector End View (C102a)

G07846717

Courtesy of FORD MOTOR CO.

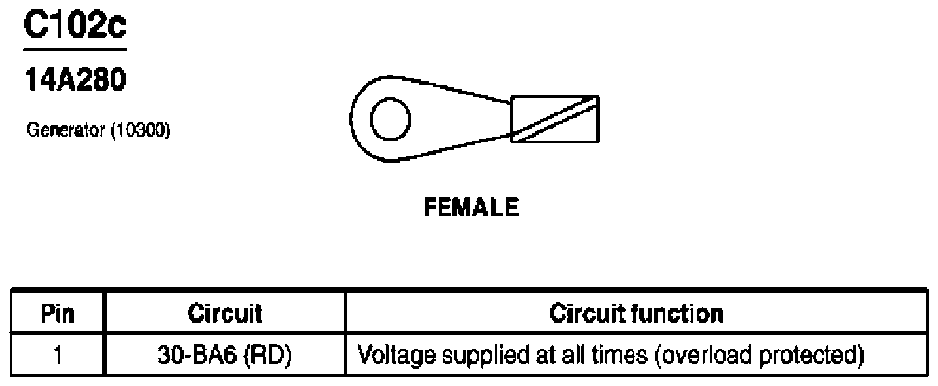

Fig 4: Generator Connector End View (C102c)

G07846718

Courtesy of FORD MOTOR CO.

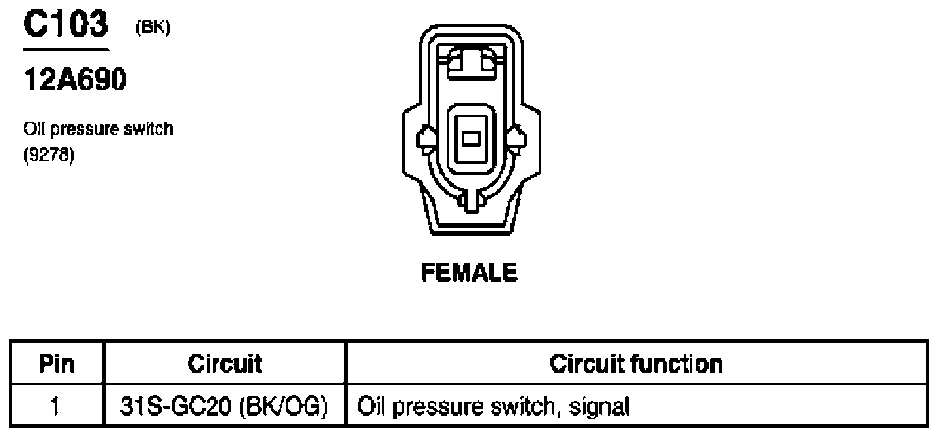

Fig 5: Oil Pressure Switch Connector End View (C103)

G07846719

Courtesy of FORD MOTOR CO.

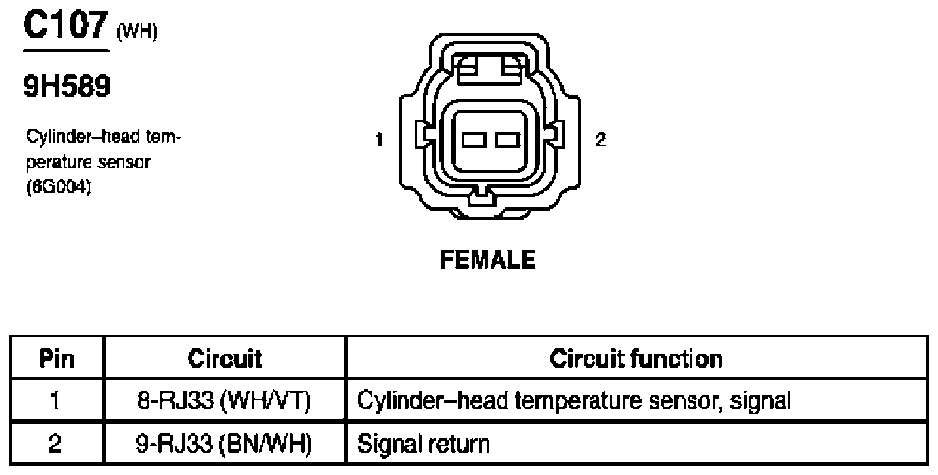

Fig 6: Cylinder-Head Temperature Sensor Connector End View (C107)

G07846720

Courtesy of FORD MOTOR CO.

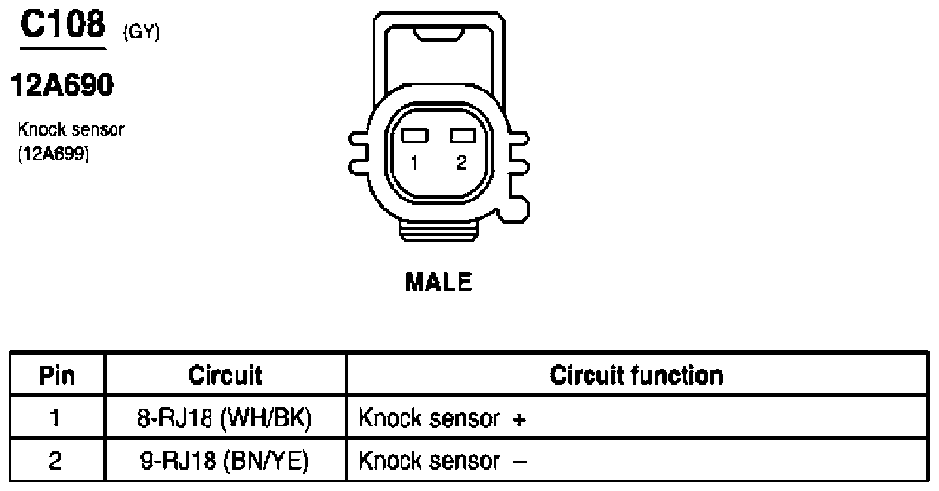

Fig 7: Knock Sensor Connector End View (C108)

G07846721

Courtesy of FORD MOTOR CO.

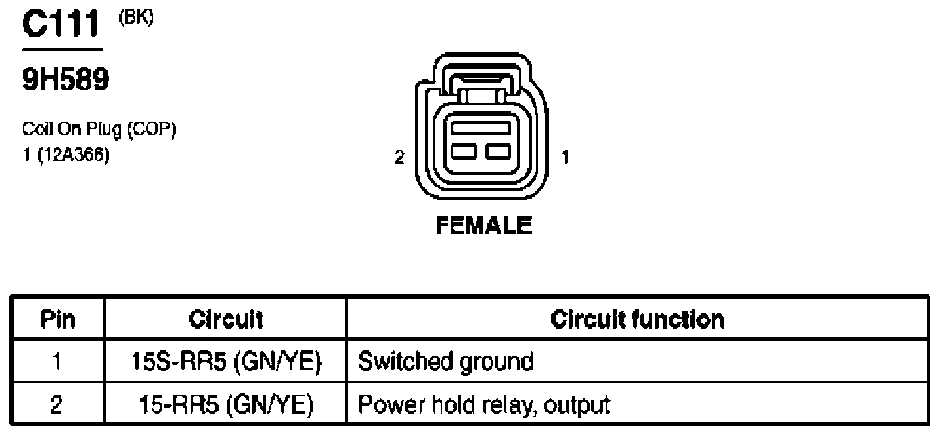

Fig 8: Coil On Plug (COP) Connector End View (C111)

G07846722

Courtesy of FORD MOTOR CO.

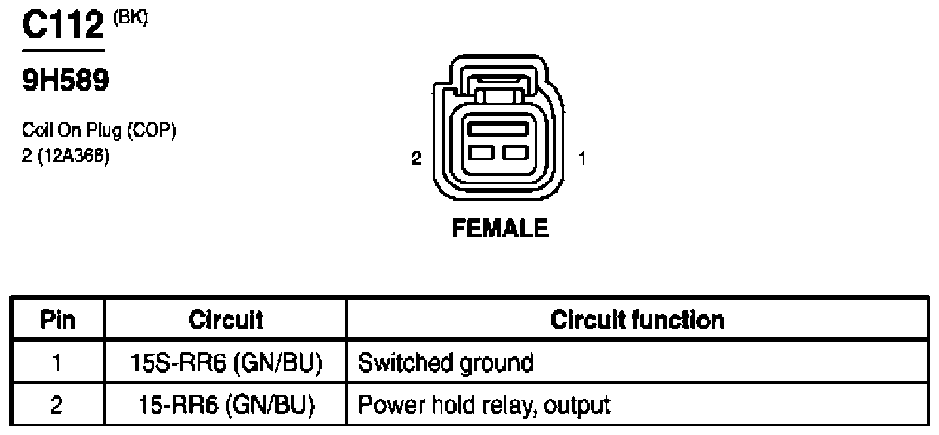

Fig 9: Coil On Plug (COP) Connector End View (C112)

G07846723

Courtesy of FORD MOTOR CO.

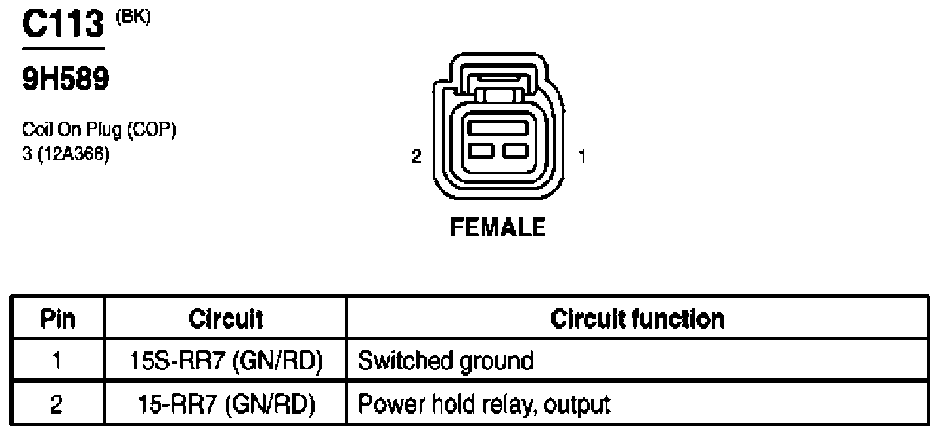

Fig 10: Coil On Plug (COP) Connector End View (C113)

G07846724

Courtesy of FORD MOTOR CO.

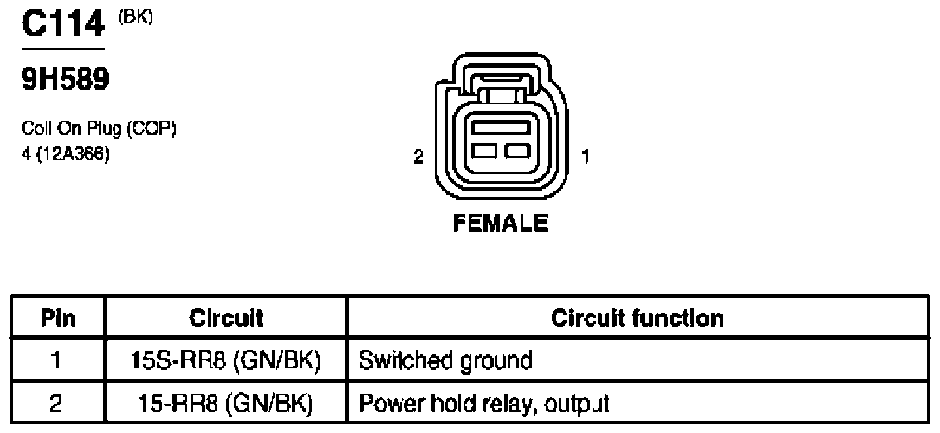

Fig 11: Coil On Plug (COP) Connector End View (C114)

G07846725

Courtesy of FORD MOTOR CO.

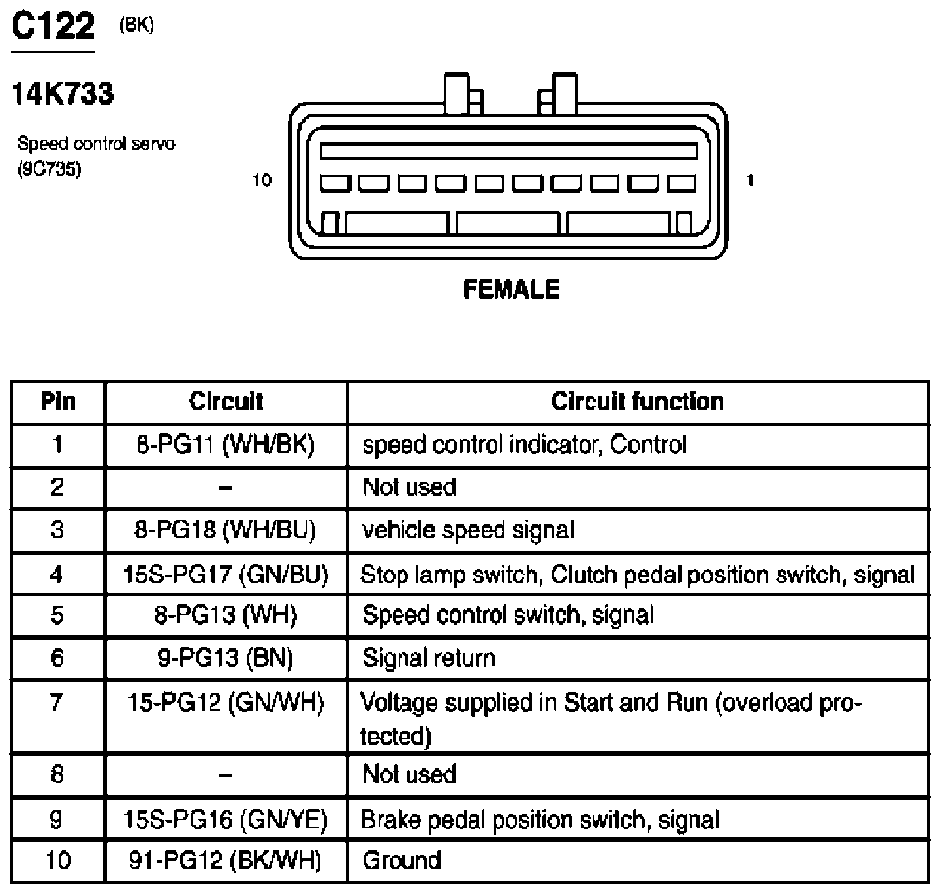

Fig 12: Speed Control Servo Connector End View (C122)

G07846726

Courtesy of FORD MOTOR CO.

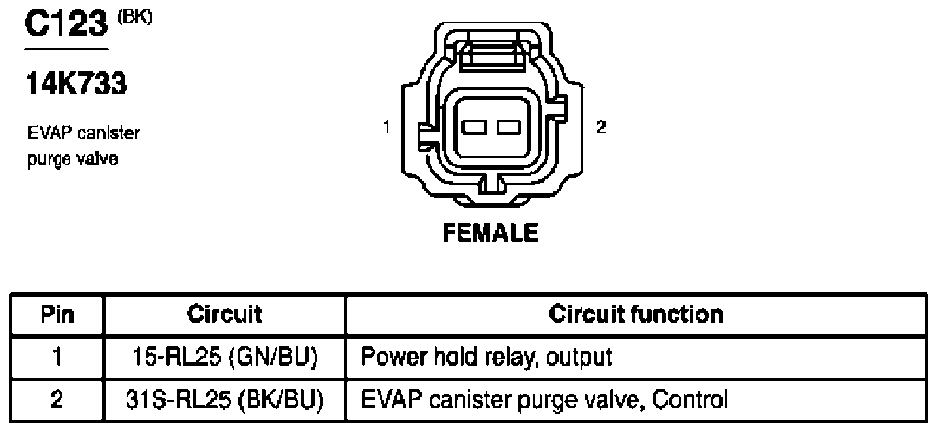

Fig 13: EVAP Canister Purge Valve Connector End View (C123)

G07846727

Courtesy of FORD MOTOR CO.

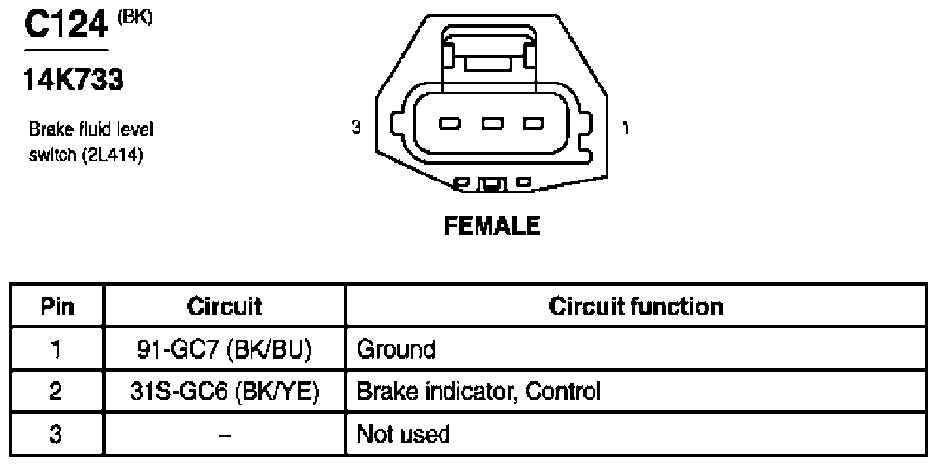

Fig 14: Brake Fluid Level Switch Connector End View (C124)

G07846728

Courtesy of FORD MOTOR CO.

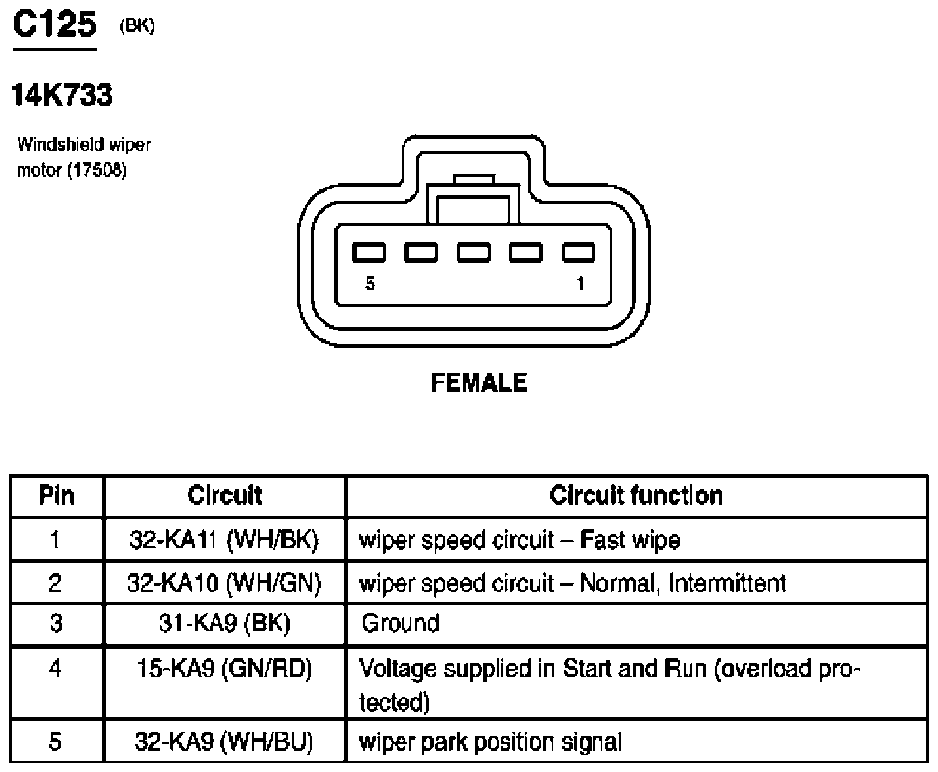

Fig 15: Windshield Wiper Motor Connector End View (C125)

G07846729

Courtesy of FORD MOTOR CO.

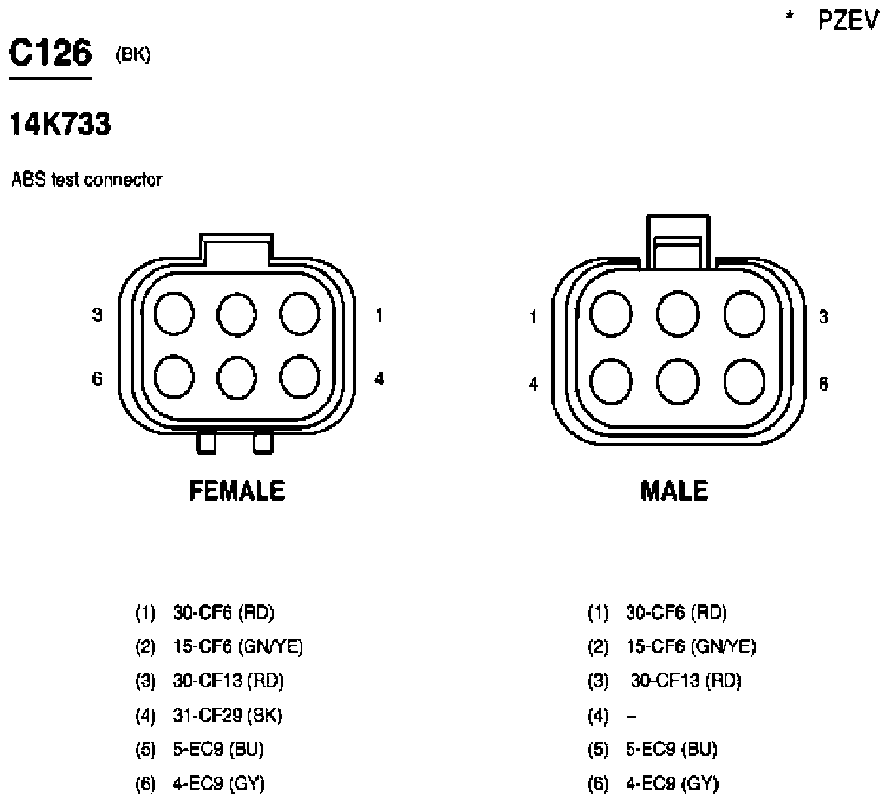

Fig 16: ABS Test Connector End View (C126)

G07846730

Courtesy of FORD MOTOR CO.

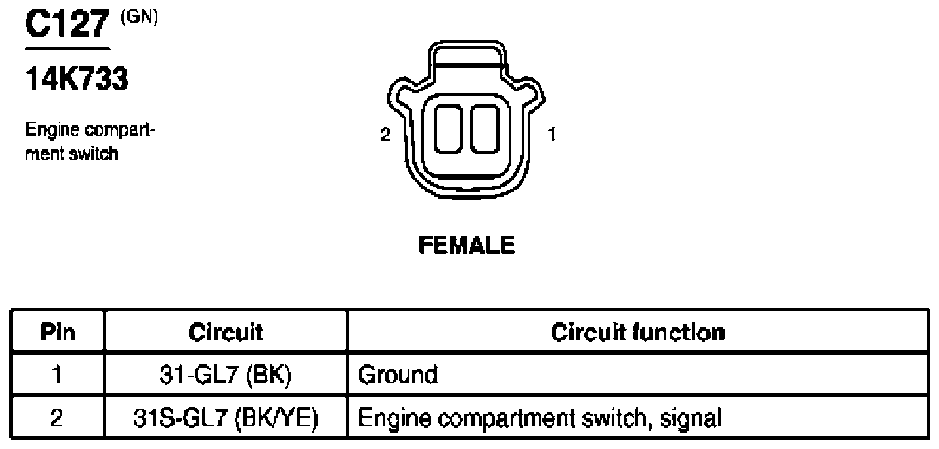

Fig 17: Engine Compartment Switch Connector End View (C127)

G07846731

Courtesy of FORD MOTOR CO.

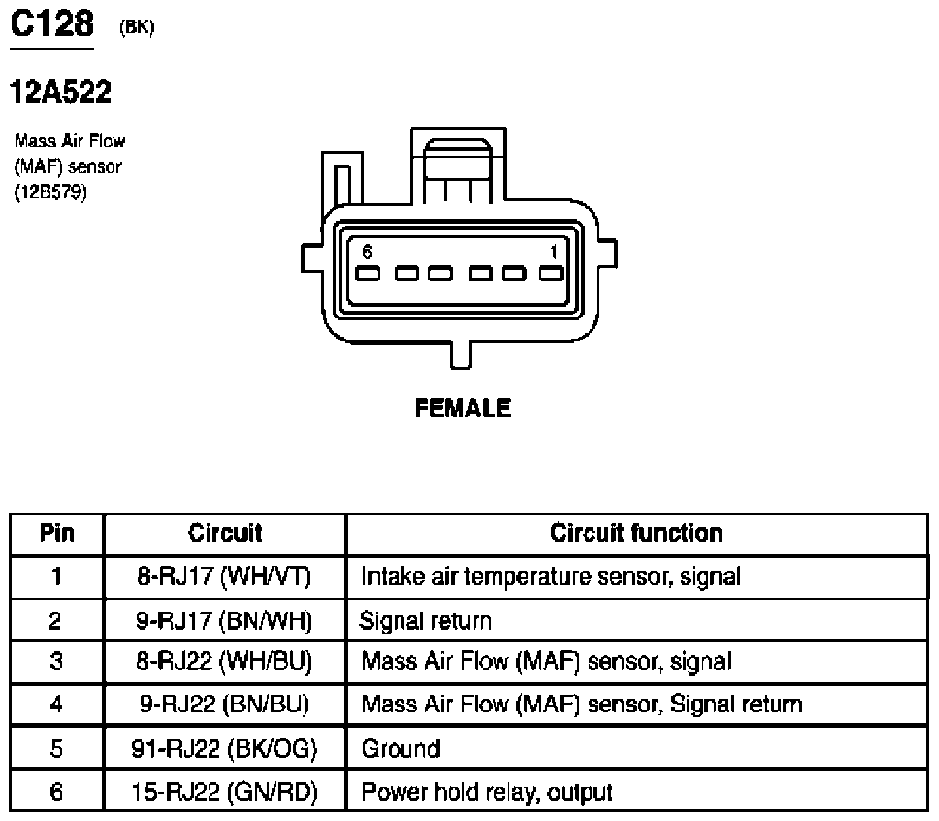

Fig 18: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07846732

Courtesy of FORD MOTOR CO.

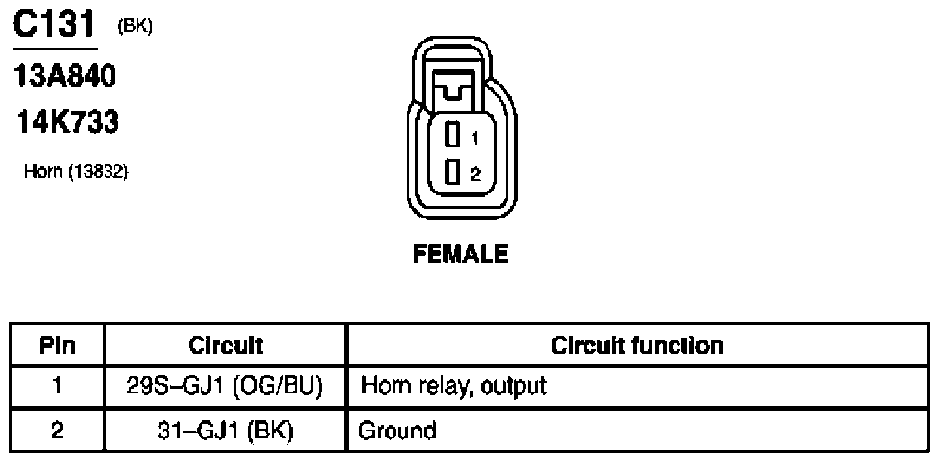

Fig 19: Horn Connector End View (C131)

G07846733

Courtesy of FORD MOTOR CO.

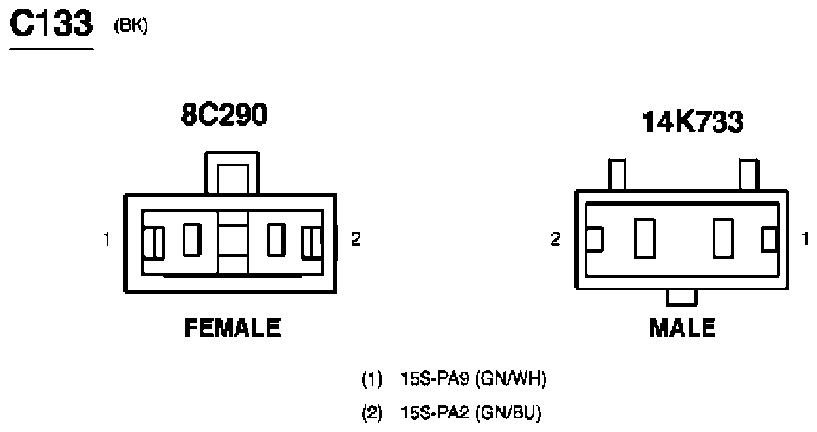

Fig 20: Inline Connector End View (C133)

G07846734

Courtesy of FORD MOTOR CO.

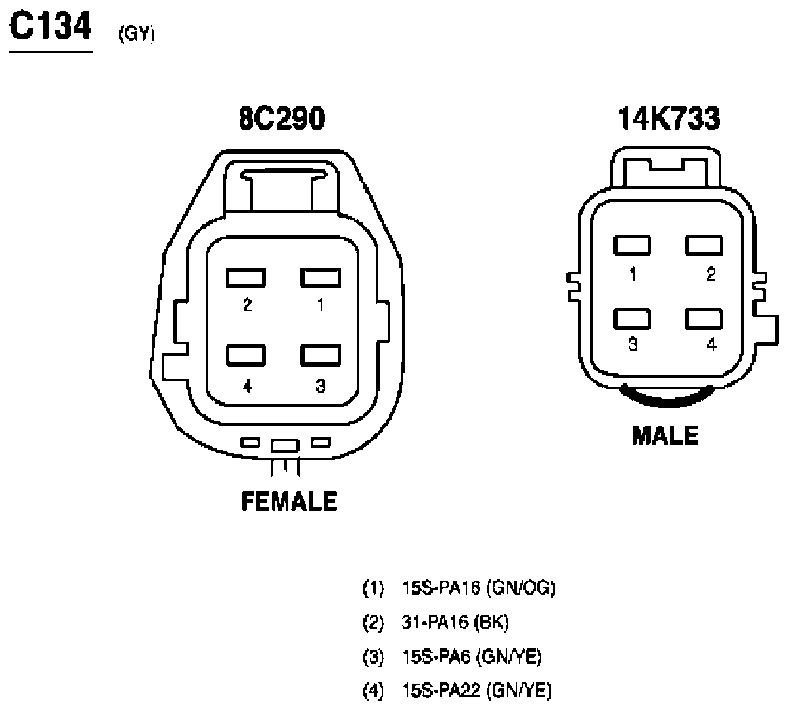

Fig 21: Inline Connector End View (C134)

G07846735

Courtesy of FORD MOTOR CO.

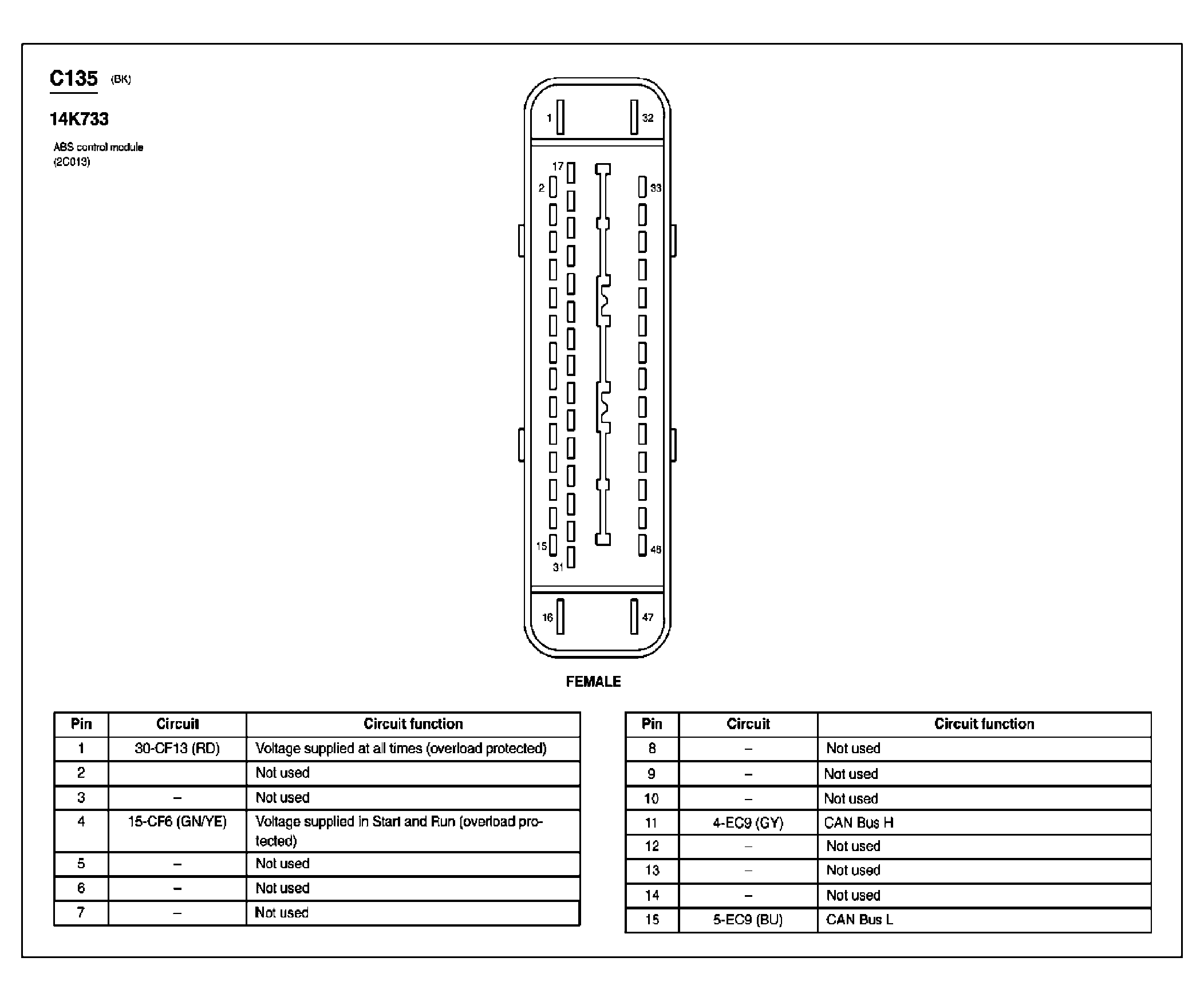

Fig 22: ABS Control Module Connector End View (C135) (1 Of 2)

G04597122

Courtesy of FORD MOTOR CO.

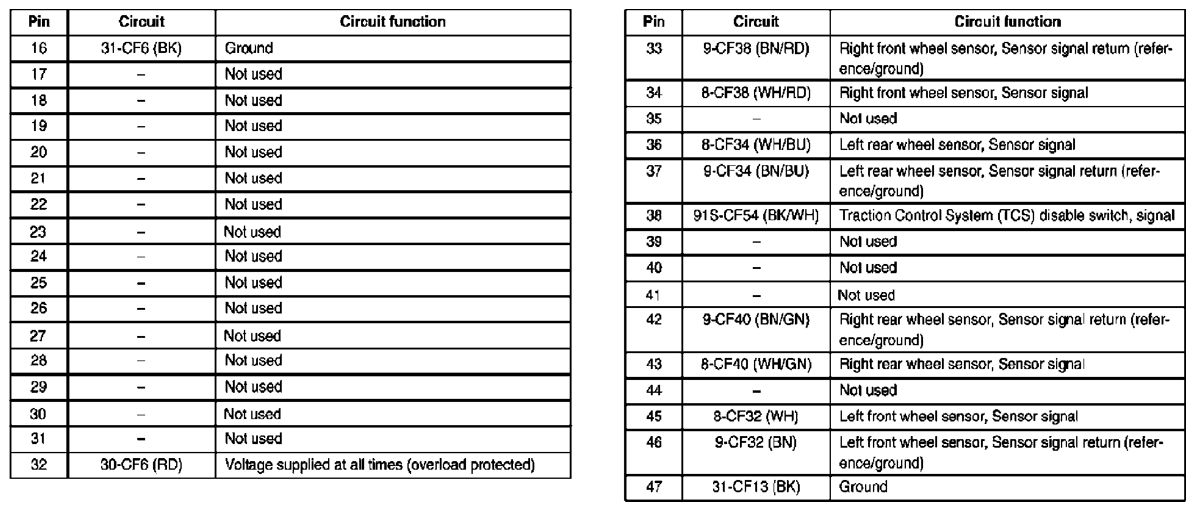

Fig 23: ABS Control Module Connector End View (C135) (2 Of 2)

G04597123

Courtesy of FORD MOTOR CO.

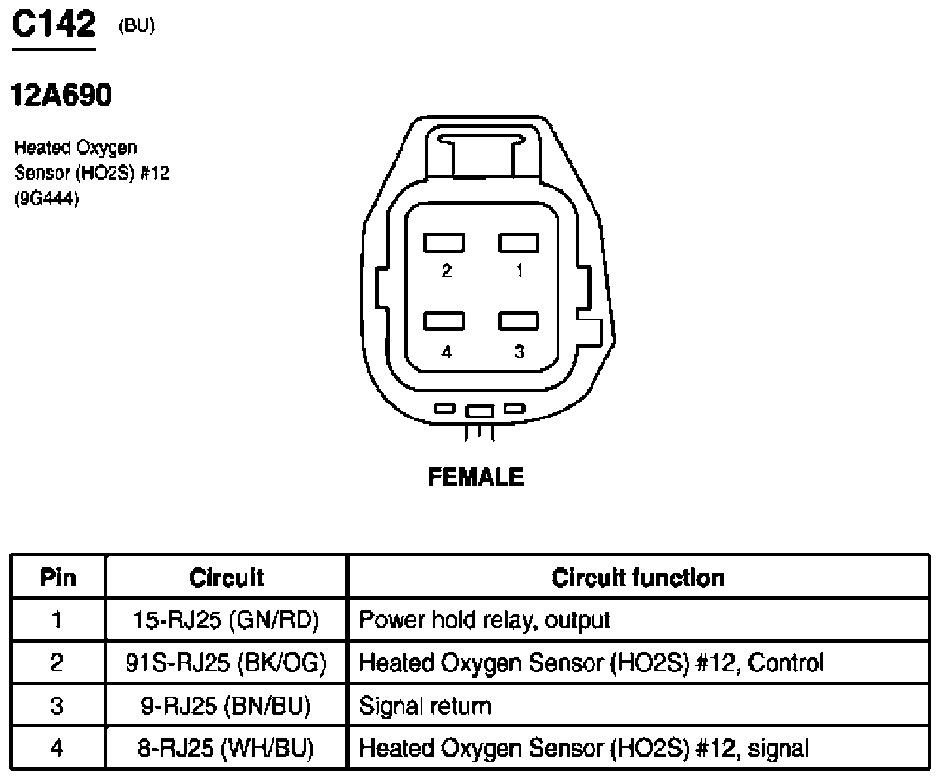

Fig 24: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07846736

Courtesy of FORD MOTOR CO.

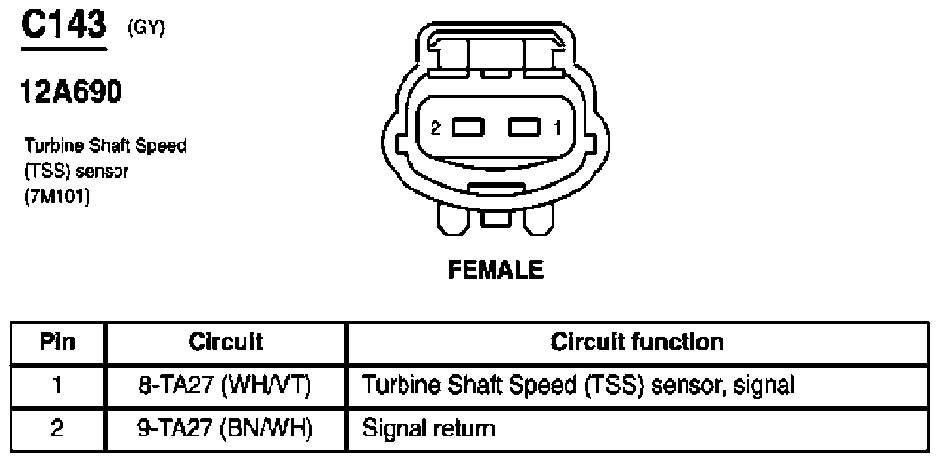

Fig 25: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G07846737

Courtesy of FORD MOTOR CO.

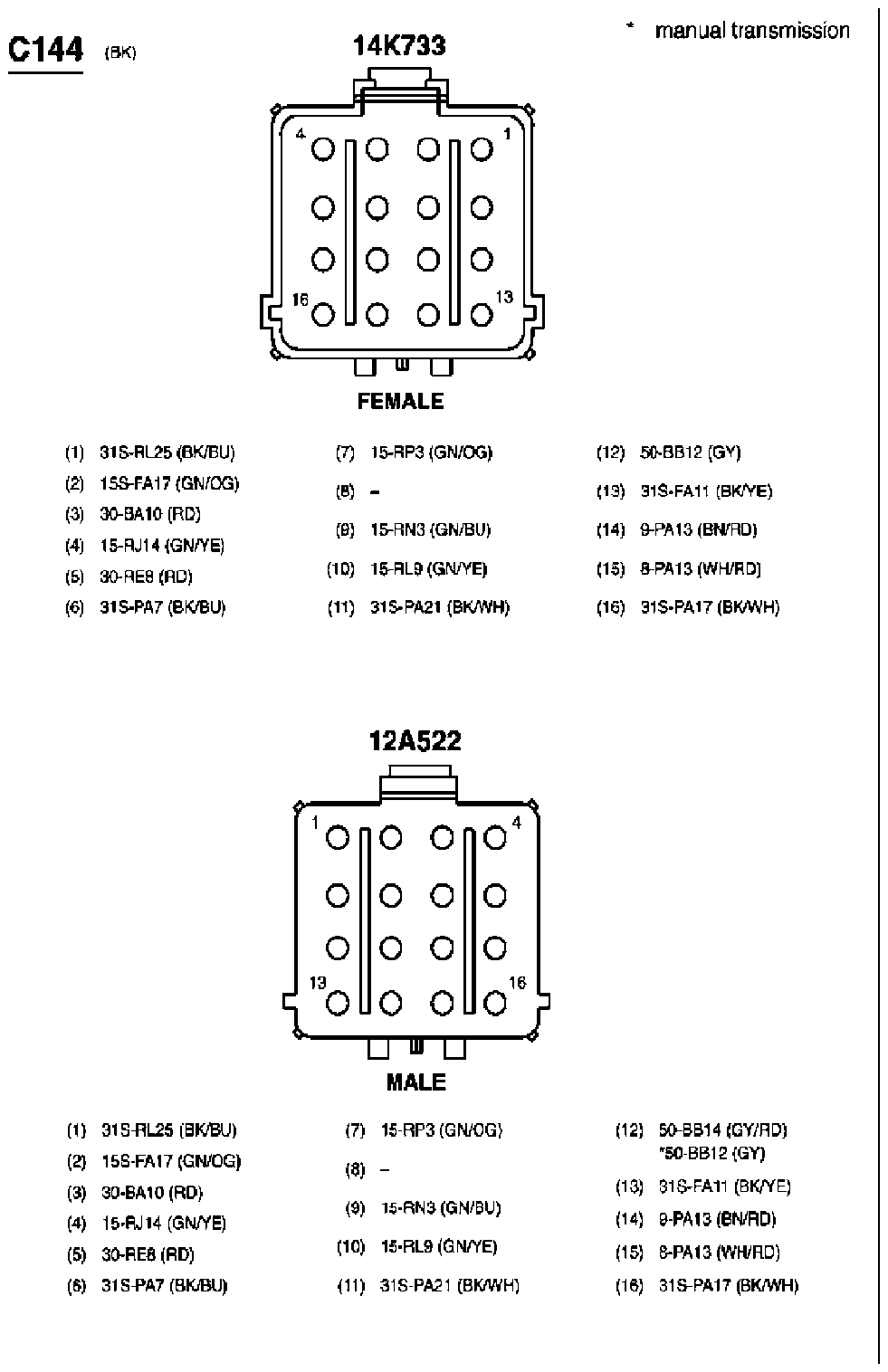

Fig 26: Inline Connector End View (C144)

G07846738

Courtesy of FORD MOTOR CO.

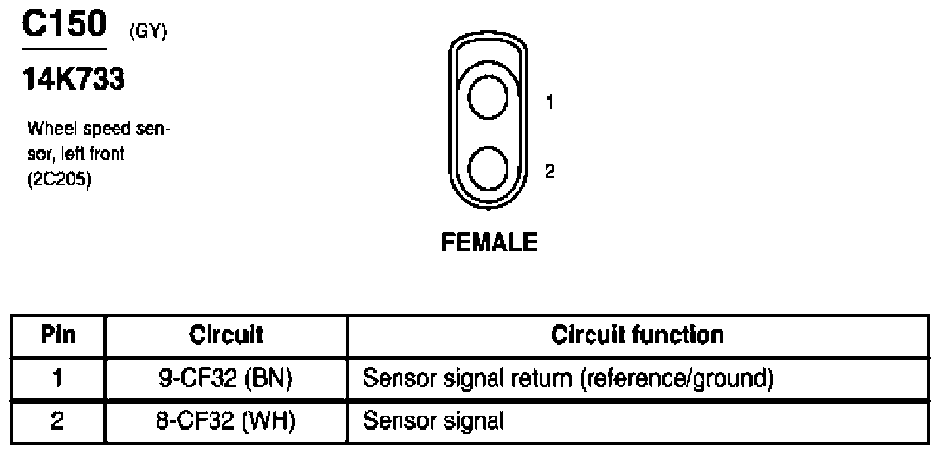

Fig 27: Wheel Speed Sensor, Left Front Connector End View (C150)

G07846739

Courtesy of FORD MOTOR CO.

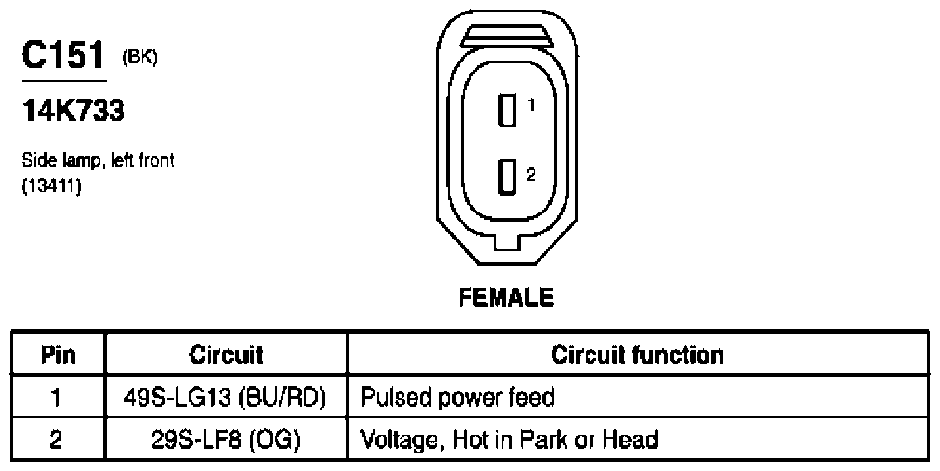

Fig 28: Side Lamp, Left Front Connector End View (C151)

G07846740

Courtesy of FORD MOTOR CO.

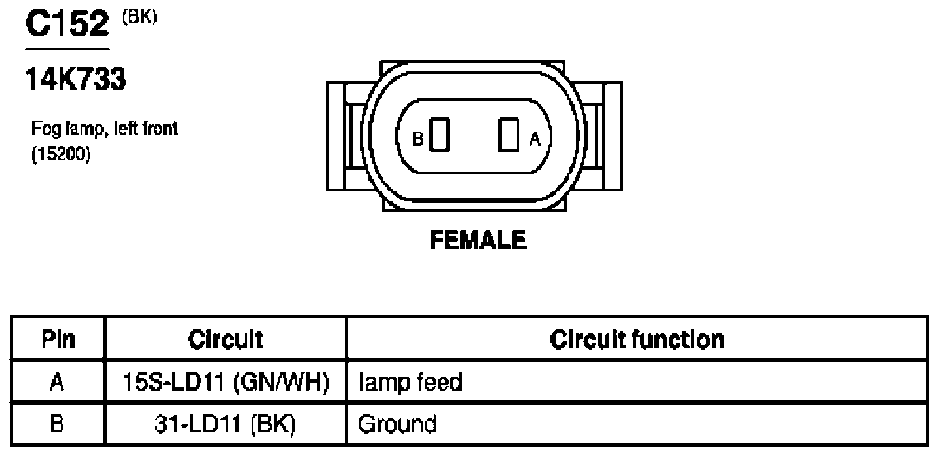

Fig 29: Fog Lamp, Left Front Connector End View (C152)

G07846741

Courtesy of FORD MOTOR CO.

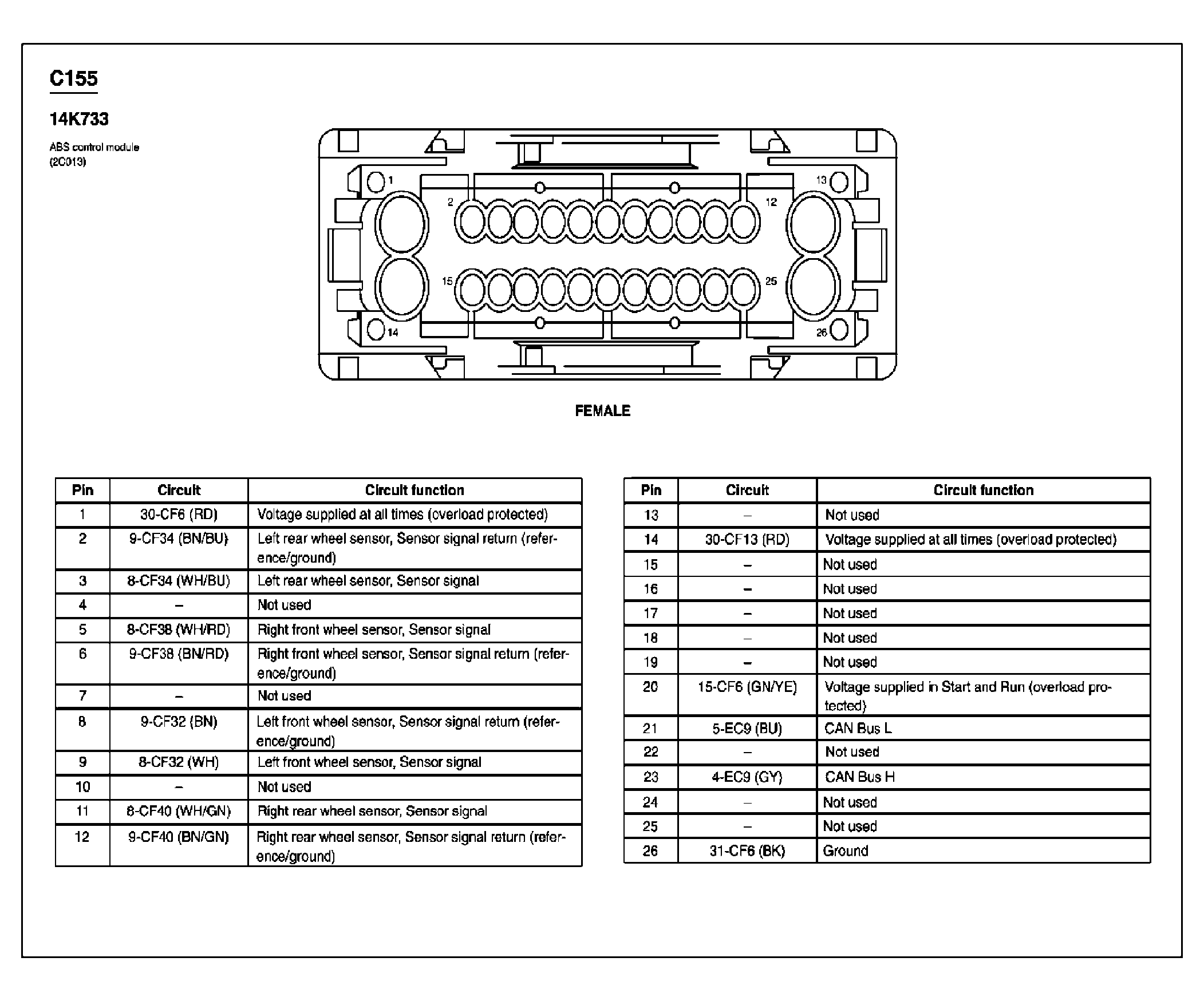

Fig 30: ABS Control Module Connector End View (C155)

G04597126

Courtesy of FORD MOTOR CO.

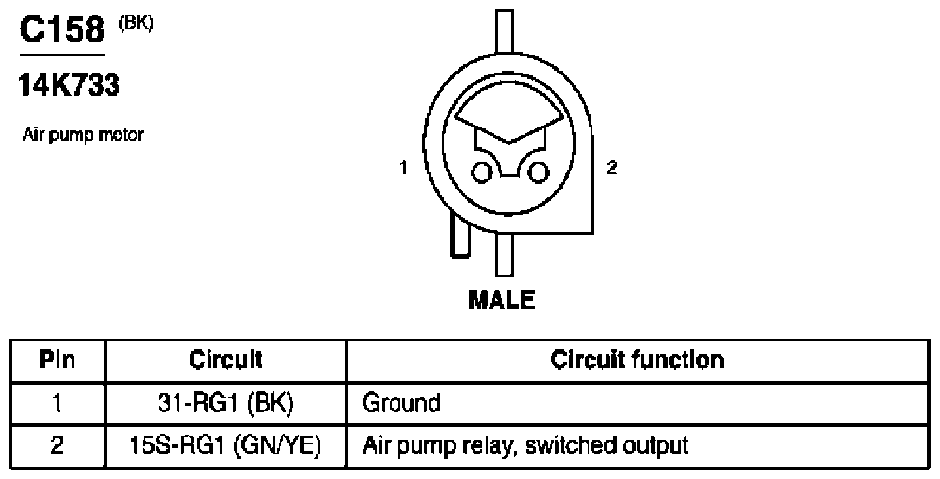

Fig 31: Air Pump Motor Connector End View (C158)

G07846742

Courtesy of FORD MOTOR CO.

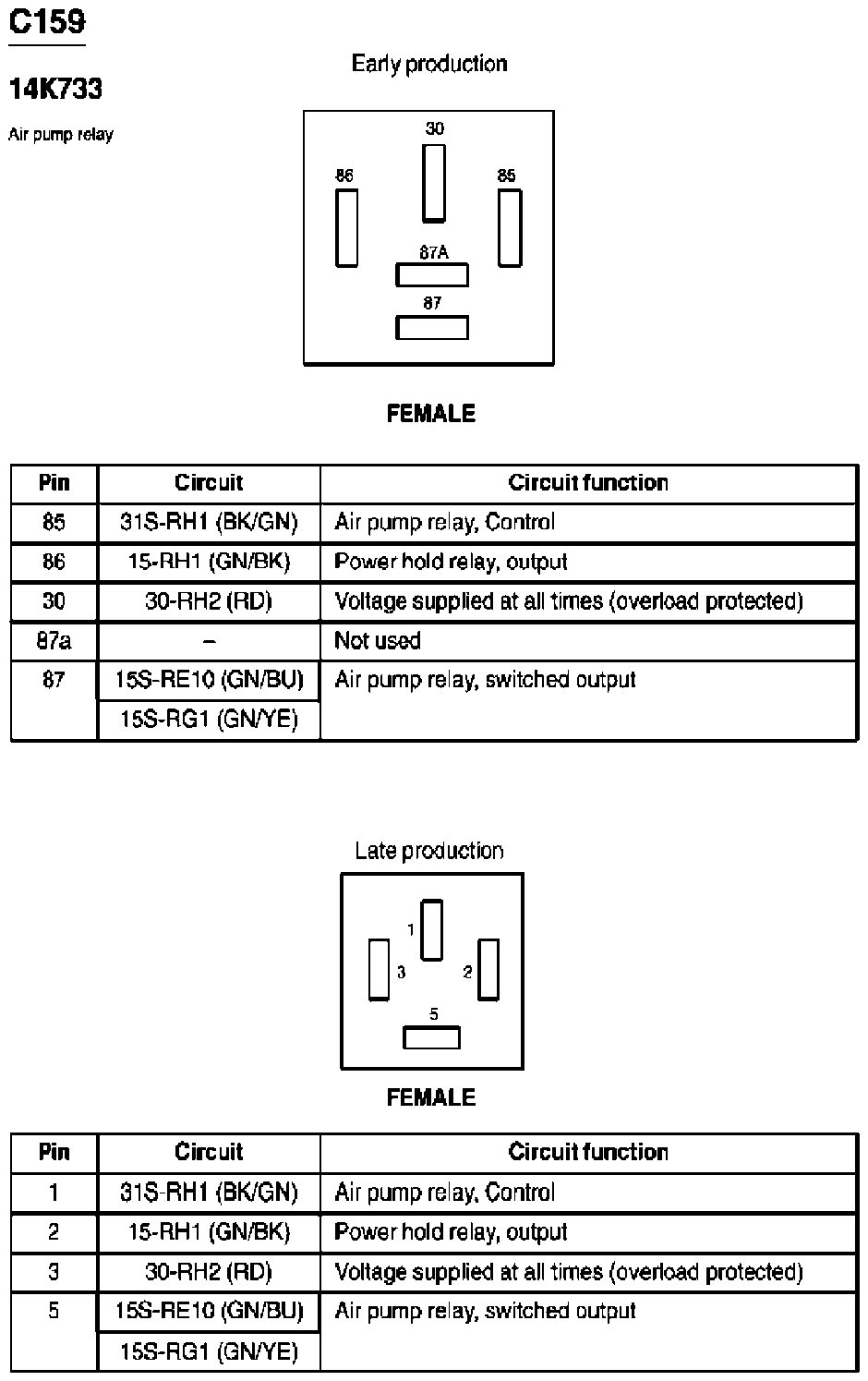

Fig 32: Air Pump Relay Connector End View (C159)

G07846743

Courtesy of FORD MOTOR CO.

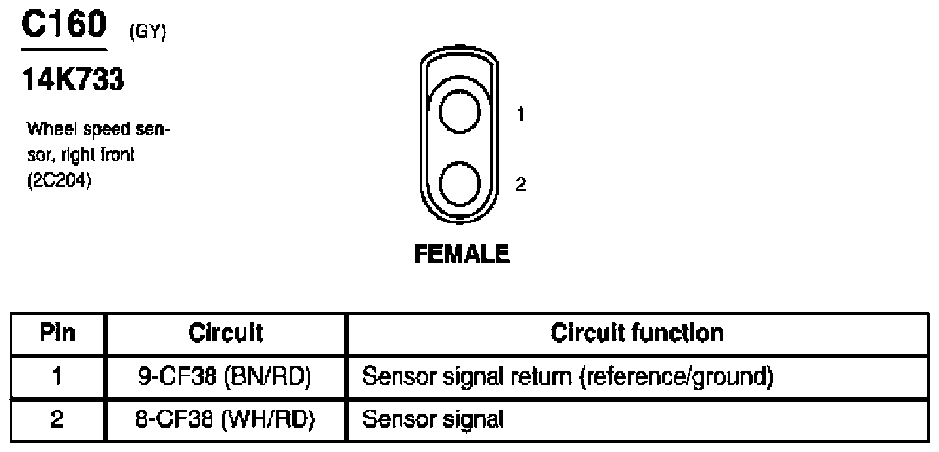

Fig 33: Wheel Speed Sensor, Right Front Connector End View (C160)

G07846744

Courtesy of FORD MOTOR CO.

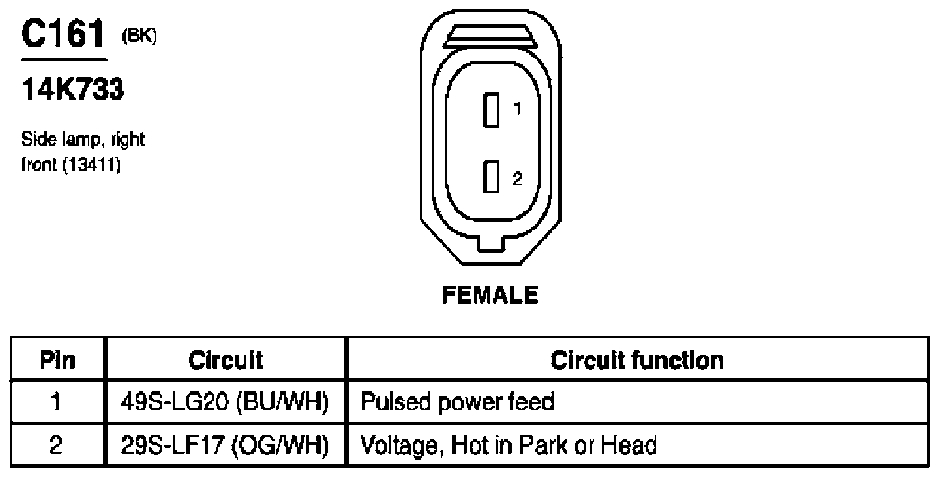

Fig 34: Side Lamp, Right Front Connector End View (C161)

G07846745

Courtesy of FORD MOTOR CO.

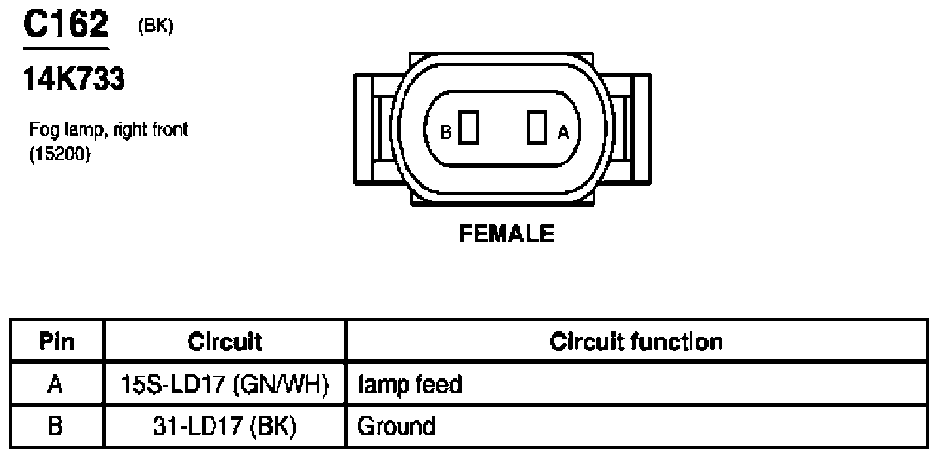

Fig 35: Fog Lamp, Right Front Connector End View (C162)

G07846746

Courtesy of FORD MOTOR CO.

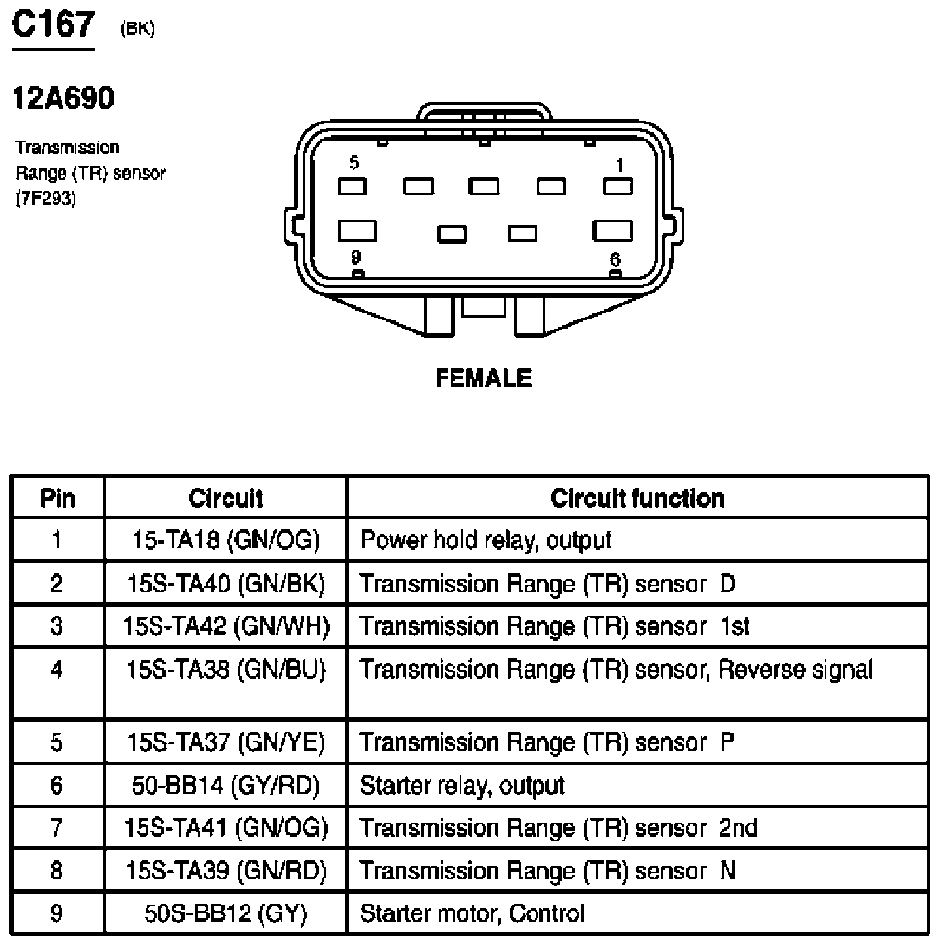

Fig 36: Transmission Range (TR), Sensor Connector End View (C167)

G07846747

Courtesy of FORD MOTOR CO.

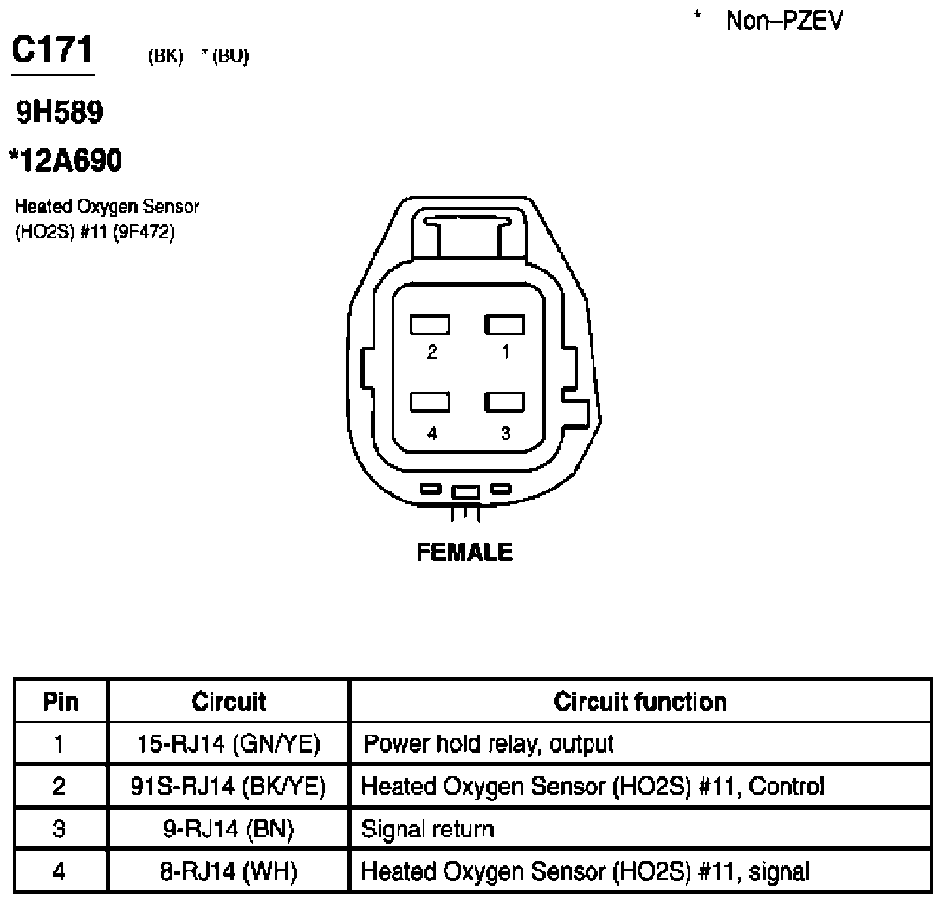

Fig 37: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G04597129

Courtesy of FORD MOTOR CO.

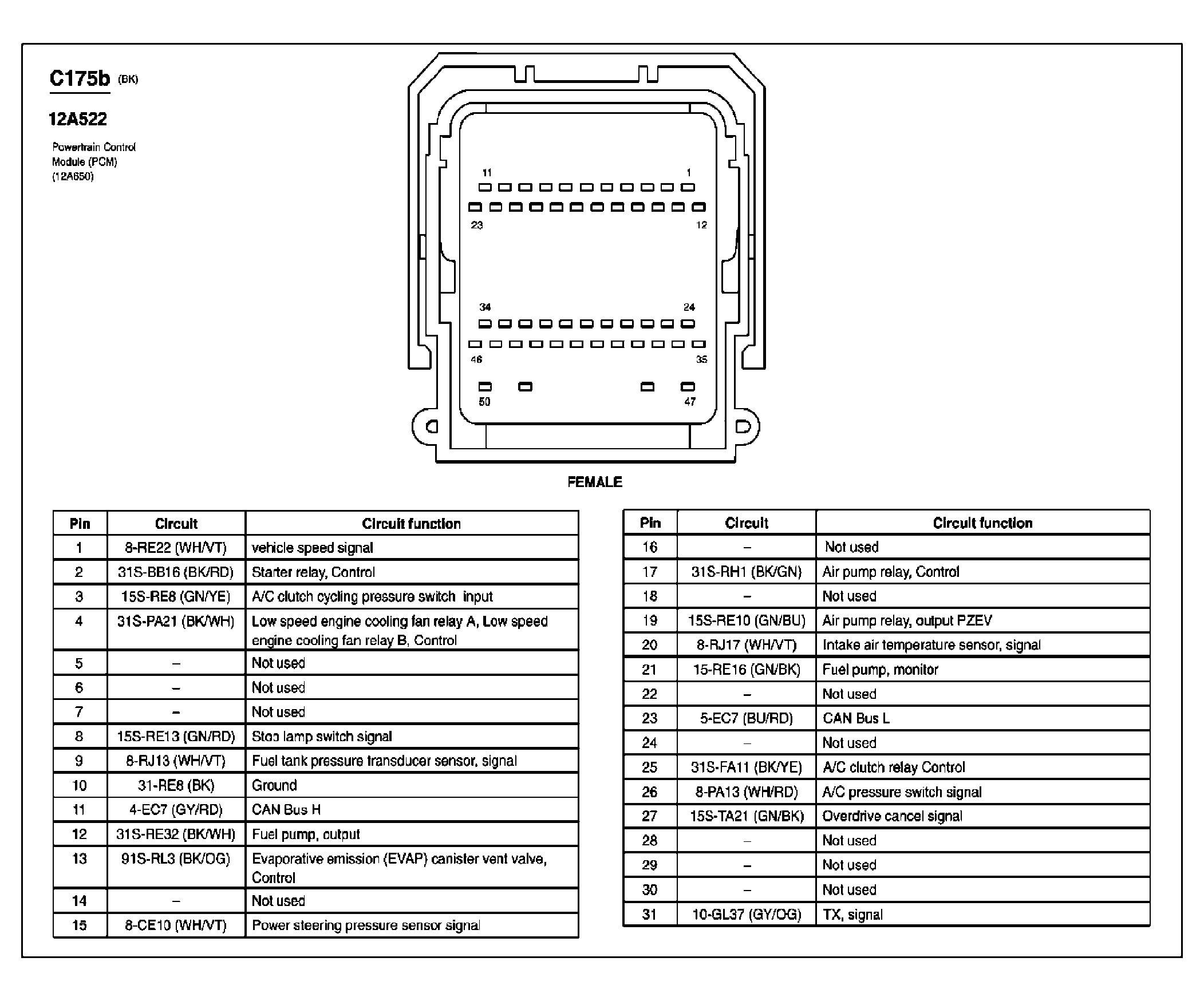

Fig 38: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)

G04597130

Courtesy of FORD MOTOR CO.

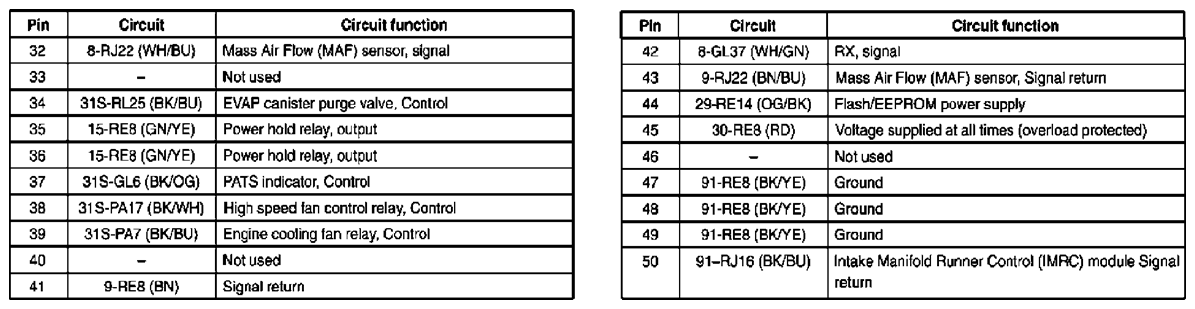

Fig 39: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)

G04597131

Courtesy of FORD MOTOR CO.

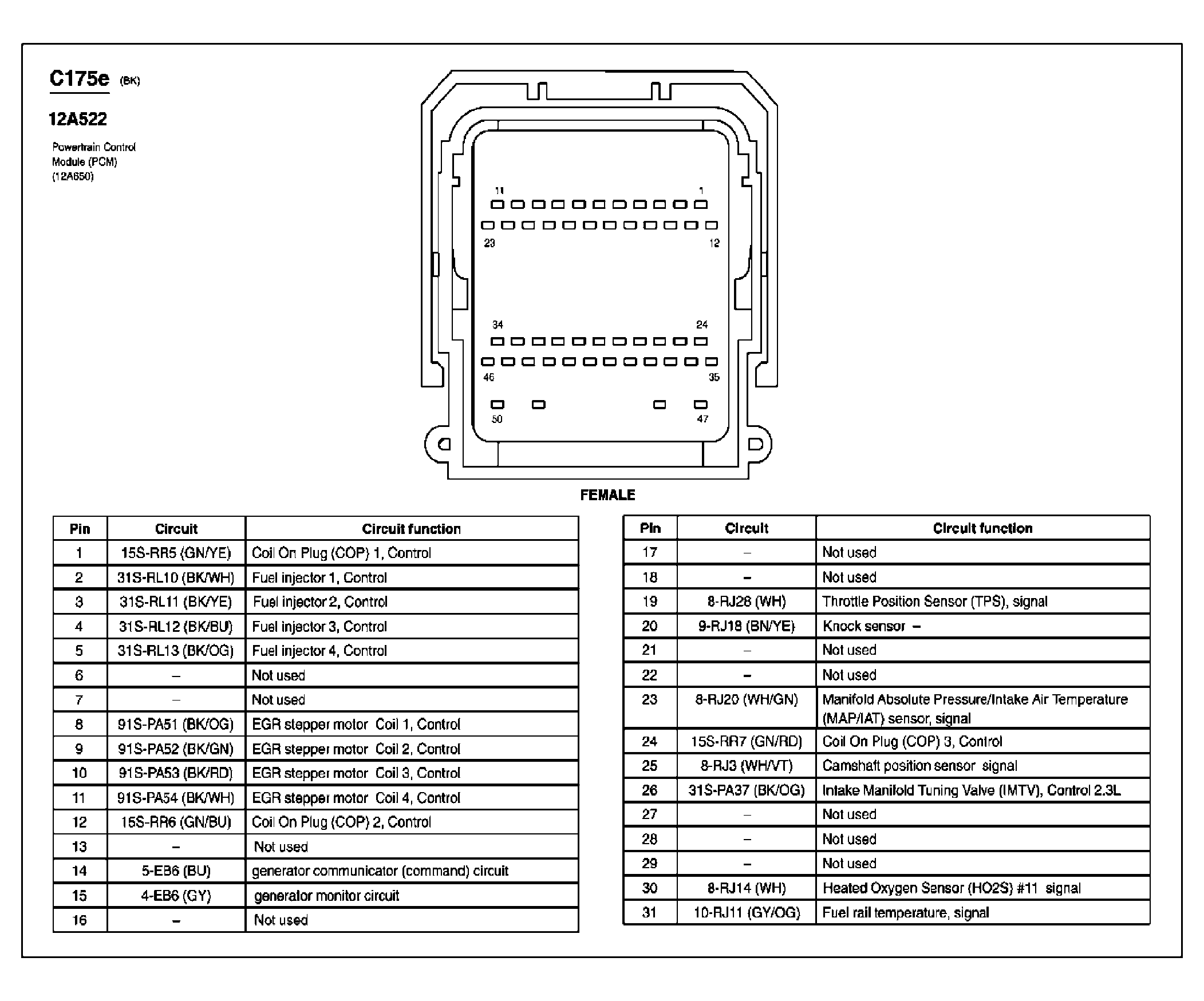

Fig 40: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)

G04597132

Courtesy of FORD MOTOR CO.

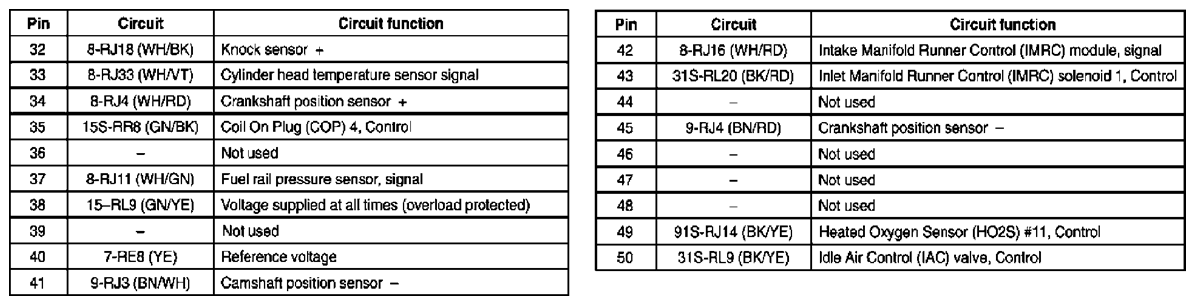

Fig 41: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)

G04597133

Courtesy of FORD MOTOR CO.

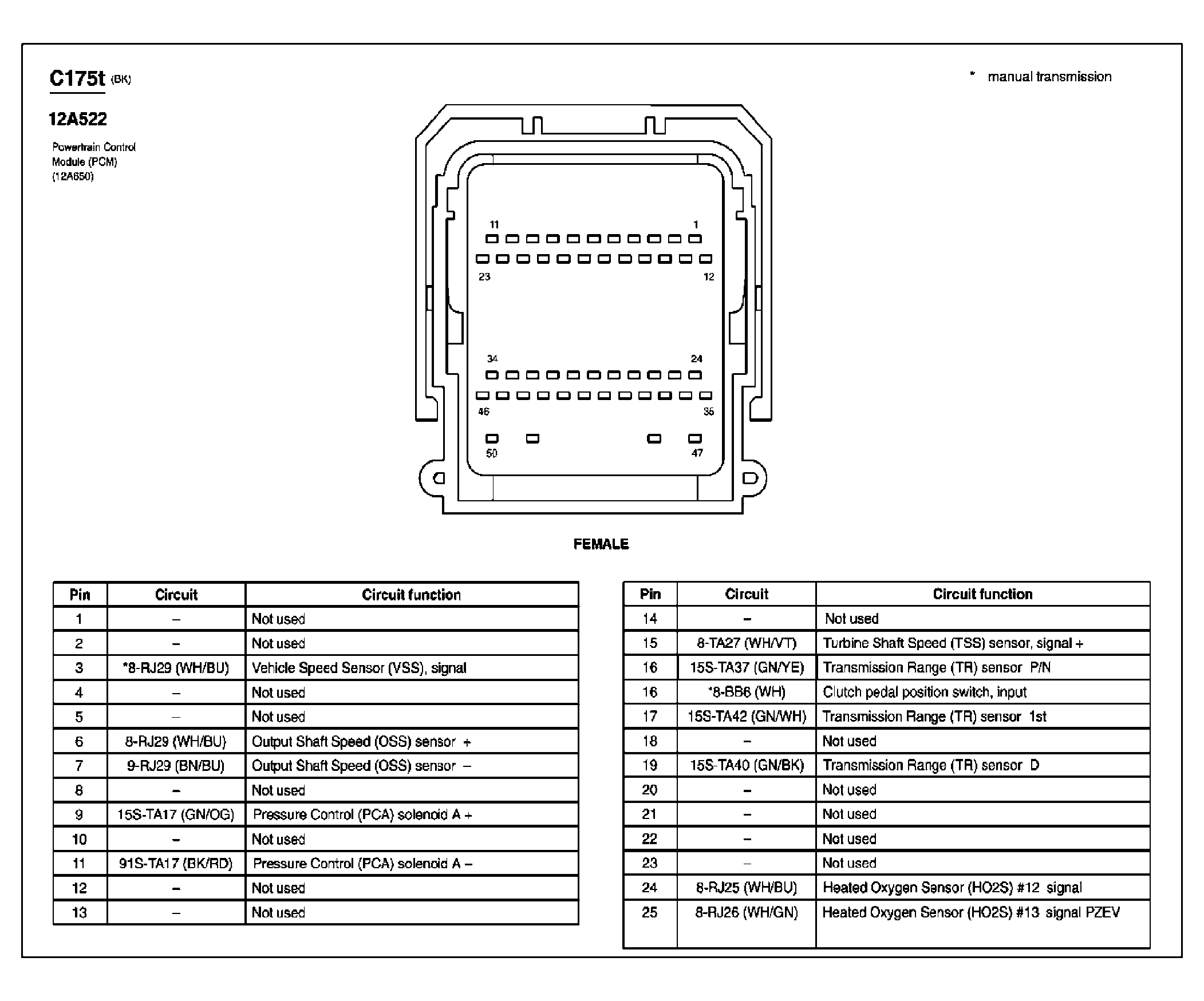

Fig 42: Powertrain Control Module (PCM) Connector End View (C175t) (1 Of 2)

G04597134

Courtesy of FORD MOTOR CO.

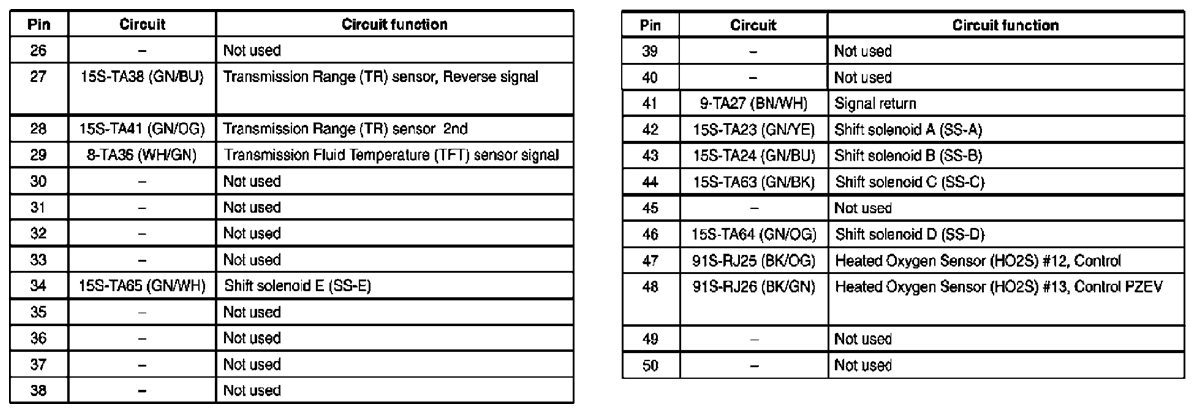

Fig 43: Powertrain Control Module (PCM) Connector End View (C175t) (2 Of 2)

G04597135

Courtesy of FORD MOTOR CO.

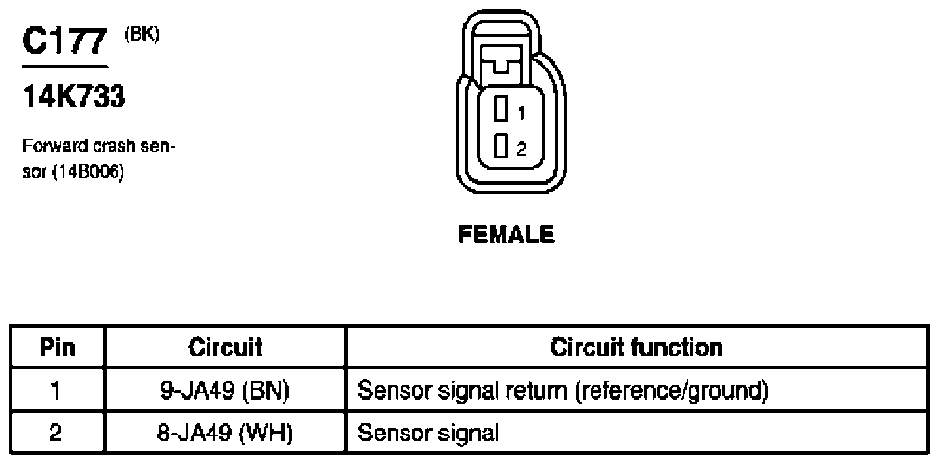

Fig 44: Forward Crash Sensor Connector End View (C177)

G07846748

Courtesy of FORD MOTOR CO.

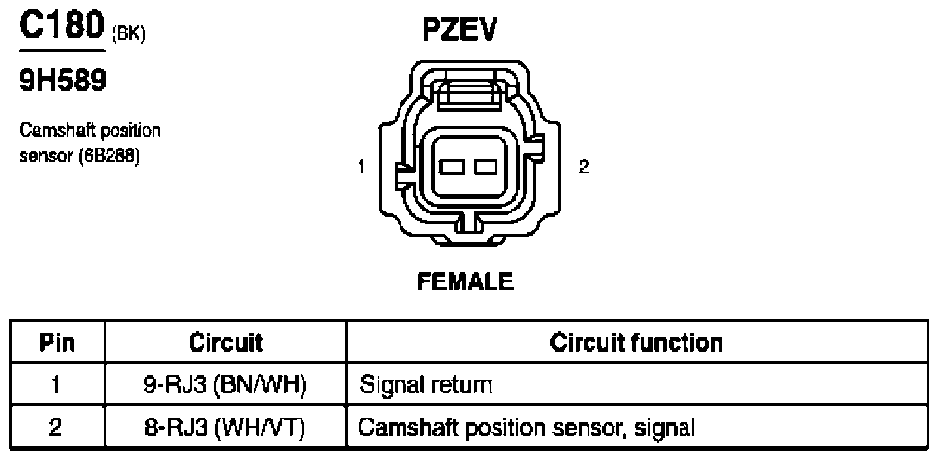

Fig 45: Camshaft Position Sensor Connector End View (C180)

G07846749

Courtesy of FORD MOTOR CO.

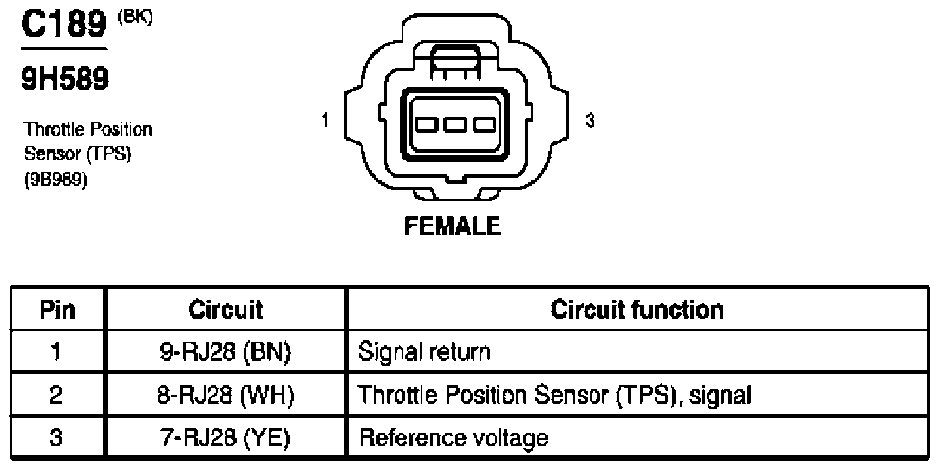

Fig 46: Throttle Position Sensor (TPS) Connector End View (C189)

G07846750

Courtesy of FORD MOTOR CO.

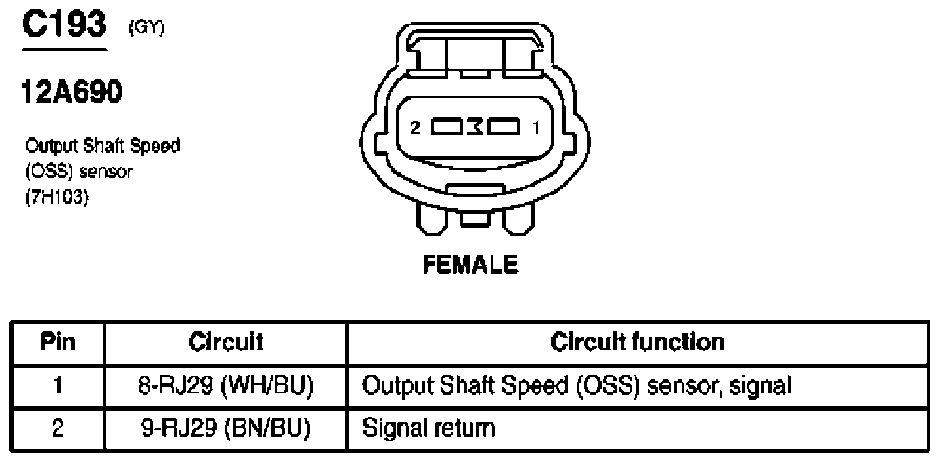

Fig 47: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07846751

Courtesy of FORD MOTOR CO.

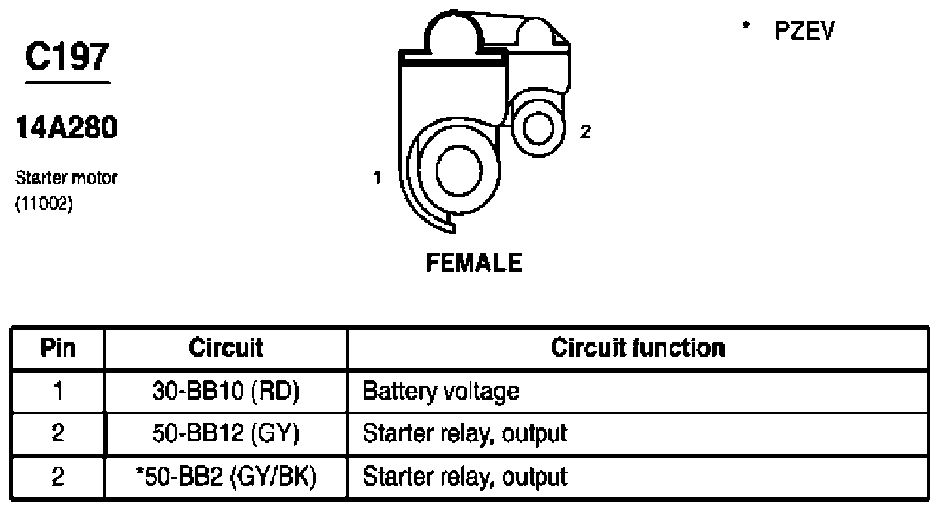

Fig 48: Starter Motor Connector End View (C197)

G07846752

Courtesy of FORD MOTOR CO.

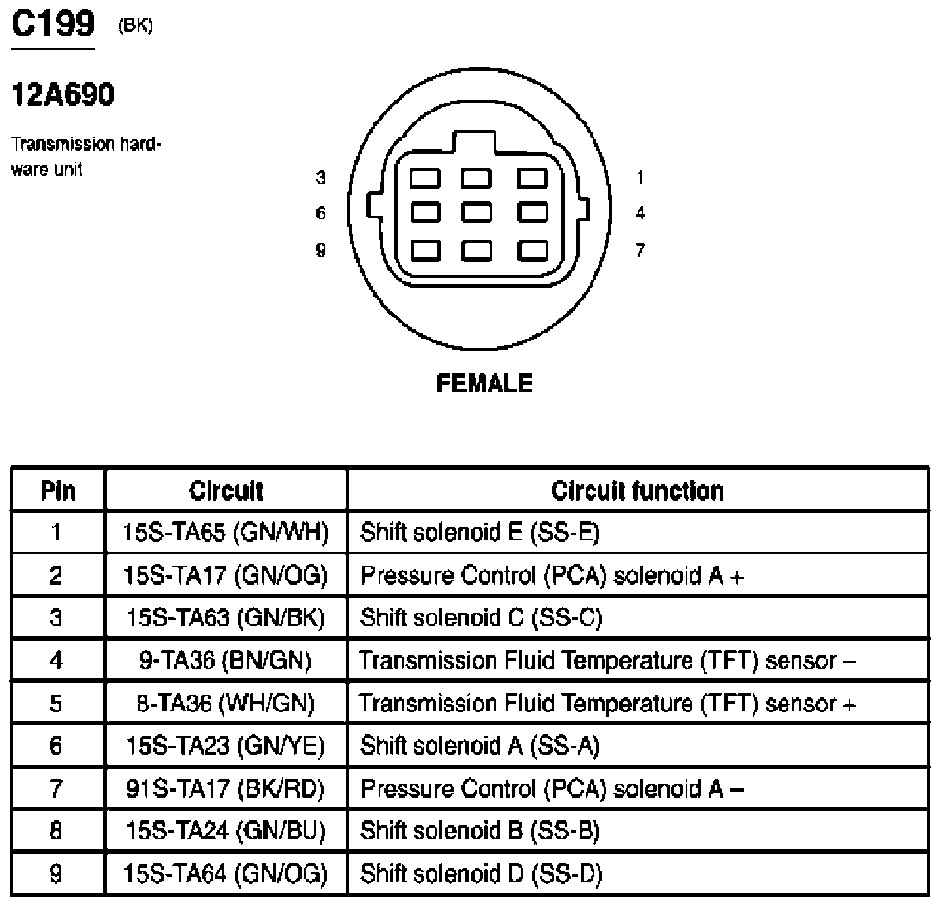

Fig 49: Transmission Hardware Unit Connector End View (C199)

G07846753

Courtesy of FORD MOTOR CO.

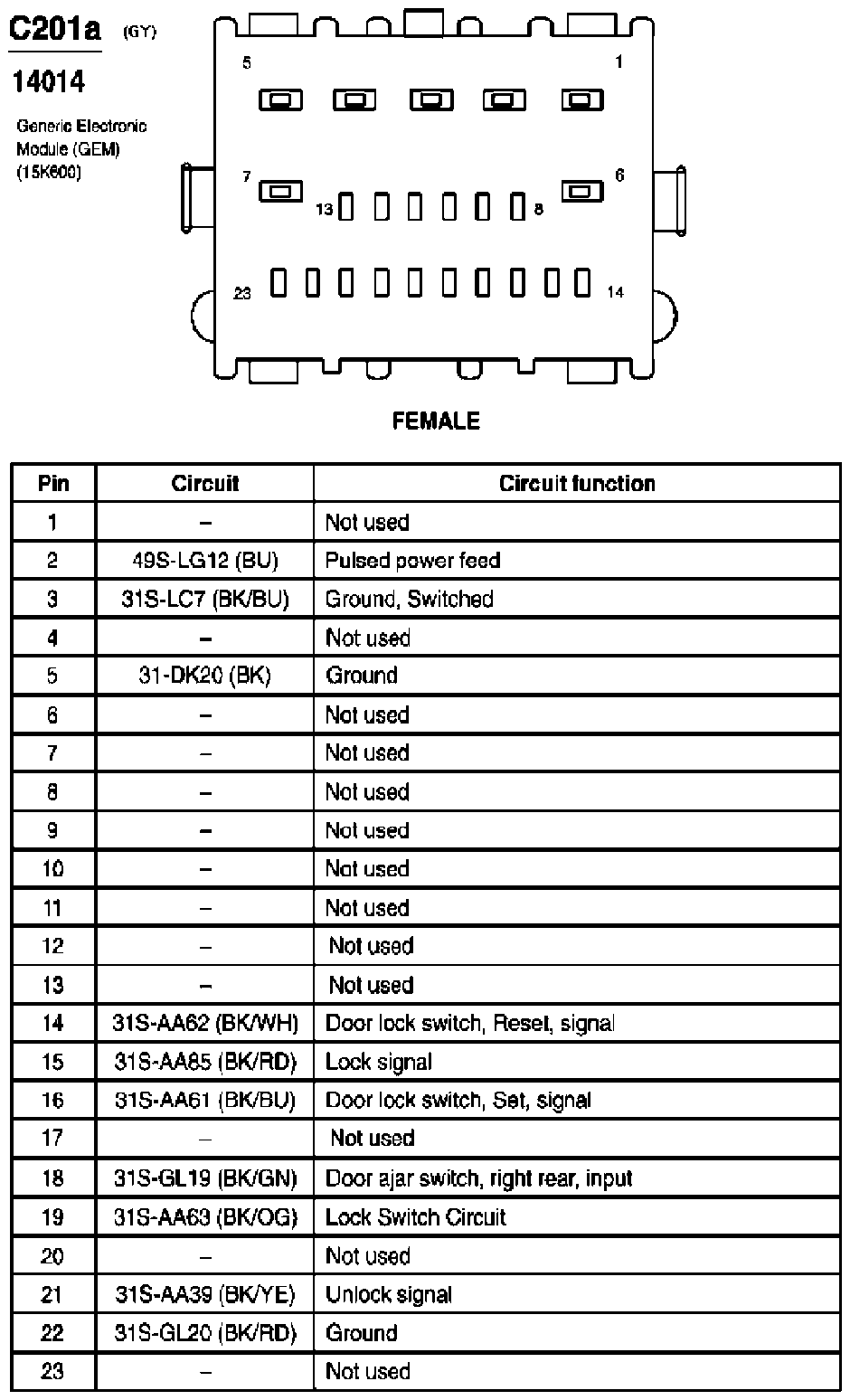

Fig 50: Generic Electronic Module (GEM) Connector End View (C201a)

G07846754

Courtesy of FORD MOTOR CO.

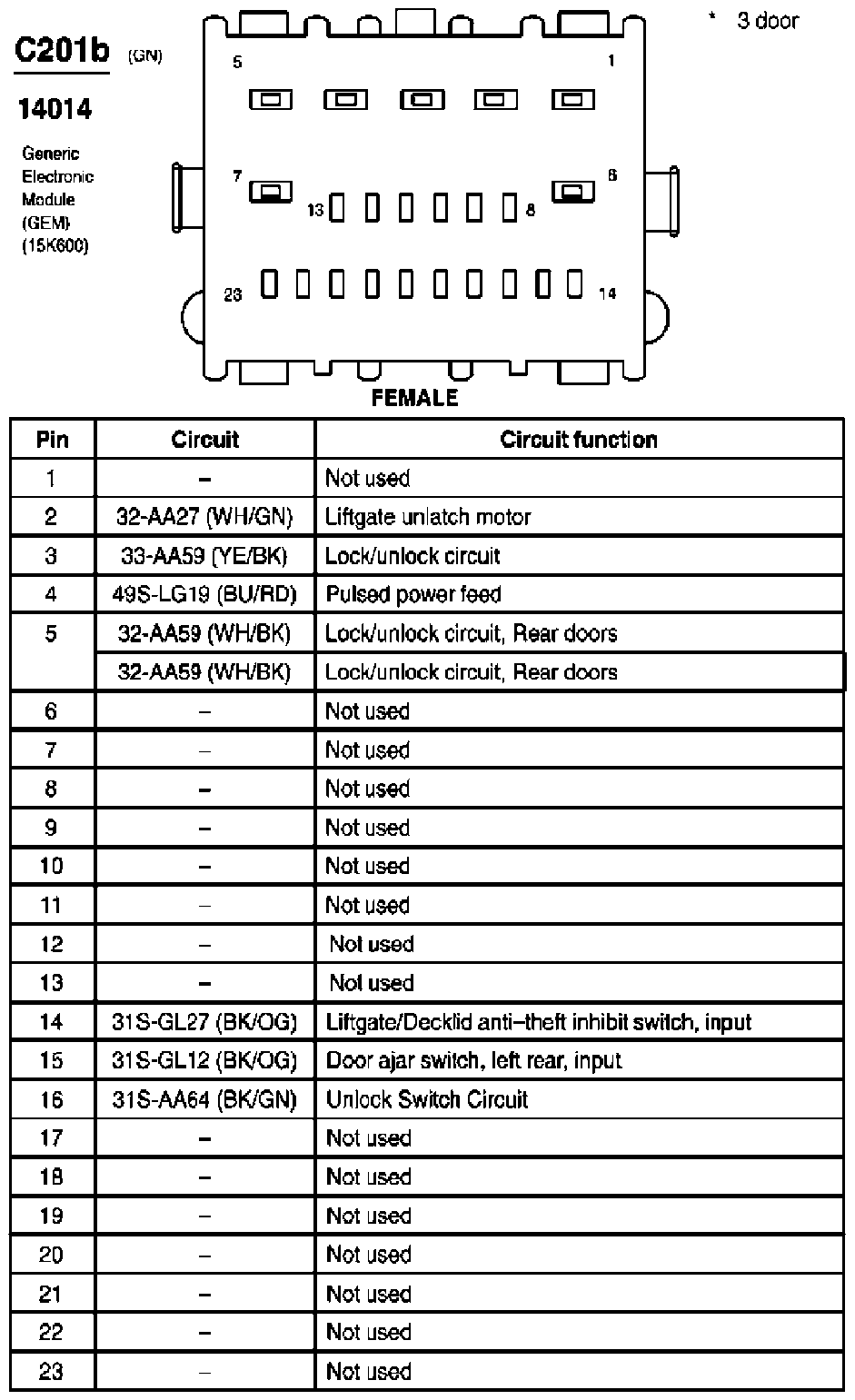

Fig 51: Generic Electronic Module (GEM) Connector End View (C201b)

G07846755

Courtesy of FORD MOTOR CO.

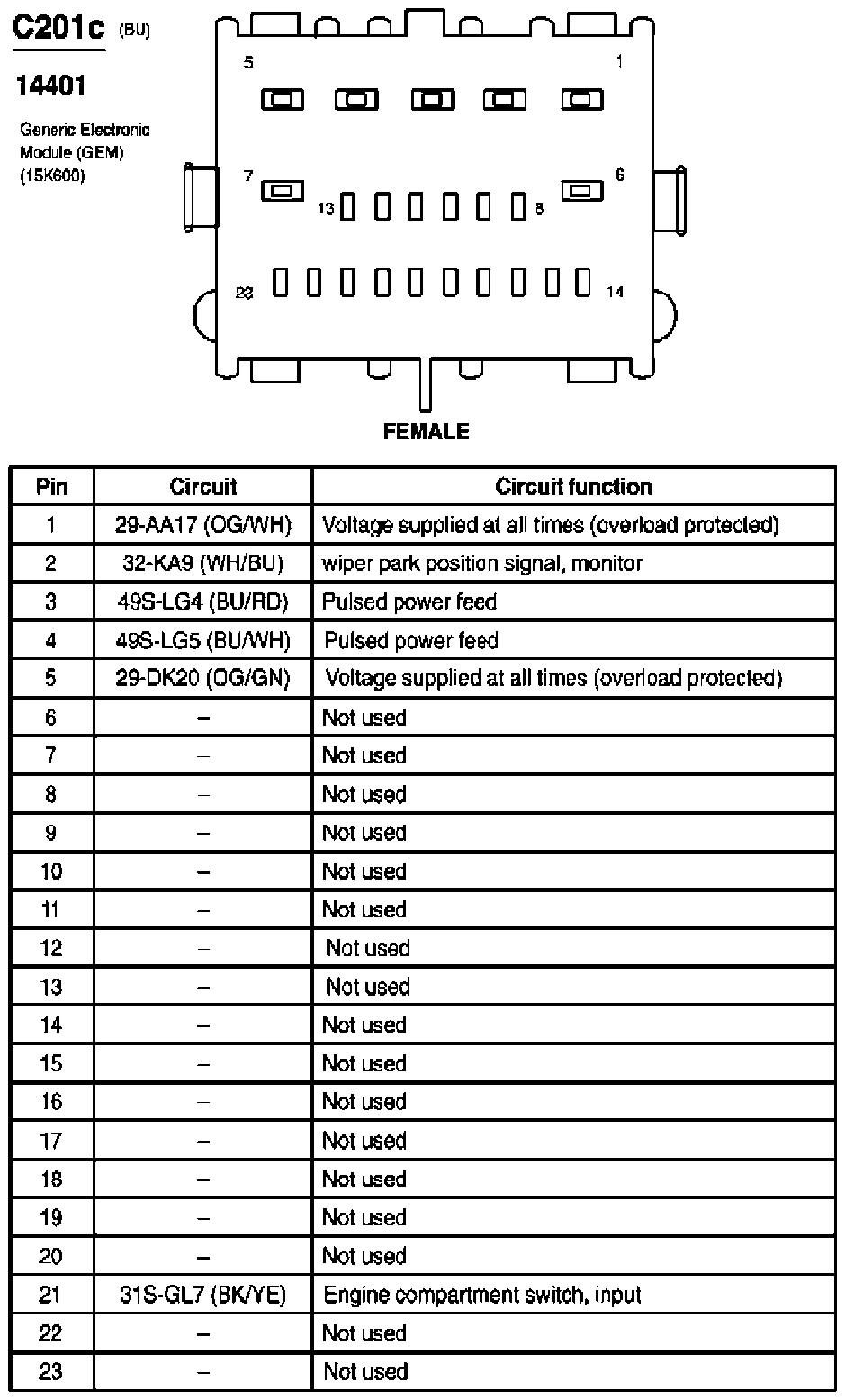

Fig 52: Generic Electronic Module (GEM) Connector End View (C201c)

G07846756

Courtesy of FORD MOTOR CO.

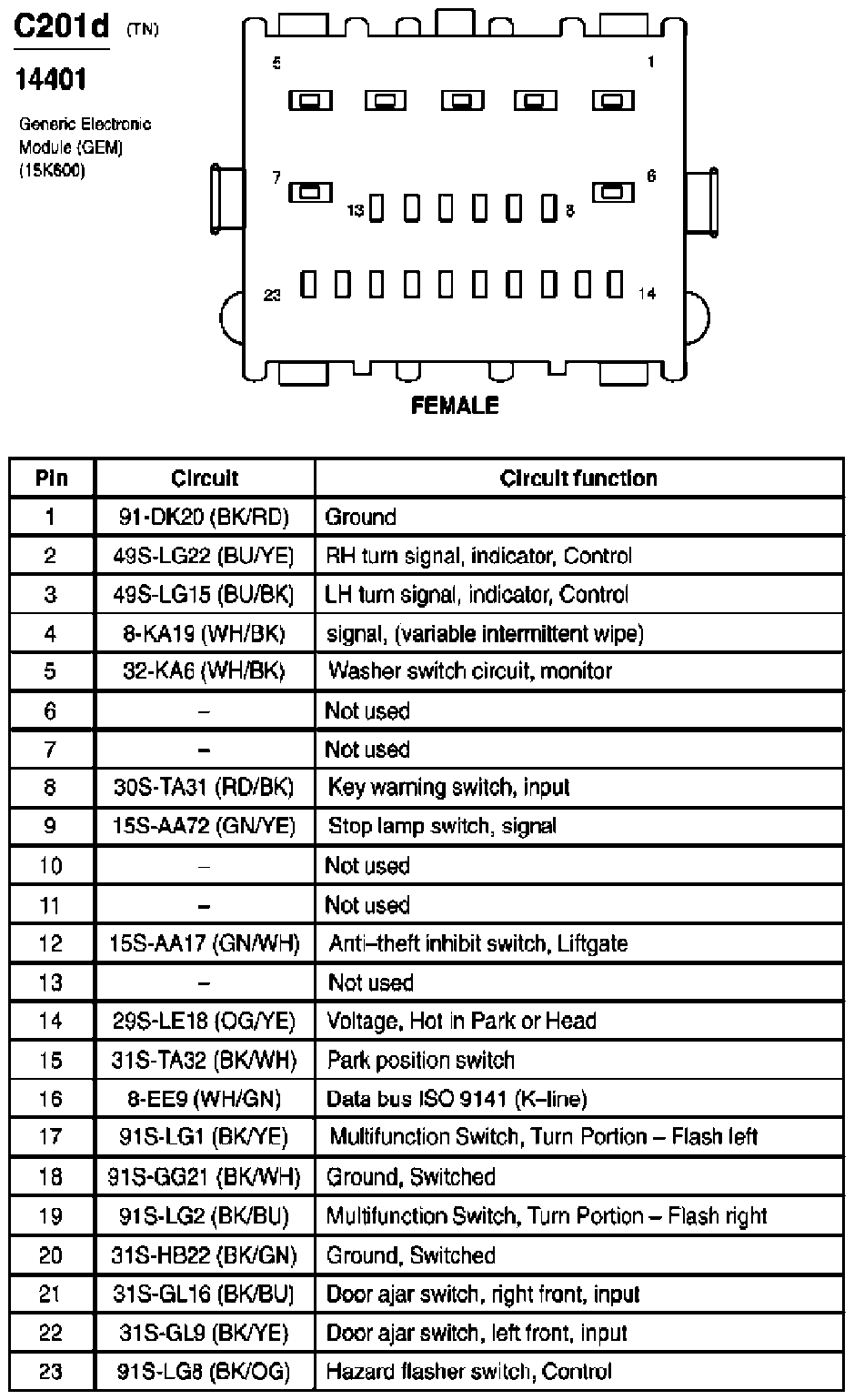

Fig 53: Generic Electronic Module (GEM) Connector End View (C201d)

G07846757

Courtesy of FORD MOTOR CO.

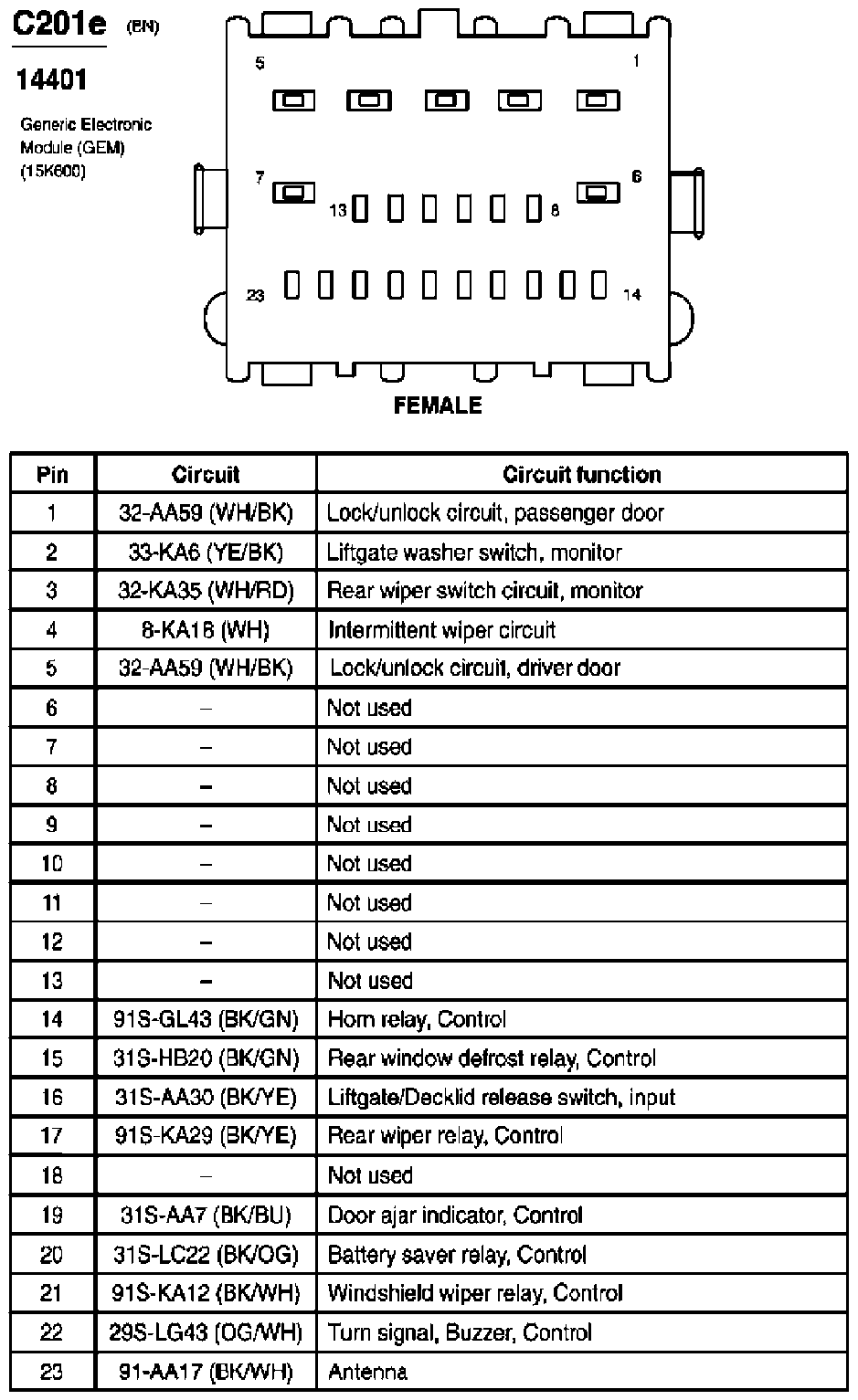

Fig 54: Generic Electronic Module (GEM) Connector End View (C201e)

G07846758

Courtesy of FORD MOTOR CO.

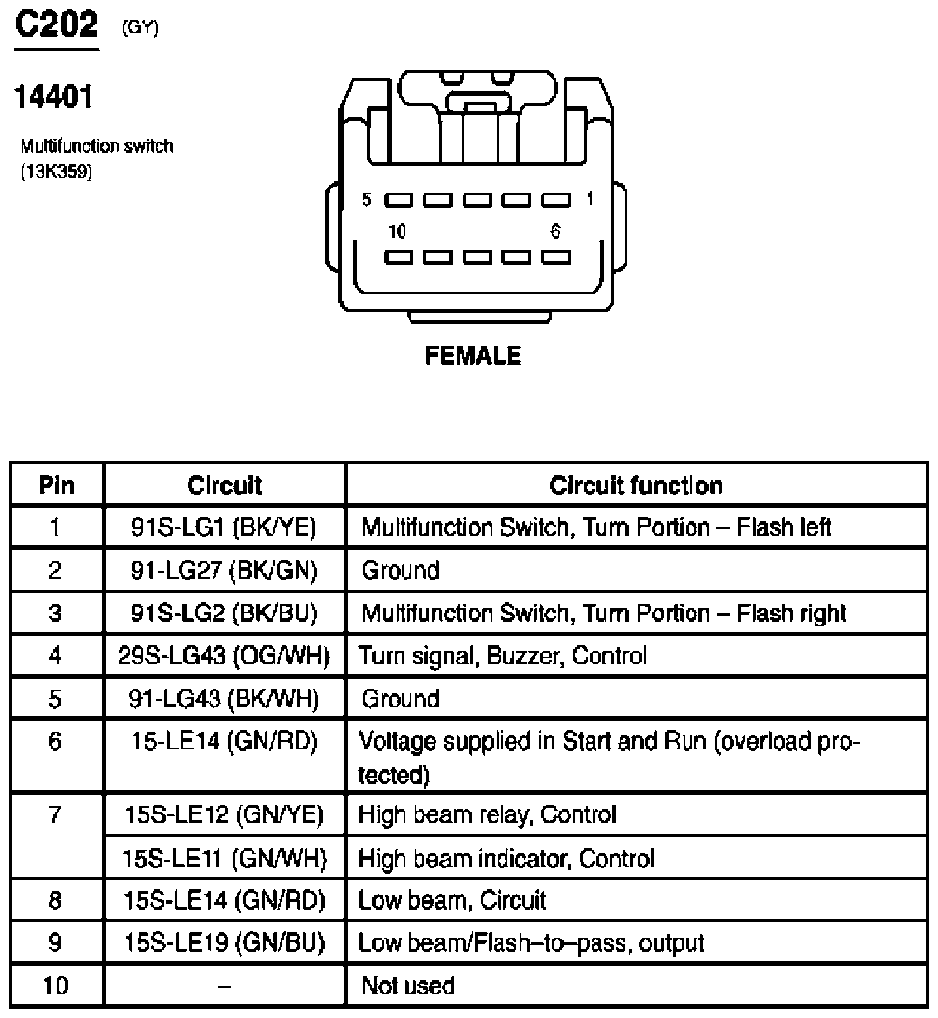

Fig 55: Multifunction Switch Connector End View (C202)

G07846759

Courtesy of FORD MOTOR CO.

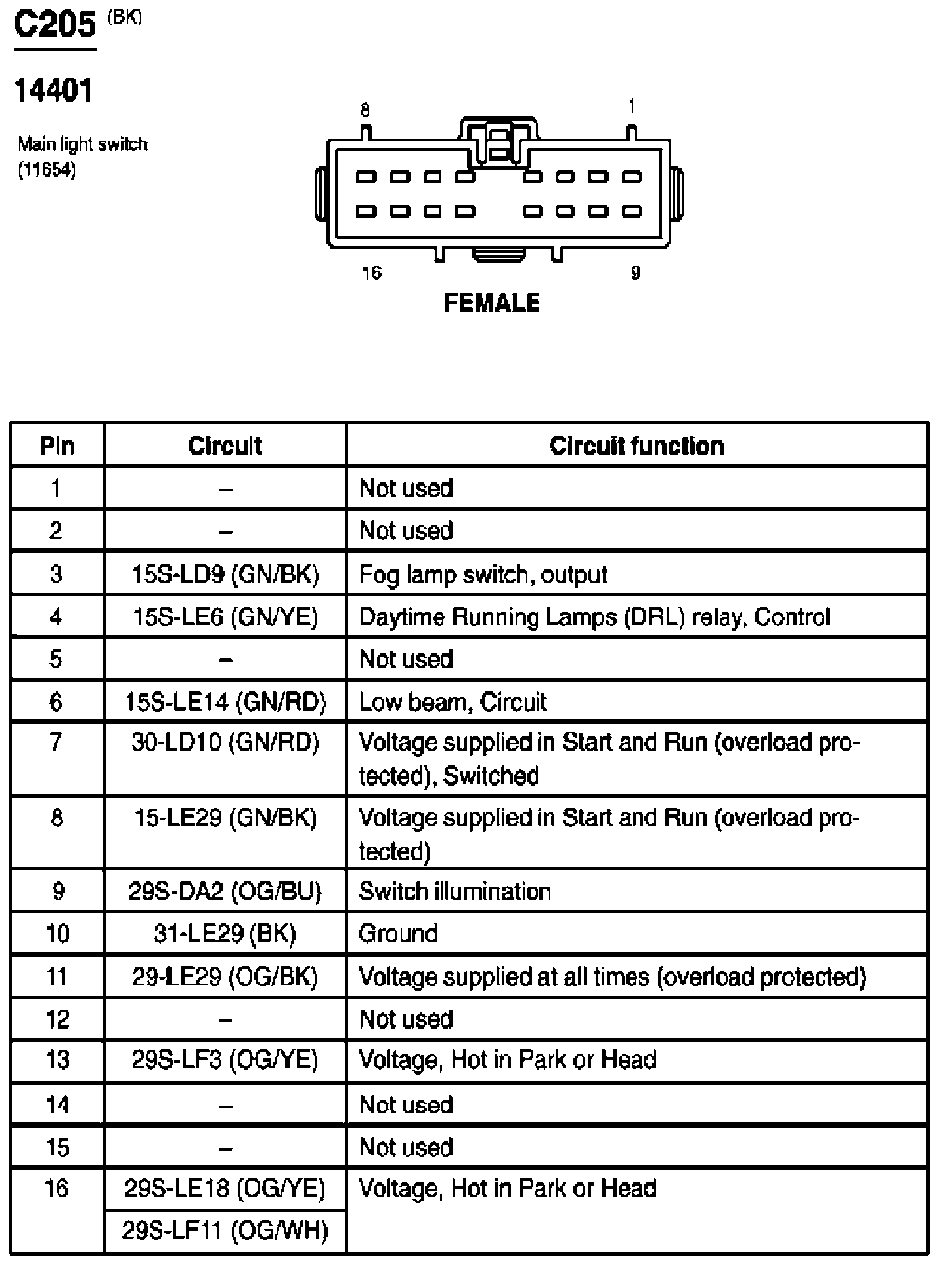

Fig 56: Main Light Switch Connector End View (C205)

G07846760

Courtesy of FORD MOTOR CO.

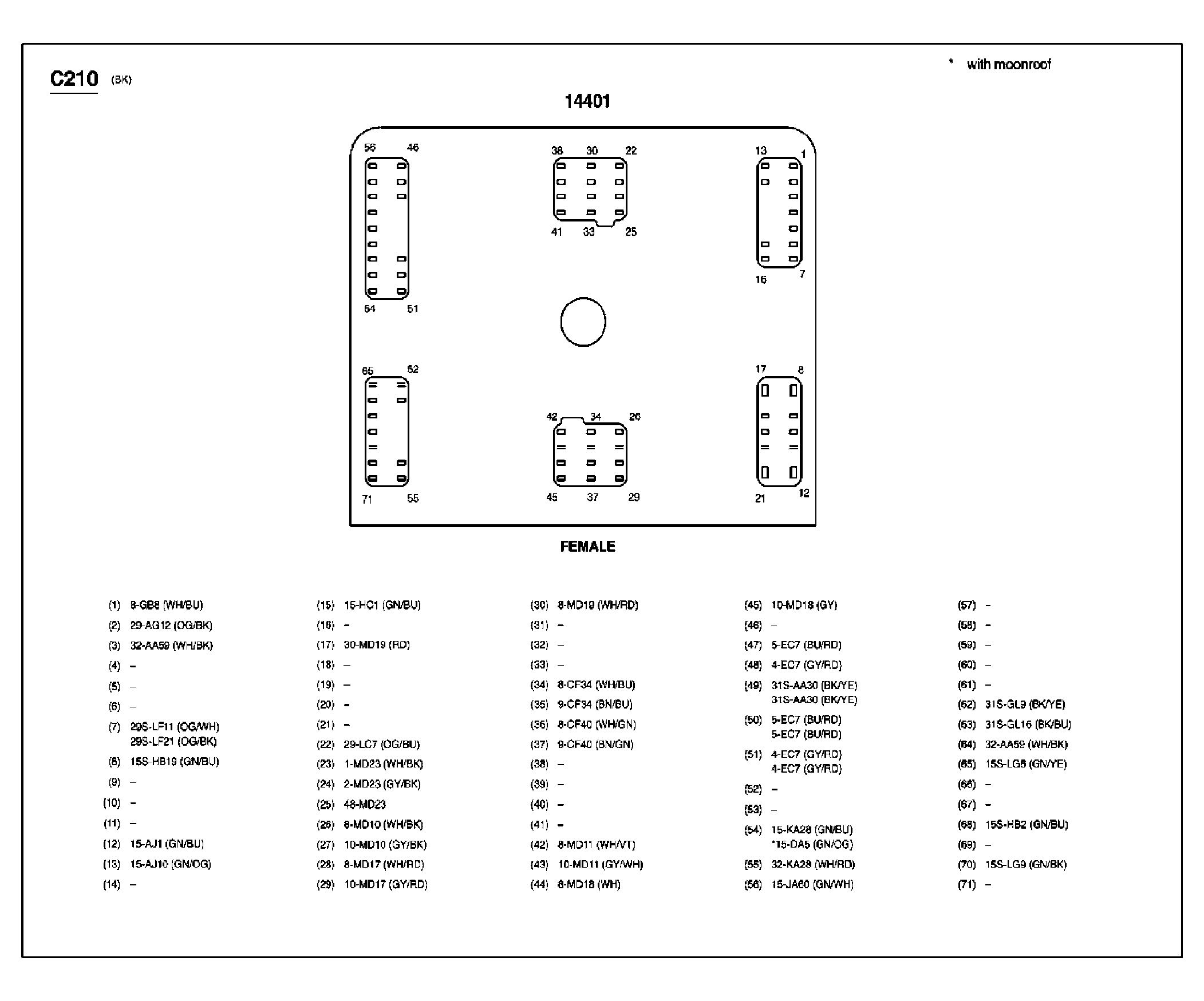

Fig 57: Inline Connector End View (C210)

G04597141

Courtesy of FORD MOTOR CO.

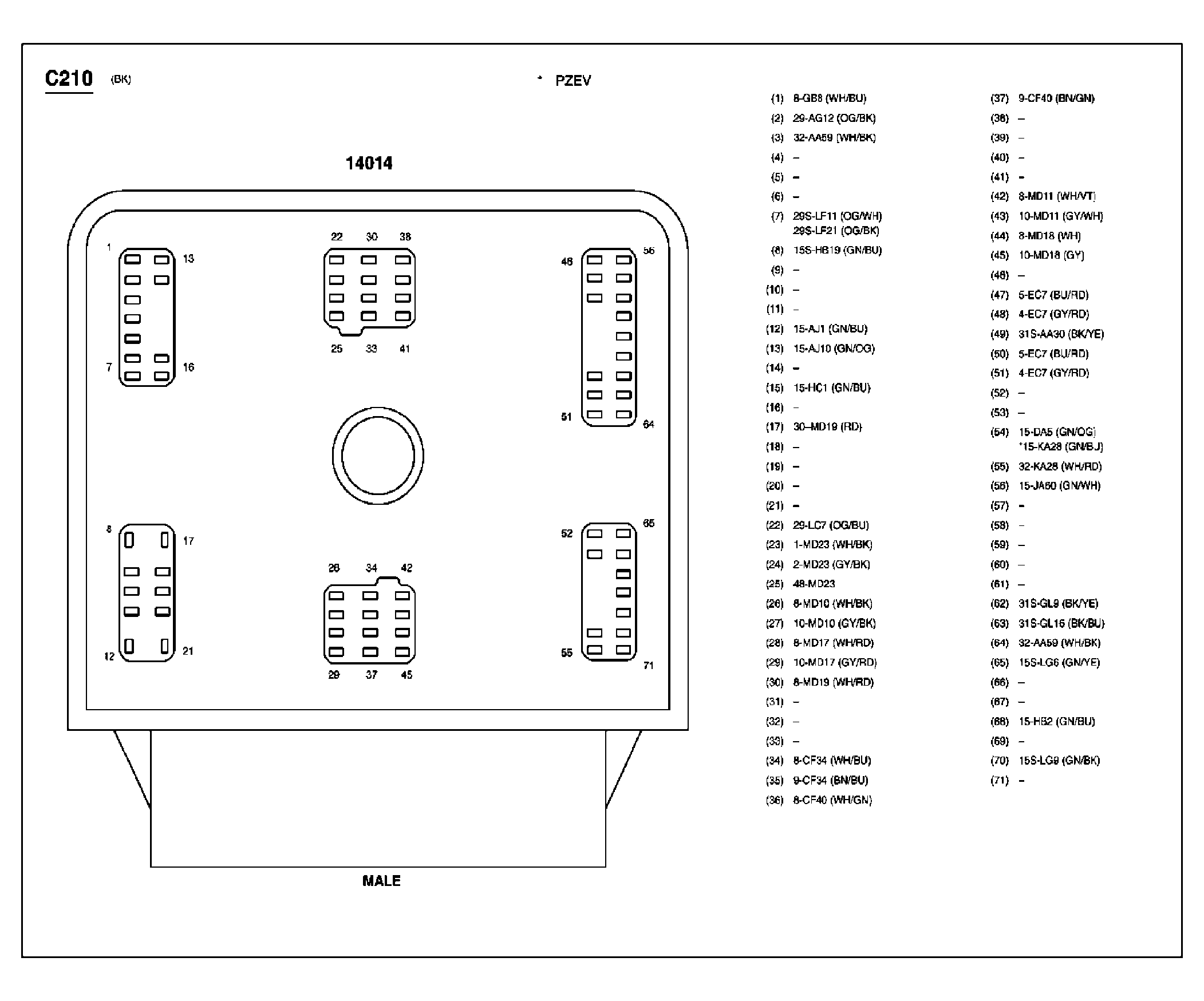

Fig 58: Inline Connector End View (C210)

G04597142

Courtesy of FORD MOTOR CO.

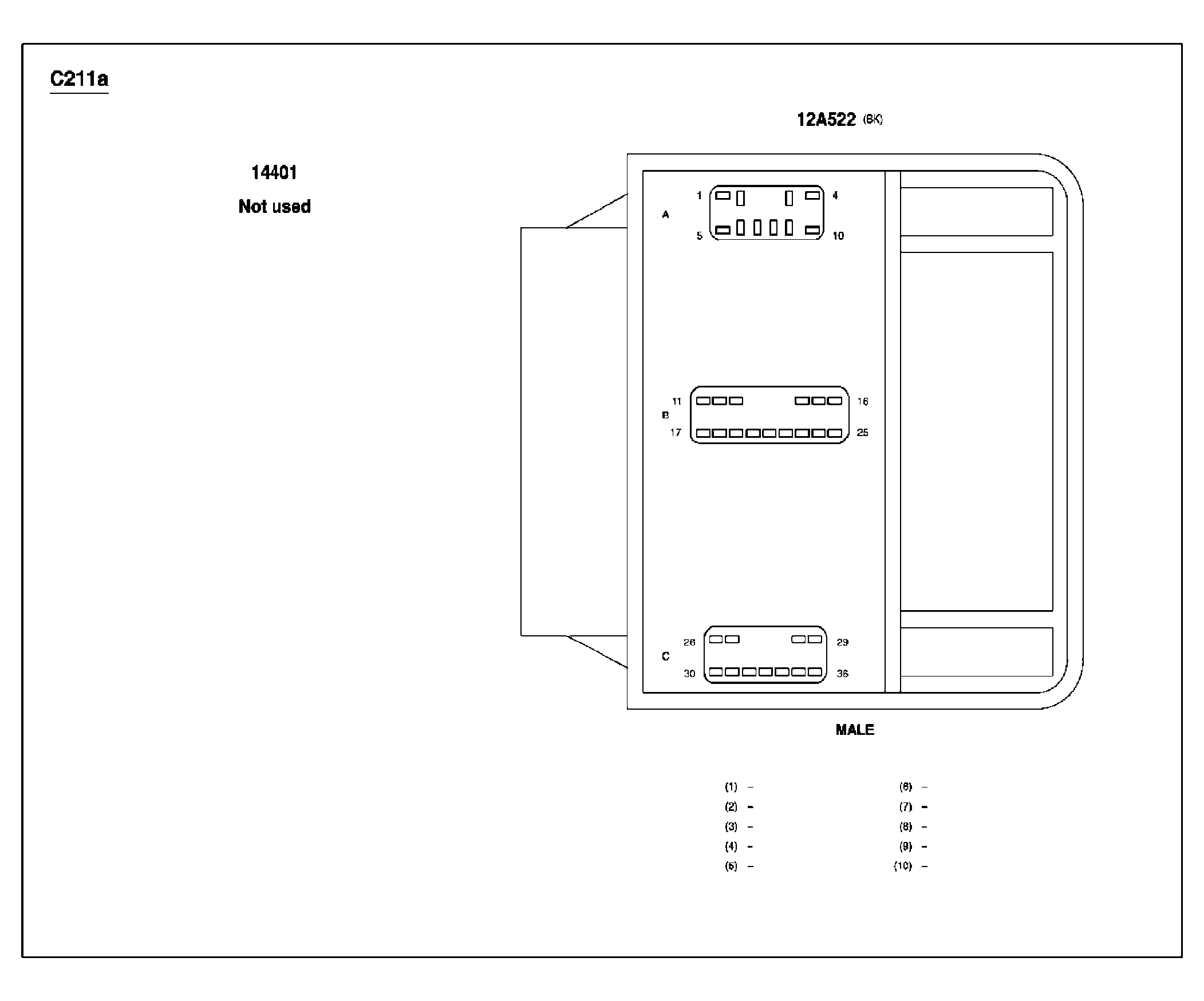

Fig 59: Inline Connector End View (C211a)

G04597143

Courtesy of FORD MOTOR CO.

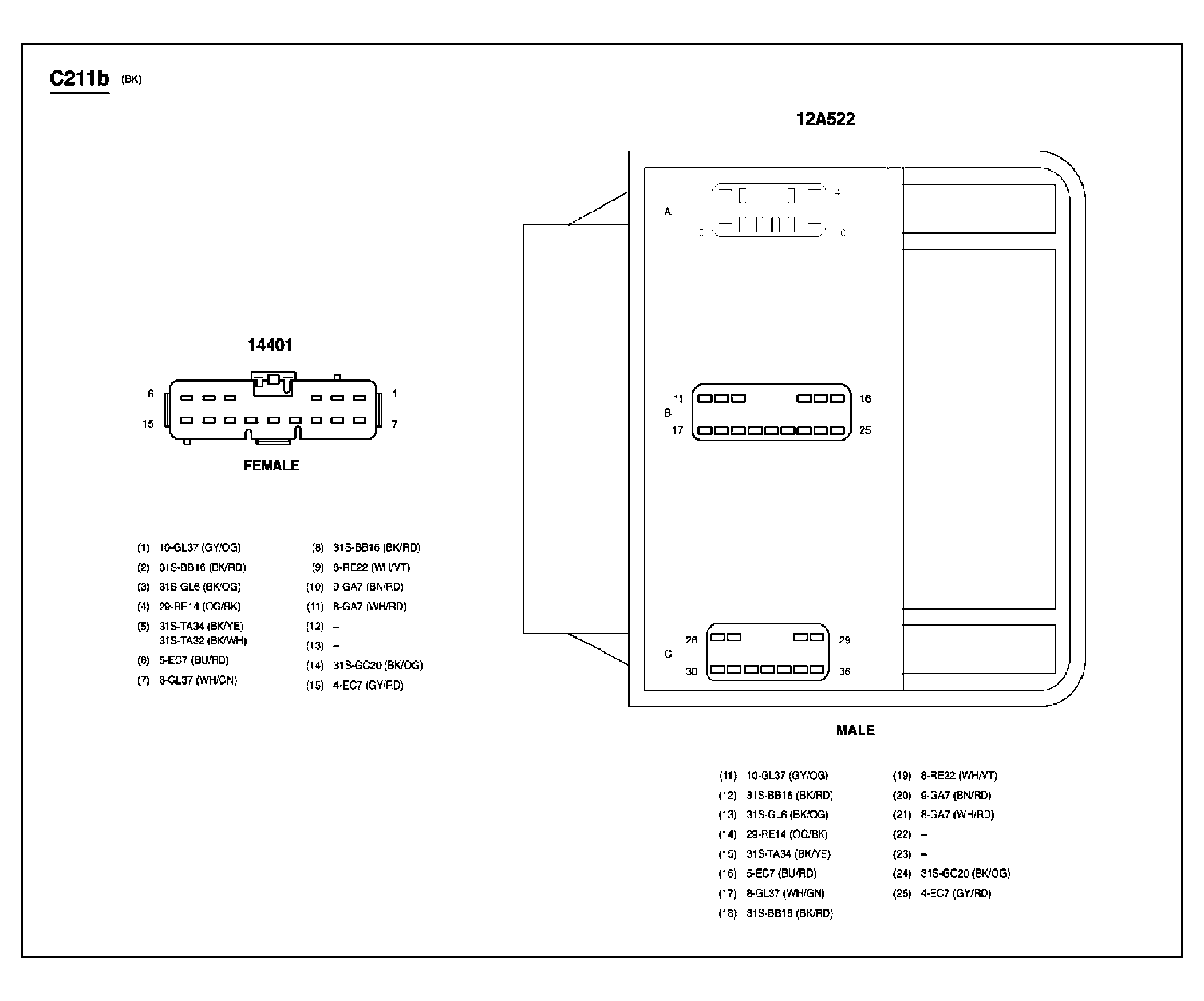

Fig 60: Inline Connector End View (C211b)

G04597144

Courtesy of FORD MOTOR CO.

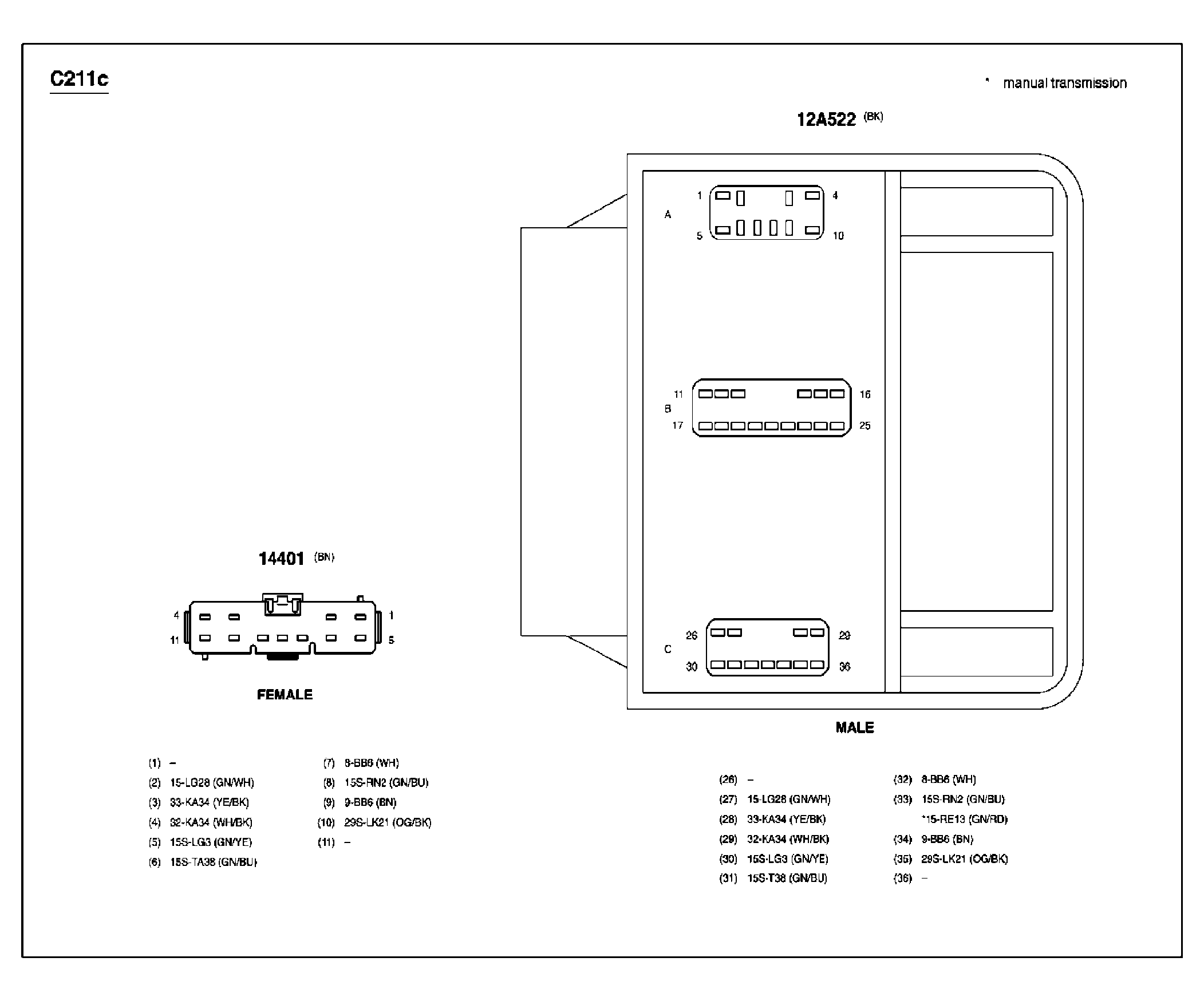

Fig 61: Inline Connector End View (C211c)

G04597145

Courtesy of FORD MOTOR CO.

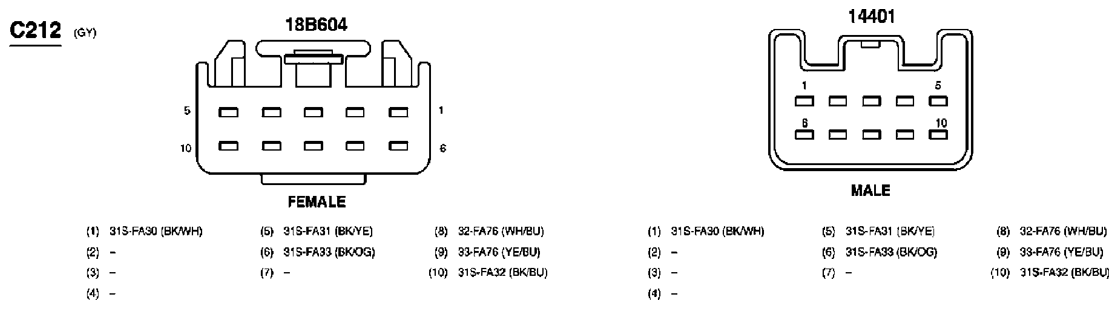

Fig 62: Inline Connector End View (C212)

G07846761

Courtesy of FORD MOTOR CO.

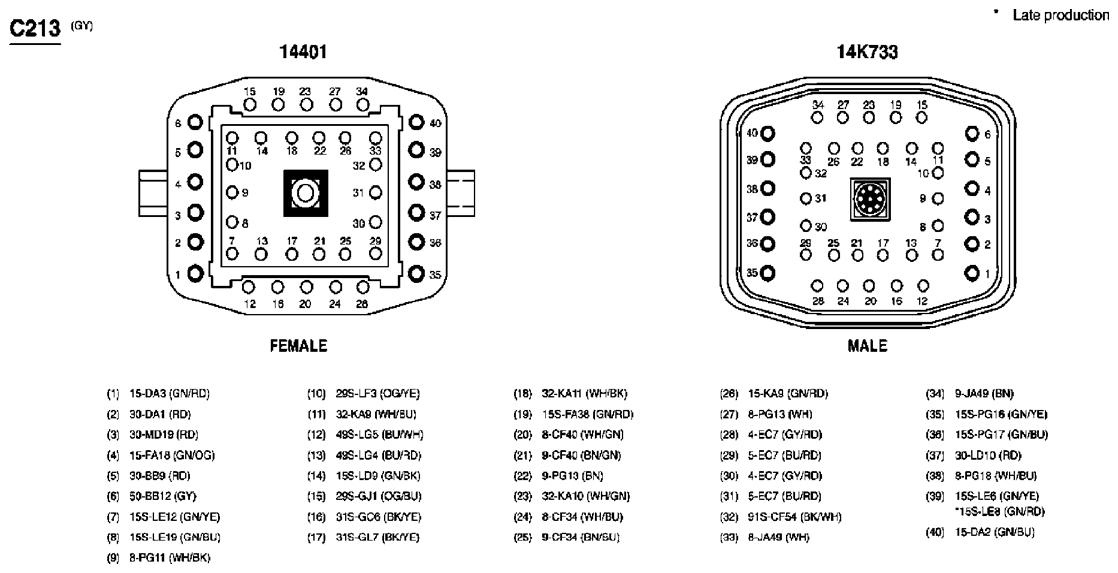

Fig 63: Inline Connector End View (C213)

G07846762

Courtesy of FORD MOTOR CO.

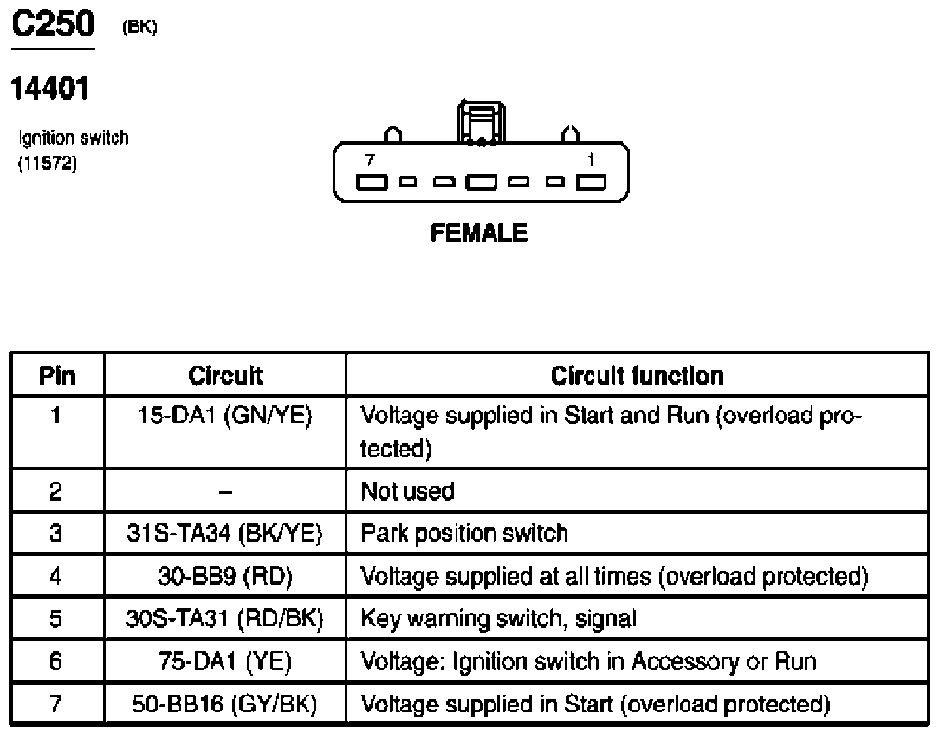

Fig 64: Ignition Switch Connector End View (C250)

G07846763

Courtesy of FORD MOTOR CO.

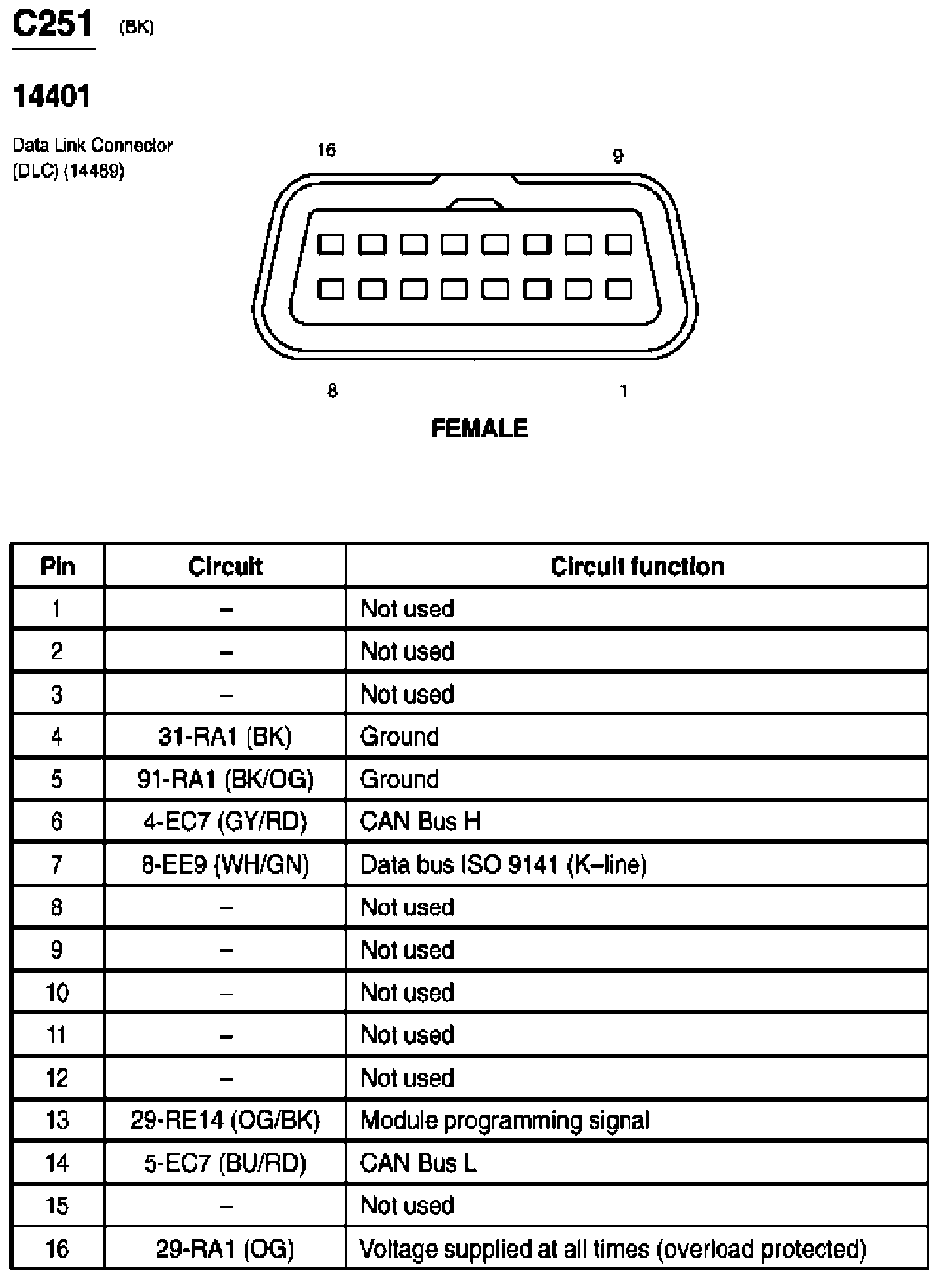

Fig 65: Data Link Connector (DLC) Connector End View (C251)

G07846764

Courtesy of FORD MOTOR CO.

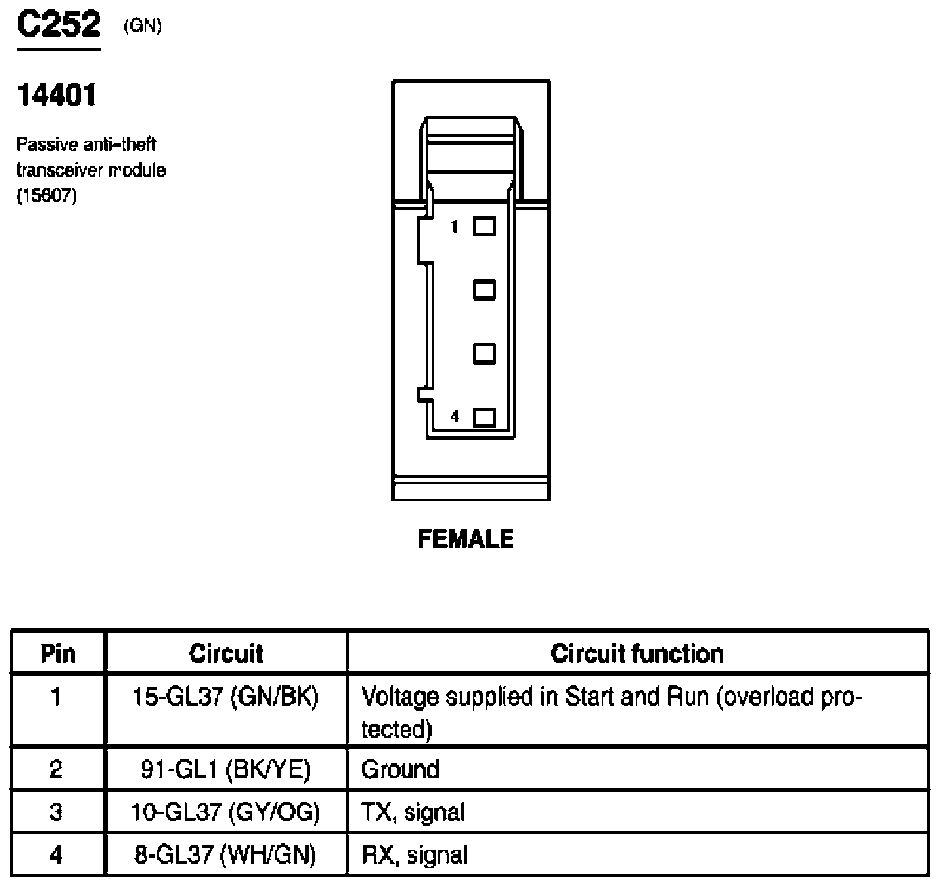

Fig 66: Passive Anti-Theft Transceiver Module Connector End View (C252)

G07846765

Courtesy of FORD MOTOR CO.

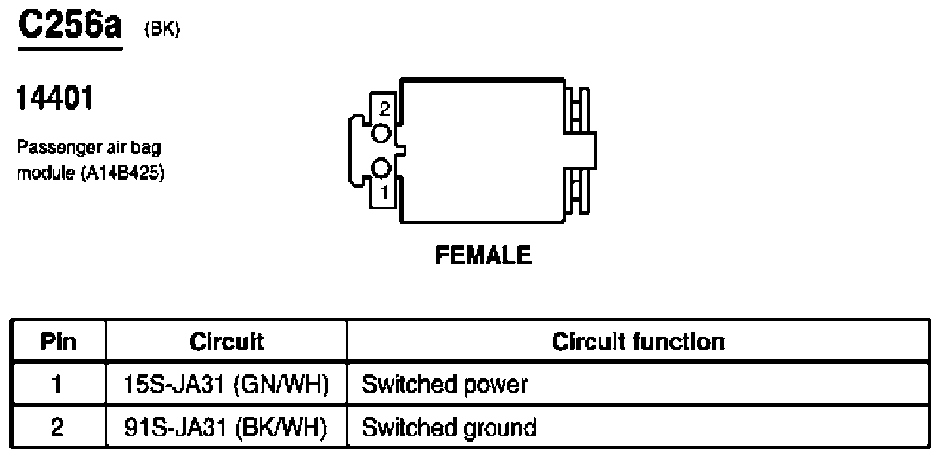

Fig 67: Passenger Air Bag Module Connector End View (C256a)

G07846766

Courtesy of FORD MOTOR CO.

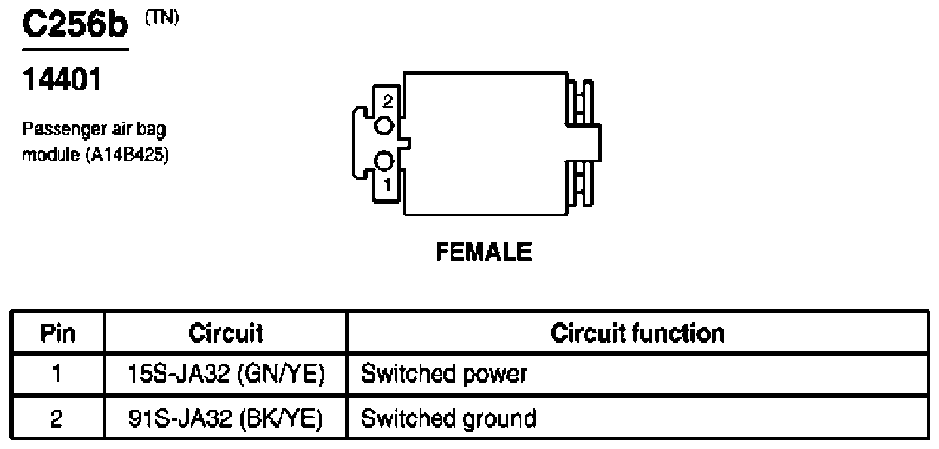

Fig 68: Passenger Air Bag Module Connector End View (C256b)

G07846767

Courtesy of FORD MOTOR CO.

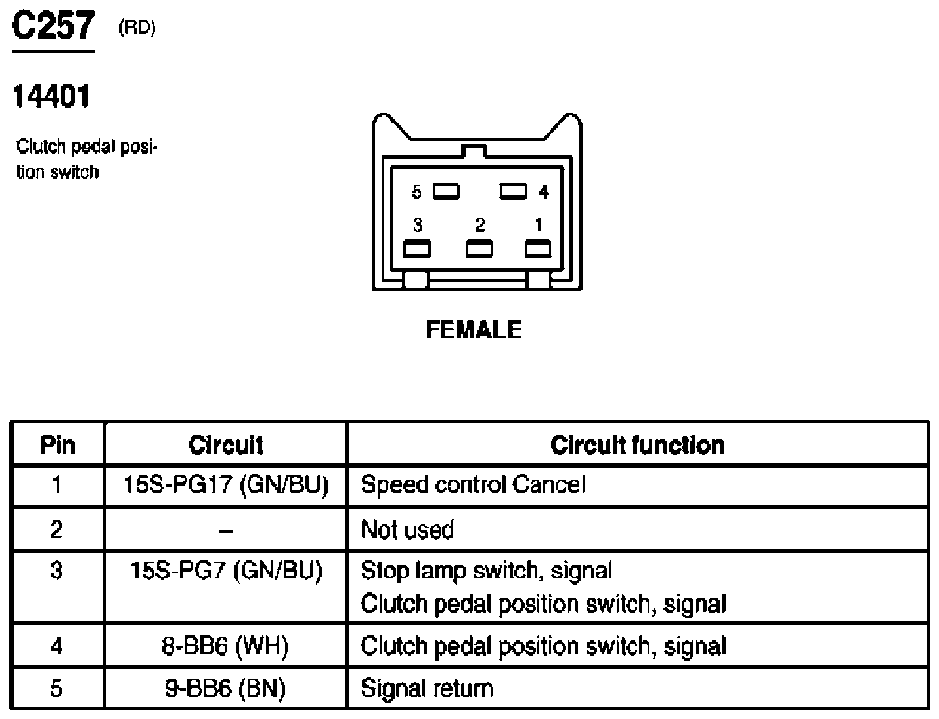

Fig 69: Clutch Pedal Position Switch Connector End View (C257)

G07846768

Courtesy of FORD MOTOR CO.

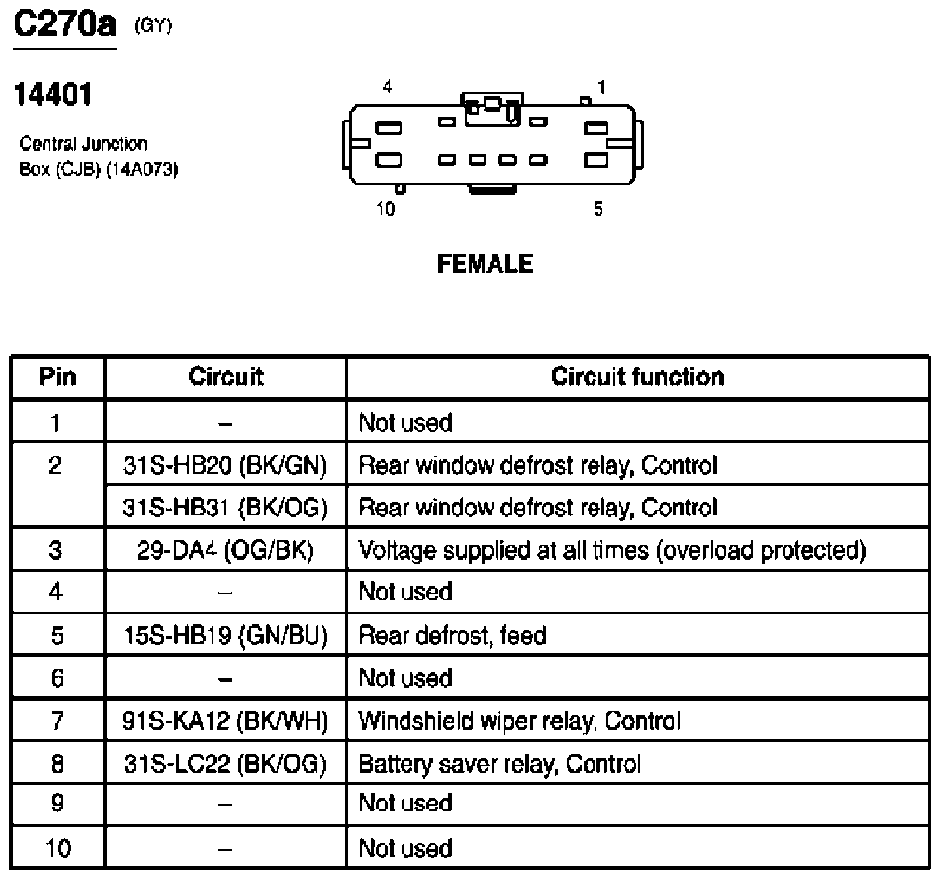

Fig 70: Central Junction Box (CJB) Connector End View (C270a)

G07846769

Courtesy of FORD MOTOR CO.

Fig 71: Central Junction Box (CJB) Connector End View (C270b)

G07846770

Courtesy of FORD MOTOR CO.

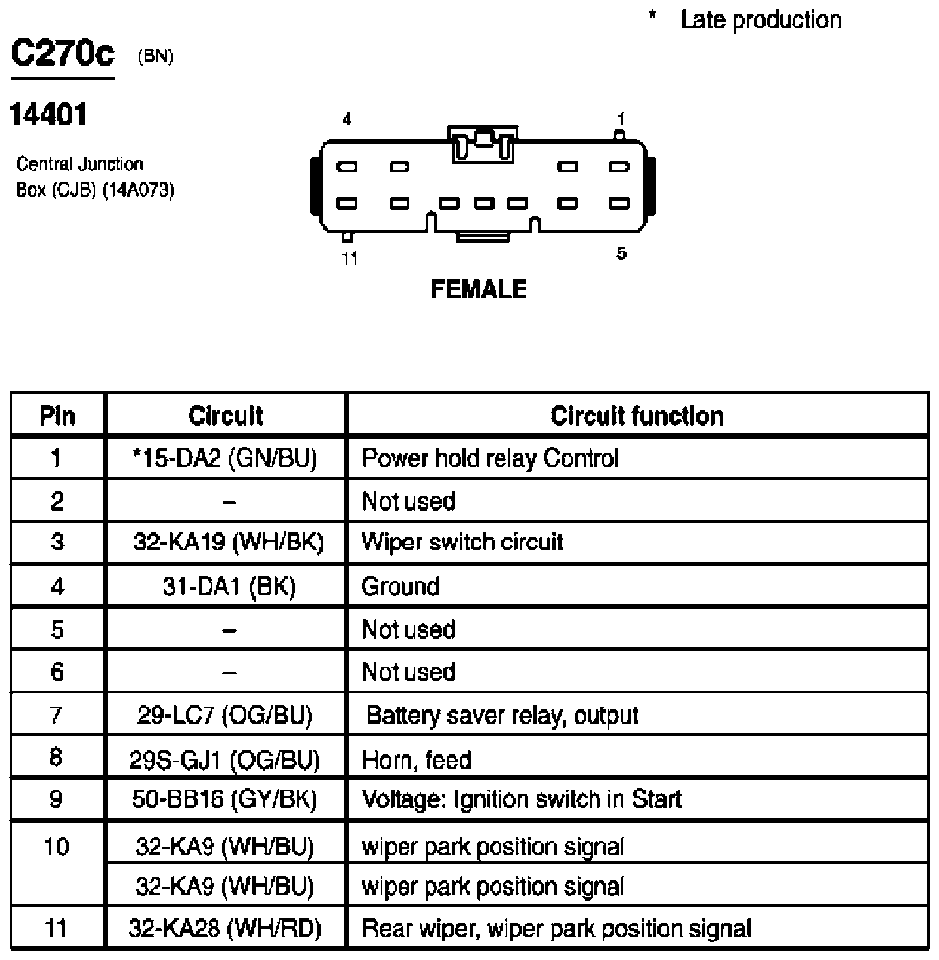

Fig 72: Central Junction Box (CJB) Connector End View (C270c)

G07846771

Courtesy of FORD MOTOR CO.

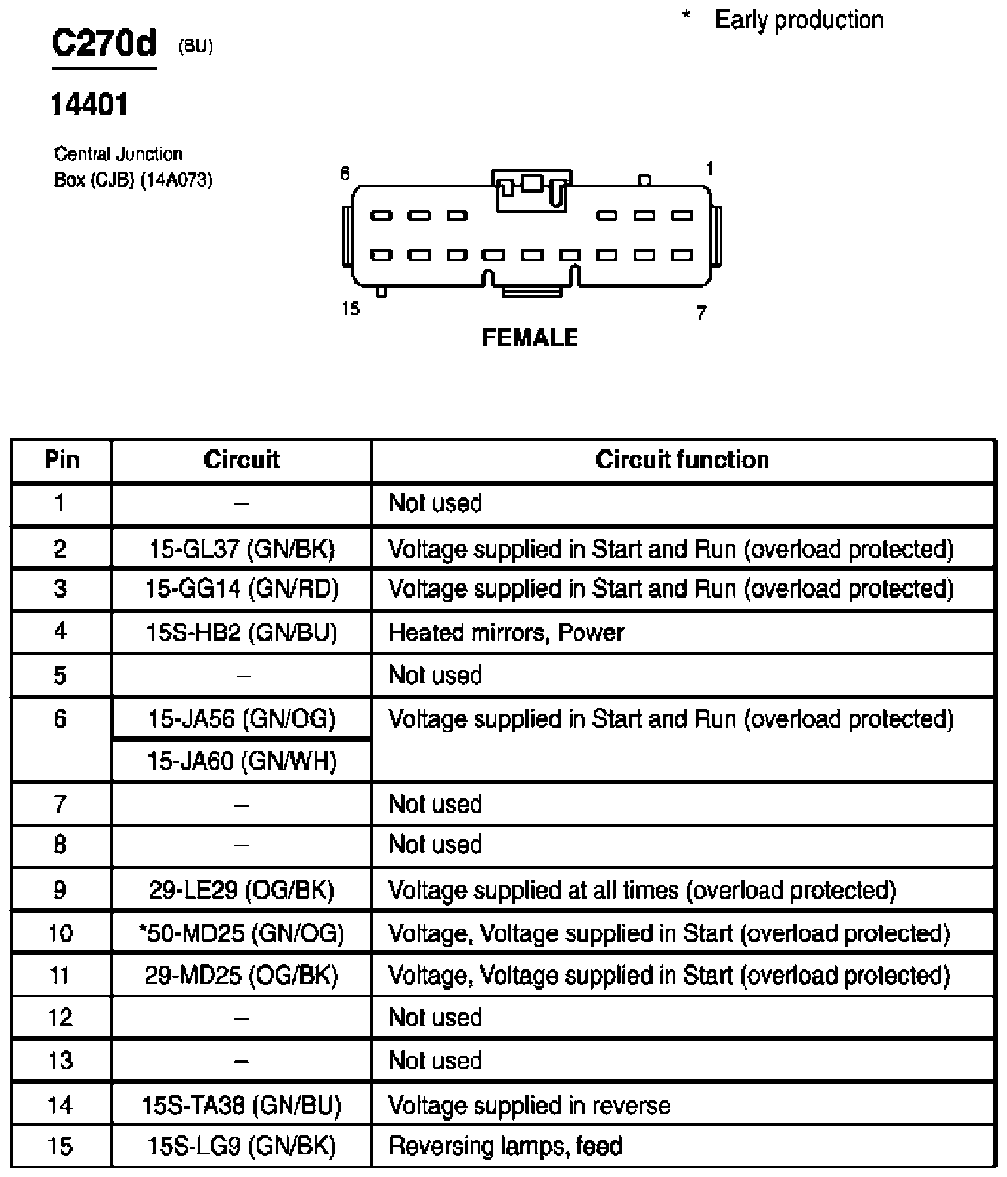

Fig 73: Central Junction Box (CJB) Connector End View (C270d)

G07846772

Courtesy of FORD MOTOR CO.

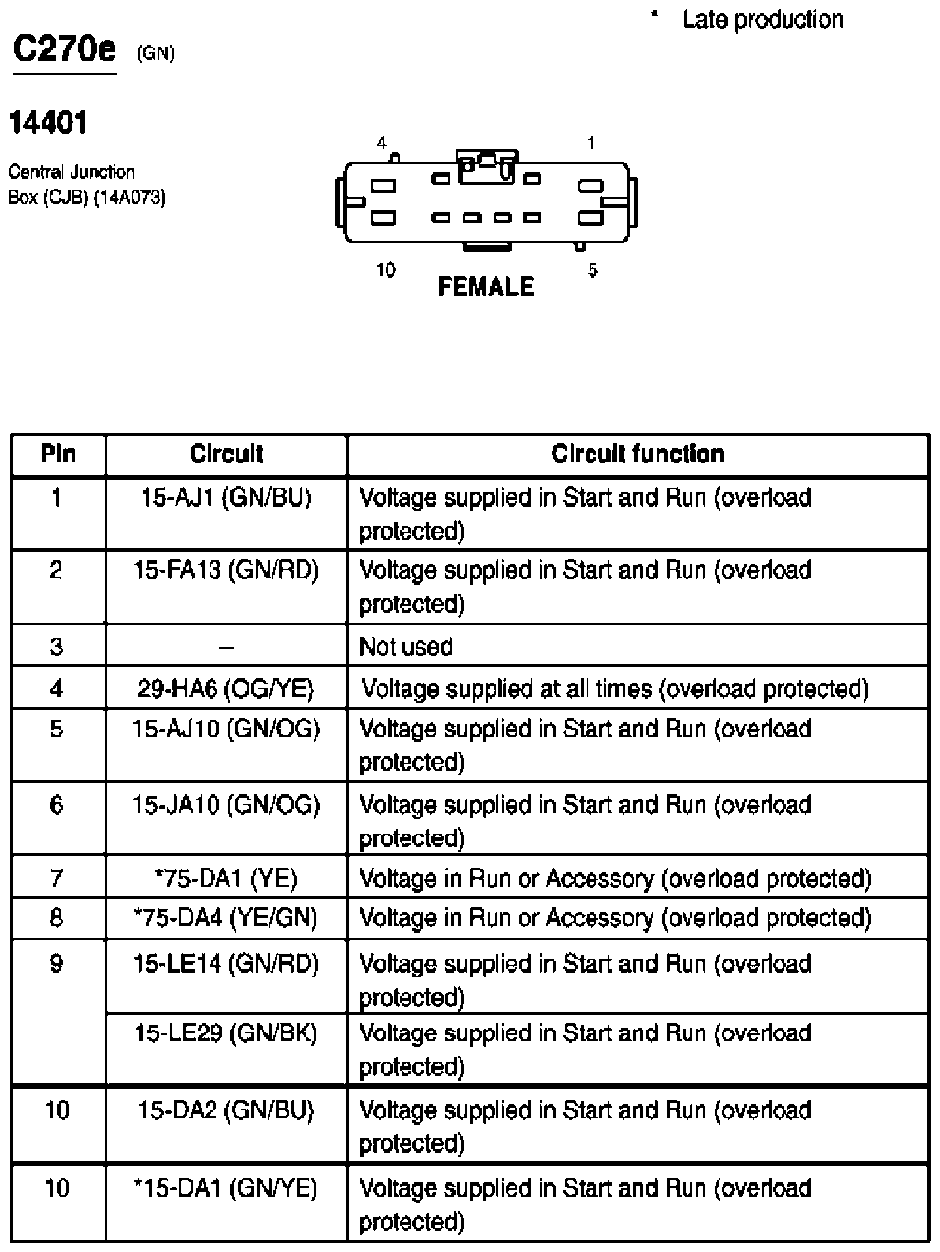

Fig 74: Central Junction Box (CJB) Connector End View (C270e)

G07846773

Courtesy of FORD MOTOR CO.

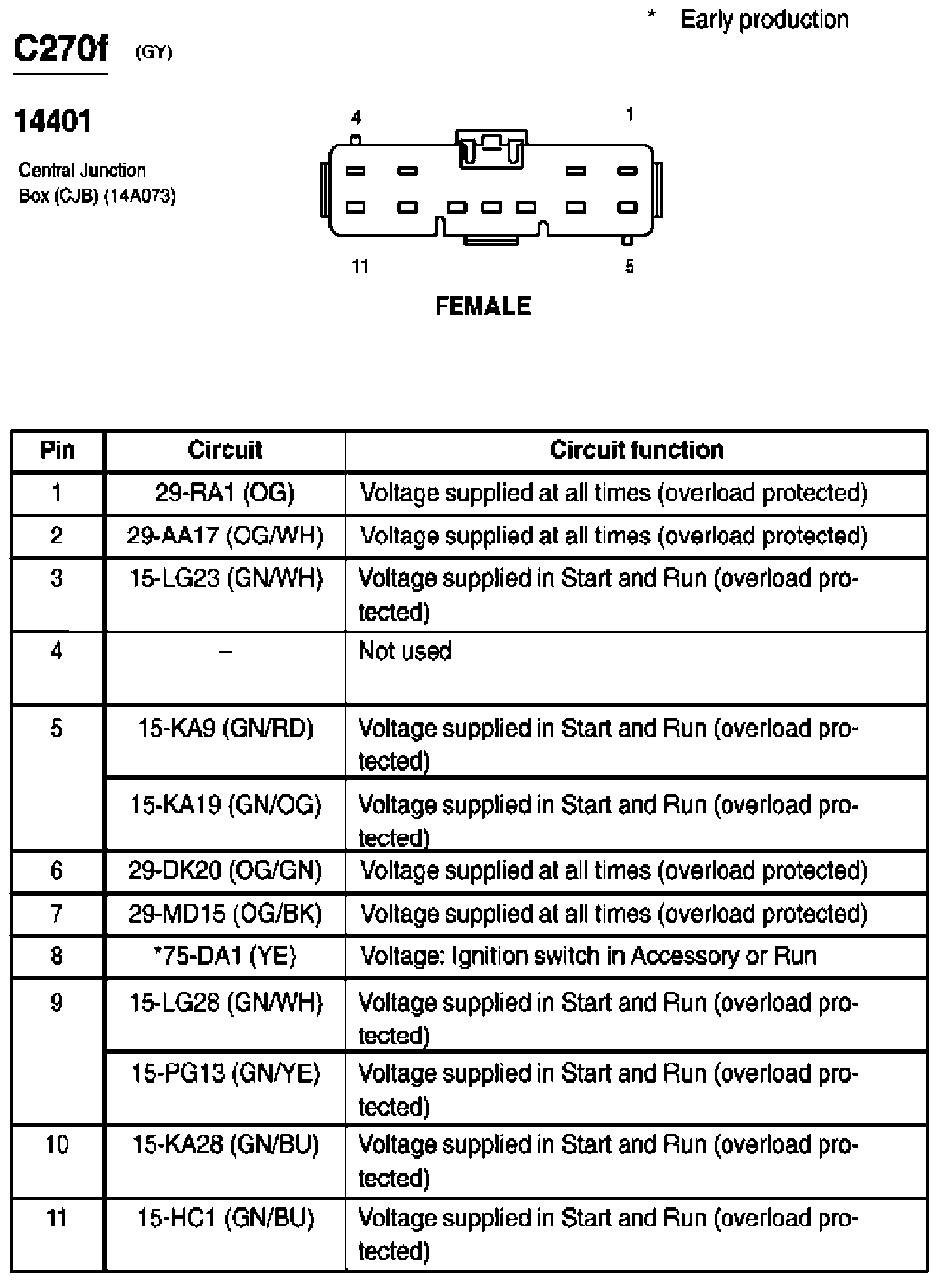

Fig 75: Central Junction Box (CJB) Connector End View (C270f)

G07846774

Courtesy of FORD MOTOR CO.

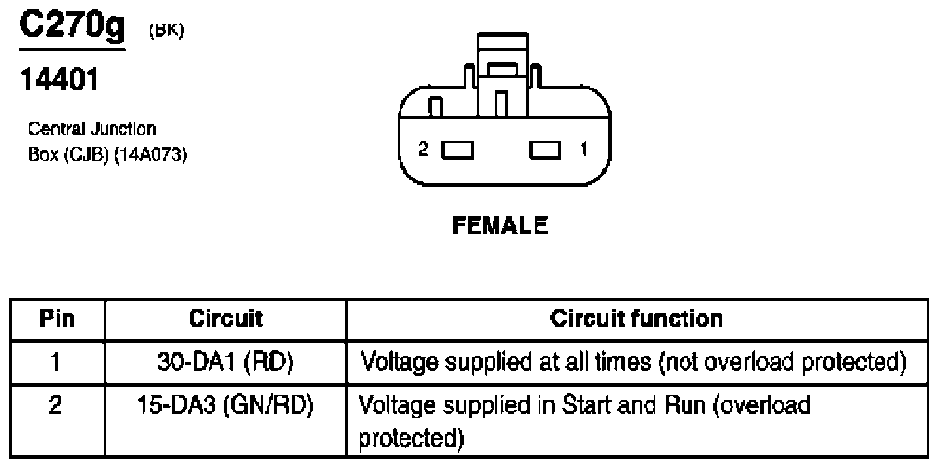

Fig 76: Central Junction Box (CJB) Connector End View (C270g)

G07846775

Courtesy of FORD MOTOR CO.

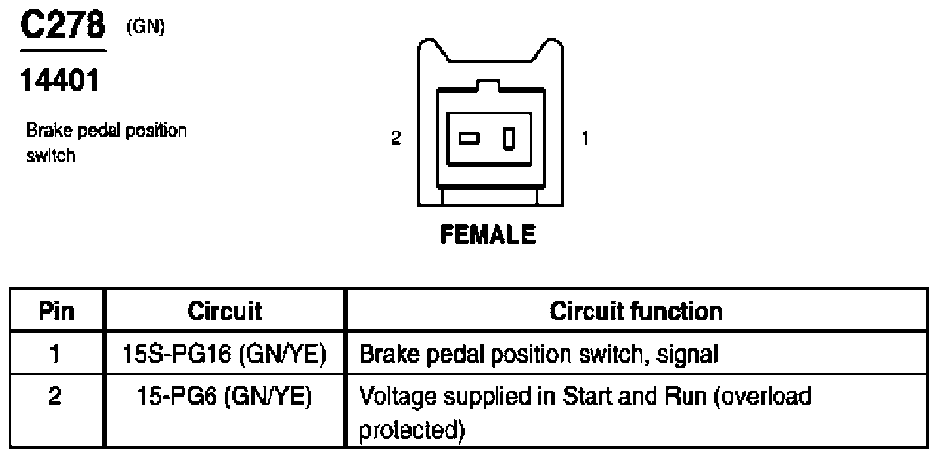

Fig 77: Brake Pedal Position Switch Connector End View (C278)

G07846776

Courtesy of FORD MOTOR CO.

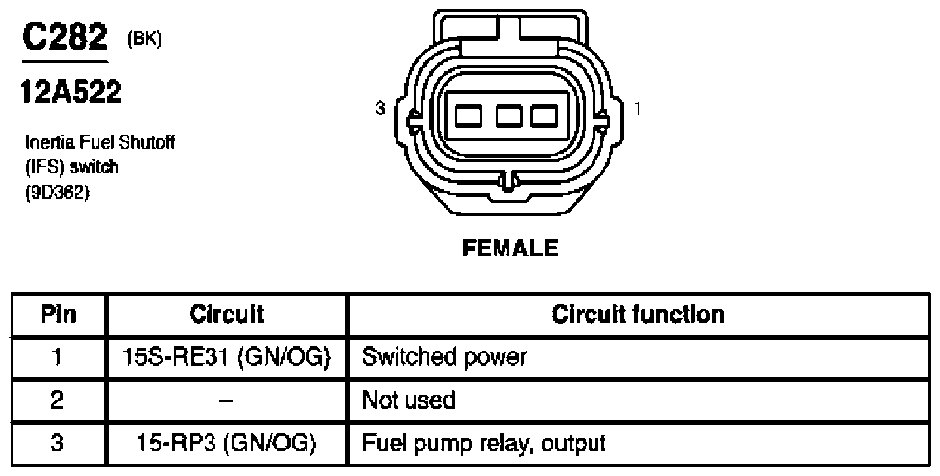

Fig 78: Inertial Fuel Shutoff (IFS) Switch Connector End View (C282)

G07846777

Courtesy of FORD MOTOR CO.

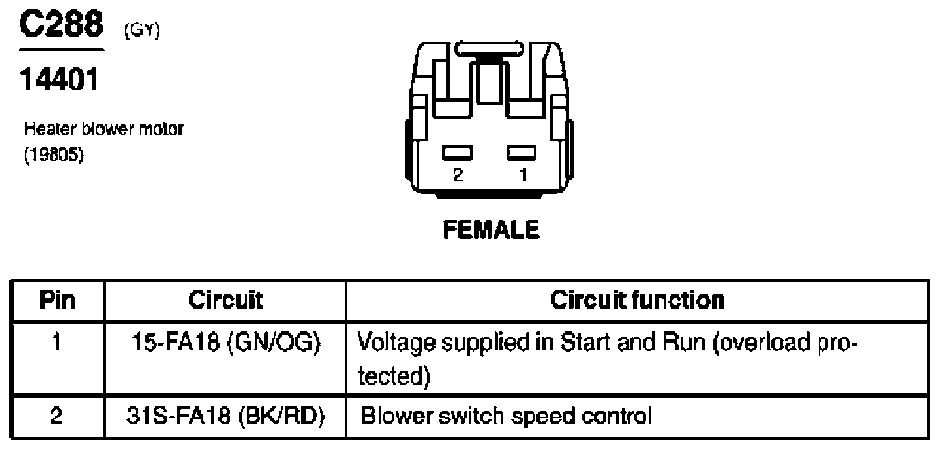

Fig 79: Heater Blower Motor Connector End View (C288)

G07846778

Courtesy of FORD MOTOR CO.

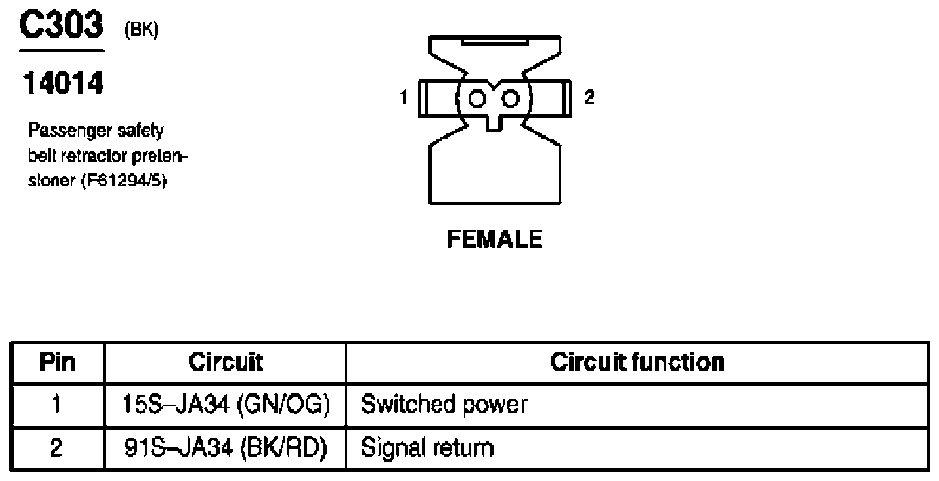

Fig 80: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)

G07846779

Courtesy of FORD MOTOR CO.

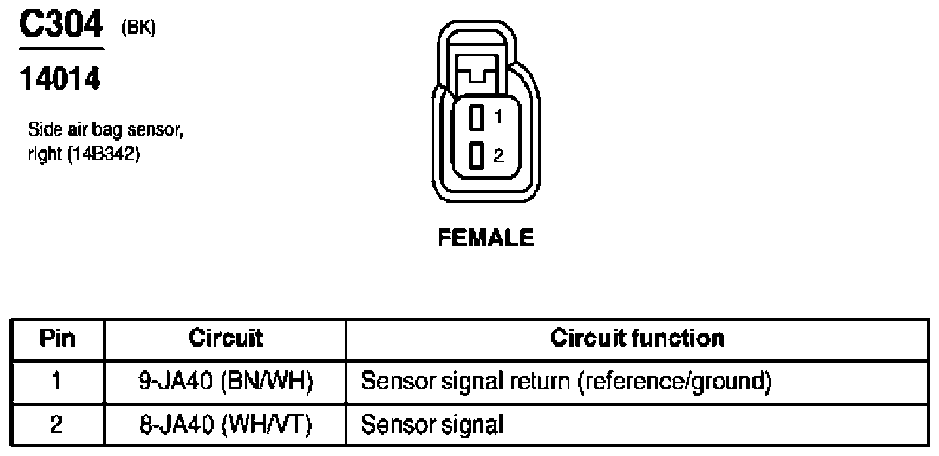

Fig 81: Side Air Bag Sensor, Right Connector End View (C304)

G07846780

Courtesy of FORD MOTOR CO.

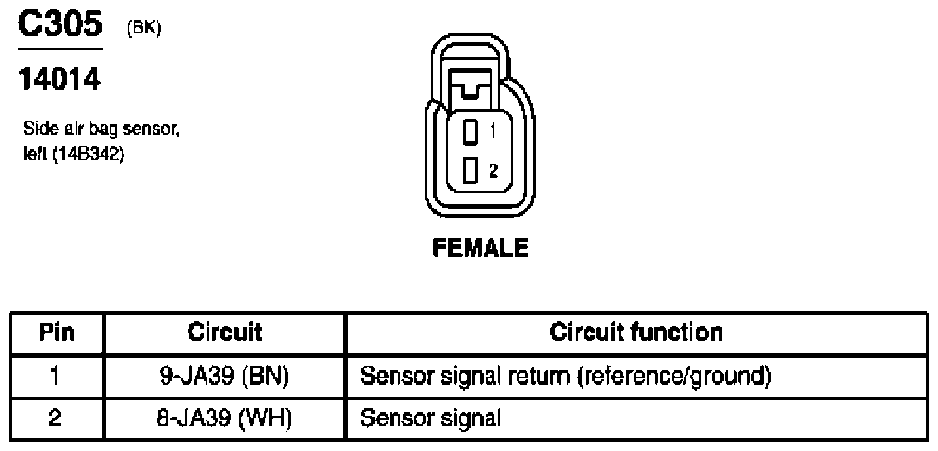

Fig 82: Side Air Bag Sensor, Left Connector End View (C305)

G07846781

Courtesy of FORD MOTOR CO.

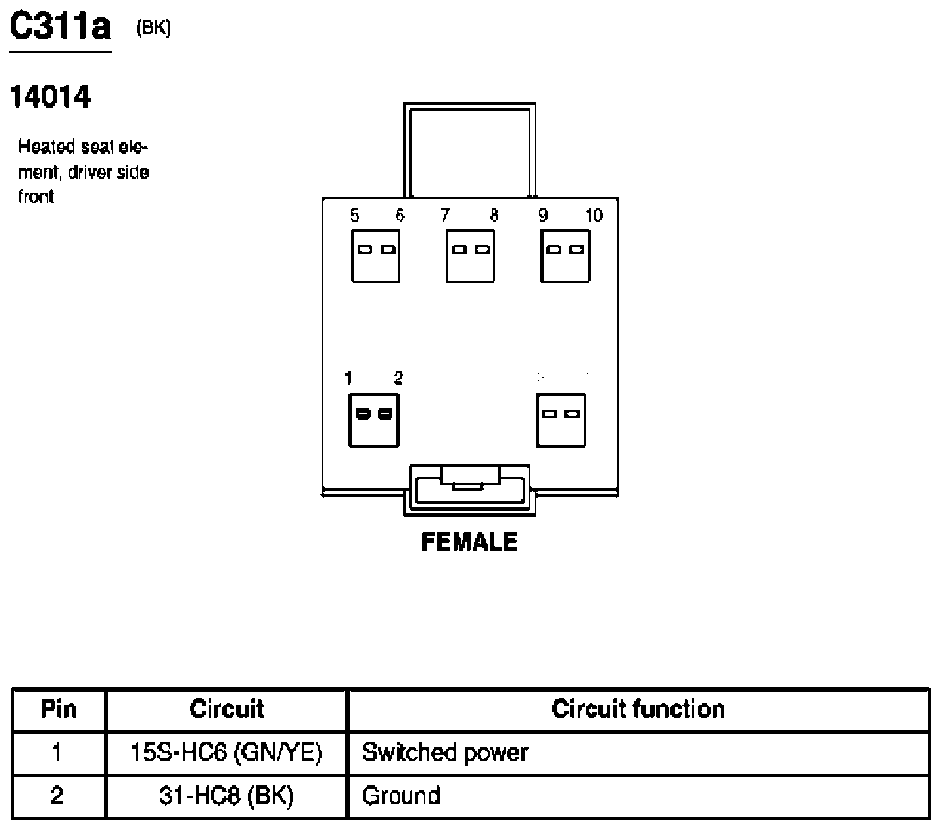

Fig 83: Heated Seat Element, Driver Side Front Connector End View (C311a)

G07846782

Courtesy of FORD MOTOR CO.

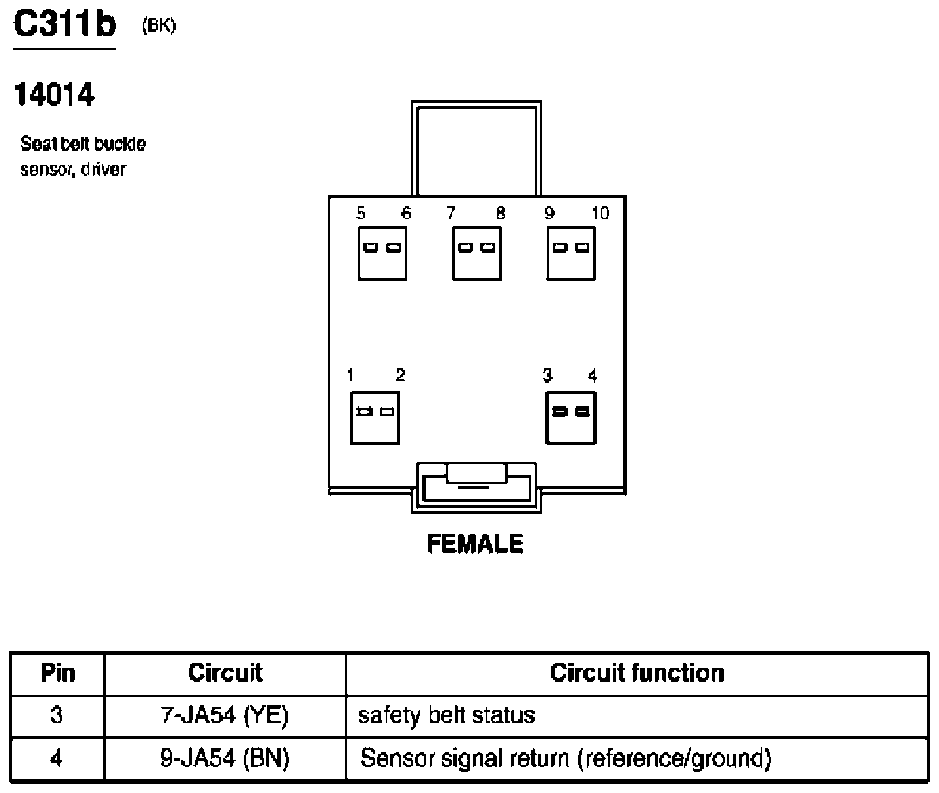

Fig 84: Seat Belt Buckle Sensor, Driver Connector End View (C311b)

G07846783

Courtesy of FORD MOTOR CO.

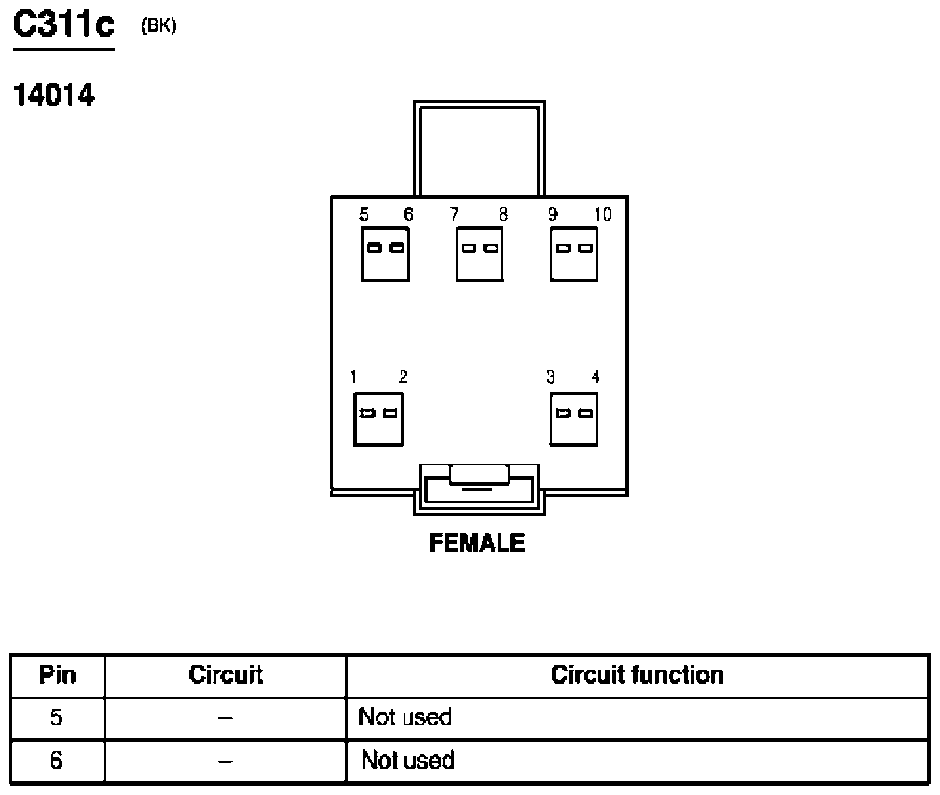

Fig 85: Inline Connector End View (C311c)

G07846784

Courtesy of FORD MOTOR CO.

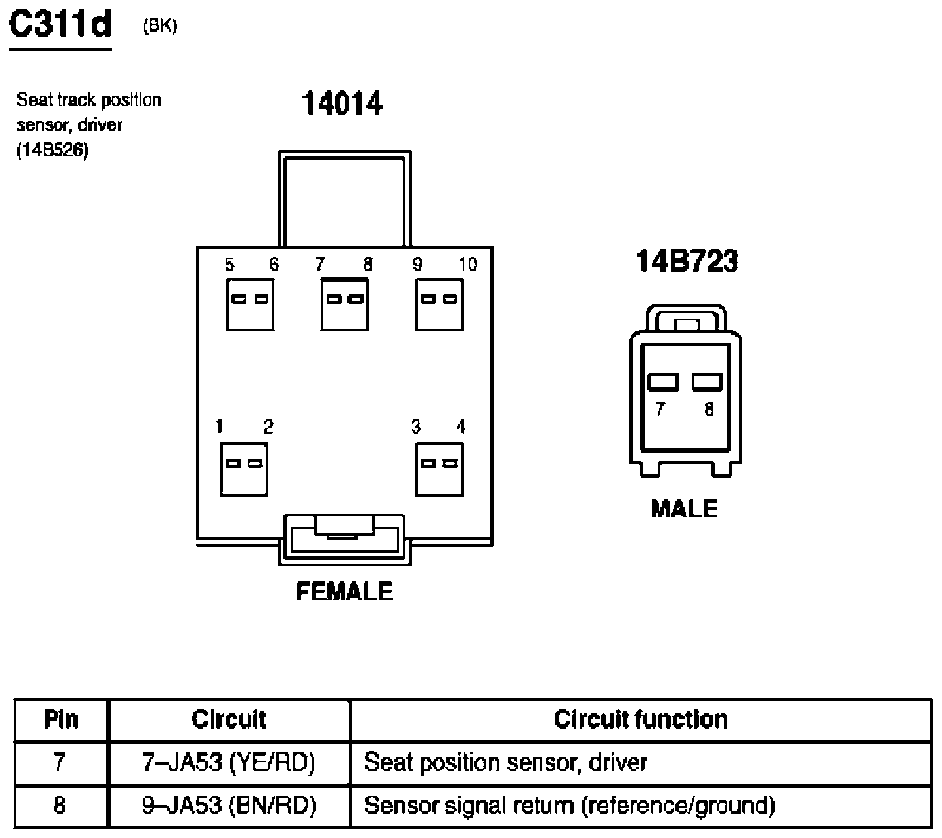

Fig 86: Seat Track Position Sensor, Driver Connector End View (C311d)

G07846785

Courtesy of FORD MOTOR CO.

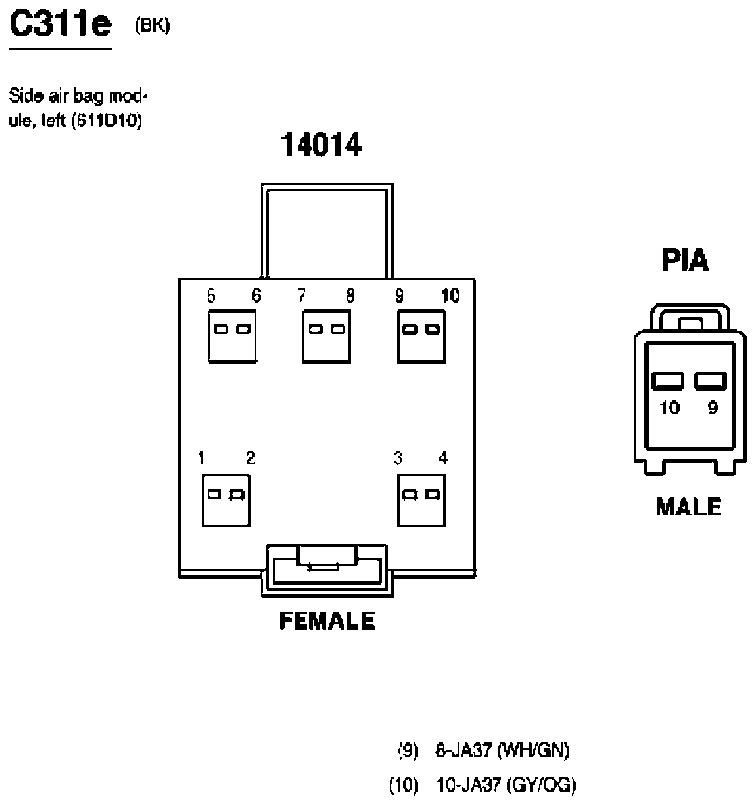

Fig 87: Side Air Bag Module, Left Connector End View (C311e)

G07846786

Courtesy of FORD MOTOR CO.

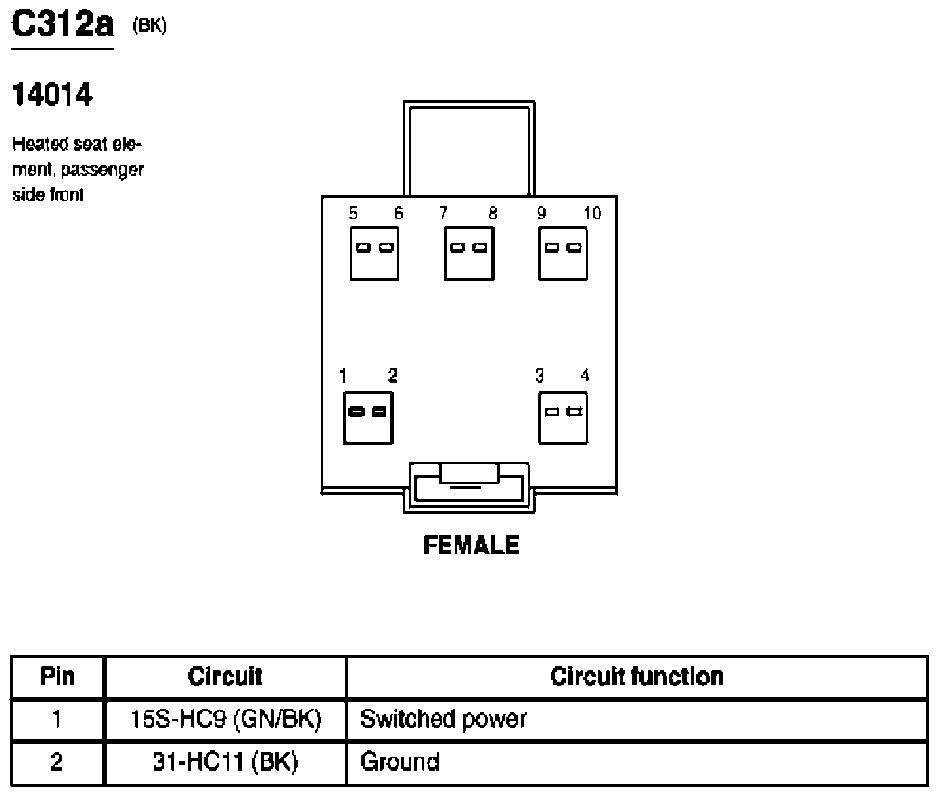

Fig 88: Heated Seat Element, Passenger Side Front Connector End View (C312a)

G07846787

Courtesy of FORD MOTOR CO.

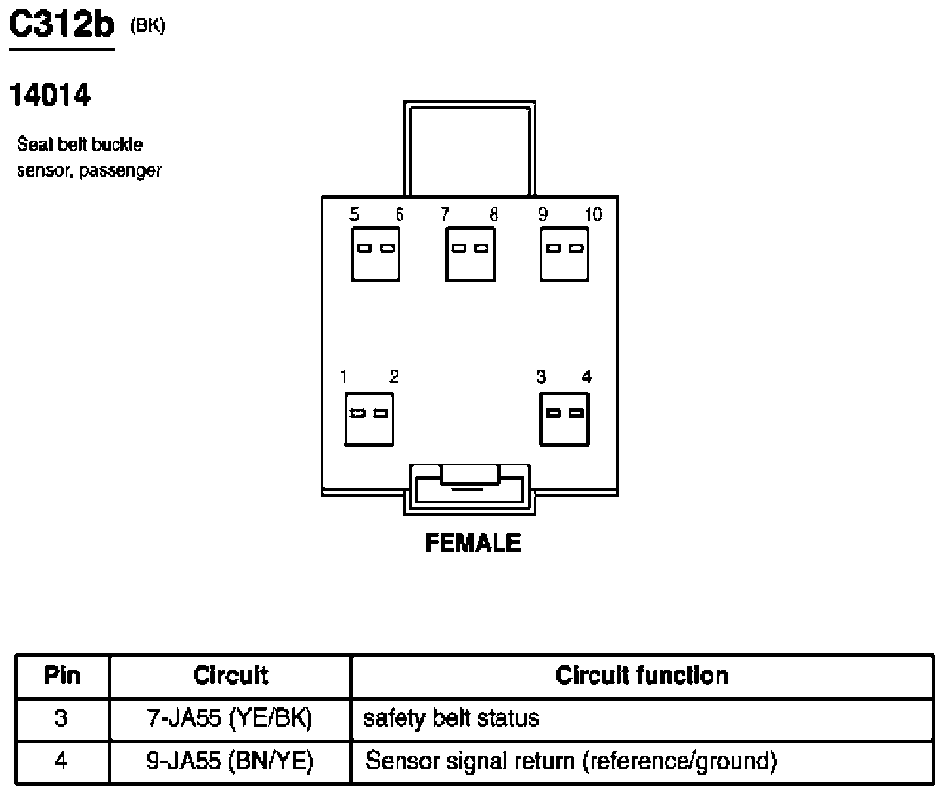

Fig 89: Seat Belt Buckle Sensor, Passenger Connector End View (C312b)

G07846788

Courtesy of FORD MOTOR CO.

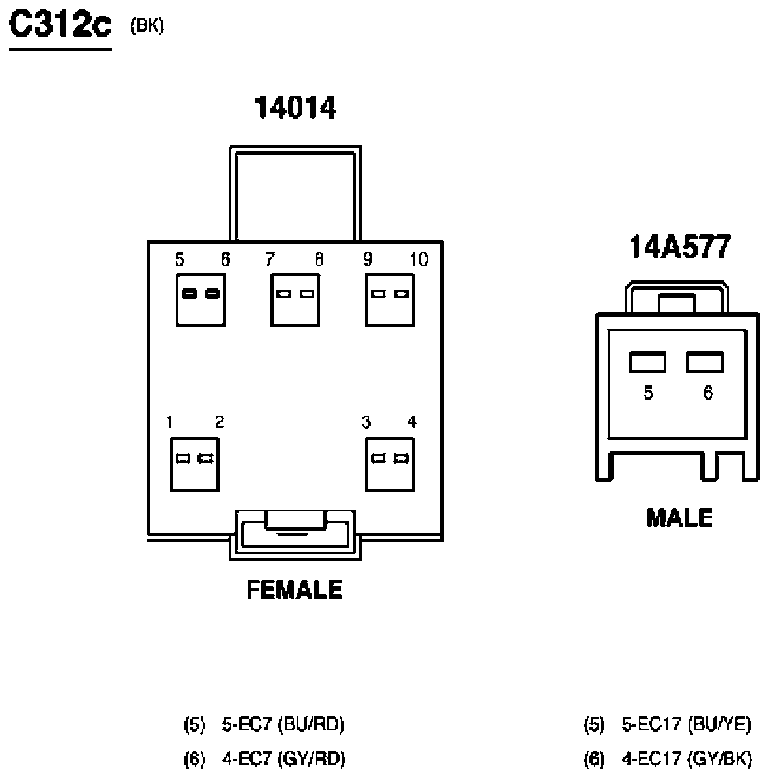

Fig 90: Inline Connector End View (C312c)

G07846789

Courtesy of FORD MOTOR CO.

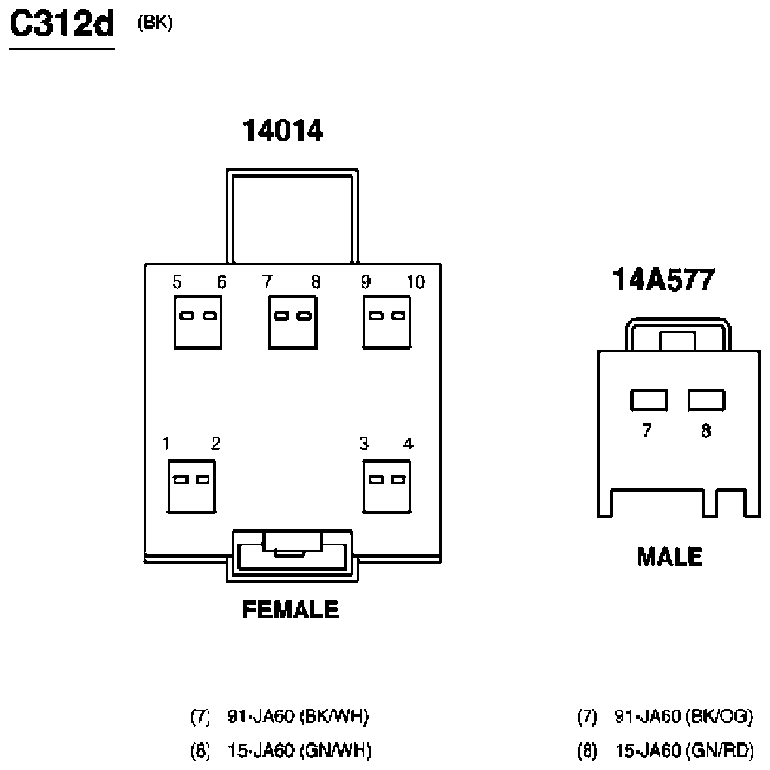

Fig 91: Inline Connector End View (C312d)

G07846790

Courtesy of FORD MOTOR CO.

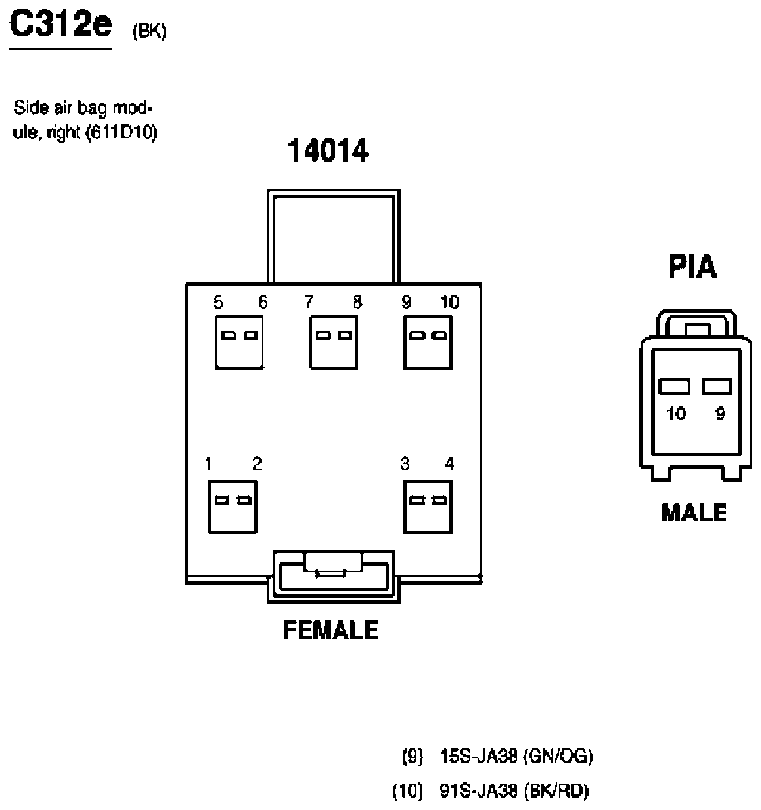

Fig 92: Side Air Bag Module, Right Connector End View (C312e)

G07846791

Courtesy of FORD MOTOR CO.

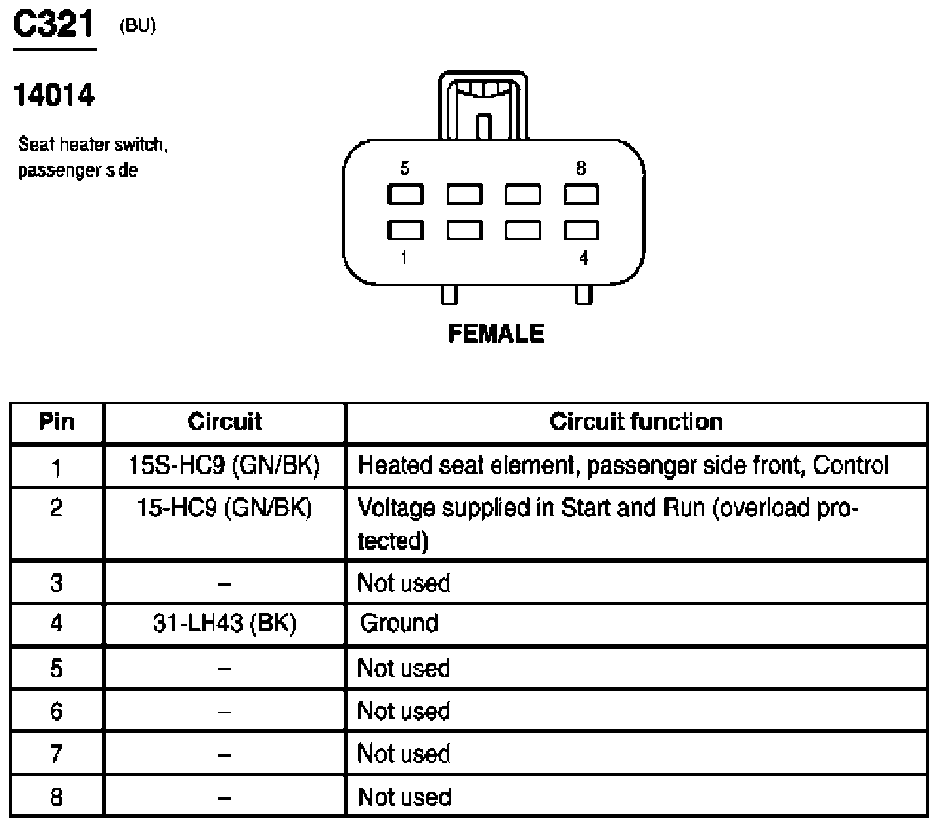

Fig 93: Seat Heater Switch, Passenger Side Connector End View (C321)

G07846792

Courtesy of FORD MOTOR CO.

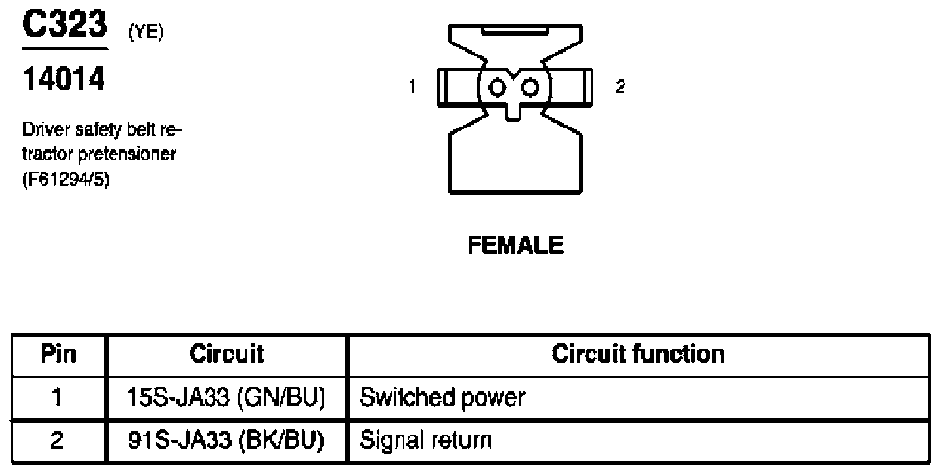

Fig 94: Driver Safety Belt Retractor Pretensioner Connector End View (C323)

G07846793

Courtesy of FORD MOTOR CO.

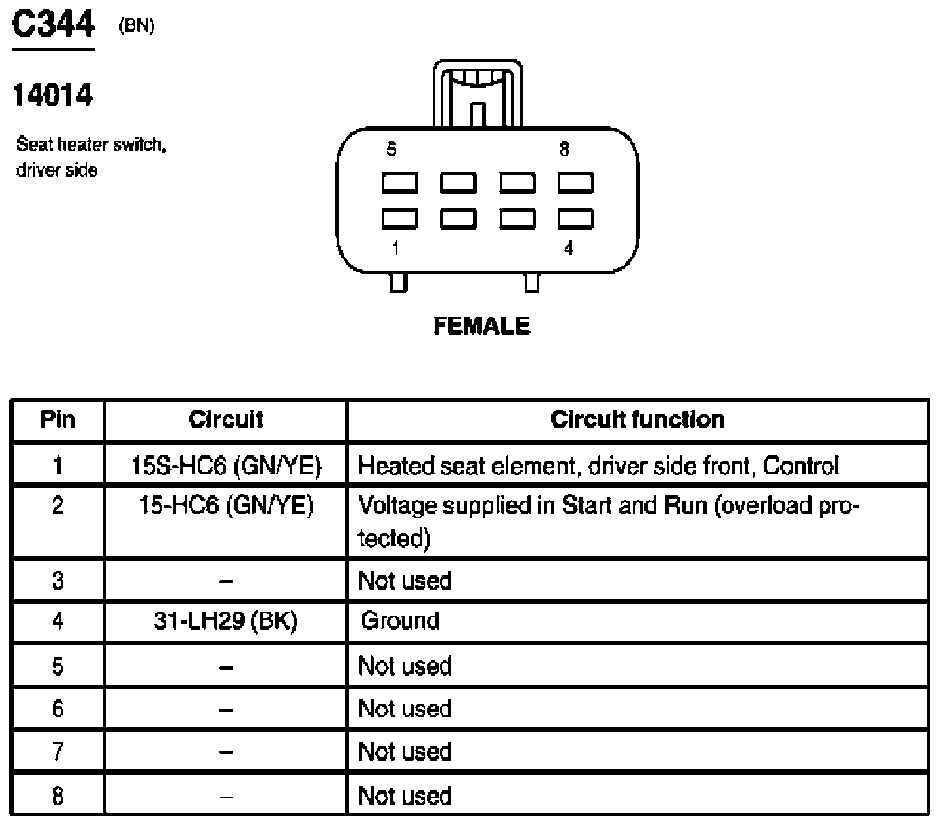

Fig 95: Seat Heater Switch, Driver Side Connector End View (C344)

G07846794

Courtesy of FORD MOTOR CO.

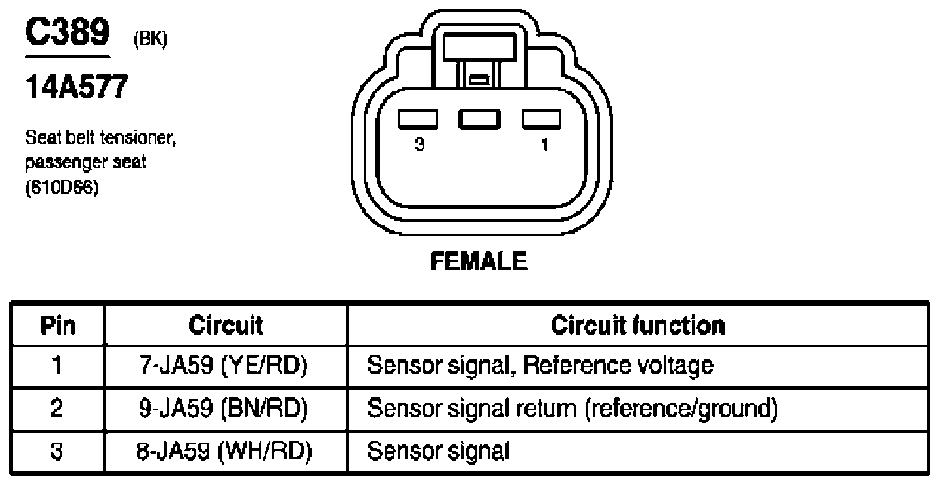

Fig 96: Seat Belt Tensioner, Passenger Seat Connector End View (C389)

G07846795

Courtesy of FORD MOTOR CO.

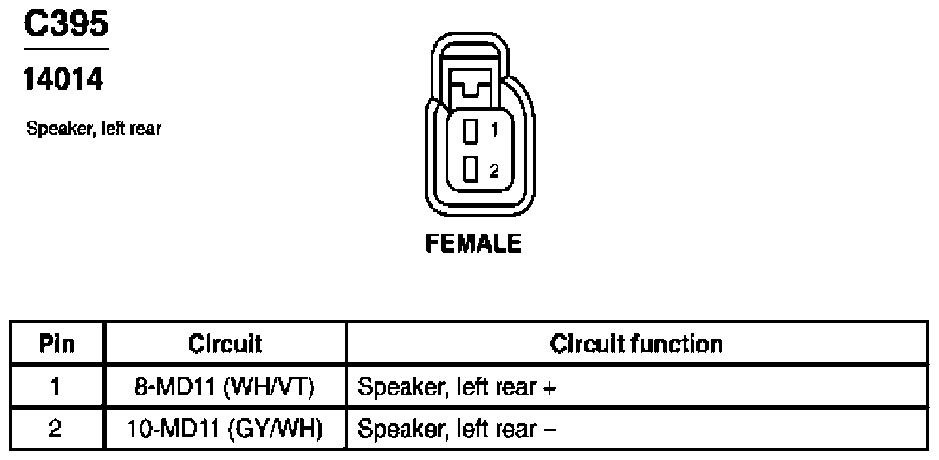

Fig 97: Speaker, Left Rear Connector End View (C395)

G07846796

Courtesy of FORD MOTOR CO.

Fig 98: Speaker, Right Rear Connector End View (C396)

G07846797

Courtesy of FORD MOTOR CO.

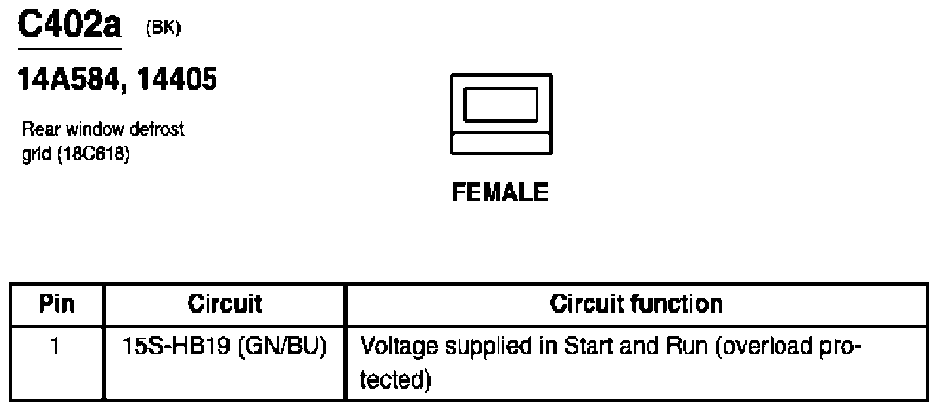

Fig 99: Rear Window Defrost Grid Connector End View (C402a)

G07846798

Courtesy of FORD MOTOR CO.

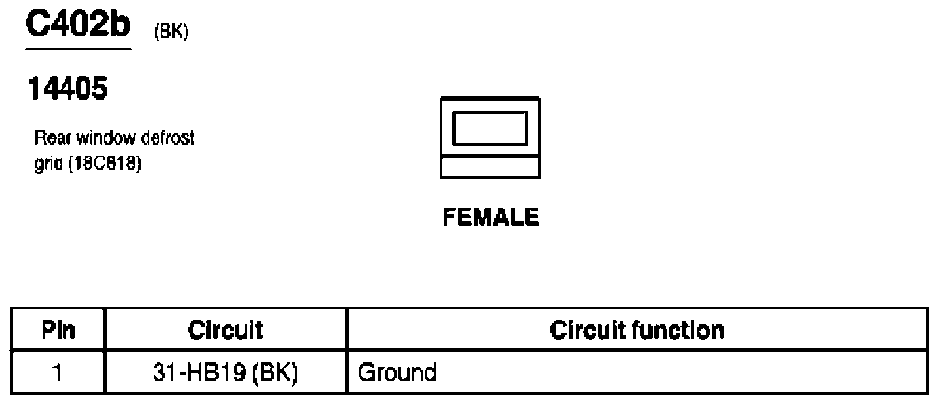

Fig 100: Rear Window Defrost Grid Connector End View (C402b)

G07846799

Courtesy of FORD MOTOR CO.

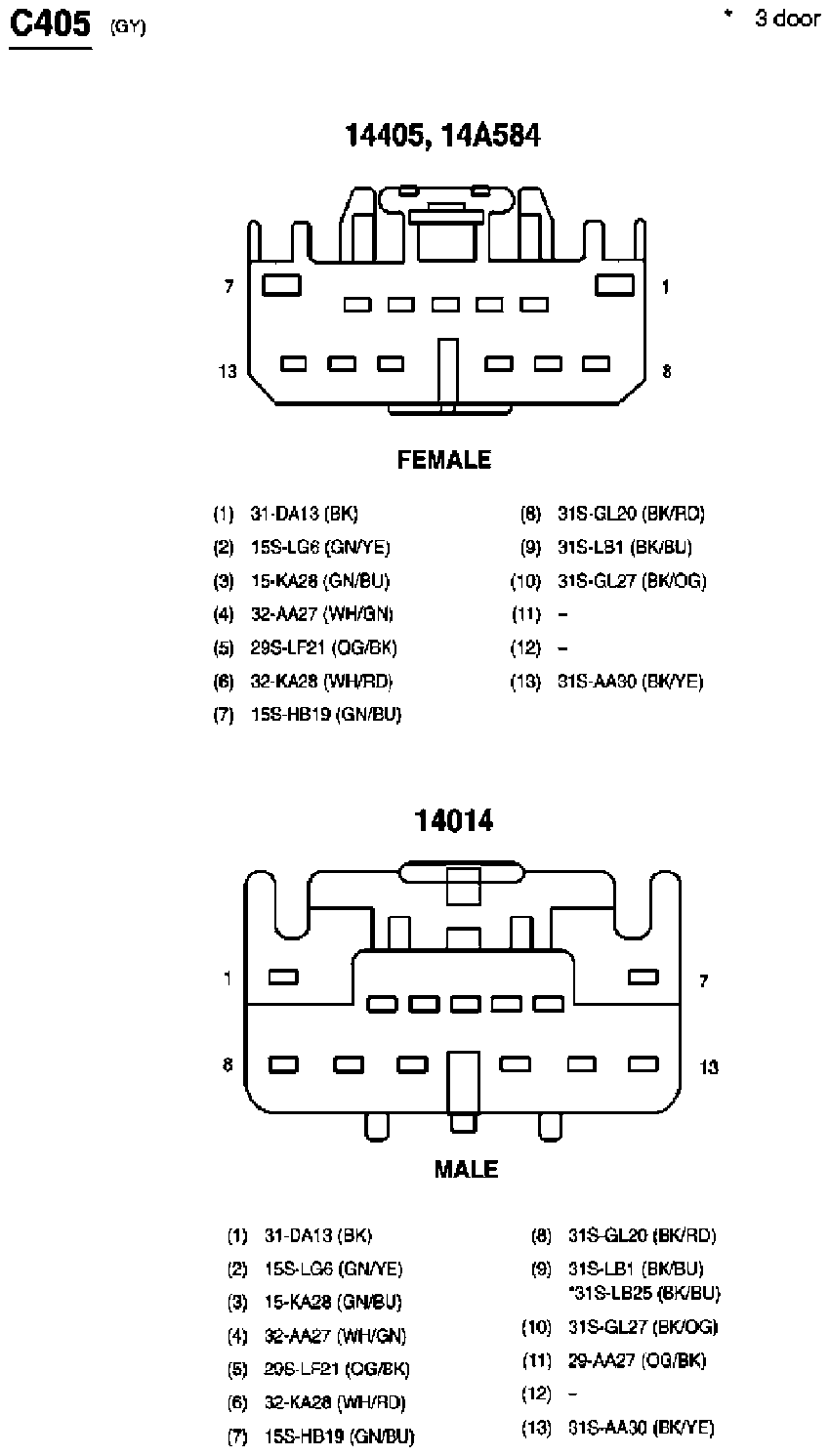

Fig 101: Inline Connector End View (C405)

G07846800

Courtesy of FORD MOTOR CO.

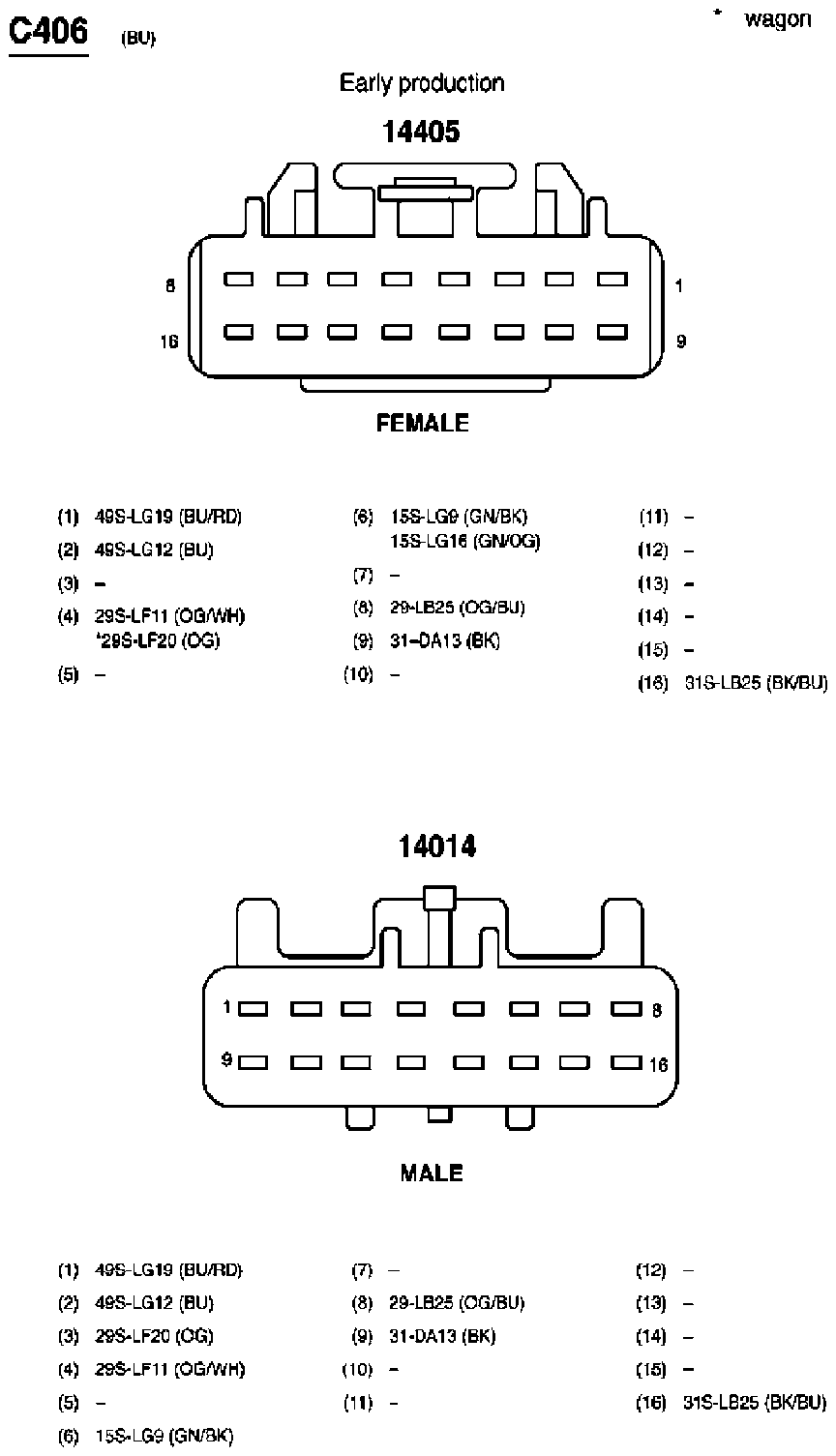

Fig 102: Inline Connector End View (C406)

G07846801

Courtesy of FORD MOTOR CO.

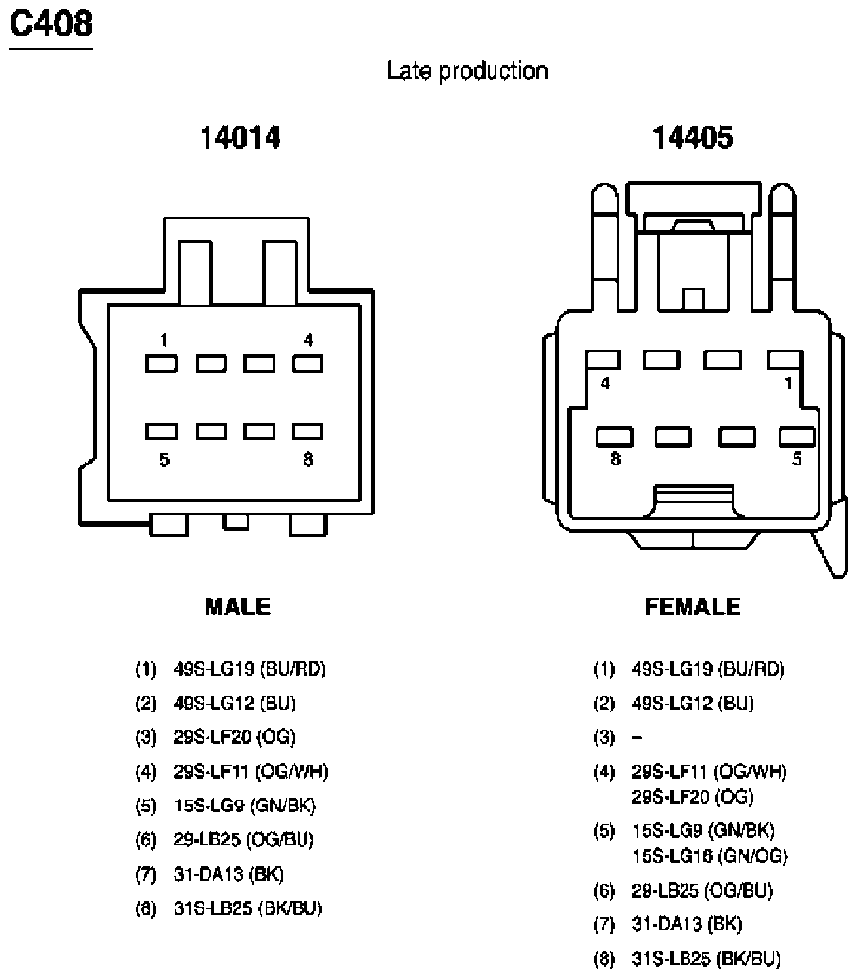

Fig 103: Inline Connector End View (C408)

G07846802

Courtesy of FORD MOTOR CO.

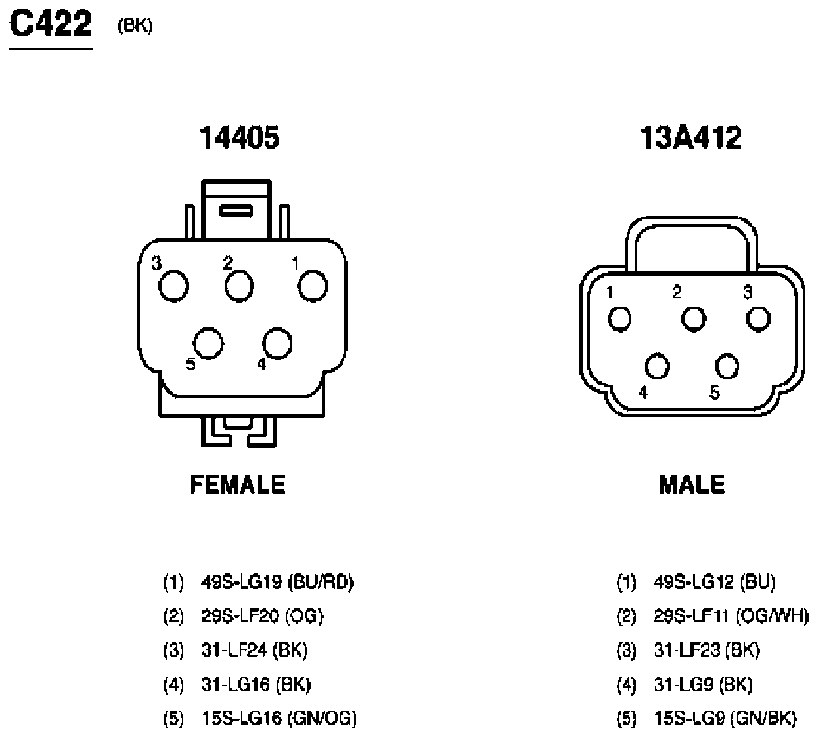

Fig 104: Inline Connector End View (C422)

G07846803

Courtesy of FORD MOTOR CO.

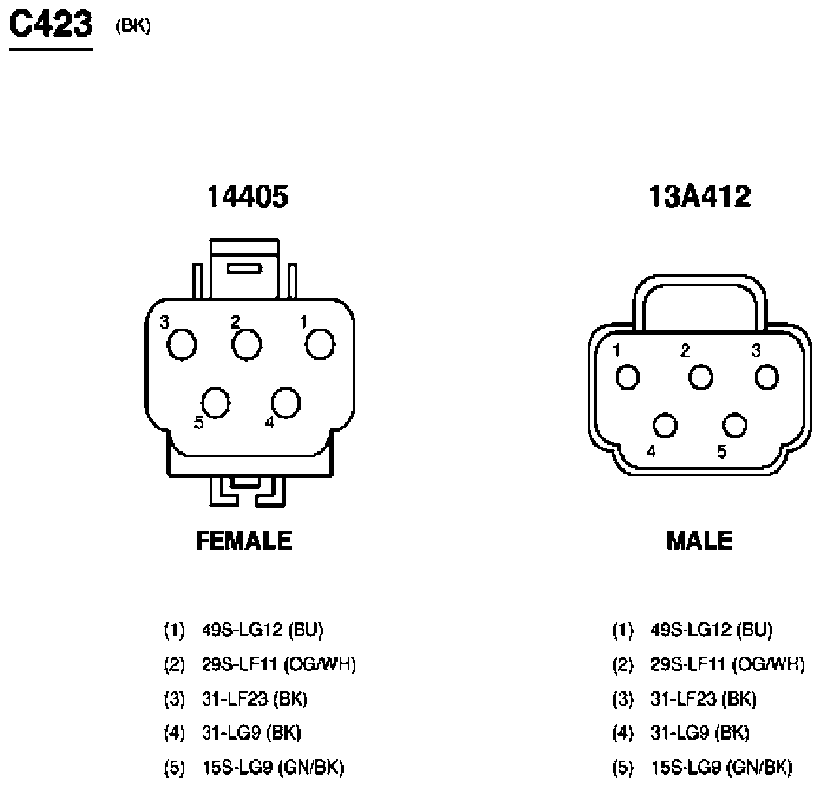

Fig 105: Inline Connector End View (C423)

G07846804

Courtesy of FORD MOTOR CO.

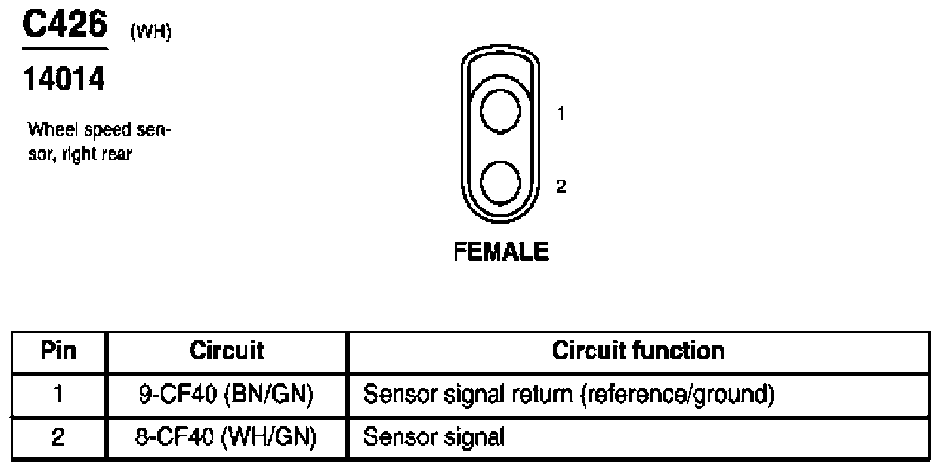

Fig 106: Wheel Speed Sensor, Right Rear Connector End View (C426)

G07846805

Courtesy of FORD MOTOR CO.

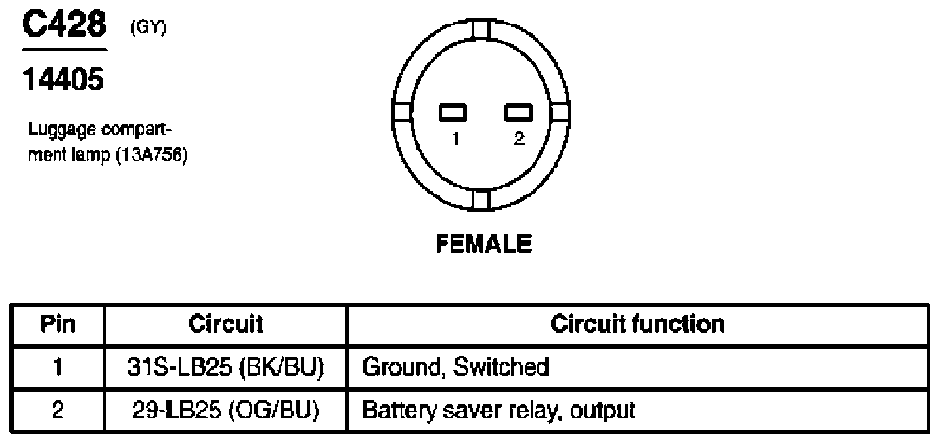

Fig 107: Luggage Compartment Lamp Connector End View (C428)

G07846806

Courtesy of FORD MOTOR CO.

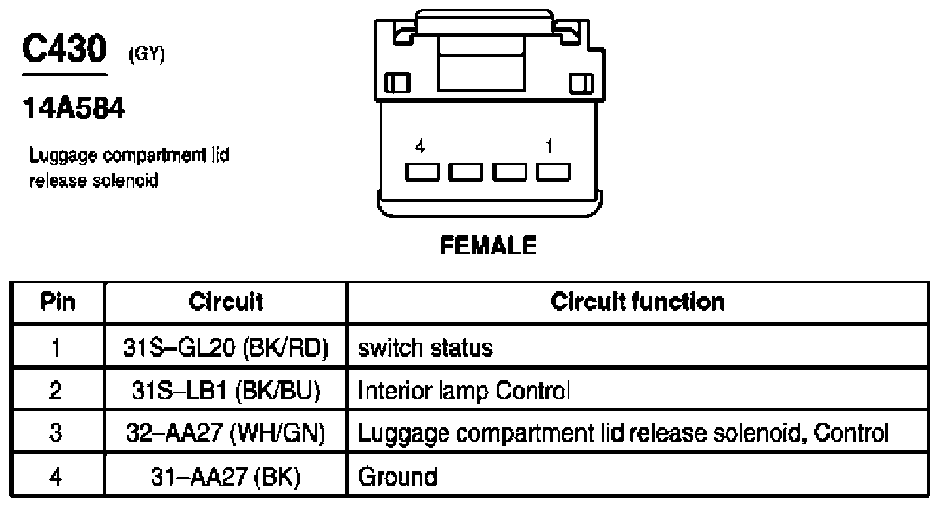

Fig 108: Luggage Compartment Lid Release Solenoid Connector End View (C430)

G07846807

Courtesy of FORD MOTOR CO.

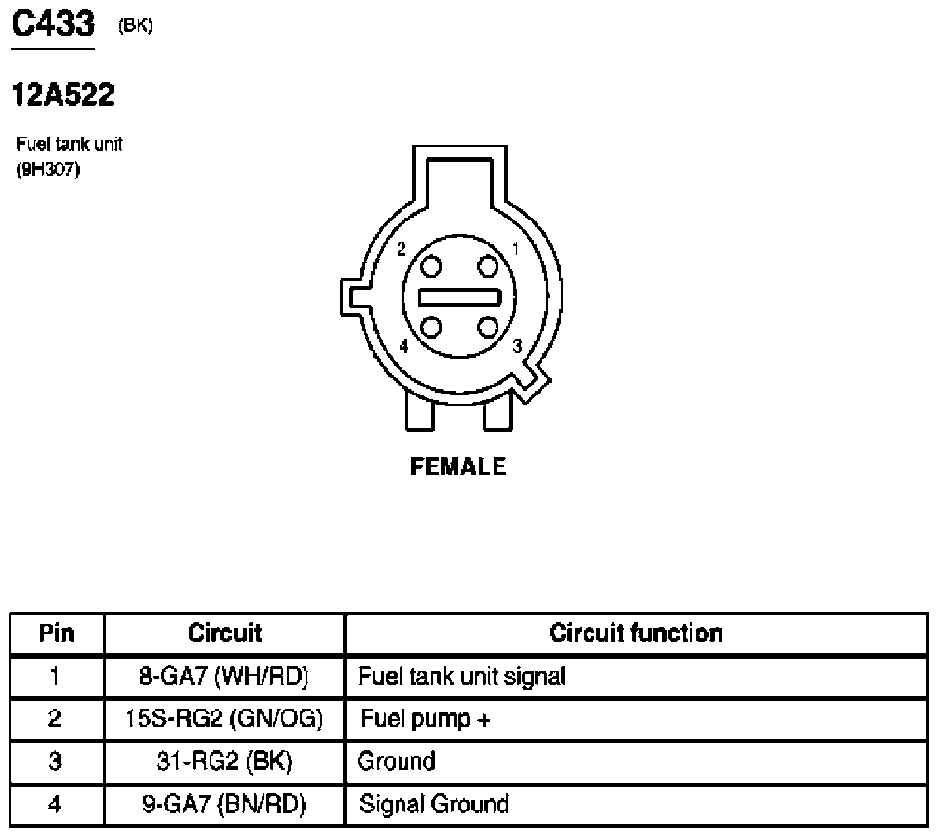

Fig 109: Fuel Tank Unit Connector End View (C433)

G07846808

Courtesy of FORD MOTOR CO.

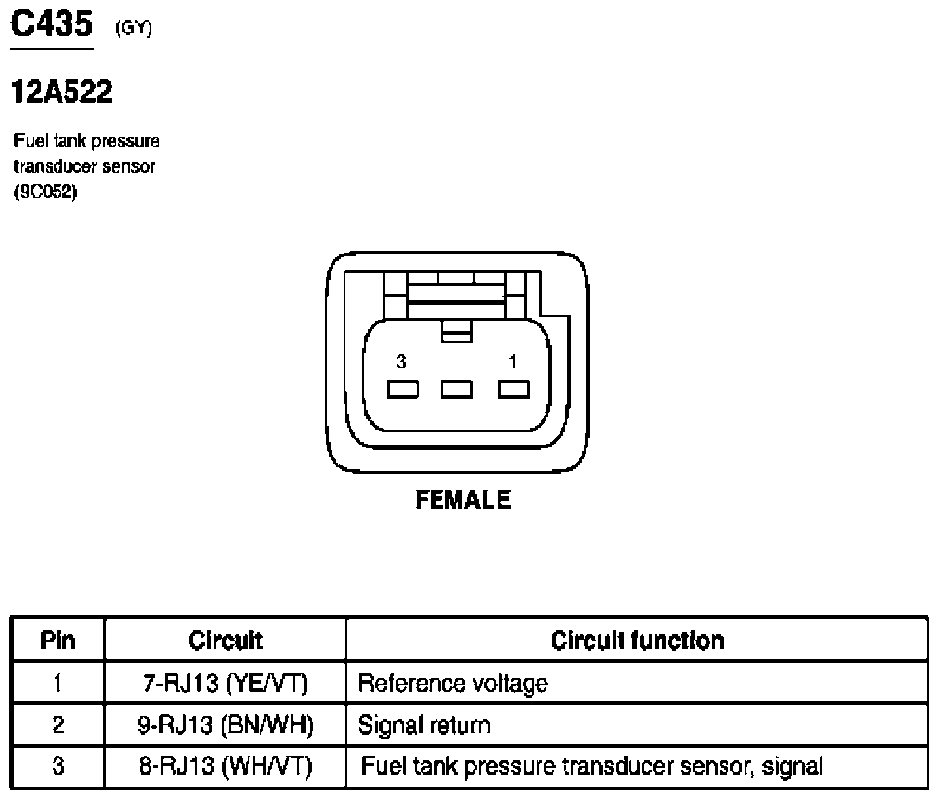

Fig 110: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G07846809

Courtesy of FORD MOTOR CO.

Fig 111: Wheel Speed Sensor, Left Rear Connector End View (C440)

G07846810

Courtesy of FORD MOTOR CO.

Fig 112: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07846811

Courtesy of FORD MOTOR CO.

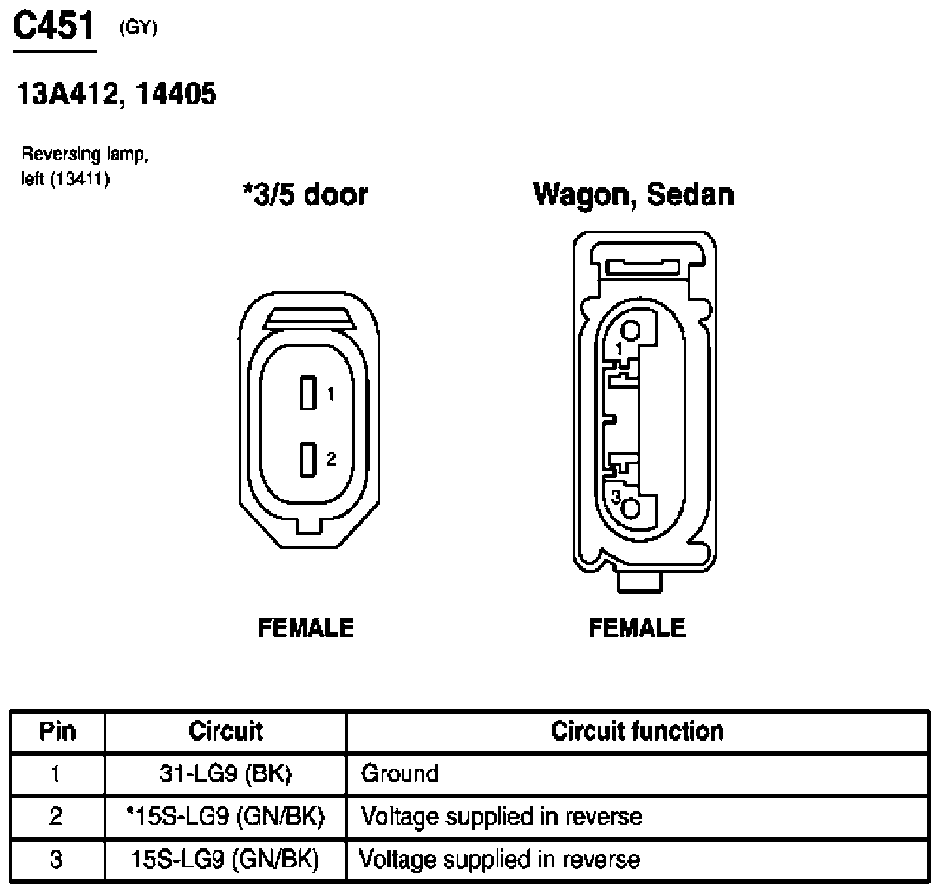

Fig 113: Reversing Lamp, Left Connector End View (C451)

G07846812

Courtesy of FORD MOTOR CO.

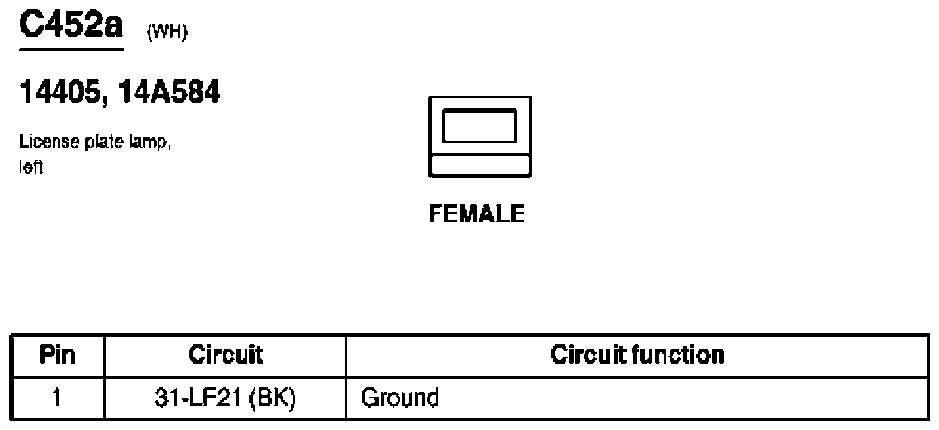

Fig 114: License Plate Lamp, Left Connector End View (C452a)

G07846813

Courtesy of FORD MOTOR CO.

Fig 115: License Plate Lamp, Left Connector End View (C452b)

G07846814

Courtesy of FORD MOTOR CO.

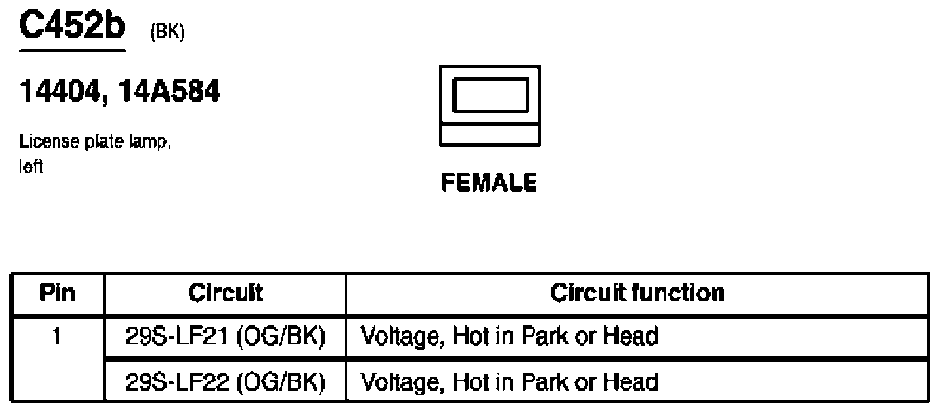

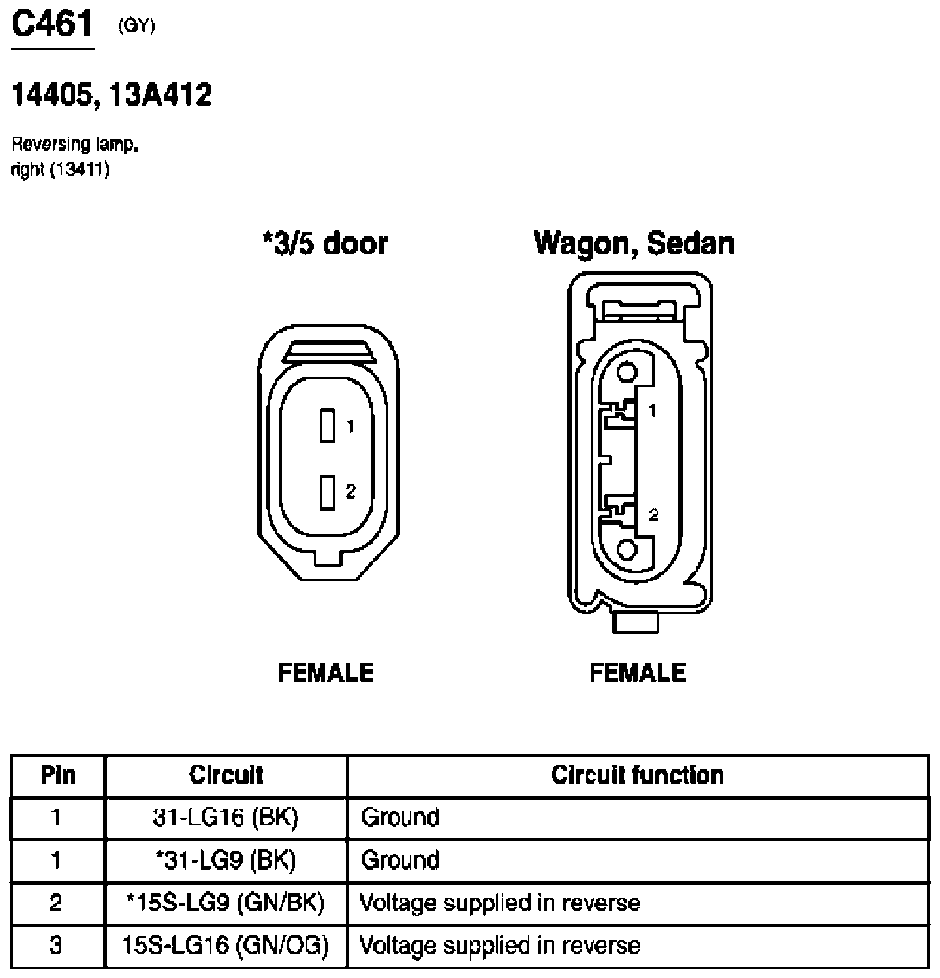

Fig 116: Reversing Lamp, Right Connector End View (C461)

G07846815

Courtesy of FORD MOTOR CO.

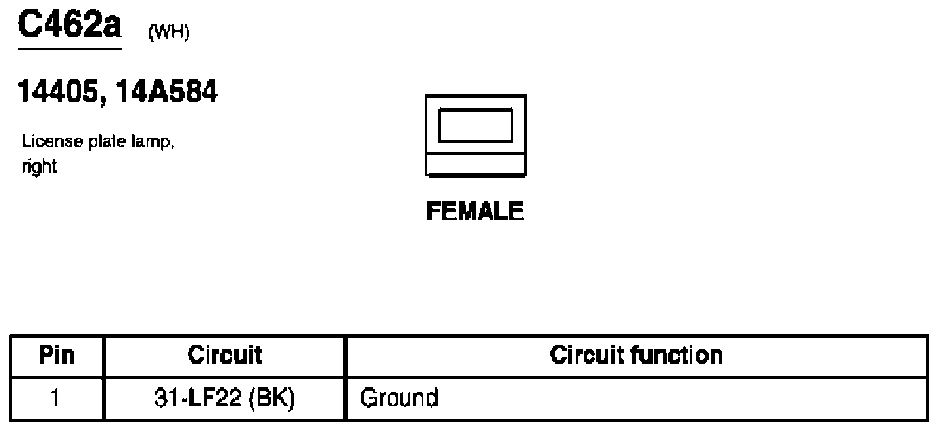

Fig 117: License Plate Lamp, Right Connector End View (C462a)

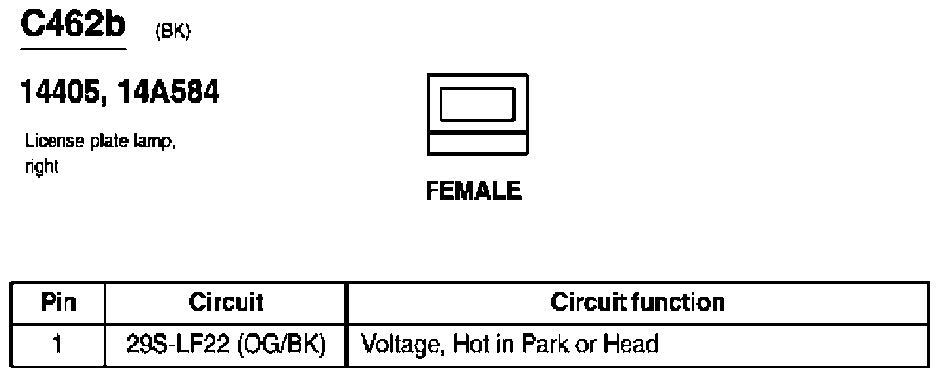

G07846816

Courtesy of FORD MOTOR CO.

Fig 118: License Plate Lamp, Right Connector End View (C462b)

G07846817

Courtesy of FORD MOTOR CO.

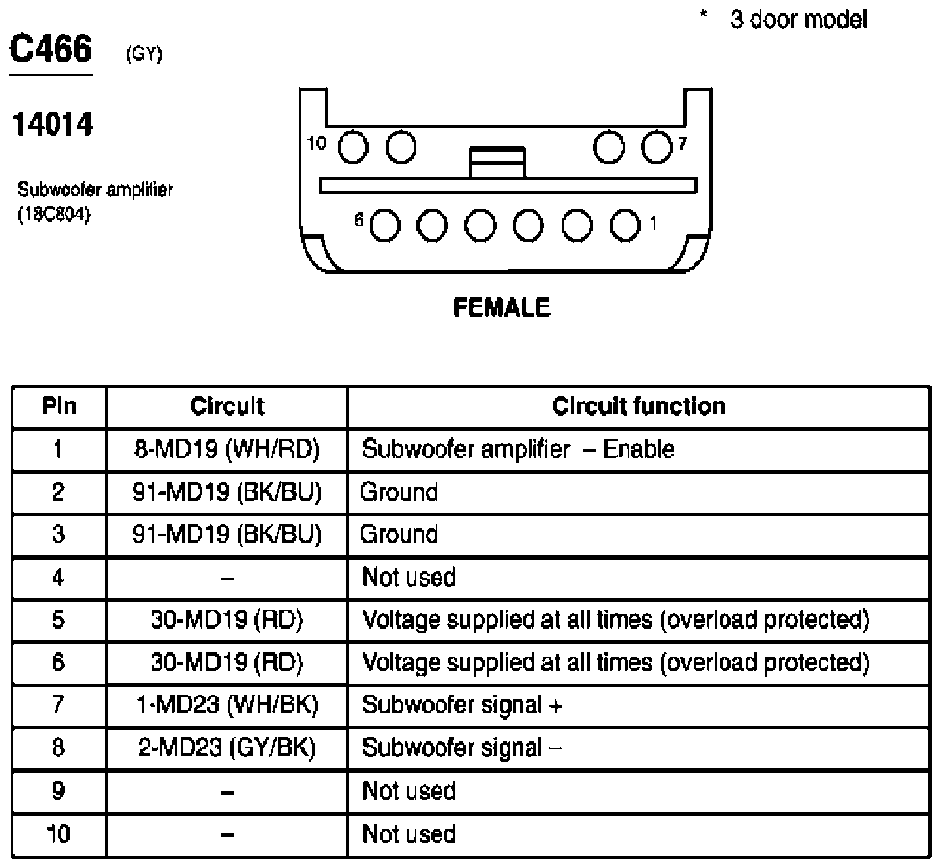

Fig 119: Subwoofer Amplifier Connector End View (C466)

G07846818

Courtesy of FORD MOTOR CO.

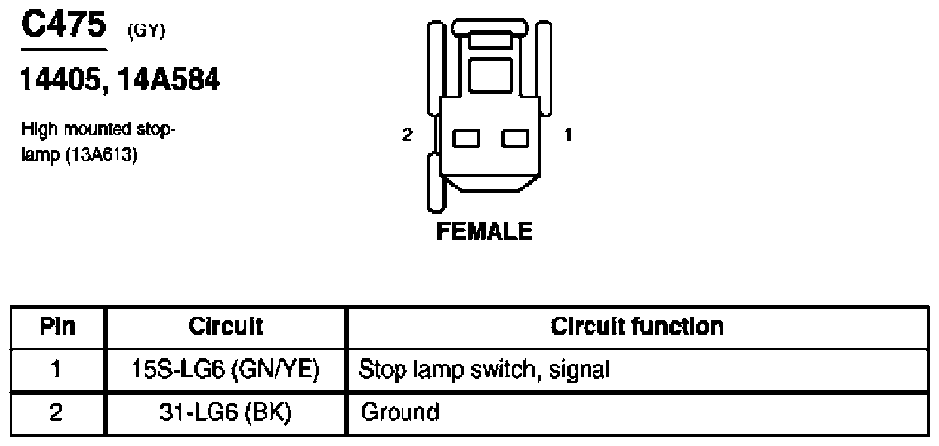

Fig 120: High Mounted Stoplamp Connector End View (C475)

G07846819

Courtesy of FORD MOTOR CO.

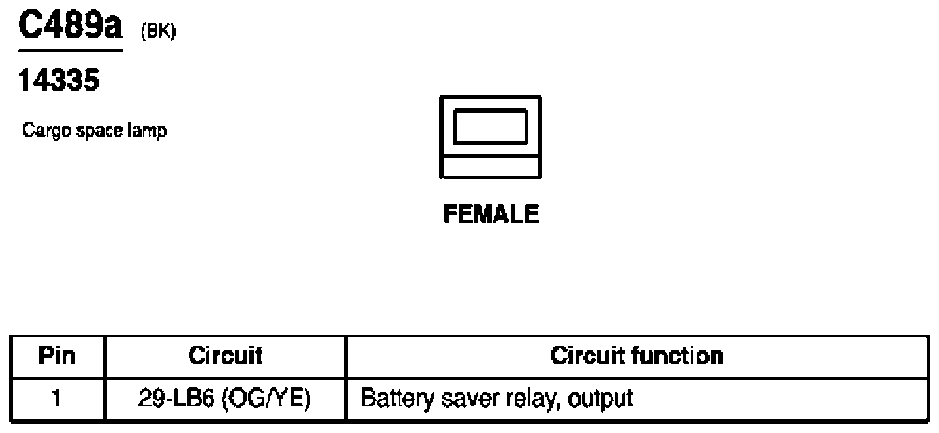

Fig 121: Cargo Space Lamp Connector End View (C489a)

G07846820

Courtesy of FORD MOTOR CO.

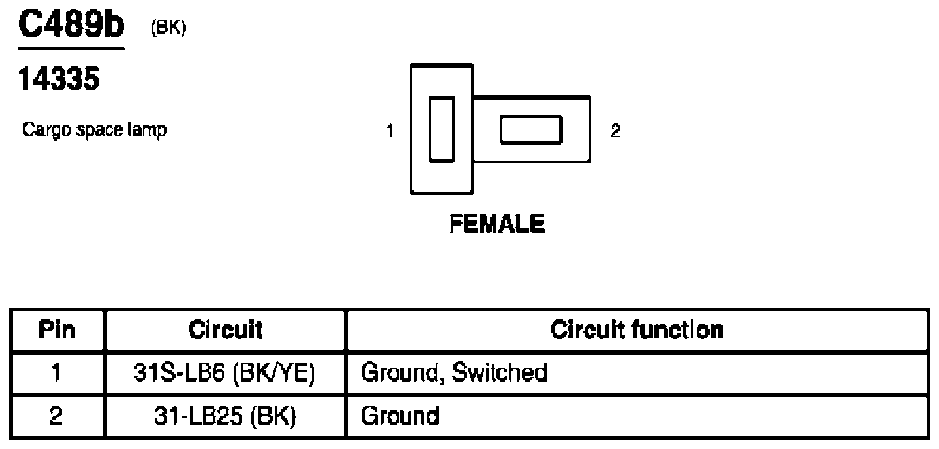

Fig 122: Cargo Space Lamp Connector End View (C489b)

G07846821

Courtesy of FORD MOTOR CO.

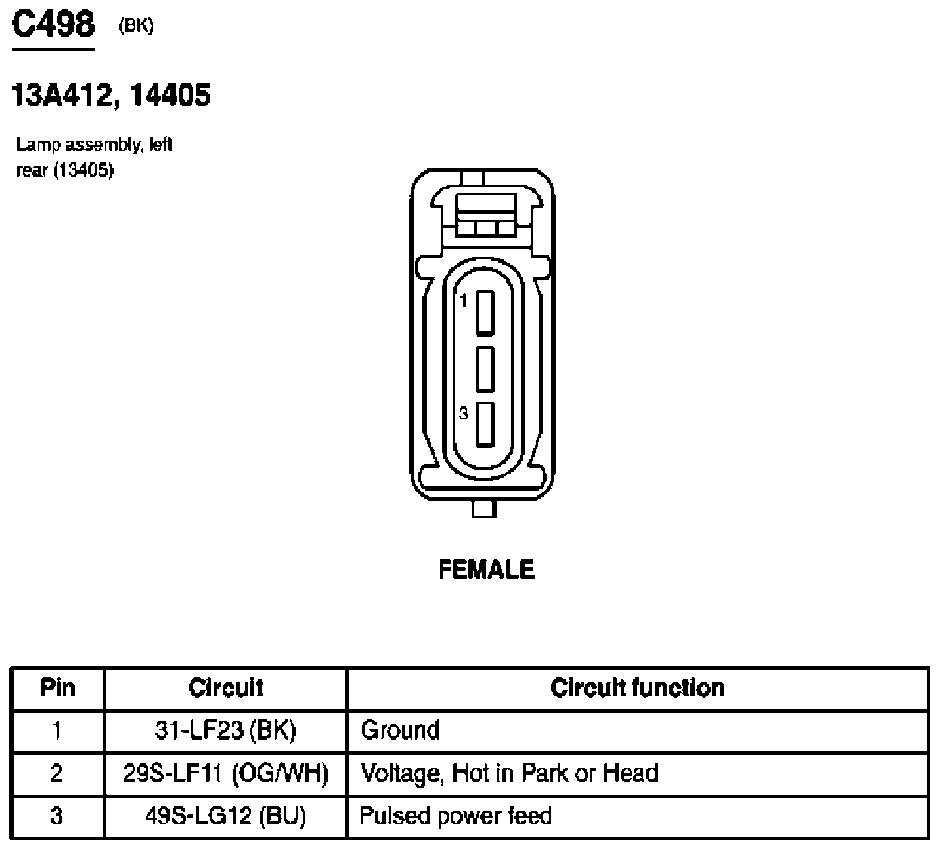

Fig 123: Lamp Assembly, Left Rear Connector End View (C498)

G07846822

Courtesy of FORD MOTOR CO.

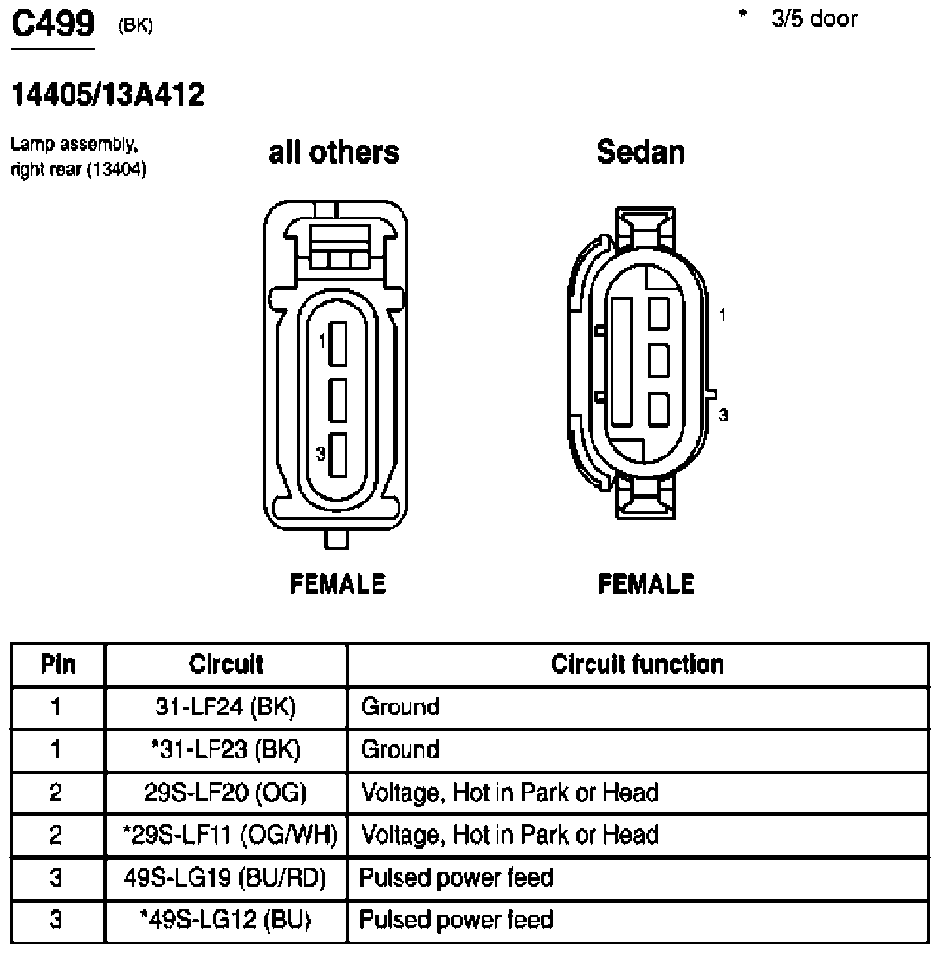

Fig 124: Lamp Assembly, Right Rear Connector End View (C499)

G07846823

Courtesy of FORD MOTOR CO.

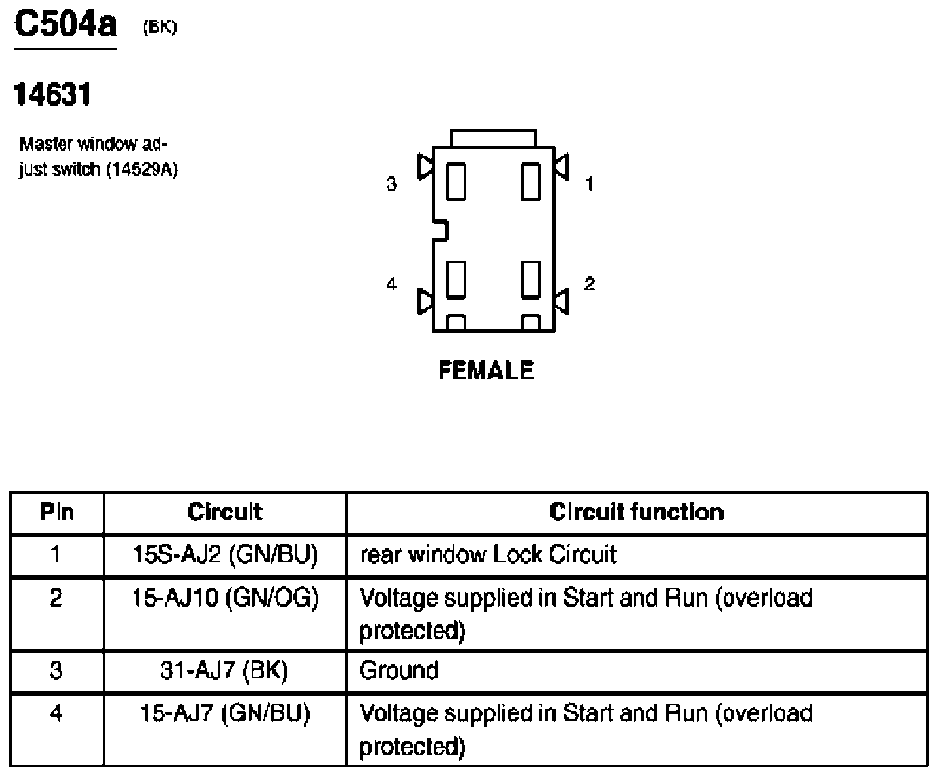

Fig 125: Master Window Adjust Switch Connector End View (C504a)

G07846824

Courtesy of FORD MOTOR CO.

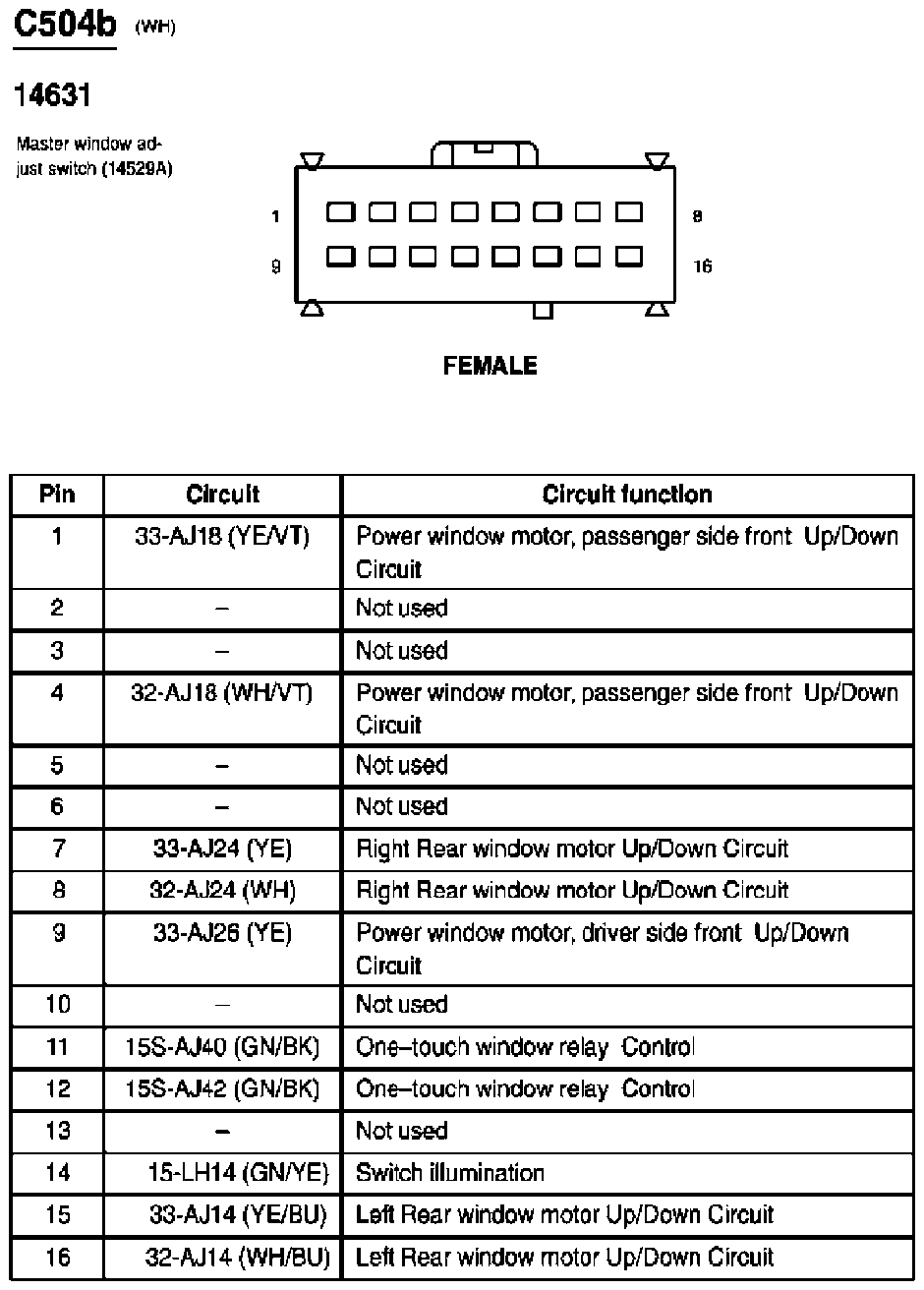

Fig 126: Master Window Adjust Switch Connector End View (C504b)

G07846825

Courtesy of FORD MOTOR CO.

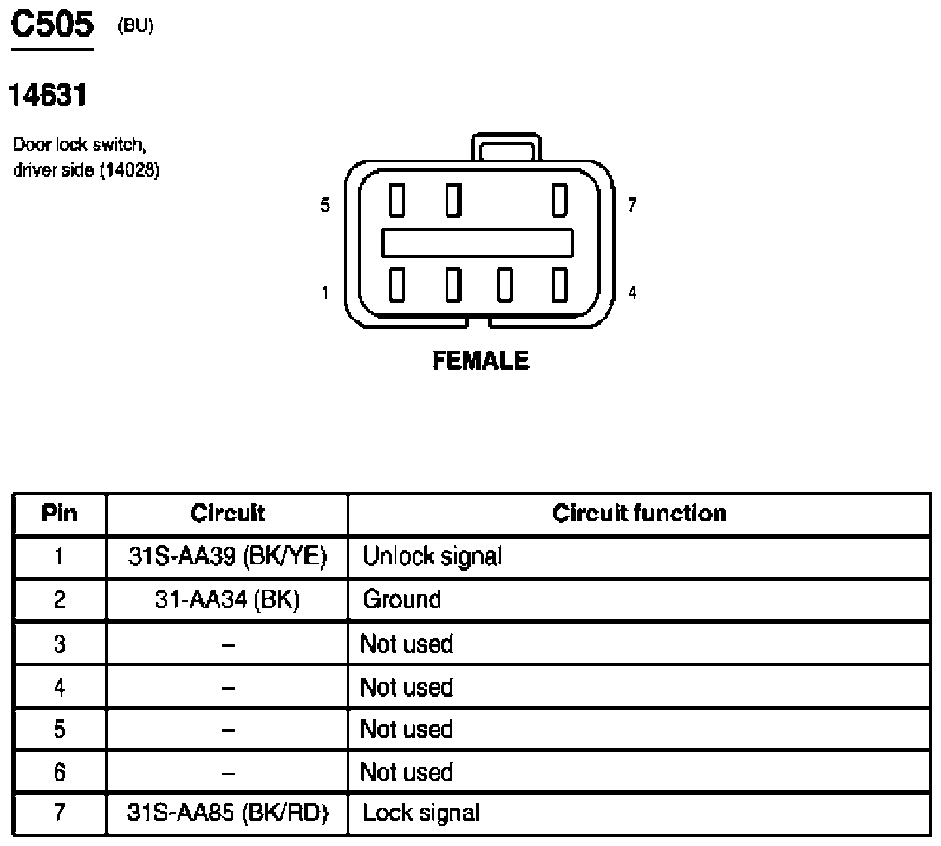

Fig 127: Door Lock Switch, Driver Side Connector End View (C505)

G07846826

Courtesy of FORD MOTOR CO.

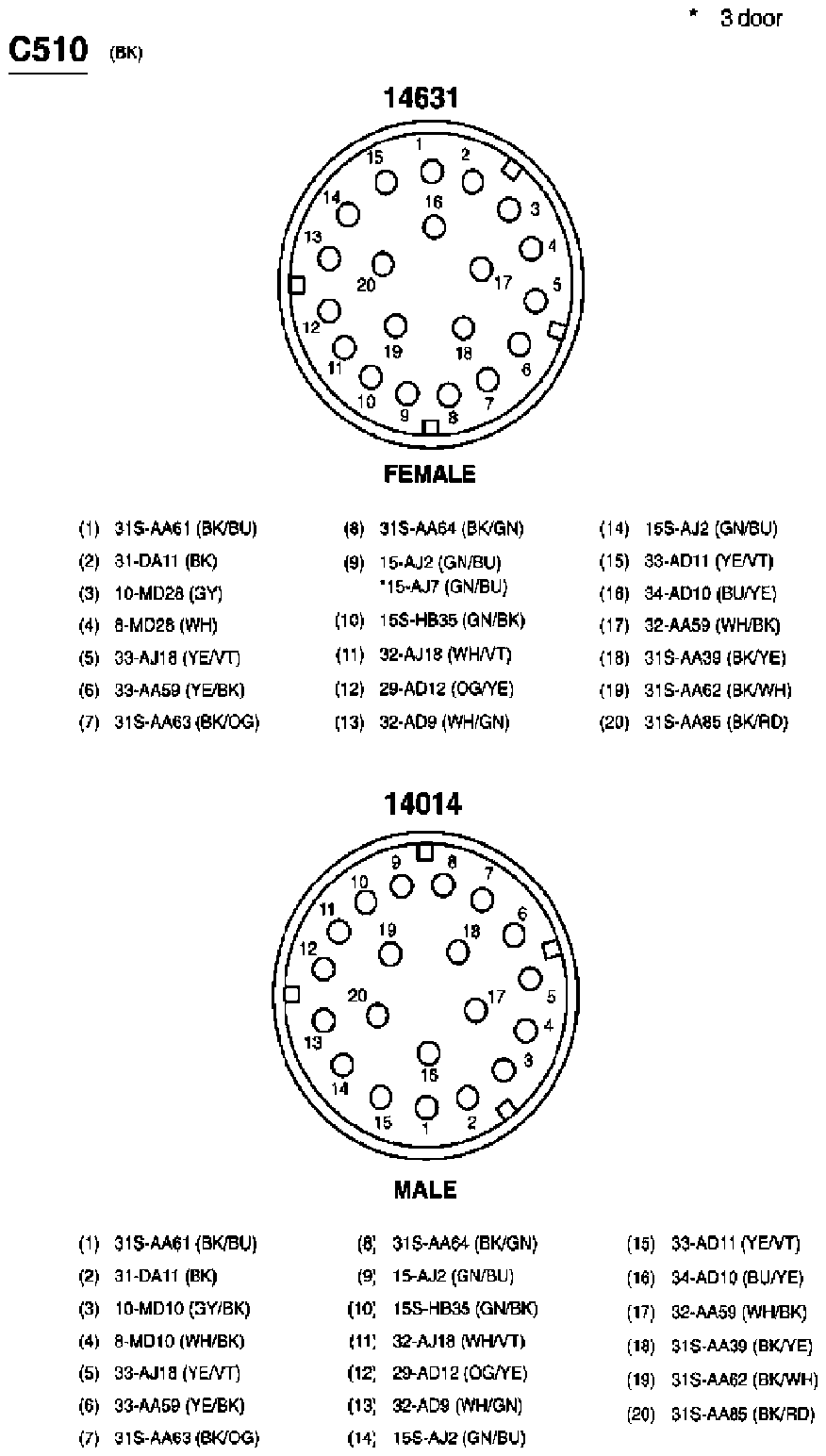

Fig 128: Inline Connector End View (C510)

G07846827

Courtesy of FORD MOTOR CO.

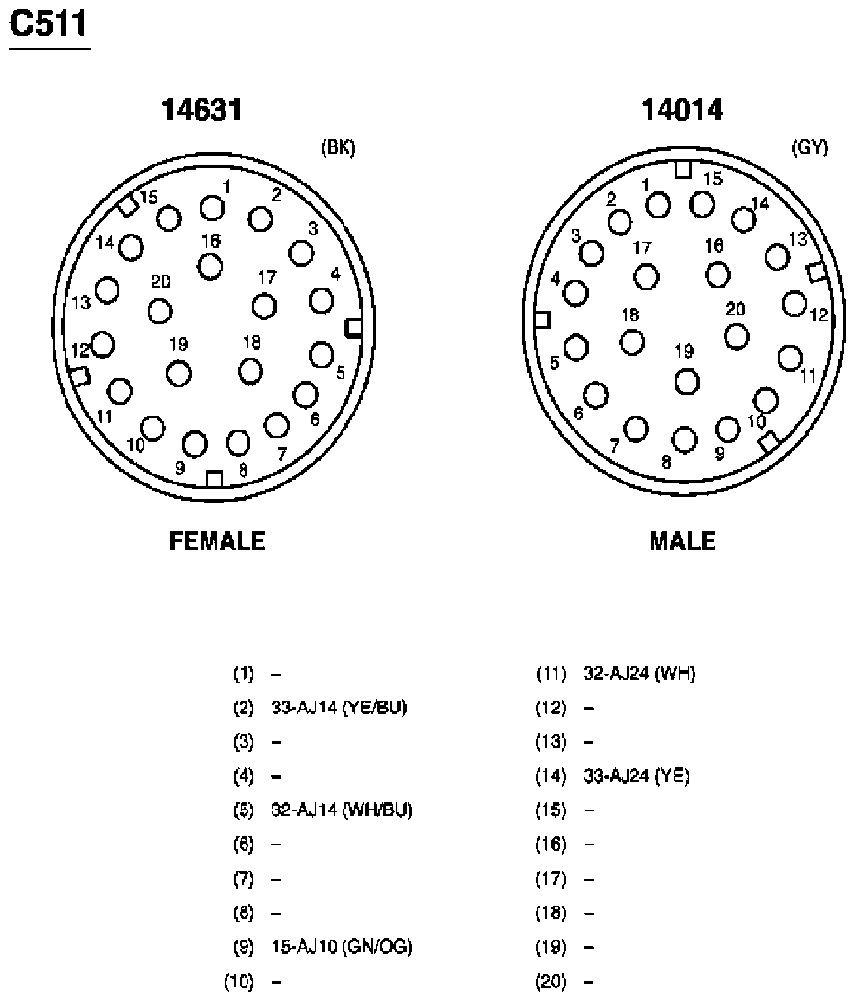

Fig 129: Inline Connector End View (C511)

G07846828

Courtesy of FORD MOTOR CO.

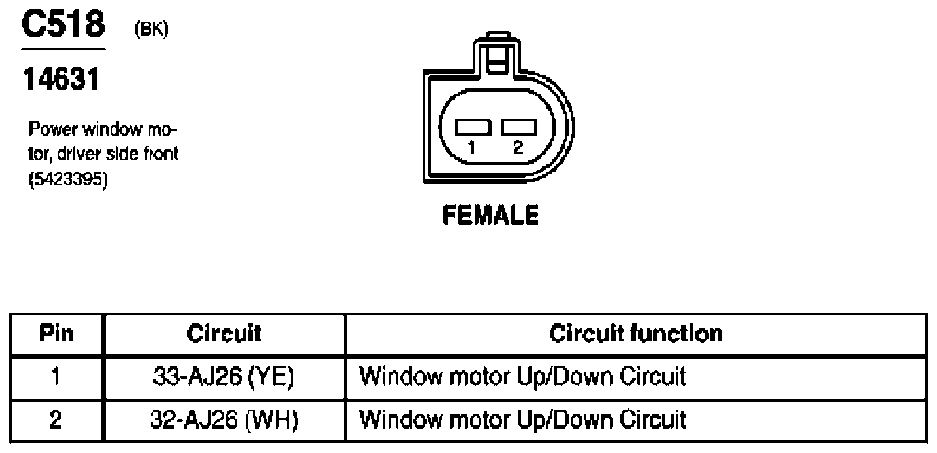

Fig 130: Power Window Motor, Driver Side Front Connector End View (C518)

G07846829

Courtesy of FORD MOTOR CO.

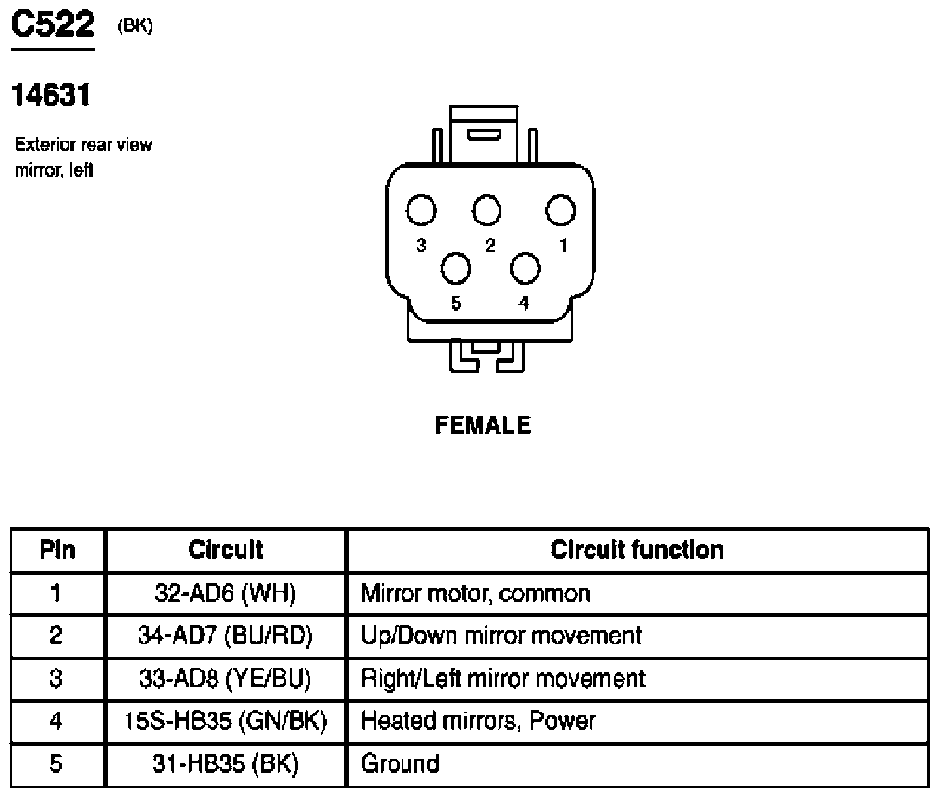

Fig 131: Exterior Rear View Mirror, Left Connector End View (C522)

G07846830

Courtesy of FORD MOTOR CO.

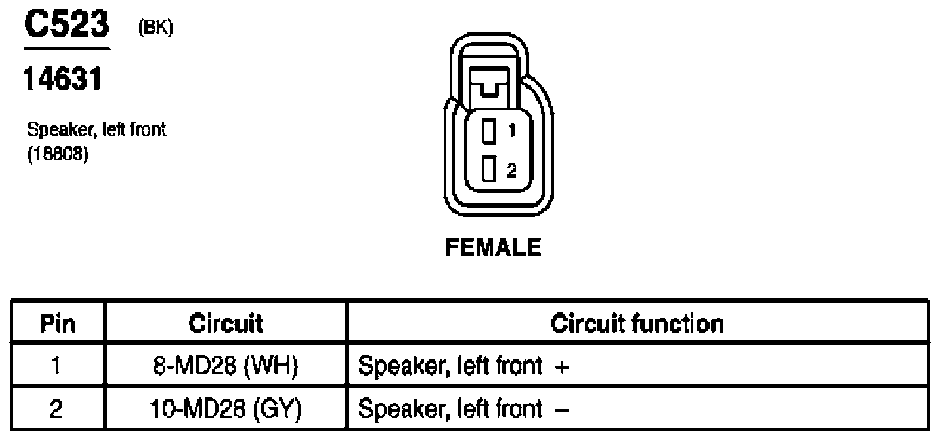

Fig 132: Speaker, Left Front Connector End View (C523)

G07846831

Courtesy of FORD MOTOR CO.

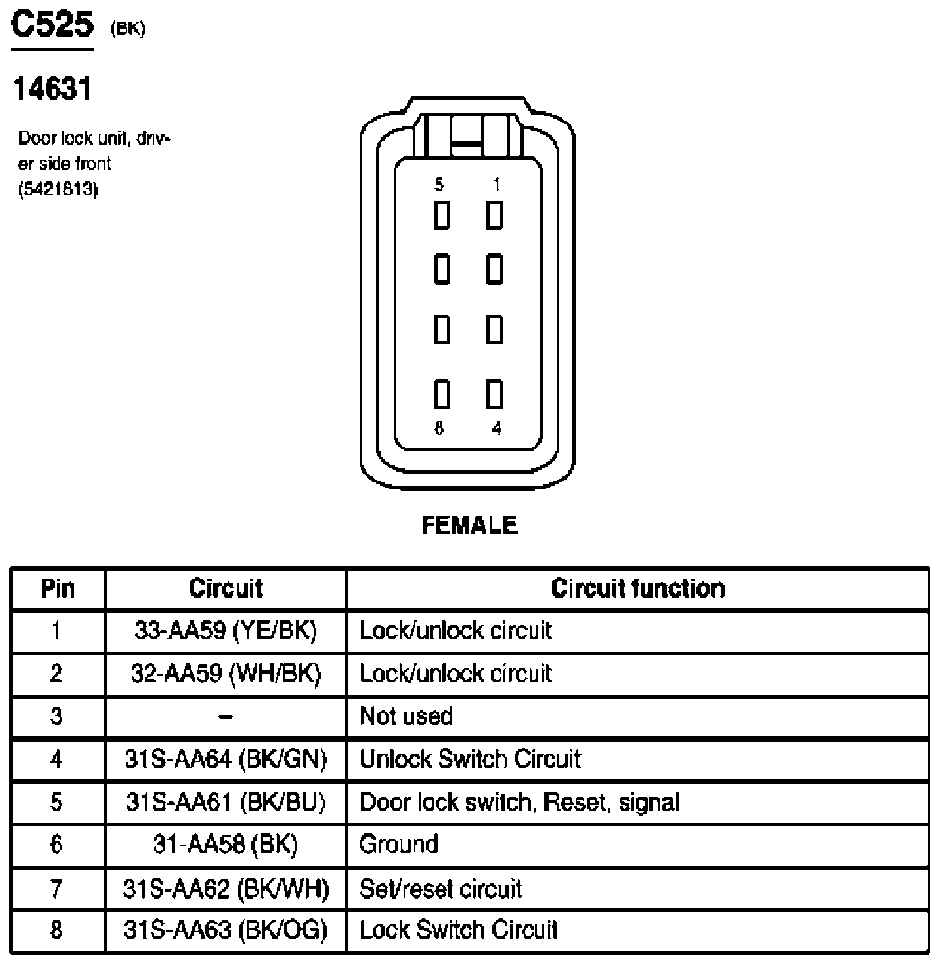

Fig 133: Door Lock Unit, Driver Side Front Connector End View (C525)

G07846832

Courtesy of FORD MOTOR CO.

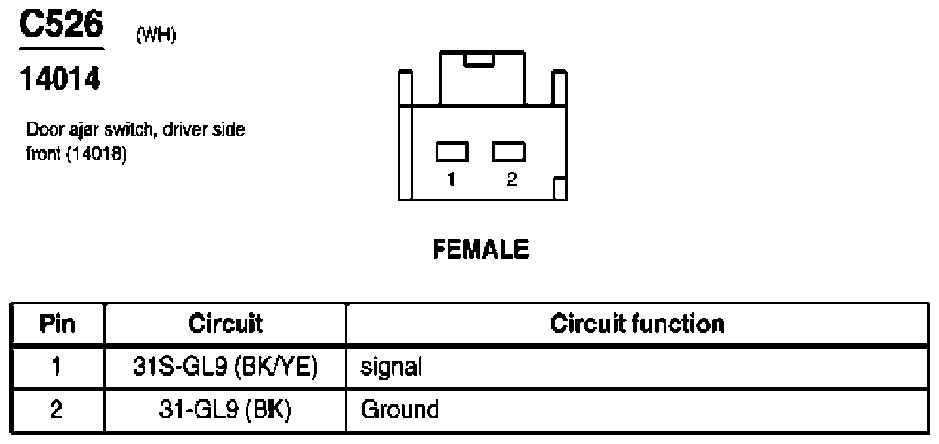

Fig 134: Door Ajar Switch, Driver Side Front Connector End View (C526)

G07846833

Courtesy of FORD MOTOR CO.

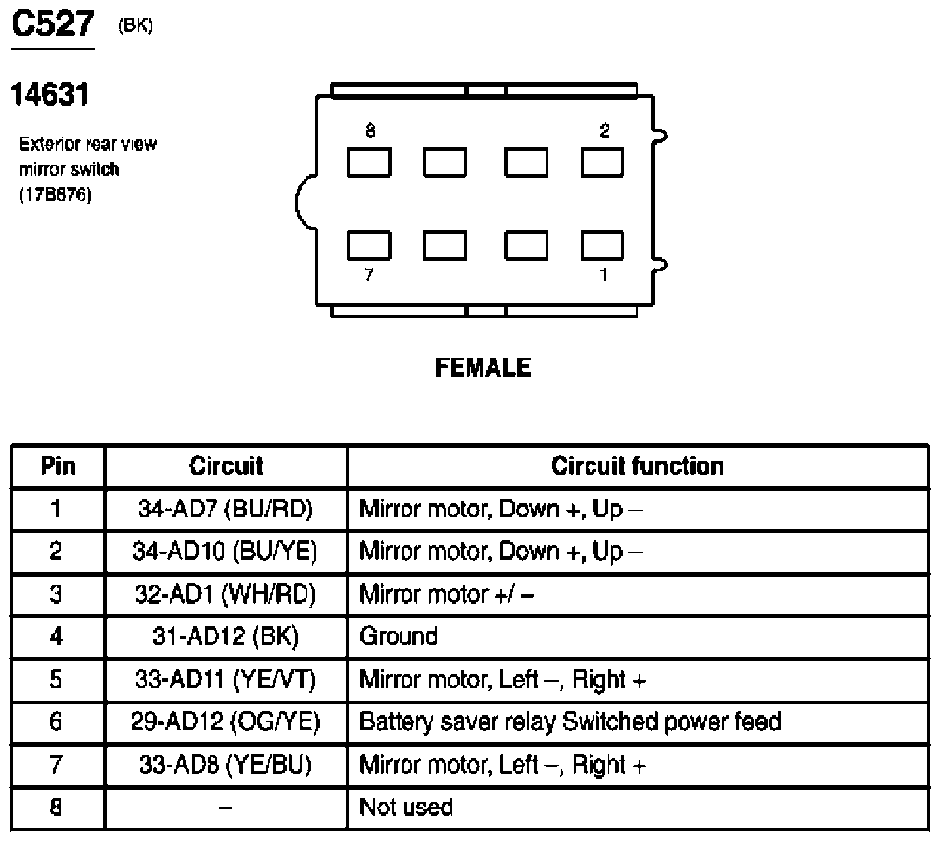

Fig 135: Exterior Rear View Mirror, Switch Connector End View (C527)

G07846834

Courtesy of FORD MOTOR CO.

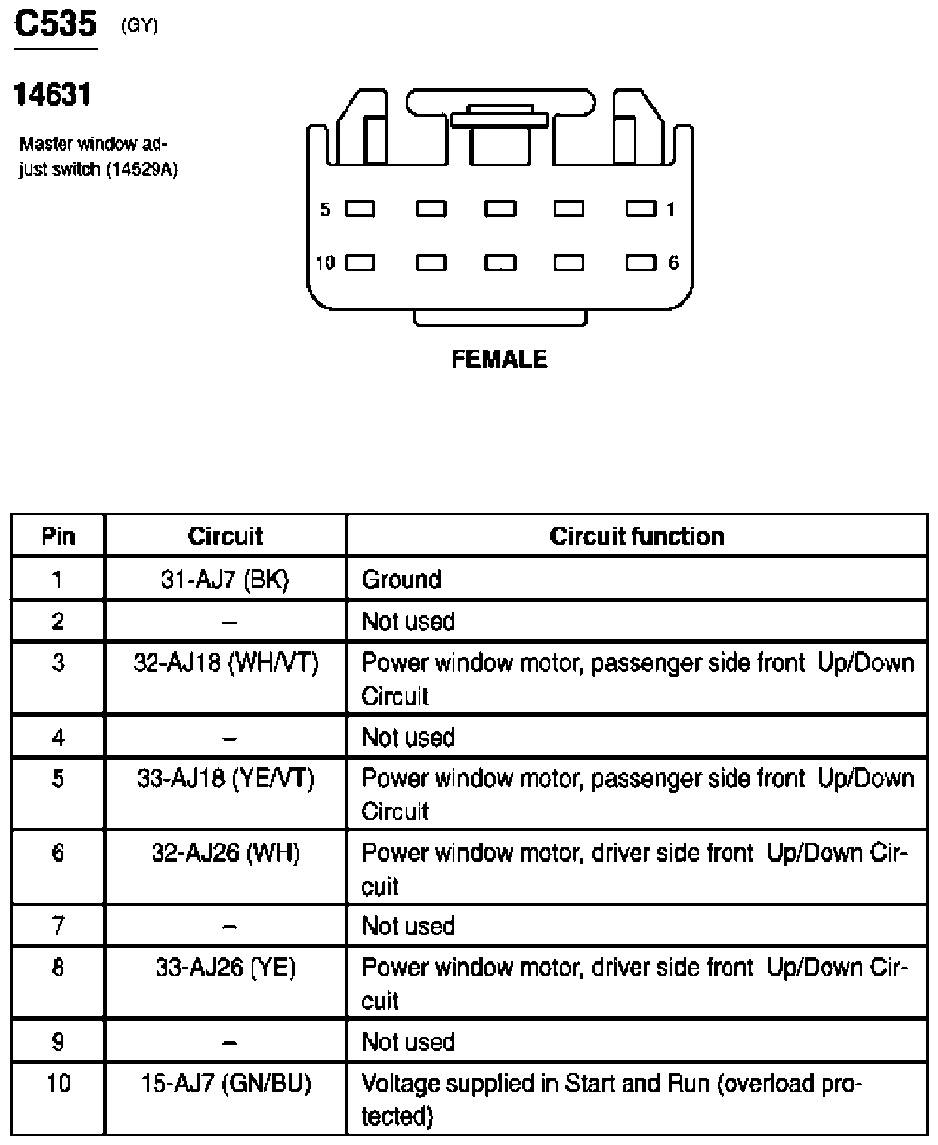

Fig 136: Master Window Adjust Switch Connector End View (C535)

G07846835

Courtesy of FORD MOTOR CO.

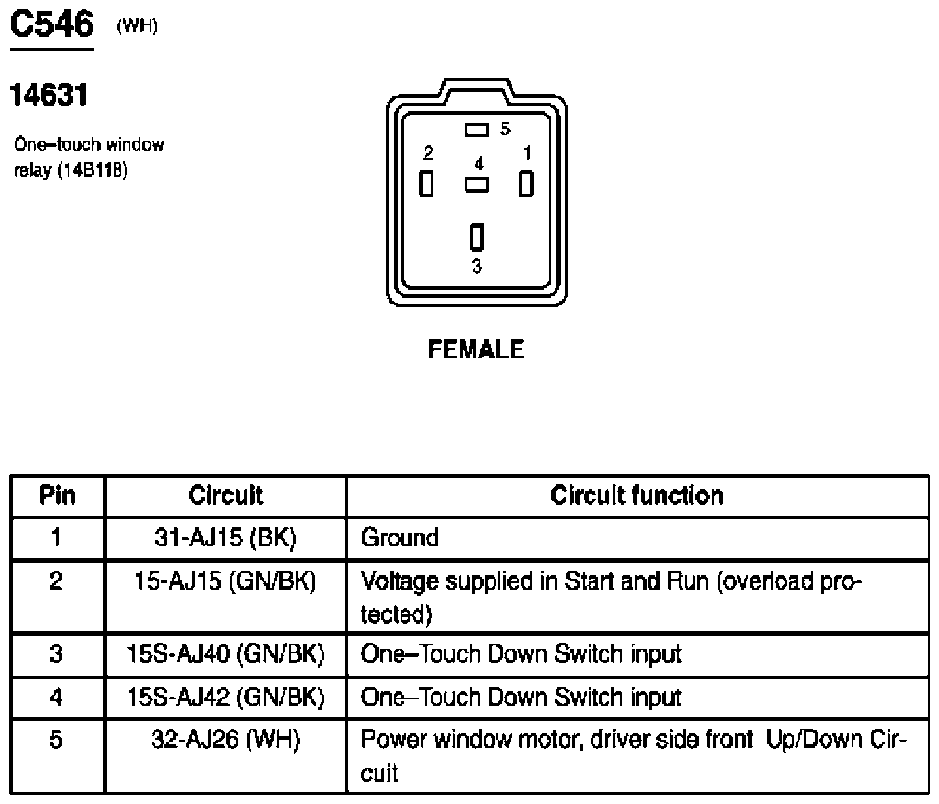

Fig 137: One-Touch Window Relay Connector End View (C546)

G07846836

Courtesy of FORD MOTOR CO.

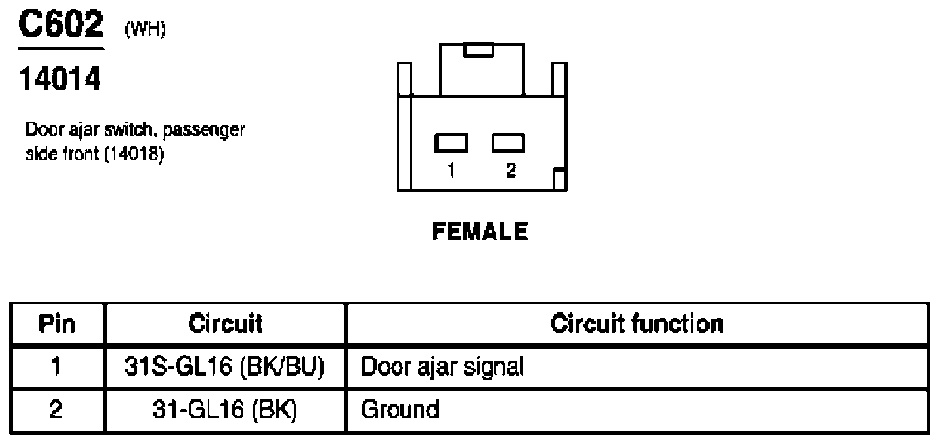

Fig 138: Door Ajar Switch, Passenger Side Front Connector End View (C602)

G07846837

Courtesy of FORD MOTOR CO.

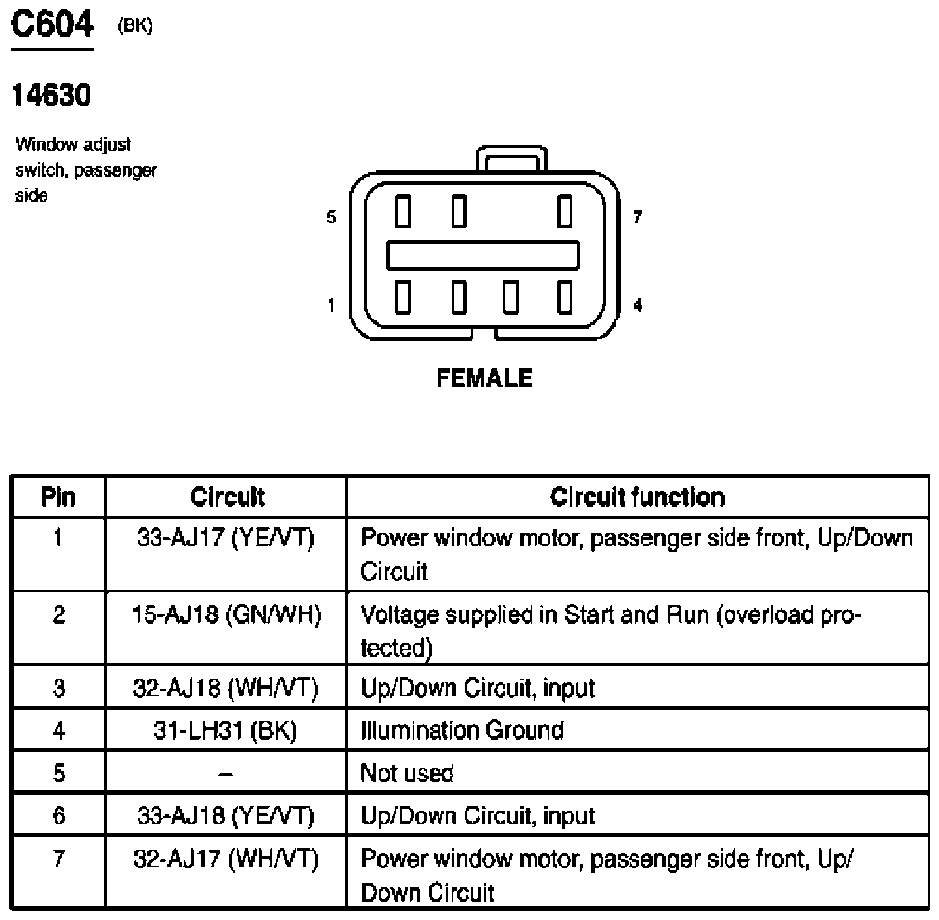

Fig 139: Window Adjust Switch, Passenger Side Connector End View (C604)

G07846838

Courtesy of FORD MOTOR CO.

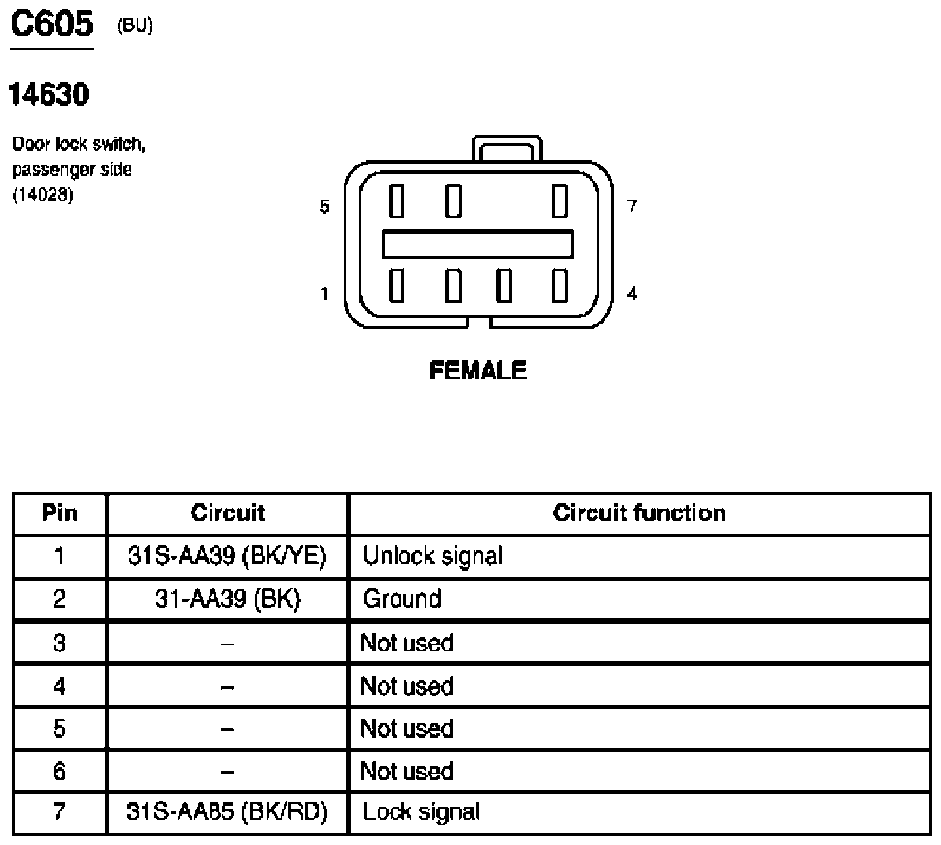

Fig 140: Door Lock Switch, Passenger Side Connector End View (C605)

G07846839

Courtesy of FORD MOTOR CO.

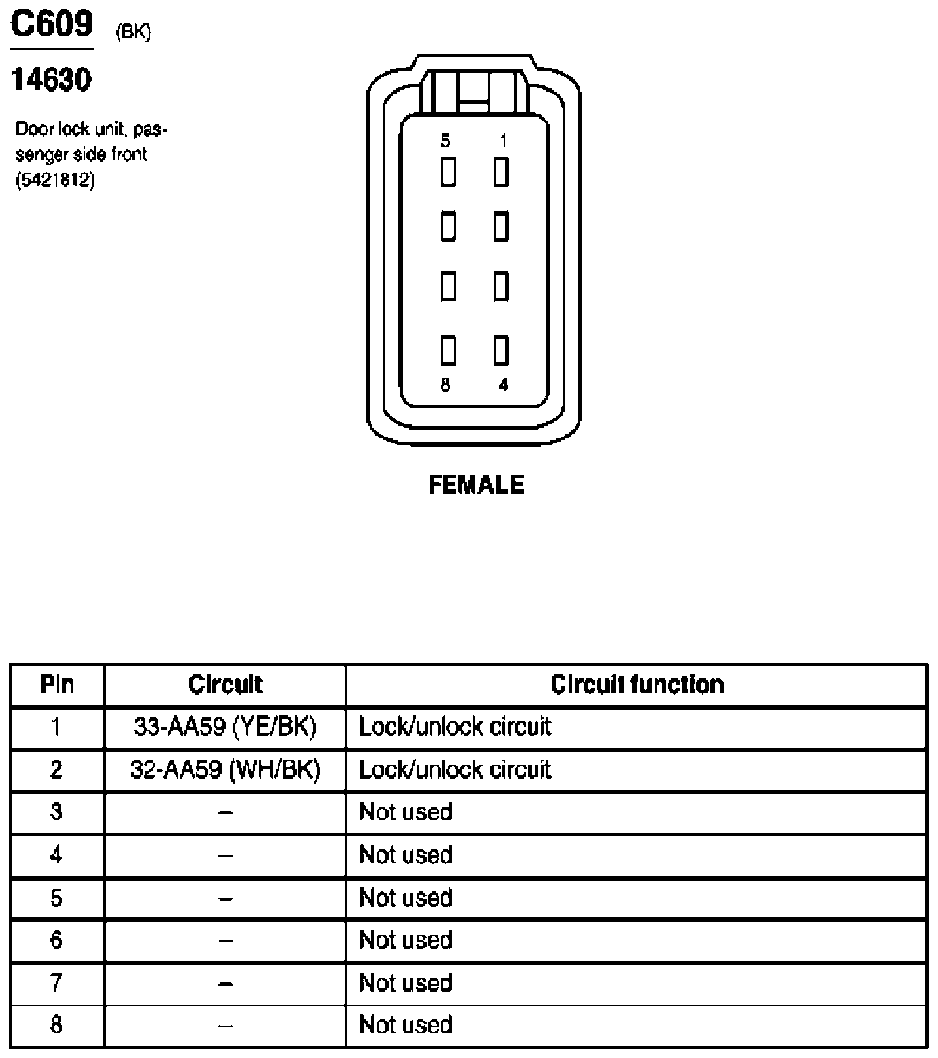

Fig 141: Door Lock Unit, Passenger Side Front Connector End View (C609)

G07846840

Courtesy of FORD MOTOR CO.

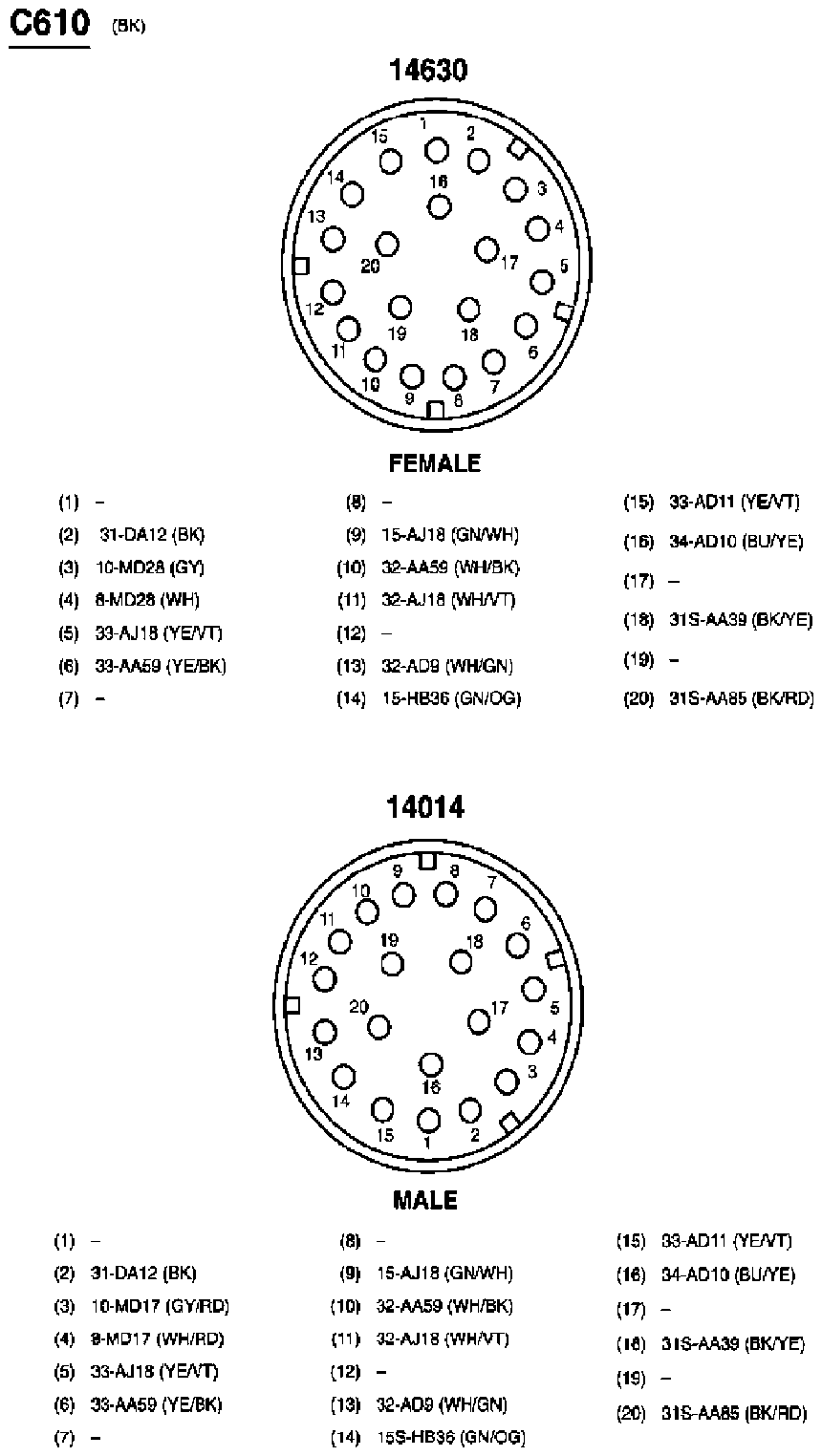

Fig 142: Inline Connector End View (C610)

G07846841

Courtesy of FORD MOTOR CO.

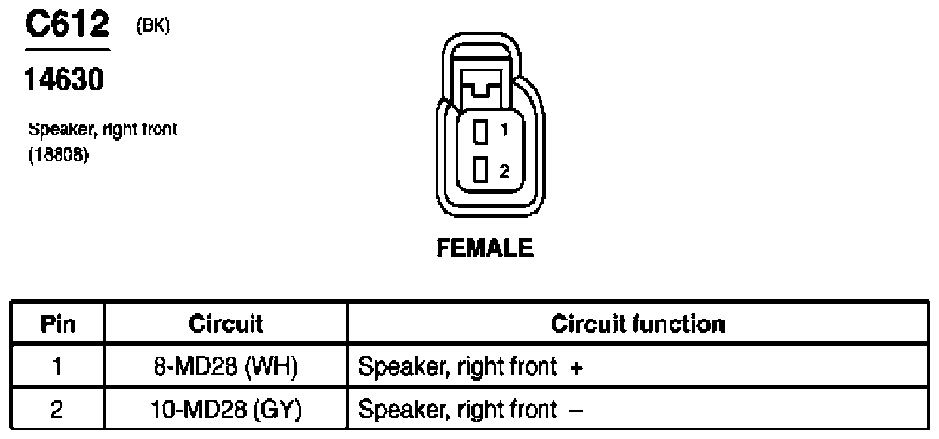

Fig 143: Speaker, Right Front Connector End View (C612)

G07846842

Courtesy of FORD MOTOR CO.

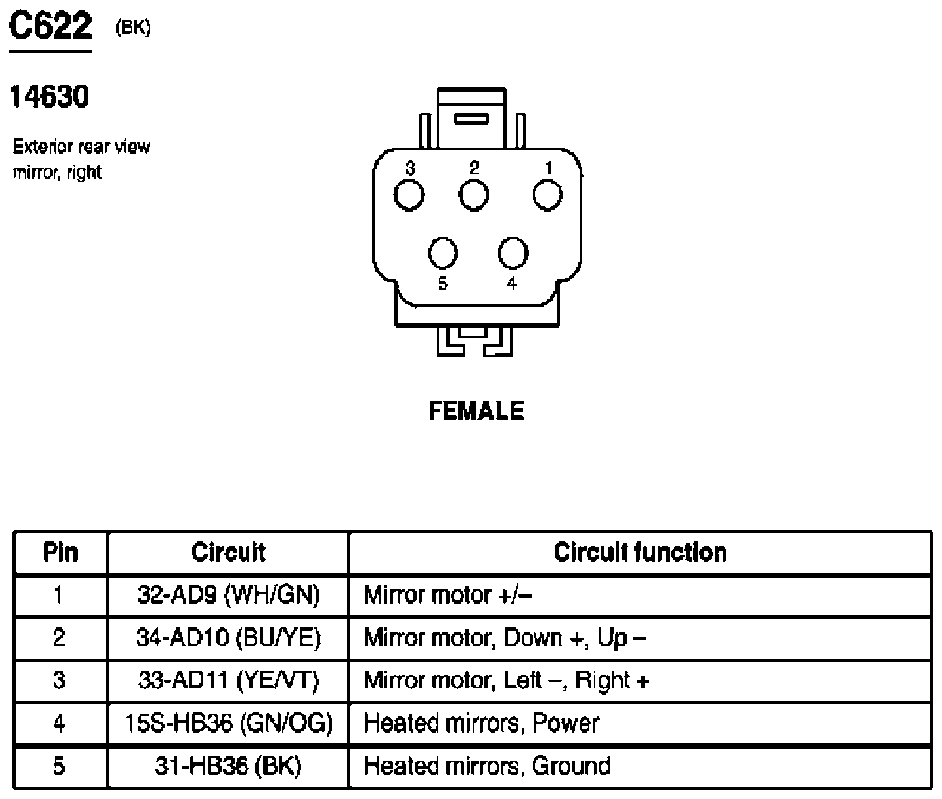

Fig 144: Exterior Rear View Mirror, Right Connector End View (C622)

G07846843

Courtesy of FORD MOTOR CO.

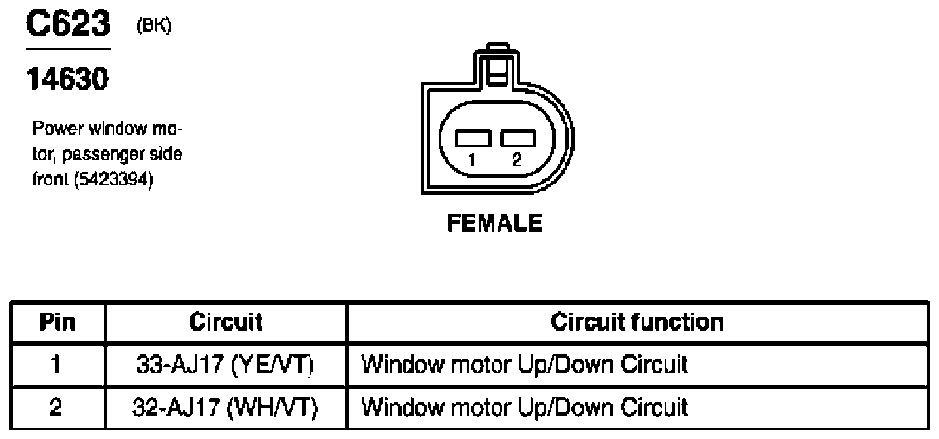

Fig 145: Power Window Motor, Right Front Connector End View (C623)

G07846844

Courtesy of FORD MOTOR CO.

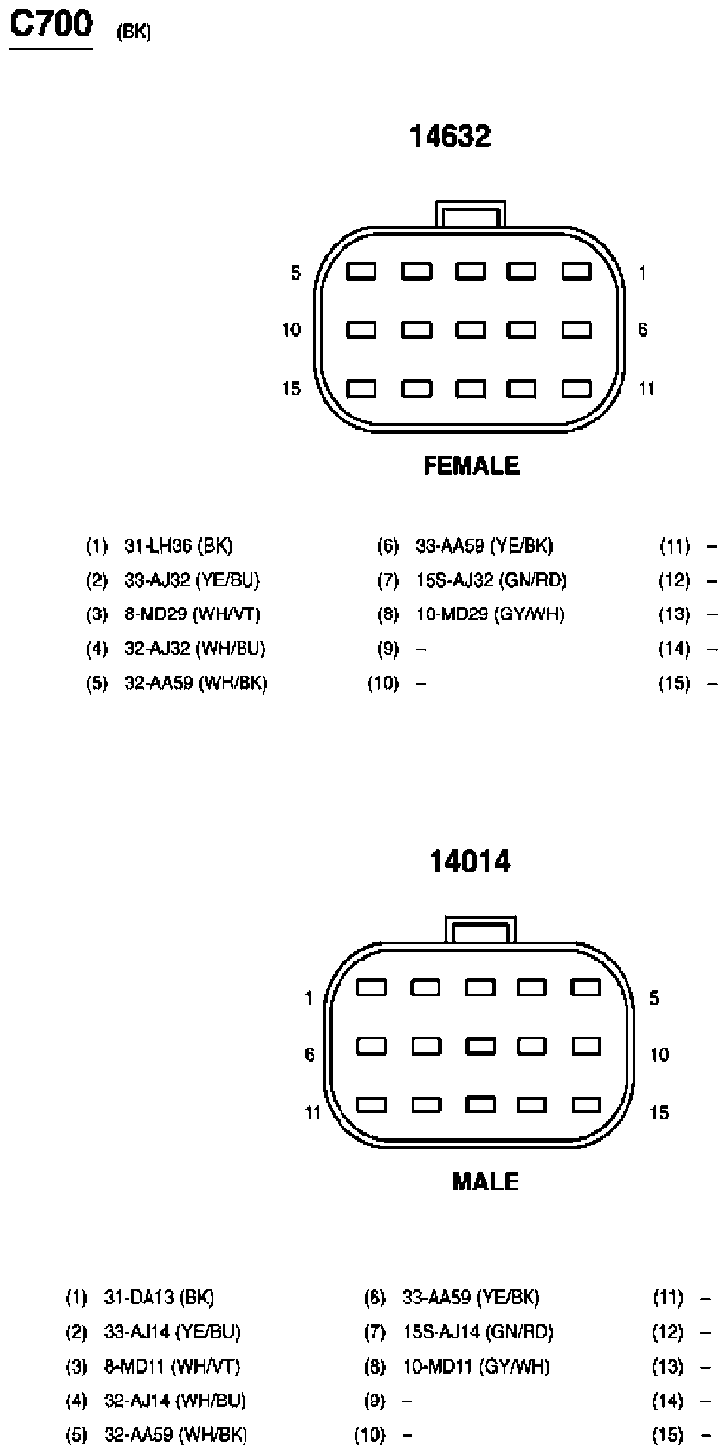

Fig 146: Inline Connector End View (C700)

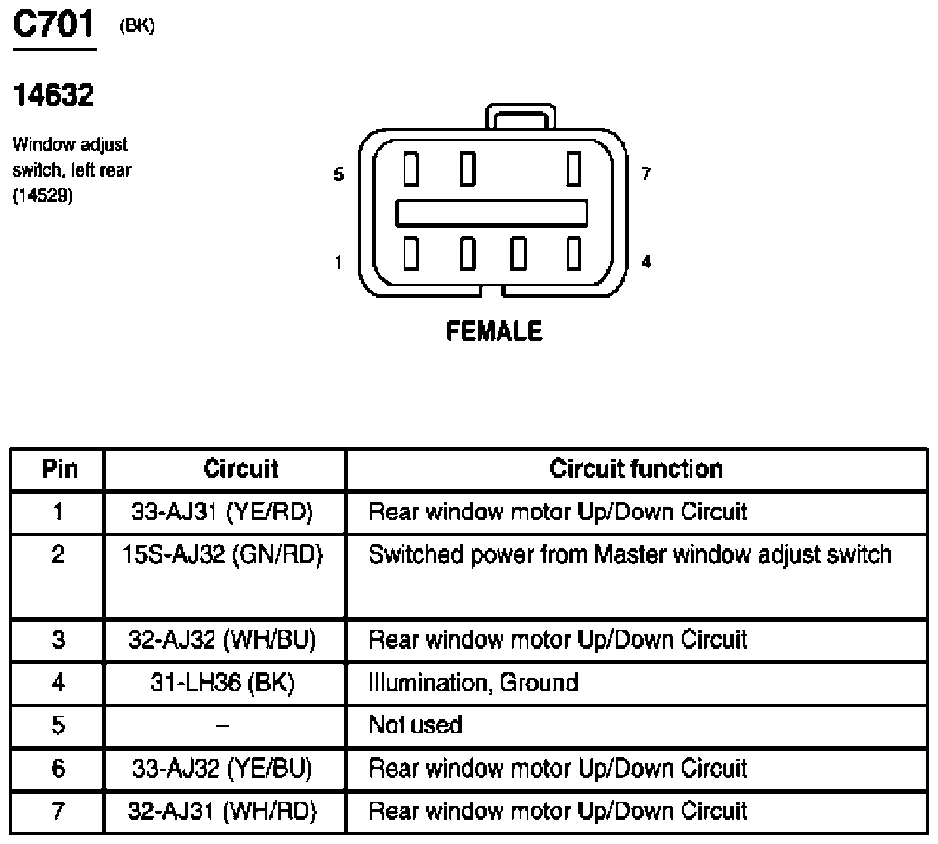

G07846845

Courtesy of FORD MOTOR CO.

Fig 147: Window Adjust Switch, Right Rear Connector End View (C701)

G07846846

Courtesy of FORD MOTOR CO.

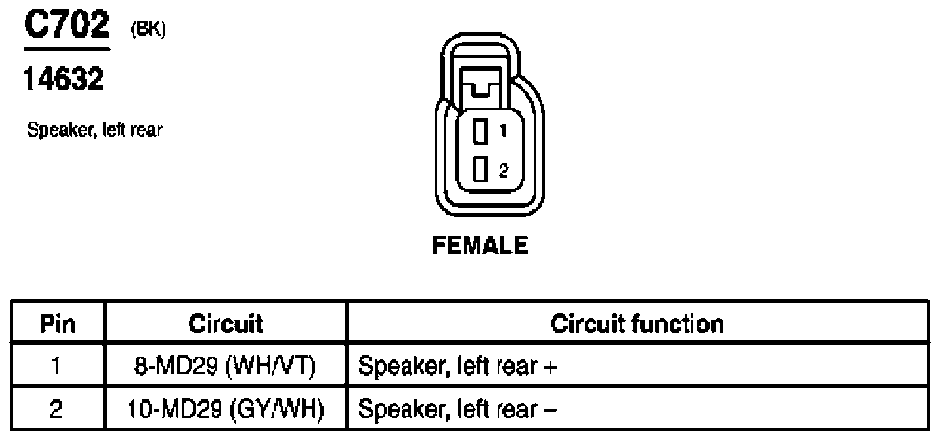

Fig 148: Speaker, Right Rear Connector End View (C702)

G07846847

Courtesy of FORD MOTOR CO.

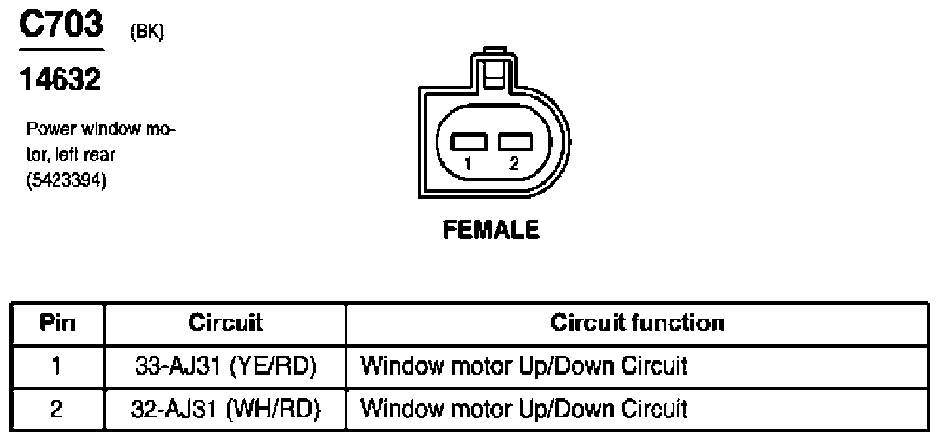

Fig 149: Power Window Motor, Right Rear Connector End View (C703)

G07846848

Courtesy of FORD MOTOR CO.

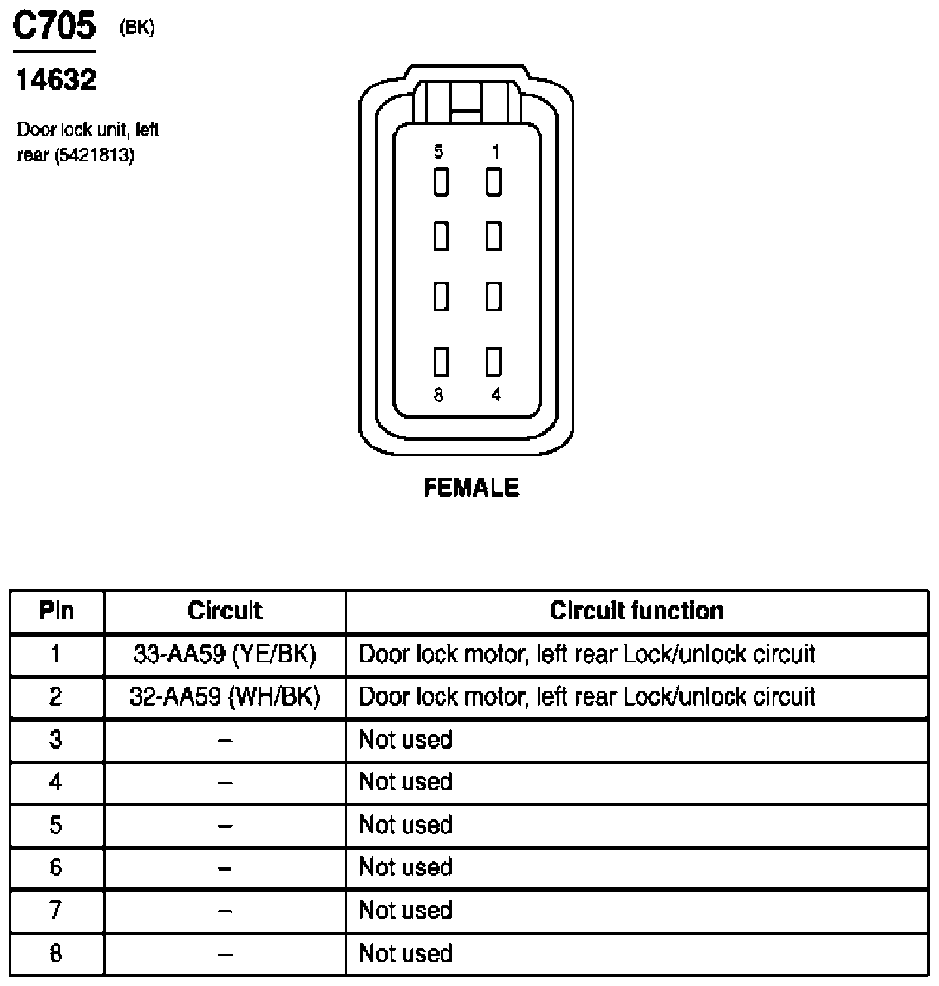

Fig 150: Door Lock Unit, Left Rear Connector End View (C705)

G07846849

Courtesy of FORD MOTOR CO.

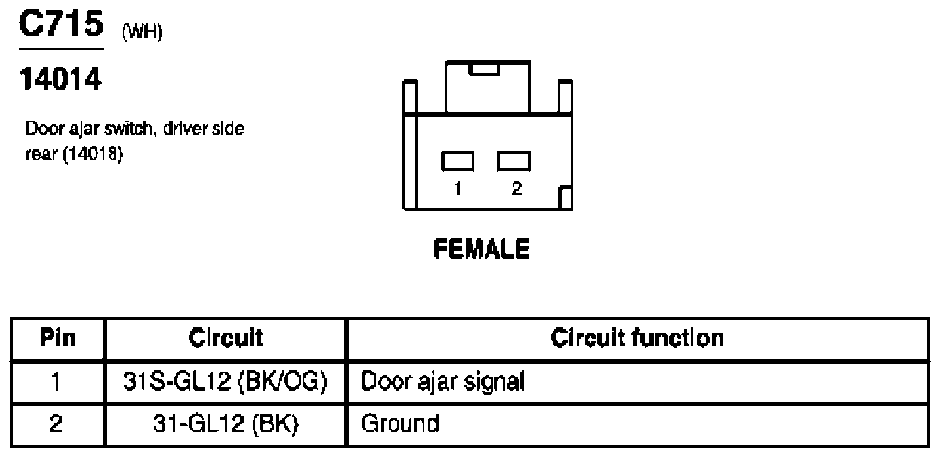

Fig 151: Door Ajar Switch, Left Rear Connector End View (C715)

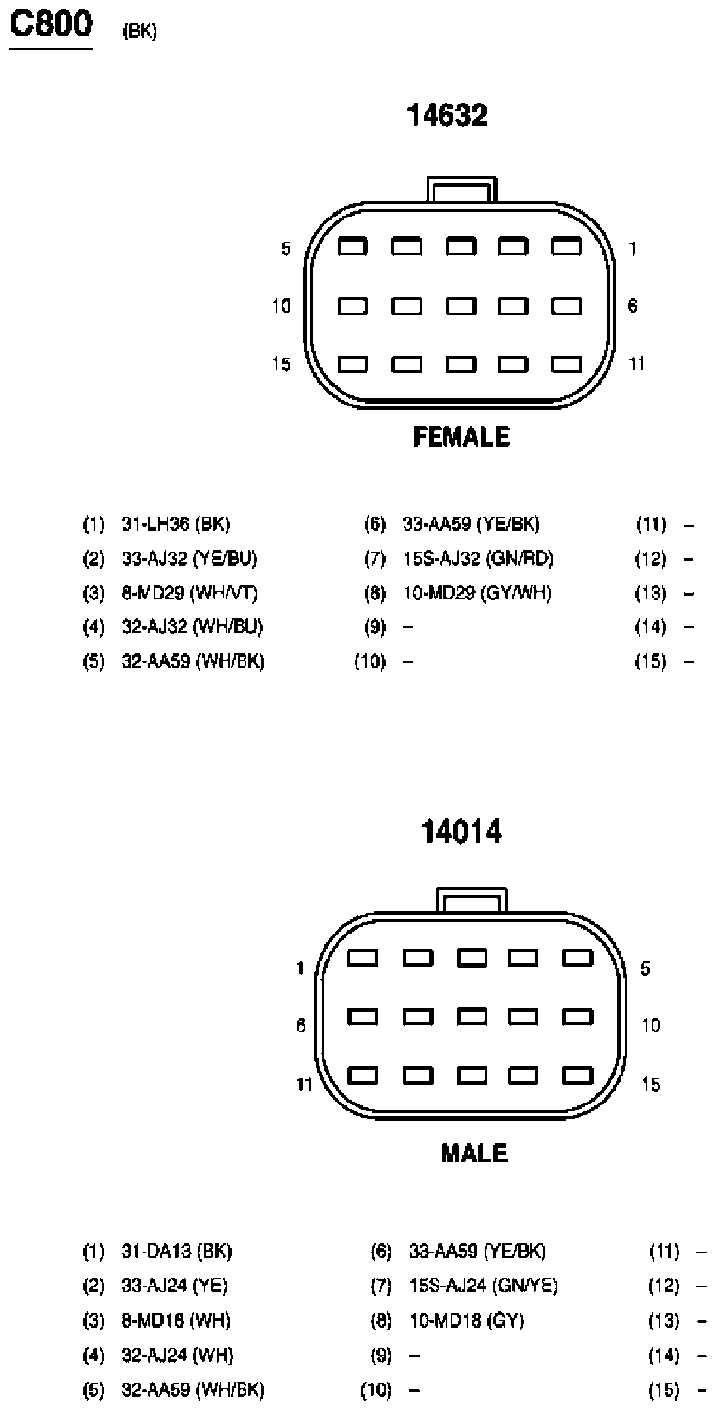

G07846850

Courtesy of FORD MOTOR CO.

Fig 152: Inline Connector End View (C800)

G07846851

Courtesy of FORD MOTOR CO.

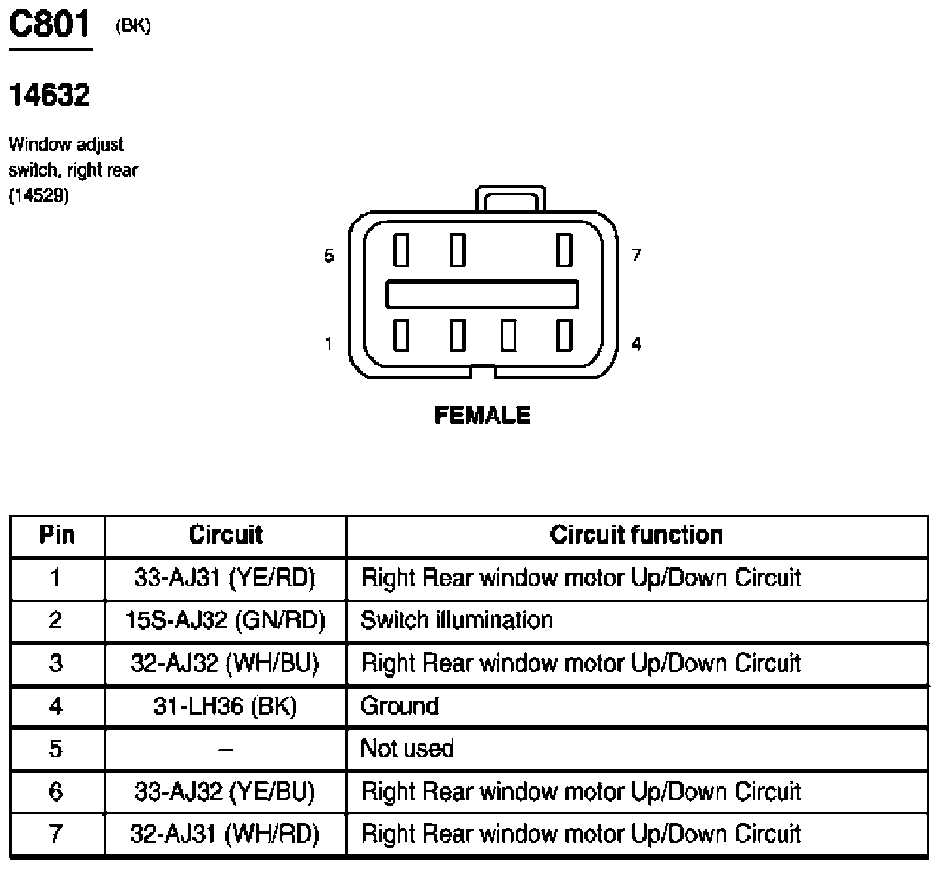

Fig 153: Window Adjust Switch, Right Rear Connector End View (C801)

G07846852

Courtesy of FORD MOTOR CO.

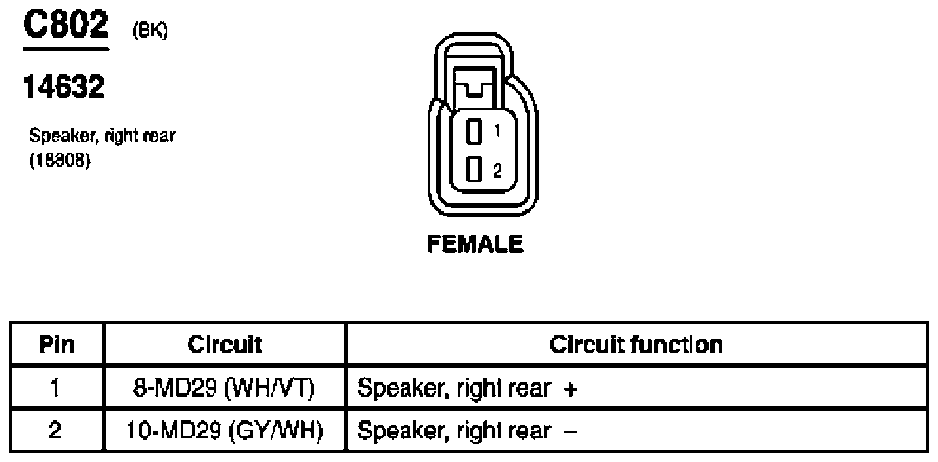

Fig 154: Speaker, Right Rear Connector End View (C802)

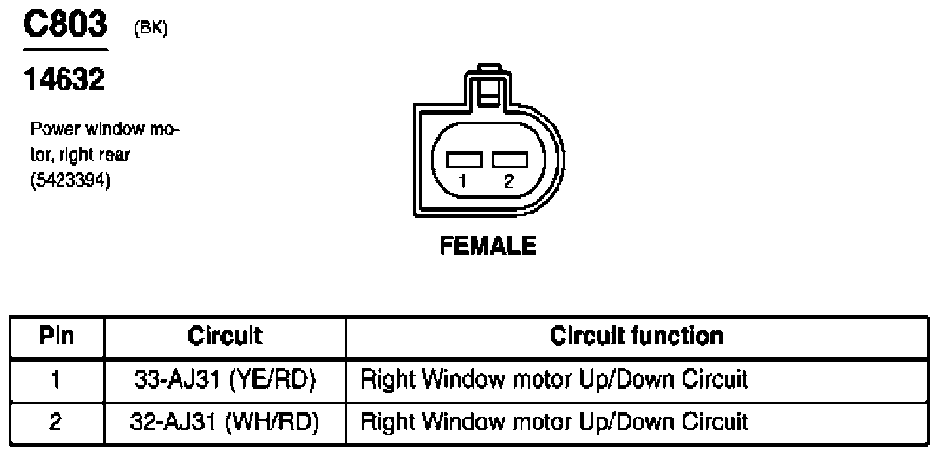

G07846853

Courtesy of FORD MOTOR CO.

Fig 155: Power Window Motor, Right Rear Connector End View (C803)

G07846854

Courtesy of FORD MOTOR CO.

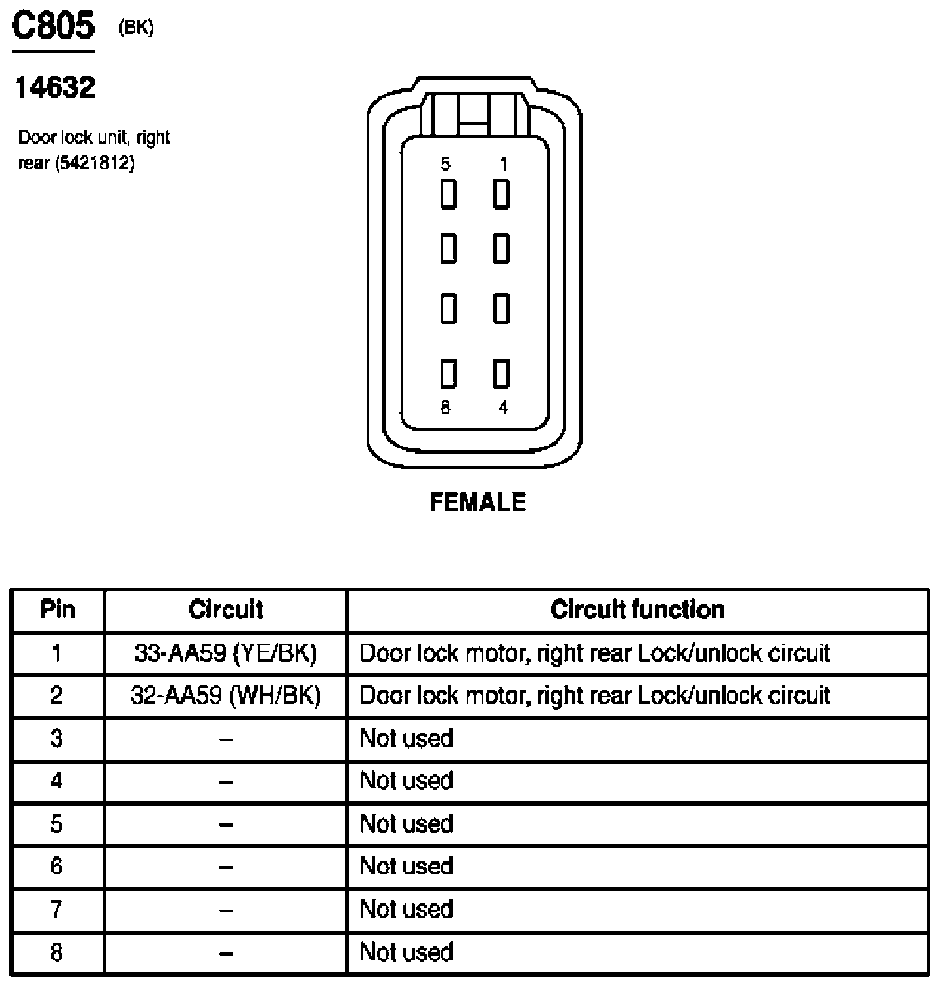

Fig 156: Door Lock Unit, Right Rear Connector End View (C805)

G07846855

Courtesy of FORD MOTOR CO.

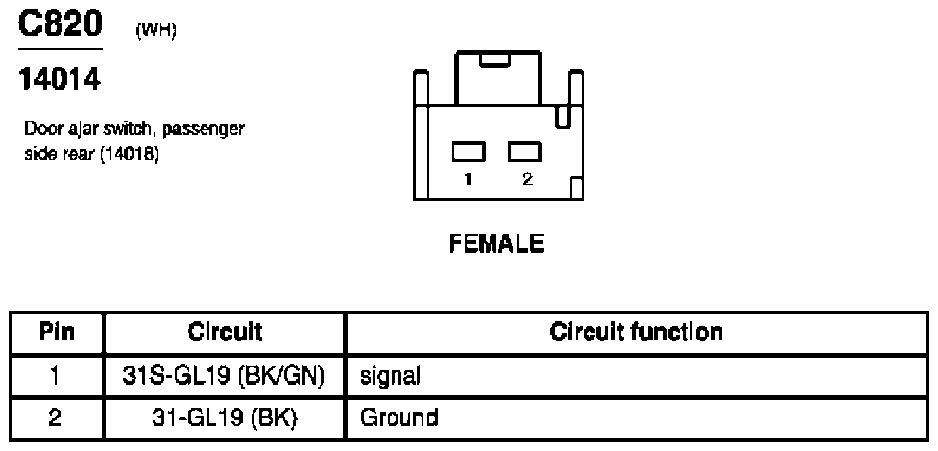

Fig 157: Door Ajar Switch, Passenger Side Rear Connector End View (C820)

G07846856

Courtesy of FORD MOTOR CO.

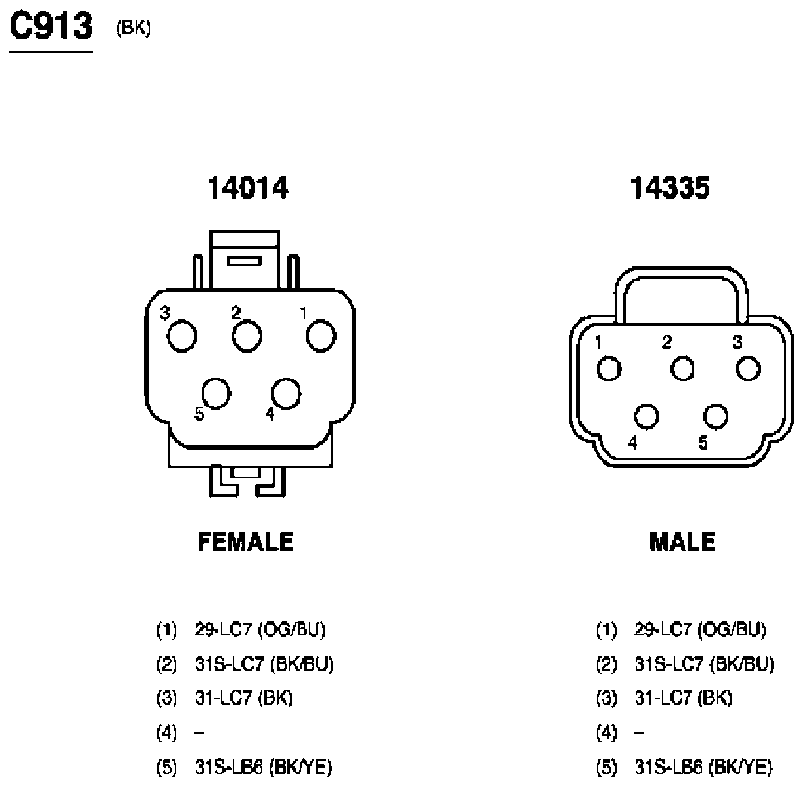

Fig 158: Inline Connector End View (C913)

G07846857

Courtesy of FORD MOTOR CO.

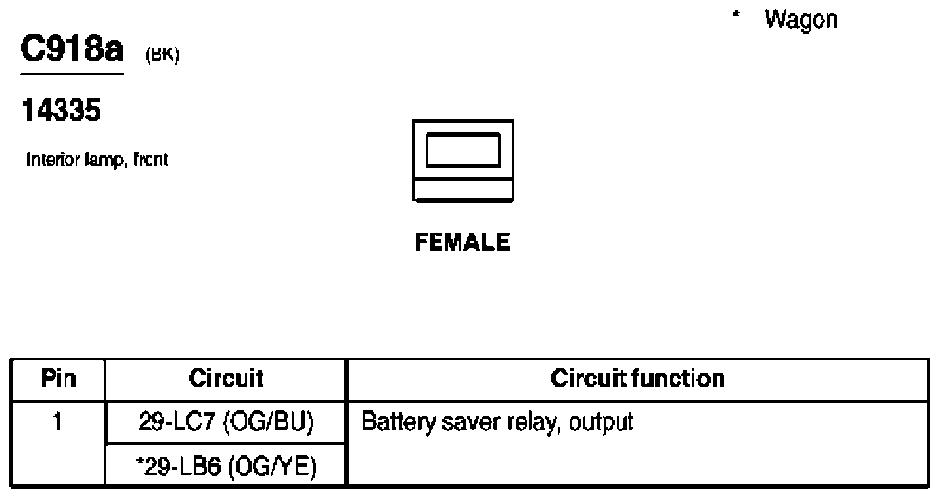

Fig 159: Interior Lamp, Front Connector End View (C918a)

G07846858

Courtesy of FORD MOTOR CO.

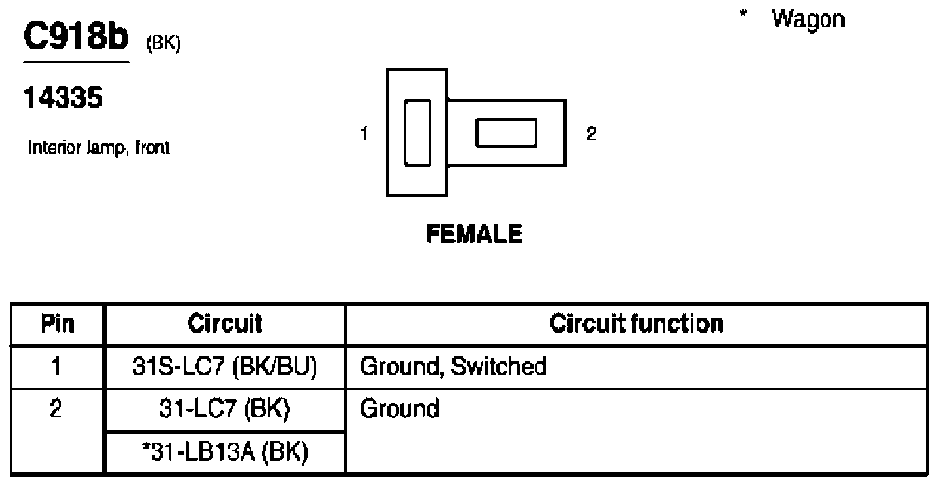

Fig 160: Interior Lamp, Front Connector End View (C918b)

G07846859

Courtesy of FORD MOTOR CO.

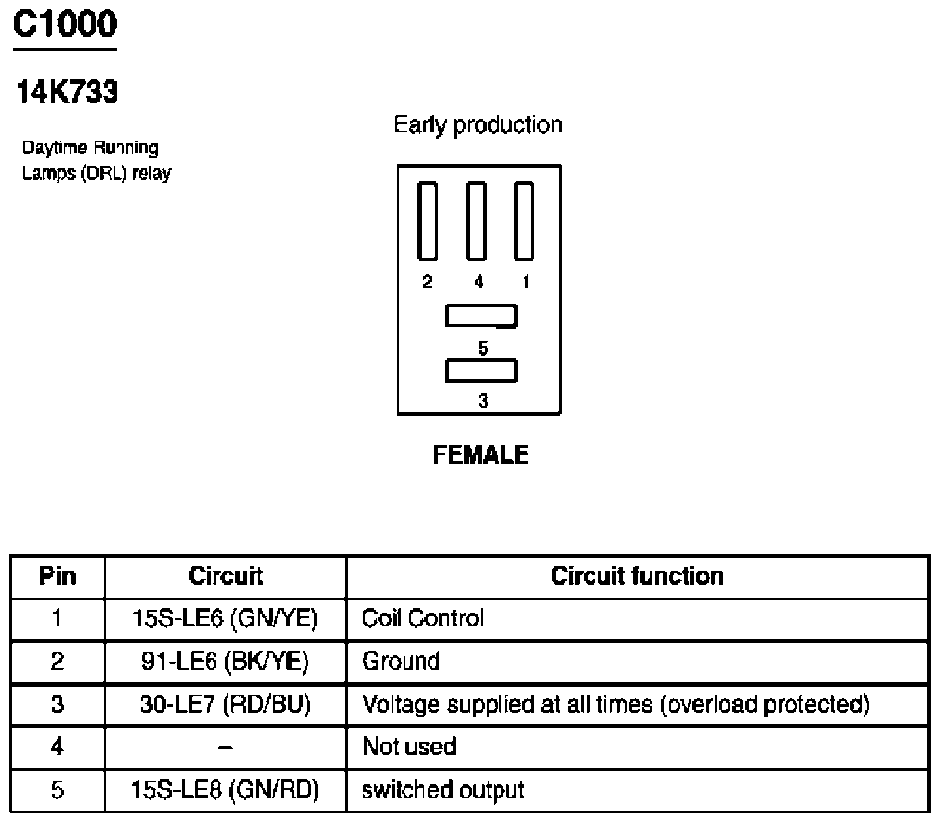

Fig 161: Daytime Running Lamps (DRL) Relay Connector End View (C1000)

G07846860

Courtesy of FORD MOTOR CO.

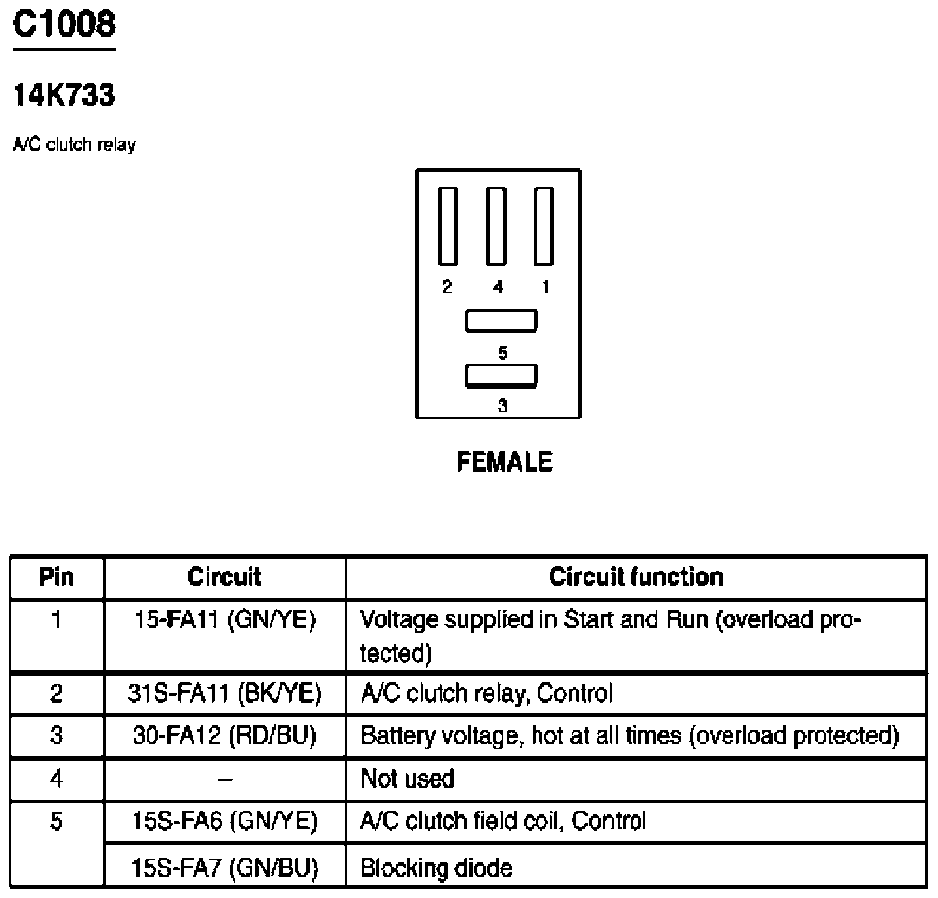

Fig 162: A/C Clutch Relay Connector End View (C1008)

G07846861

Courtesy of FORD MOTOR CO.

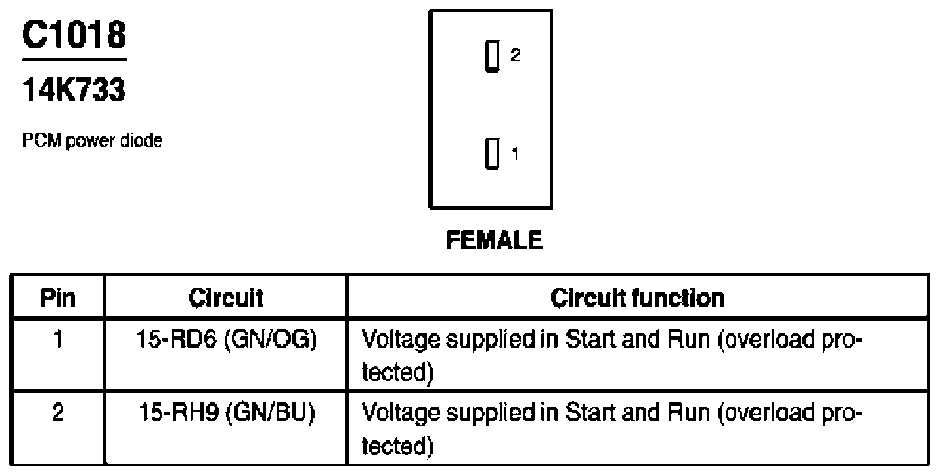

Fig 163: PCM Power Diode Connector End View (C1018)

G07846862

Courtesy of FORD MOTOR CO.

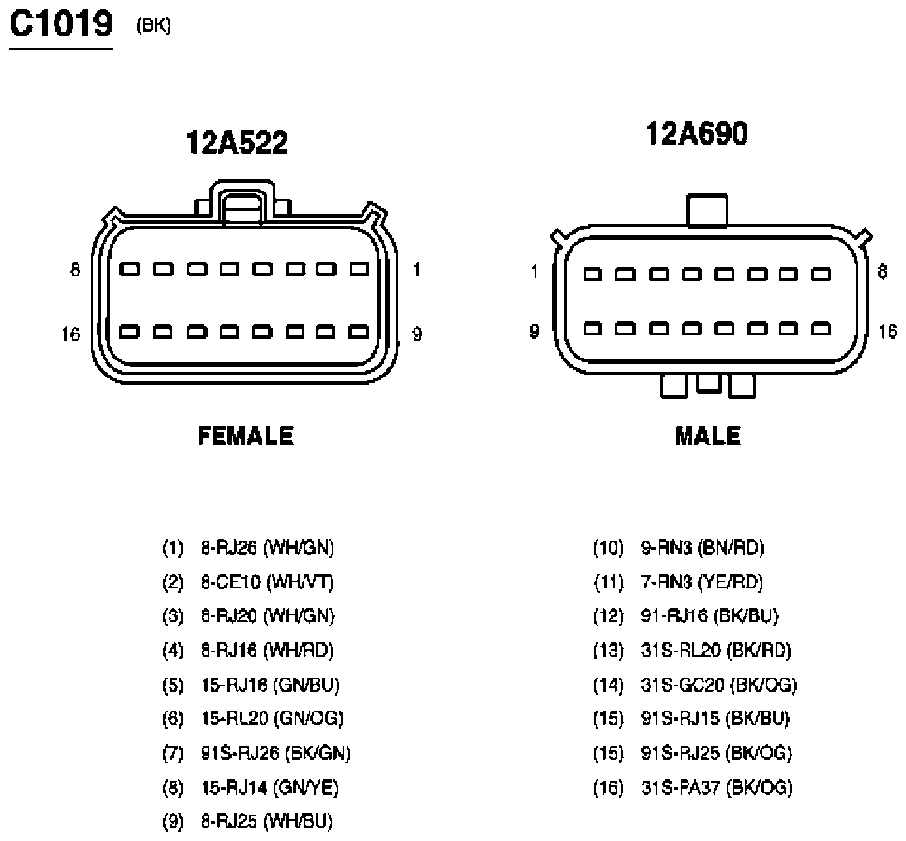

Fig 164: Inline Connector End View (C1019)

G07846863

Courtesy of FORD MOTOR CO.

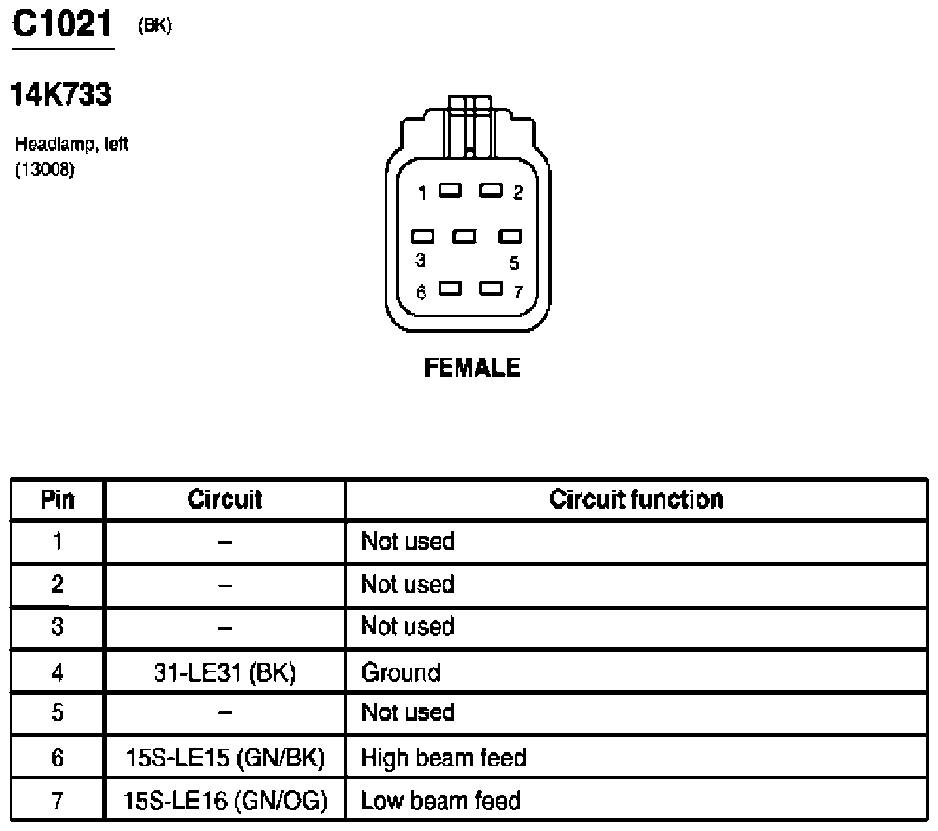

Fig 165: Headlamp, Left Connector End View (C1021)

G07846864

Courtesy of FORD MOTOR CO.

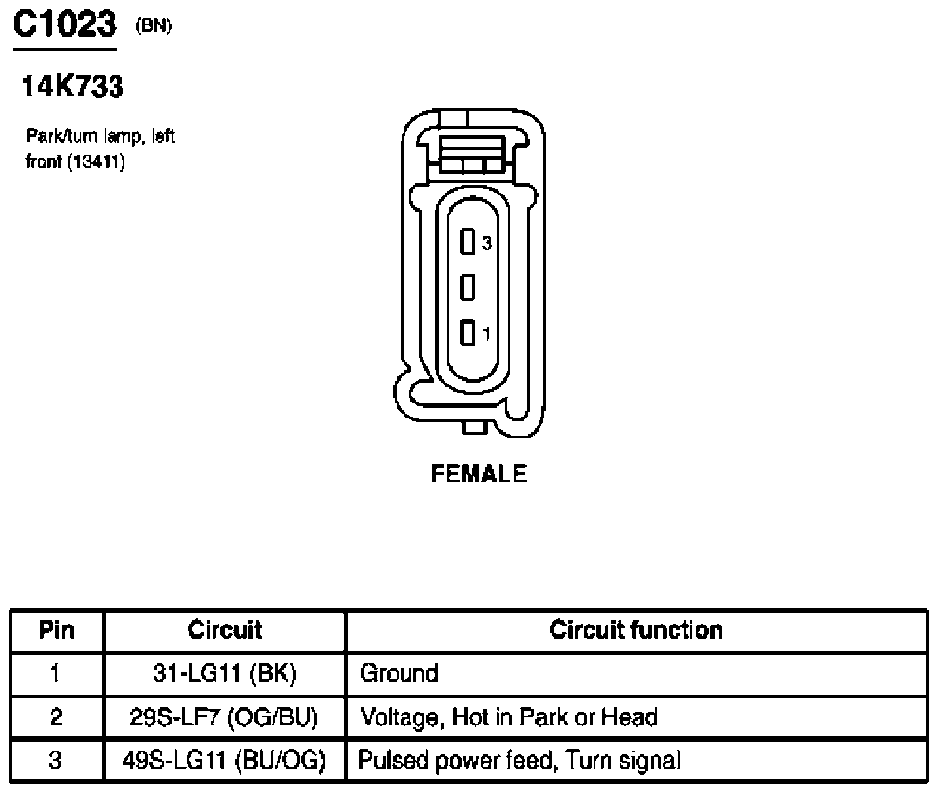

Fig 166: Park/Turn Lamp, Left Front Connector End View (C1023)

G07846865

Courtesy of FORD MOTOR CO.

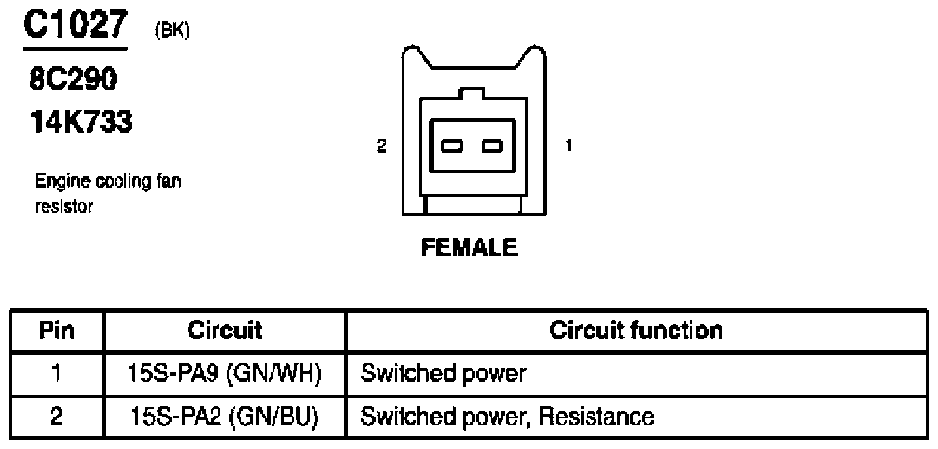

Fig 167: Engine Cooling Fan Resistor Connector End View (C1027)

G07846866

Courtesy of FORD MOTOR CO.

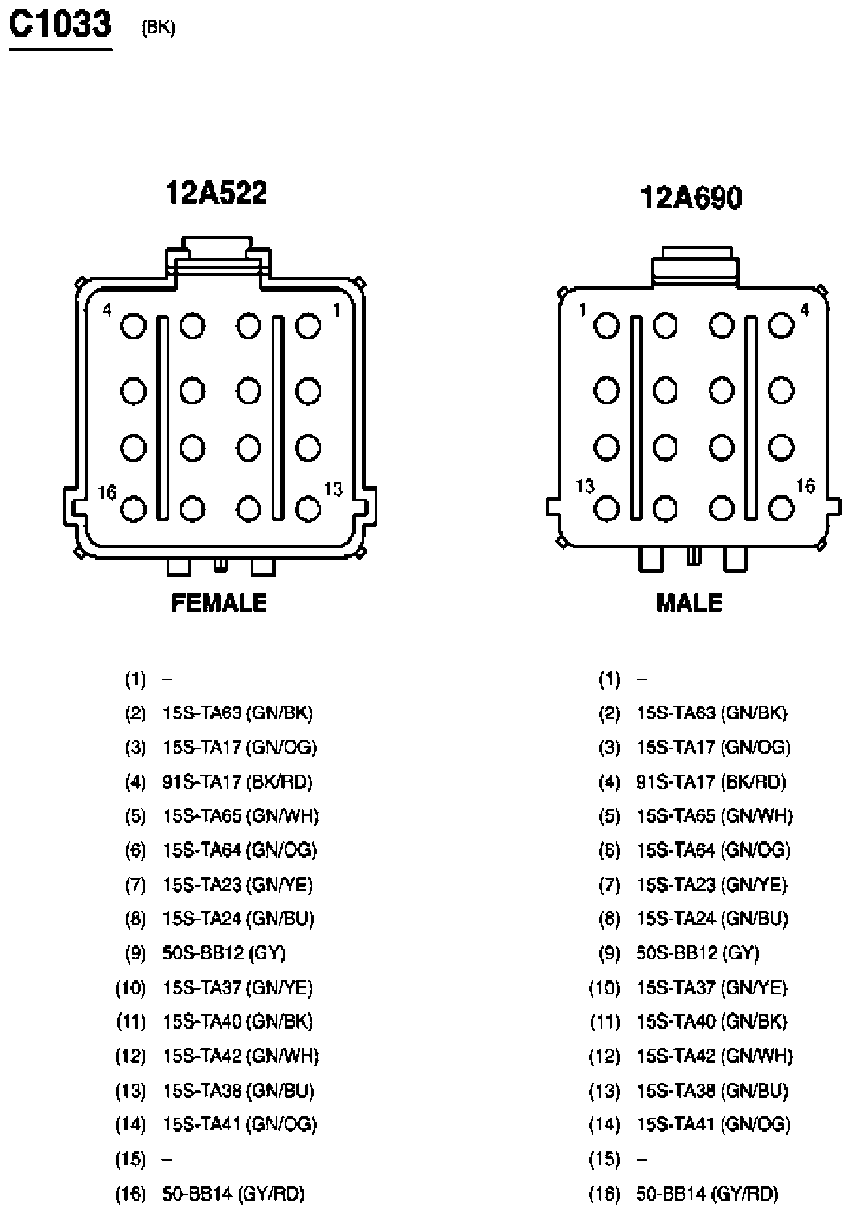

Fig 168: Inline Connector End View (C1033)

G07846867

Courtesy of FORD MOTOR CO.

Fig 169: Inline Connector End View (C1045)

G07846868

Courtesy of FORD MOTOR CO.

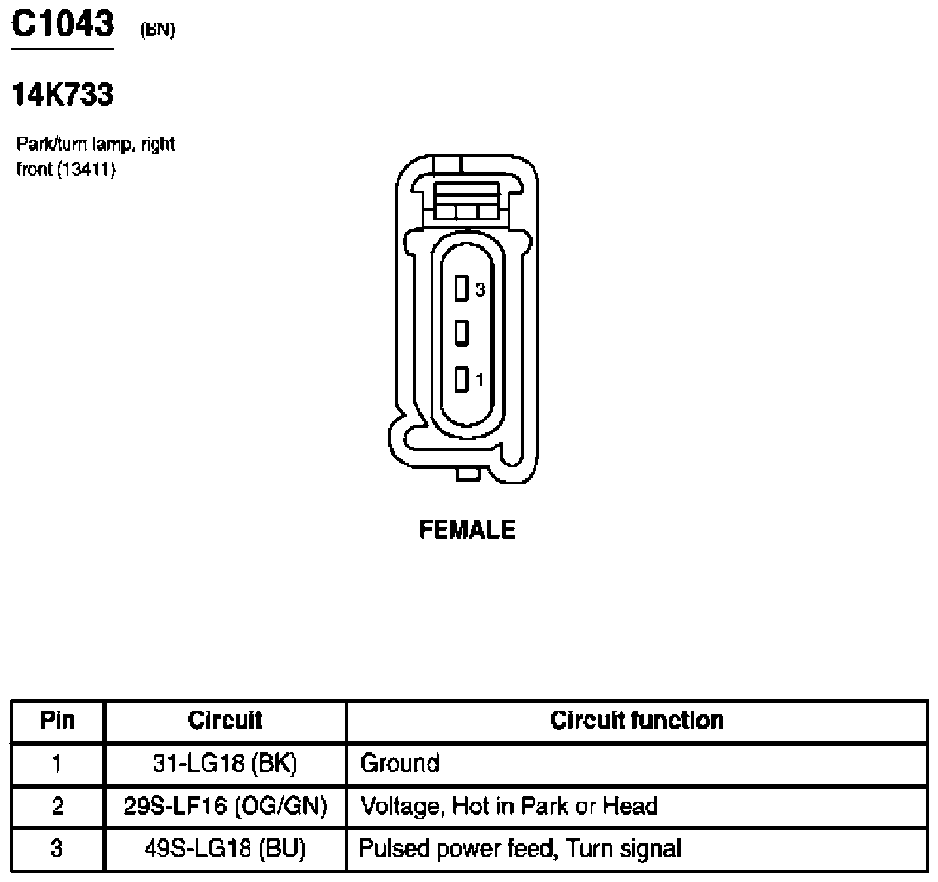

Fig 170: Inline Connector End View (C1046)

G07846869

Courtesy of FORD MOTOR CO.

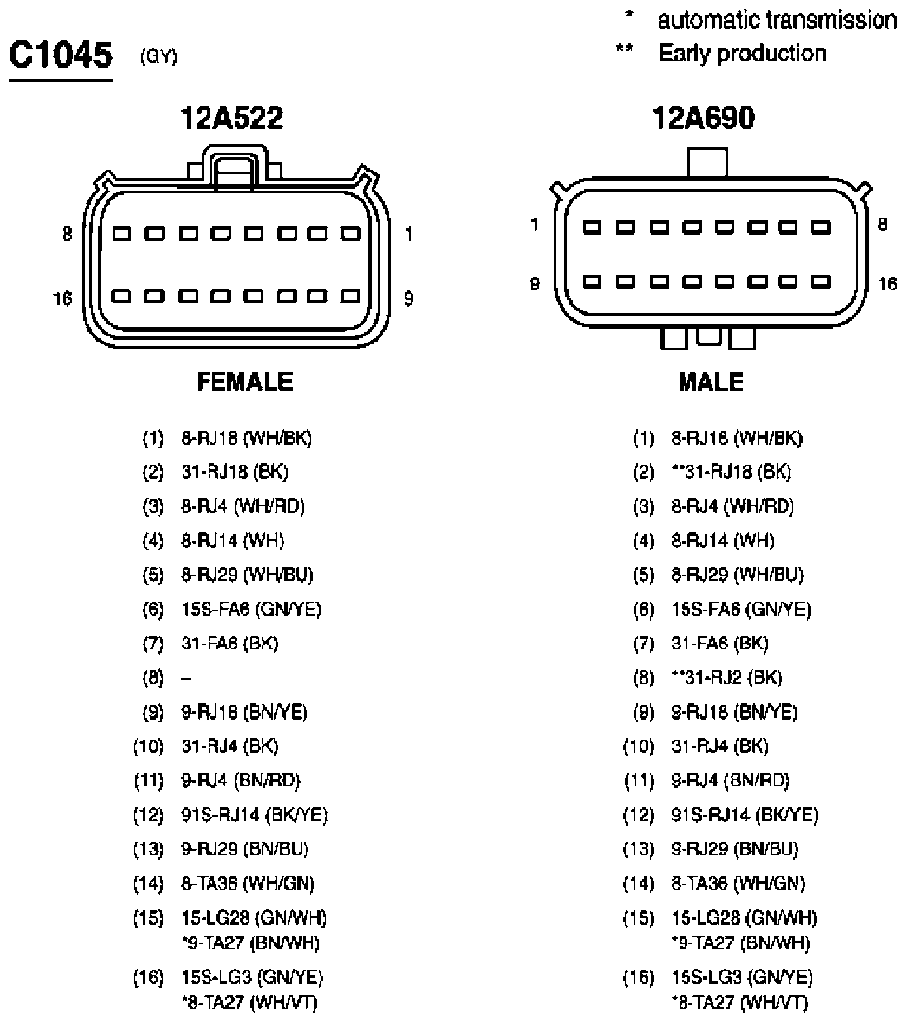

Fig 171: Inline Connector End View (C1045)

G07846870

Courtesy of FORD MOTOR CO.

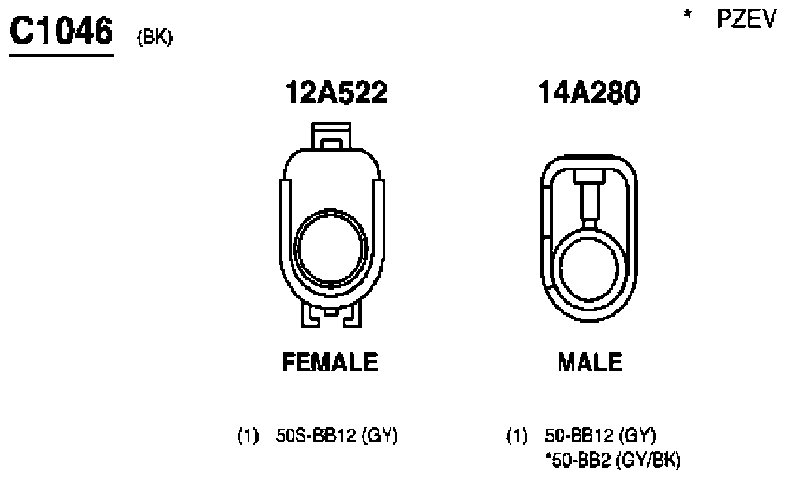

Fig 172: Inline Connector End View (C1046)

G07846871

Courtesy of FORD MOTOR CO.

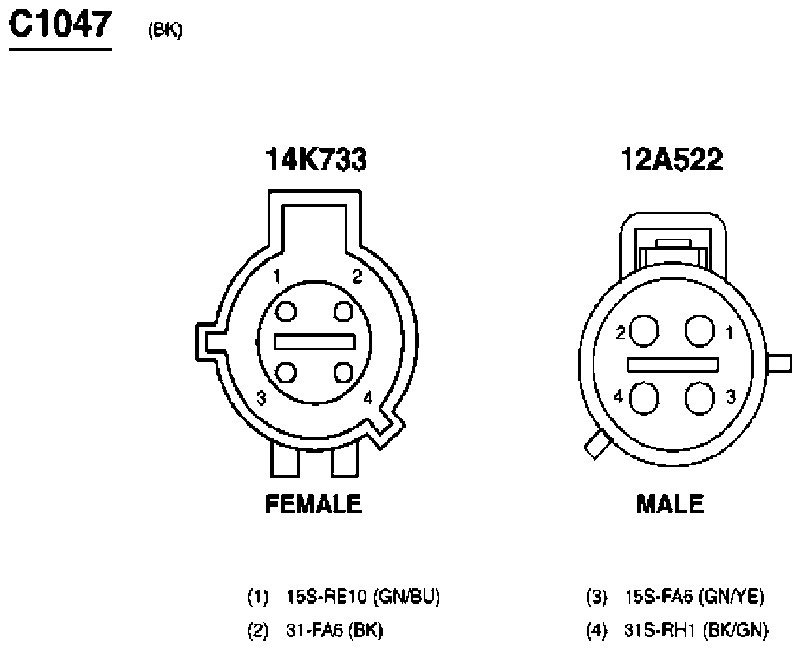

Fig 173: Inline Connector End View (C1047)

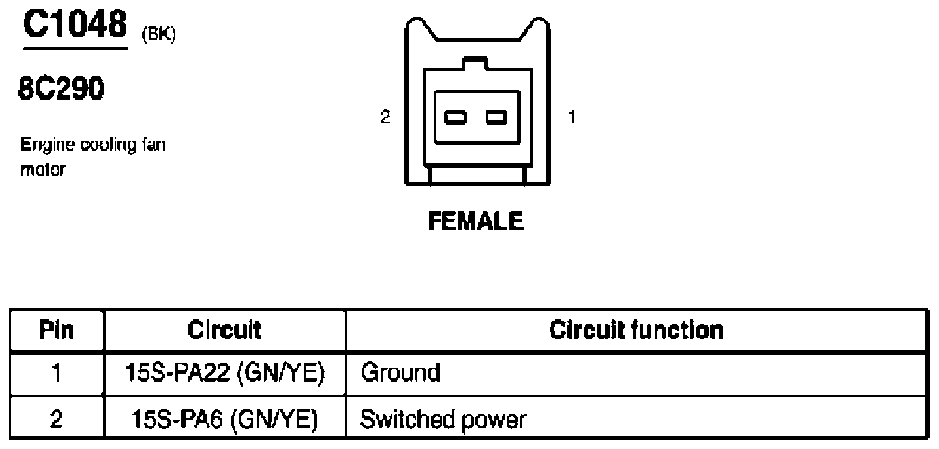

G07846872

Courtesy of FORD MOTOR CO.

Fig 174: Engine Cooling Fan Motor Connector End View (C1048)

G07846873

Courtesy of FORD MOTOR CO.

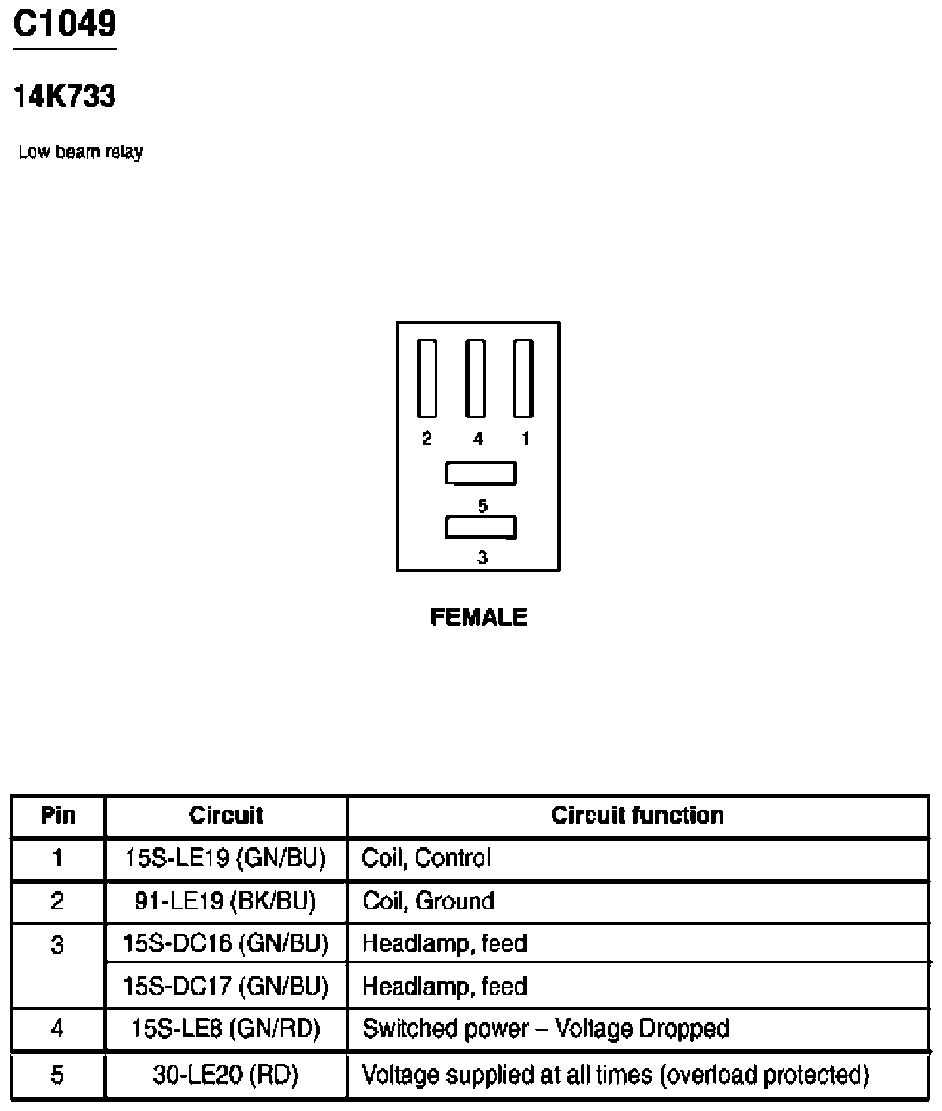

Fig 175: Low Beam Relay Connector End View (C1049)

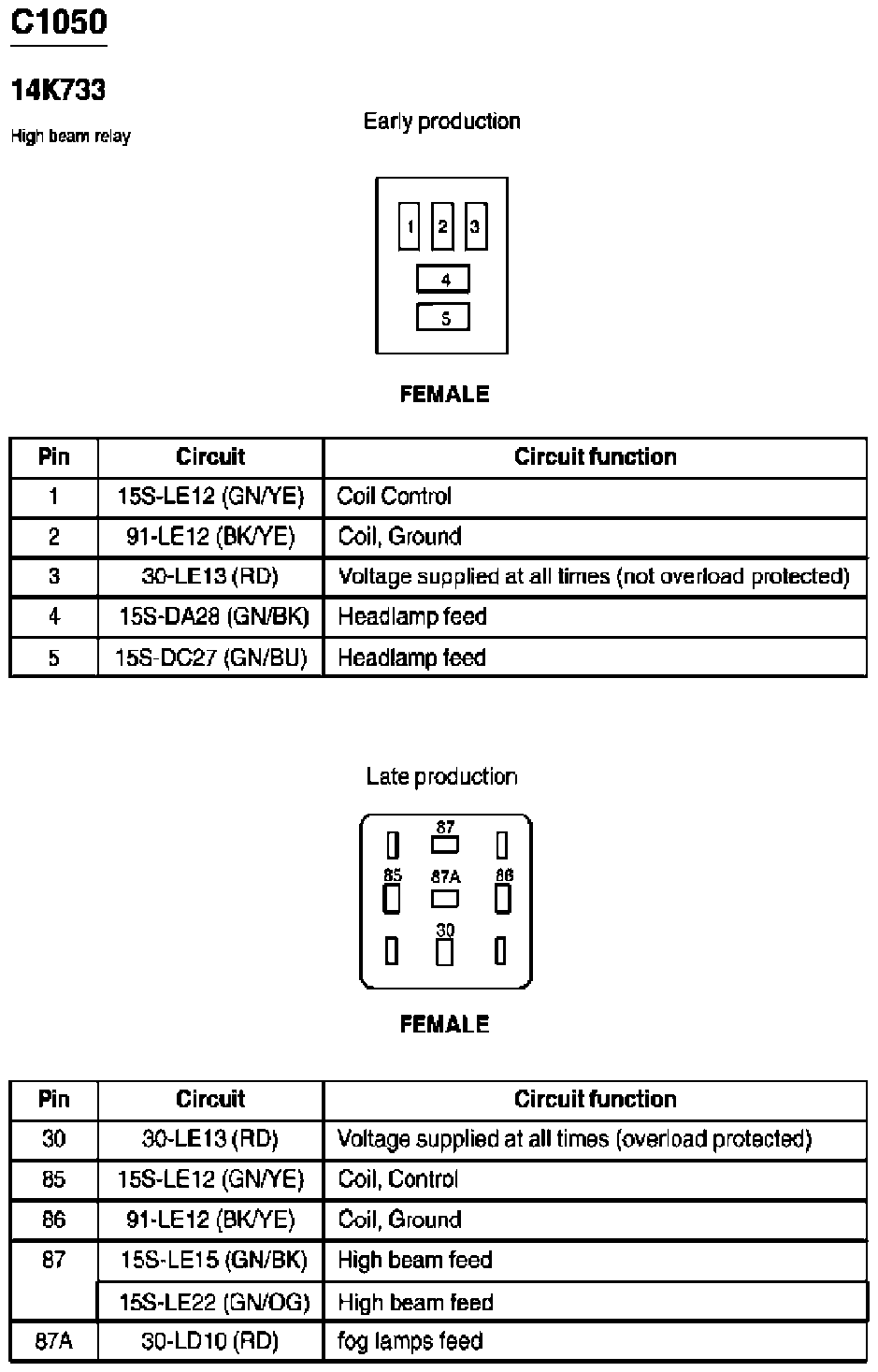

G07846874

Courtesy of FORD MOTOR CO.

Fig 176: High Beam Relay Connector End View (C1050)

G07846875

Courtesy of FORD MOTOR CO.

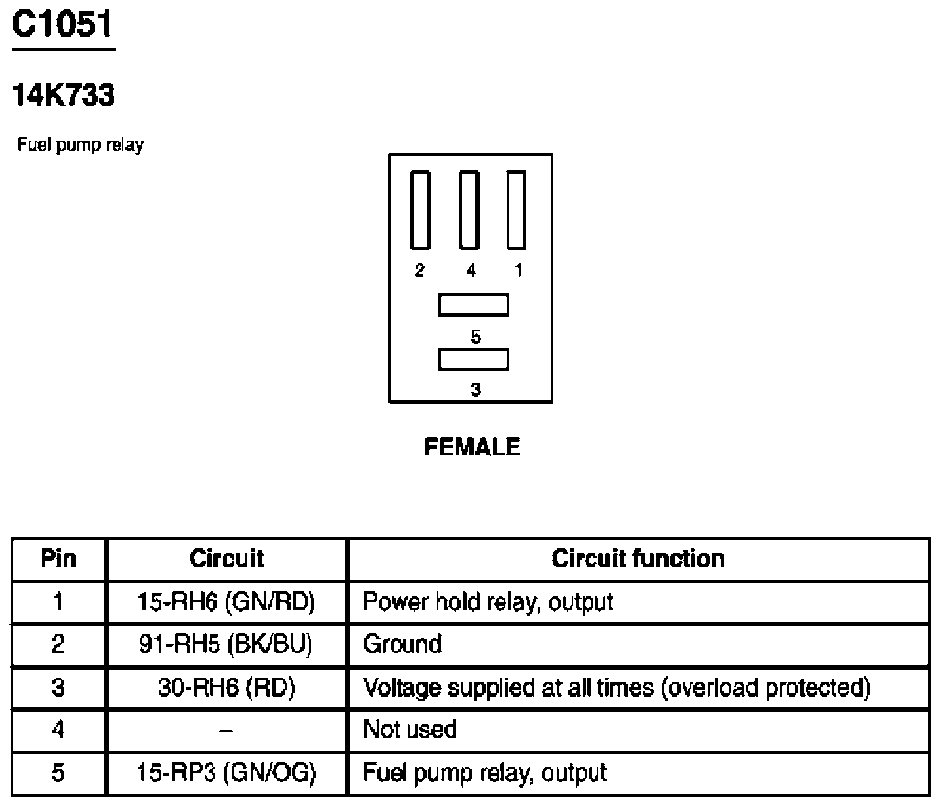

Fig 177: Fuel Pump Relay Connector End View (C1051)

G07846876

Courtesy of FORD MOTOR CO.

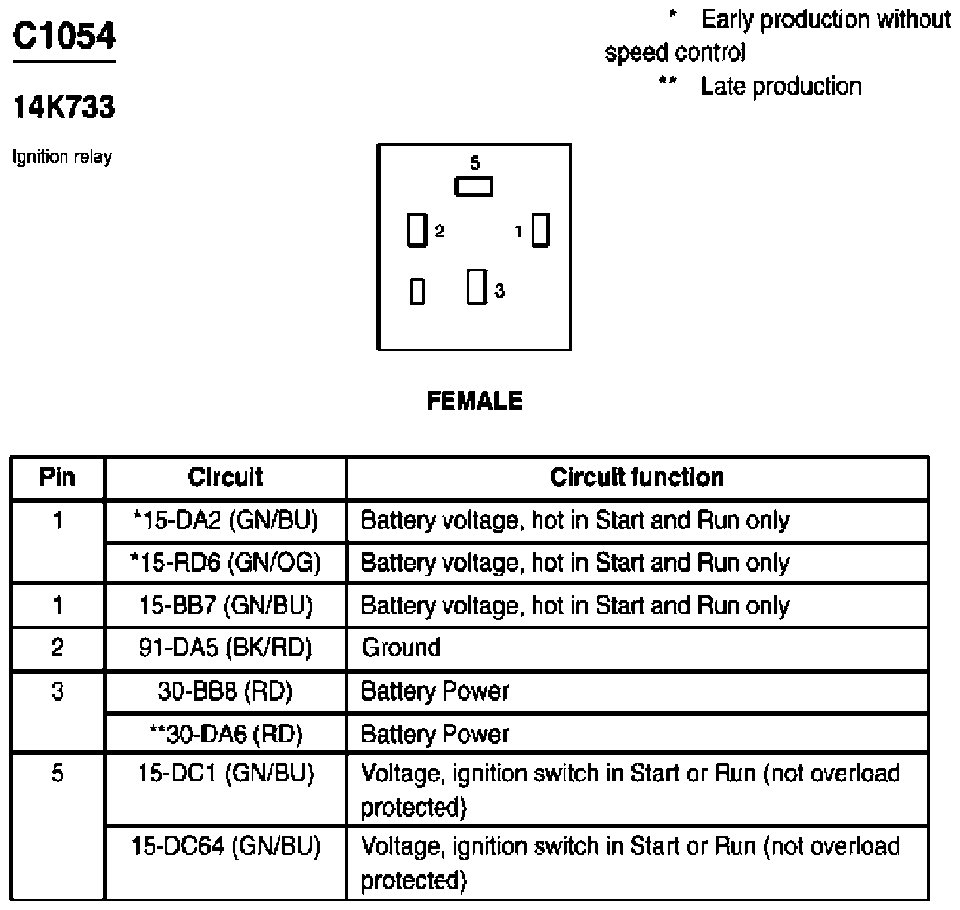

Fig 178: Ignition Relay Connector End View (C1054)

G07846877

Courtesy of FORD MOTOR CO.

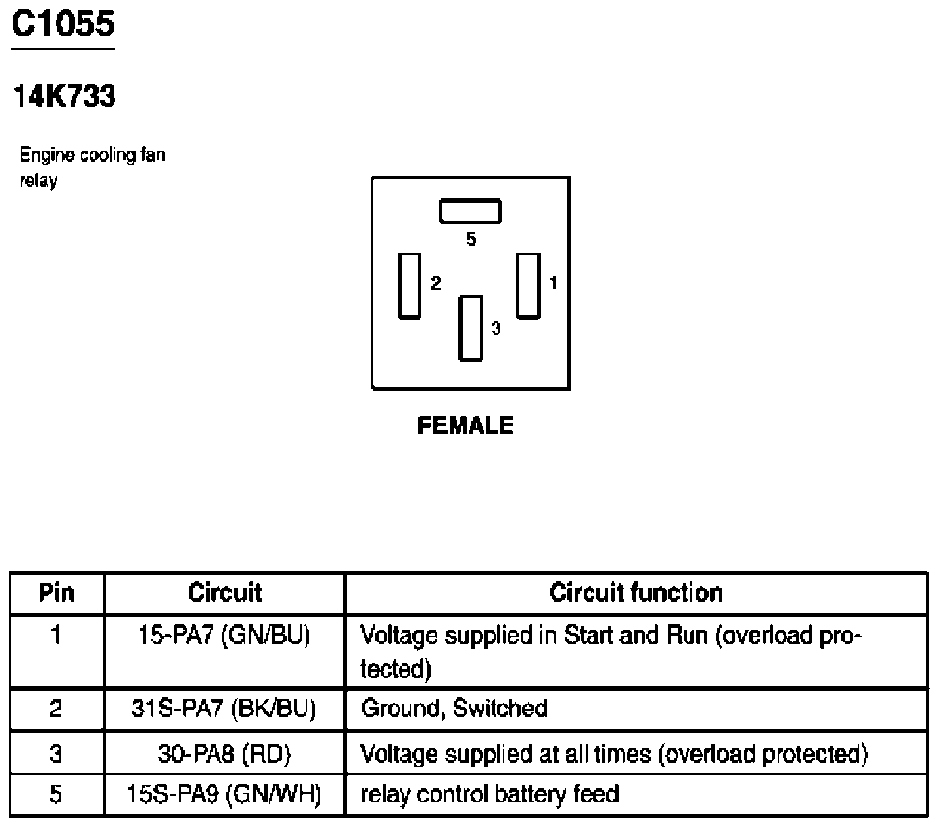

Fig 179: Engine Cooling Fan Relay Connector End View (C1055)

G07846878

Courtesy of FORD MOTOR CO.

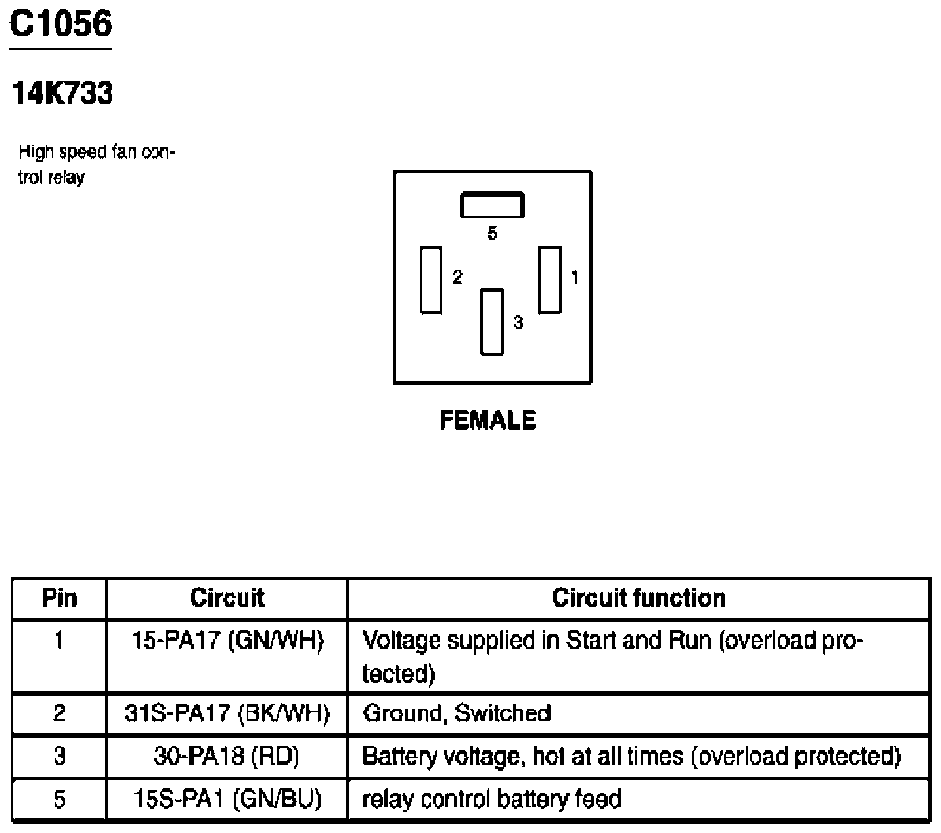

Fig 180: High Speed Fan Control Relay Connector End View (C1056)

G07846879

Courtesy of FORD MOTOR CO.

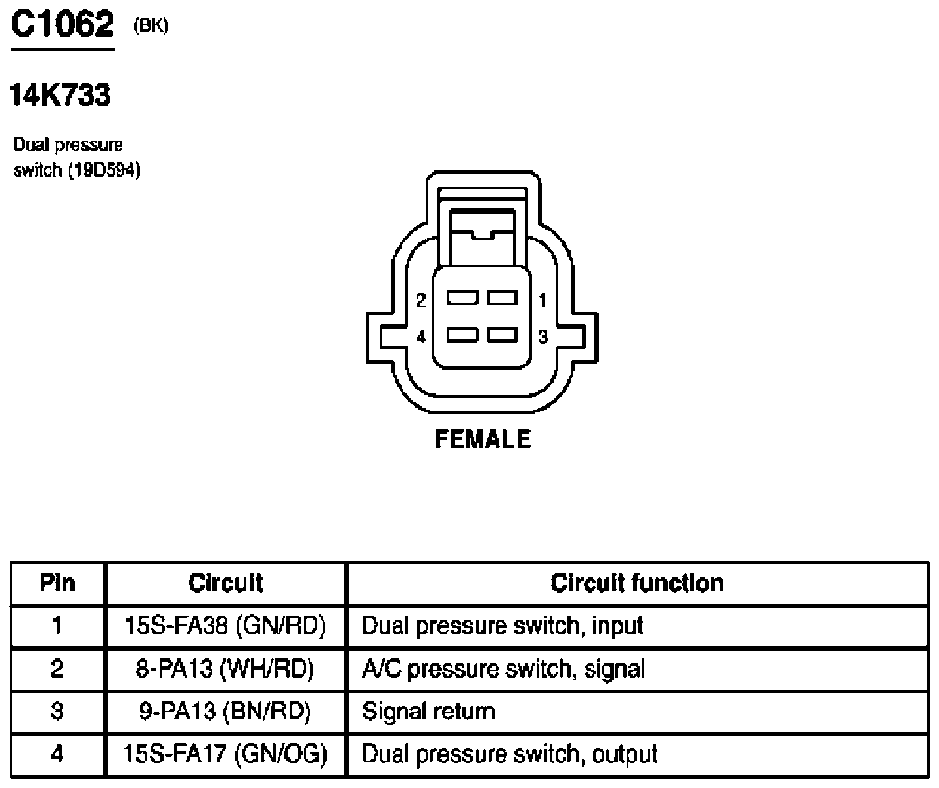

Fig 181: Dual Pressure Switch Connector End View (C1062)

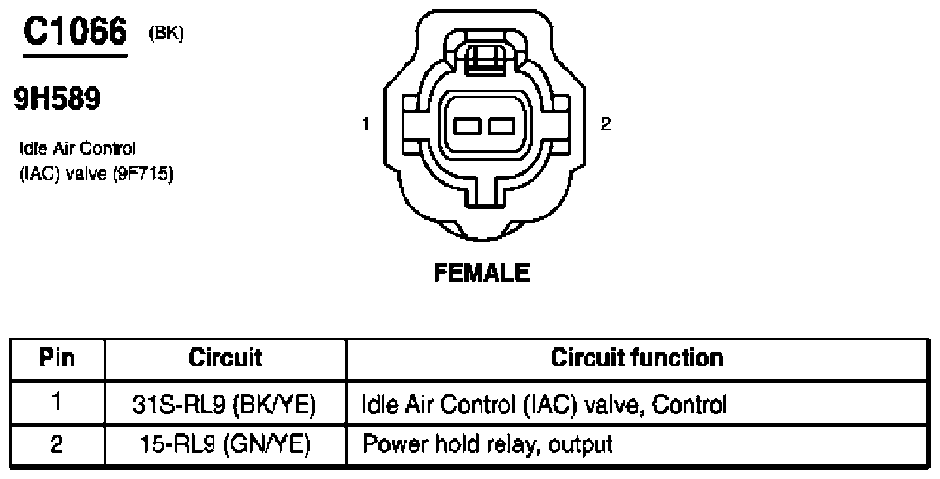

G07846880

Courtesy of FORD MOTOR CO.

Fig 182: Idle Air Control (IAC) Valve Connector End View (C1066)

G07846881

Courtesy of FORD MOTOR CO.

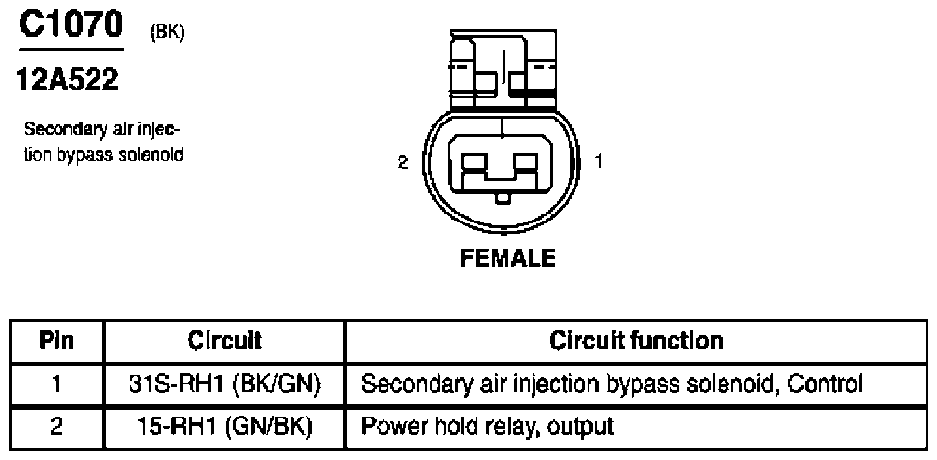

Fig 183: Secondary Air Injection Bypass Solenoid Connector End View (C1070)

G07846882

Courtesy of FORD MOTOR CO.

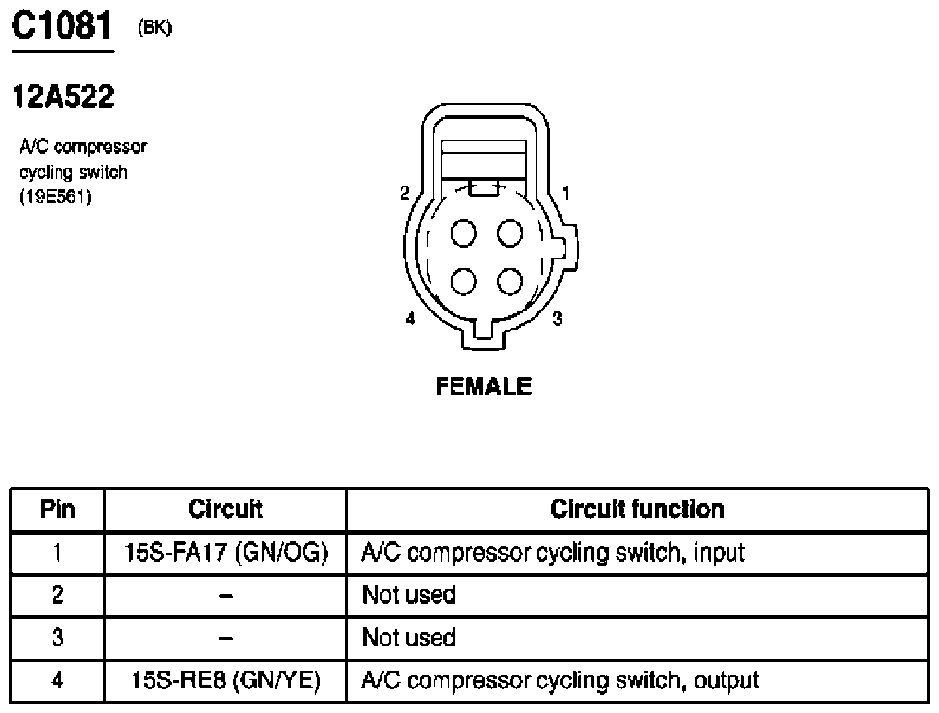

Fig 184: A/C Compressor Cycling Switch Connector End View (C1081)

G07846883

Courtesy of FORD MOTOR CO.

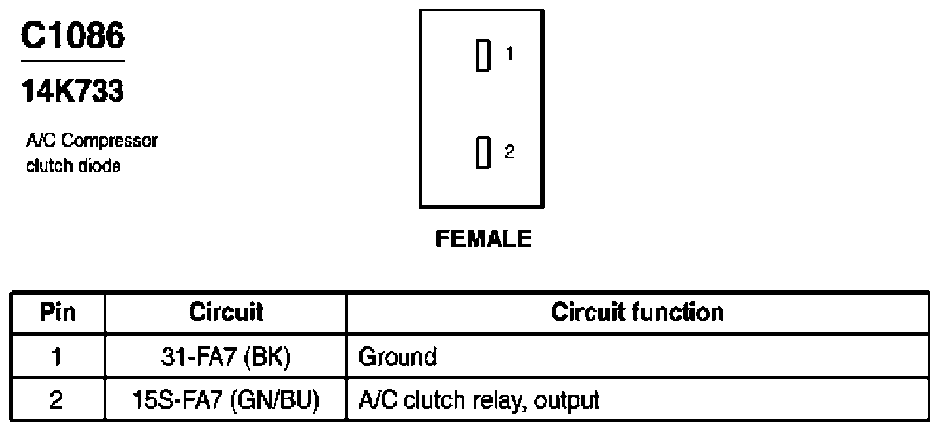

Fig 185: A/C Compressor Clutch Diode Connector End View (C1086)

G07846884

Courtesy of FORD MOTOR CO.

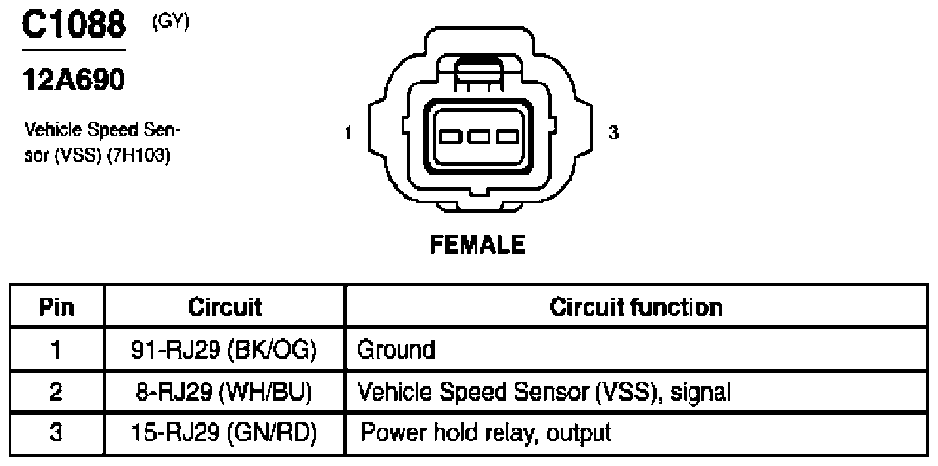

Fig 186: Vehicle Speed Sensor (VSS) Connector End View (C1088)

G07846885

Courtesy of FORD MOTOR CO.

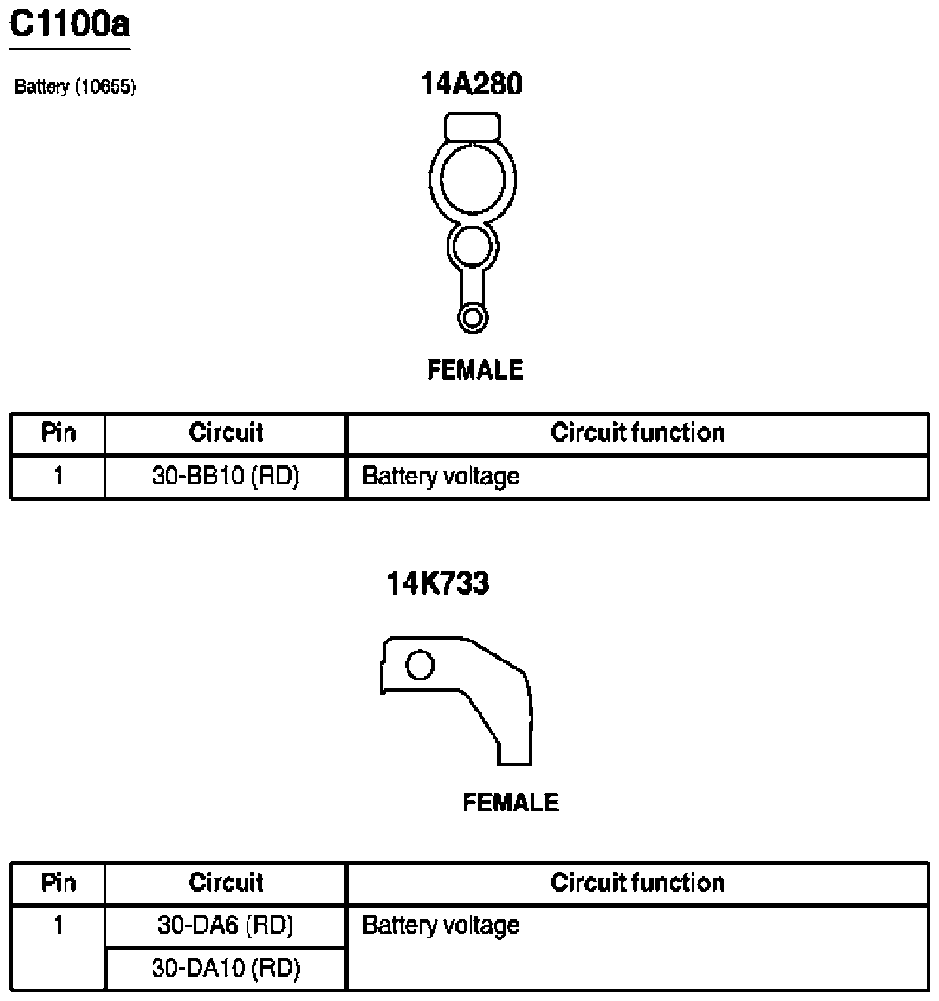

Fig 187: Battery Connector End View (C1100a)

G07846886

Courtesy of FORD MOTOR CO.

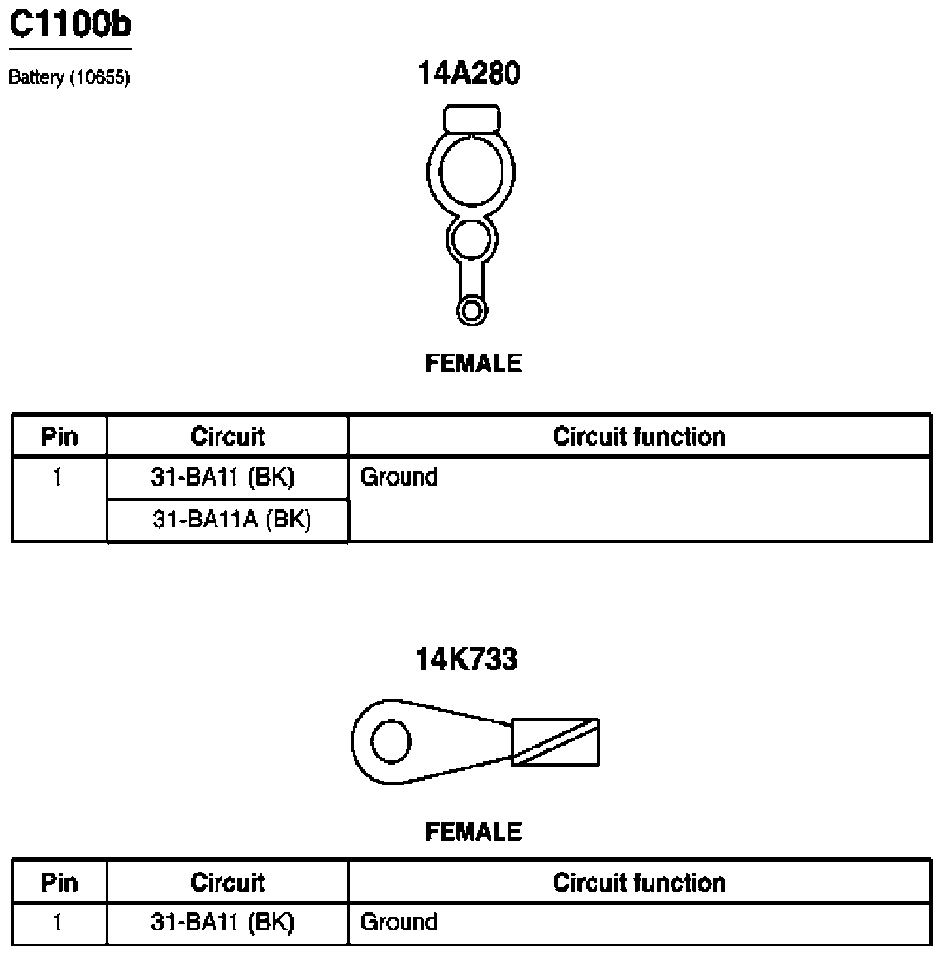

Fig 188: Battery Connector End View (C1100b)

G07846887

Courtesy of FORD MOTOR CO.

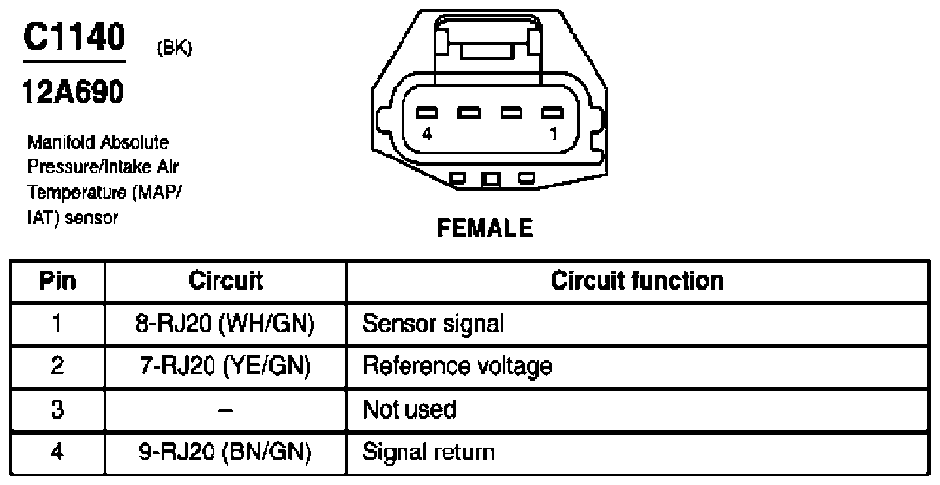

Fig 189: Manifold Absolute Pressure/Intake Air Temperature (MAP/IAT) Sensor Connector End View (C1140)

G07846888

Courtesy of FORD MOTOR CO.

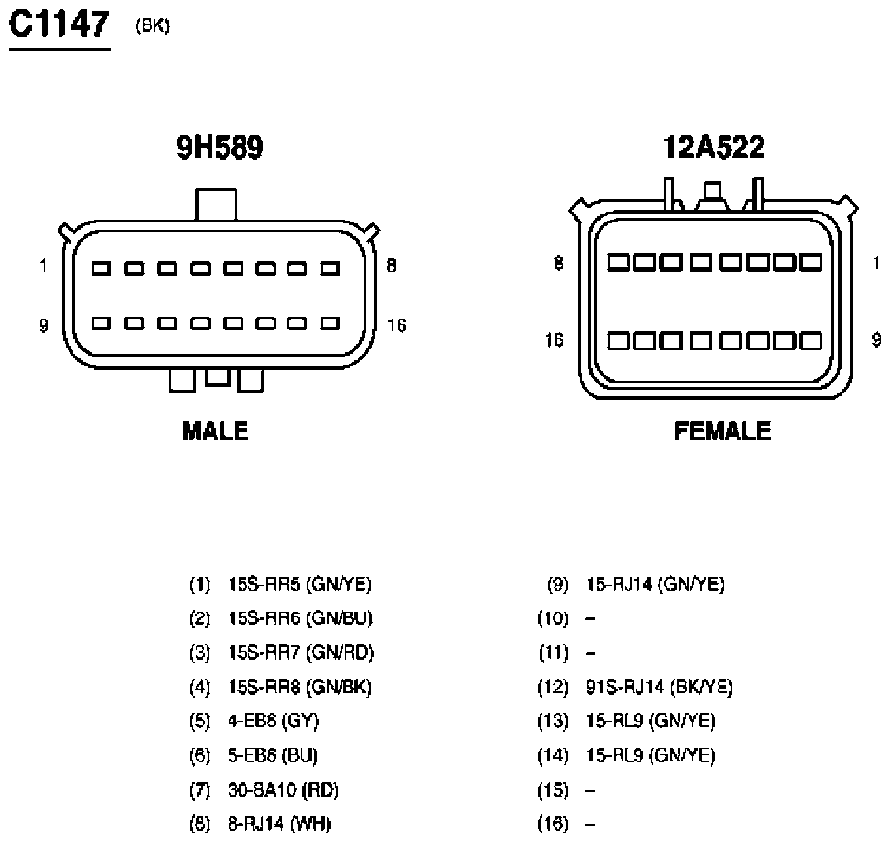

Fig 190: Inline Connector End View (C1147)

G07846889

Courtesy of FORD MOTOR CO.

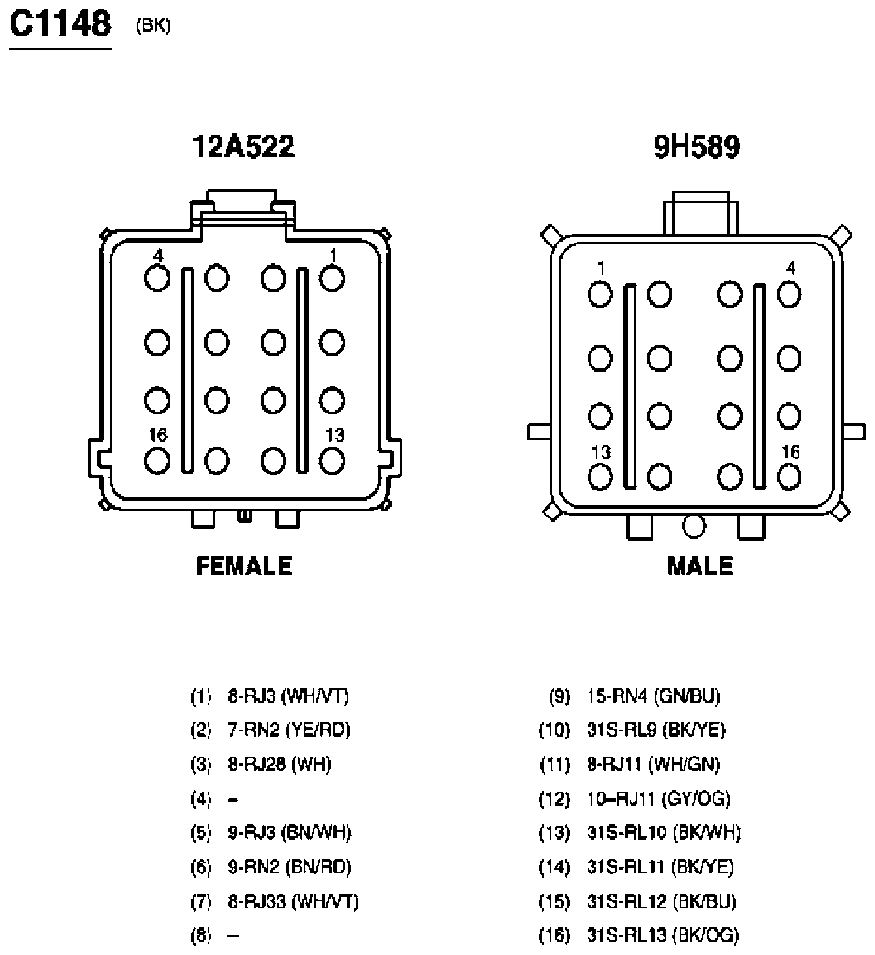

Fig 191: Inline Connector End View (C1148)

G07846890

Courtesy of FORD MOTOR CO.

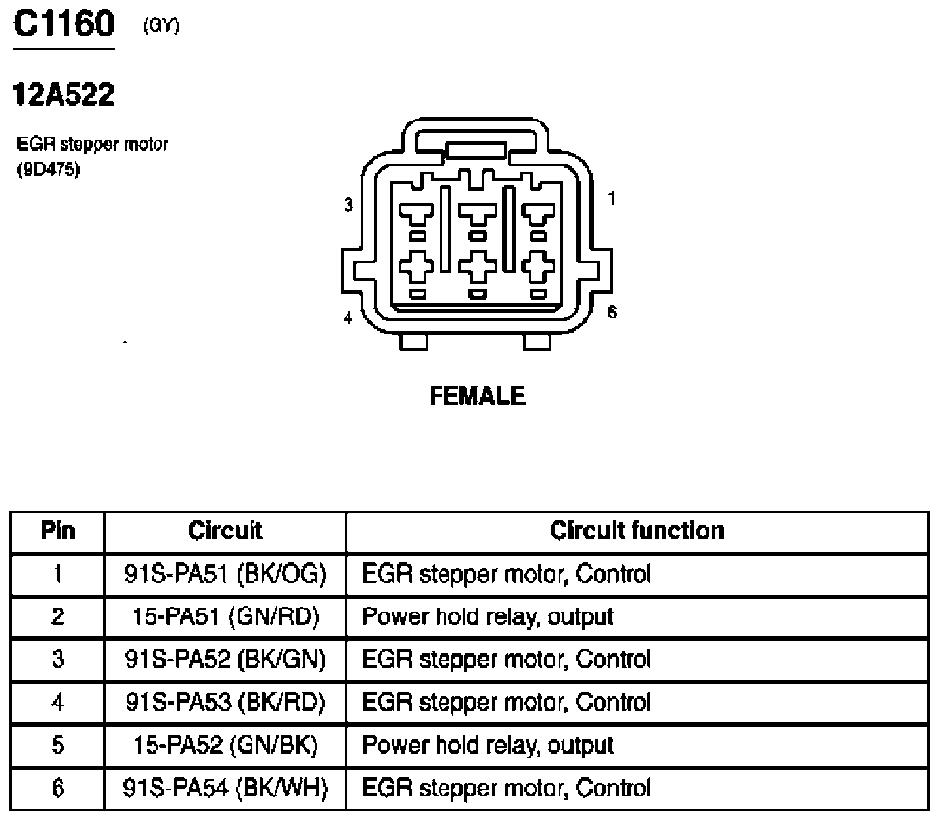

Fig 192: EGR Stepper Motor Connector End View (C1160)

G07846891

Courtesy of FORD MOTOR CO.

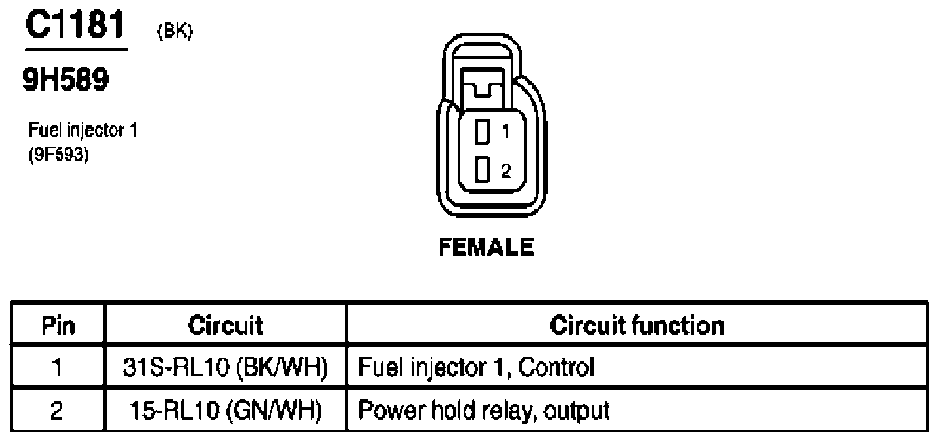

Fig 193: Fuel Injector 1 Connector End View (C1181)

G07846892

Courtesy of FORD MOTOR CO.

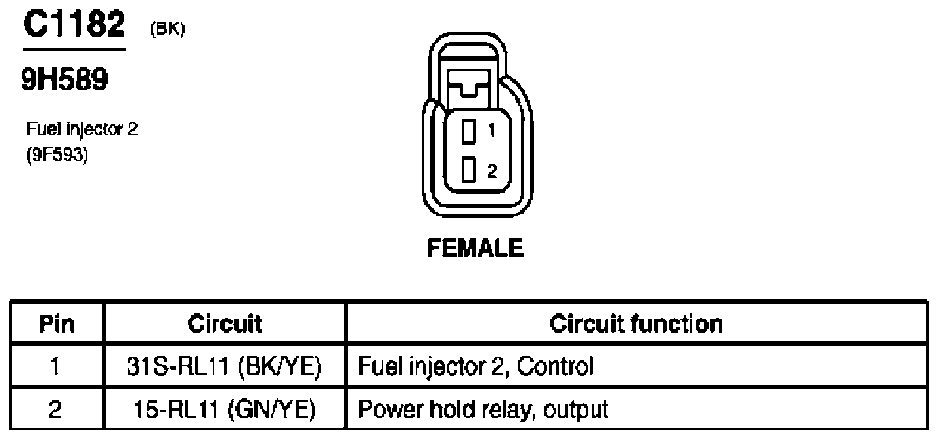

Fig 194: Fuel Injector 2 Connector End View (C1182)

G07846893

Courtesy of FORD MOTOR CO.

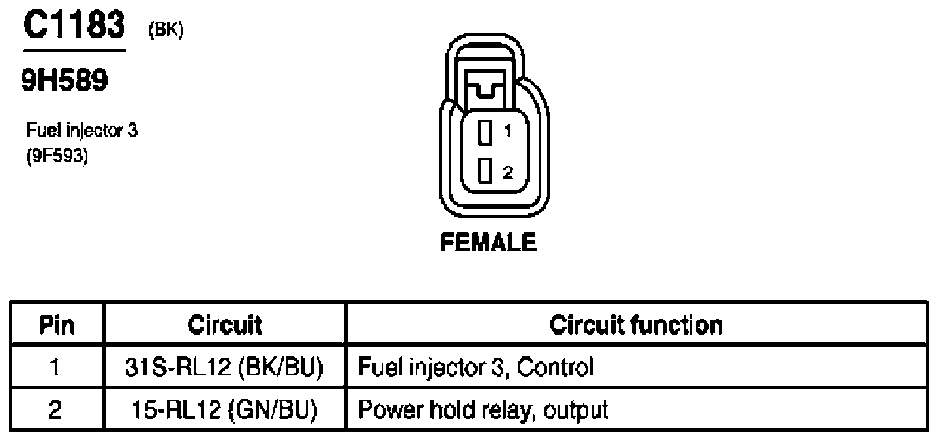

Fig 195: Fuel Injector 3 Connector End View (C1183)

G07846894

Courtesy of FORD MOTOR CO.

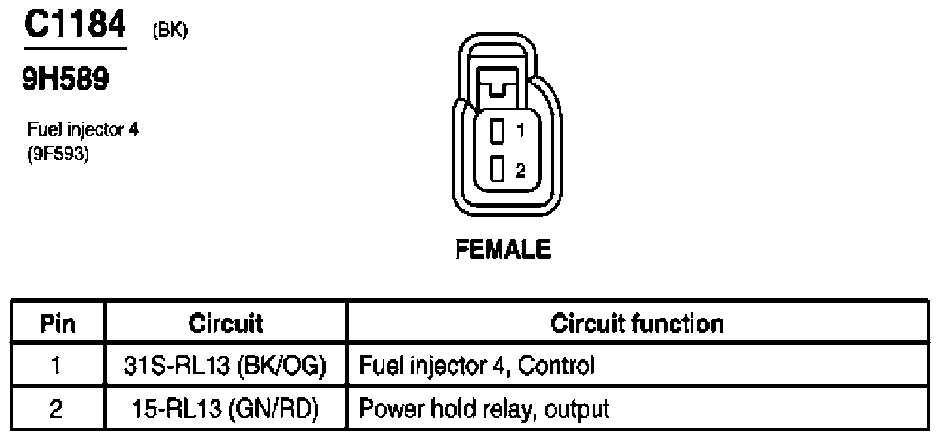

Fig 196: Fuel Injector 4 Connector End View (C1184)

G07846895

Courtesy of FORD MOTOR CO.

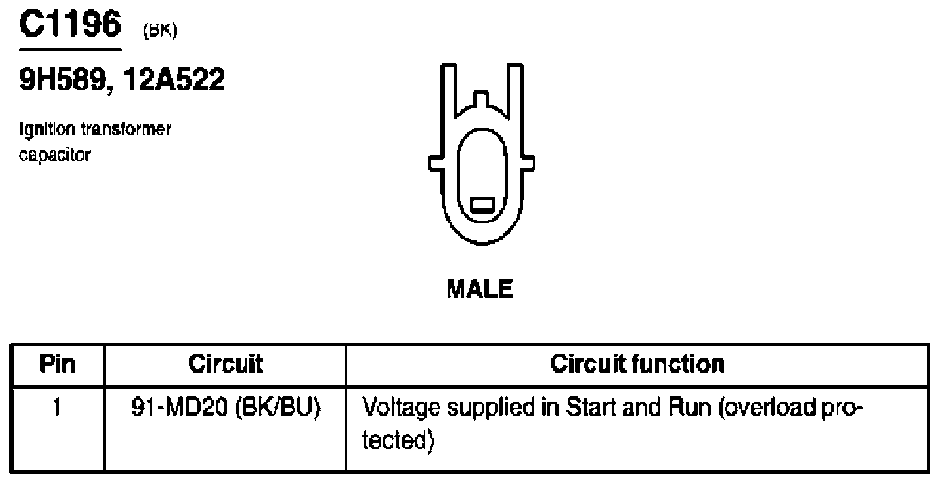

Fig 197: Ignition Transformer Capacitor Connector End View (C1196)

G07846896

Courtesy of FORD MOTOR CO.

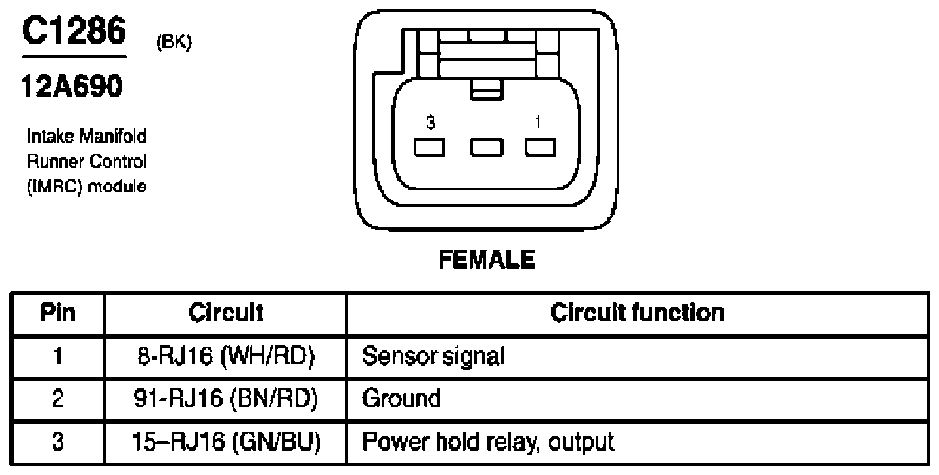

Fig 198: Intake Manifold Runner Control (MRC) Module Connector End View (C1286)

G07846897

Courtesy of FORD MOTOR CO.

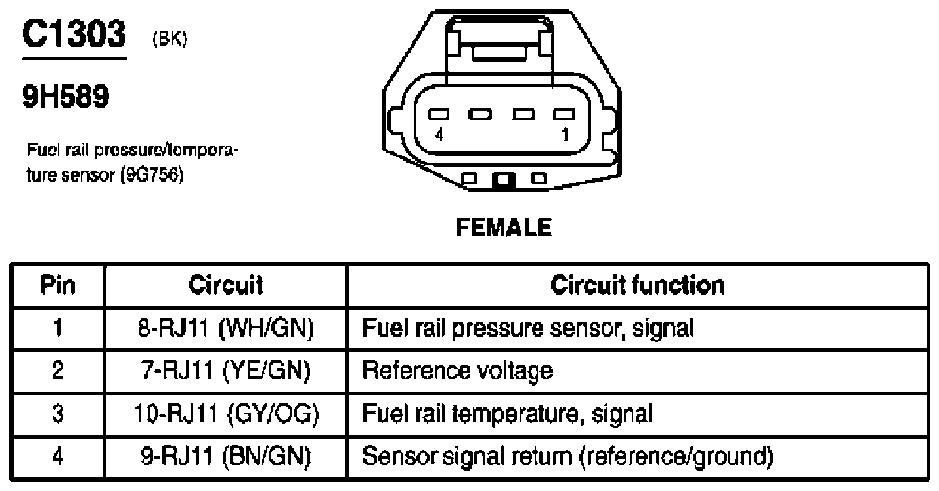

Fig 199: Fuel Rail Pressure/Temperature Sensor Connector End View (C1303)

G07846898

Courtesy of FORD MOTOR CO.

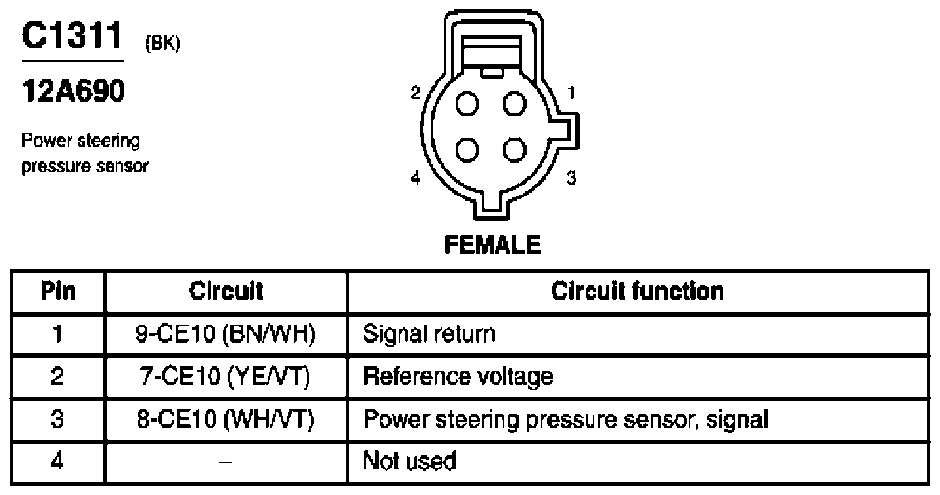

Fig 200: Power Steering Pressure Sensor Connector End View (C1311)

G07846899

Courtesy of FORD MOTOR CO.

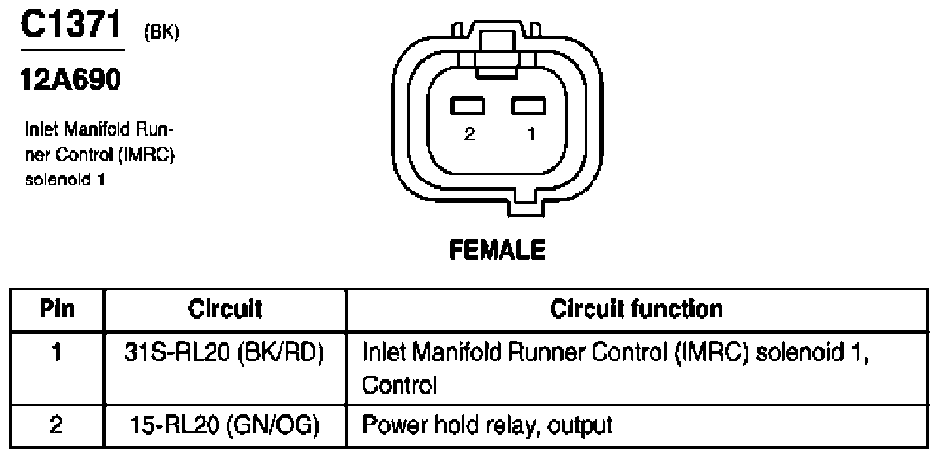

Fig 201: Inlet Manifold Runner Control (IMRC) Solenoid 1 Connector End View (C1371)

G07846900

Courtesy of FORD MOTOR CO.

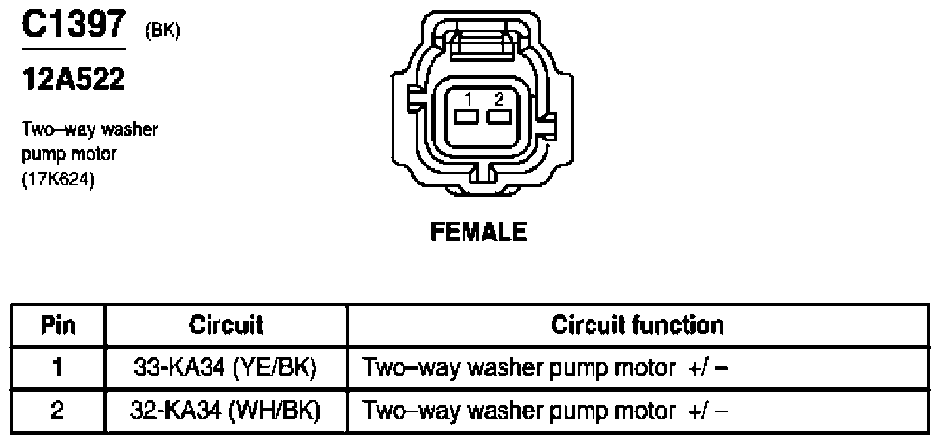

Fig 202: Two-Way Washer Pump Motor Connector End View (C1397)

G07846901

Courtesy of FORD MOTOR CO.

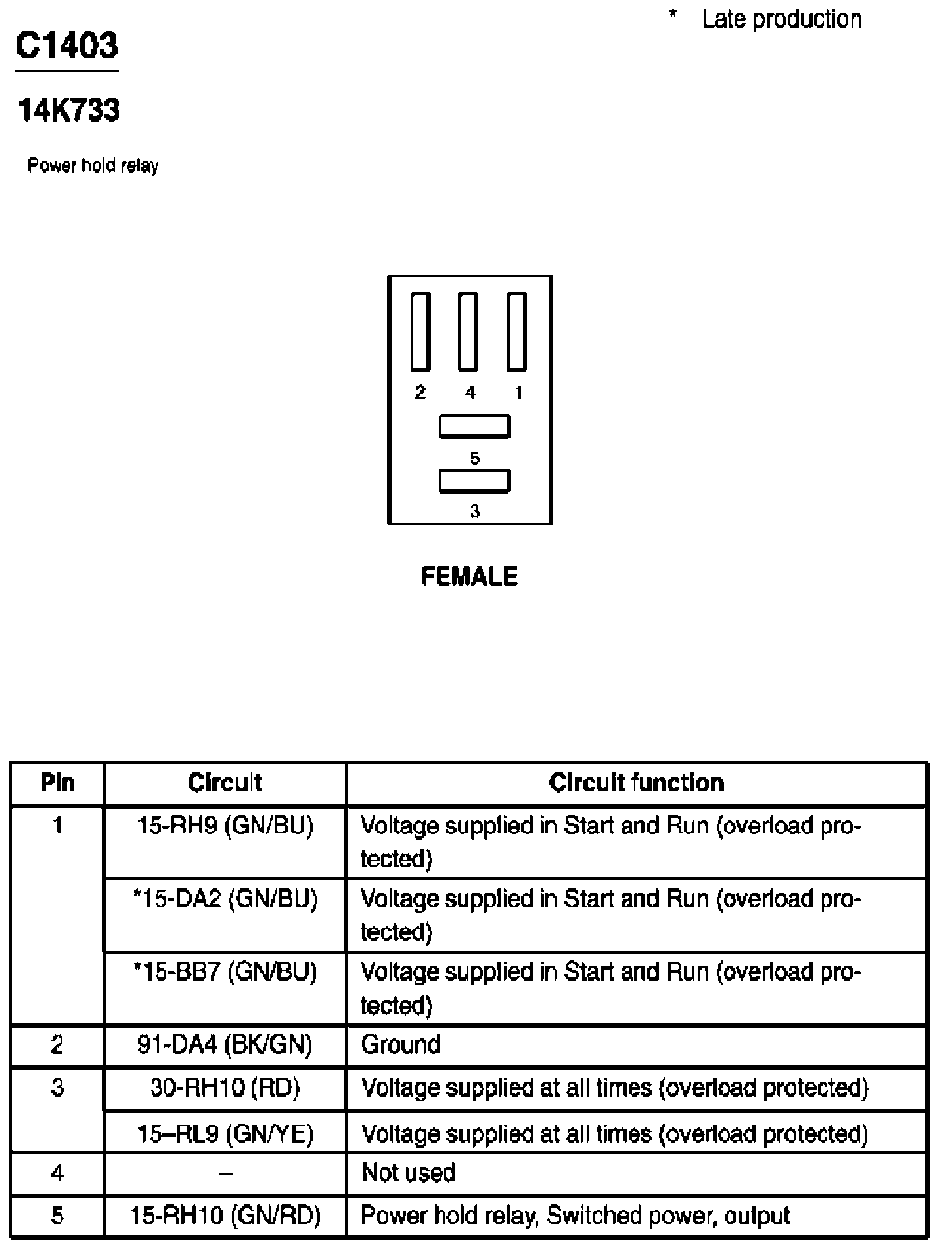

Fig 203: Power Hold Relay Connector End View (C1403)

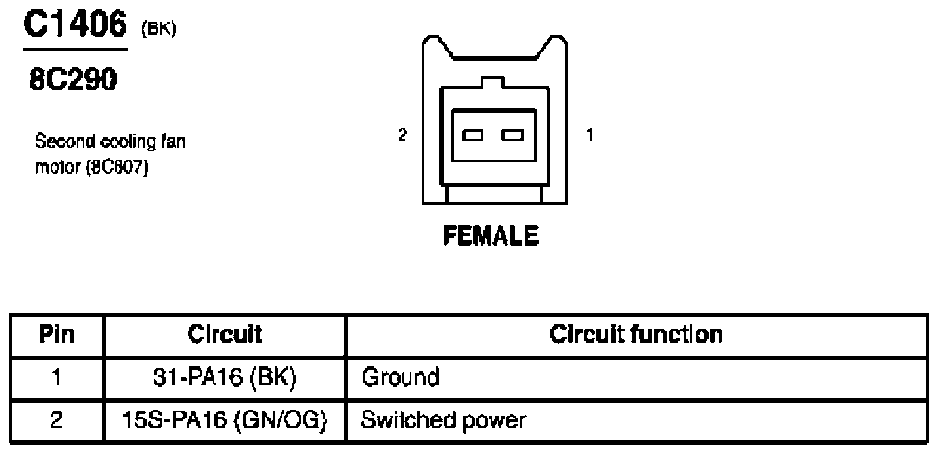

G07846902

Courtesy of FORD MOTOR CO.

Fig 204: Second Cooling Fan Motor Connector End View (C1406)

G07846903

Courtesy of FORD MOTOR CO.

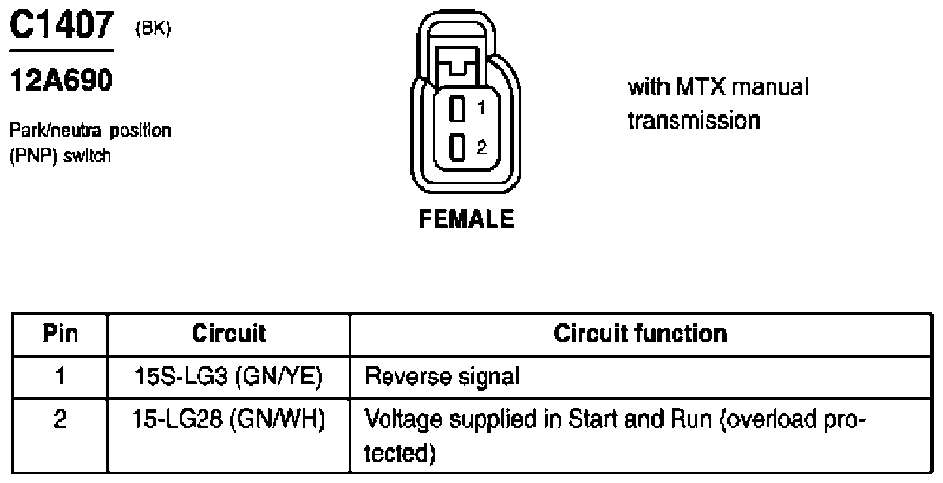

Fig 205: Park/Neutral Position (PNP) Switch Connector End View (C1407)

G07846904

Courtesy of FORD MOTOR CO.

Fig 206: Low Speed Engine Cooling Fan Relay A Connector End View (C1409)

G07846905

Courtesy of FORD MOTOR CO.

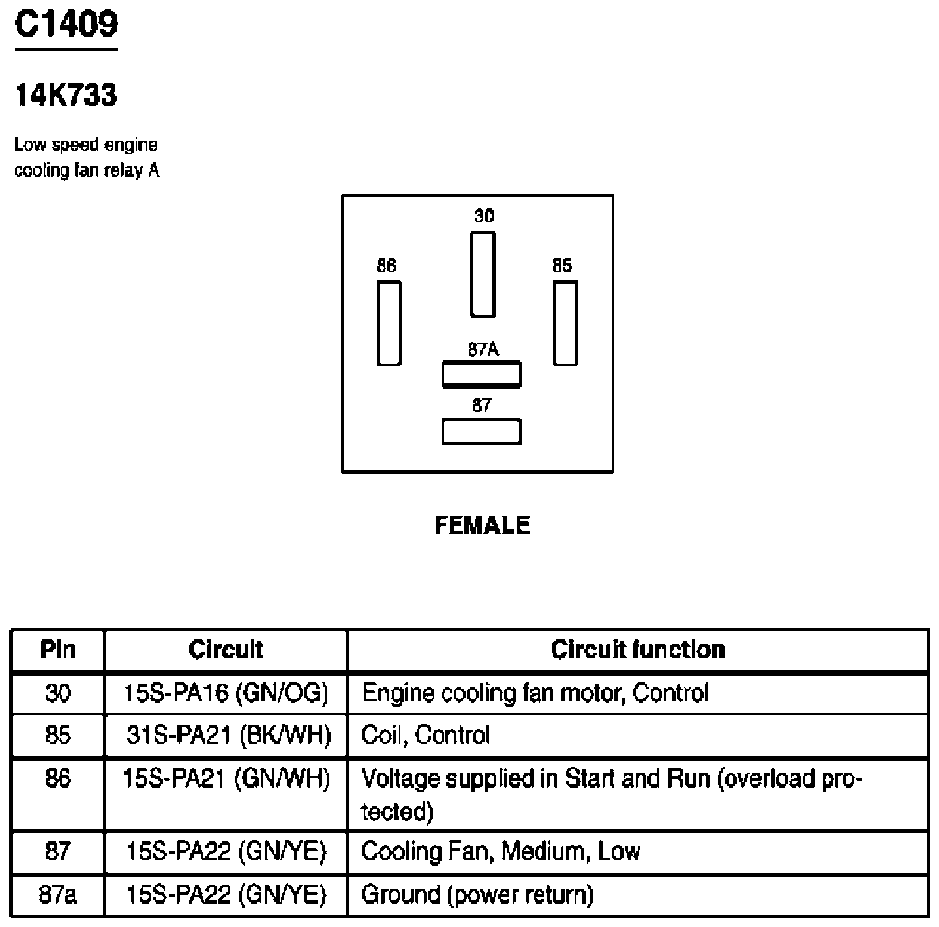

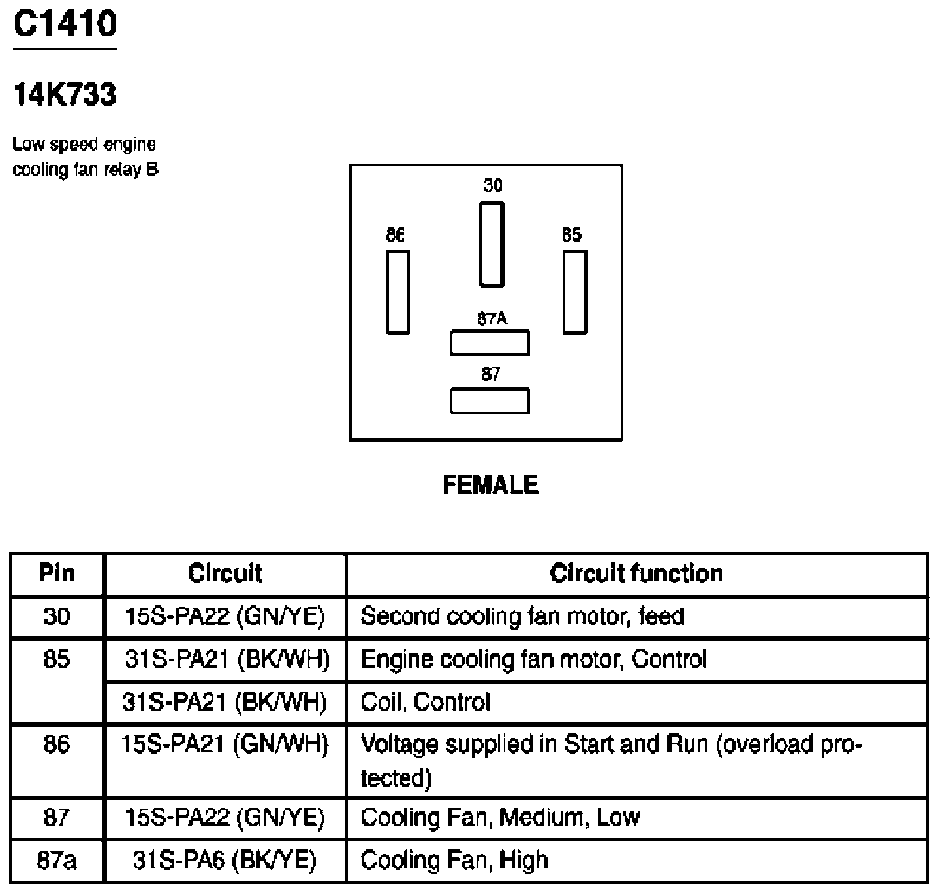

Fig 207: Low Speed Engine Cooling Fan Relay B Connector End View (C1410)

G07846906

Courtesy of FORD MOTOR CO.

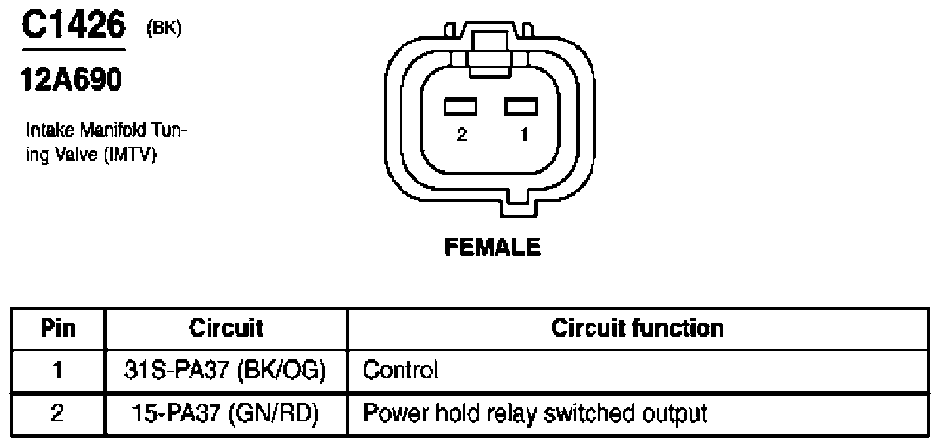

Fig 208: Intake Manifold Tuning Valve (IMTV) Connector End View (C1426)

G07846907

Courtesy of FORD MOTOR CO.

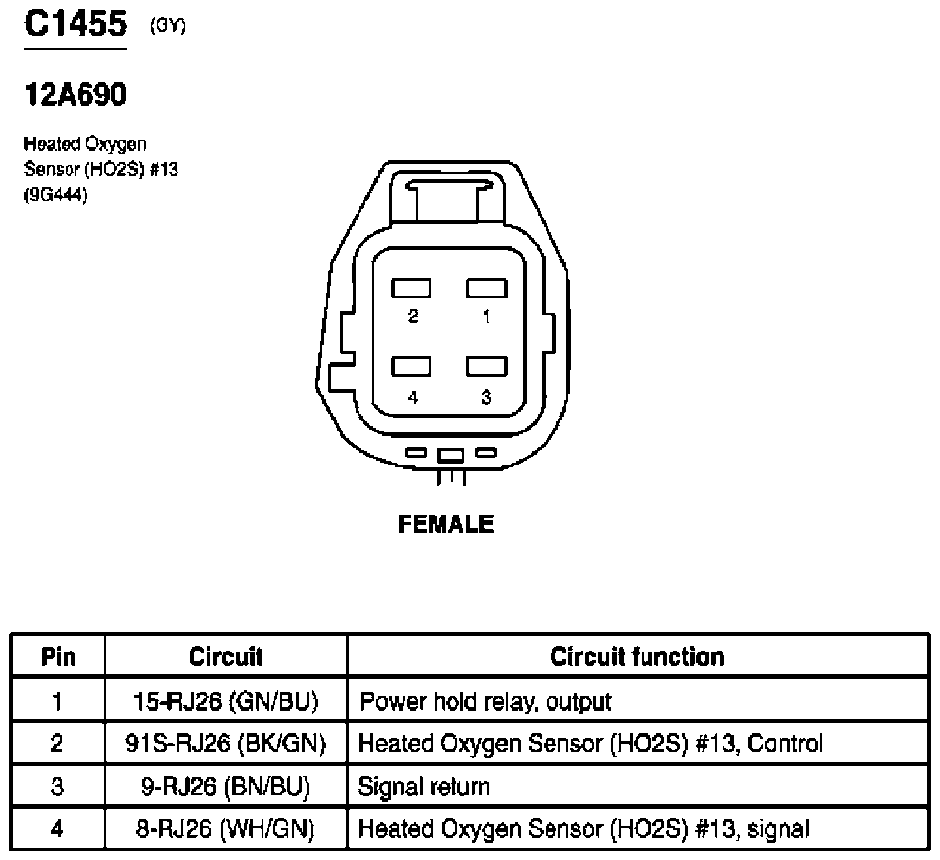

Fig 209: Heated Oxygen Sensor (HO2S) #13 Connector End View (C1455)

G07846908

Courtesy of FORD MOTOR CO.

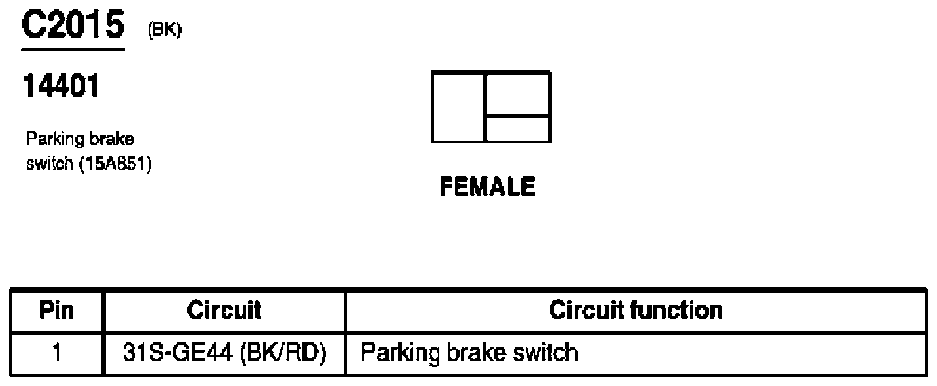

Fig 210: Parking Brake Switch Connector End View (C2015)

G07846909

Courtesy of FORD MOTOR CO.

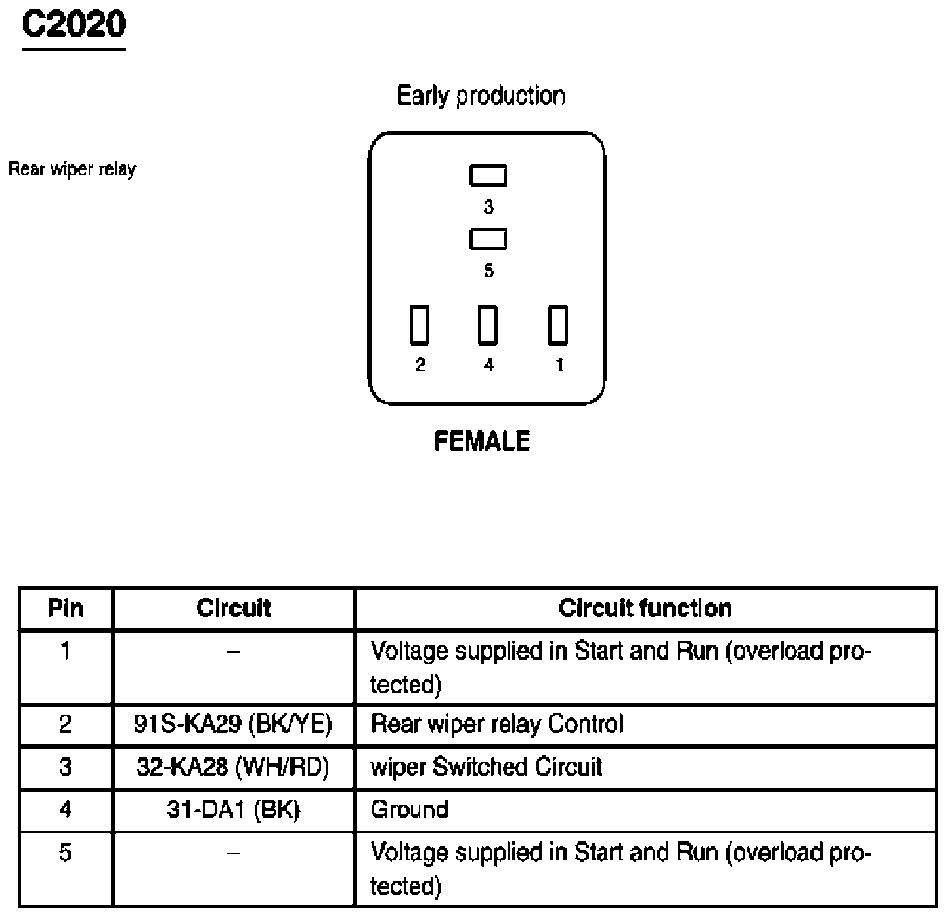

Fig 211: Rear Wiper Relay Connector End View (C2020)

G07846910

Courtesy of FORD MOTOR CO.

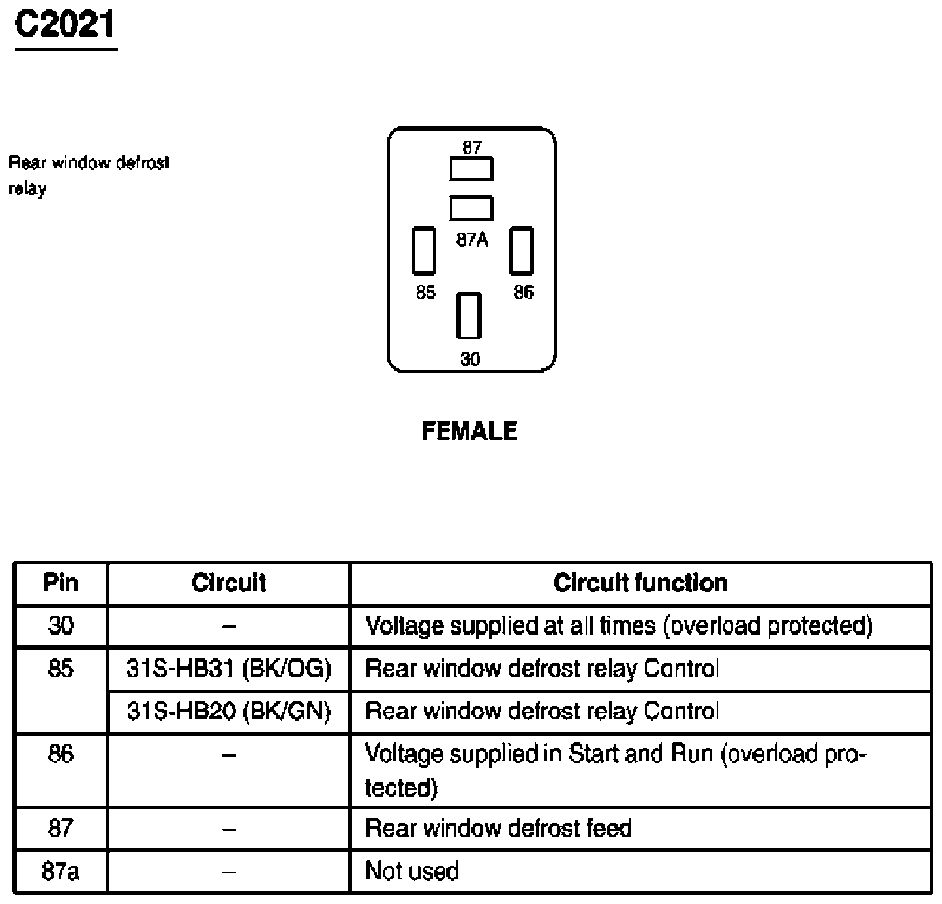

Fig 212: Rear Window Defrost Relay Connector End View (C2021)

G07846911

Courtesy of FORD MOTOR CO.

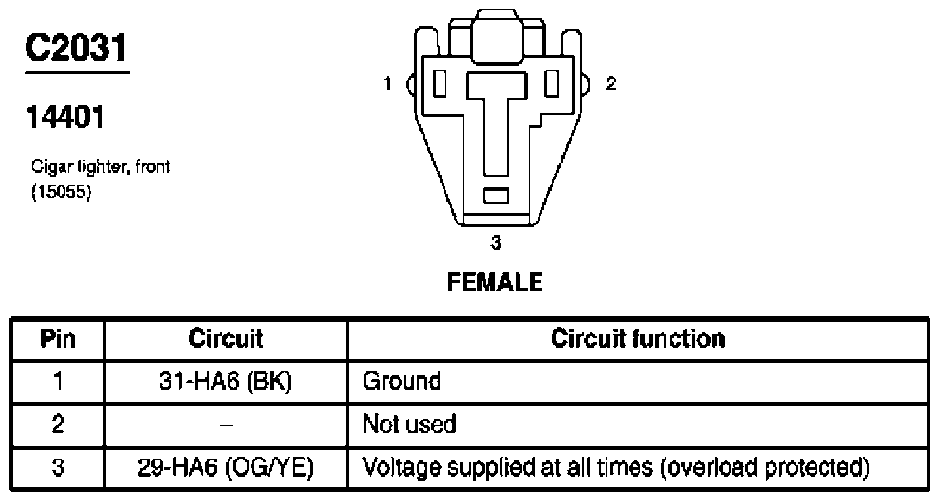

Fig 213: Cigar Lighter, Front Connector End View (C2031)

G07846912

Courtesy of FORD MOTOR CO.

Fig 214: Hazard Flasher Switch Connector End View (C2039)

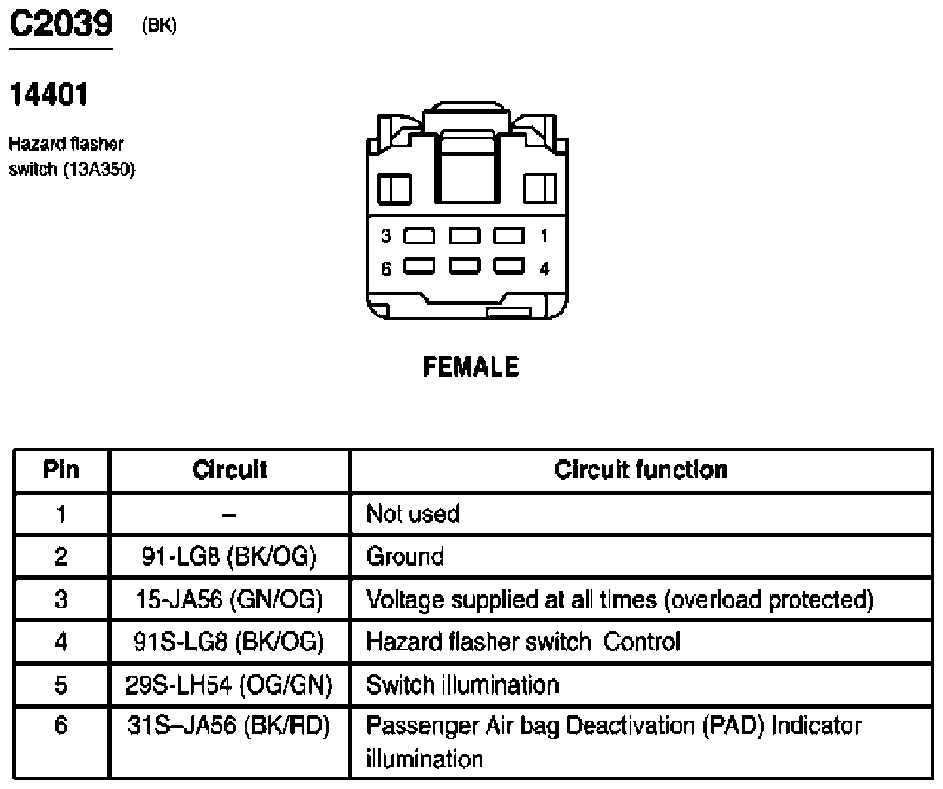

G04597197

Courtesy of FORD MOTOR CO.

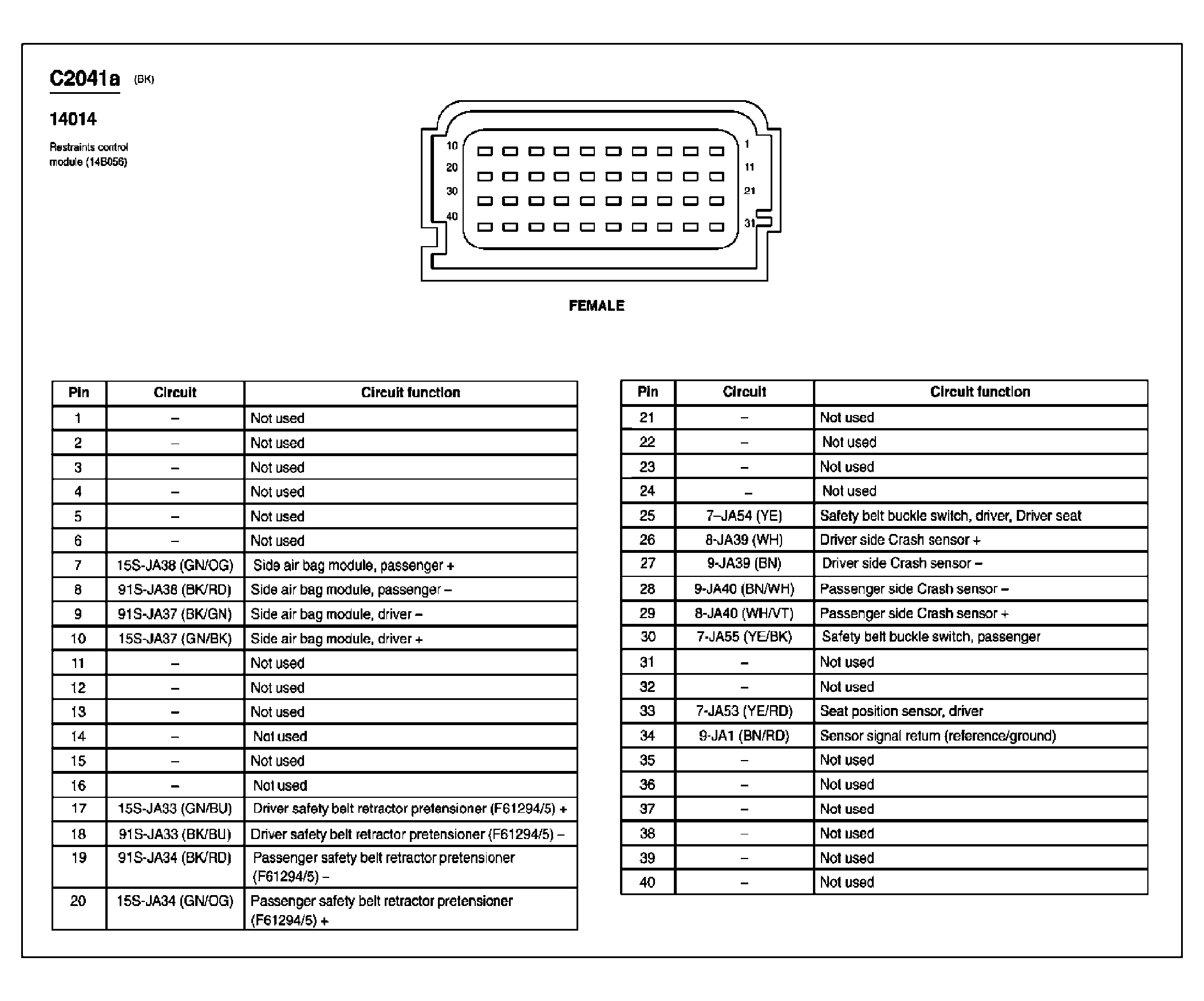

Fig 215: Restraints Control Module Connector End View (C2041a)

G04597198

Courtesy of FORD MOTOR CO.

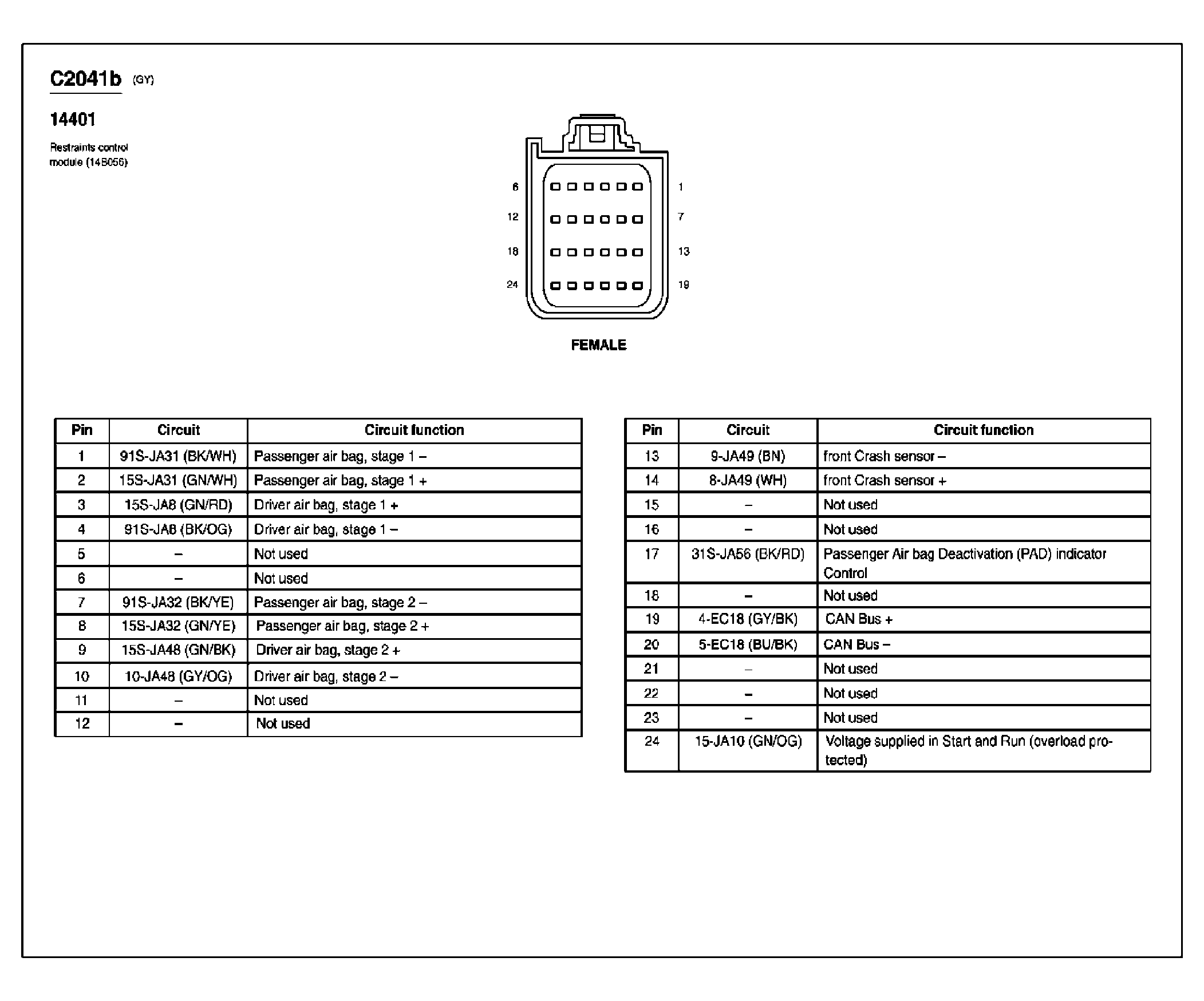

Fig 216: Restraints Control Module Connector End View (C2041b)

G04597199

Courtesy of FORD MOTOR CO.

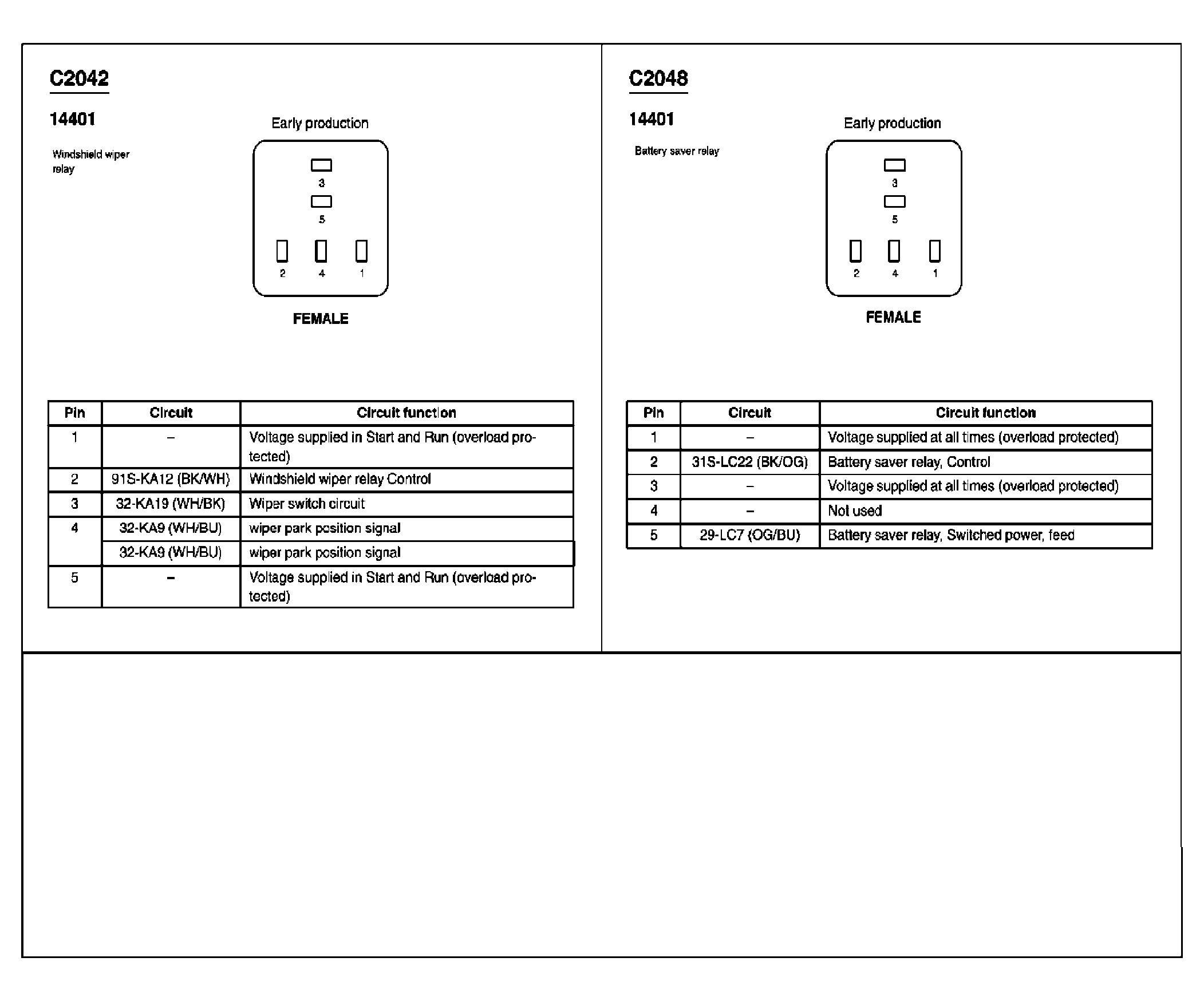

Fig 217: Windshield Wiper Relay Connector End View (C2042)

G04597200

Courtesy of FORD MOTOR CO.

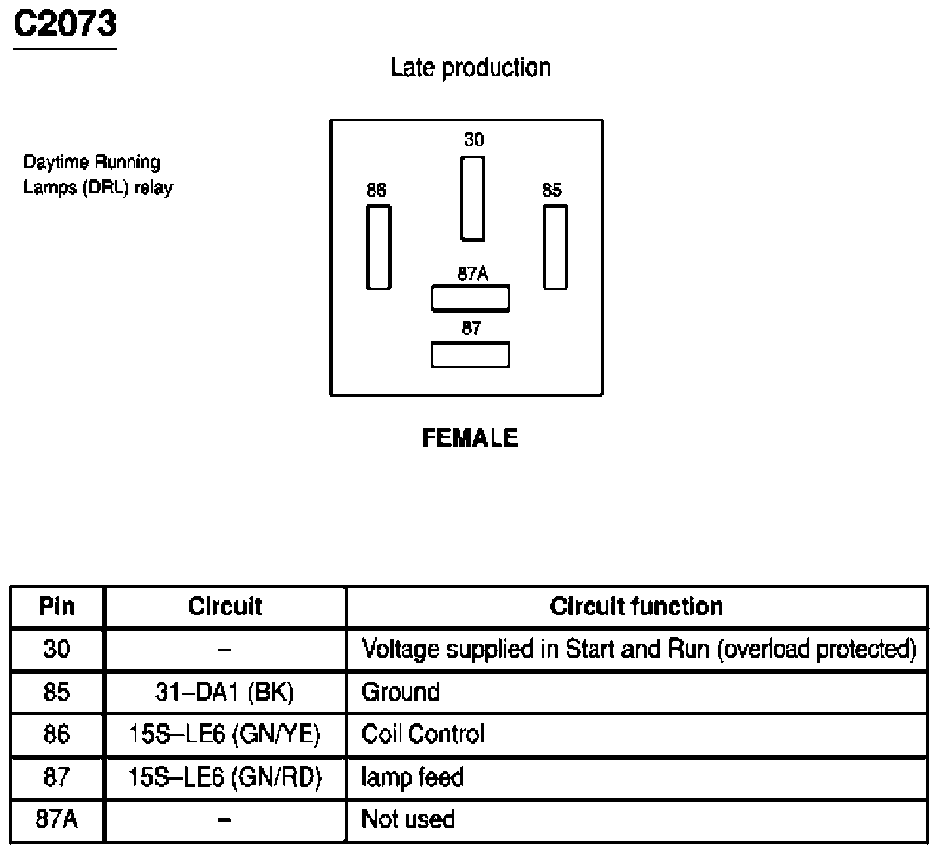

Fig 218: Daytime Running Lamps (DRL) Relay Connector End View (C2073)

G07846913

Courtesy of FORD MOTOR CO.

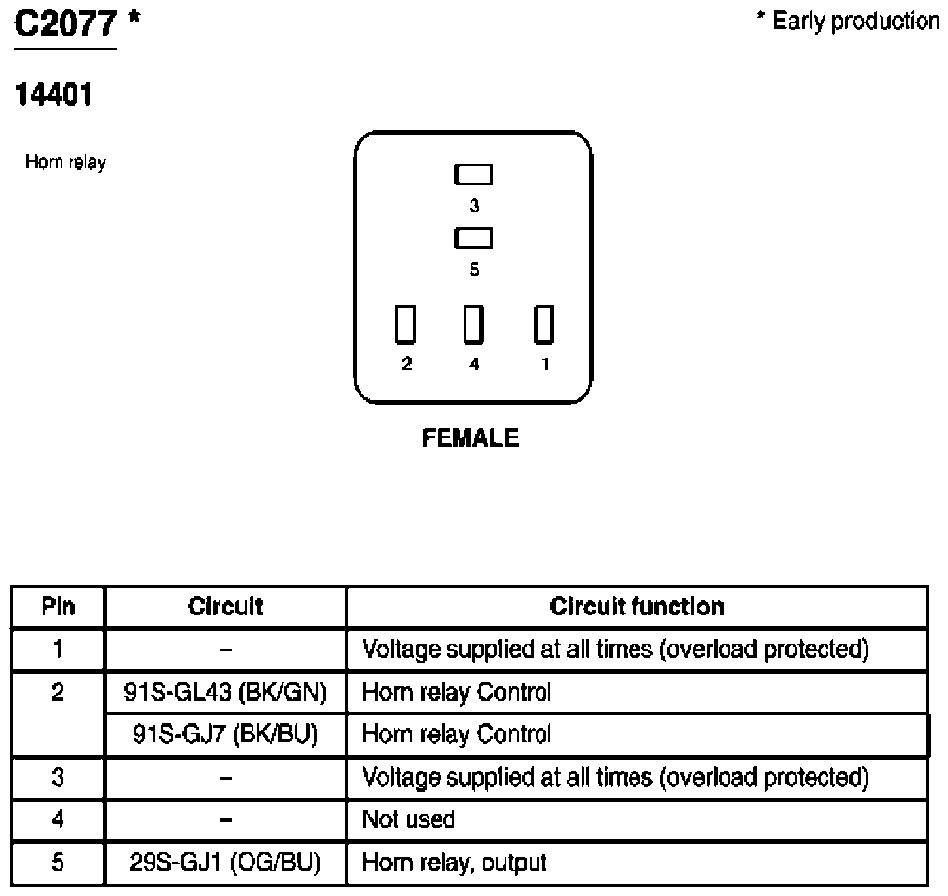

Fig 219: Horn Relay Connector End View (C2077)

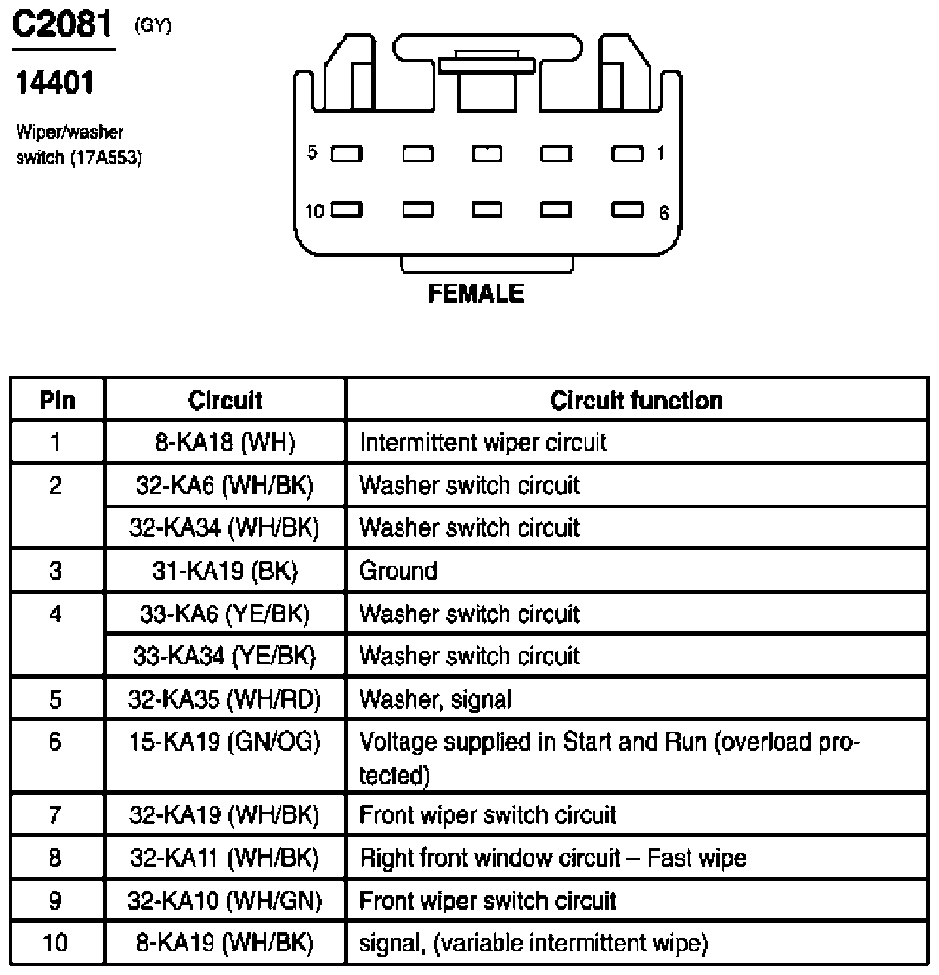

G07846914

Courtesy of FORD MOTOR CO.

Fig 220: Wiper/Washer Switch Connector End View (C2081)

G07846915

Courtesy of FORD MOTOR CO.

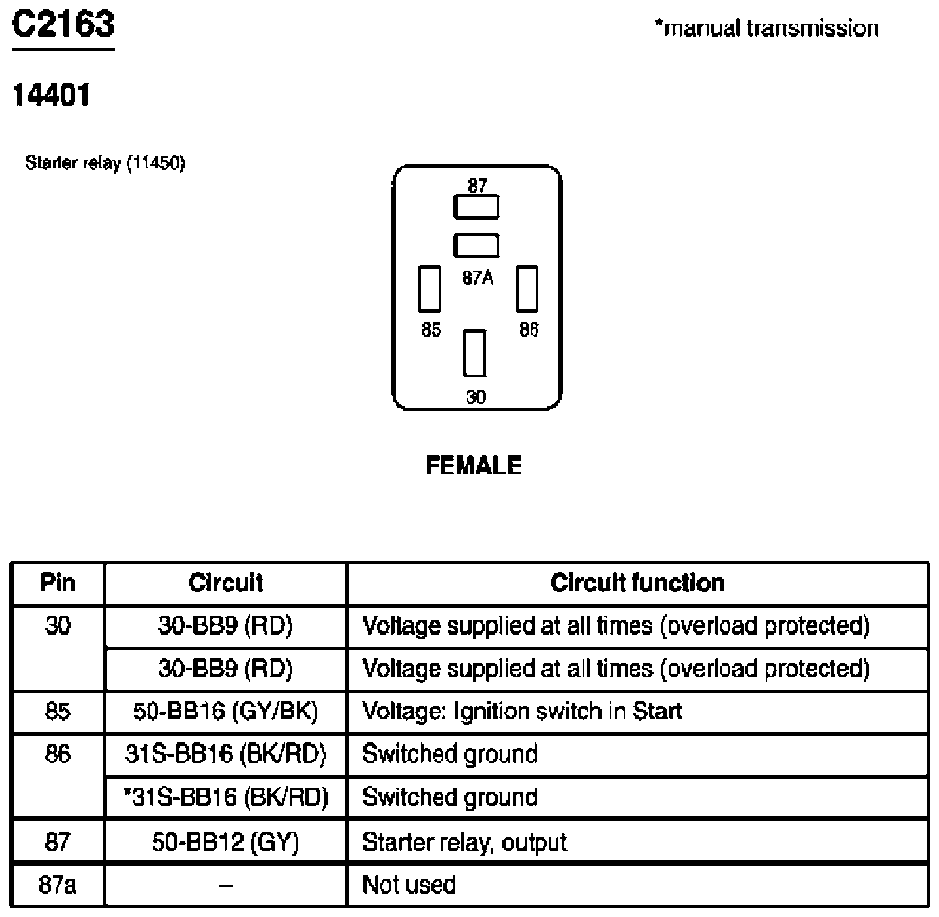

Fig 221: Starter Relay Connector End View (C2163)

G07846916

Courtesy of FORD MOTOR CO.

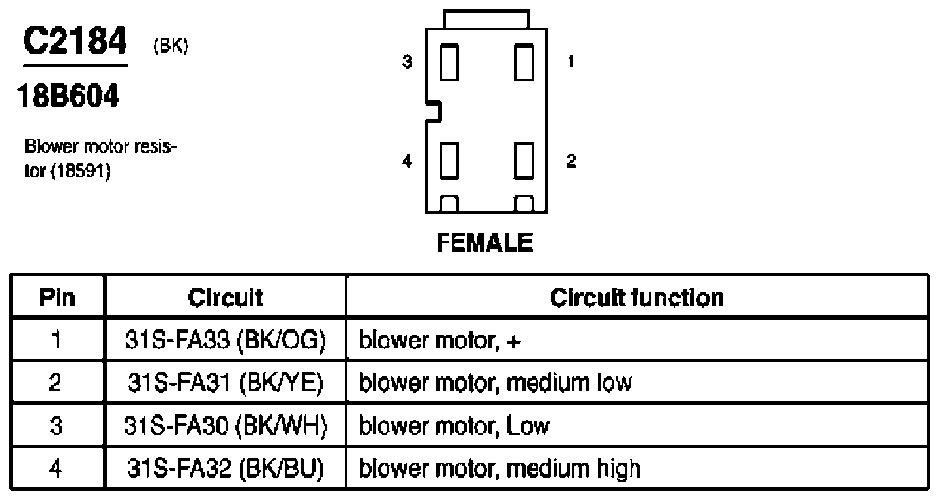

Fig 222: Blower Motor Resistor Connector End View (C2184)

G07846917

Courtesy of FORD MOTOR CO.

Fig 223: Radio Connector End View (C2188a)

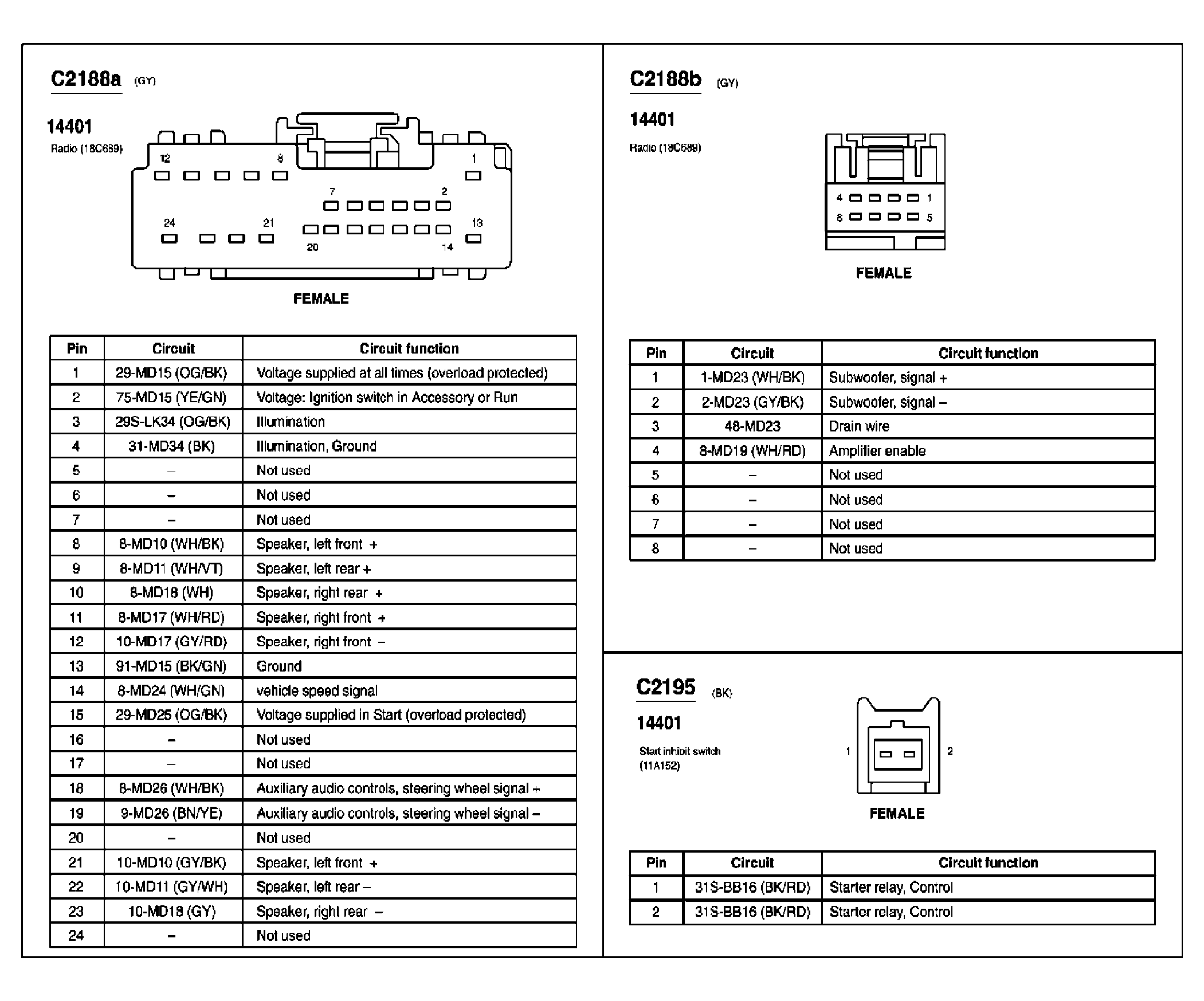

G04597203

Courtesy of FORD MOTOR CO.

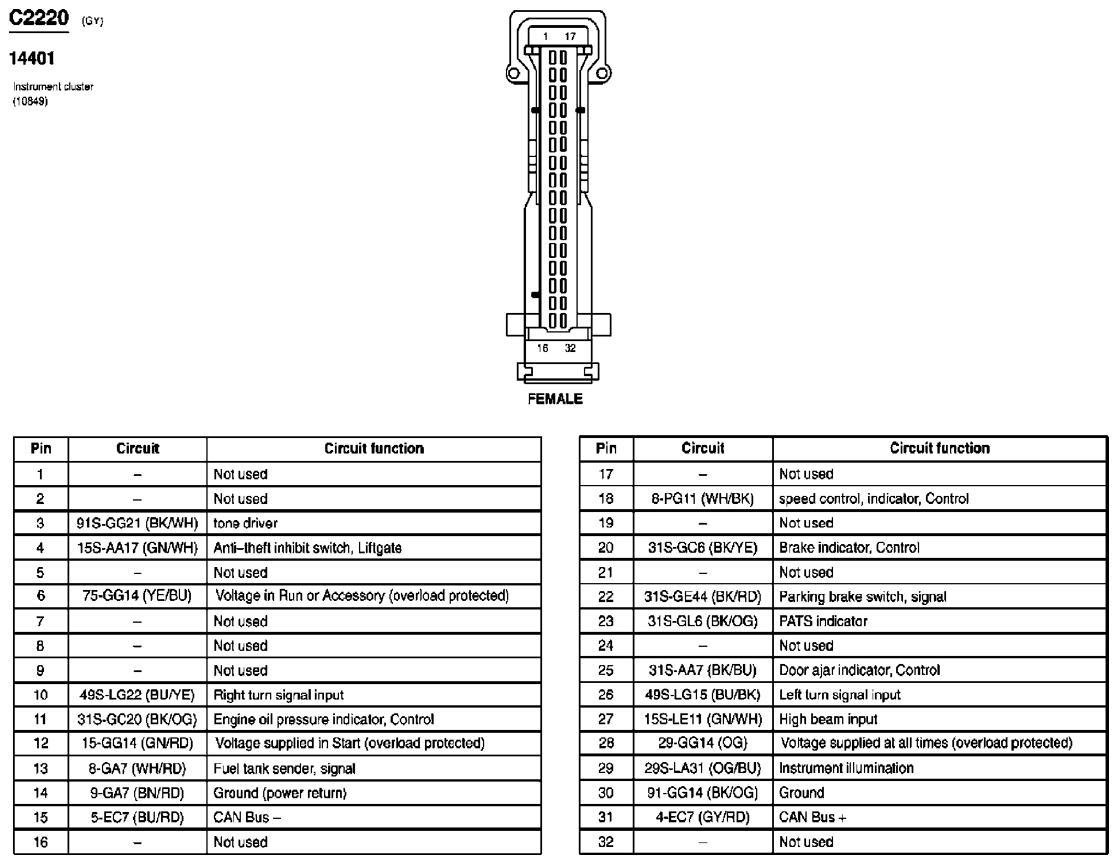

Fig 224: Instrument Cluster Connector End View (C2220)

G07846918

Courtesy of FORD MOTOR CO.

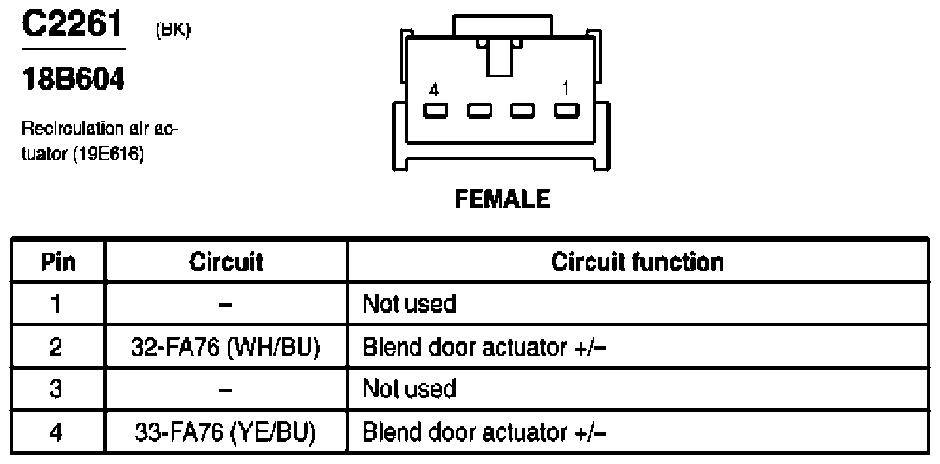

Fig 225: Recirculation Air Actuator Connector End View (C2261)

G07846919

Courtesy of FORD MOTOR CO.

Fig 226: De-icing Switch Connector End View (C2262)

G07846920

Courtesy of FORD MOTOR CO.

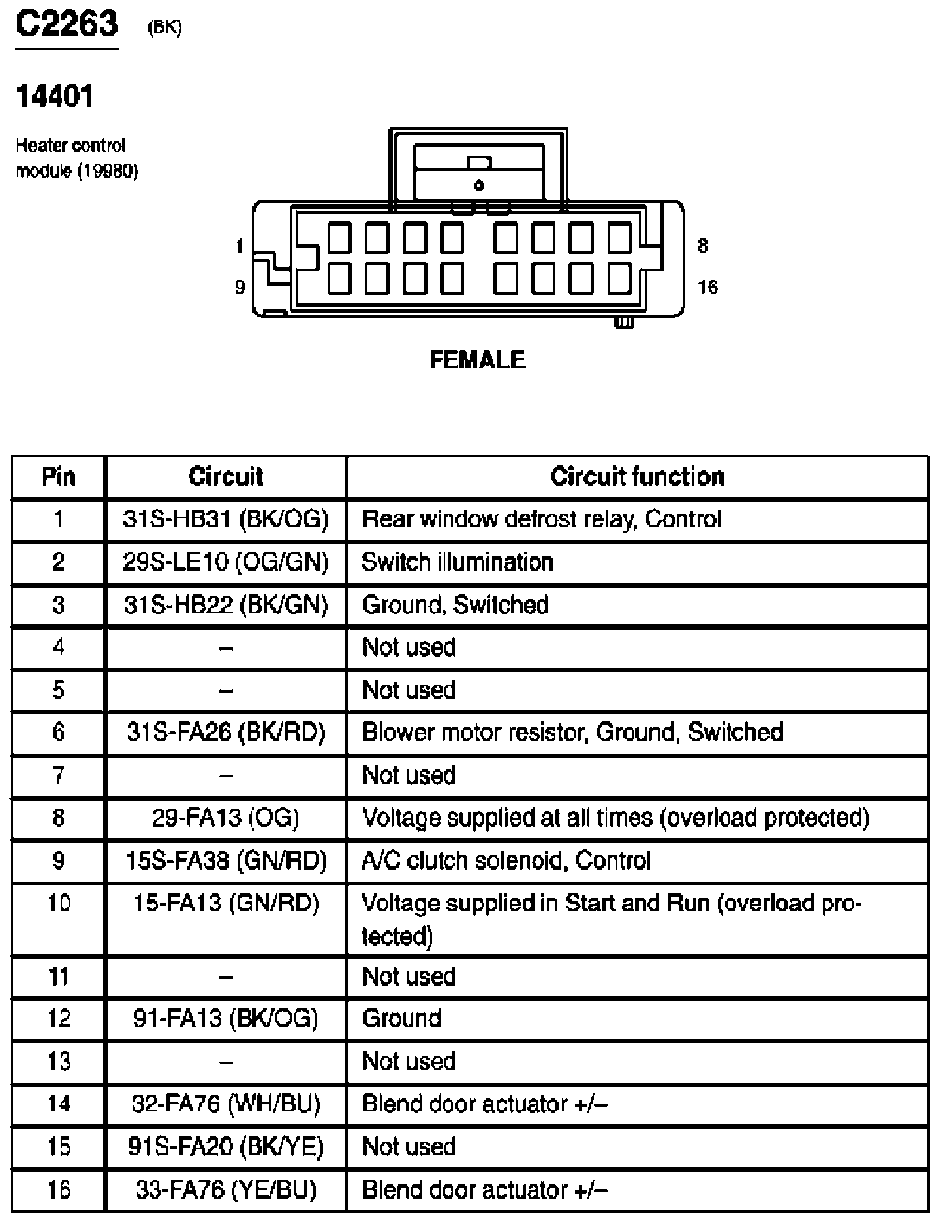

Fig 227: Heater Control Module Connector End View (C2263)

G07846921

Courtesy of FORD MOTOR CO.

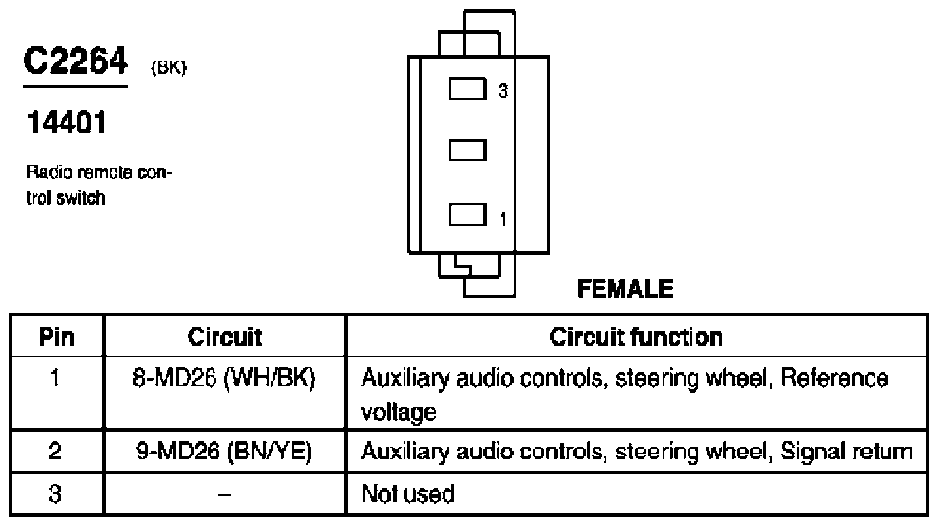

Fig 228: Radio Remote Control Switch Connector End View (C2264)

G07846922

Courtesy of FORD MOTOR CO.

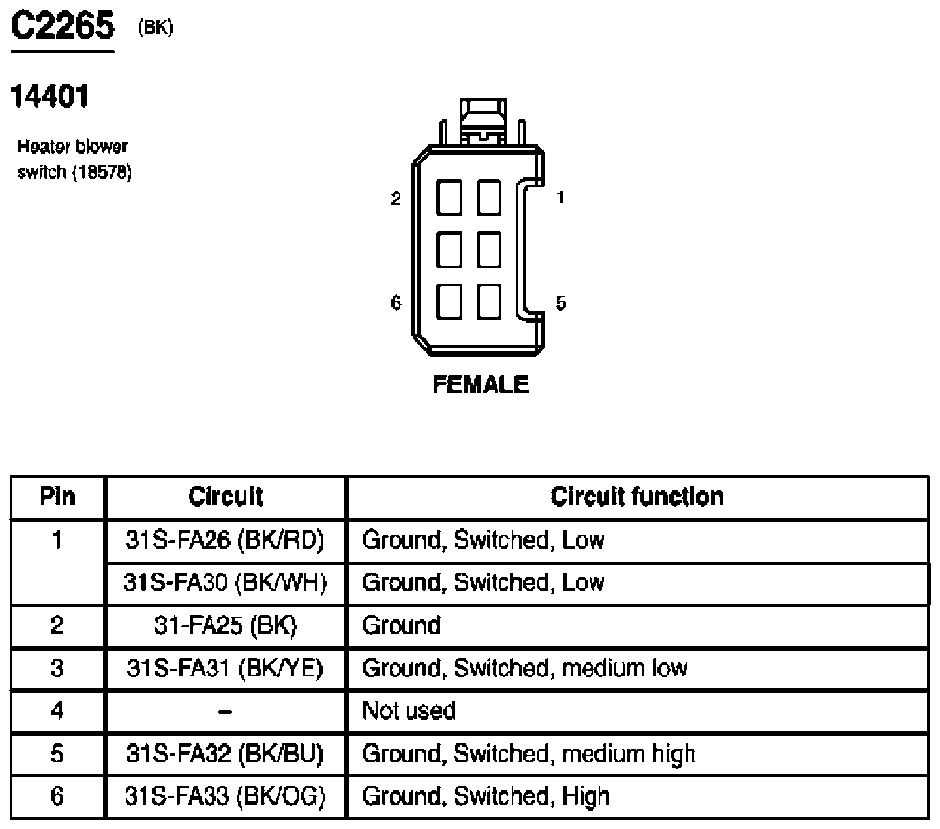

Fig 229: Heater Blower Switch Connector End View (C2265)

G07846923

Courtesy of FORD MOTOR CO.

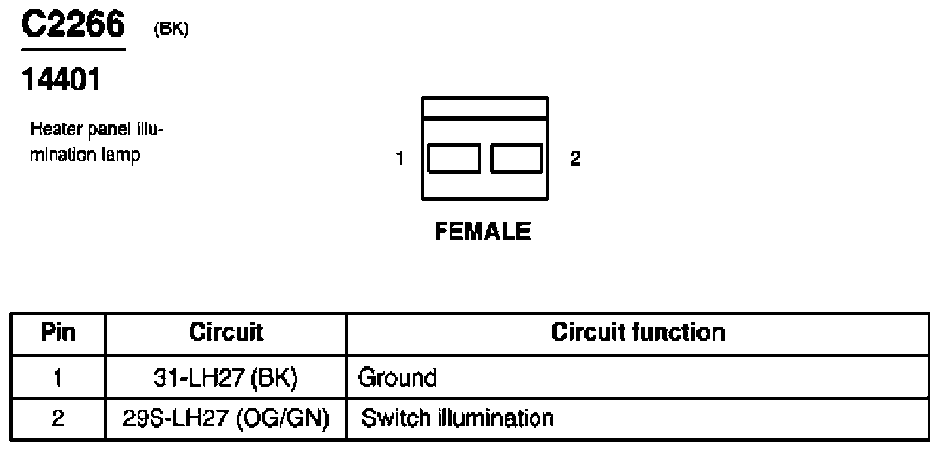

Fig 230: Heater Panel Illumination Lamp Connector End View (C2266)

G07846924

Courtesy of FORD MOTOR CO.

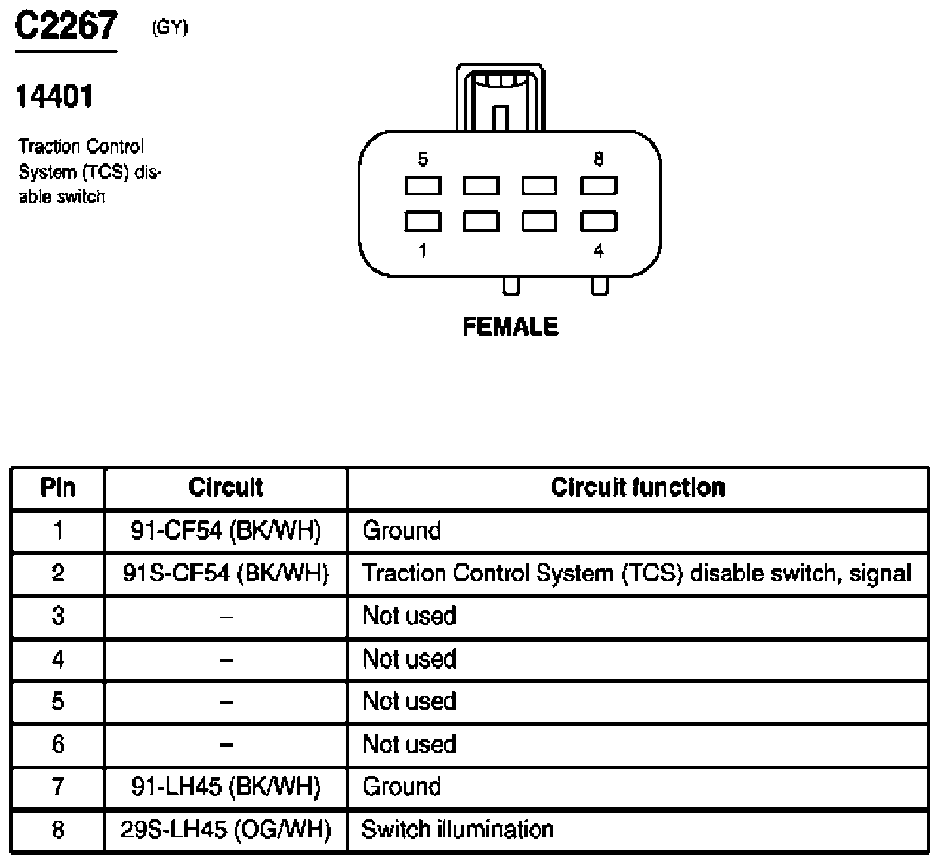

Fig 231: Traction Control System (TCS) Disable Switch Connector End View (C2267)

G07846925

Courtesy of FORD MOTOR CO.

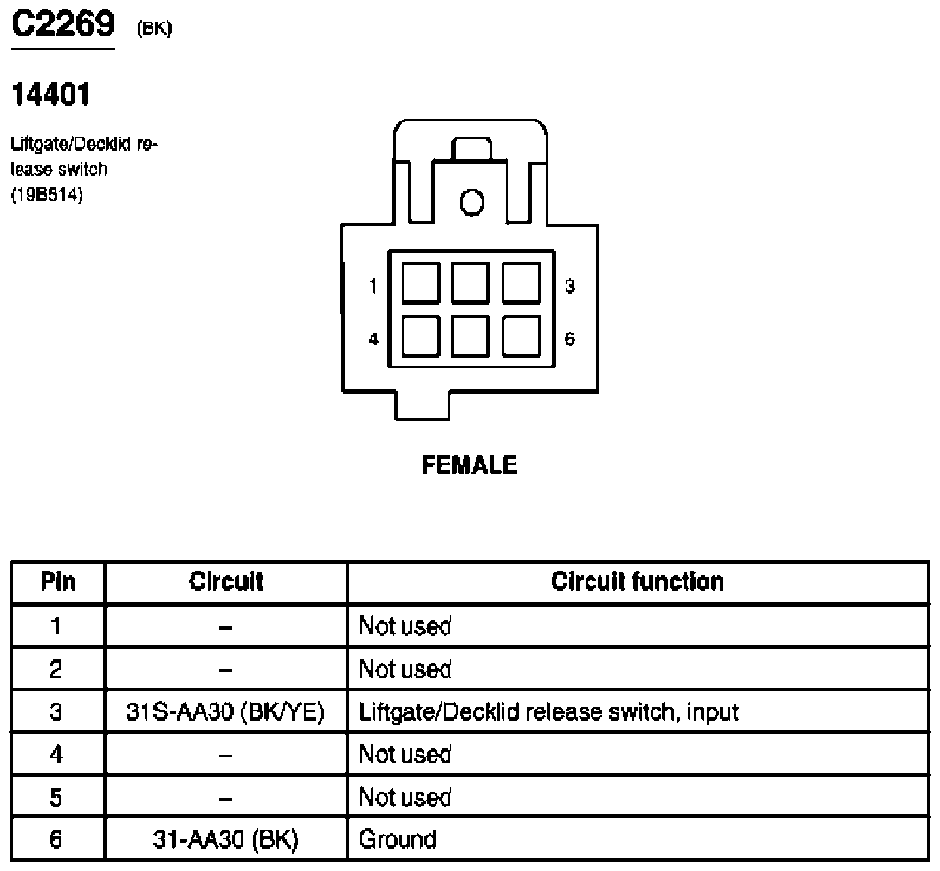

Fig 232: Liftgate/Decklid Release Switch Connector End View (C2269)

G07846926

Courtesy of FORD MOTOR CO.

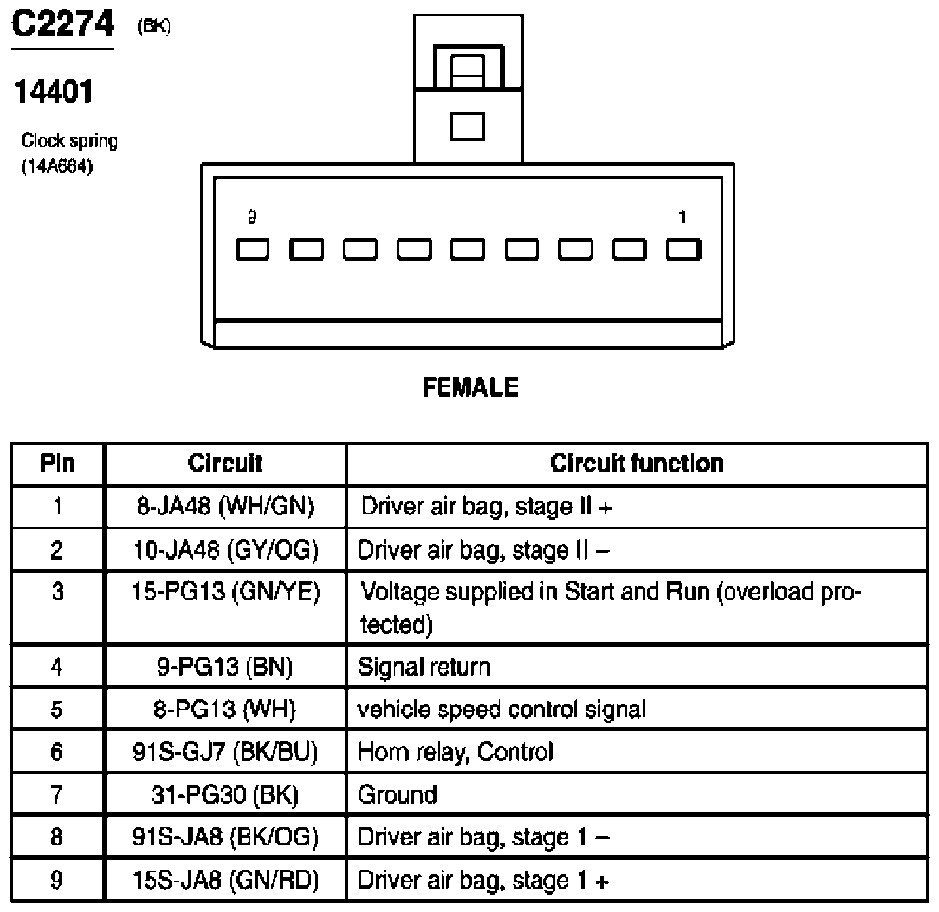

Fig 233: Clock Spring Connector End View (C2274)

G07846927

Courtesy of FORD MOTOR CO.

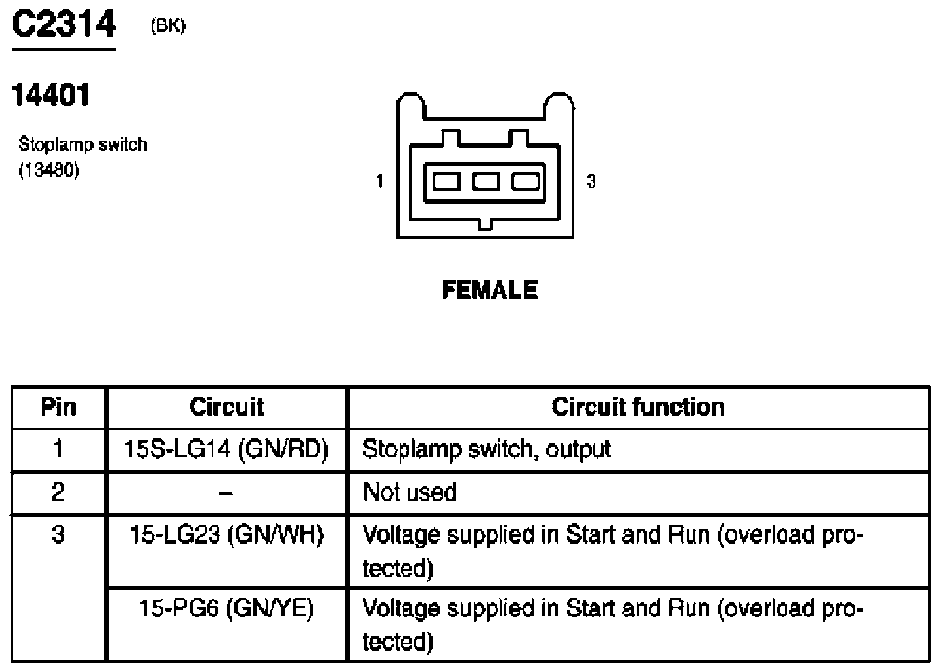

Fig 234: Stoplamp Switch Connector End View (C2314)

G07846928

Courtesy of FORD MOTOR CO.

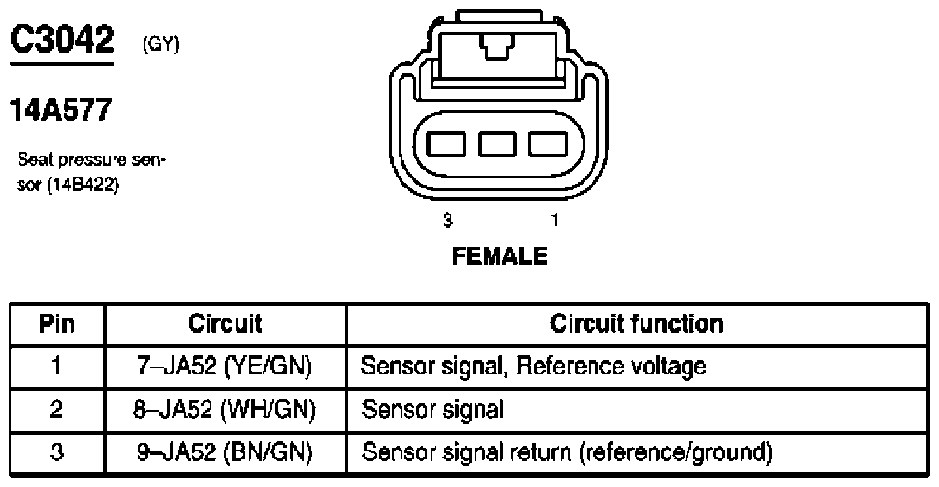

Fig 235: Seat Pressure Sensor Connector End View (C3042)

G07846929

Courtesy of FORD MOTOR CO.

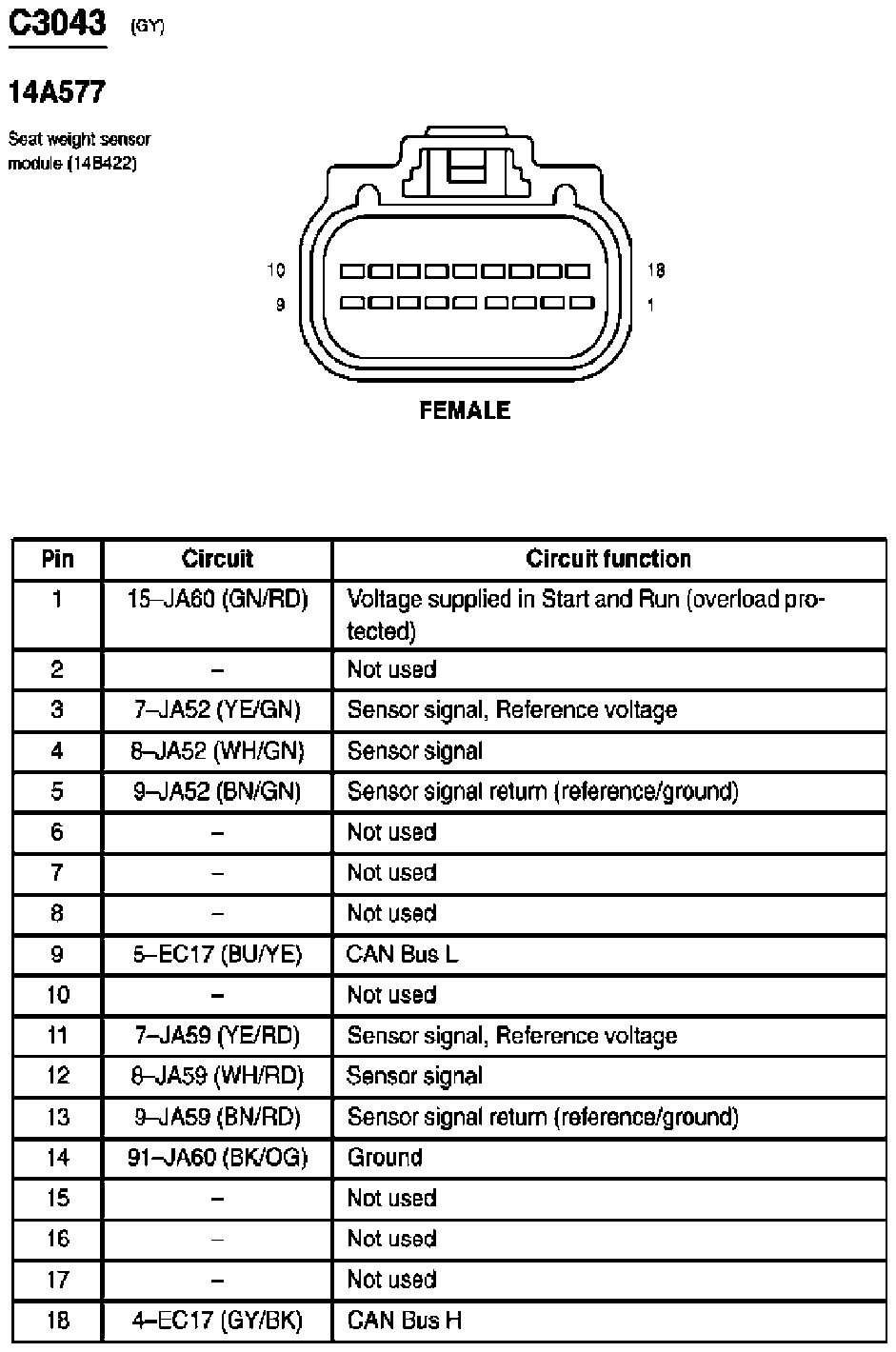

Fig 236: Seat Weight Sensor Module Connector End View (C3043)

G07846930

Courtesy of FORD MOTOR CO.

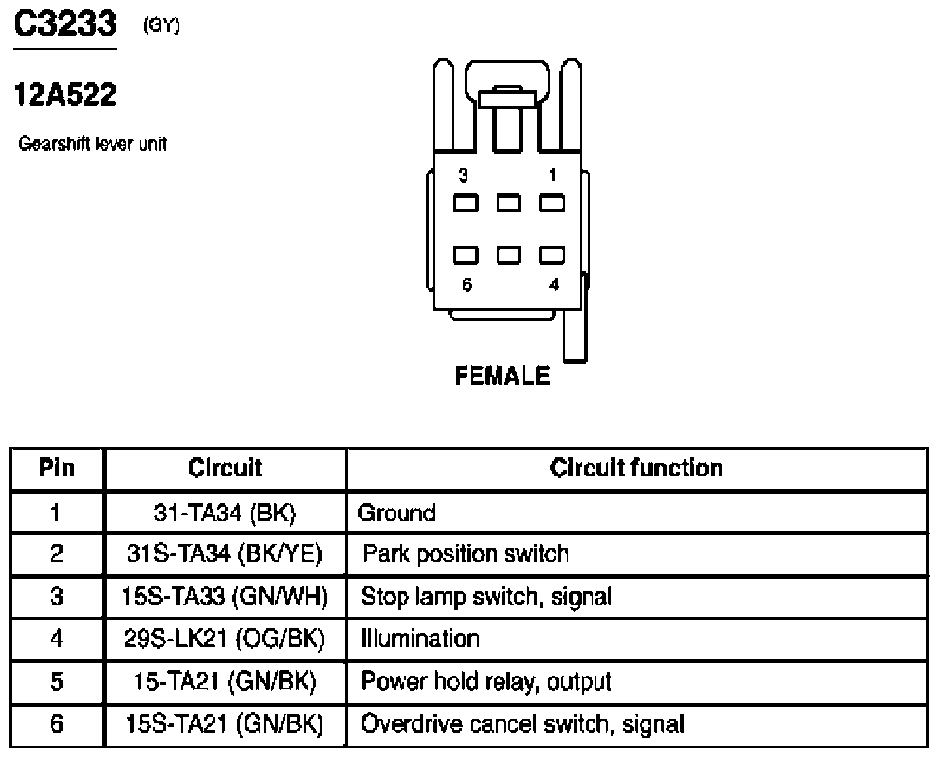

Fig 237: Gearshift Lever Unit Connector End View (C3233)

G07846931

Courtesy of FORD MOTOR CO.

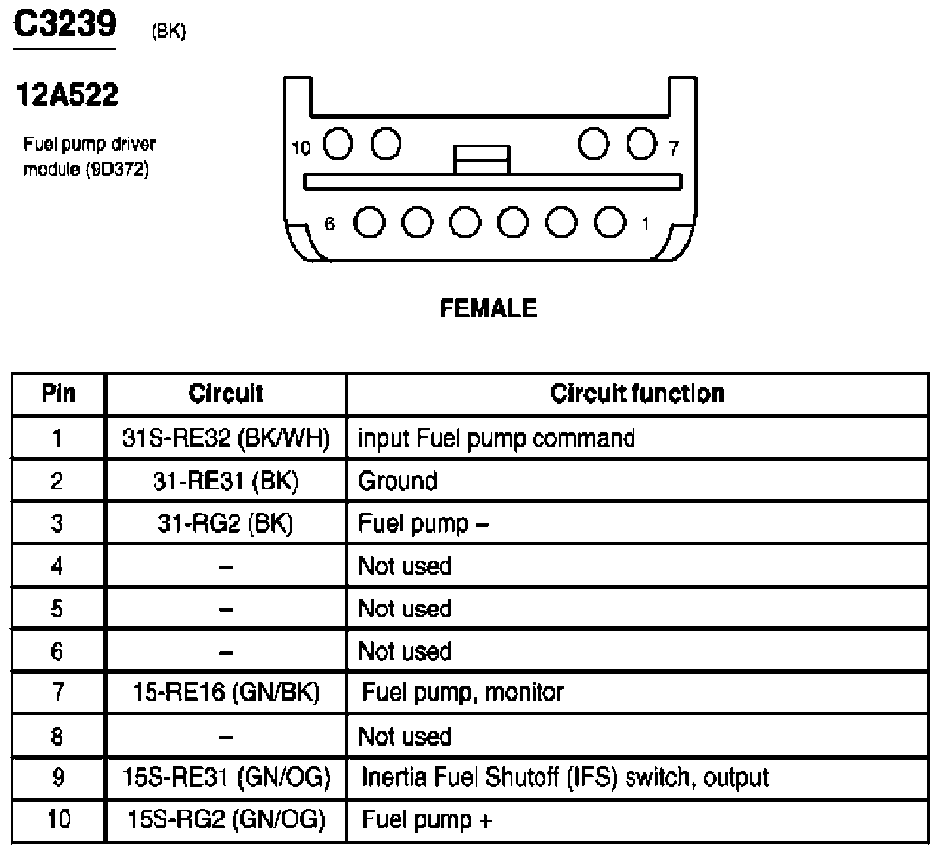

Fig 238: Fuel Pump Driver Module Connector End View (C3239)

G07846932

Courtesy of FORD MOTOR CO.

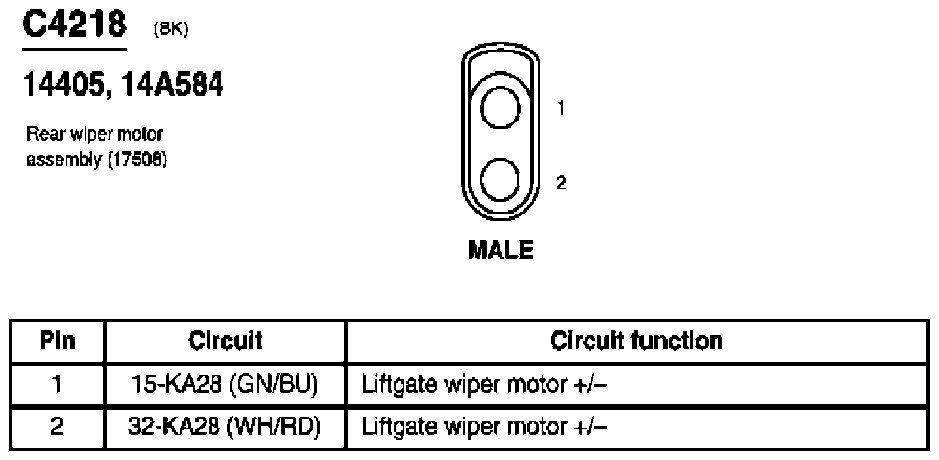

Fig 239: Rear Wiper Motor Assembly Connector End View (C4218)

G07846933

Courtesy of FORD MOTOR CO.

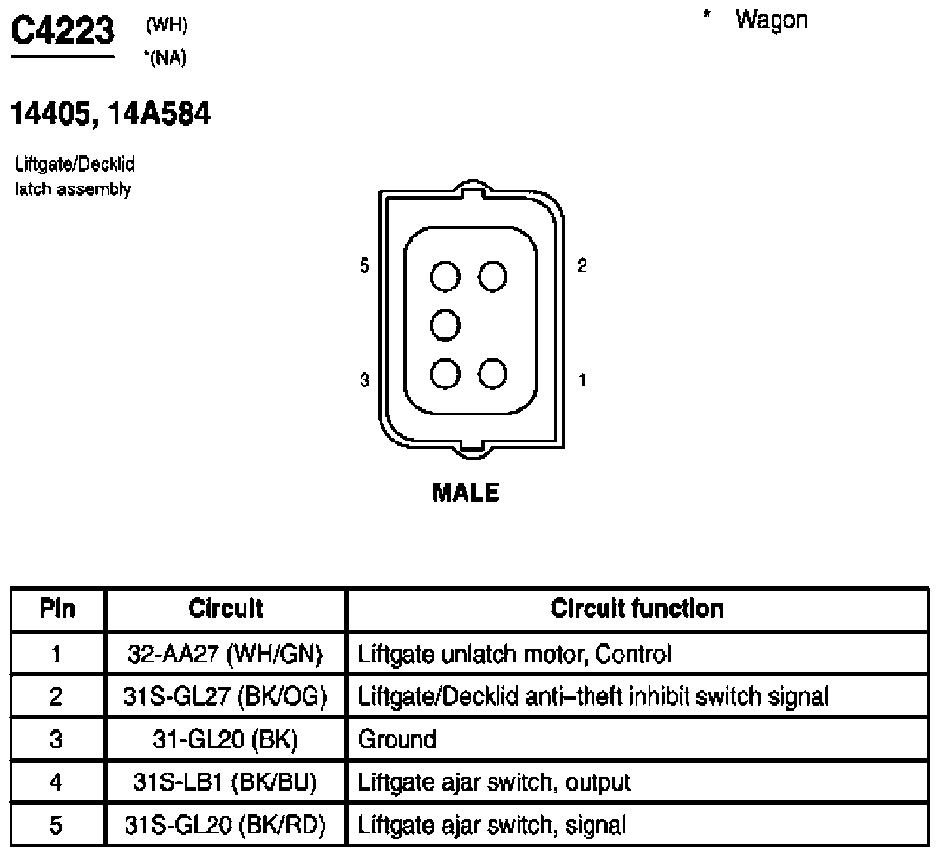

Fig 240: Liftgate/Decklid Latch Assembly Connector End View (C4223)

G07846934

Courtesy of FORD MOTOR CO.

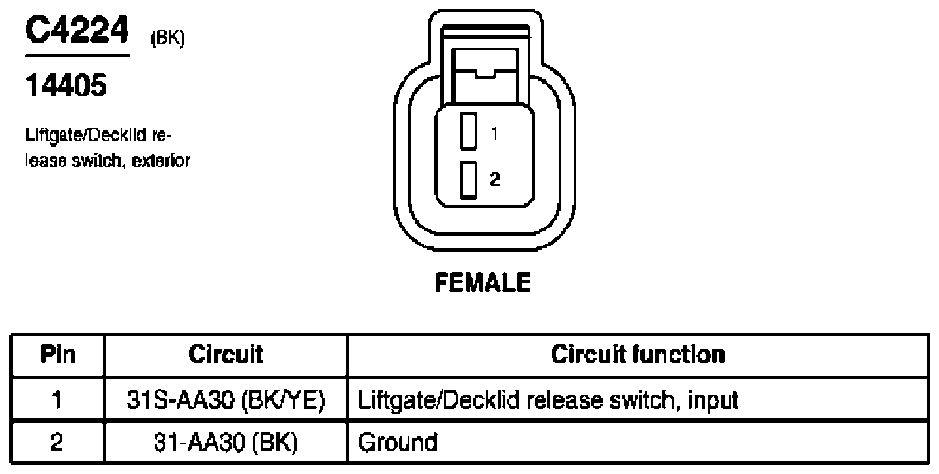

Fig 241: Liftgate/Decklid Release Switch, Exterior Connector End View (C4224)

G07846935

Courtesy of FORD MOTOR CO.

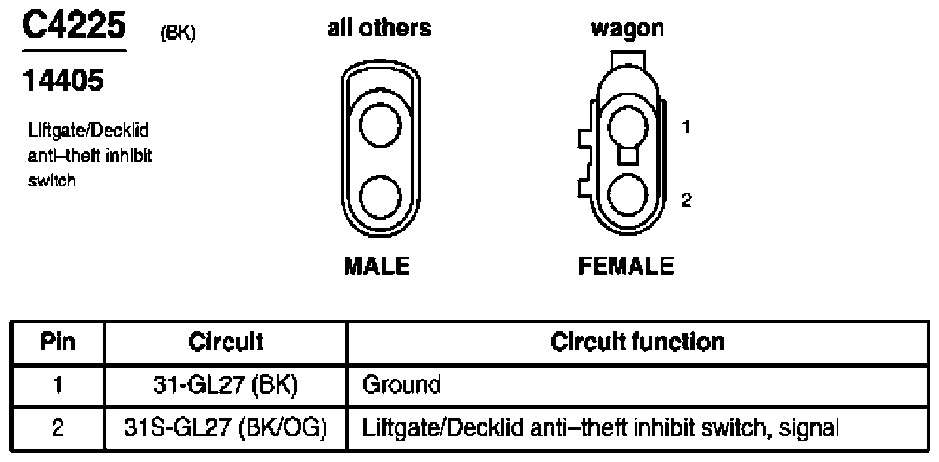

Fig 242: Liftgate/Decklid Anti-Theft Inhibit Switch Connector End View (C4225)

G07846936

Courtesy of FORD MOTOR CO.

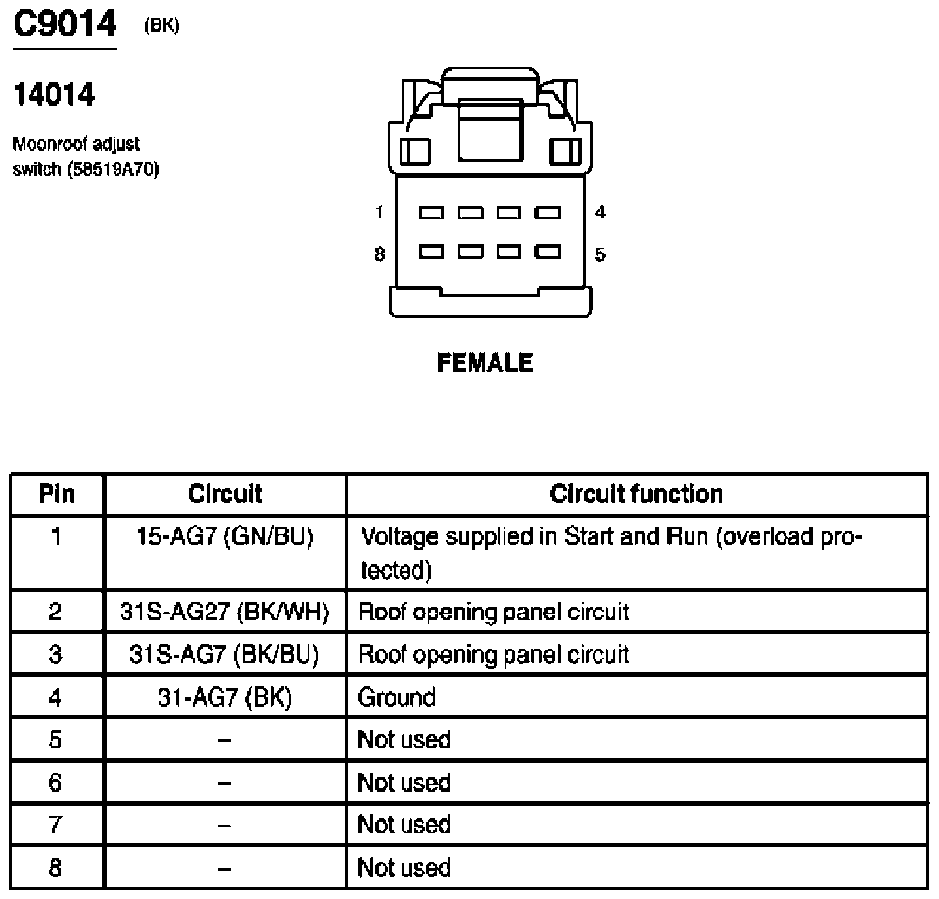

Fig 243: Moonroof Adjust Switch Connector End View (C9014)

G07846937

Courtesy of FORD MOTOR CO.

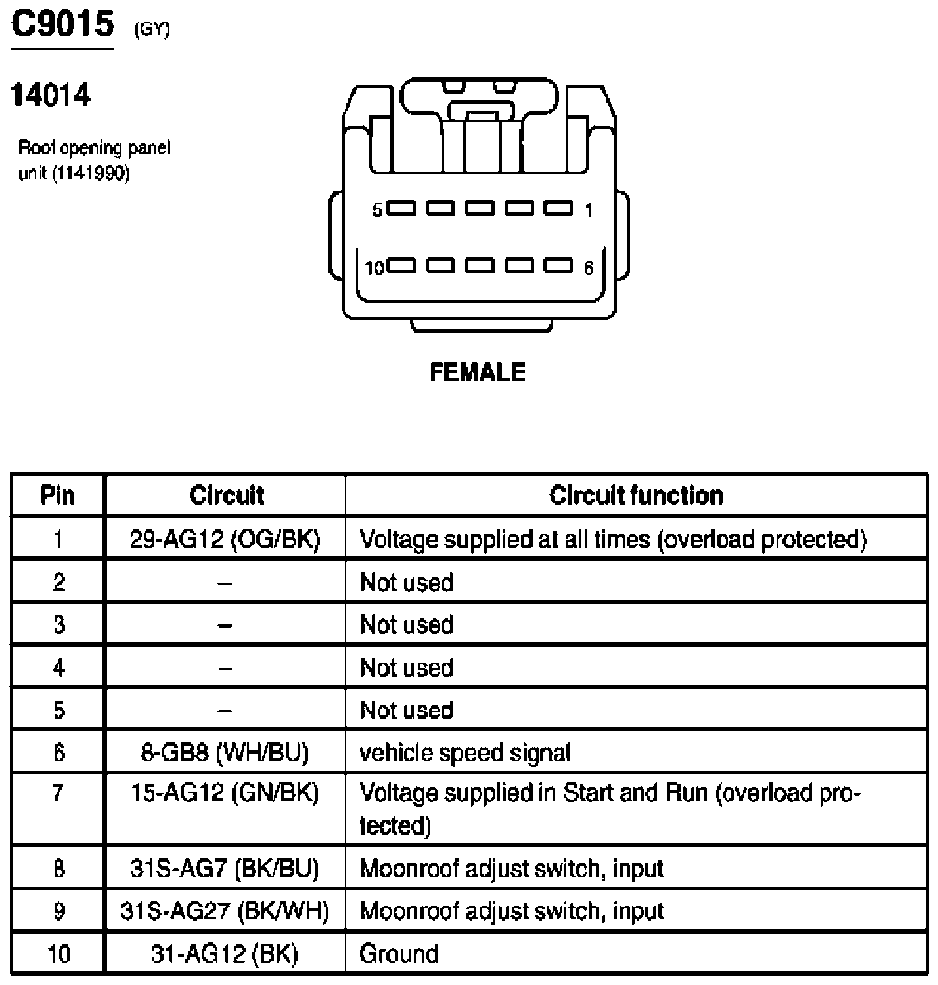

Fig 244: Roof Opening Panel Unit Connector End View (C9015)

G07846938

Courtesy of FORD MOTOR CO.
