Disassembly And Assembly Of Subassemblies: Differential: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Installer Differential Bearing 205-062 (15-025A)
Courtesy of FORD MOTOR CO.	Step Plate 205-D015 (T80L-630-4)
Courtesy of FORD MOTOR CO.	Bearing Puller 205-D064 (D84L-1123-A) or equivalent
Courtesy of FORD MOTOR CO.	Remover/Installer, Front Wheel Hub 204-069 (T81P-1104-C)

MATERIAL

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

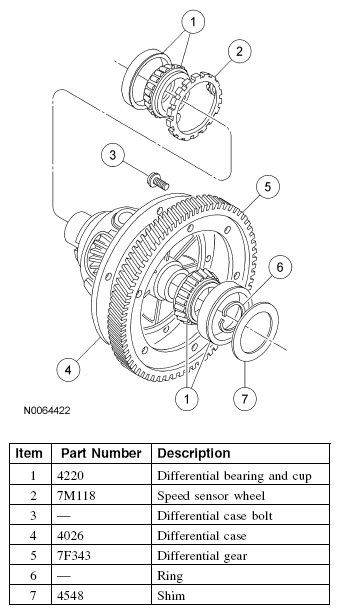

Fig 1: Identifying Differential Components

Courtesy of FORD MOTOR CO.
