Input Shaft: Notes

SPECIAL TOOL(S)

G04653412Courtesy of FORD MOTOR CO.
 Remover, Bearing/Gear
205-D064 (D84L-1123-A)
MATERIAL

Item Specification
Full Synthetic Manual Transmission Fluid XT-M5-QS WSD-M2C200-C

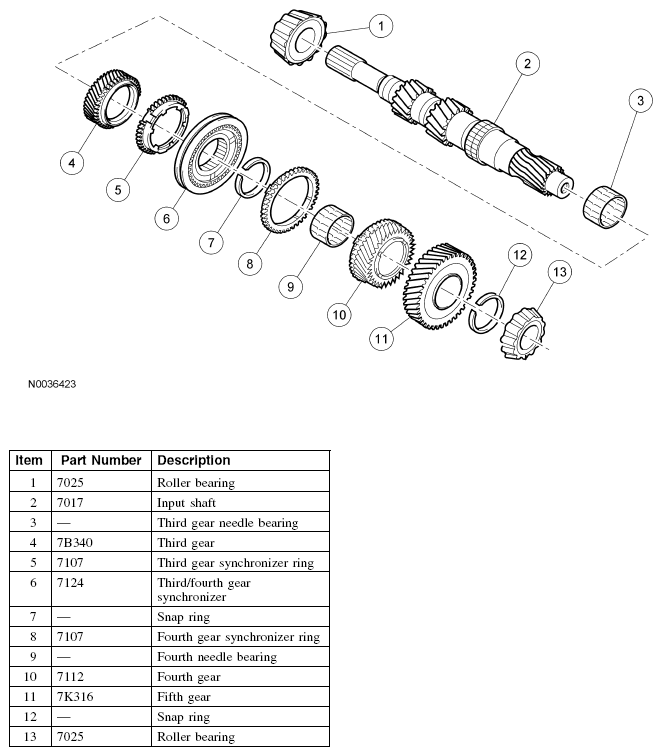

Fig 1: Exploded View Of Input Shaft
G04653413Courtesy of FORD MOTOR CO.
