Output Shaft: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Remover, Bearing/Gear 205-D064 (D84L-1123-A)
Courtesy of FORD MOTOR CO.	Remover/Installer, Bearing Tube 308-052 (T77J-7025-B)
Courtesy of FORD MOTOR CO.	Adapter Set, Step Plate 205-DS011 (D80L-630-A)

MATERIAL

Item	Specification
Full Synthetic Manual Transmission Fluid XT-M5-QS	WSD-M2C200-C

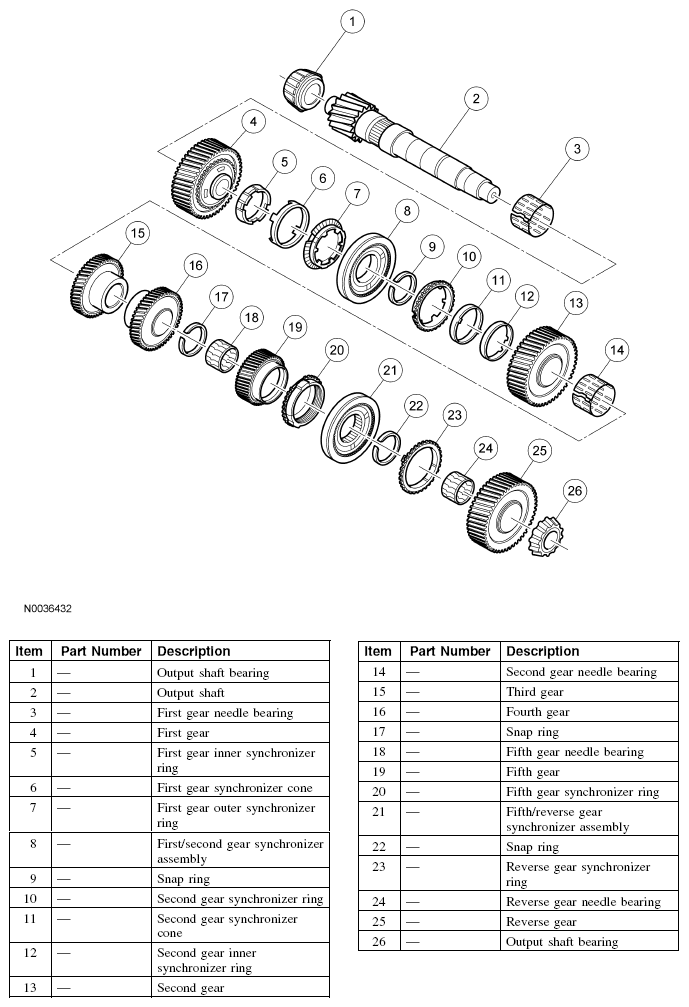

Fig 1: Exploded View Of Output Shaft

Courtesy of FORD MOTOR CO.
