Forward Clutch: Disassembly

Remove the forward clutch pressure, friction and steel plates.
1. Remove the retaining ring.
2. Remove the plates.

  Fig 1: Identifying Retaining Ring And Plates
  Courtesy of FORD MOTOR CO.
Using the special tool, install the forward clutch assembly in a suitable press.

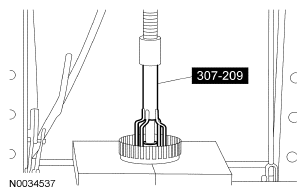

Fig 2: Identifying Special Tool (307-209) On Clutch Assembly
Courtesy of FORD MOTOR CO.
Using the special tool, remove the forward clutch balance piston snap ring.

Fig 3: Identifying Special Tool (307-209) Into Clutch Balance Piston Snap Ring
Courtesy of FORD MOTOR CO.

CAUTION: If damage is found to the forward clutch balance piston seals, install a new balance piston.
Remove and inspect the forward clutch balance piston.

Fig 4: Locating Clutch Balance Piston
Courtesy of FORD MOTOR CO.
Remove the forward piston return spring.

Fig 5: Locating Piston Return Spring
Courtesy of FORD MOTOR CO.

CAUTION: If damage is found to the forward clutch piston seals, install a new forward clutch piston.
Remove the forward clutch piston assembly.

Fig 6: Locating Clutch Piston Assembly
Courtesy of FORD MOTOR CO.
