Output Shaft Speed (OSS) Sensor: Installation

NOTE: Apply a light coat of clean transmission fluid to the O-ring before installation.
  1. Install the OSS sensor.
    • Tighten to 10 Nm (89 lb-in).
    • Connect the electrical connector.

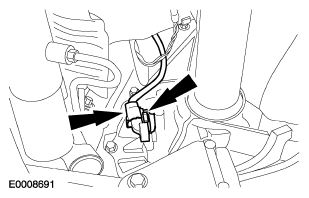

      Fig 1: Locating Electrical Connector
      G04652726Courtesy of FORD MOTOR CO.
  2. Lower vehicle.
  3. Check the transmission fluid level and add automatic transmission fluid as necessary.

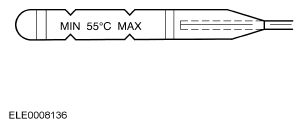

    Fig 2: Identifying Transmission Fluid Level Gauge
    G04652727Courtesy of FORD MOTOR CO.
  4. Start the engine and move the transaxle range selector lever through all gear positions.
