Smart Junction Box (SJB): Notes

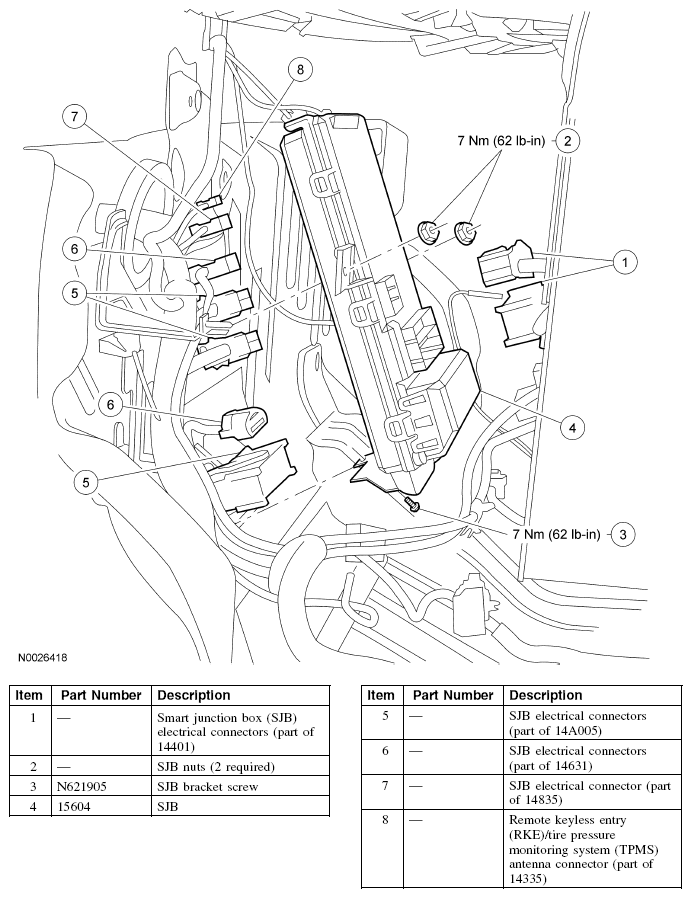

Fig 1: Smart Junction Box (SJB) Replacement Components With Torque Specifications
G04662735Courtesy of FORD MOTOR CO.
