Glass, Frames and Mechanisms - Exploded View

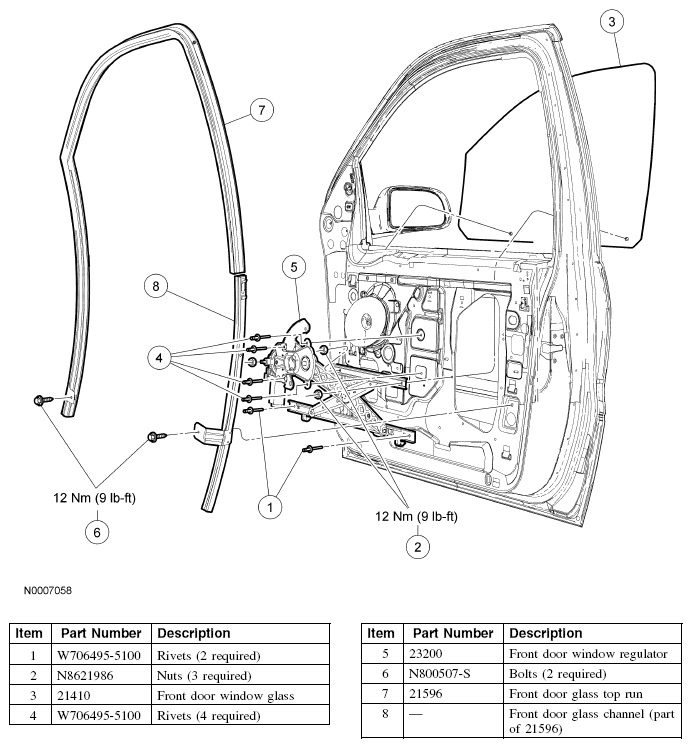

Fig 1: Glass, Frames And Mechanisms - Exploded View With Torque Specifications
G04663454Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
