Connector Views

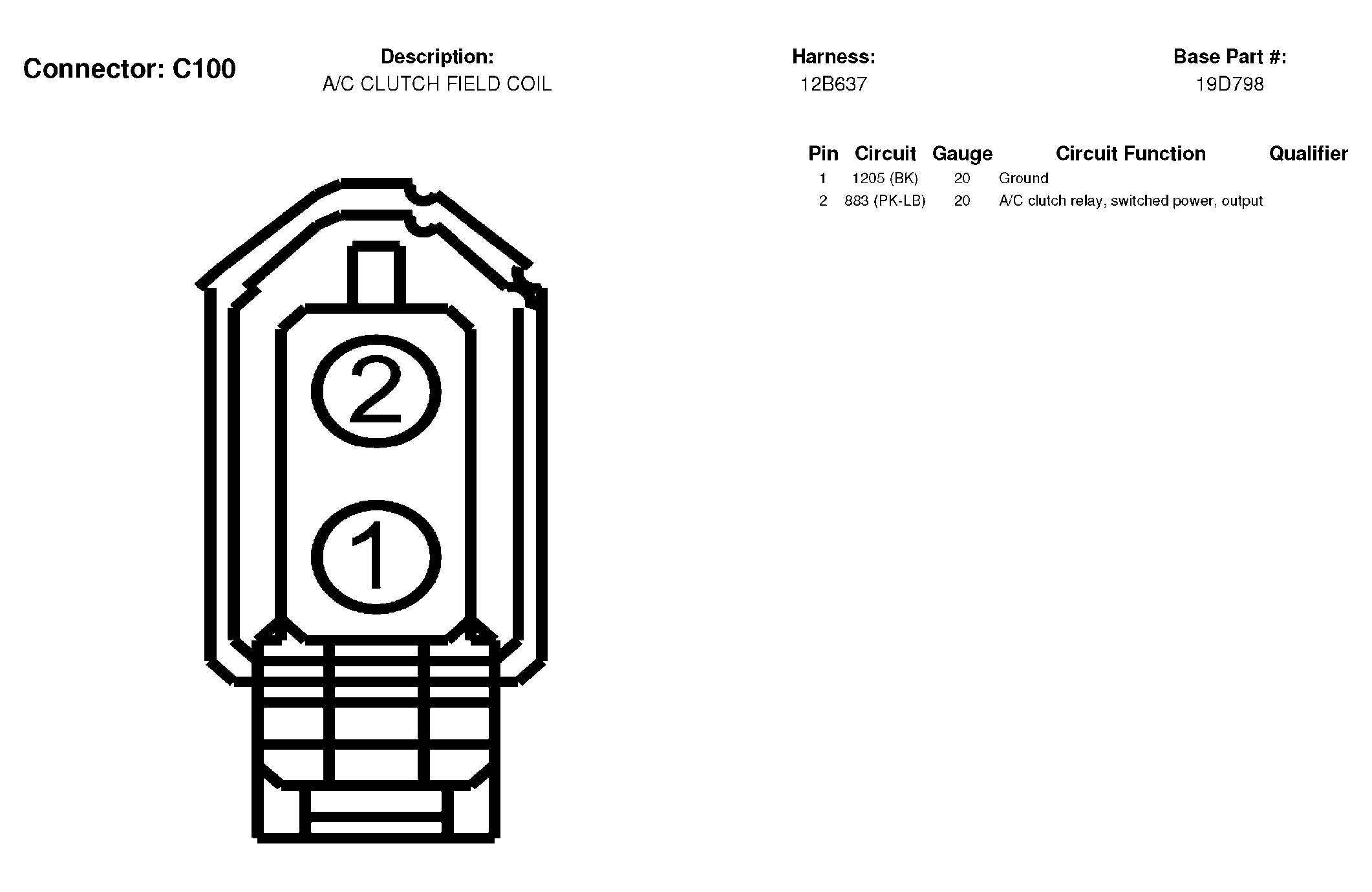

Fig 1: A/C Clutch Field Coil Connector End View (C100)
G04597243Courtesy of FORD MOTOR CO.

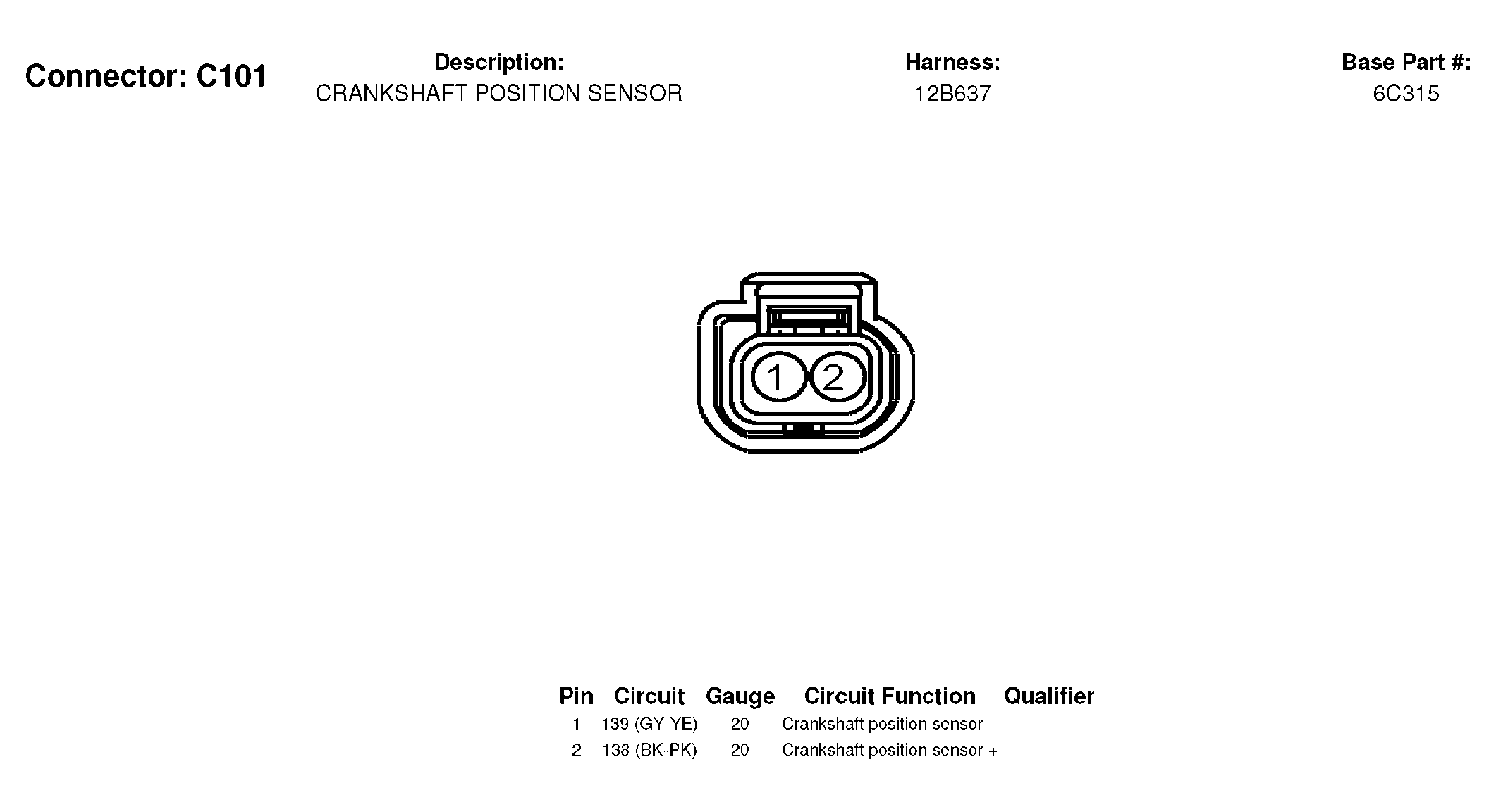

Fig 2: Crankshaft Position Sensor Connector End View (C101)
G04597244Courtesy of FORD MOTOR CO.

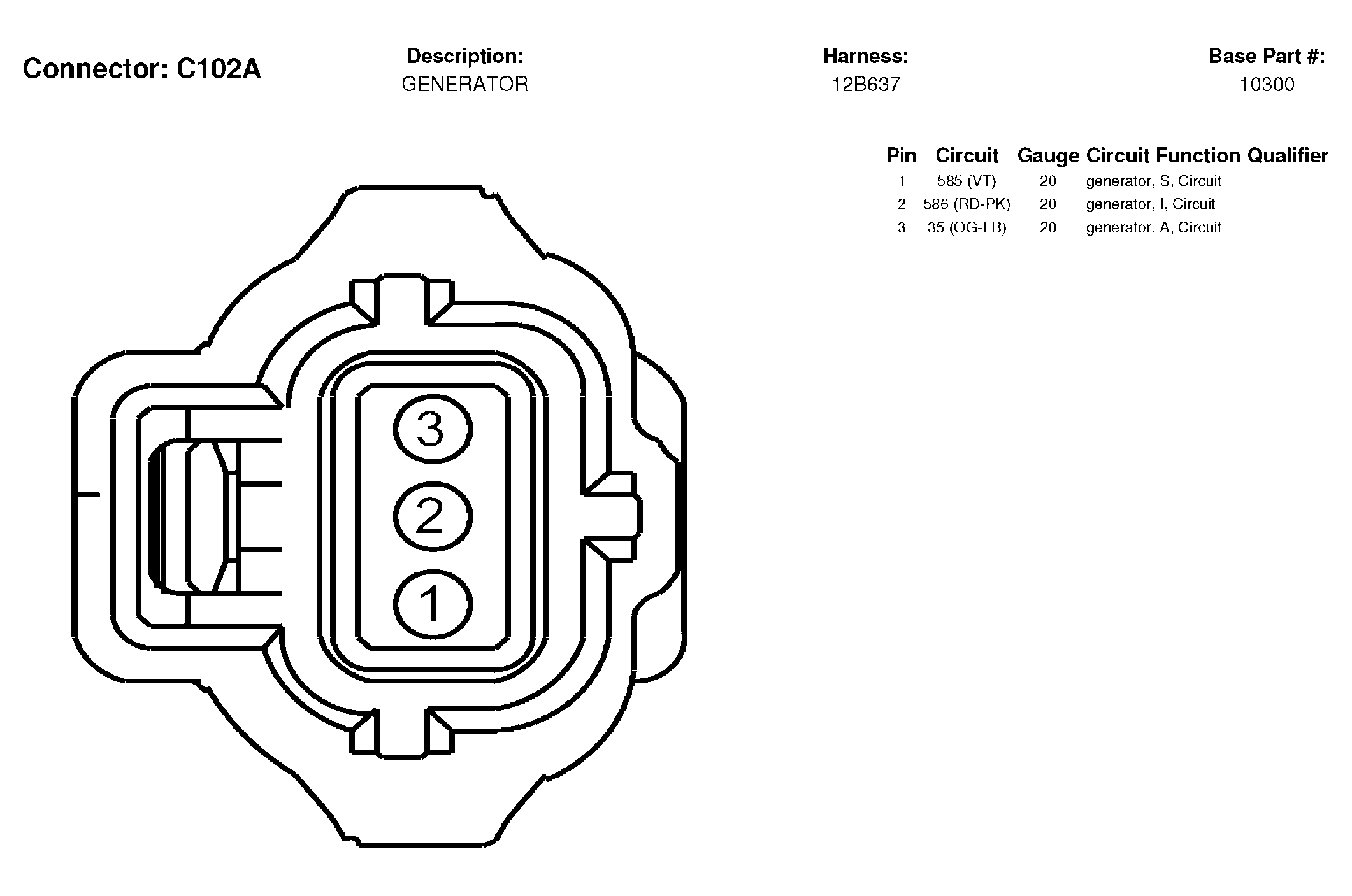

Fig 3: Generator Connector End View (C102A)
G04597245Courtesy of FORD MOTOR CO.

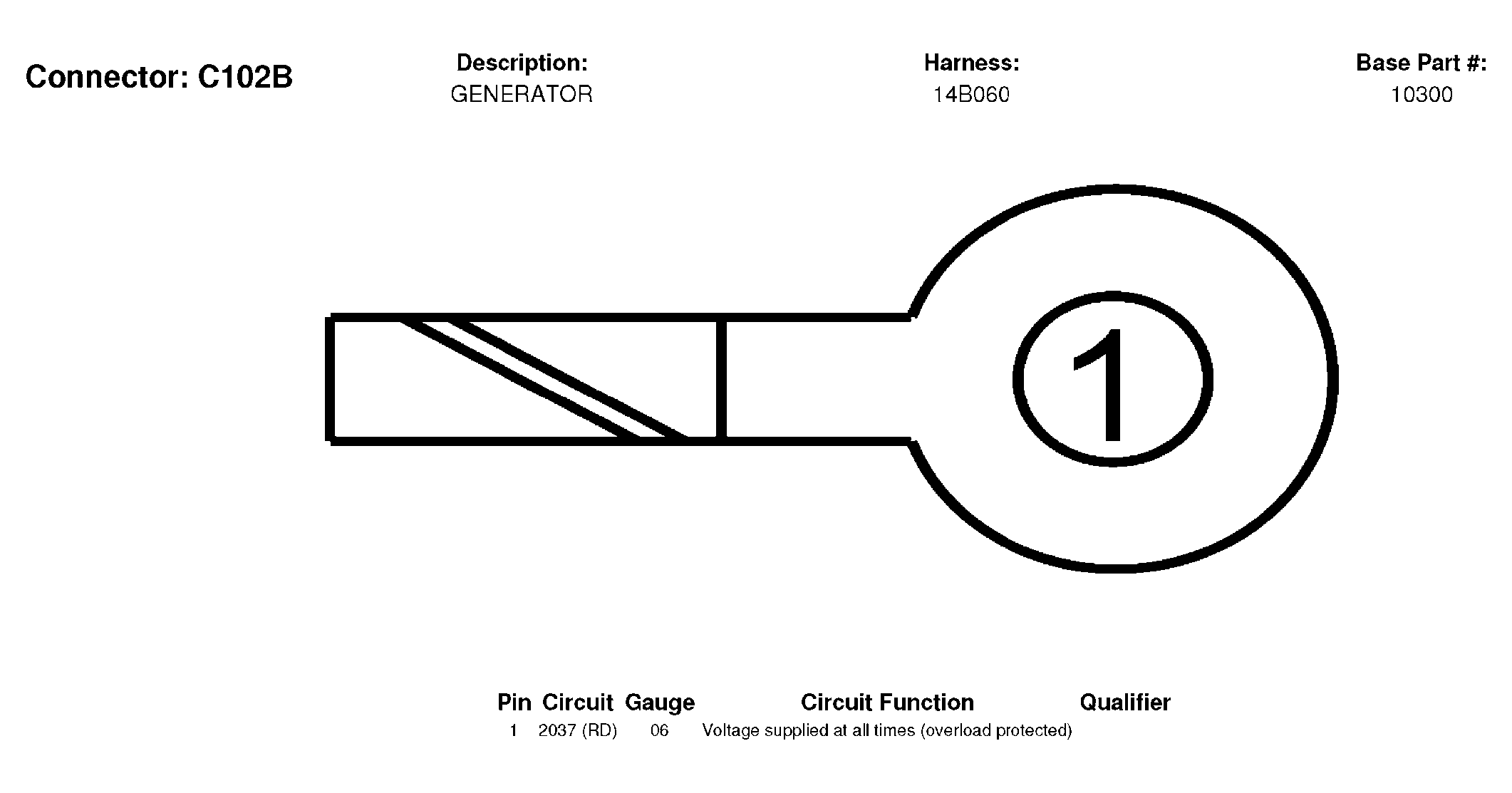

Fig 4: Generator Connector End View (C102B)
G04597246Courtesy of FORD MOTOR CO.

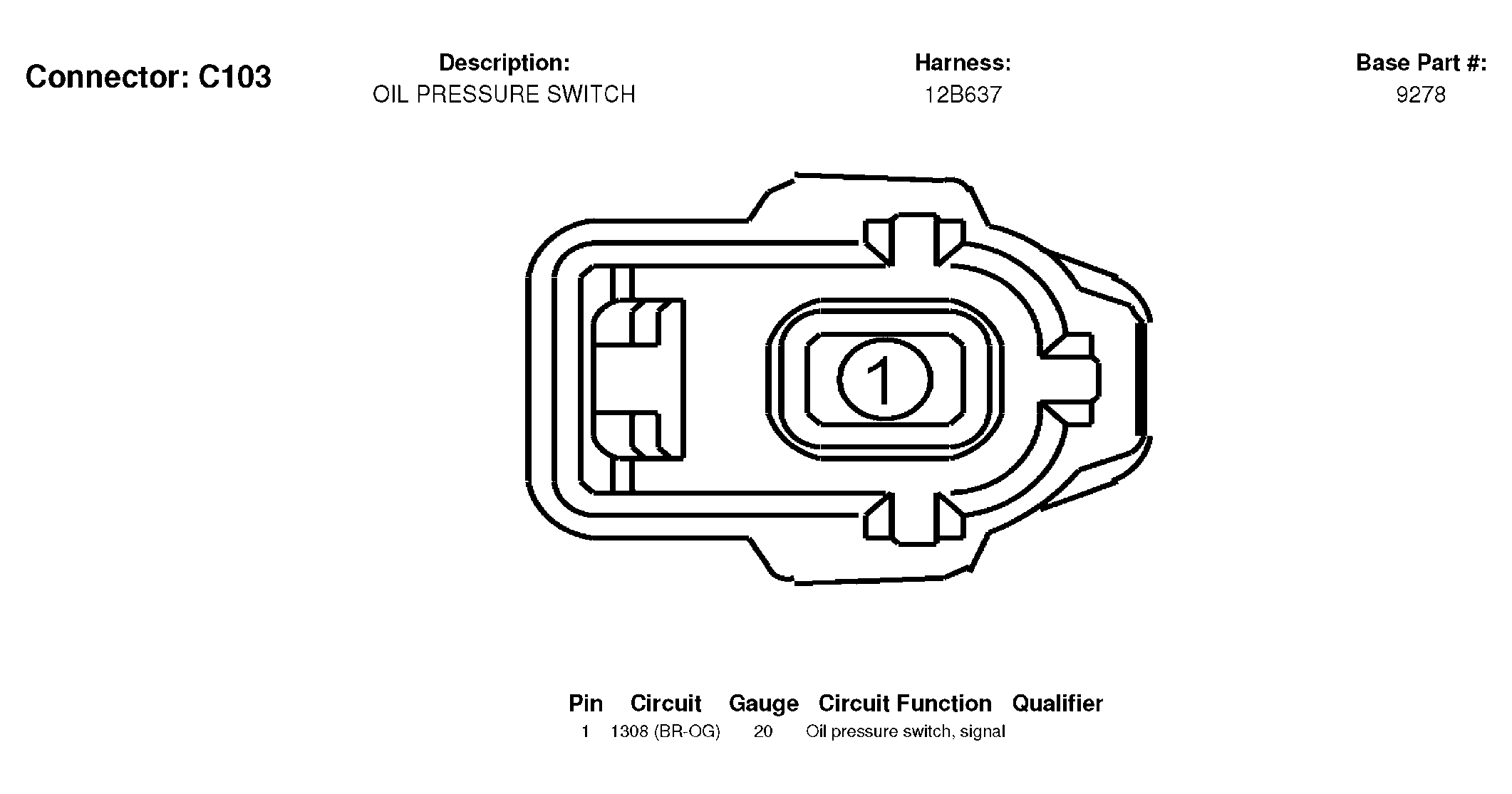

Fig 5: Oil Pressure Switch Connector End View (C103)
G04597247Courtesy of FORD MOTOR CO.

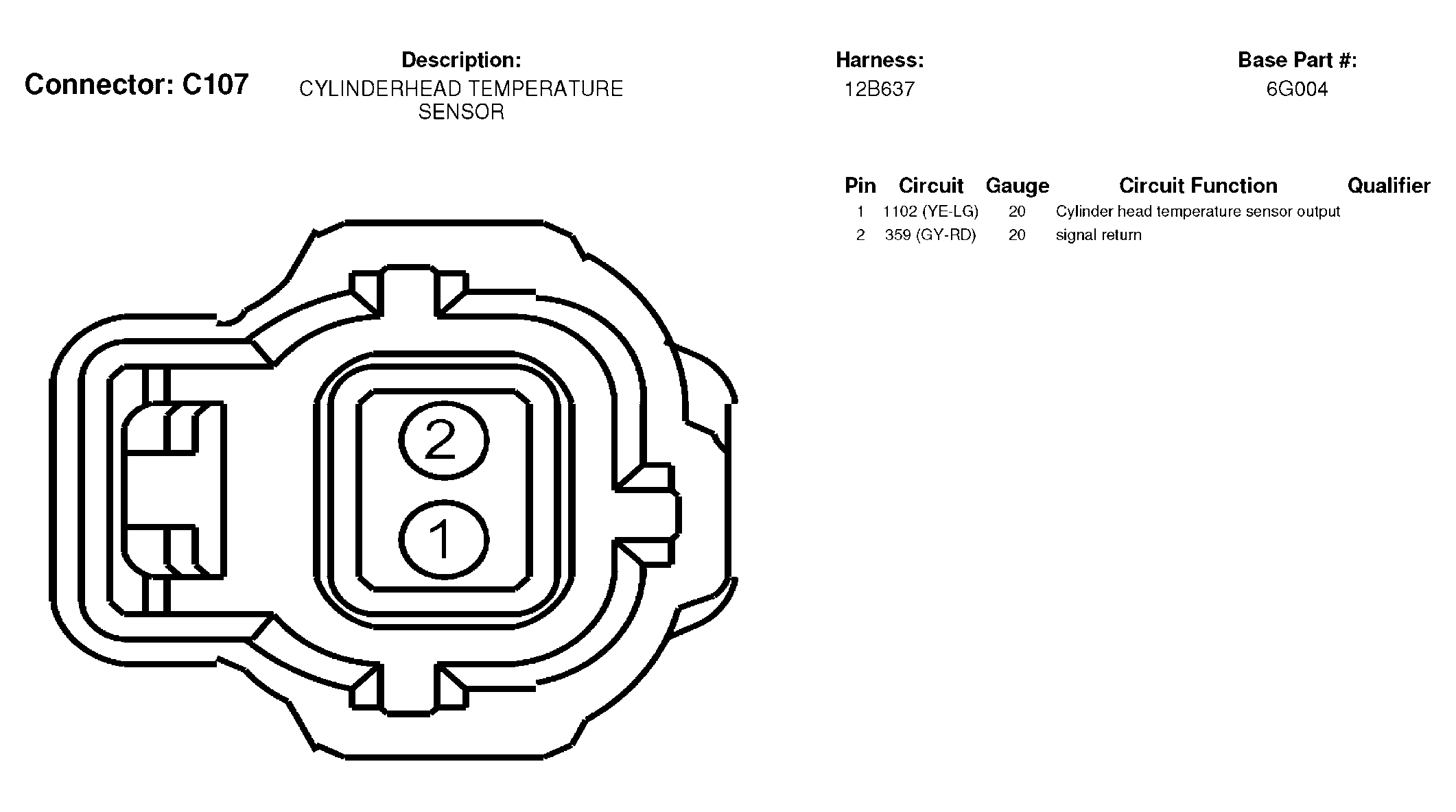

Fig 6: Cylinder Head Temperature Sensor Connector End View (C107)
G04597248Courtesy of FORD MOTOR CO.

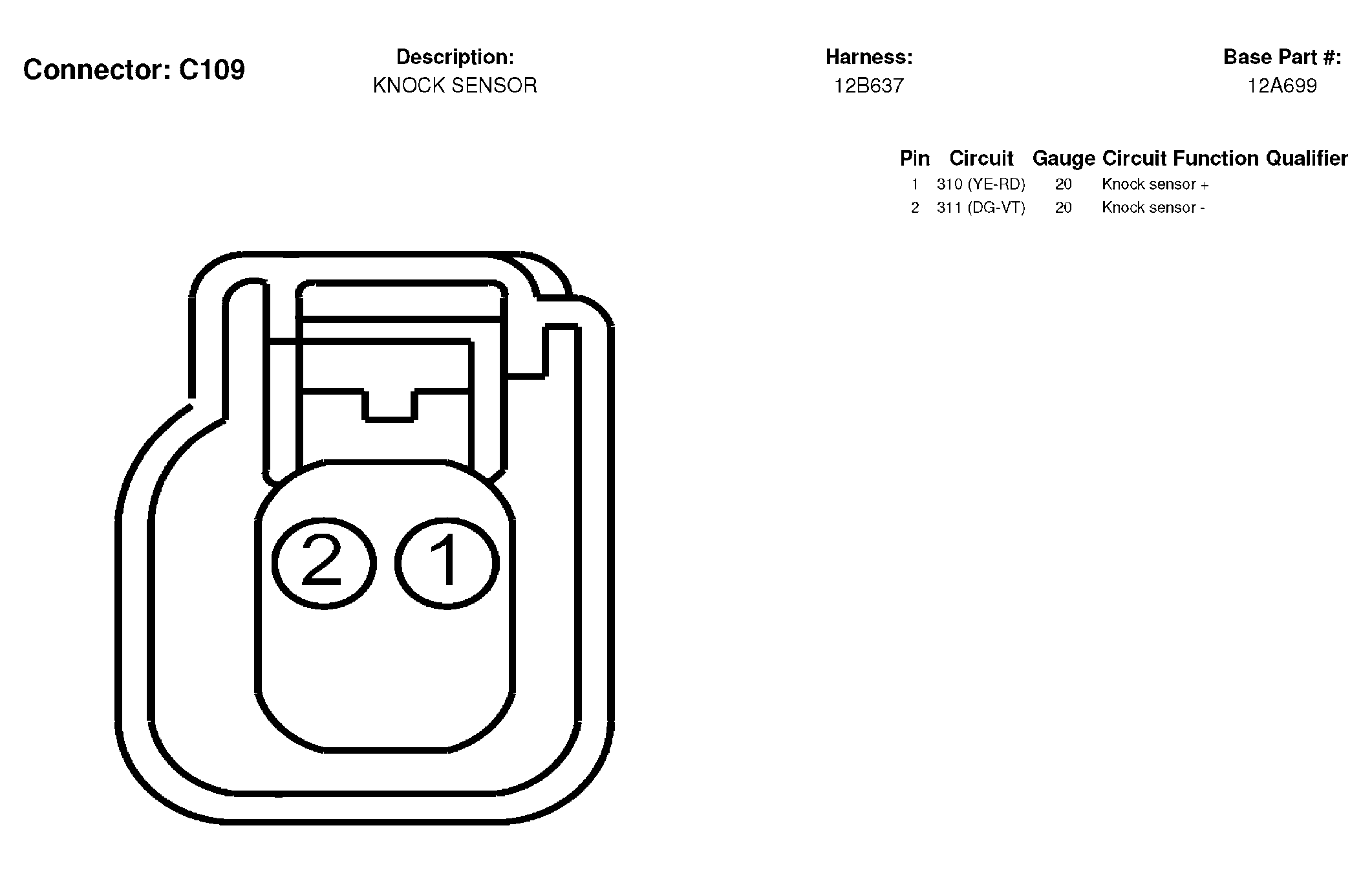

Fig 7: Knock Sensor Connector End View (C109)
G04597249Courtesy of FORD MOTOR CO.

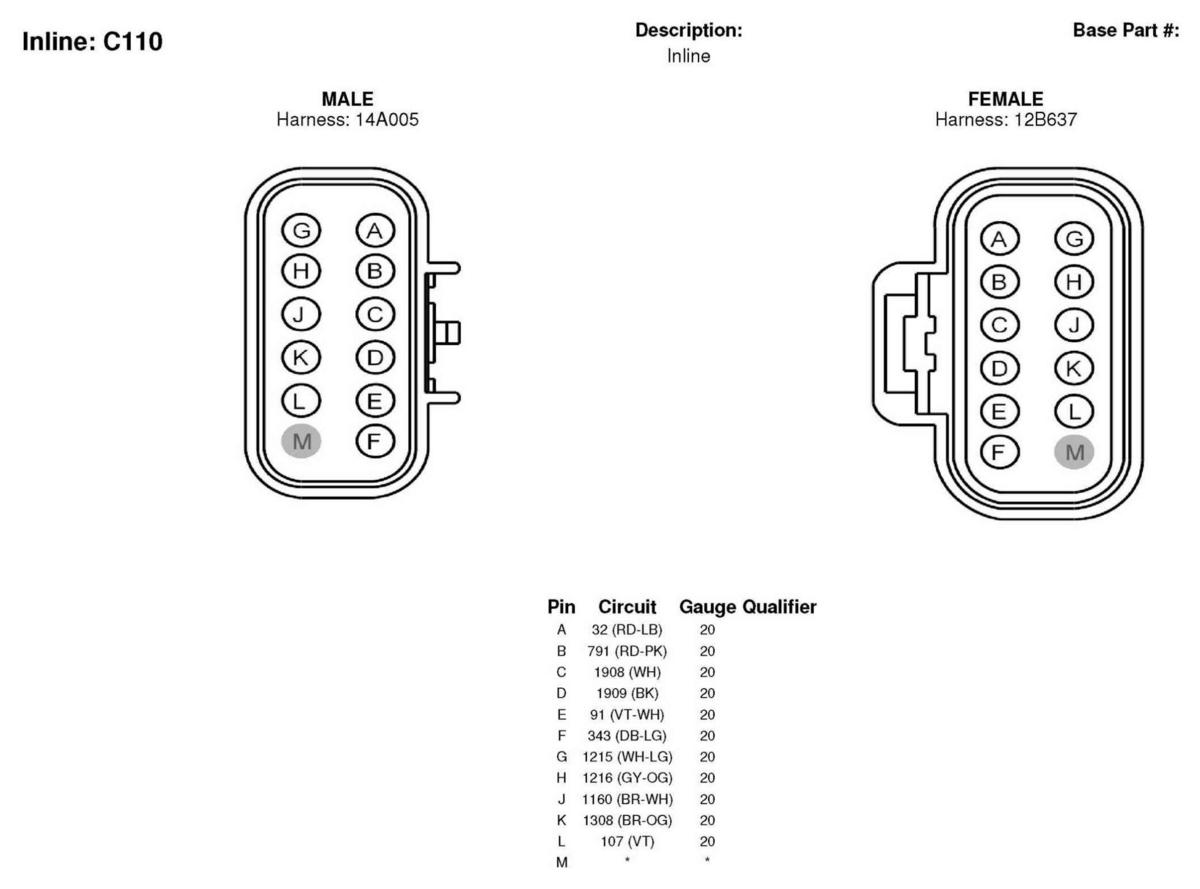

Fig 8: Inline Connector End View (C110)
G04597250Courtesy of FORD MOTOR CO.
Fig 9: Power Steering Pressure Switch Connector End View (C121)
G04597251Courtesy of FORD MOTOR CO.

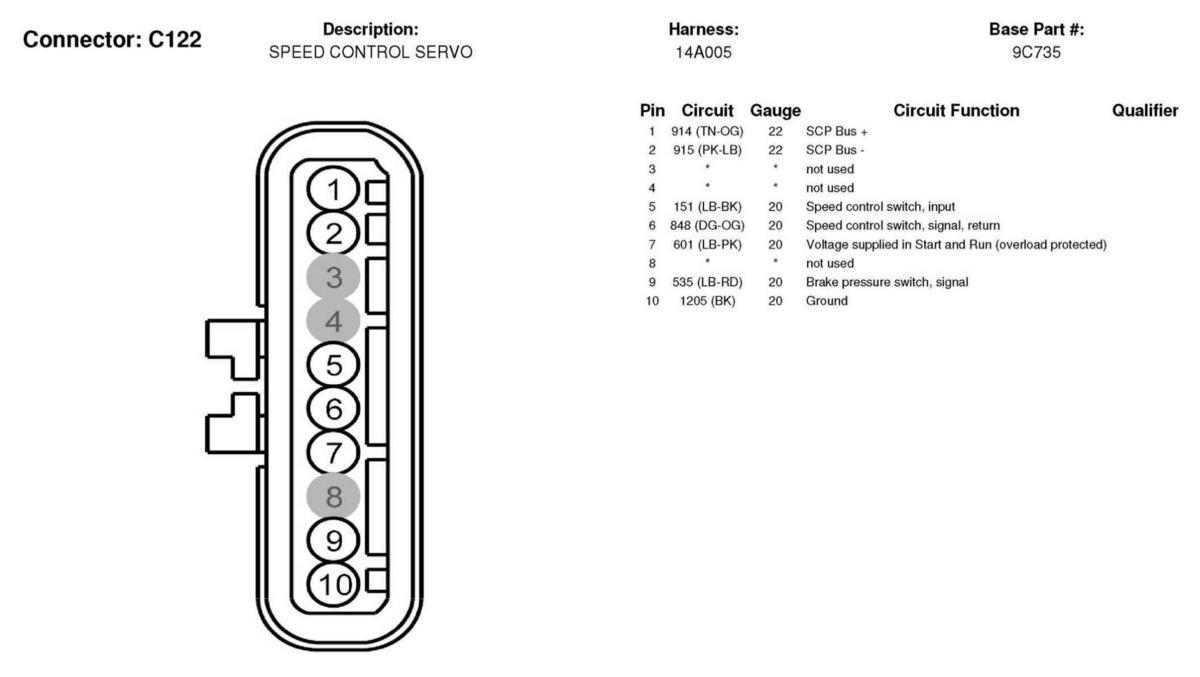

Fig 10: Speed Control Servo Connector End View (C122)
G04597252Courtesy of FORD MOTOR CO.

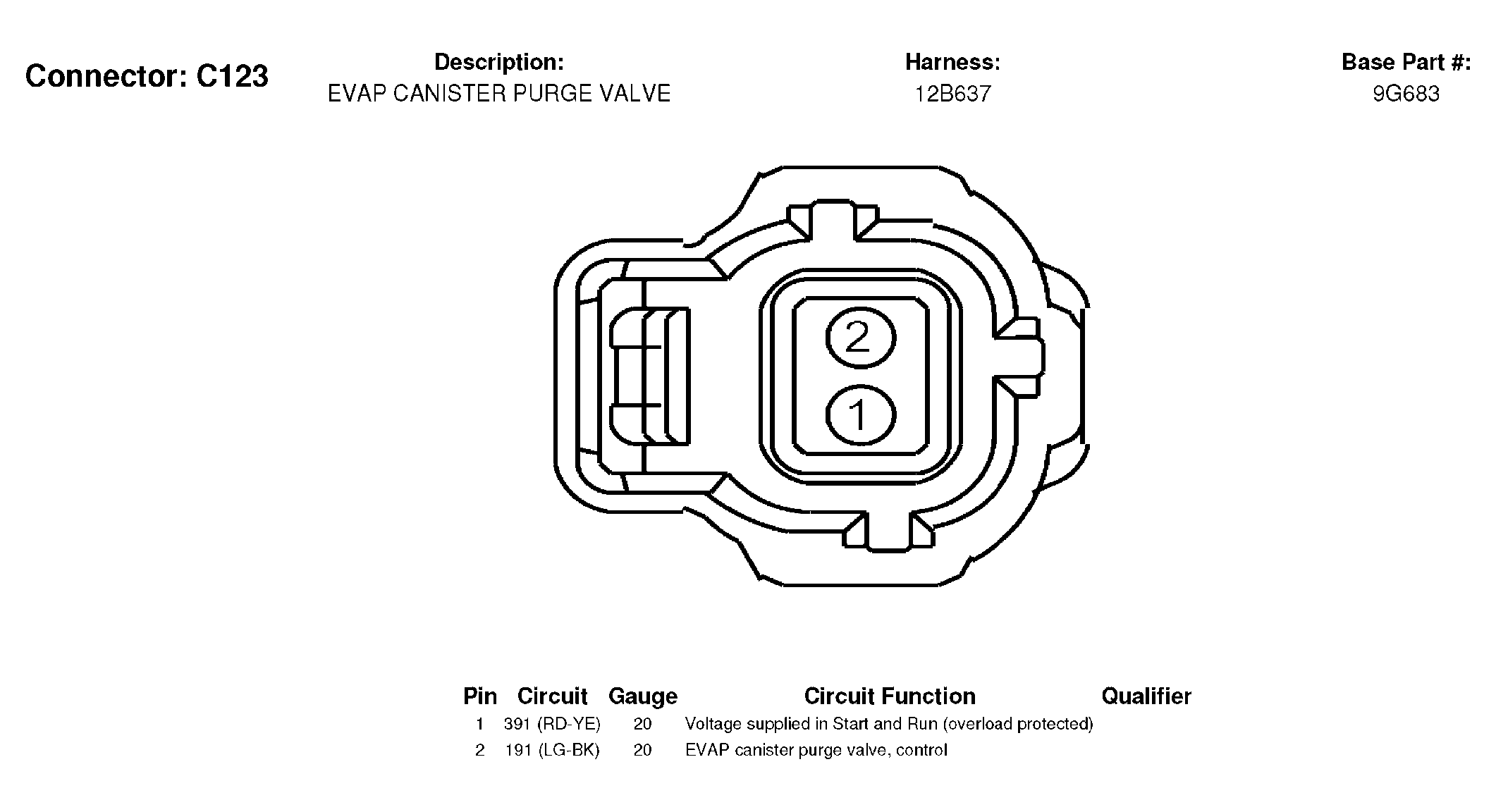

Fig 11: EVAP Canister Purge Valve Connector End View (C123)
G04597253Courtesy of FORD MOTOR CO.

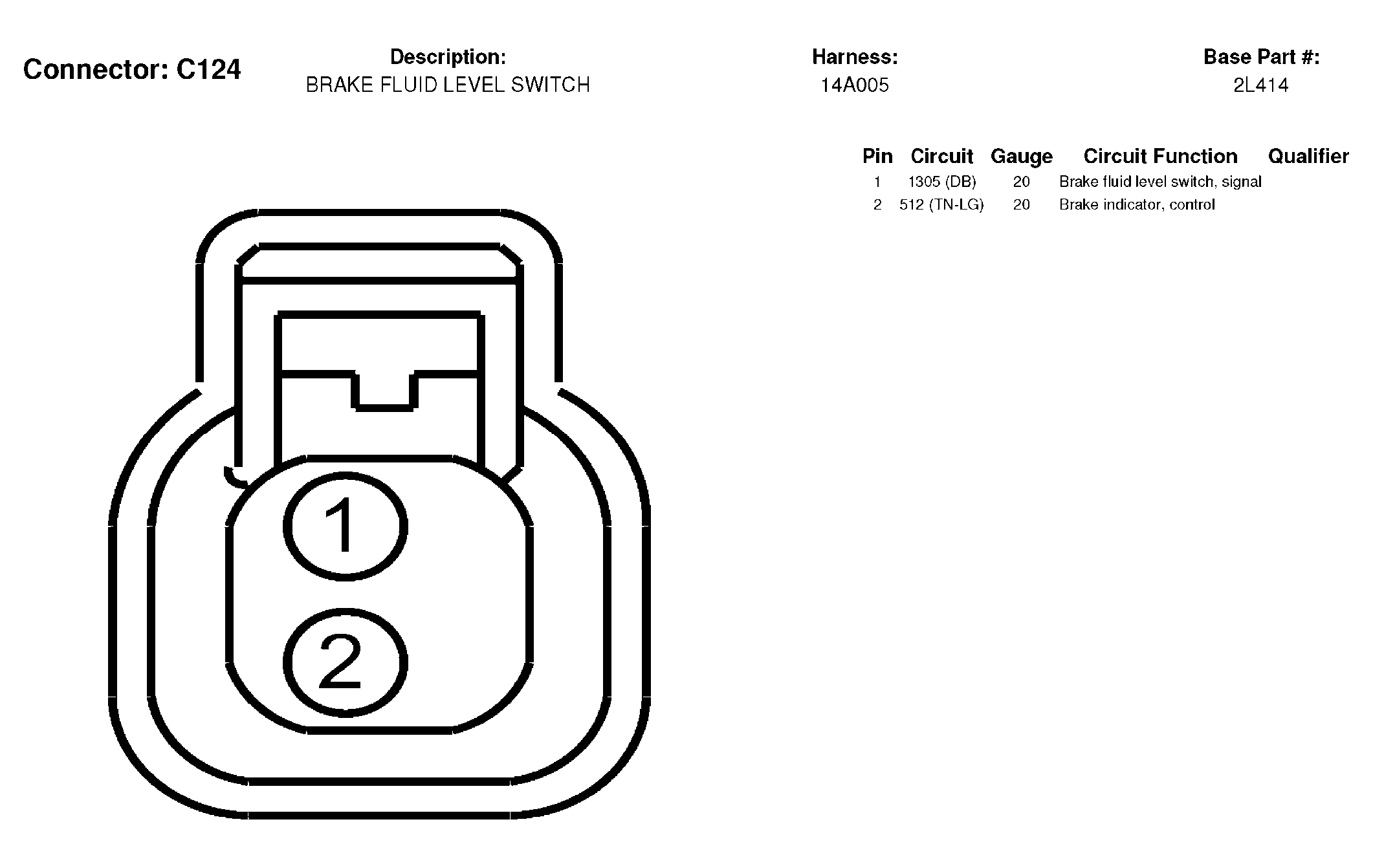

Fig 12: Brake Fluid Level Switch Connector End View (C124)
G04597254Courtesy of FORD MOTOR CO.

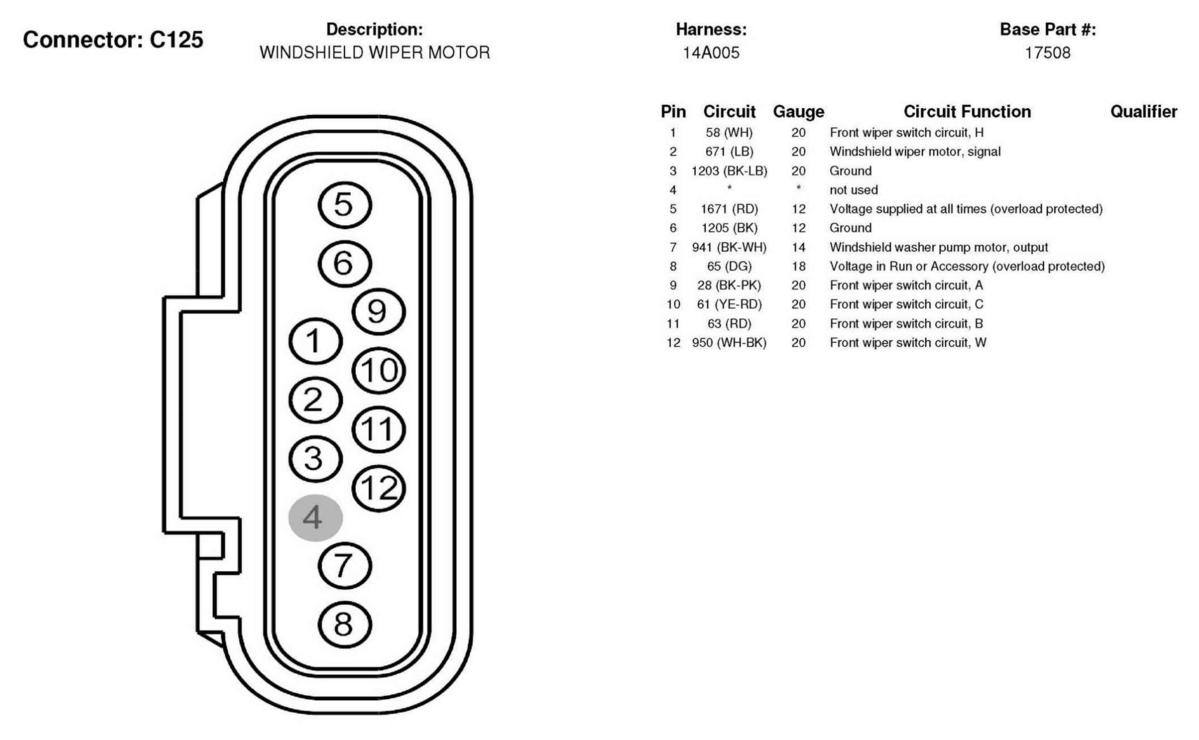

Fig 13: Windshield Wiper Motor Connector End View (C125)
G04597255Courtesy of FORD MOTOR CO.

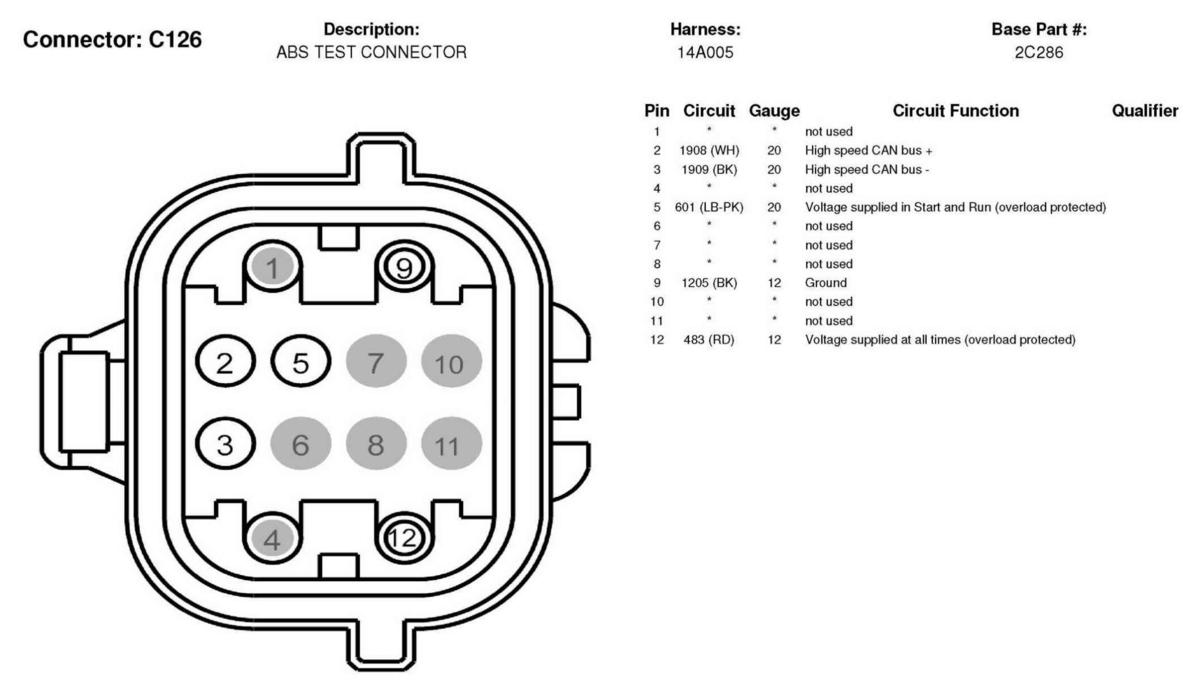

Fig 14: ABS Test Connector, Connector End View (C126)
G04597256Courtesy of FORD MOTOR CO.

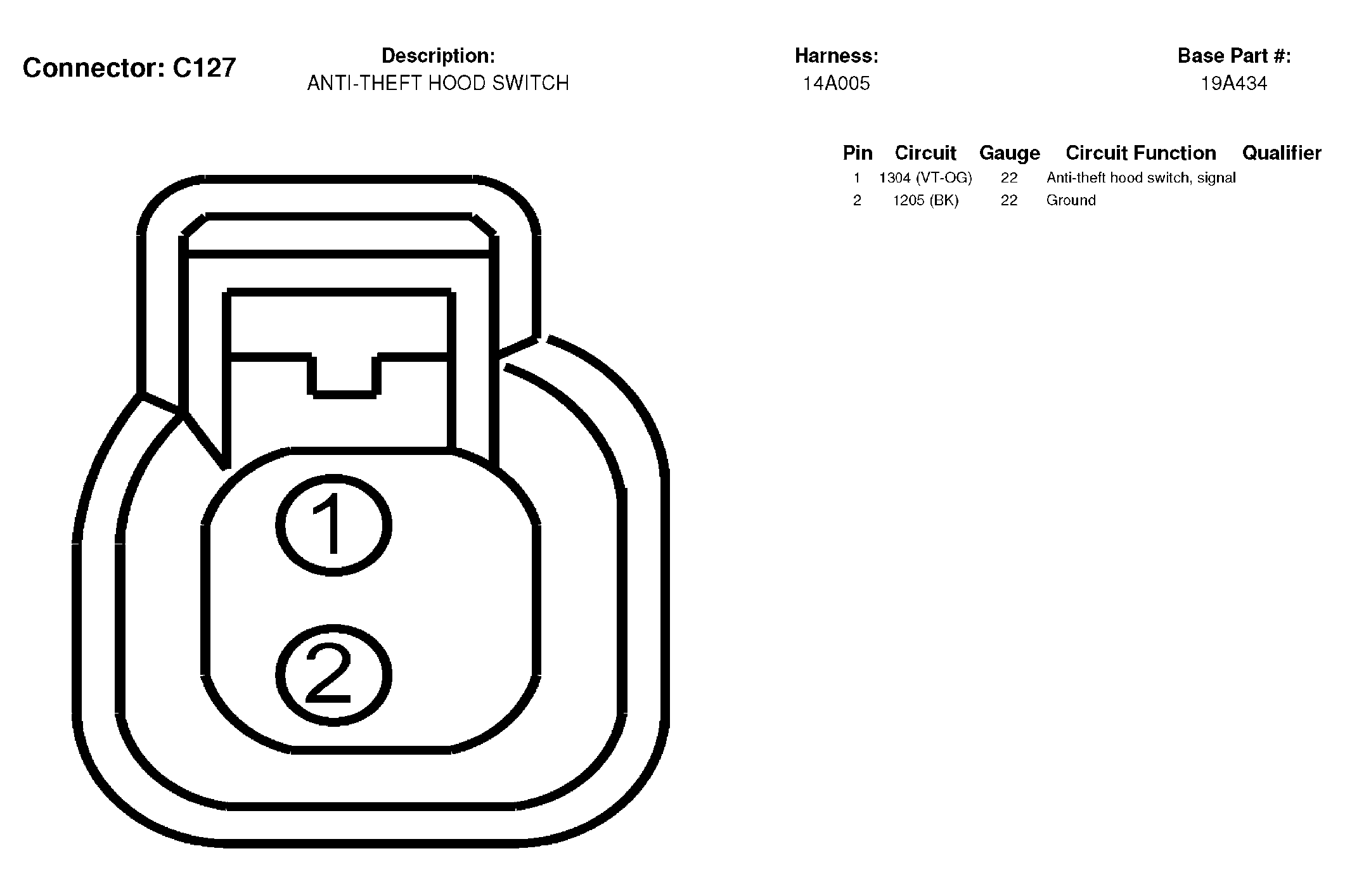

Fig 15: Anti-Theft Hood Switch Connector End View (C127)
G04597257Courtesy of FORD MOTOR CO.

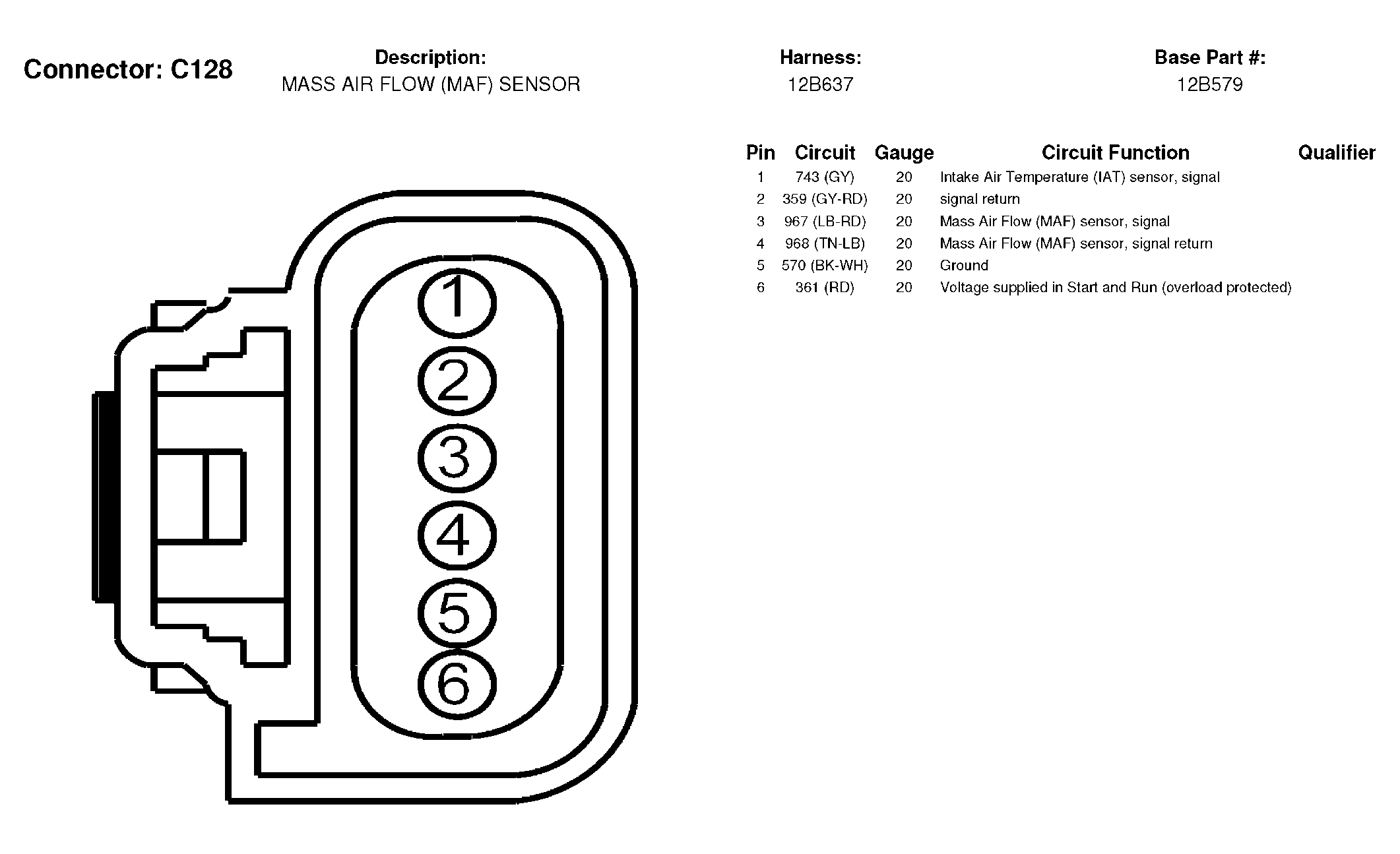

Fig 16: Mass Air Flow (MAF) Sensor Connector End View (C128)
G04597258Courtesy of FORD MOTOR CO.

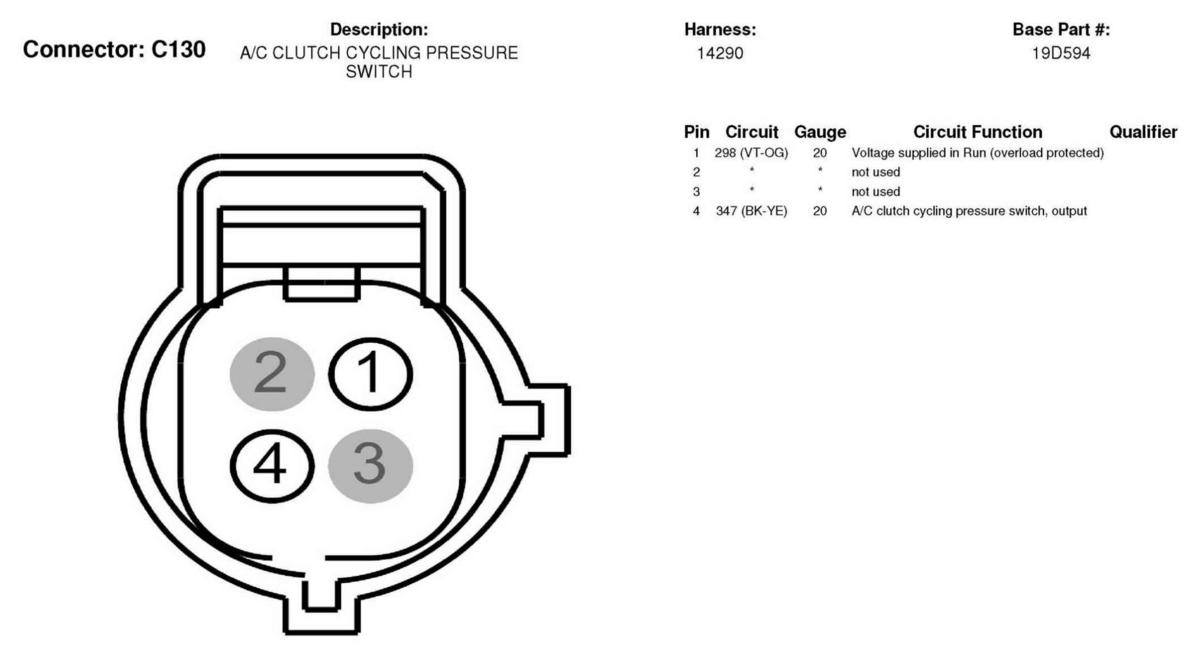

Fig 17: A/C Clutch Cycling Pressure Switch Connector End View (C130)
G04597259Courtesy of FORD MOTOR CO.

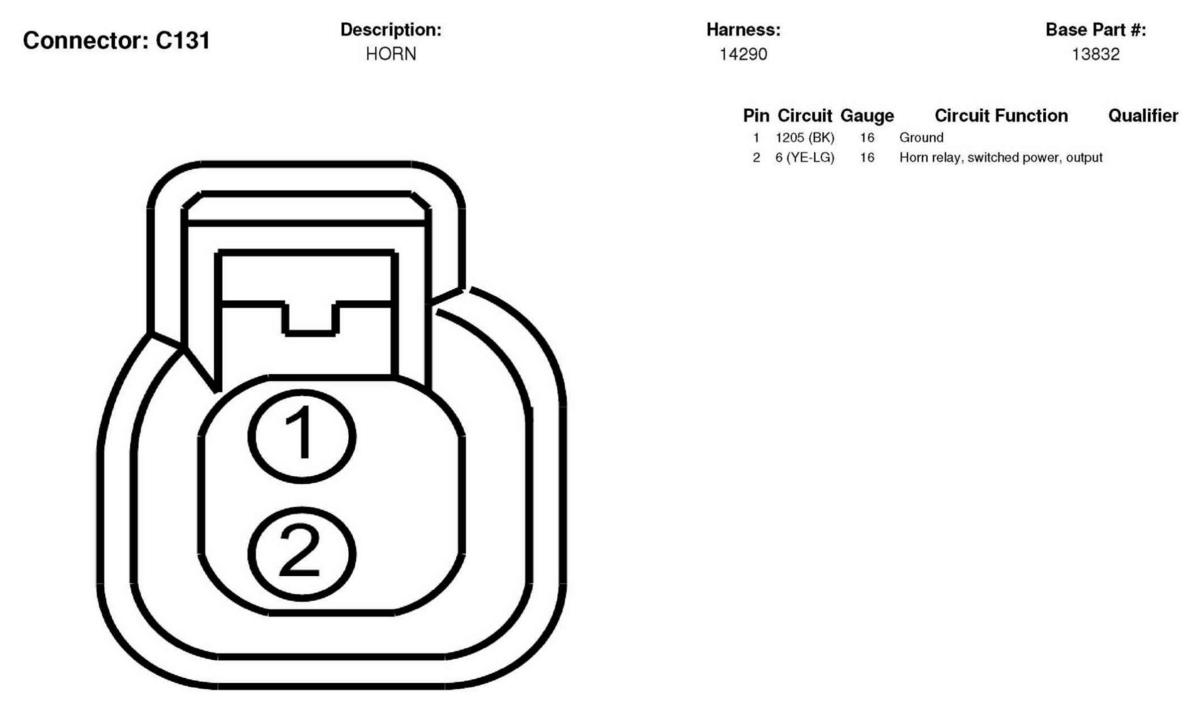

Fig 18: Horn Connector End View (C131)
G04597260Courtesy of FORD MOTOR CO.

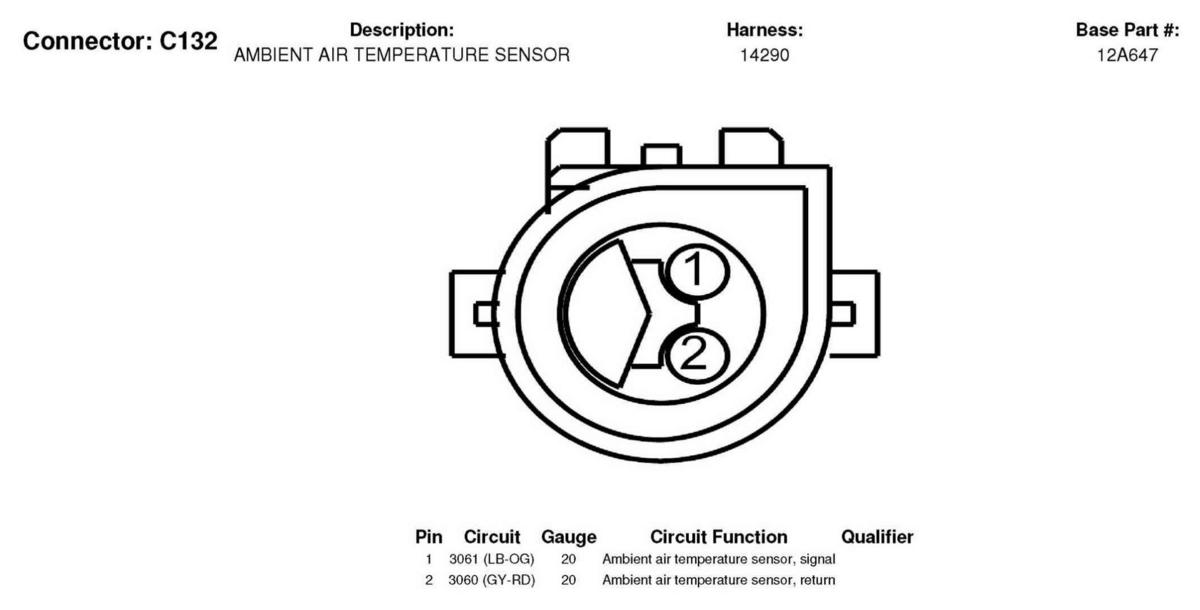

Fig 19: Ambient Air Temperature Sensor Connector End View (C132)
G04597261Courtesy of FORD MOTOR CO.

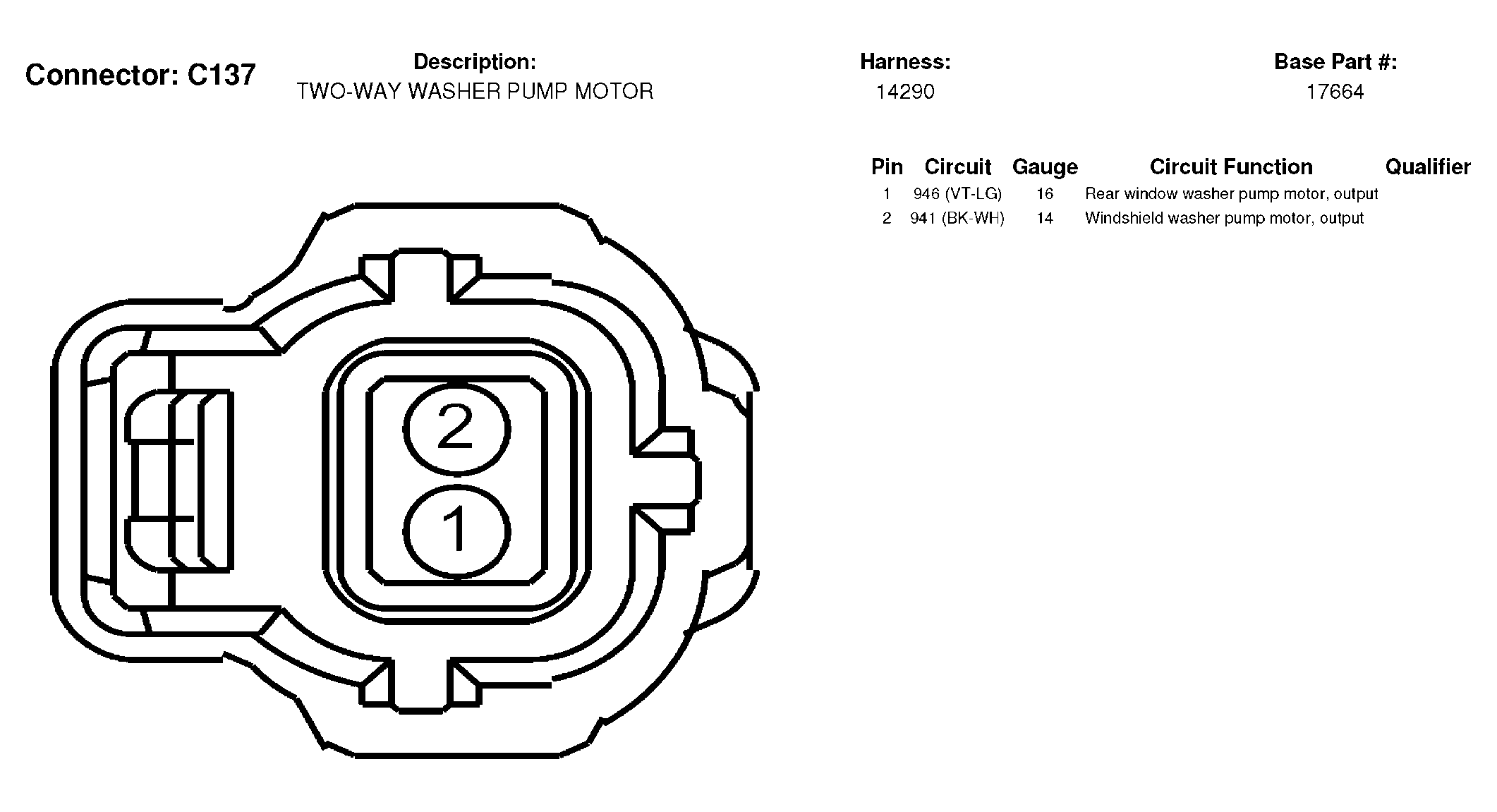

Fig 20: Two-Way Washer Pump Motor Connector End View (C137)
G04597262Courtesy of FORD MOTOR CO.

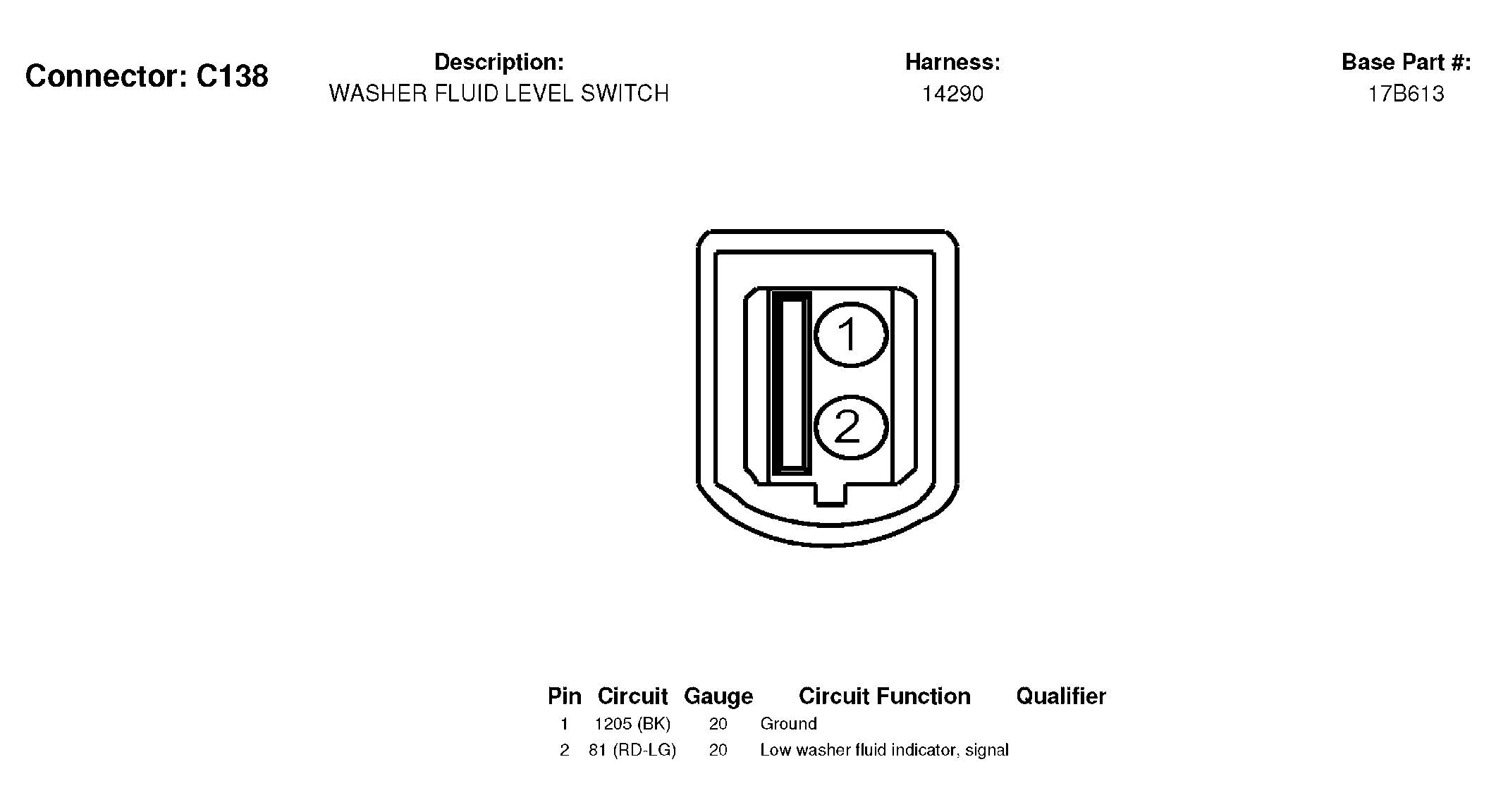

Fig 21: Washer Fluid Level Switch Connector End View (C138)
G04597263Courtesy of FORD MOTOR CO.

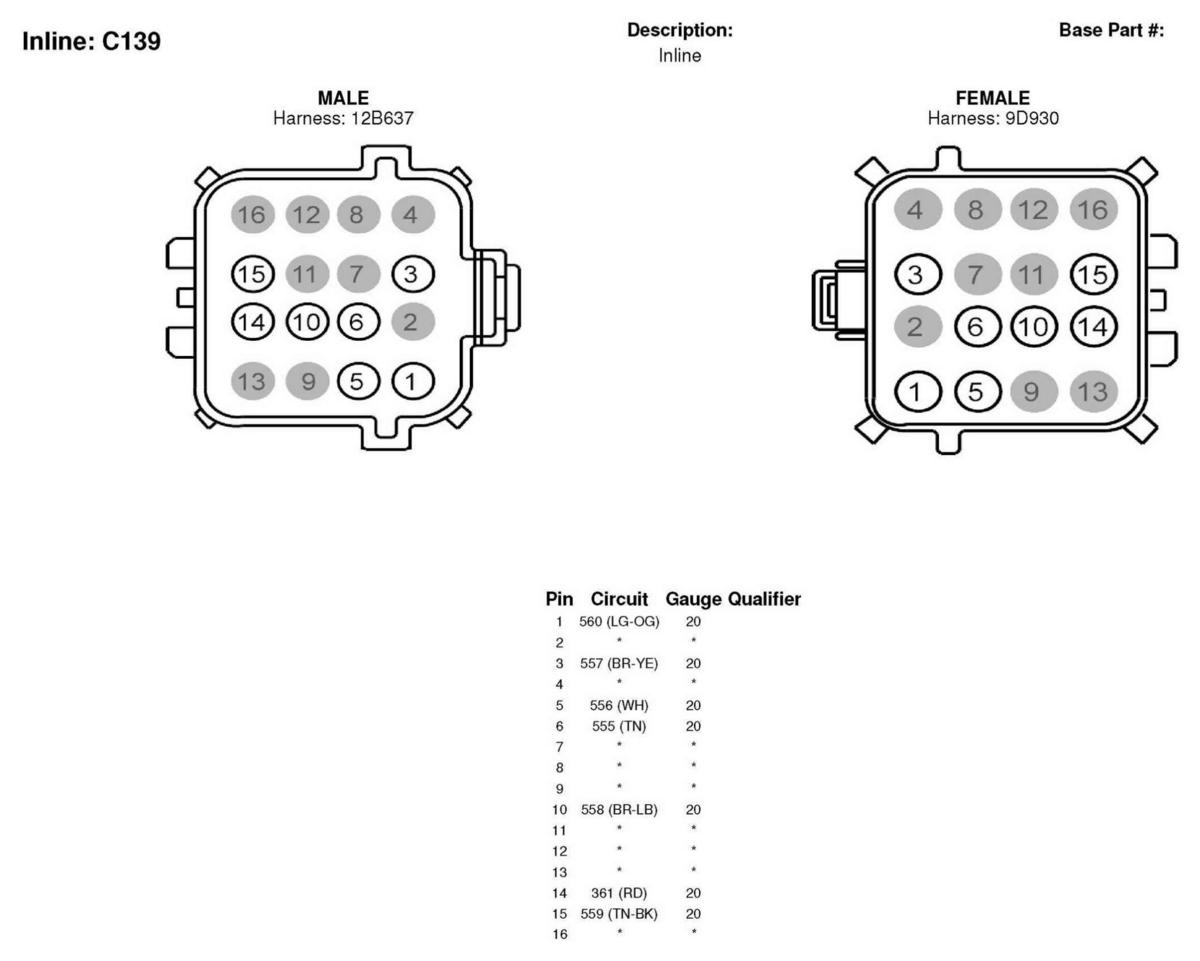

Fig 22: Inline Connector End View (C139)
G04597264Courtesy of FORD MOTOR CO.

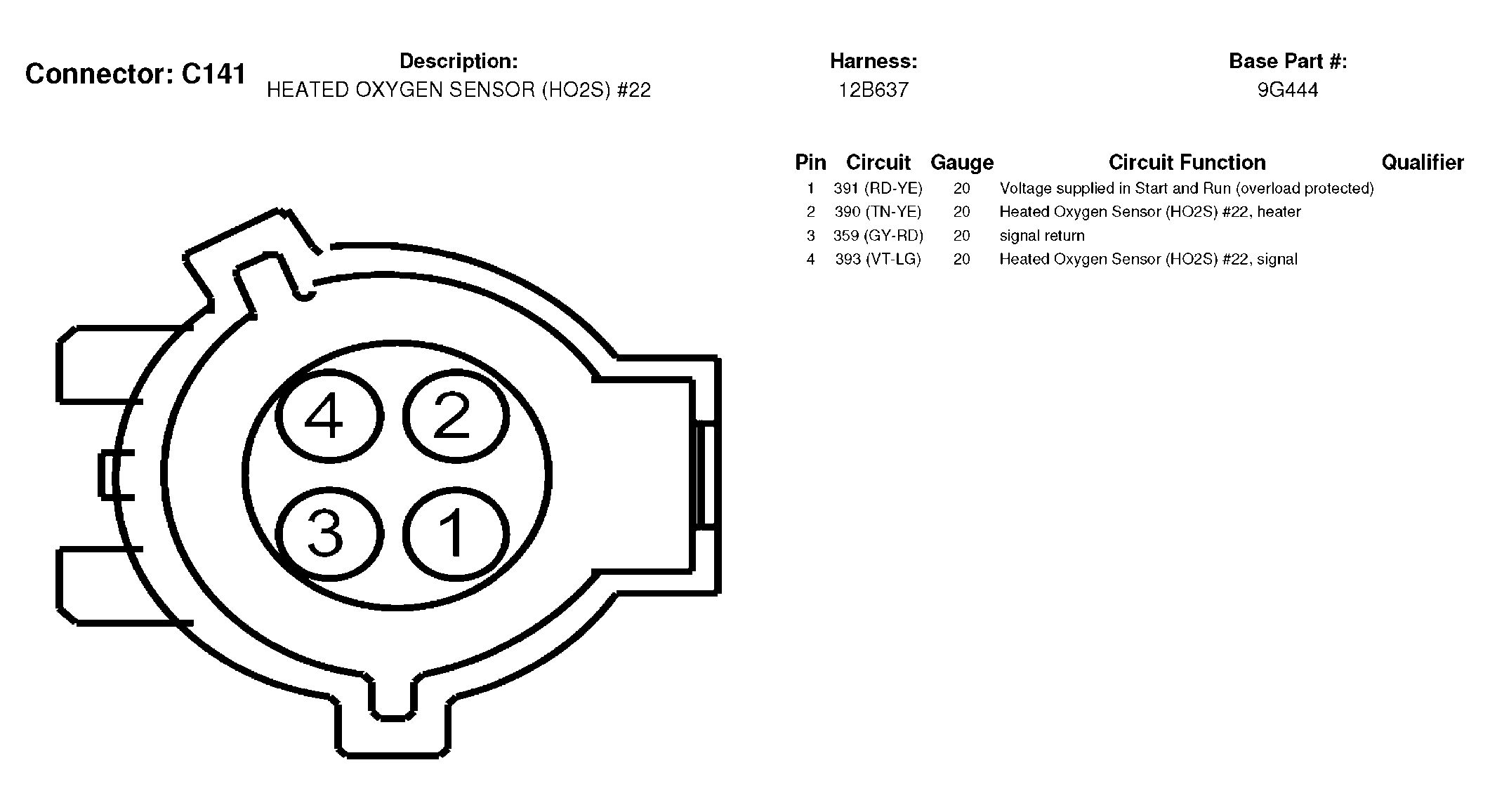

Fig 23: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
G04597265Courtesy of FORD MOTOR CO.
Fig 24: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
G04597266Courtesy of FORD MOTOR CO.

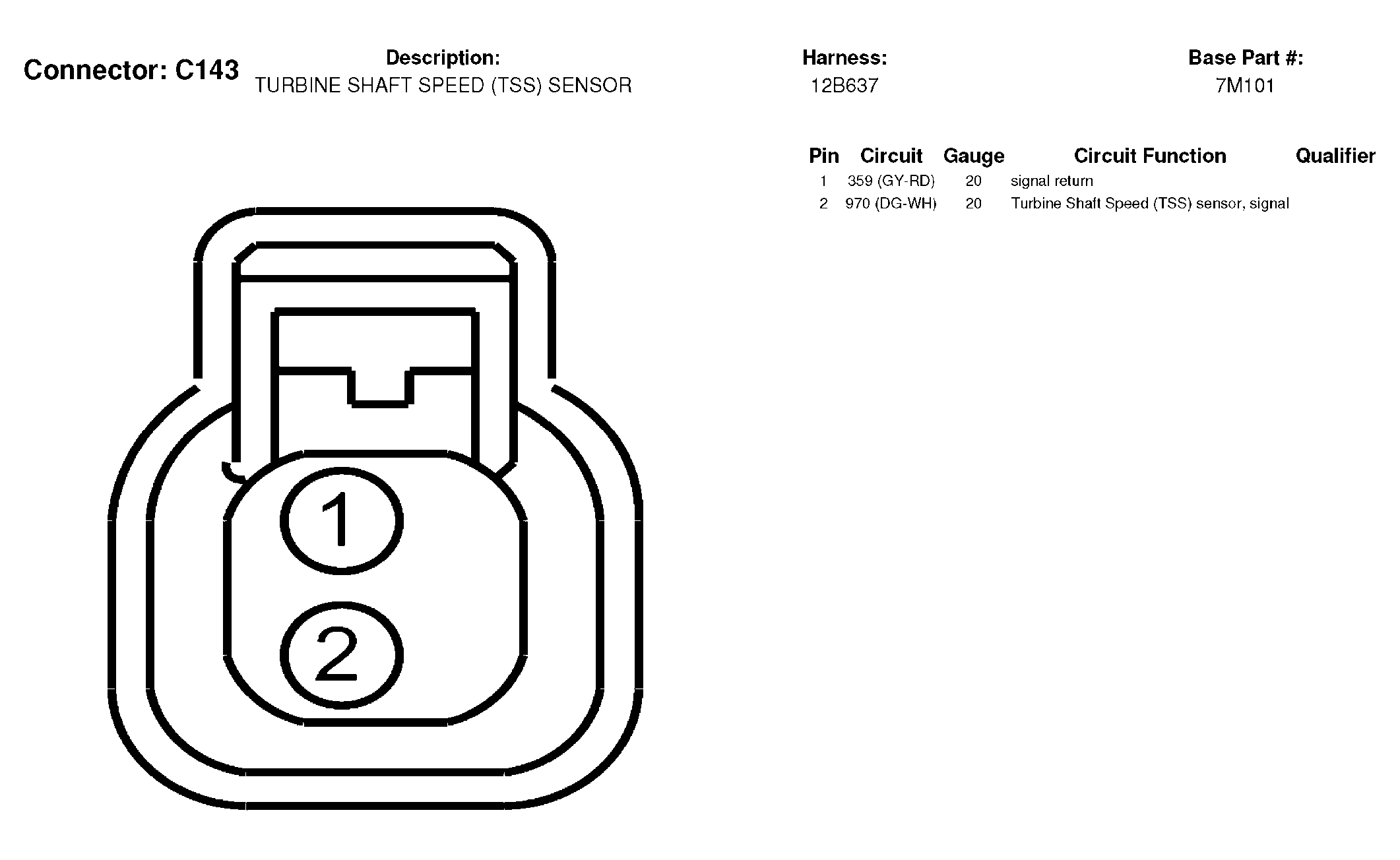

Fig 25: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
G04597267Courtesy of FORD MOTOR CO.

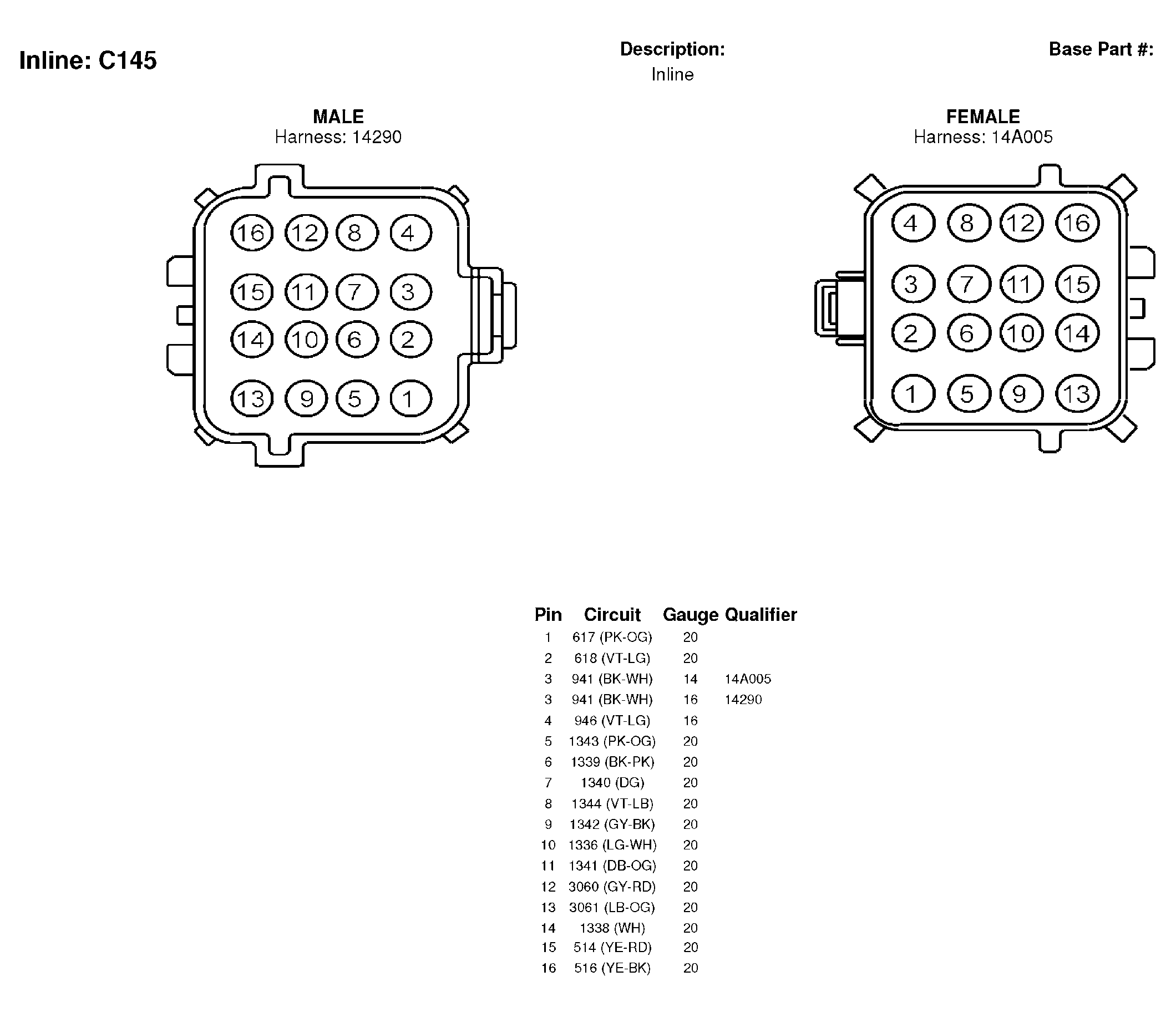

Fig 26: Inline Connector End View (C145)
G04597268Courtesy of FORD MOTOR CO.
Fig 27: Inline Connector End View (C147)
G04597269Courtesy of FORD MOTOR CO.

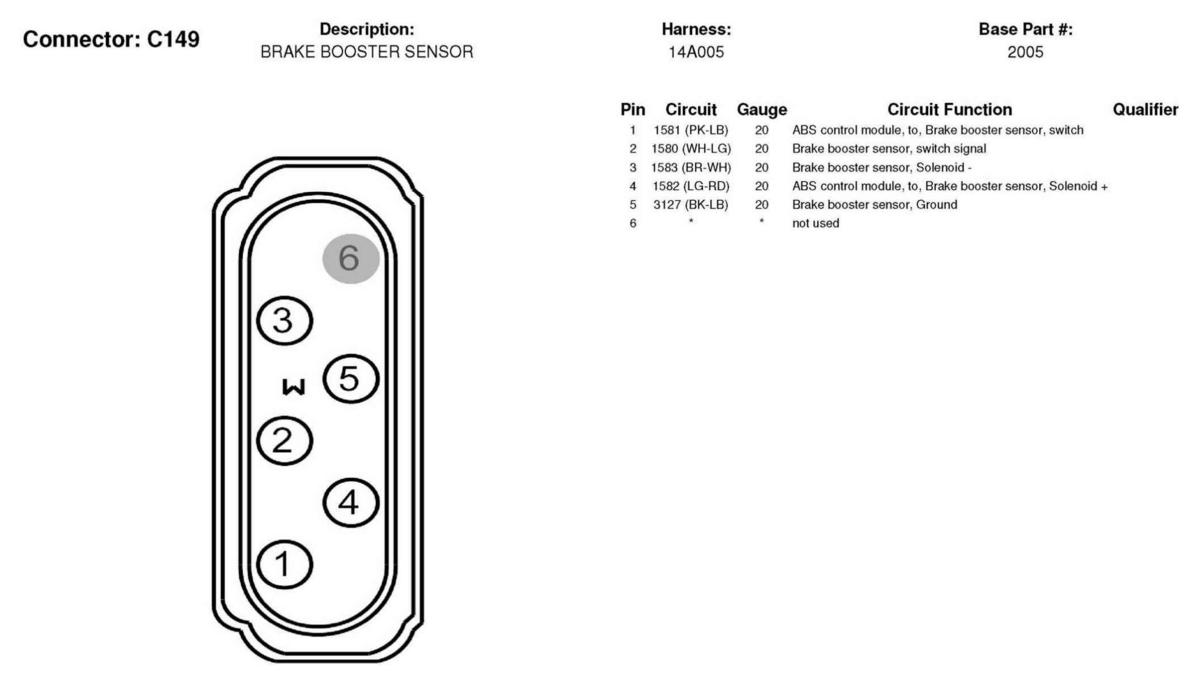

Fig 28: Brake Booster Sensor Connector End View (C149)
G04597270Courtesy of FORD MOTOR CO.

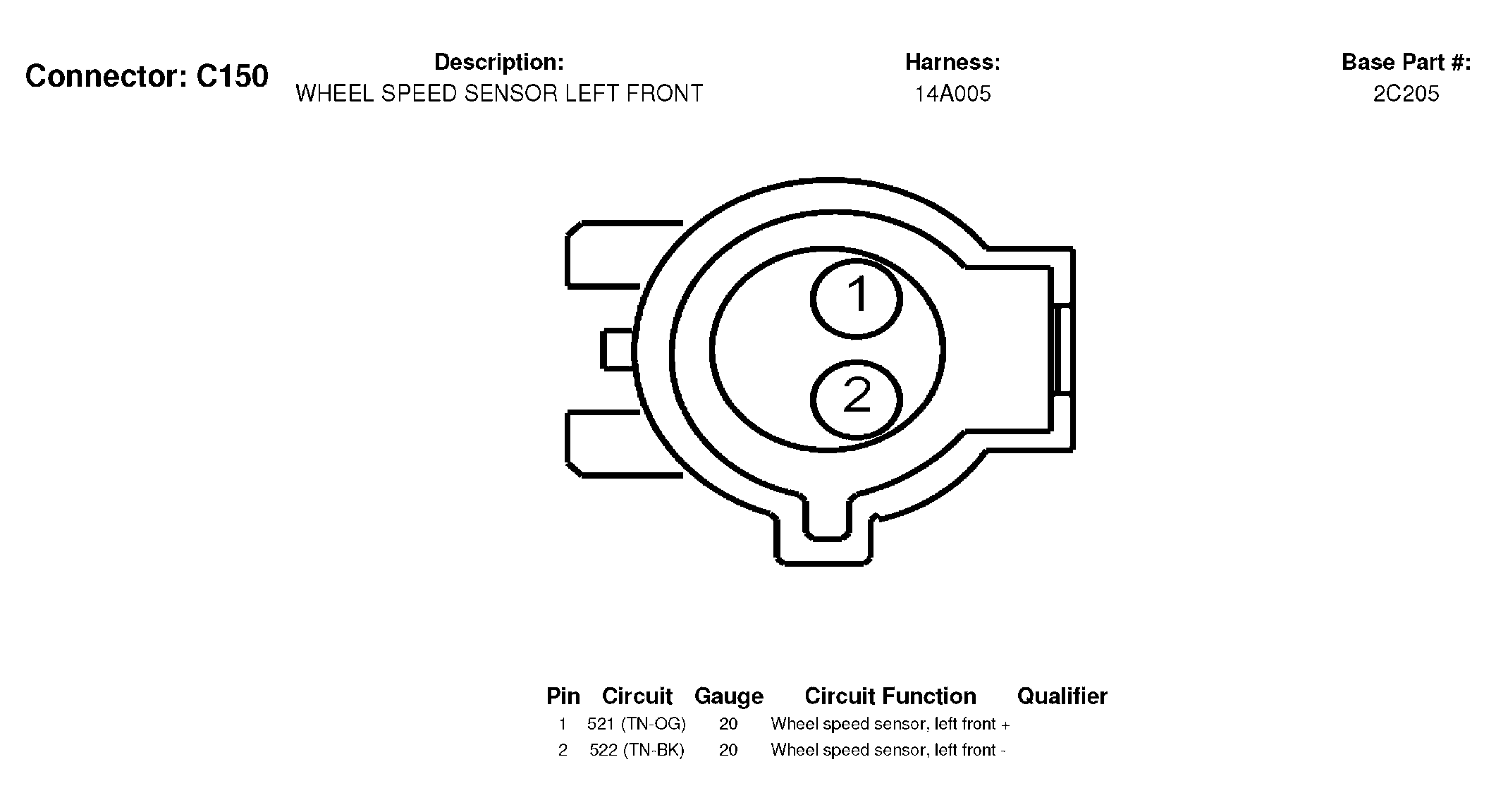

Fig 29: Wheel Speed Sensor Left Front Connector End View (C150)
G04597271Courtesy of FORD MOTOR CO.

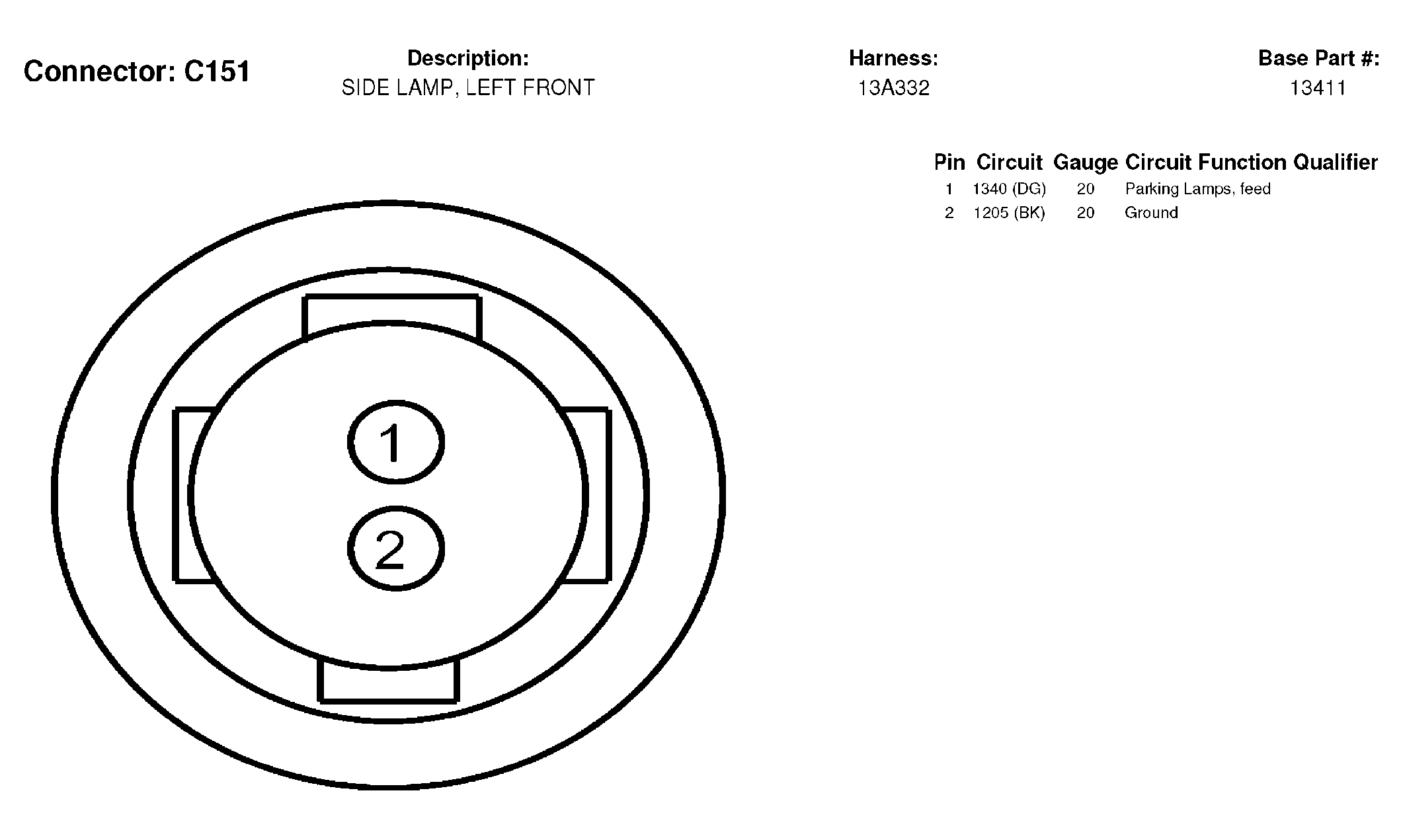

Fig 30: Side Lamp, Left Front Connector End View (C151)
G04597272Courtesy of FORD MOTOR CO.

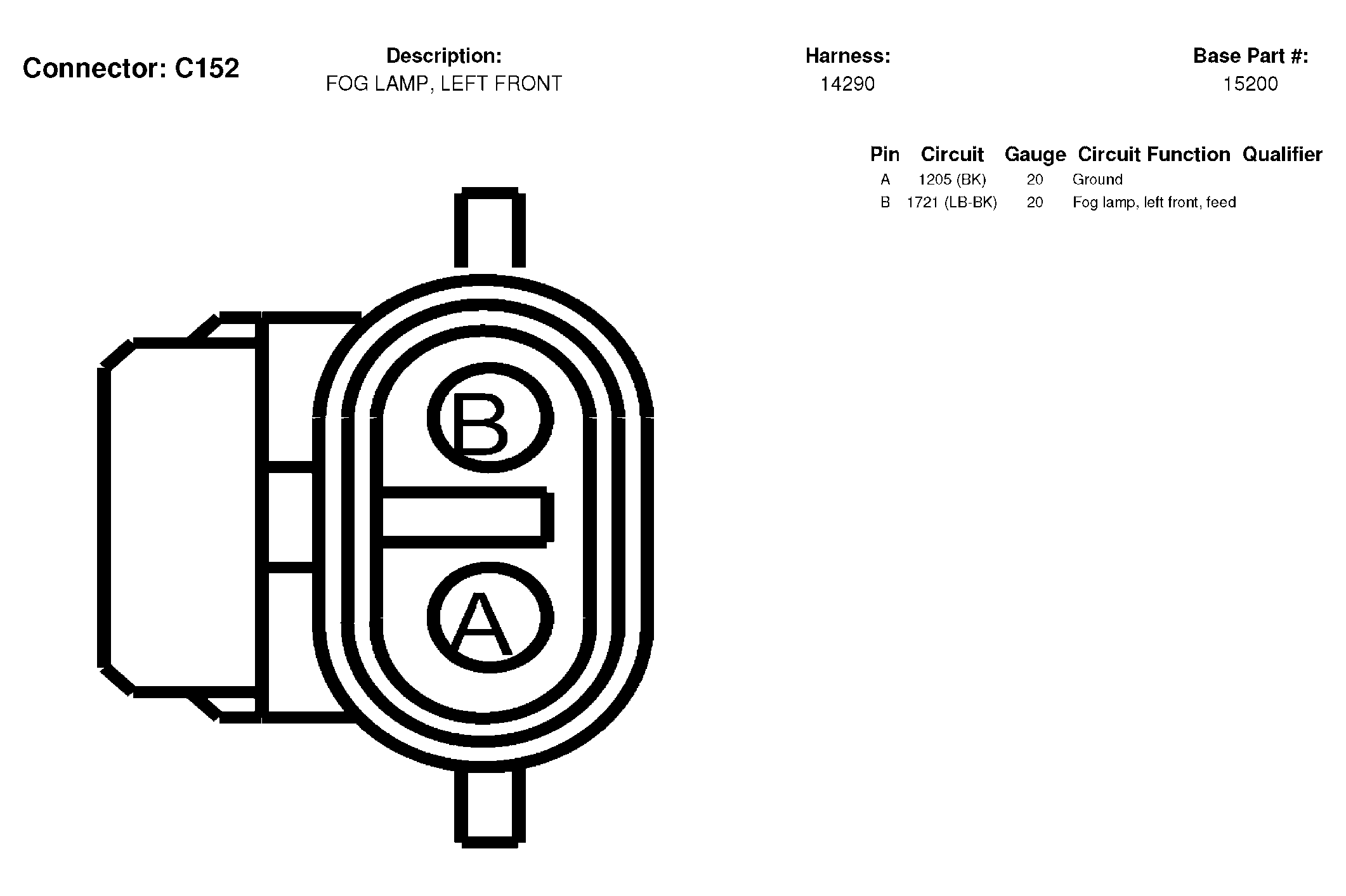

Fig 31: Fog Lamp, Left Front Connector End View (C152)
G04597273Courtesy of FORD MOTOR CO.

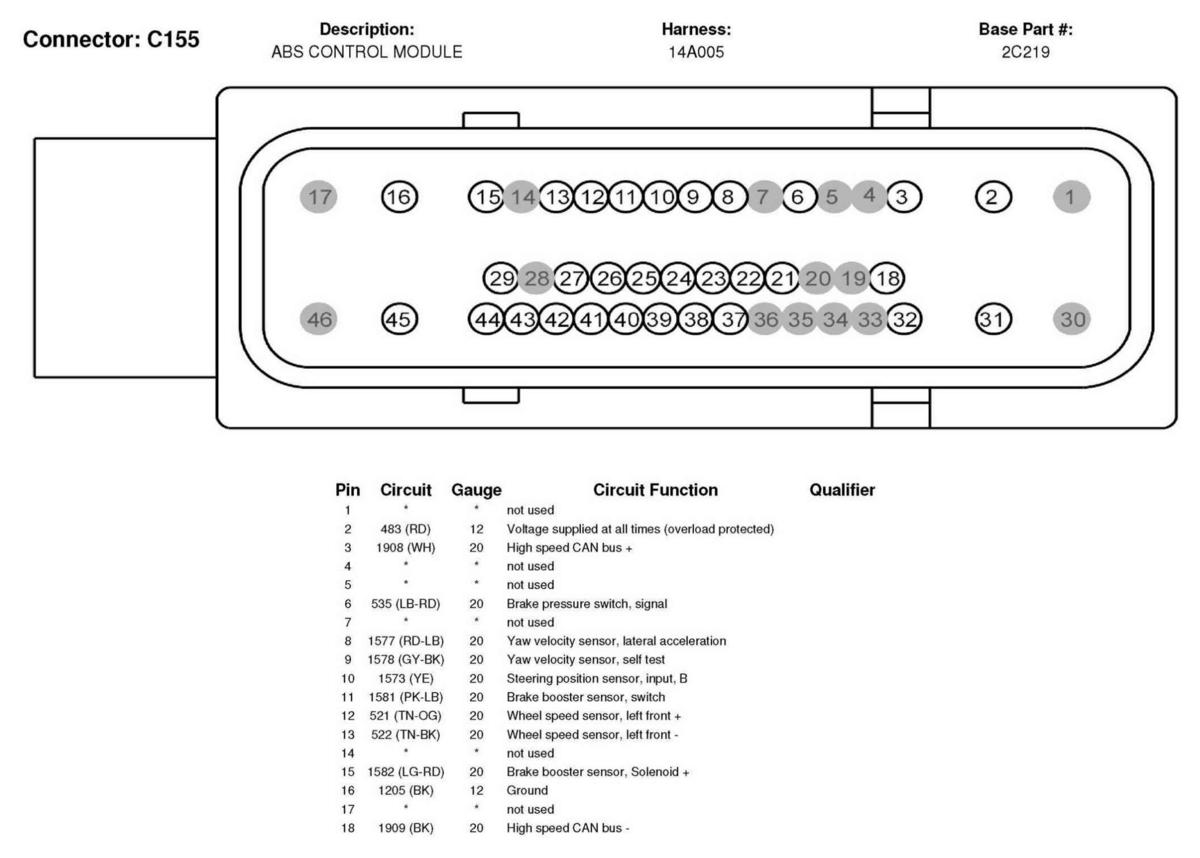

Fig 32: ABS Control Module Connector End View (C155) (1 Of 2)
G04597274Courtesy of FORD MOTOR CO.

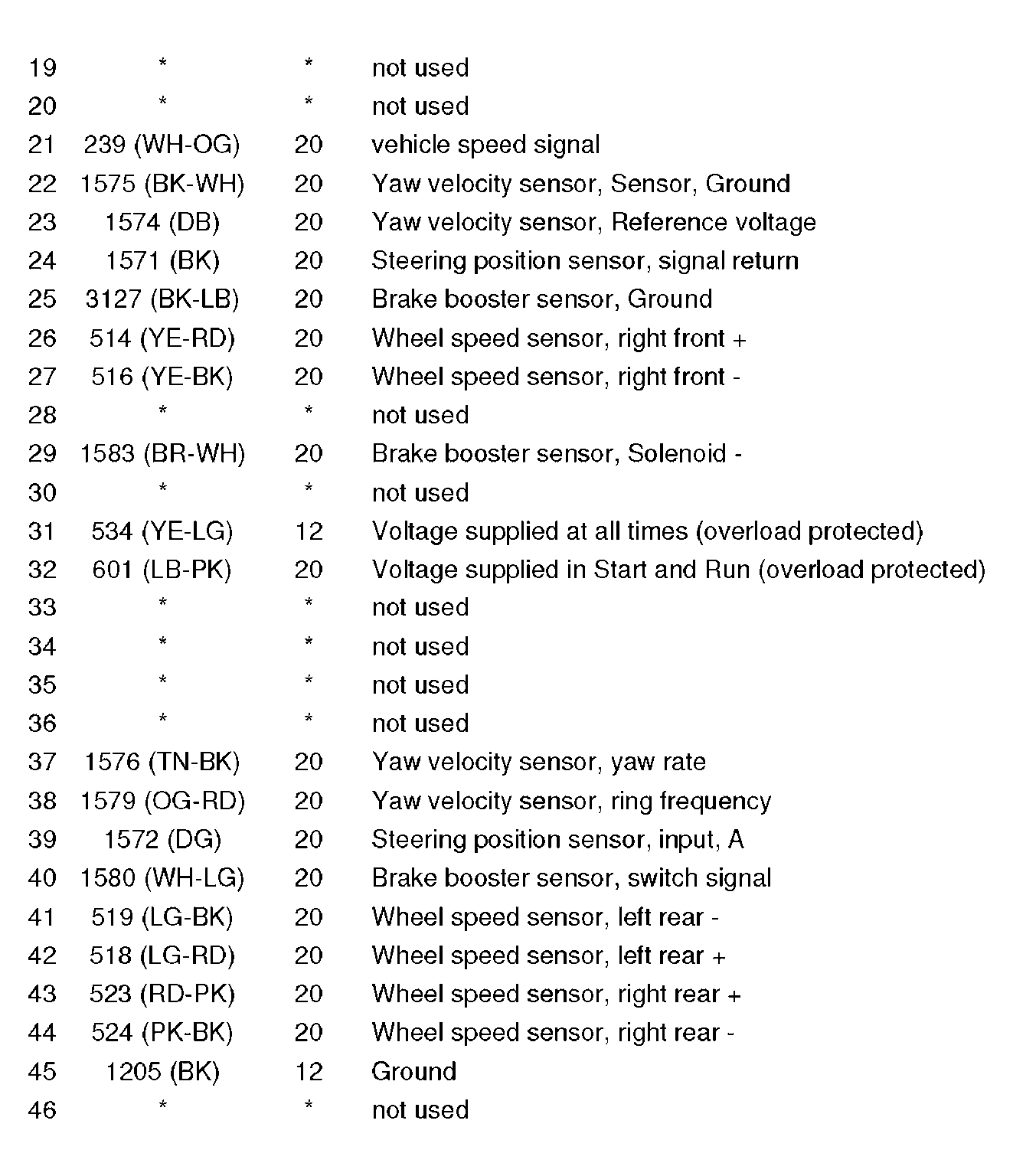

Fig 33: ABS Control Module Connector End View (C155) (2 Of 2)
G04597275Courtesy of FORD MOTOR CO.

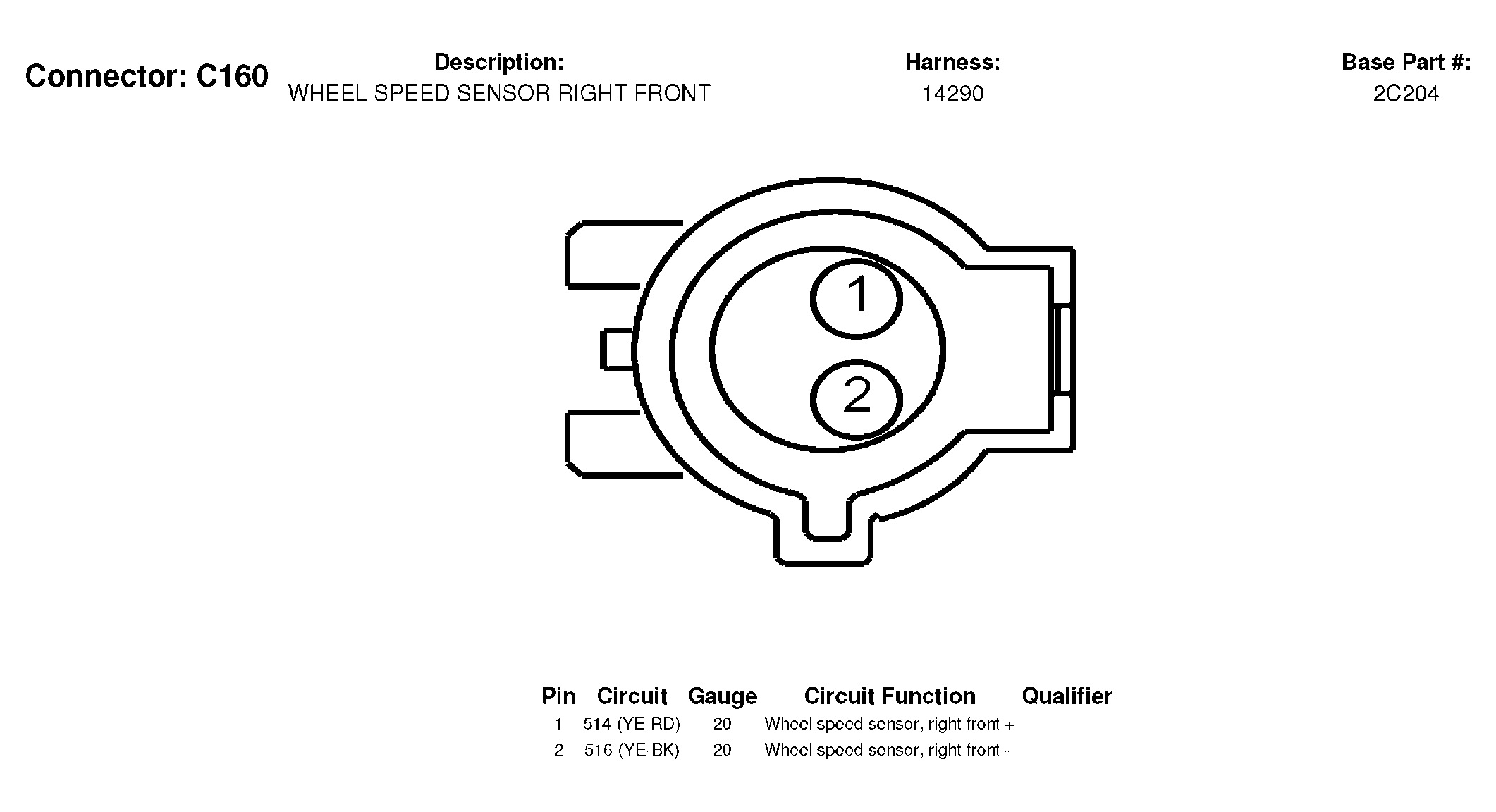

Fig 34: Wheel Speed Sensor Right Front Connector End View (C160)
G04597276Courtesy of FORD MOTOR CO.

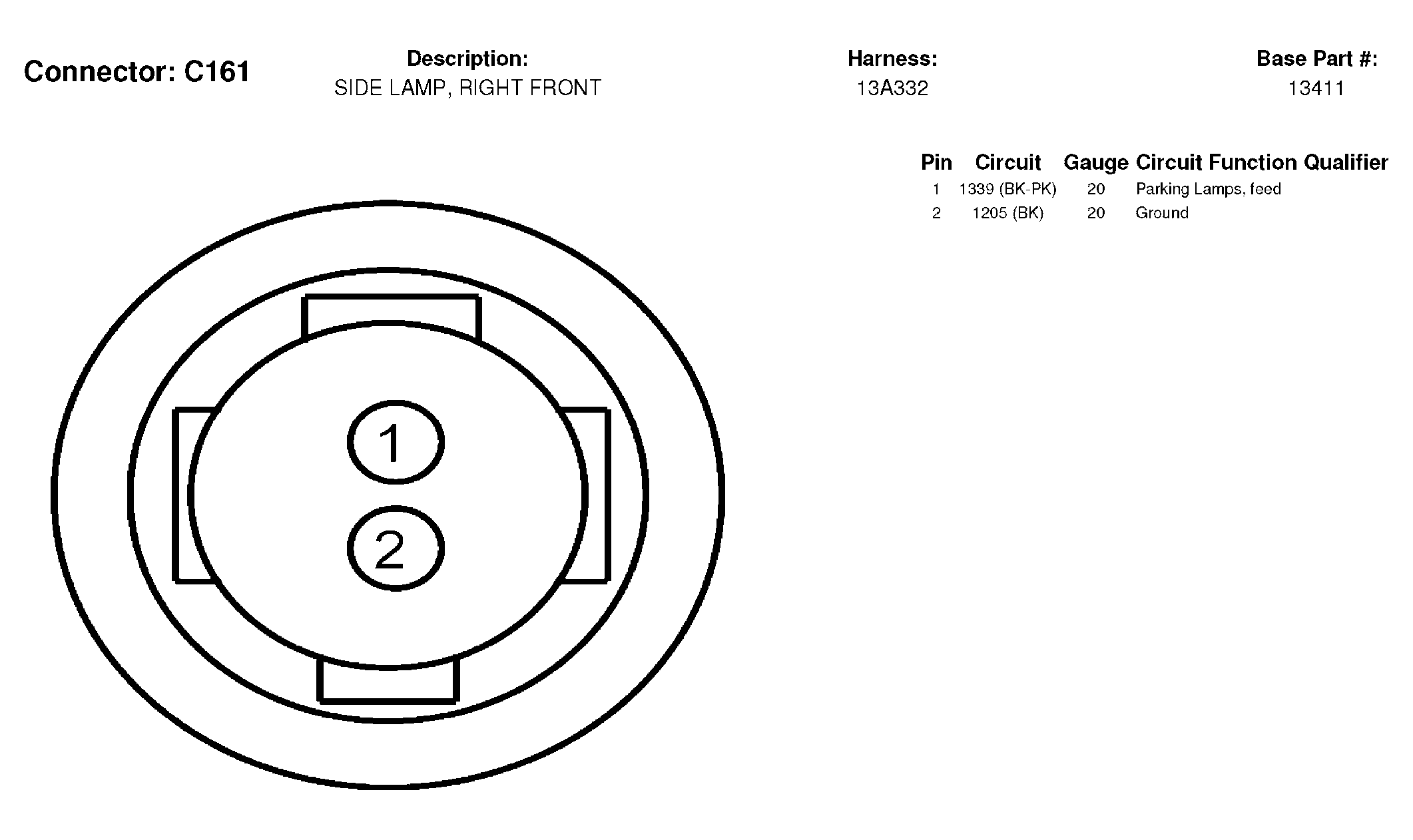

Fig 35: Side Lamp, Right Front Connector End View (C161)
G04597277Courtesy of FORD MOTOR CO.

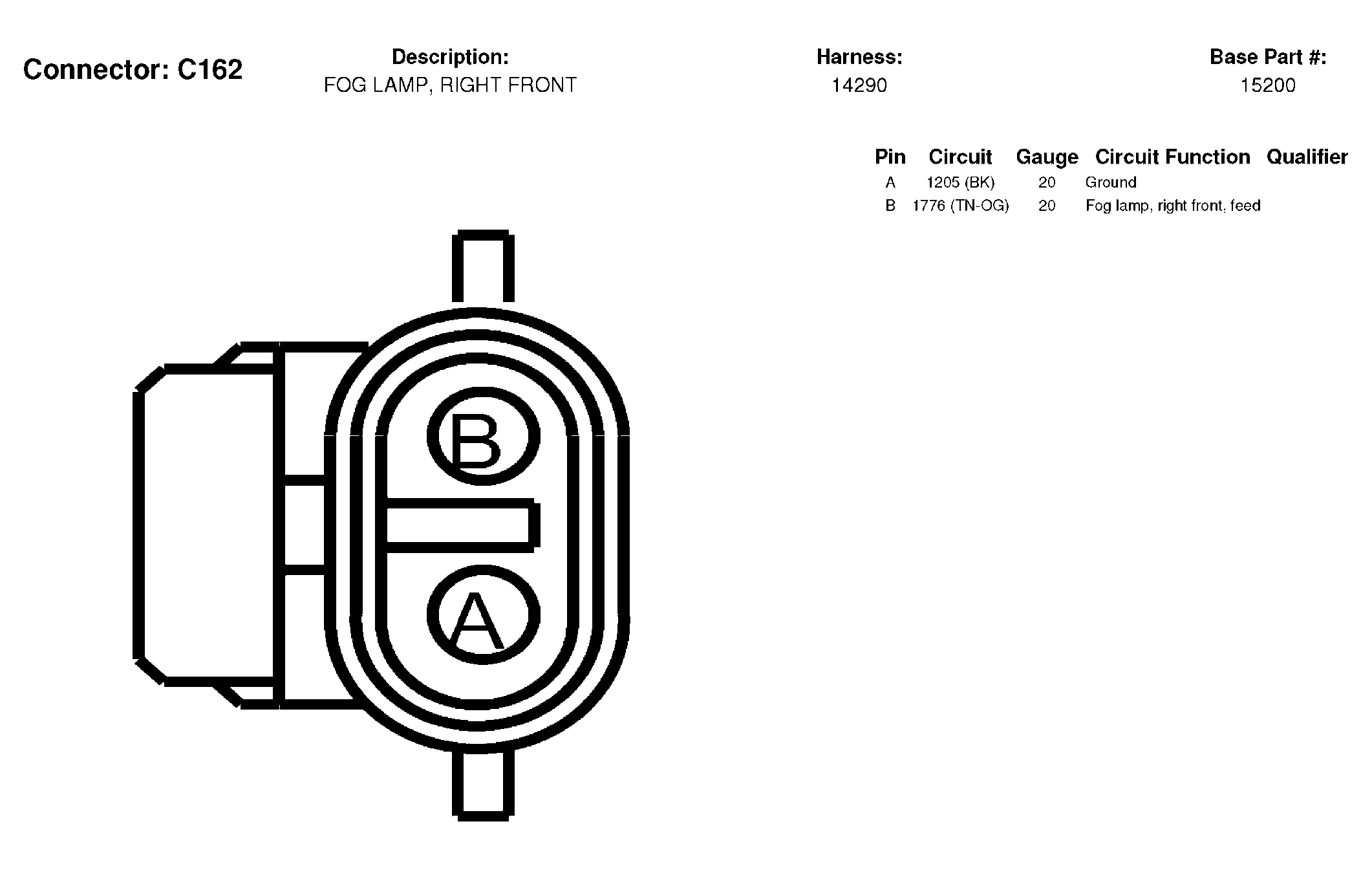

Fig 36: Fog Lamp, Right Front Connector End View (C162)
G04597278Courtesy of FORD MOTOR CO.

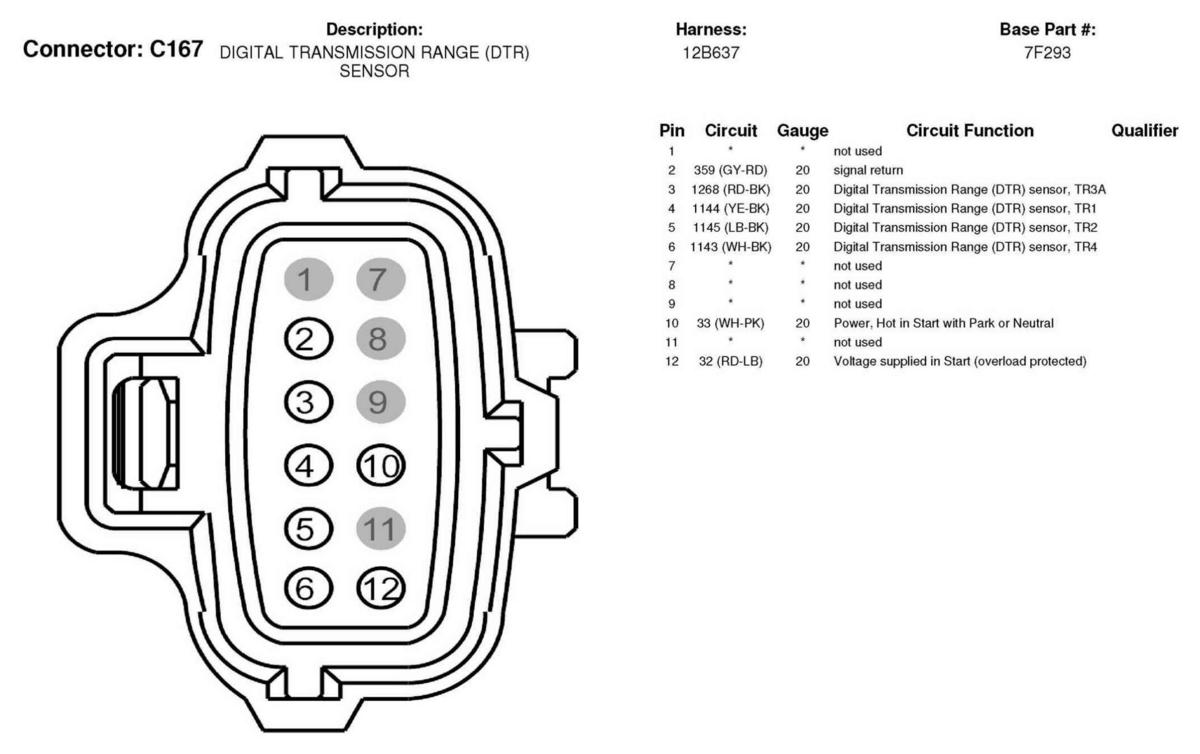

Fig 37: Digital Transmission Range (DTR) Sensor Connector End View (C167)
G04597279Courtesy of FORD MOTOR CO.

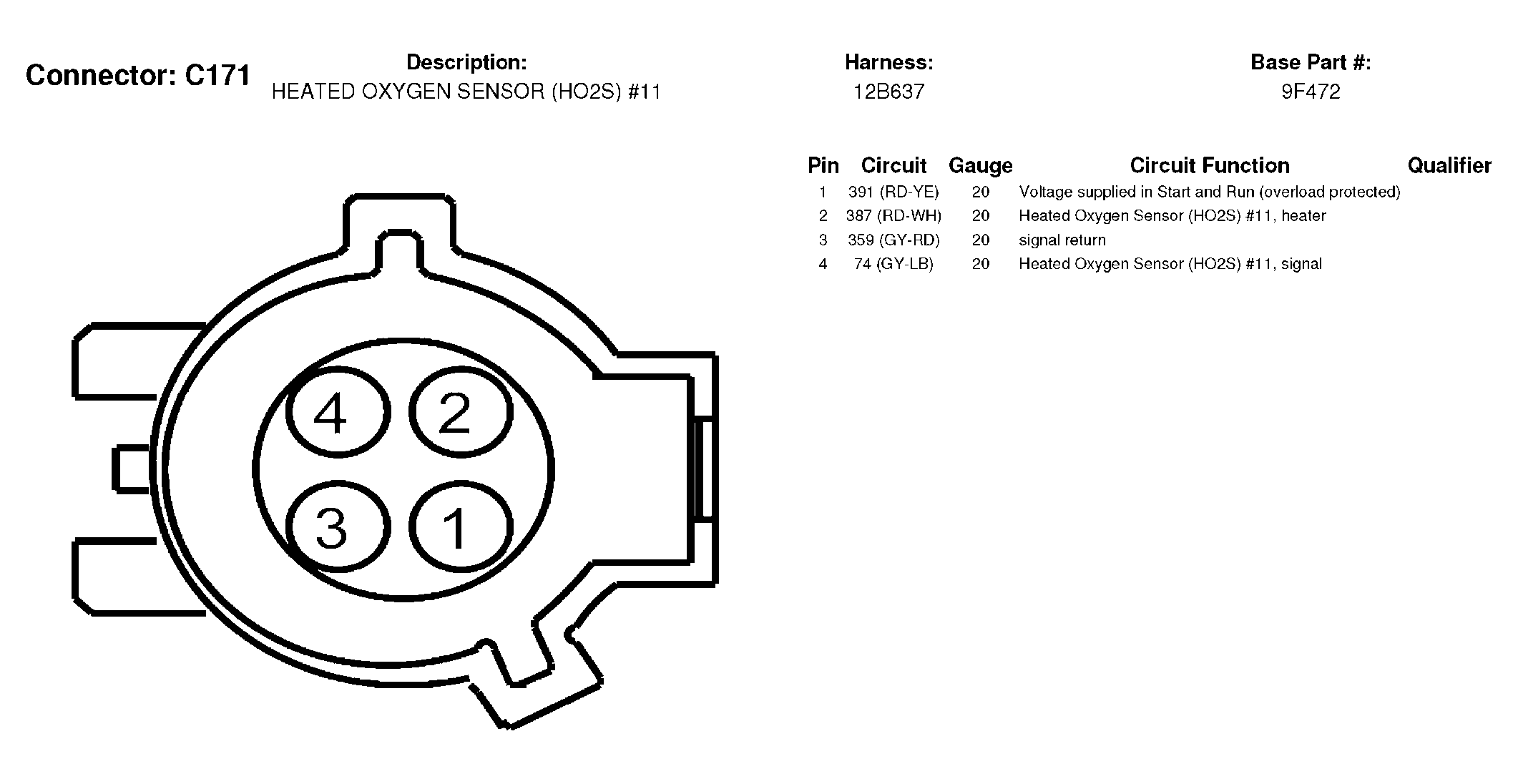

Fig 38: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
G04597280Courtesy of FORD MOTOR CO.

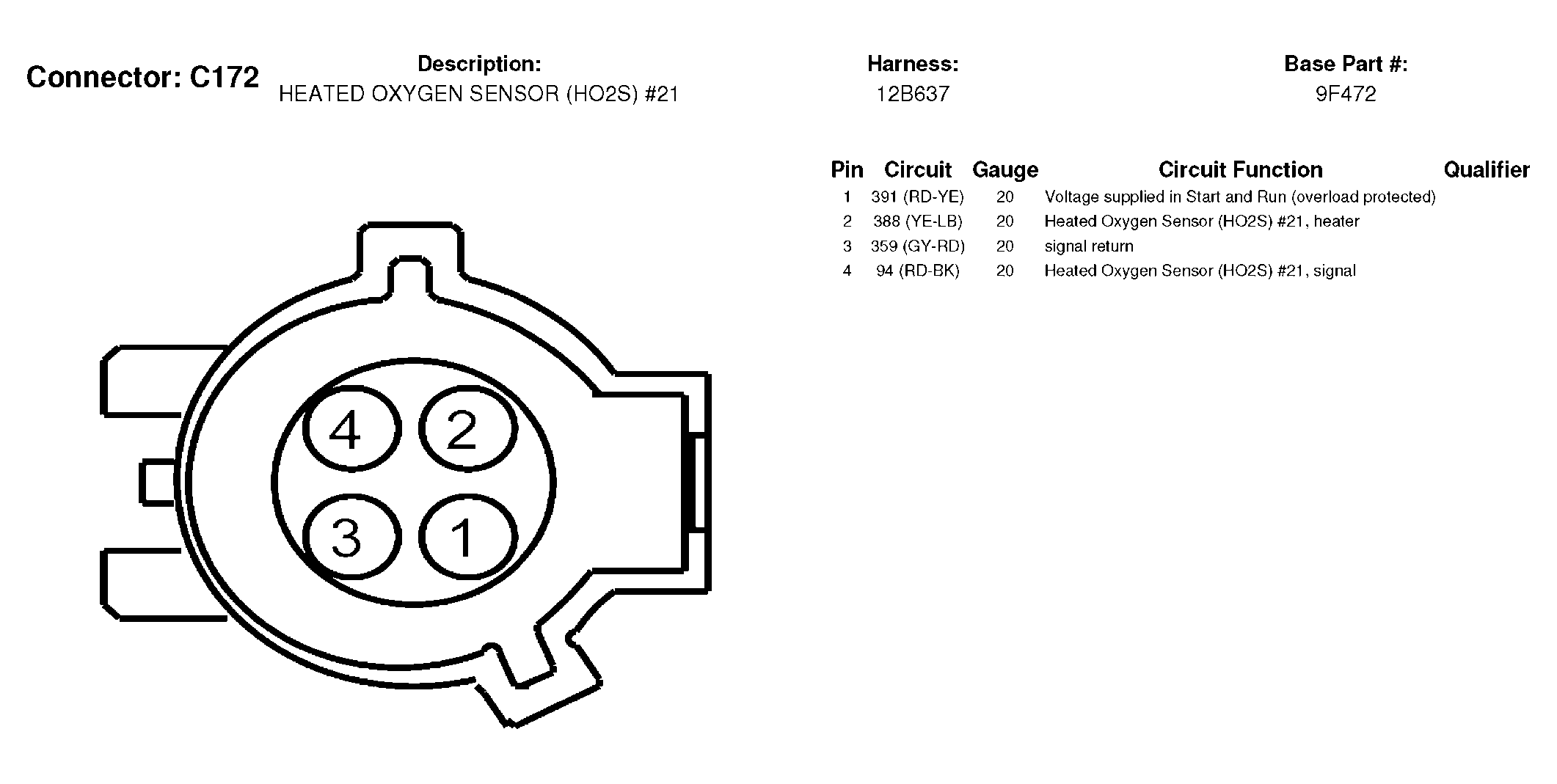

Fig 39: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
G04597281Courtesy of FORD MOTOR CO.

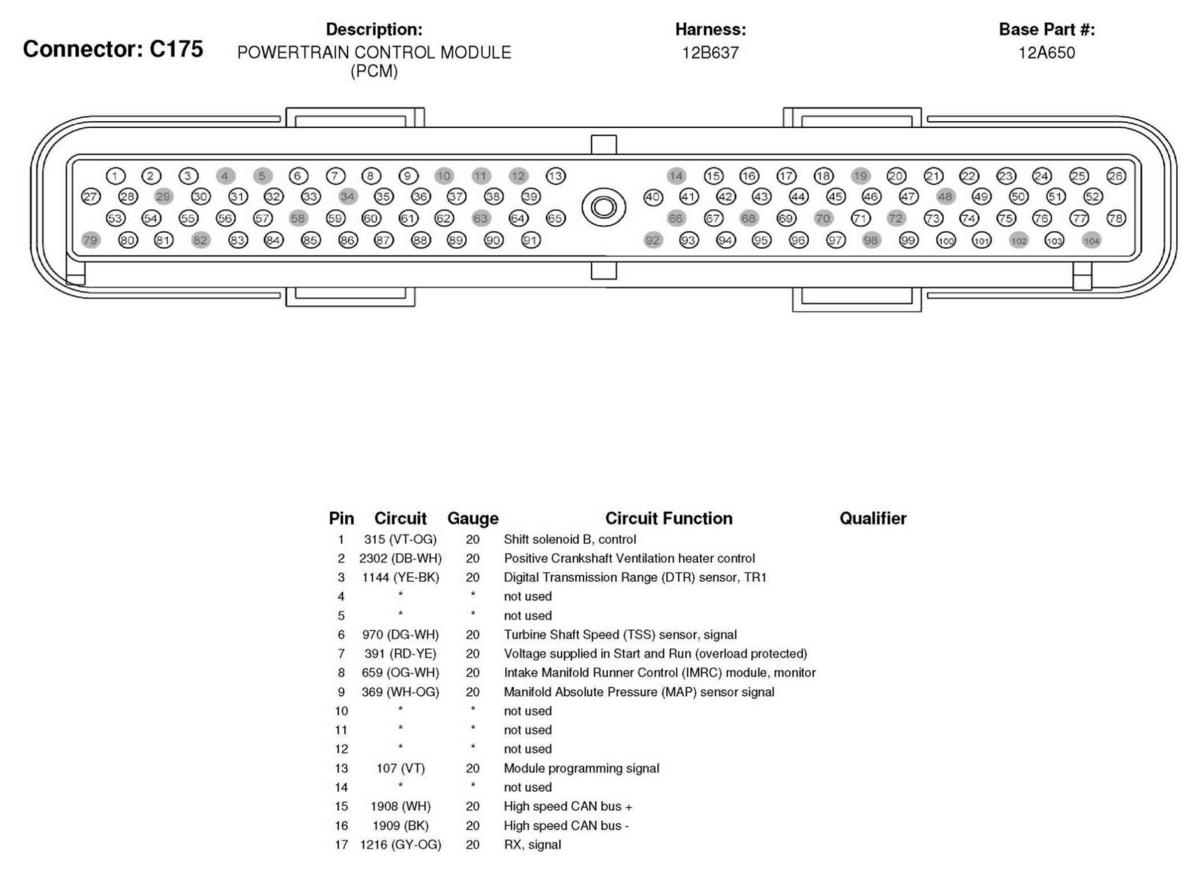

Fig 40: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 3)
G04597282Courtesy of FORD MOTOR CO.
Fig 41: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 3)
G04597283Courtesy of FORD MOTOR CO.

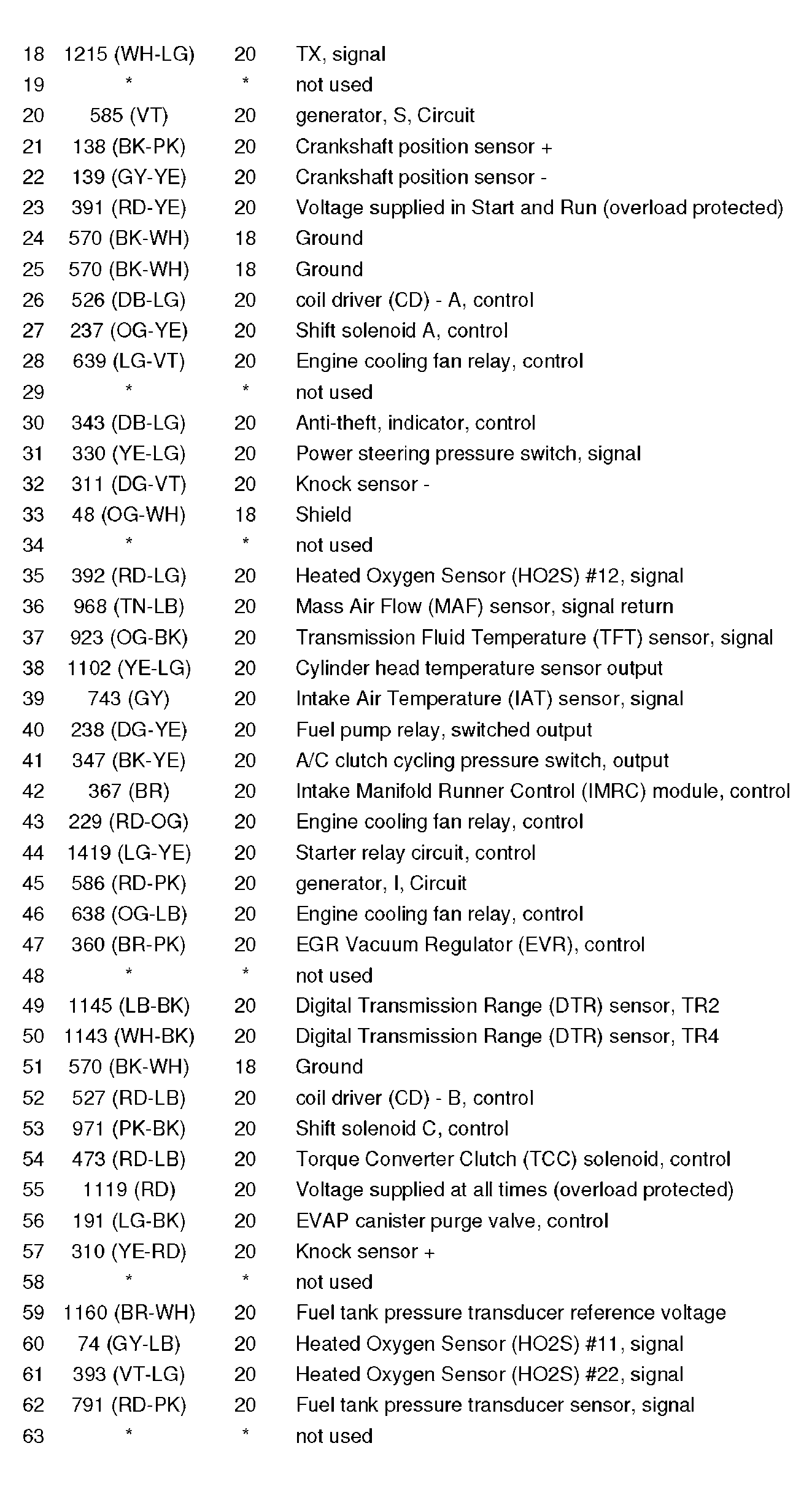

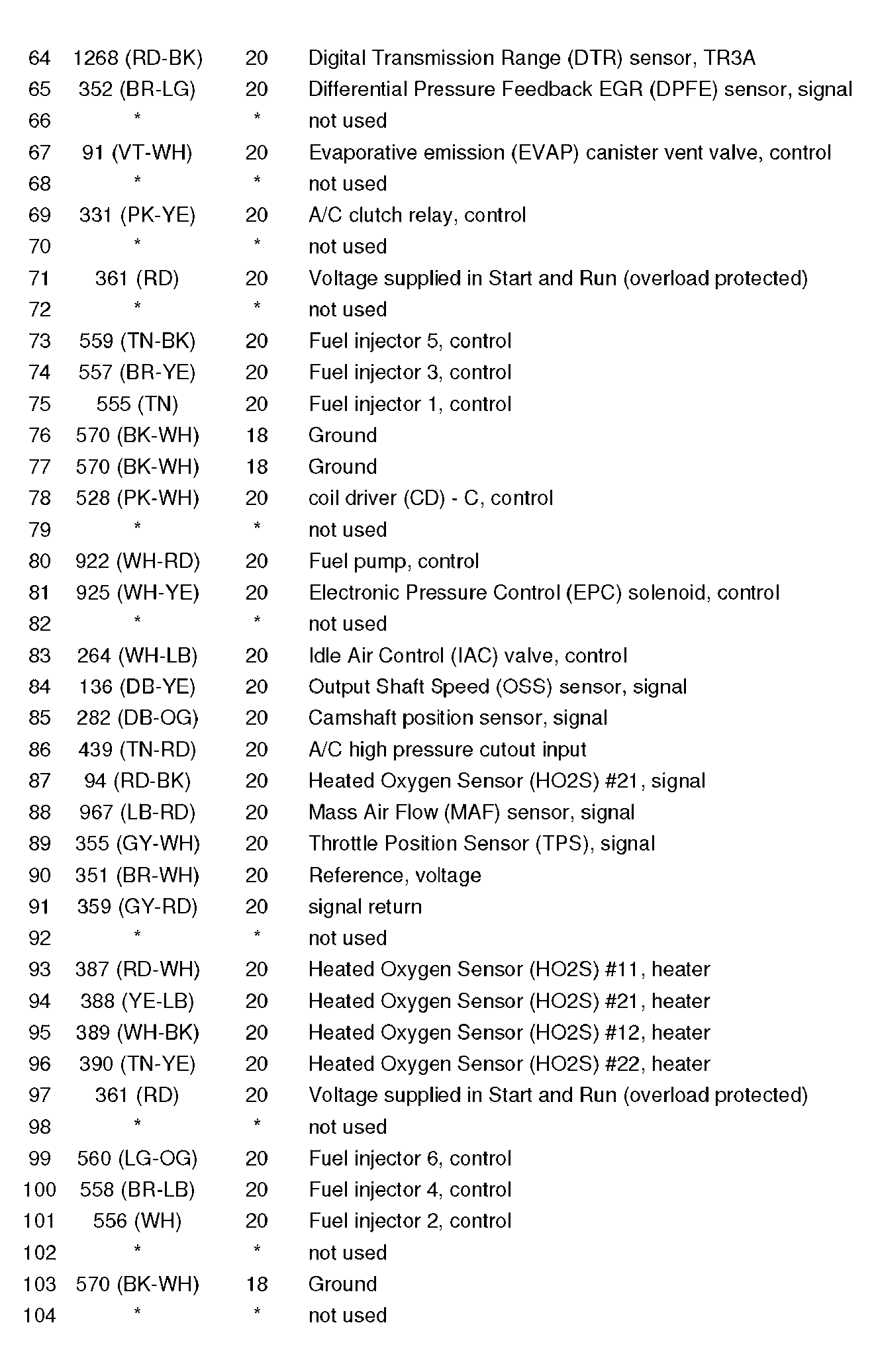

Fig 42: Powertrain Control Module (PCM) Connector End View (C175) (3 Of 3)
G04597284Courtesy of FORD MOTOR CO.

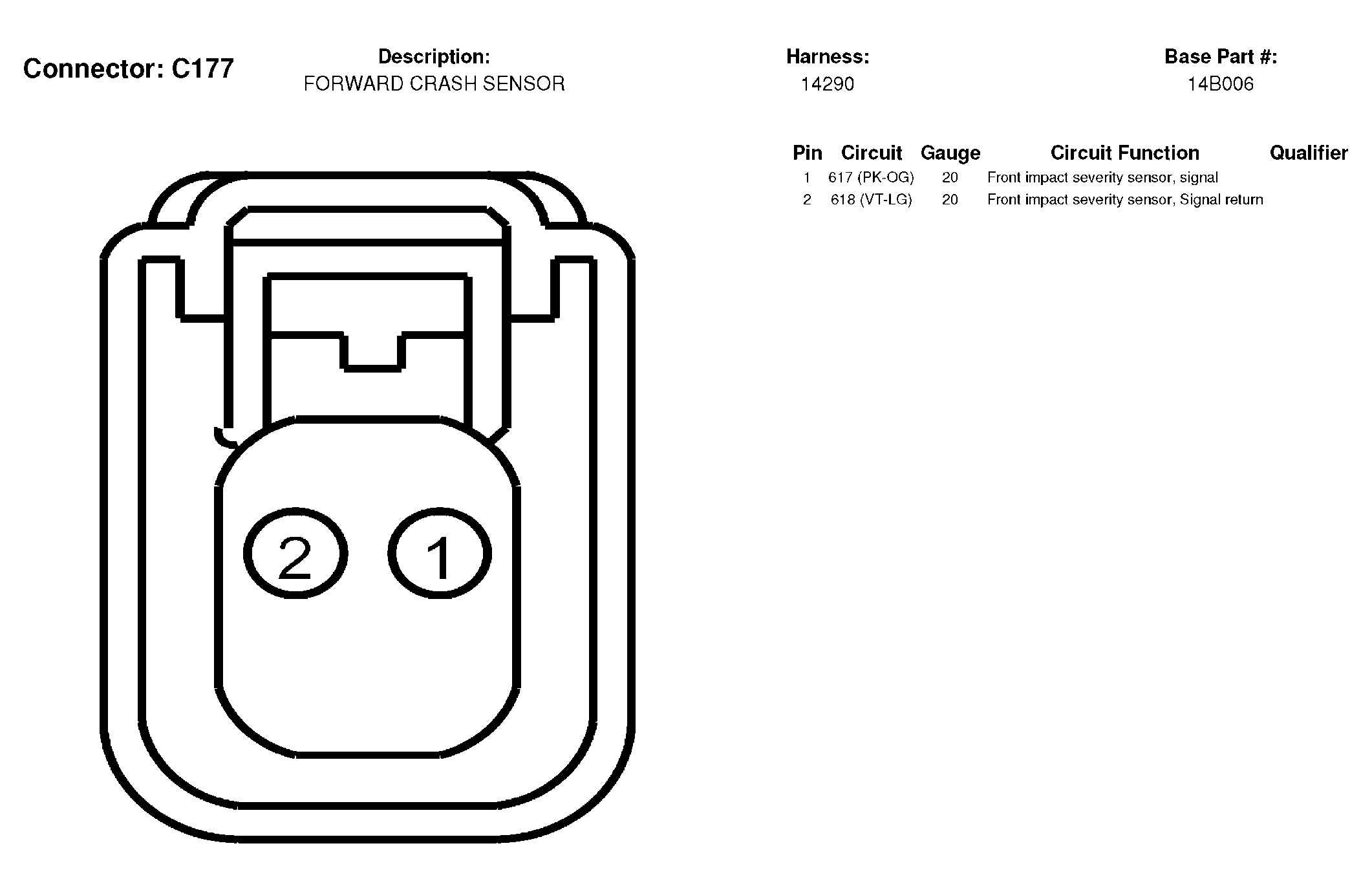

Fig 43: Forward Crash Sensor Connector End View (C177)
G04597285Courtesy of FORD MOTOR CO.

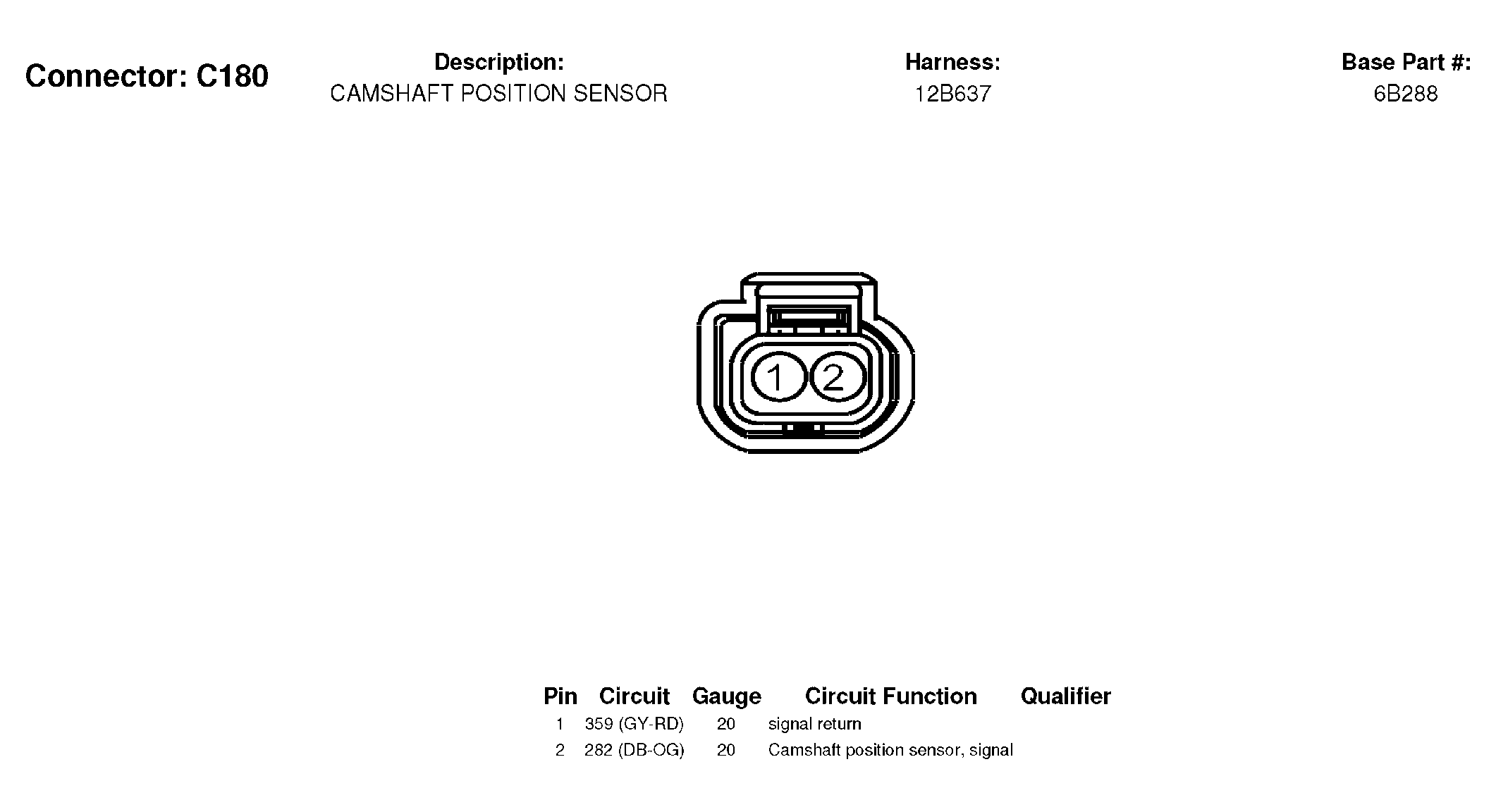

Fig 44: Camshaft Position Sensor Connector End View (C180)
G04597286Courtesy of FORD MOTOR CO.

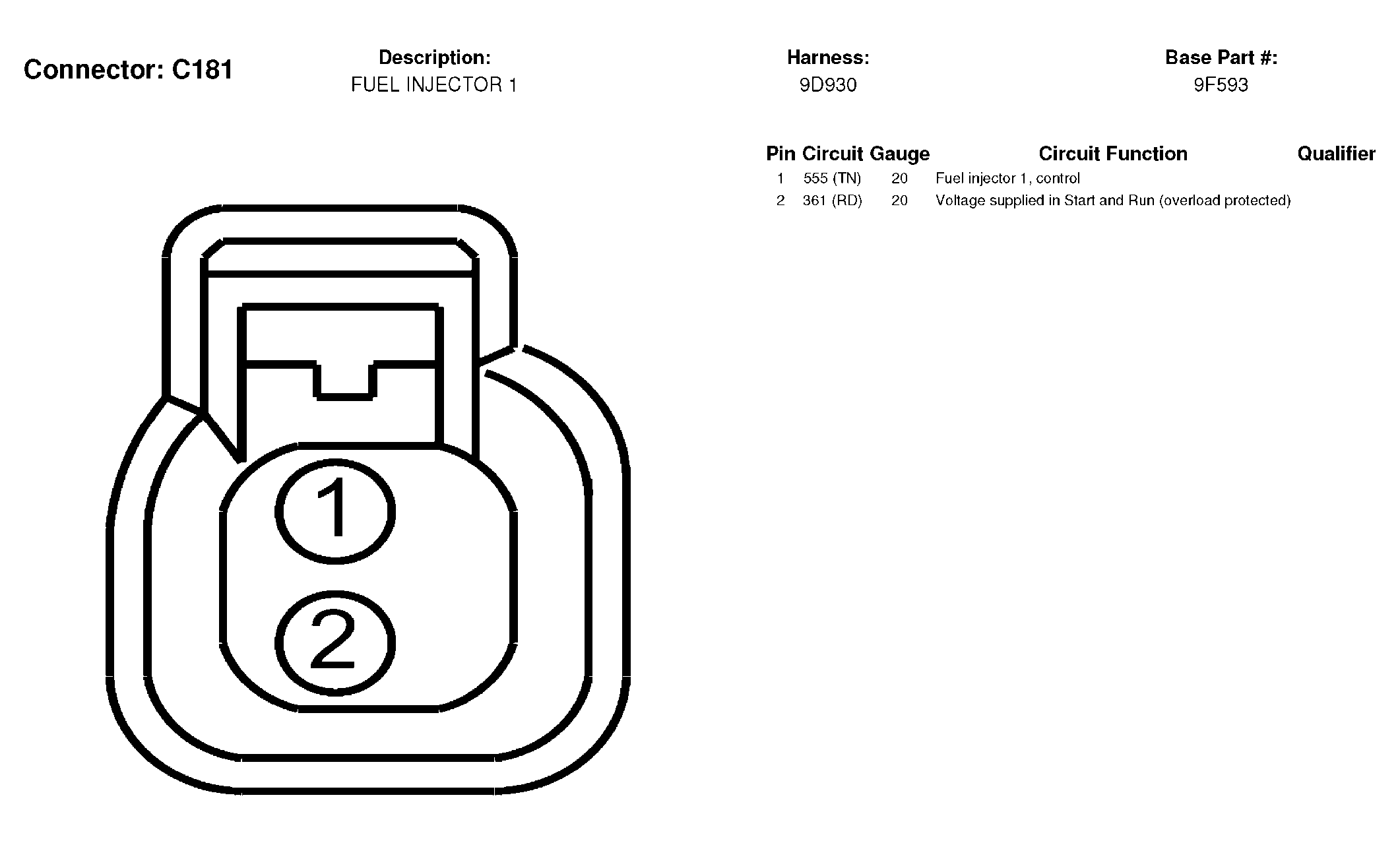

Fig 45: Fuel Injector 1 Connector End View (C181)
G04597287Courtesy of FORD MOTOR CO.
Fig 46: Fuel Injector 2 Connector End View (C182)
G04597288Courtesy of FORD MOTOR CO.
Fig 47: Fuel Injector 3 Connector End View (C183)
G04597289Courtesy of FORD MOTOR CO.

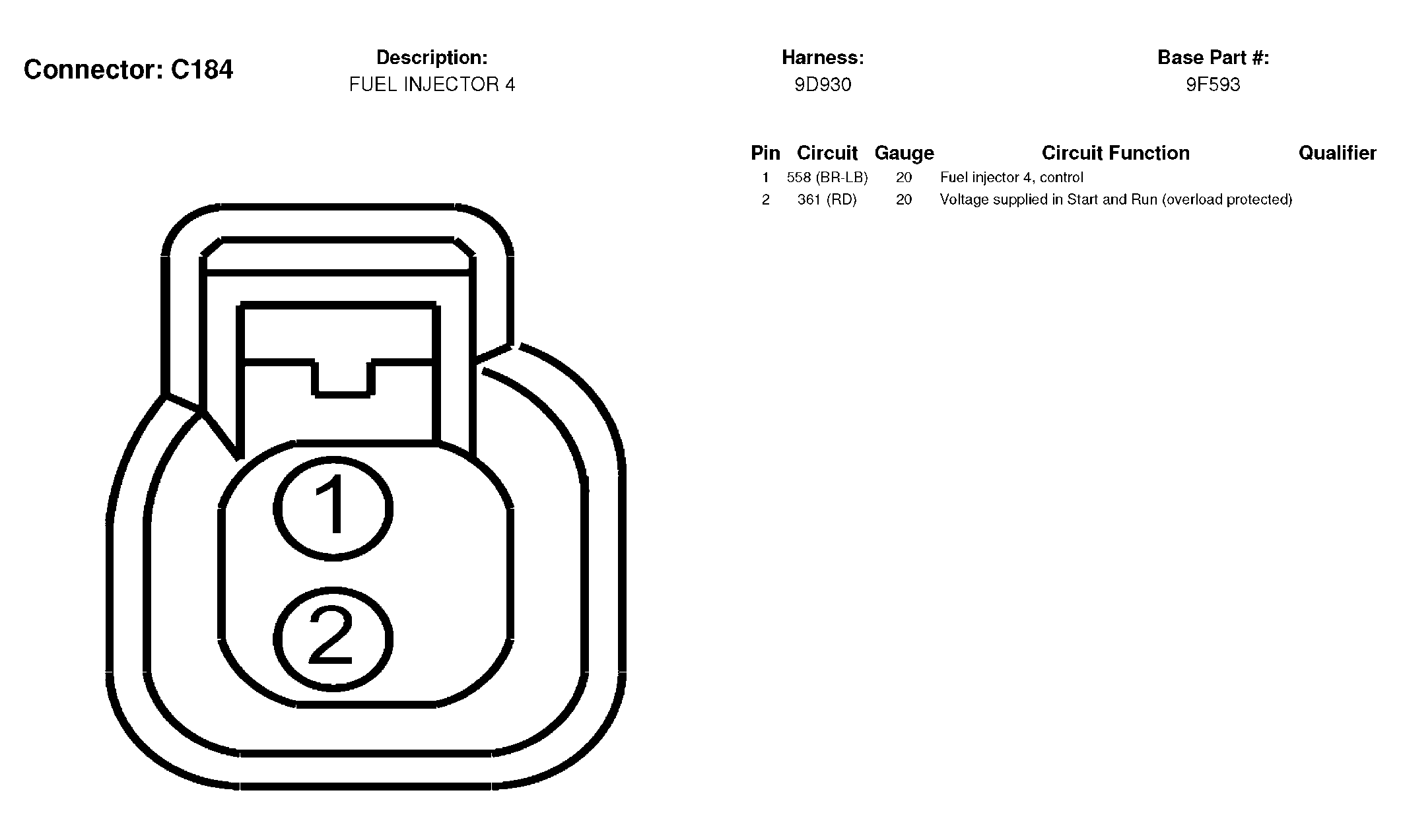

Fig 48: Fuel Injector 4 Connector End View (C184)
G04597290Courtesy of FORD MOTOR CO.
Fig 49: Fuel Injector 5 Connector End View (C185)
G04597291Courtesy of FORD MOTOR CO.

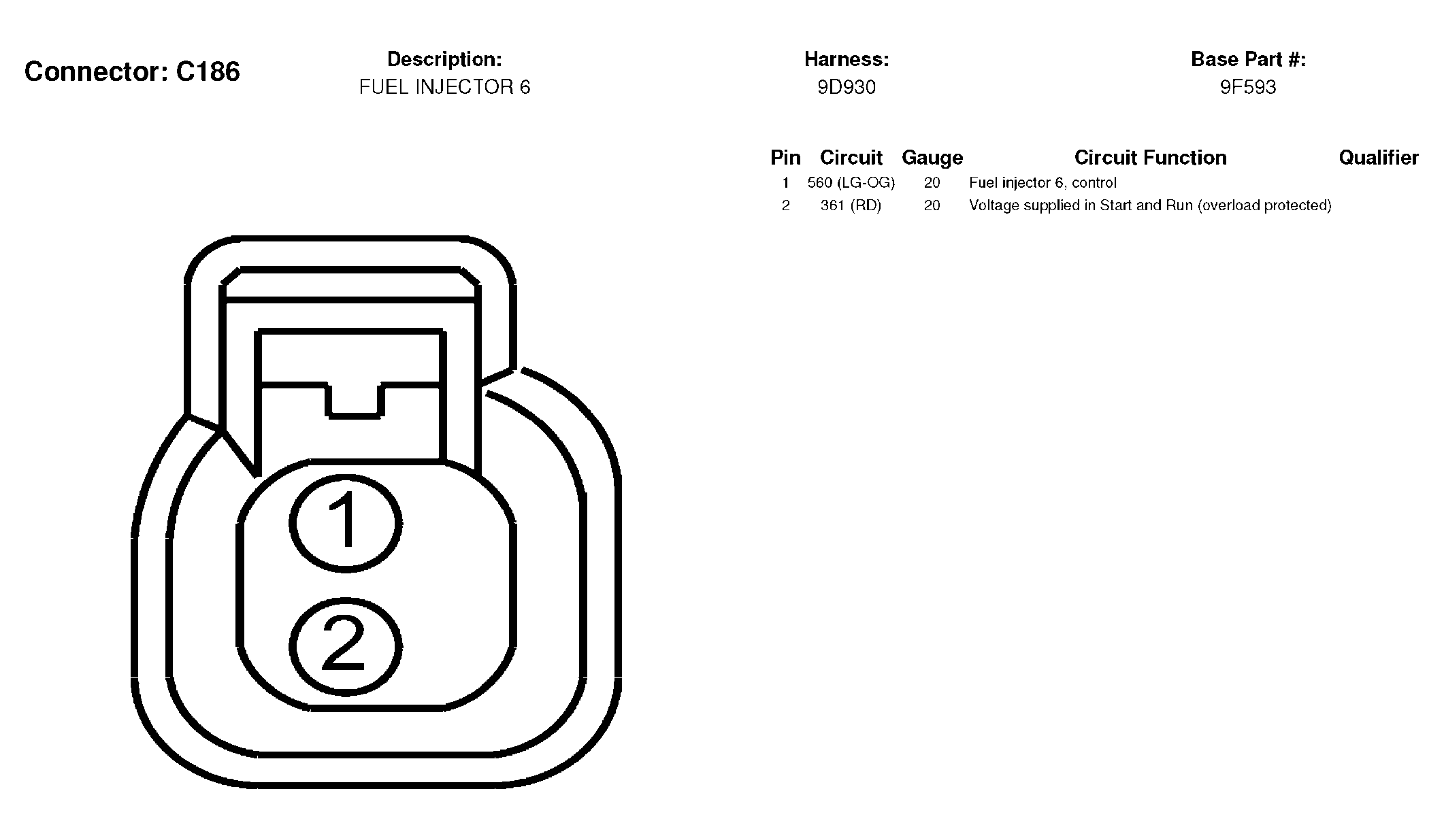

Fig 50: Fuel Injector 6 Connector End View (C186)
G04597292Courtesy of FORD MOTOR CO.

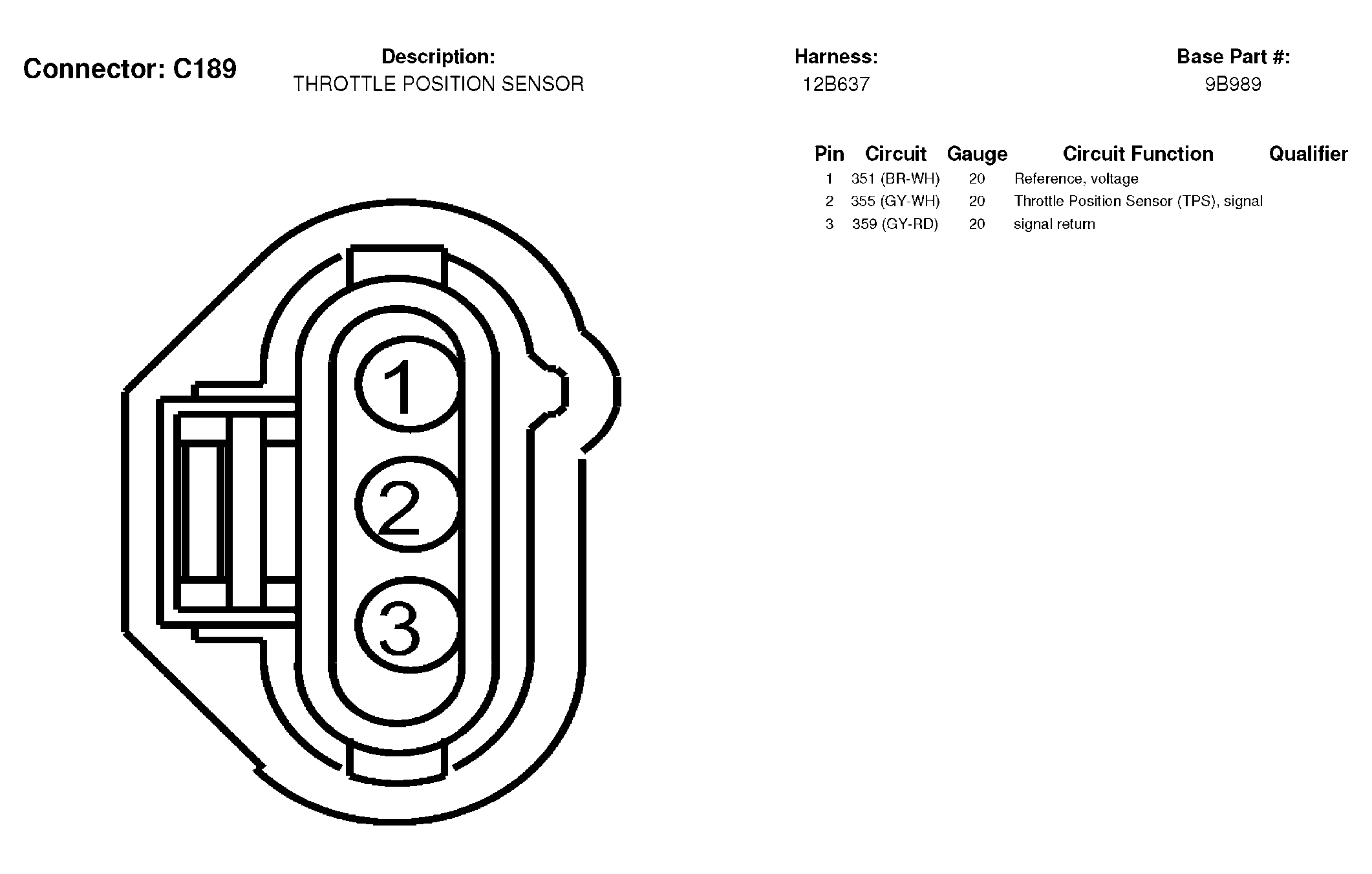

Fig 51: Throttle Position Sensor Connector End View (C189)
G04597293Courtesy of FORD MOTOR CO.

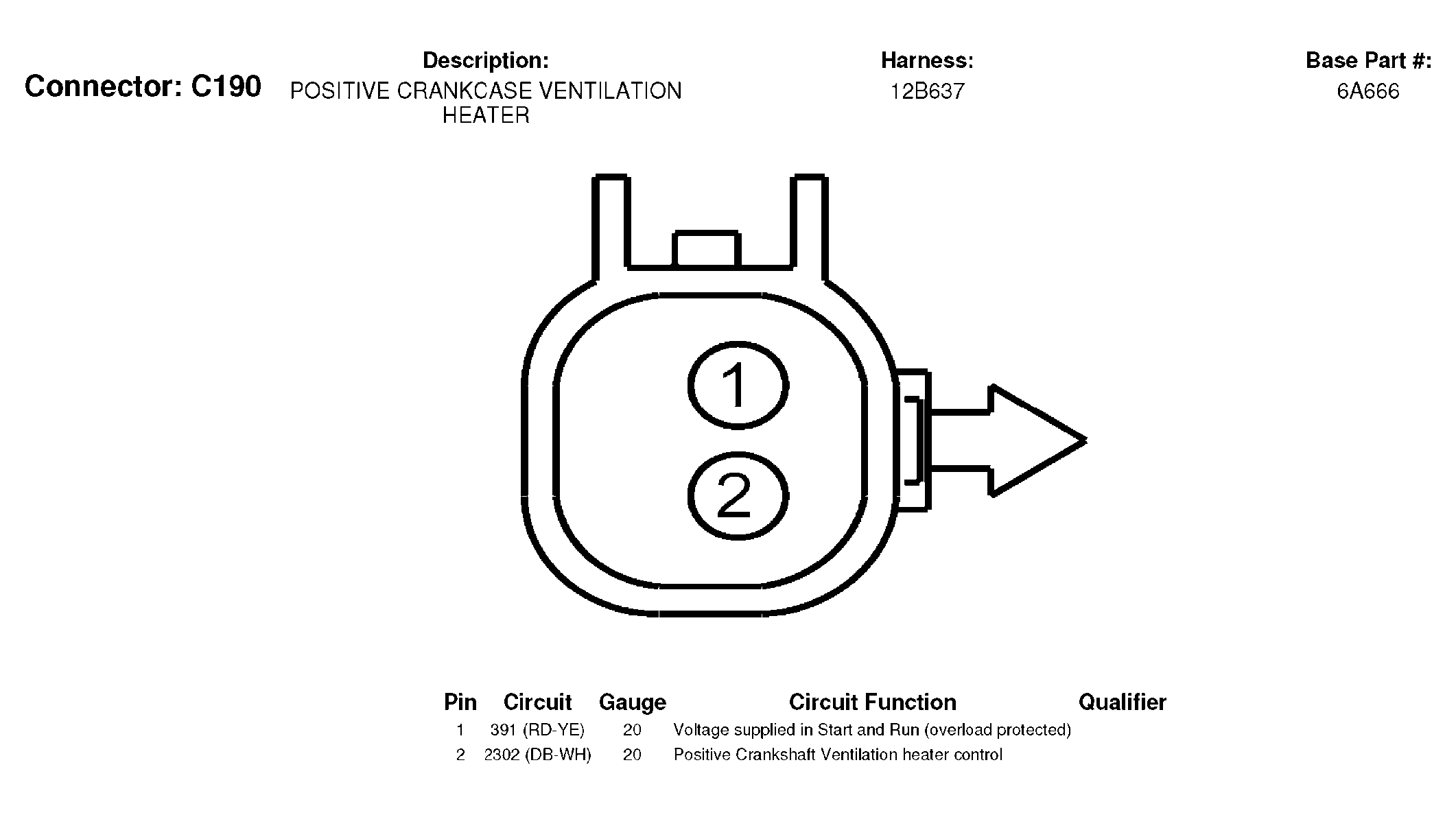

Fig 52: Positive Crankcase Ventilation Heater Connector End View (C190)
G04597294Courtesy of FORD MOTOR CO.

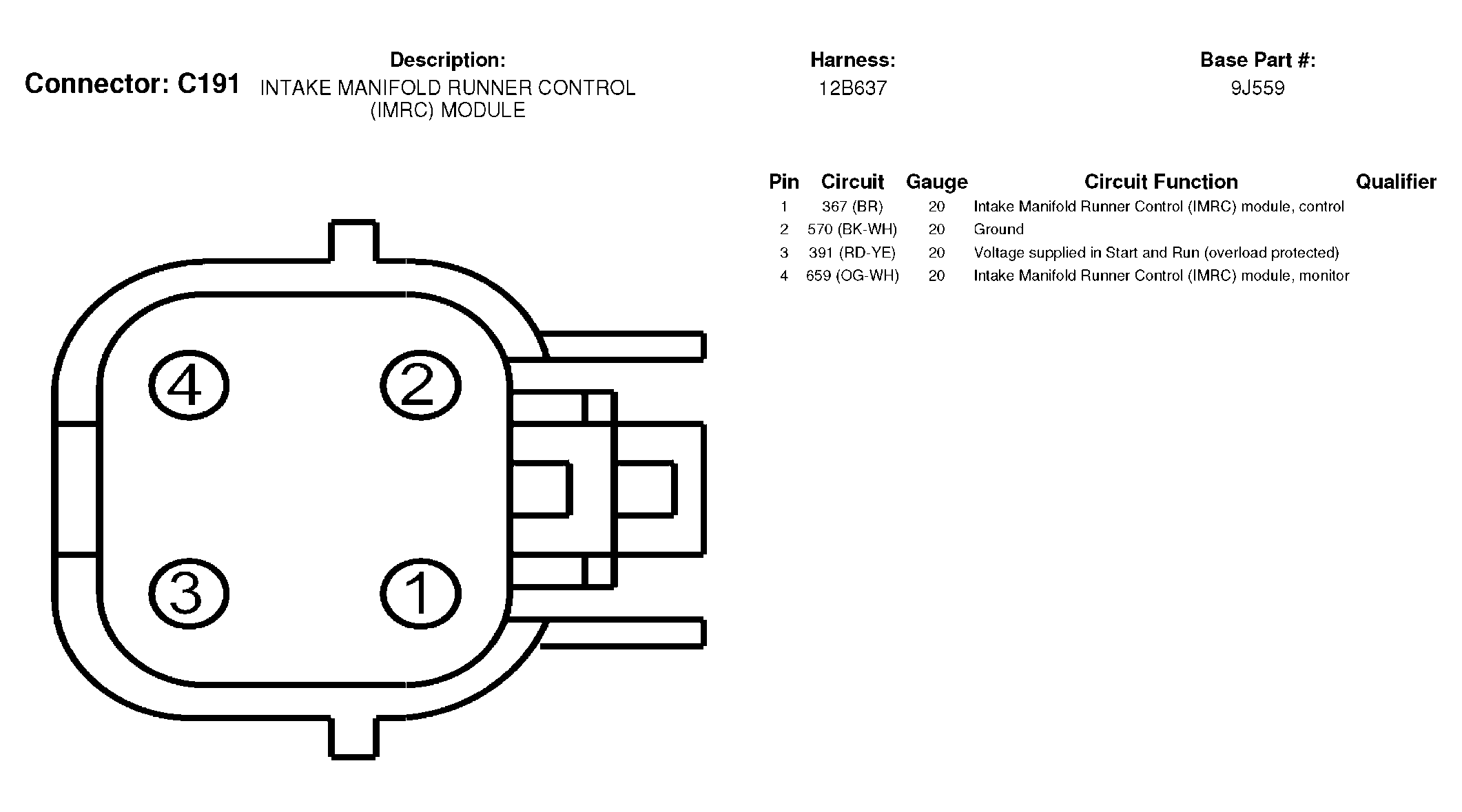

Fig 53: Intake Manifold Runner Control (IMRC) Module Connector End View (C191)
G04597295Courtesy of FORD MOTOR CO.

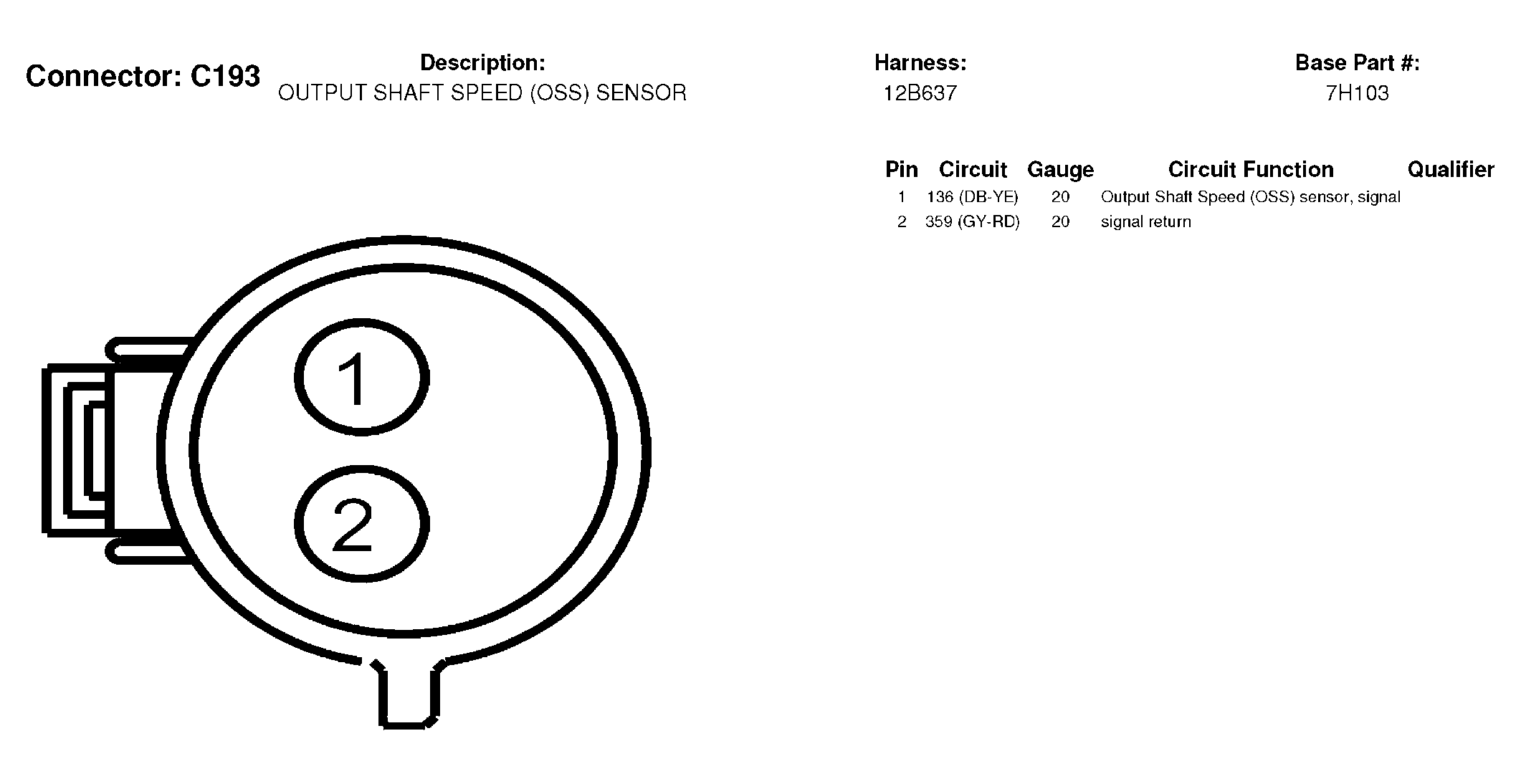

Fig 54: Output Shaft Speed (OSS) Sensor Connector End View (C193)
G04597296Courtesy of FORD MOTOR CO.

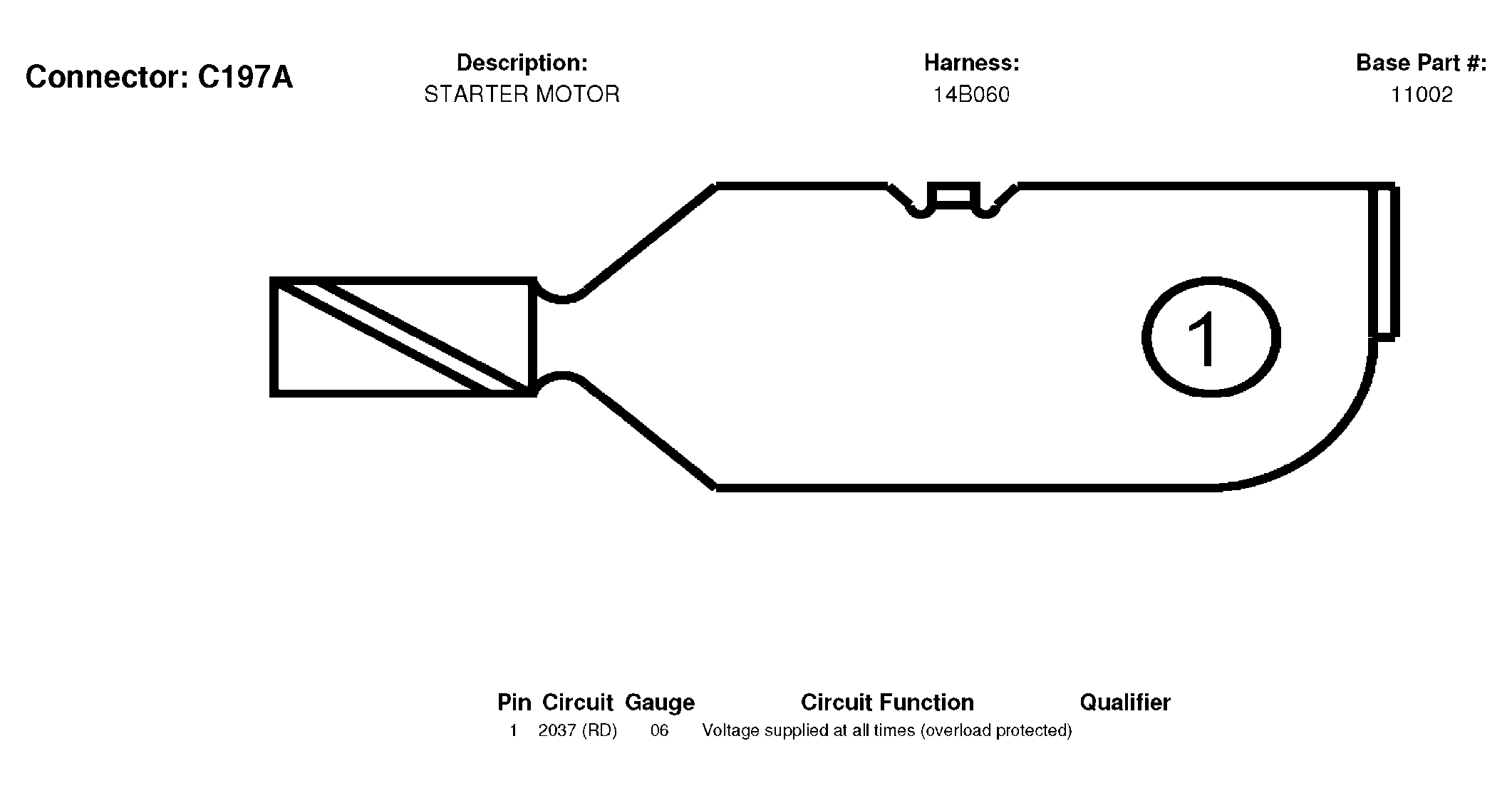

Fig 55: Starter Motor Connector End View (C197A)
G04597297Courtesy of FORD MOTOR CO.

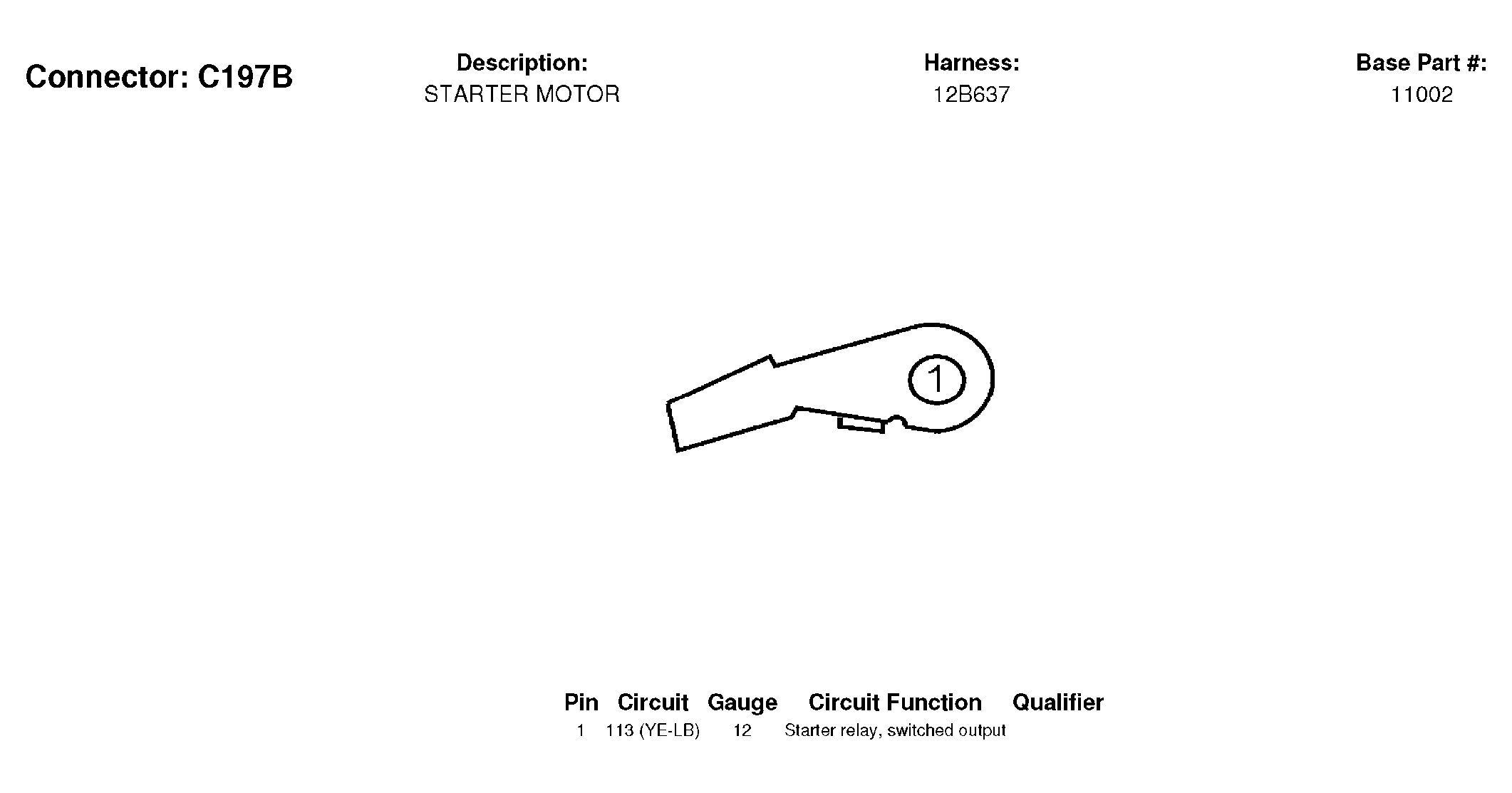

Fig 56: Starter Motor Connector End View (C197B)
G04597298Courtesy of FORD MOTOR CO.

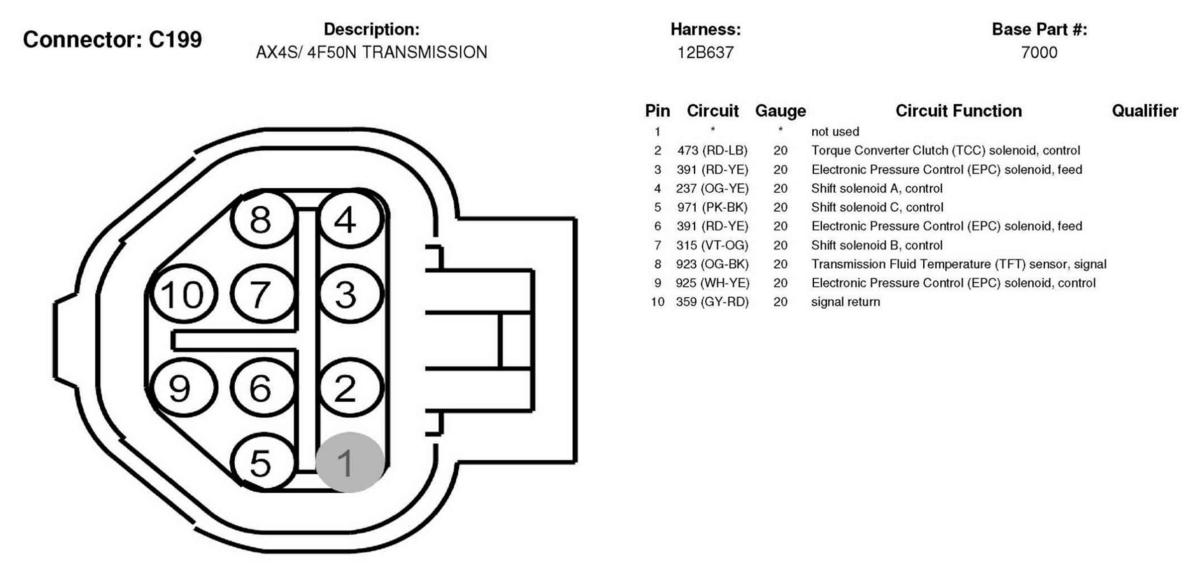

Fig 57: AX4S/4F50N Transmission Connector End View (C199)
G04597299Courtesy of FORD MOTOR CO.

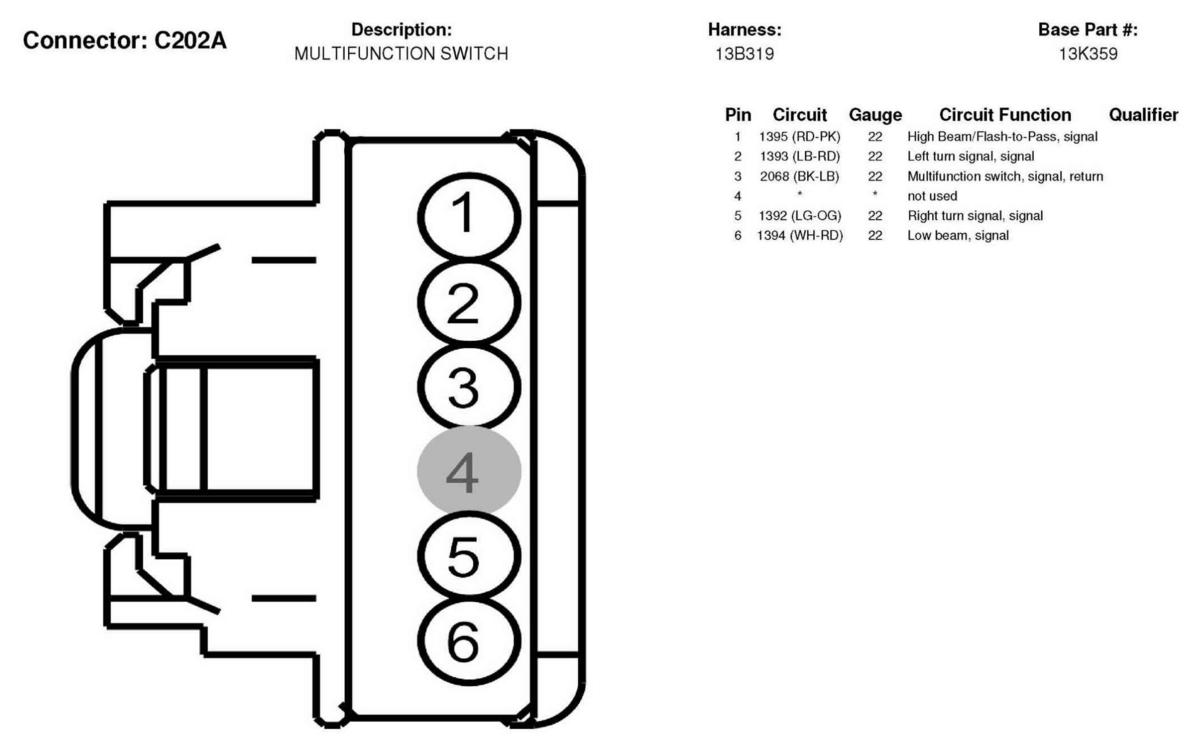

Fig 58: Multifunction Switch Connector End View (C202A)
G04597300Courtesy of FORD MOTOR CO.

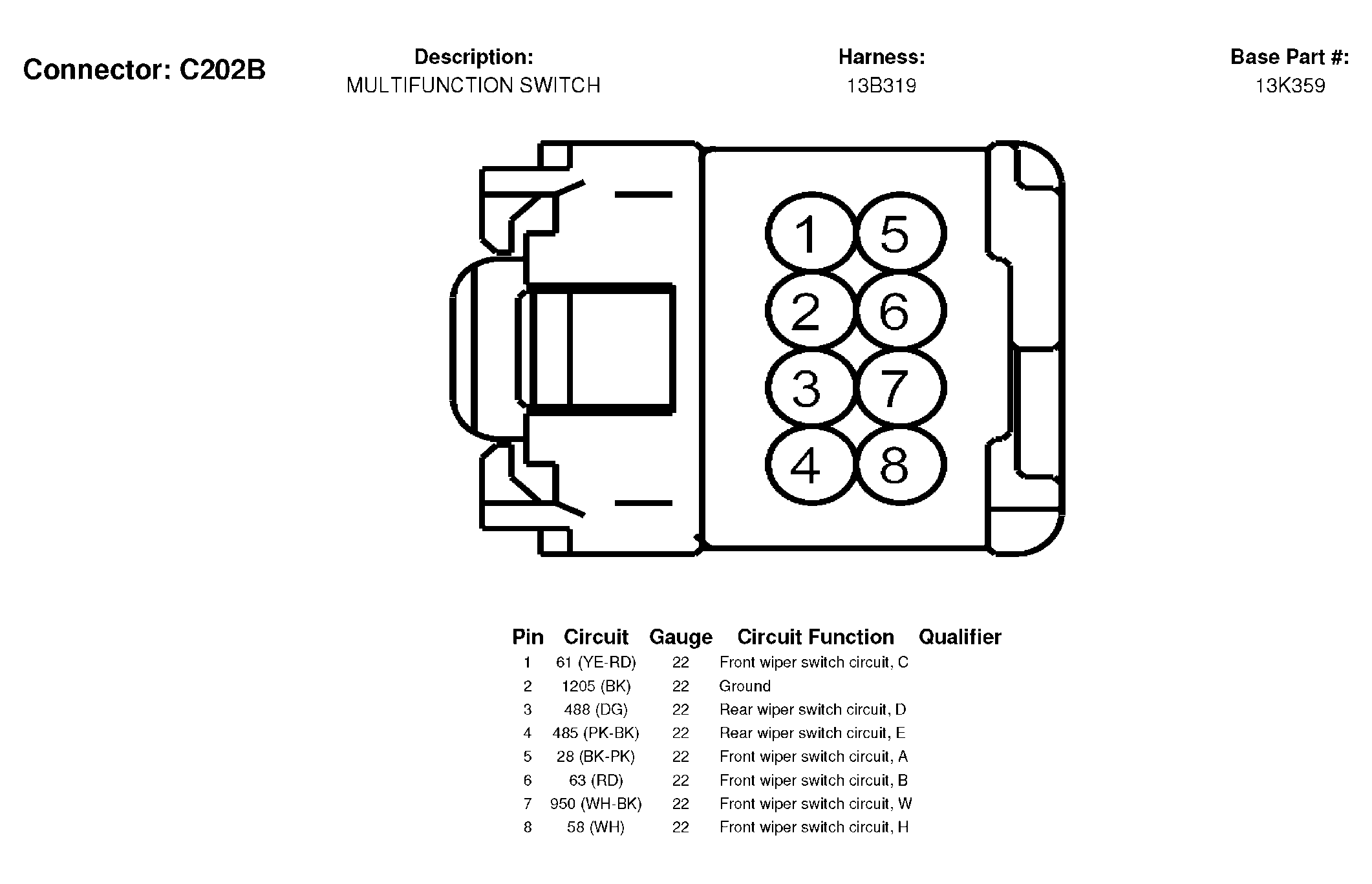

Fig 59: Multifunction Switch Connector End View (C202B)
G04597301Courtesy of FORD MOTOR CO.

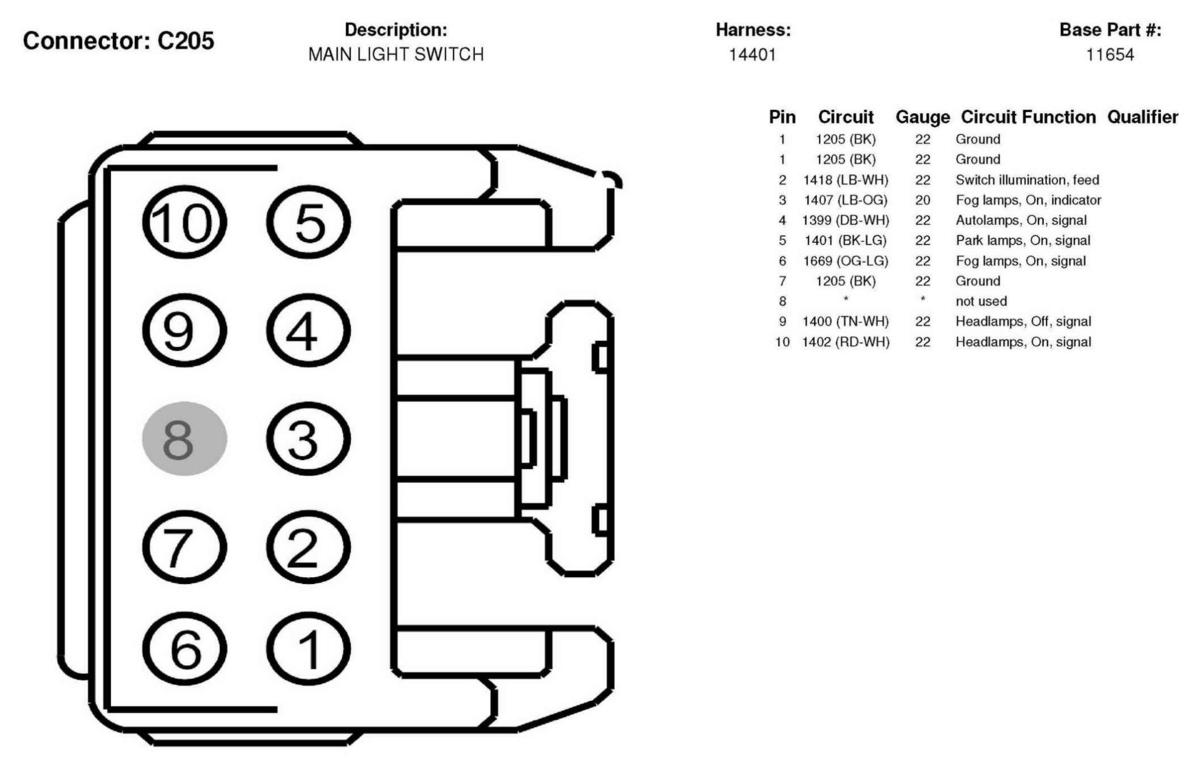

Fig 60: Main Light Switch Connector End View (C205)
G04597302Courtesy of FORD MOTOR CO.

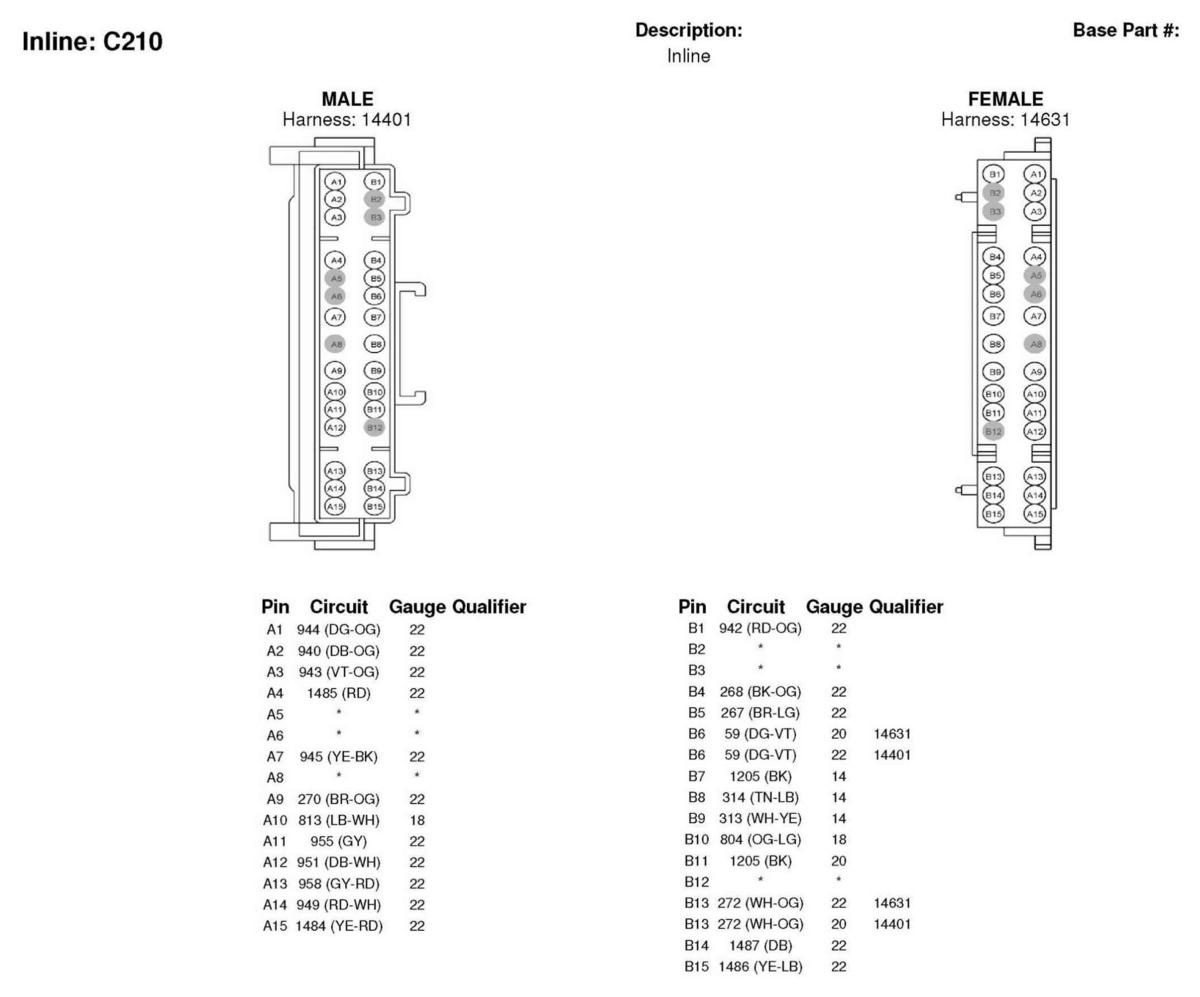

Fig 61: Inline Connector End View (C210)
G04597303Courtesy of FORD MOTOR CO.

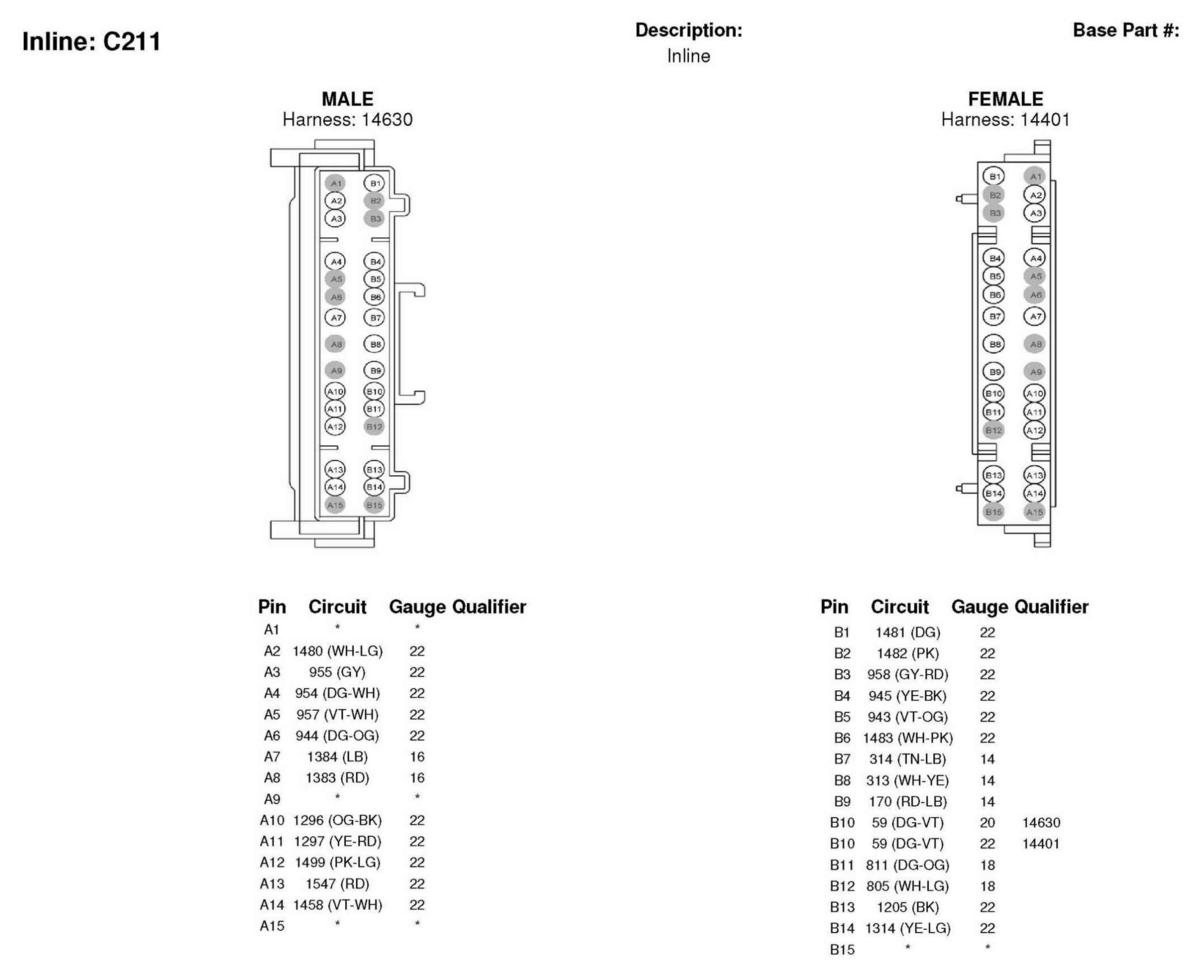

Fig 62: Inline Connector End View (C211)
G04597304Courtesy of FORD MOTOR CO.

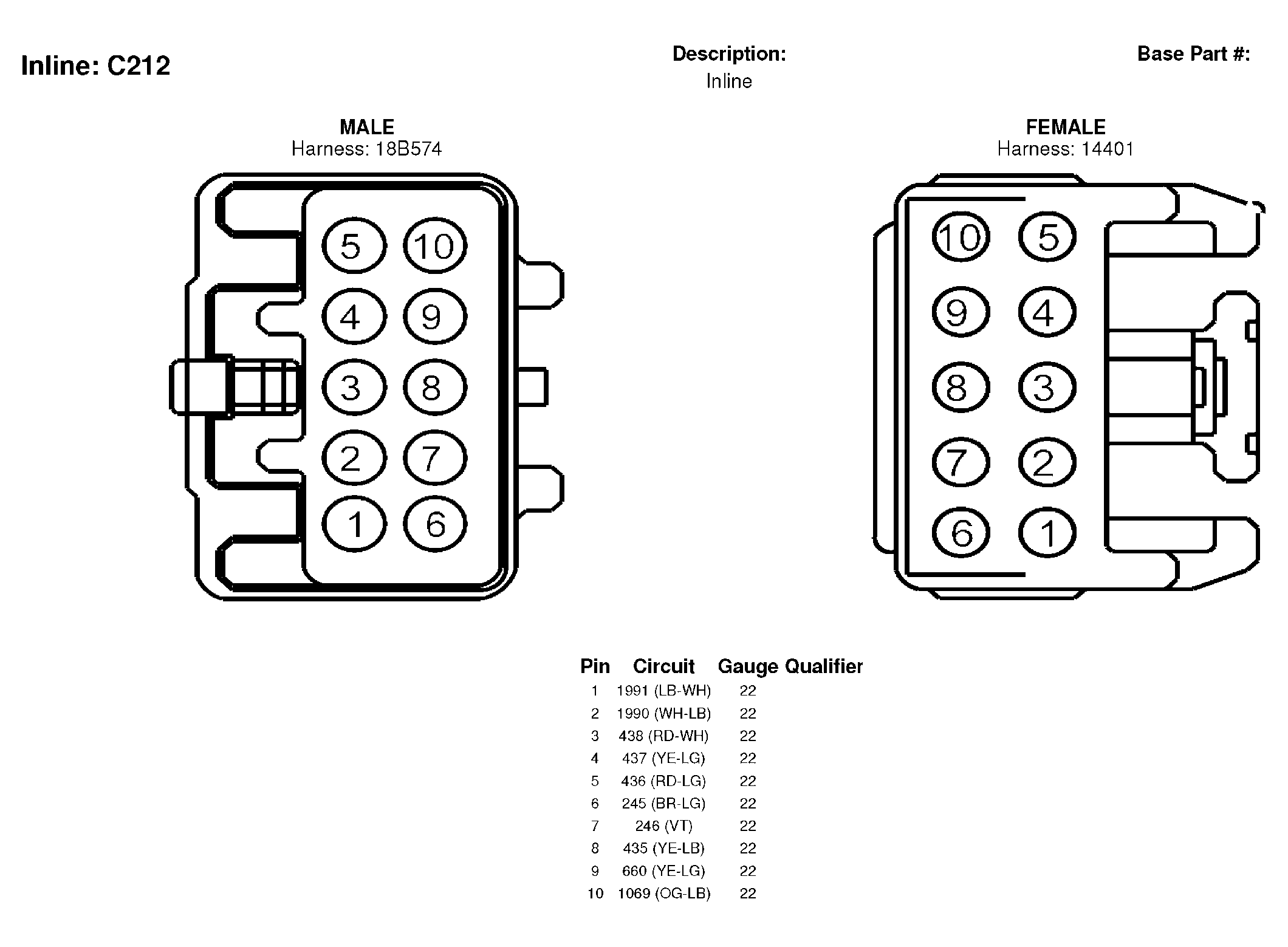

Fig 63: Inline Connector End View (C212)
G04597305Courtesy of FORD MOTOR CO.

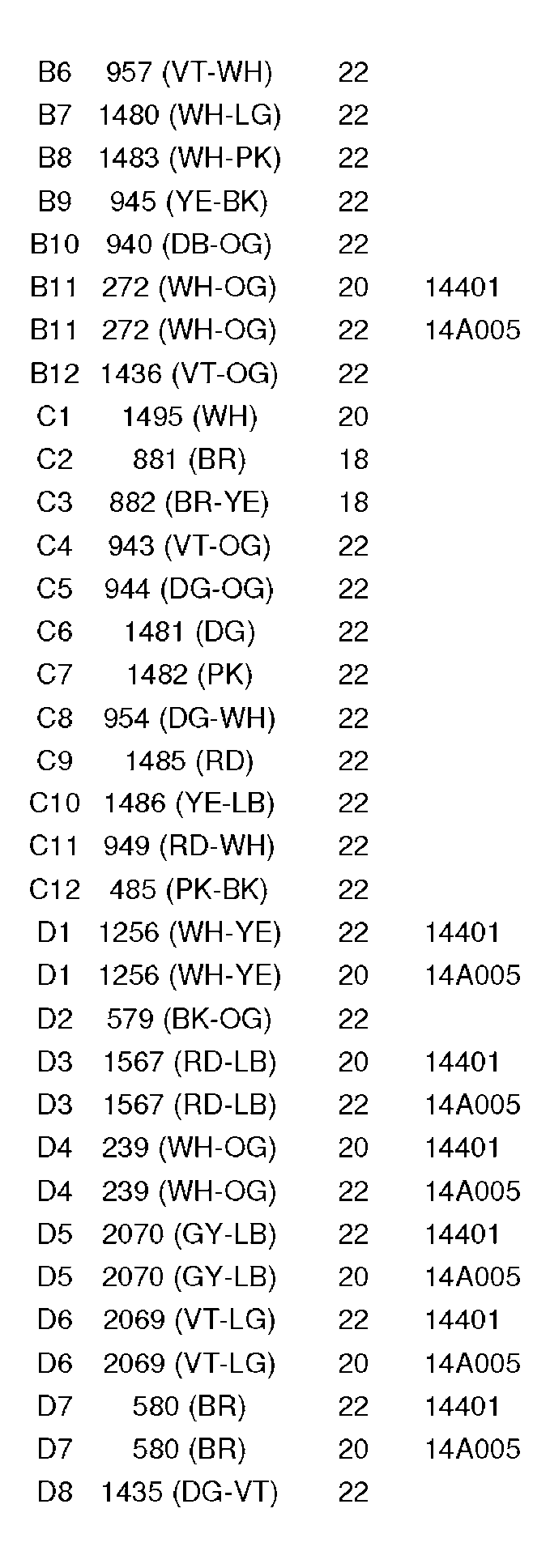

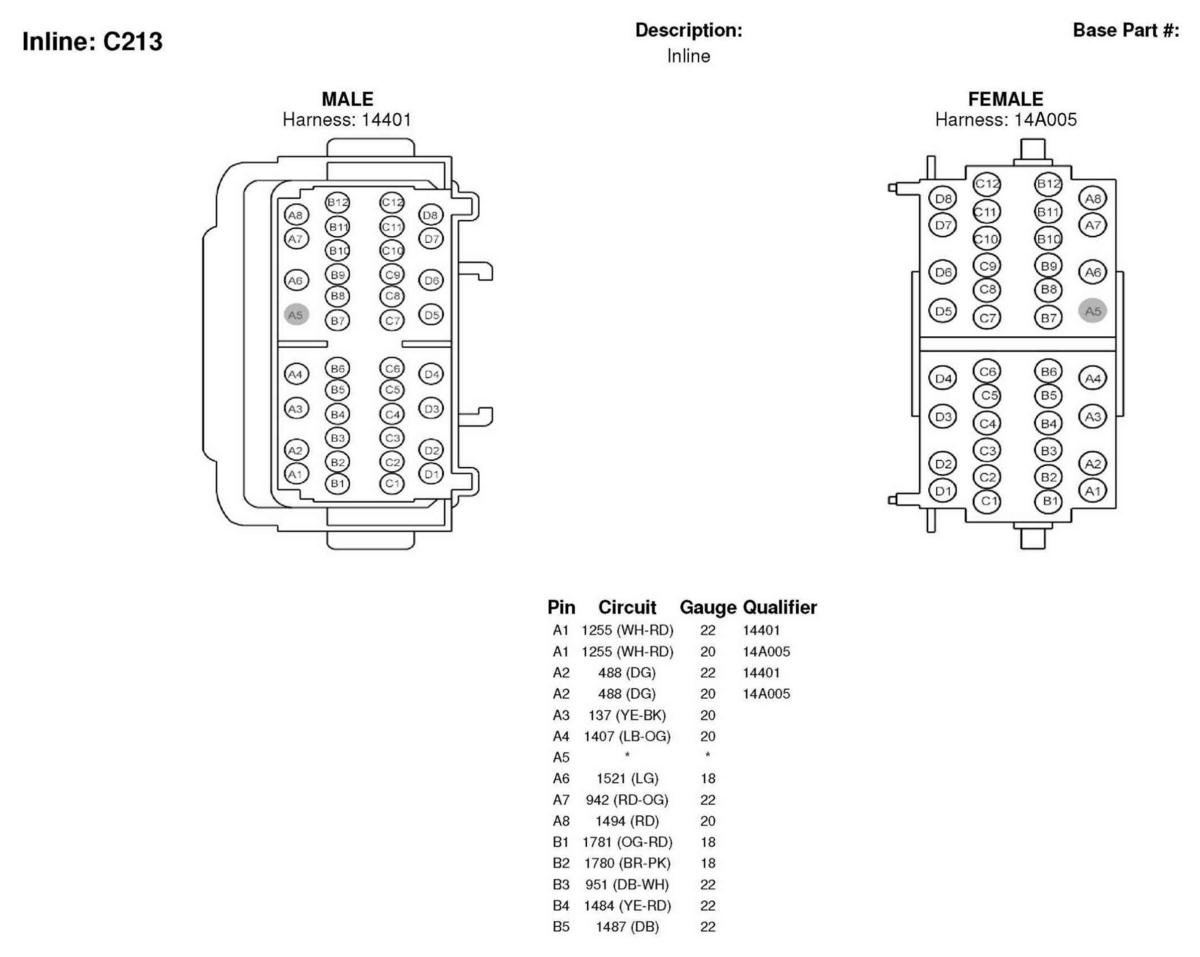

Fig 64: Inline Connector End View (C213) (1 Of 2)
G04597306Courtesy of FORD MOTOR CO.
Fig 65: Inline Connector End View (C213) (2 Of 2)
G04597307Courtesy of FORD MOTOR CO.

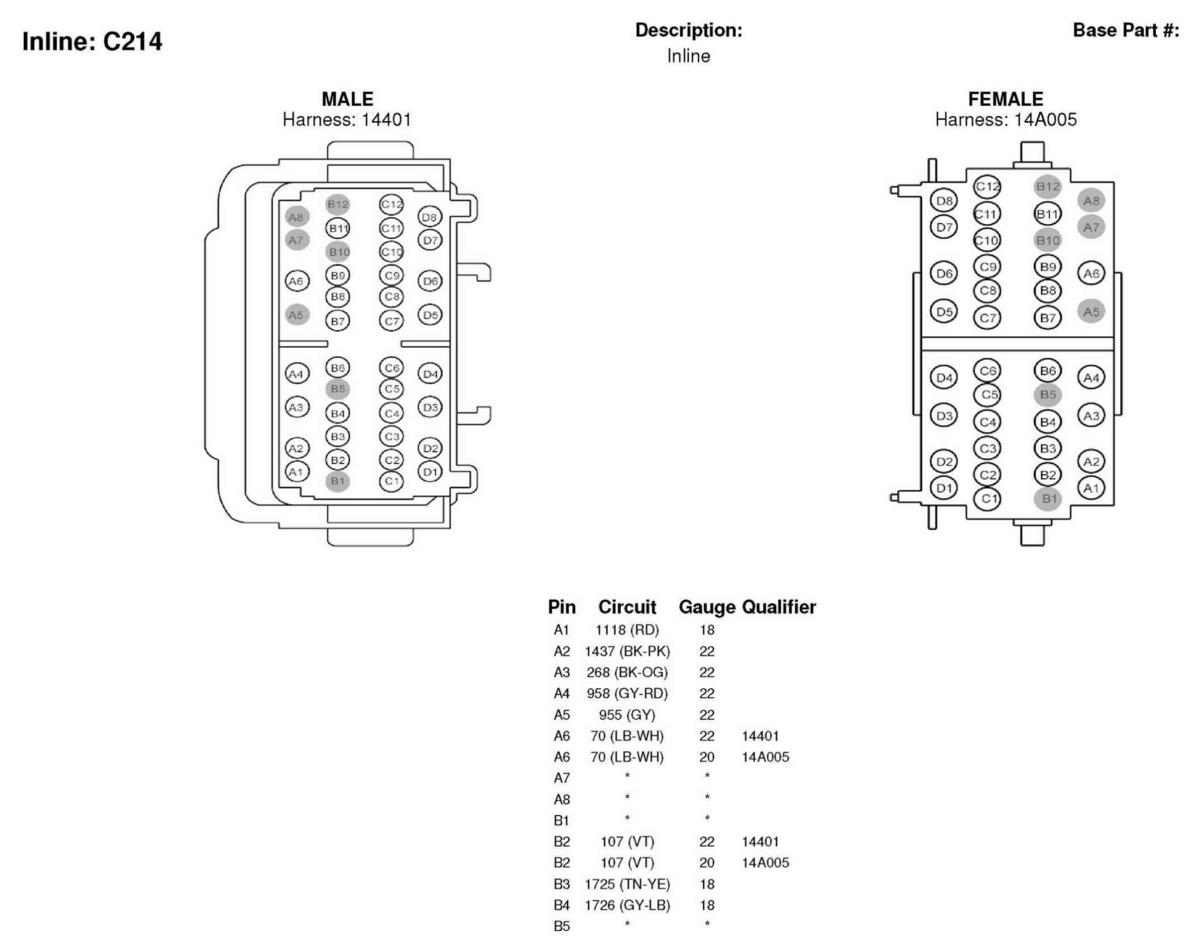

Fig 66: Inline Connector End View (C214) (1 Of 2)
G04597308Courtesy of FORD MOTOR CO.

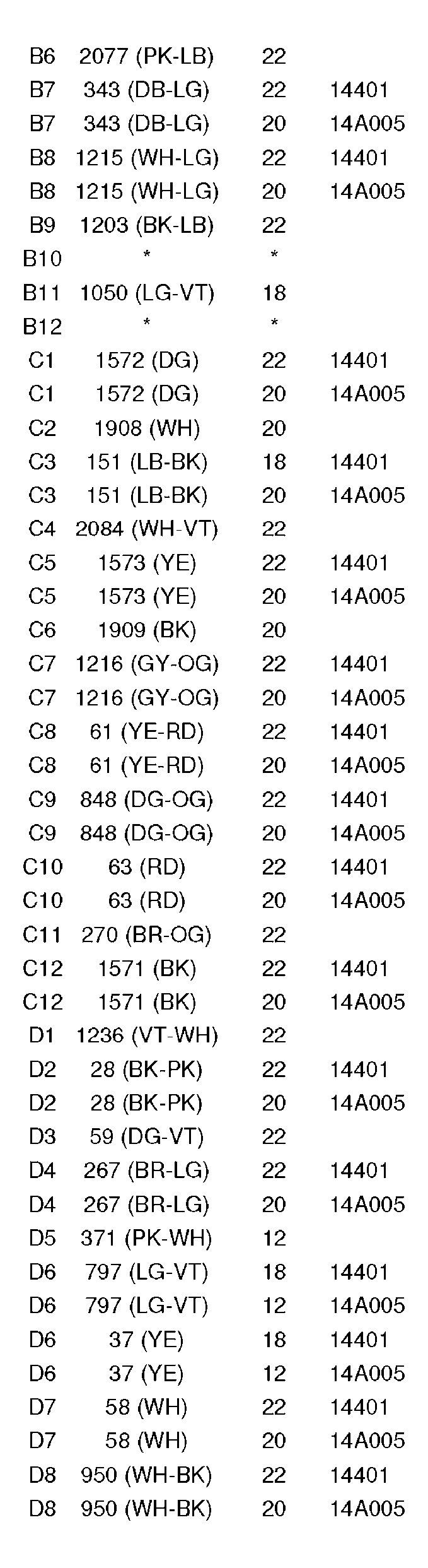

Fig 67: Inline Connector End View (C214) (2 Of 2)
G04597309Courtesy of FORD MOTOR CO.

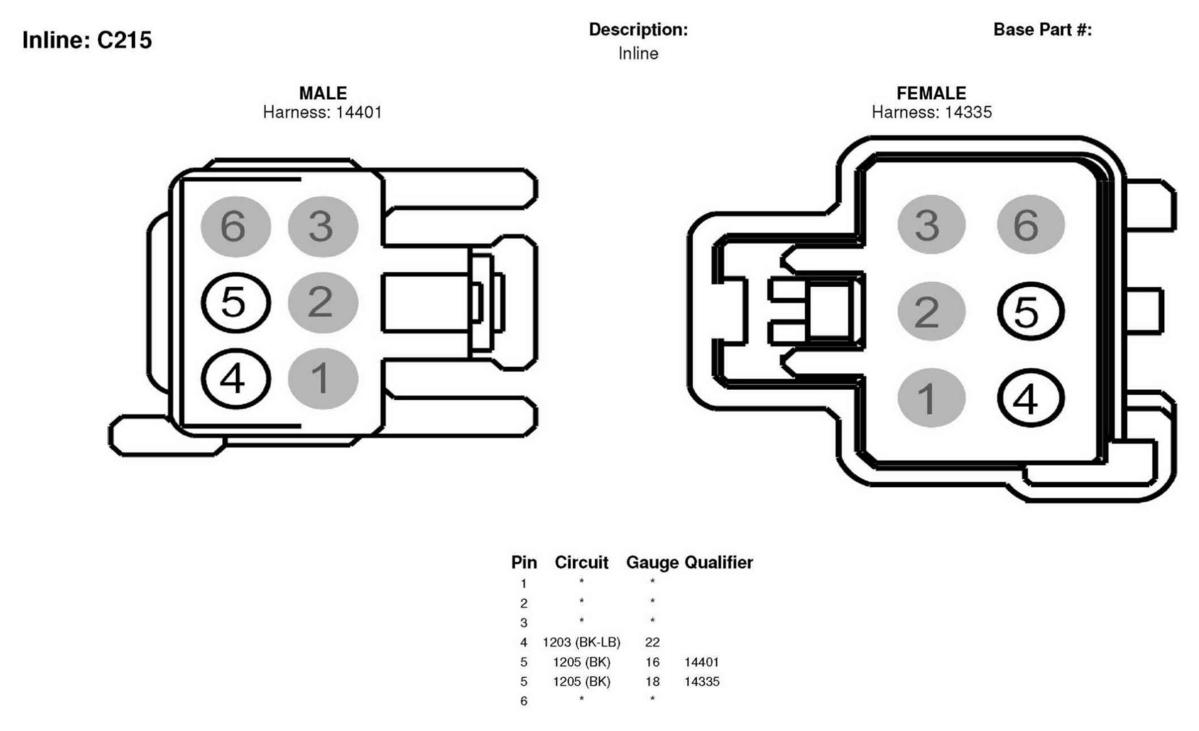

Fig 68: Inline Connector End View (C215)
G04597310Courtesy of FORD MOTOR CO.

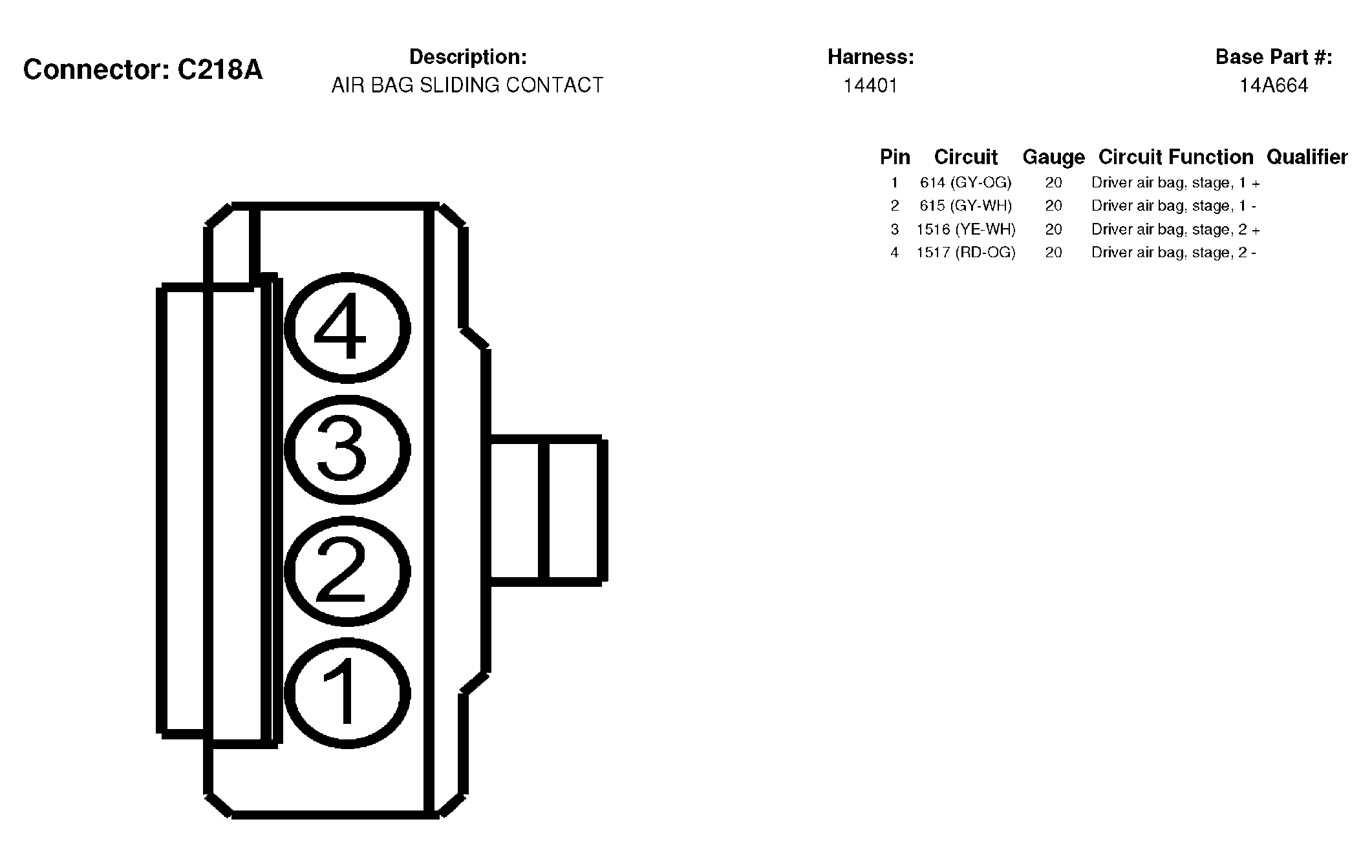

Fig 69: Air Bag Sliding Contact Connector End View (C218A)
G04597311Courtesy of FORD MOTOR CO.

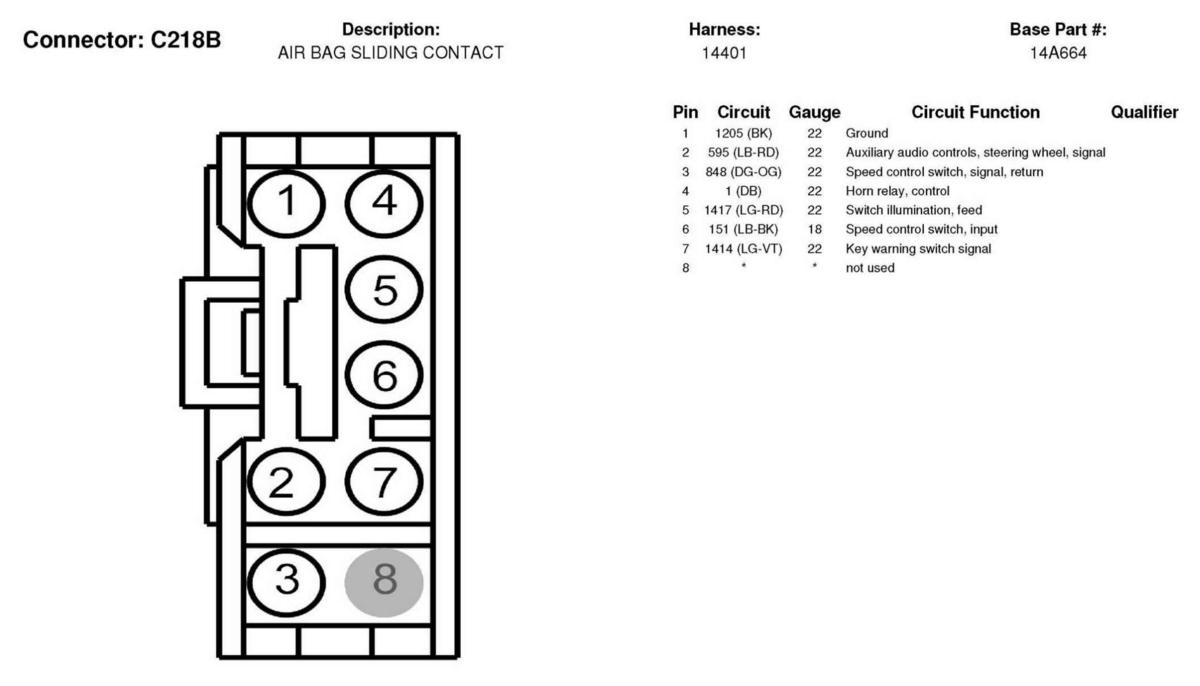

Fig 70: Air Bag Sliding Contact Connector End View (C218B)
G04597312Courtesy of FORD MOTOR CO.

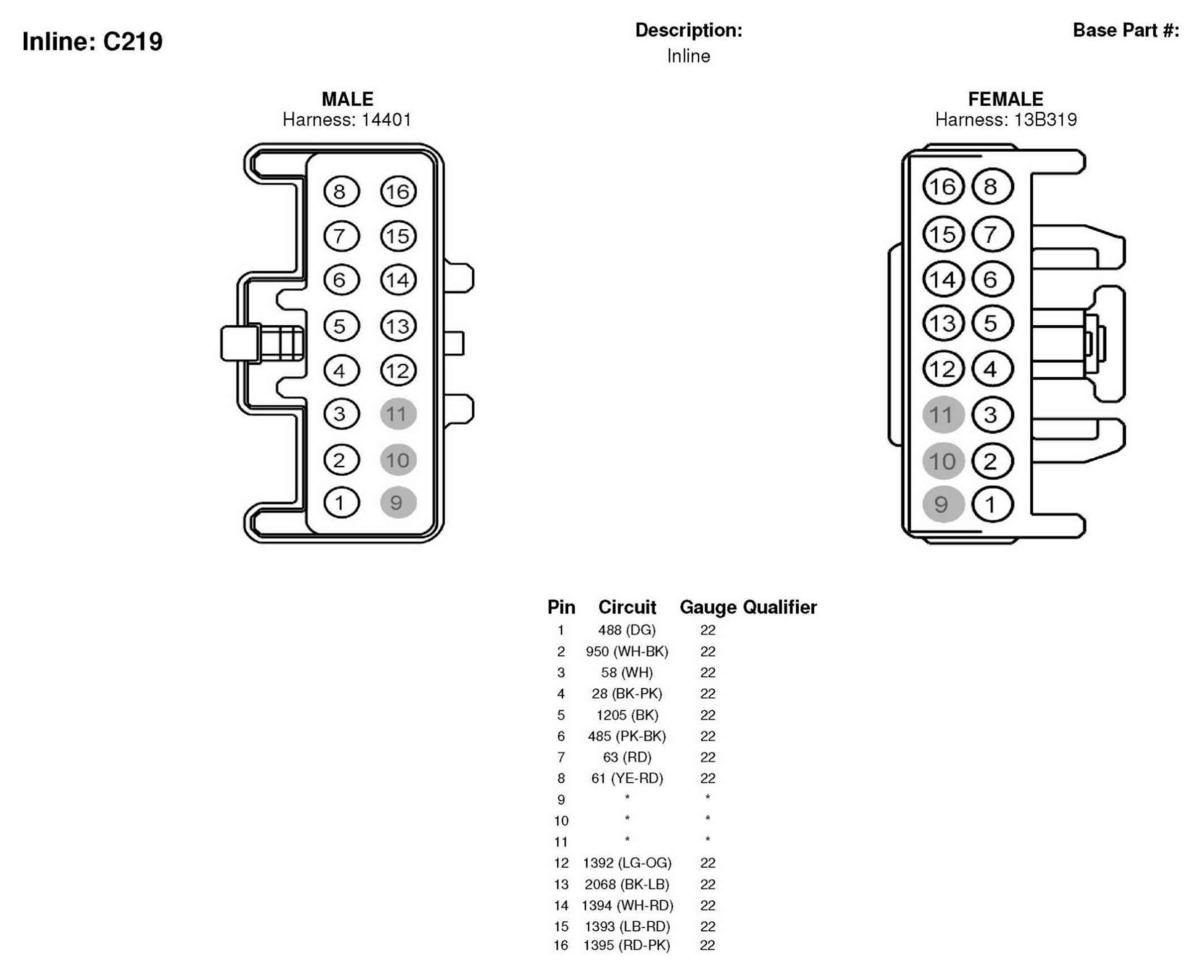

Fig 71: Inline Connector End View (C219)
G04597313Courtesy of FORD MOTOR CO.

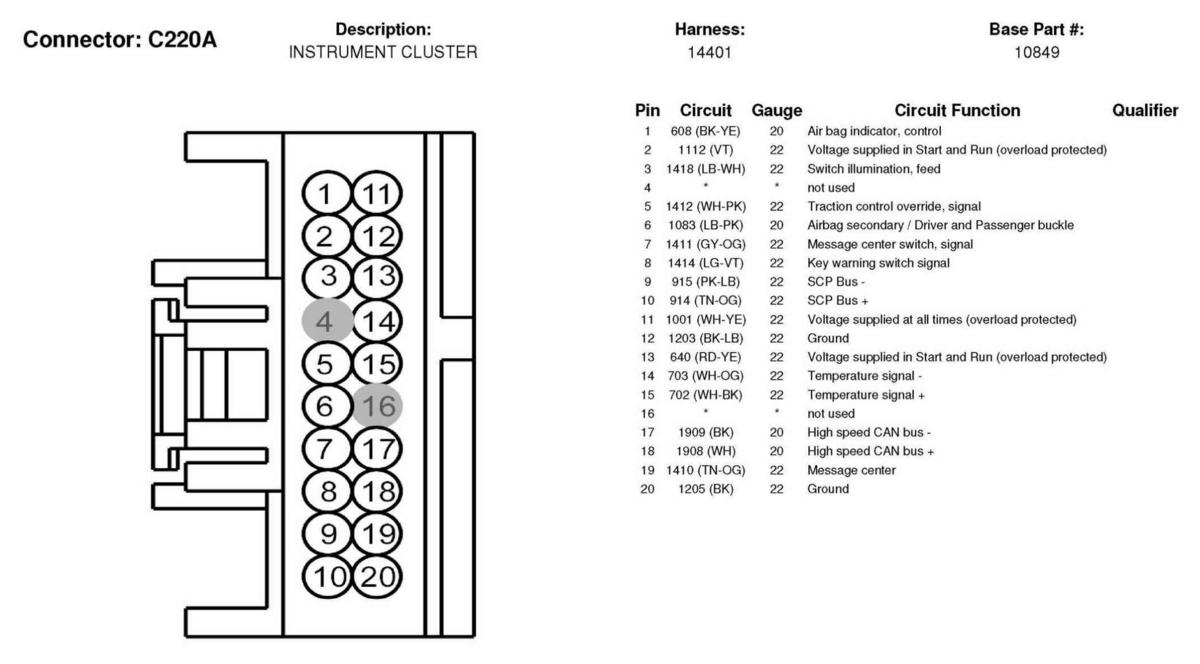

Fig 72: Instrument Cluster Connector End View (C220A)
G04597314Courtesy of FORD MOTOR CO.

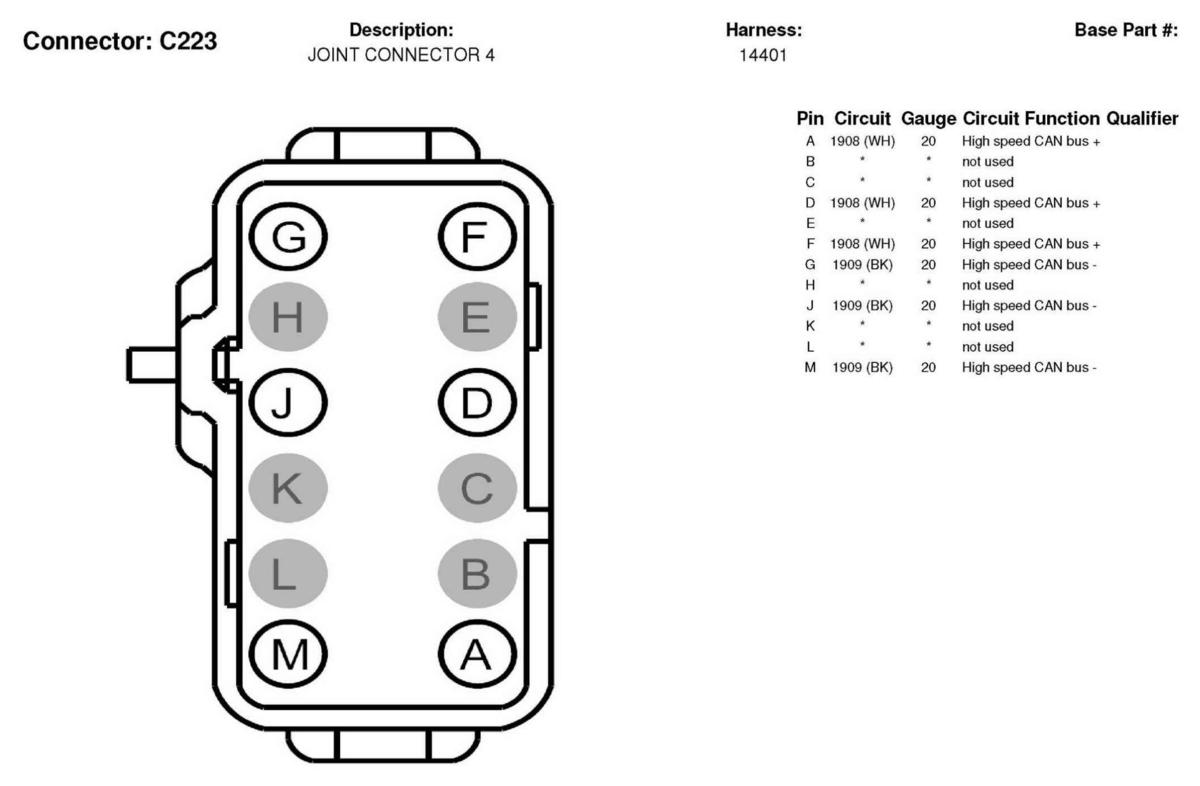

Fig 73: Joint Connector 4 Connector End View (C223)
G04597315Courtesy of FORD MOTOR CO.

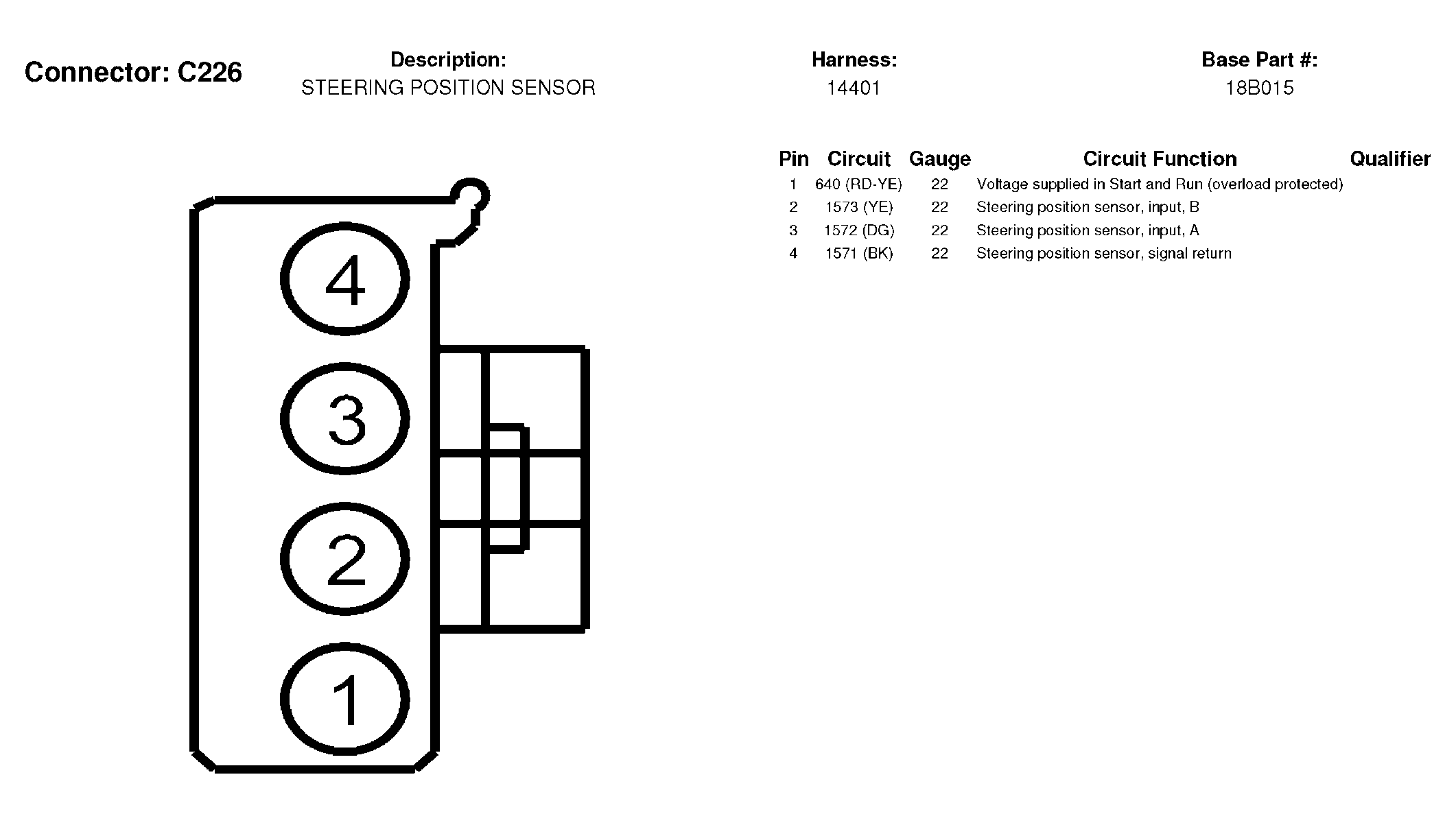

Fig 74: Steering Position Sensor Connector End View (C226)
G04597316Courtesy of FORD MOTOR CO.

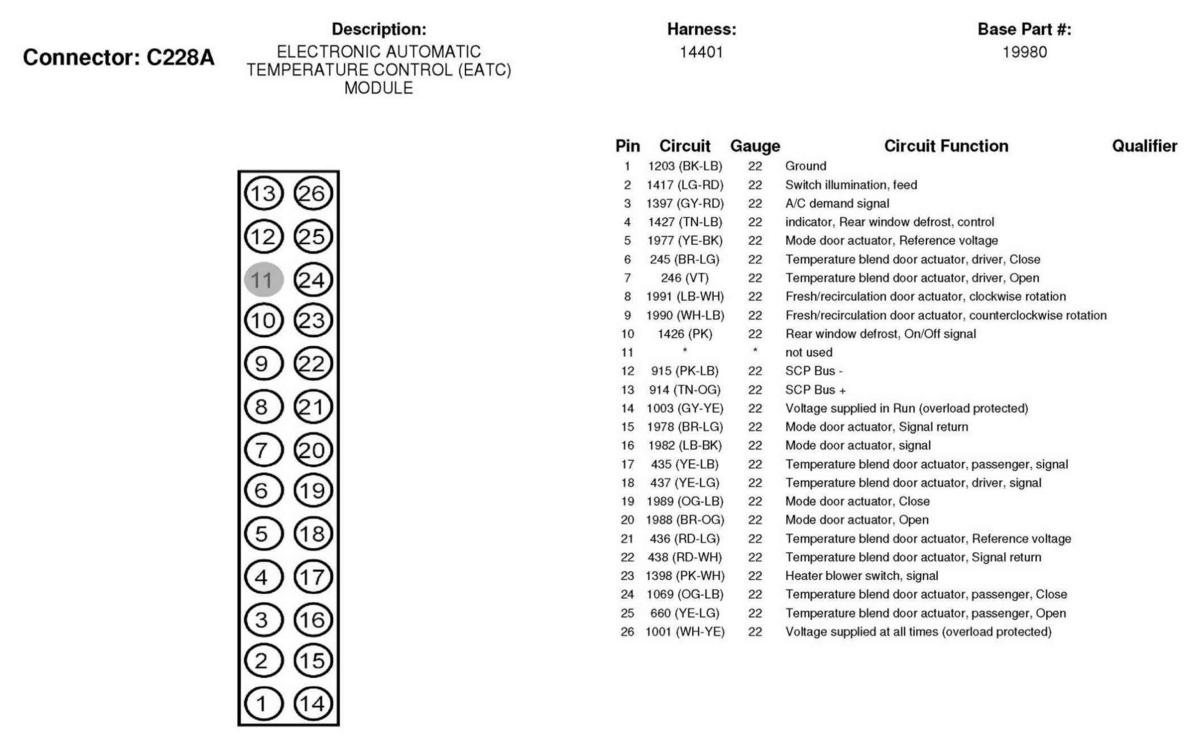

Fig 75: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228A)
G04597317Courtesy of FORD MOTOR CO.

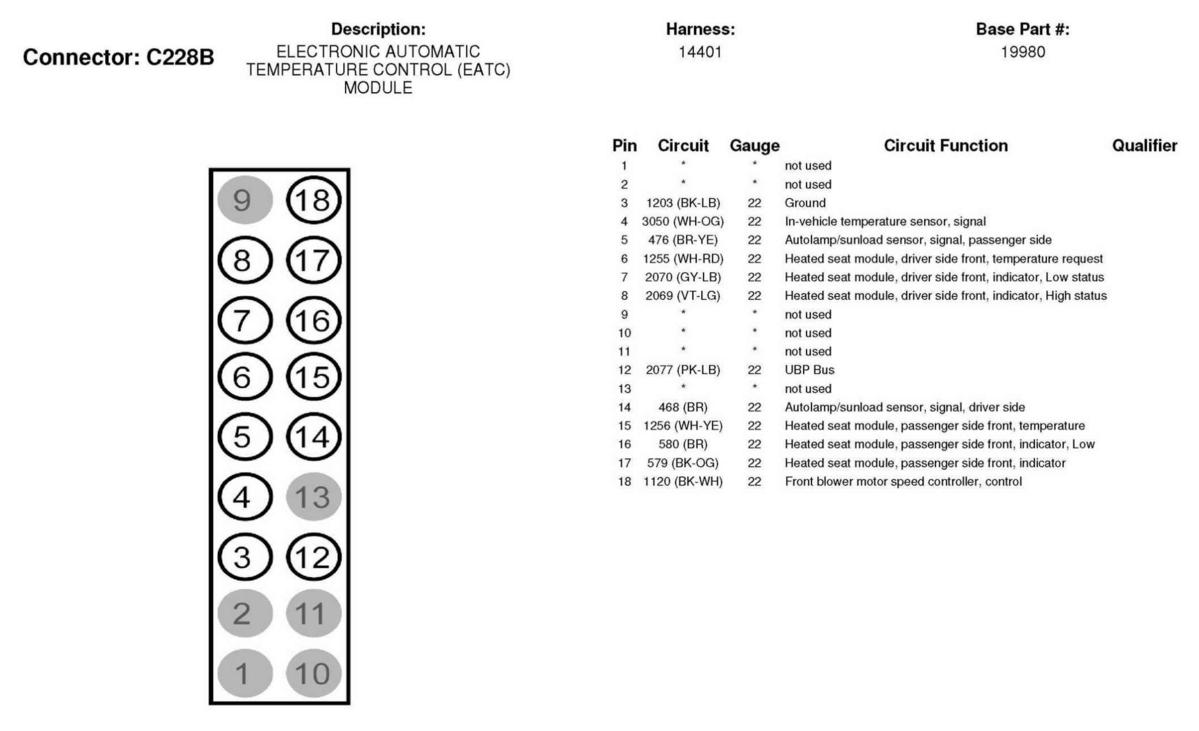

Fig 76: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228B)
G04597318Courtesy of FORD MOTOR CO.

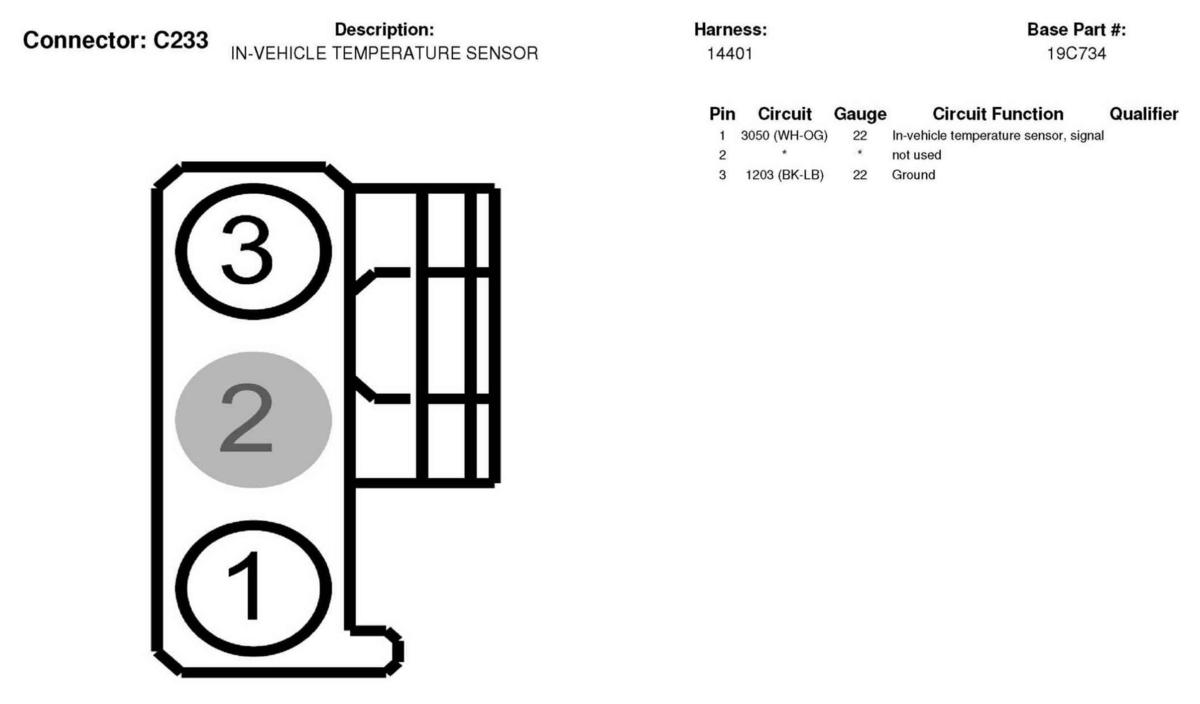

Fig 77: In-Vehicle Temperature Sensor Connector End View (C233)
G04597319Courtesy of FORD MOTOR CO.

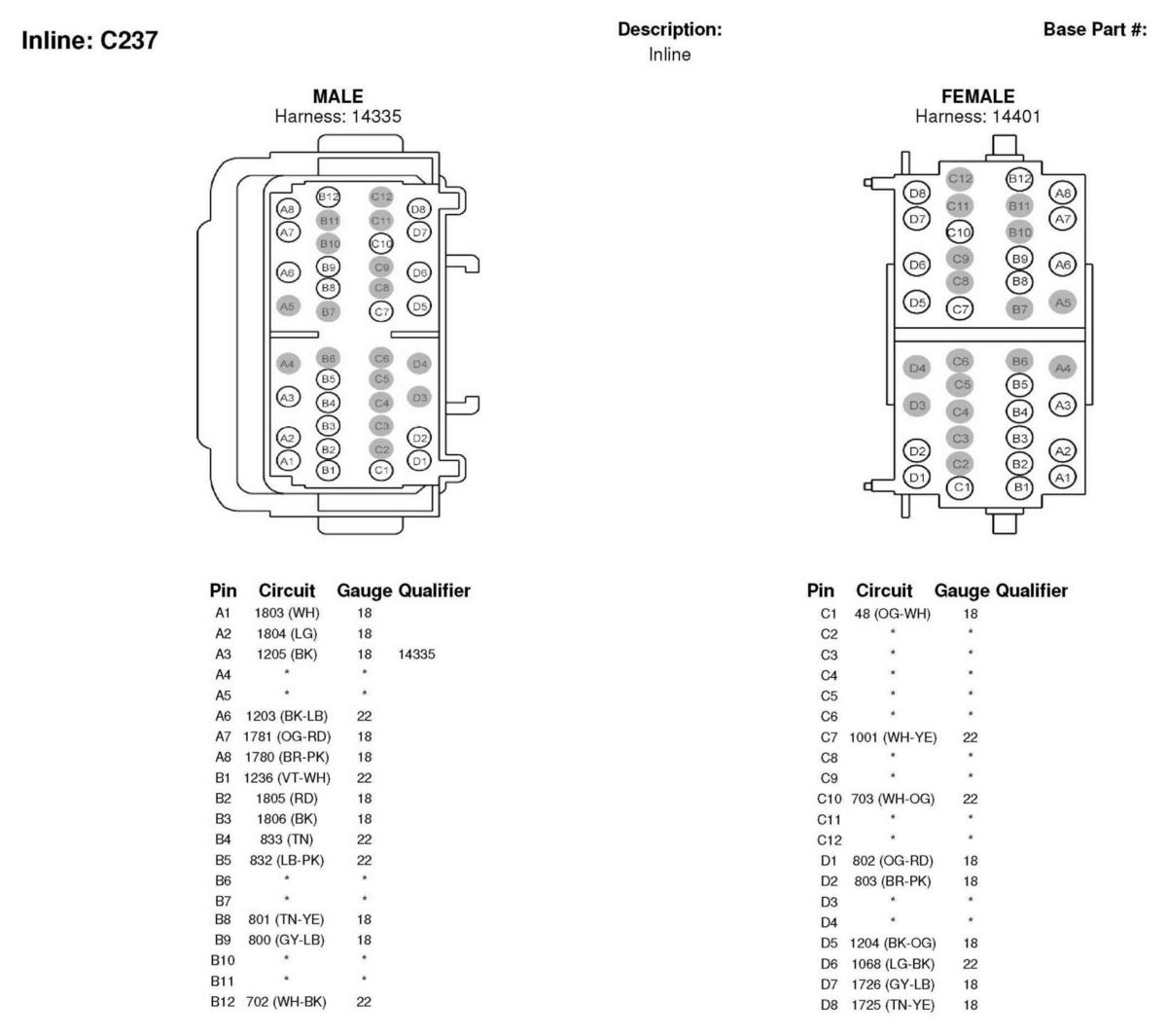

Fig 78: Inline Connector End View (C237)
G04597320Courtesy of FORD MOTOR CO.

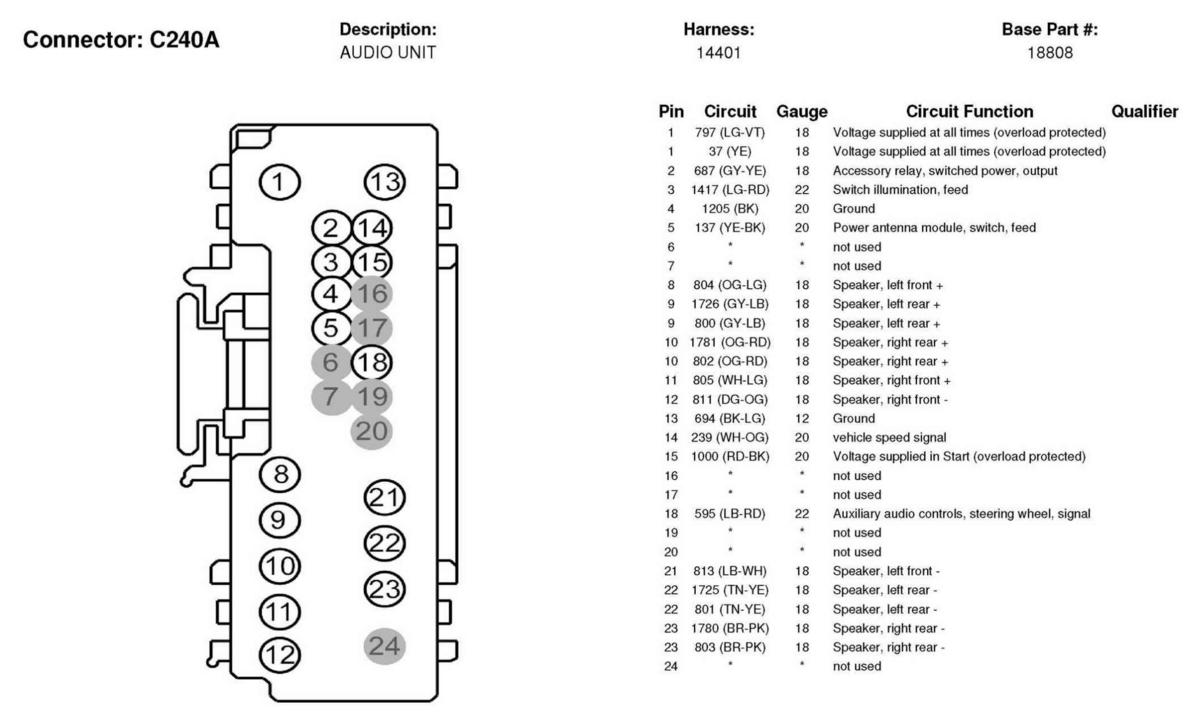

Fig 79: Audio Unit Connector End View (C240A)
G04597321Courtesy of FORD MOTOR CO.

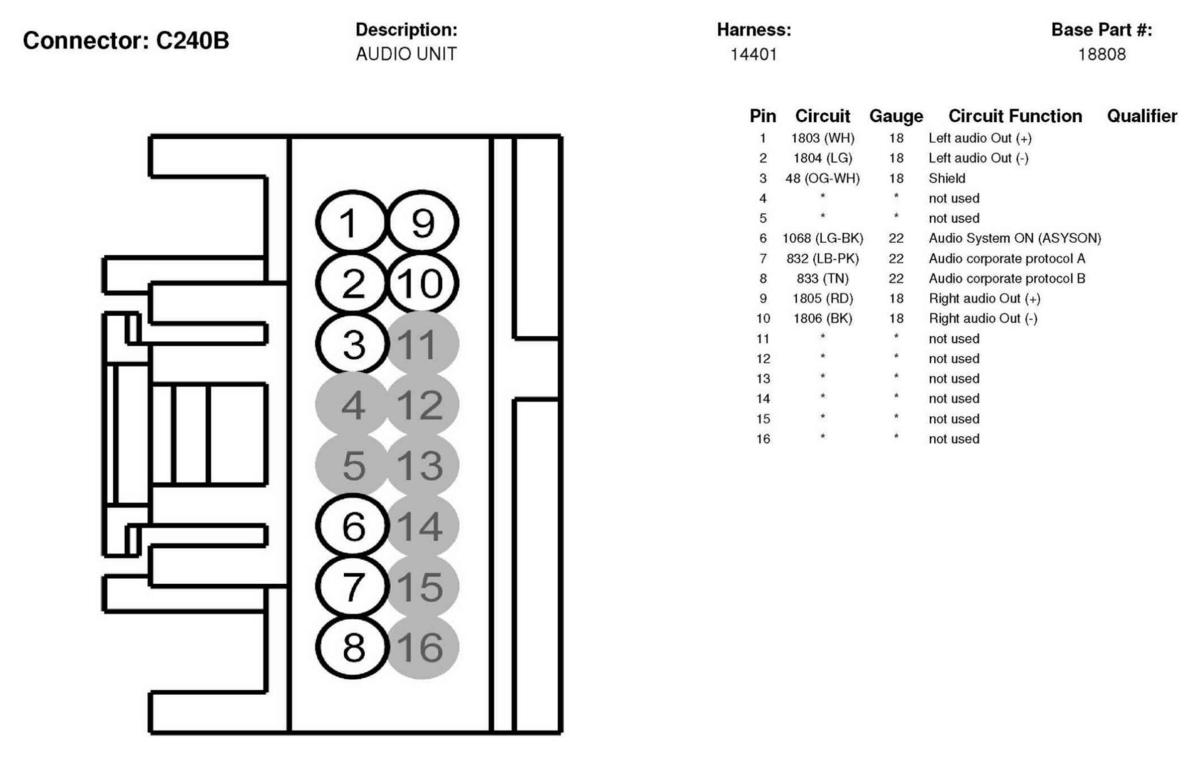

Fig 80: Audio Unit Connector End View (C240B)
G04597322Courtesy of FORD MOTOR CO.

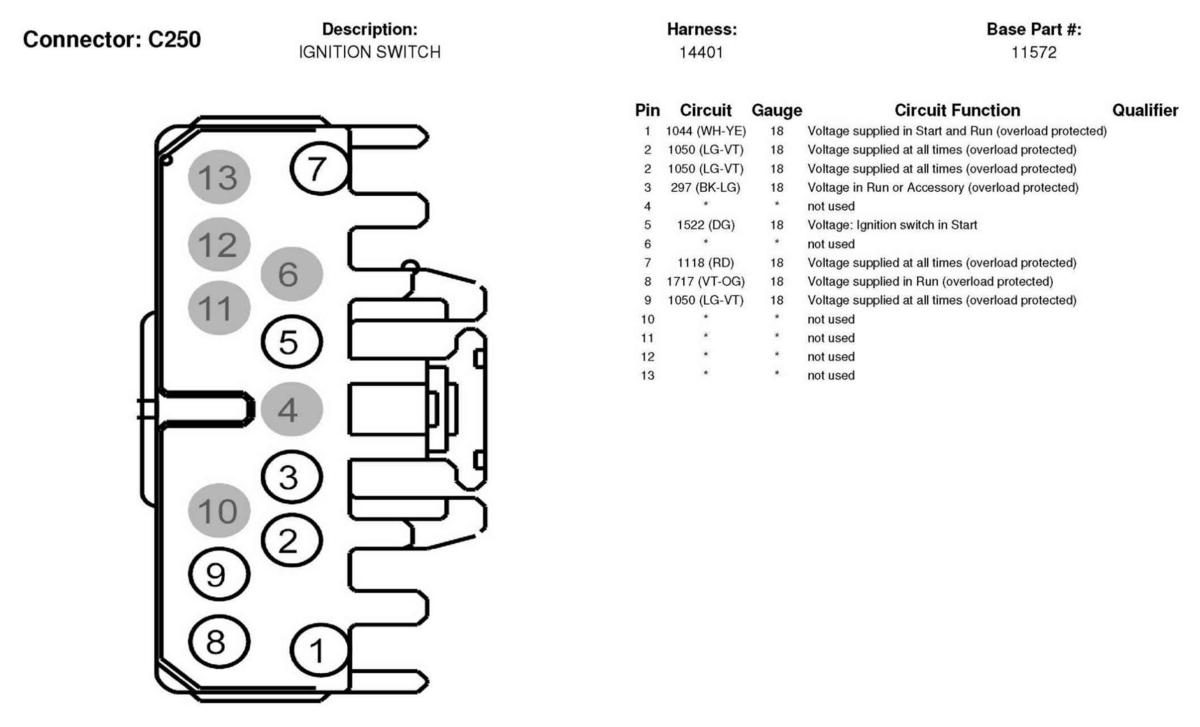

Fig 81: Ignition Switch Connector End View (C250)
G04597323Courtesy of FORD MOTOR CO.

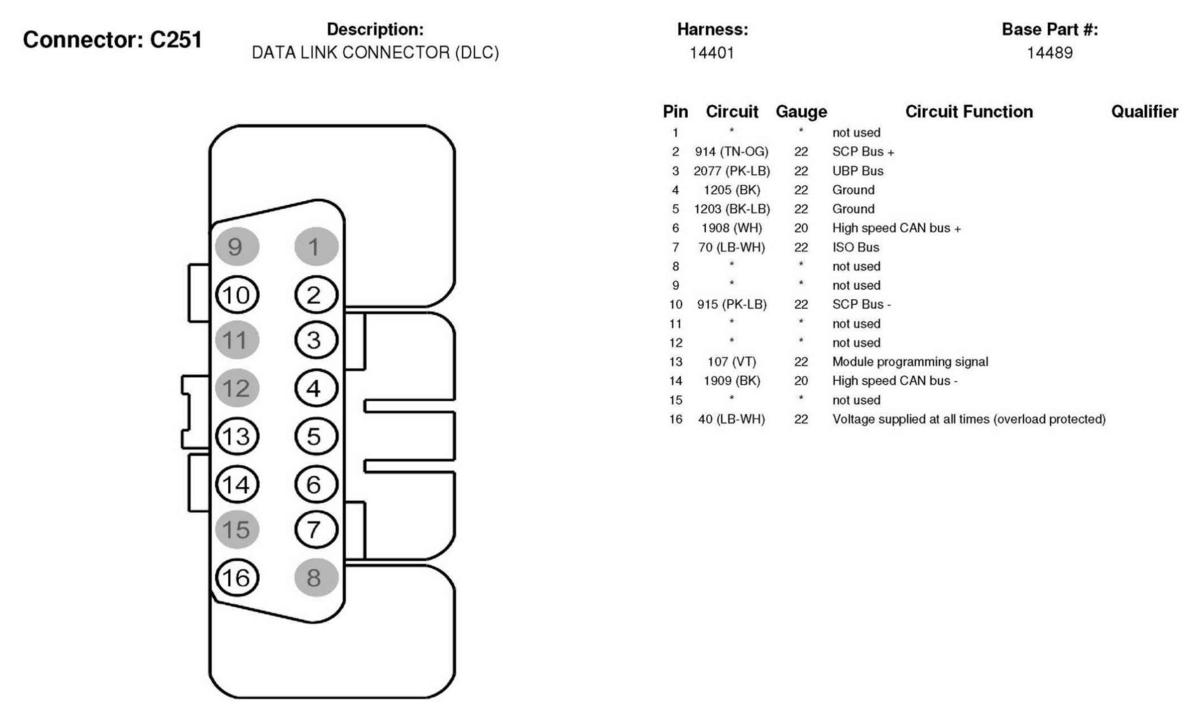

Fig 82: Data Link Connector (DLC) Connector End View (C251)
G04597324Courtesy of FORD MOTOR CO.

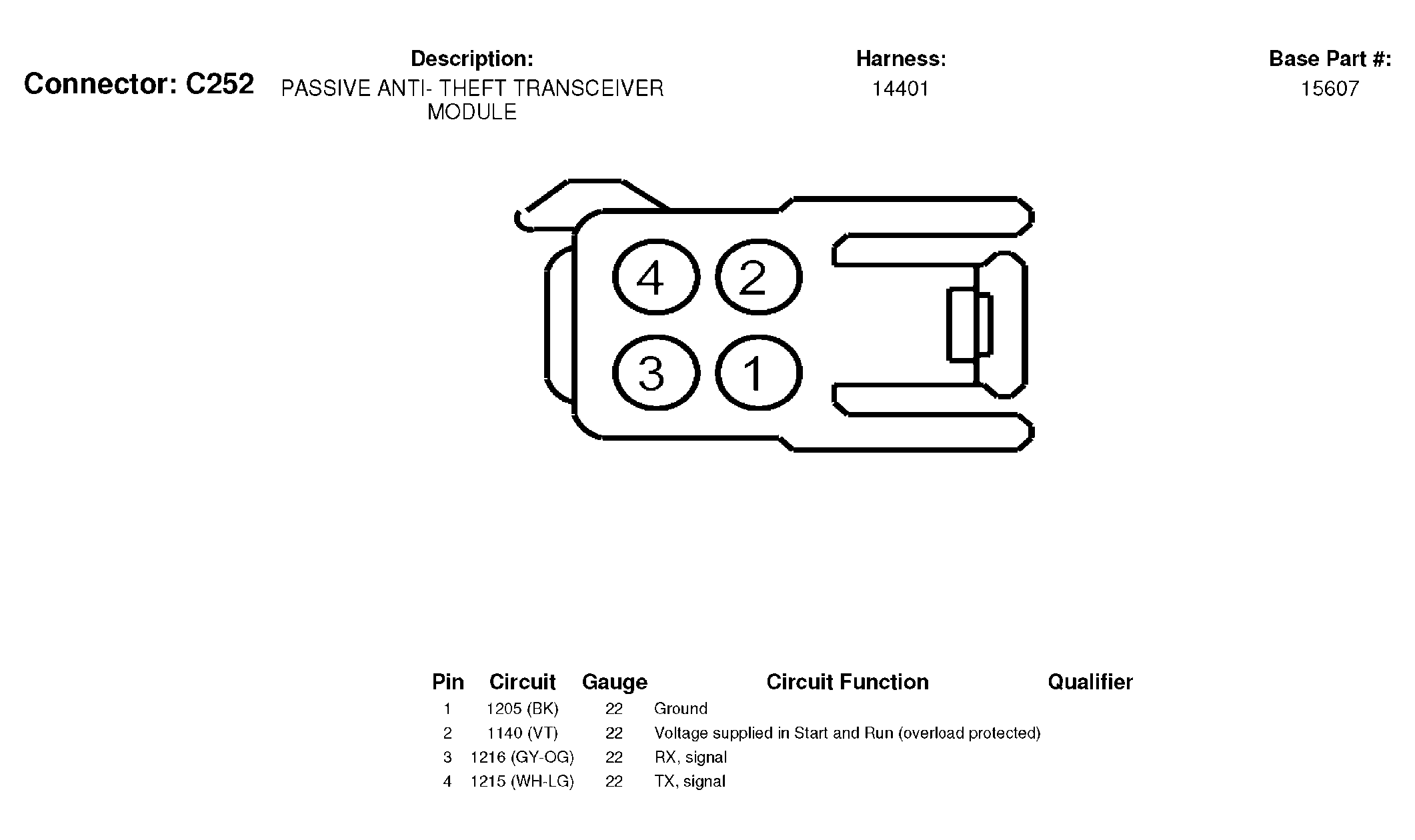

Fig 83: Passive Anti-Theft Transceiver Module Connector End View (C252)
G04597325Courtesy of FORD MOTOR CO.

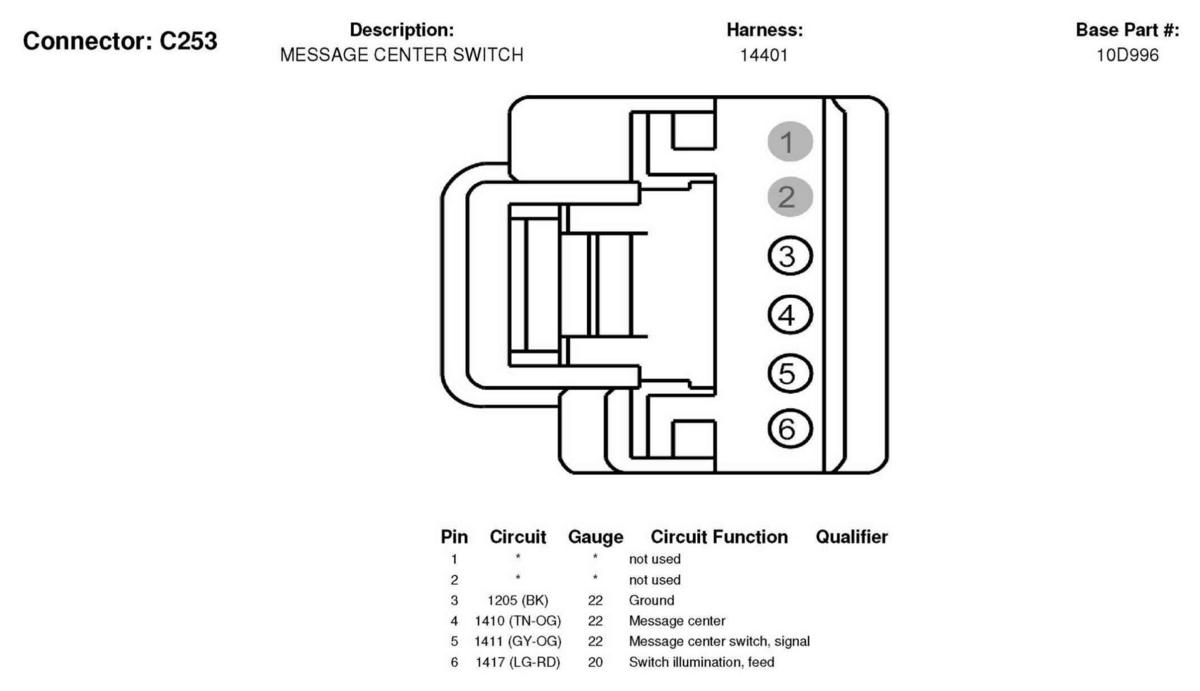

Fig 84: Message Center Switch Connector End View (C253)
G04597326Courtesy of FORD MOTOR CO.

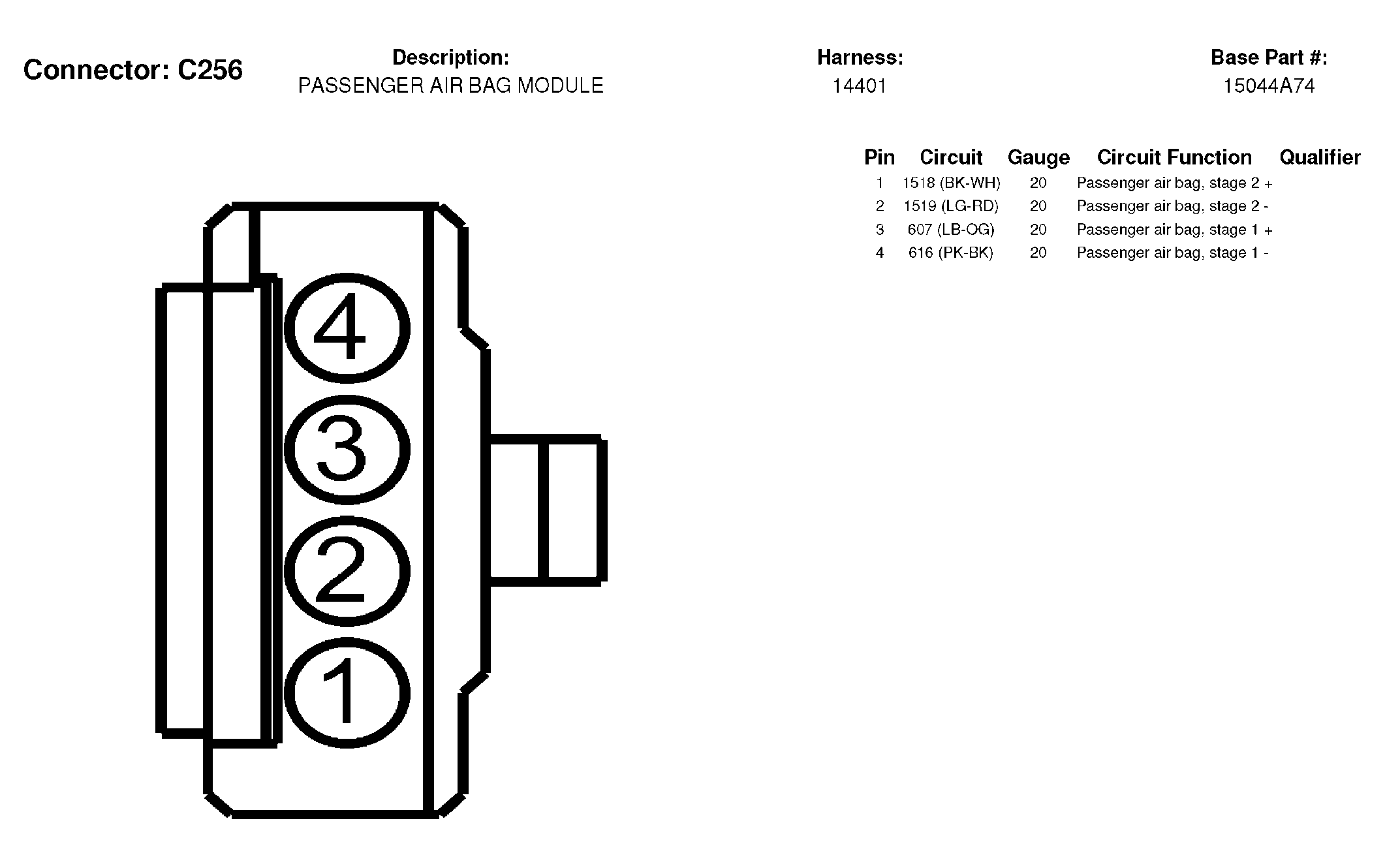

Fig 85: Passenger Air Bag Module Connector End View (C256)
G04597327Courtesy of FORD MOTOR CO.

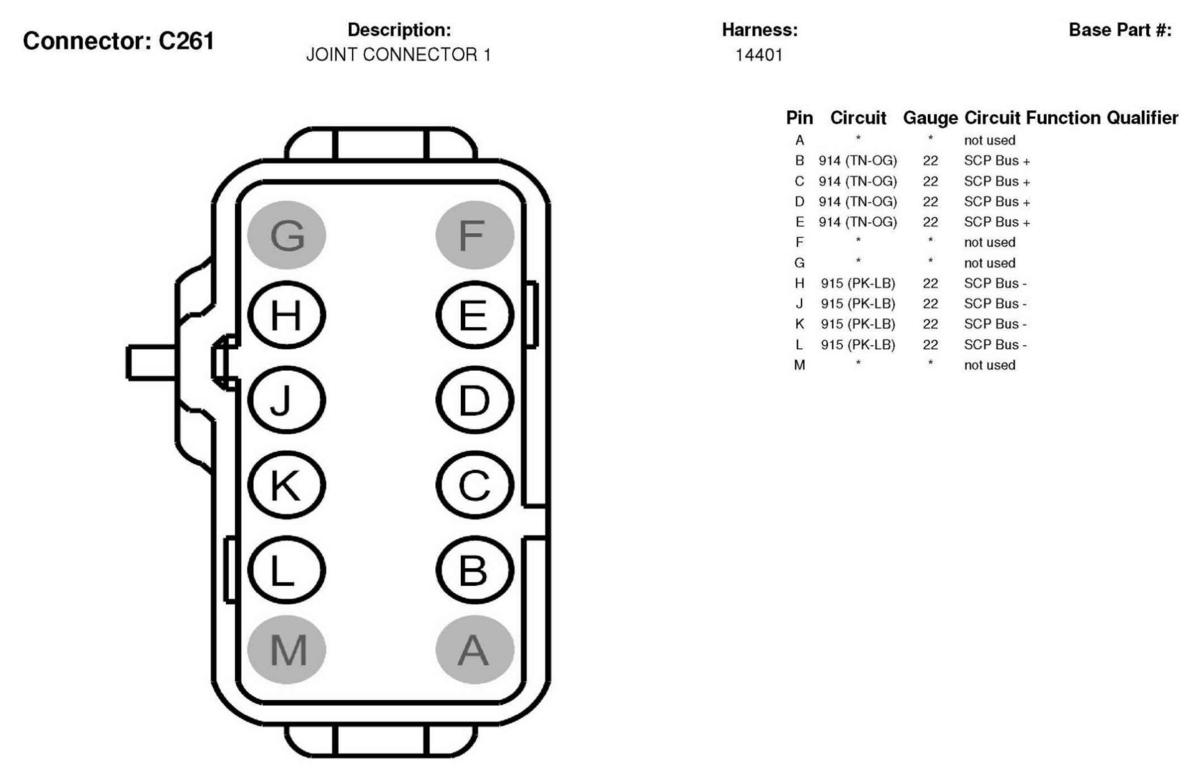

Fig 86: Joint Connector 1 Connector End View (C261)
G04597328Courtesy of FORD MOTOR CO.

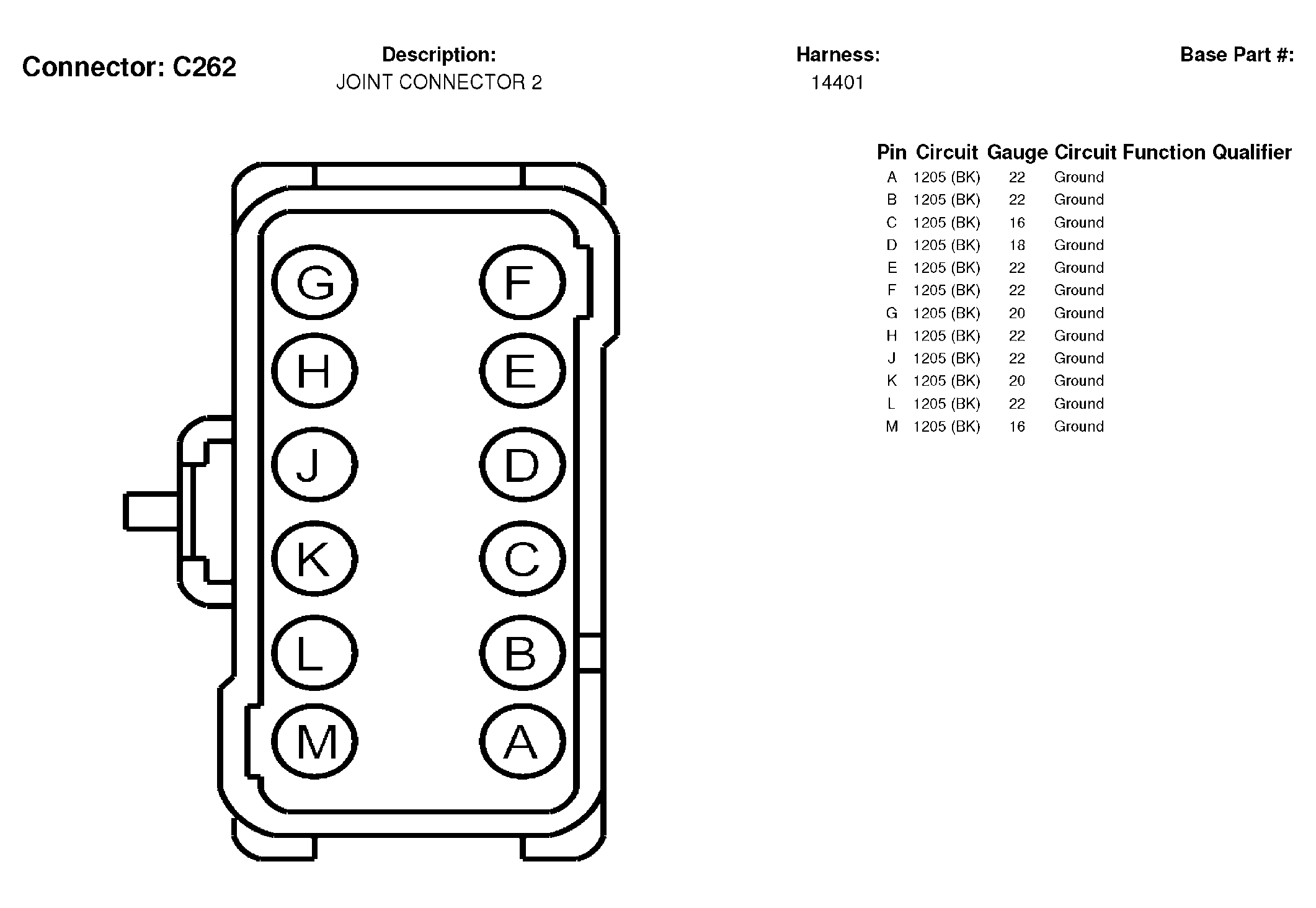

Fig 87: Joint Connector 2 Connector End View (C262)
G04597329Courtesy of FORD MOTOR CO.

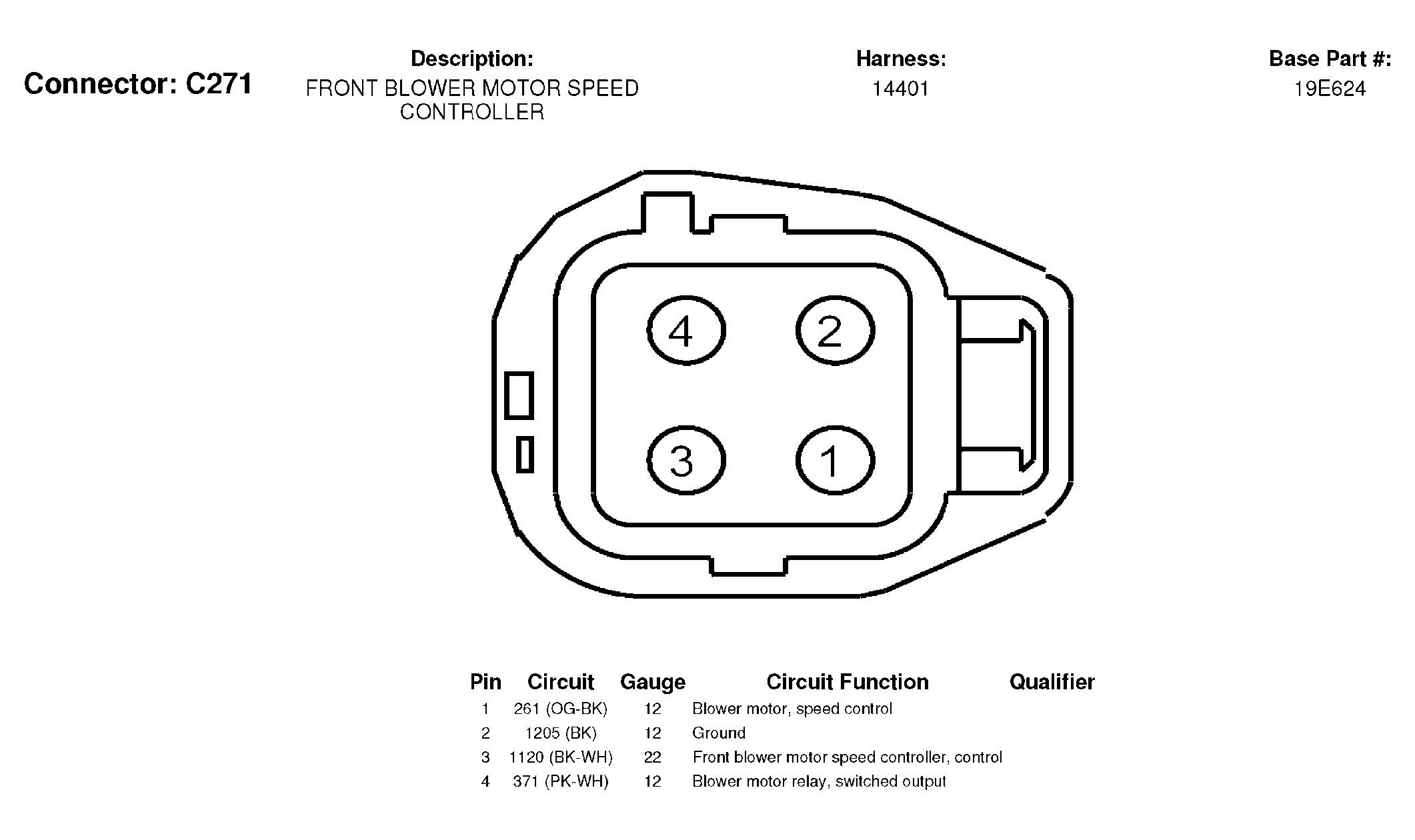

Fig 88: Front Blower Motor Speed Controller Connector End View (C271)
G04597330Courtesy of FORD MOTOR CO.

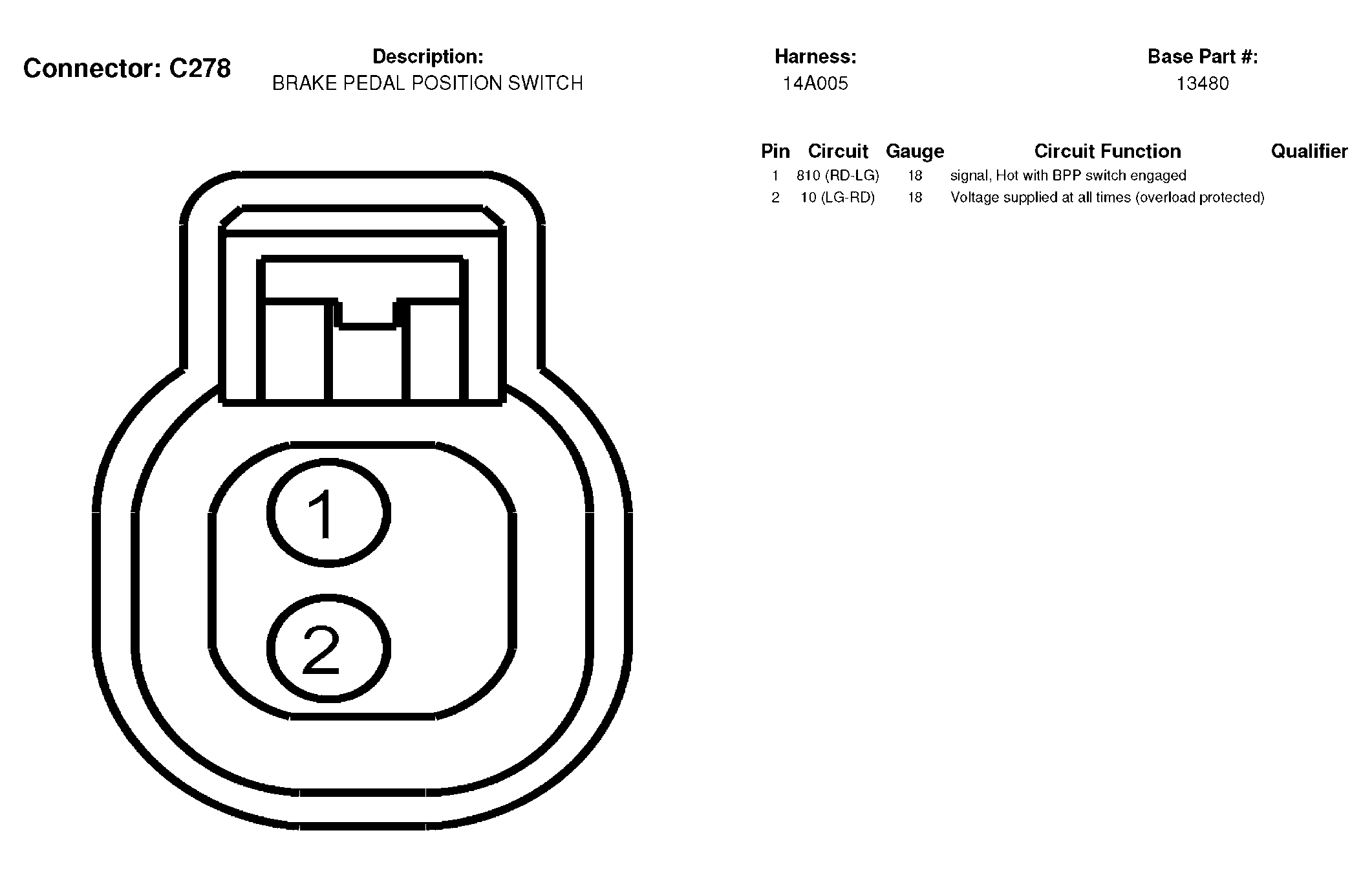

Fig 89: Brake Pedal Position Switch Connector End View (C278)
G04597331Courtesy of FORD MOTOR CO.

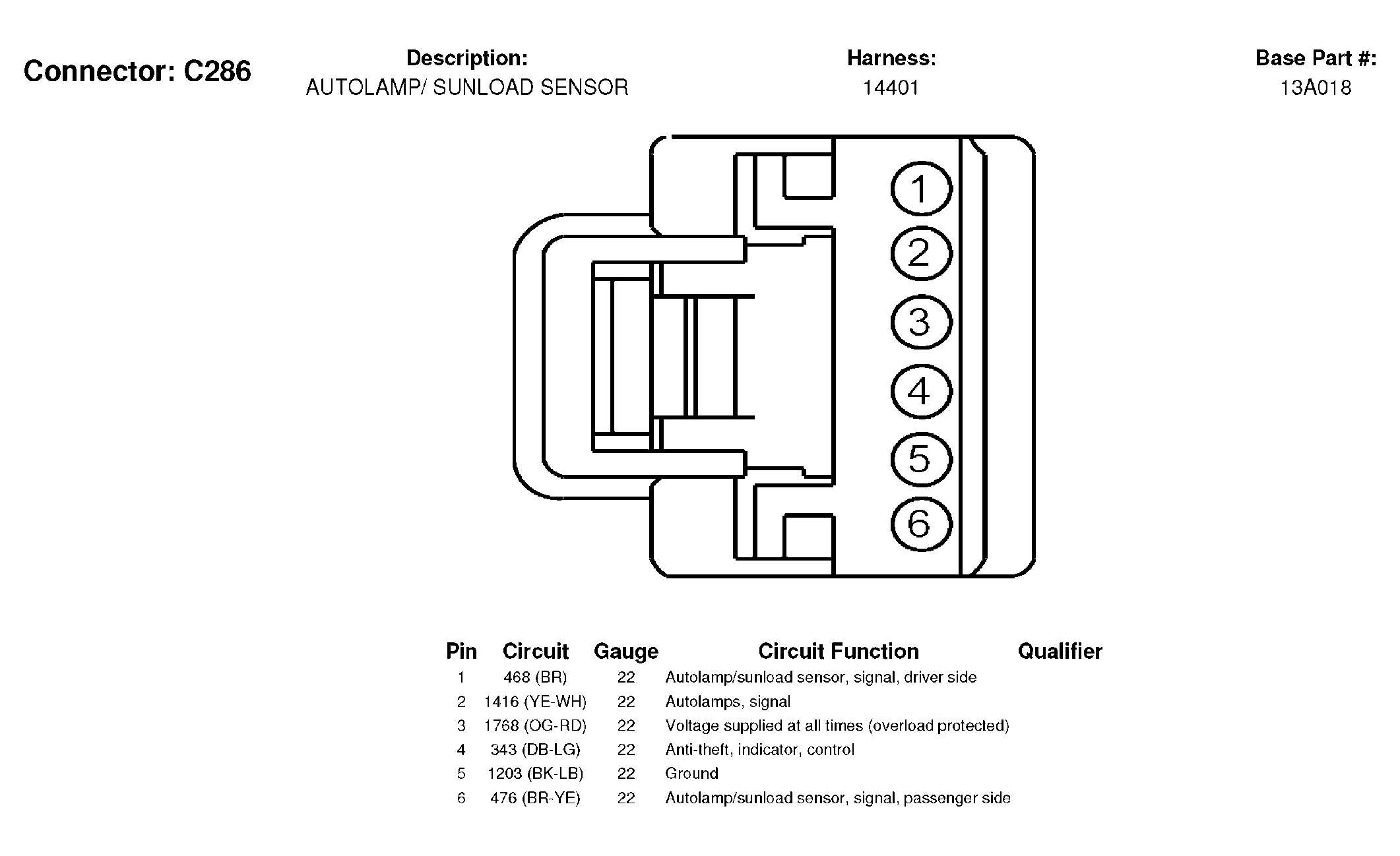

Fig 90: Autolamp/Sunload Sensor Connector End View (C286)
G04597332Courtesy of FORD MOTOR CO.

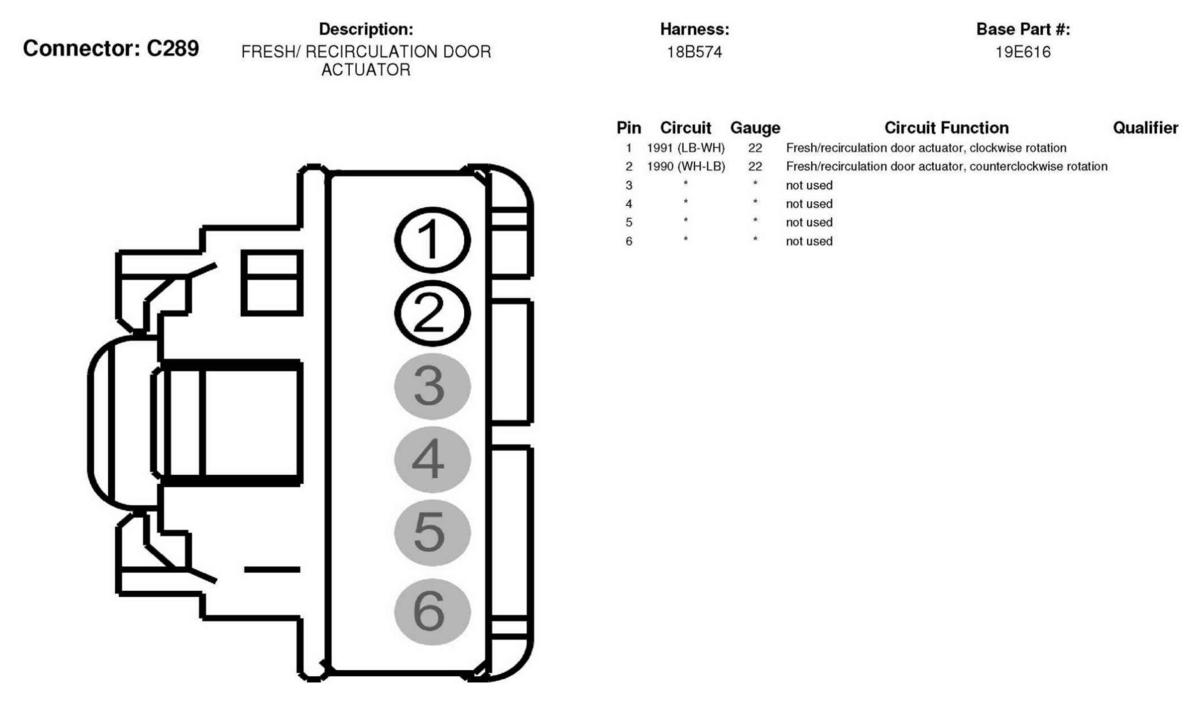

Fig 91: Fresh/Recirculation Door Actuator Connector End View (C289)
G04597333Courtesy of FORD MOTOR CO.

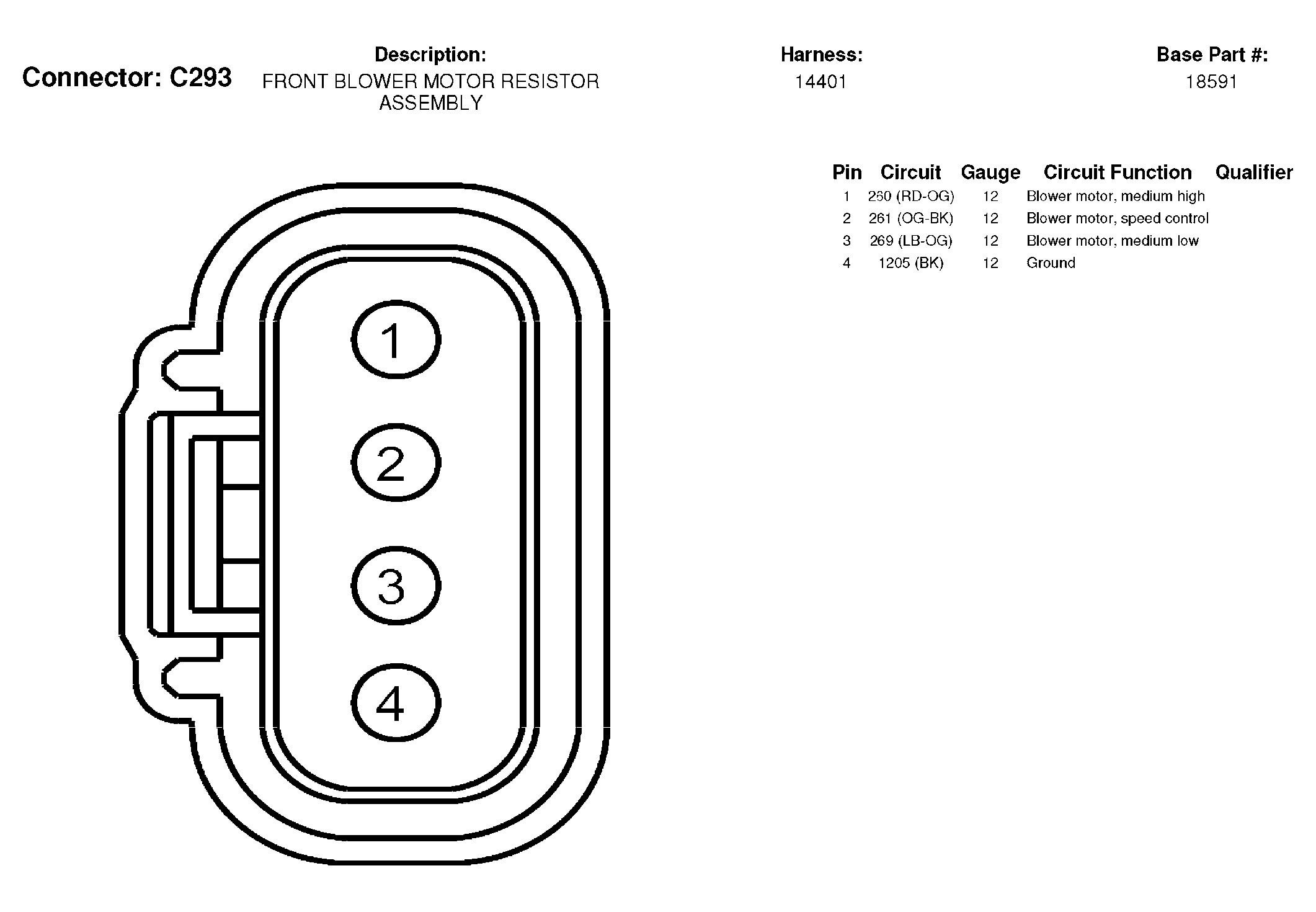

Fig 92: Front Blower Motor Resistor Assembly Connector End View (C293)
G04597334Courtesy of FORD MOTOR CO.

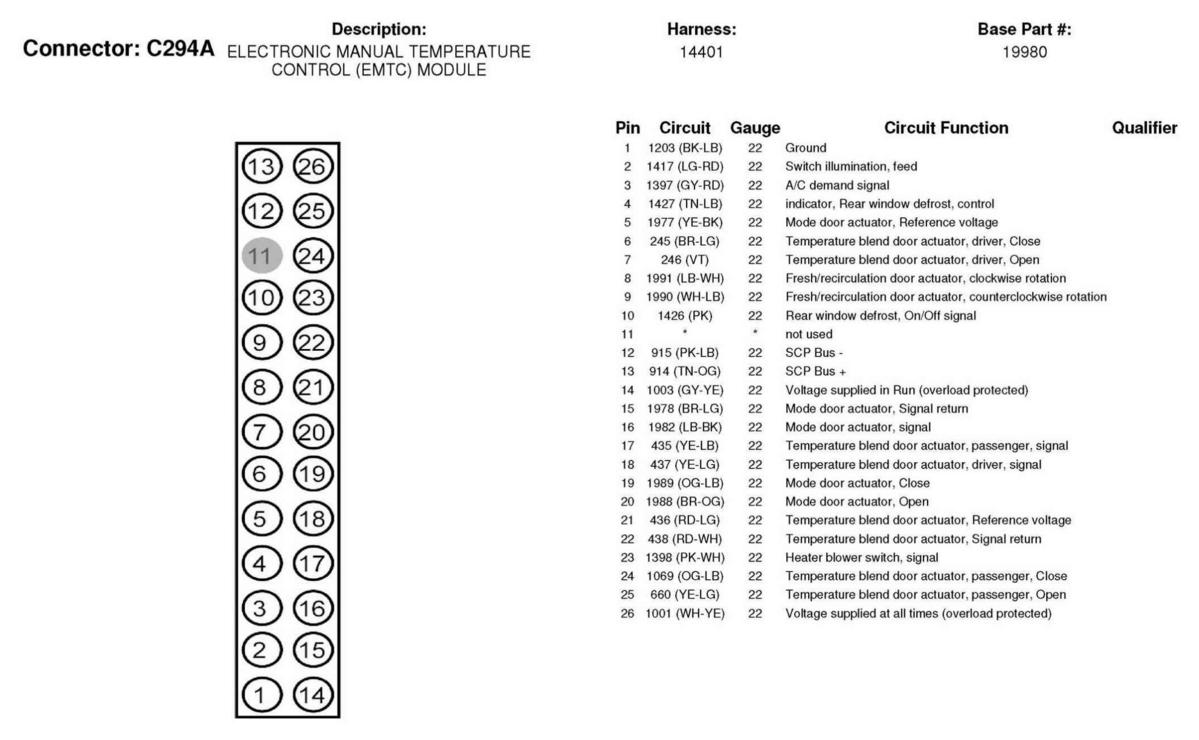

Fig 93: Electronic Automatic Temperature Control (EMTC) Module Connector End View (C294A)
G04597335Courtesy of FORD MOTOR CO.

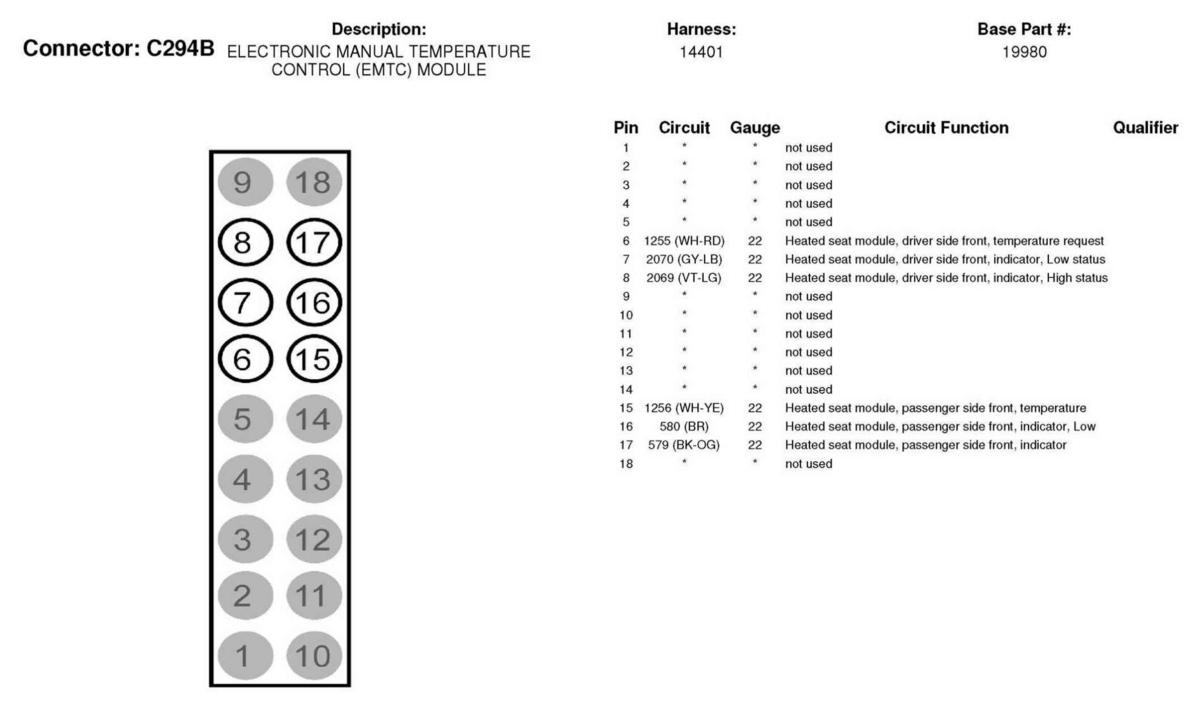

Fig 94: Electronic Automatic Temperature Control (EMTC) Module Connector End View (C294B)
G04597336Courtesy of FORD MOTOR CO.

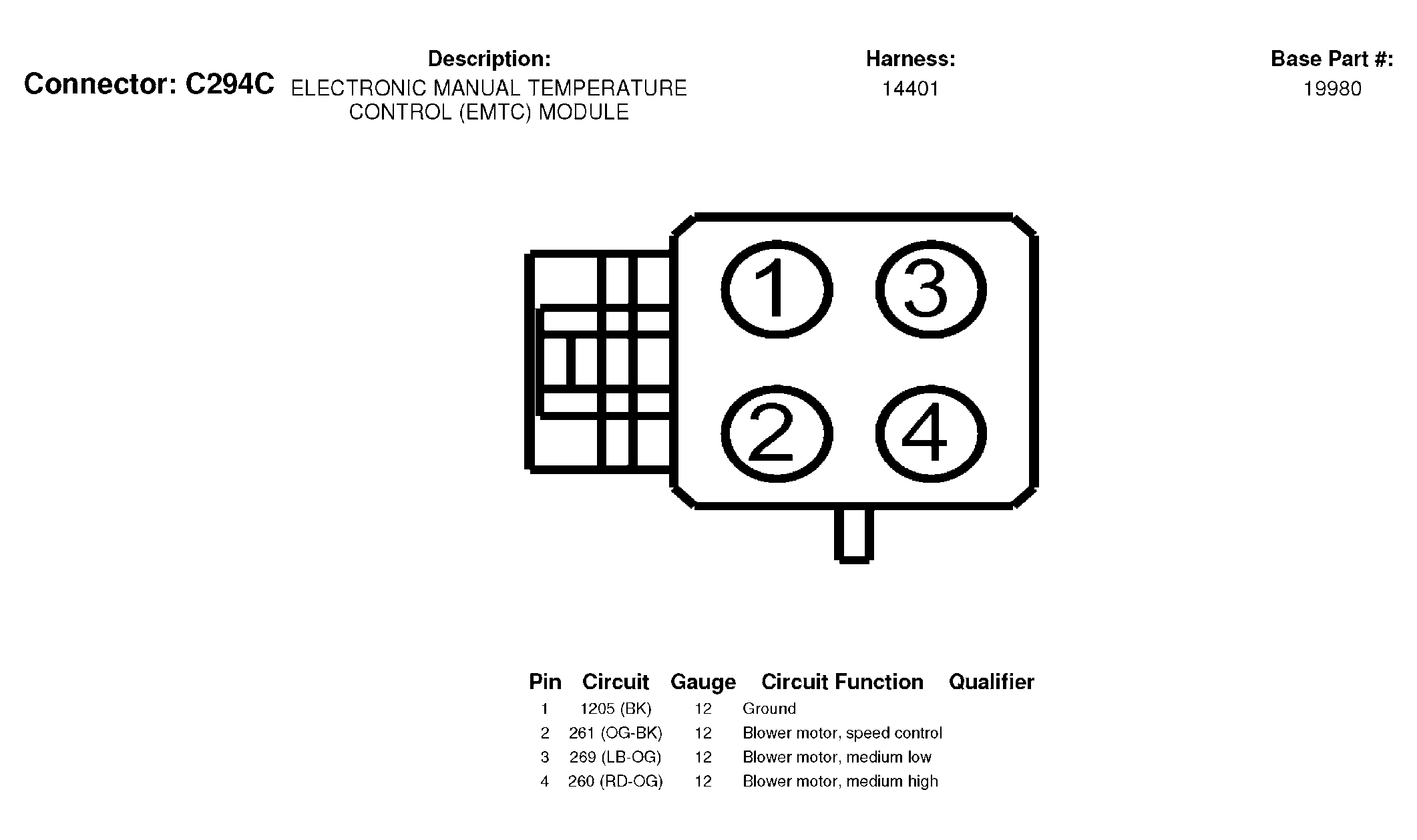

Fig 95: Electronic Manual Temperature Control (EMTC) Module Connector End View (C294C)
G04597337Courtesy of FORD MOTOR CO.

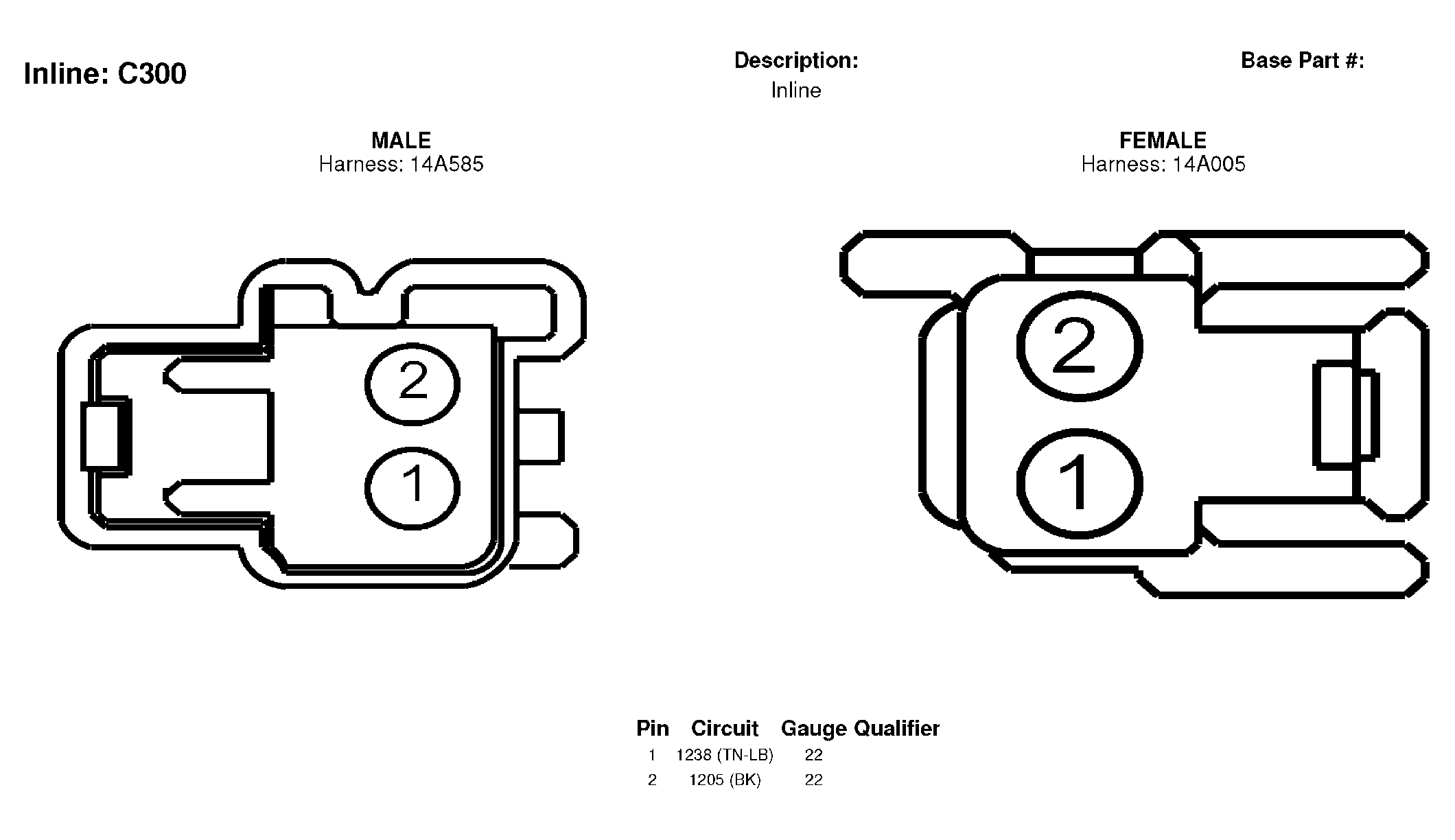

Fig 96: Inline Connector End View (C300)
G04597338Courtesy of FORD MOTOR CO.

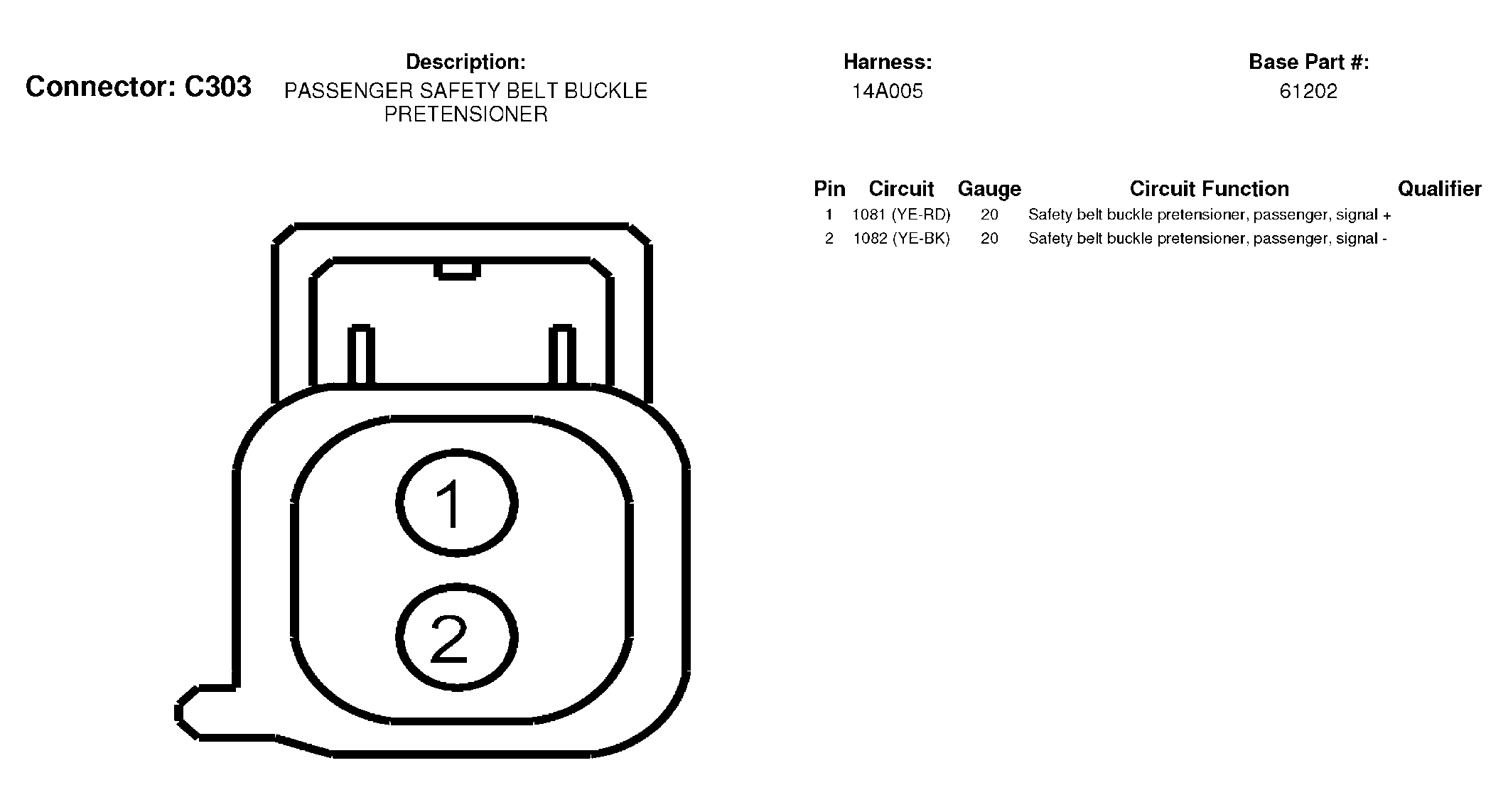

Fig 97: Passenger Safety Belt Buckle Pretensioner Connector End View (C303)
G04597339Courtesy of FORD MOTOR CO.

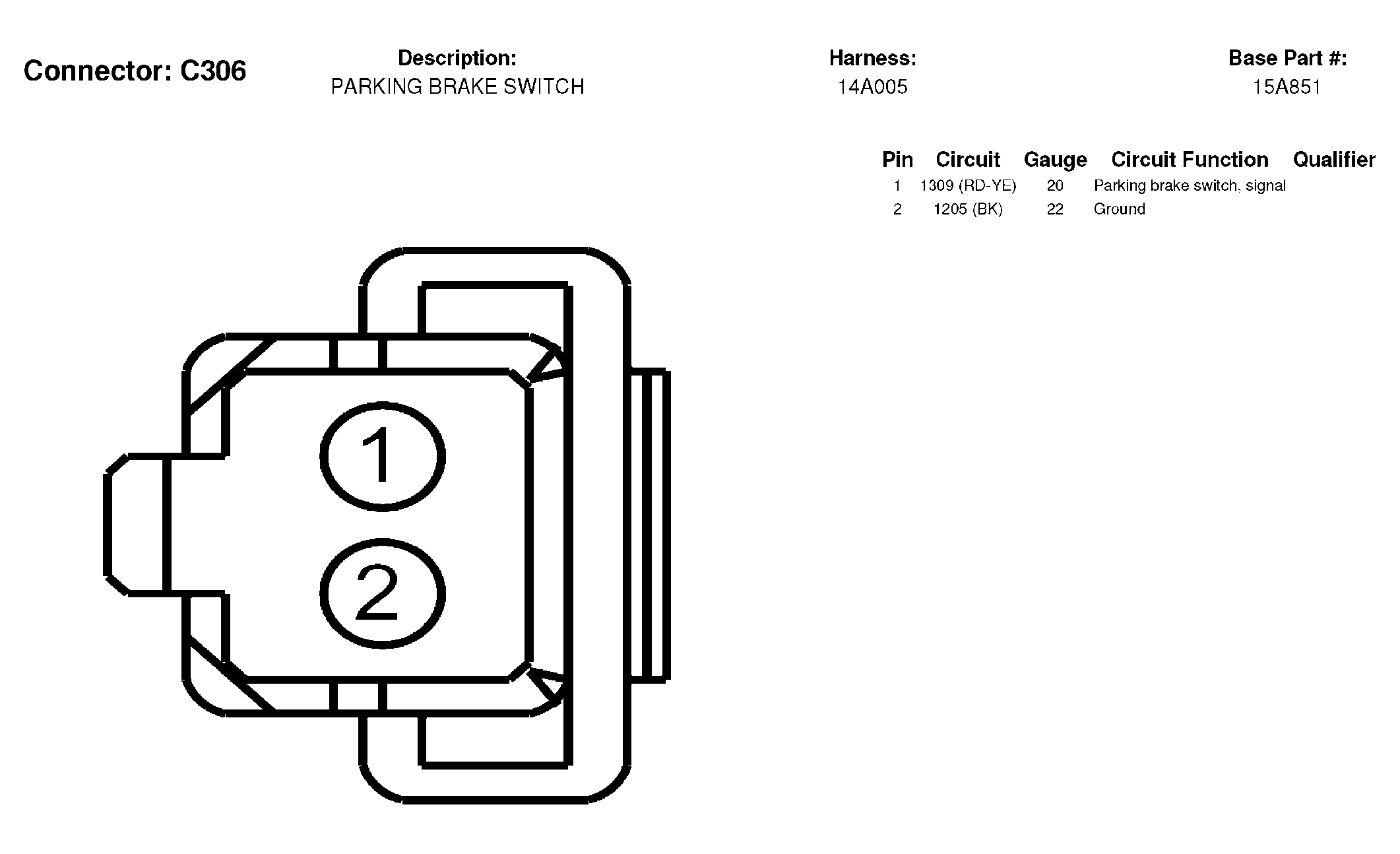

Fig 98: Parking Brake Switch Connector End View (C306)
G04597340Courtesy of FORD MOTOR CO.

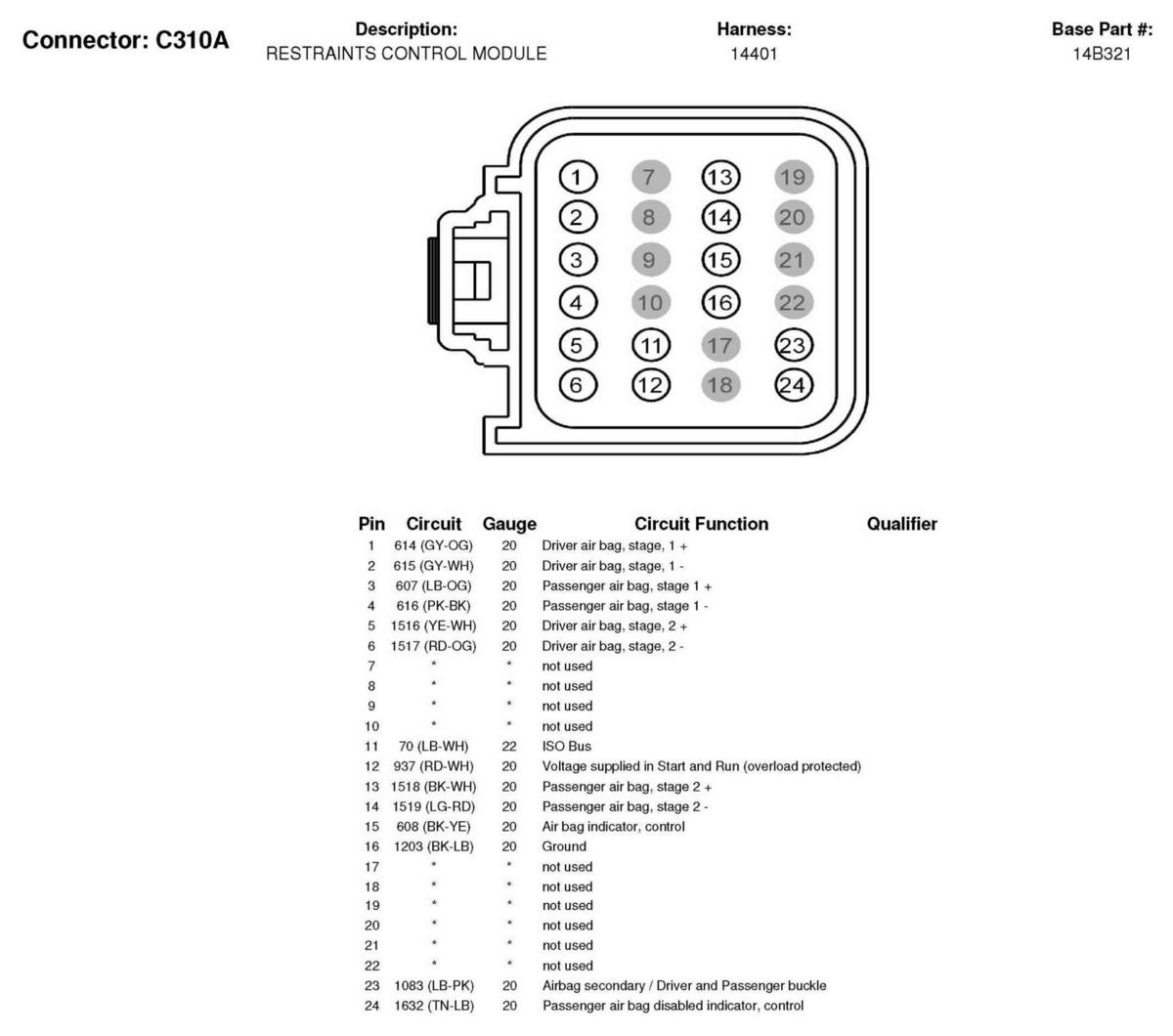

Fig 99: Restraints Control Module Connector End View (C310A)
G04597341Courtesy of FORD MOTOR CO.

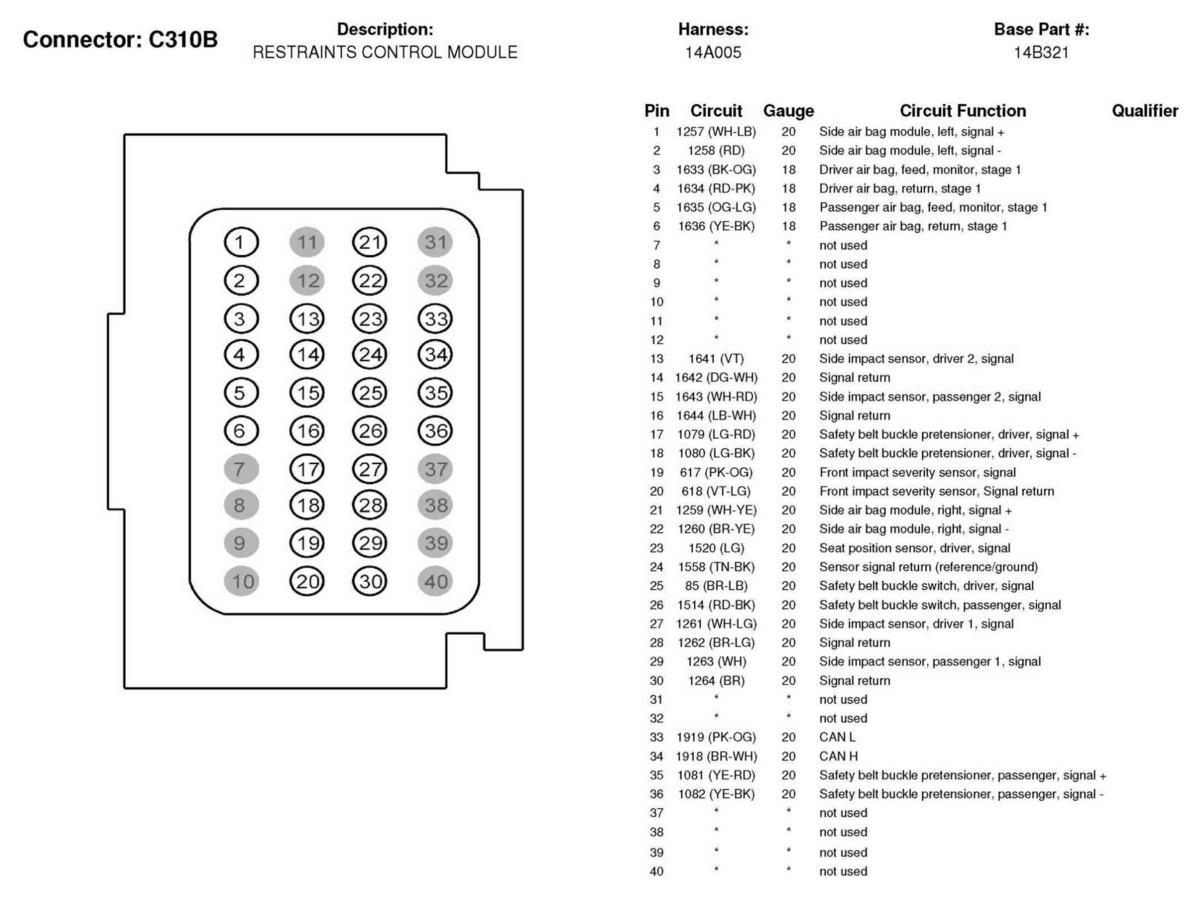

Fig 100: Restraints Control Module Connector End View (C310B)
G04597342Courtesy of FORD MOTOR CO.

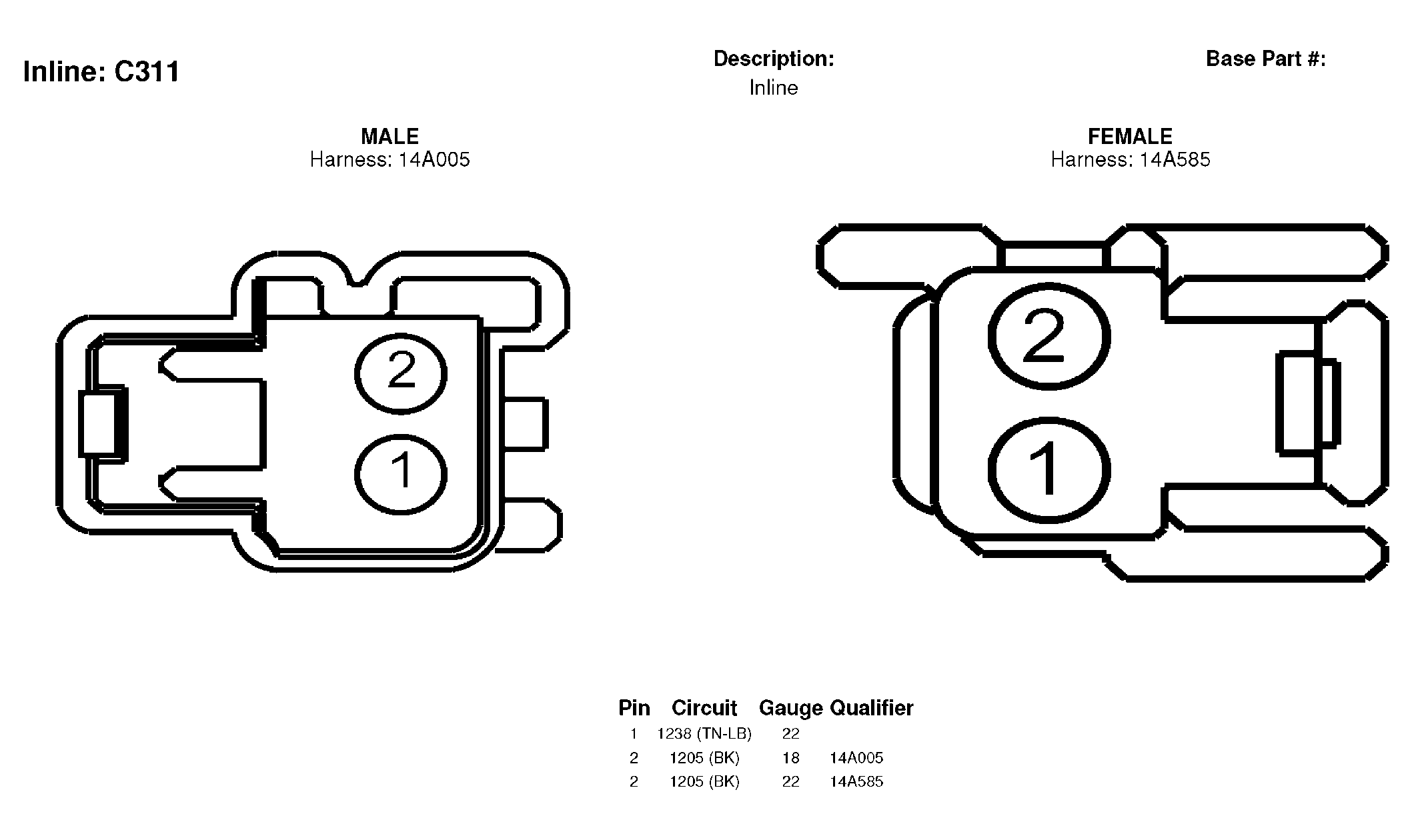

Fig 101: Inline Connector End View (C311)
G04597343Courtesy of FORD MOTOR CO.

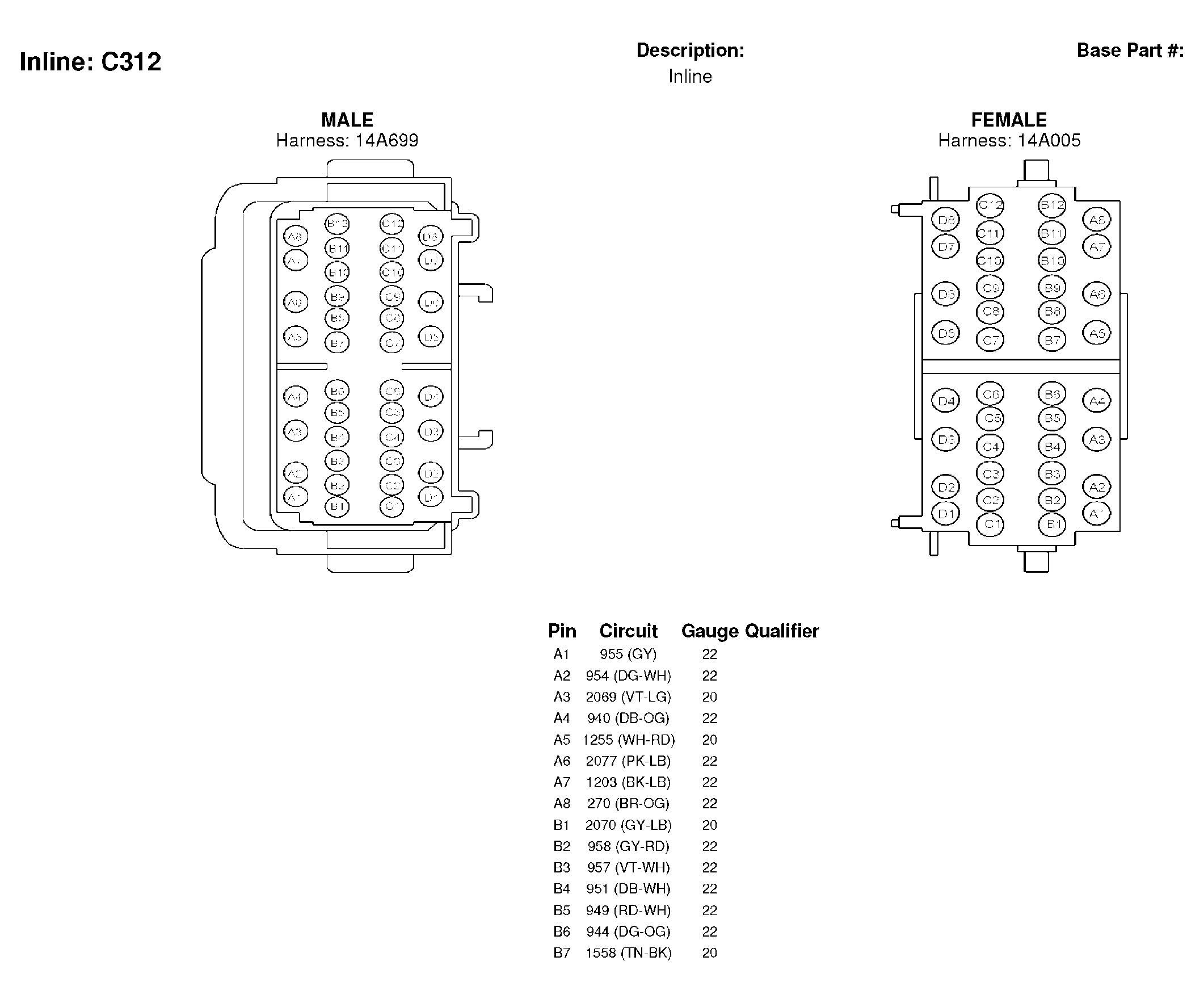

Fig 102: Inline Connector End View (C312) (1 Of 2)
G04597344Courtesy of FORD MOTOR CO.

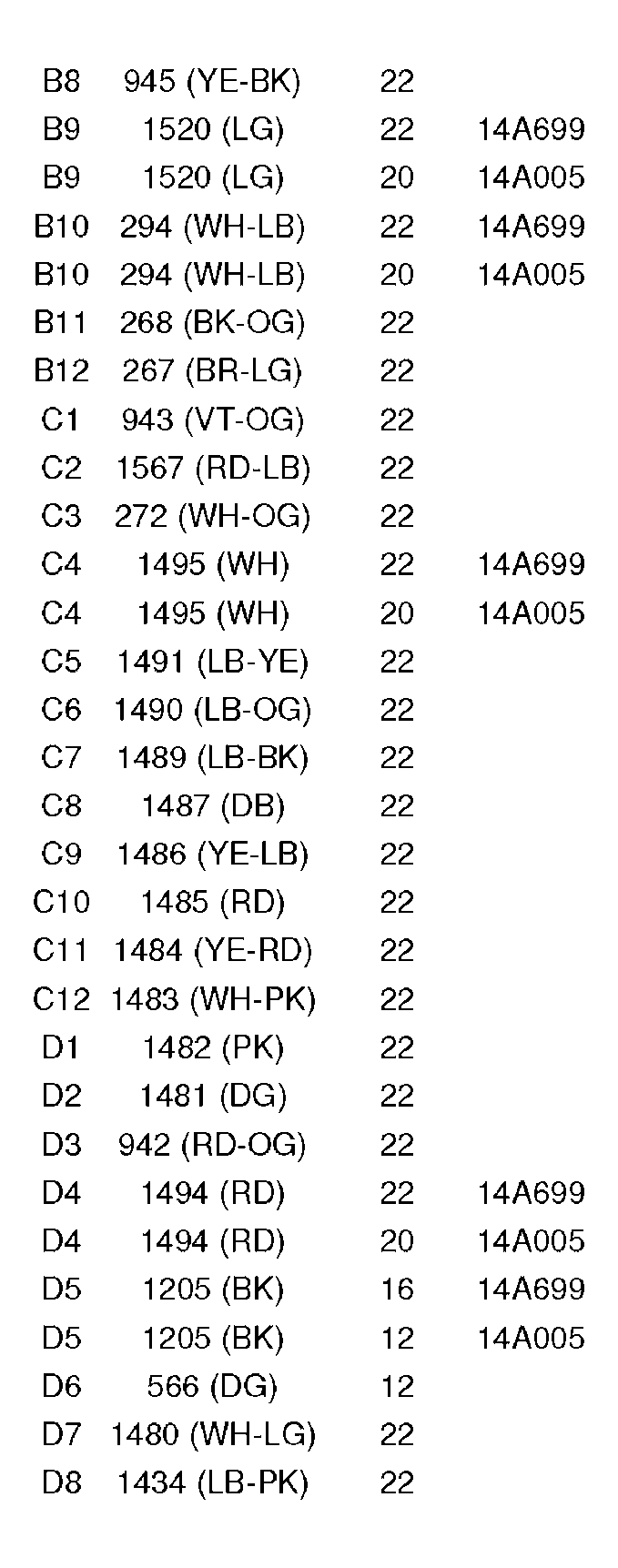

Fig 103: Inline Connector End View (C312) (2 Of 2)
G04597345Courtesy of FORD MOTOR CO.

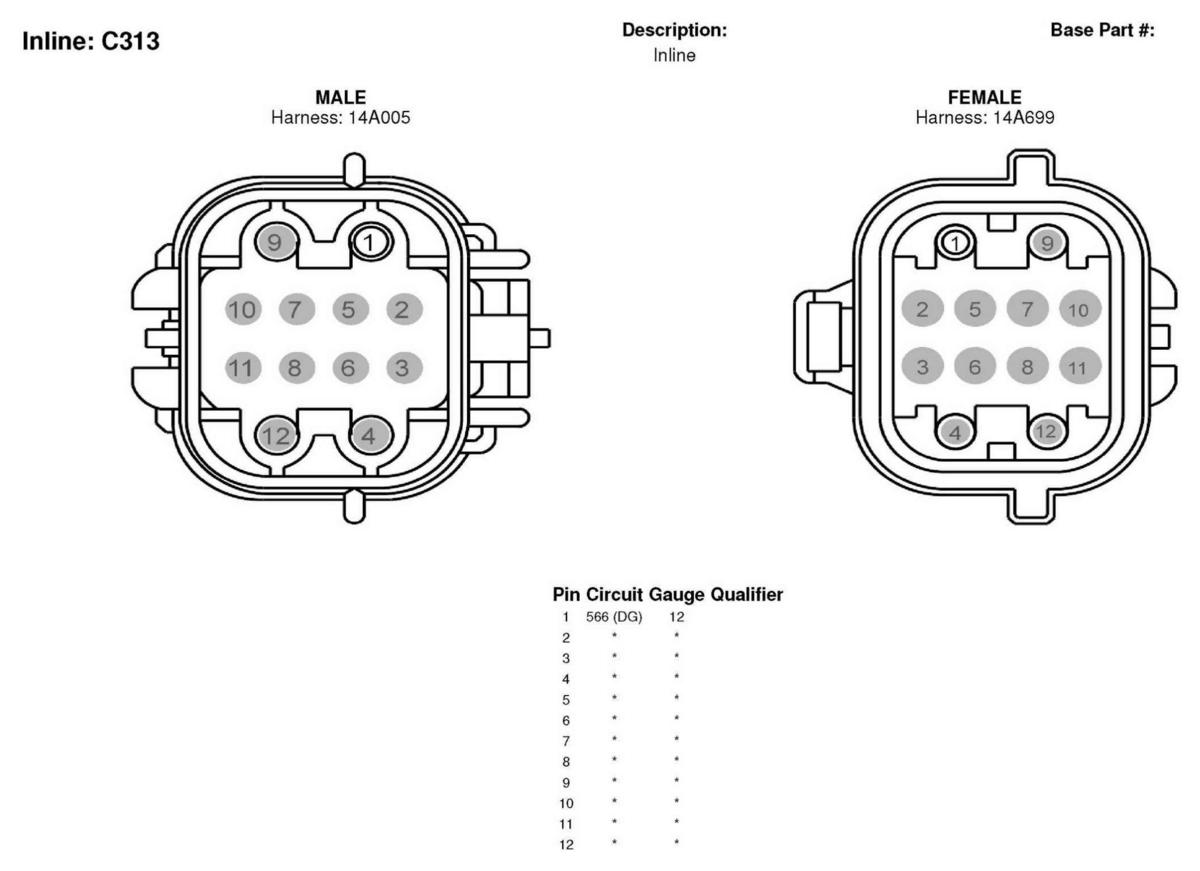

Fig 104: Inline Connector End View (C313)
G04597346Courtesy of FORD MOTOR CO.

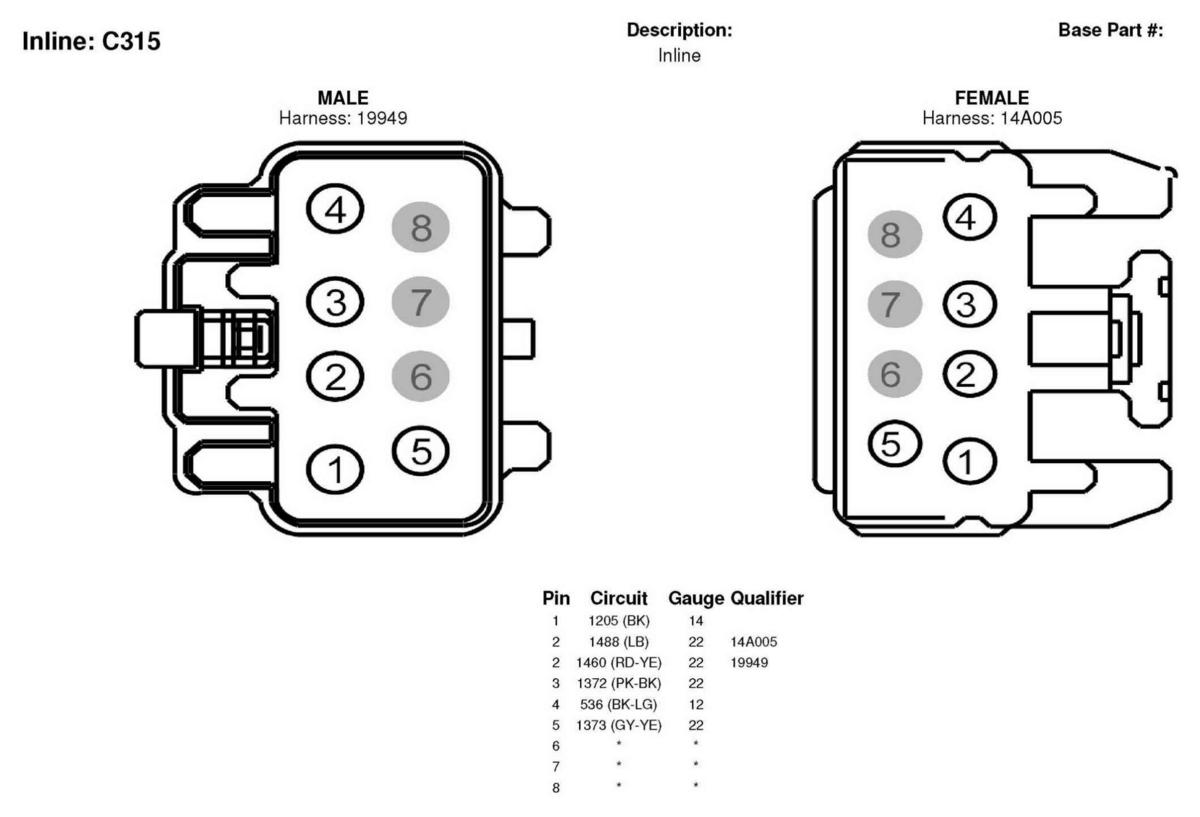

Fig 105: Inline Connector End View (C315)
G04597347Courtesy of FORD MOTOR CO.

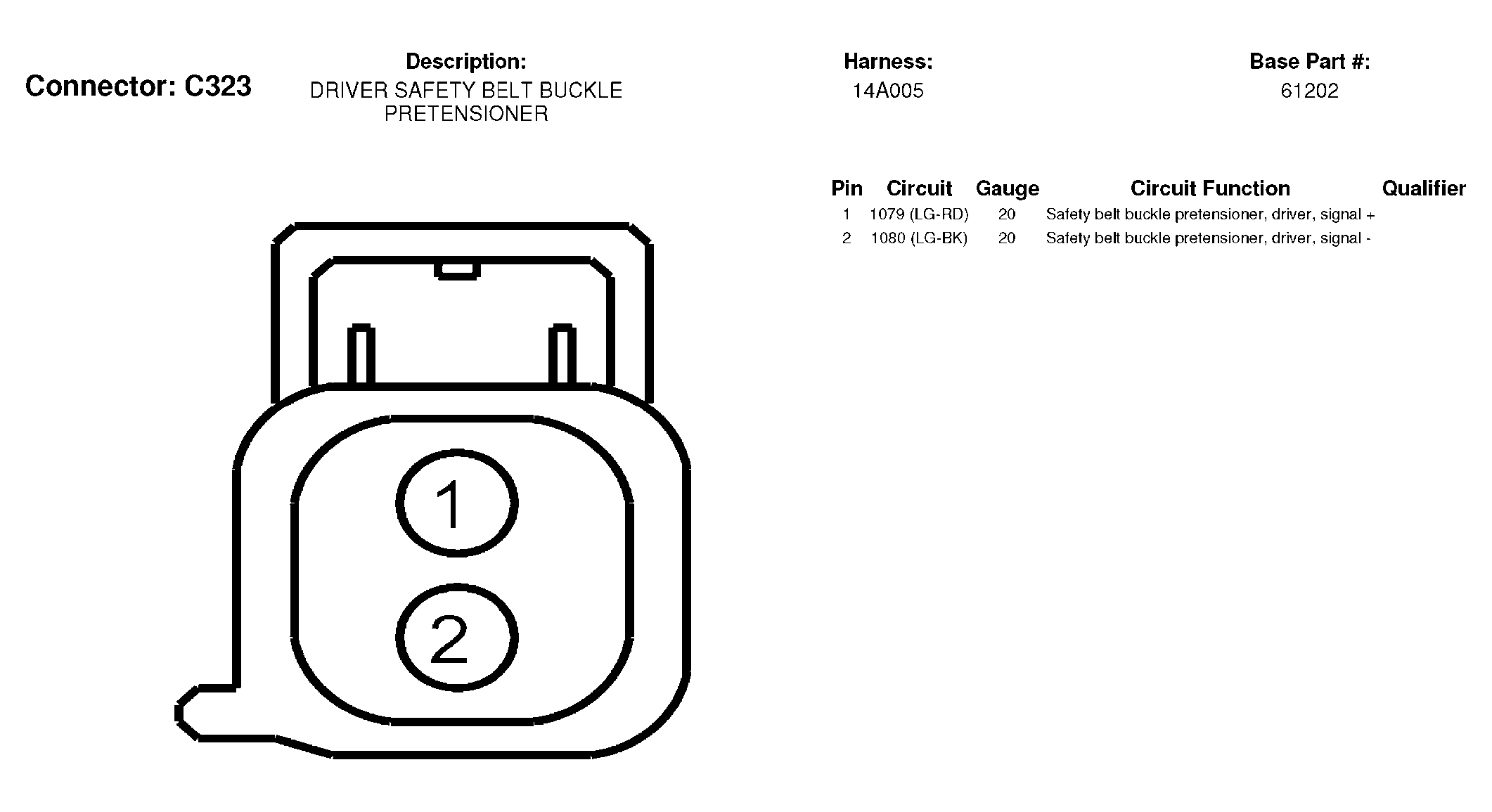

Fig 106: Driver Safety Belt Buckle Pretensioner Connector End View (C323)
G04597348Courtesy of FORD MOTOR CO.

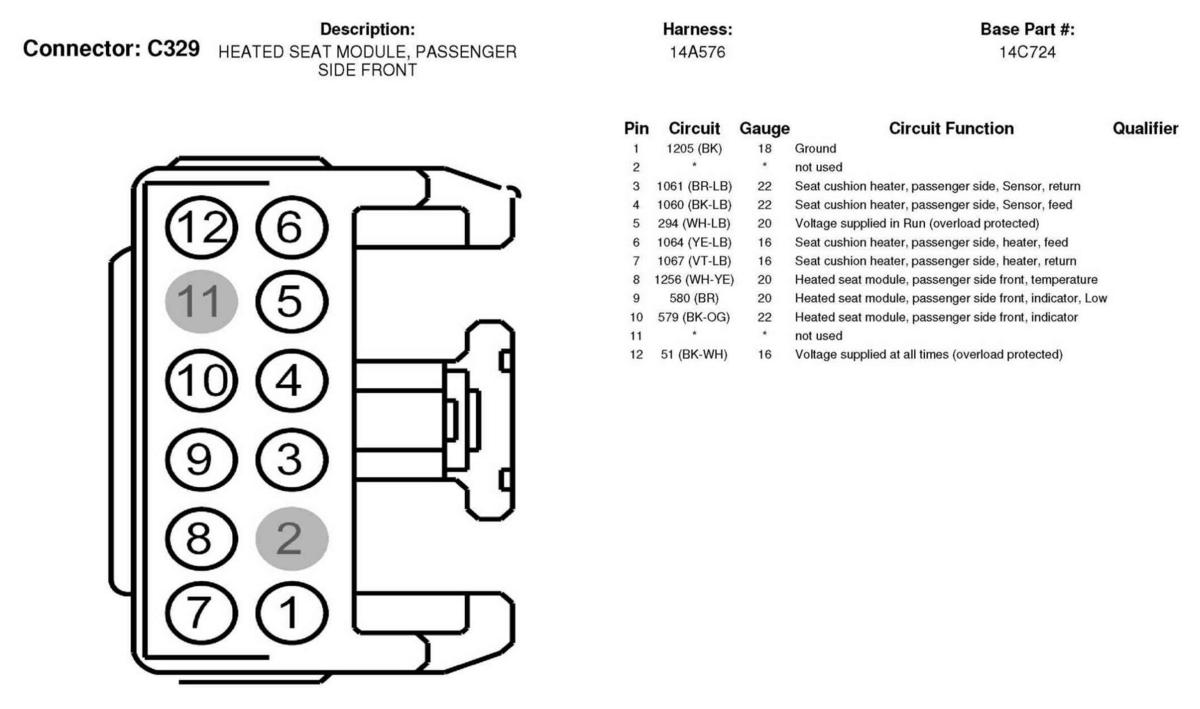

Fig 107: Heated Seat Module, Passenger Side Front Connector End View (C329)
G04597349Courtesy of FORD MOTOR CO.

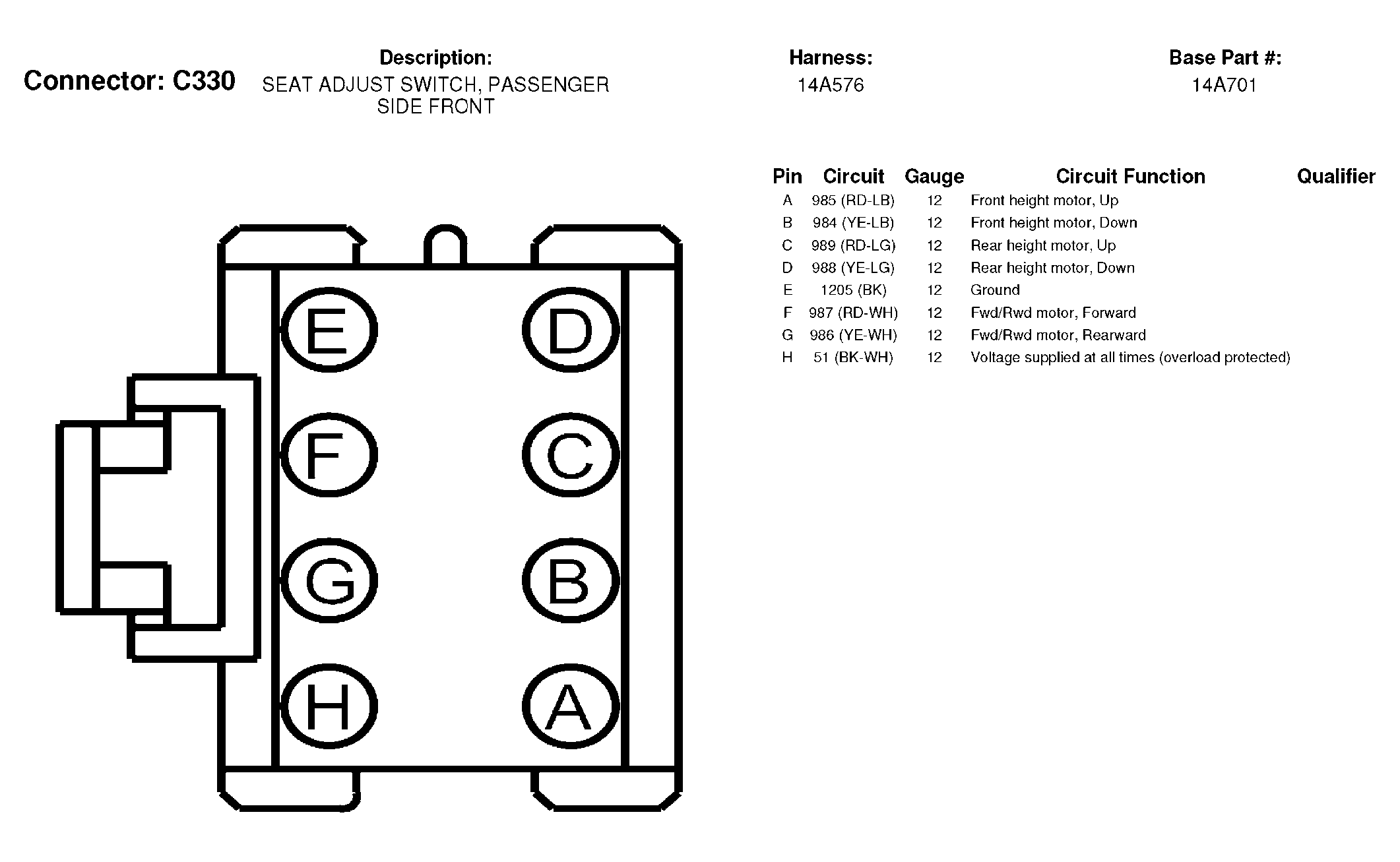

Fig 108: Seat Adjust Switch, Passenger Side Front Connector End View (C330)
G04597350Courtesy of FORD MOTOR CO.
Fig 109: Seat Cushion Heater, Right Front Connector End View (C334)
G04597351Courtesy of FORD MOTOR CO.

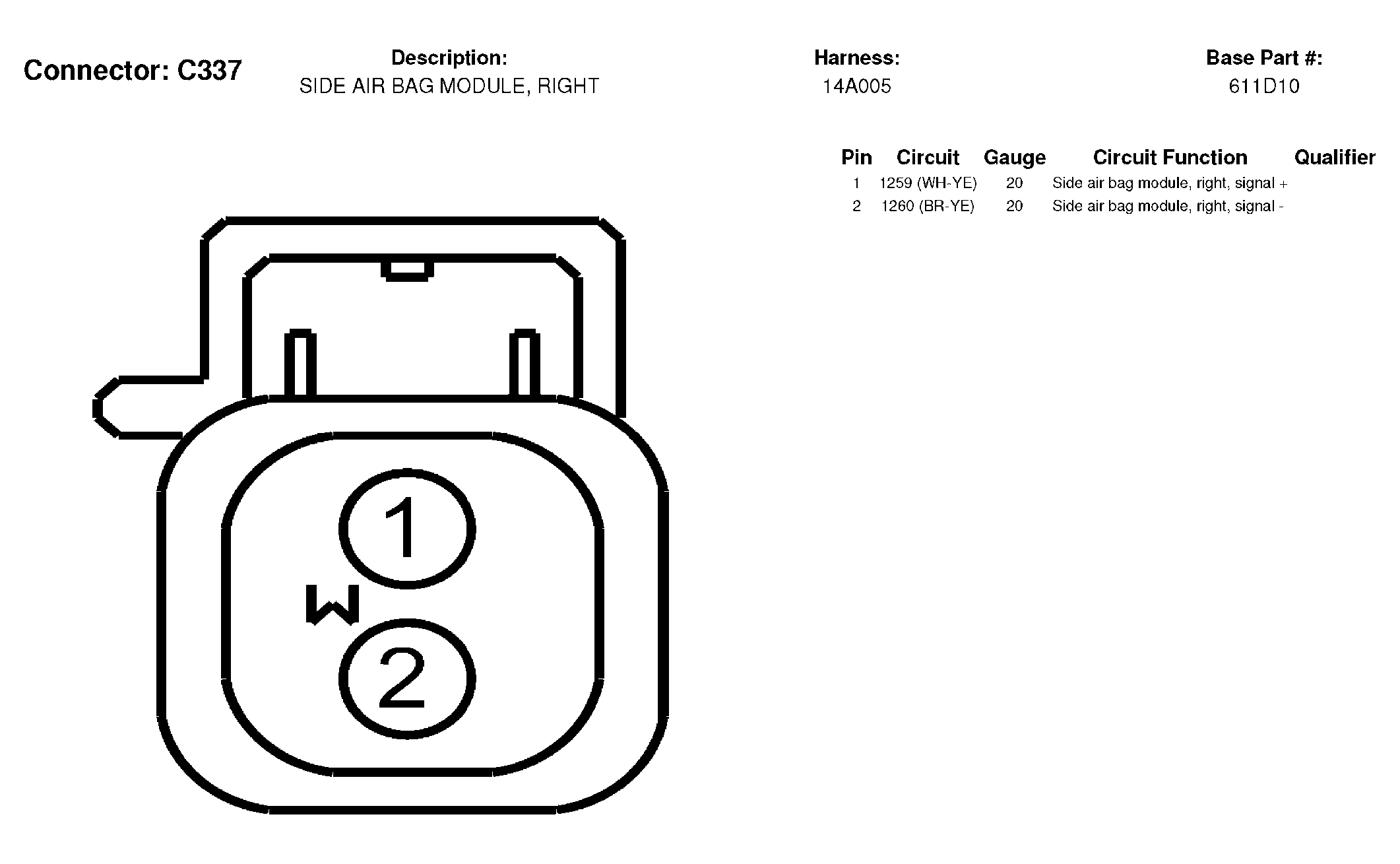

Fig 110: Side Air Bag Module, Right Connector End View (C337)
G04597352Courtesy of FORD MOTOR CO.

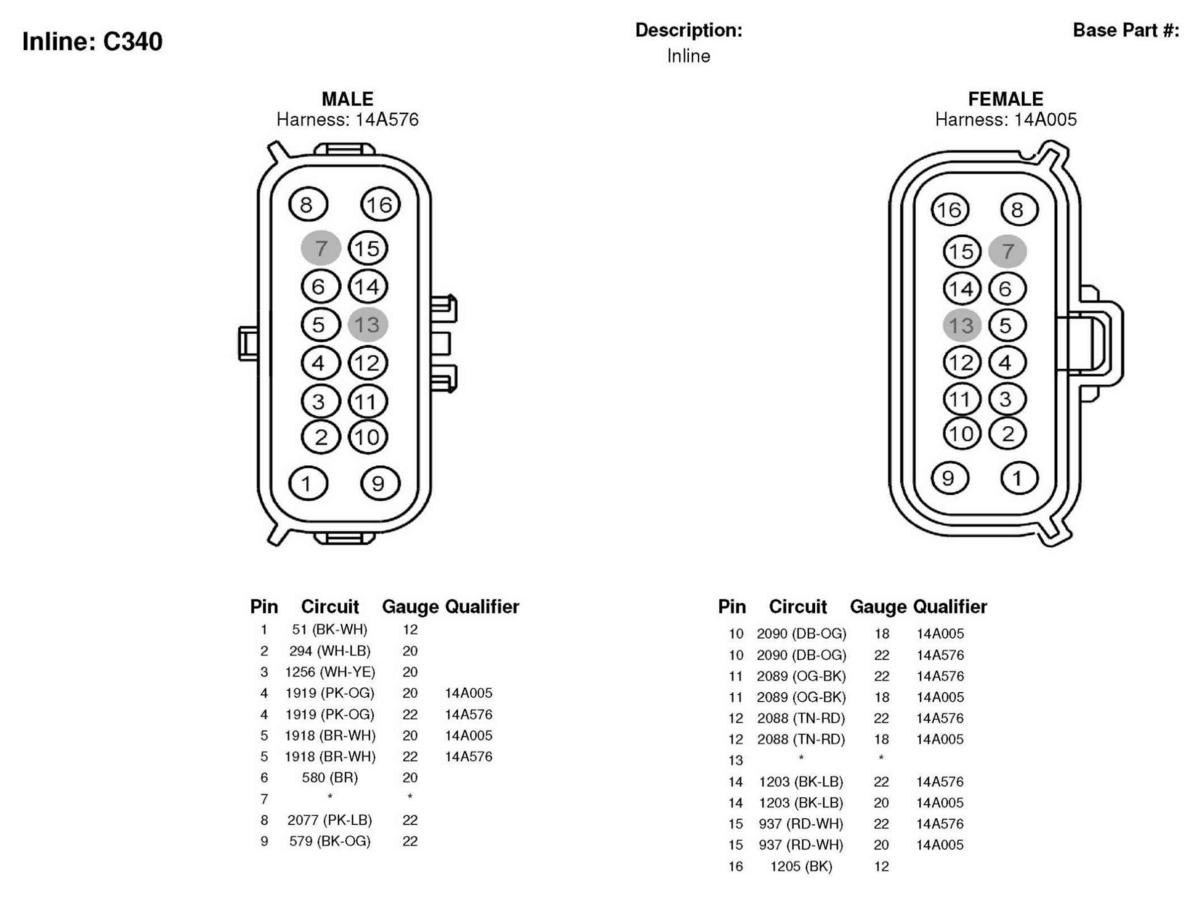

Fig 111: Inline Connector End View (C340)
G04597353Courtesy of FORD MOTOR CO.

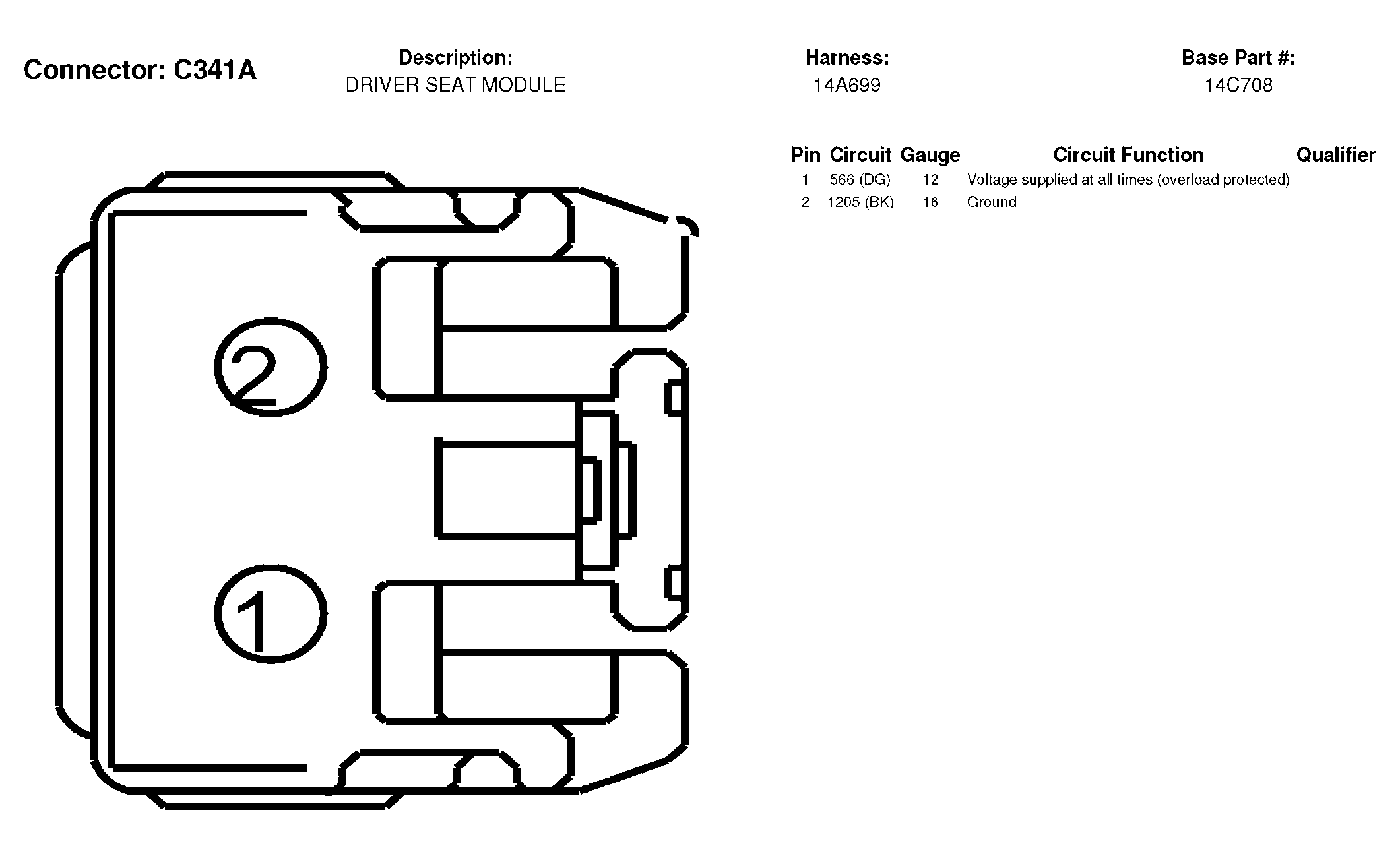

Fig 112: Driver Seat Module Connector End View (C341A)
G04597354Courtesy of FORD MOTOR CO.

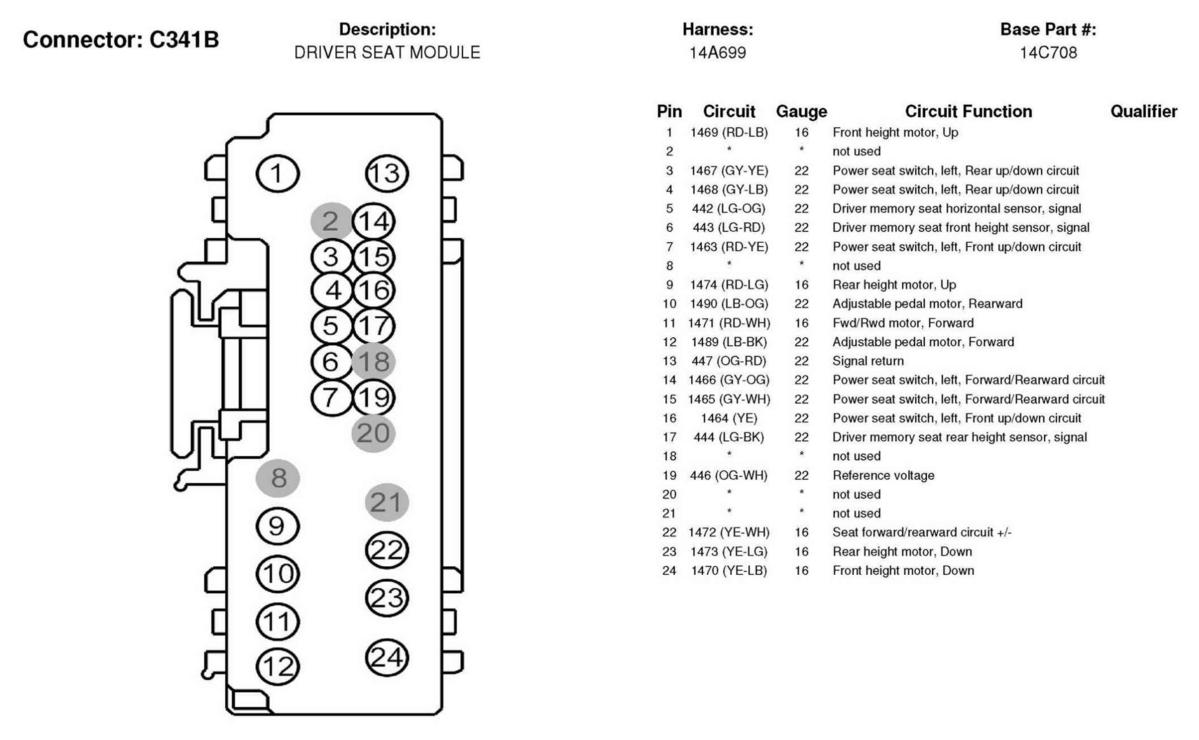

Fig 113: Driver Seat Module Connector End View (C341B)
G04597355Courtesy of FORD MOTOR CO.

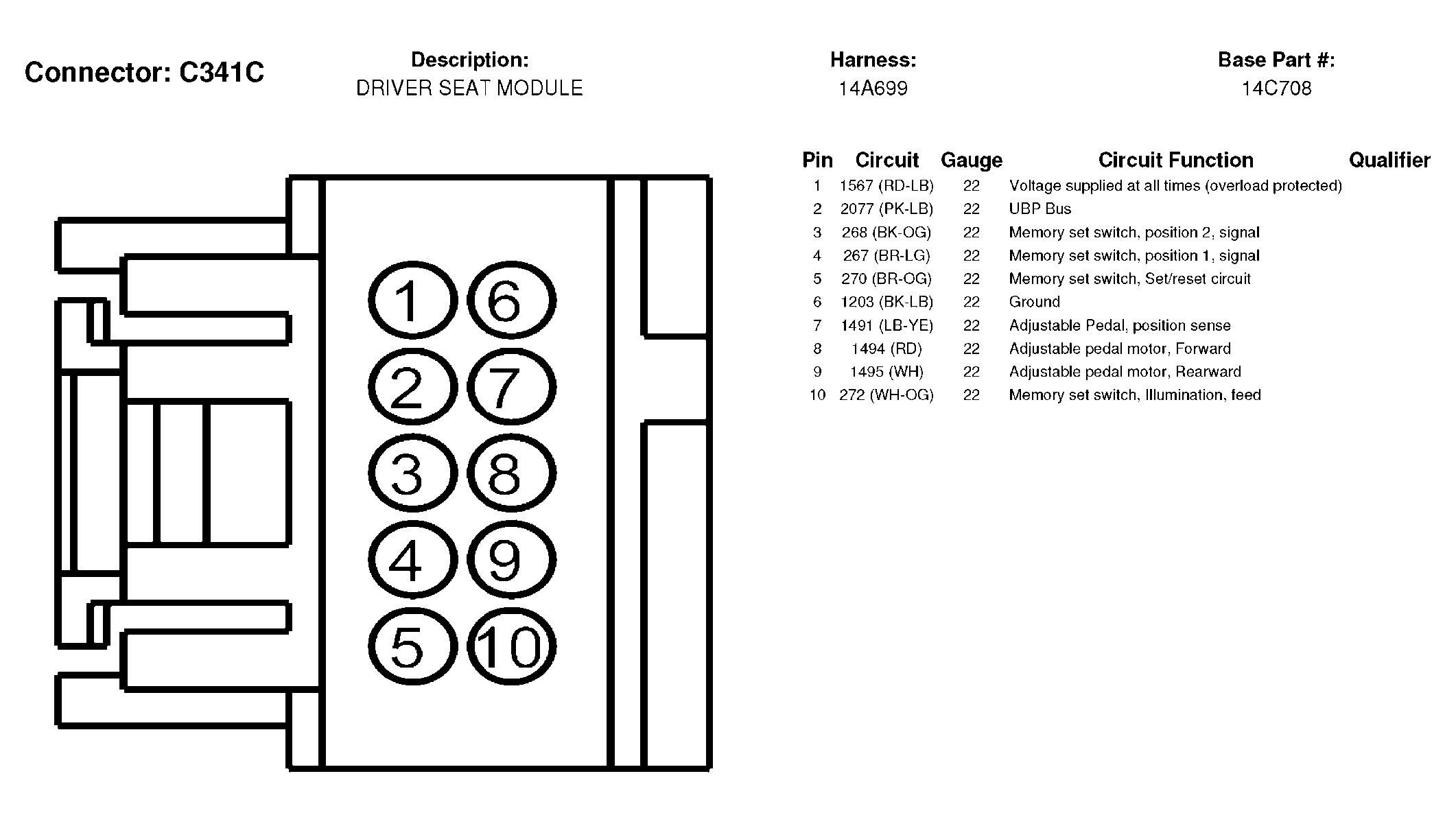

Fig 114: Driver Seat Module Connector End View (C341C)
G04597356Courtesy of FORD MOTOR CO.

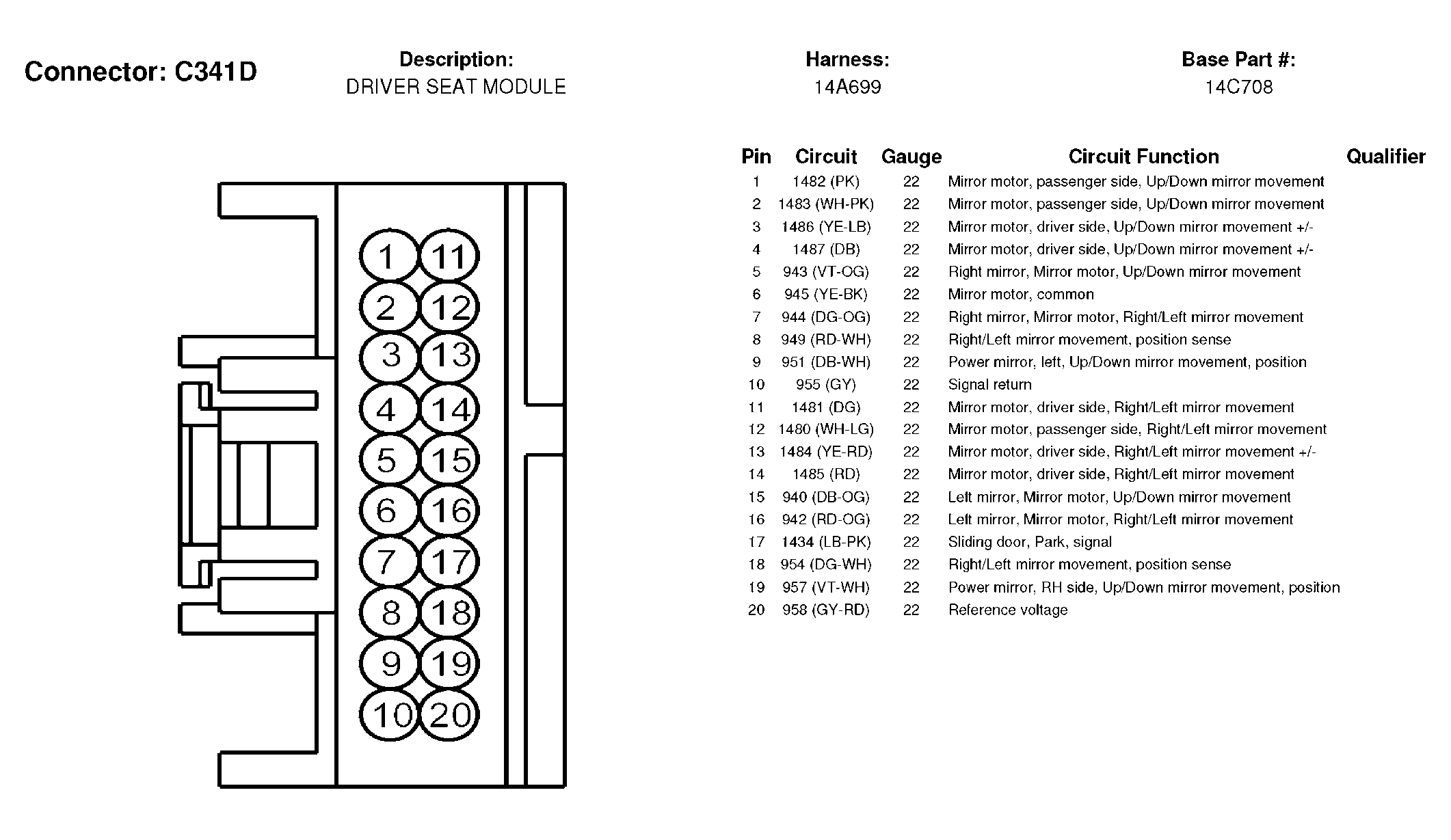

Fig 115: Driver Seat Module Connector End View (C341D)
G04597357Courtesy of FORD MOTOR CO.

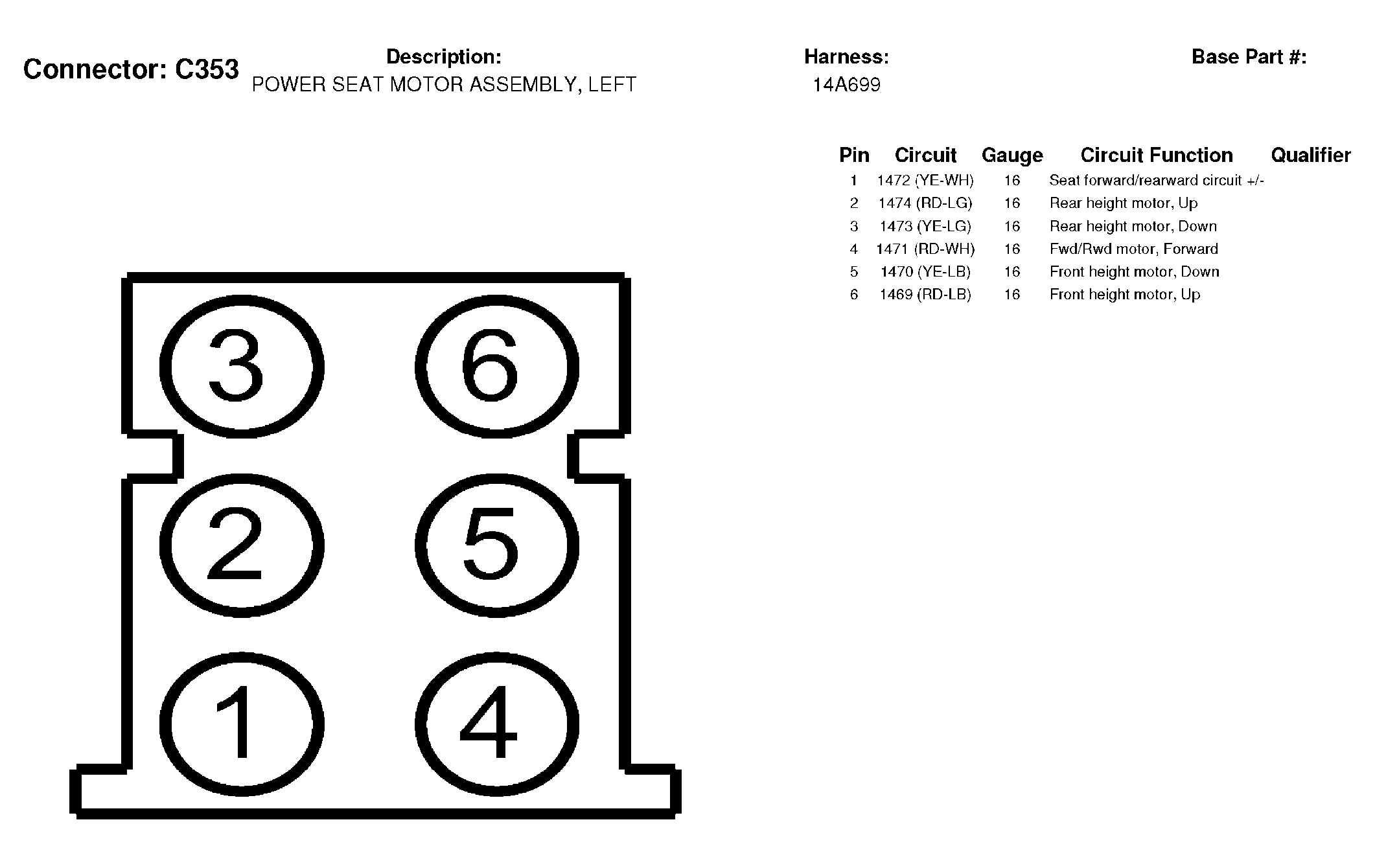

Fig 116: Power Seat Motor Assembly, Left Connector End View (C353)
G04597358Courtesy of FORD MOTOR CO.
Fig 117: Seat Position Sensor, Driver Connector End View (C356)
G04597359Courtesy of FORD MOTOR CO.

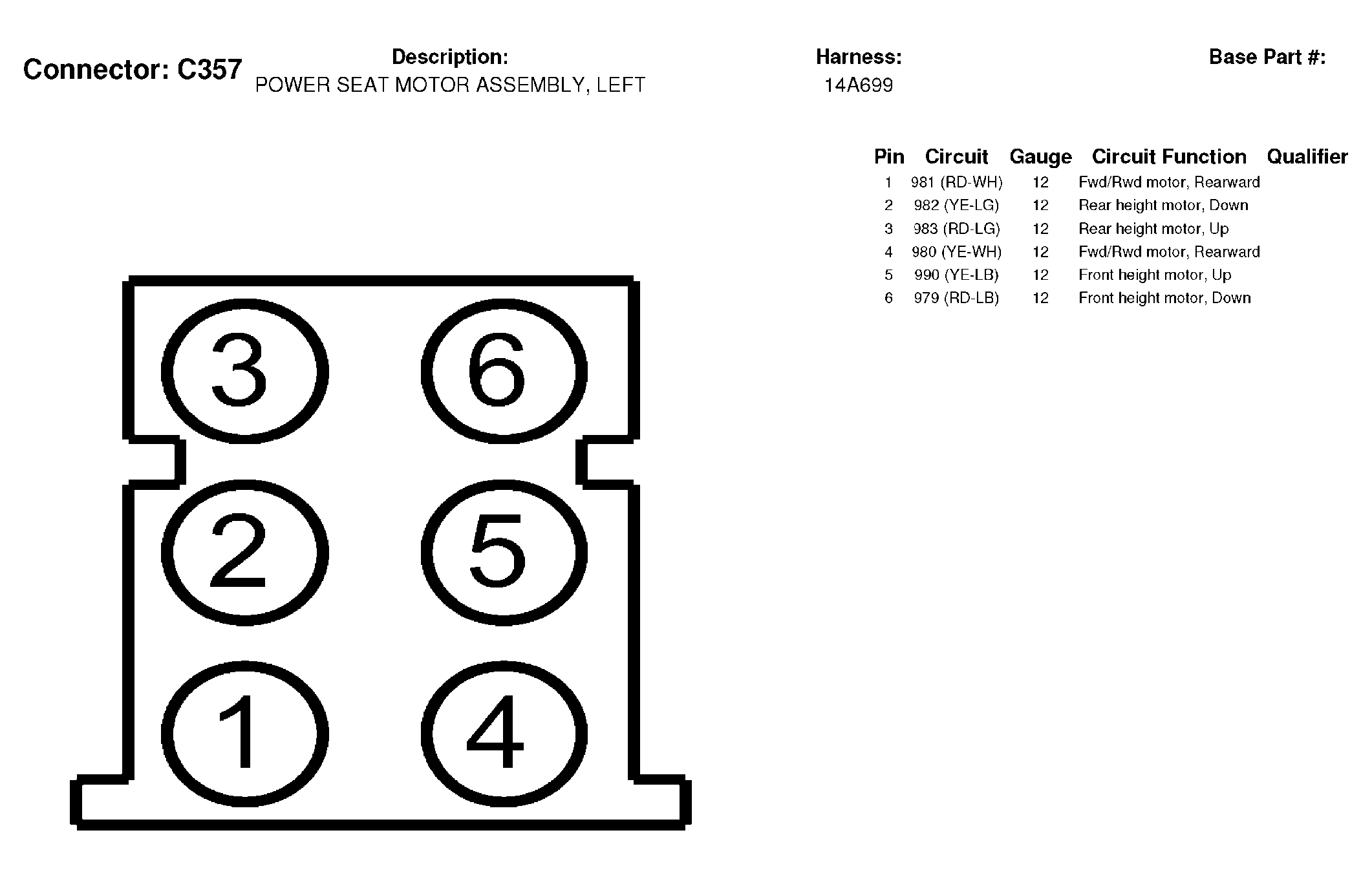

Fig 118: Power Seat Motor Assembly, Left Connector End View (C357)
G04597360Courtesy of FORD MOTOR CO.

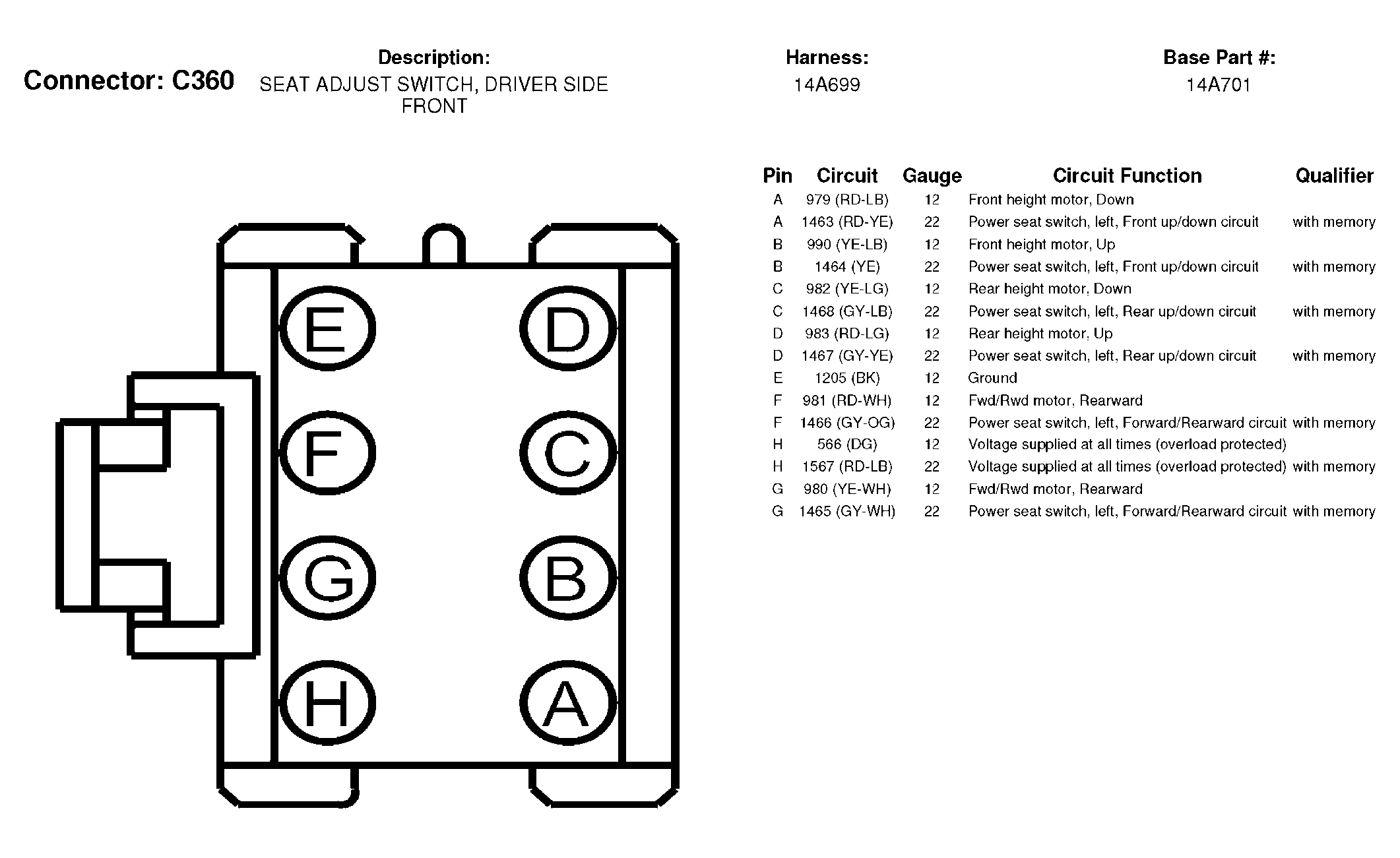

Fig 119: Heated Seat Module, Driver Side Front Connector End View (C359)
G04597361Courtesy of FORD MOTOR CO.
Fig 120: Seat Adjust Switch, Driver Side Front Connector End View (C360)
G04597362Courtesy of FORD MOTOR CO.

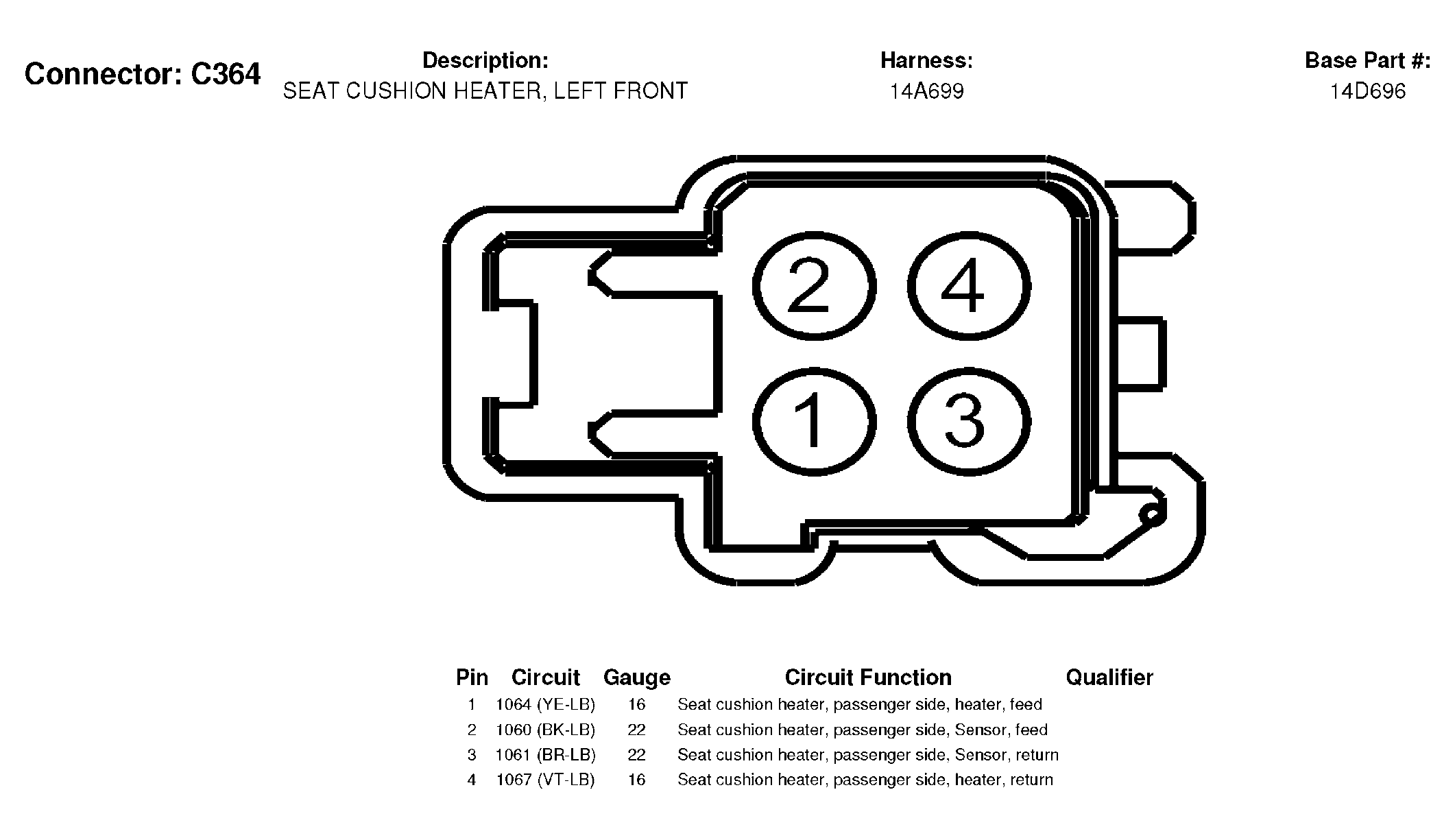

Fig 121: Seat Cushion Heater, Left Front Connector End View (C364)
G04597363Courtesy of FORD MOTOR CO.

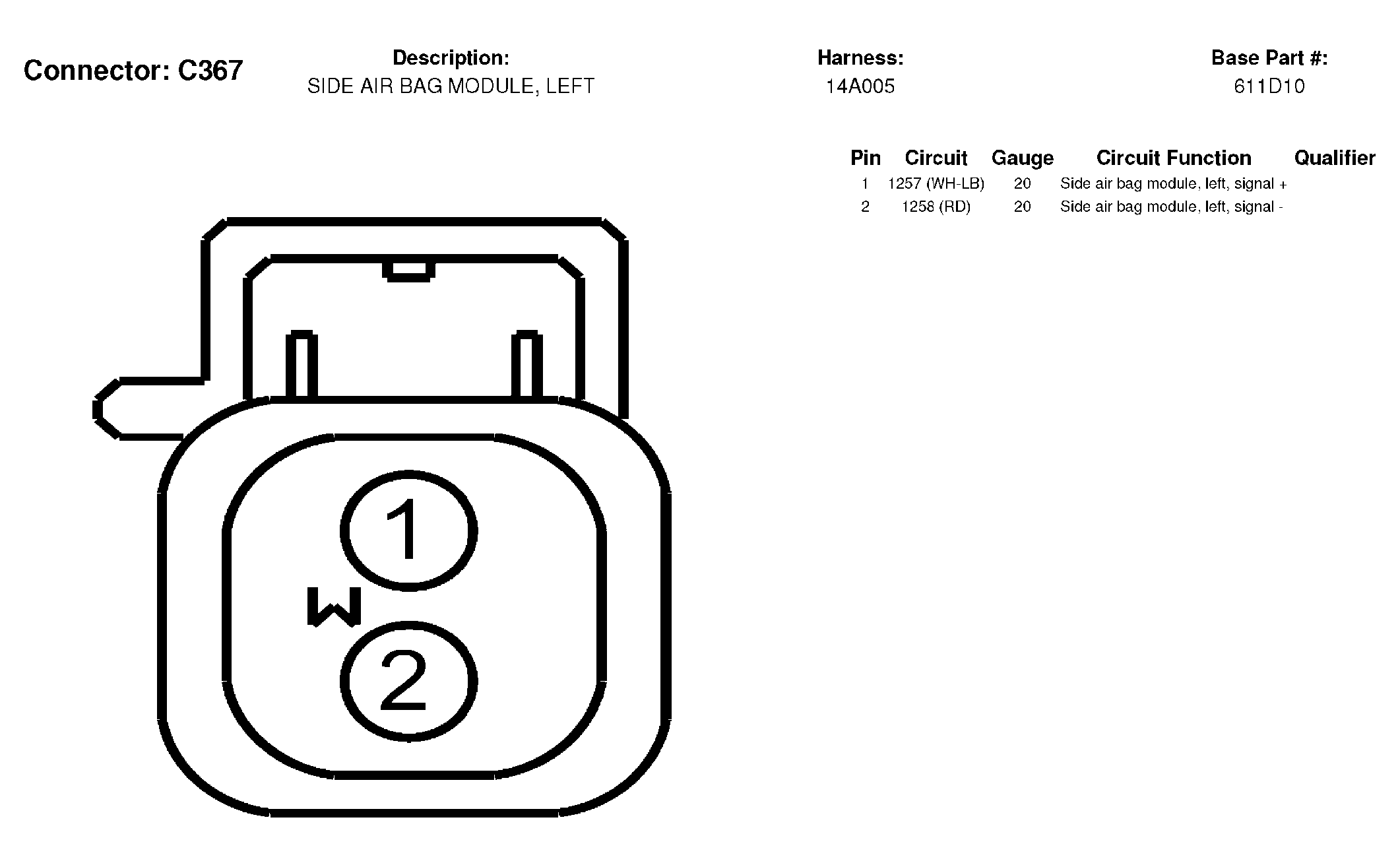

Fig 122: Side Air Bag Module, Left Connector End View (C367)
G04597364Courtesy of FORD MOTOR CO.
Fig 123: Sliding Door Entry Lamp, Left Connector End View (C371)
G04597365Courtesy of FORD MOTOR CO.

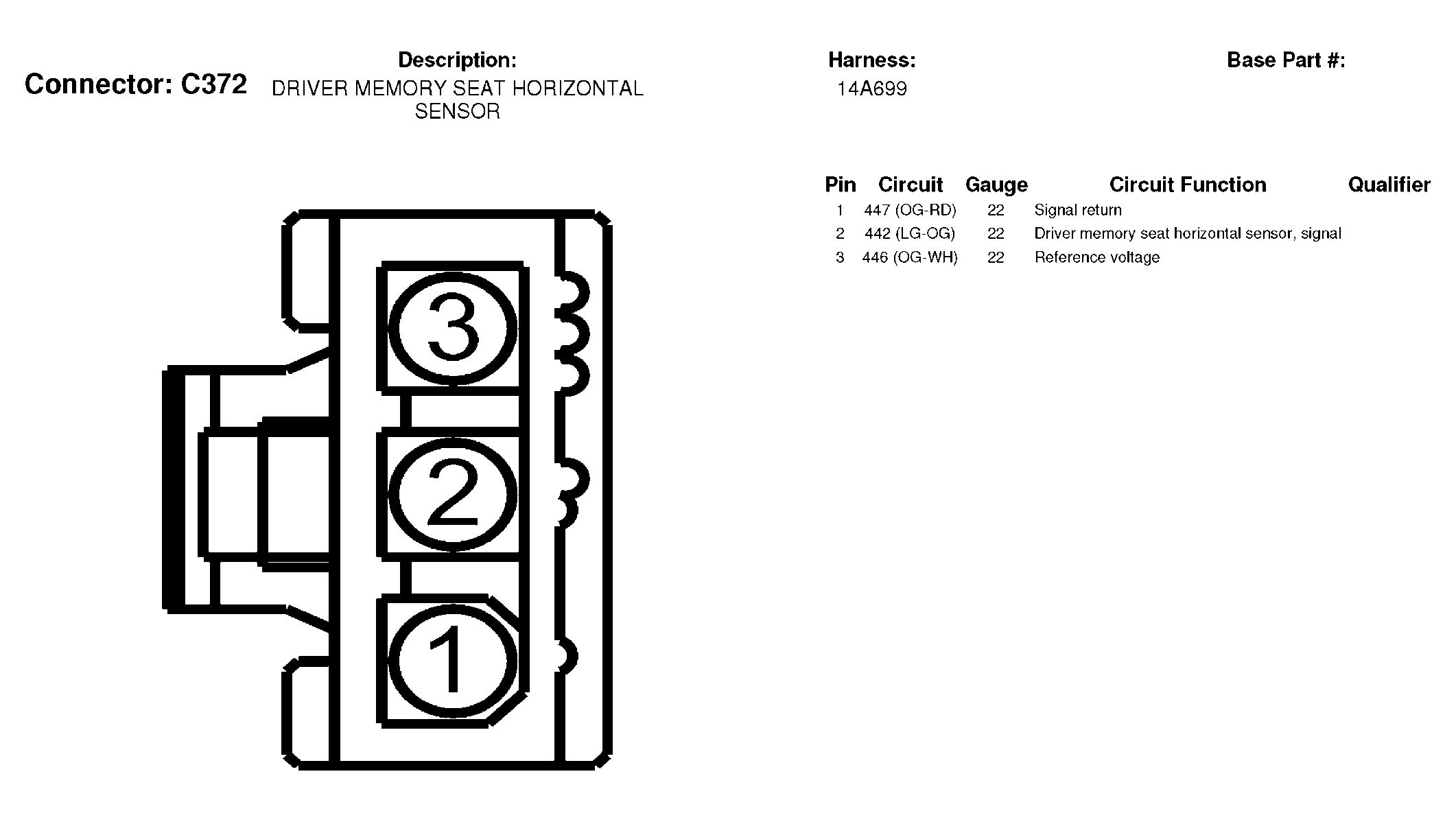

Fig 124: Driver Memory Seat Horizontal Sensor Connector End View (C372)
G04597366Courtesy of FORD MOTOR CO.

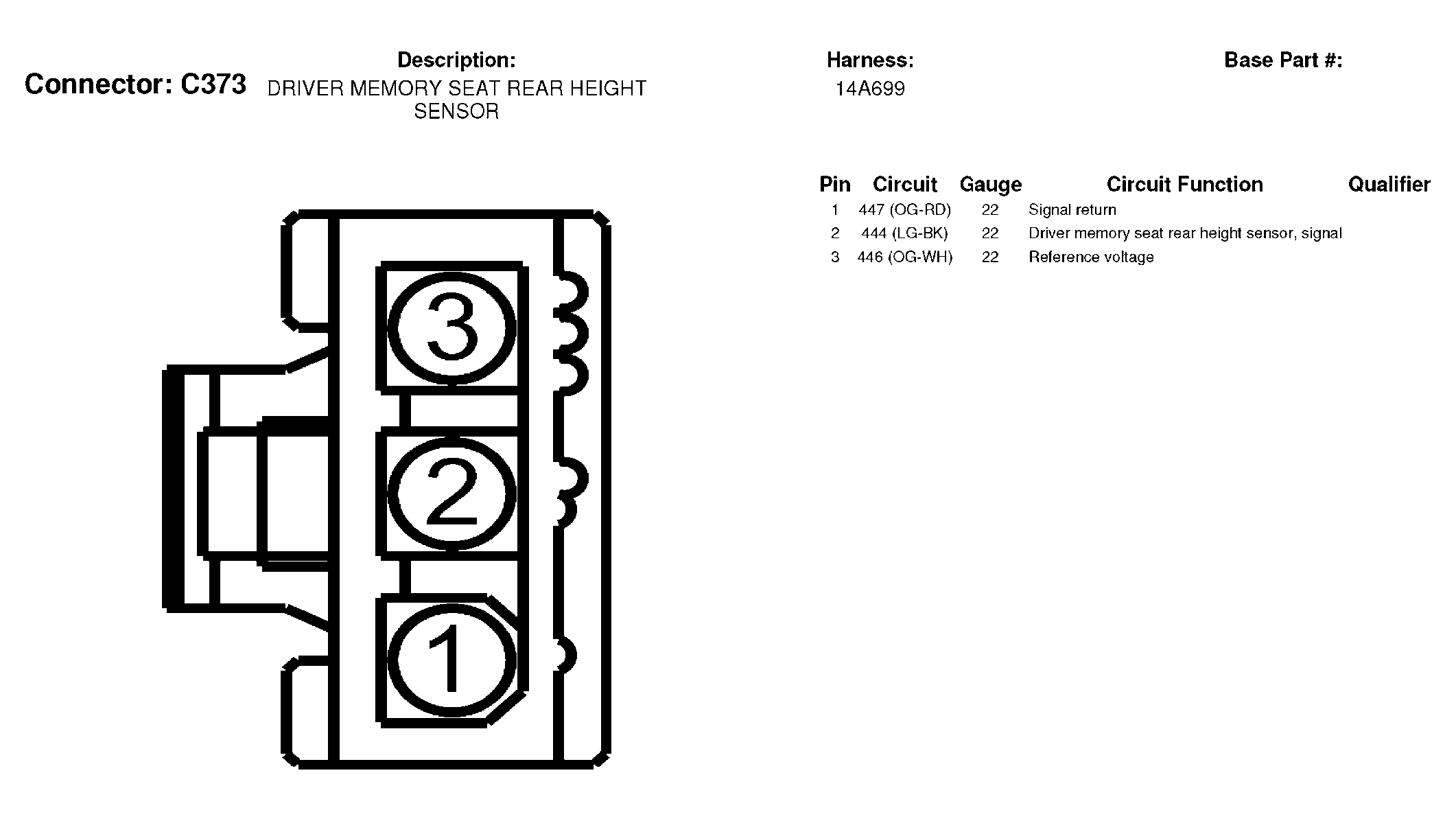

Fig 125: Driver Memory Seat Rear Height Sensor Connector End View (C373)
G04597367Courtesy of FORD MOTOR CO.
Fig 126: Driver Memory Seat Front Height Sensor Connector End View (C383)
G04597368Courtesy of FORD MOTOR CO.

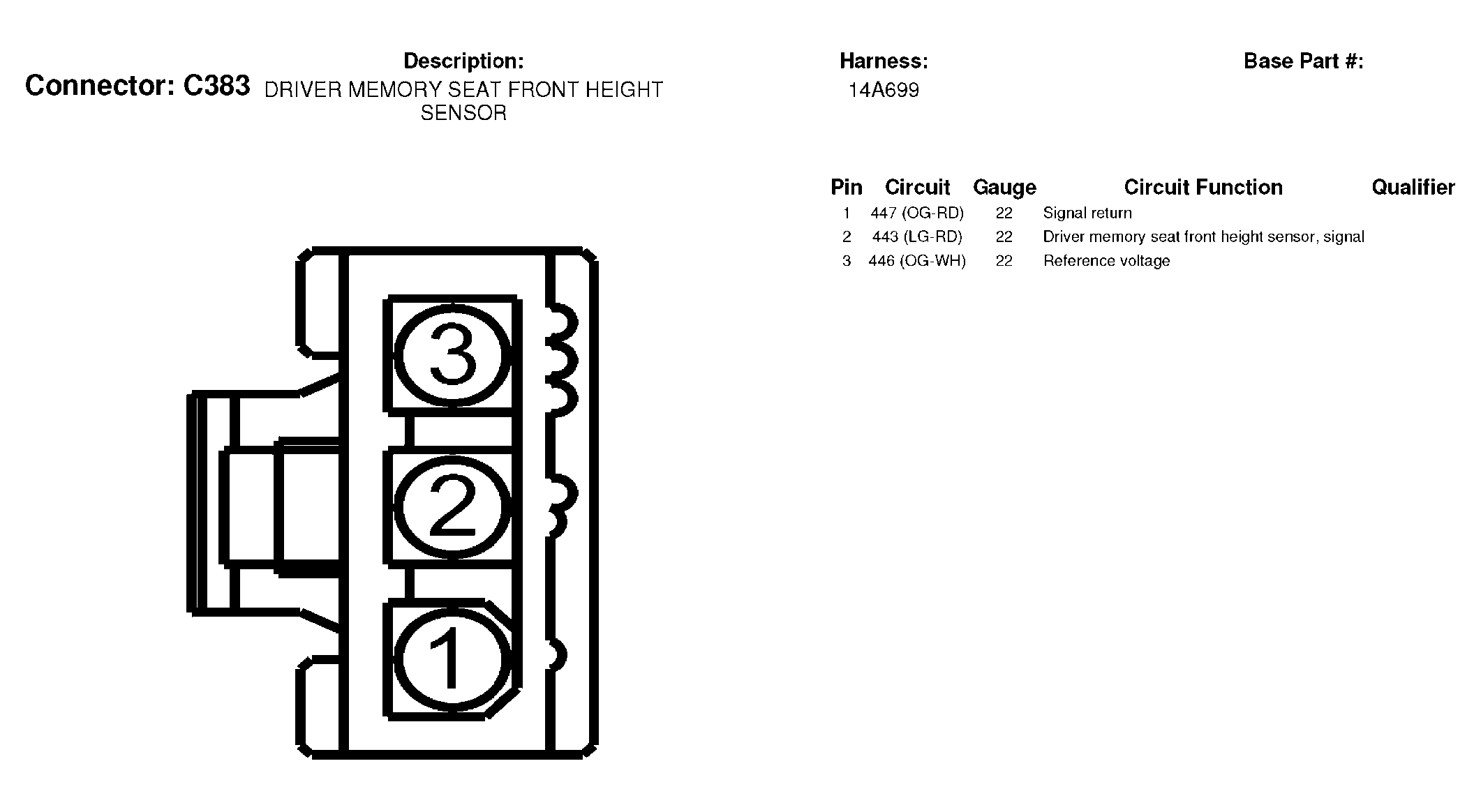

Fig 127: Driver Memory Seat Front Height Sensor Connector End View (C383)
G04597369Courtesy of FORD MOTOR CO.

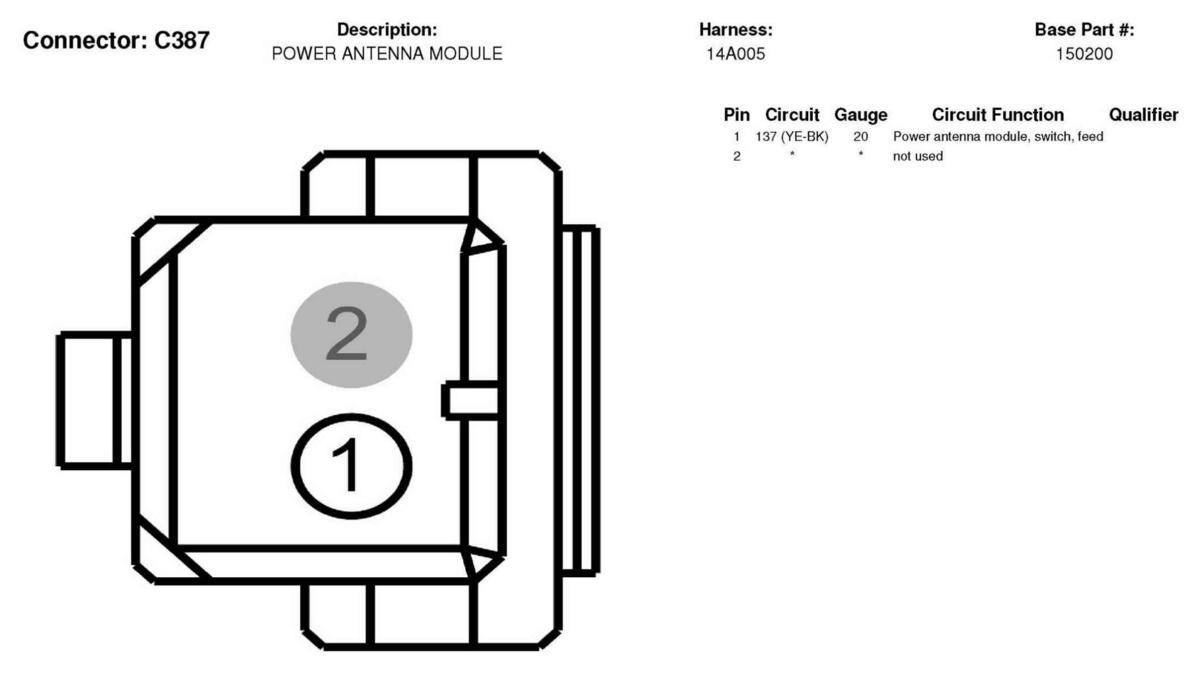

Fig 128: Power Antenna Module Connector End View (C387)
G04597370Courtesy of FORD MOTOR CO.

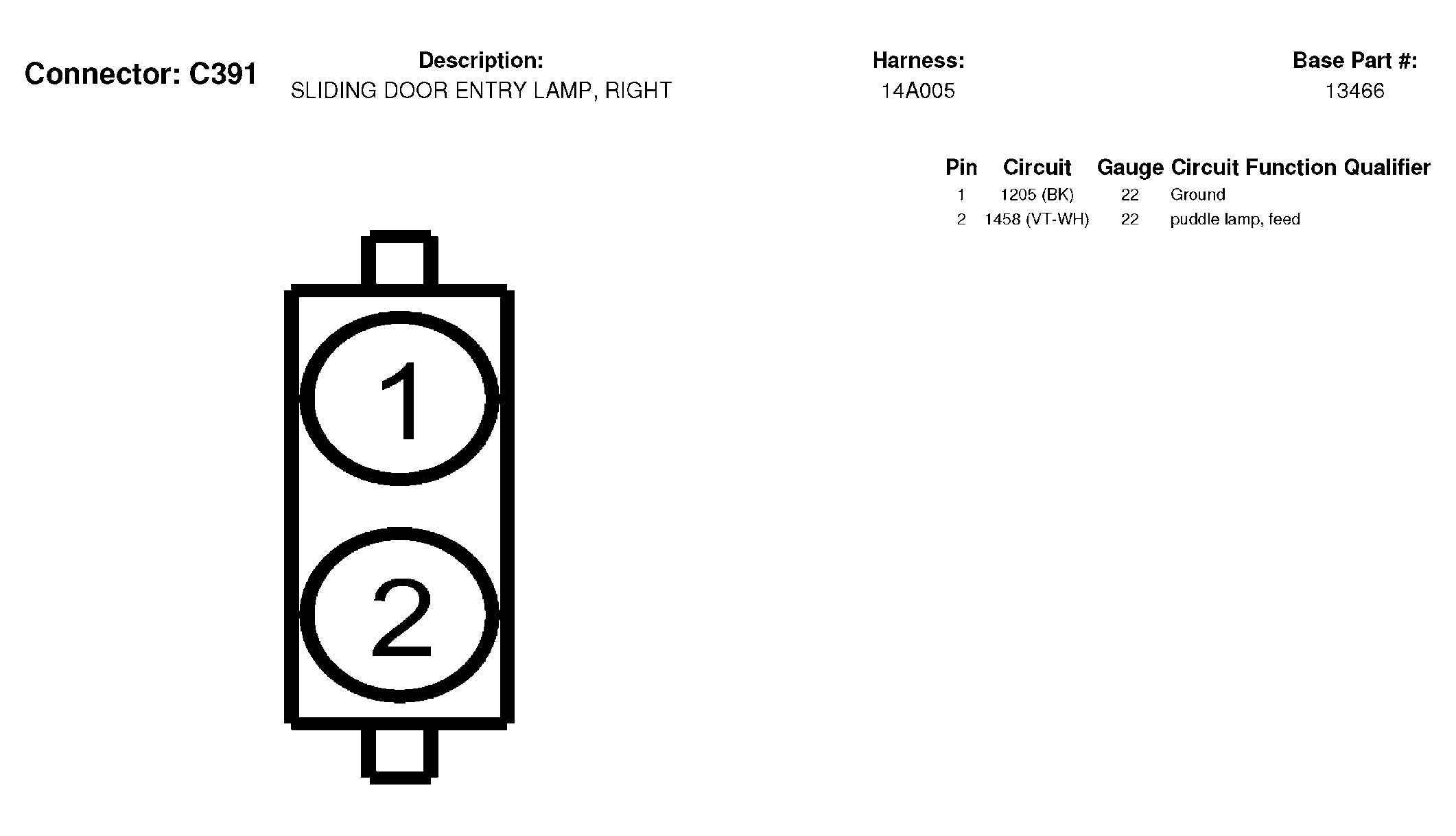

Fig 129: Sliding Door Entry Lamp, Right Connector End View (C391)
G04597371Courtesy of FORD MOTOR CO.

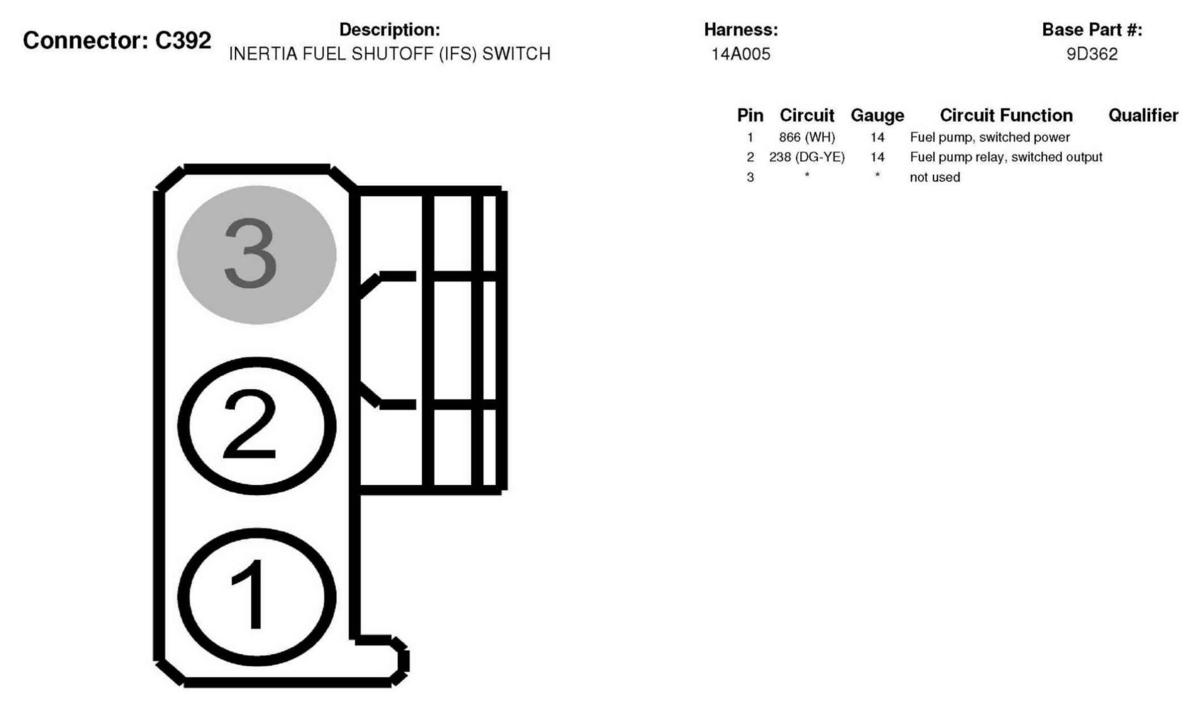

Fig 130: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)
G04597372Courtesy of FORD MOTOR CO.

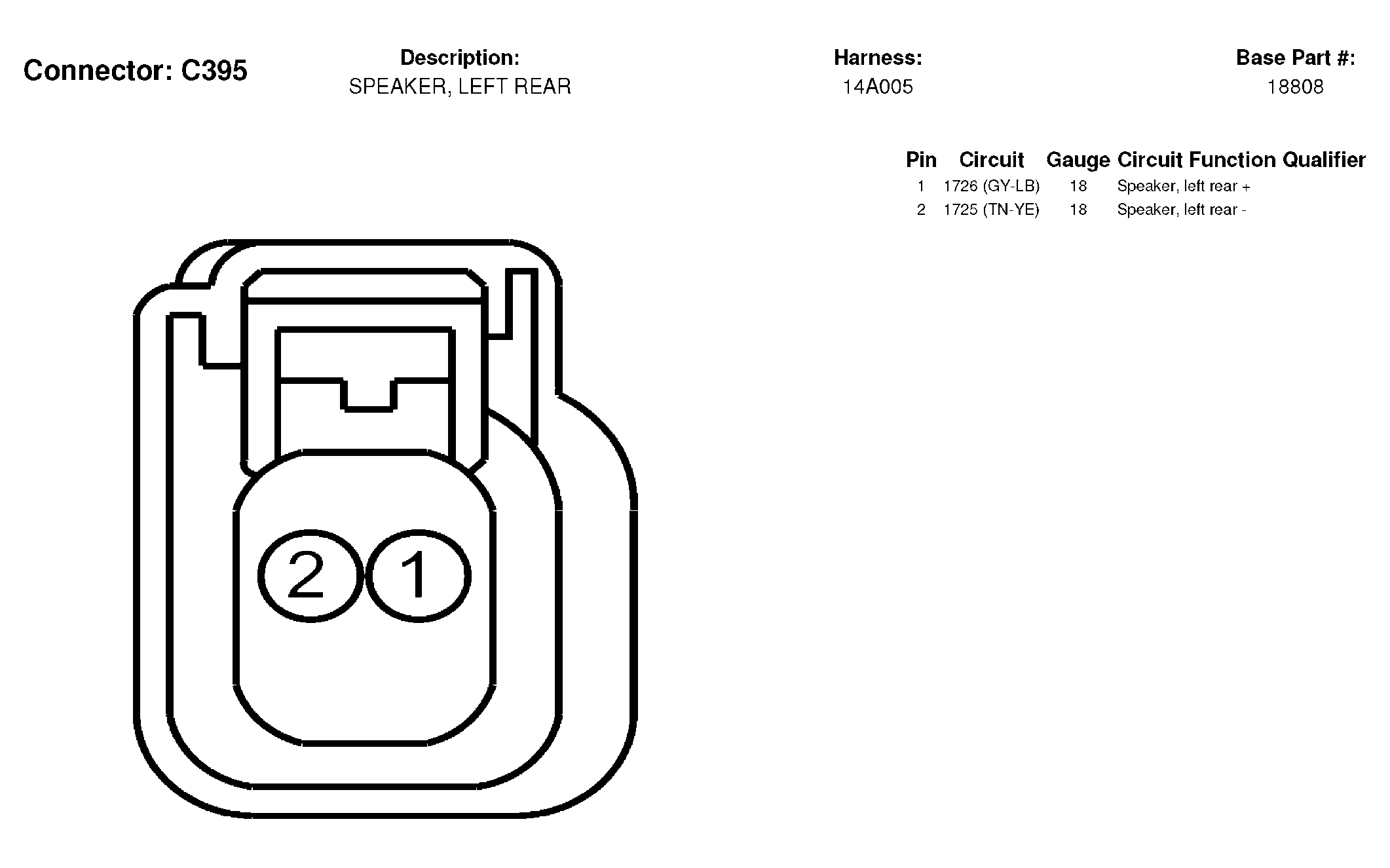

Fig 131: Speaker, Left Rear Connector End View (C395)
G04597373Courtesy of FORD MOTOR CO.

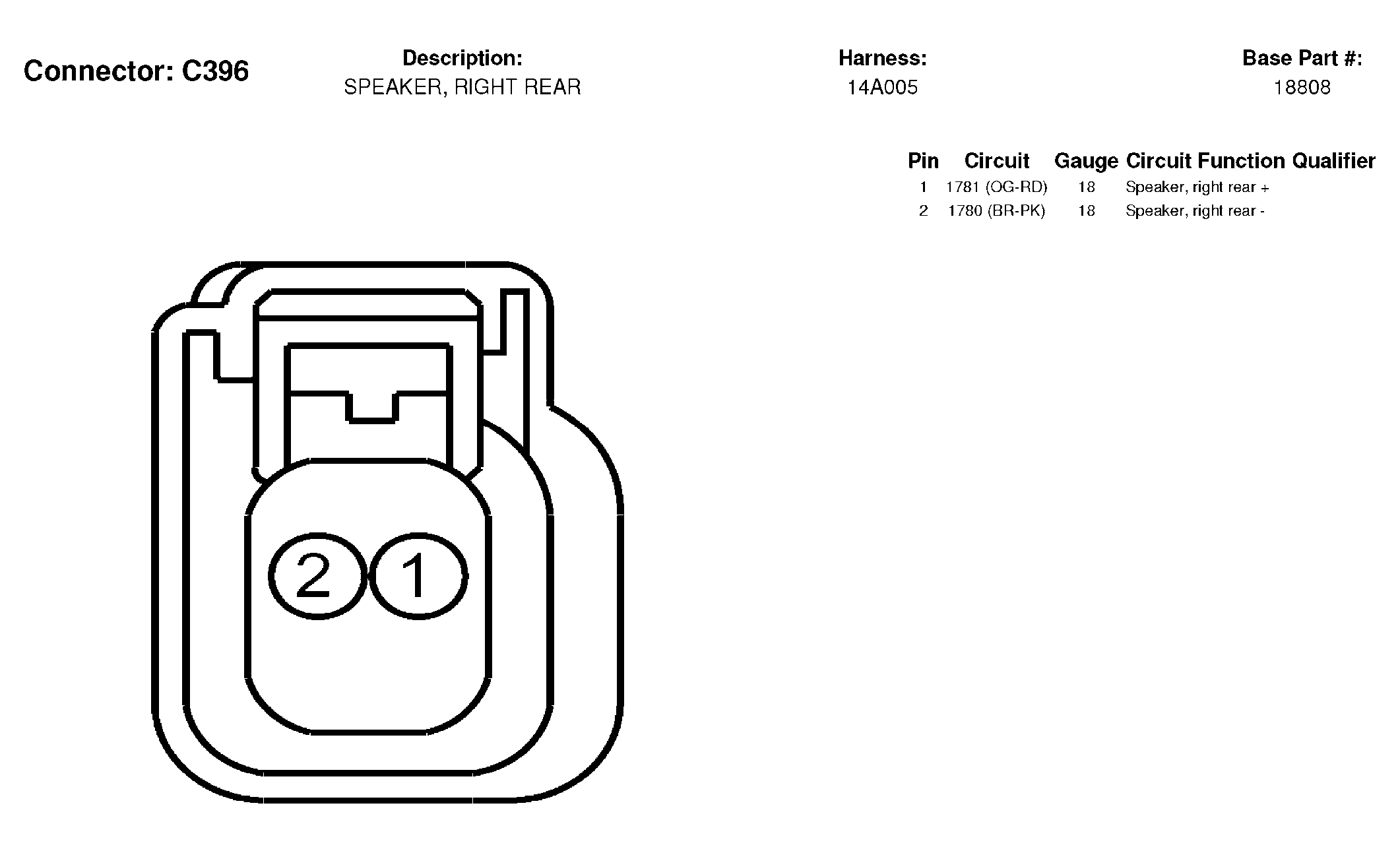

Fig 132: Speaker, Right Rear Connector End View (C396)
G04597374Courtesy of FORD MOTOR CO.

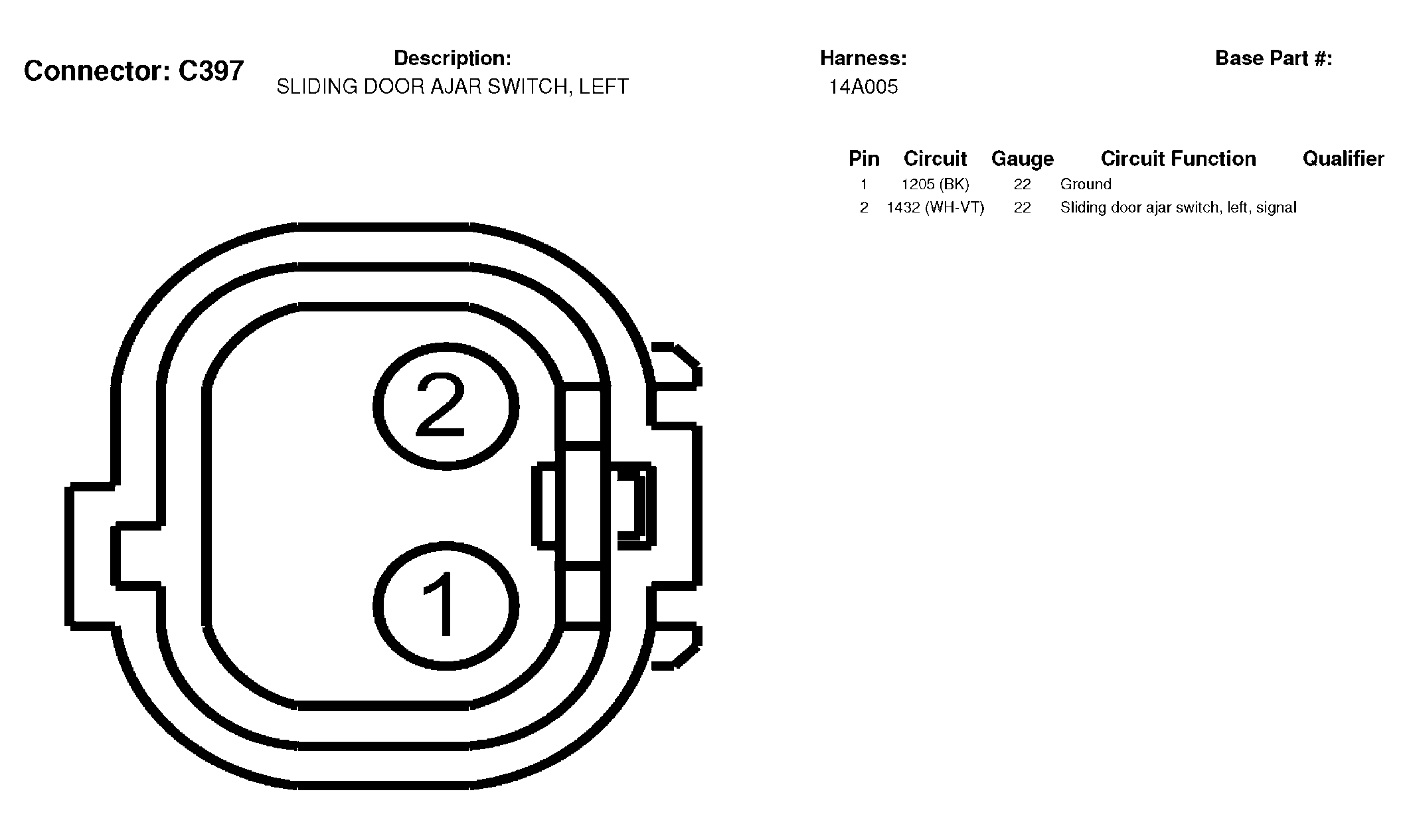

Fig 133: Sliding Door Ajar Switch, Left Connector End View (C397)
G04597375Courtesy of FORD MOTOR CO.
Fig 134: Sliding Door Ajar Switch, Right Connector End View (C398)
G04597376Courtesy of FORD MOTOR CO.
Fig 135: Windshield Wiper Motor Connector End View (C125)
G04597377Courtesy of FORD MOTOR CO.
Fig 136: Rear Window Defrost Grid Connector End View (C402A)
G04597378Courtesy of FORD MOTOR CO.

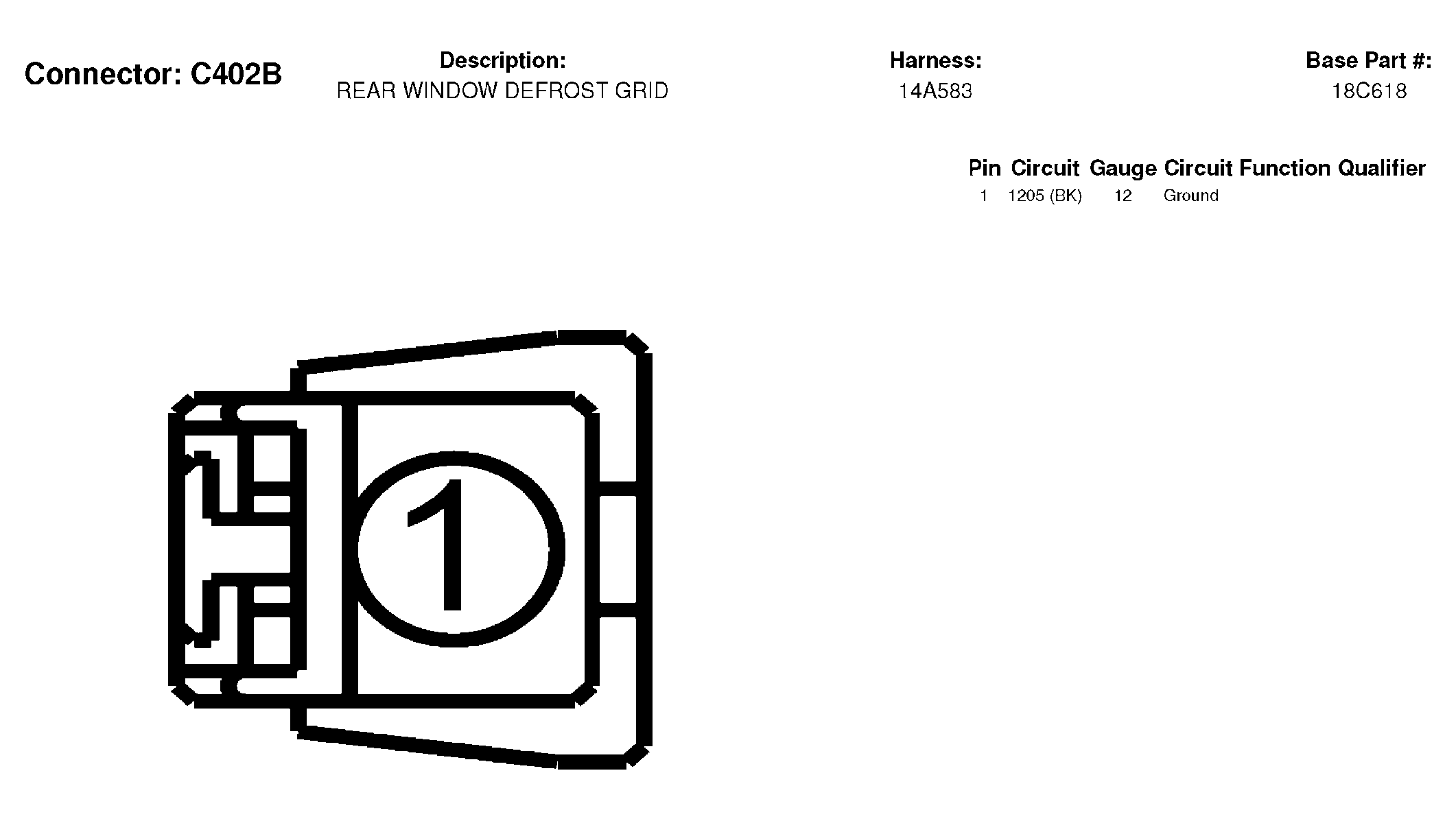

Fig 137: Rear Window Defrost Grid Connector End View (C402B)
G04597379Courtesy of FORD MOTOR CO.

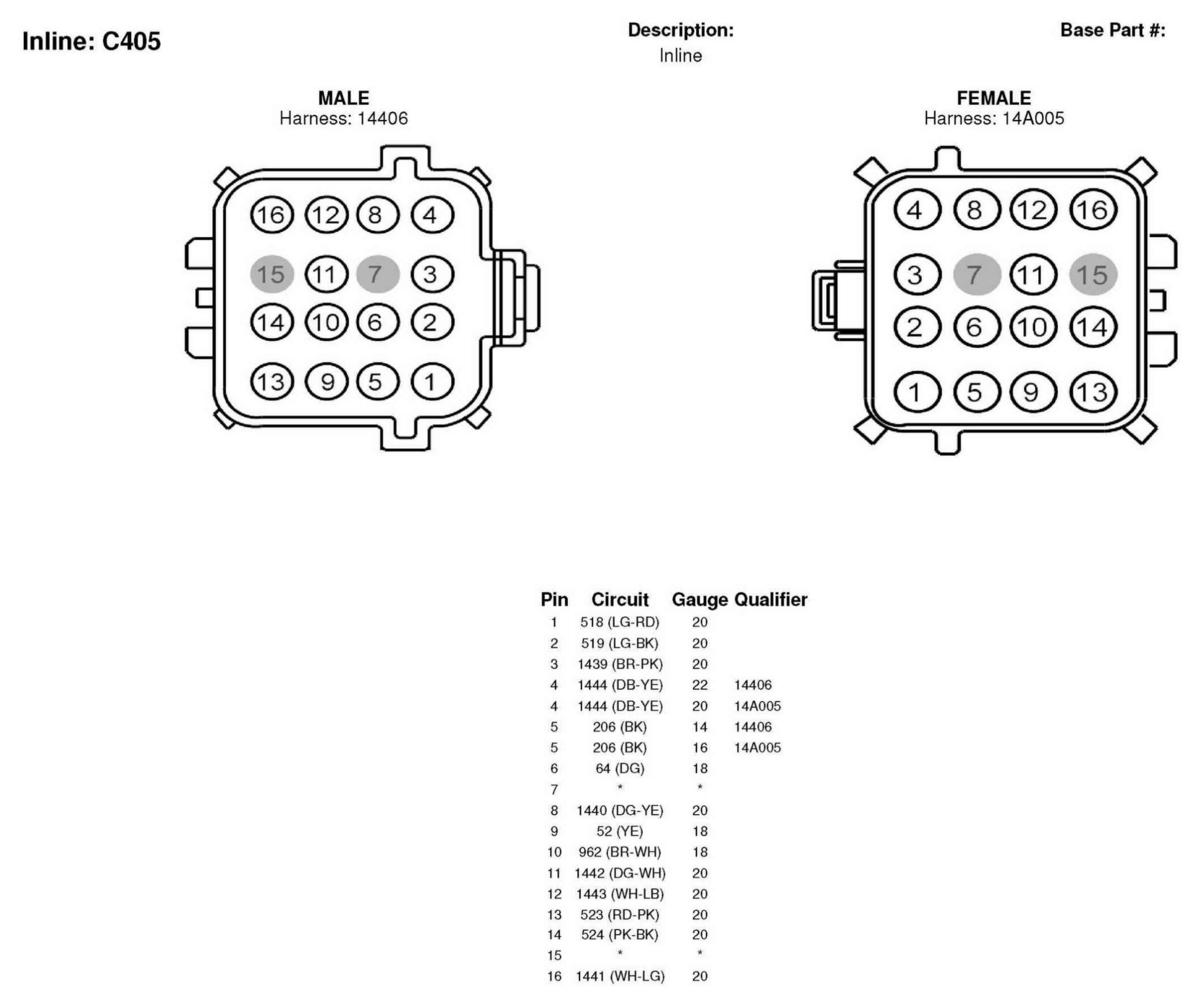

Fig 138: Inline Connector End View (C405)
G04597380Courtesy of FORD MOTOR CO.
Fig 139: Inline Connector End View (C406)
G04597381Courtesy of FORD MOTOR CO.

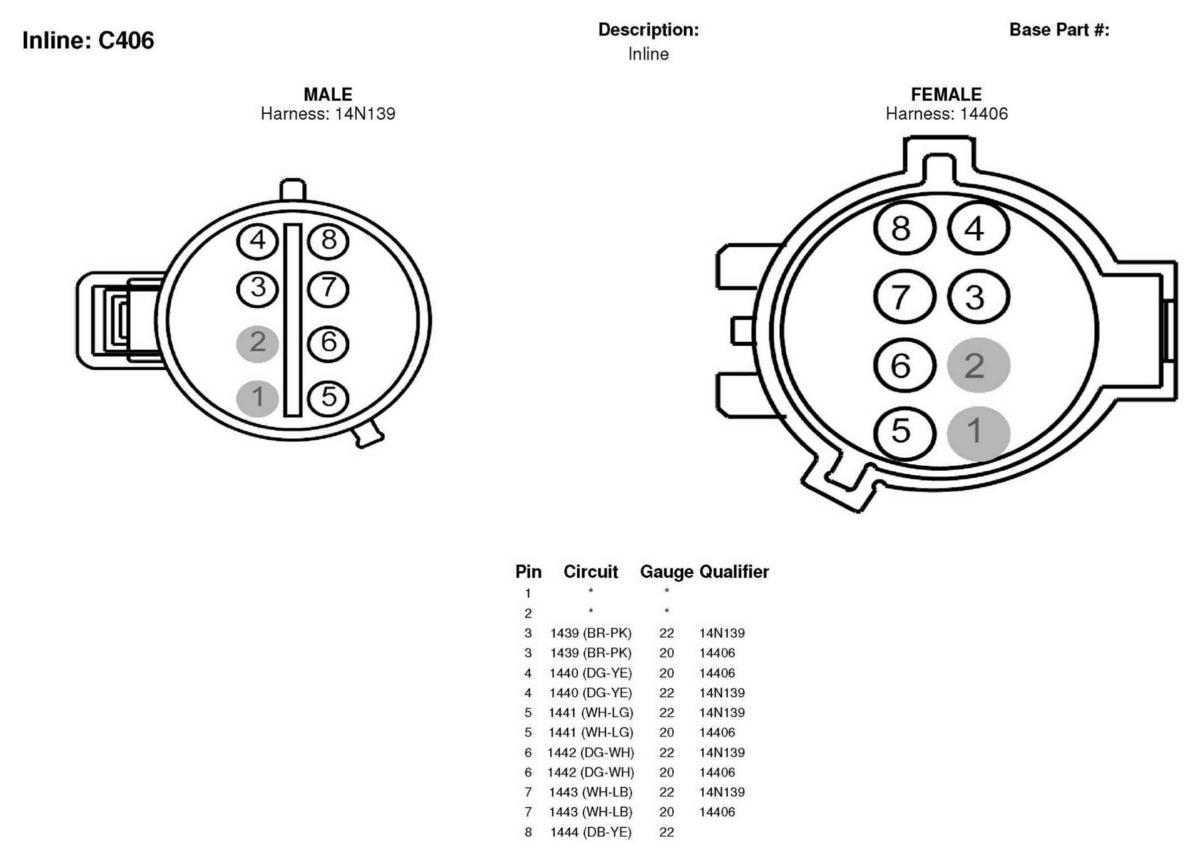

Fig 140: Inline Connector End View (C406)
G04597382Courtesy of FORD MOTOR CO.

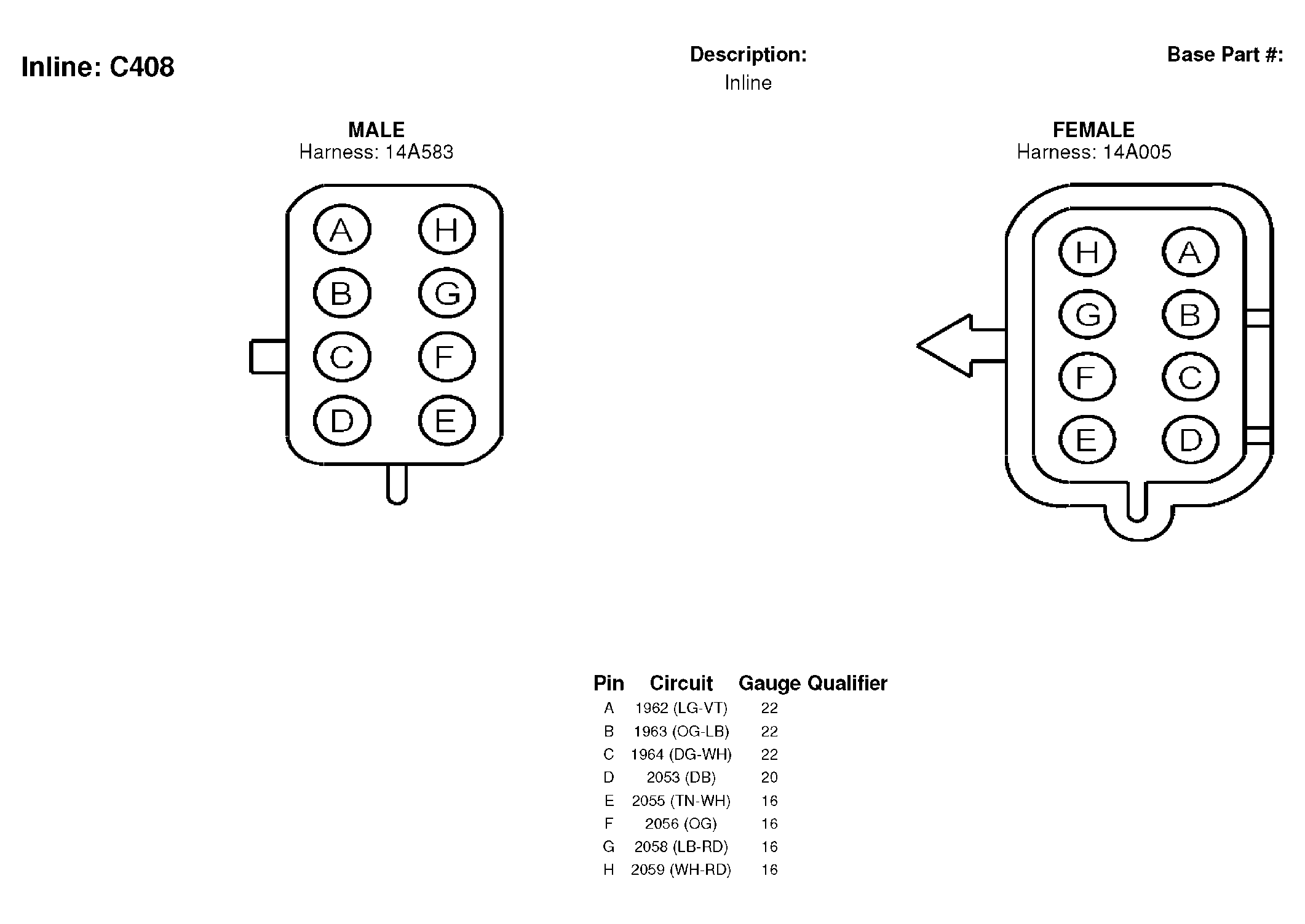

Fig 141: Inline Connector End View (C408)
G04597383Courtesy of FORD MOTOR CO.

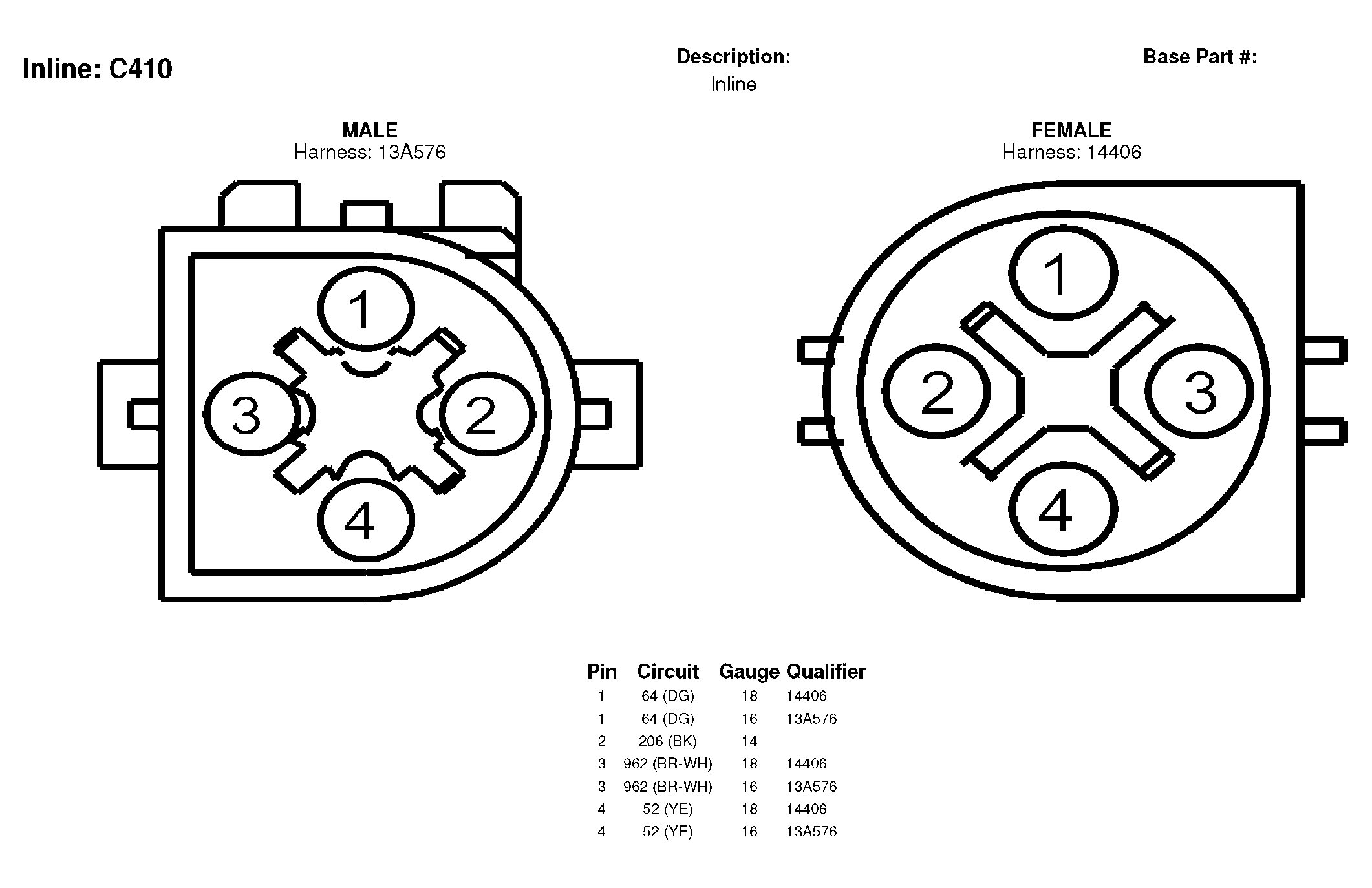

Fig 142: Inline Connector End View (C410)
G04597384Courtesy of FORD MOTOR CO.

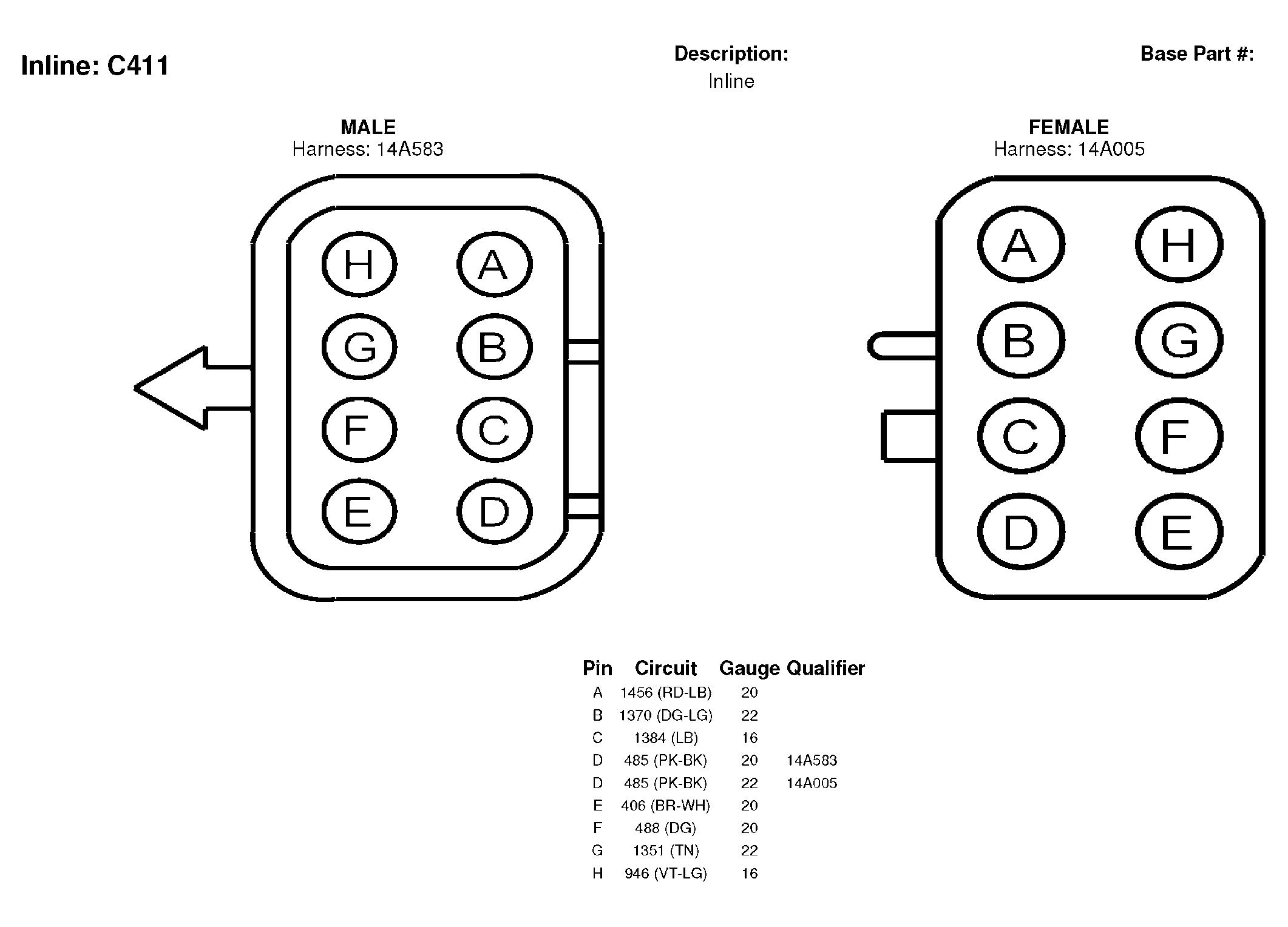

Fig 143: Inline Connector End View (C411)
G04597385Courtesy of FORD MOTOR CO.

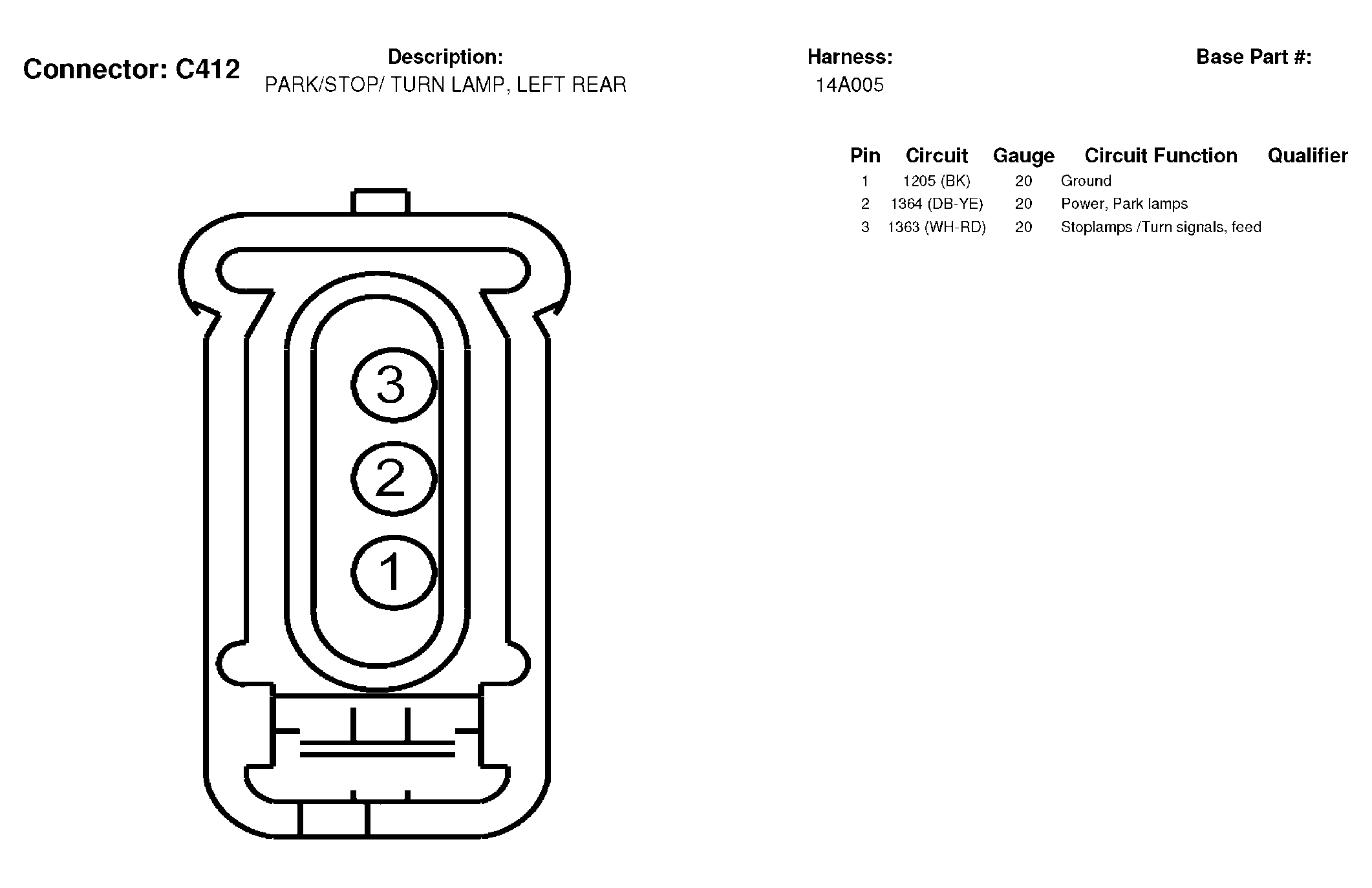

Fig 144: Park/Stop/Turn Lamp, Left Rear Connector End View (C412)
G04597386Courtesy of FORD MOTOR CO.

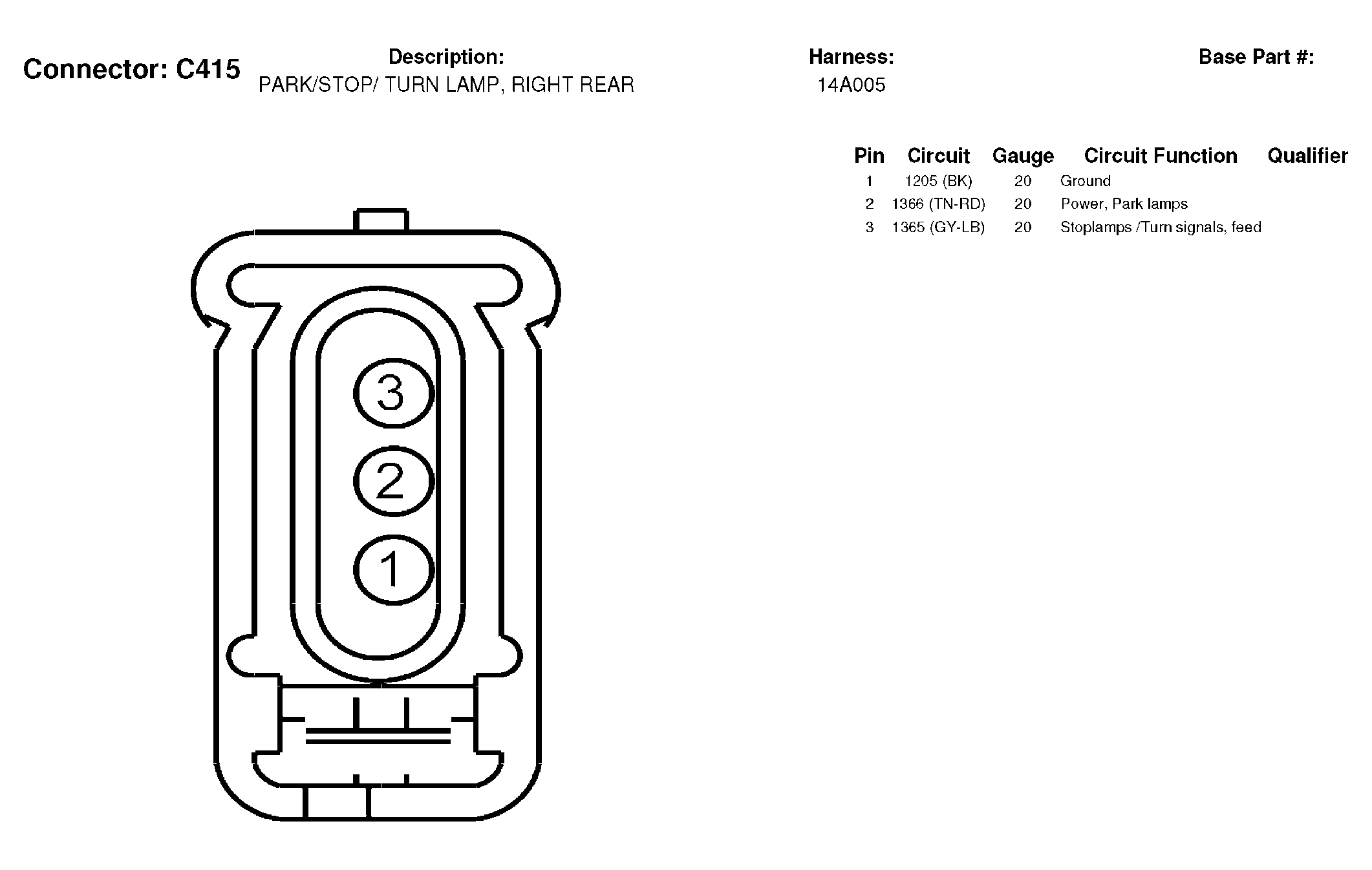

Fig 145: Park/Stop/Turn Lamp, Right Rear Connector End View (C415)
G04597387Courtesy of FORD MOTOR CO.

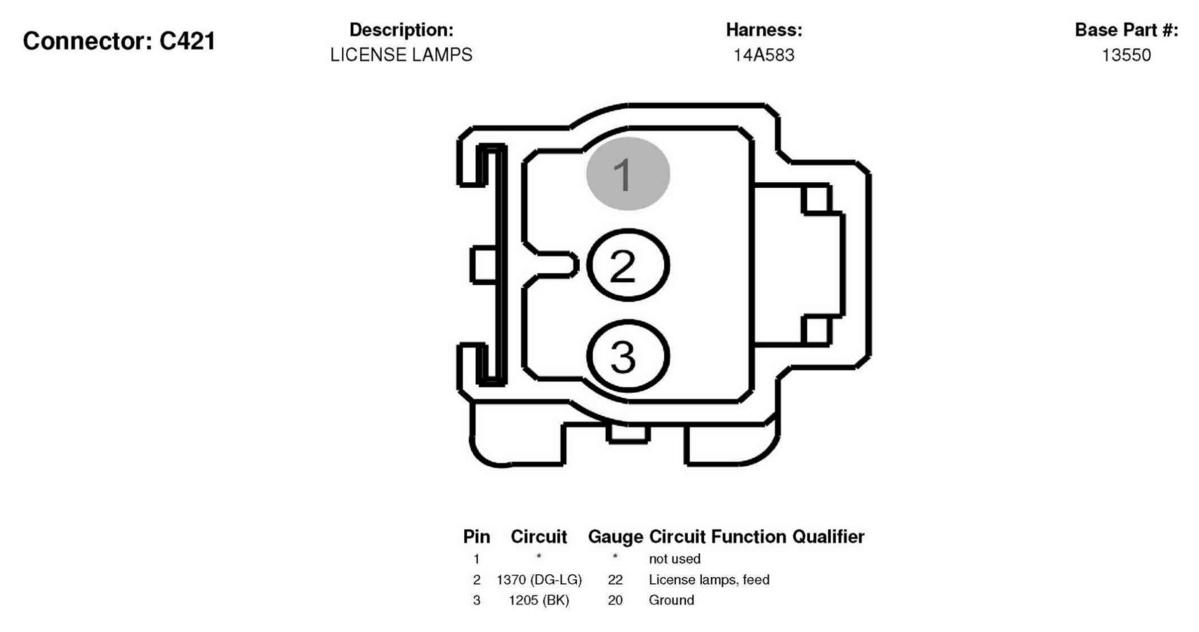

Fig 146: License Lamp Connector End View (C421)
G04597388Courtesy of FORD MOTOR CO.

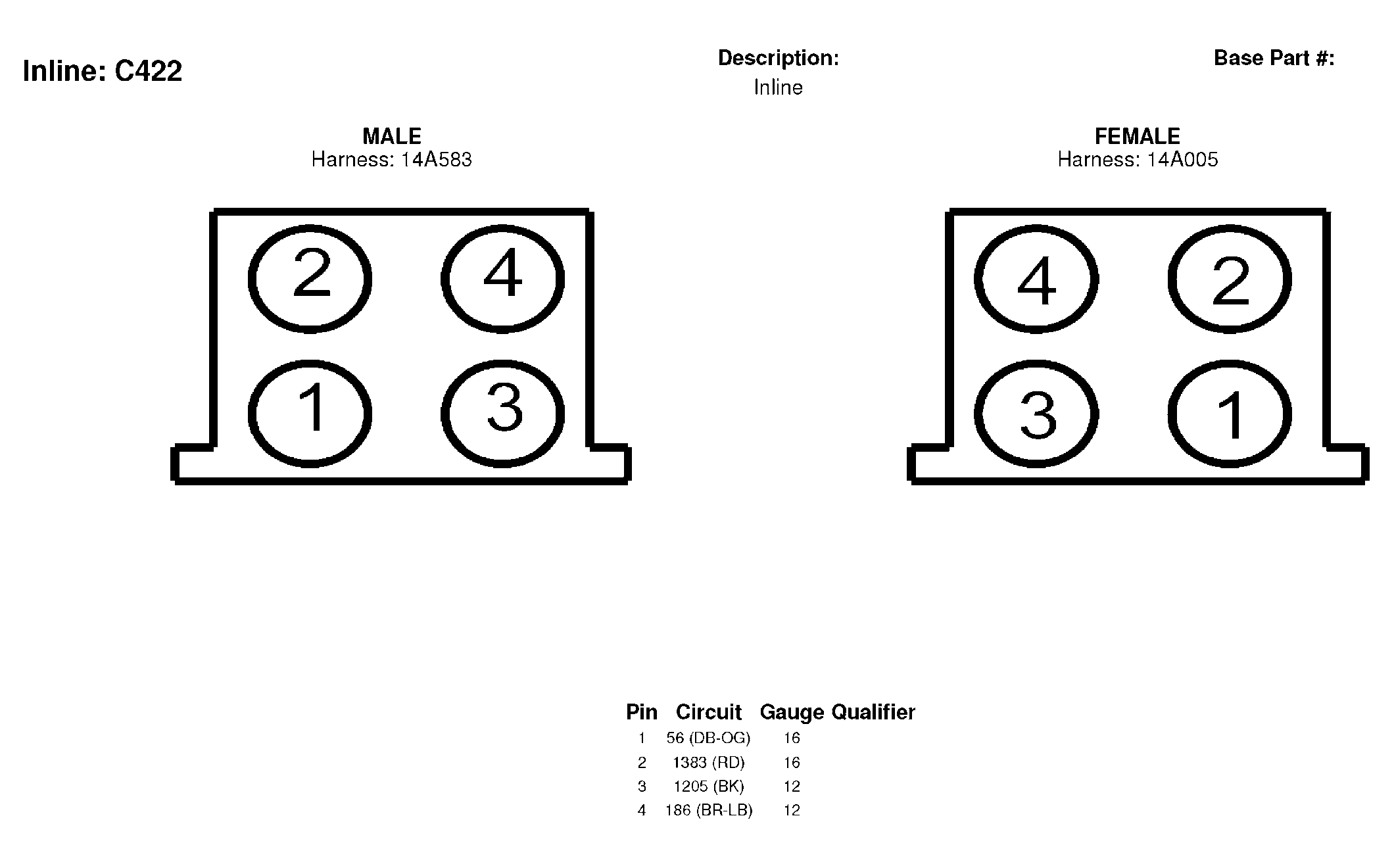

Fig 147: Inline Connector End View (C422)
G04597389Courtesy of FORD MOTOR CO.

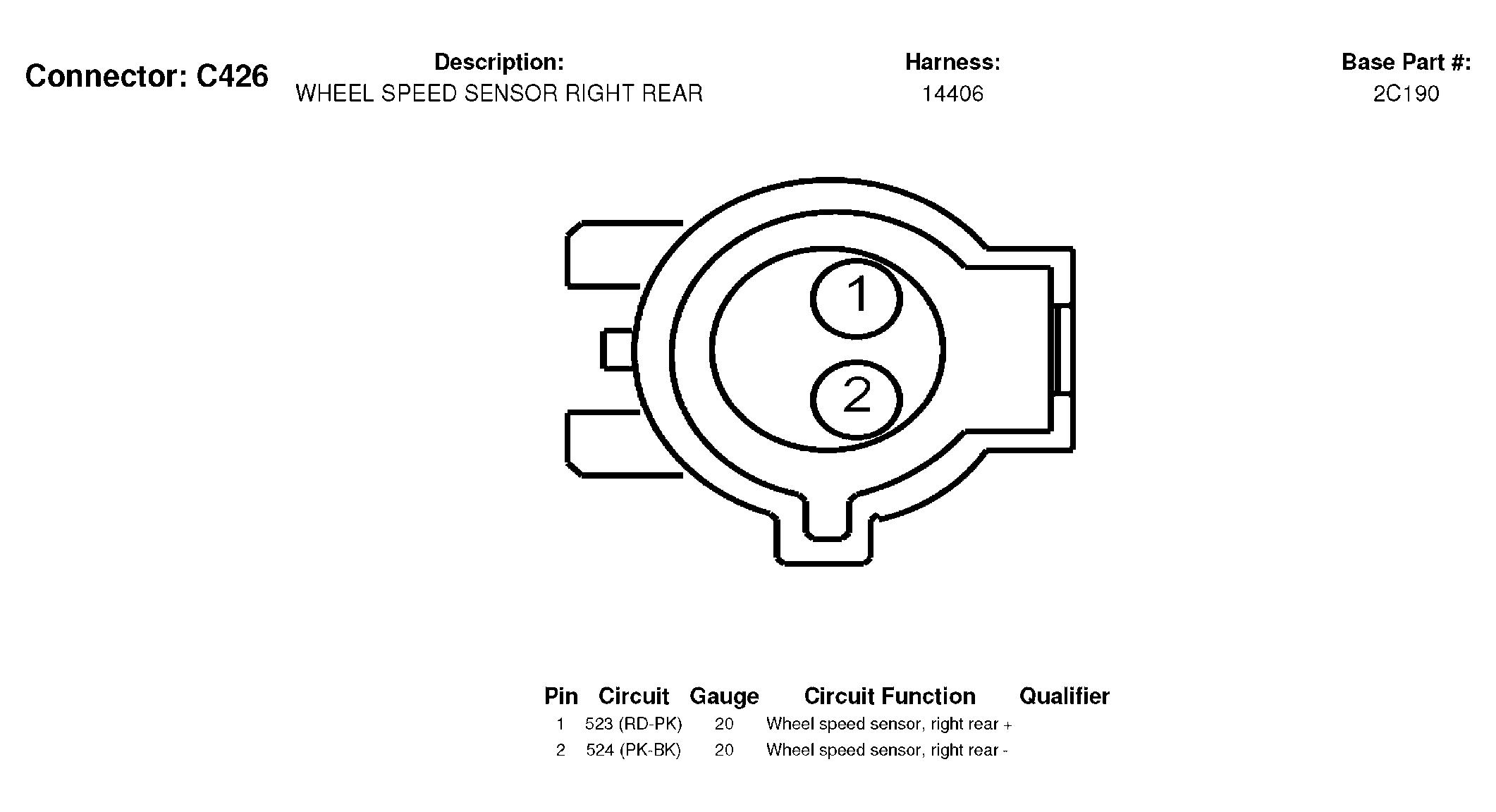

Fig 148: Wheel Speed Sensor Right Rear Connector End View (C426)
G04597390Courtesy of FORD MOTOR CO.

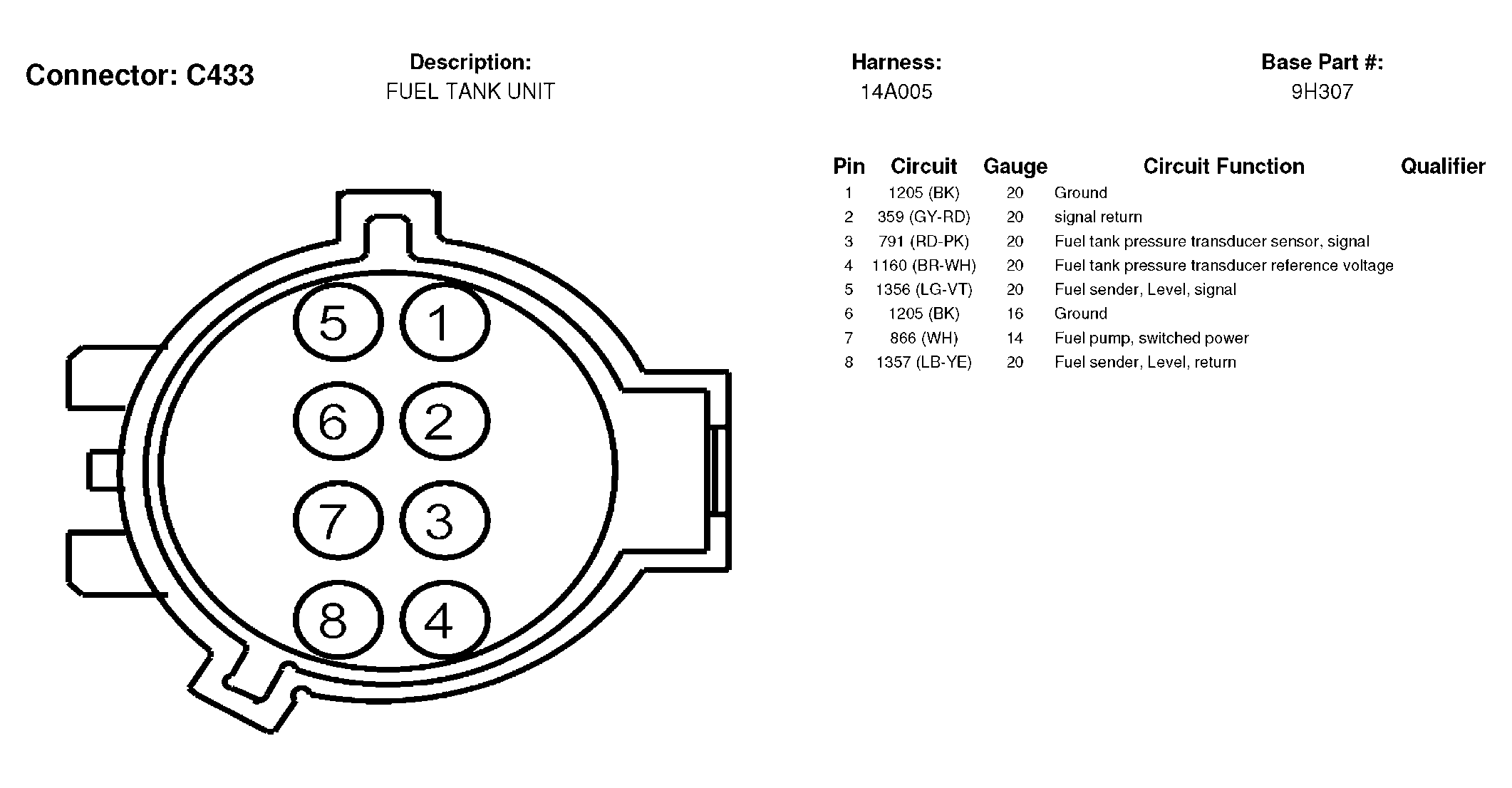

Fig 149: Fuel Tank Unit Connector End View (C433)
G04597391Courtesy of FORD MOTOR CO.

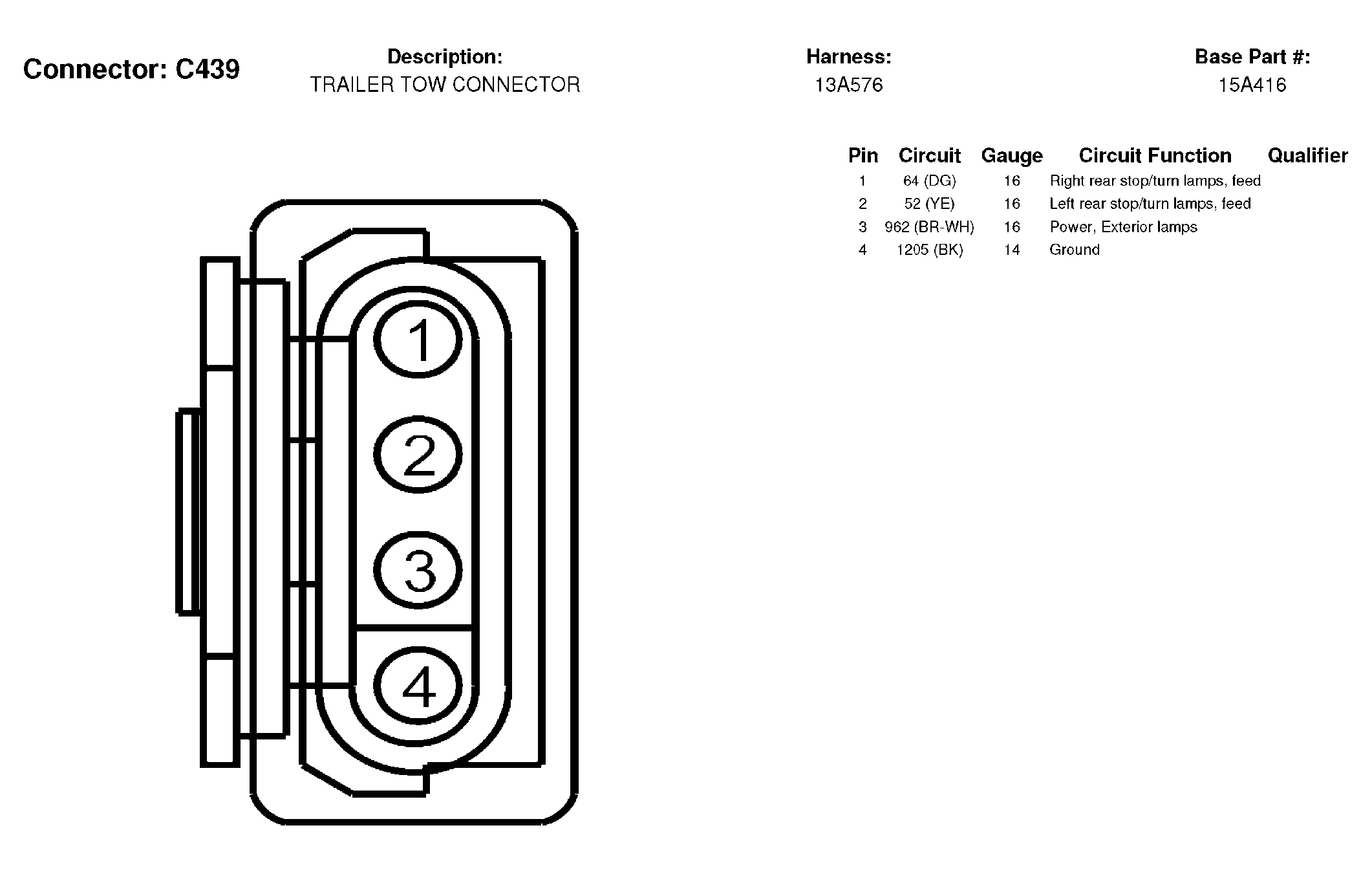

Fig 150: Trailer Tow Connector, Connector End View (C439)
G04597392Courtesy of FORD MOTOR CO.
Fig 151: Wheel Speed Sensor Left Rear Connector End View (C440)
G04597393Courtesy of FORD MOTOR CO.

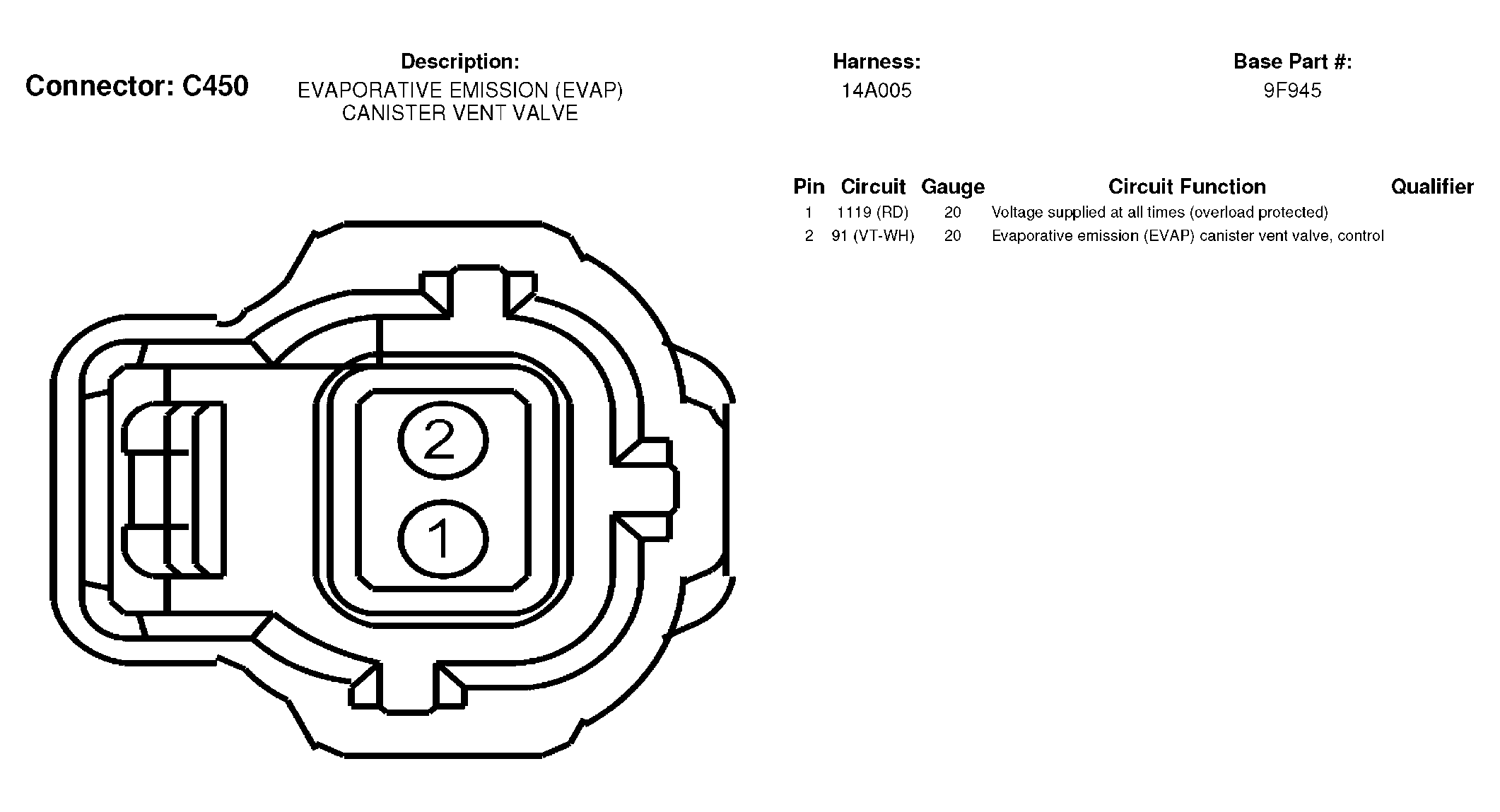

Fig 152: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)
G04597394Courtesy of FORD MOTOR CO.
Fig 153: Reversing Lamp, Left Connector End View (C451)
G04597395Courtesy of FORD MOTOR CO.

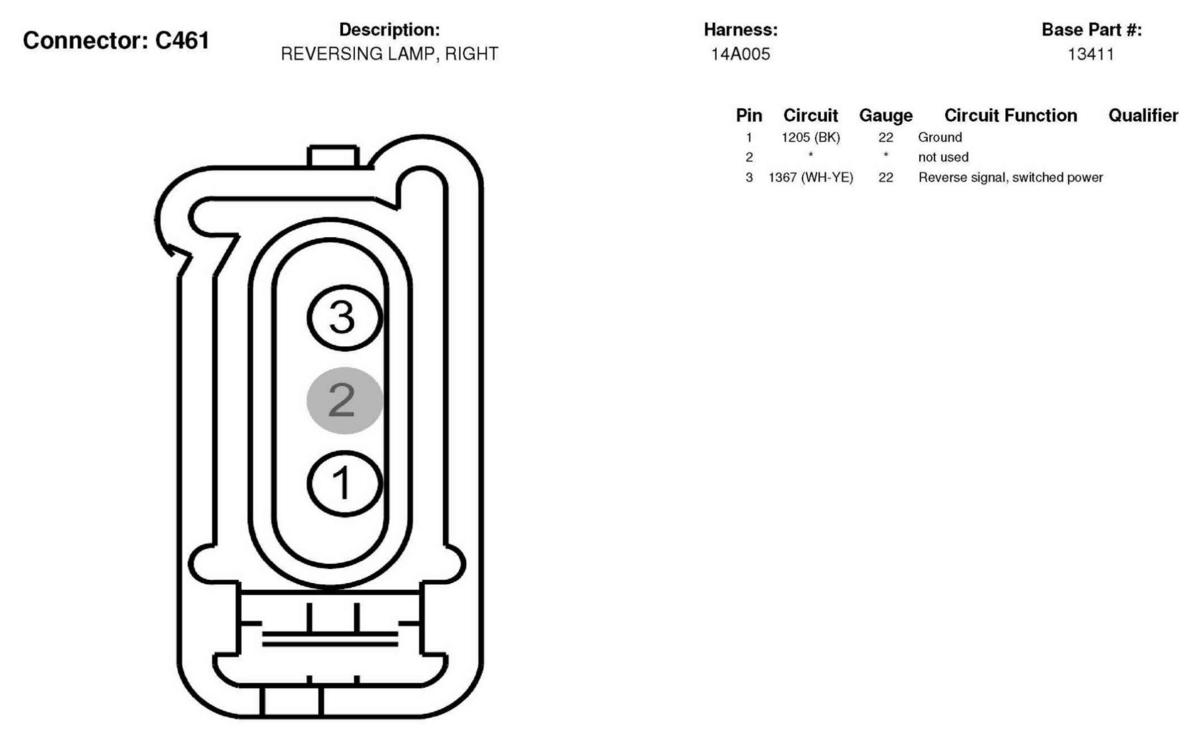

Fig 154: Reversing Lamp, Right Connector End View (C461)
G04597396Courtesy of FORD MOTOR CO.

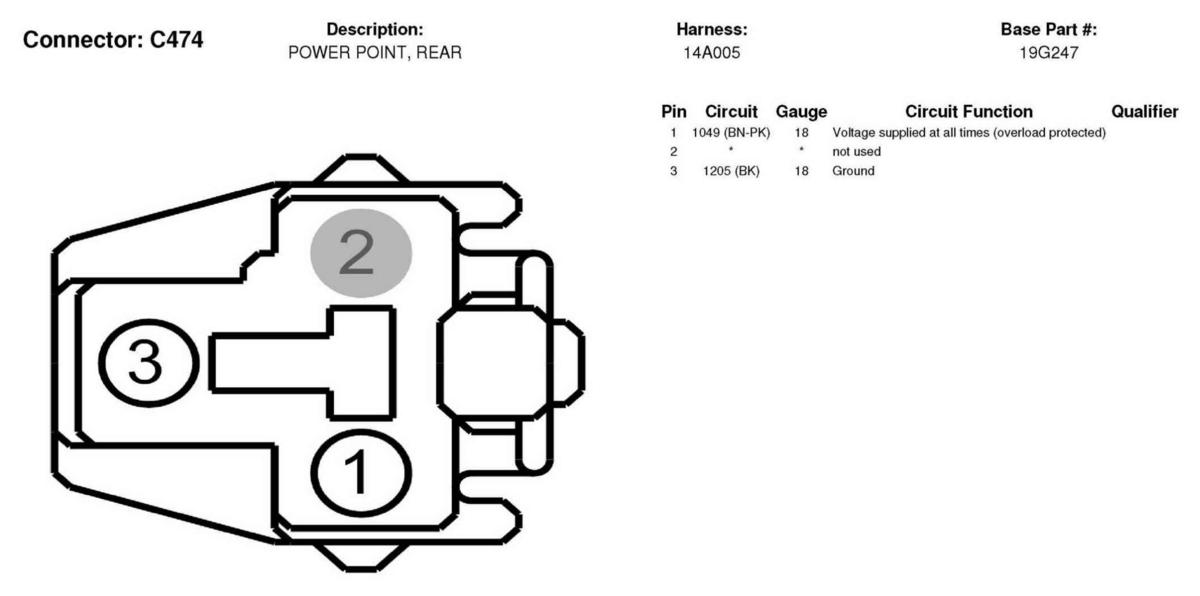

Fig 155: Power Point, Rear Connector End View (C474)
G04597397Courtesy of FORD MOTOR CO.

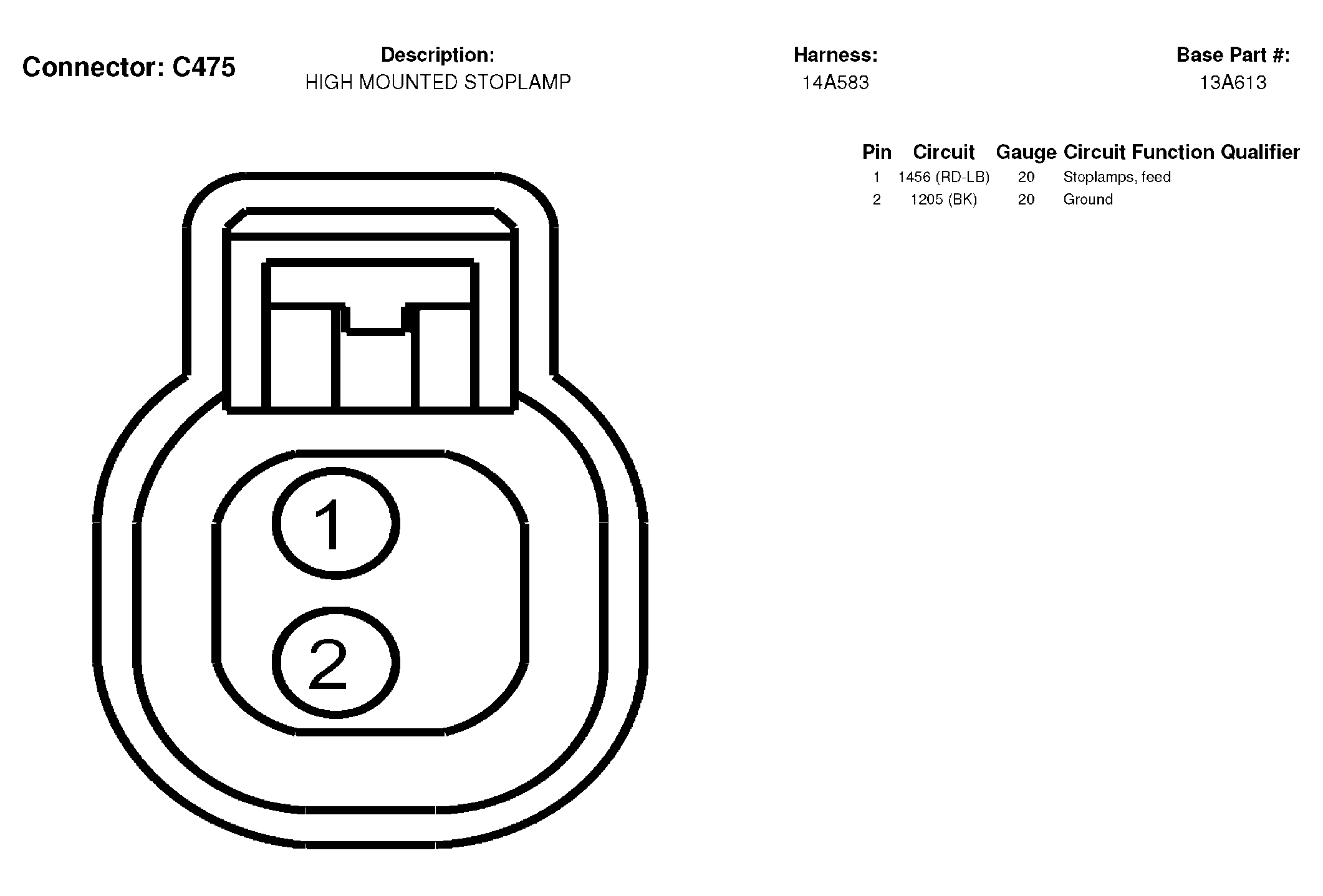

Fig 156: High Mounted Stop Lamp Connector End View (C475)
G04597398Courtesy of FORD MOTOR CO.

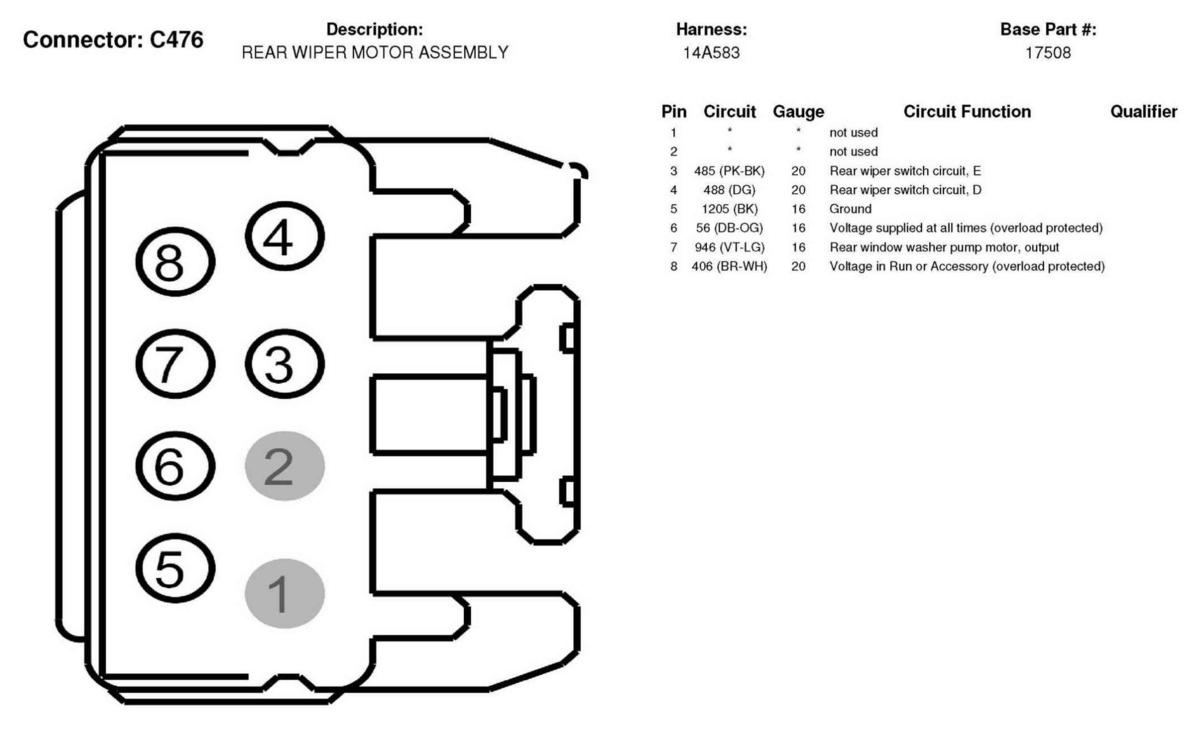

Fig 157: Rear Wiper Motor Assembly Connector End View (C476)
G04597399Courtesy of FORD MOTOR CO.

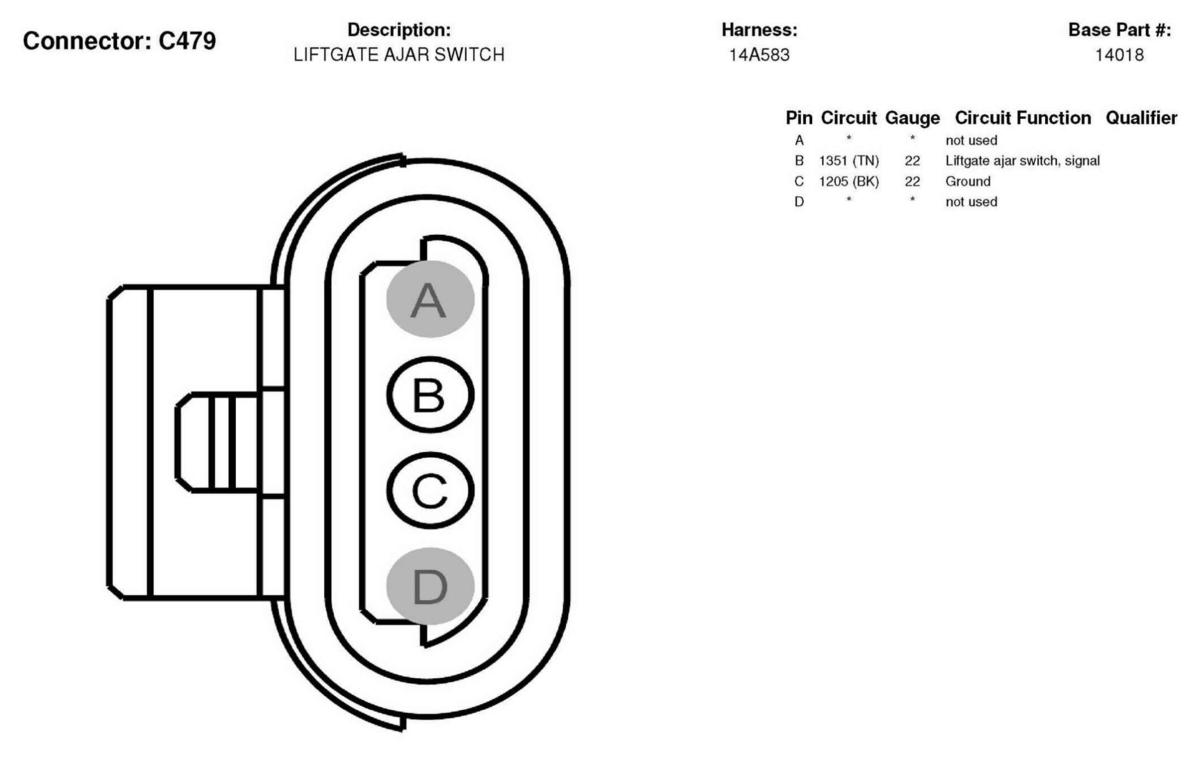

Fig 158: Liftgate Ajar Switch Connector End View (C479)
G04597400Courtesy of FORD MOTOR CO.

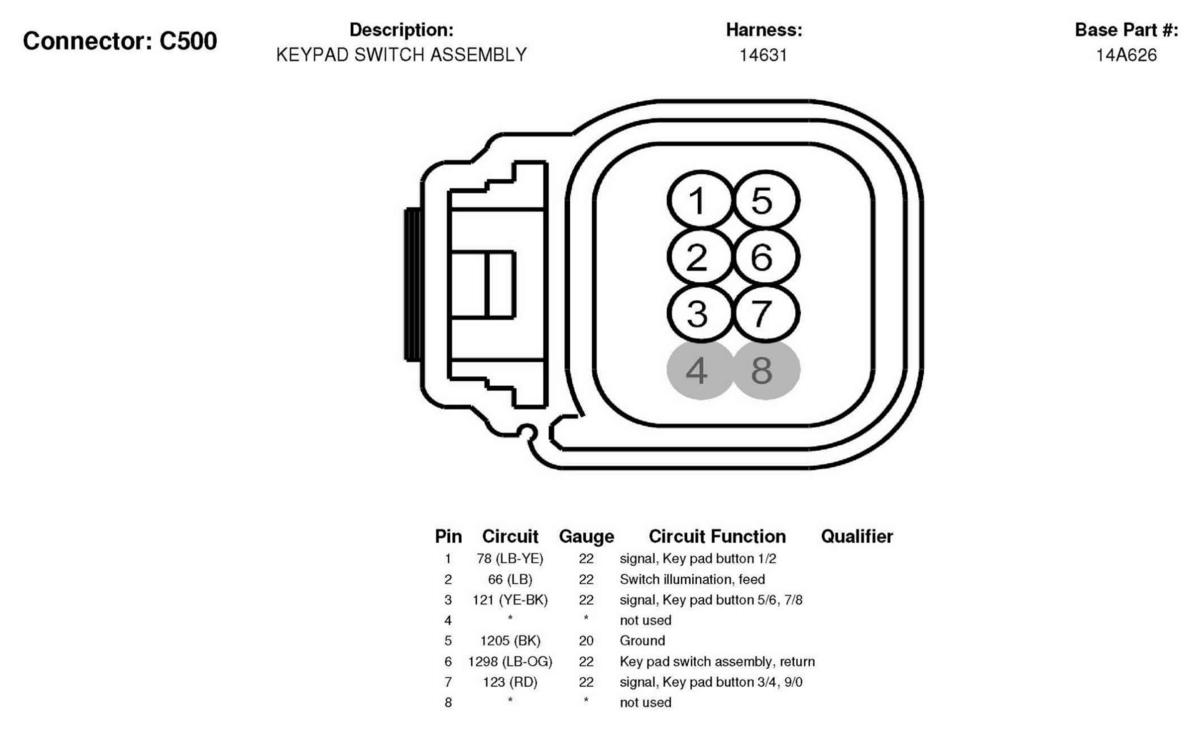

Fig 159: Keypad Switch Assembly Connector End View (C500)
G04597401Courtesy of FORD MOTOR CO.
Fig 160: Power Window Switch, LH Side Front Connector End View (C508A)
G04597402Courtesy of FORD MOTOR CO.

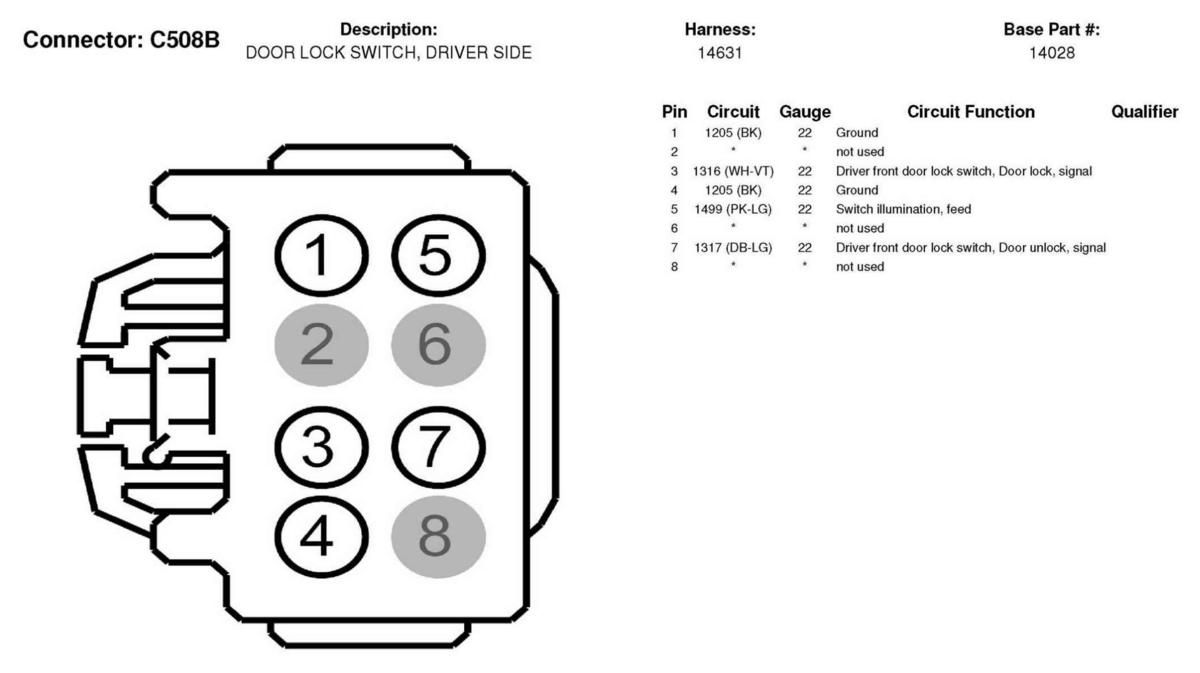

Fig 161: Door Lock Switch, Driver Side Connector End View (C508B)
G04597403Courtesy of FORD MOTOR CO.

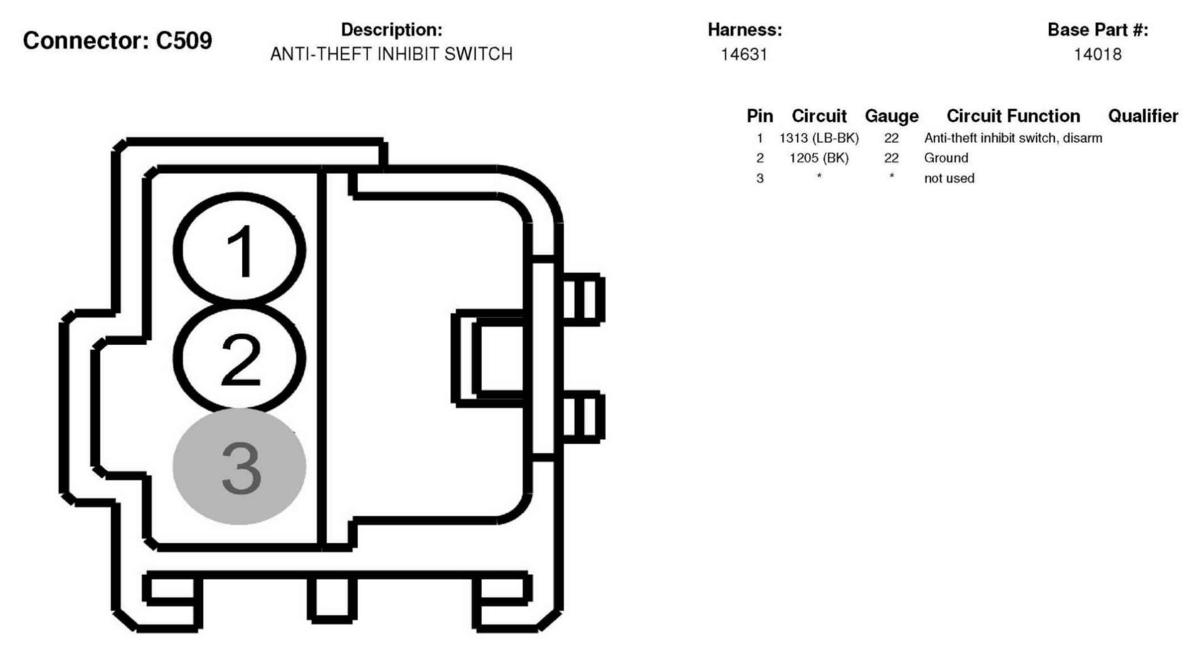

Fig 162: Anti-Theft Inhibit Switch Connector End View (C509)
G04597404Courtesy of FORD MOTOR CO.

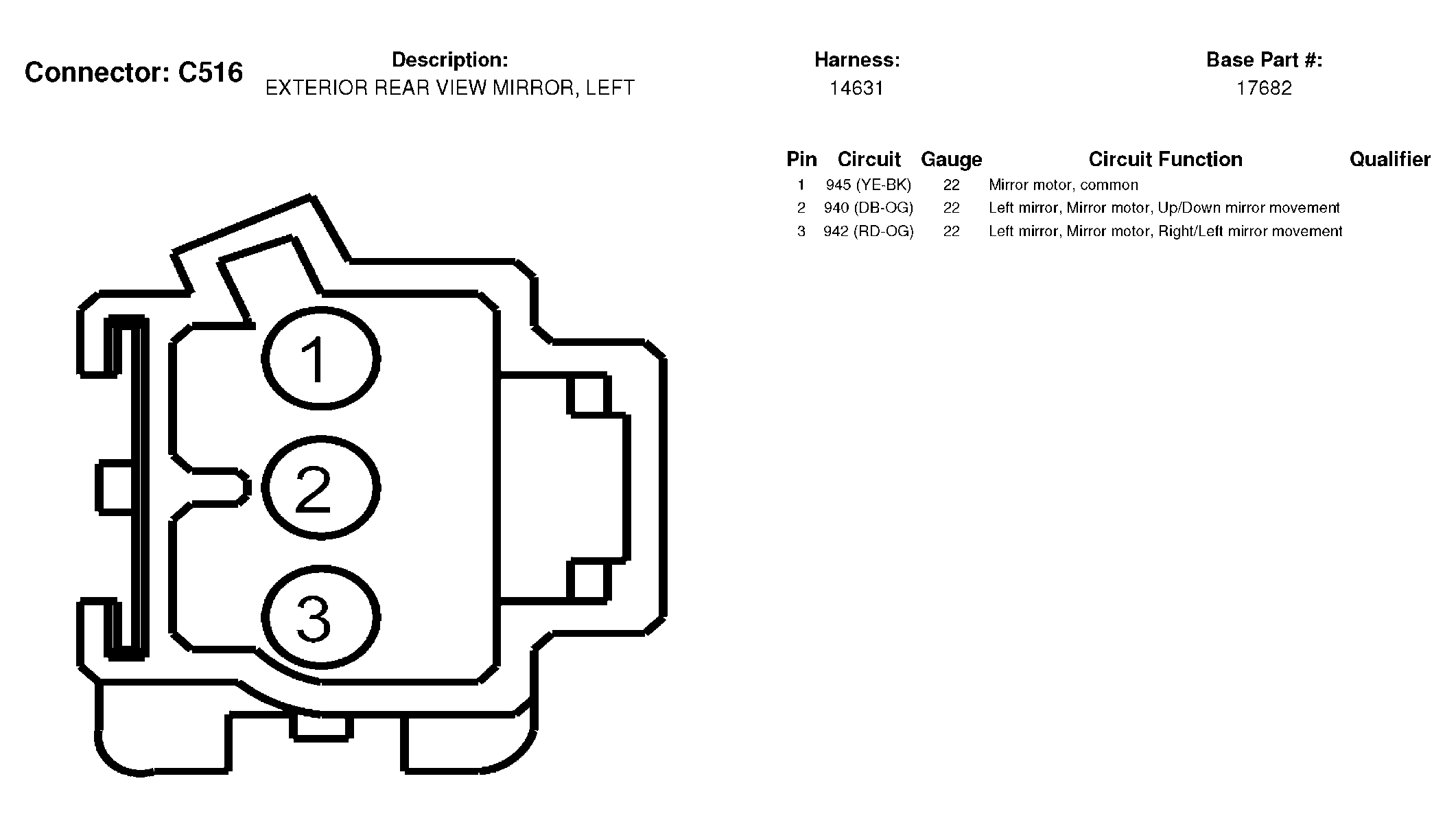

Fig 163: Exterior Rear View Mirror, Left Connector End View (C516)
G04597405Courtesy of FORD MOTOR CO.

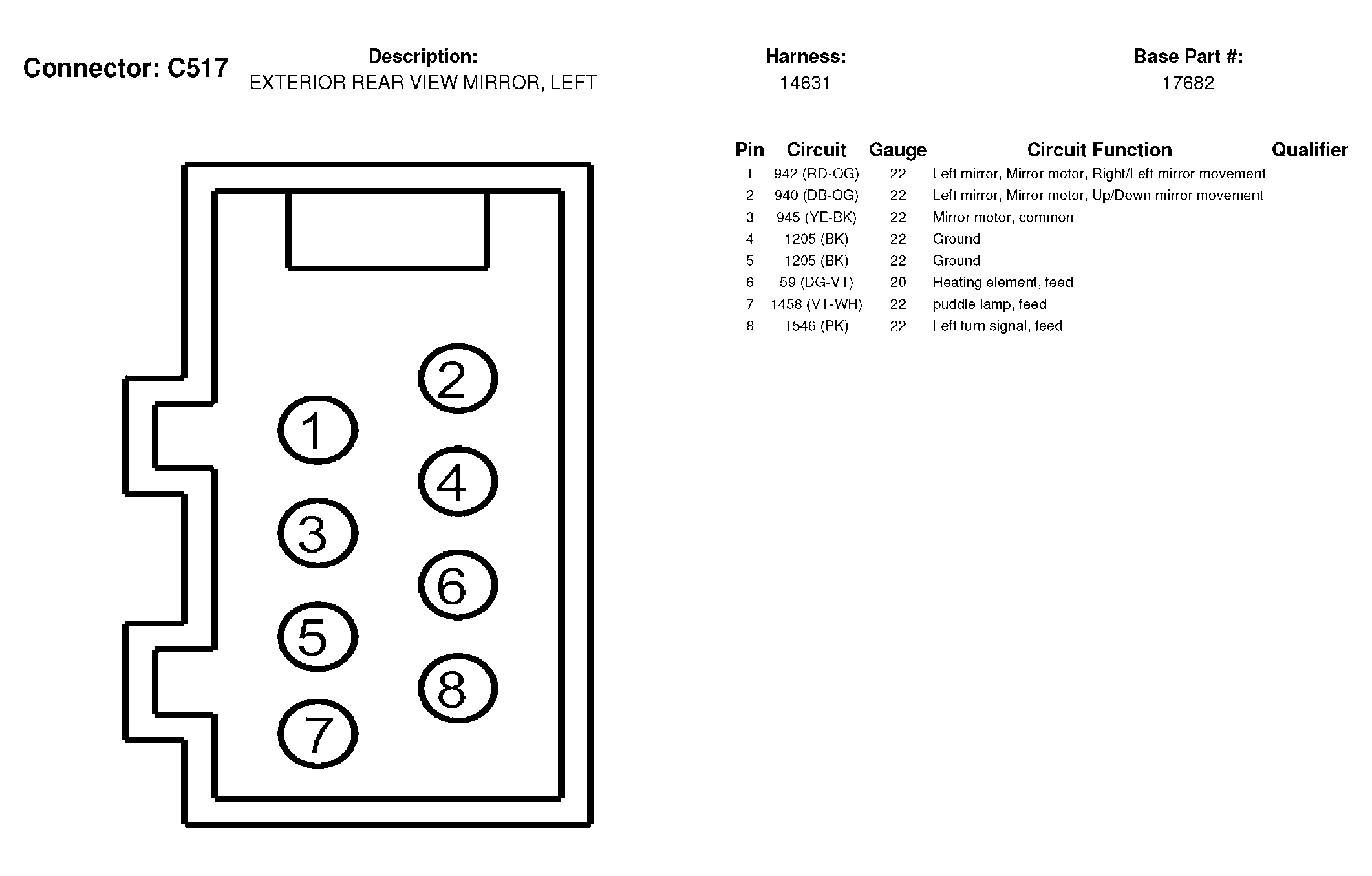

Fig 164: Exterior Rear View Mirror, Left Connector End View (C517)
G04597406Courtesy of FORD MOTOR CO.

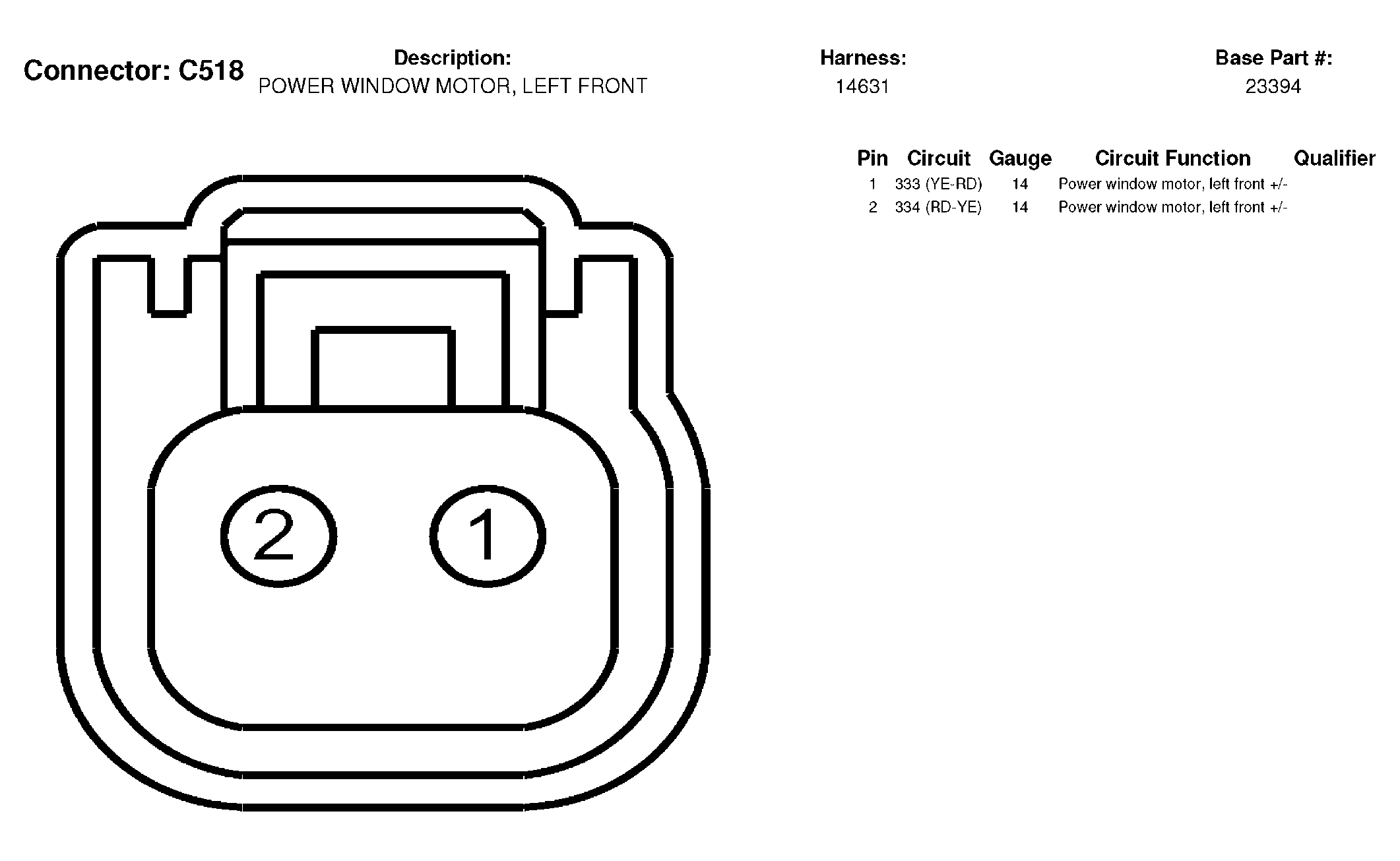

Fig 165: Power Window Motor, Left Front Connector End View (C518)
G04597407Courtesy of FORD MOTOR CO.

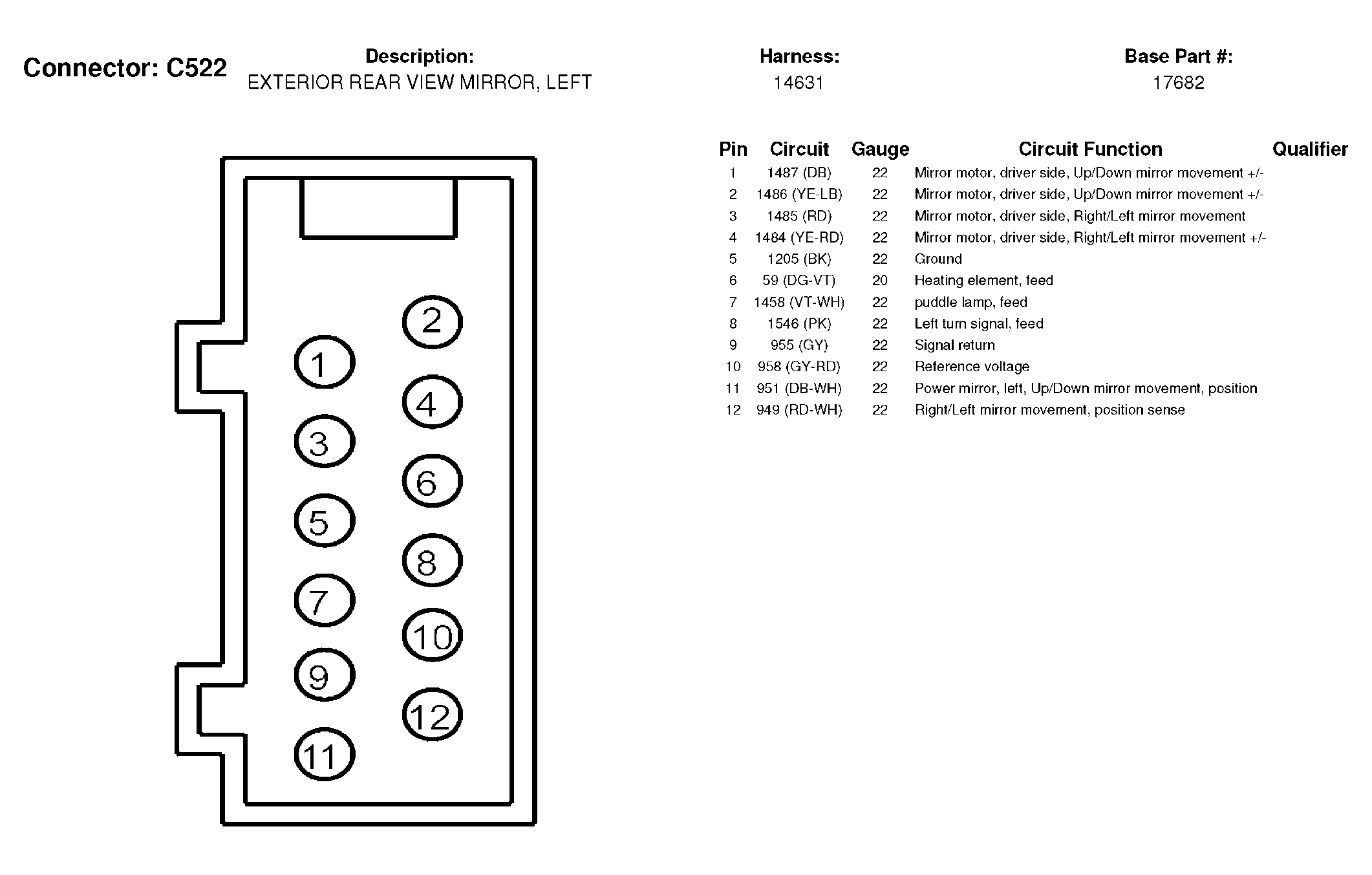

Fig 166: Exterior Rear View Mirror, Left Connector End View (C522)
G04597408Courtesy of FORD MOTOR CO.

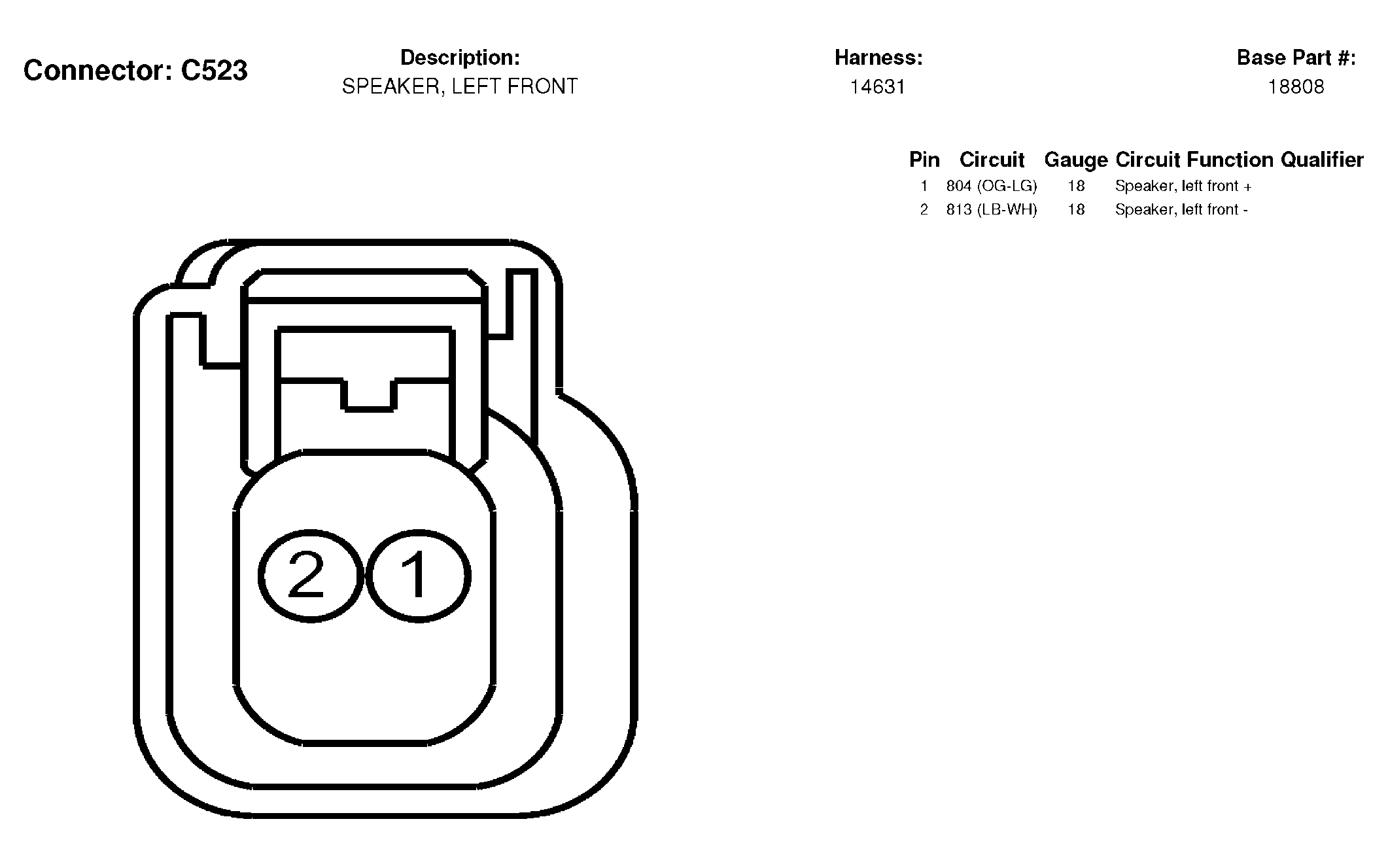

Fig 167: Speaker, Left Front Connector End View (C523)
G04597409Courtesy of FORD MOTOR CO.

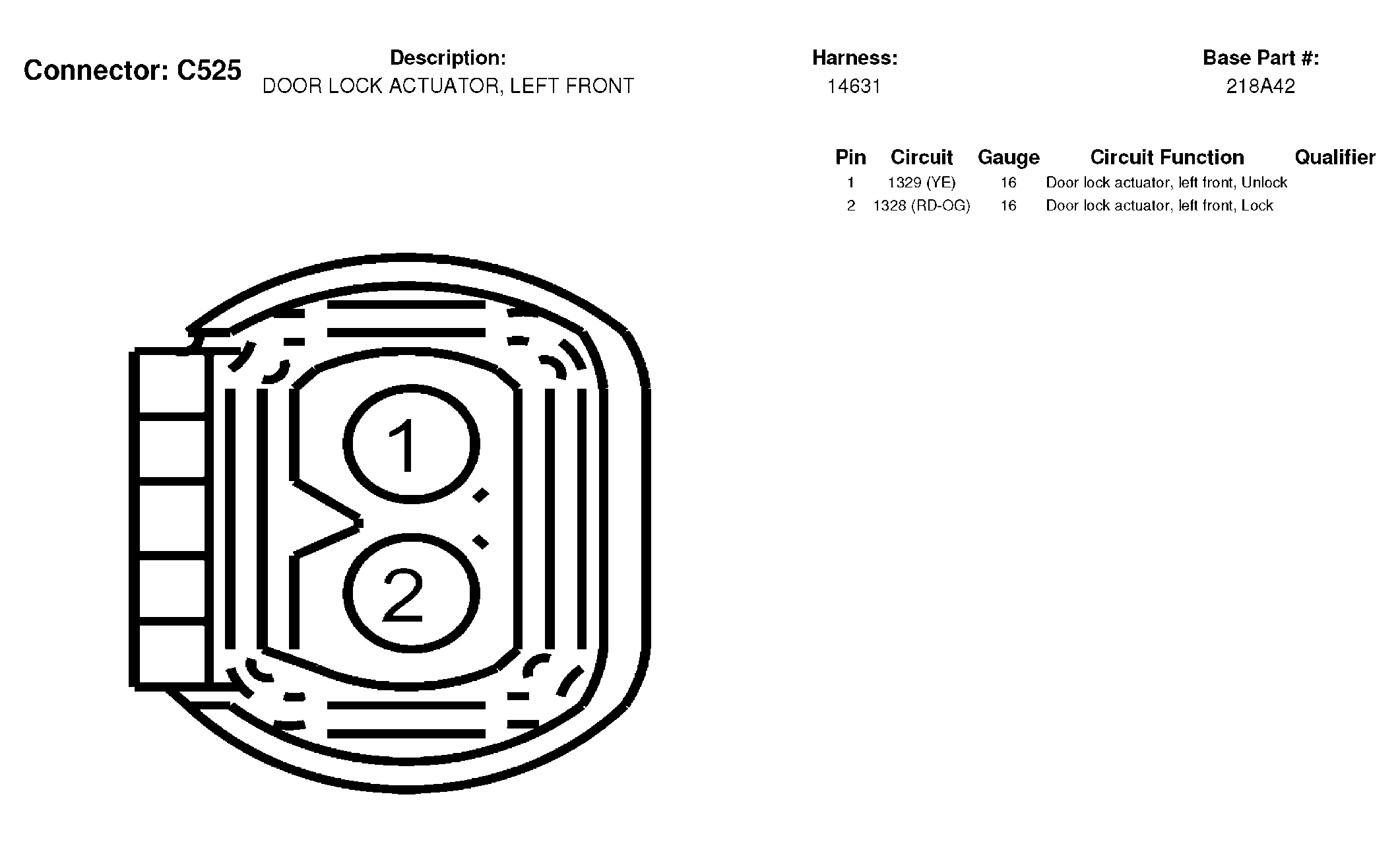

Fig 168: Door Lock Actuator, Left Front Connector End View (C525)
G04597410Courtesy of FORD MOTOR CO.

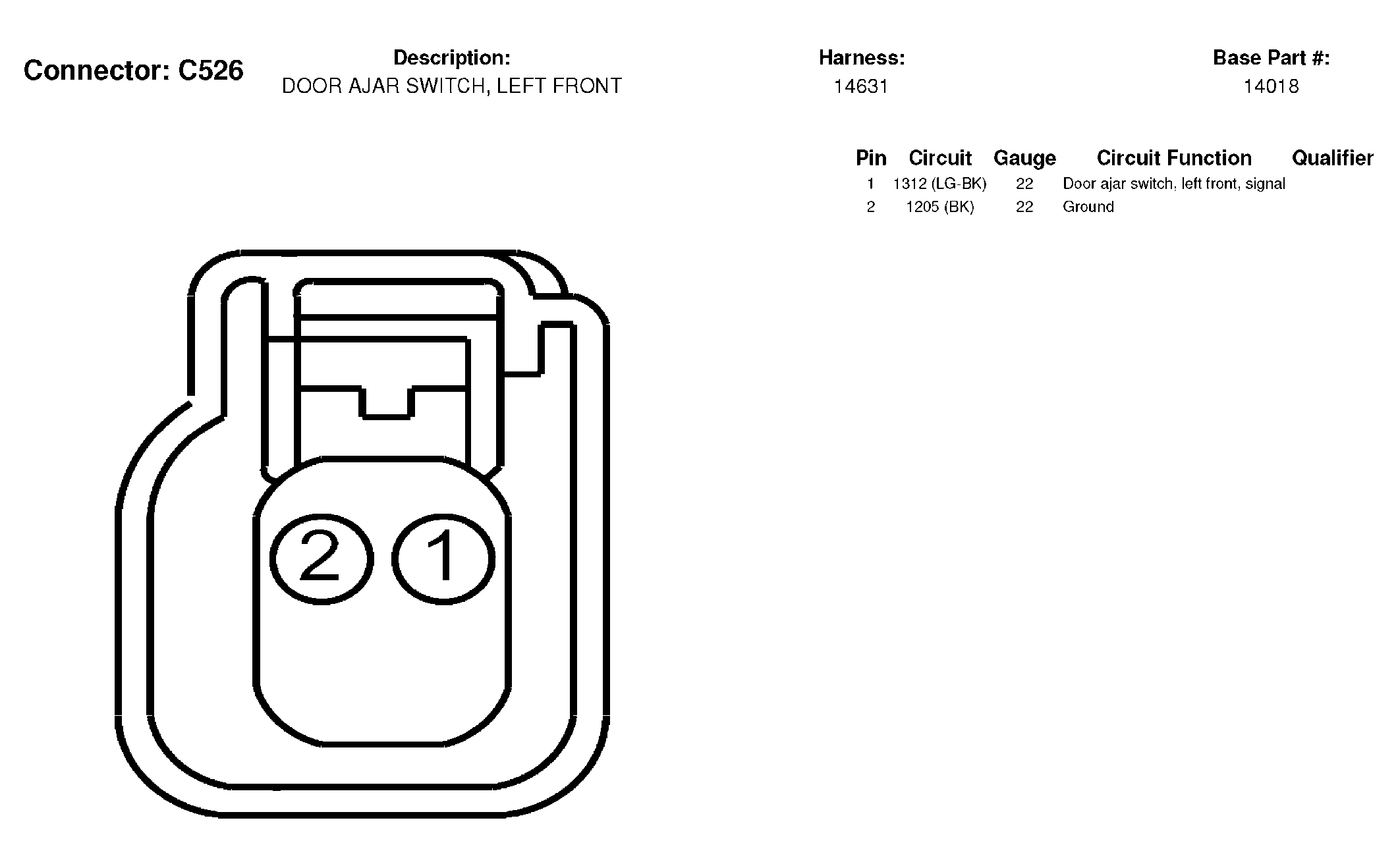

Fig 169: Door Ajar Switch, Left Front Connector End View (C526)
G04597411Courtesy of FORD MOTOR CO.

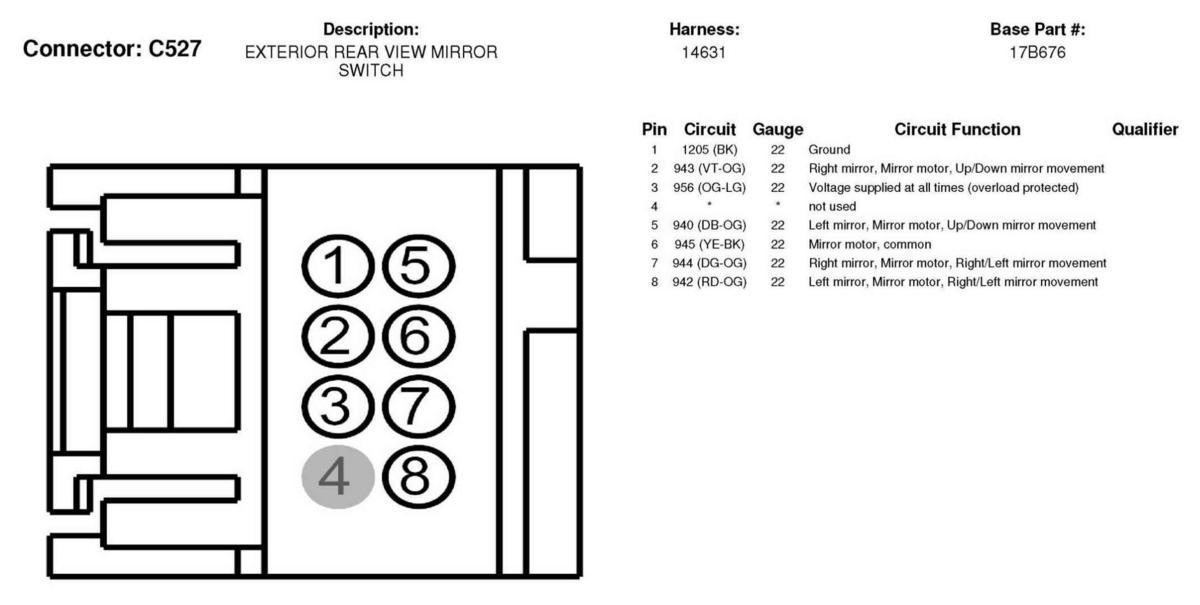

Fig 170: Exterior Rear View Mirror Switch Connector End View (C527)
G04597412Courtesy of FORD MOTOR CO.
Fig 171: Door Ajar Switch, Right Front Connector End View (C602)
G04597413Courtesy of FORD MOTOR CO.

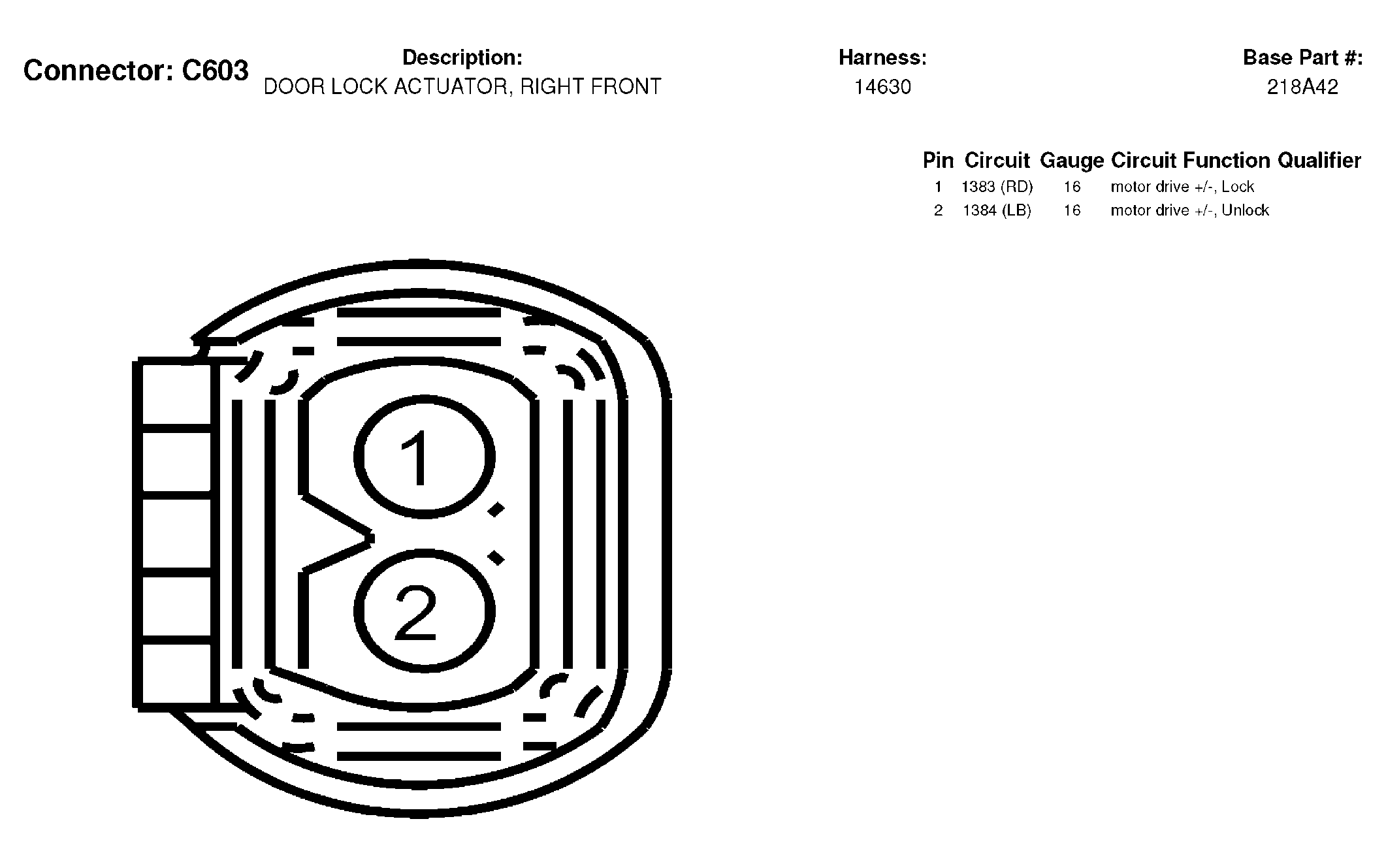

Fig 172: Door Lock Actuator, Right Front Connector End View (C603)
G04597414Courtesy of FORD MOTOR CO.

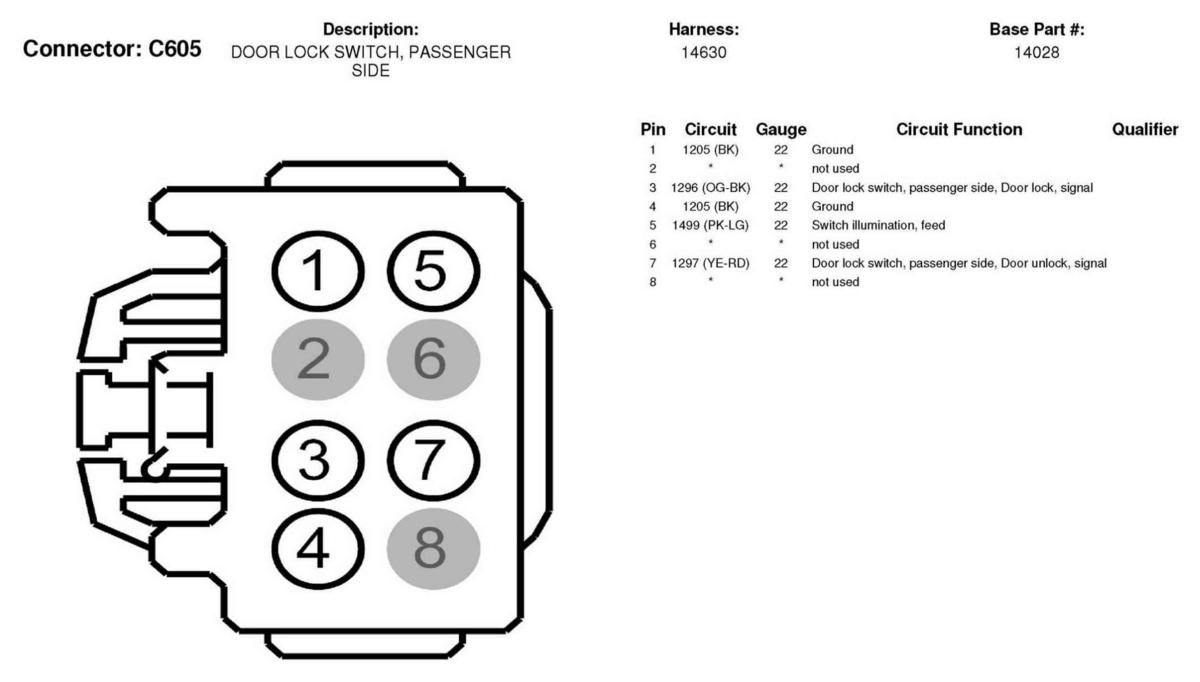

Fig 173: Door Lock Switch, Passenger Side Connector End View (C605)
G04597415Courtesy of FORD MOTOR CO.

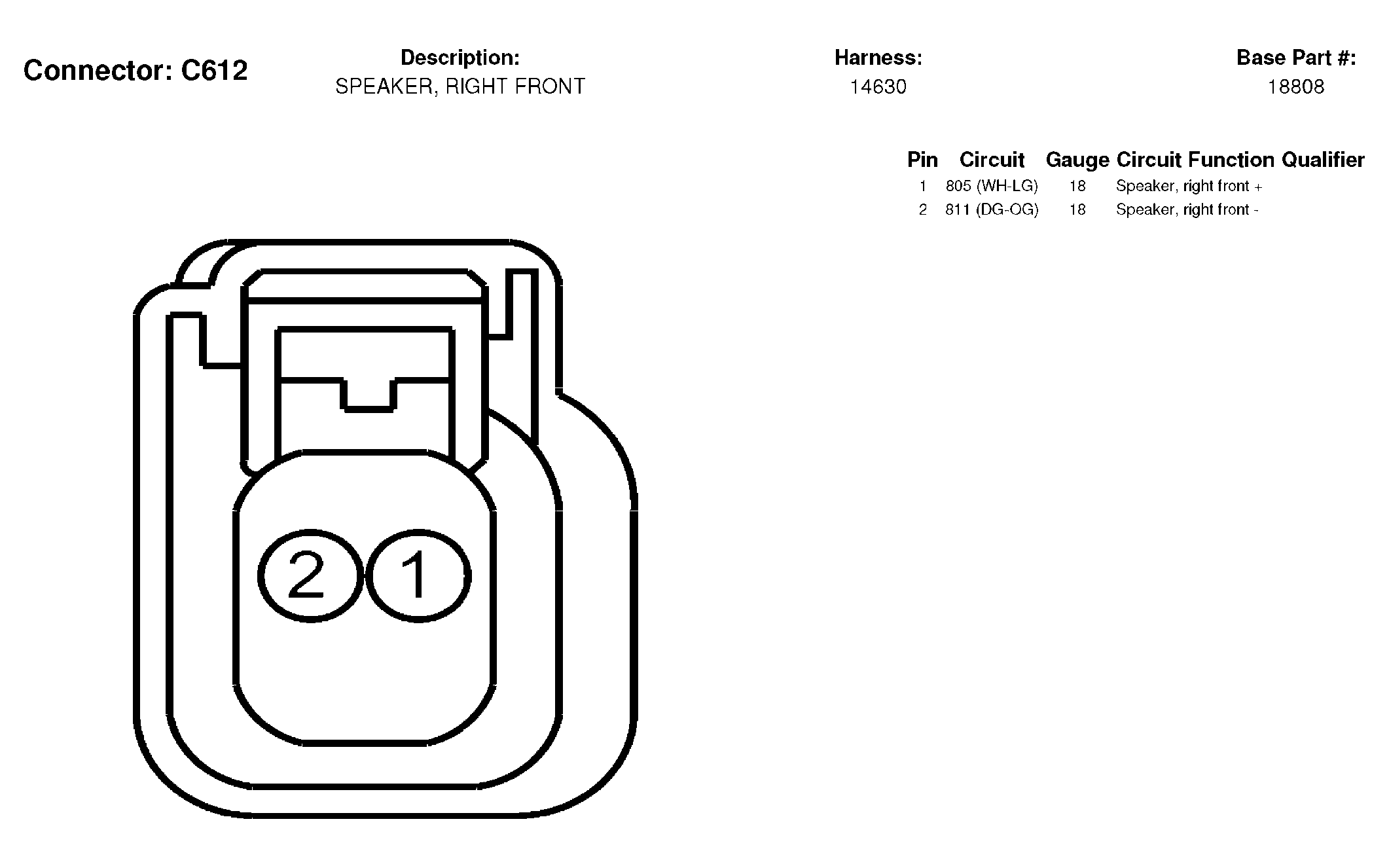

Fig 174: Speaker, Right Front Connector End View (C612)
G04597416Courtesy of FORD MOTOR CO.
Fig 175: Exterior Rear View Mirror, Right Connector End View (C622)
G04597417Courtesy of FORD MOTOR CO.

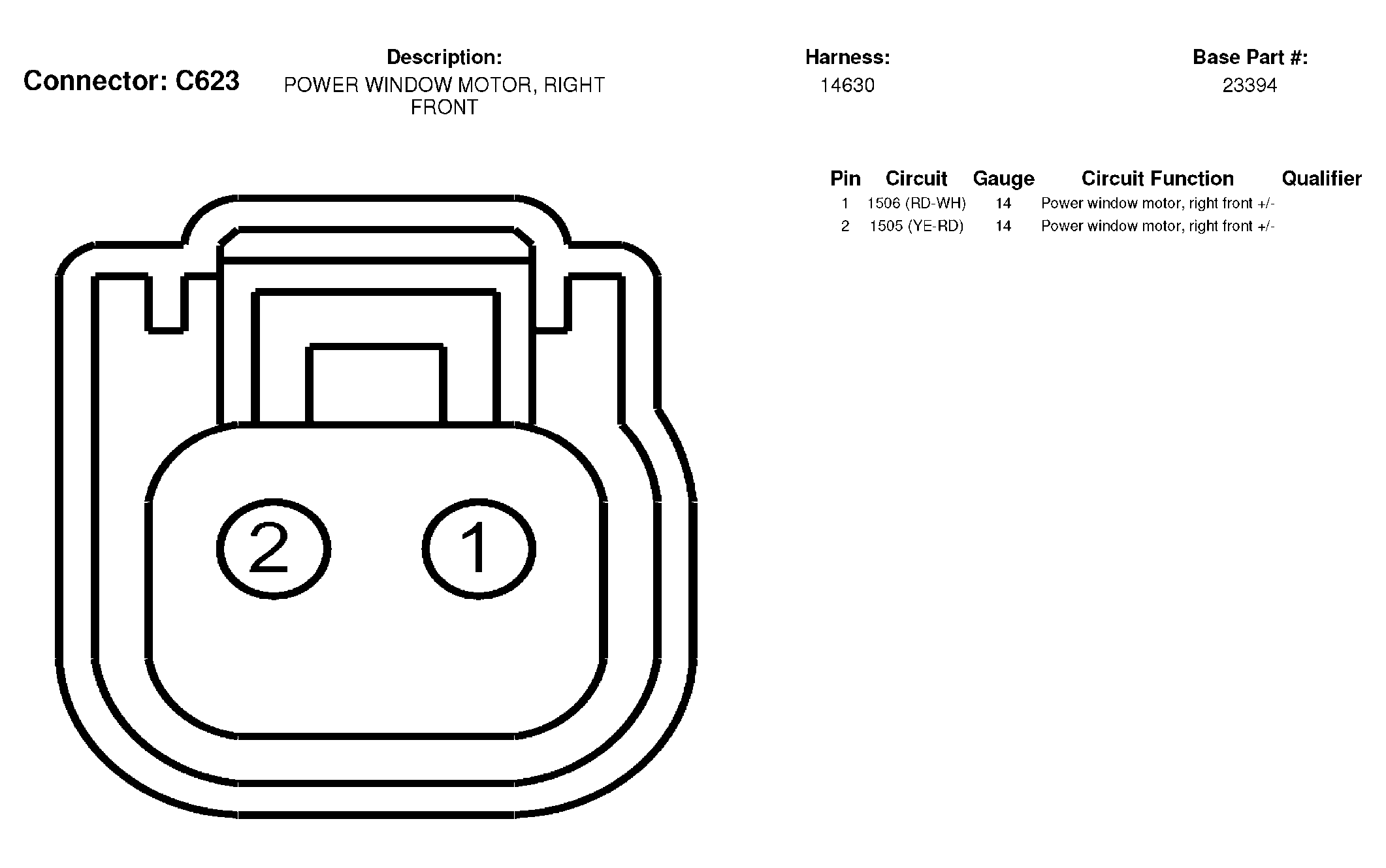

Fig 176: Power Window Motor, Right Front Connector End View (C623)
G04597418Courtesy of FORD MOTOR CO.

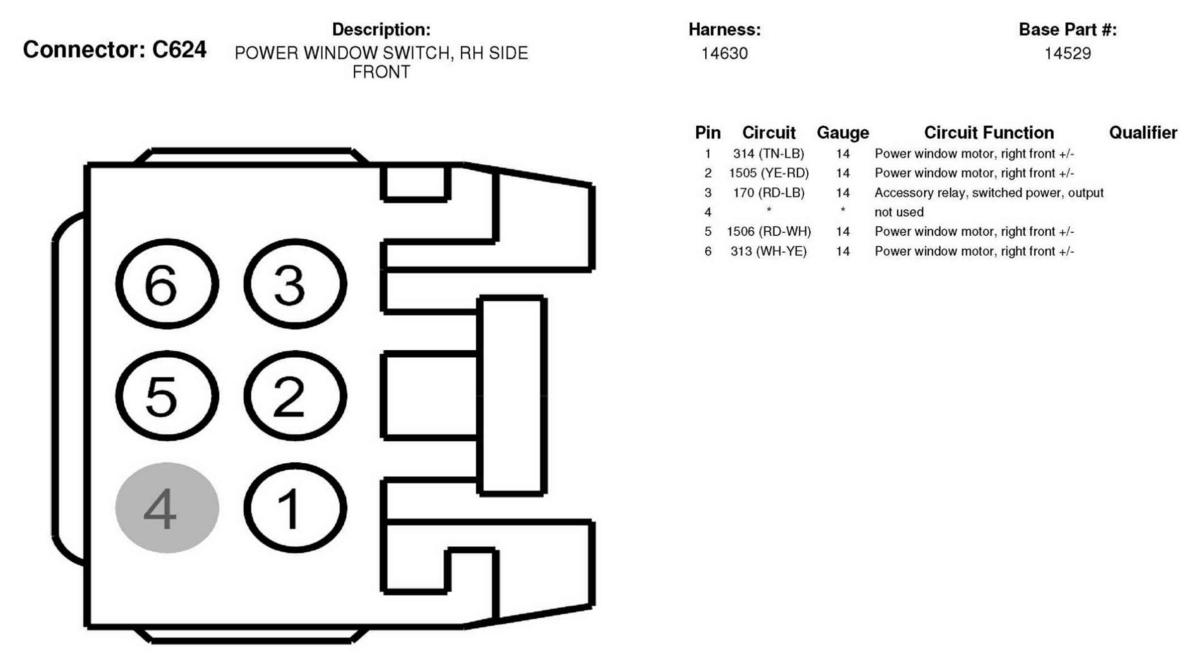

Fig 177: Power Window Switch, RH Side Front Connector End View (C624)
G04597419Courtesy of FORD MOTOR CO.
Fig 178: Exterior Rear View Mirror, Right Connector End View (C625)
G04597420Courtesy of FORD MOTOR CO.

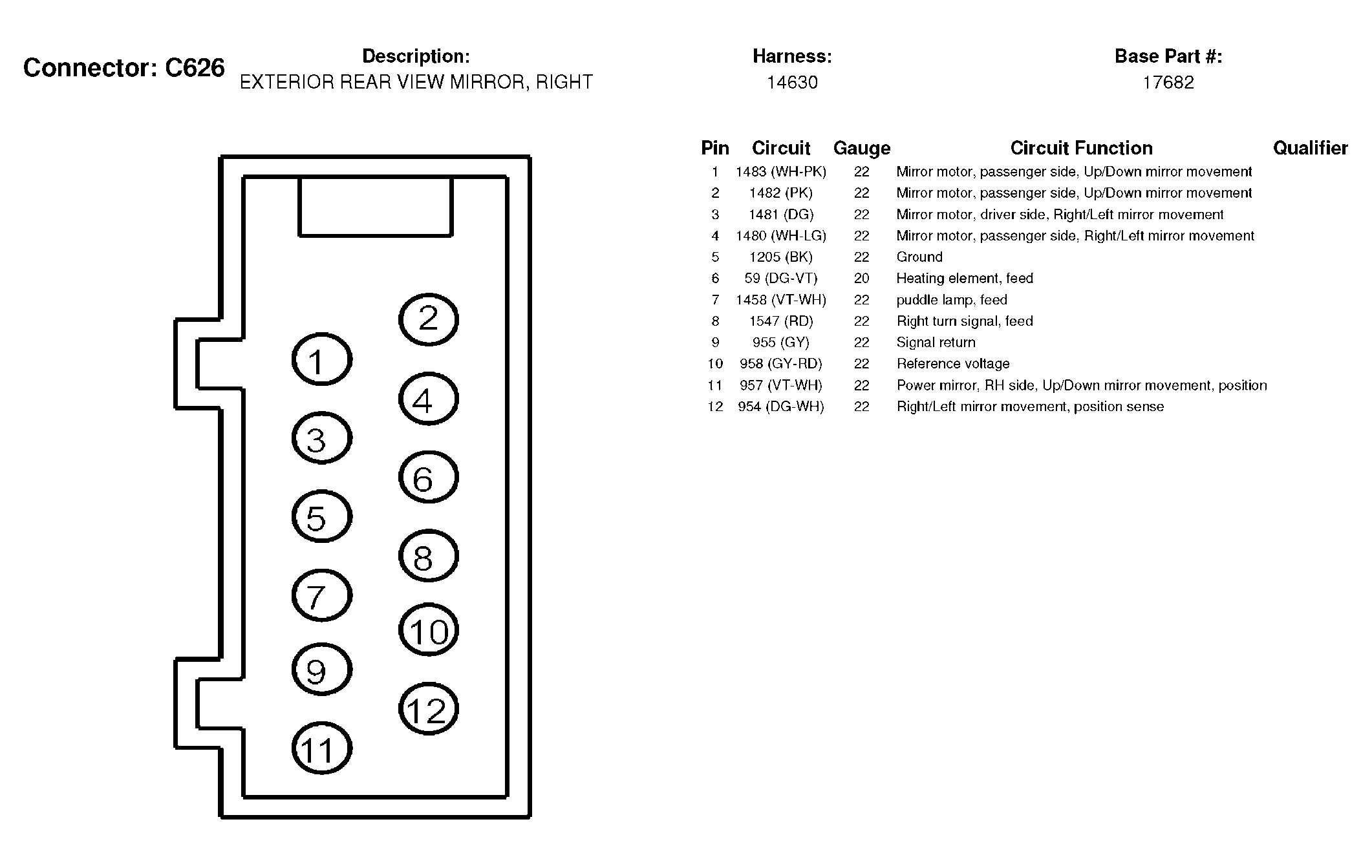

Fig 179: Exterior Rear View Mirror, Right Connector End View (C626)
G04597421Courtesy of FORD MOTOR CO.

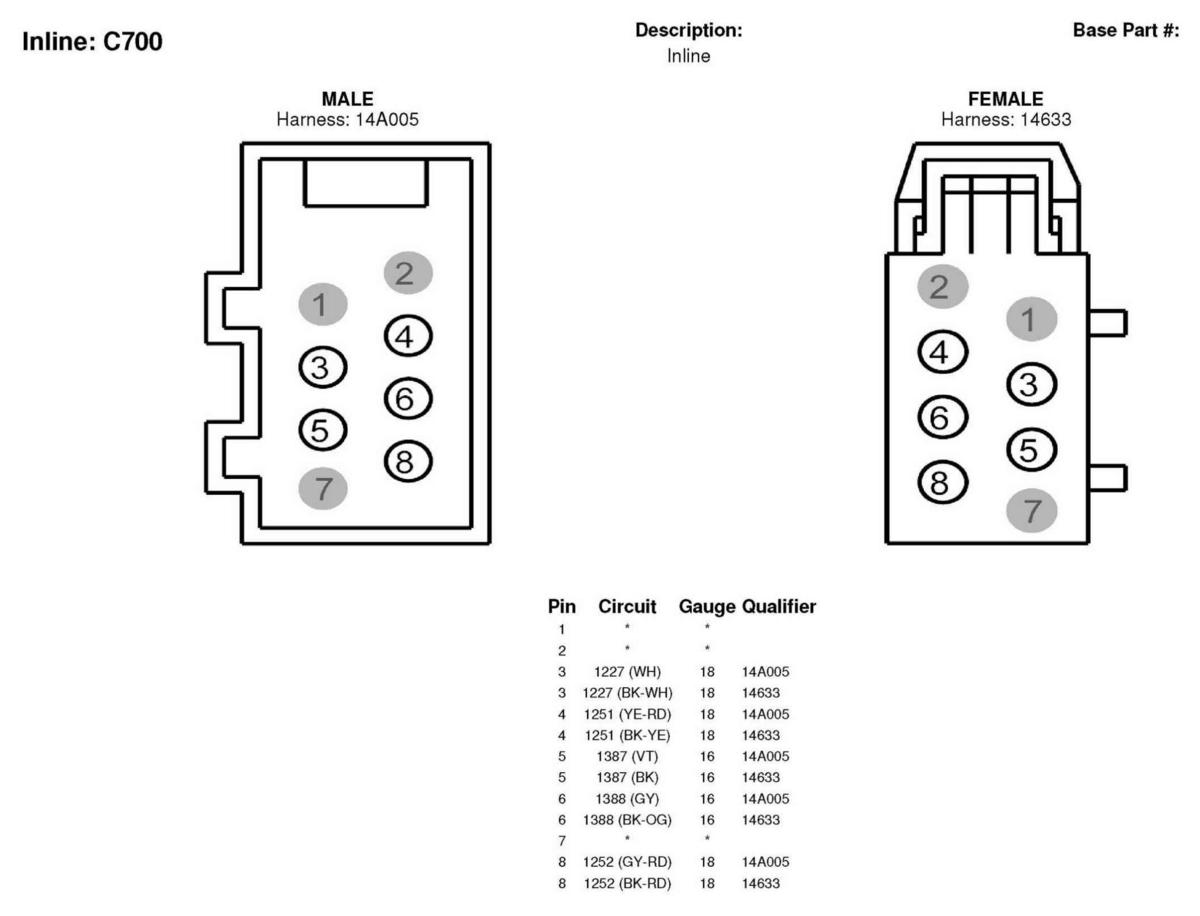

Fig 180: Inline Connector End View (C700)
G04597422Courtesy of FORD MOTOR CO.

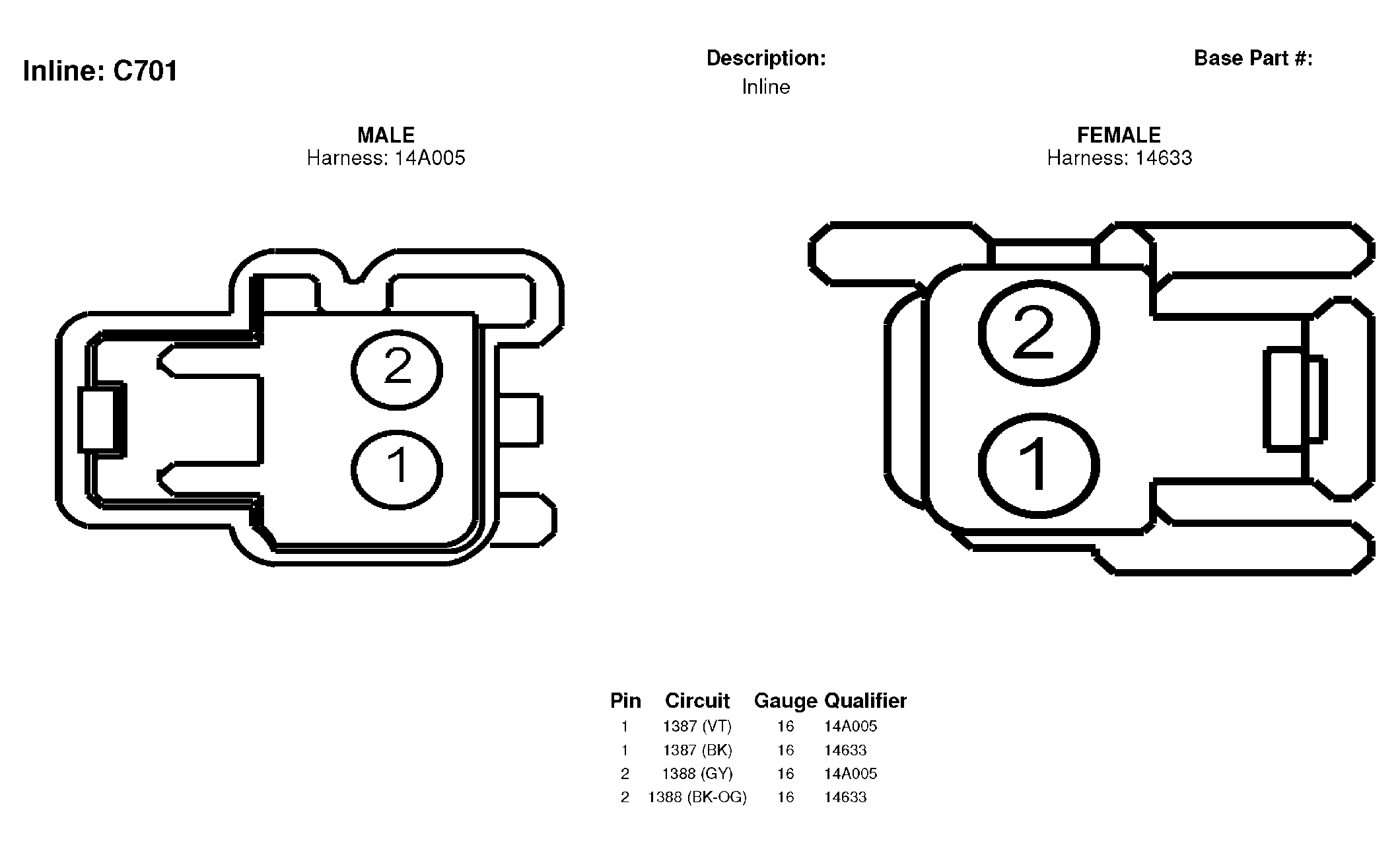

Fig 181: Inline Connector End View (C701)
G04597423Courtesy of FORD MOTOR CO.

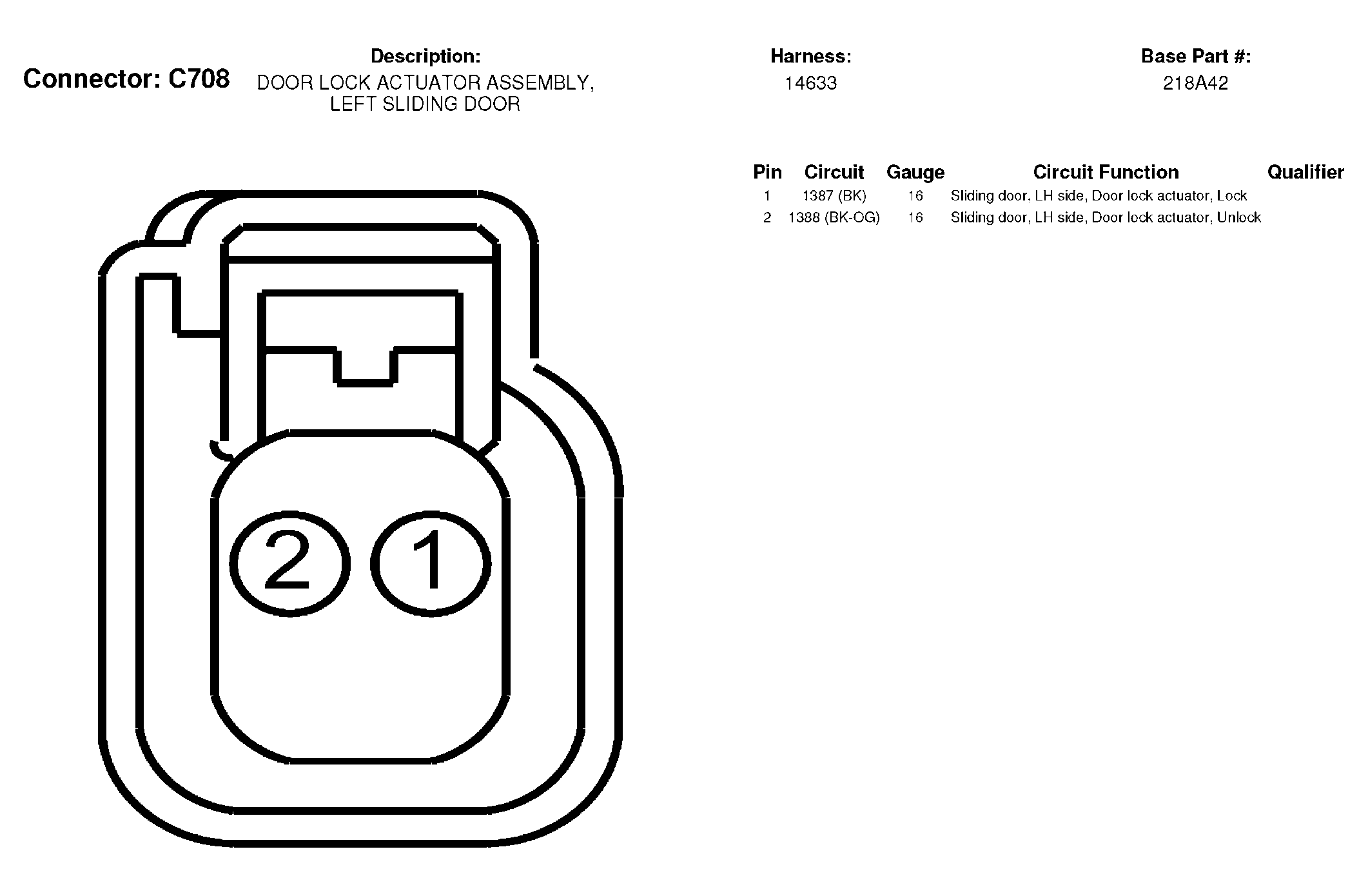

Fig 182: Door Lock Actuator Assembly, Left Sliding Door Connector End View (C708)
G04597424Courtesy of FORD MOTOR CO.
Fig 183: Latch Reverse Actuator, Left Power Sliding Door Connector End View (C709)
G04597425Courtesy of FORD MOTOR CO.
Fig 184: Detent Switch, LH Connector End View (C711)
G04597426Courtesy of FORD MOTOR CO.
Fig 185: Inline Connector End View (C801)
G04597427Courtesy of FORD MOTOR CO.
Fig 186: Door Lock Actuator Assembly, Right Sliding Door Connector End View (C808)
G04597428Courtesy of FORD MOTOR CO.

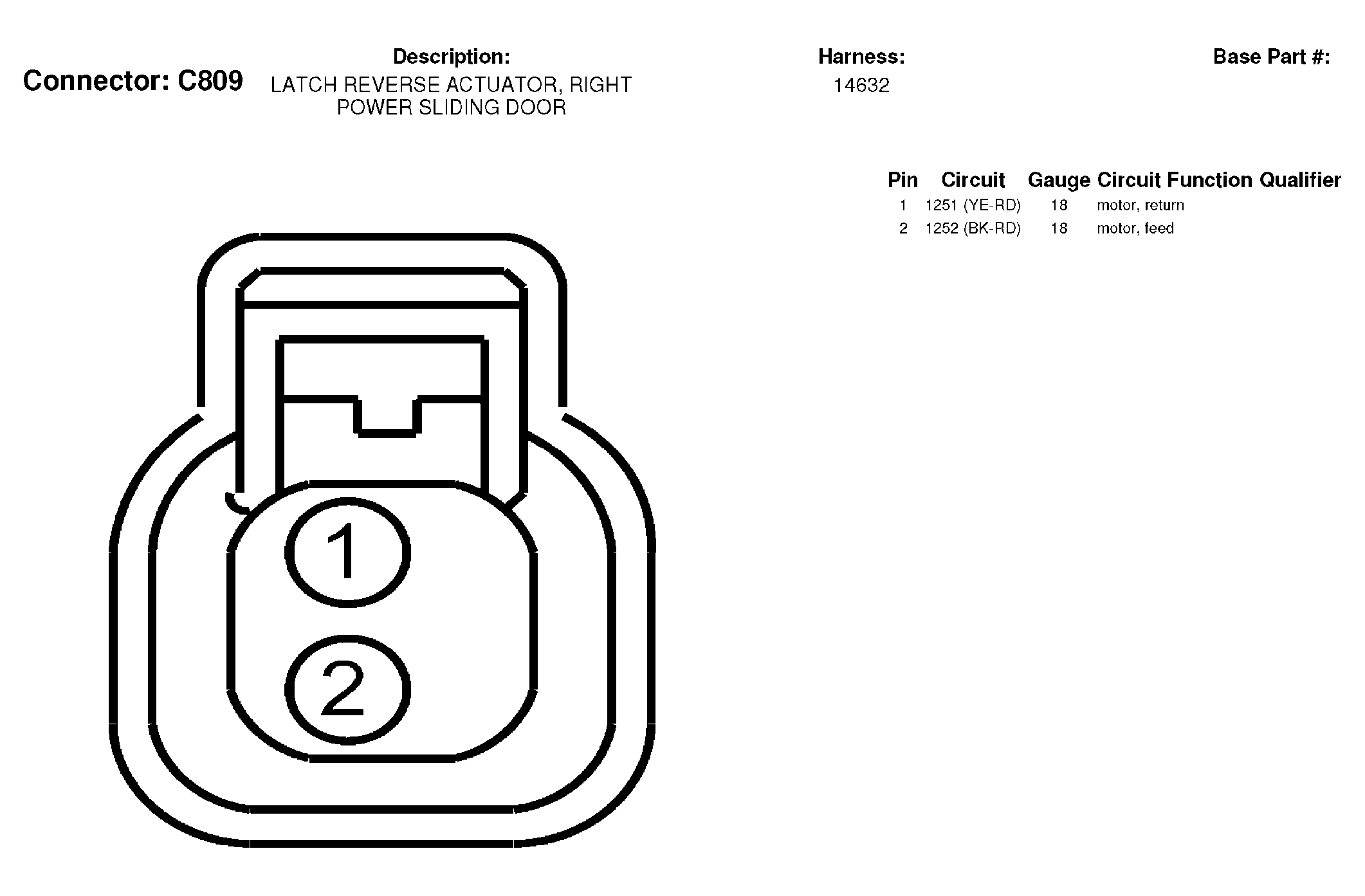

Fig 187: Latch Reverse Actuator, Right Power Sliding Door Connector End View (C809)
G04597429Courtesy of FORD MOTOR CO.

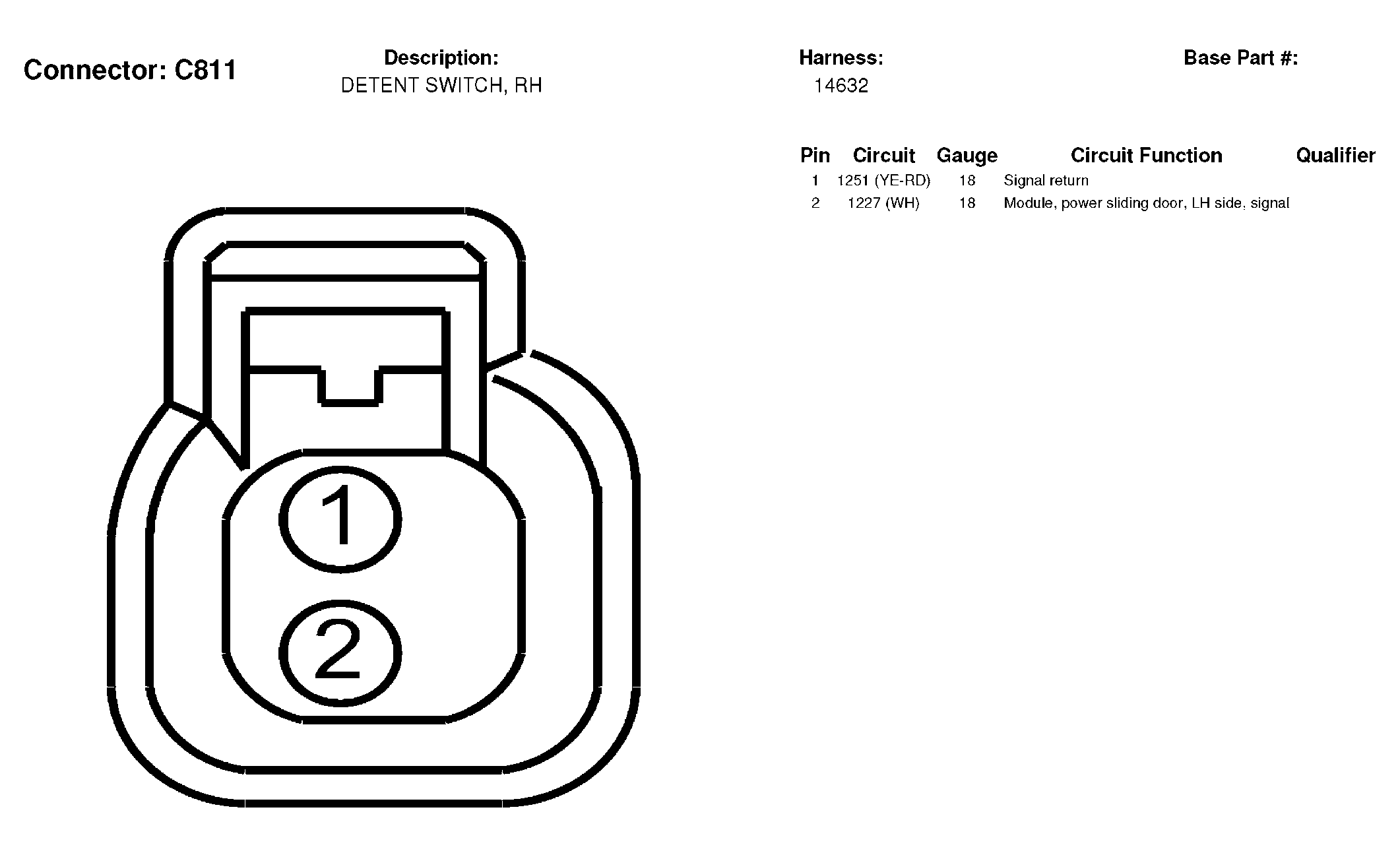

Fig 188: Detent Switch, RH Connector End View (C811)
G04597430Courtesy of FORD MOTOR CO.
Fig 189: Vanity Mirror Lamp, Right Connector End View (C906)
G04597431Courtesy of FORD MOTOR CO.

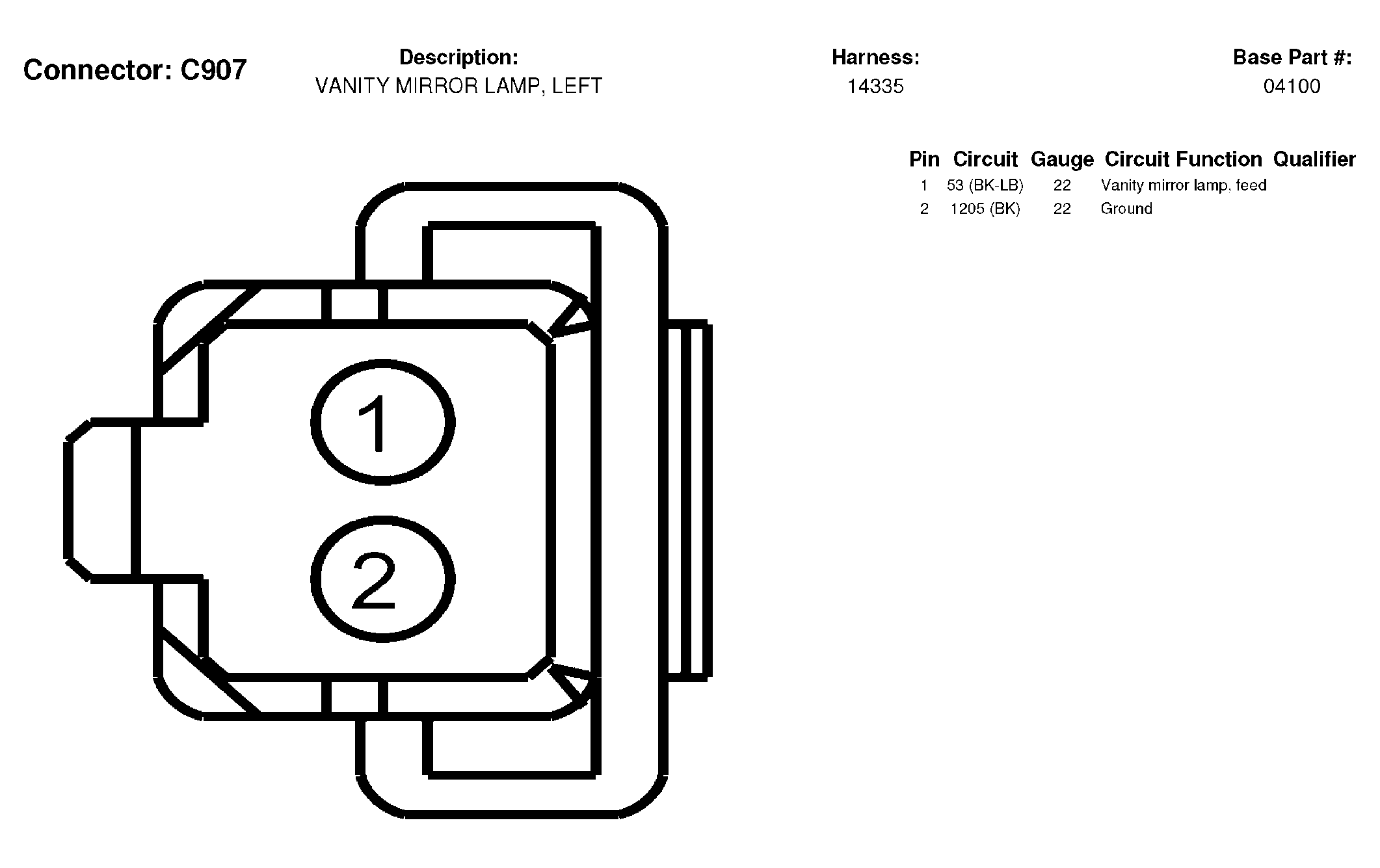

Fig 190: Vanity Mirror Lamp, Left Connector End View (C907)
G04597432Courtesy of FORD MOTOR CO.

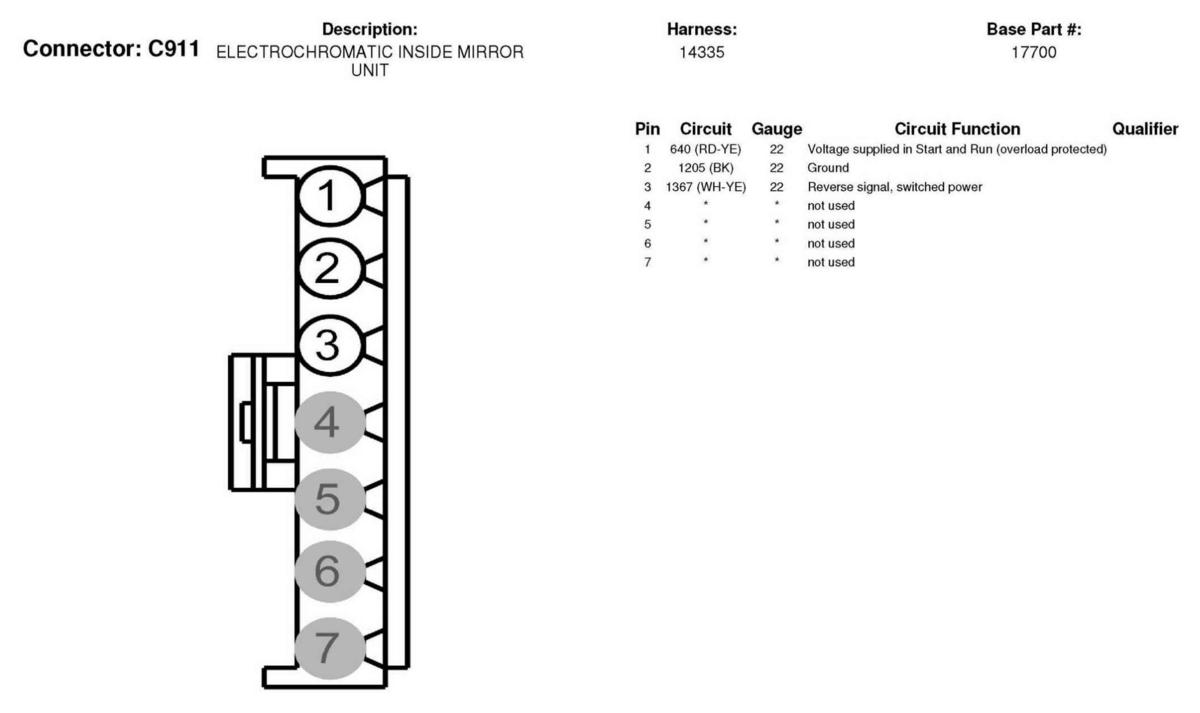

Fig 191: Electrochromatic Inside Mirror Unit Connector End View (C911)
G04597433Courtesy of FORD MOTOR CO.

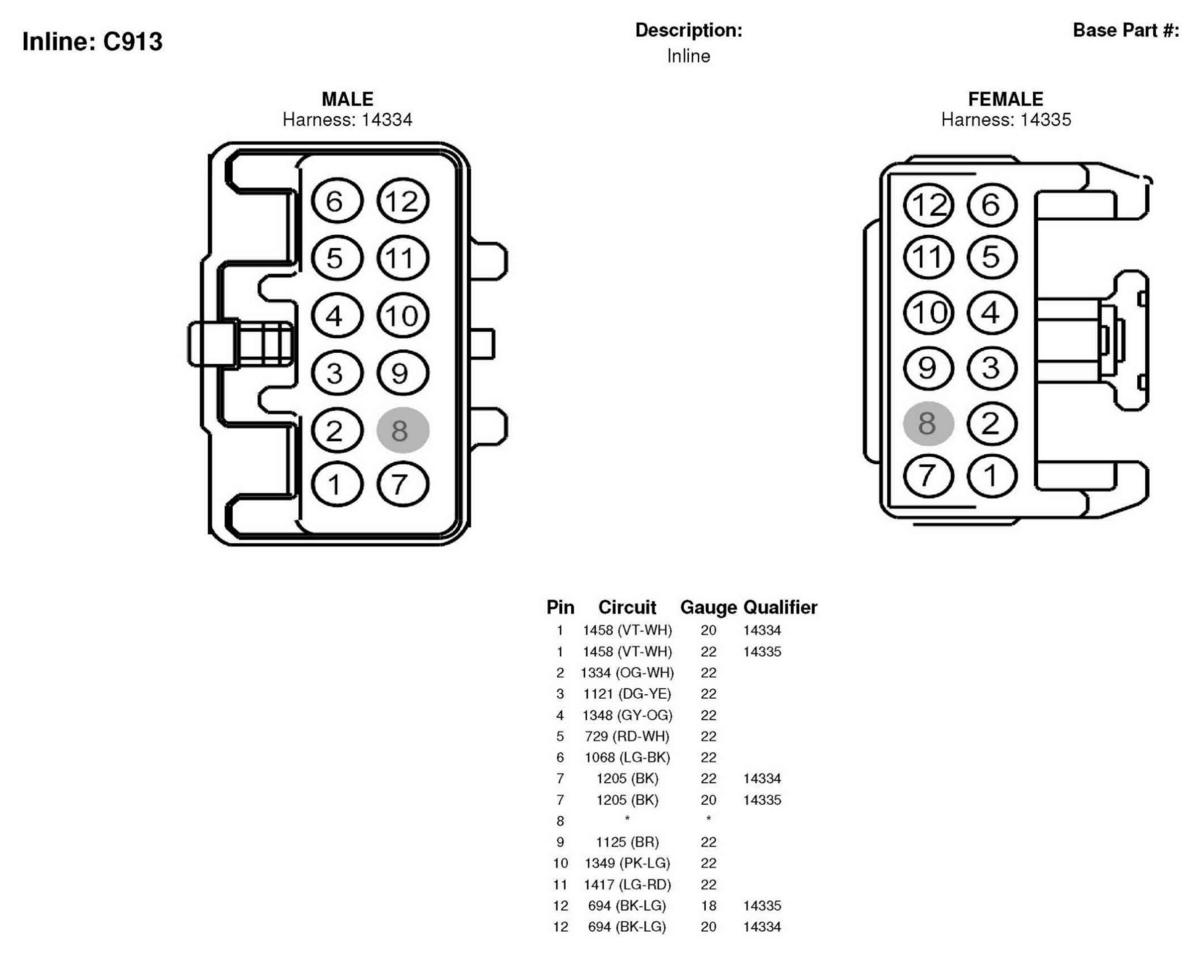

Fig 192: Inline Connector End View (C913)
G04597434Courtesy of FORD MOTOR CO.

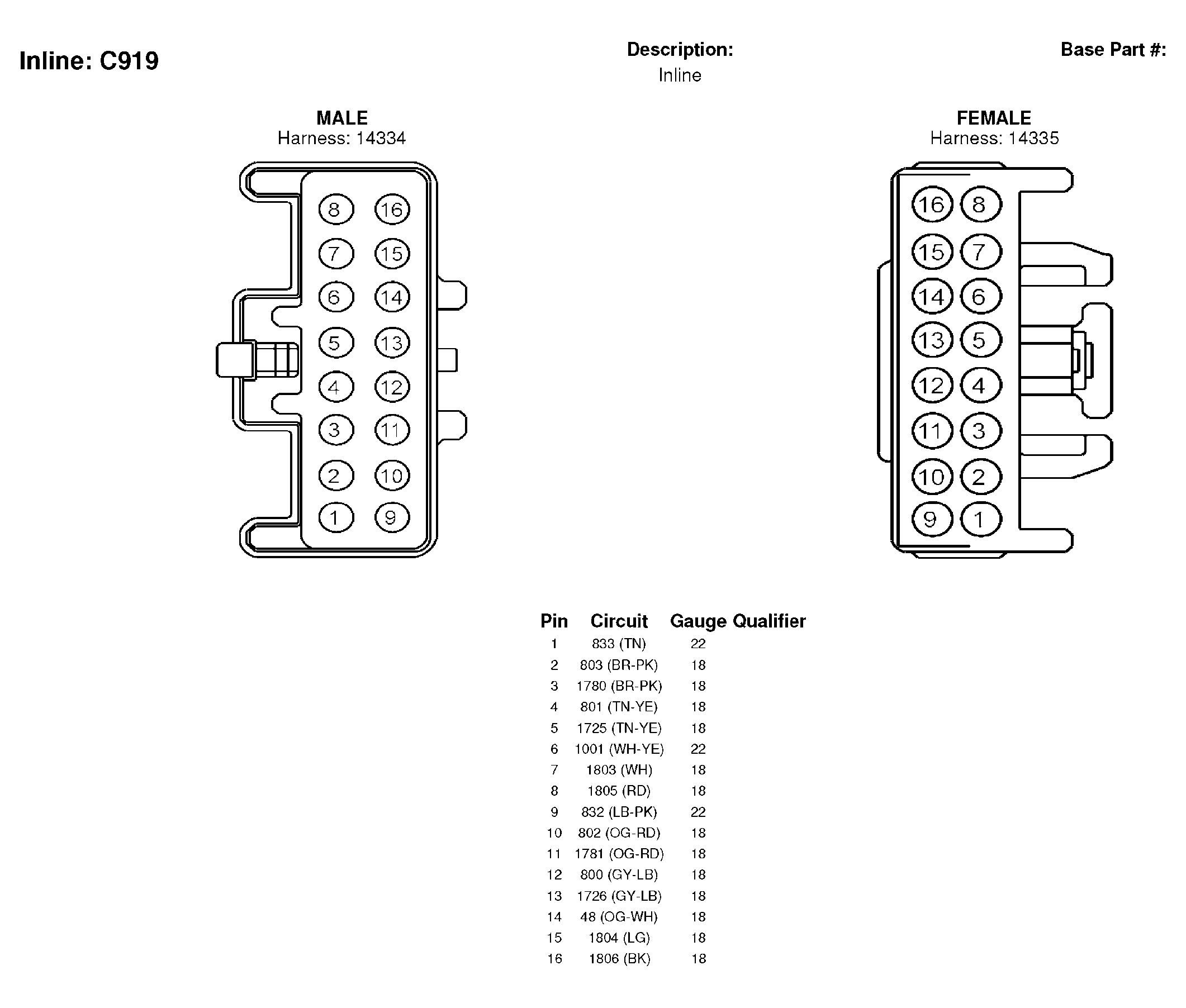

Fig 193: Inline Connector End View (C919)
G04597435Courtesy of FORD MOTOR CO.

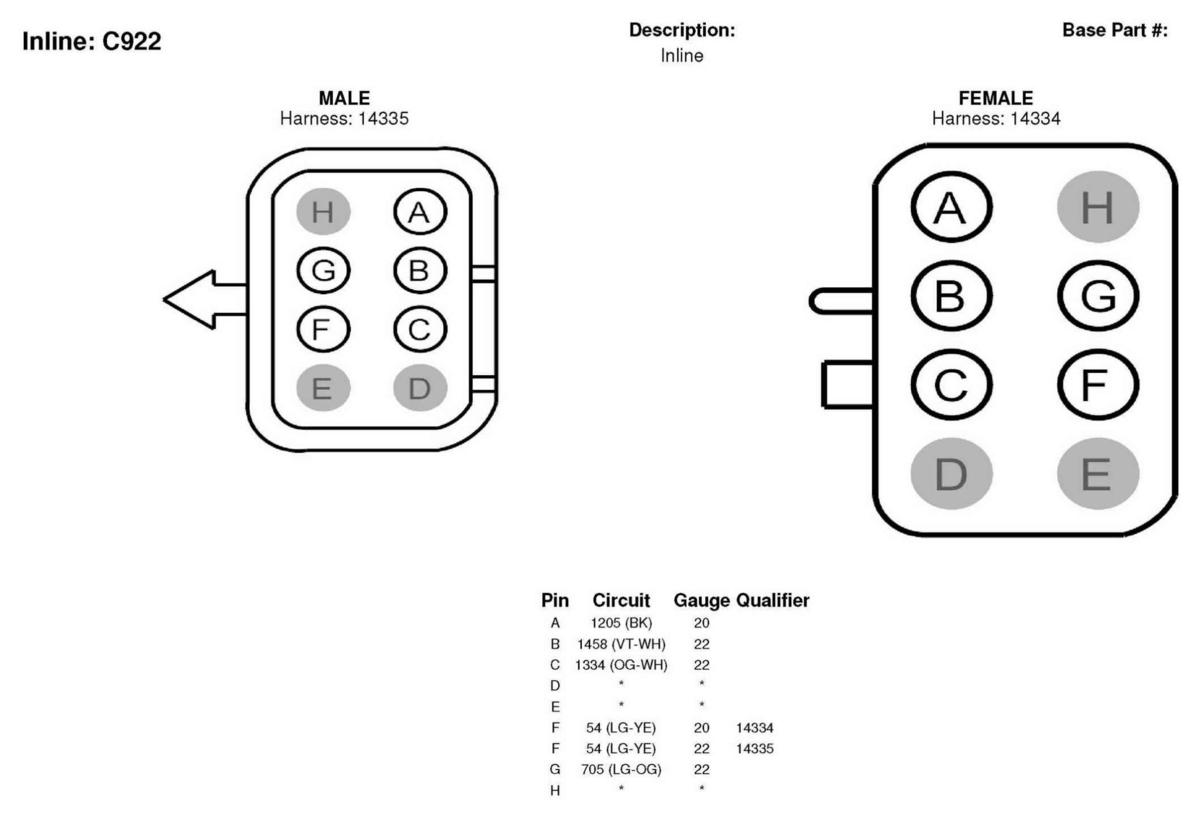

Fig 194: Inline Connector End View (C922)
G04597436Courtesy of FORD MOTOR CO.

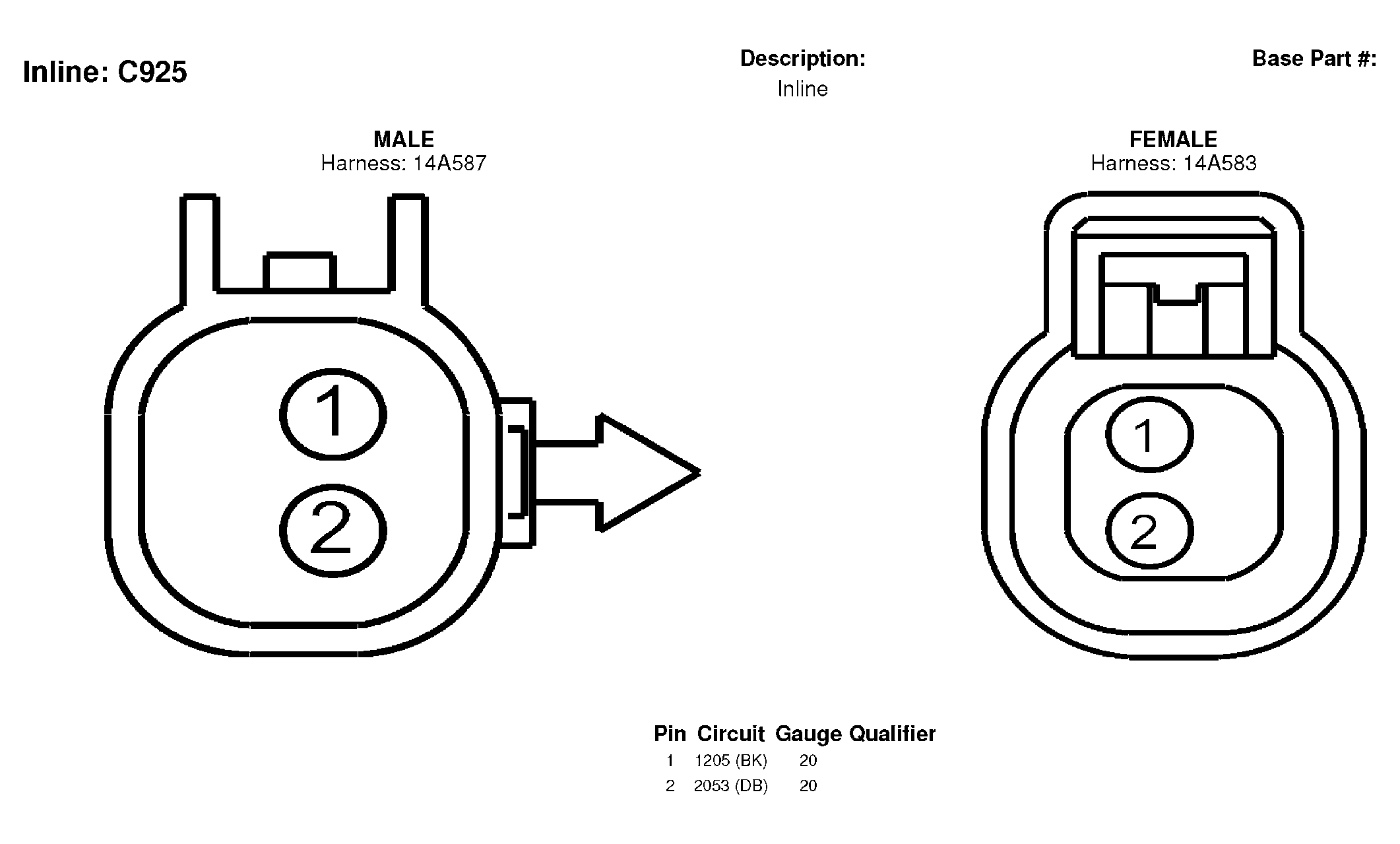

Fig 195: Inline Connector End View (C925)
G04597437Courtesy of FORD MOTOR CO.

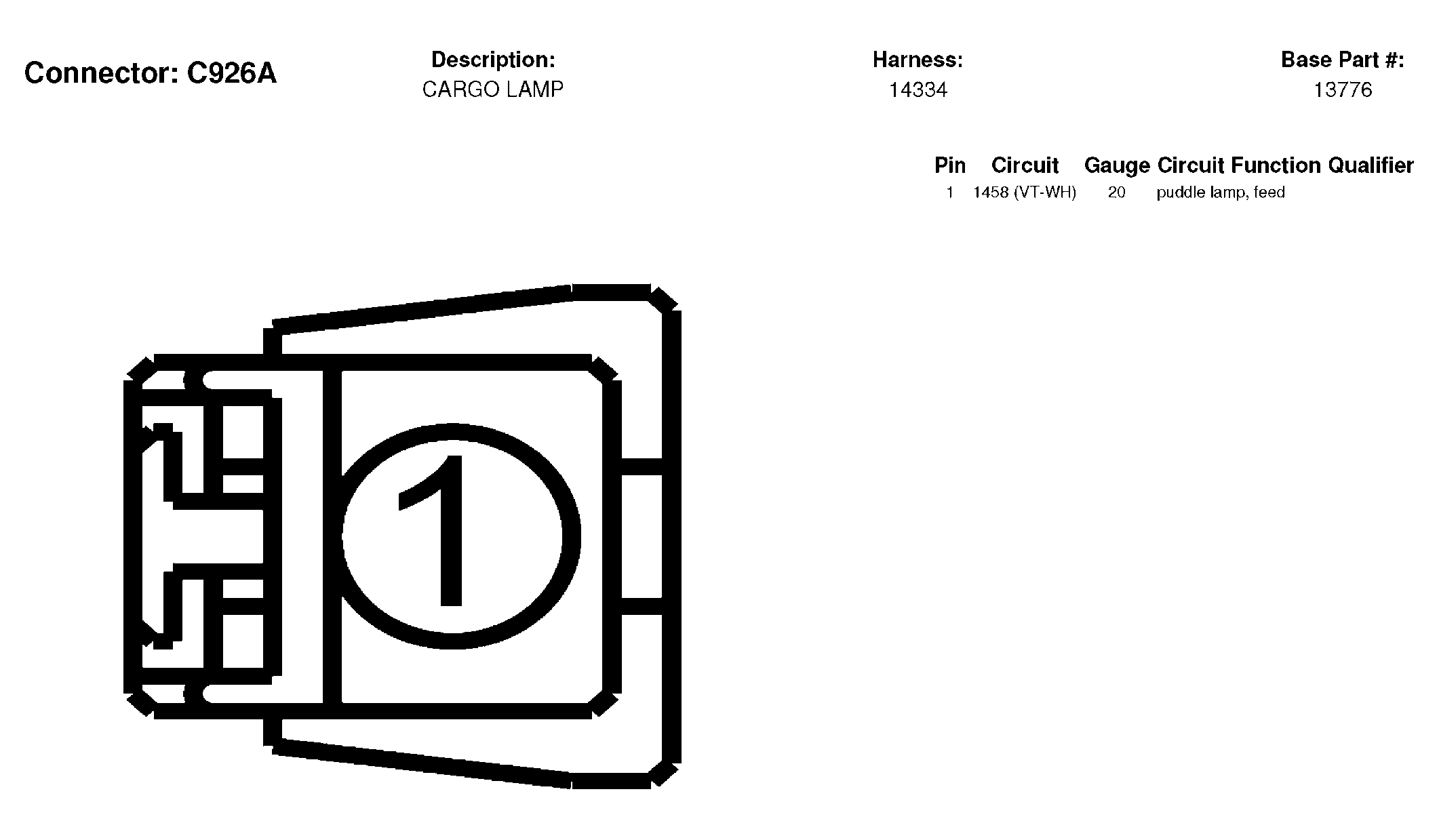

Fig 196: Cargo Lamp Connector End View (C926A)
G04597438Courtesy of FORD MOTOR CO.

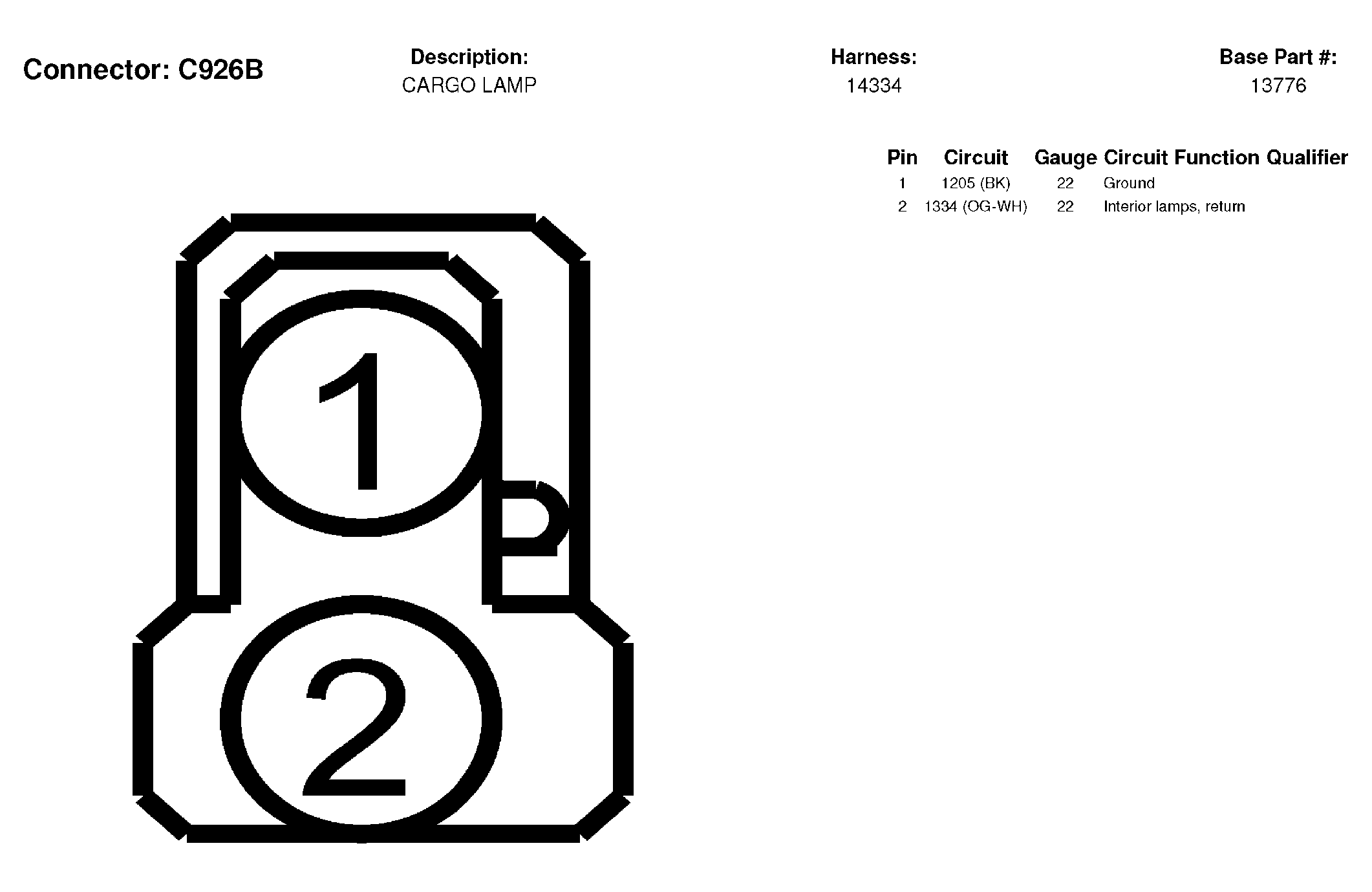

Fig 197: Cargo Lamp Connector End View (C926B)
G04597439Courtesy of FORD MOTOR CO.

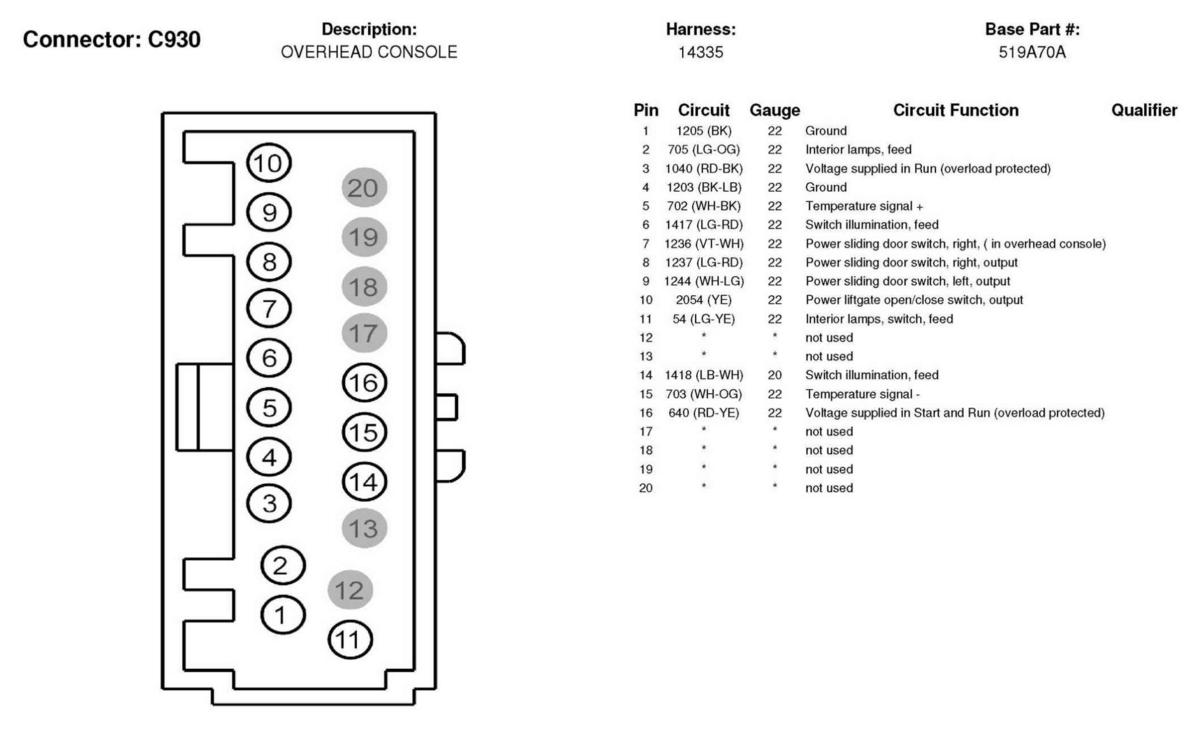

Fig 198: Overhead Console Connector End View (C930)
G04597440Courtesy of FORD MOTOR CO.

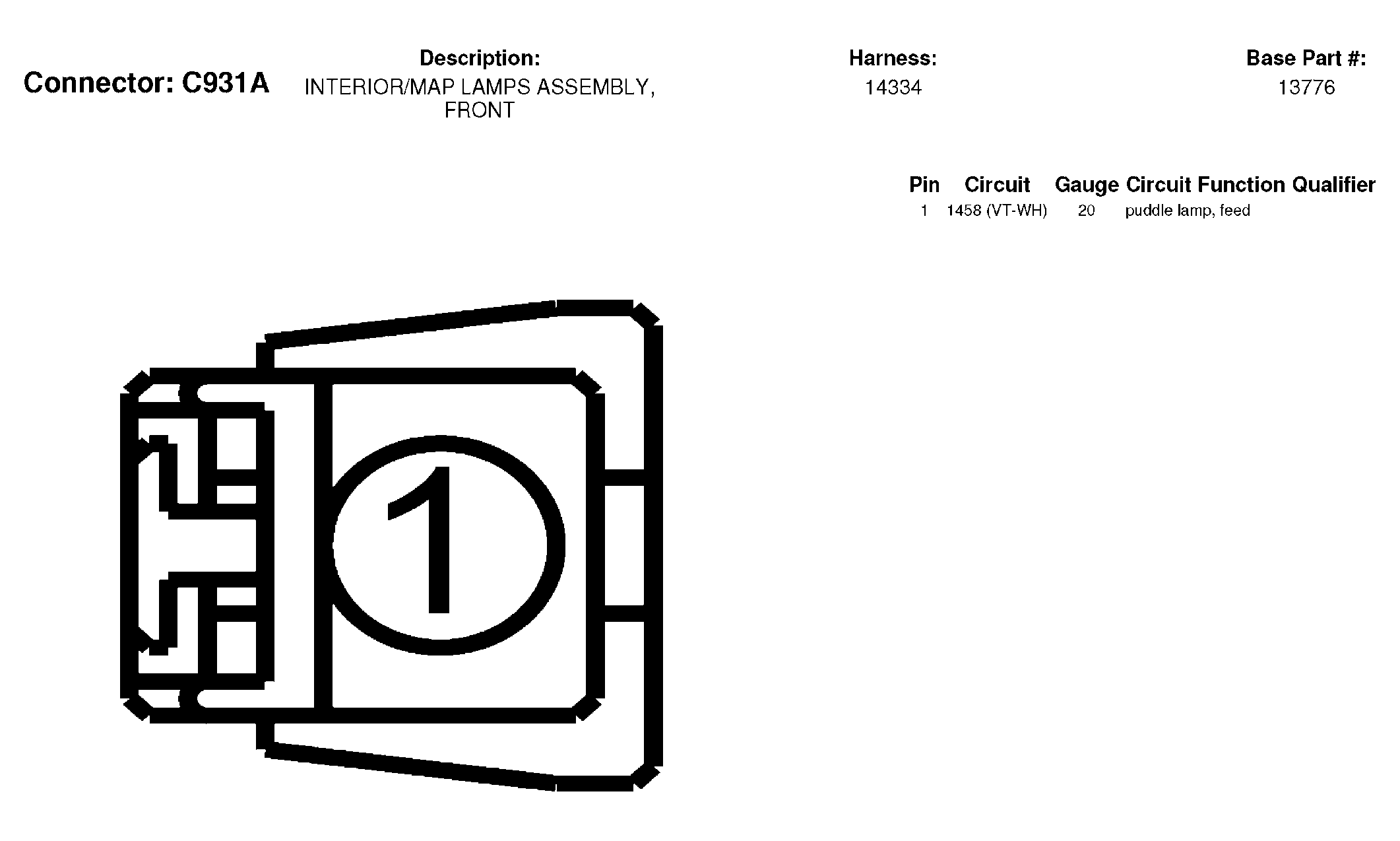

Fig 199: Interior/MAP Lamps Assembly, Front Connector End View (C931A)
G04597441Courtesy of FORD MOTOR CO.

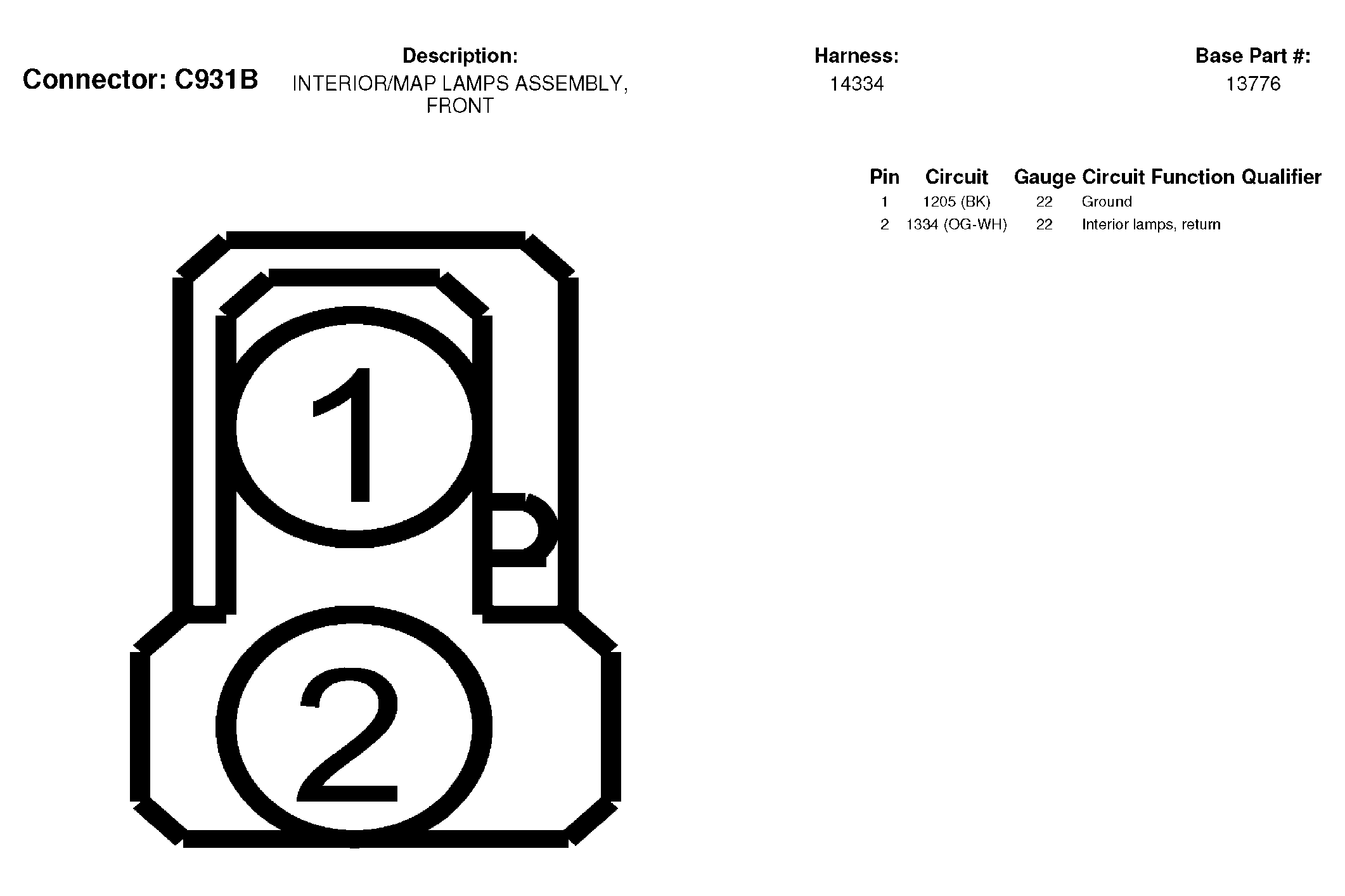

Fig 200: Interior/MAP Lamps Assembly, Front Connector End View (C931B)
G04597442Courtesy of FORD MOTOR CO.
Fig 201: Interior/MAP Lamps Assembly, Rear Connector End View (C932A)
G04597443Courtesy of FORD MOTOR CO.
Fig 202: Interior/MAP Lamps Assembly, Rear Connector End View (C932B)
G04597444Courtesy of FORD MOTOR CO.

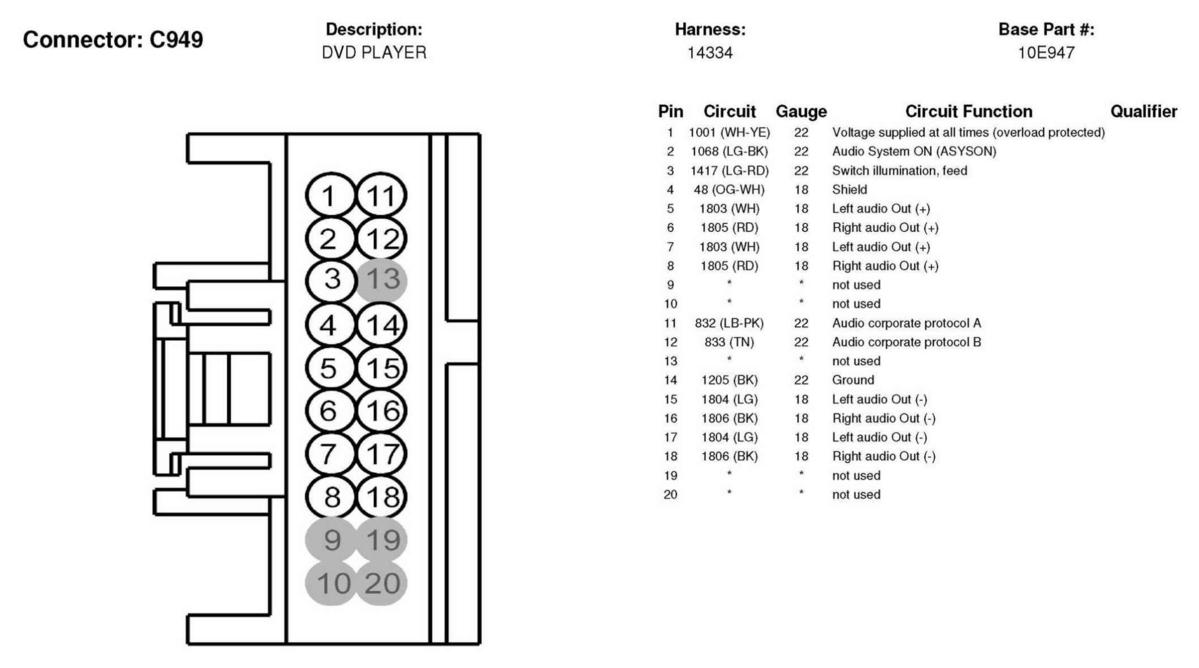

Fig 203: DVD Player Connector End View (C949)
G04597445Courtesy of FORD MOTOR CO.

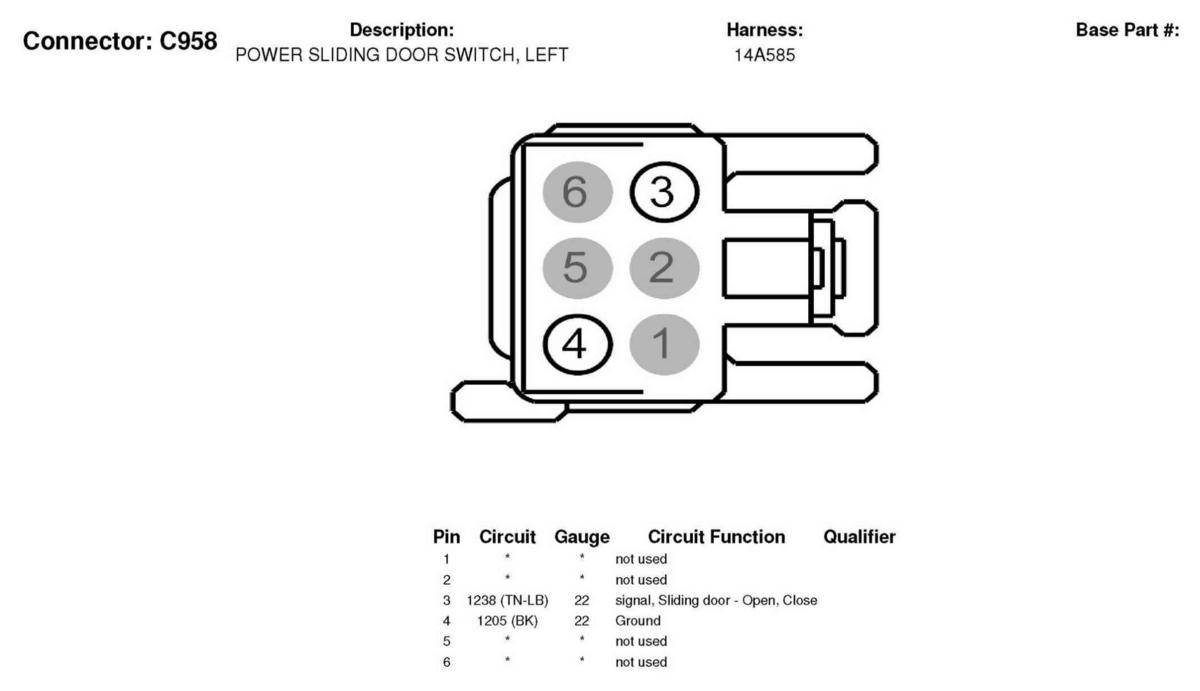

Fig 204: Power Sliding Door Switch, Left Connector End View (C958)
G04597446Courtesy of FORD MOTOR CO.

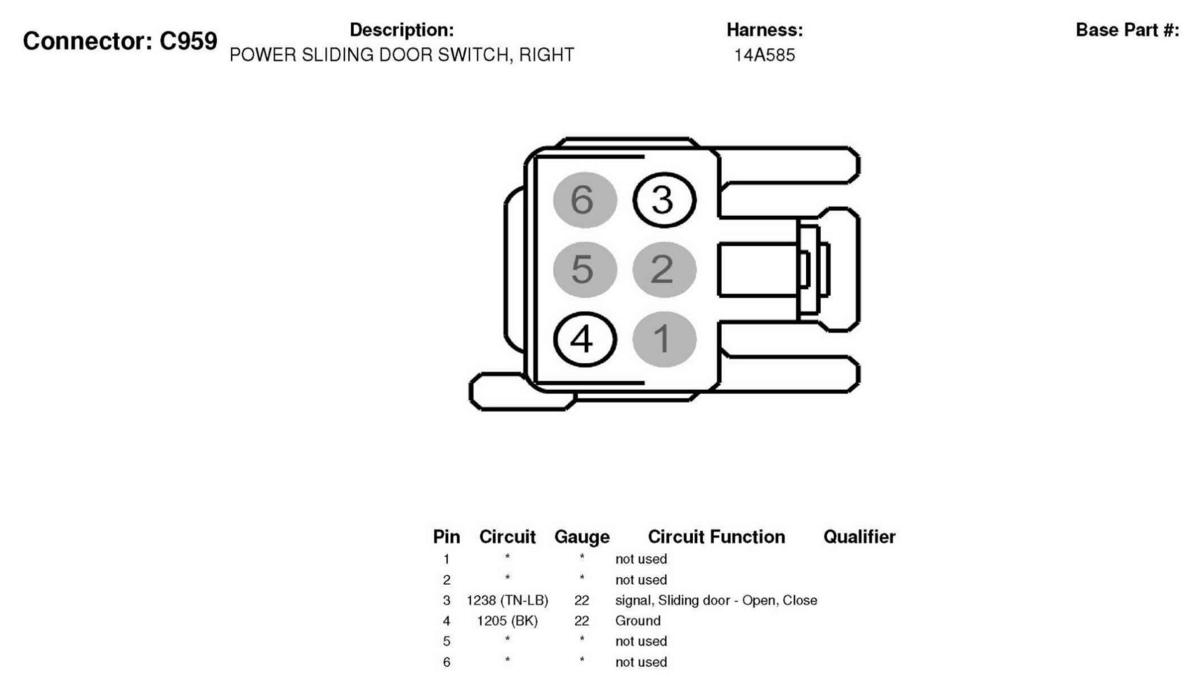

Fig 205: Power Sliding Door Switch, Right Connector End View (C959)
G04597447Courtesy of FORD MOTOR CO.

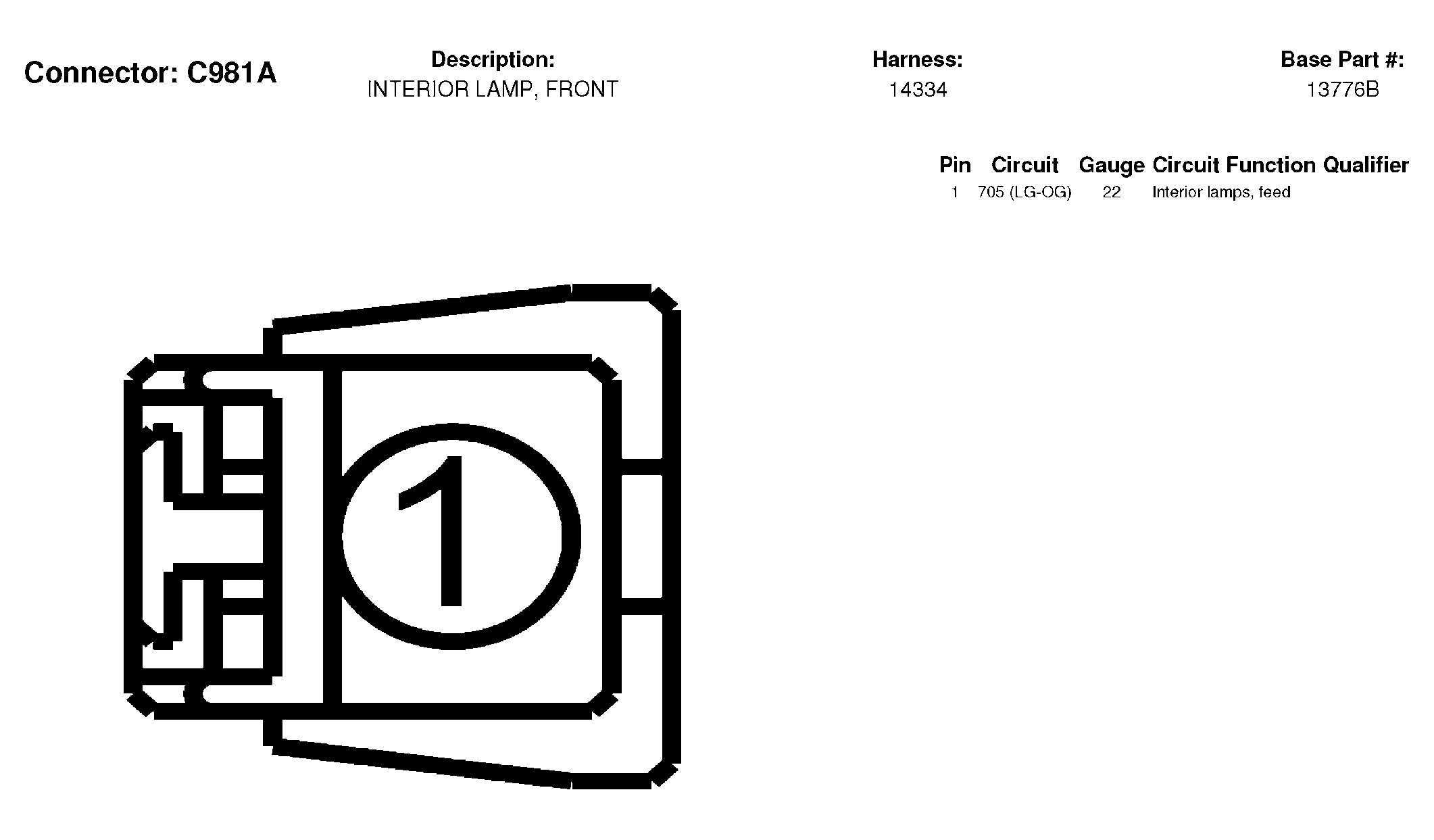

Fig 206: Interior Lamp, Front Connector End View (C981A)
G04597448Courtesy of FORD MOTOR CO.

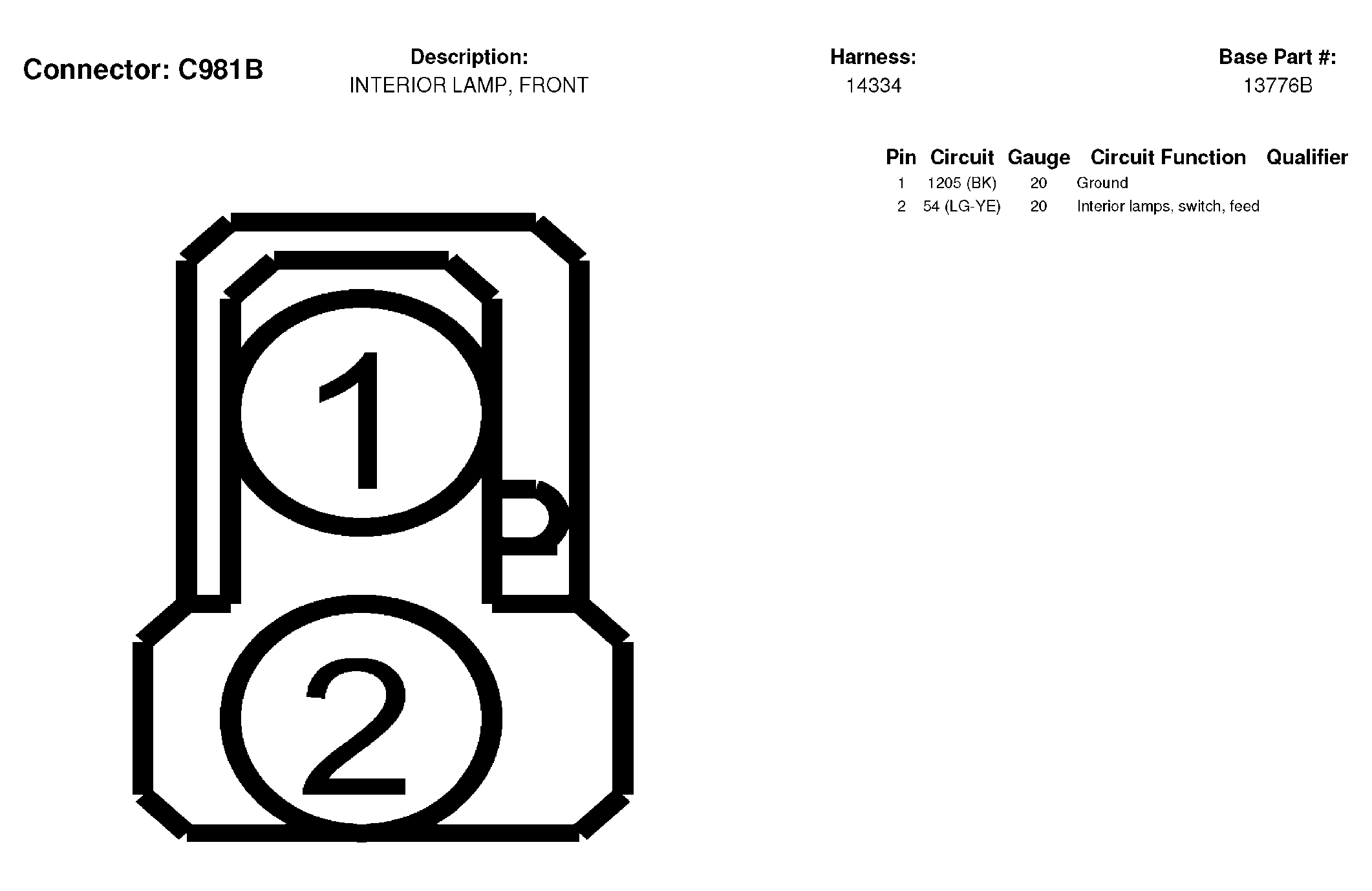

Fig 207: Interior Lamp, Front Connector End View (C981B)
G04597449Courtesy of FORD MOTOR CO.

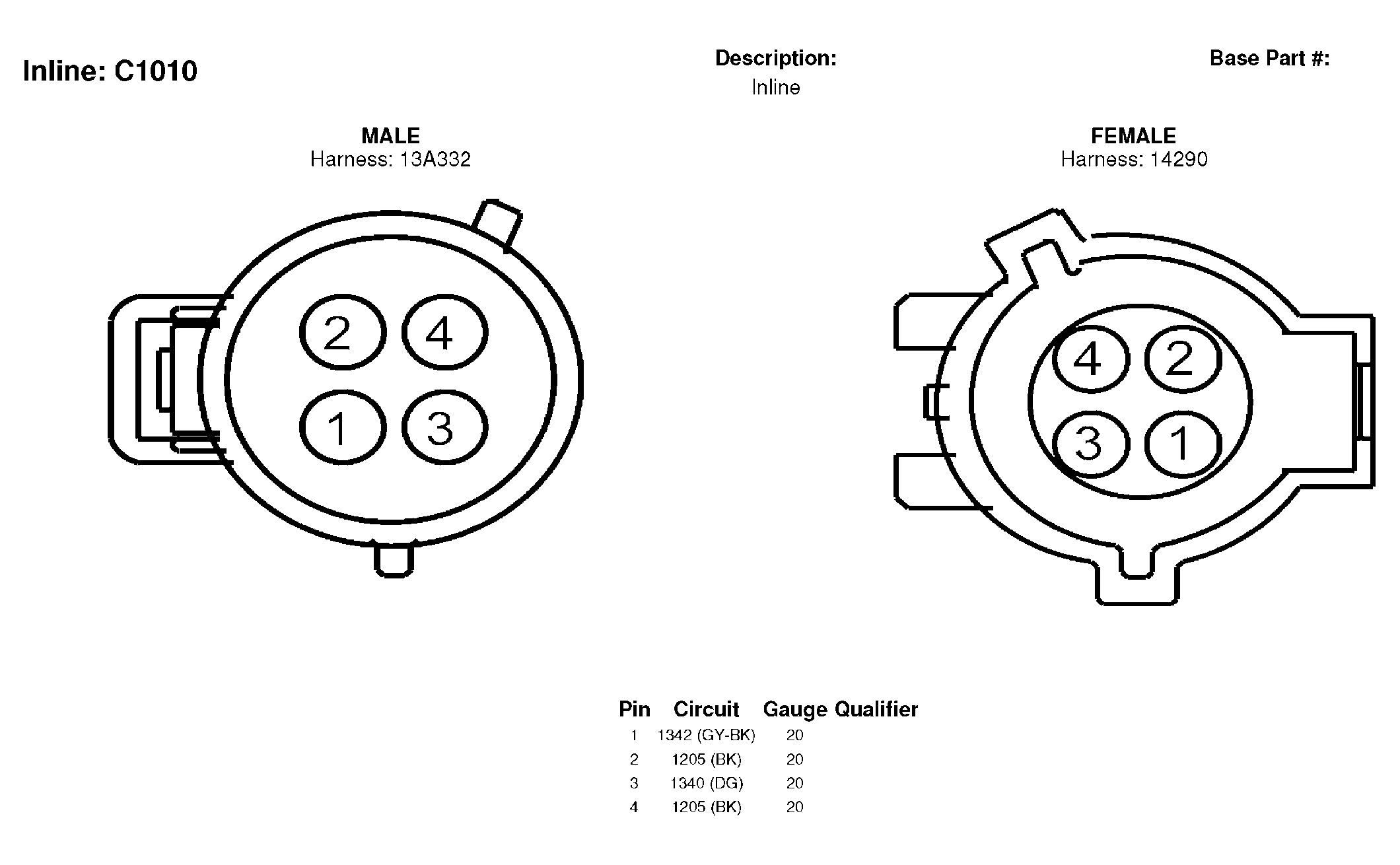

Fig 208: Inline Connector End View (C1010)
G04597450Courtesy of FORD MOTOR CO.

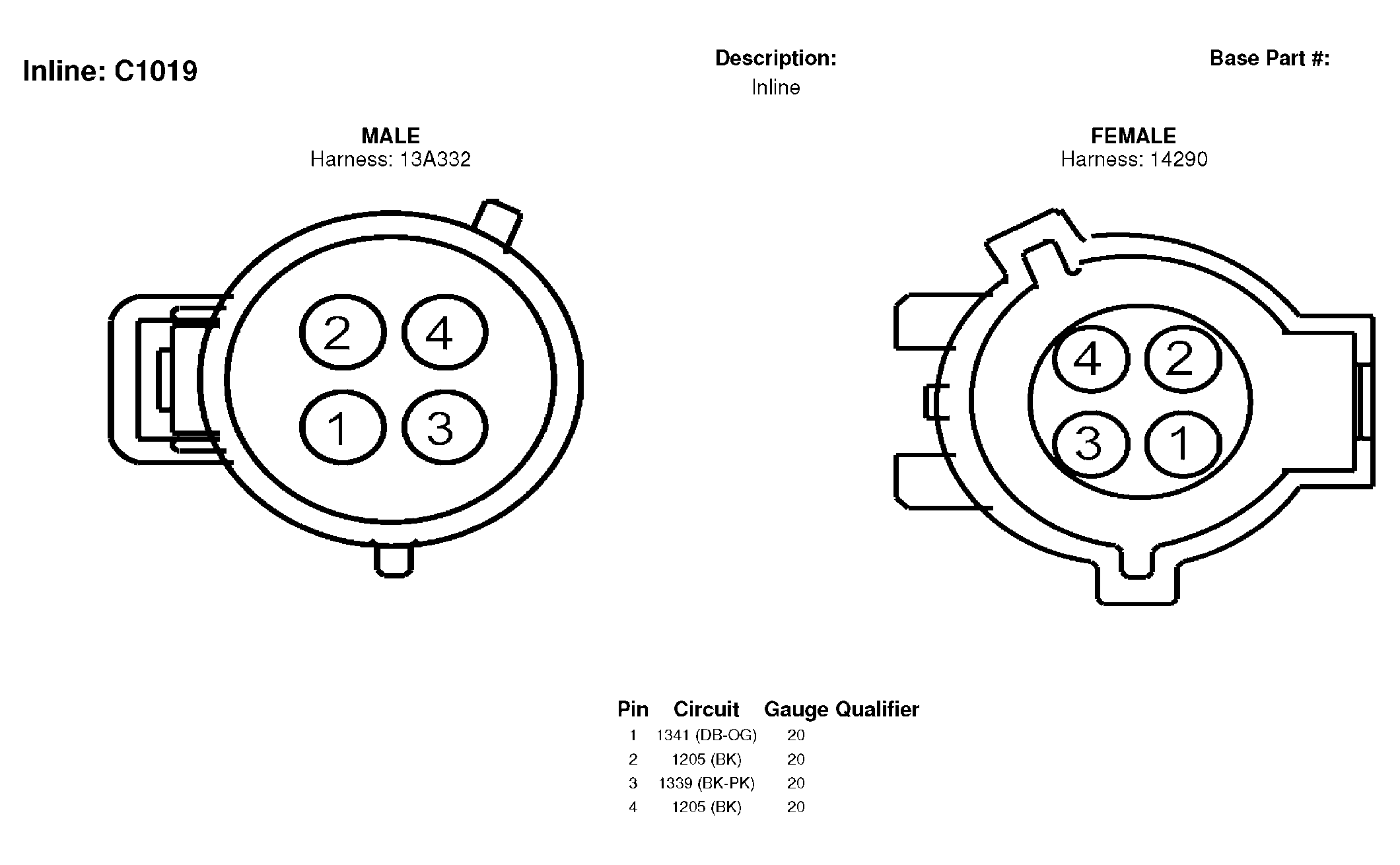

Fig 209: Inline Connector End View (C1019)
G04597451Courtesy of FORD MOTOR CO.

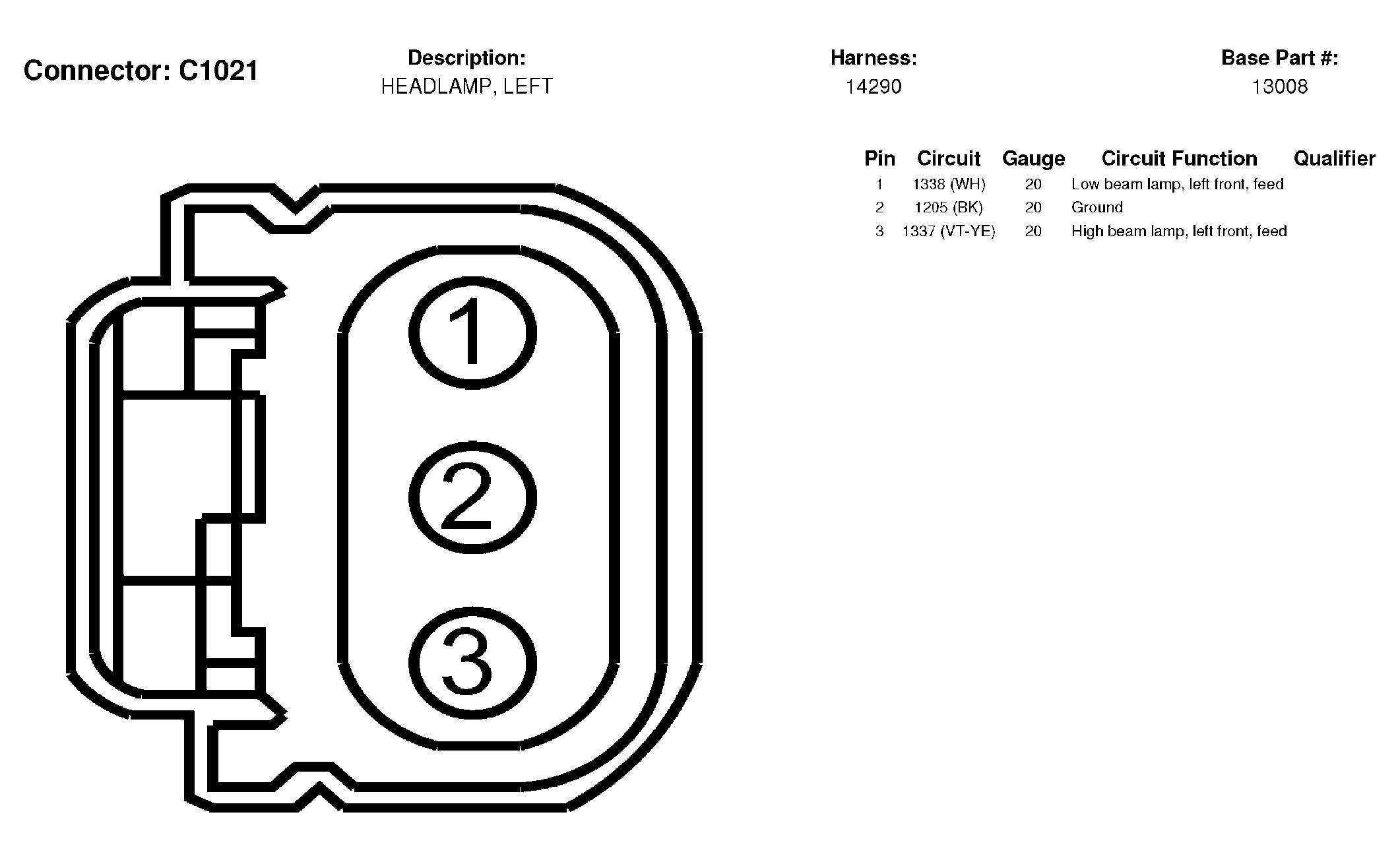

Fig 210: Headlamp, Left Connector End View (C1021)
G04597452Courtesy of FORD MOTOR CO.

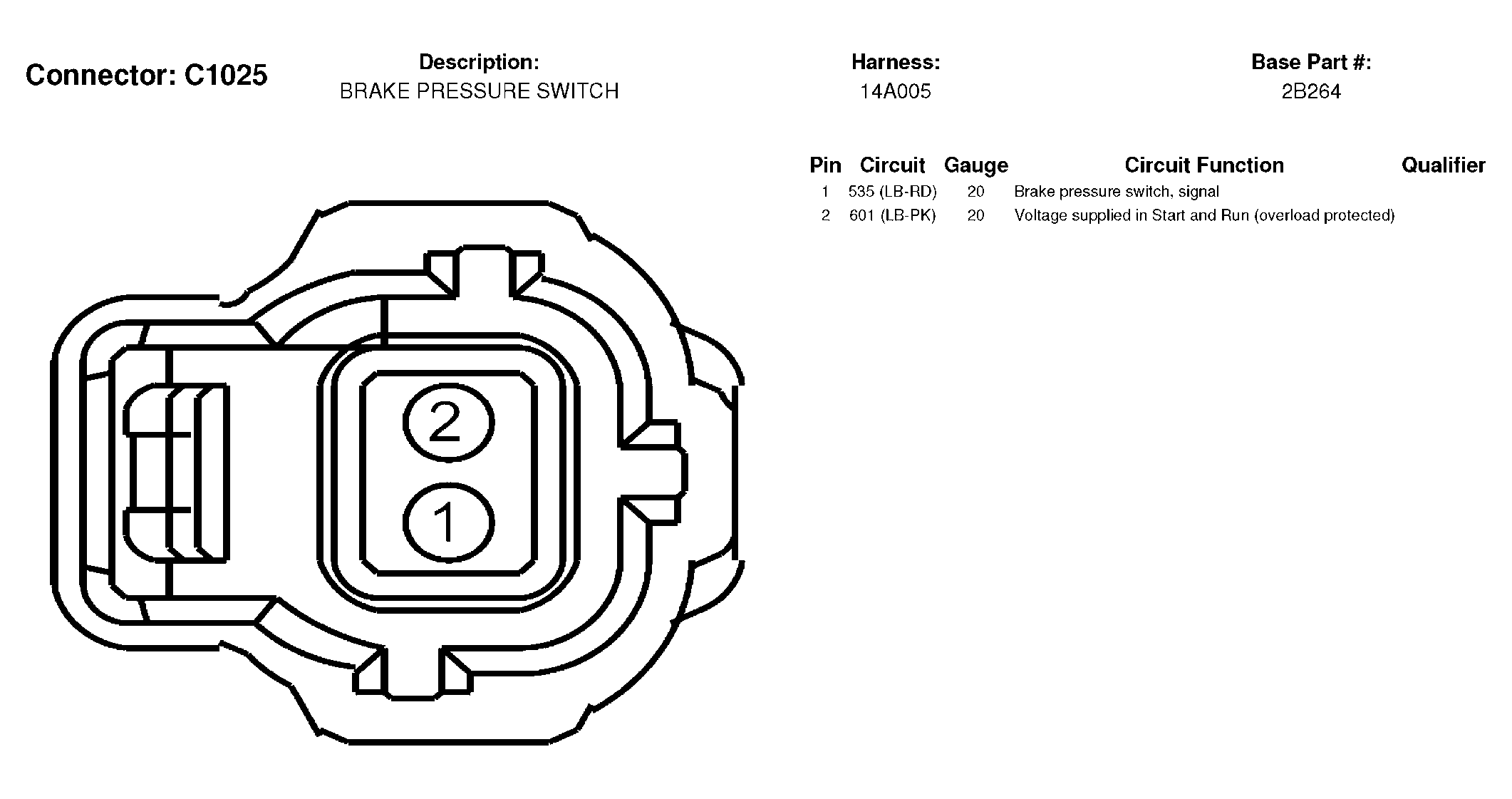

Fig 211: Brake Pressure Switch Connector End View (C1025)
G04597453Courtesy of FORD MOTOR CO.

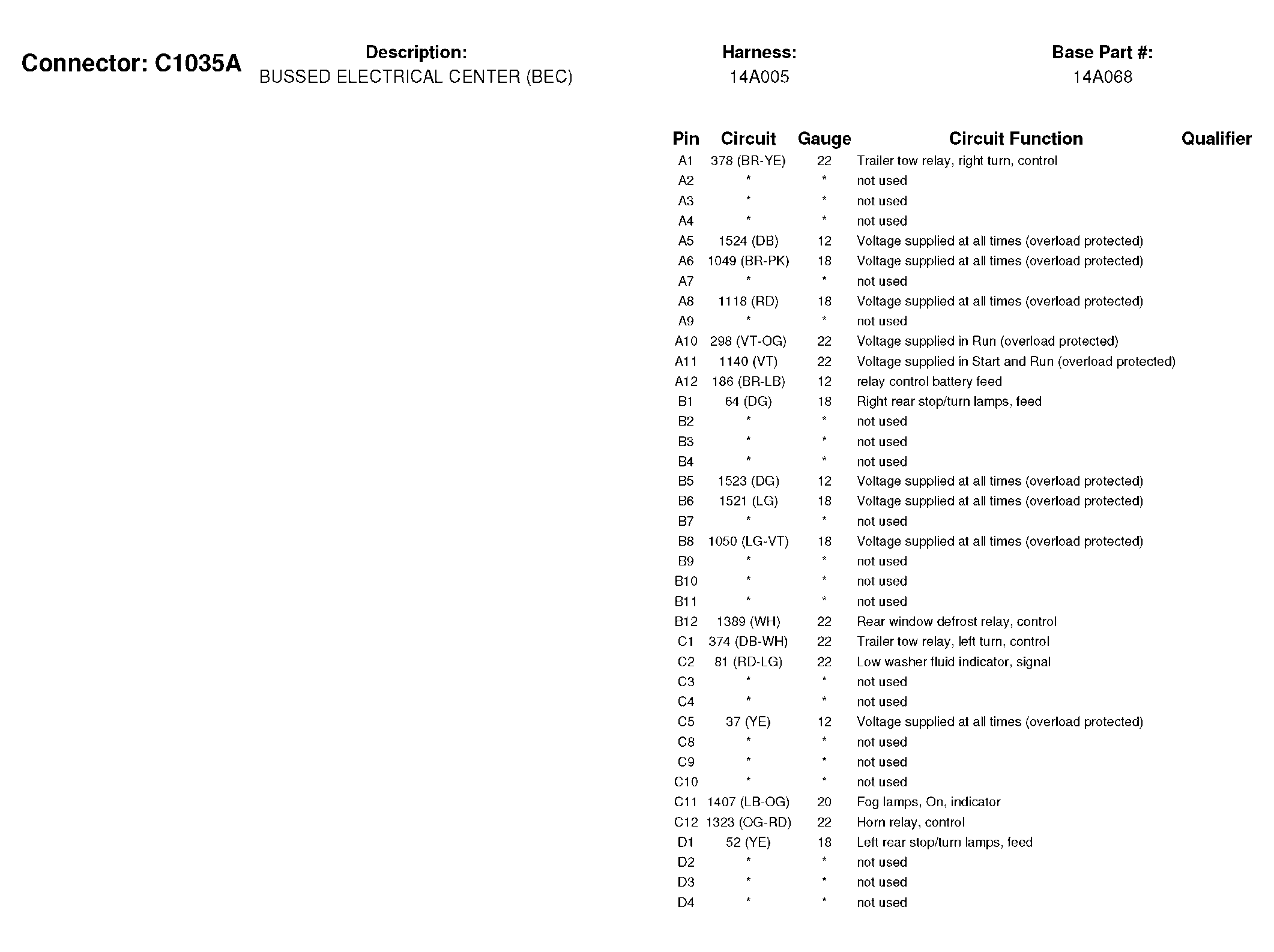

Fig 212: Bussed Electrical Center (BEC) Connector End View (C1035A) (1 Of 2)
G04597454Courtesy of FORD MOTOR CO.

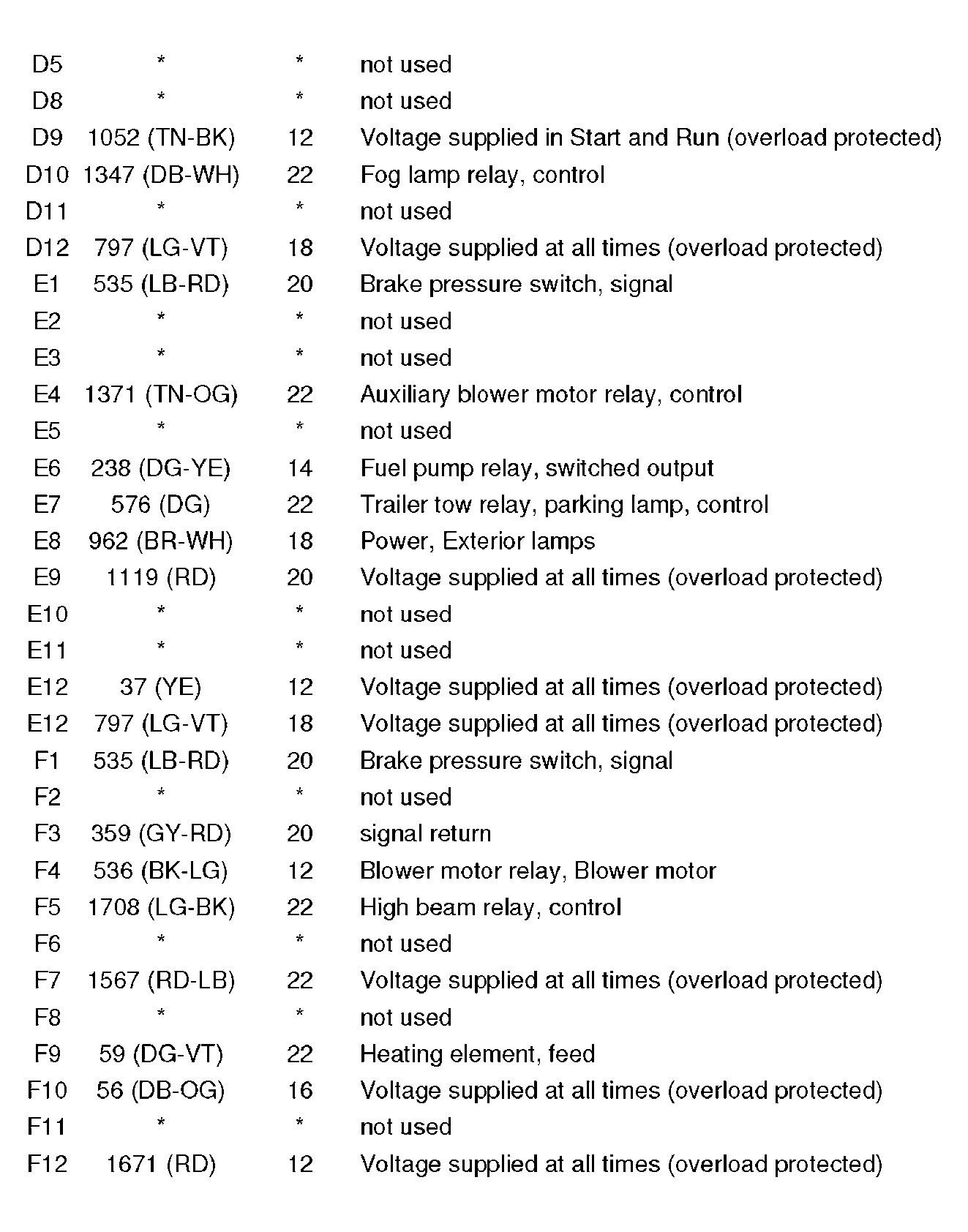

Fig 213: Bussed Electrical Center (BEC) Connector End View (C1035A) (2 Of 2)
G04597455Courtesy of FORD MOTOR CO.

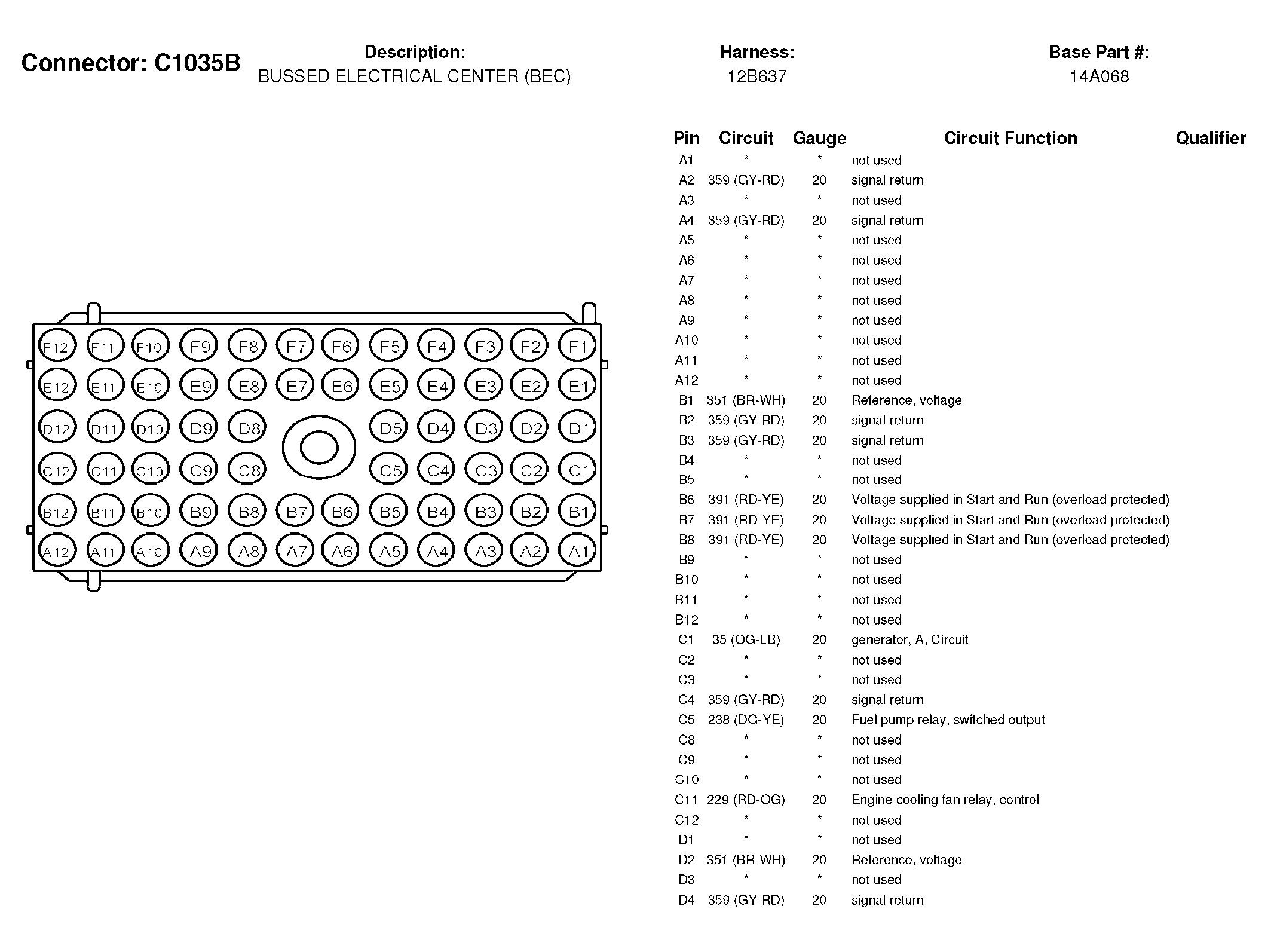

Fig 214: Bussed Electrical Center (BEC) Connector End View (C1035B) (1 Of 2)
G04597456Courtesy of FORD MOTOR CO.

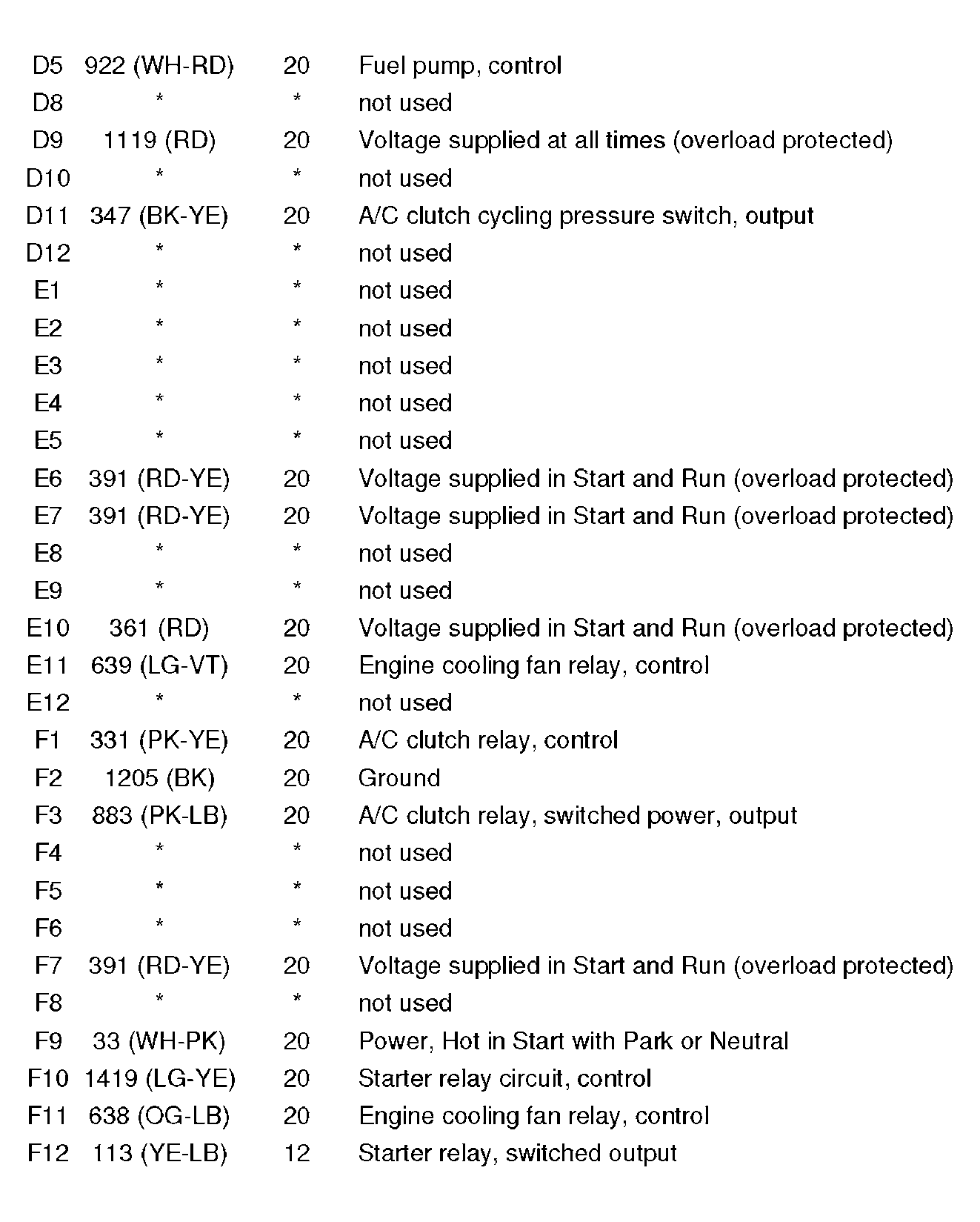

Fig 215: Bussed Electrical Center (BEC) Connector End View (C1035B) (2 Of 2)
G04597457Courtesy of FORD MOTOR CO.

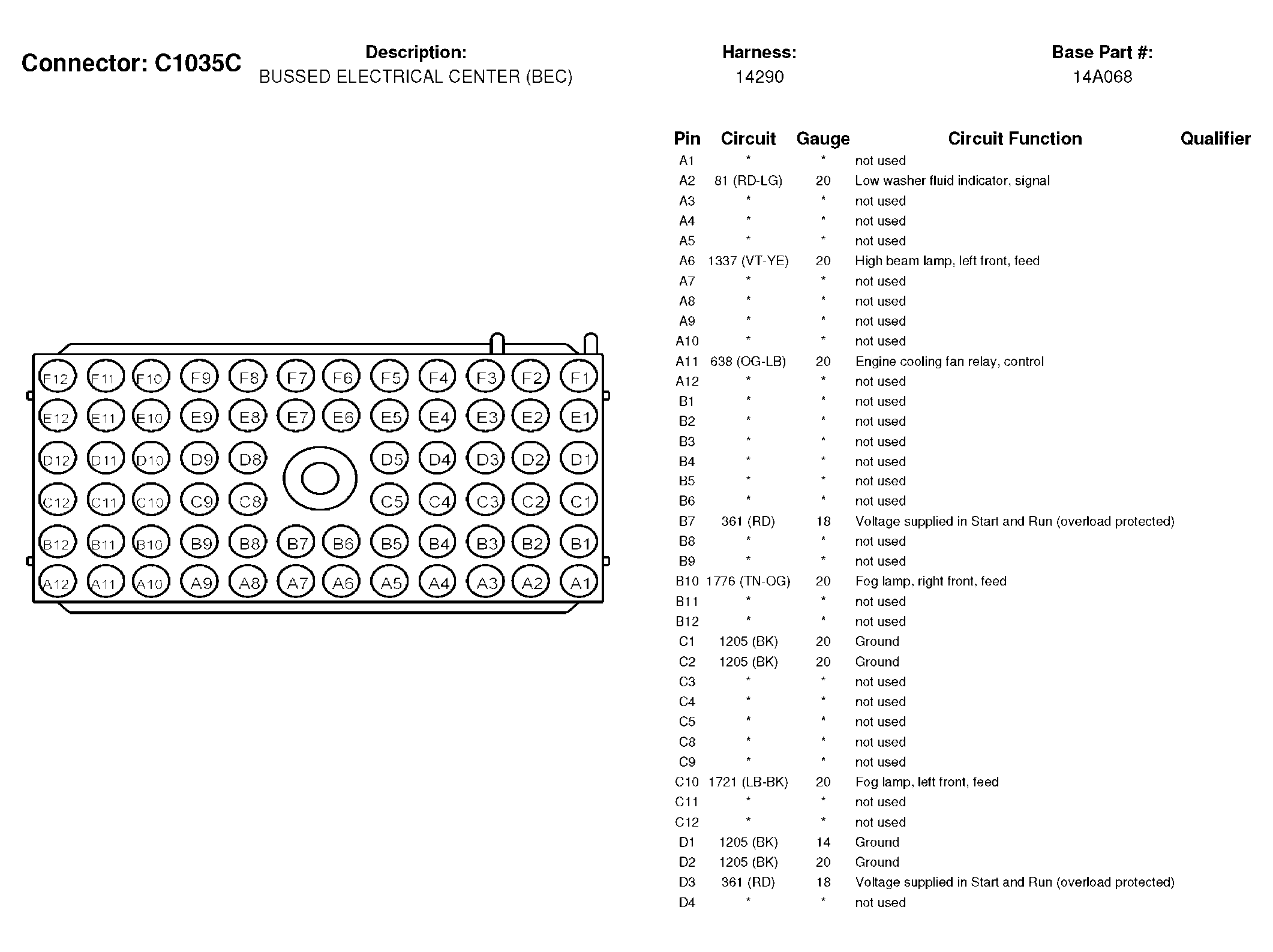

Fig 216: Bussed Electrical Center (BEC) Connector End View (C1035C) (1 Of 2)
G04597458Courtesy of FORD MOTOR CO.

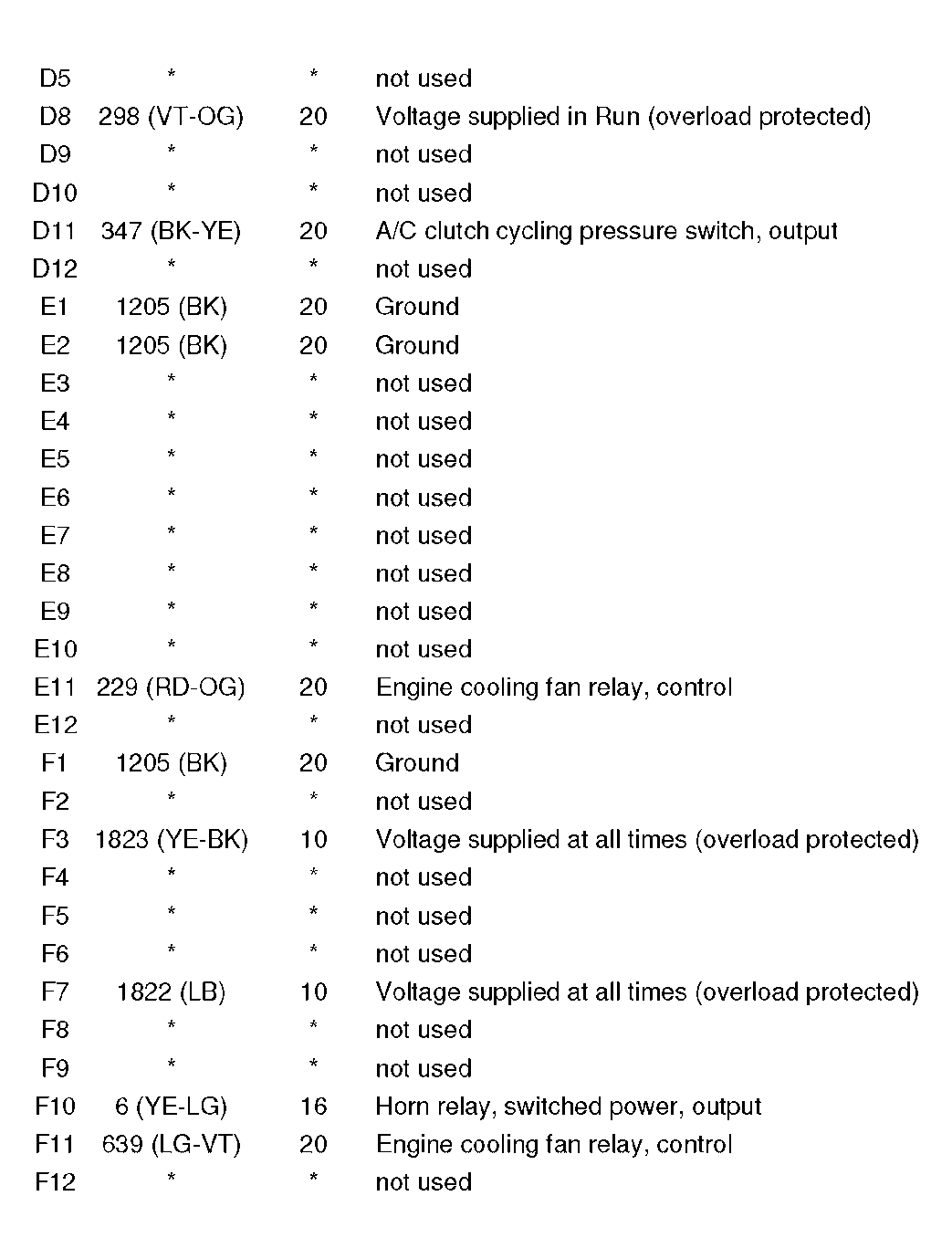

Fig 217: Bussed Electrical Center (BEC) Connector End View (C1035C) (2 Of 2)
G04597459Courtesy of FORD MOTOR CO.

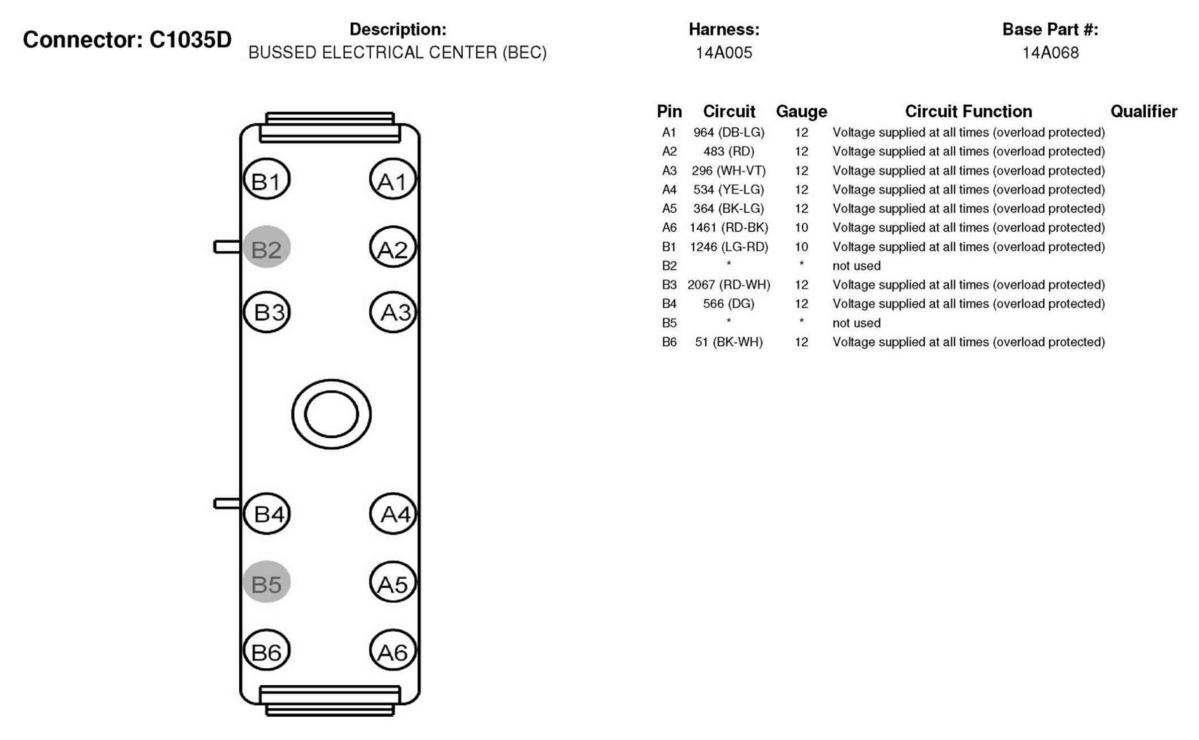

Fig 218: Bussed Electrical Center (BEC) Connector End View (C1035D)
G04597460Courtesy of FORD MOTOR CO.

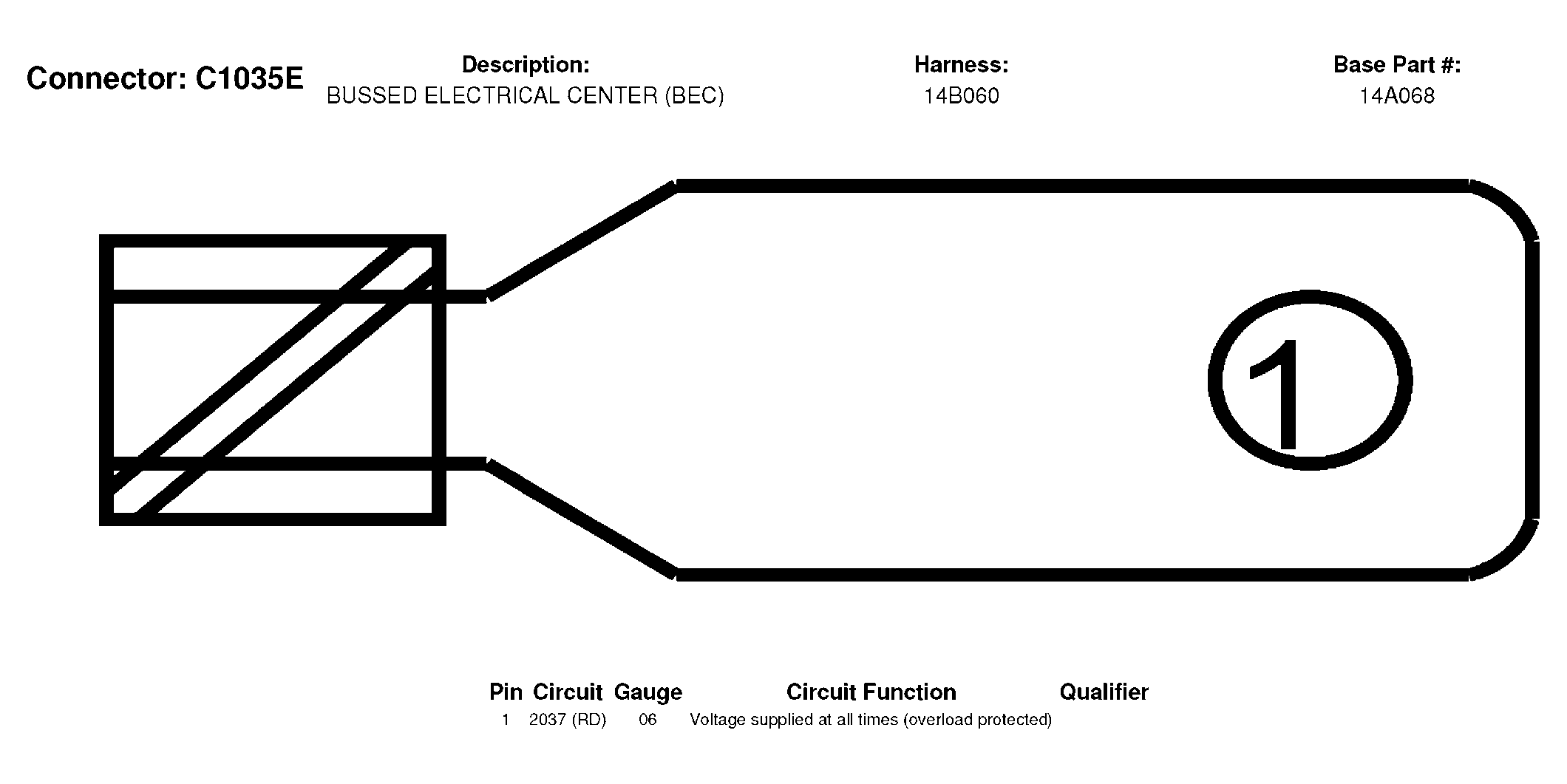

Fig 219: Bussed Electrical Center (BEC) Connector End View (C1035E)
G04597461Courtesy of FORD MOTOR CO.
Fig 220: Headlamp, Right Connector End View (C1041)
G04597462Courtesy of FORD MOTOR CO.

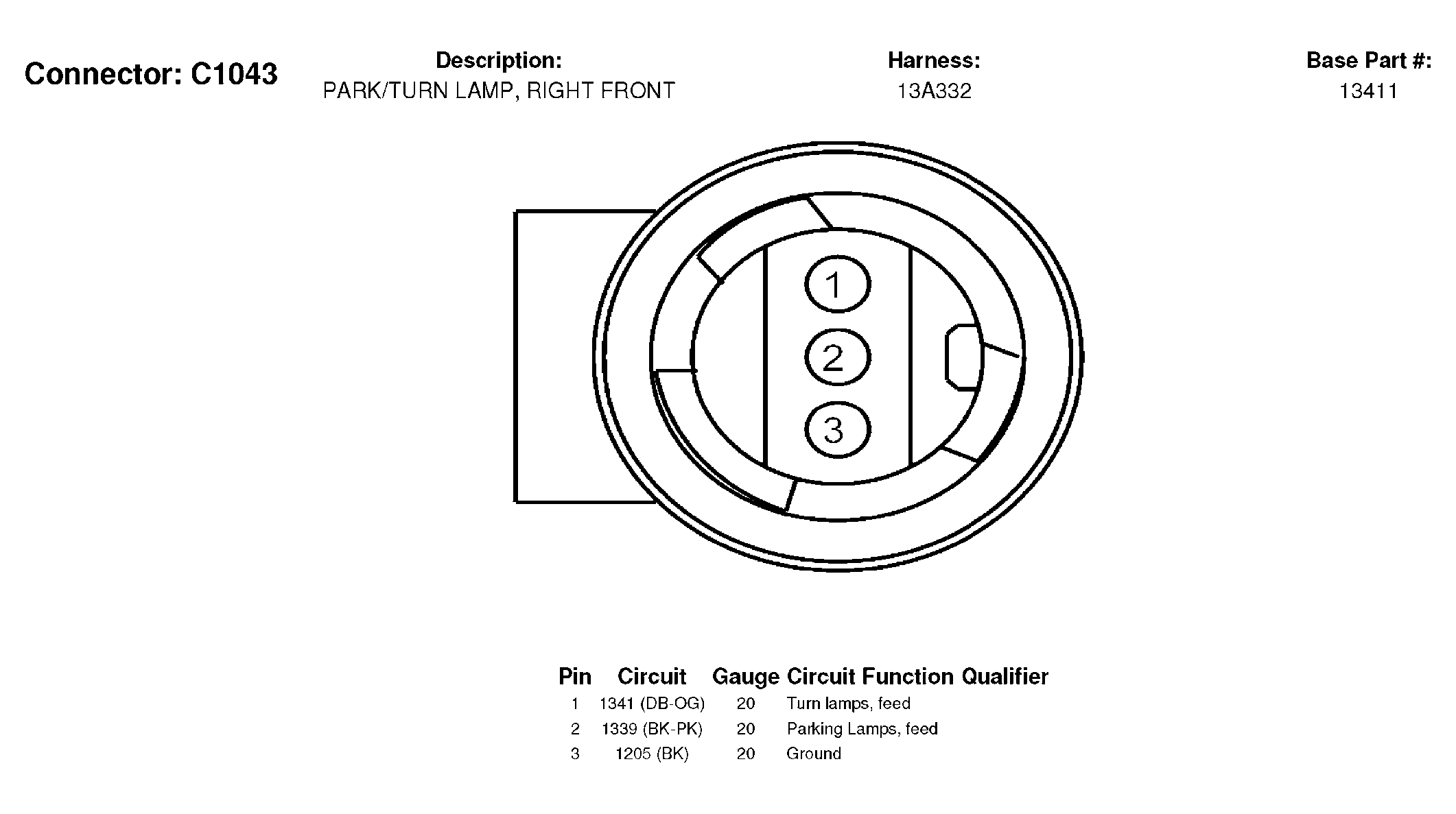

Fig 221: Park/Turn Lamp, Right Front Connector End View (C1043)
G04597463Courtesy of FORD MOTOR CO.

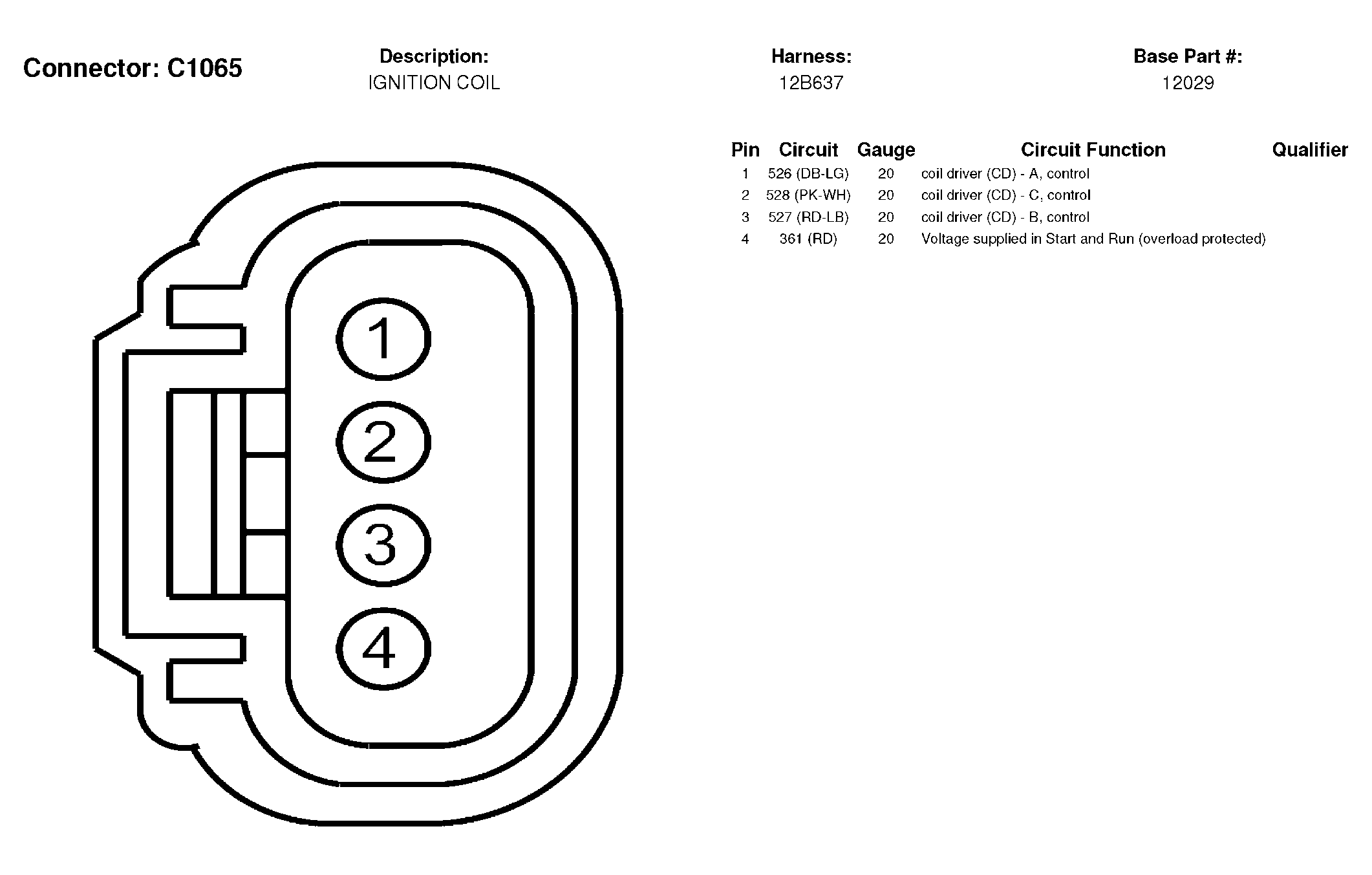

Fig 222: Ignition Coil Connector End View (C1065)
G04597464Courtesy of FORD MOTOR CO.

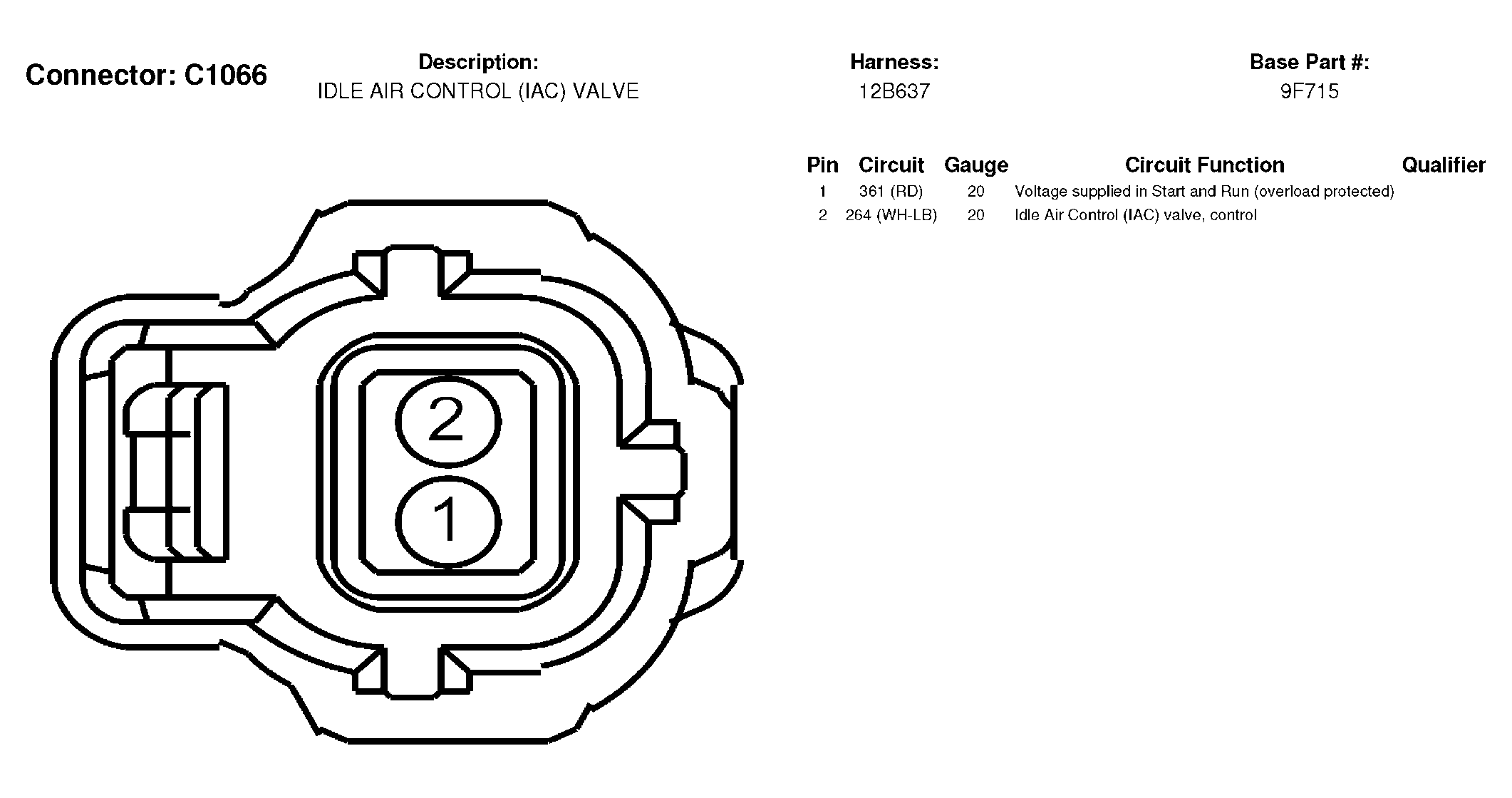

Fig 223: Idle Air Control (IAC) Valve Connector End View (C1066)
G04597465Courtesy of FORD MOTOR CO.

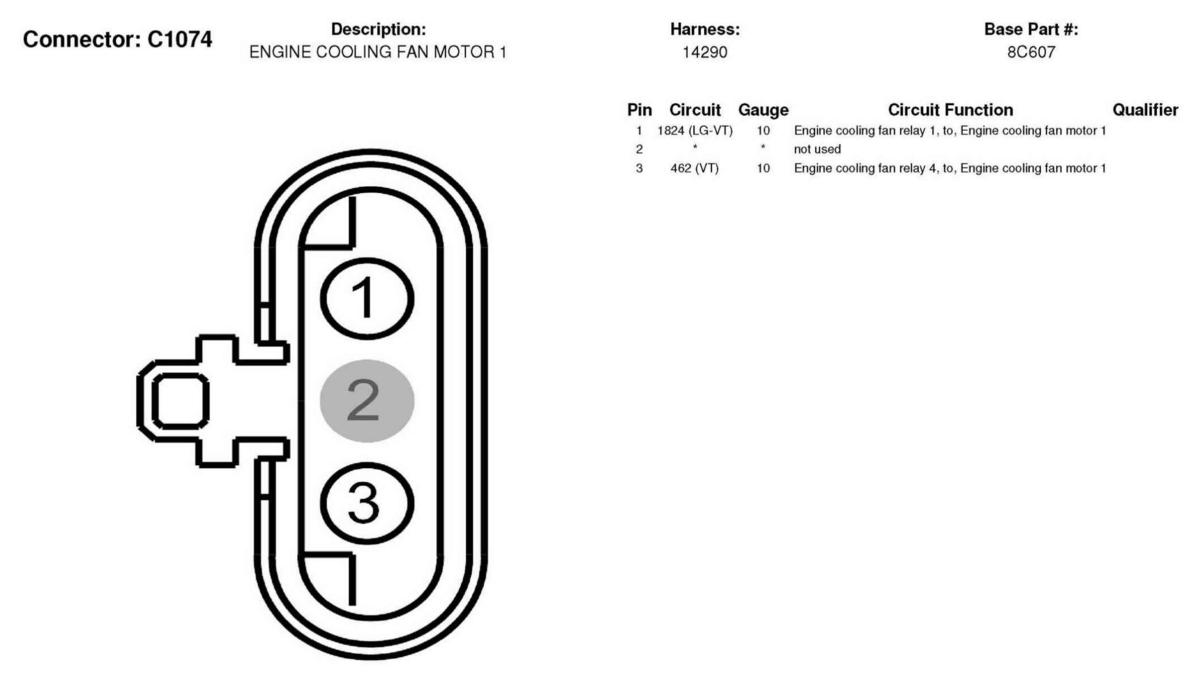

Fig 224: Engine Coolant Fan Motor 1 Connector End View (C1074)
G04597466Courtesy of FORD MOTOR CO.

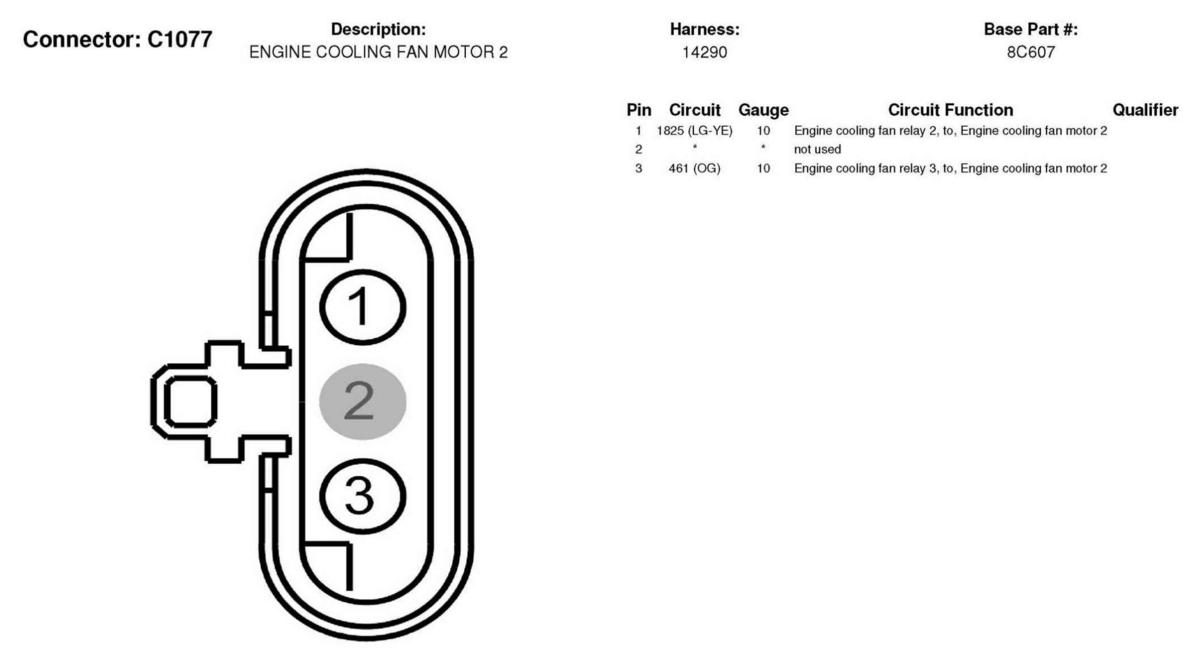

Fig 225: Engine Coolant Fan Motor 2 Connector End View (C1077)
G04597467Courtesy of FORD MOTOR CO.

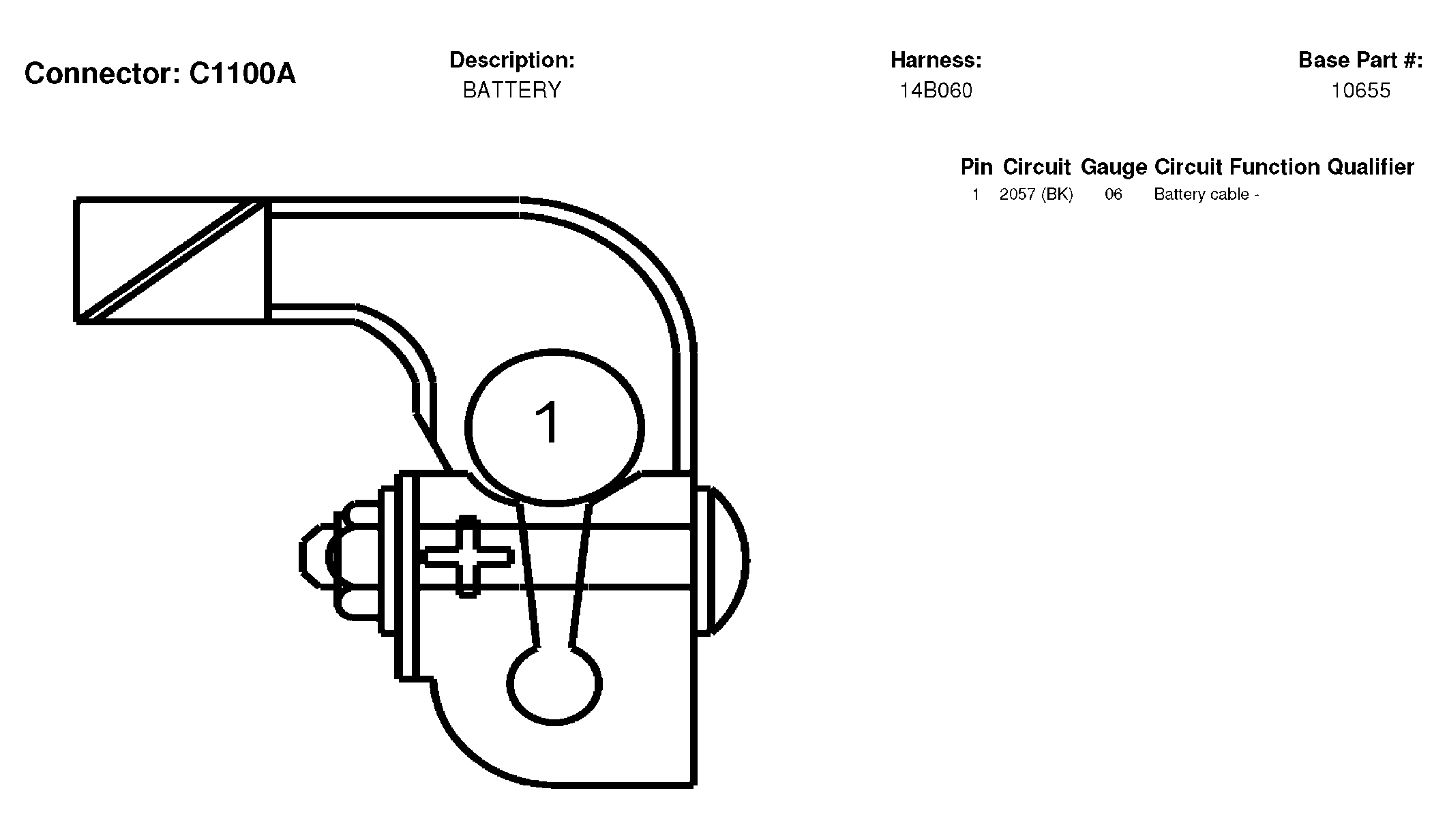

Fig 226: Battery Connector End View (C1100A)
G04597468Courtesy of FORD MOTOR CO.

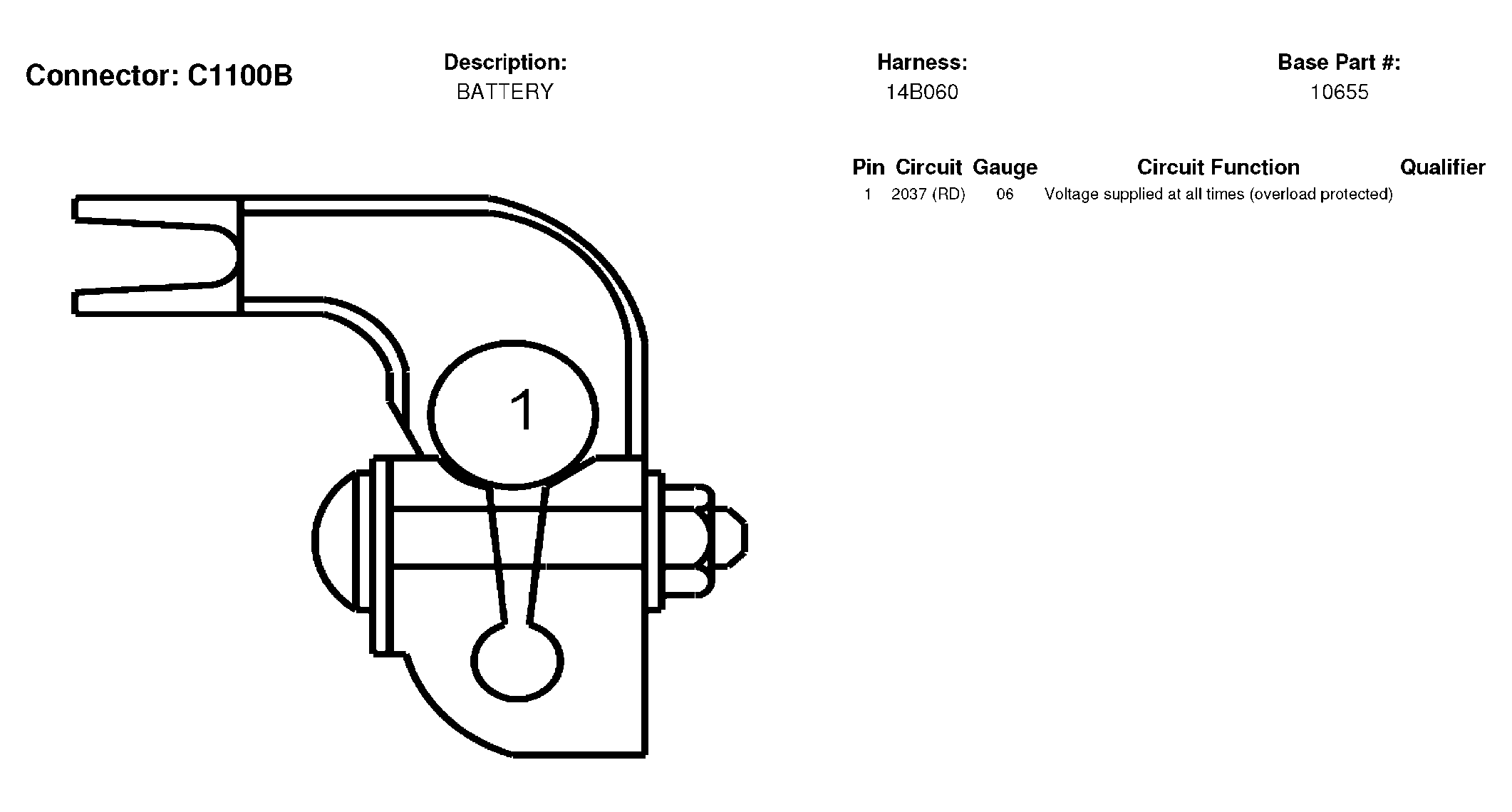

Fig 227: Battery Connector End View (C1100B)
G04597469Courtesy of FORD MOTOR CO.
Fig 228: Battery Connector End View (C1100C)
G04597470Courtesy of FORD MOTOR CO.

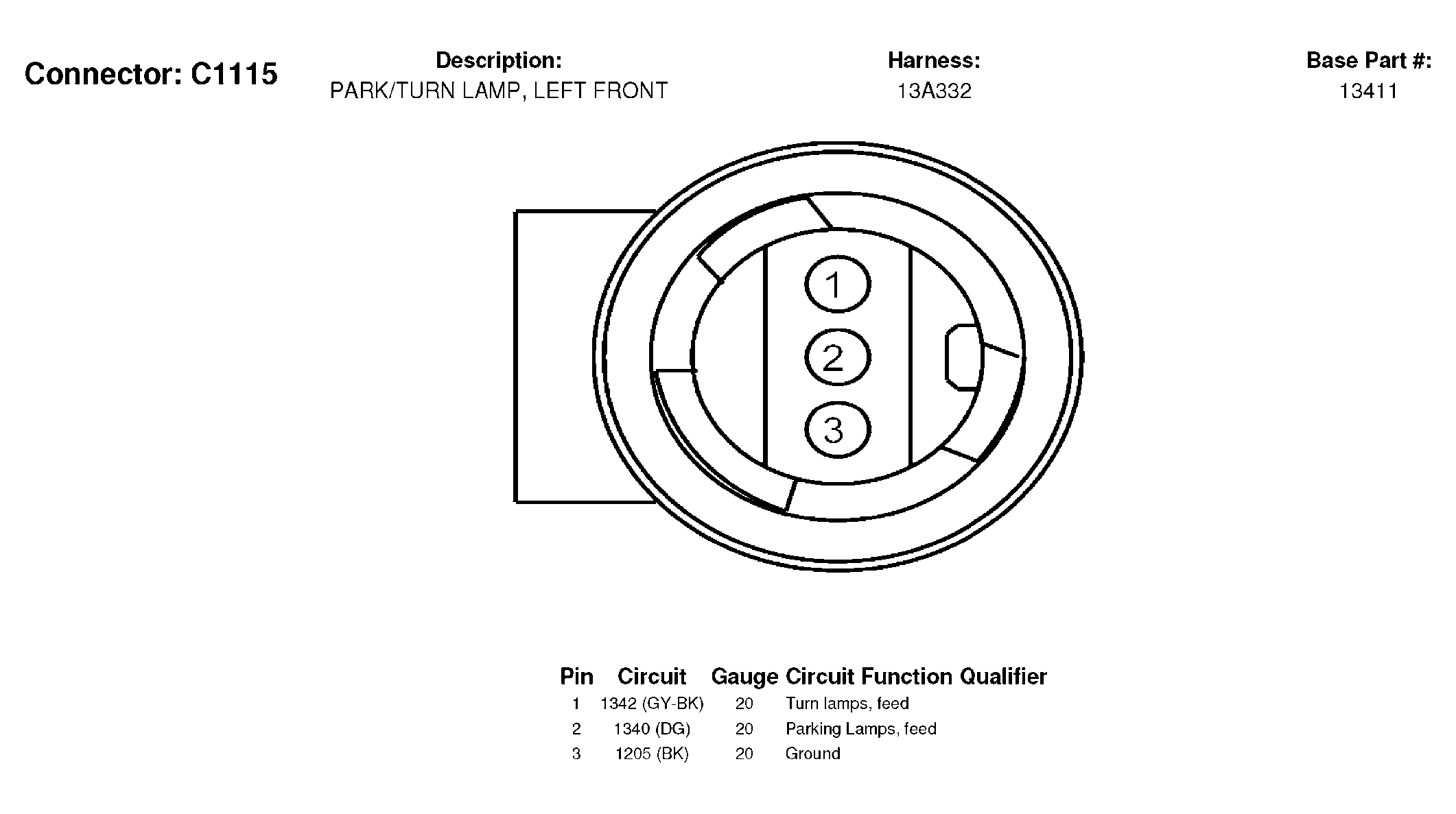

Fig 229: Park/Turn Lamp, Left Front Connector End View (C1115)
G04597471Courtesy of FORD MOTOR CO.

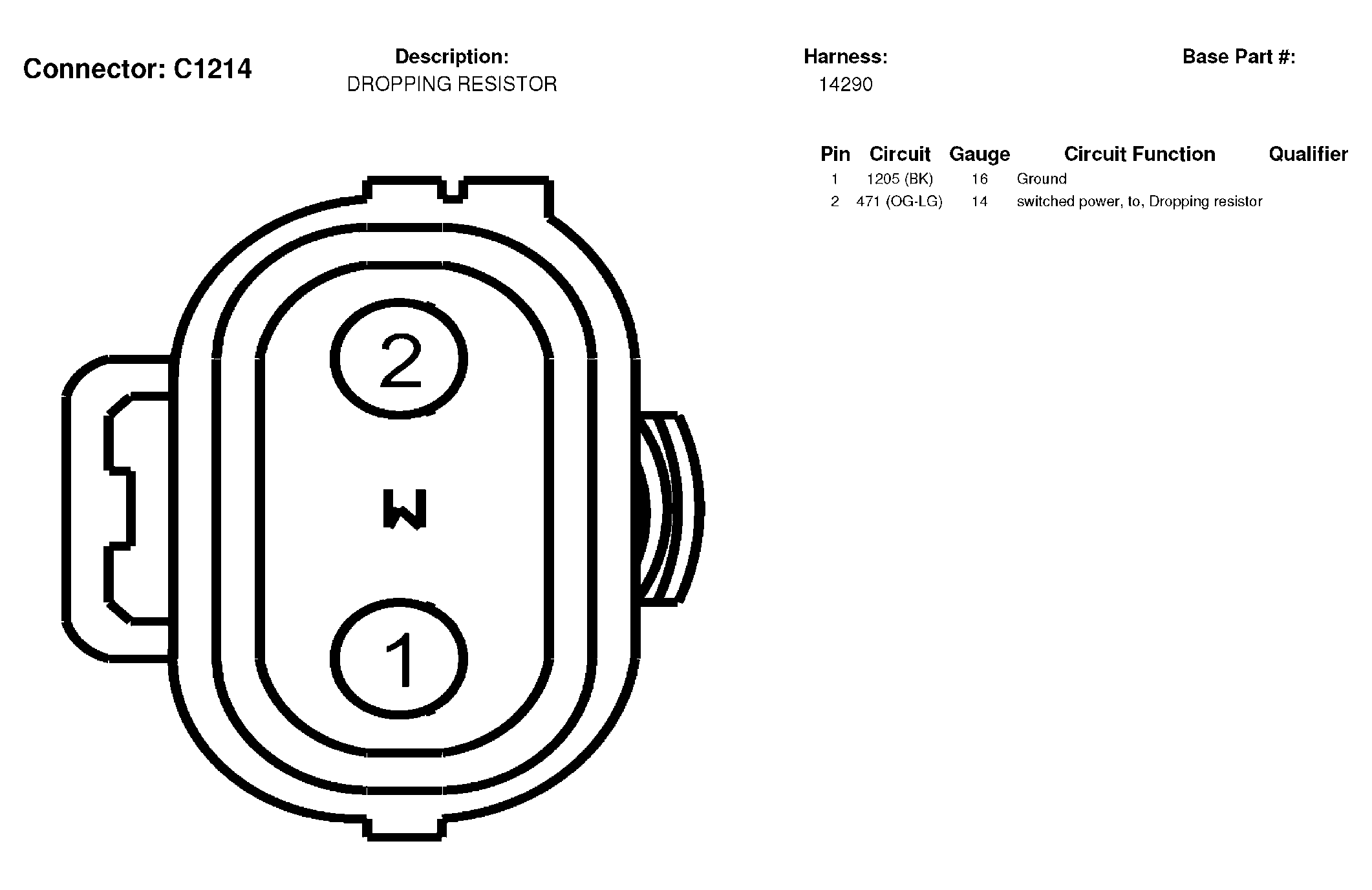

Fig 230: Dropping Resistor Connector End View (C1214)
G04597472Courtesy of FORD MOTOR CO.

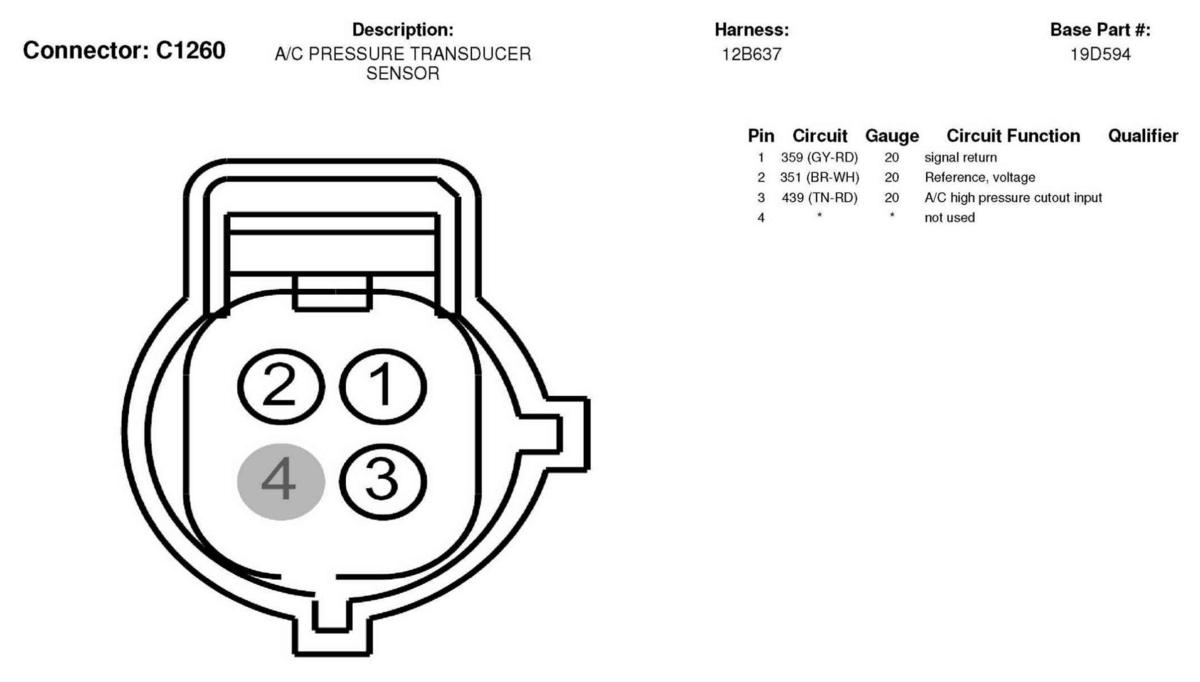

Fig 231: A/C Pressure Transducer Sensor Connector End View (C1260)
G04597473Courtesy of FORD MOTOR CO.
Fig 232: Parking Aid Sensor, Front Outer Left Connector End View (C1428)
G04597474Courtesy of FORD MOTOR CO.
Fig 233: Parking Aid Sensor, Front Outer Left Connector End View (C1428)
G04597475Courtesy of FORD MOTOR CO.

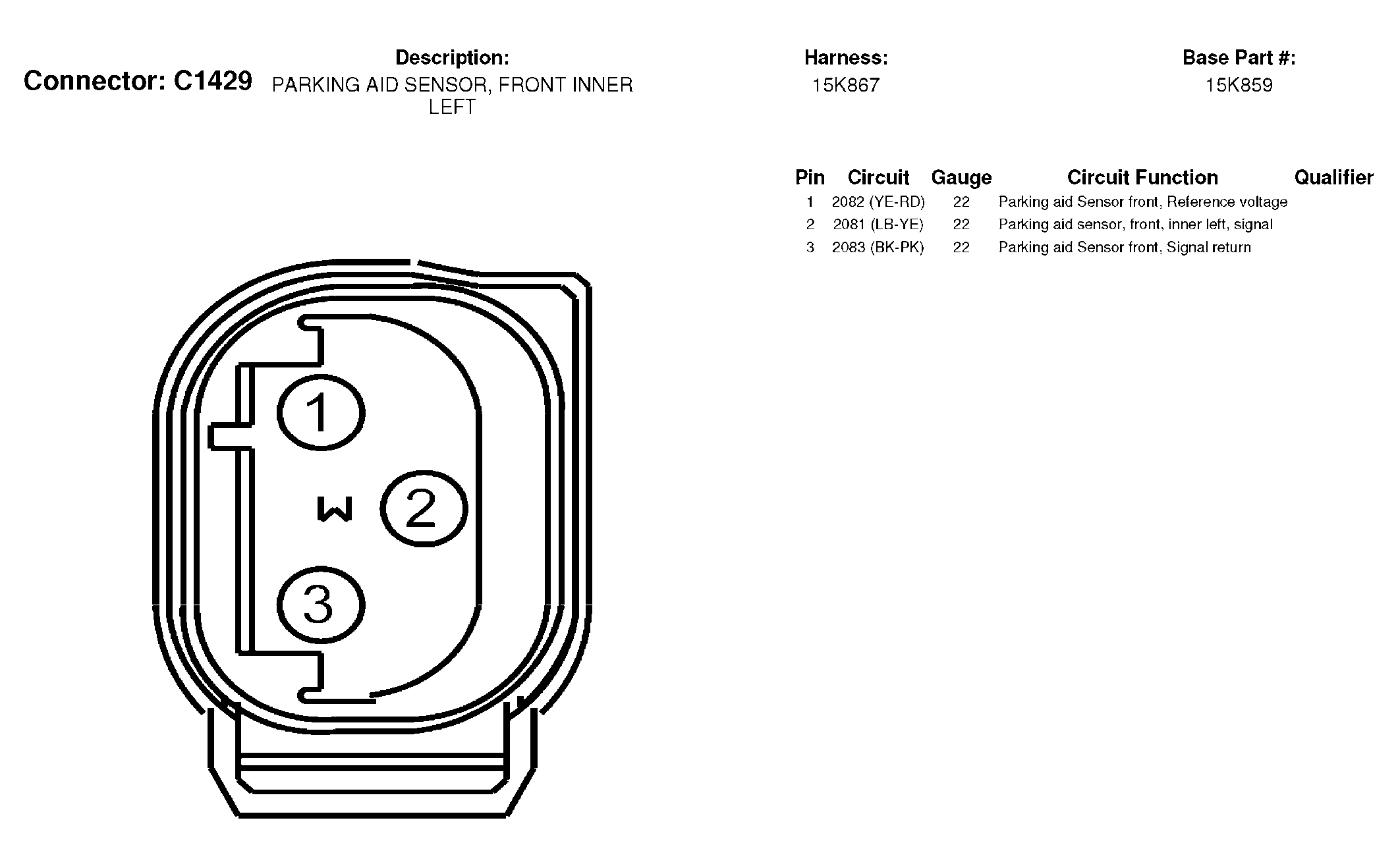

Fig 234: Parking Aid Sensor, Front Inner Left Connector End View (C1429)
G04597476Courtesy of FORD MOTOR CO.

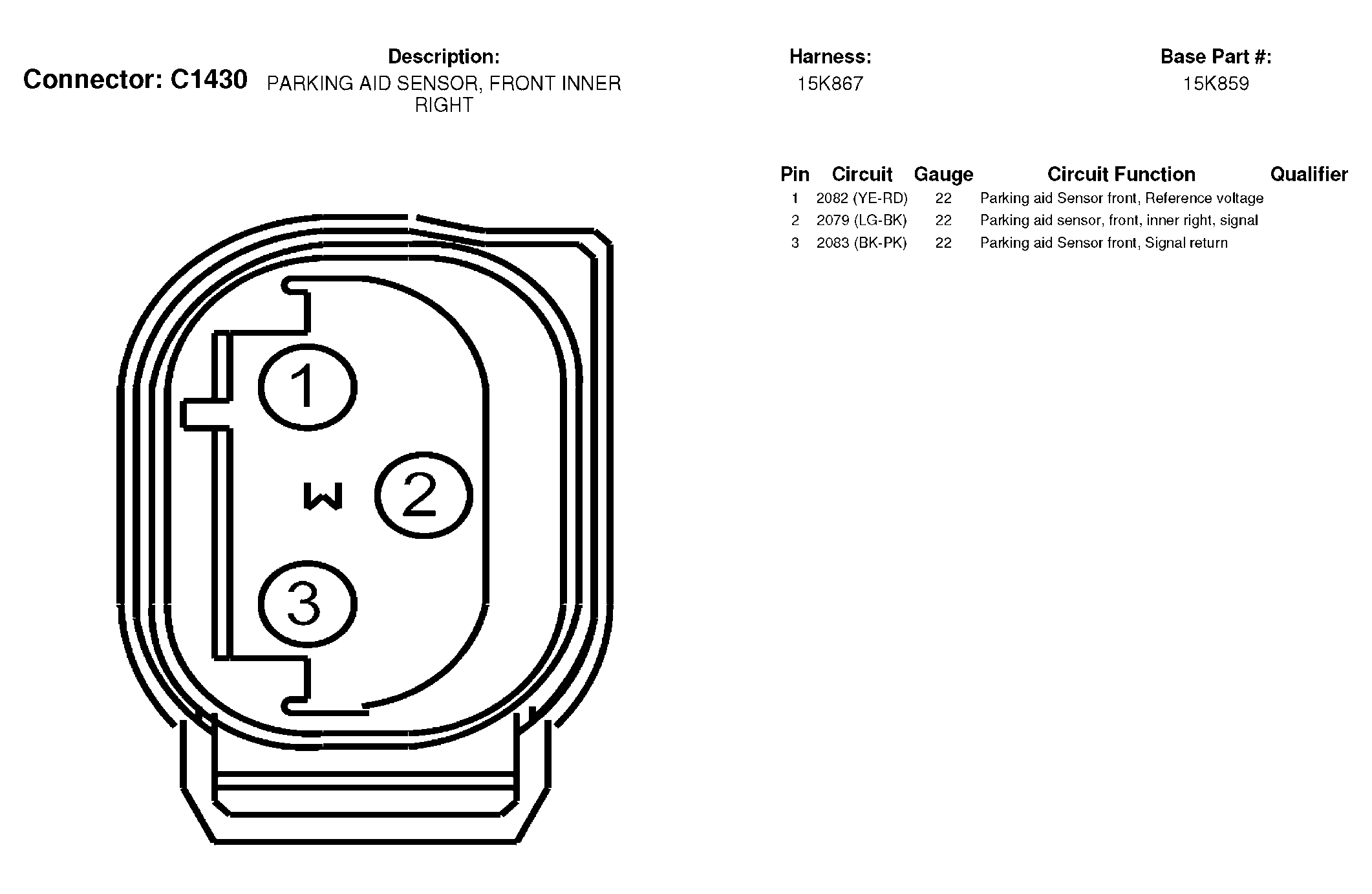

Fig 235: Parking Aid Sensor, Front Inner Right Connector End View (C1430)
G04597477Courtesy of FORD MOTOR CO.
Fig 236: Parking Aid Sensor, Front Outer Right Connector End View (C1431)
G04597478Courtesy of FORD MOTOR CO.

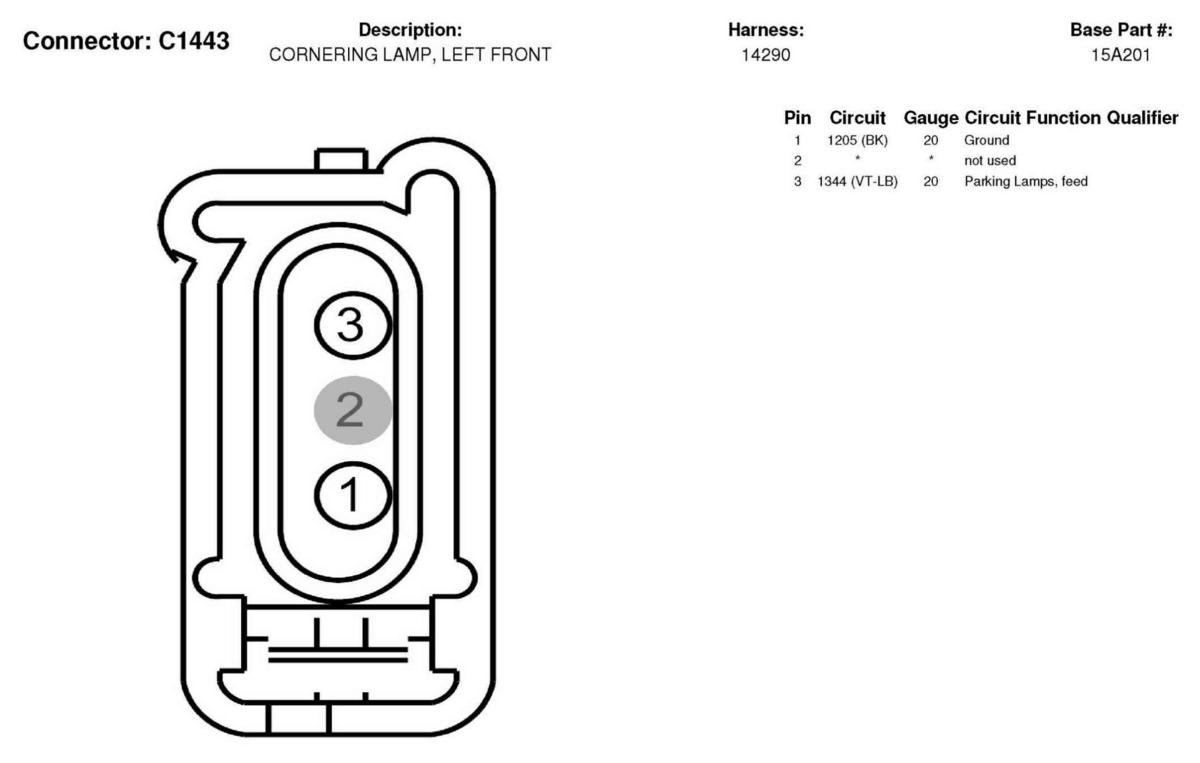

Fig 237: Cornering Lamp, Left Front Connector End View (C1443)
G04597479Courtesy of FORD MOTOR CO.

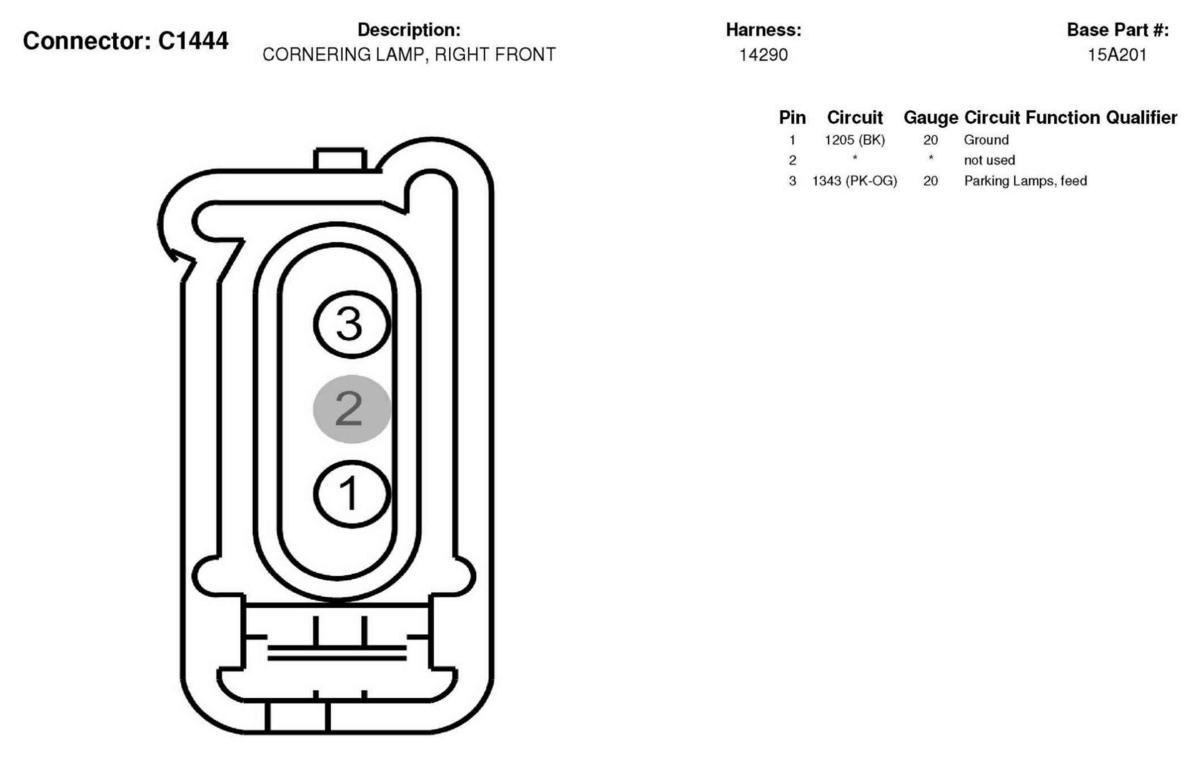

Fig 238: Cornering Lamp, Right Front Connector End View (C1444)
G04597480Courtesy of FORD MOTOR CO.

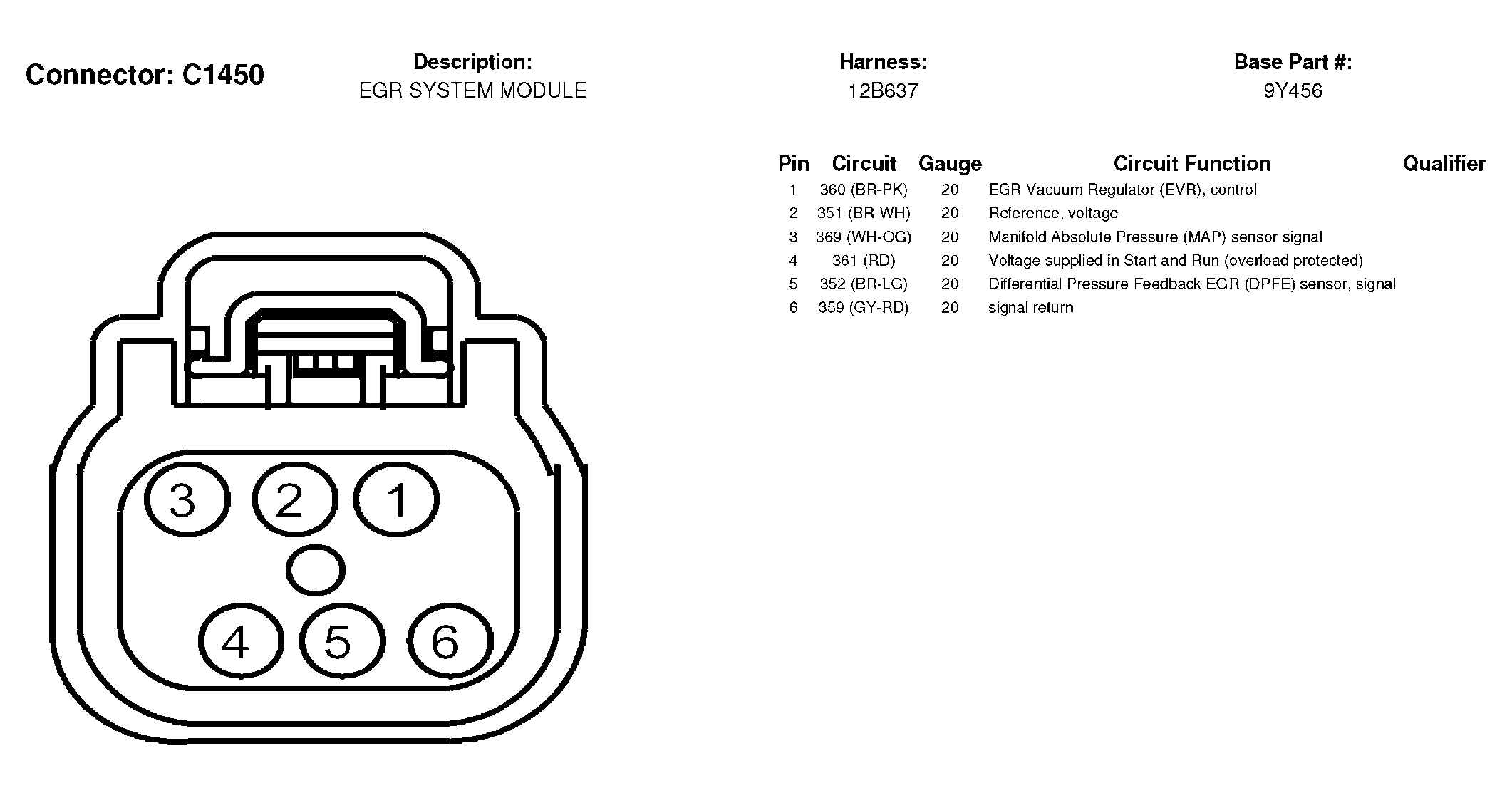

Fig 239: EGR System Module Connector End View (C1450)
G04597481Courtesy of FORD MOTOR CO.

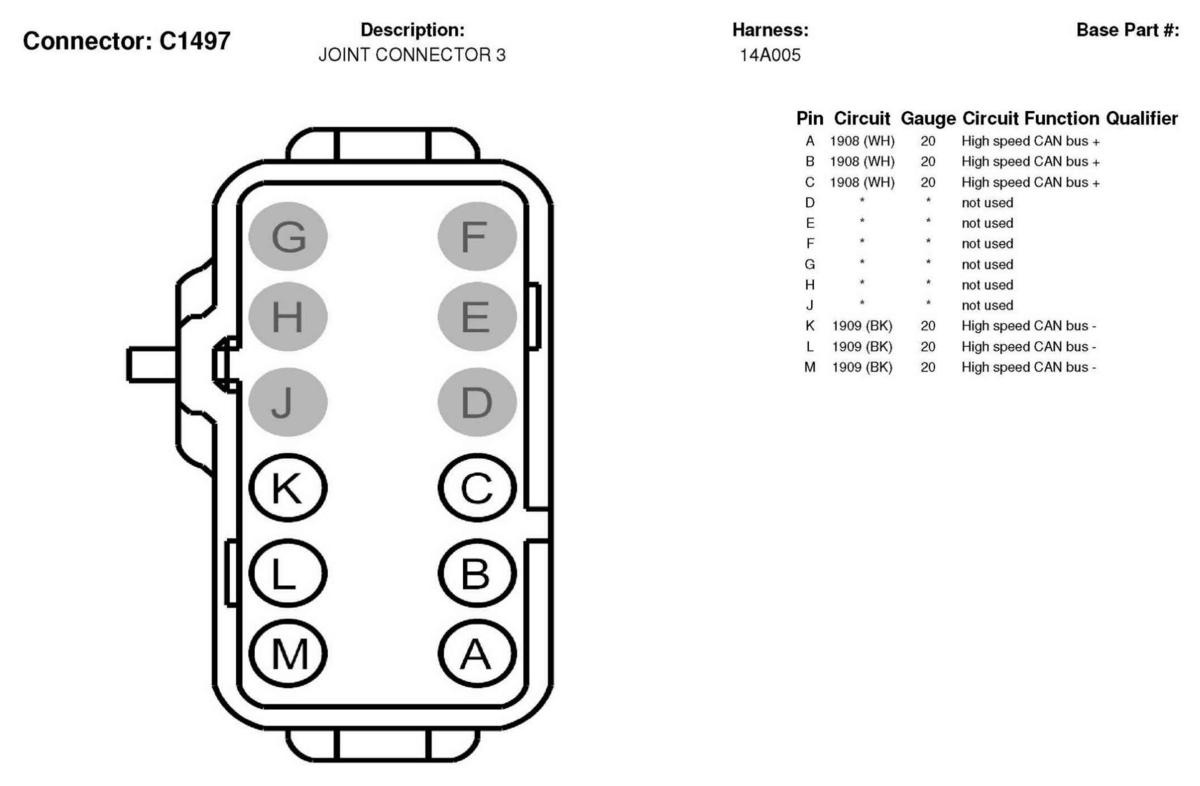

Fig 240: Joint Connector 3 Connector End View (C1497)
G04597482Courtesy of FORD MOTOR CO.

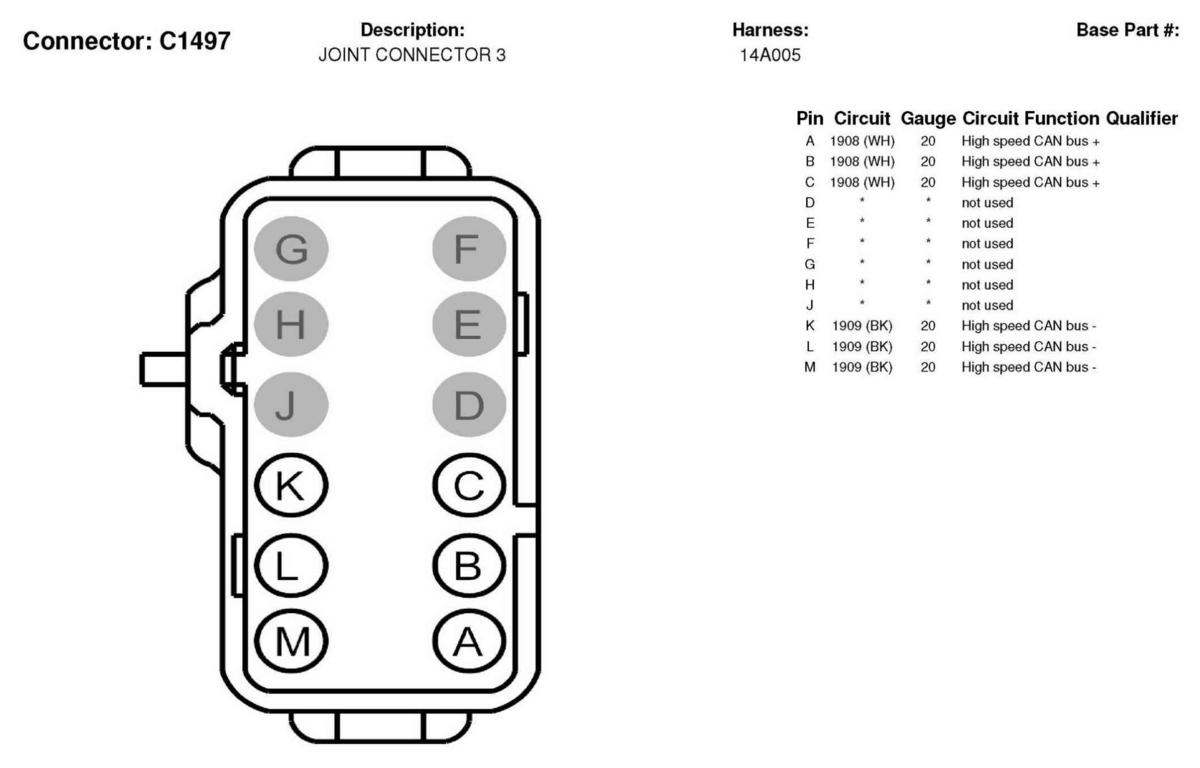

Fig 241: Joint Connector 3 Connector End View (C1497)
G04597483Courtesy of FORD MOTOR CO.

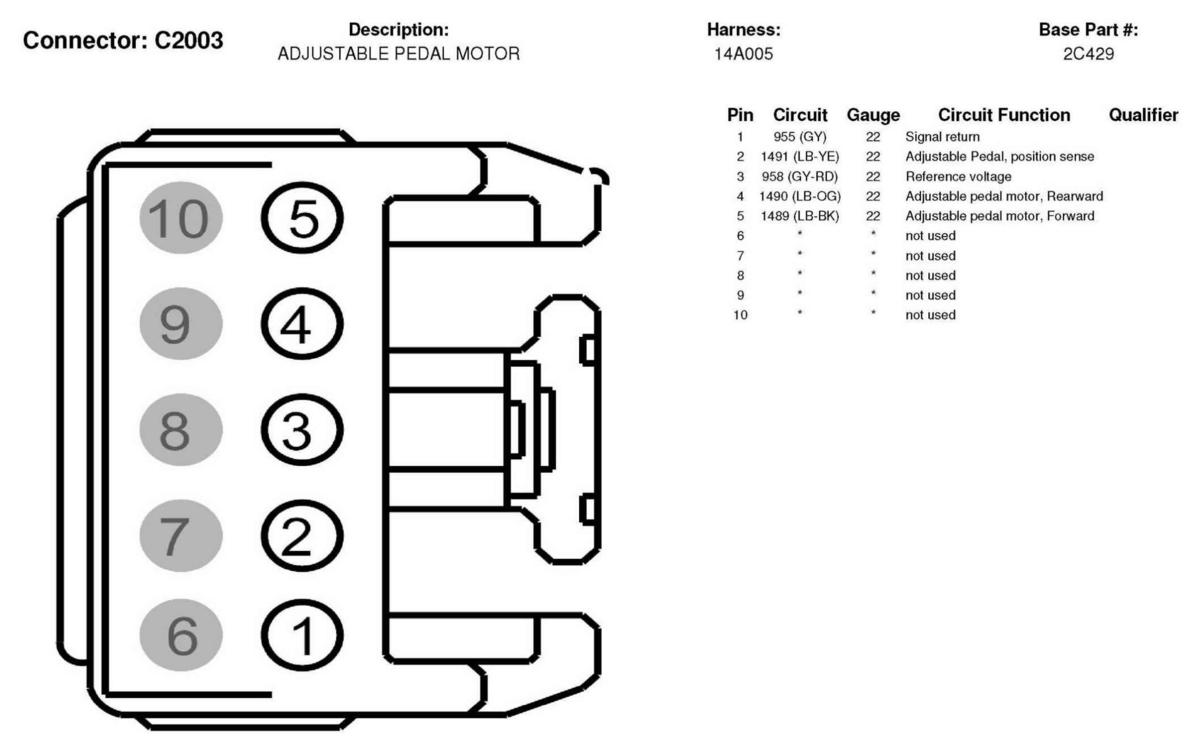

Fig 242: Adjustable Pedal Motor Connector End View (C2003)
G04597484Courtesy of FORD MOTOR CO.

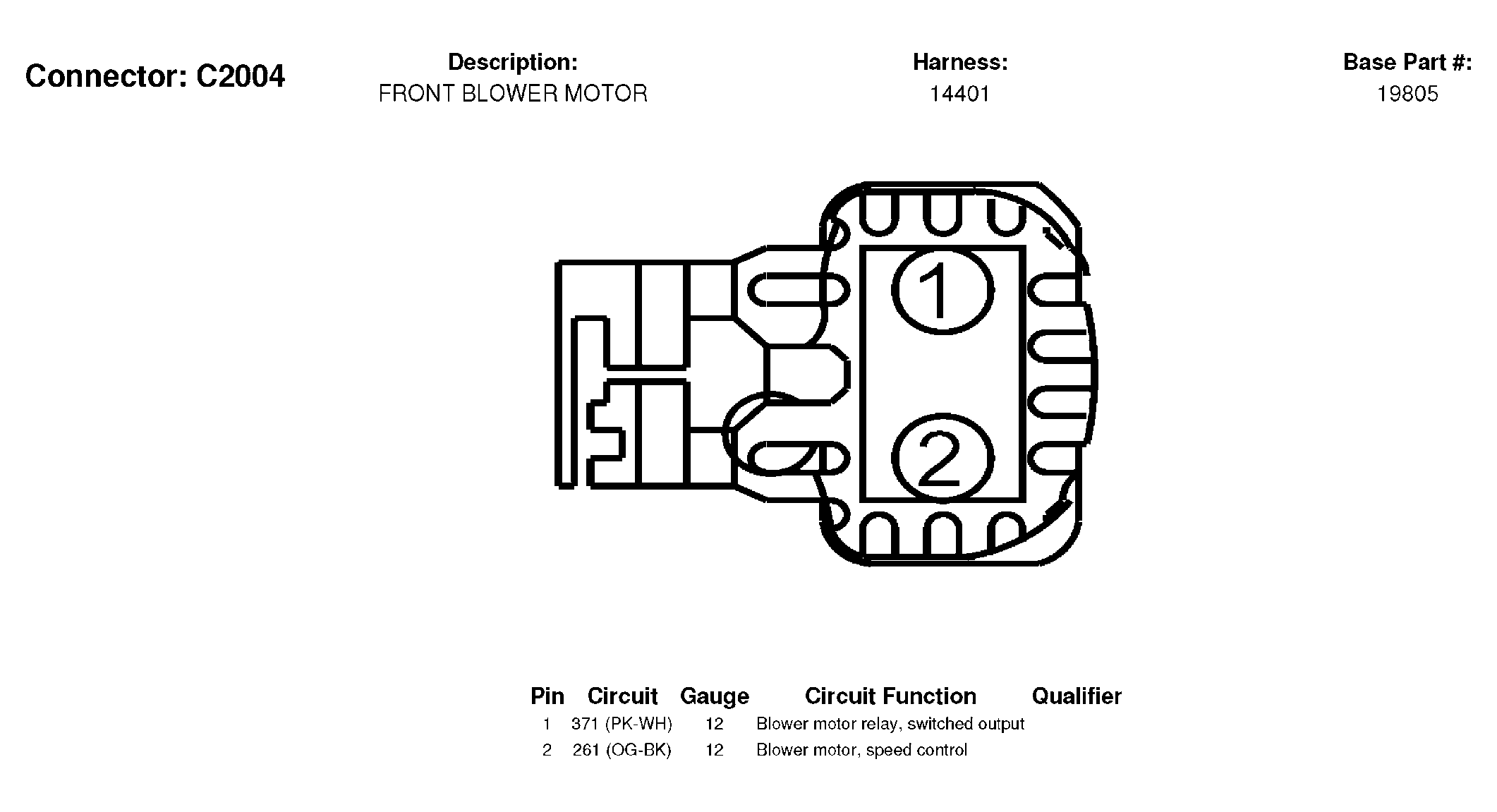

Fig 243: Front Blower Motor Connector End View (C2004)
G04597485Courtesy of FORD MOTOR CO.

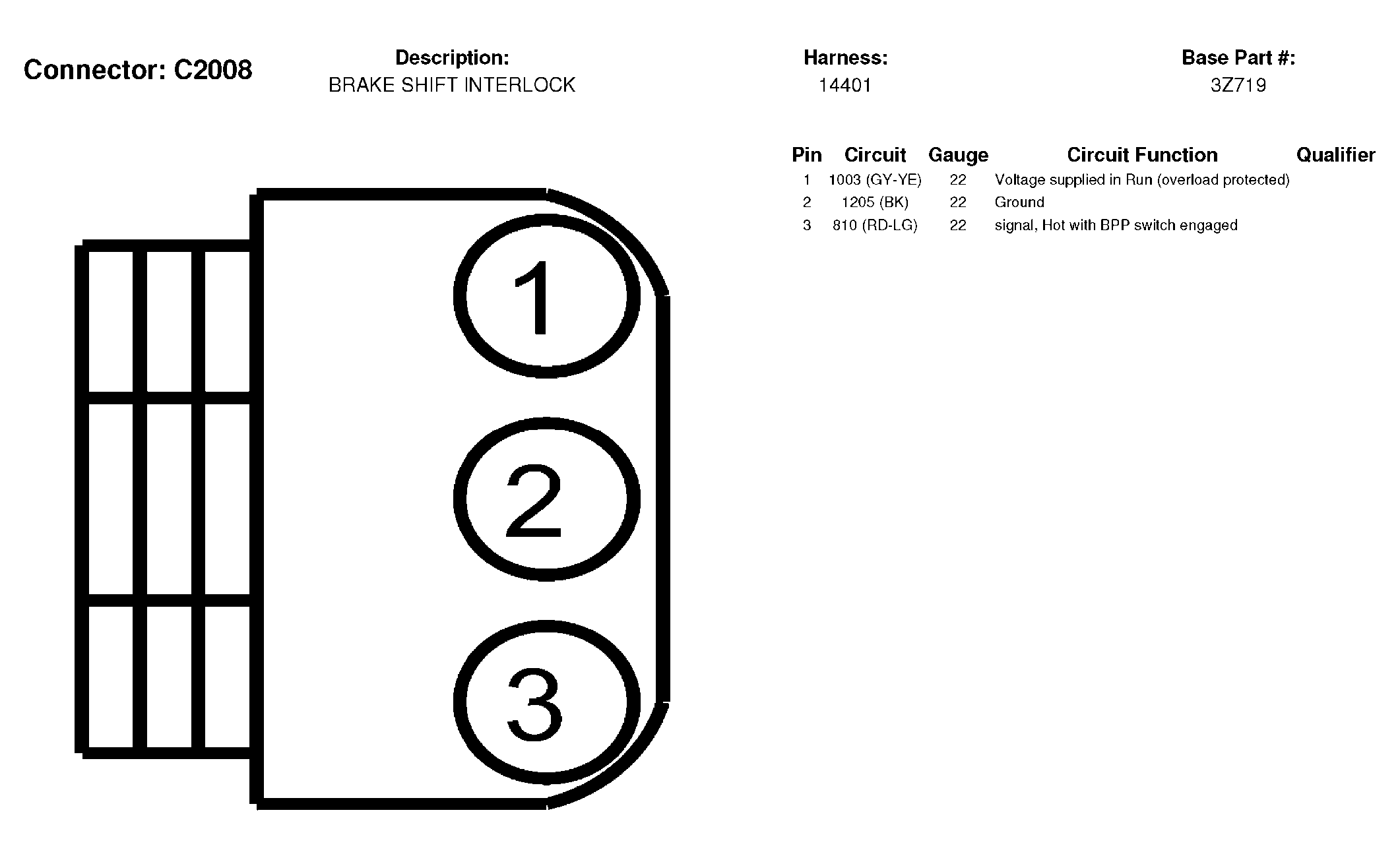

Fig 244: Brake Shift Interlock Connector End View (C2008)
G04597486Courtesy of FORD MOTOR CO.

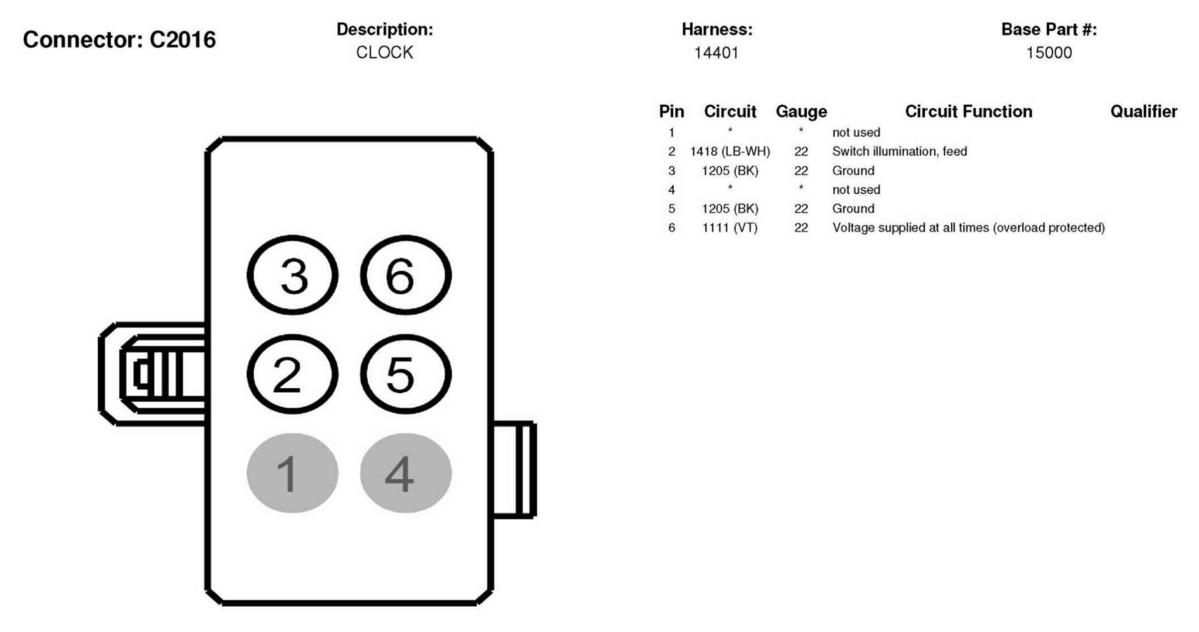

Fig 245: Clock Connector End View (C2016)
G04597487Courtesy of FORD MOTOR CO.

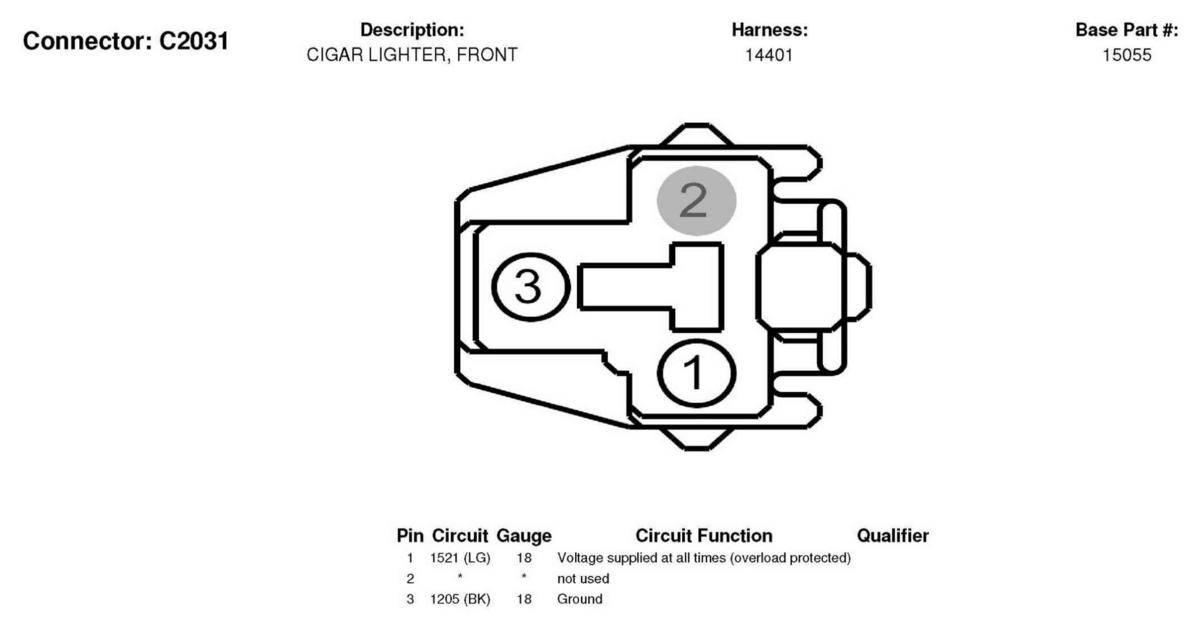

Fig 246: Cigar Lighter, Front Connector End View (C2031)
G04597488Courtesy of FORD MOTOR CO.

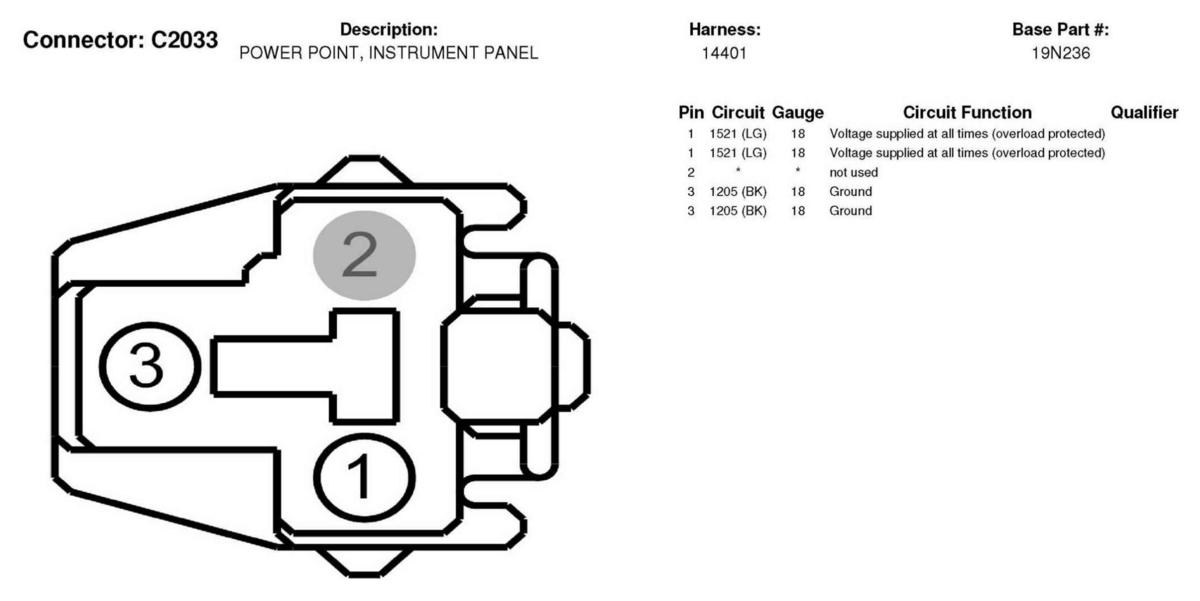

Fig 247: Power Point, Instrument Panel Connector End View (C2033)
G04597489Courtesy of FORD MOTOR CO.
Fig 248: Courtesy Lamp, Left Footwell Connector End View (C2056)
G04597490Courtesy of FORD MOTOR CO.

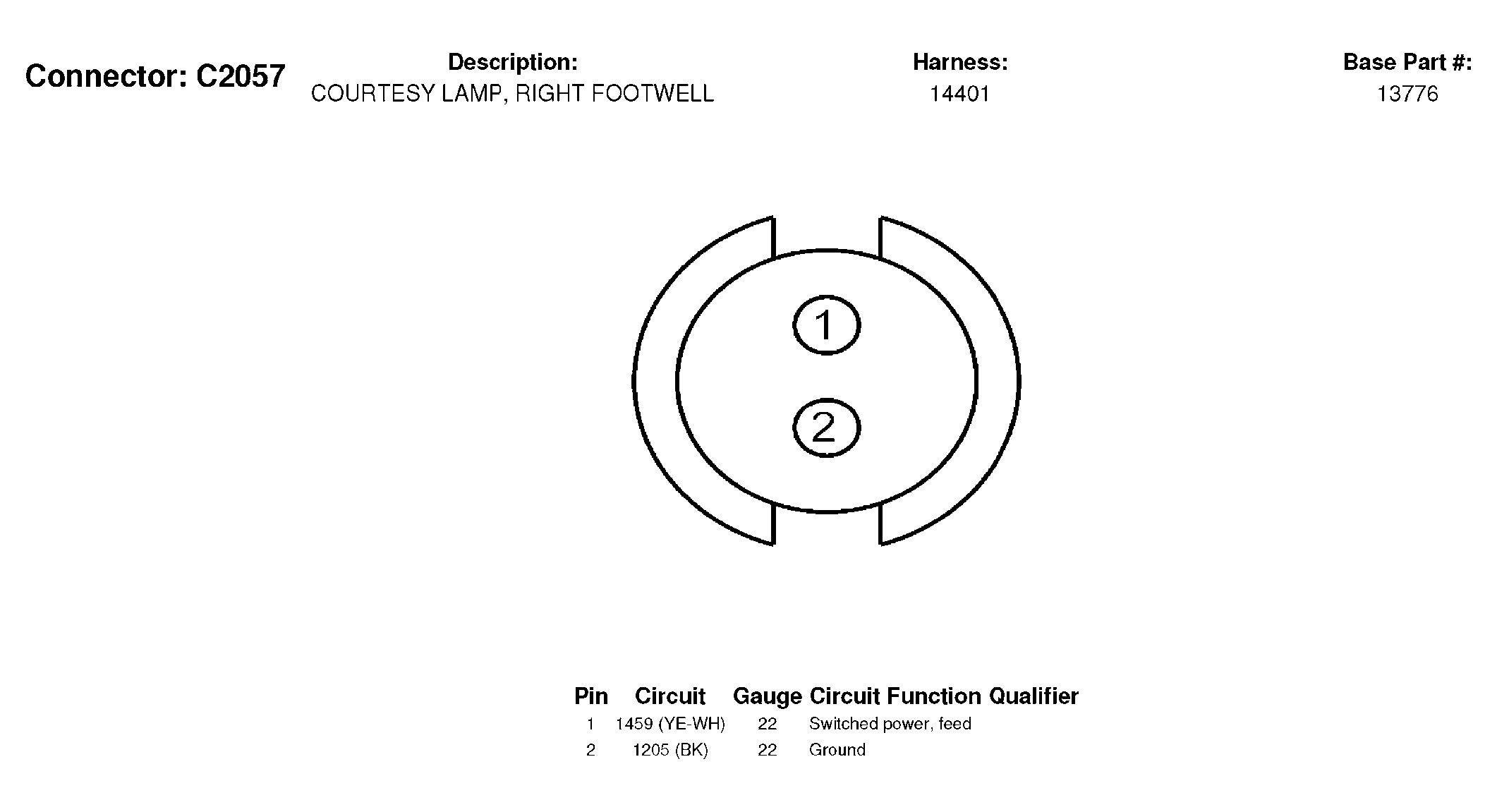

Fig 249: Courtesy Lamp, Right Footwell Connector End View (C2057)
G04597491Courtesy of FORD MOTOR CO.

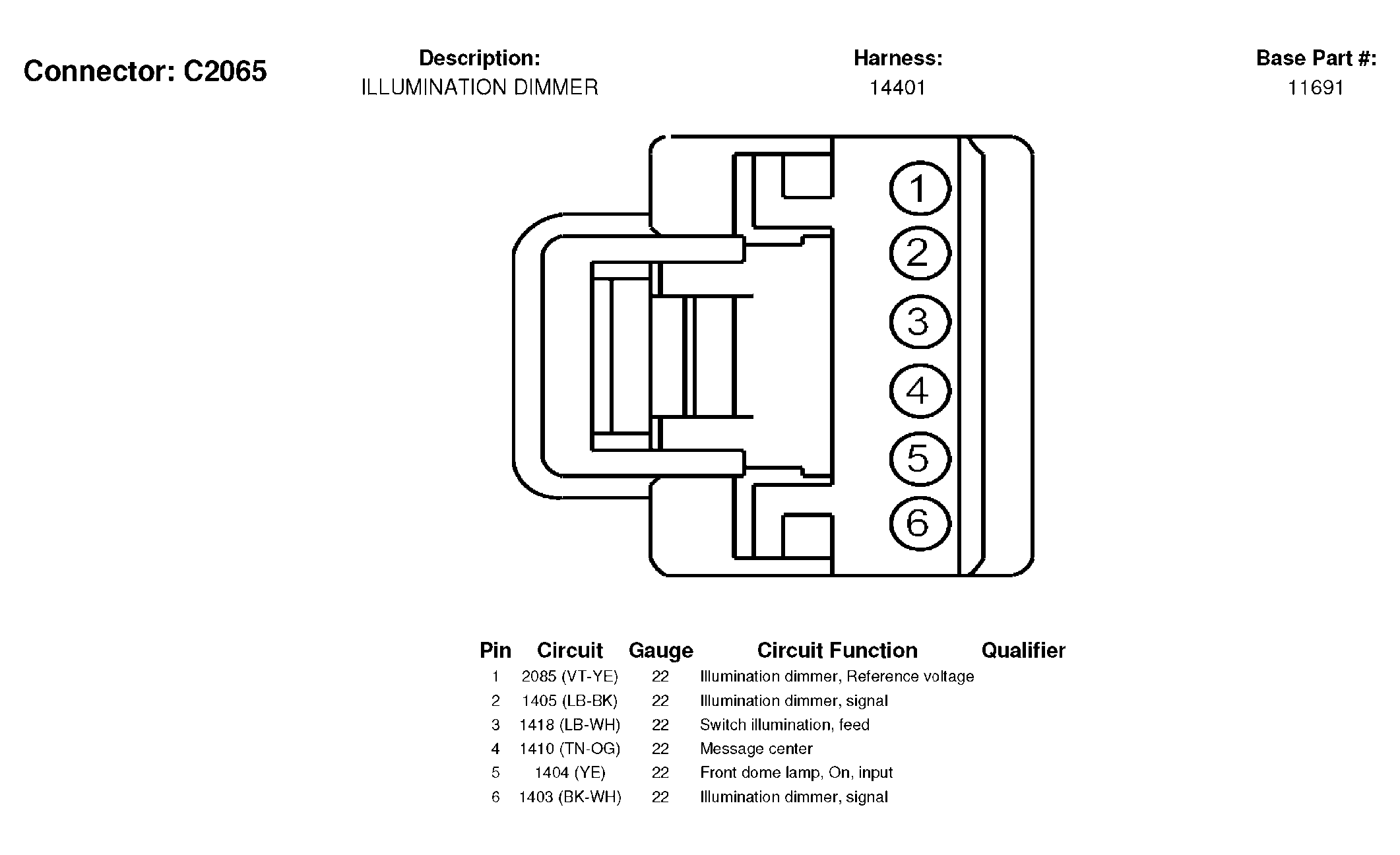

Fig 250: Illumination Dimmer Connector End View (C2065)
G04597492Courtesy of FORD MOTOR CO.

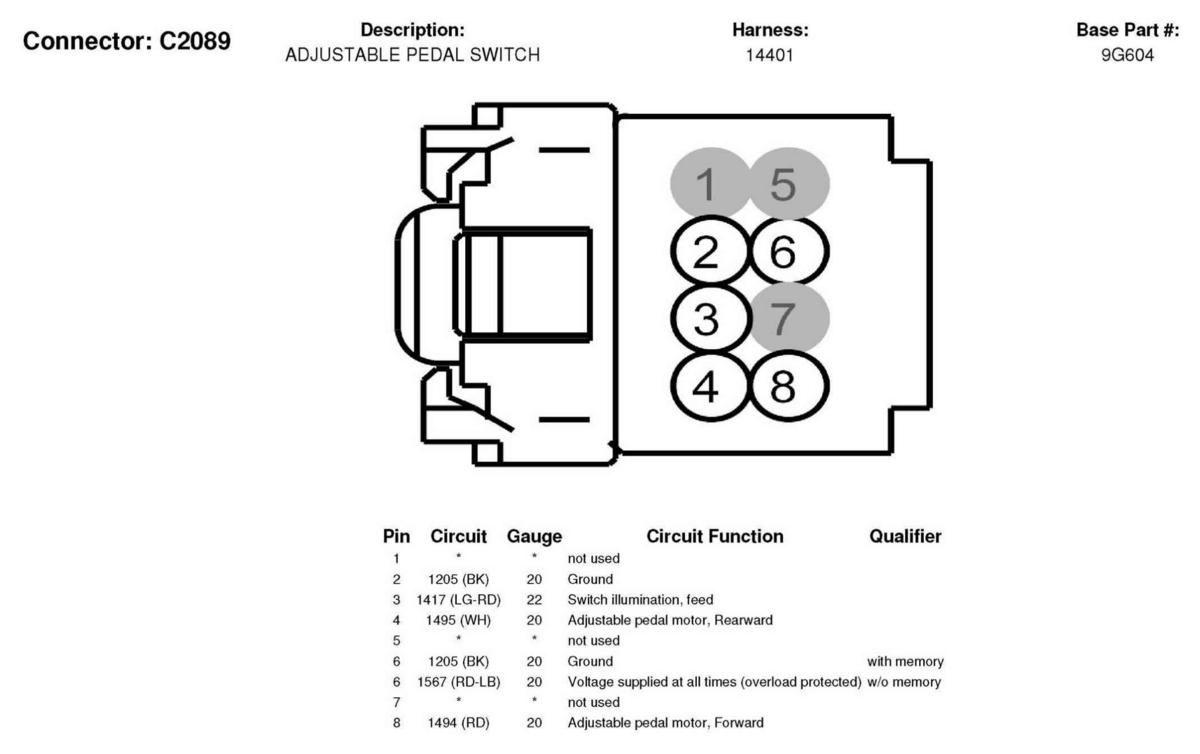

Fig 251: Adjustable Pedal Switch Connector End View (C2089)
G04597493Courtesy of FORD MOTOR CO.

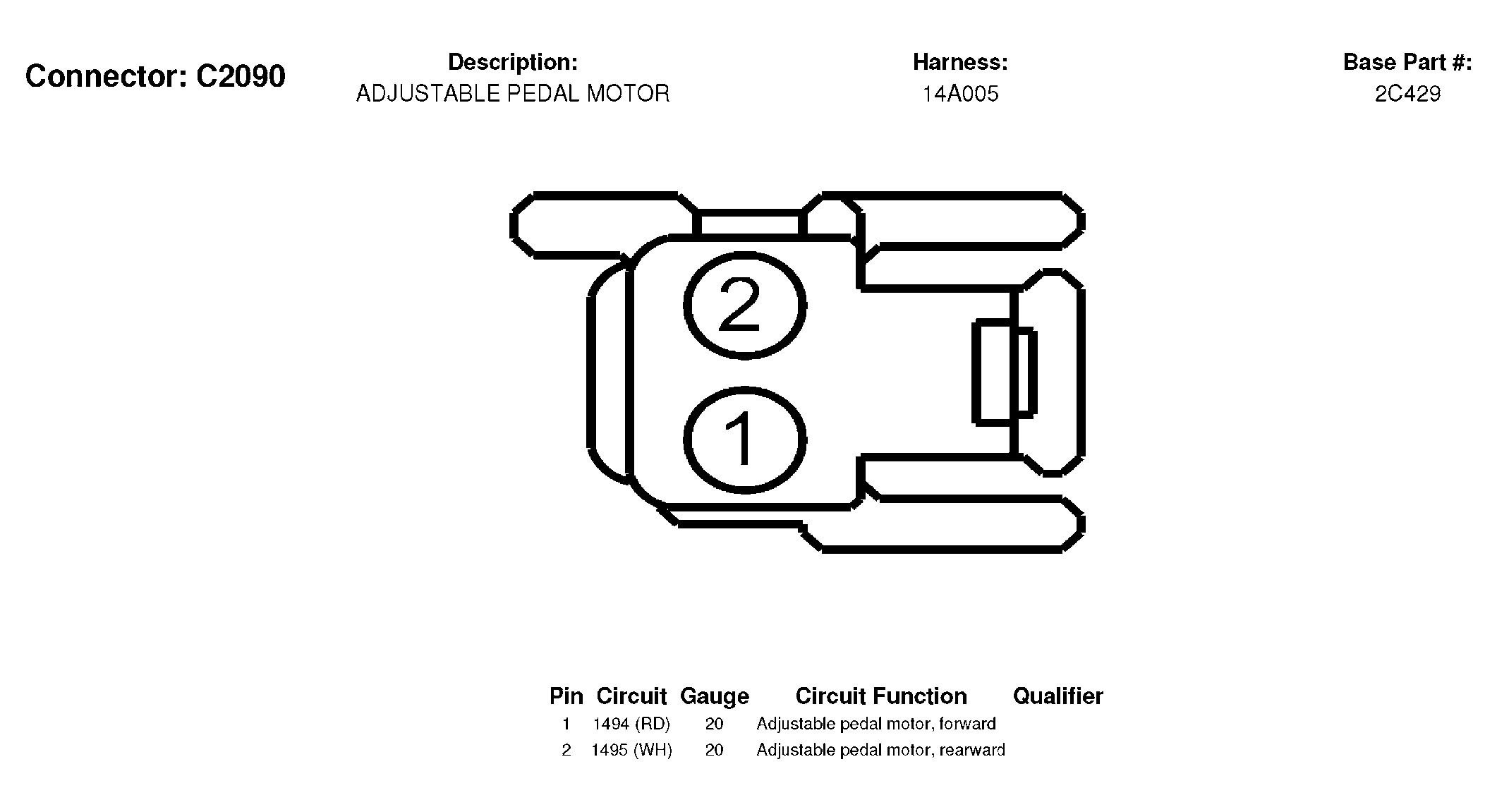

Fig 252: Adjustable Pedal Motor Connector End View (C2090)
G04597494Courtesy of FORD MOTOR CO.

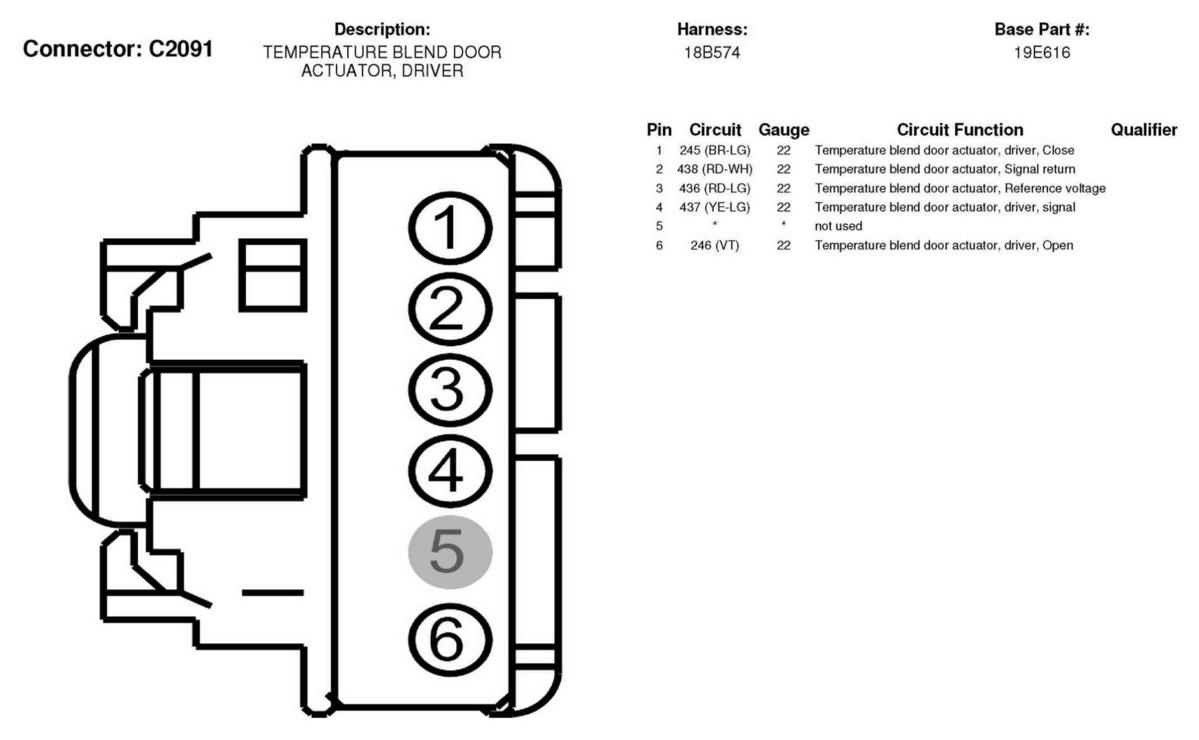

Fig 253: Temperature Blend Door Actuator, Driver Connector End View (C2091)
G04597495Courtesy of FORD MOTOR CO.
Fig 254: Temperature Blend Door Actuator, Passenger Connector End View (C2092)
G04597496Courtesy of FORD MOTOR CO.

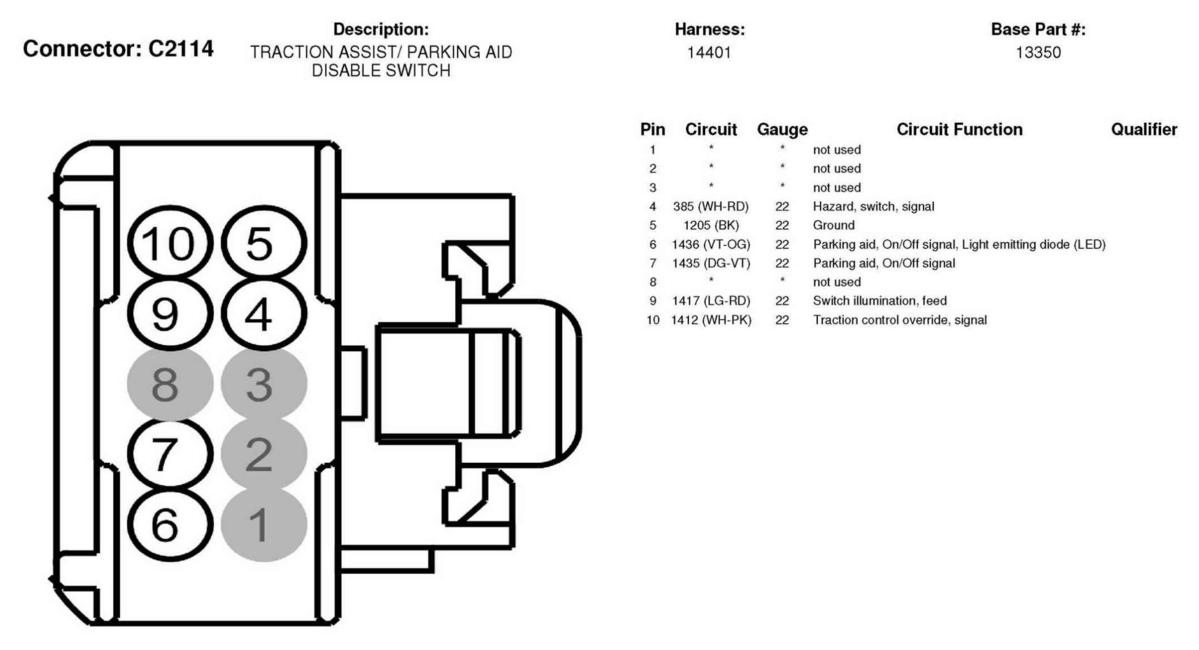

Fig 255: Traction Assist/Parking Aid Disable Switch Connector End View (C2114)
G04597497Courtesy of FORD MOTOR CO.

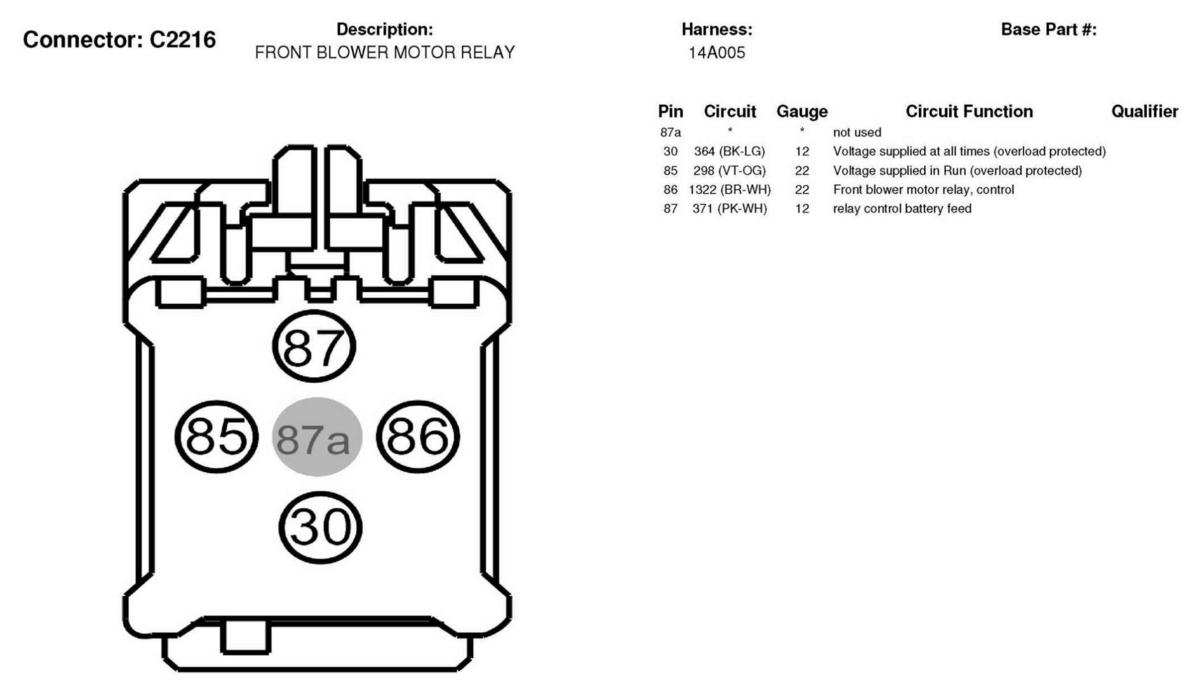

Fig 256: Front Blower Motor Relay Connector End View (C2216)
G04597498Courtesy of FORD MOTOR CO.
Fig 257: Parking Aid Speaker, Front Connector End View (C2277)
G04597499Courtesy of FORD MOTOR CO.

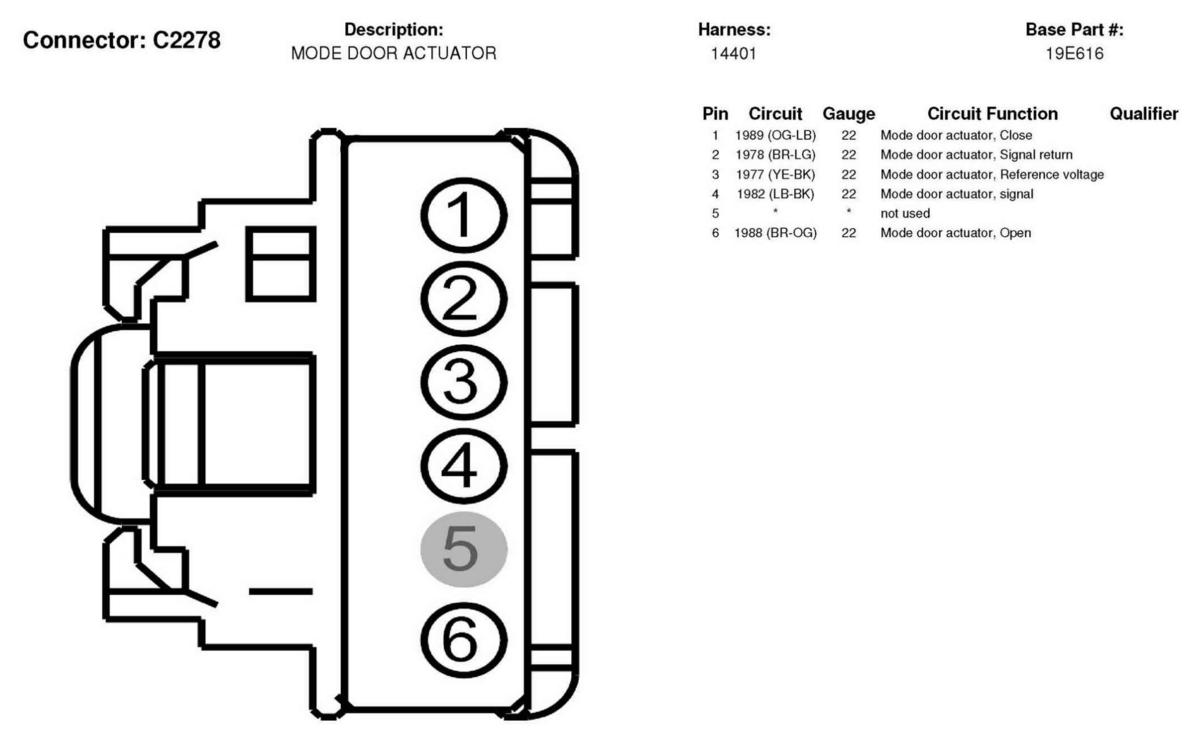

Fig 258: Mode Door Actuator Connector End View (C2278)
G04597500Courtesy of FORD MOTOR CO.

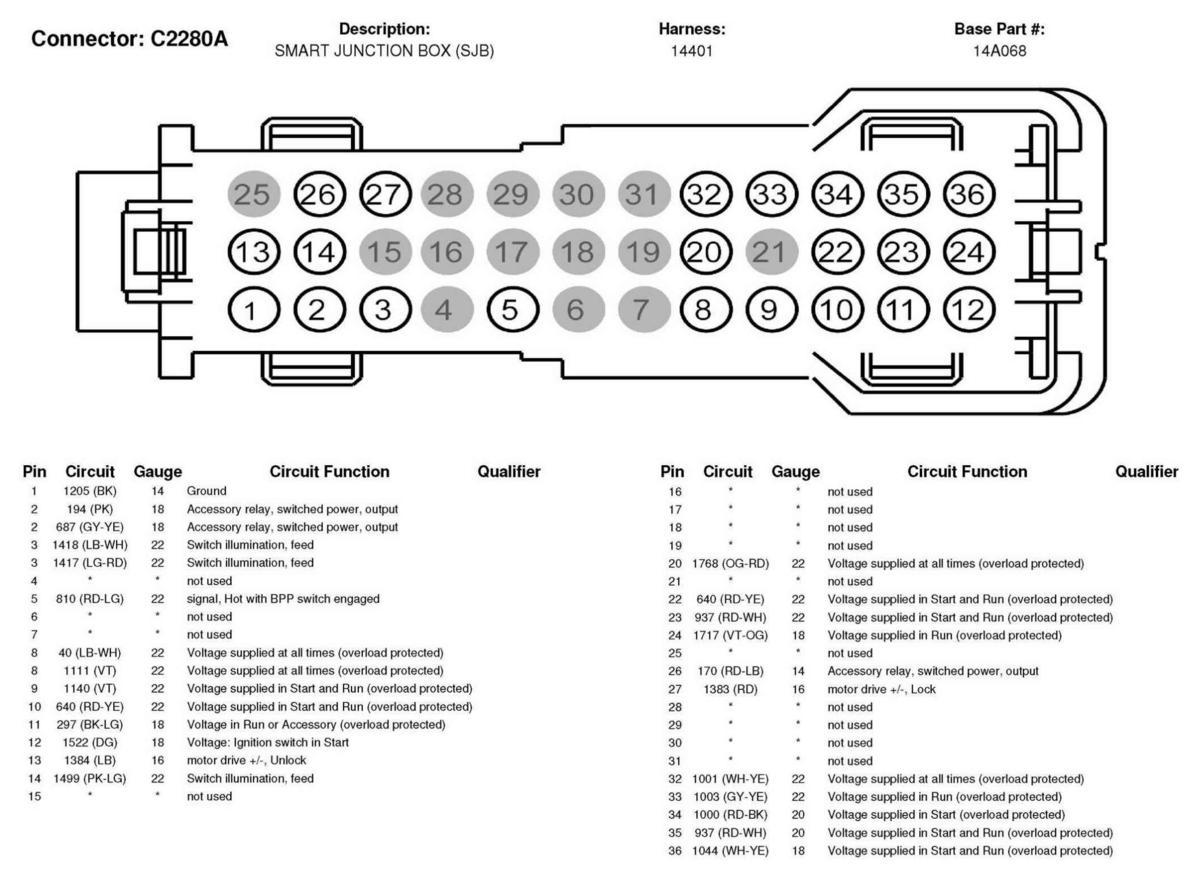

Fig 259: Smart Junction Box (SJB) Connector End View (C2280A)
G04597501Courtesy of FORD MOTOR CO.

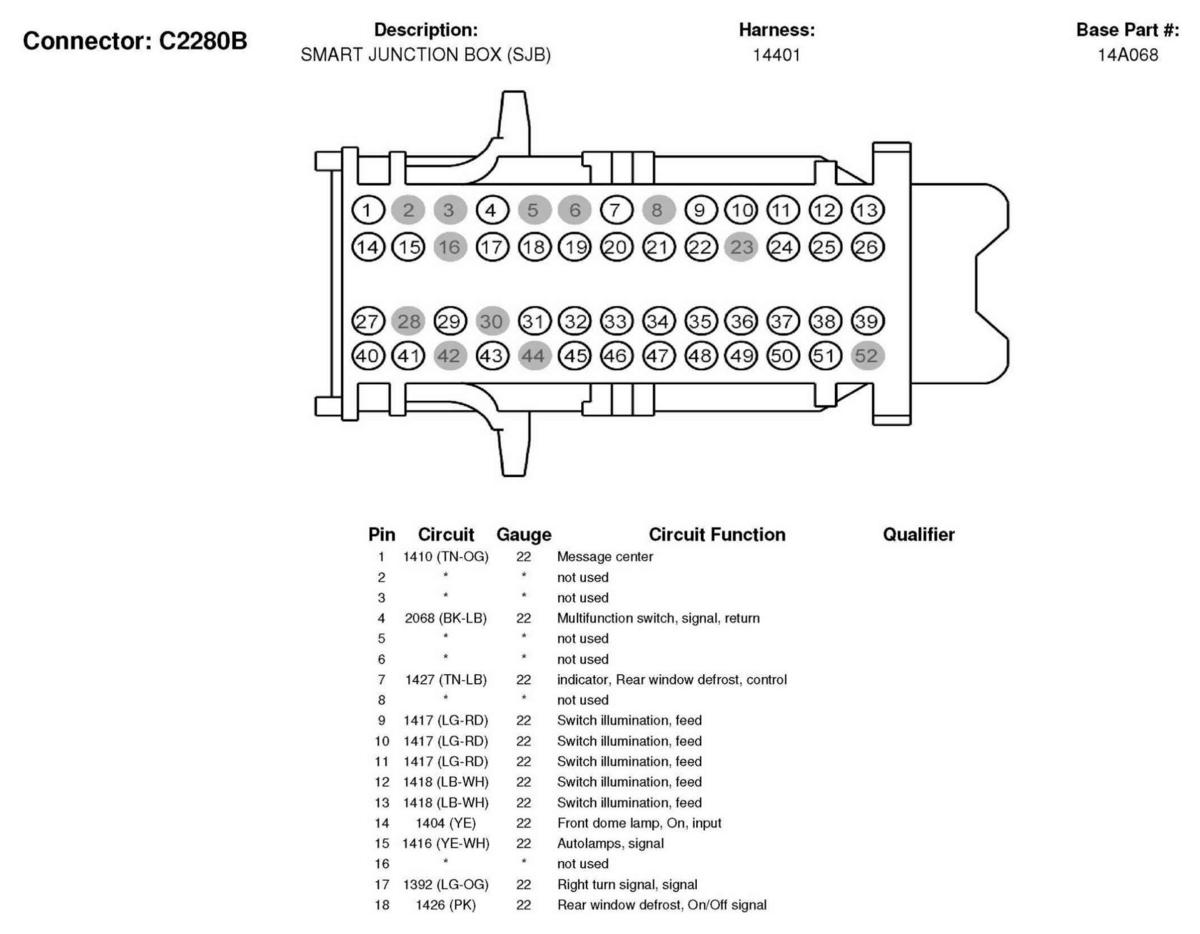

Fig 260: Smart Junction Box (SJB) Connector End View (C2280B) (1 Of 2)
G04597502Courtesy of FORD MOTOR CO.

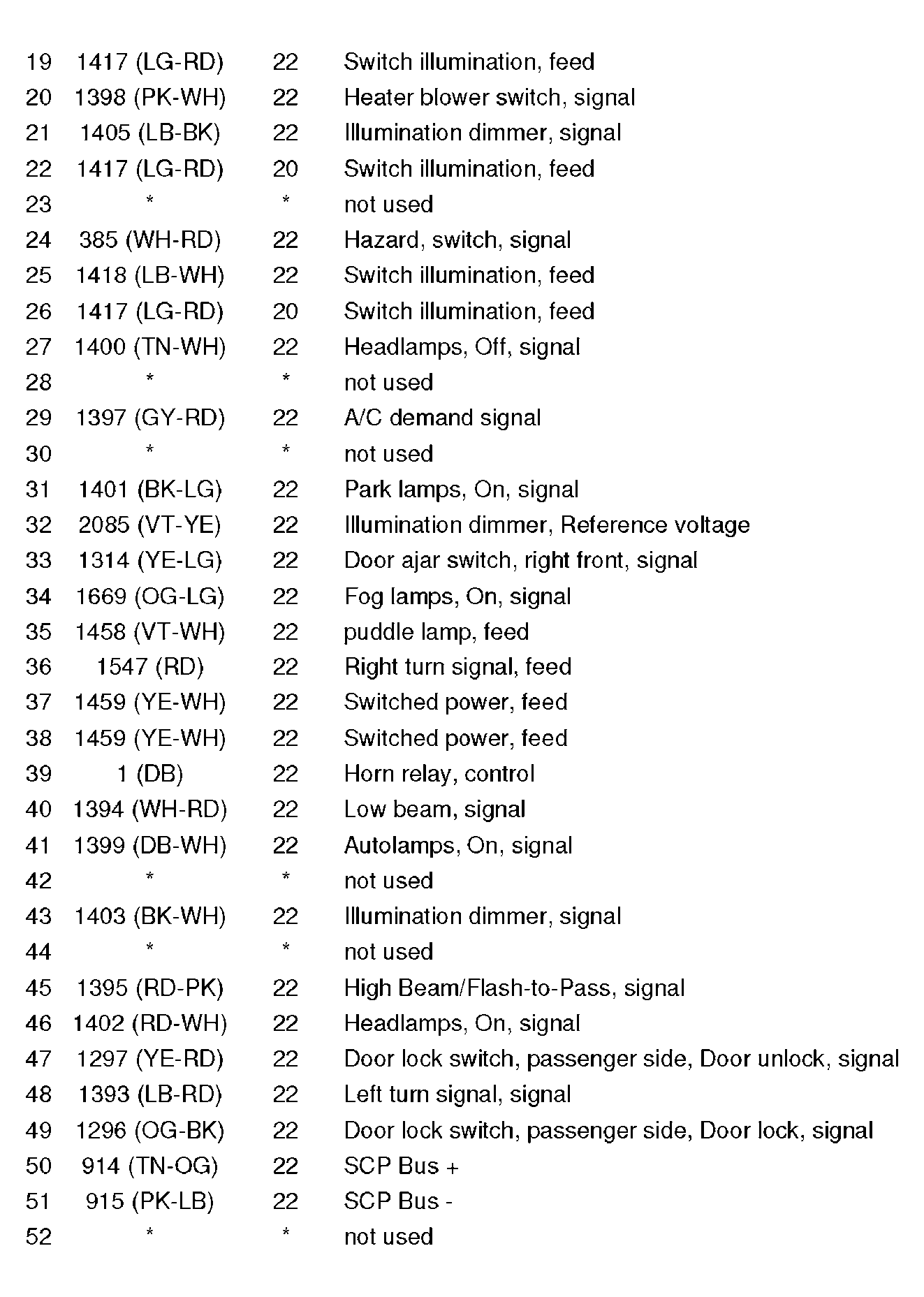

Fig 261: Smart Junction Box (SJB) Connector End View (C2280B) (2 Of 2)
G04597503Courtesy of FORD MOTOR CO.

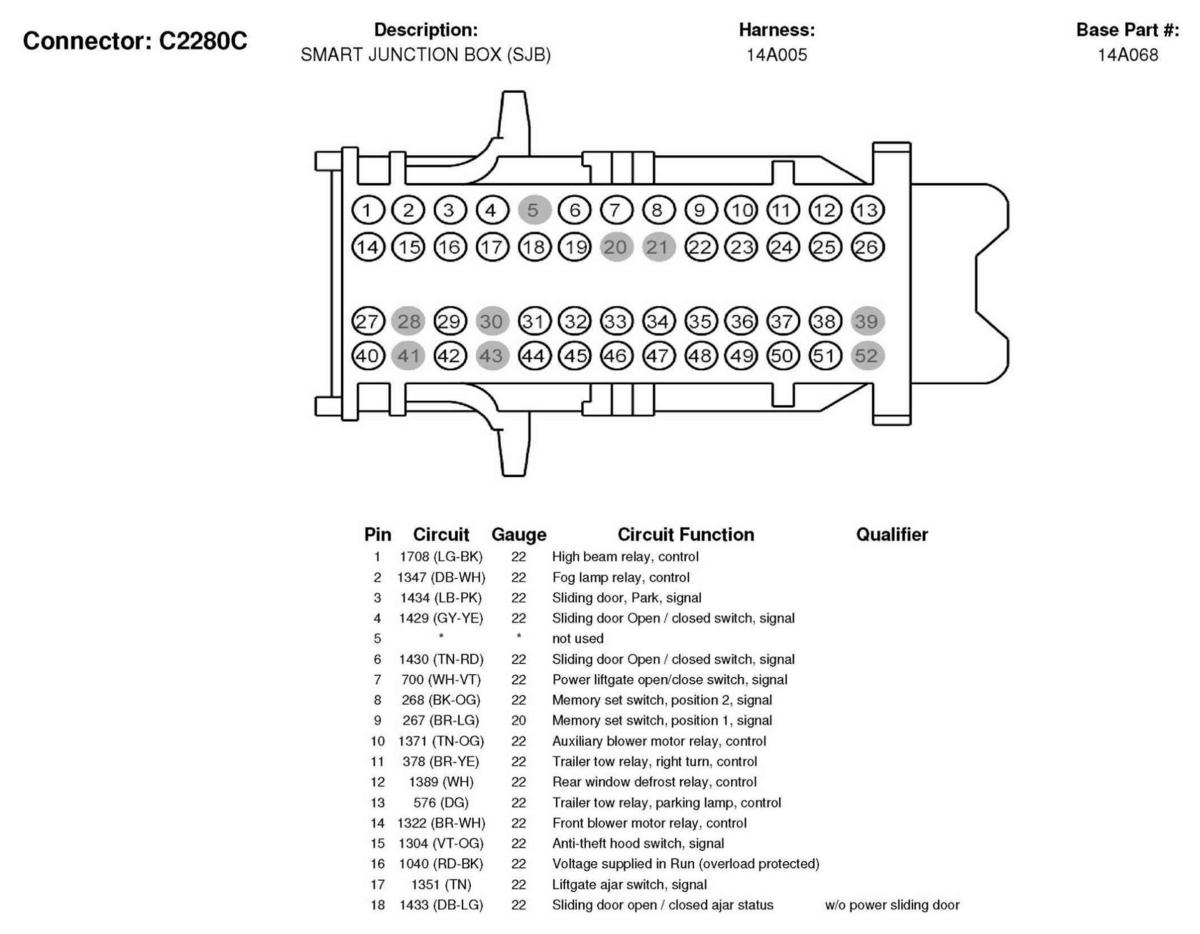

Fig 262: Smart Junction Box (SJB) Connector End View (C2280C) (1 Of 2)
G04597504Courtesy of FORD MOTOR CO.

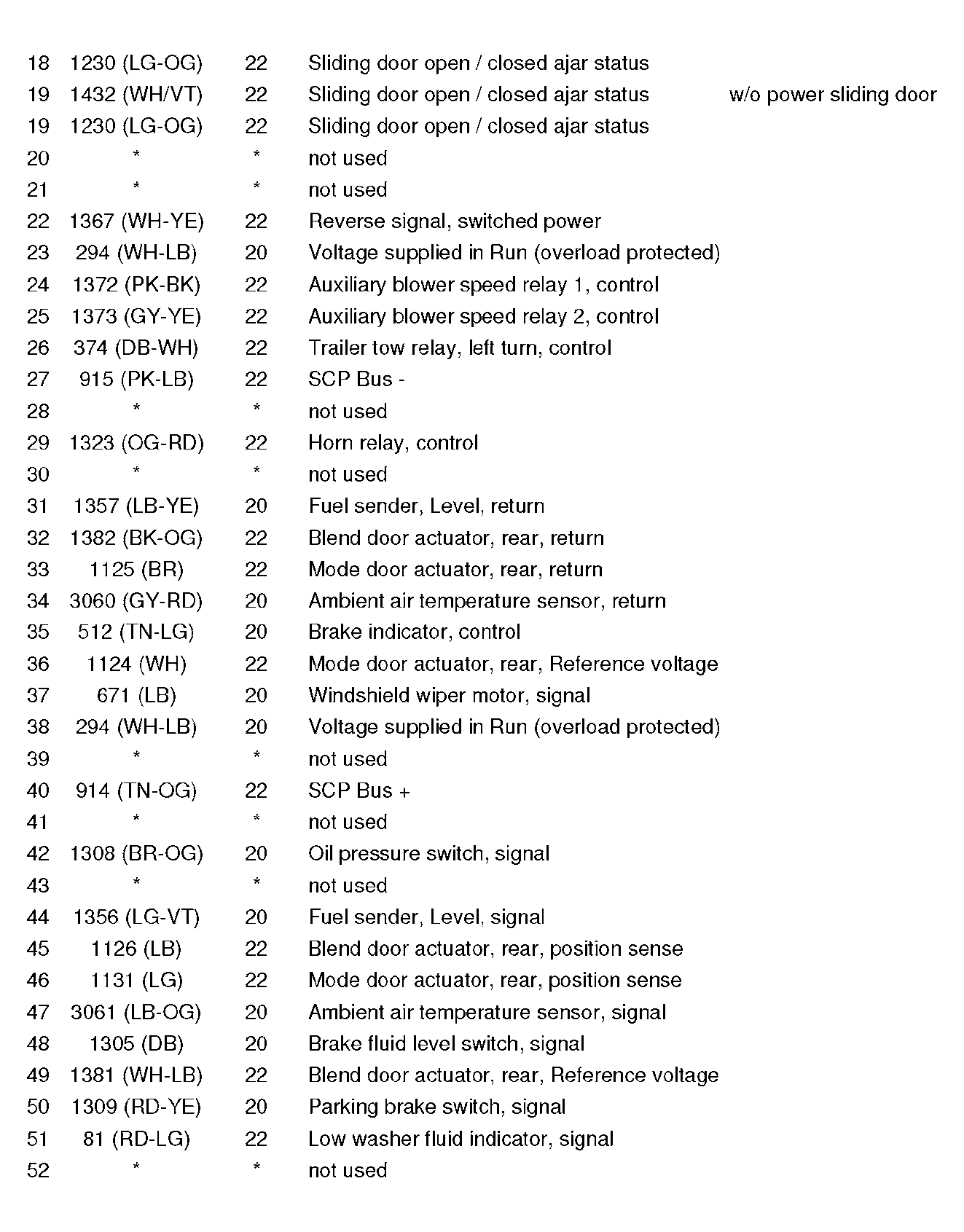

Fig 263: Smart Junction Box (SJB) Connector End View (C2280C) (2 Of 2)
G04597505Courtesy of FORD MOTOR CO.

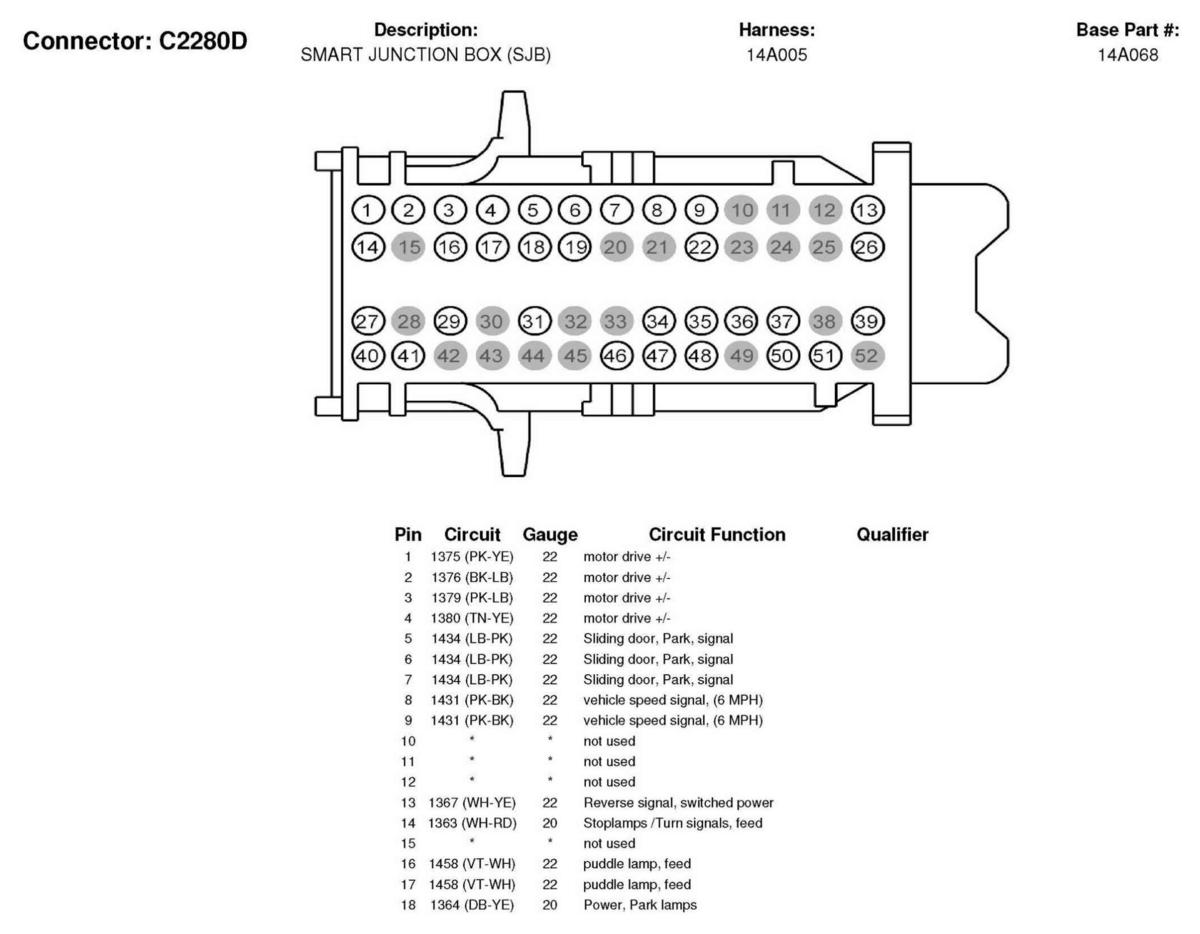

Fig 264: Smart Junction Box (SJB) Connector End View (C2280D) (1 Of 2)
G04597506Courtesy of FORD MOTOR CO.

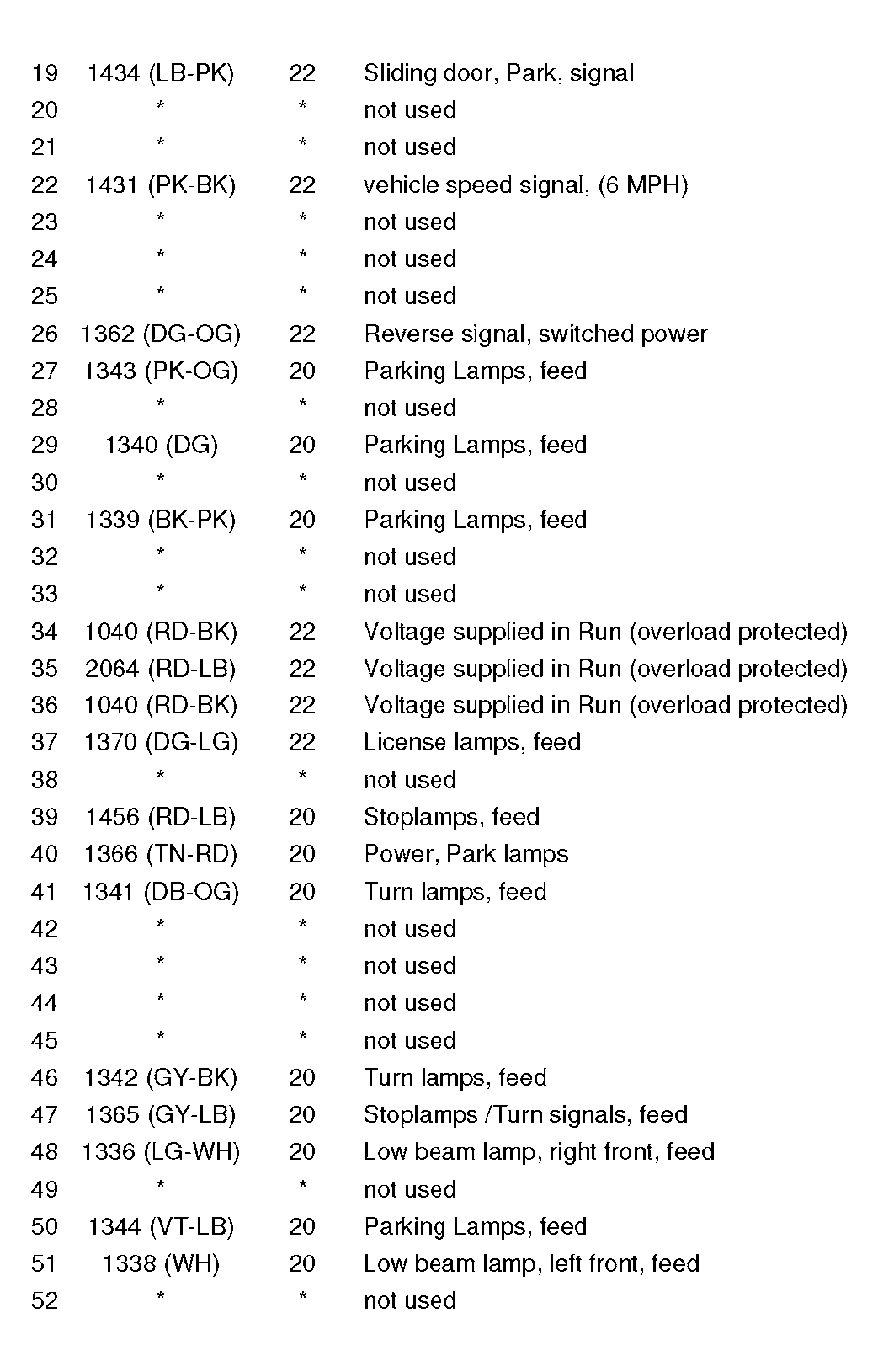

Fig 265: Smart Junction Box (SJB) Connector End View (C2280D) (2 Of 2)
G04597507Courtesy of FORD MOTOR CO.

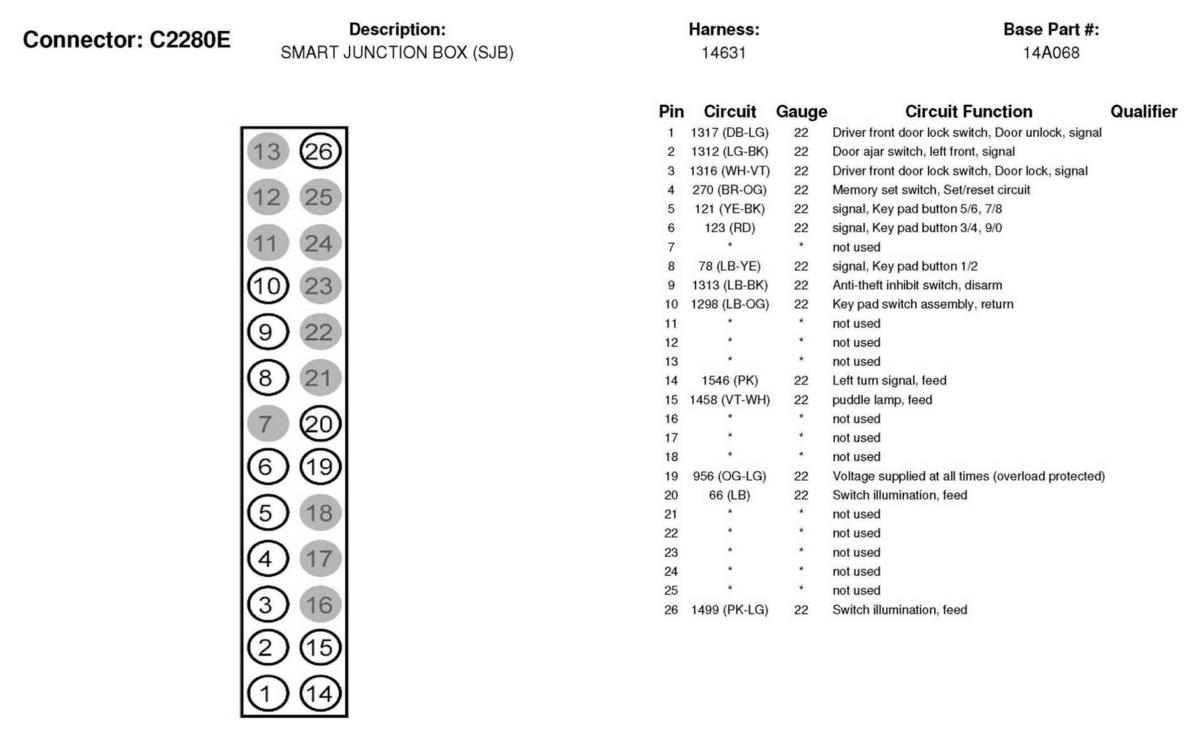

Fig 266: Smart Junction Box (SJB) Connector End View (C2280E)
G04597508Courtesy of FORD MOTOR CO.

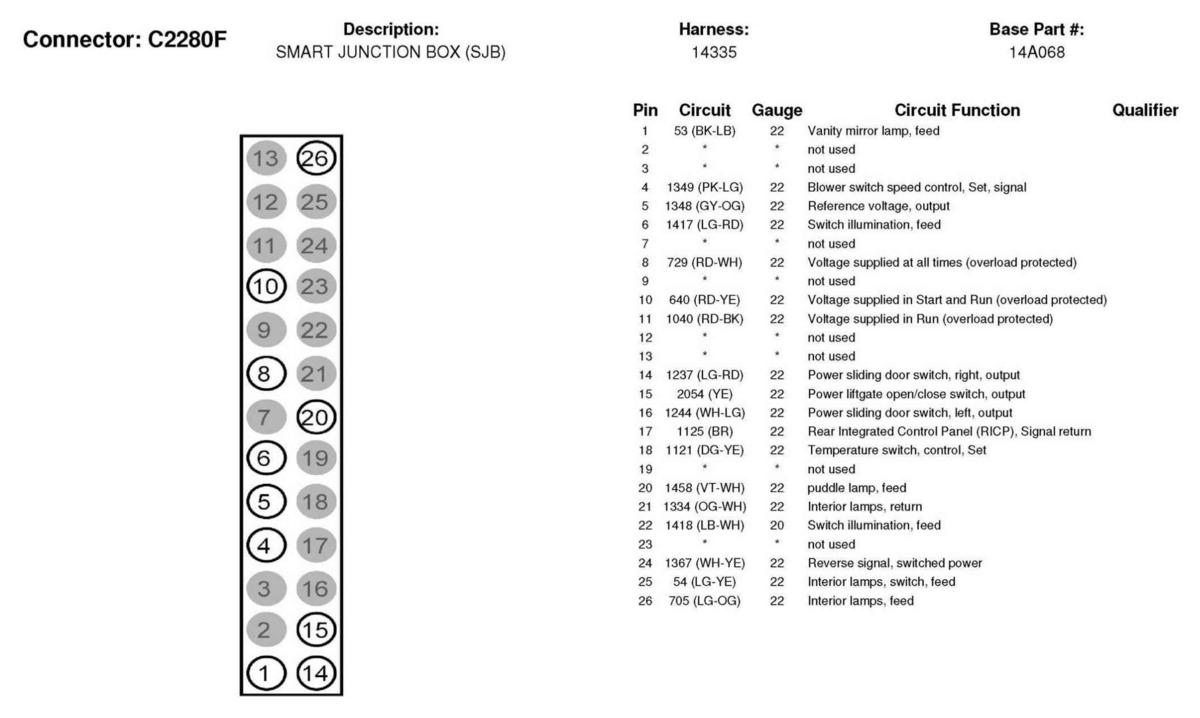

Fig 267: Smart Junction Box (SJB) Connector End View (C2280F)
G04597509Courtesy of FORD MOTOR CO.

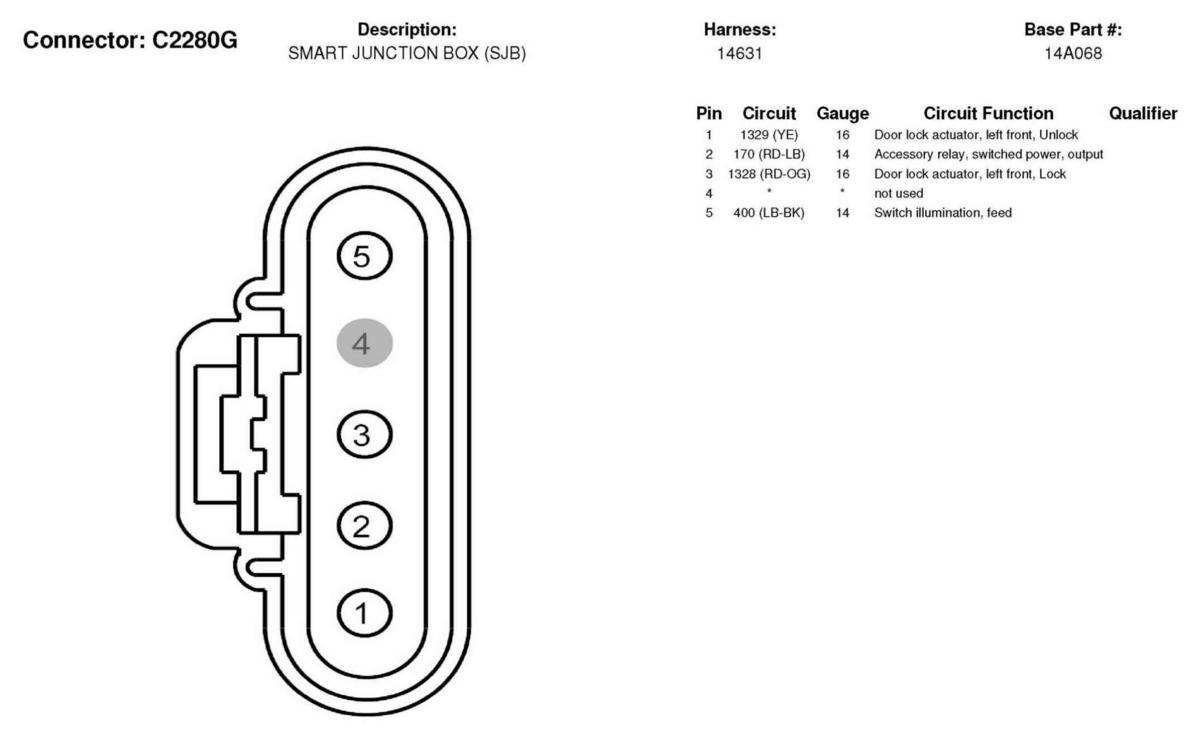

Fig 268: Smart Junction Box (SJB) Connector End View (C2280G)
G04597510Courtesy of FORD MOTOR CO.

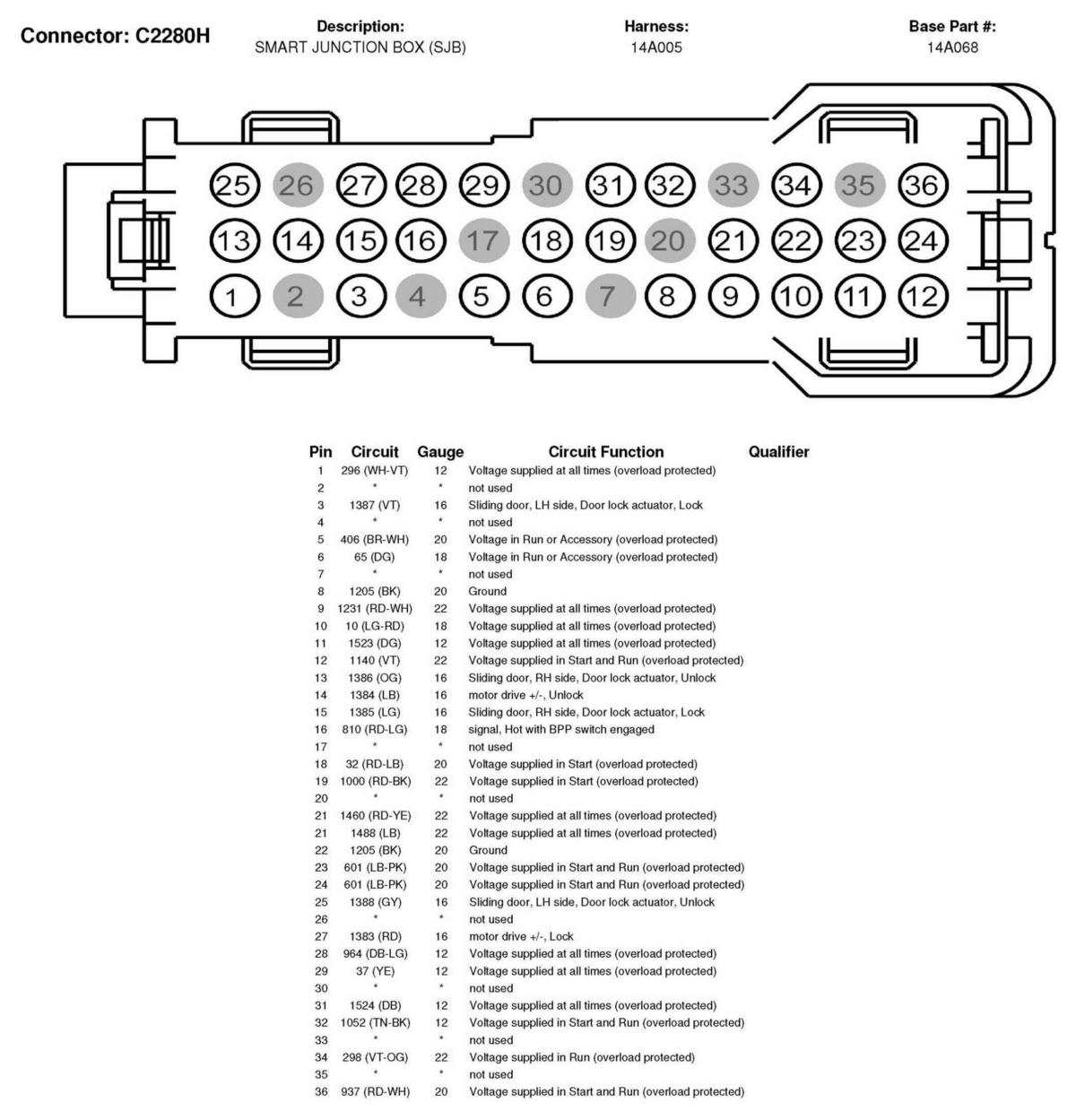

Fig 269: Smart Junction Box (SJB) Connector End View (C2280H)
G04597511Courtesy of FORD MOTOR CO.

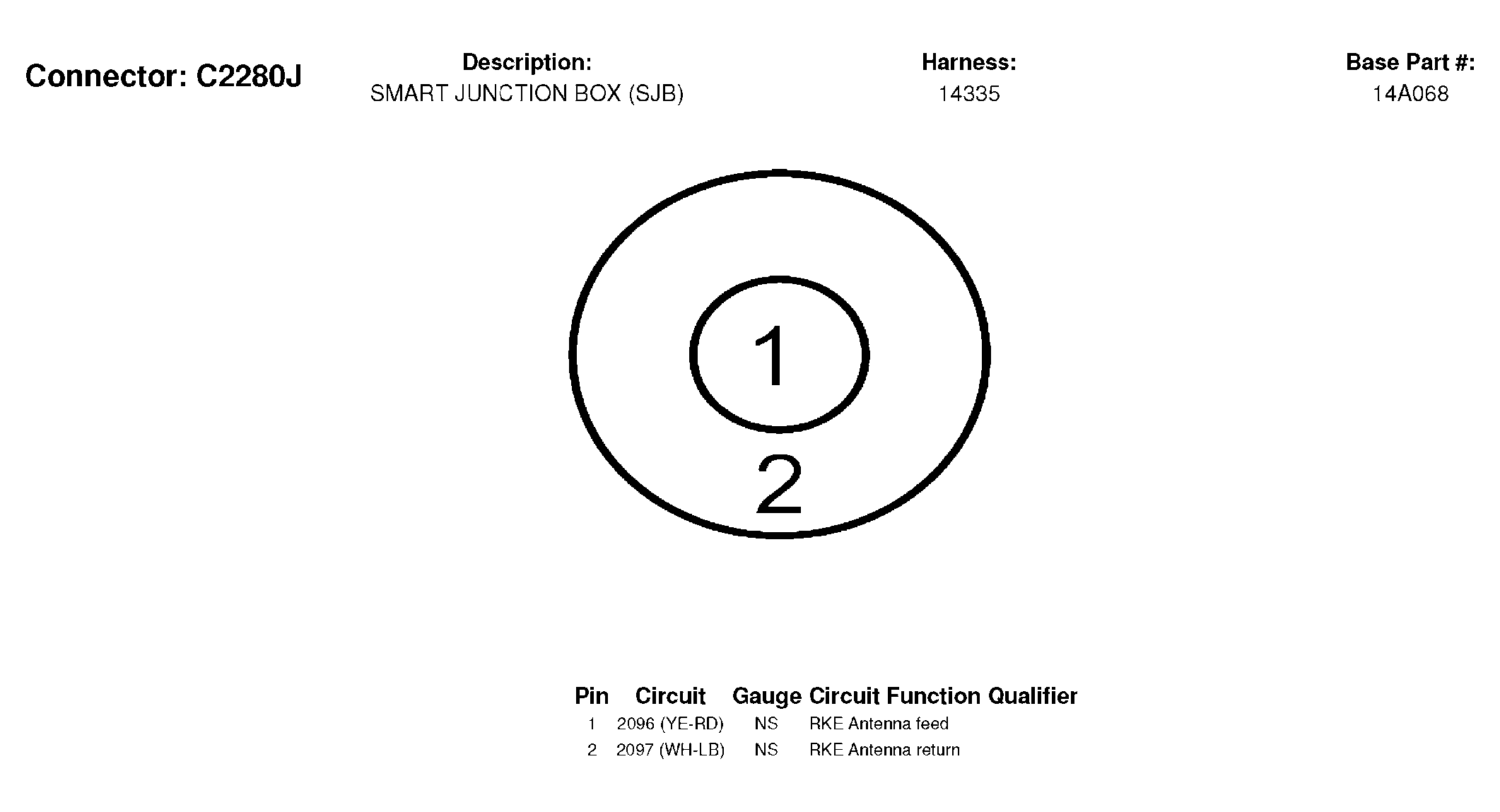

Fig 270: Smart Junction Box (SJB) Connector End View (C2280J)
G04597512Courtesy of FORD MOTOR CO.

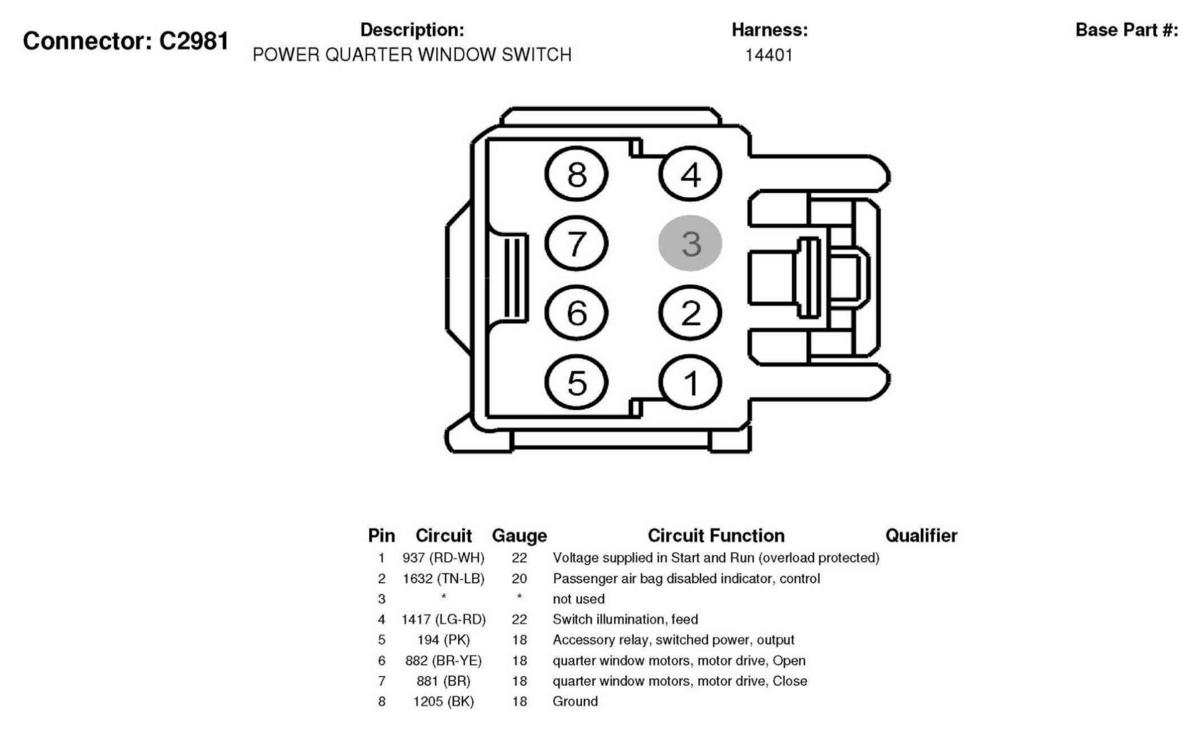

Fig 271: Power Quarter Window Switch Connector End View (C2981)
G04597513Courtesy of FORD MOTOR CO.

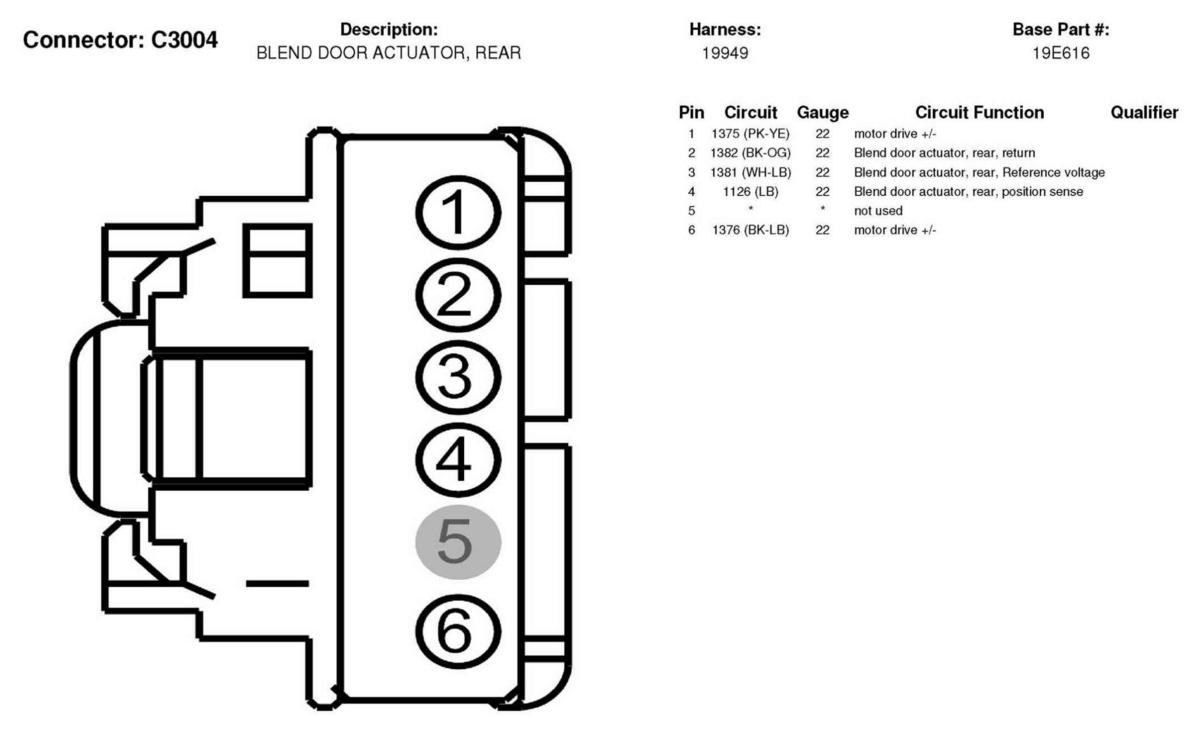

Fig 272: Blend Door Actuator, Rear Connector End View (C3004)
G04597514Courtesy of FORD MOTOR CO.

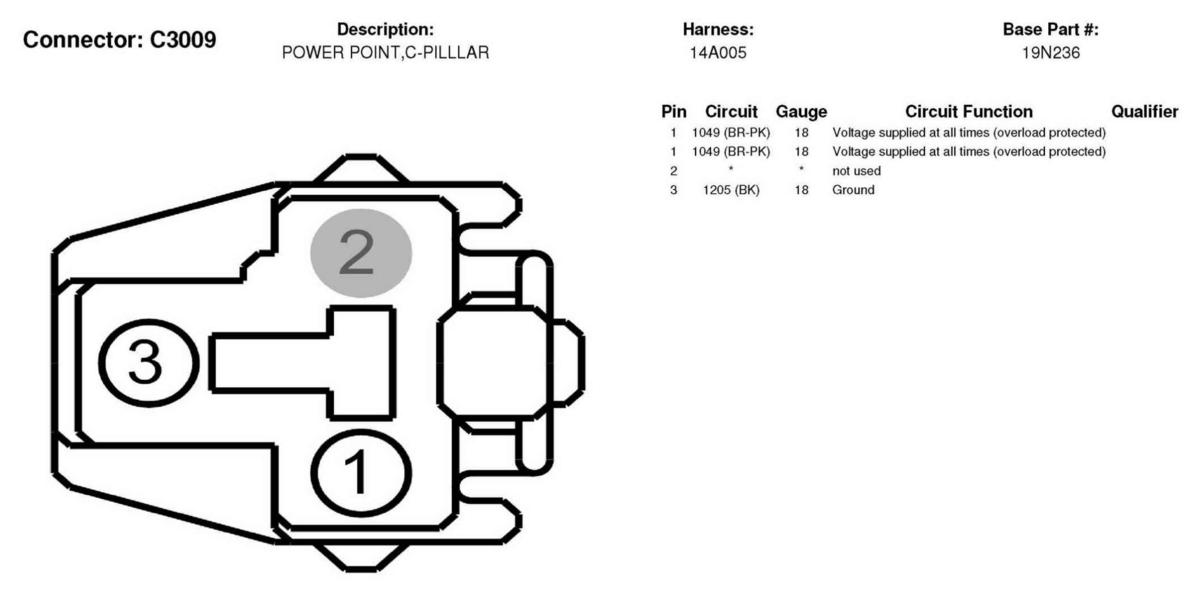

Fig 273: Power Point, C-Pillar Connector End View (C3009)
G04597515Courtesy of FORD MOTOR CO.

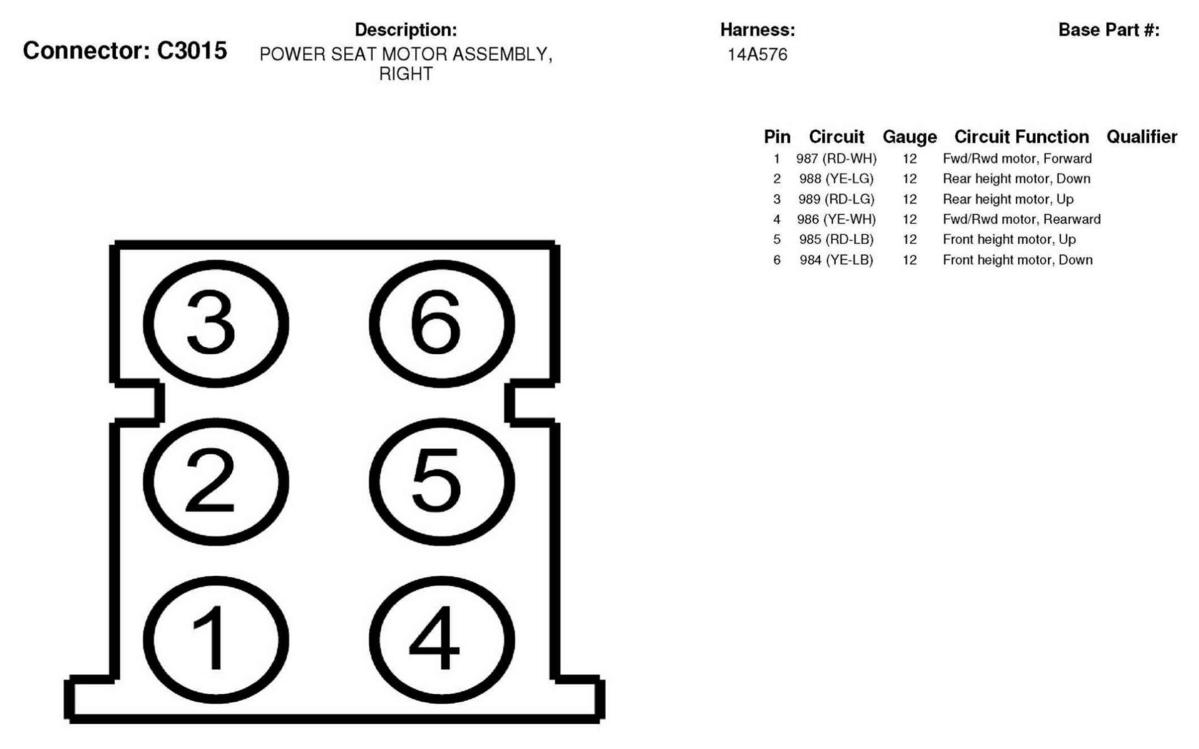

Fig 274: Power Seat Motor Assembly, Right Connector End View (C3015)
G04597516Courtesy of FORD MOTOR CO.
Fig 275: Auxiliary Blower Motor Connector End View (C3021)
G04597517Courtesy of FORD MOTOR CO.

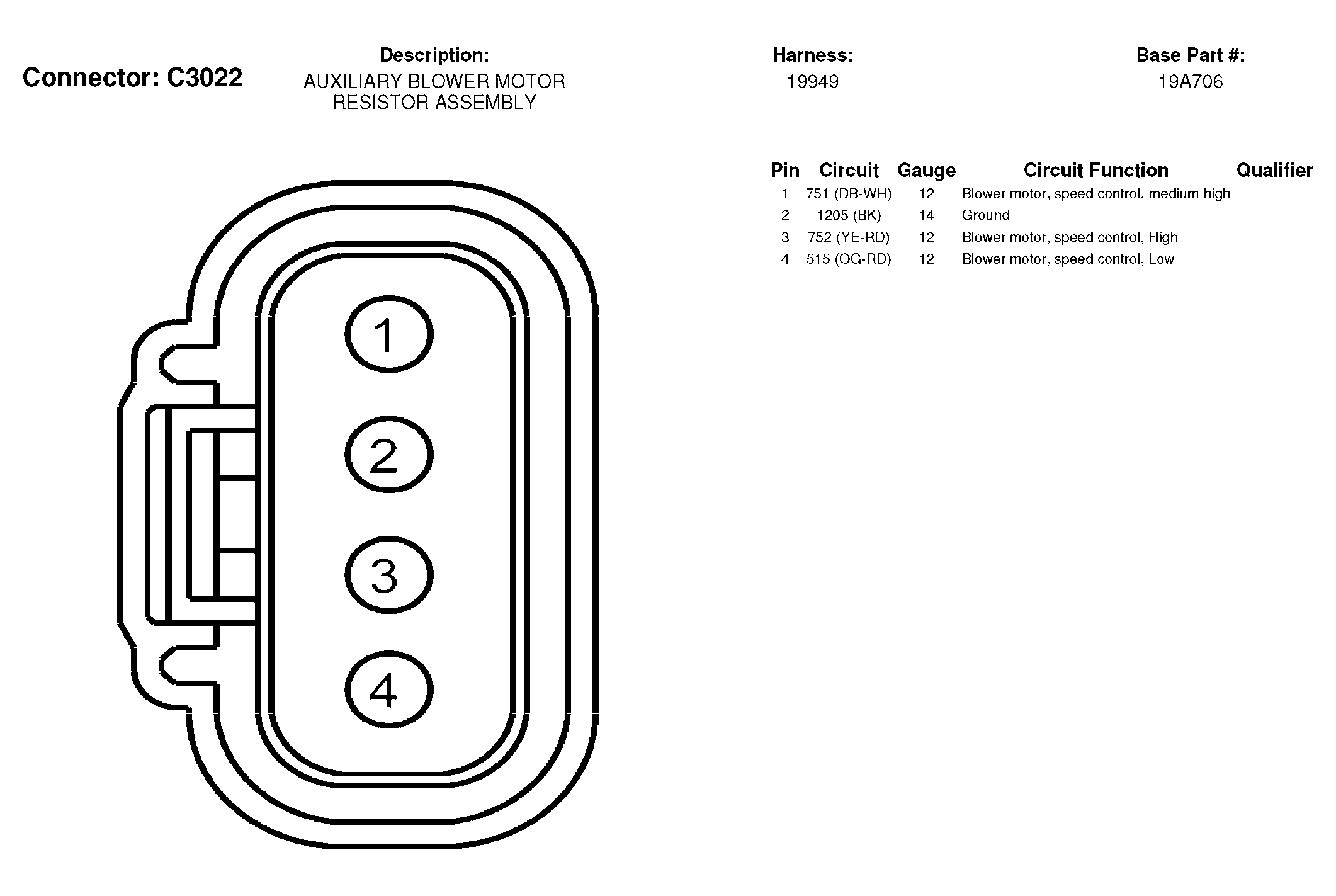

Fig 276: Auxiliary Blower Motor Resistor Assembly Connector End View (C3022)
G04597518Courtesy of FORD MOTOR CO.
Fig 277: Climate Controlled Seat Module, Driver Side Connector End View (C3031A)
G04597519Courtesy of FORD MOTOR CO.

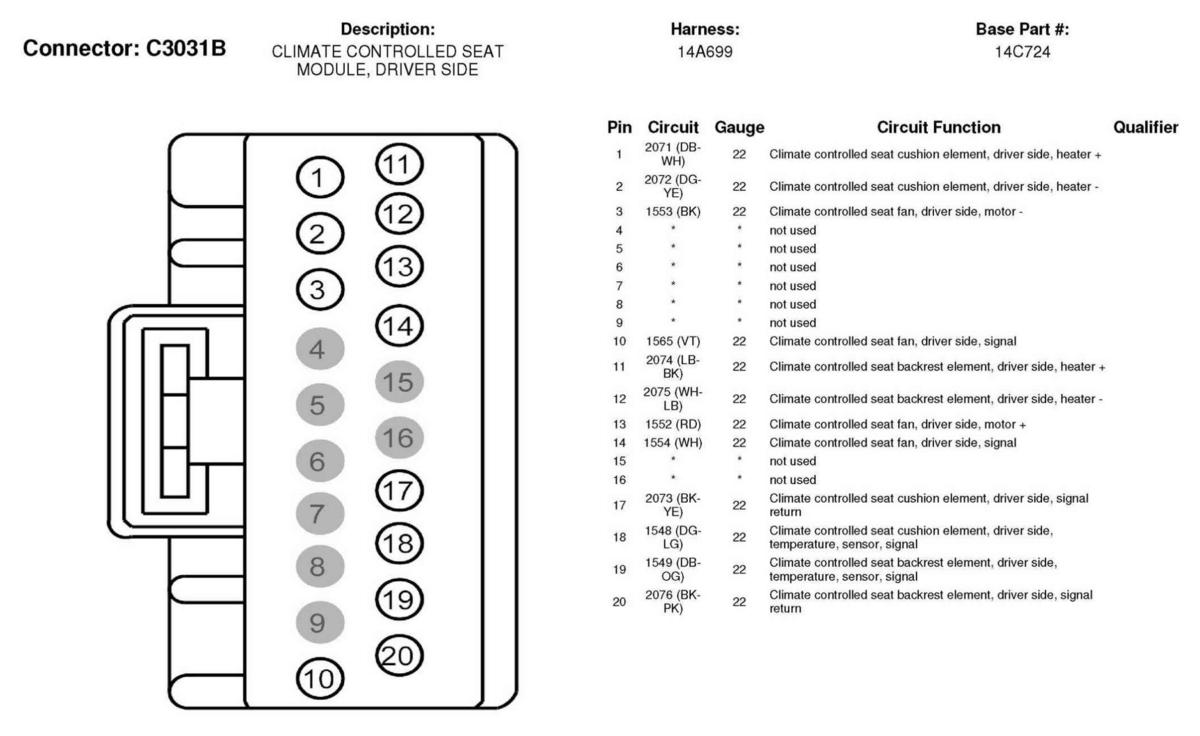

Fig 278: Climate Controlled Seat Module, Driver Side Connector End View (C3031B)
G04597520Courtesy of FORD MOTOR CO.
Fig 279: Climate Controlled Seat Fan, Driver Side Connector End View (C3033)
G04597521Courtesy of FORD MOTOR CO.

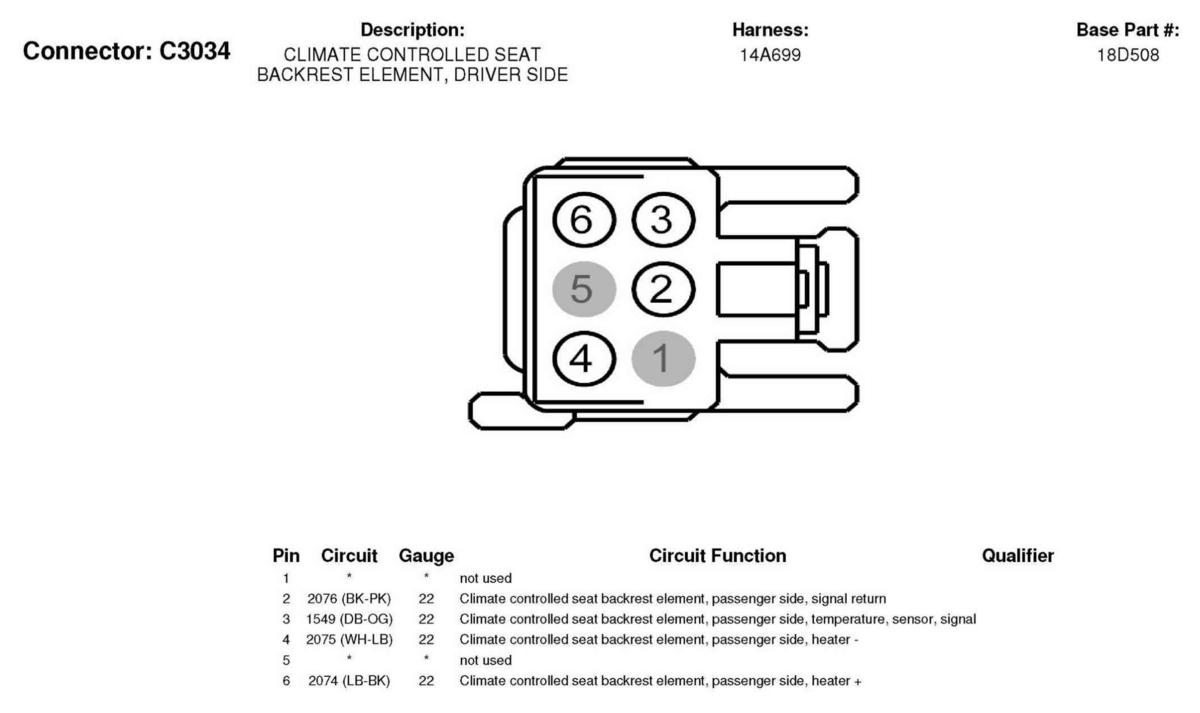

Fig 280: Climate Controlled Seat Backrest Element, Driver Side Connector End View (C3034)
G04597522Courtesy of FORD MOTOR CO.

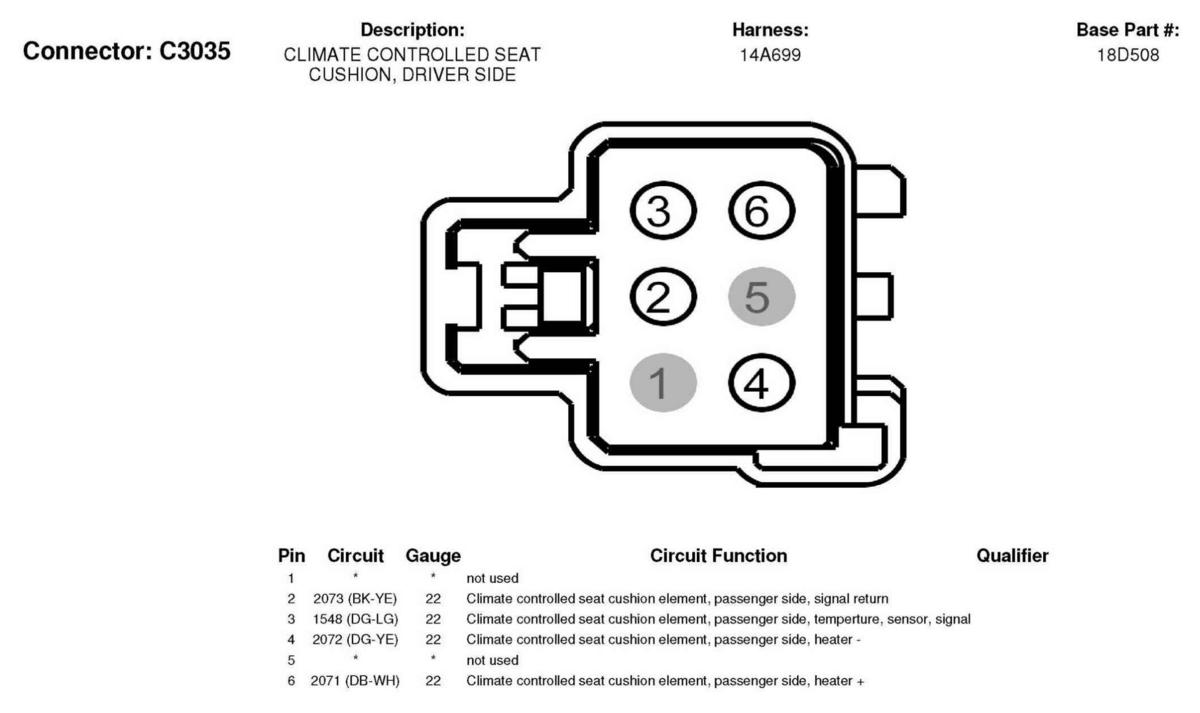

Fig 281: Climate Controlled Seat Cushion, Driver Side Connector End View (C3035)
G04597523Courtesy of FORD MOTOR CO.

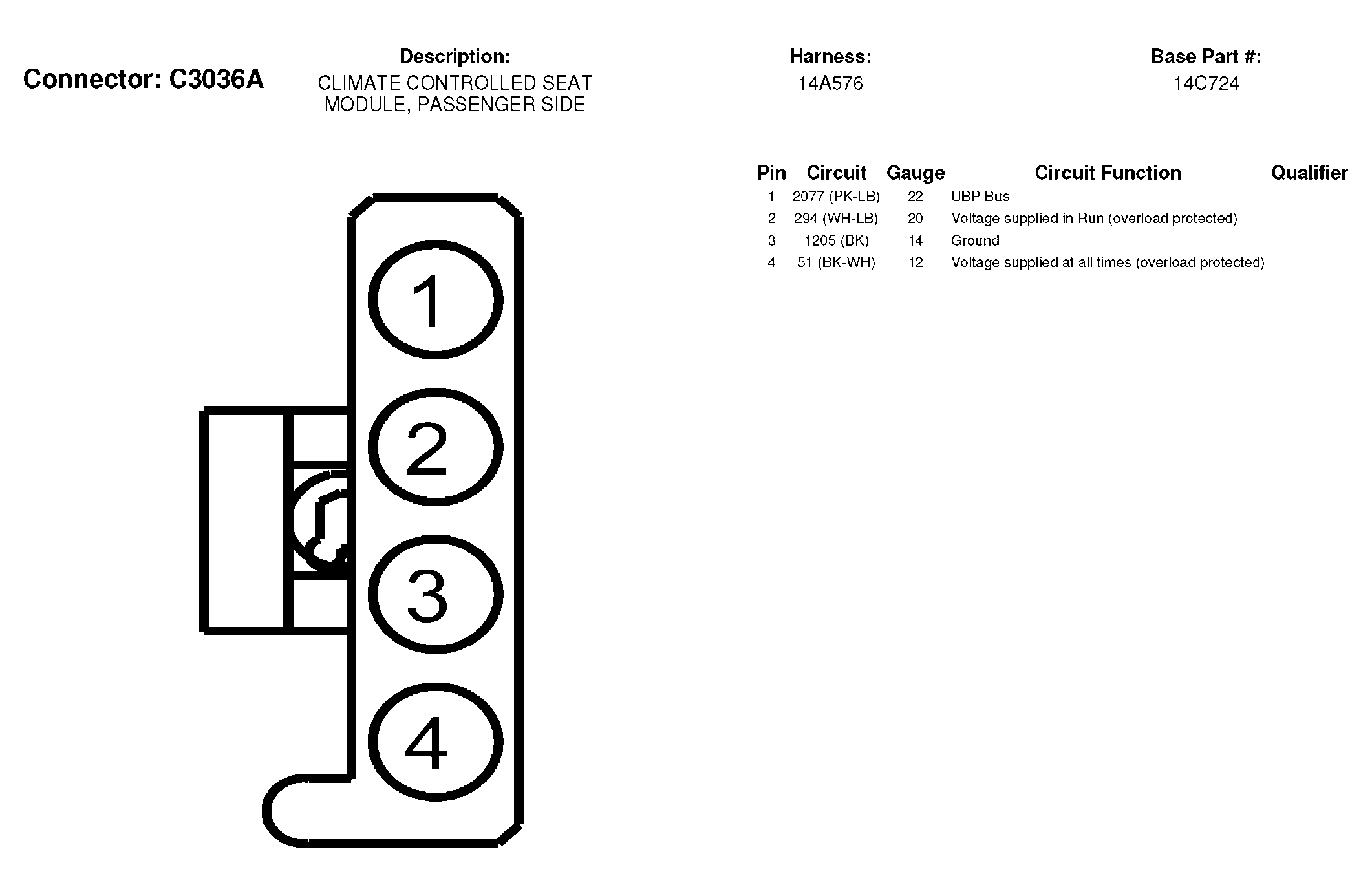

Fig 282: Climate Controlled Seat Module, Passenger Side Connector End View (C3036A)
G04597524Courtesy of FORD MOTOR CO.

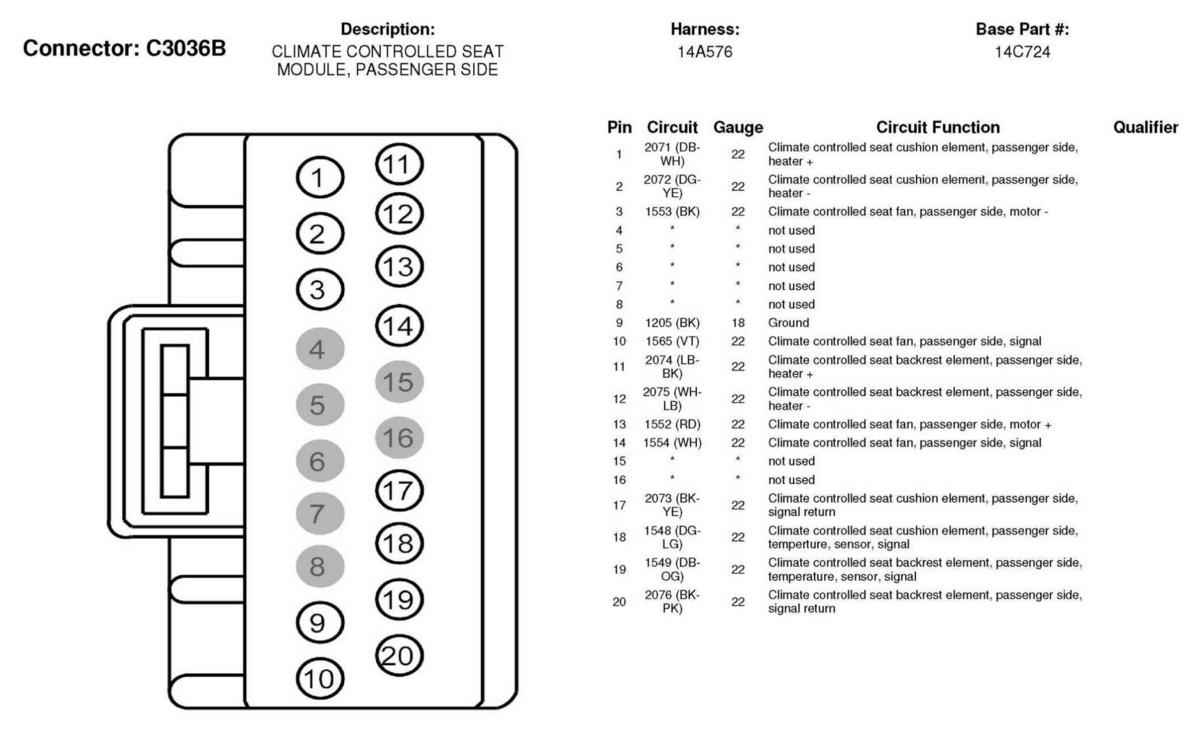

Fig 283: Climate Controlled Seat Module, Passenger Side Connector End View (C3036B)
G04597525Courtesy of FORD MOTOR CO.

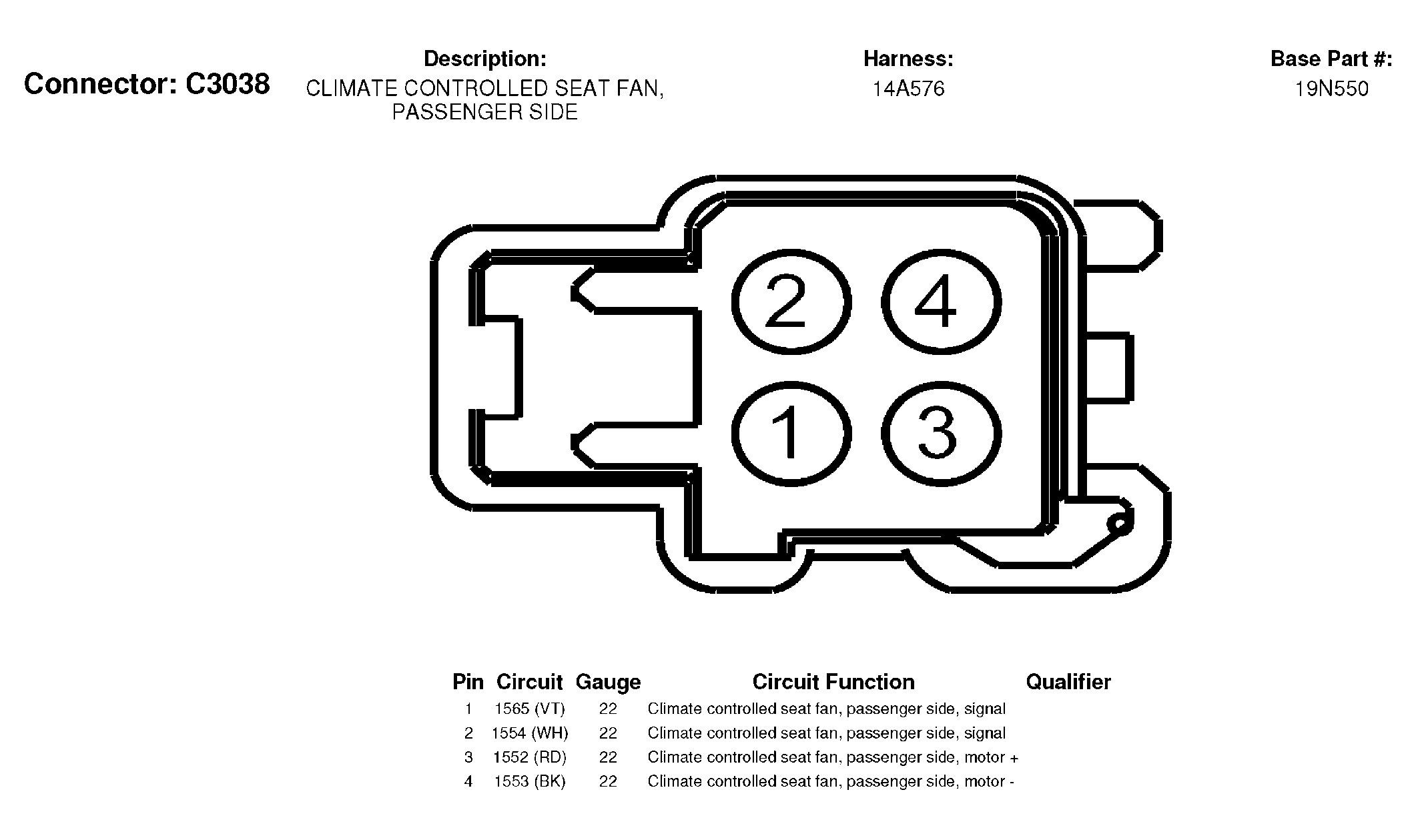

Fig 284: Climate Controlled Seat Fan, Passenger Side Connector End View (C3038)
G04597526Courtesy of FORD MOTOR CO.

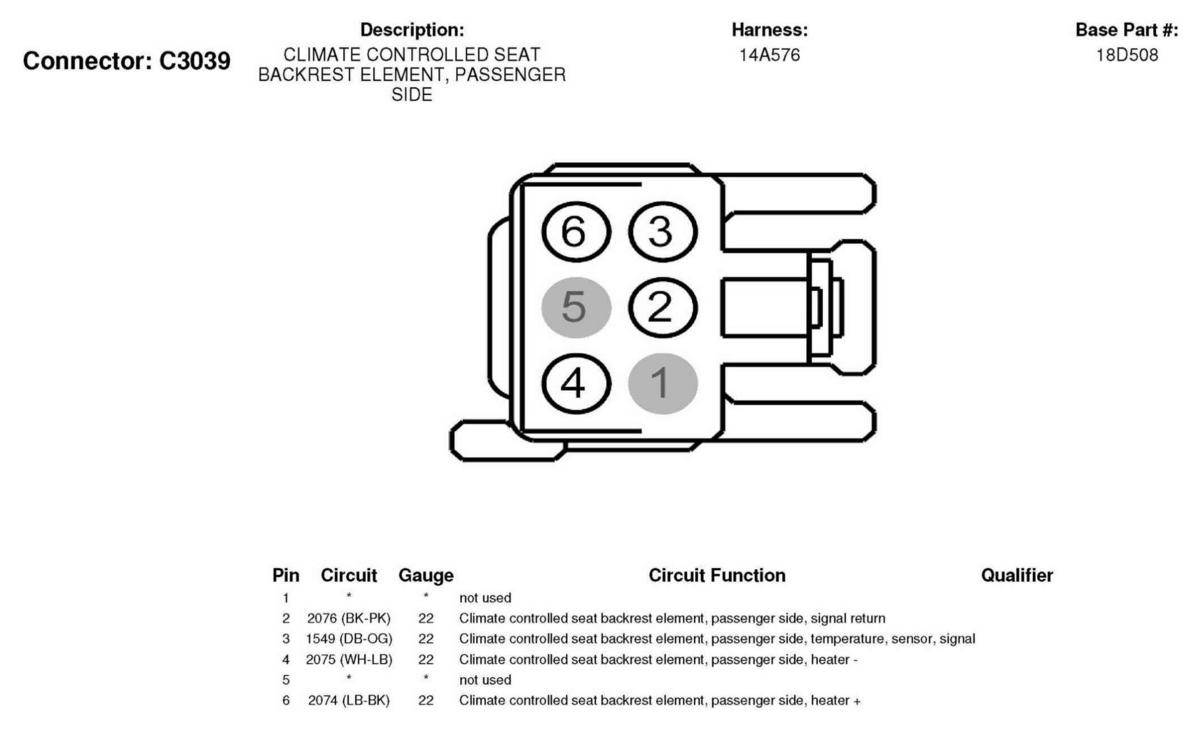

Fig 285: Climate Controlled Seat Backrest Element, Passenger Side Connector End View (C3039)
G04597527Courtesy of FORD MOTOR CO.

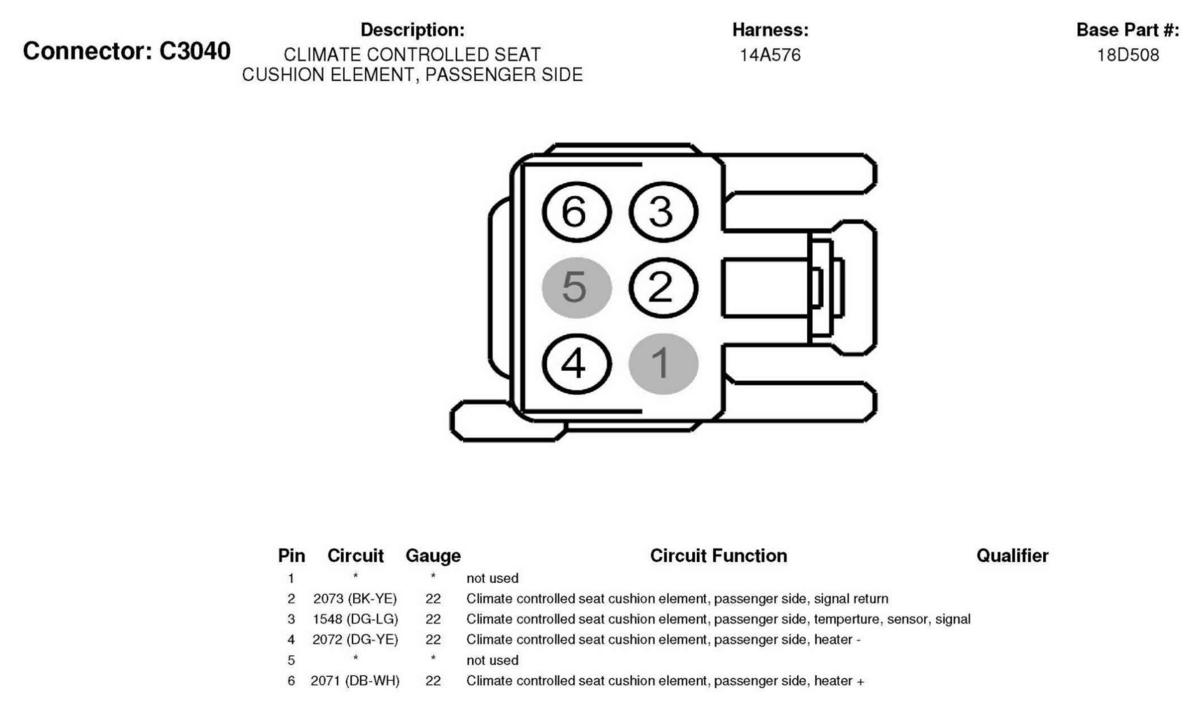

Fig 286: Climate Controlled Seat Cushion Element, Passenger Side Connector End View (C3040)
G04597528Courtesy of FORD MOTOR CO.

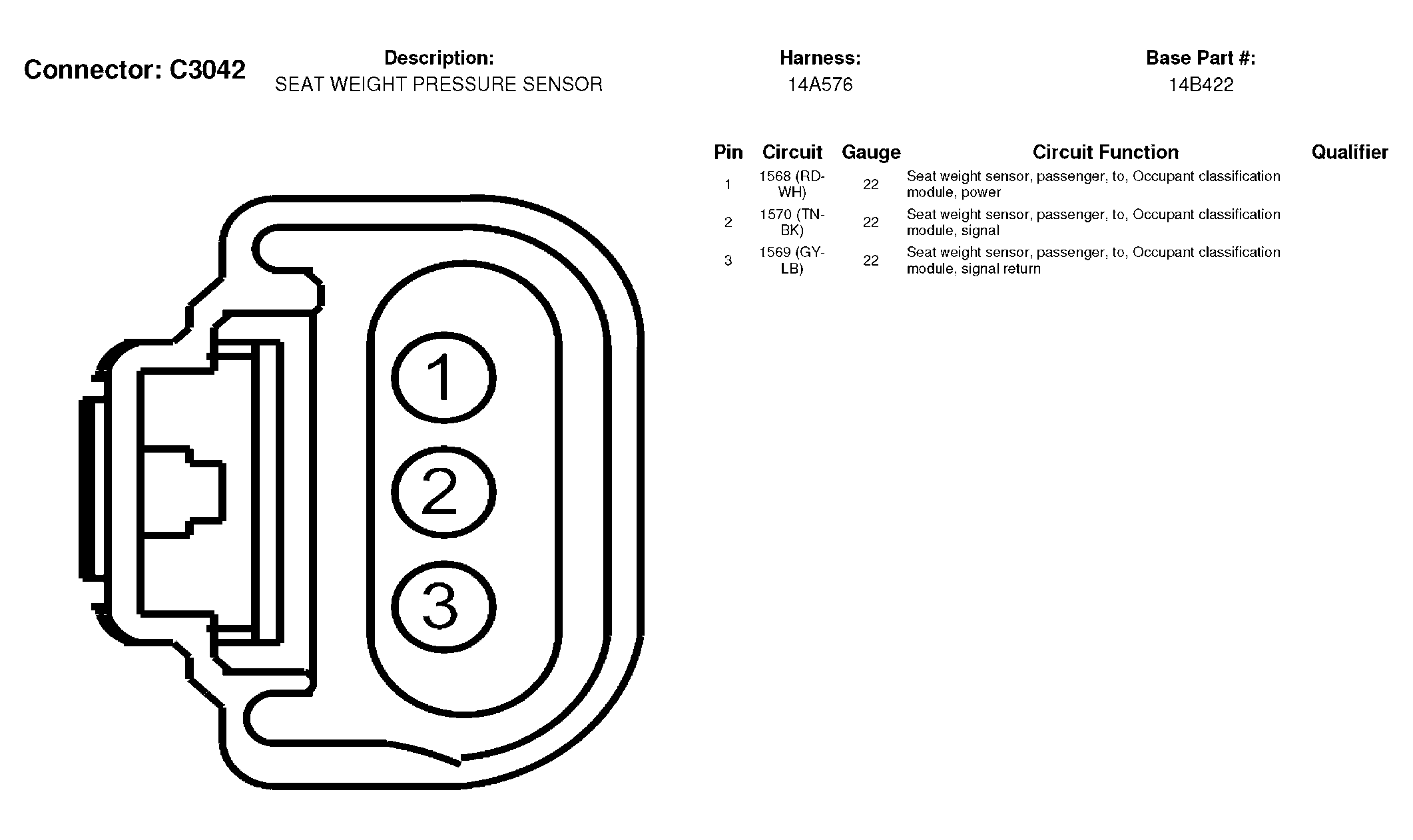

Fig 287: Seat Weight Pressure Sensor Connector End View (C3042)
G04597529Courtesy of FORD MOTOR CO.

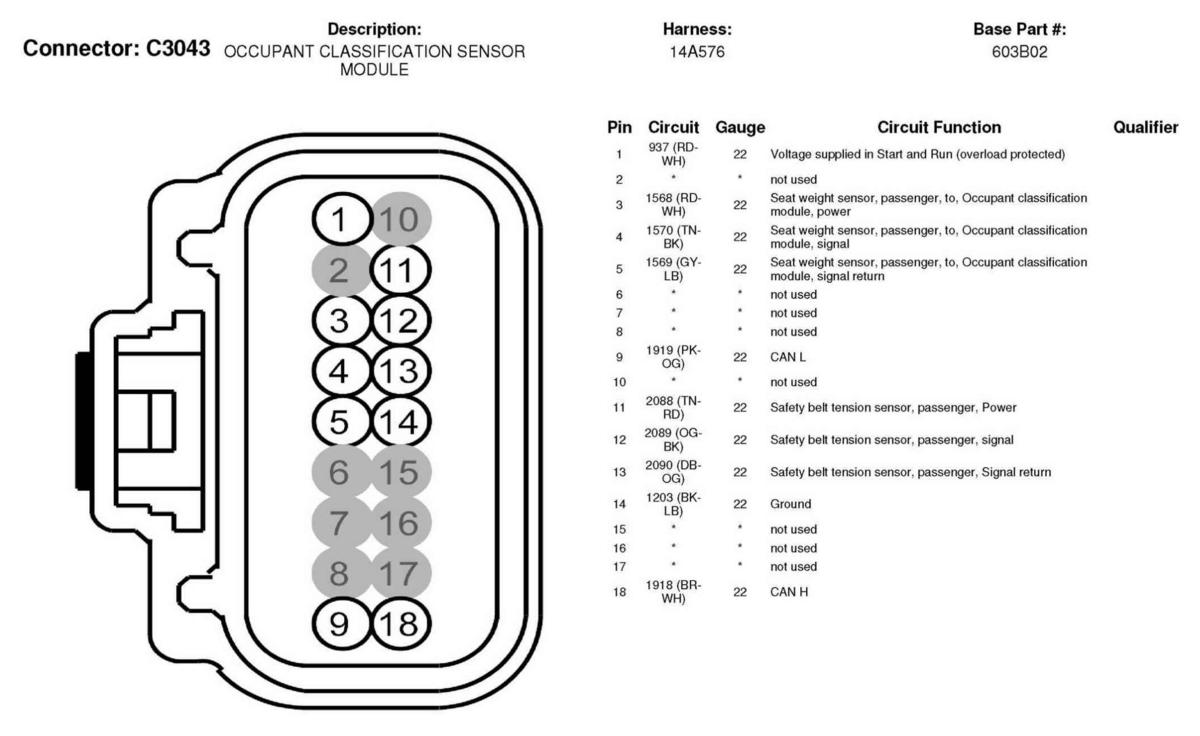

Fig 288: Occupant Classification Sensor Module Connector End View (C3043)
G04597530Courtesy of FORD MOTOR CO.

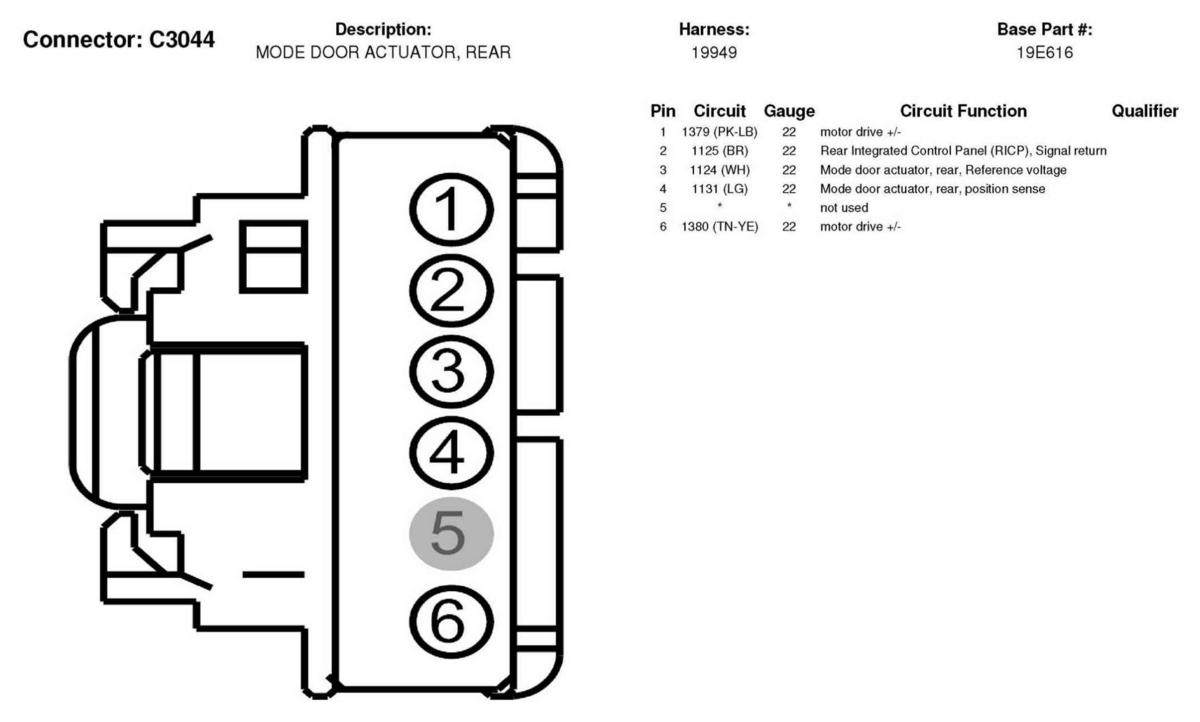

Fig 289: Mode Door Actuator, Rear Connector End View (C3044)
G04597531Courtesy of FORD MOTOR CO.

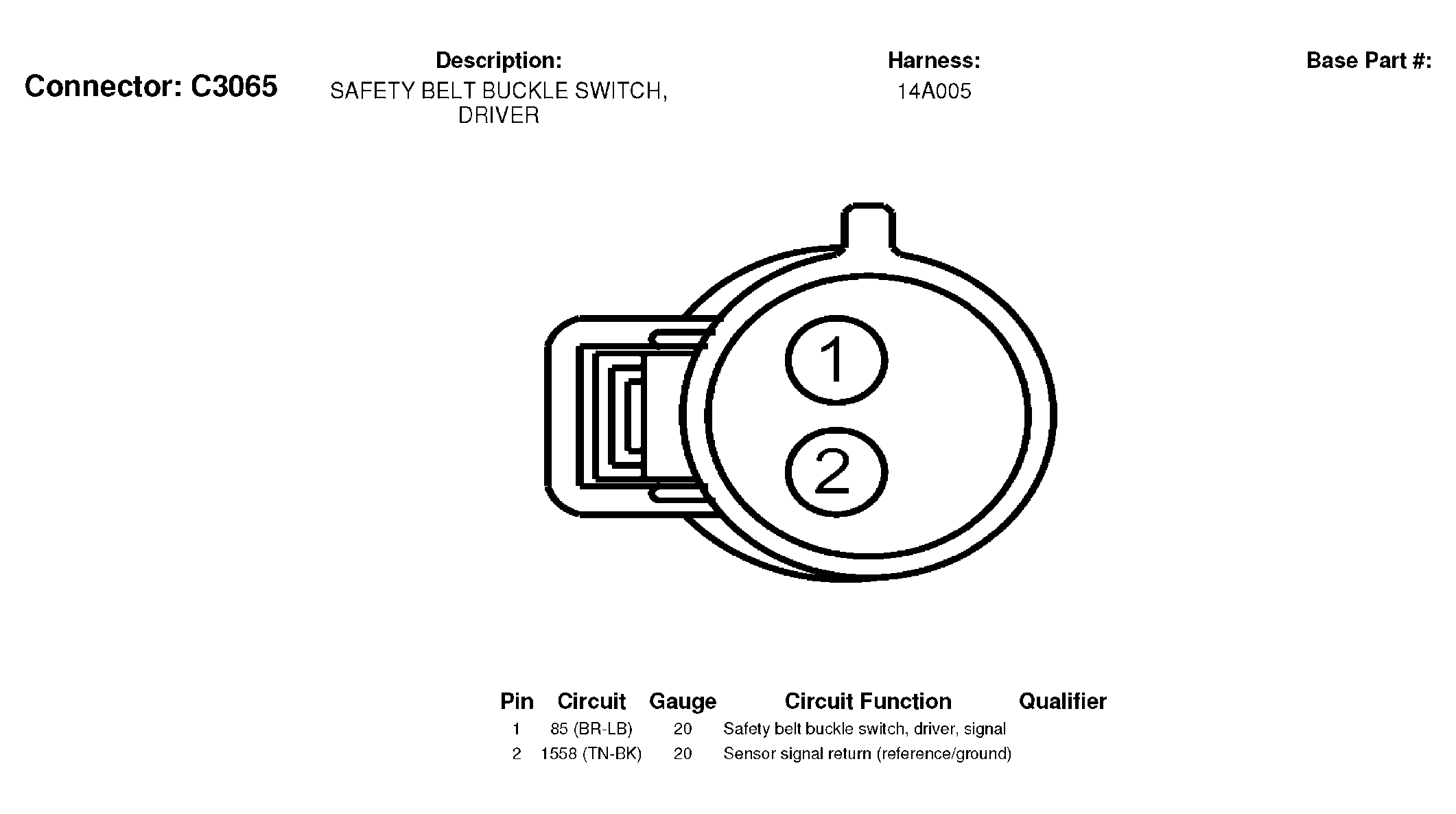

Fig 290: Safety Belt Buckle Switch, Driver Connector End View (C3065)
G04597532Courtesy of FORD MOTOR CO.

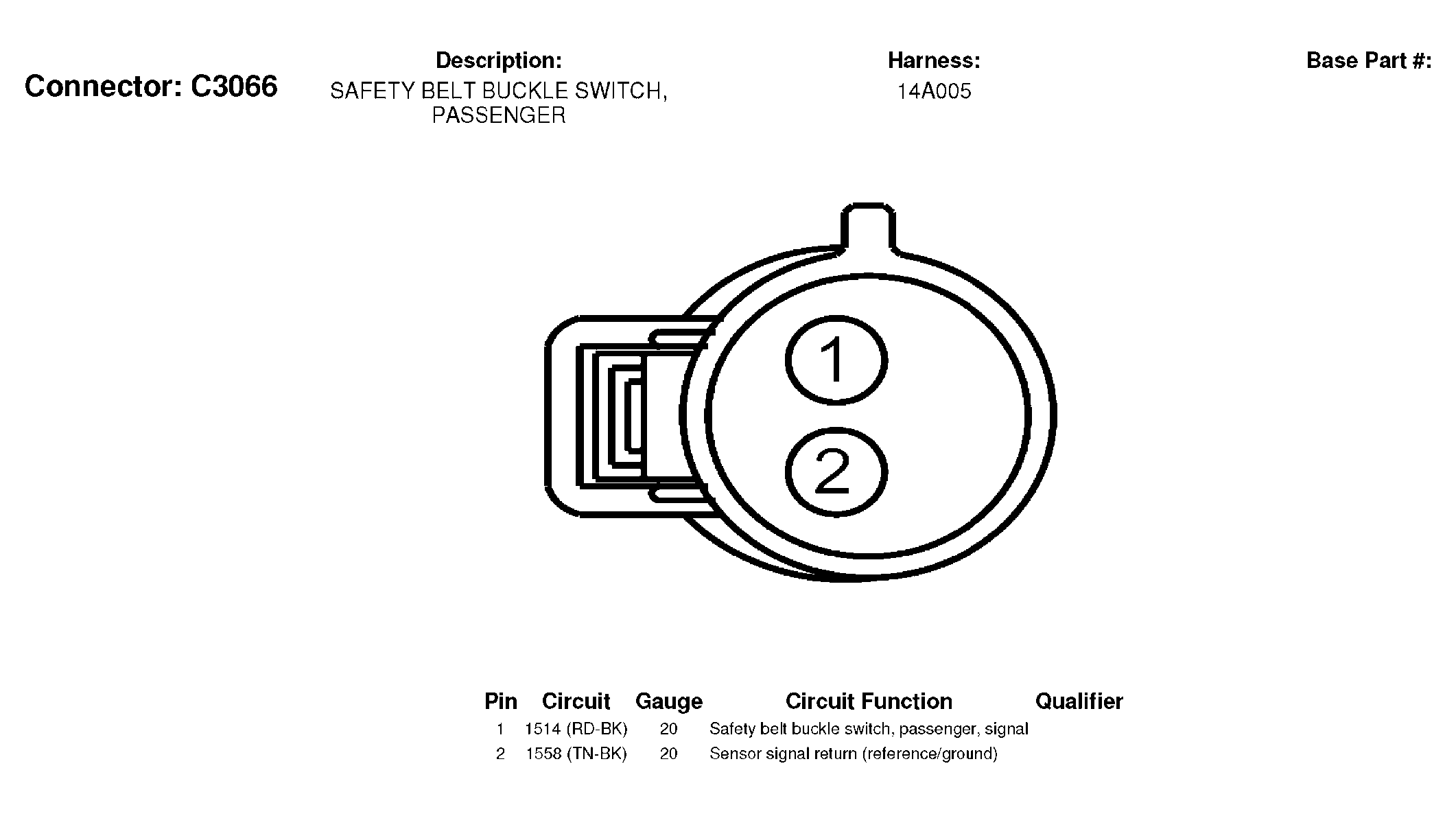

Fig 291: Safety Belt Buckle Switch, Passenger Connector End View (C3066)
G04597533Courtesy of FORD MOTOR CO.

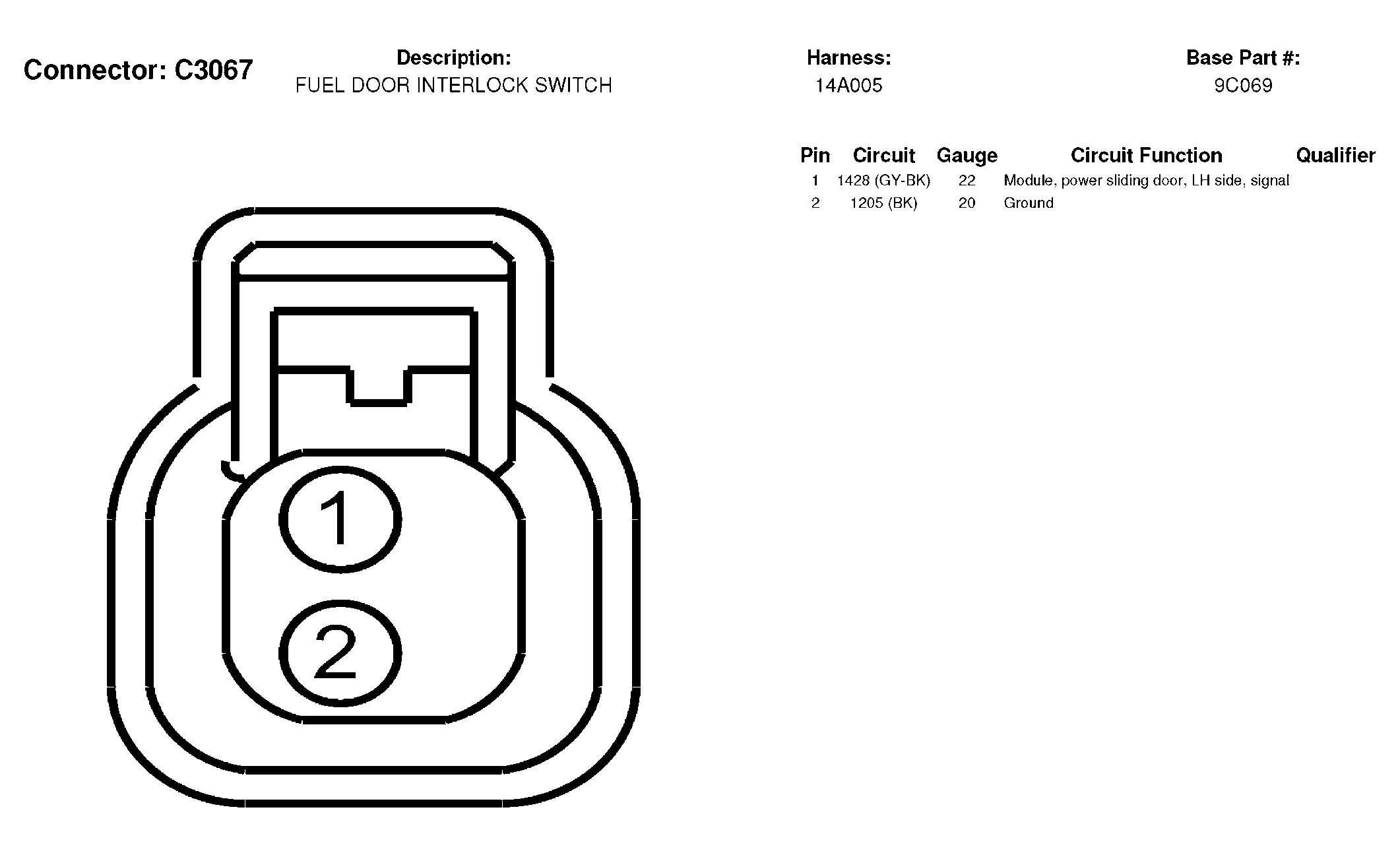

Fig 292: Fuel Door Interlock Switch Connector End View (C3067)
G04597534Courtesy of FORD MOTOR CO.

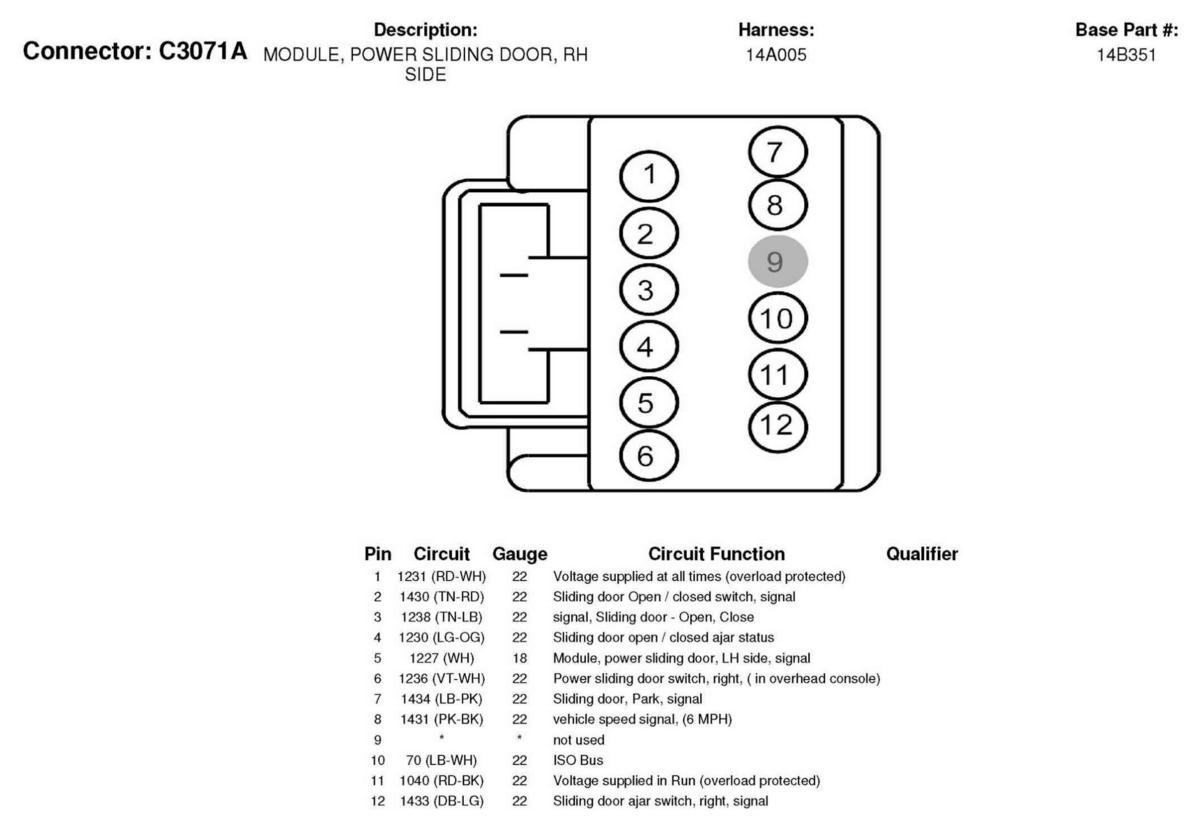

Fig 293: Module, Power Sliding Door, RH Side Connector End View (C3071A)
G04597535Courtesy of FORD MOTOR CO.

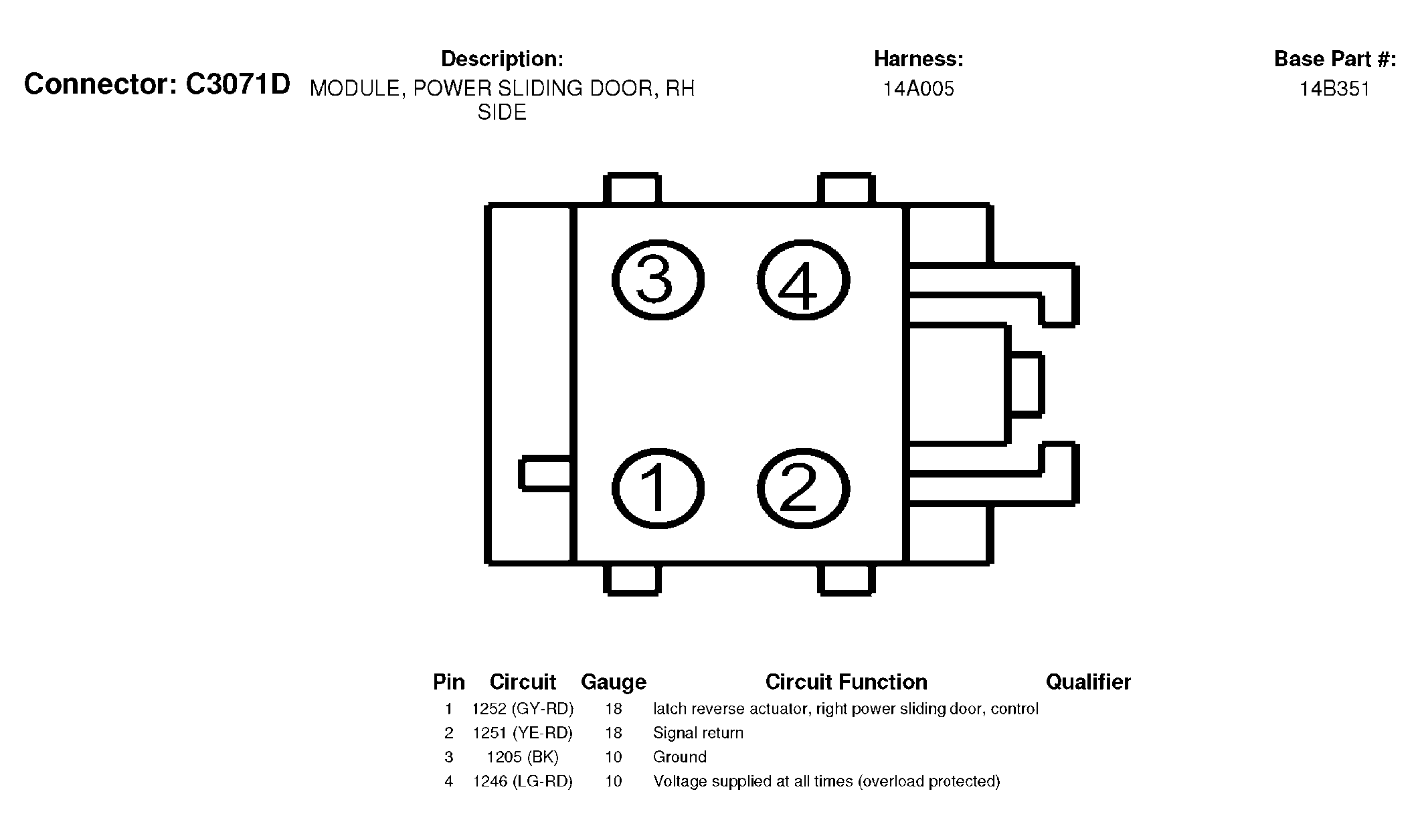

Fig 294: Module, Power Sliding Door, RH Side Connector End View (C3071D)
G04597536Courtesy of FORD MOTOR CO.

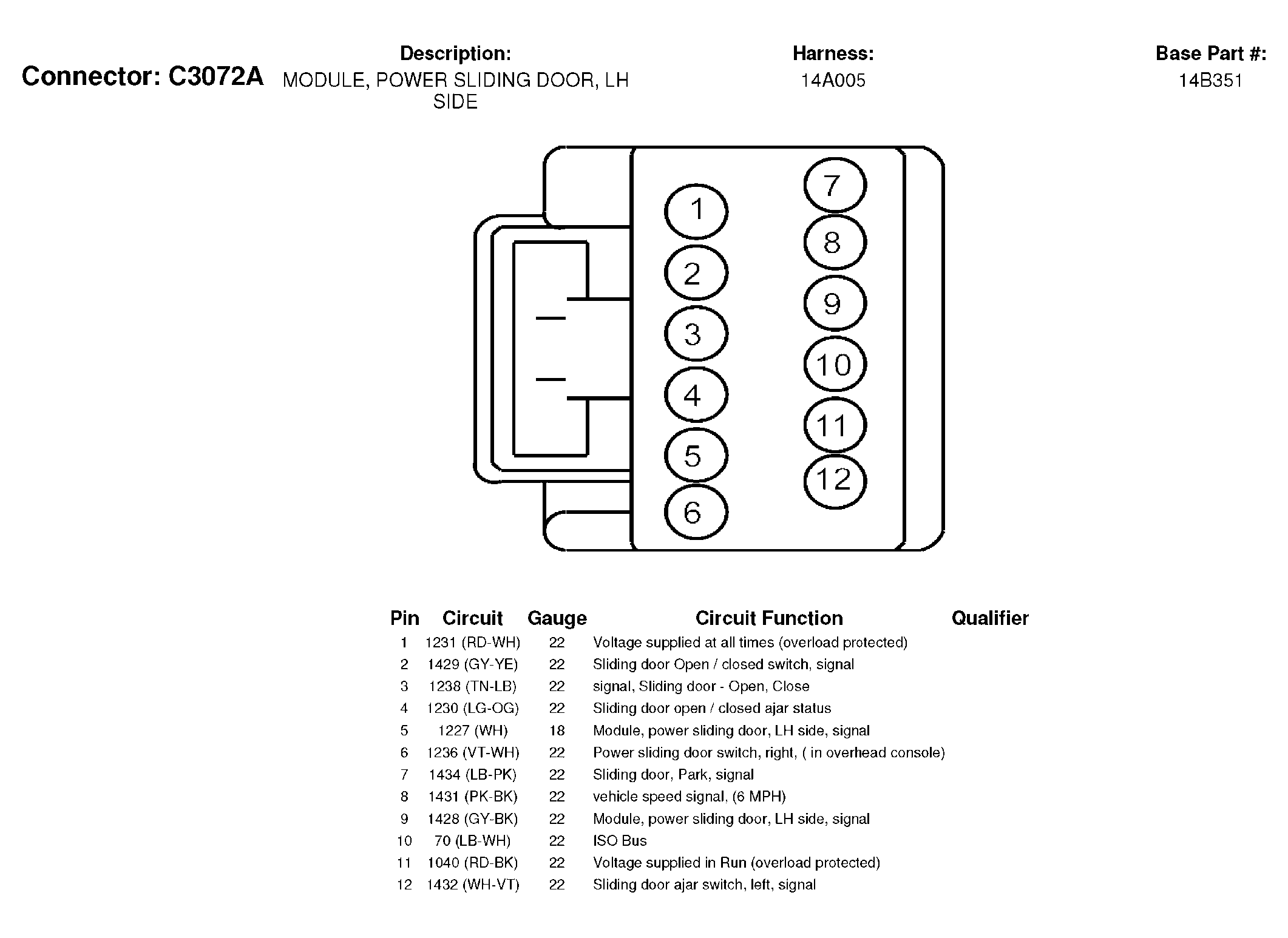

Fig 295: Module, Power Sliding Door, LH Side Connector End View (C3072A)
G04597537Courtesy of FORD MOTOR CO.
Fig 296: Module, Power Sliding Door, LH Side Connector End View (C3072D)
G04597538Courtesy of FORD MOTOR CO.

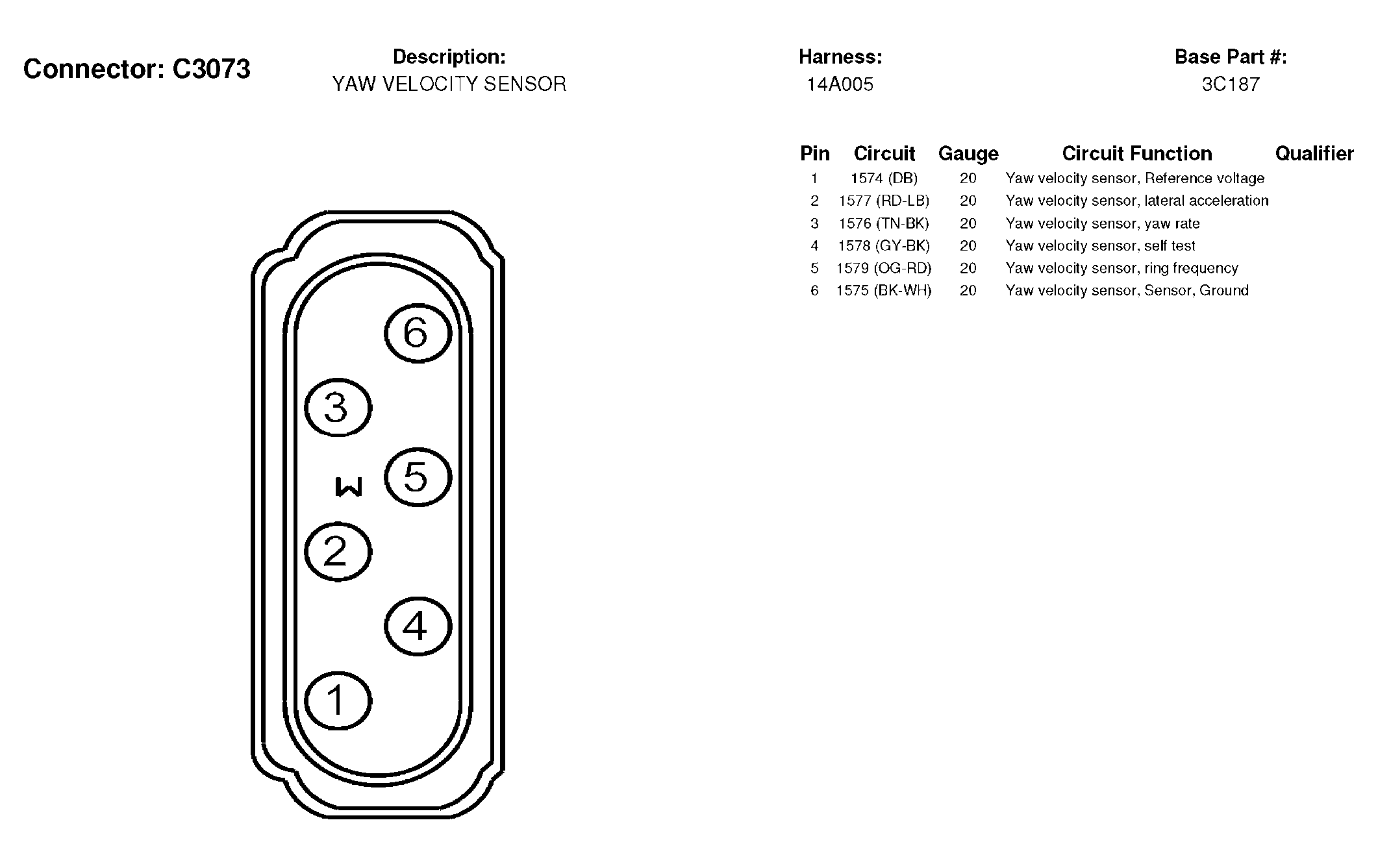

Fig 297: Yaw Velocity Sensor Connector End View (C3073)
G04597539Courtesy of FORD MOTOR CO.

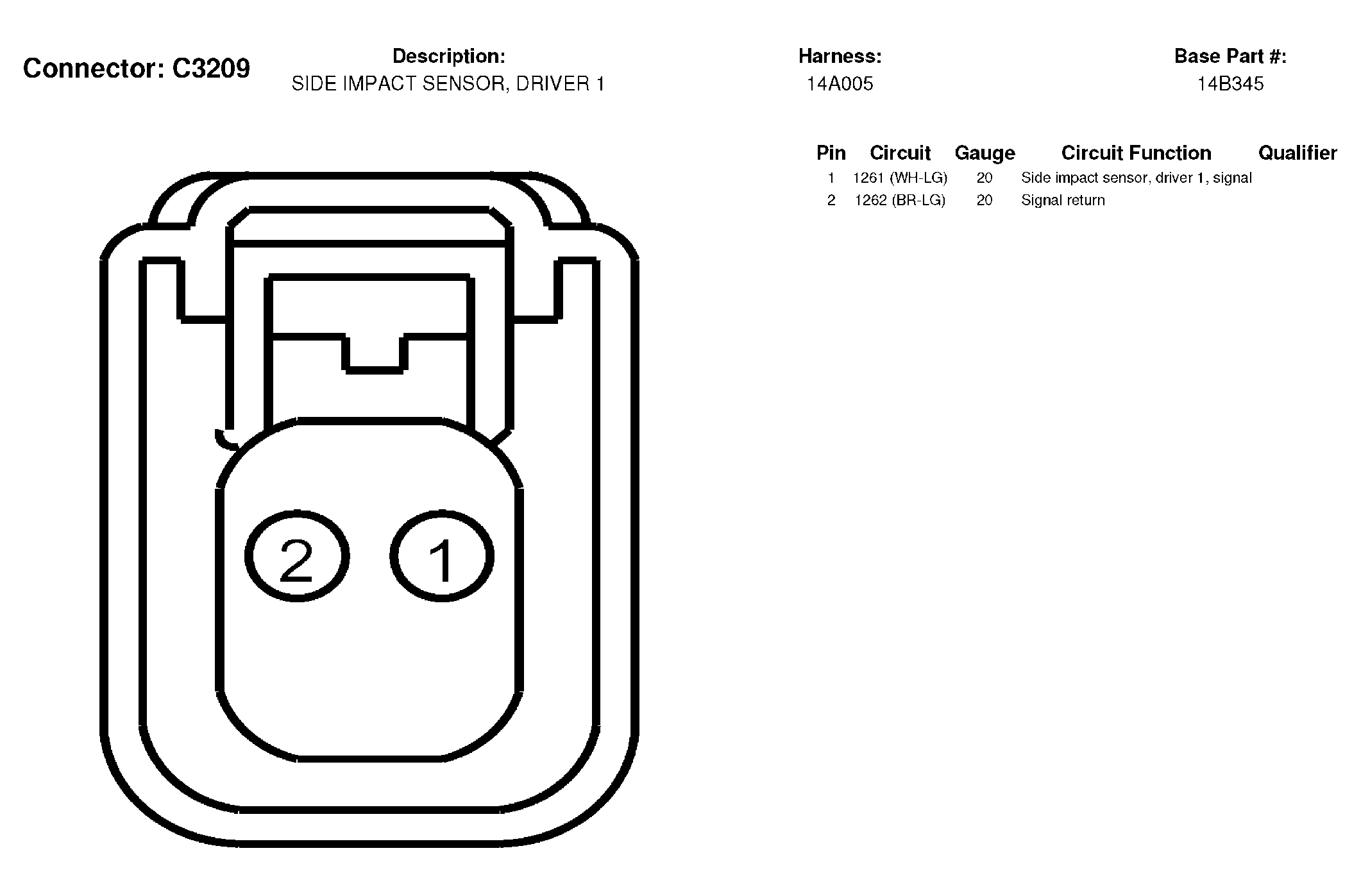

Fig 298: Side Impact Sensor, Driver 1 Connector End View (C3209)
G04597540Courtesy of FORD MOTOR CO.
Fig 299: Side Impact Sensor, Driver 2 Connector End View (C3210)
G04597541Courtesy of FORD MOTOR CO.
Fig 300: Side Impact Sensor, Passenger 1 Connector End View (C3211)
G04597542Courtesy of FORD MOTOR CO.

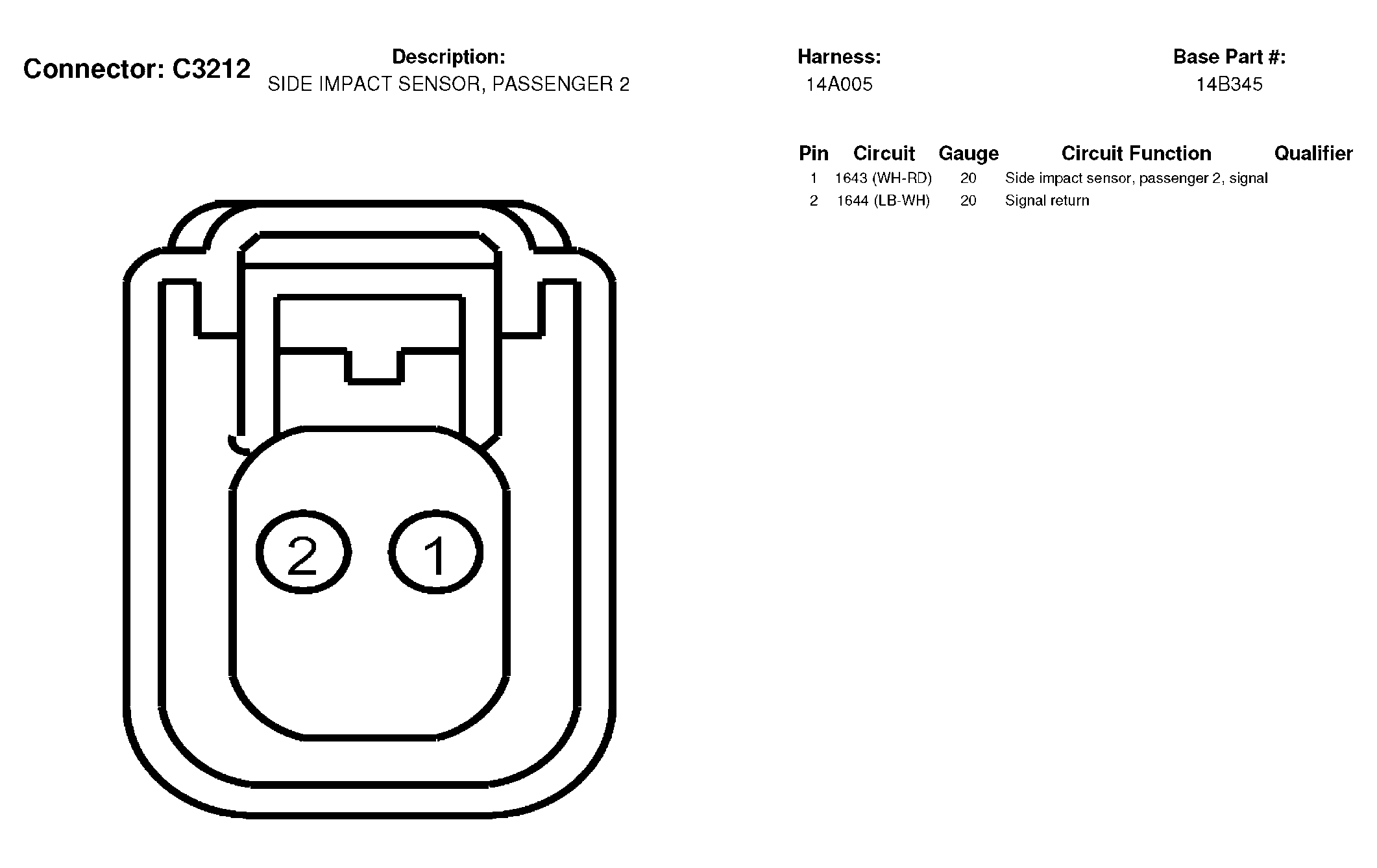

Fig 301: Side Impact Sensor, Passenger 2 Connector End View (C3212)
G04597543Courtesy of FORD MOTOR CO.

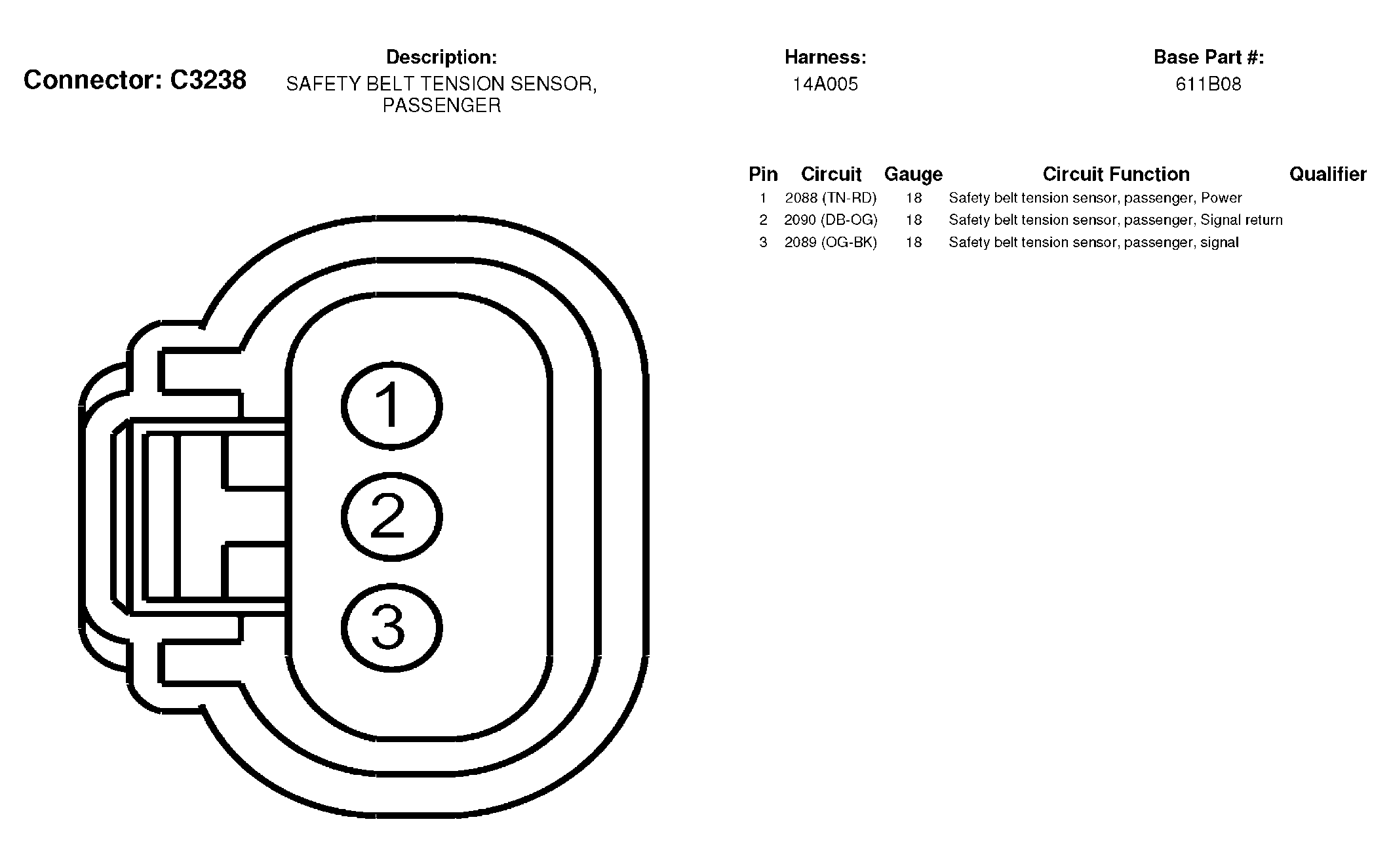

Fig 302: Safety Belt Tension Sensor, Passenger Connector End View (C3238)
G04597544Courtesy of FORD MOTOR CO.

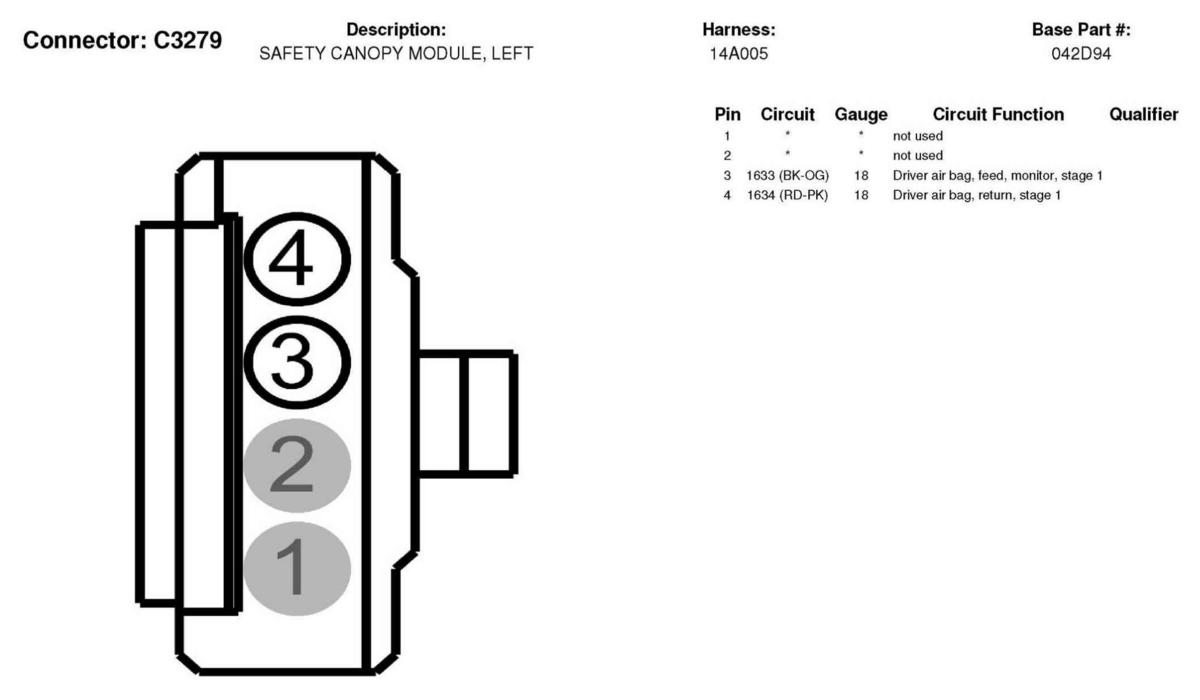

Fig 303: Safety Canopy Module, Left Connector End View (C3279)
G04597545Courtesy of FORD MOTOR CO.
Fig 304: Safety Canopy Module, Right Connector End View (C3280)
G04597546Courtesy of FORD MOTOR CO.

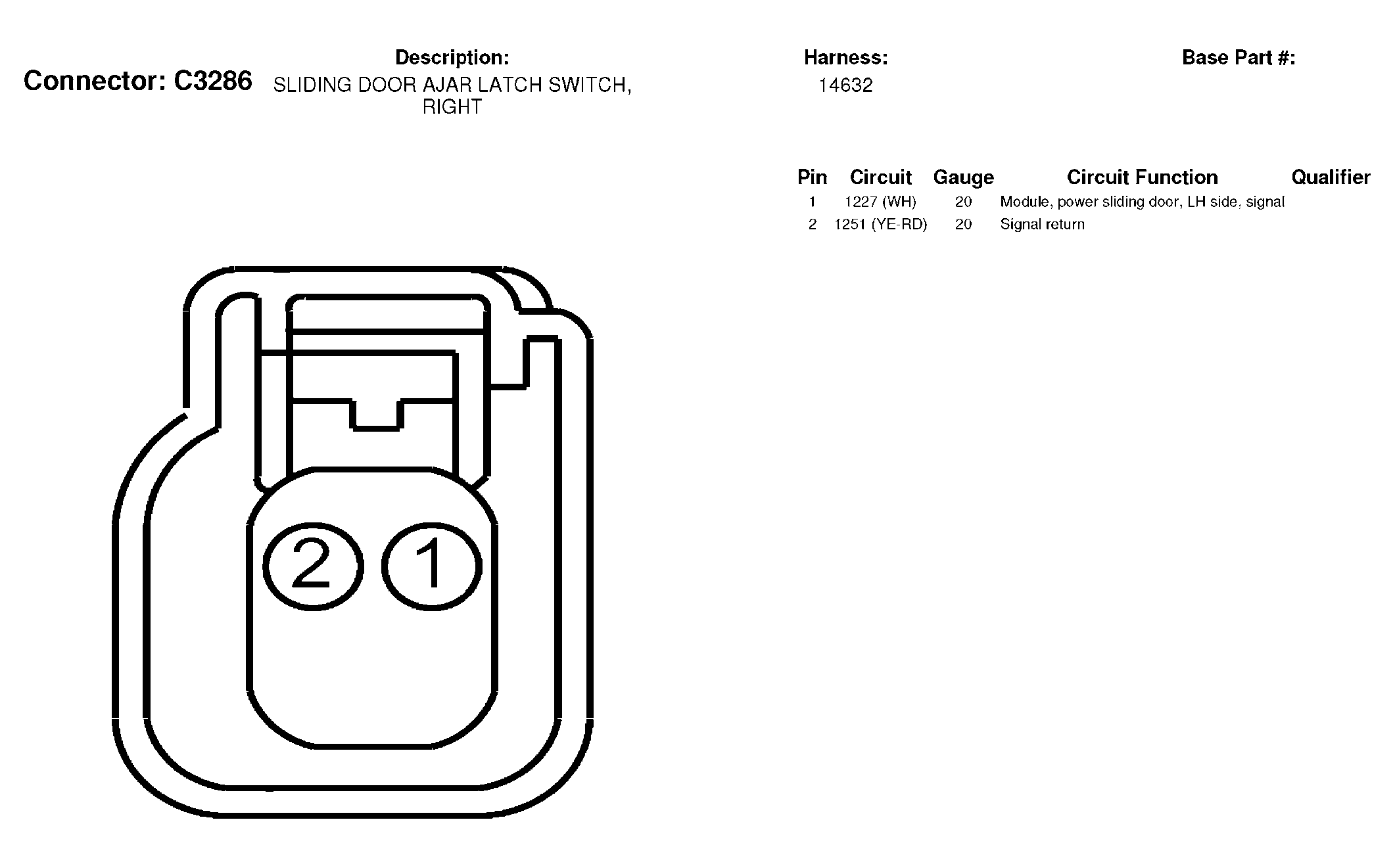

Fig 305: Sliding Door Ajar Latch Switch, Right Connector End View (C3286)
G04597547Courtesy of FORD MOTOR CO.

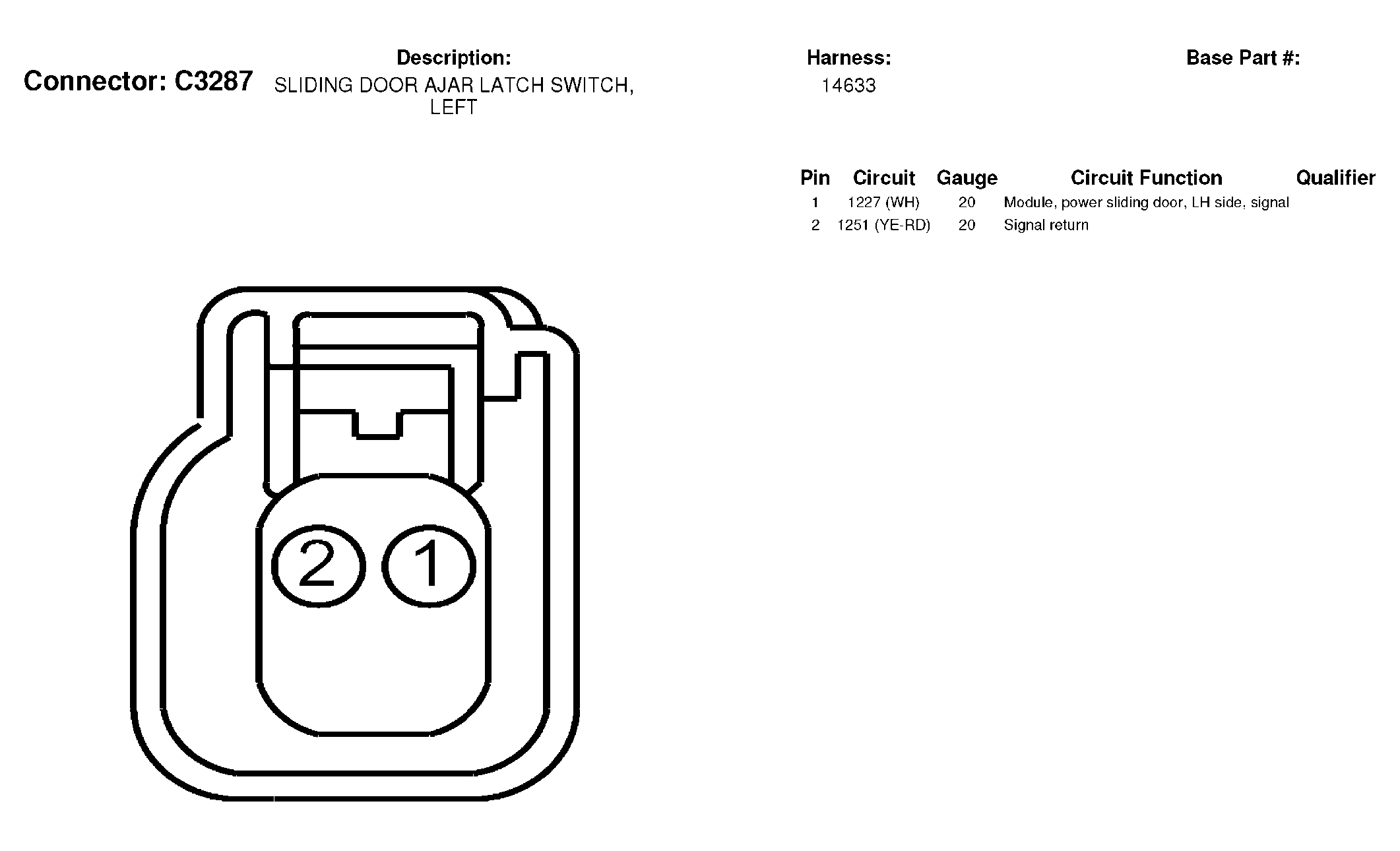

Fig 306: Sliding Door Ajar Latch Switch, Left Connector End View (C3287)
G04597548Courtesy of FORD MOTOR CO.
Fig 307: Parking Aid Sensor, Outer Left Connector End View (C4009)
G04597549Courtesy of FORD MOTOR CO.

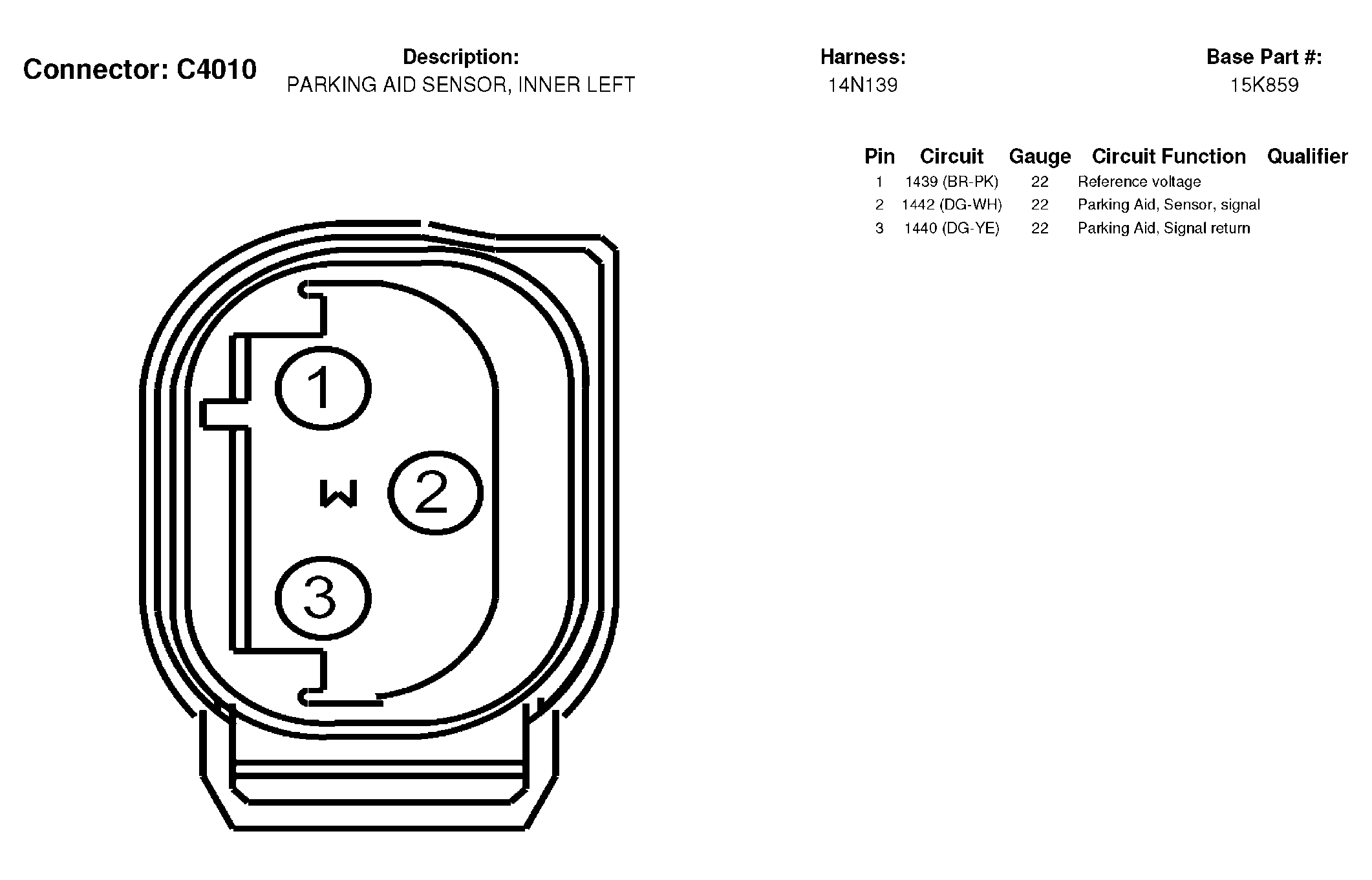

Fig 308: Parking Aid Sensor, Inner Left Connector End View (C4010)
G04597550Courtesy of FORD MOTOR CO.
Fig 309: Parking Aid Sensor, Outer Right Connector End View (C4011)
G04597551Courtesy of FORD MOTOR CO.

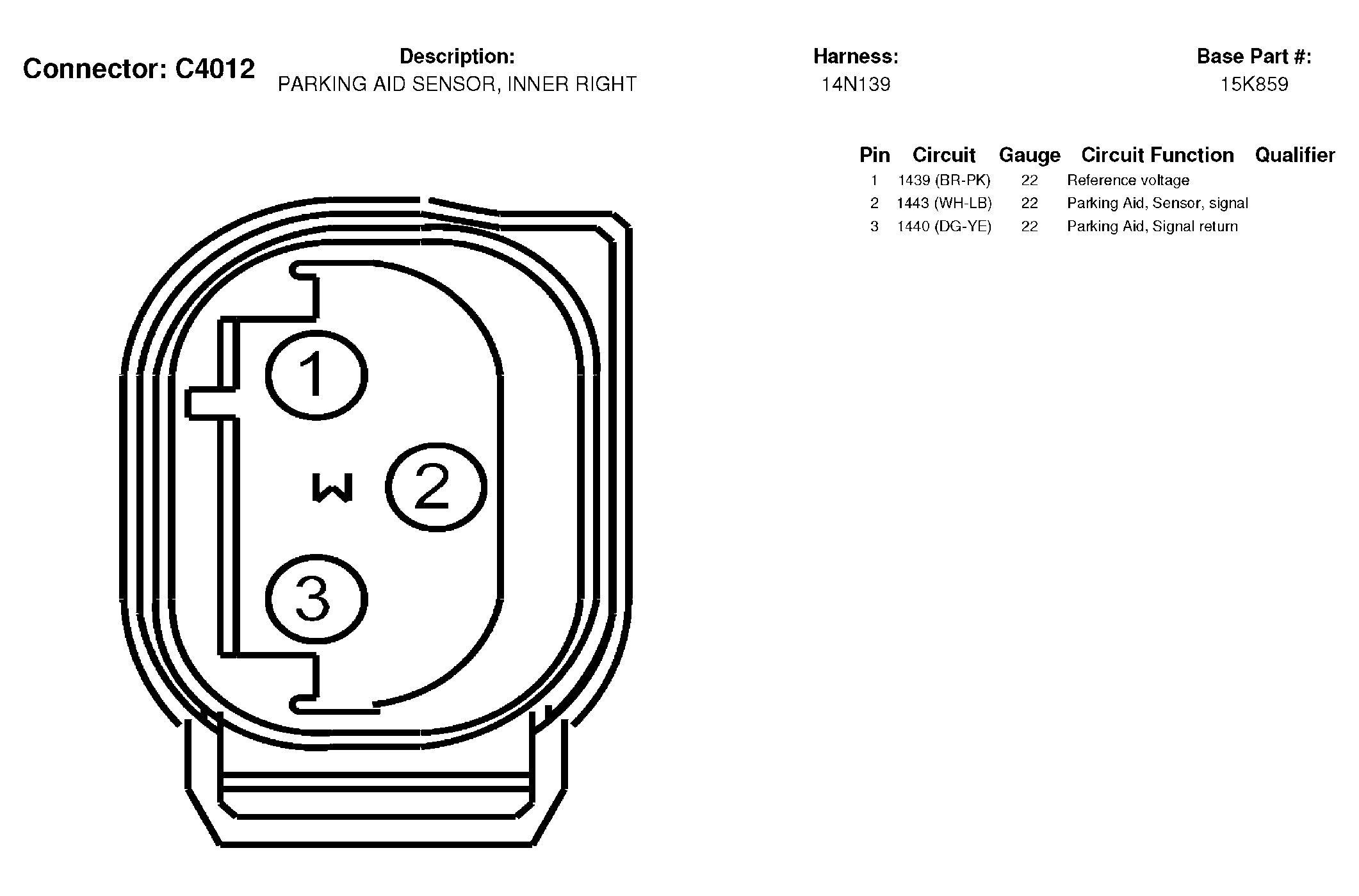

Fig 310: Parking Aid Sensor, Inner Right Connector End View (C4012)
G04597552Courtesy of FORD MOTOR CO.

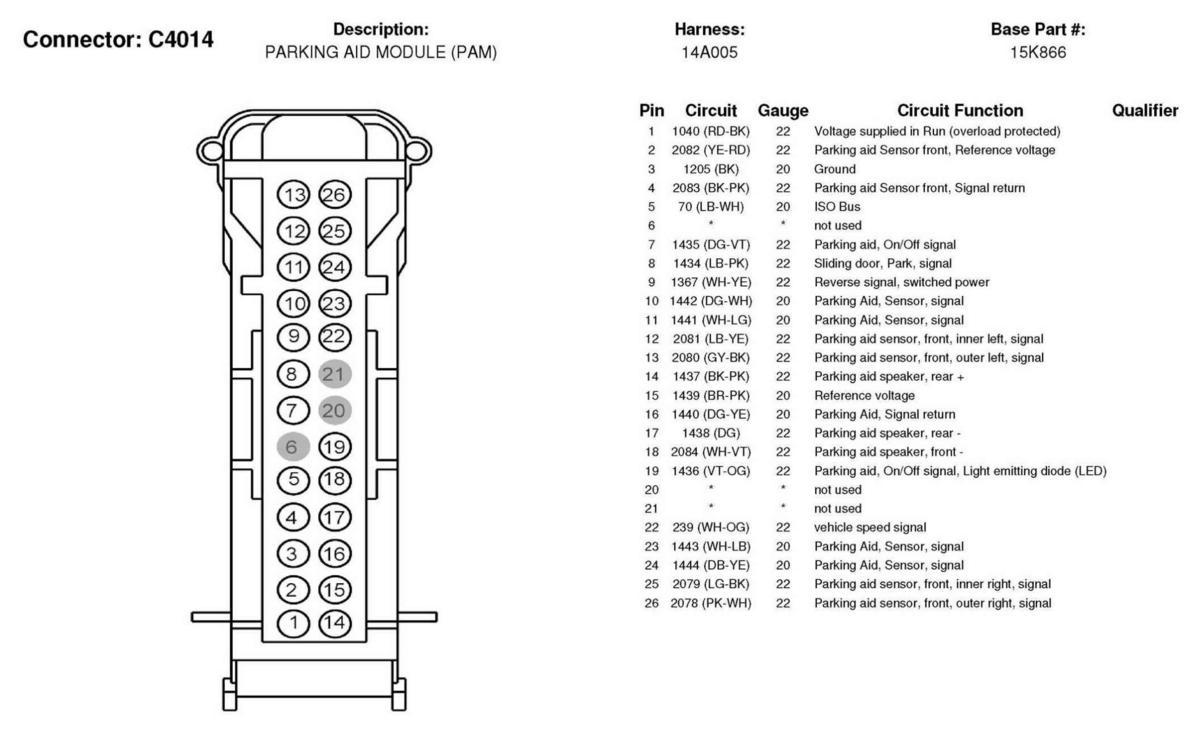

Fig 311: Parking Aid Module (PAM) Connector End View (C4014)
G04597553Courtesy of FORD MOTOR CO.
Fig 312: Quarter Window Motor, LH Side Rear Connector End View (C4048)
G04597554Courtesy of FORD MOTOR CO.

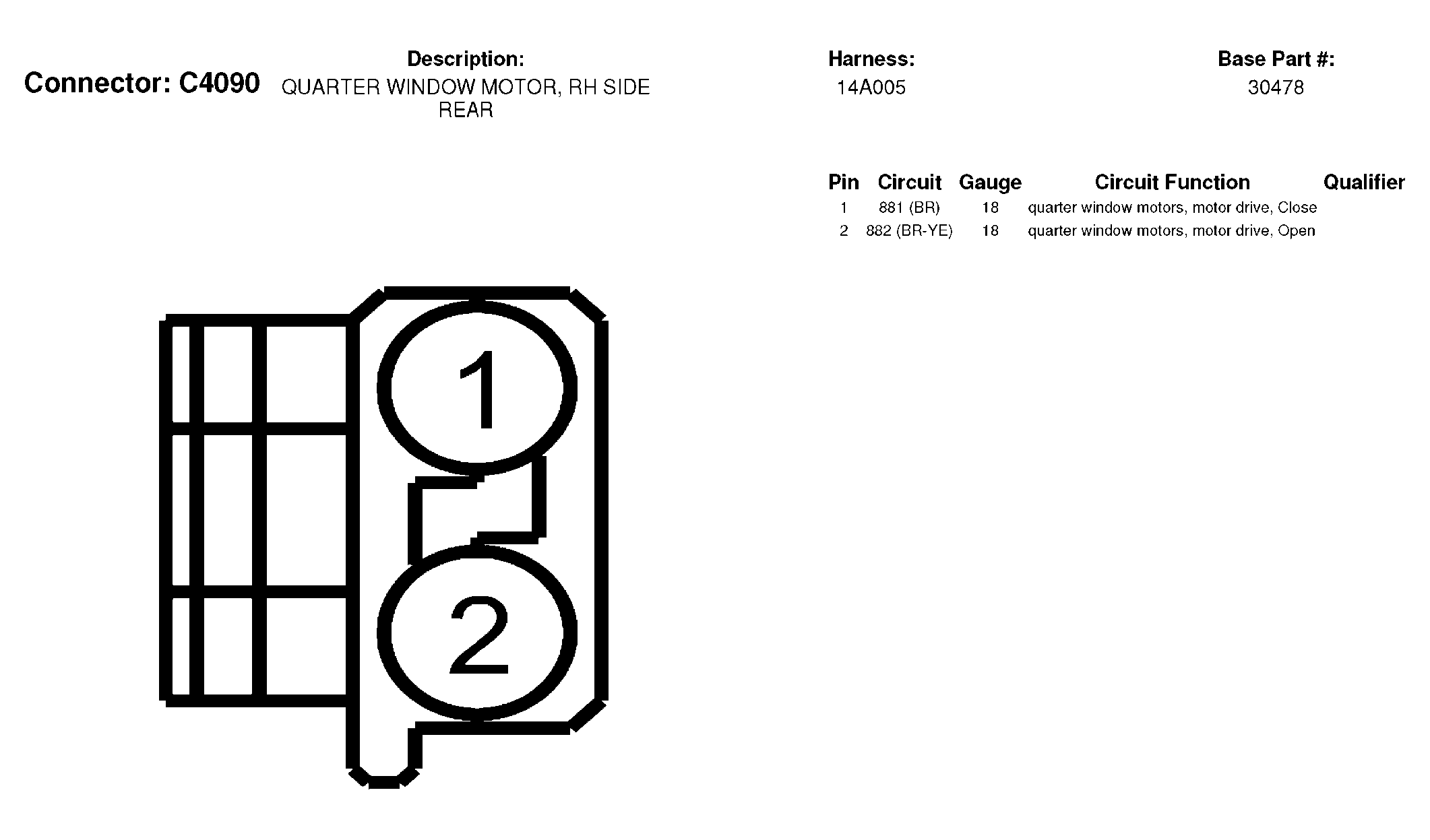

Fig 313: Quarter Window Motor, RH Side Rear Connector End View (C4090)
G04597555Courtesy of FORD MOTOR CO.

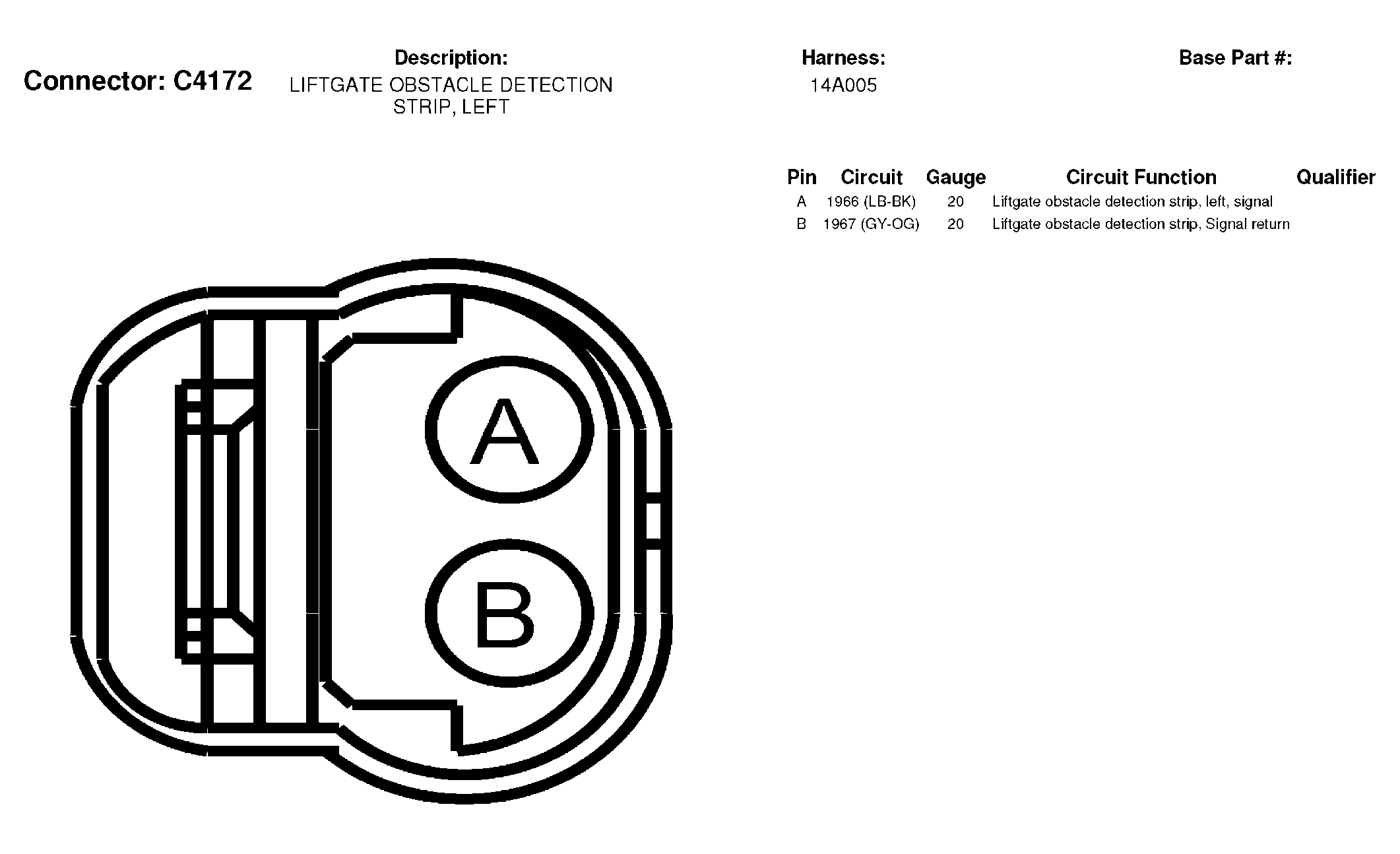

Fig 314: Liftgate Obstacle Detection Strip, Left Connector End View (C4172)
G04597556Courtesy of FORD MOTOR CO.

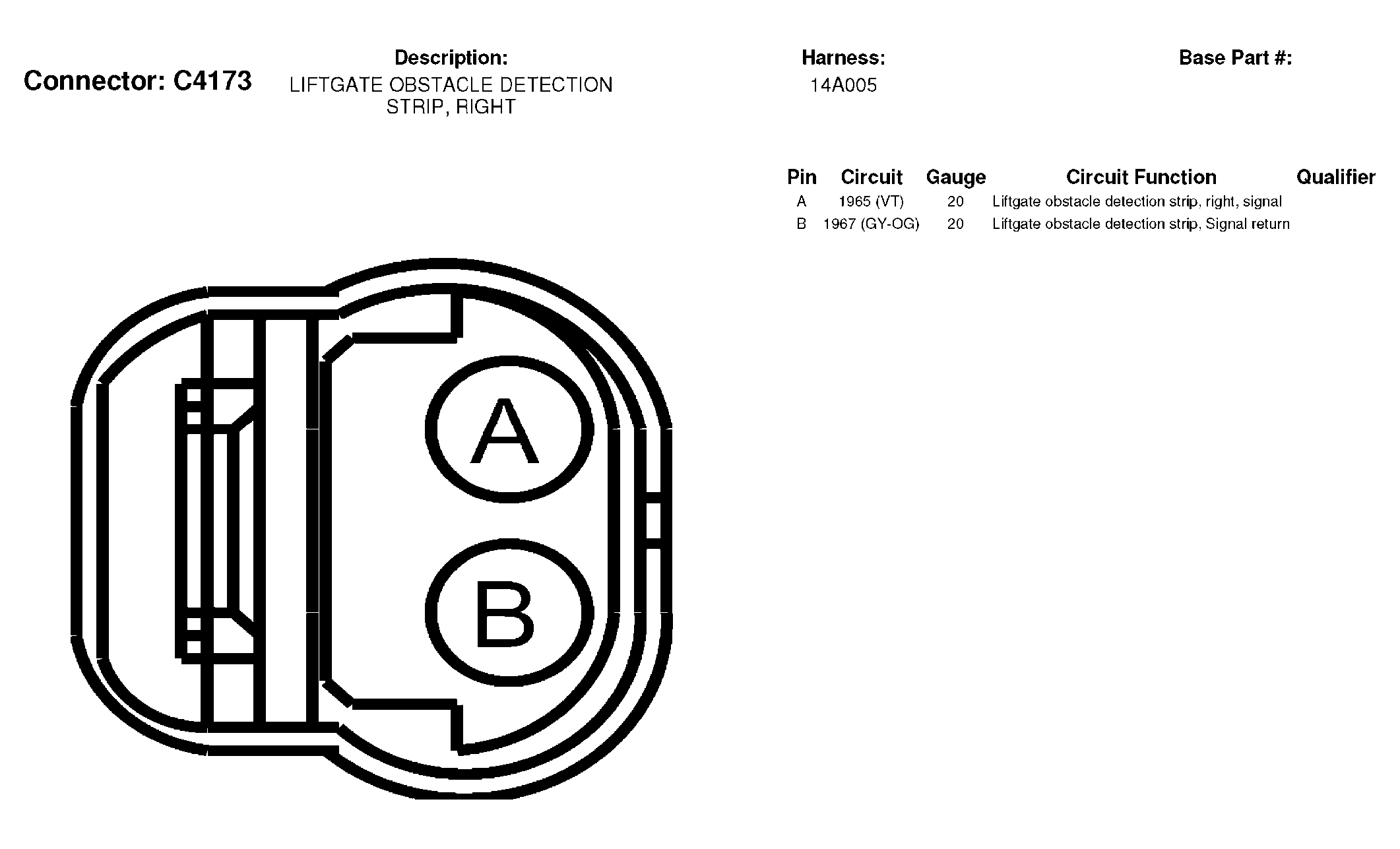

Fig 315: Liftgate Obstacle Detection Strip, Right Connector End View (C4173)
G04597557Courtesy of FORD MOTOR CO.

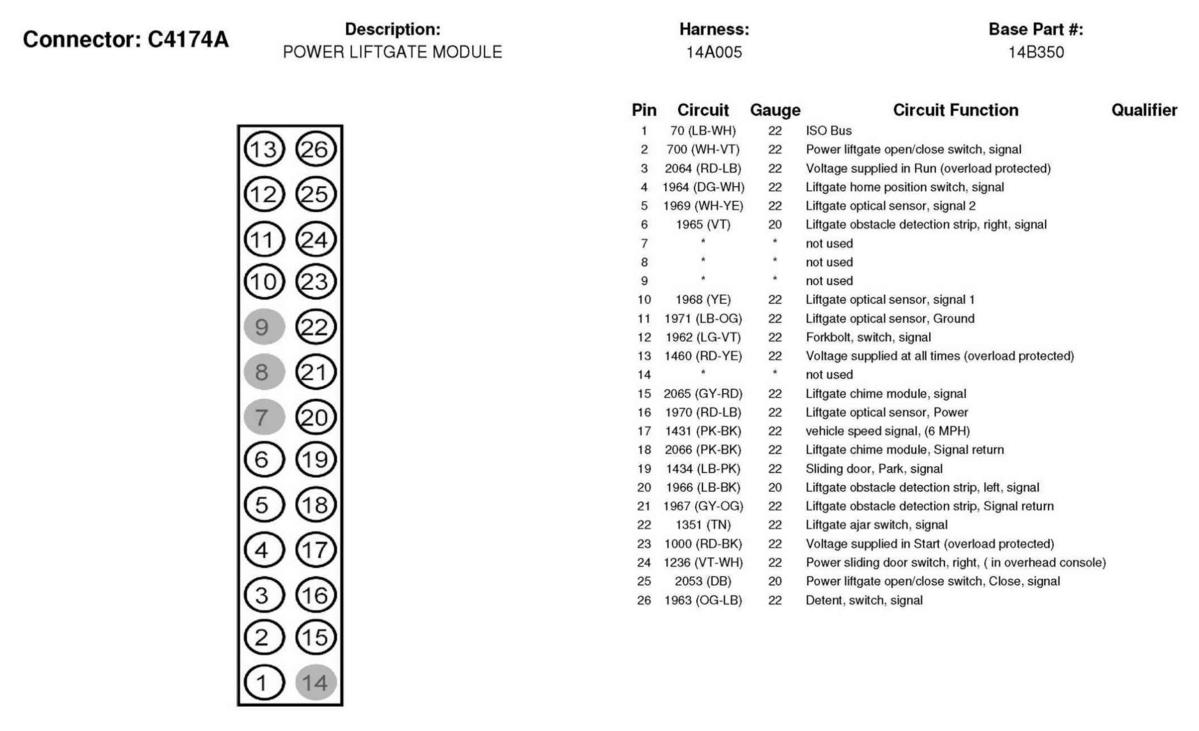

Fig 316: Power Liftgate Module Connector End View (C4174A)
G04597558Courtesy of FORD MOTOR CO.

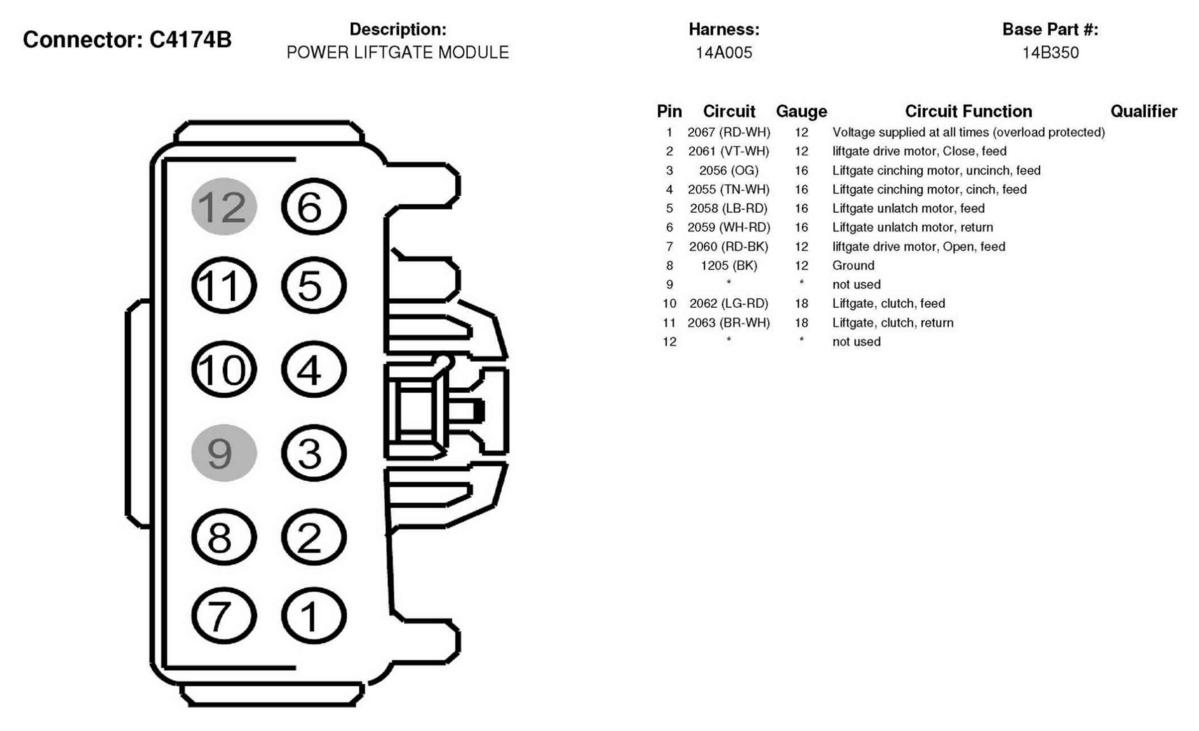

Fig 317: Power Liftgate Module Connector End View (C4174B)
G04597559Courtesy of FORD MOTOR CO.

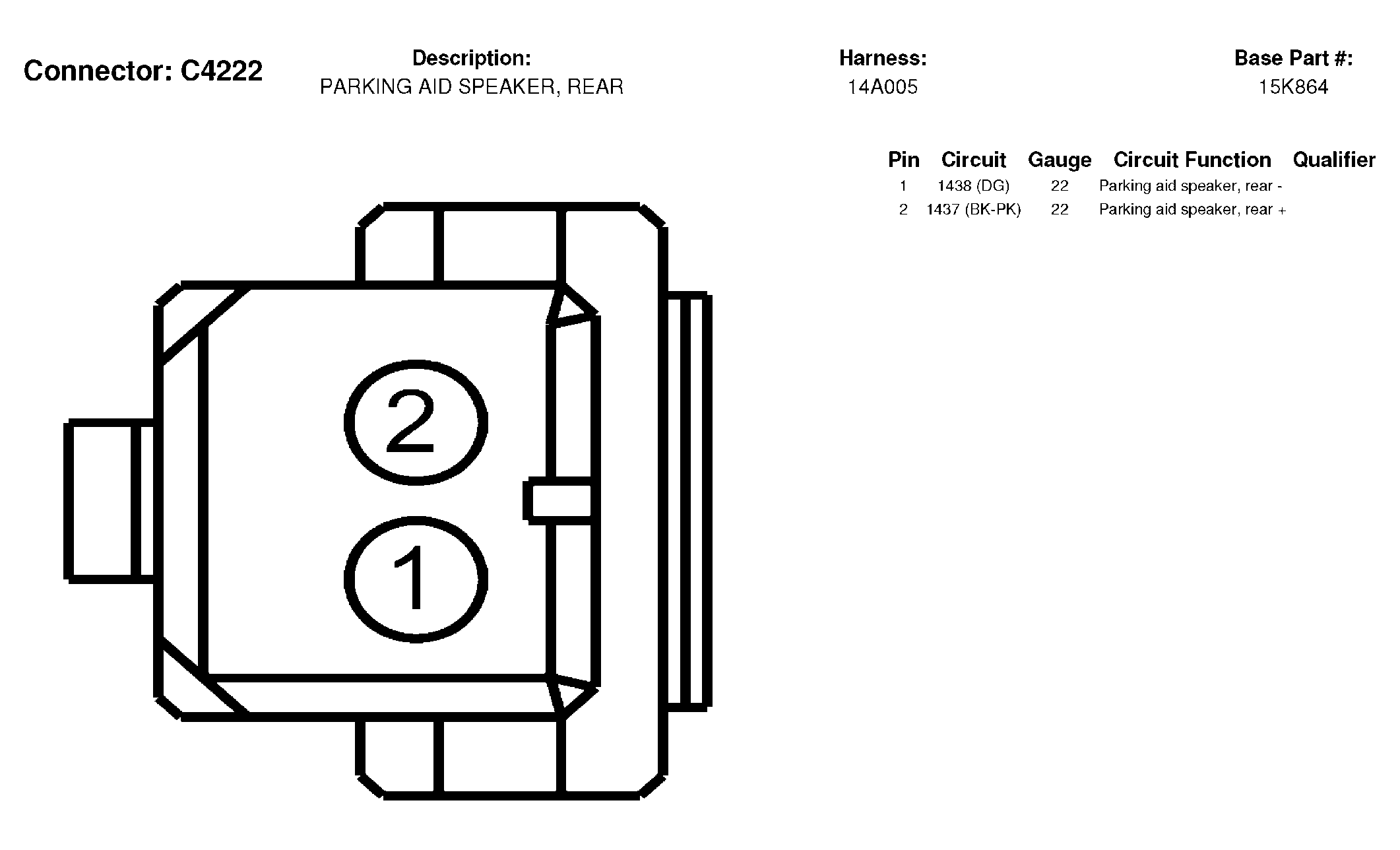

Fig 318: Parking Aid Speaker, Rear Connector End View (C4222)
G04597560Courtesy of FORD MOTOR CO.

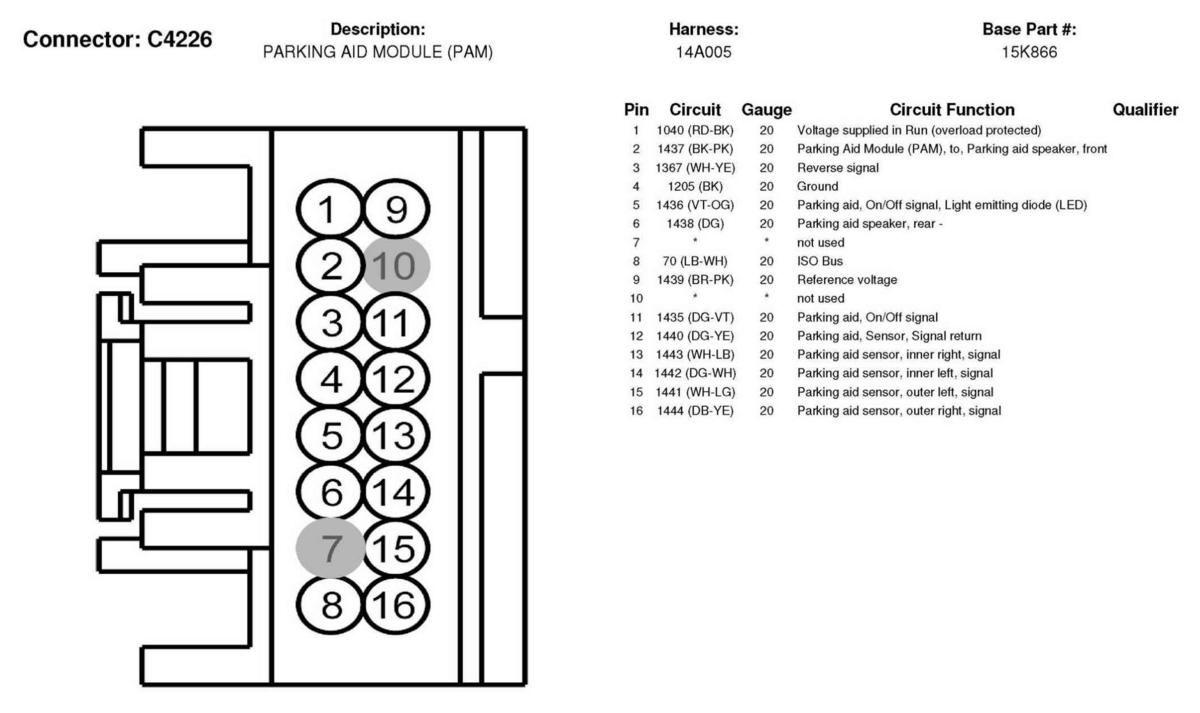

Fig 319: Parking Aid Module (PAM) Connector End View (C4226)
G04597561Courtesy of FORD MOTOR CO.

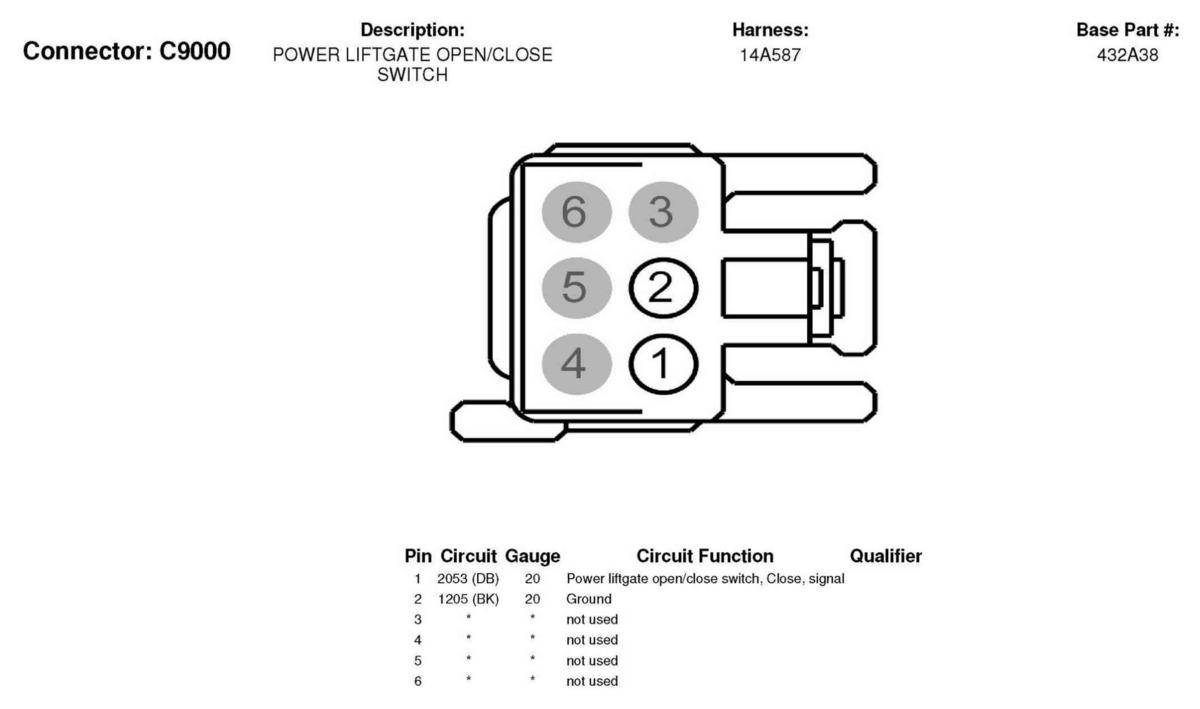

Fig 320: Power Liftgate Open/Close Switch Connector End View (C9000)
G04597562Courtesy of FORD MOTOR CO.

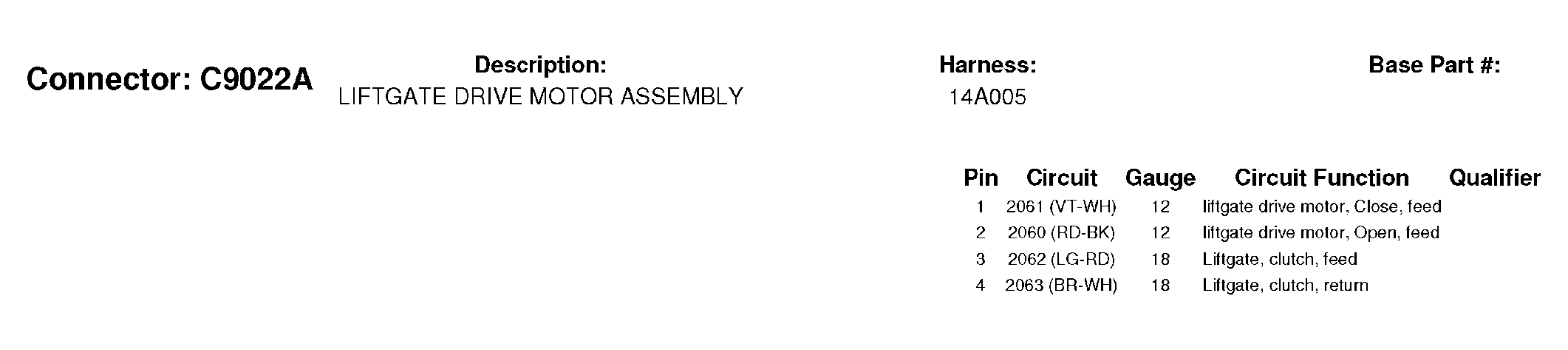

Fig 321: Liftgate Driver Motor Assembly Connector End View (C9022A)
G04597563Courtesy of FORD MOTOR CO.

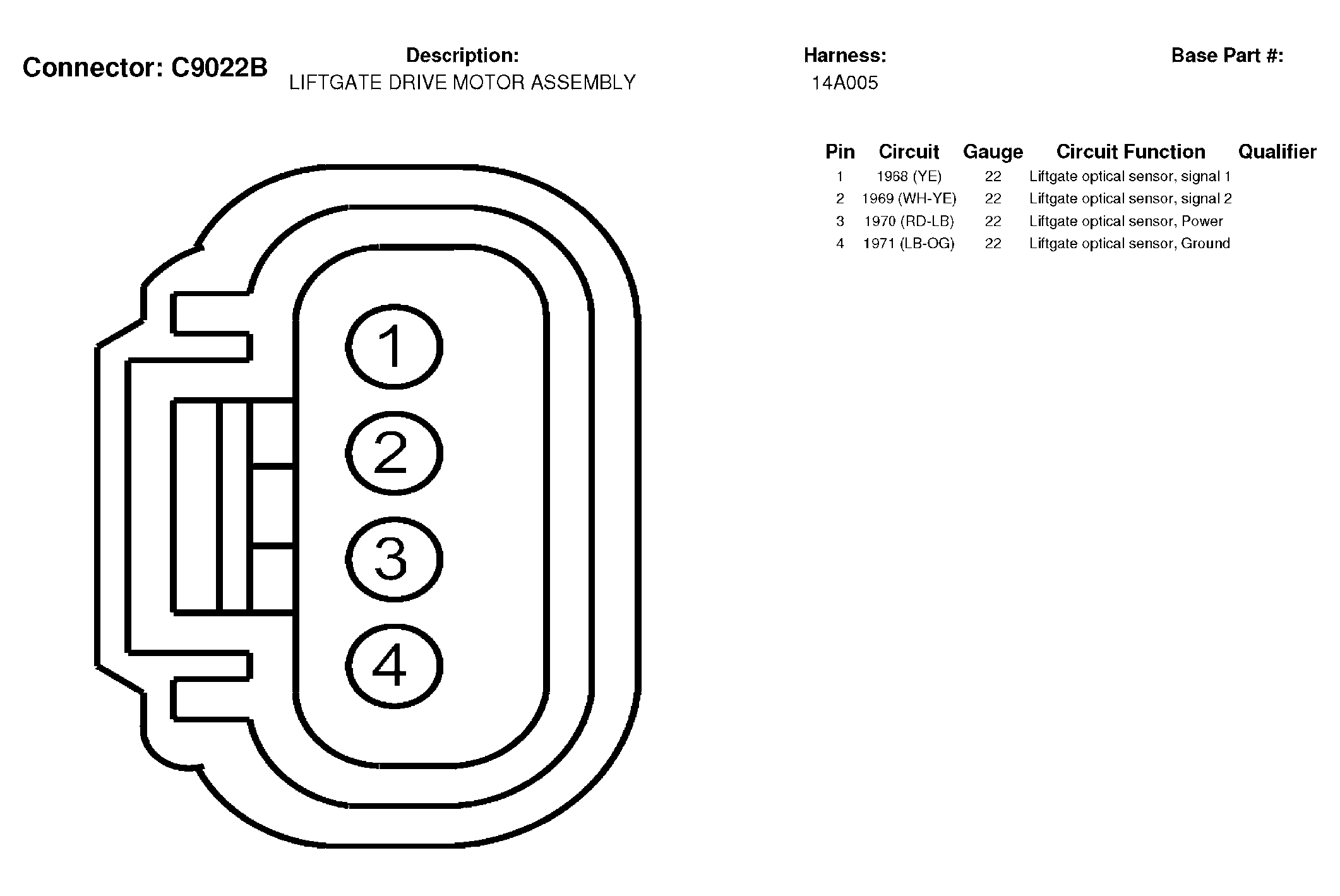

Fig 322: Liftgate Drive Motor Assembly Connector End View (C9022B)
G04597564Courtesy of FORD MOTOR CO.

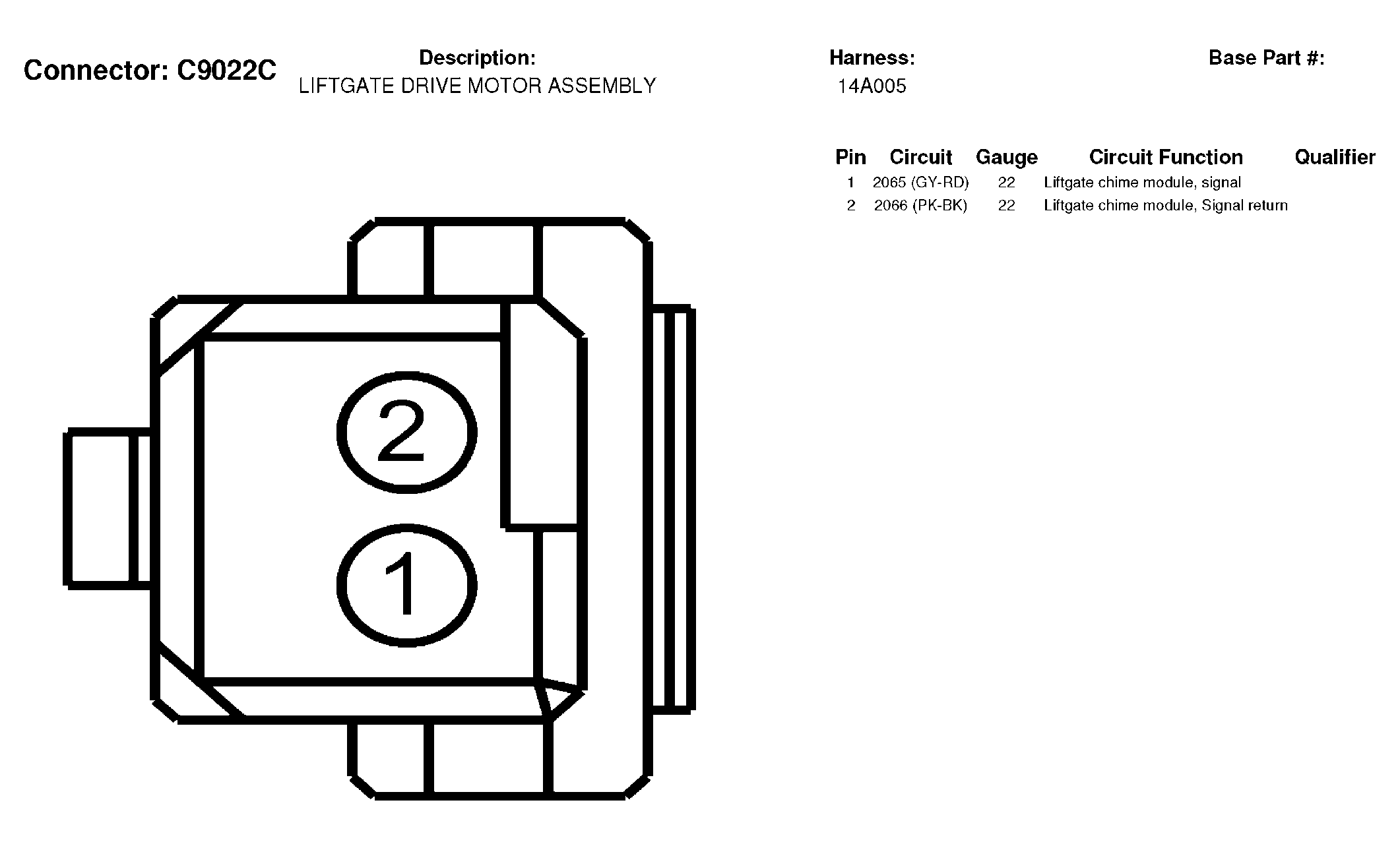

Fig 323: Liftgate Drive Motor Assembly Connector End View (C9022C)
G04597565Courtesy of FORD MOTOR CO.

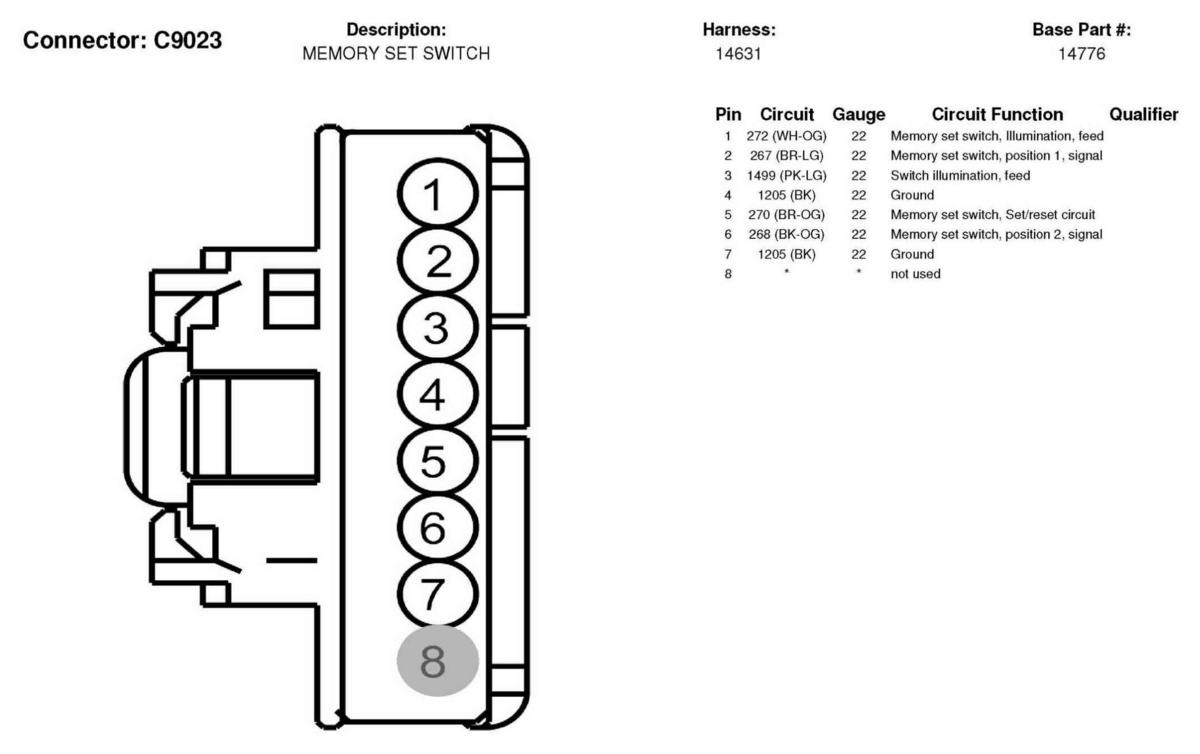

Fig 324: Memory Set Switch Connector End View (C9023)
G04597566Courtesy of FORD MOTOR CO.

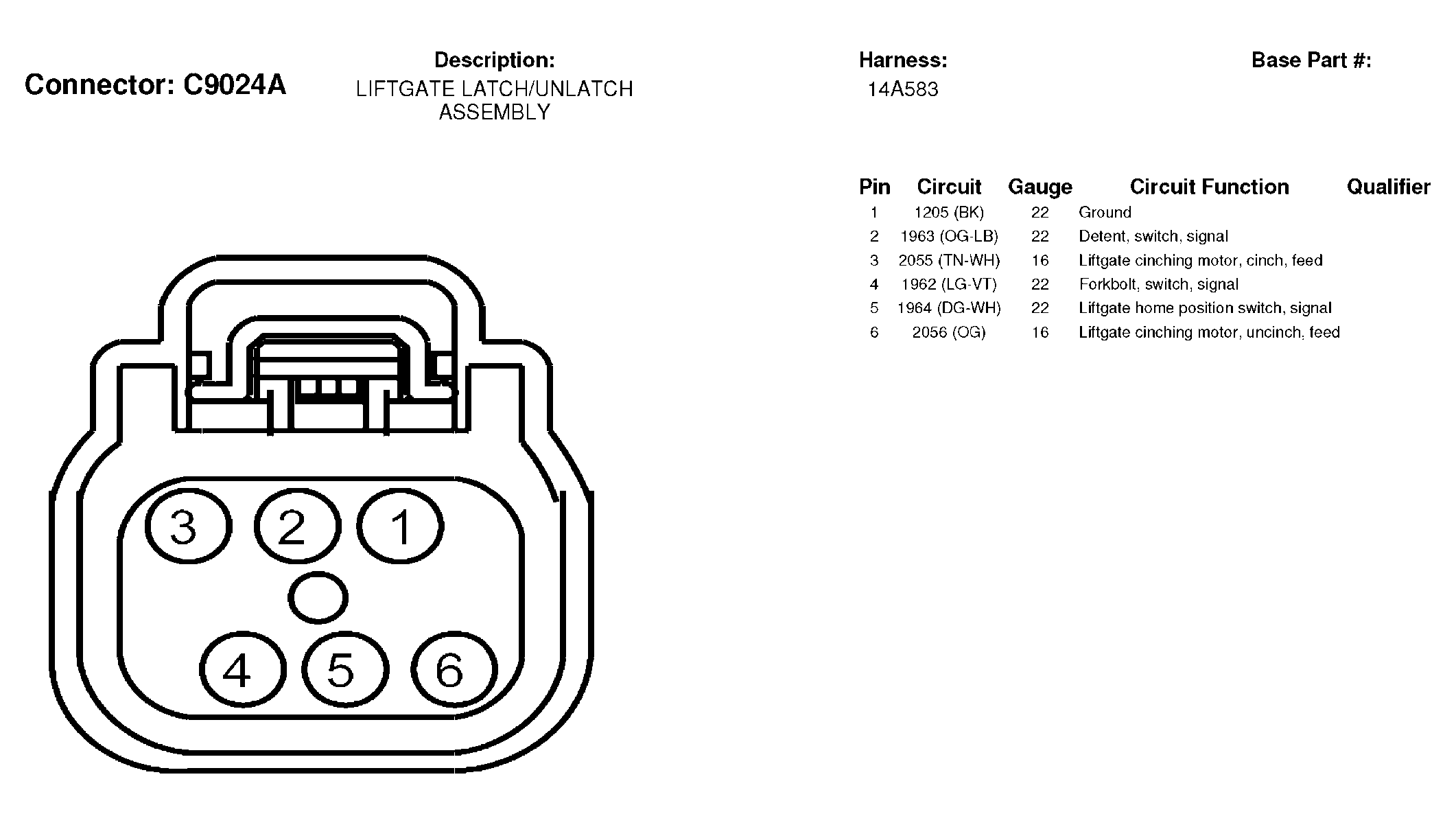

Fig 325: Liftgate Latch/Unlatch Assembly Connector End View (C9024A)
G04597567Courtesy of FORD MOTOR CO.

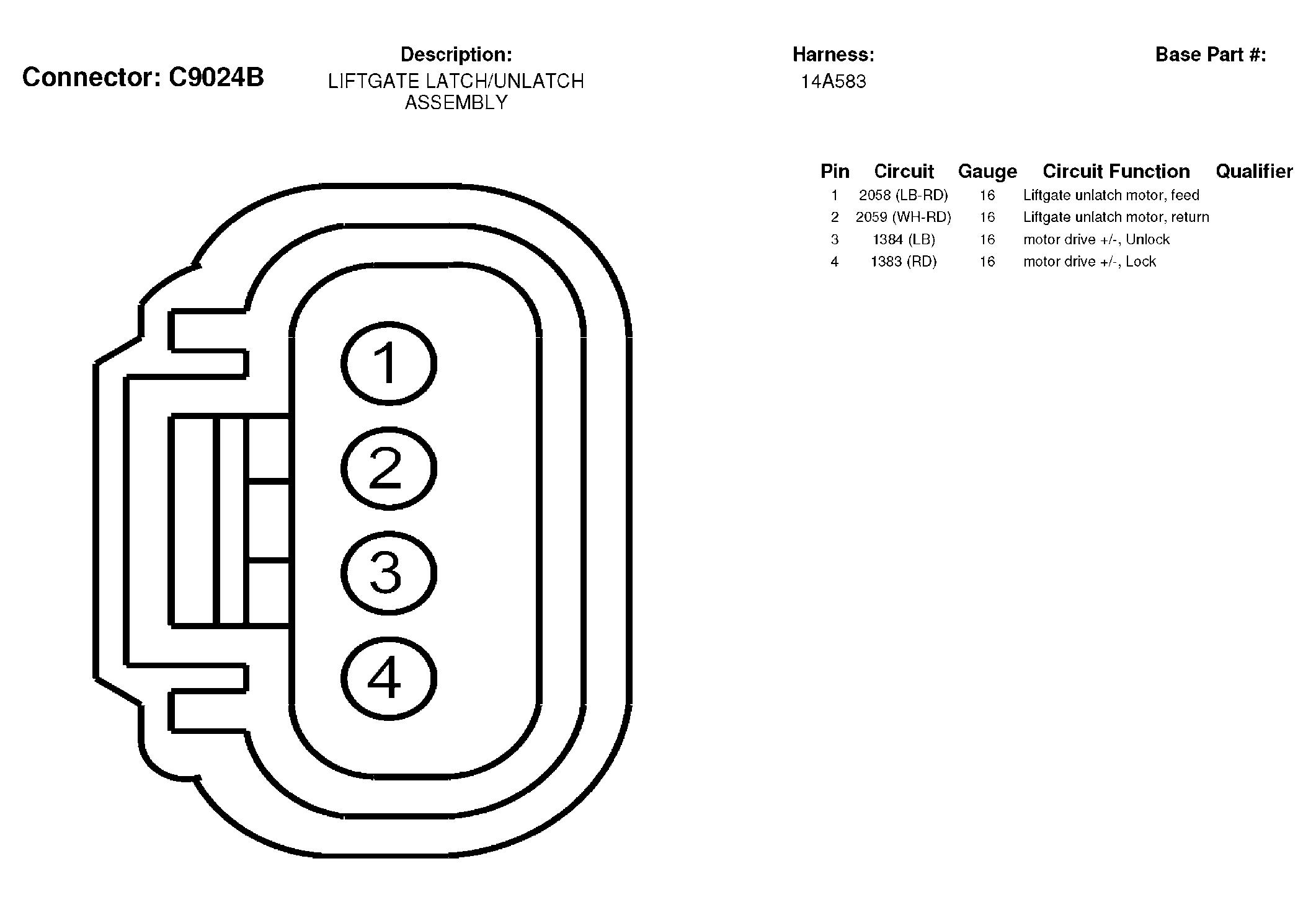

Fig 326: Liftgate Latch/Unlatch Assembly Connector End View (C9024B)
G04597568Courtesy of FORD MOTOR CO.

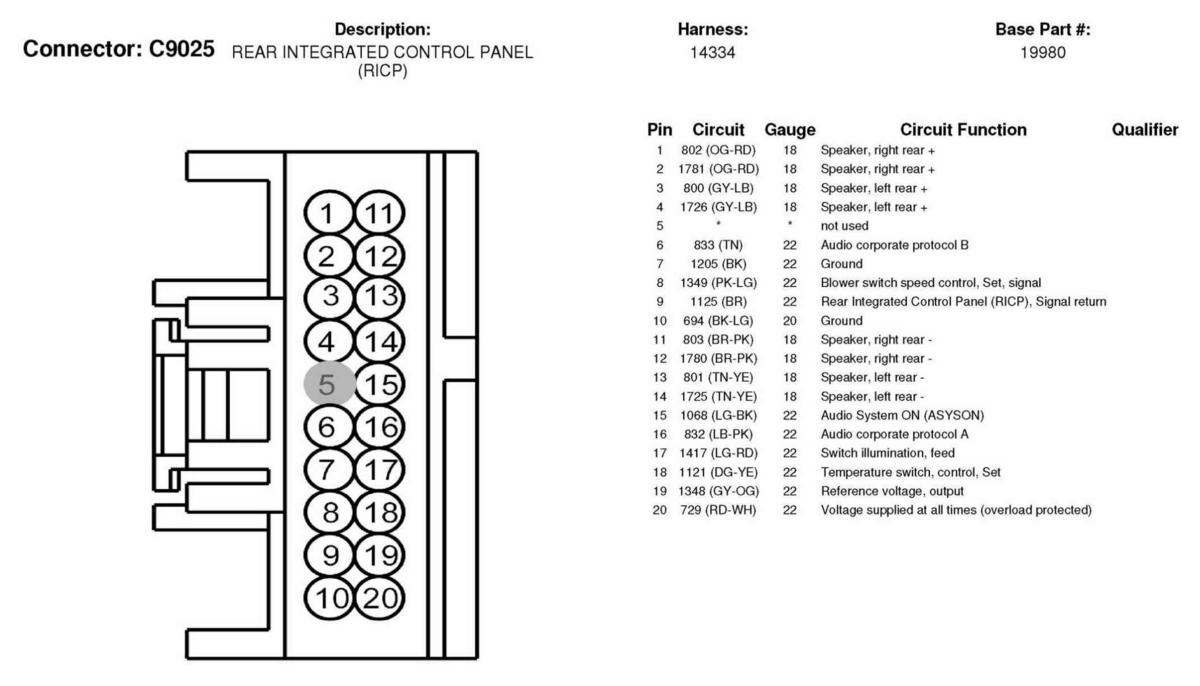

Fig 327: Rear Integrated Control Panel (RICP) Connector End View (C9025)
G04597569Courtesy of FORD MOTOR CO.

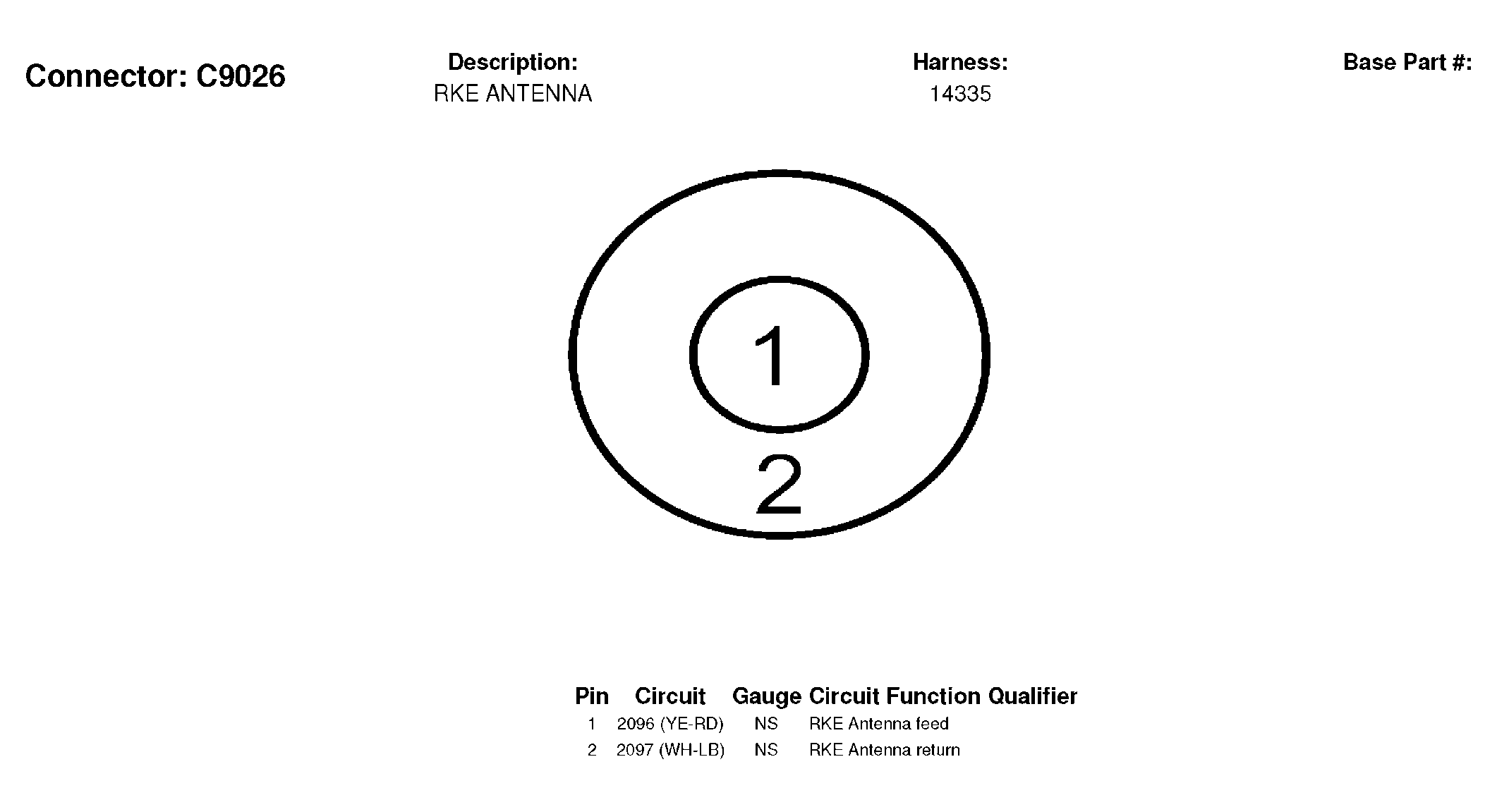

Fig 328: RKE Antenna Connector End View (C9026)
G04597570Courtesy of FORD MOTOR CO.
