Blower Motor Speed Control: Notes

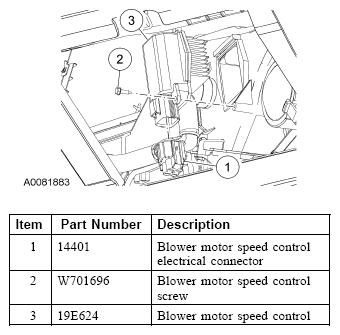

Fig 1: Identifying Blower Motor Speed Control Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
