Compressor Manifold and Tube Assembly: Notes

MATERIALS

Item Specification
PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D WSH-M1C231-B

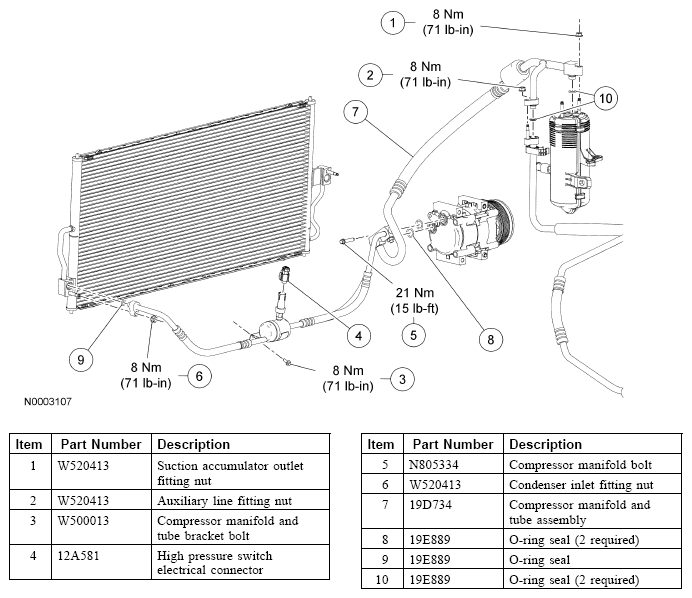

Fig 1: Compressor Manifold And Tube Assembly With Torque Specification
G04662226Courtesy of FORD MOTOR CO.
