Suction Accumulator: Notes

MATERIALS

Item Specification
PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D WSH-M1C231-B

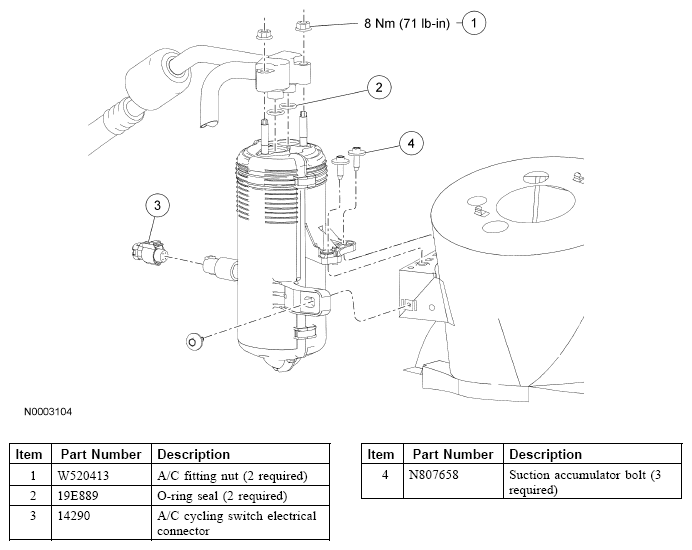

Fig 1: Suction Accumulator Replacement Components With Torque Specifications
G04662250Courtesy of FORD MOTOR CO.
