General Specifications

General Specifications

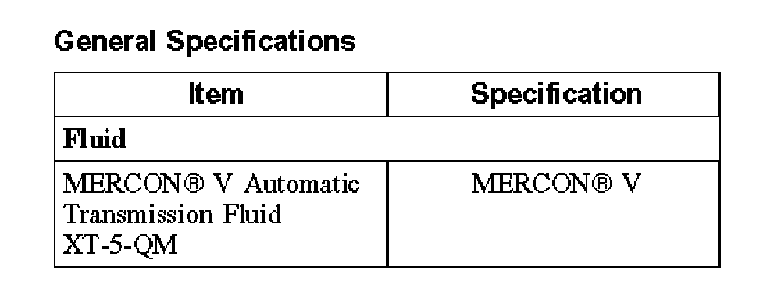

General Specifications:

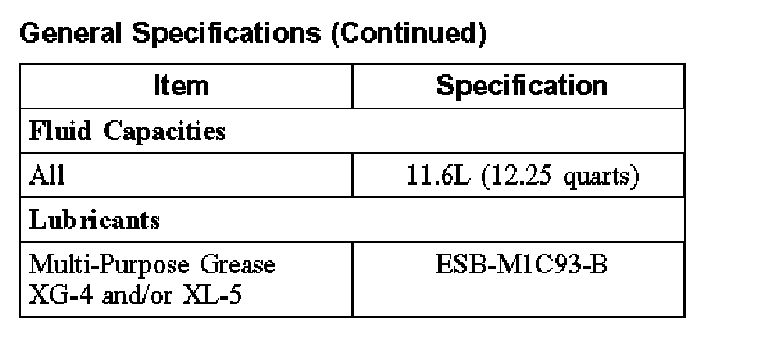

General Specifications:

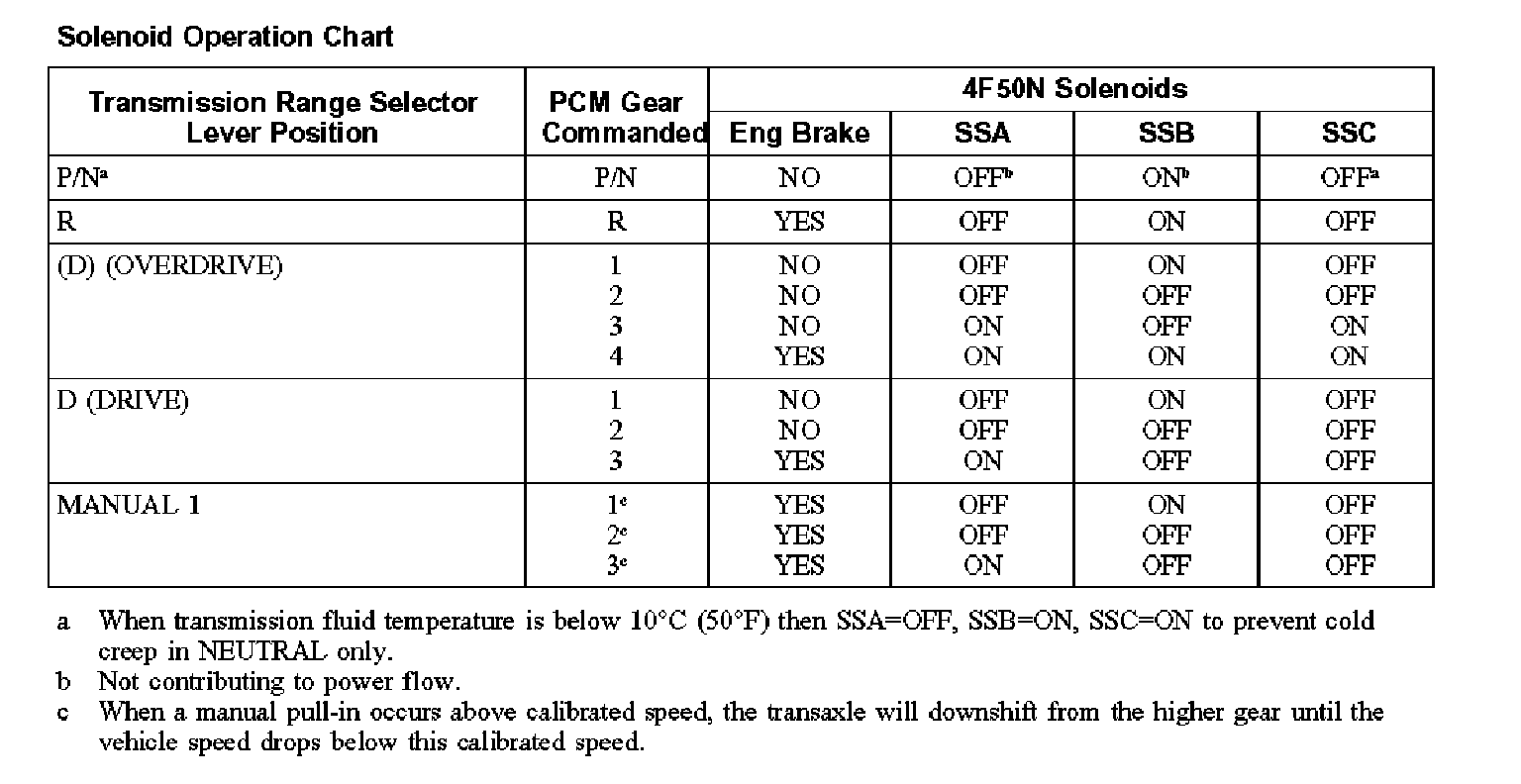

Solenoid Operation Chart:

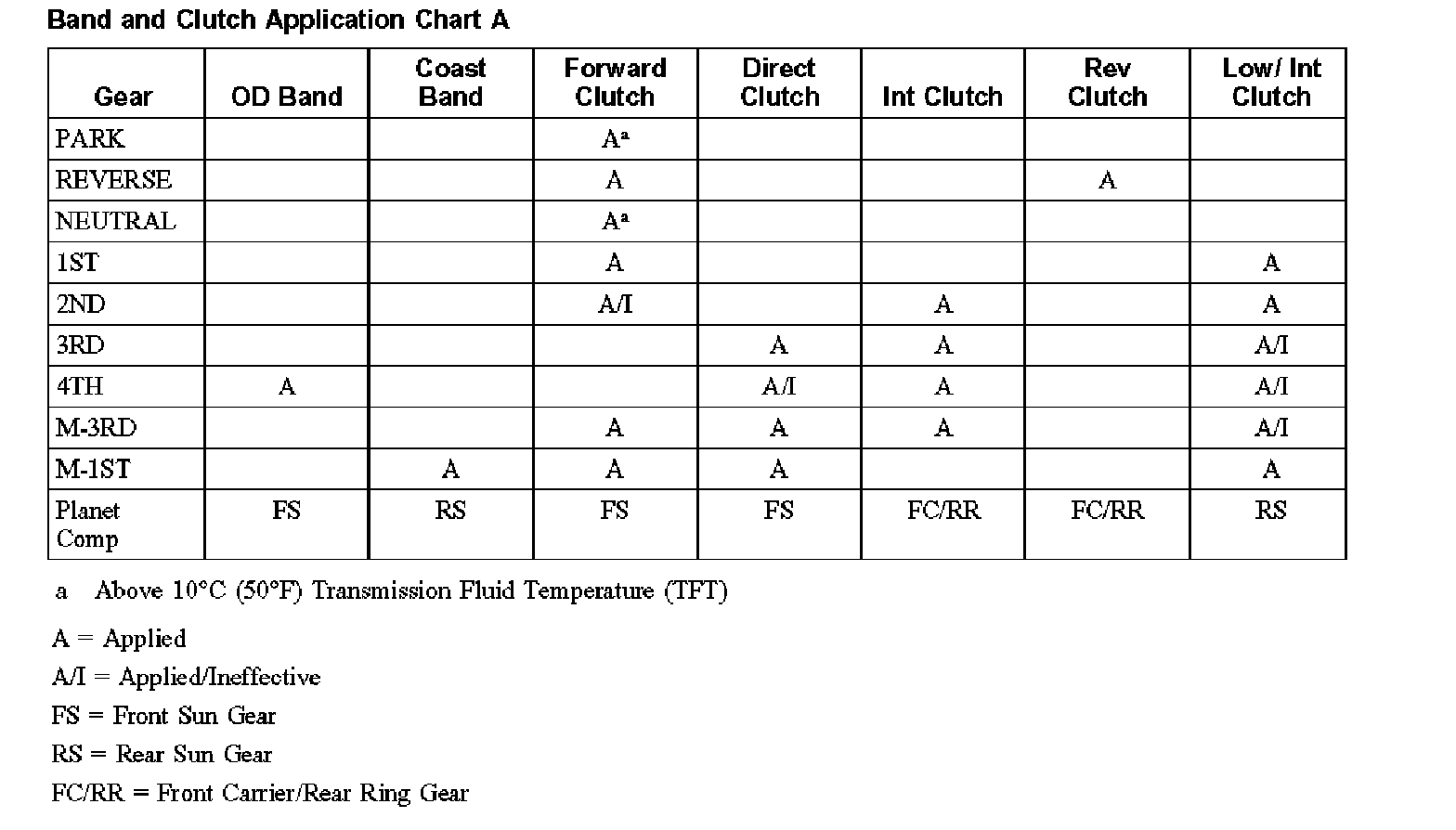

Band and Clutch Application Chart A:

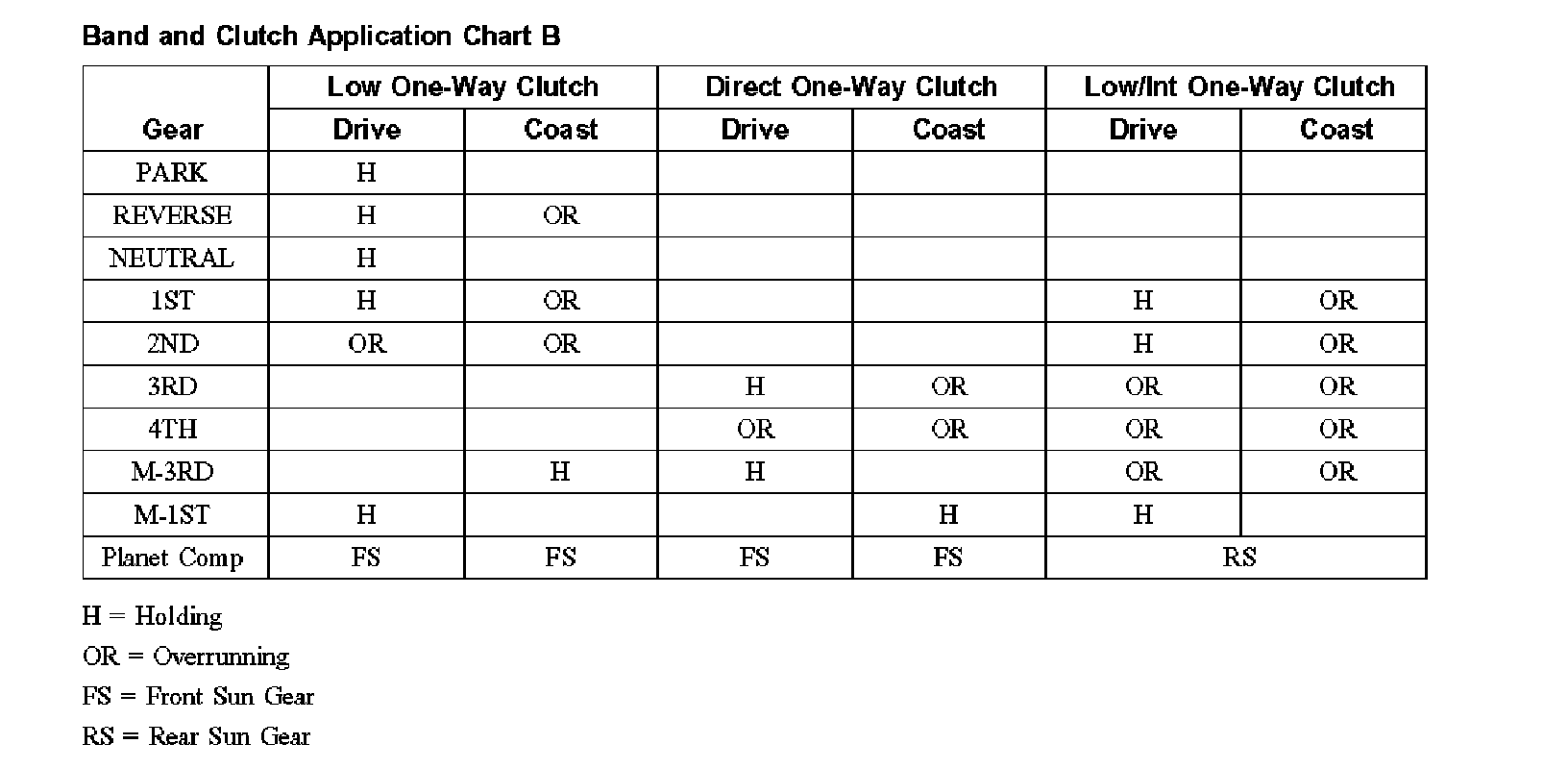

Band and Clutch Application Chart B:

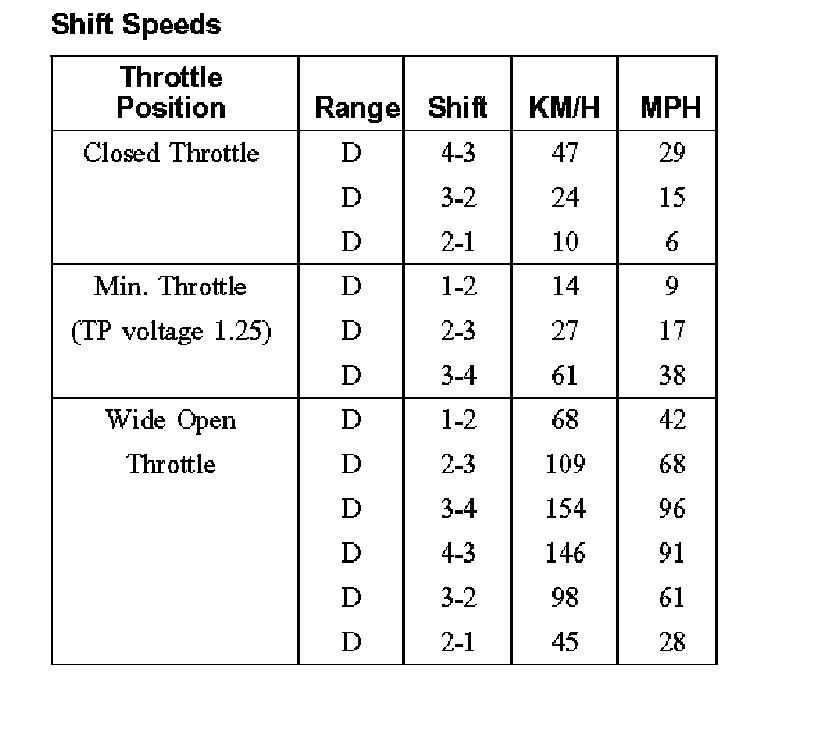

Shift Speeds:
