Oil Pan, Engine

Oil pan baffle nuts 32 Nm (24 ft. lbs.)
Oil pan drain plug 26 Nm (19 ft. lbs.)
Oil pan-to-transaxle mounting bolt 45 Nm (33 ft. lbs.)

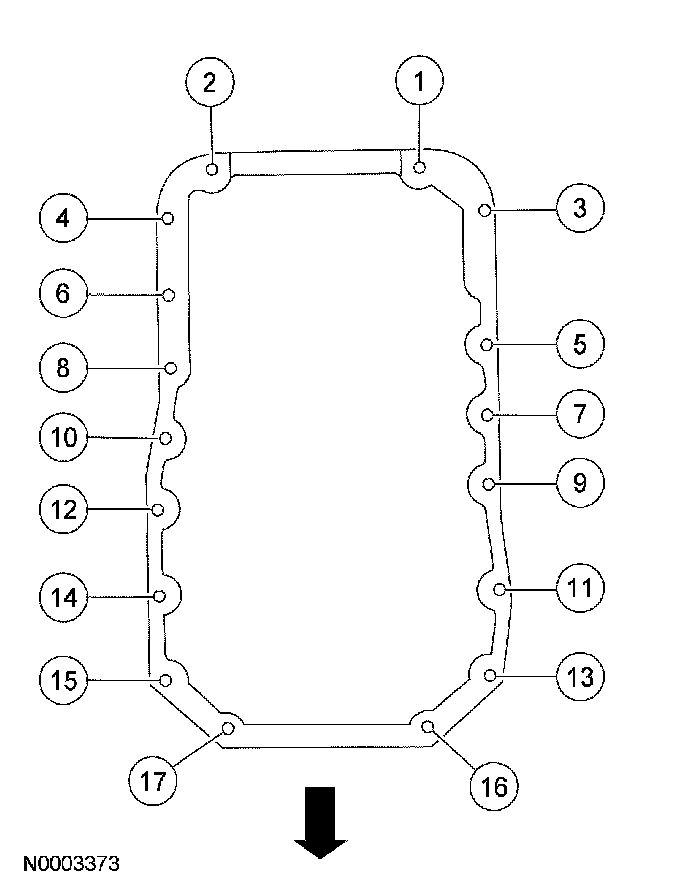

Install the oil pan and start the bolts.
^ Tighten to 10 Nm (89 inch lbs.) in the sequence shown.
Install the 3 oil pan-to-transaxle bolts.
^ Tighten to 45 Nm (33 ft. lbs.).
