System Specifications

Tensioner pulley bracket bolts 25 Nm (18 ft. lbs.)
Timing chain tensioner bolts 11 Nm (8 ft. lbs.)

Engine front cover studs
Install the engine front cover with the engine front cover studs in their original locations.
^ Engine Front Cover Studs tighten to 7 Nm (62 inch lbs.).
^ Using a new gasket, install the coolant pump.

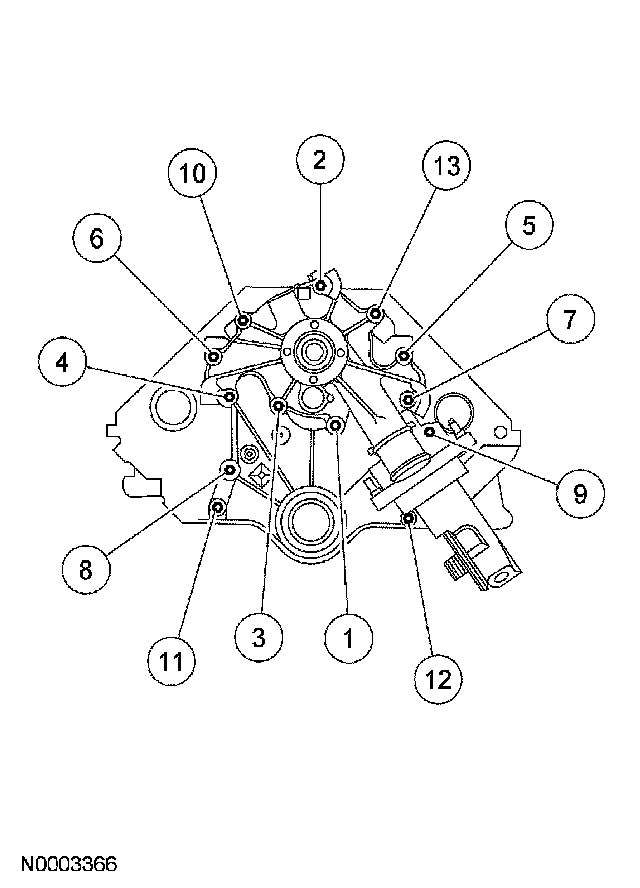

^ Tighten the fasteners in the sequence shown.





Engine front cover bolts
^ Bolt No. 12 to 10 Nm (89 inch lbs.).
^ Tighten all other fasteners to 28 Nm (21 ft. lbs.).
Install the 2 oil pan-to-engine front cover bolts.
^ Tighten to 10 Nm (89 inch lbs.).

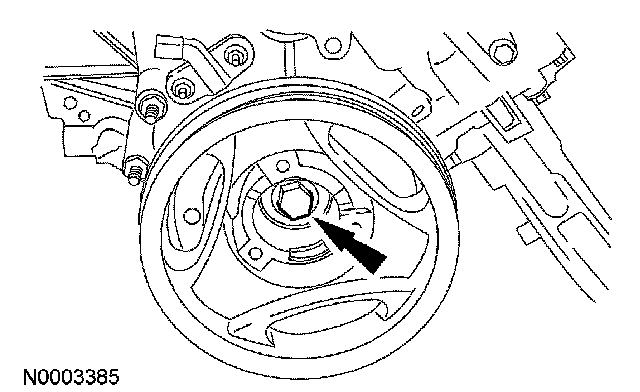

Install the crankshaft pulley washer and the bolt.
^ Tighten to 160 Nm (118 ft. lbs.).
