Seat Temperature Control Module: Service and Repair

HEATED SEAT MODULE

Removal and Installation

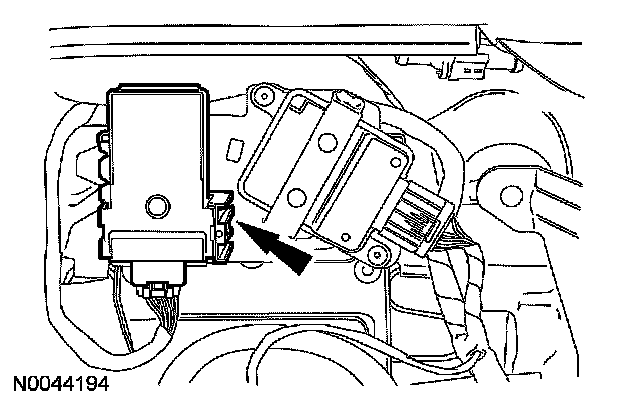

1. Release the tab in the slot and slide the heated seat module off the bracket. Disconnect and remove the heated seat module.
2. To install, reverse the removal procedure.
