General Specifications

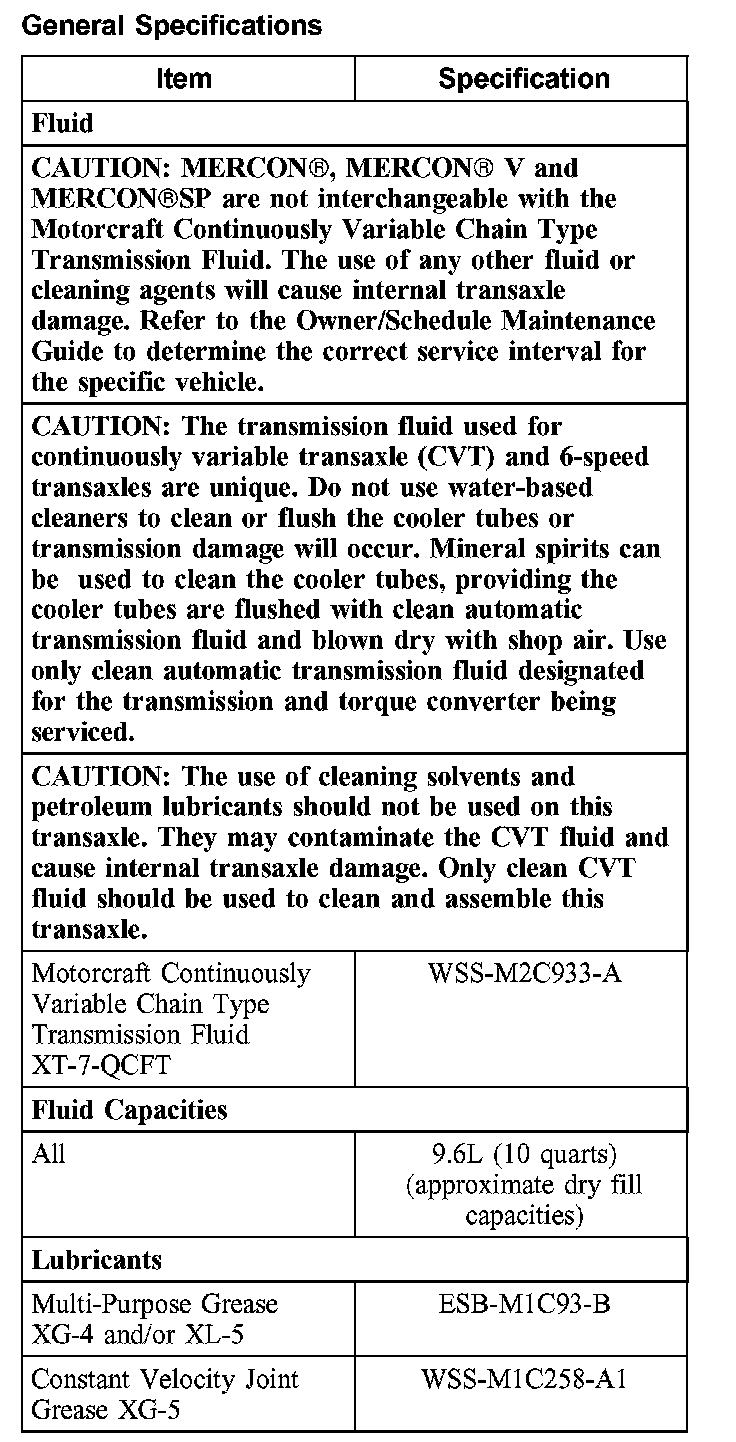

General Specifications:

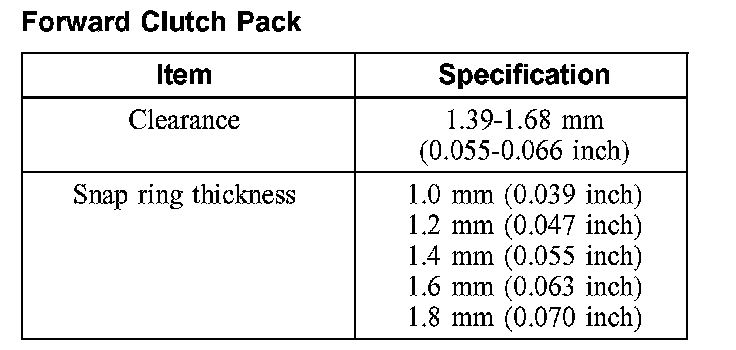

Forward Clutch Pack:

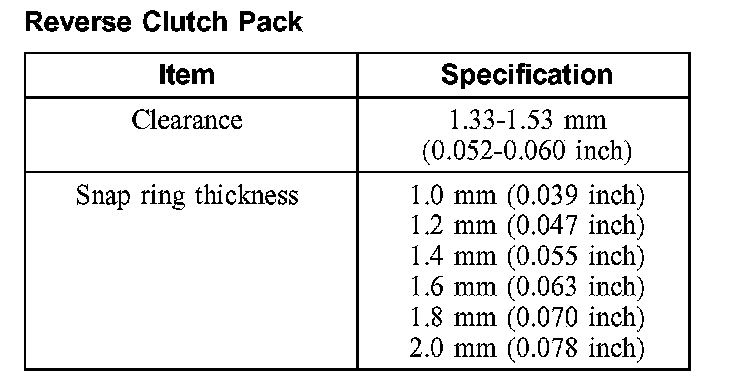

Reverse Clutch Pack:

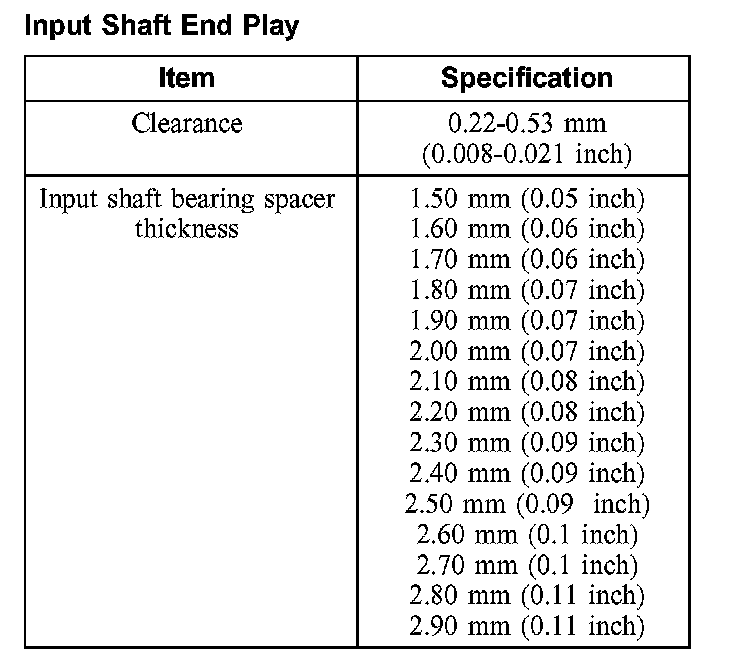

Input Shaft End Play:

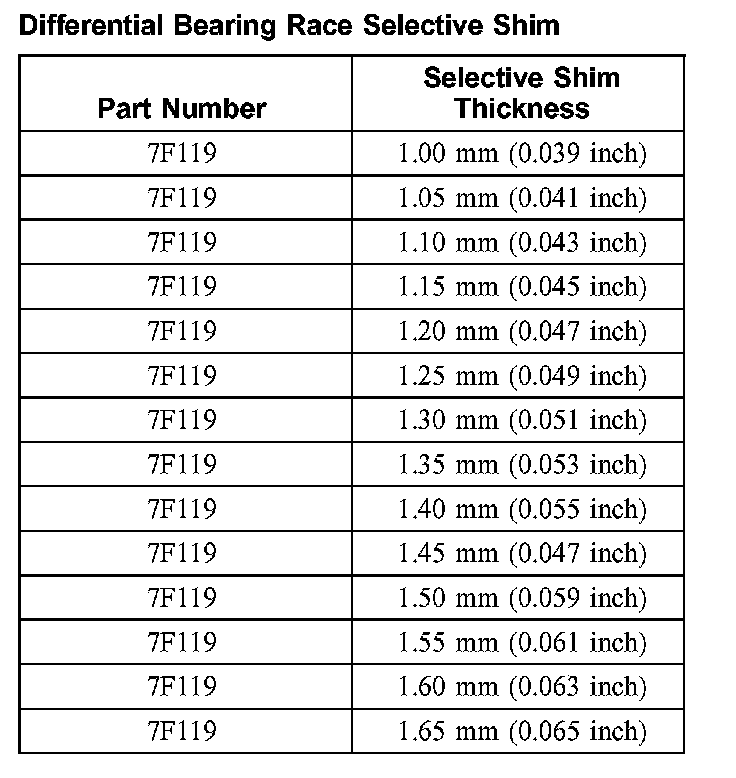

Differential Bearing Race Selective Shim:

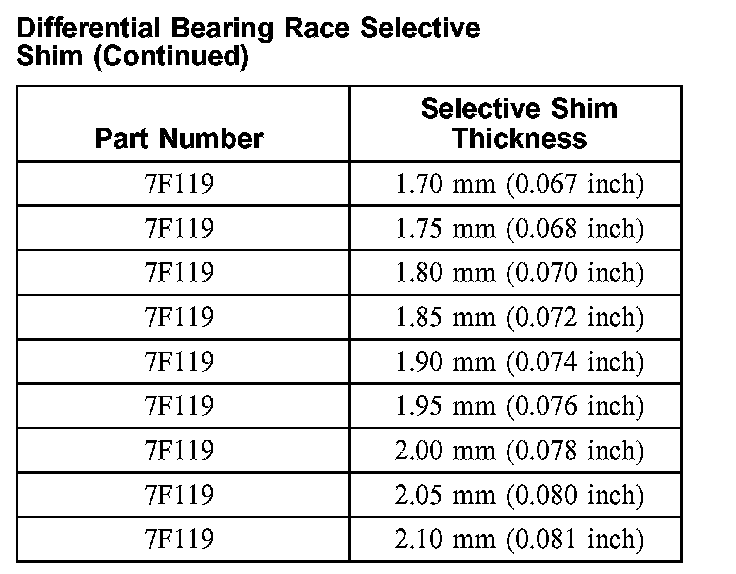

Differential Bearing Race Selective Shim:
