System Specifications

Crankshaft damper bolt
Stage 1: 120 Nm (89 ft. lbs.)
Stage 2: Loosen one full turn
Stage 3: 50 Nm (37 ft. lbs.)
Stage 4: additional 90 degrees

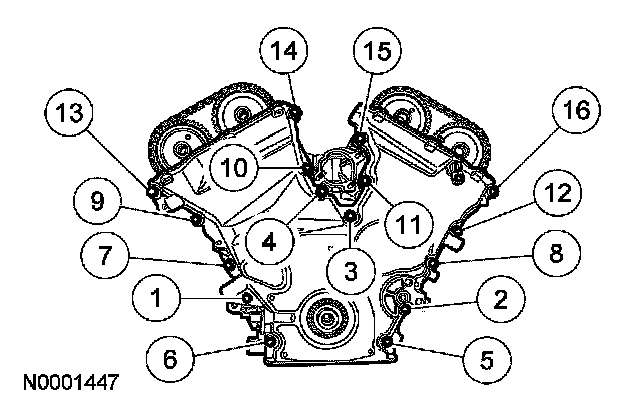

Engine front cover bolts and stud 25 Nm (18 ft. lbs.)
