Fuel Rail: Notes

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent	WSS-M2C930-A

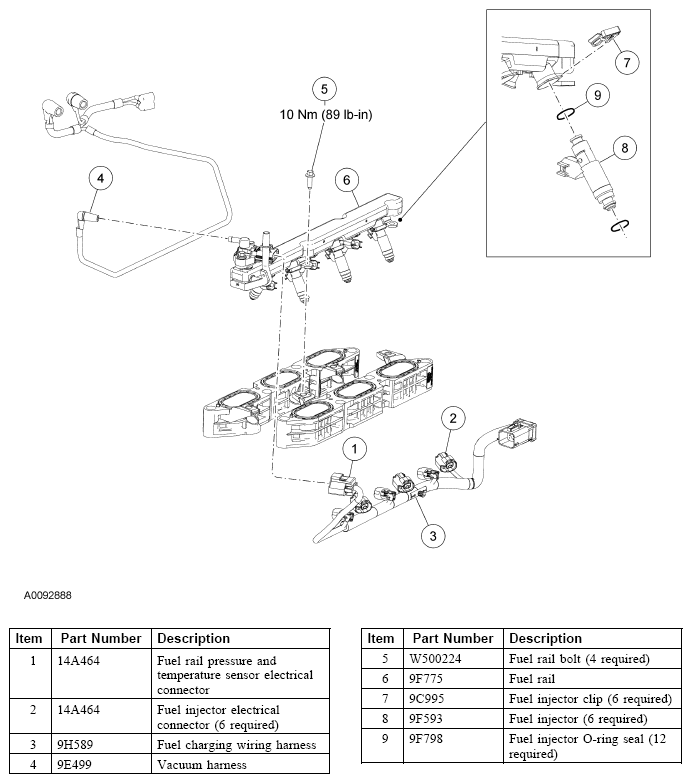

Fig 1: Fuel Rail Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
