Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

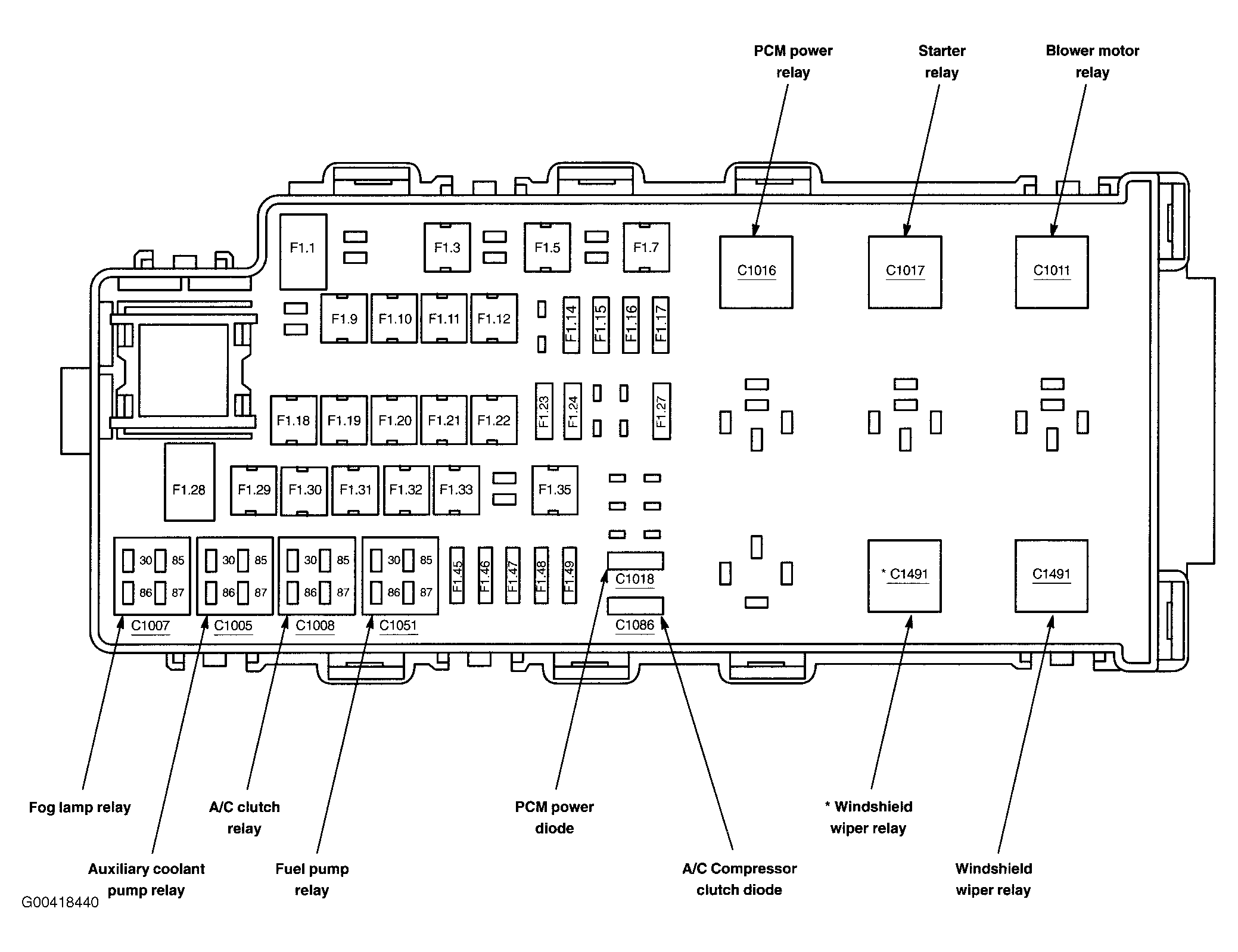

Fig 1: Battery Junction Box (BJB)
Courtesy of FORD MOTOR CO.
Fig 2: Roof (Five Hundred & Montego)
Courtesy of FORD MOTOR CO.
Fig 3: Roof (Freestyle)
Courtesy of FORD MOTOR CO.
Fig 4: Liftgate
Courtesy of FORD MOTOR CO.
Fig 5: Right Rear Door
Courtesy of FORD MOTOR CO.
Fig 6: Left Rear Door
Courtesy of FORD MOTOR CO.
Fig 7: Passenger's Door
Courtesy of FORD MOTOR CO.
Fig 8: Driver's Door
Courtesy of FORD MOTOR CO.
Fig 9: Passenger Seat
Courtesy of FORD MOTOR CO.
Fig 10: Driver Seat (W/ Memory & Heated Seats)
Courtesy of FORD MOTOR CO.
Fig 11: Driver Seat (W/O Memory & Heated Seats)
Courtesy of FORD MOTOR CO.
Fig 12: Right Rear Of Vehicle Chassis (Five Hundred & Montego)
Courtesy of FORD MOTOR CO.
Fig 13: Right Rear Of Vehicle Chassis (Freestyle)
Courtesy of FORD MOTOR CO.
Fig 14: Left Rear Of Vehicle Chassis (Five Hundred & Montego)
Courtesy of FORD MOTOR CO.
Fig 15: Left Rear Of Vehicle Chassis (Freestyle)
Courtesy of FORD MOTOR CO.
Fig 16: Right Front Of Vehicle Chassis (Five Hundred & Montego)
Courtesy of FORD MOTOR CO.
Fig 17: Right Front Of Vehicle Chassis (Freestyle)
Courtesy of FORD MOTOR CO.
Fig 18: Left Front Of Vehicle Chassis (Five Hundred & Montego)
Courtesy of FORD MOTOR CO.
Fig 19: Left Front Of Vehicle Chassis (Freestyle)
Courtesy of FORD MOTOR CO.
Fig 20: Dash Assembly (Five Hundred & Montego)
Courtesy of FORD MOTOR CO.
Fig 21: Dash Assembly (Freestyle)
Courtesy of FORD MOTOR CO.
Fig 22: Dash Assembly (Five Hundred & Montego)
Courtesy of FORD MOTOR CO.
Fig 23: Dash (Freestyle)
Courtesy of FORD MOTOR CO.
Fig 24: Engine Assembly
Courtesy of FORD MOTOR CO.
Fig 25: Engine Assembly
Courtesy of FORD MOTOR CO.
Fig 26: Engine Compartment (Five Hundred & Montego)
Courtesy of FORD MOTOR CO.
Fig 27: Engine Compartment (Freestyle)
Courtesy of FORD MOTOR CO.
Fig 28: Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 29: Identifying Parking Aid Module Components - Sedan
Courtesy of FORD MOTOR CO.
Fig 30: Identifying Parking Aid Module Components - Wagon
Courtesy of FORD MOTOR CO.
