Transmission Control Module (TCM): Notes

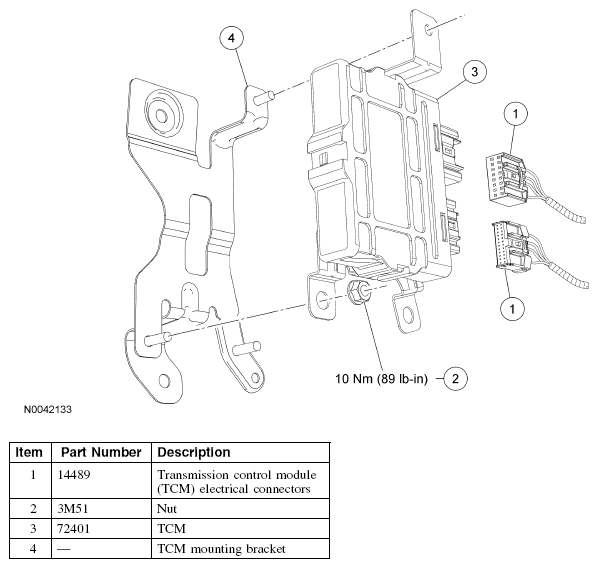

Fig 1: Transmission Control Module (TCM) With Torque Specifications
G04681852Courtesy of FORD MOTOR CO.
